This Applied Biosystems QSTAR XL MS/MS Mass Spectrometer System & Accessories was removed from a university lab where it was surplus to requirements. Unfortunately the lab did take a few parts out of the machine before passing it to us, so it is not complete, but they did also include many spares.

The lab manager reported these parts had been removed:

"We took one of the big turbos (we already had one spare in stock, so 3 seemed a bit excessive), the Spellman power supply, RF feedback detectors and the digitiser. There is a full set of boards, although I swapped out 3 that are also compatible with our Elite for older model boards. I think all the boards we had left from previous clearouts were compatible with the XL, so the boards I put in should be right, but I didn’t check them at this point."

This is the list that the lab provided:

Equipment details

Description Make Model Serial/part no.

QStar XL mass spectrometer ABSciex QStar 1007947 Y2910411

Laser box ABSciex 026124 021010601

Laser box ABSciex 1005700 1304080208

QStar part ABSciex 2040908

Nanospray ABSciex Nanospray II 26933

Turbo Pump Vacuum Oerlikon Leybold TurboVac TW690 209007 42278

Nanospray Ion Source Picoview PV 4000 410070

Heated Nebulizer MDS Sciex 019295 851020402

Heated Nebulizer MDS Sciex 019295 626000809

Turbo Ion Spray MDS Sciex 019296 1108041220

Photospray MDS Sciex 028825 481020509

Ion Sprayer MDS Sciex 017614 358001909

Ion Sprayer MDS Sciex 017614 606030226

Photospray Control Unit MDS Sciex 028857 41002

Box of QStar software, consumables and

documentation ABSciex n/a n/a

High Voltage Power Supply Bertan 2918 2229

Qstar Mass Spectrometer CCPS Applied Biosystems MDS Sciex 022175 None

VAC RDY System Controller Sciex 022172 None

HUPS Module Applied Biosystems MDS Sciex 1003005 None

Pulsar module from mass spec

QStar ESI source block MDS Sciex 017614 5005102

-----

We asked the lab manager about the spares that were provided and they reported:

"The ESI, nanospray, etc. sources would have been working when they were put away, but they have been in the cupboard for a long time because we’ve only run MALDI recently.

A few of the spares have notes written on. E.G. the Bertan power supply unit was broken, but was then repaired by an engineer when they visited who was familiar with the fault. So should be working, but as it turned out we did not ever need to fit it to one of the instruments again so we do not really know. The spare turbo has a note on saying that it was ‘squealing’. I was not around when this happened, so I didn’t hear it, but to be honest I would not risk fit a noisy turbo to a mass spec, so I would only use it if it were cheaper to send it off to be reconditioned than to buy one.

One thing that is not noted on the equipment is that the MALDI source that is currently fitted may have been leaking when it was last fitted, but we have several spares so we did not attempt to troubleshoot."

----------

All the units are in a good used condition though one Panel on the QSTAR Unit is bent.

Everything is untested unless stated otherwise.

<u>In our assessment we found the list as below:</u>

1 x QSTAR XL MS/MS Unit. We have the power cable but it was previously hard-wired in the lab so we were unable to test it.

2 x Panels For QSTAR XL Unit.

2 x Sciex Model 337201-01.

The units would not power up when plugged into mains.

1 x Sciex PhotoSpray Assy No - 029030

1 x Sciex Heated Nebulizer Assy No - 014368.

1 x Sciex Heated Nebulizer Without Probe Assy No - 019295.

2 x Ion Sprayer Assy No - 017614.

1 x Turbo Ion Spray Assy No - 019296.

1 x New Aerlikon Turbovac TW 690MS.

1 x Sciex Nano Spray Interface Assy No - 1003786.

1 x Sciex Nano Spray Interface Without Brackets Assy No - 1003786.

1 x Photo Spray Control Unit Assy No - 028857.

Unit powers up.

Unable to test any further.

1 x Pulser Module 025195.

1 x Bespoke Looking Power Supply

Product Powers up.

Unable to test any further.

2 x System Controller 022172.

1 x CCPS 022175.

1 x HVPS 1003005

1 x Bertan Model 2918 High Voltage Power Supply.

Product powers up.

Unable to test any further.

1 x Metal Cover 024176 A EMP.

1 x Metal Plate Laser Keep 025998 A EMP.

1 x Applied Biosystems Nano Spray 2 Unit With Extra Laser Head And Wire.

1 x Applied Biosystems Nano Spray 2 Not Labelled.

1 x Partial Sciex Assy No CREF100569 (Says Damaged Rotor).

1 x PicoView PV-400Q.

Plugged product into mains but nothing happened. Might need to be set up properly.

<u>Everything In The Box</u>:

1 x Mains 32Amp Cable.

1 x Hoffman Louver Filter Kit.

6 x Different Metal Plates/ Brackets.

1 x KF20/KF25 Clamp Kit.

2 x Foam Filters.

2 x Metal Handles.

1 x Assy Adaptor 1014034.

3 x Pressure Sensor 021522.

1 x Red Metal Piece 023617B.

1 x New Scholly Fibreoptic Bulb.

1 x Unlabelled Floppy Disk.

1 x Parts List For PM QSTAR.

1 x Part # 015523 Diagram Leaflet.

2 x Quadropole Optics Grid Replacement Leaflet.

1 x Circular Metal Part 022130 B

30 x Glacier Tool & Fittings.

Multiple White Tubing 011556.

Multiple White Tubing 011555.

18 x 015268 Metal Parts.

2 x Assy Nozzle Tis Upgrade.

1 x 018787 Part.

1 x Female BOM Hinge.

3 x Turbolon Spray Electrodes 018863.

4 x Turbolon Spray Electrodes 018913.

1 x Applied Biosystems Metabolite ID 1.3 Software.

1 x Applied Biosystems Metabolite ID 1.3 Software CD.

1 x Applied Biosystems BioAnalyst 1.1.5 Software.

3 x Applied Biosystems BioAnalyst 1.1.5 Software CD.

1 x Applied Biosystems Analyst QS 1.1 Software.

3 x Applied Biosystems Analyst QS 1.1 Software CD.

1 x Applied Biosystems Pro I.D Software V1.1.

2 x Applied Biosystems Pro I.D Software CD.

1 x Applied Biosystems Pro ICAT Software CD.

4 x Applied Biosystems Qualified Service Operators CD Manual.

1 x Digi Access Resource CD.

1 x Applied Biosystems Re-Imaging CD.

2 x National Instruments NI-488.2 CD.

1 x Eaton Intelligent Power Software Suite CD.

1 x Applied Biosystems QSTAR XL Software CD.

1 x Serial Solutions Products CD.

1 x Dell Application Software CD.

Multiple 6600447 Wires.

1 x Used Cathodeon Photonisation Lamp.

1 x Nanospray 2 Sticker 1014600.

2 x Applied Biosystems Metabolite ID 1.2 Booklet.

1 x Instructions For Installing Optional High Repetition Laser Upgrade.

2 x PicoTip Mounting Adaptor Instructions.

2 x Applied Biosystems Software License Agreements.

1 x Leybold Pump Replacement Booklet.

1 x Analyst QS 1.1 Software Booklet.

1 x Applied Biosystems Analyst QS Admin Guide.

1 x Applied Biosystems Peripheral Devices Setup Manual.

1 x Applied Biosystems QSTAR XL System Hardware Guide.

2 x Applied Biosystems Analyst QS Getting Started Manual.

1 x Applied Biosystems QSTAR Nanospray Operators Manual.

1 Applied Biosystems Lab Directors Guide.

1 x Applied Biosystems LC Devices Setup Manual.

1 x Applied Biosystems Photospray Ion Source Operators Manual.

1 x Applied Biosystems API QSTAR Site Planning Guide.

1 x Applied Biosystems BioMultiView Operators Manual.

1 x QSTAR Nanospray Upgrade Instructions.

1 x TurboVac TW 690 MS Operating Instructions.

4 x New Objective PicoView Leaflets.

1 x New Objective PicoView Instructional Manual.

1 x StockerYale Model 21AC Operating Instructions.

1 x Dell Precision workstation System Information Guide.

1 x Nano-Electrospray Installation And Operation Manual.

1 x QSTAR NanoSprsy Arm Installation Manual.

1 x New Focus triple-Divide Series Model 9064 User Guide.

1 x PE Sciex Heated Nebulizer Inlet Operators Manual.

1 x Hose Clip & Wing Nut.

Multiple Screws And Washers.

Multiple Cables & Wires.

Please note that the table in the pictures is not included.

System is sold as spares / repairs as it will either require a rebuild or to be sold for parts.

Please note the shipping rate presented is for delivery of the system on a pallet assuming that you can unload via forklift truck. If you require other forms of delivery please let me know as we can supply  aquote.

Finnigan Mat LCQ Mass Spectrometer System.

This unit was removed from a lab during a clear out.

Unit is in reasonable used condition.

It has not been powered on as various wires are disconnected inside.

We cannot confirm the operational condition of this unit.

Front panel also appears to be missing.

The lab notes it as spares or repairs.

Finnigan ion trap mass analyser (detector only).

No turbo pump or gas valve.

Please see photos for further details.

We can provide many more photos if required.

This Fisons GC 8000 Series Mass Spectrometer was removed from a university lab where it was surplus to requirements. The lab manager assured us the system was in good working order when last used.

The units are in good, used cosmetic condition but do have various marks from use. The catch for the carrier controls door is broken but it doesn't affect the operation of the unit and the door can still be opened.

Both units power up fine, but we have not tested them any further at our site.

Fisons GC8000 Series Mass Spectrometer System GC8160-00 & EL980

This unit was removed from a university lab where it was surplus to requirements. The lab manager assured us this system was in working order when last used.

The unit is in good, used cosmetic condition and both units power up fine, we have not tested any further at our site.

The system comprises of:

1 x Fisons GC8160-00 & 1 x Fisons EL980.

It also comes with some cables and pipework.

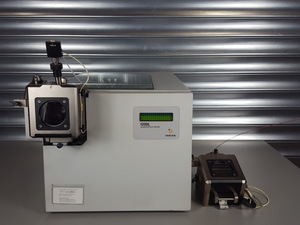

This Hiden Analytical Hal Quadrupole Mass Spectrometer HAL2 201 & Laser Unit was removed from a university lab where it was surplus to requirements.

The Mass spectrometer unit is seemingly powering on as we could hear the fans running when it is plugged in. The power switch and screen however do not illuminate. We are unsure of the fault. The unit is in reasonably good condition but has some marks from use. There is also a foot missing underneath.

The laser unit has not been tested, but the power supply unit for it powers up.

Included in total is;

1 x Hiden Analytical Hal Quadrupole Mass Spectrometer HAL/201 3F

1 x Laser Unit HAL/201

1 x Power Supply

Connecting cables

This unit was removed from a chemistry lab as surplus to requirements.

The lab assured us it was in full working order prior to removal.

We have only tested it to power-on ourselves.

This Scientific Analysis Instruments SAI LaserTof LT3 originated in a working laboratory in a top UK University and came to us as part of a Lab clear out.

We were assured by our contact at the University that the machine was working when removed.

This Thermo Finnigan GC System was removed from a university laboratory where it was surplus to requirements.

All the units are in good, used cosmetic condition but they do have various signs of use.

The system consists of:

1 x Trace GC Gas Chromatograph

1 x Polaris Q Mass Spectrometer

1 x AS 3000 Autosampler. There appear to be some pieces of the autosampler missing.

Both the GC and Mass Spec units power up fine but we were unable to test them any further. The Autosampler has not been powered up, as it requires a 24volt PSU.

This Thermo Finnigan MAT95 XP Mass Spectrometer is being sold on behalf of a client. It is surplus to requirements.

The unit is in good cosmetic condition and still under vacuum. The unit had a digital frame failure - unfortunately an onboard fan failed, and then the unit overheated. But, there is a spare digital frame that can be swapped in, but it has not been attempted.

There are a huge variety and number of spares for this instrument included in the sale due to de-commissioning and donation of parts from other machines of the same model in the past.

Also comes with two edwards vacuum pumps and a chiller. There are a number of turbo pumps inside the unit also.

This Thermo Finnigan PolarisQ Ion Mass Spectrometer System was removed from a lab as surplus to requirements.

All the units power on but we were unable to run further testing. Everything is in reasonable cosmetic condition but has been used previously.

Included with this system:-

Thermo Quest

Model - Trace GC 2000

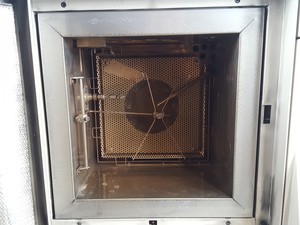

Inside oven dimensions - Height - 17cm x Width - 17cm

Thermo Finnigan

Model - Polaris Q - Mass Spectrometer

Edwards Pump

Model - RV5

Thermo Finnigan Auto Sampler

Model - AS 3000

Requires 24V DC Power supply which is not included (item was tested with our own power supply which is not included)

Also included:-

1 x Half bottle of Vacuum Pump Fluid

1 x 3/4 Full bottle of Hydrocarbon Oil

Paperwork of Service Report, material data sheet & parts list.

This system was removed from a university lab as surplus to requirements. The lab manager assured us it was in good working order when last used.

However unfortunately they have not been able to remember the PC's passwords, so as of yet, we have been unable to access the PC. Prior to dispatch, we may have to remove the hard drive, unless we can find some alternative solution. Please enquire and we can discuss it further.

The system comprises of:

1 x Finnigan Trace GC Ultra

1 x Finnigan Trace DSQ Mass Spectrometer

1 x Dell PC with keyboard, monitor, mouse and interface card

1 x Thermo ION Volume Insertion/Removal Tool in case.

Various cables and leads.

1 x Helium Gas Regulator.

This system was removed from a university mass spectrometry facility that was closing down.

As part of a university efficiency drive departmental mass spectrometry facilities were closing and being replaced with central facilities. This system was no longer required. Please note the table shown in the photos is NOT included.

It was in full working order, and only used by a relatively small department, but was maintained by a dedicated facility technician.

Whilst we have not tested every part, we were assured the system was essentially in good working order, though given the number of components, some minor servicing might be required. We are happy to discuss warranties with you to provide you assurances for the purchase.

The system consists of:

1 x Dell OptiPlex 7050 Windows 7 PC with Isodat 3.0 software installed.

It comes with a screen, keyboard, and mouse.

The unit powers up fine and appears to work as it should.

It has various interface cards installed.

1 x Thermo Finnigan Delta Plus XP.

The unit is in good cosmetic condition.

1 x Thermo Finnigan Trace GC Ultra.

Version 4.07 2003.

1 x Peltier Thermostat MN 03-00 Rev C.

This unit doesn't appear to power up and has not been tested.

1 x CTC Analytics MN 01-00 Rev E.

The unit powers up but was not tested any further.

1 x Thermo Finnigan GC Box.

The unit powers on but has not been tested further.

1 x Thermo Finnigan Gas Bench 2.

It powers up fine but the power switch is faulty. It works but will require replacement. Part of the readout LED is dim so the numbers don't appear totally correctly.

1 x Thermo GC/TC Reactor OD.

The display seems to just flash 1999 when powered up. The display is also a little dim.

1 x Thermo Finnigan GC Combustion/Interface III.

The unit powers up fine but the Ox Reactor screen flashes 1599 and part of the LED is a bit dim. The red Reactor screen shows 35.

1 x Agilent Technologies ADM1000 Universal Gas Flowmeter.

It requires a 9v battery to run. It powers up and appears to run fine.

1 x Claude Lyons TS Voltage Stabiliser.

TS 333 10.

The unit is in good cosmetic condition but the back panel is slightly bent. We were unable to test this unit.

1 x Box of various cables for the system plus used pipework. This will probably all require replacement.

Also included are some software CDs. We believe these are for the PC OS.

1 x Thermo Finnigan Sample Tray Thermostated.

The unit powers up and is in good, used cosmetic condition, but it does have signs of use.

The main cables have been slightly cut, but have been taped and still appear to work fine.

The setpoint was set to 37degC but the block well exceeded that temperature so we're not sure how accurate or stable it is. It comes attached to some sort of base unit but this can be removed easily if need be.

The heating bock measures: 33cm L x 32.7cm W x 13.5cm High.

The tube holes are 16mm x 86.3mm without the cover and approx 8.9mm with the cover which appears to be a hole size reducer.

There are 96 holes.

Please note that the table in the main picture is NOT included in the sale.

This Thermo Finnigan Trace GC System was removed from a university laboratory where it was surplus to requirements.

All the units are in good, used cosmetic condition, and all power up. We were unable to test them further than this, however.

The system consists of:

1 x Finnigan Trace GC Ultra With TriPlus AS Autosampler.

1 x Thermo TP100 Sampler Supply

It also comes with some spares and cables.

This system was removed from one of our university clients sites as surplus to requirements.

Whilst we have not tested the system, we were assured it was in full working order, but no longer needed by the lab.

The system includes:

2x Varien 949-9392 Oil Exhaust Filter NW25

Agilent DS402 Vacuum Pump Sr# IT1429A265

LC Packings Ulti Mate Dual Gradient Sr# 2004-0860

LC Packings Switchos Sr# 2004-2662

LC Packings Famos

Ultrak KM0900MN Video Monitor Sr# M2020354

Allied AT-FS705L WebSmart Switch Sr# L02E6076G

Thomas 2750TG Pump Sr#10100010859

Thomas 2750TG Pump Sr#091300025173

Thomas 2688TG Pump Sr#101300005459

Sogevac SV 40 BI

Leroy Somer Varmeca

Edwards E2M30 Sr# 046325156 Wt. 44KG

Edwards Oil Mister Filer EMF 20

Edwards LCP2026EKA Valve Sr# 004011499

Dell Optiplex GX620 Tower System

Spark 920 Sr# 40041

Thermo Scientific Finnigan Micro AS

Thermo Scientific Finnigan Surveyor MS Pump Plus

Micromass Unit#4176 Sr#7022
