Crestron MPC-M20

Item Code: ITEM-02247

Condition: Used

Brand: Crestron

Location: Wales

£ POA

Not in stock

SOLD - Unfortunately this item is no longer available. However, we may have similar items available for sale. Please get in touch with us at , or by phone on +44 29 2086 4661.

Description

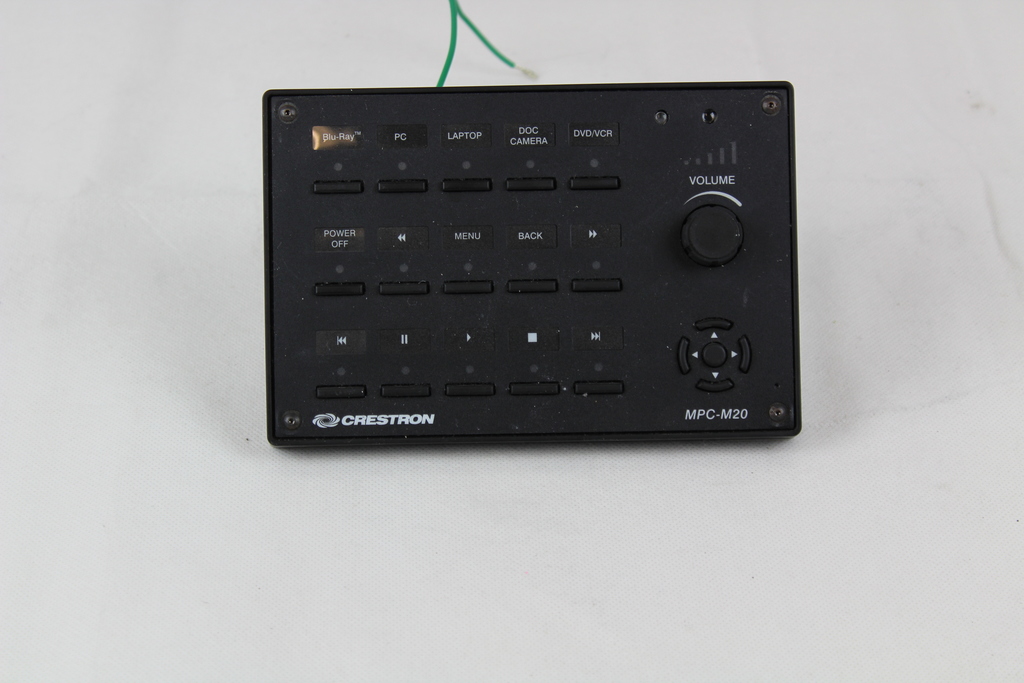

The Crestron MPC-M20 is a 3-gang wall mount Crestron control system with 15 programmable buttons, customizable backlit labeling, LED feedback, 5-way nav pad, volume control knob, and 11 various control ports.

Technical details

Processor

CPU 32-bit Freescale ColdFire® Microprocessor

Memory

SDRAM 32 MB

NVRAM 256 KB

Flash 8 MB

Connectors

NET (2) sets of (4) captive screw terminals;

Cresnet port and 24 Volt DC power input with parallel pass-thru;

Master/Slave selectable

LAN (1) 8-wire RJ45 with 2 LED indicators;

10/100BaseT Ethernet port;

Green LED indicates link status;

Yellow LED indicates Ethernet activity

COM (5) captive screw terminals;

Bidirectional RS-232 port;

Up to 115.2k baud; hardware and software handshaking support

RELAYS 1 – 2 (3) captive screw terminals comprising (2) normally open, isolated relays (with shared common);

Rated 1 Amp, 30 Volts AC/DC;

MOV arc suppression across contacts

IR (2) captive screw terminals;

IR/Serial output port;

IR output up to 1.2 MHz;

1-way serial TTL/RS-232 (0-5 Volts) up to 115.2k baud

INPUTS 1 – 4 (5) captive screw terminals comprising (4) digital or analog input ports (referenced to GND);

Digital Input: Rated for 0-24 Volts DC, input impedance 20k ohms, logic threshold 1.25 Volts DC;

Analog Input: Rated for 0-10 Volts DC, protected to 24 Volts DC maximum, input impedance 20k ohms;

Programmable 5 Volts, 2k ohms pull-up resistor per pin

Computer (1) USB Type B female (behind front cover);

USB 1.1 computer console port

Ground (1) flying lead, chassis ground wire
