Leica CTR 6000 TCS SP5 Laser Scanning Confocal Microscope

This system was removed from a laboratory where it was surplus to requirements.

The system powers on, with all units functional, including the stage and light sources.

According to the previous owner, the system features a Leica SP5 confocal with 3 PMT and 2 hybrid detectors, along with an FCCS system that includes 2 SPAD detectors. The filters for the detectors are beginning to delaminate and will need replacing. The SP5 computer is relatively new and has been updated to Windows 10. A full environmental chamber for temperature and CO2 control is also included.

The system consists of:

• TCS SP5 Control Desk, Microscope, and Scan Unit (Serial No. 510000038, Year: 2007)
• Leica CTR 6000 Controller (Serial No. 280210)
• Leica CMS Detection Unit (Part No. BS054407)
• Leica APD Detection (Serial No. 65031)
• Leica Scan Head/Trigger Box (Serial No. 0051)
• Leica Switch Console V3 (Serial No. 0028960)
• Leica Cooling Fan and Flexible Duct (Part No. 1531229001)
• Leica Mercury Lamp Box (Type 11307072071/BZ)
• LEJ Mercury Bulb Controller (Type ebq 100mc-L, Serial No. 06 2380802161, 217 hours bulb run time)
• Leica Stage Controller (Part No. 11505180)
• The Box polycarbonate microscope enclosure
• The Cube CB02A Enclosure Heater with probe (Serial No. 10585)
• The Brick Air Humidity and CO2 Regulator (Serial No. 10654)
• Gecomp PC running Windows XP Pro (Serial No. 071362)
• HP Z4 PC running Windows 10 (Serial No. CZC026C55L, Product No. 1JP11AV)
• 2 x NEC 1990SXi Monitors (Serial Nos. 6Z009731YB, 6Y008209YB)
• Cherry Keyboard (Model MY 3000 USB, Serial No. G0006934)
• HP KB-1469 Keyboard (Serial No. 803180-L31)
• 2 x HP Mice (Part Nos. 672651-001, 458407-002)

The microscope is fitted with five objectives:

• Leica 784 HCX PL APO 100x/1.4-0.7 oil cs
• Leica 510 HCX PL APO 63x/1.4-0.6 oil cs
• Leica 214 HCX PL APO 20x/0.70 1MM corr bl
• Leica 506251 HCX PL APO 40x/1.25-0.75 oil
• Leica 506279 HCX PL APO 63x/1.2 W corr cs

Additional components:

• Twin binocular eyepieces HC PLAN s 10x/125 M
• 7 x colour filter and mirror blocks, 2 x filter block covers
• 12 x stage parts
• 1 x humidity water cylinder for The Brick

Included Software & Manuals:

• Leica Software Discs: Confocal Software v. 2.585 (2x), LAS AF v. 2.73-9723, SP5 WS Premium Recovery, SP5 SP8 Standard G4 Recovery W10, SP5 Workstation Recovery
• 2 x copies of Windows XP Professional OS
• Manuals: Newport PR 50 compact high-speed rotation stage, Coherent Sapphire 488-20 & 410-10 OEM Laser, The Brick operating manual, The Cube 2 temperature controller manual

Leica Microsystems Type - TCS SP2 Confocal Microscope System Lab

This system was removed from a university where it was surplus to requirement.

All units are in good cosmetic condition and powered up, we are unable to test them fully at our facility.

There is a fault with the interlock microswitch in the microscope, thus preventing the unit from recognizing the laser being present.

The previous client has stated that other than the fault stated, it is in full working order.

Has Argon-ion laser, HeNe red, HeNe green and LED 405nm fitted.

The system comprises the following items:

Leica Microsystems

Type - TCS SP2

SN - 198192

Desk Dimensions - L131 W96 H83cm

Anti-Vibration Table dimensions:-

Frame - L66 W52 H70.5cm

Table top - L72 W69 H3.5cm

Has Laser fitted:-

Coherent Laser

Part no. 1040260/AC

Wavelength/Power - 408nm/25mW

SN - AC-6

Leica DMIRE 2 Microscope

Type - 11090134072

11888240 262051

2 x Eyepieces HC PLAN S 10x/22 (507807)

Leica Condenser 0.53 S 23 (521500)

Leica C Mount Adaptor 0.5x : 1/2" = 16 (541511)

4 x Objectives:-

Leica ∞/0.17/D HCX PL APO 63x/1.32 OIL PH 3 CS (506182)

Leica ∞/0.17/E HCX PL APO 63x/1.40-0.60 OIL (506192)

Leica ∞/0.17/E HCX PL APO 40x/1.25-0.75 OIL CS (506179)

Leica ∞/0/D HC PL FLUOTAR 10x/0.30 PH 1 (506507)

Leica CTR MIC

Stand - 11888240

SN - 262051

Leica Power Supply for DiodeLaser COH 405nm, 25mW

PN - 1530910001 03

SN - 42127

Leica Light Source Power Supply

Type - 301-185. 104-000

SN - 252369

Leica Control

SN - 22894

Leica Lamp

Type - 11307072058

AOC Colour Monitor

Model - 9Glrs

SN - 9PPG0AD001924

Leica PC

Samsung SyncMaster 192v 19" Monitor

Microsoft USB Mouse

Cherry PS2 Keyboard

Opto-Electric AA.MOD.nC Multi-channel PLL Driver

SN - 24087

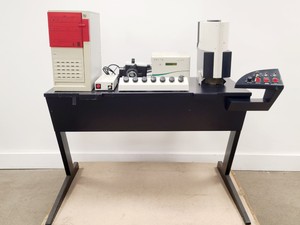

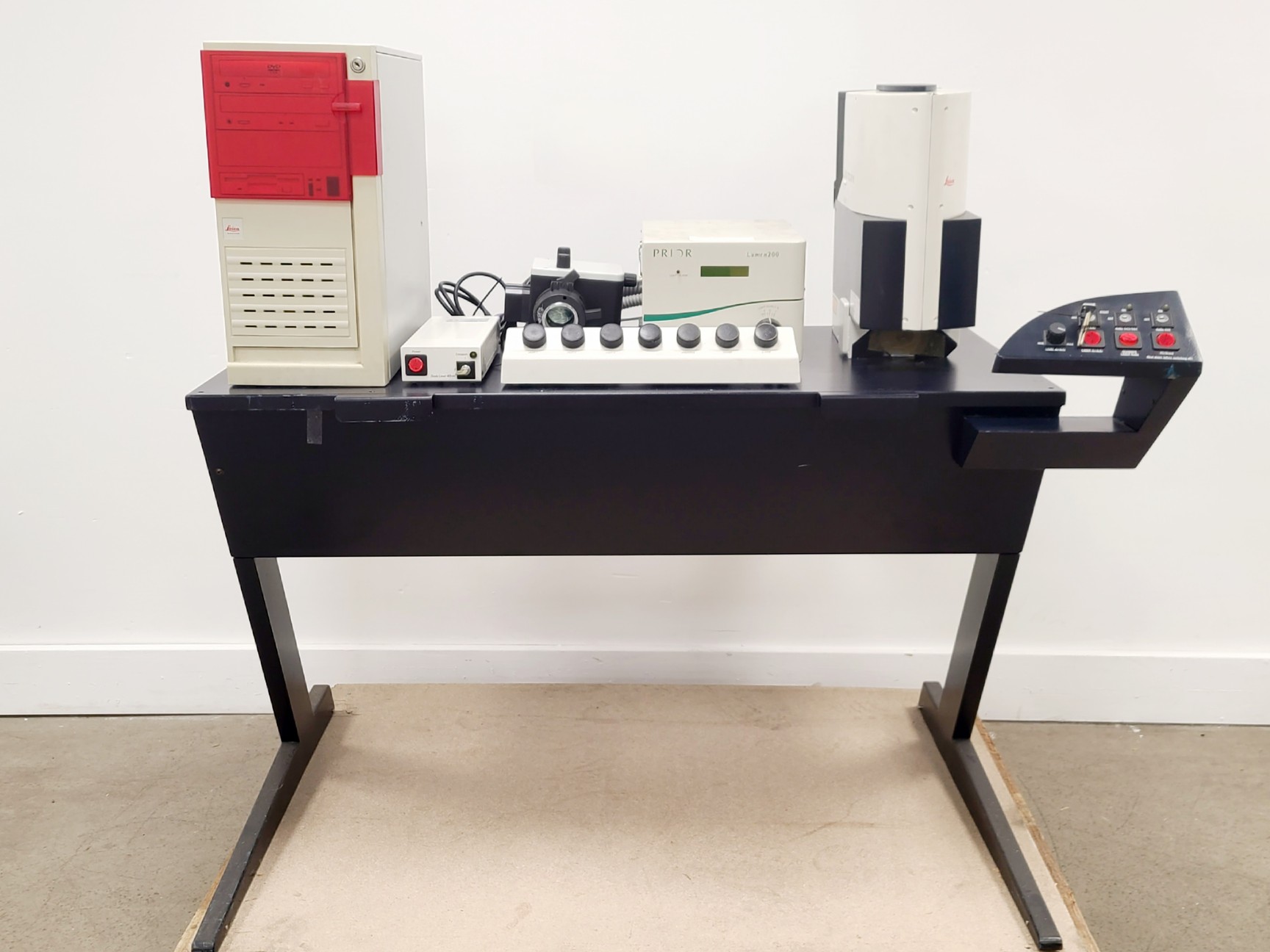

Leica Microsystems Type - TCS SP2 Confocal Microscope System

This was removed from a university lab where it was surplus to requirements.

What is included is in good working order, but the system is not complete.

It is missing the following;

Table top

Cooling unit

Microscope isolation table

Camera

Flexi tube for prior unit.

Bulb for prior unit.

There may be more missing parts, but we are unable to confirm.

It is in good cosmetic condition with minor marks.

Included are;

Leica TCS SP2 Microscope

Model: RCS SP2

Serial#: 142400026

Attached to microscope:

Leica ∞/0.17/E HCX PL APO 40x/1.25-0.75 OIL CS

Leica ∞/-/C HC PL APO 20x/0.75

Leica ∞/0.17/E HC PL APO 10x/0.40 CS

2 x Eyepieces HC PLAN S 10x/22

Leica Condenser 0.53 S 23 (521500)

Leica C Mount Adaptor 0.5x : 1/2" = 16 (541511)

All other items included:

Prior Lumen200

Model: L200/C

Serial#: 70808

Ernst Leitz Wetzlar Gmbh

Type: 307-072.45

Hg 100 W Bulb

Leica Power Supply for DiodeLaser COH 405nm, 25mW

Part#: 1530910001 03

Leica DM R Manual

Leica Confocal Software

Leica TCS User Manual

Leica PC with Software installed.

Leica Dust cover for Microscope and PC.

Leica DM2500 Confocal Microscope System w/ Application Suite X Software Lab

This system was removed from a laboratory where it was surplus to requirements.

The client has stated the following: "The systems are fully working and Leica still offer user support for the systems if the new owners so wish. "



The system is in good cosmetic condition.

All units power up and communicate through the included Leica Application Suite X software.

However, there is no camera included, so microscope images cannot currently be viewed via the PC.

The system consists of:

• 1 x Leica DM2500 microscope
• Fitted with:
• 1 x Leica 1531144511 Stage
• 1 x Leica 11504058 Lamp
• 1 x Leica 15-6504-202 Light Supply
• 1 x Leica 1531323 Mirror Junction Box
• 2 x Leica 507802 HC PLAN 10x/20 Eyepieces
• 1 x Leica 507902 ACS APO 10x/0.30 CS Objective
• 1 x Leica 507900 ACS APO 63x/1.30 OIL CS Objective
• 1 x Leica EL6000 BZ02 with Lightpipe (LCD screen may be faulty, lamp timer not functional)
• 1 x Leica TCS SPE Laser Head with Leica Supply Unit RGBV
• 1 x Life Imaging Services 'the box' environmental chamber (with 2 x hoses)
• 1 x Speirs Robertson Isolation Plate (75cm x 90cm x 5.5cm)
• 1 x HP Z420 PC with 2 x Monitors, Keyboard & Mouse (running Leica Application Suite X 3.1.2.16221)
• Includes Leica TCS SPE to SPE II USB licence stick

Bio-Rad DVC250, Conix Research/Bio-Rad Computerised Z-Motor & Sony ExwaveHAD 3CCD Colour Video Camera

This item was removed from a university where it was surplus to requirements.

All included units are in a reasonable, used cosmetic condition, but they have not been tested as a complete system.

Both the Bio-Rad DVC250 & Conix Research/bio-Rad Computerised Z-Motor power on, we are unable to test the Sony ExwaveHAD 3CCD Colour Video Camera due the power supply not being included.

Specifications:

• Bio-Rad DVC250
• Serial No.: Demo 01
•

• Conix Research/Bio-Rad Computerized Z-Motor
• Product No.: 31003
• Serial No.: 12015

• Sony ExwaveHAD 3CCD Colour Video Camera
• Model: DXC-390P
• Serial No.: 400638

Included:

• RGB cables
