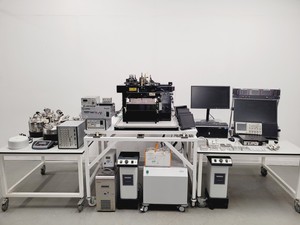

BD Influx Cell Sorter Flow Cytometry 5 - Laser Complete System

This system was removed from a university laboratory where it was surplus to requirements.

The previous owner has stated the system is in complete working order, other than the blue 488nm laser that failed prior to decommissioning.

All power cables, data leads and AC adapters that are required appear to be present.

The BD Influx Cell Sorter is equipped with a small particle option and features 18 PMT detectors and 6-way sorting capabilities. It includes nozzle tips in sizes of 70, 86, 100, 140, and 200um, and allows for both plate and slide sorting.

Key Components:

• Ametek TMC Vibration Control Clean Top Breadboard: Size 102 x 77 x 6 cm, with a 1" spaced matrix of UNF 1/4" -28 threaded holes, mounted on a 4cm tubular steel trolley (130 x 110 x 95 cm).
• Thermo Scientific Haake A10 SC100 Recirculating Chiller
• Ekom DK50-10S/M-RO-3V Oil-Free Compressor/Vacuum Unit: Running hours 276.
• 2 x Surgimedics Surgifresh Mini Turbo Air Enhancement System
• Various Laser Control Units and Power Supplies
• Ohaus Scales ES Series Model ES30R
• HP Z 400 Workstation PC: Windows 7 operating system with BD FACS Sortware 1.0.0.650.
• Mini PC Box with Windows XP Pro

Manuals included:

• 1 x BD Infux operators manual
• 1 x BD influx getting started guide
• 1 x Tektronix TDS 2000C Series oscilloscope user manual
• 1 x Coherent Genesis 355 operator manual
• 1 x Thermo Haake C10 instruction and maintenance manual
• 2 x Surgifresh Turmo manual
• 1 x Ekom DK50-105/M instruction manual

Software and Information Discs:

• 1 x BD 641532 DVR-R
• 1 x HP Windows 7 Pro operating system disc
• 1 x HP Windows 7 Pro recovery disc
• 1 x Roxio Creator Business disc
• 1 x Coherent OPSL software drivers ver 3.6.2
• 1 x Tektronix TDS200C product documentation and connectivity software
• 1 x National Instruments LabVIEW Signal Express Tektronix Edition ver 2.5.1

The lasers fitted are:

• Xcite 355um - 100mW
• Melles Griot 405um - 100mW
• Sapphire 488um - 200mW (not functional)
• Cobolt Jive 561um - 150mW
• Melles Griot 640um - 120mW

Parts and Consumables:

• 1 x Ashcroft 30psi pressure gauge part 10376474-1
• 1 x Ashcroft 100psi pressure gauge part 888064
• 2 x packs of tubing part No. 348962
• 3 x packs of tubing with end connectors part Nos. 700000146, 700000173, 700000381
• 2 x packs of pink tubing Ref. 646013
• 7 x Whatman Inlet Valves No. 17012981
• 3 x nozzle holders No. 645223
• 1 x gasket o-ring
• 1 x injector holder
• 2 x packs of small o-rings
• 1 x packs of small screws
• 1 x pack of 4 plastic tube connectors
• 1 x Swagelok quick coupling part No. 645403
• 2 x Siemens 41A100 pressure regulators
• 1 x Siemens model 40-7 pressure regulator
• 1 x Kloehn injector syringe 10ml item 4476090
• 6 x nozzle tips, 1 x 70um, 2 x 86um, 1x 100 um, 1 x 140um, 1 x 200um
• 4 x plate and slide holders

Specifications:

• Model: 646500
• Serial No.: X64650000086
• Year: 2013

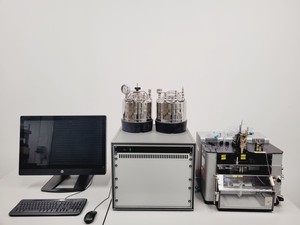

Beckton Dickinson BD FACSJazz Cell Sorter with Controller, PC, and Sheath Vessels

This system was removed from a university where it was surplus to requirements.

The previous owner has notified us that this system was fully functional prior to removal.

The system is in good cosmetic condition and includes the following components:

• BD FACSJazz Cell Sorter:
• Serial No.: JZ655490A400003
• Year: 2014

• ASME Pressurised Sheath Gas Containers:
• Serial Nos.: S528278-1-015 and S532414-1-011
• Year: 2013

• HP Z1 Workstation (PC and Monitor):
• Model: A1H69AV
• Serial No.: 2UA3110C84
• Dell Mouse:
• Serial No.: CN-0PRDV9-LO300-95F-0X0J
• Dell Keyboard 400:
• Model: 1576
• Serial No.: 0066906620661
