JVC 15" CRT Monitor Model: TM-H150CG

Item Code: ITEM-02226

Condition: Used

Brand: JVC

Location: Wales

£ POA
Not in stock
SOLD - Unfortunately this item is no longer available. However, we may have similar items available for sale. Please get in touch with us at , or by phone on +44 29 2086 4661.
Description

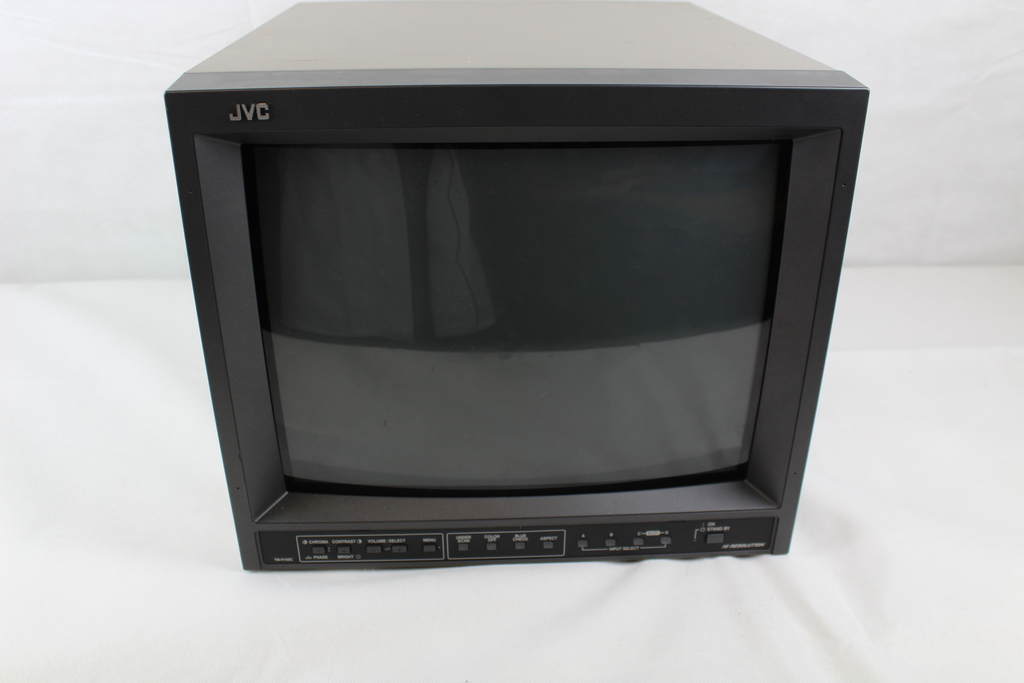

The JVC 15" CRT Monitor Model: TM-H150CG is one of the highest specification monitors of its class.

It is also one of the most flexible, so making it ideal for broadcast, CCTV surveillance and educational applications.

Technical details

Color System - NTSC and PAL H:15.734kHz (NTSC)/15.625kHz (PAL)
CRT 0.27mm dot pitch
Scanning Frequency  - V:59.94Hz (NTSC)/50Hz (PAL) 15”(14”V) diagonally measured
Rated Power
Horizontal Resolution more than 750 TV lines
Power Requirements 120V AC,220-240V AC, 50/60Hz
Color Temperature 6500° and 9300°selectable

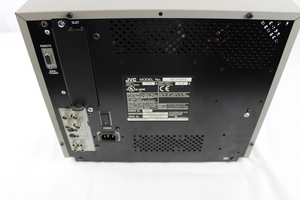

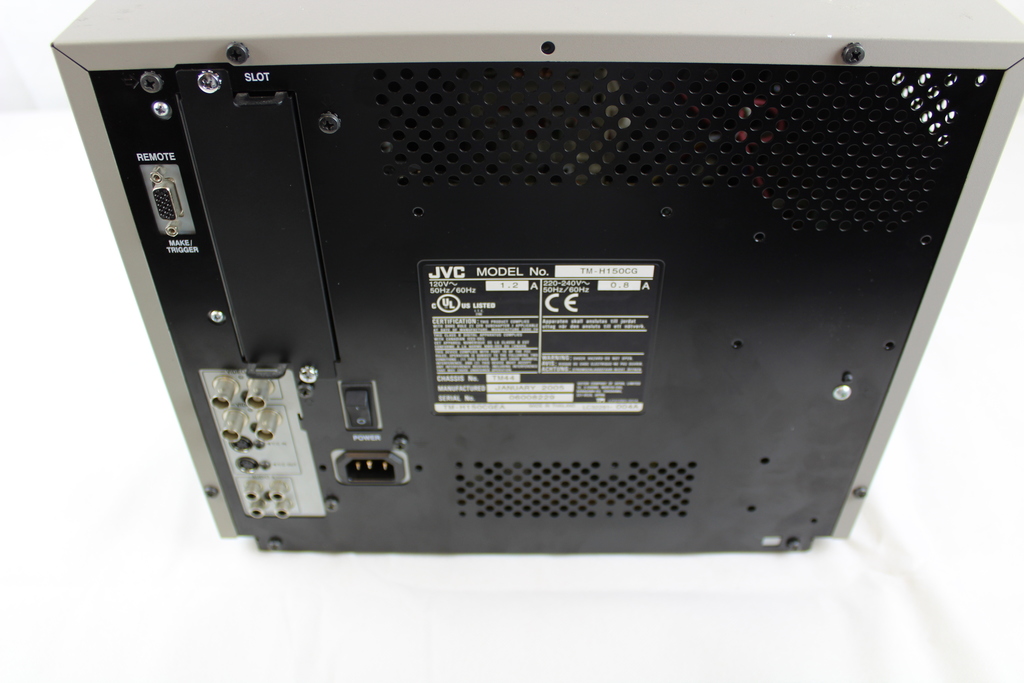

Input Terminals
1) Input A: Composite
1 line,BNC connector x 2,1.0V (p-p), 75 ohms,negative sync,auto-termination
1 line,BNC connector x 2,1.0V (p-p), 75 ohms,negative sync,auto-termination, bridged output possible
2) Input B: Y/C Signal
1 line,mini-DIN 4-pin x 2 Y:1.0V (p-p),75 ohms,negative sync C:0.286V (p-p),75 ohms (NTSC Burst) 0.3V (p-p),75 ohms (PAL Burst) auto-termination,bridged output possible
Input Slot 1 slot port for 1 input card for Component or SDI card RCA pin x 4 for input A and B,0.5V (rms),
Remote Terminal high-impedance,bridged output possible D-sub 15-pin x

Delivery

The price includes free economy delivery (3-5 working days) to Mainland UK Postcodes EXCLUDING the following postcodes:

AB31-38, AB40-52, AB54-56, AB63 IV1-28, IV30-32, IV36-56, IV63 KA27-28 KW1-17 PA20-38, PA41-49, PA60-78 PH4-44, PH49-50 PO30-41 TR21-25 BT, GS, GY, HY, IM, JE, TDCU, ZE

If you live in one of the above postcodes please enquire for a shipping quote. Your item will be carefully packed and dispatched within 24 hours (Mon–Fri) of receiving payment.

International buyers please contact us for an overseas shipping quote.

Return policy

Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.

NOTE: No cables, remotes, accessories, power supplies, consumables or any other items are included unless shown in the item photos or detailed above.
