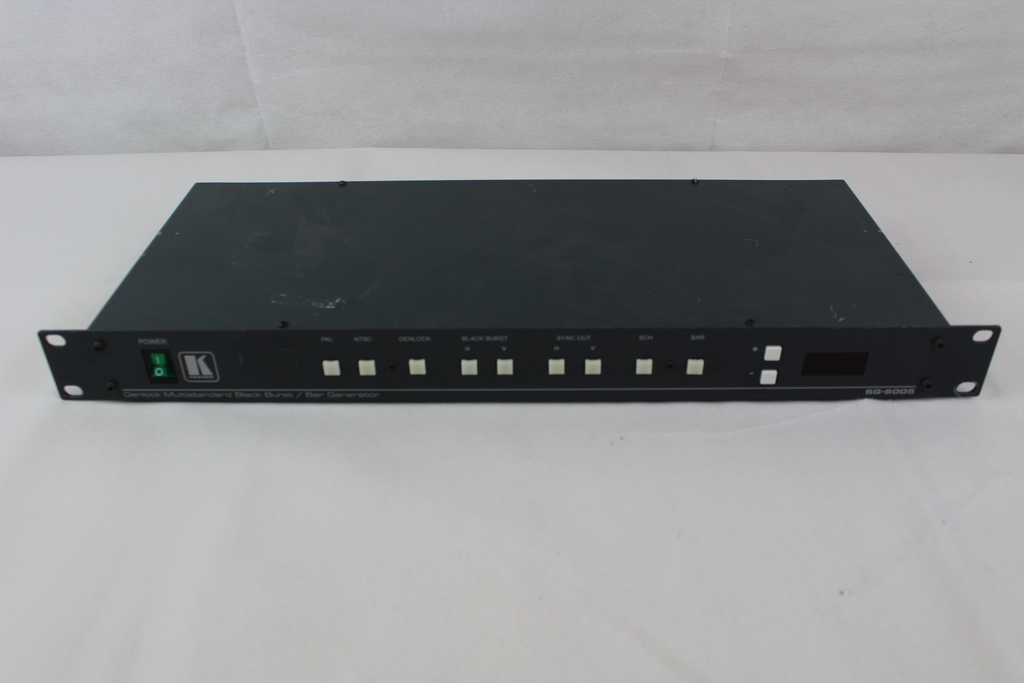

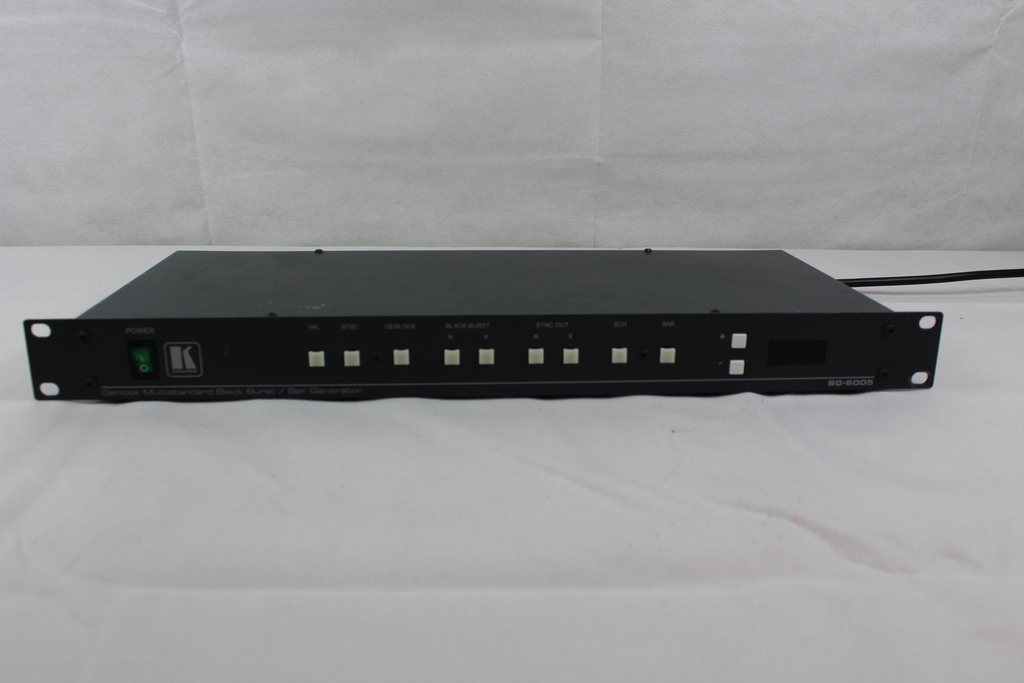

Kramer SG-6005 Genlock Multistandard Black Burst / Bar Generator

Item Code: ITEM-02228

Condition: Used

Brand: Kramer

Location: Wales

£ POA

Not in stock

Unfortunately this item is no longer available. However, we may have similar items available for sale. Please get in touch with us at , or by phone on +44 29 2086 4661.

Description

The Kramer SG-6005 is a broadcast quality multi-standard black burst, color bar, sync and audio generator designed for a variety of video studio applications. It is exceptionally full featured, offering six identical black burst outputs, a color bar output, a user programmable color matte, horizontal and vertical sync outputs, as well as balanced and unbalanced 1kHz, crystal stabilized audio outputs. The unit may be genlocked to an external video reference or it may operate as a stand-alone generator based on its high precision timing components.

Technical details

User Manual Can be found at the following address:

https://www.manualslib.com/manual/288560/Kramer-Sg-6005.html

Technical Details

INPUT: 1 genlock video, looping, 1Vpp/75 Ohm, on BNC connectors with a termination switch.

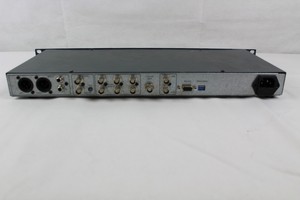

OUTPUTS: 6 black burst signals, 0.3 Vpp/75 Ohm, (sync) 1 color bar output 1Vpp/75 Ohm.2 x 1kHz, +4dBm/47 Ohm outputs on XLRs, 2 x 1kHz, 1Vpp/100 Ohm outputs, RCA connectors.

COLOR BAR: 13 selectable patterns.

PHASE ERROR: 1 degree.

S/N RATIO: 73dB.

CONTROL: H control: +/- 1/2 line, 37 nS steps; V control: 15.5 lines, 0.5 line steps.

SCH control: 360 Degrees, by front touch switches. RS-232 control.

SYNC OSCILLATOR: Crystal controlled.

SC OSCILLATOR: Crystal controlled.

SYNC/SC: Fully Genlocked.

STABILITY: 5 ppm.

POWER SOURCE: 230 VAC, 50/60 Hz, (115VAC, U.S.A.) 10 VA.

DIMENSIONS: 19 inch (W), 7 inch (D), 1U (H) rack mountable.

WEIGHT: 2.5 kg. (5.5 lbs.) approx.

ACCESSORIES: Power cord.

Delivery

The price includes free economy delivery (3-5 working days) to Mainland UK Postcodes EXCLUDING the following postcodes:

AB31-38, AB40-52, AB54-56, AB63 IV1-28, IV30-32, IV36-56, IV63 KA27-28 KW1-17 PA20-38, PA41-49, PA60-78 PH4-44, PH49-50 PO30-41 TR21-25 BT, GS, GY, HY, IM, JE, TDCU, ZE

If you live in one of the above postcodes please enquire for a shipping quote. Your item will be carefully packed and dispatched within 24 hours (Mon–Fri) of receiving payment.

International buyers please contact us for an overseas shipping quote.

Return policy

Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.

NOTE: No cables, remotes, accessories, power supplies, consumables or any other items are included unless shown in the item photos or detailed above.
