LASEA LS4 Ultrashort Pulse Micromachining Laser System Picosecond / Fiber Laser
Item Code: ITEM-52615
Condition: Used
Location: Other
£ 25,000.00 exc. VAT (£ 30,000.00 inc. VAT)
This item is not currently available for checkout.
If you are interested in this item or would like to place an order, please get in touch with us at , or by phone on +44 29 2086 4661.
Description
This item is being sold on behalf of one of our clients and is not held in our own stock.
Please enquire with us if you would like to buy this item as shipping, warranty and the terms and conditions of sale will be dependent on the client's needs.

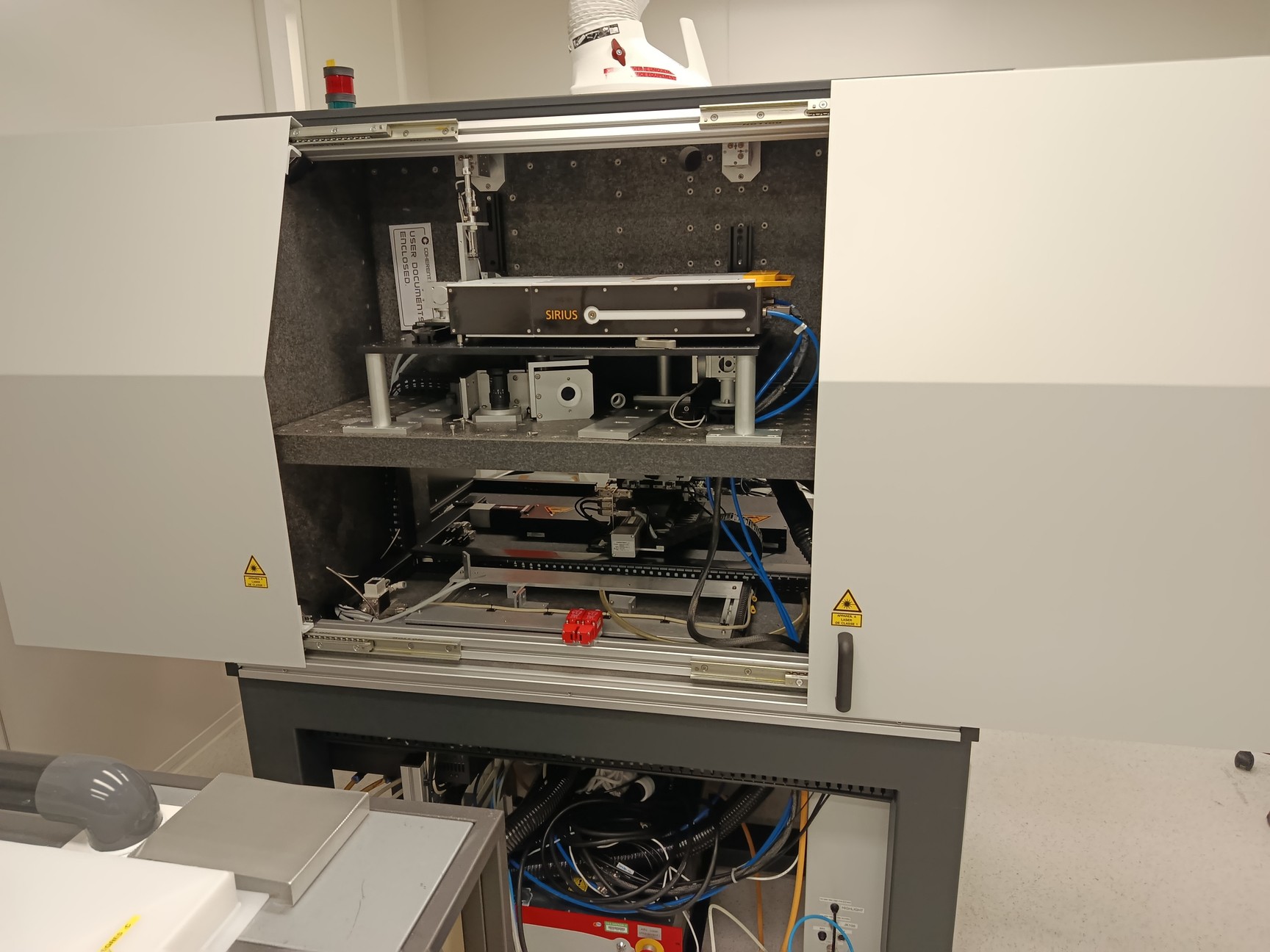

LASEA LS4 Ultrashort Pulse Micromachining Laser System (Picosecond / Fiber Laser Platform)
This system is sold on behalf of a client where it will be removed from an industrial R&D environment as it is surplus to requirements.
The LASEA LS4 platform is an extremely robust ultrashort pulse laser micromachining system designed for high-precision welding, cutting, drilling, engraving, surface texturing, and material processing. It is ideally suited for demanding R&D and advanced manufacturing applications across a wide range of materials.
The system supports precision laser machining on sapphire, quartz, ceramics, silicone, alloys and metals, silicon, and many other substrates.
The machine features an Aerotech precision motion platform with micron-level resolution and multiple integrated laser sources, enabling flexible processing across wavelengths and pulse regimes.
The system comprises the following:

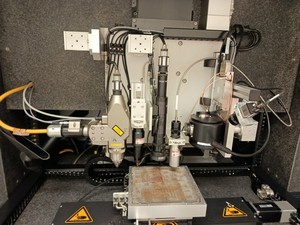

LASEA LS4 Micromachining Platform (R&D configuration)
https://lasea.com/machines/ls4-platform/
Precision XZ motion table with 500 × 200 mm travel
Provides a 200 × 200 mm working area with a vertical rotary axis
Internal axis resolution: 1 µm

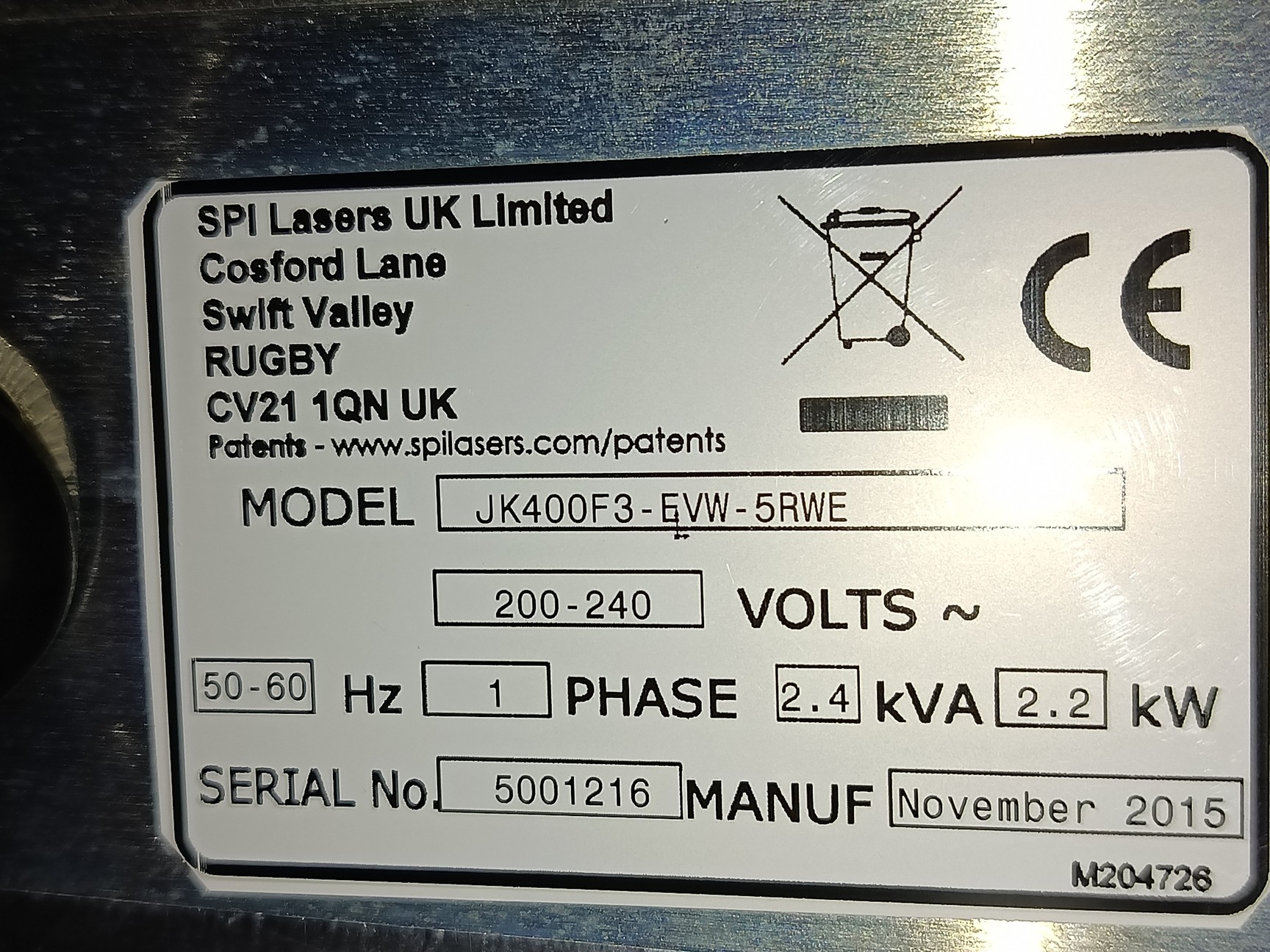

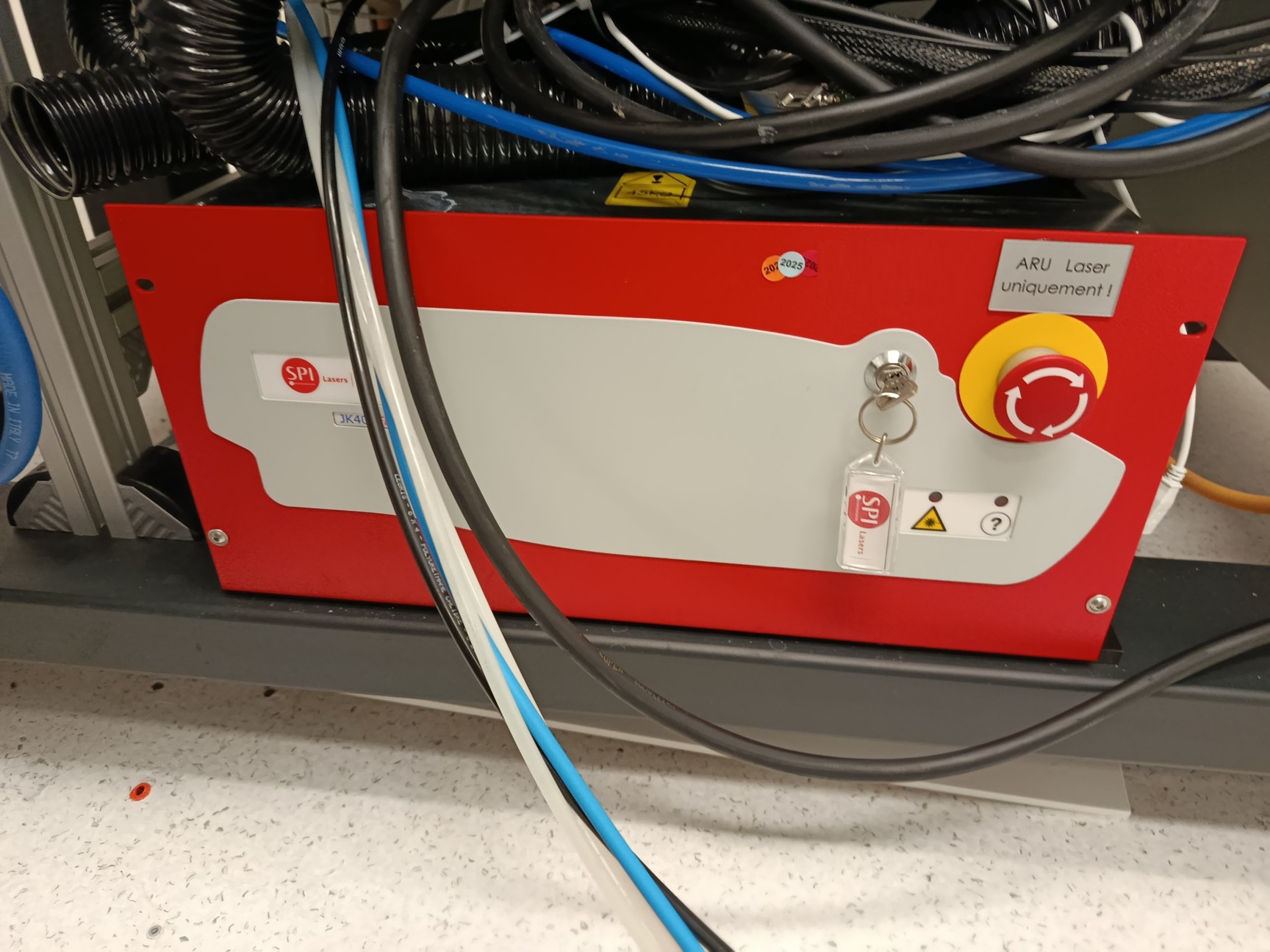

SPI 400W 1070 nm Fiber Laser Source

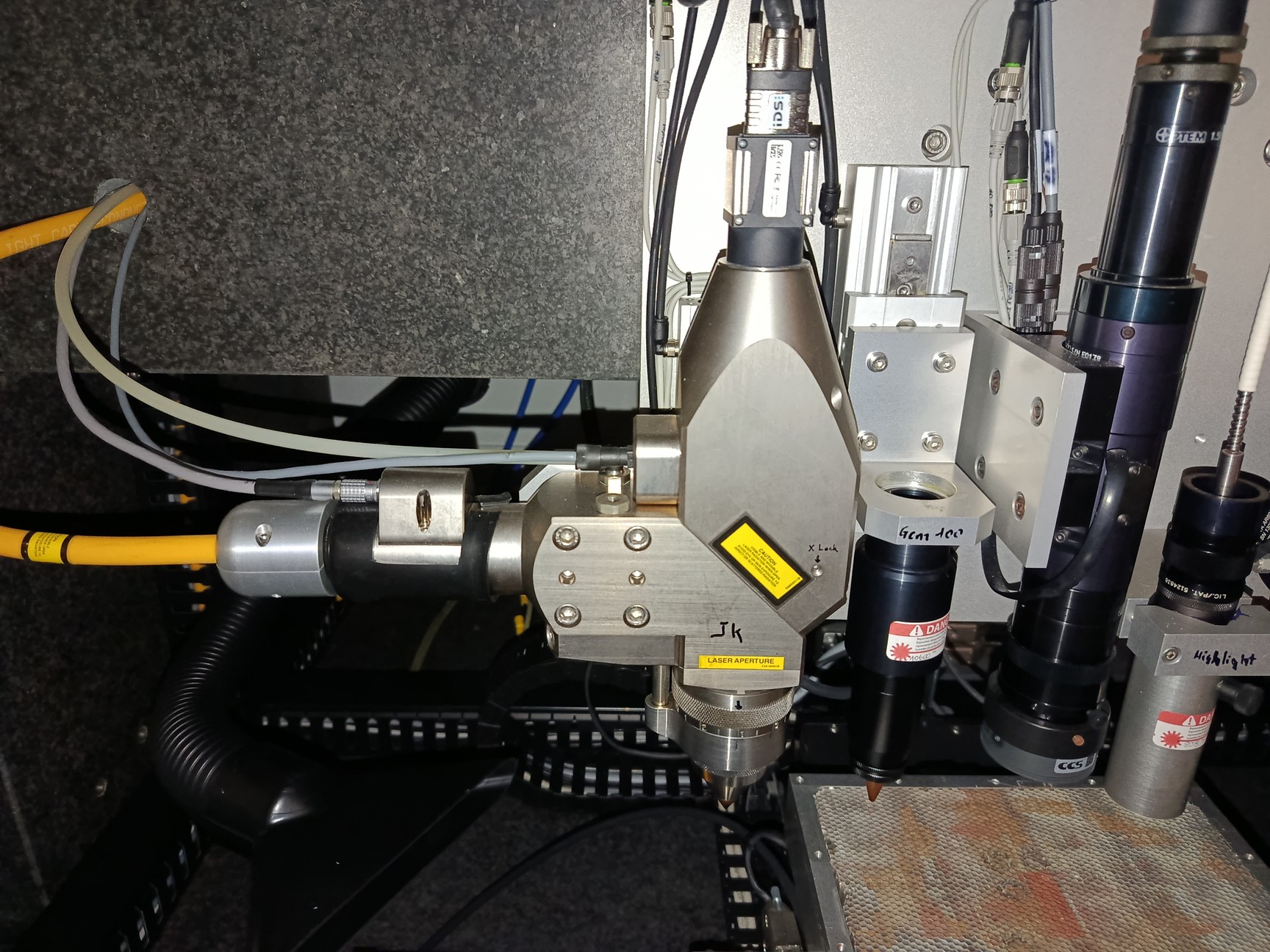

Equipped with welding and cutting head
In-line camera for through-the-lens positioning

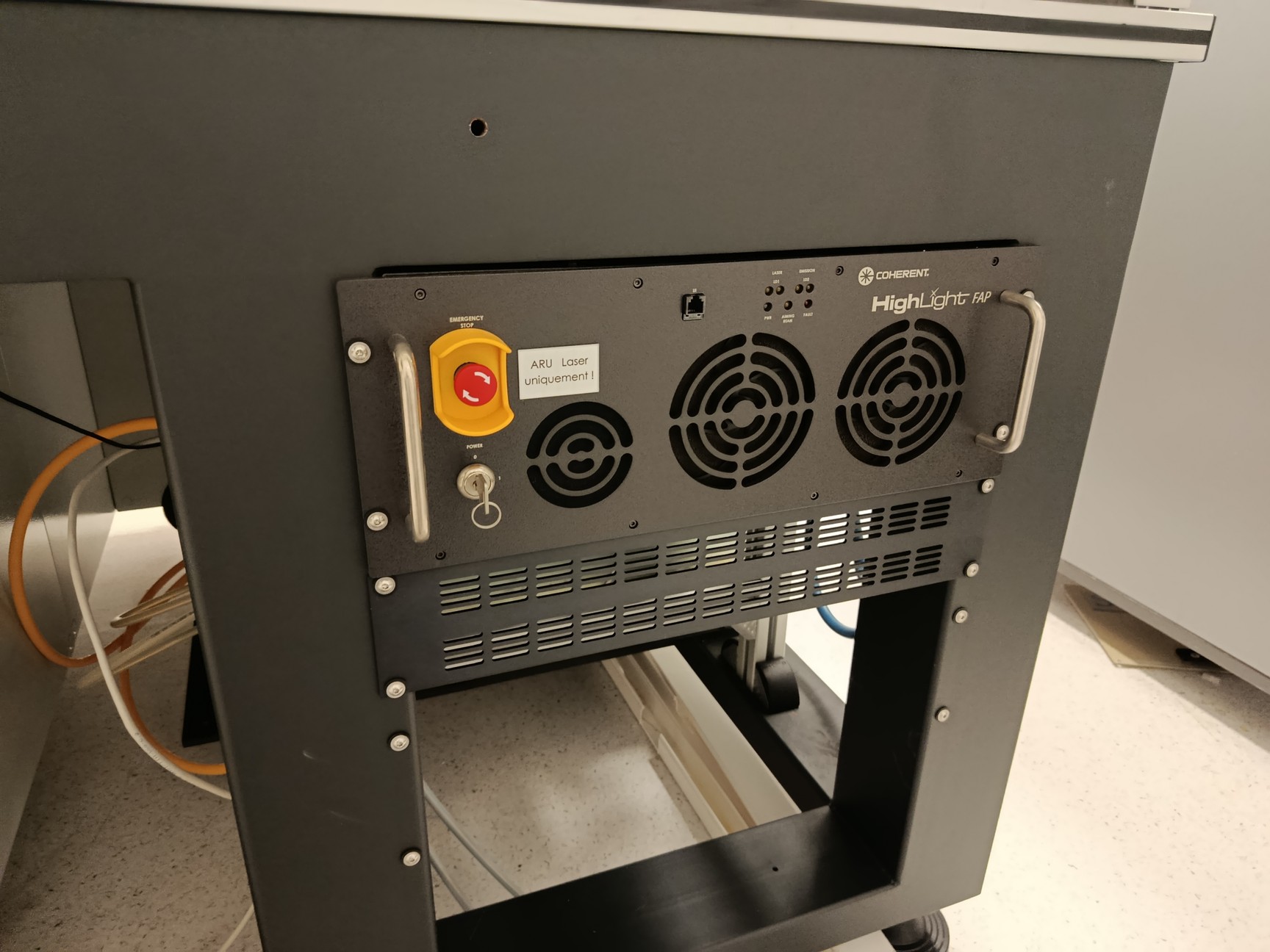

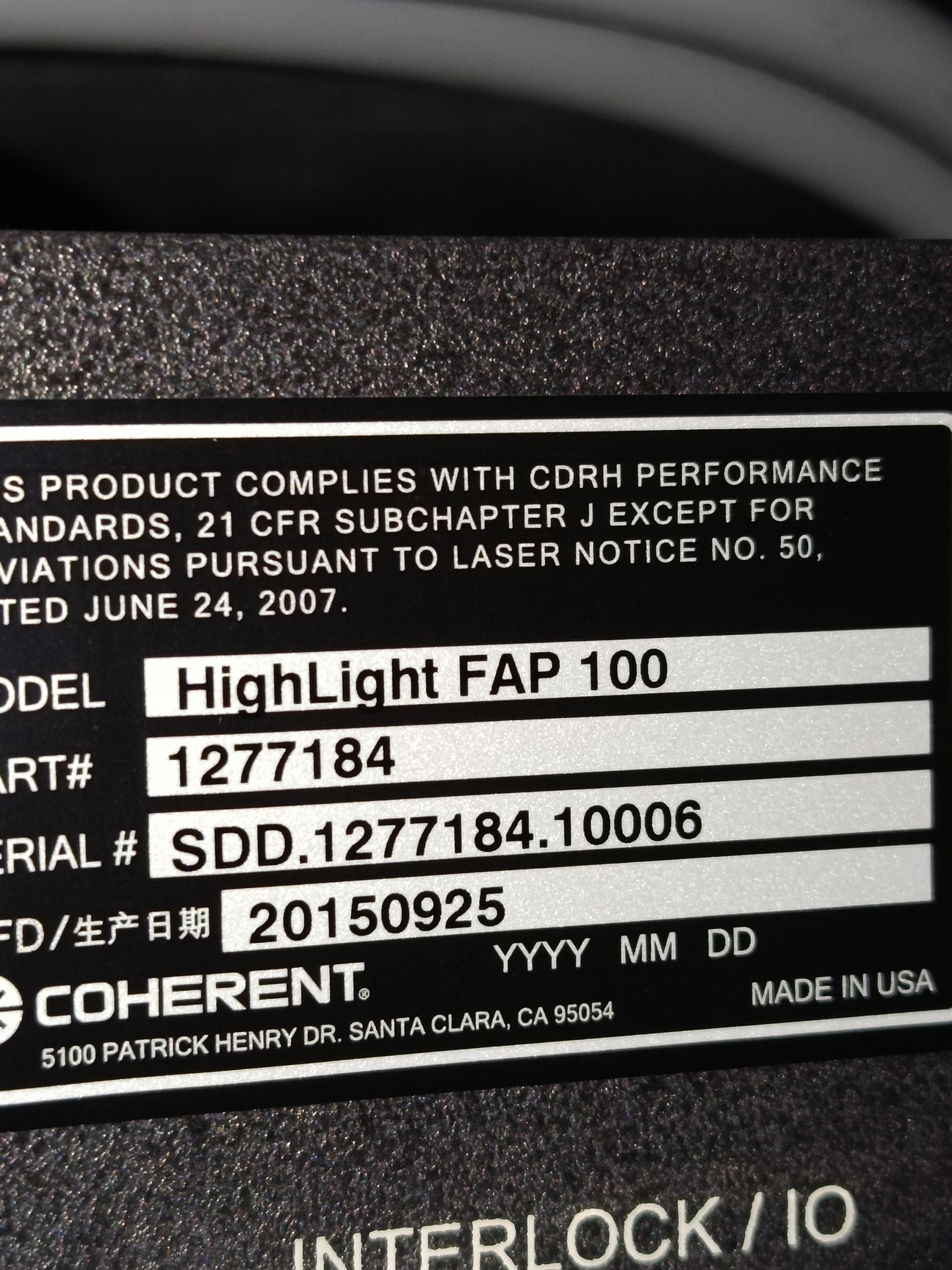

Coherent FAP 100W 820 nm Laser
Direct fiber optic connection with fixed lens

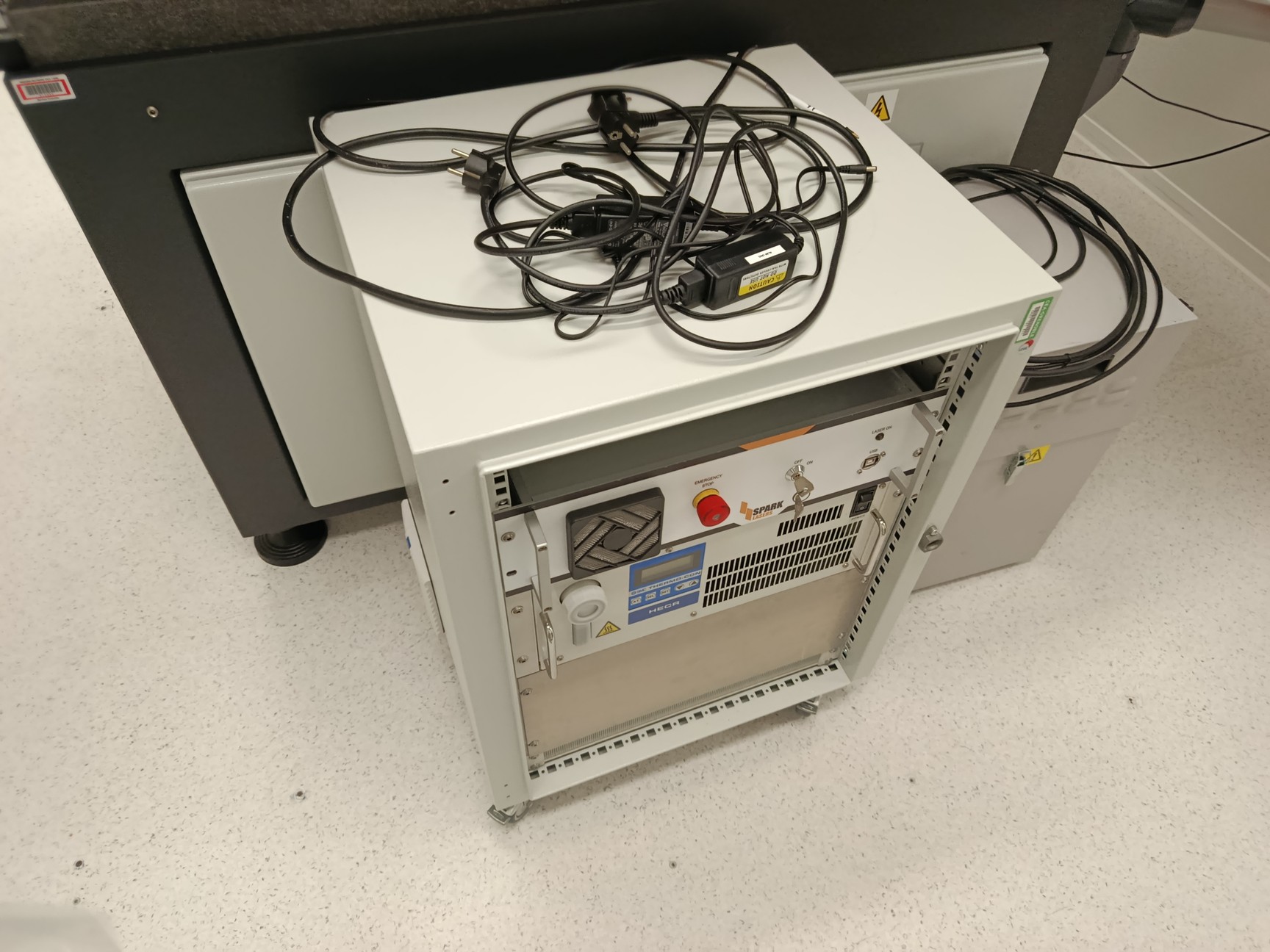

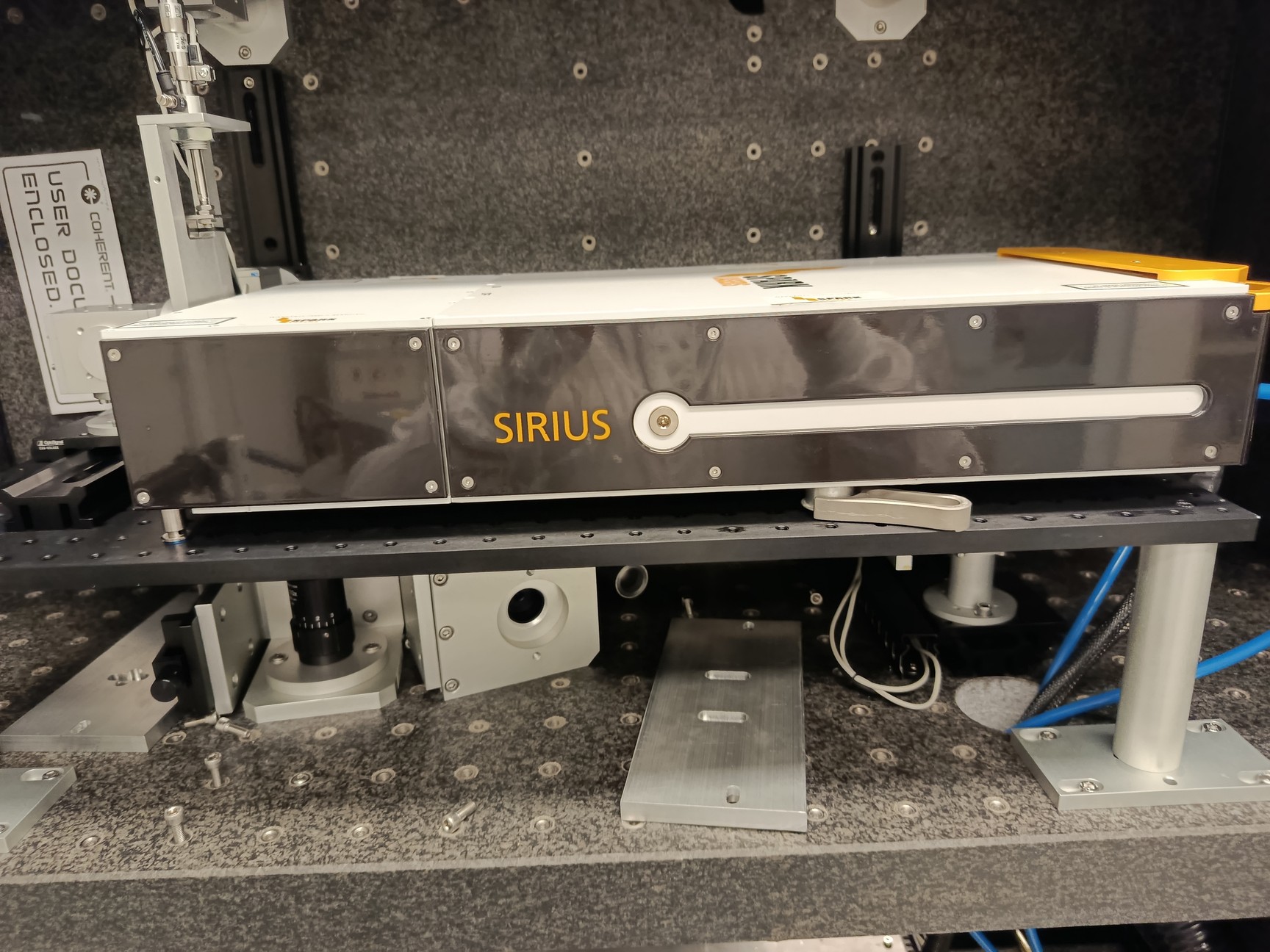

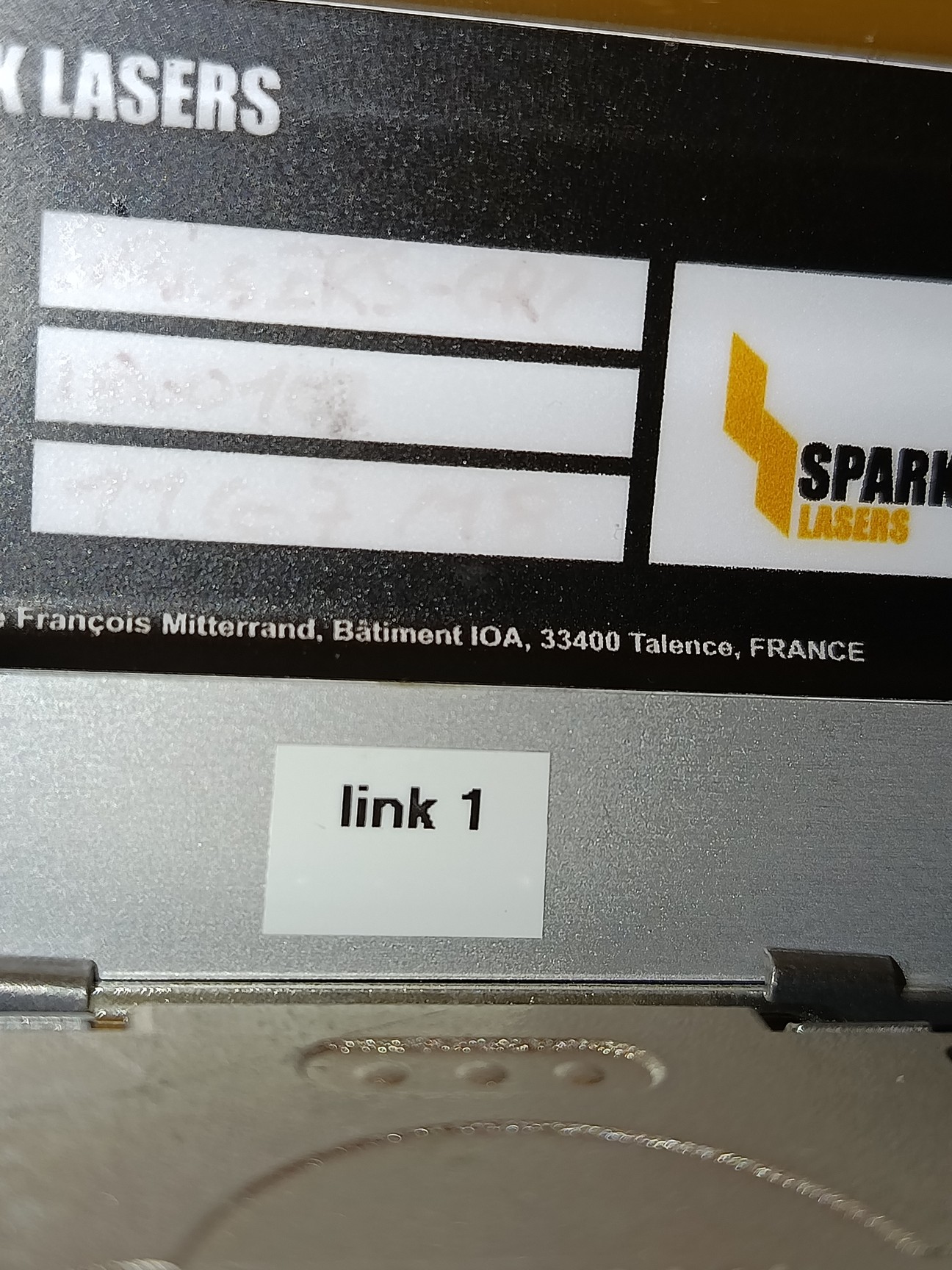

Spark Sirius Compact High-Energy Picosecond Laser

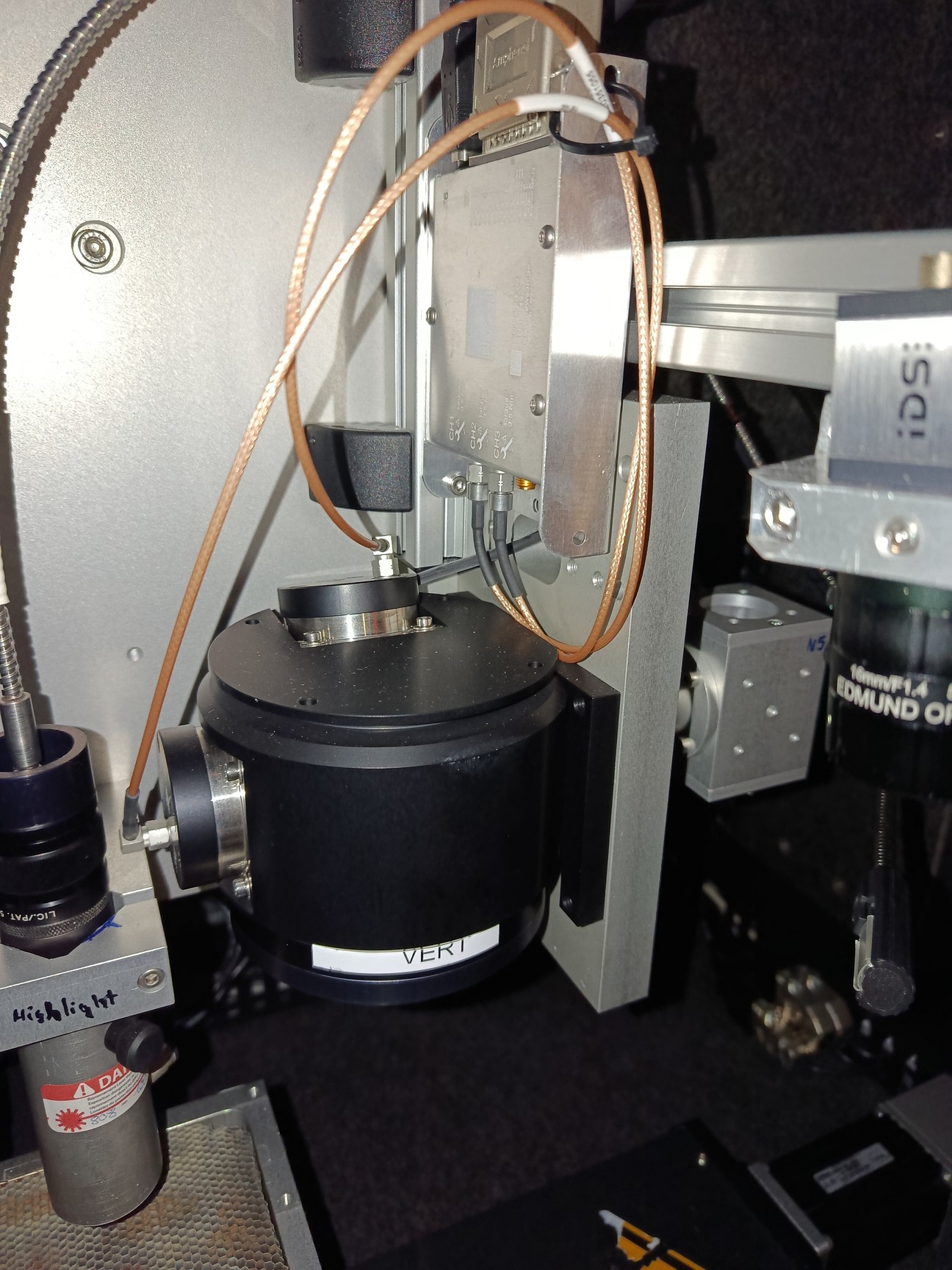

Mirror-directed beam delivery with scanner head
Separate lens sets for:
532 nm
1064 nm
Output specifications:
- 5W / Single shot to 1 MHz @ 1064 nm (>60 µJ)
- 2W / Single shot to 1 MHz @ 532 nm (>32 µJ)
- Microscopic Inspection & PRS System
- Zoom inspection system with software including:
- Offset, zoom and focus memory
- Edge, line, circle detection functions
- Multi-gas injection capability
- VOC 99.99% Fume Extraction System
Included accessories and equipment:
- Aerotech PRO165 XYT + Z Table
- A3200 Controller
- SMC Chiller
- Fume Extractor
- Power Process Software
- File format support: DWG, DXF, GDS2, STL, STEP
- AutoCAD for direct editing
- Windows 7 workstation
- Laser Calibration Tool
The machine can be viewed on-site or via video prior to purchase.
The normal terms and conditions do not apply to this item. This item is non returnable and non refundable.
Item Details
Item external dimensions (L×W×H):
90 cm × 120 cm × 190 cm
Item weight: 300.0 kg
Delivery
For collection only. Collections must be during our working hours (08:00-16:30 Monday to Friday). If you require packing and palletising for your collection, please contact us in advance for a price.
Additional terms and conditions
If the laser purchased is Class 3 or above, a disclaimer will need to be signed confirming understanding that the device is a class 3 or above laser device which can pose significant risks to skin, eyes, general health and can even act as a fire hazard.
The buyer will need to accept and indemnify all liability and responsibility for the Laser Device and parts thereof from the seller for any future use.
