Gelon GN-S200P Semi-Auto Electrode Punching Machine Lab
Item Code: ITEM-51843
Condition: Used
Location: Other
£ 1,000.00 exc. VAT (£ 1,200.00 inc. VAT)
This item is not currently available for checkout.
If you are interested in this item or would like to place an order, please get in touch with us at , or by phone on +44 29 2086 4661.
Description
This item is being sold on behalf of one of our clients and is not held in our own stock.
Please enquire with us if you would like to buy this item as shipping, warranty and the terms and conditions of sale will be dependent on the client's needs.

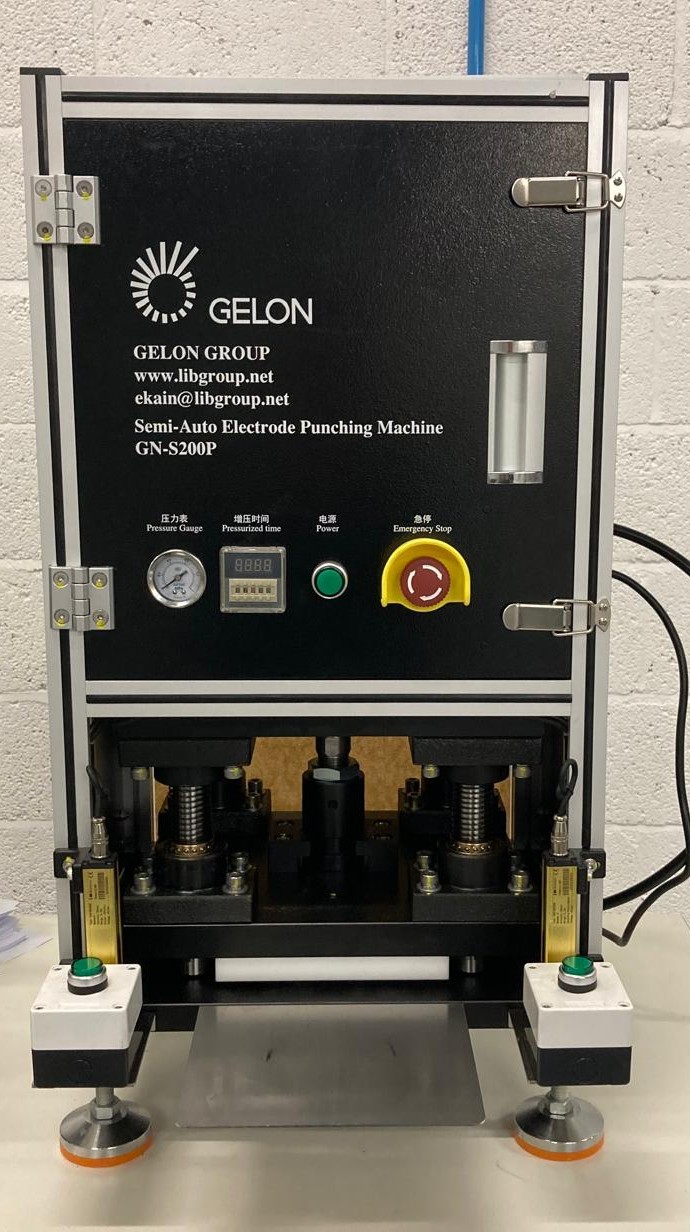

GELON GN-S200P Semi-Automatic Electrode Punching Machine – Laboratory Use
This equipment is being offered on behalf of a client and originates from surplus laboratory assets.
The system is a GELON GN-S200P semi-automatic electrode punching machine, designed for laboratory-scale electrode cutting and preparation. The unit has seen minimal use and remains in excellent operational condition.
Service History
- Usage: Barely used
- Last used: July 2025
The machine was operated in a controlled laboratory environment and removed from service following project completion.
Technical Specifications
- Air pressure requirement: 0.5–0.8 MPa
- Maximum cutter die size: 180 mm (L) × 280 mm (W)
- Custom die sizes available upon request
- Cutting accuracy: ±0.1 mm
- Air cylinder: Up to 3 tons maximum pressure
- Tensile cylinder: 0.15 tons pressure
- Cutting stroke: 250 mm
- Feeding method: Manual
- Production yield: Approximately 800–2,000 electrodes per hour
Included Equipment
- GELON GN-S200P Semi-Automatic Electrode Punching Machine

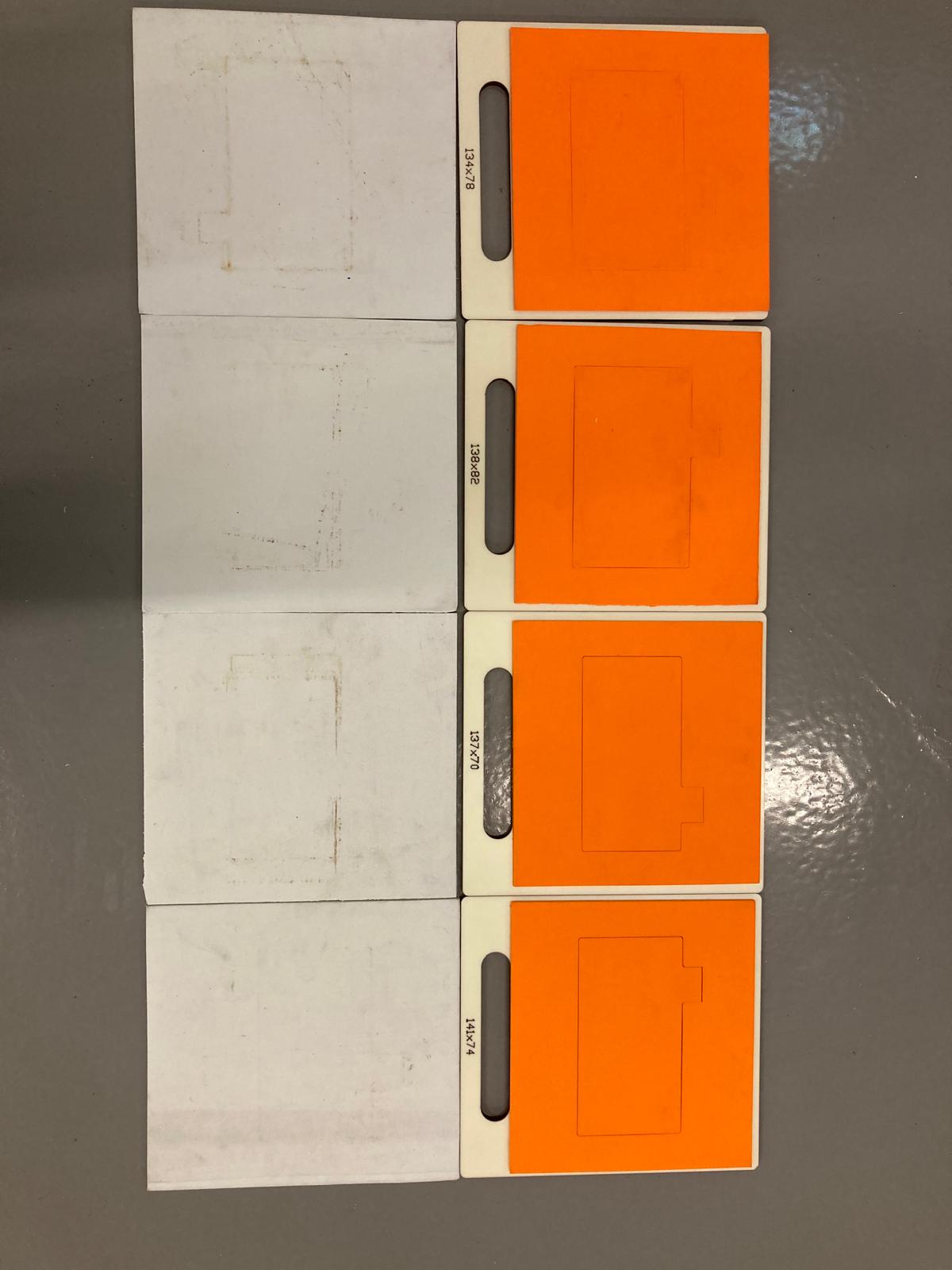

- 4 × electrode cutter dies
- UK power plug
Collection is available from Bristol.
Normal terms and conditions do not apply to this item, which is non-returnable and non-refundable.
Delivery
For collection only. Collections must be during our working hours (08:00-16:30 Monday to Friday). If you require packing and palletising for your collection, please contact us in advance for a price.
