MECA 2000 MBE System with Various Pumps, Controllers & Vacuum Equipment

MECA 2000 MBE System with Various Pumps, Controllers & Vacuum Equipment

This system has been removed from a facility where it was surplus to requirement.

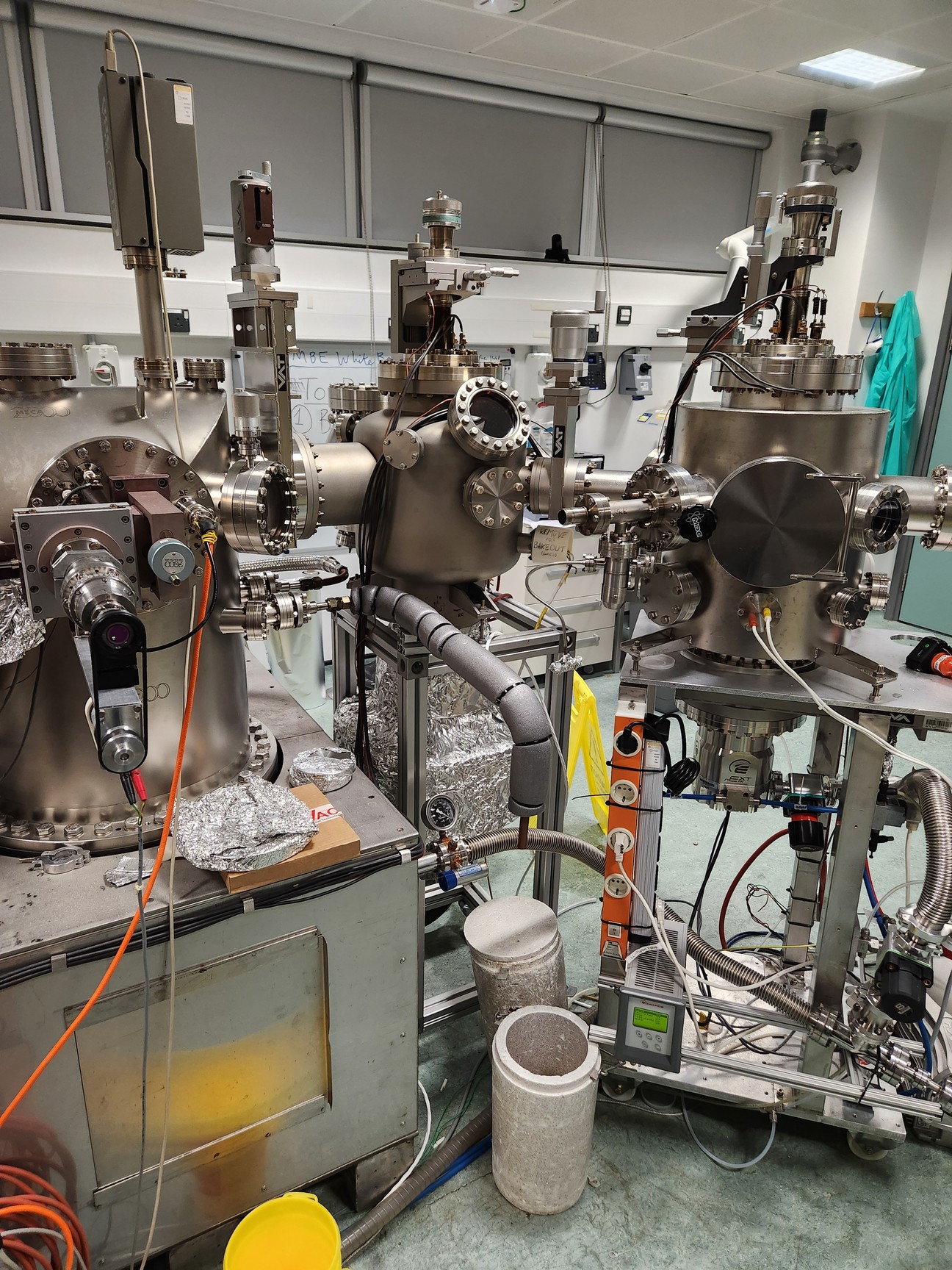

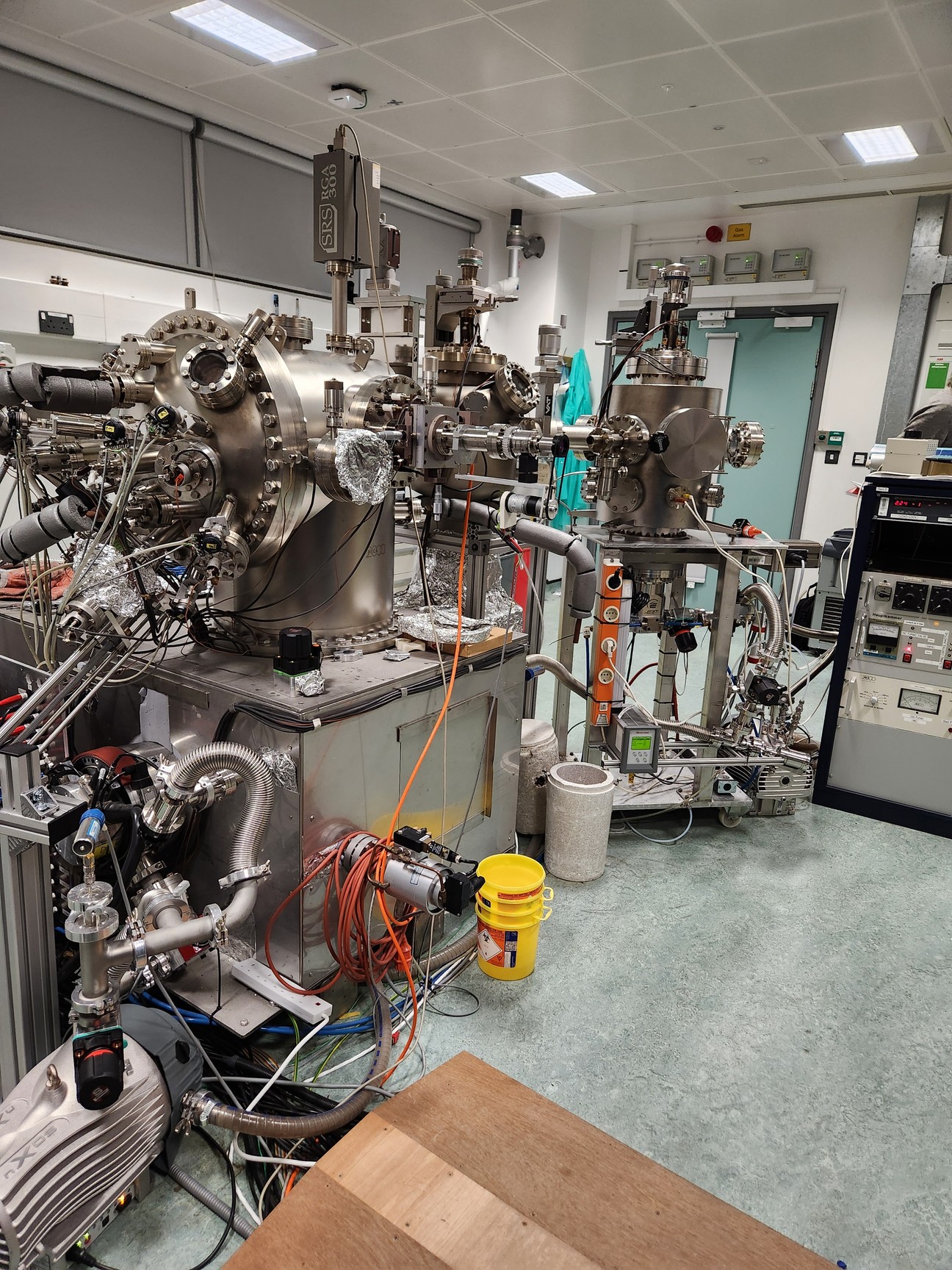

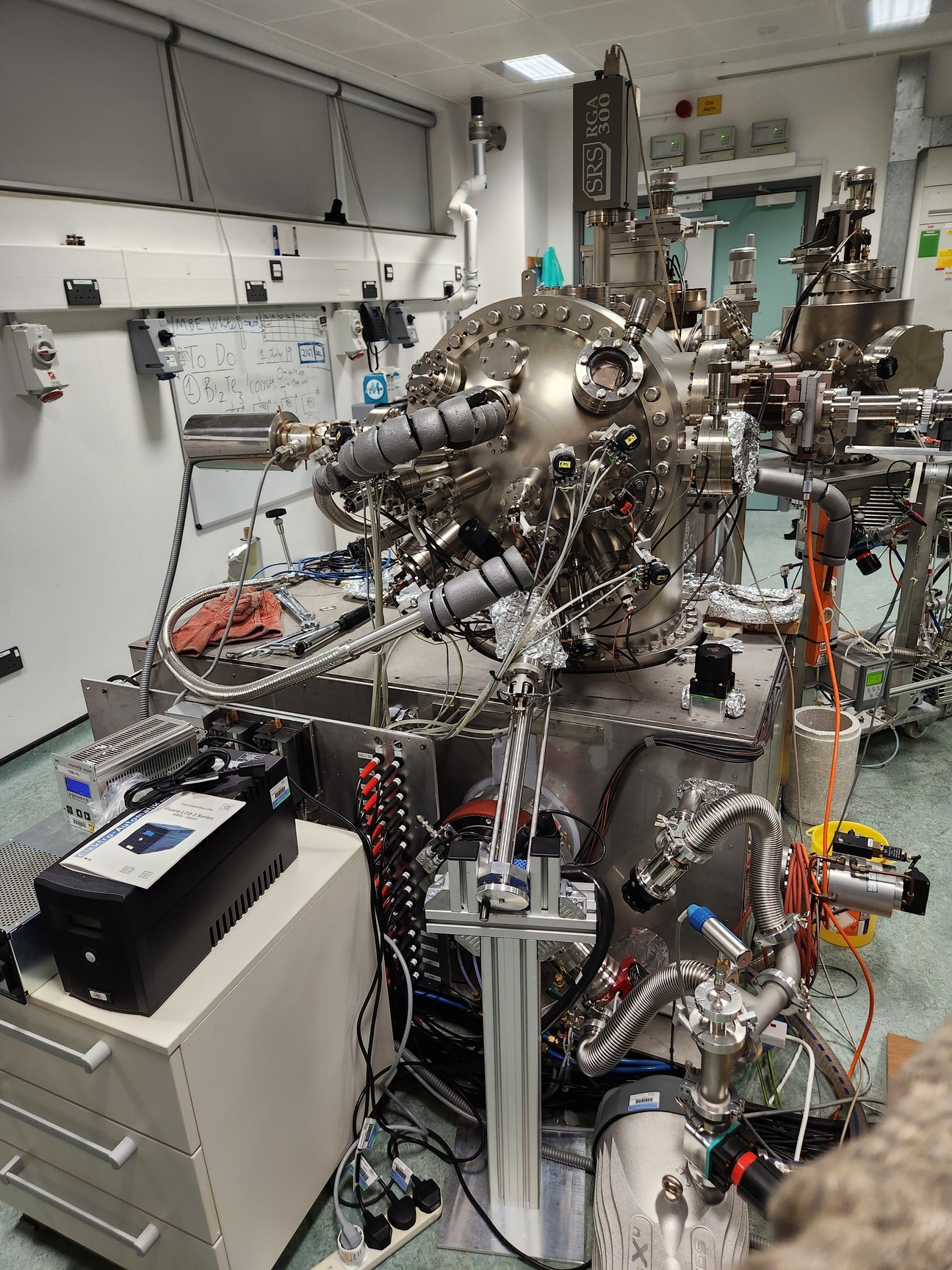

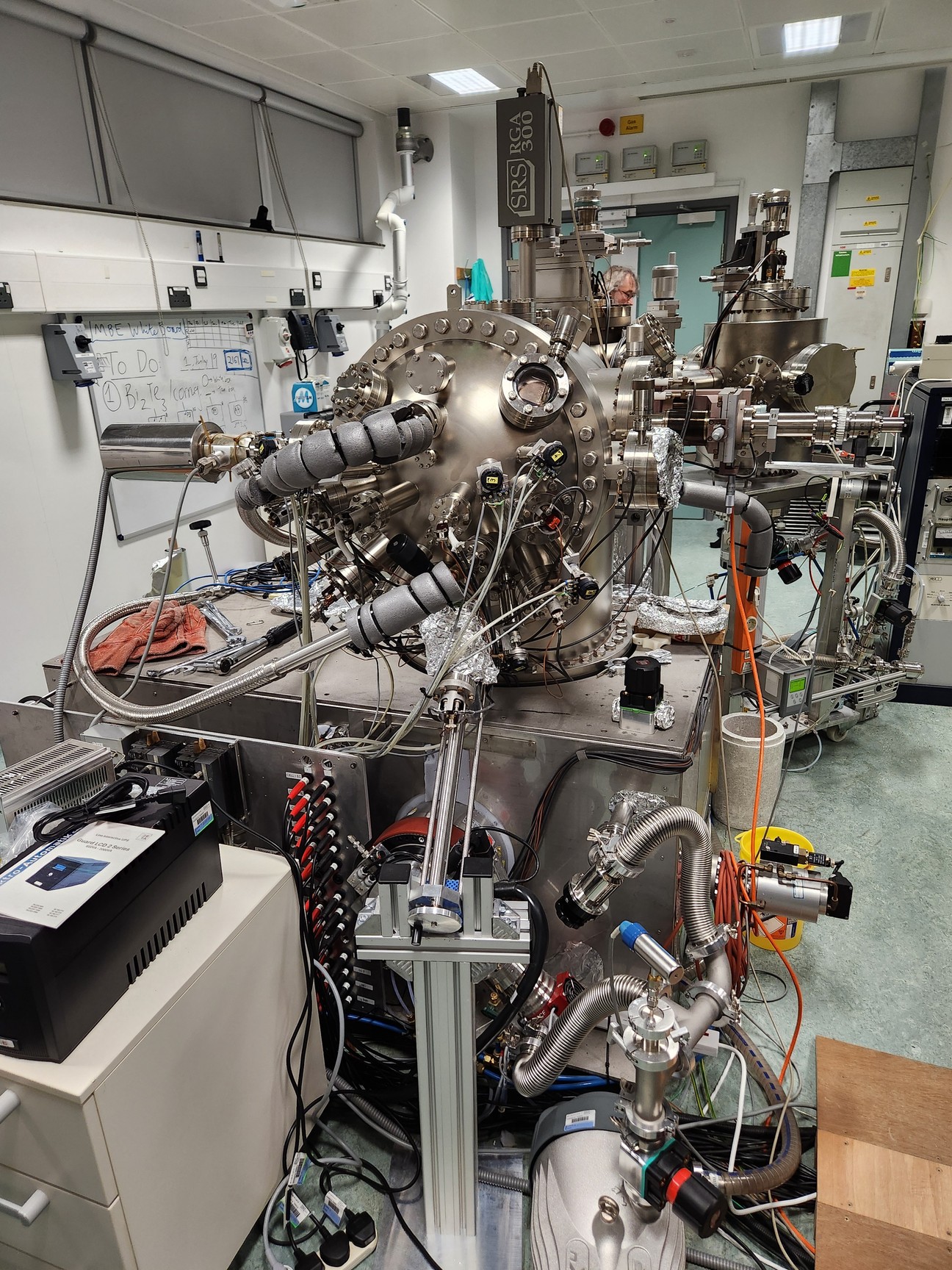

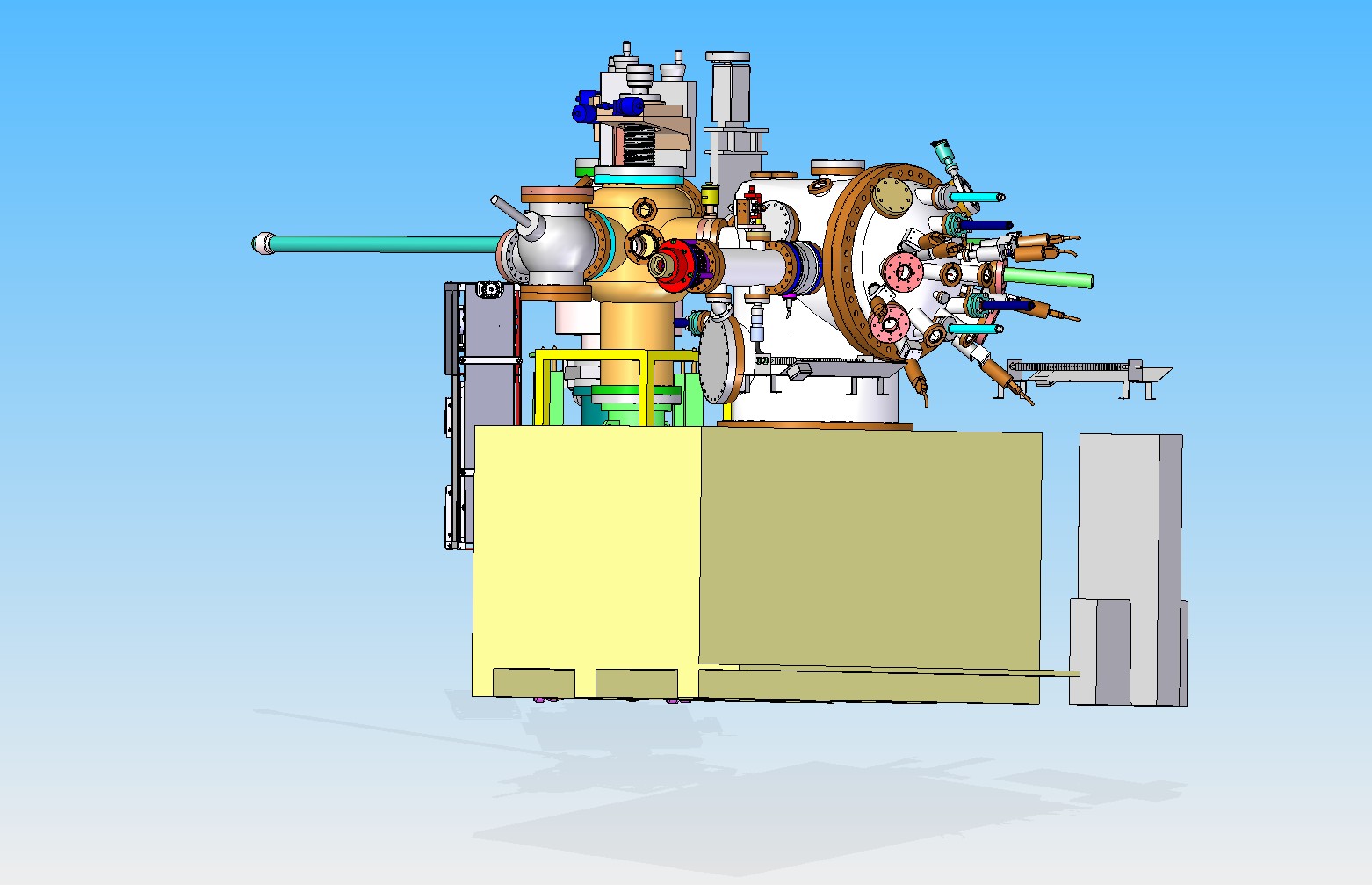

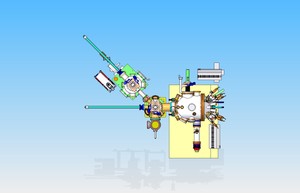

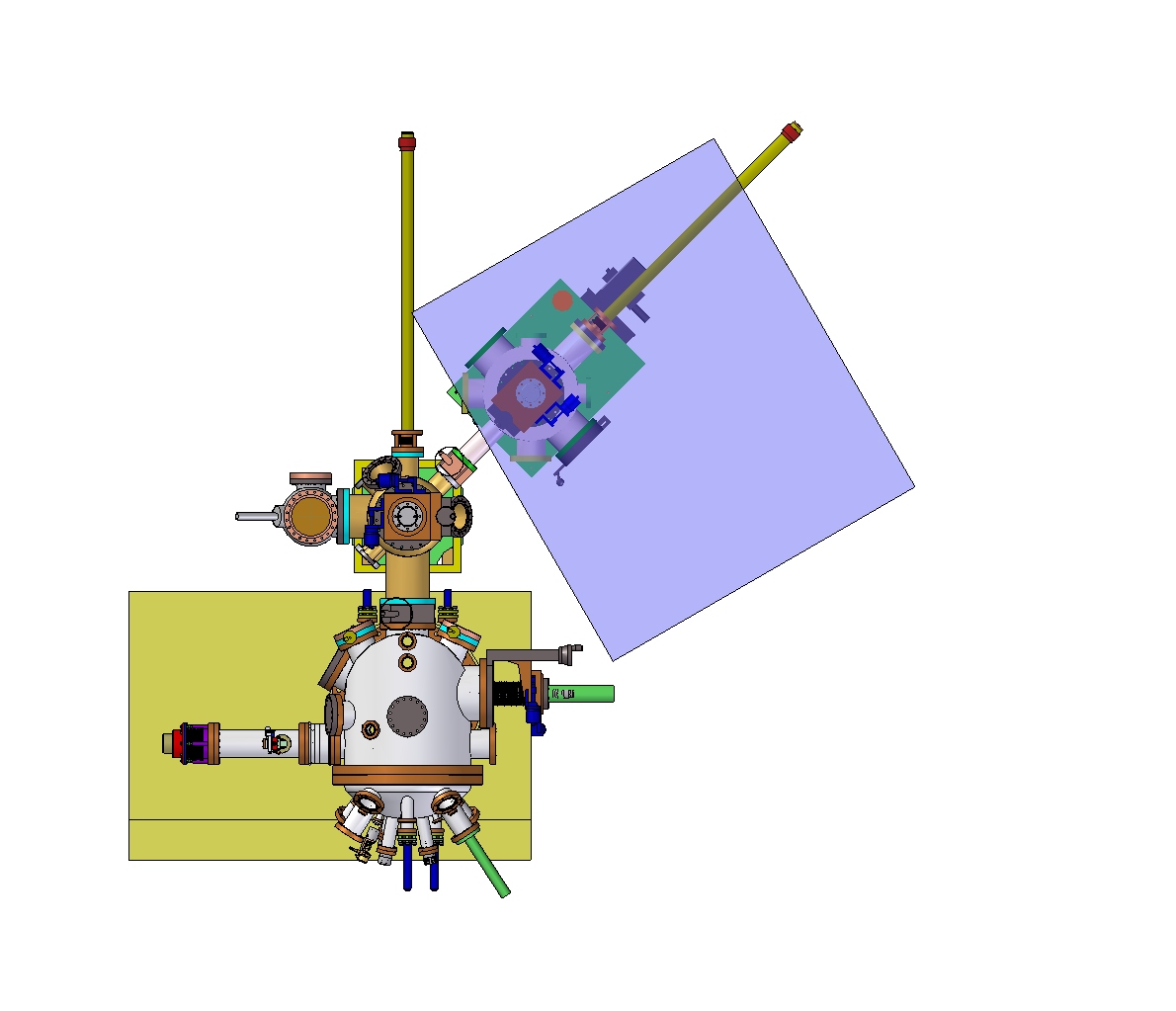

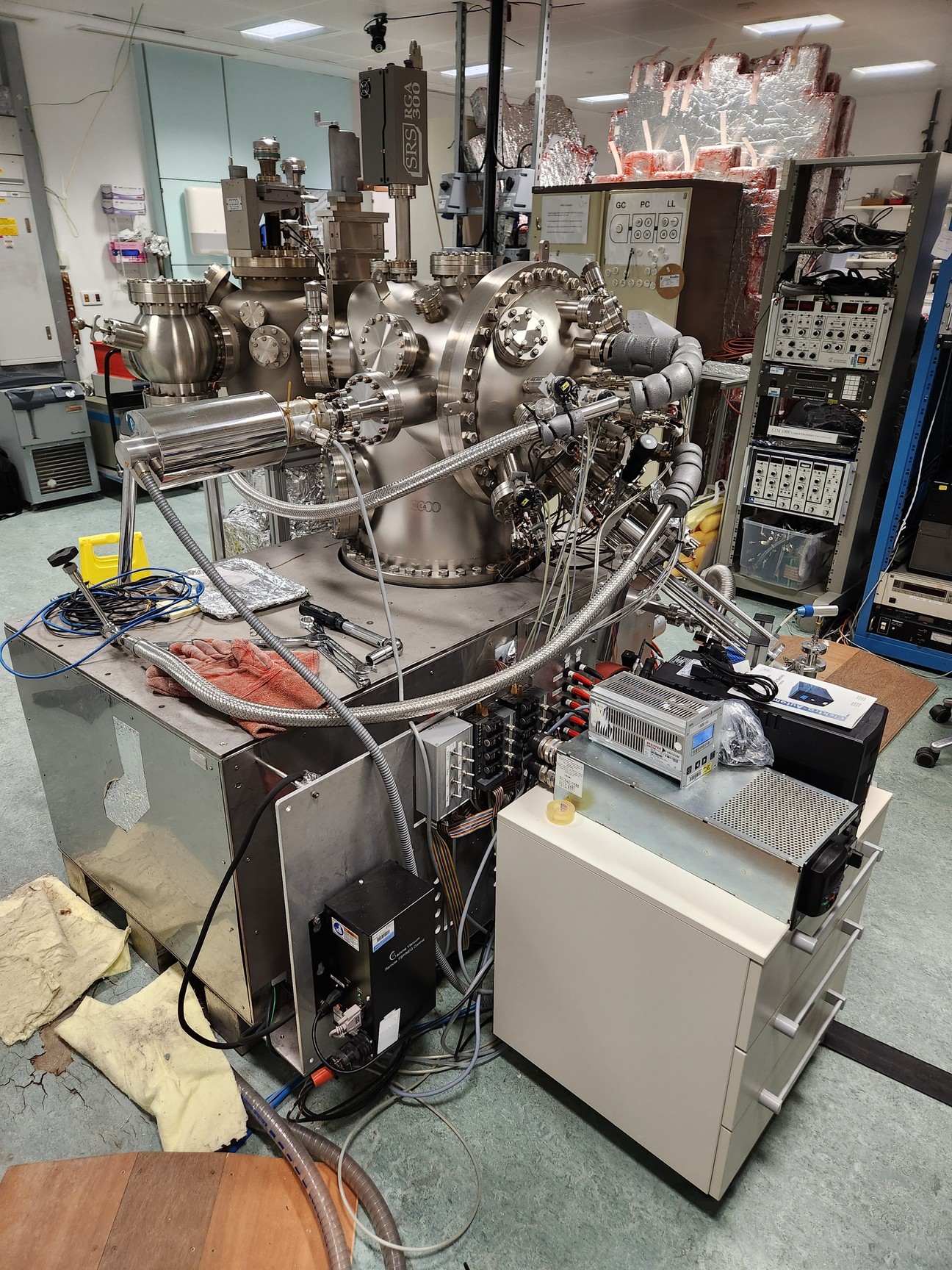

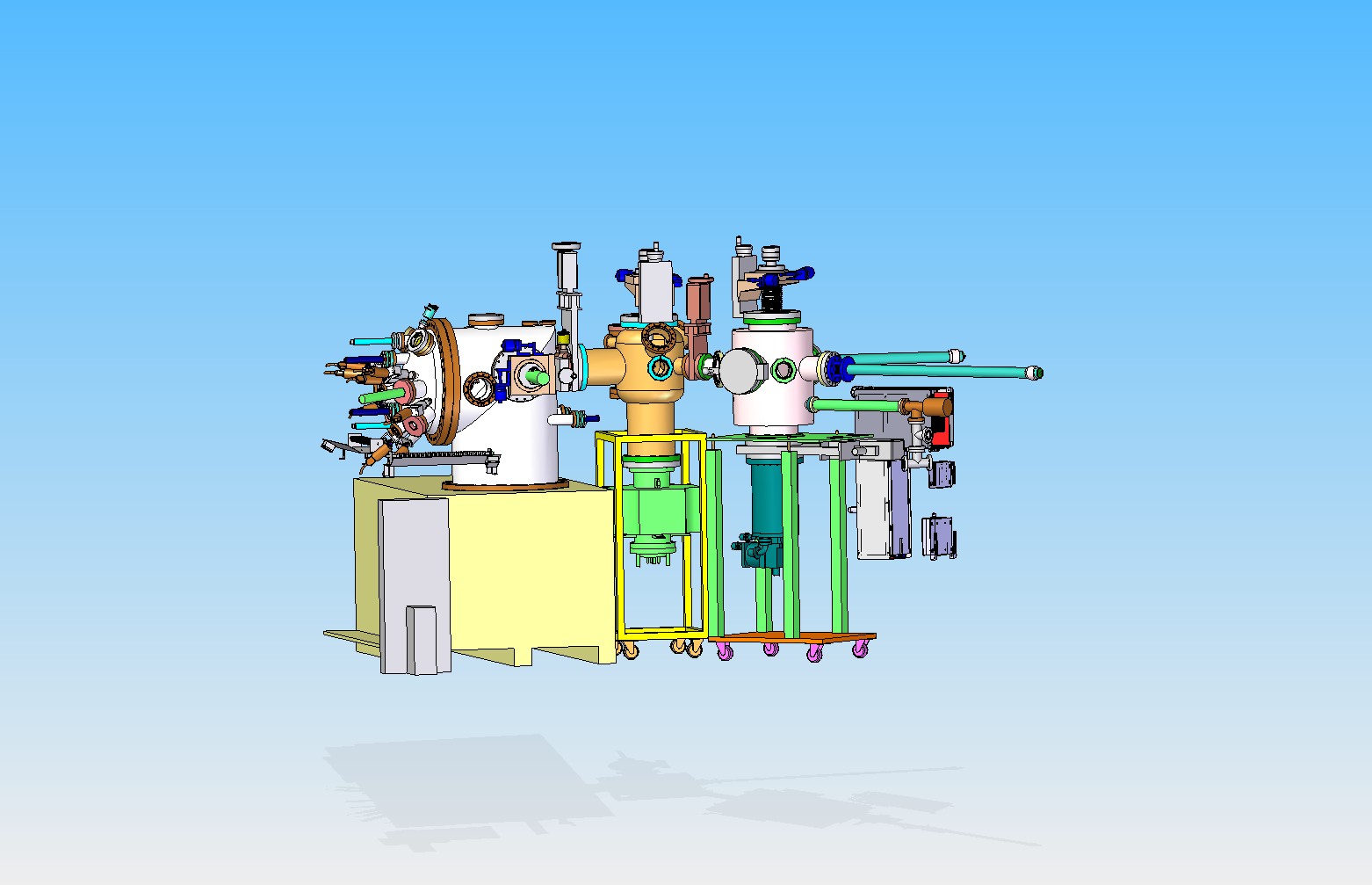

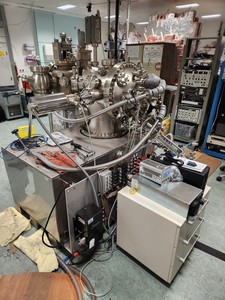

The MECA 2000 system is a Molecular Beam Epitaxy (MBE) platform used for ultra-high vacuum thin film deposition and materials research. Systems of this type are typically configured with multiple vacuum chambers, deposition sources, manipulators, and integrated control electronics.

Overall the system is in good cosmetic condition for its age, with a large quantity of supporting equipment, controllers, pumps, and vacuum hardware included. Due to the complexity of the setup and decommissioned status, the system has not been tested by ourselves.

The previous owner stated the system was full operational prior to removal.

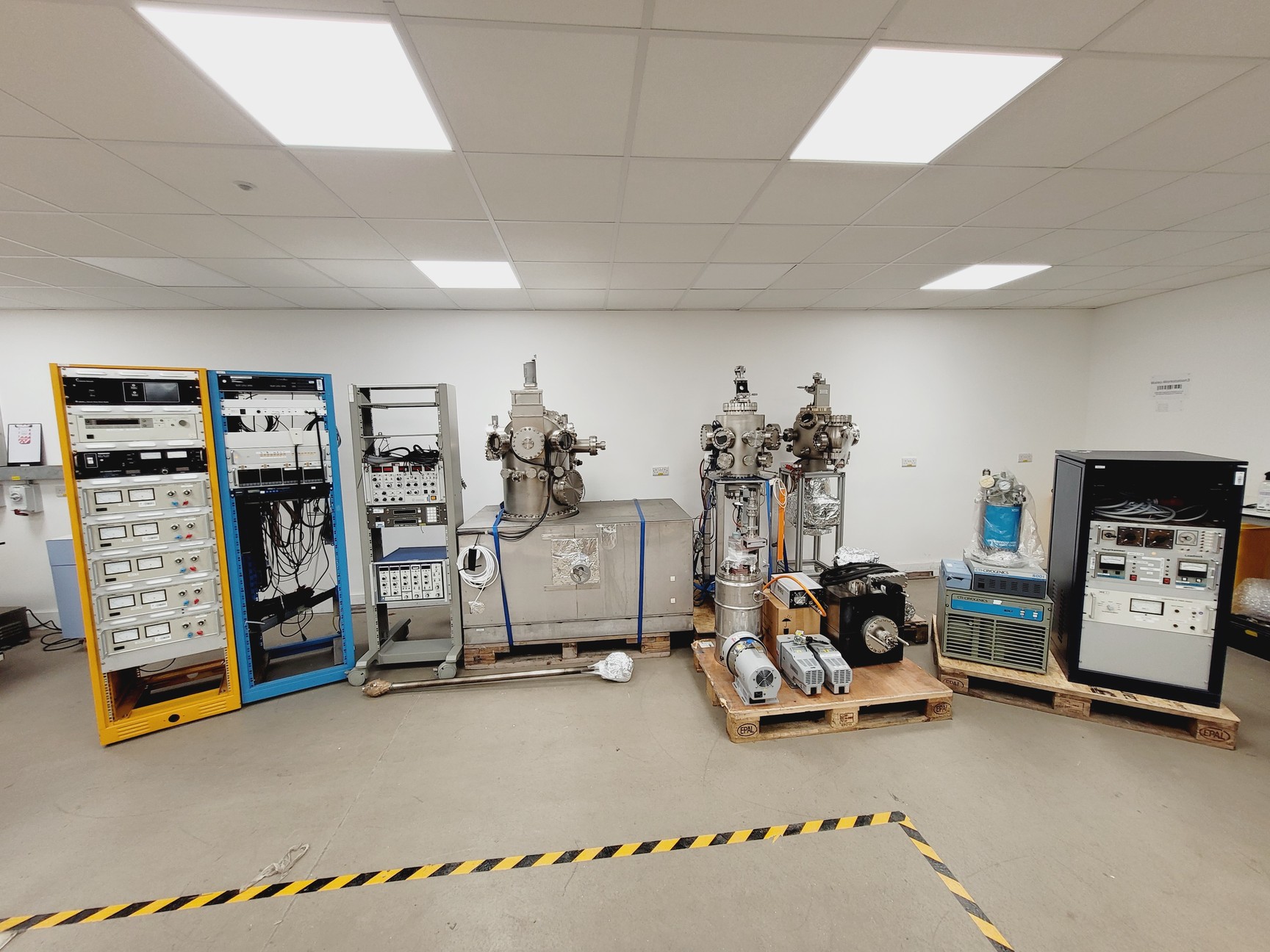

Included:

Main System:

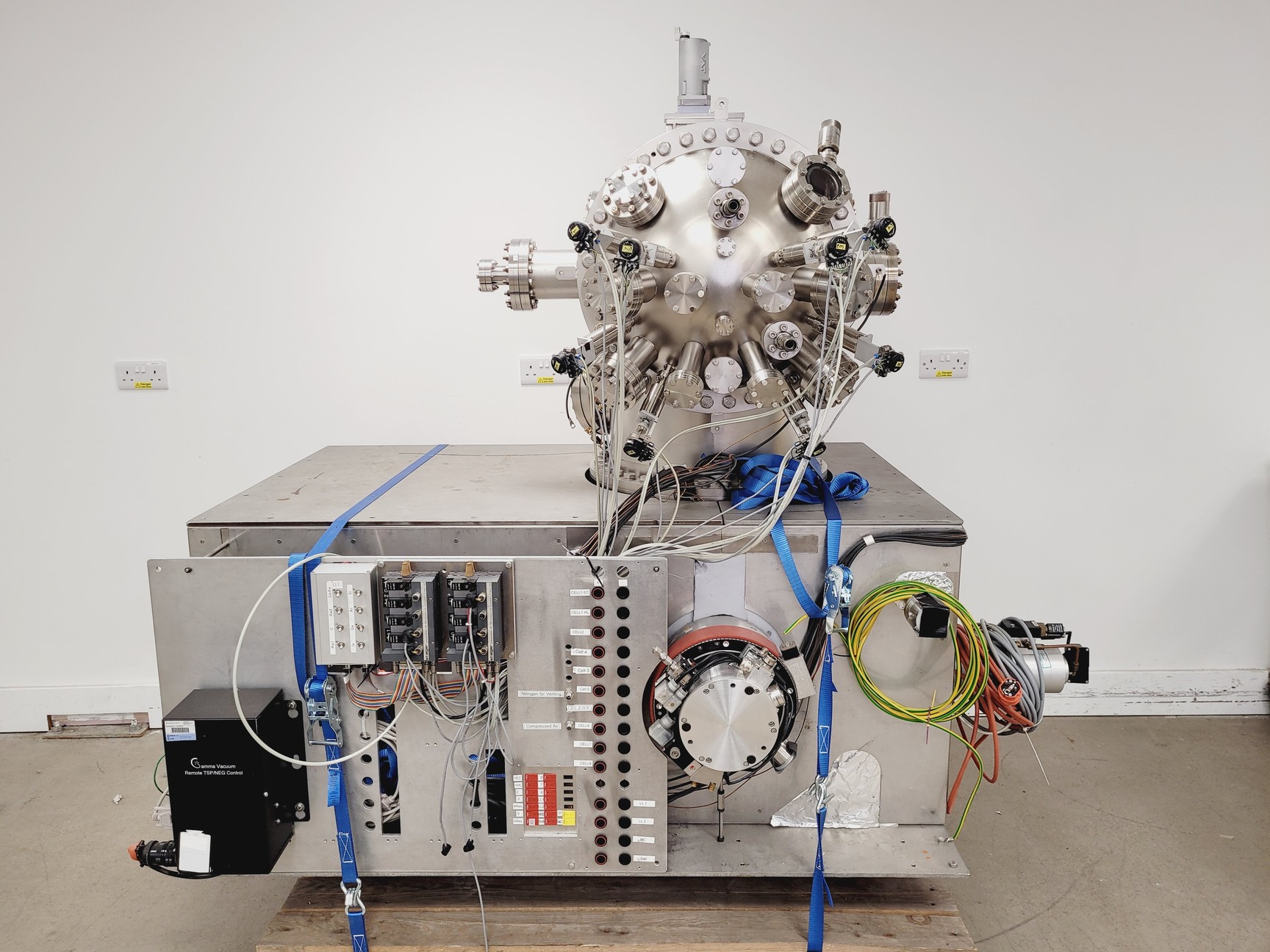

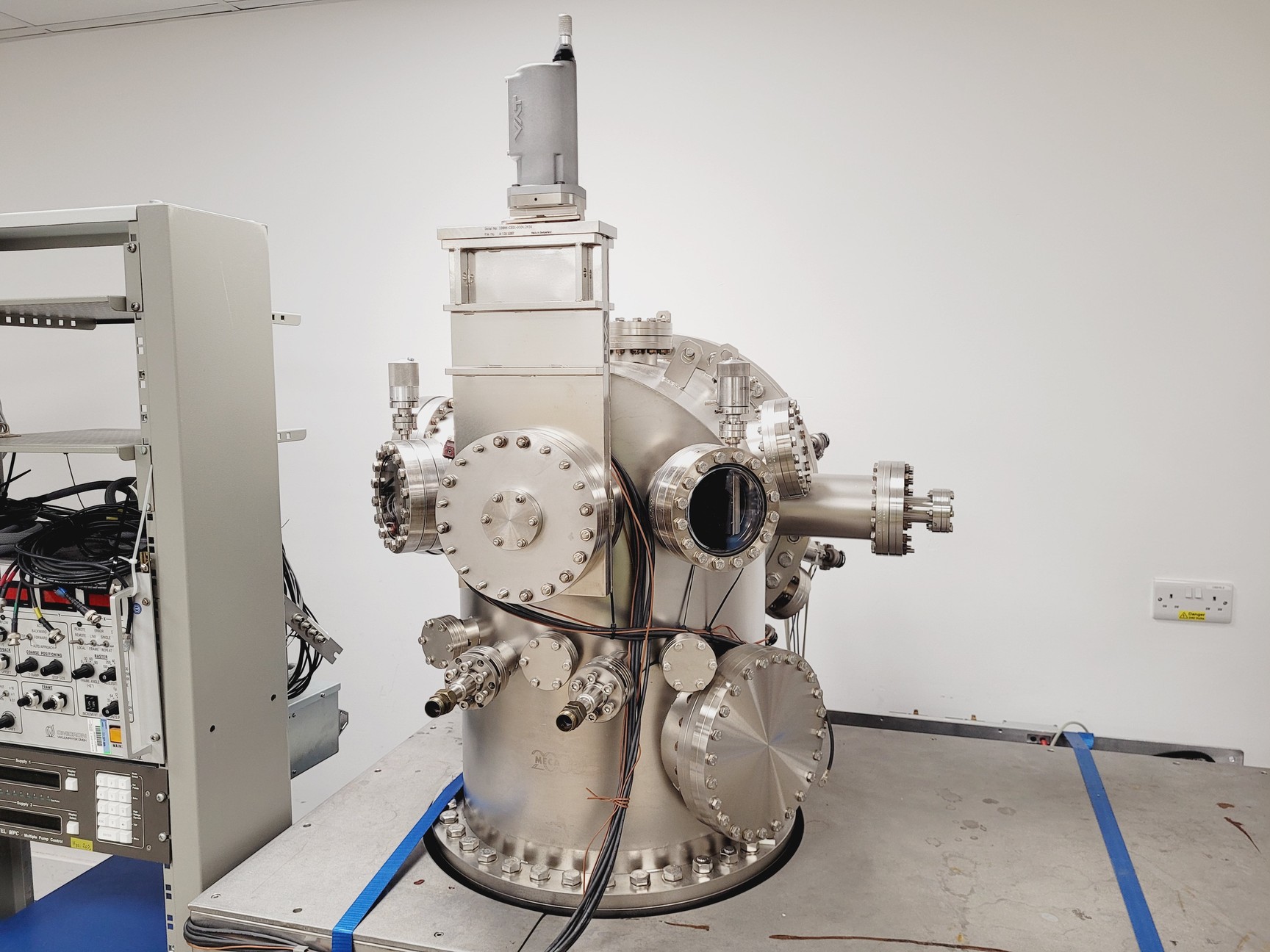

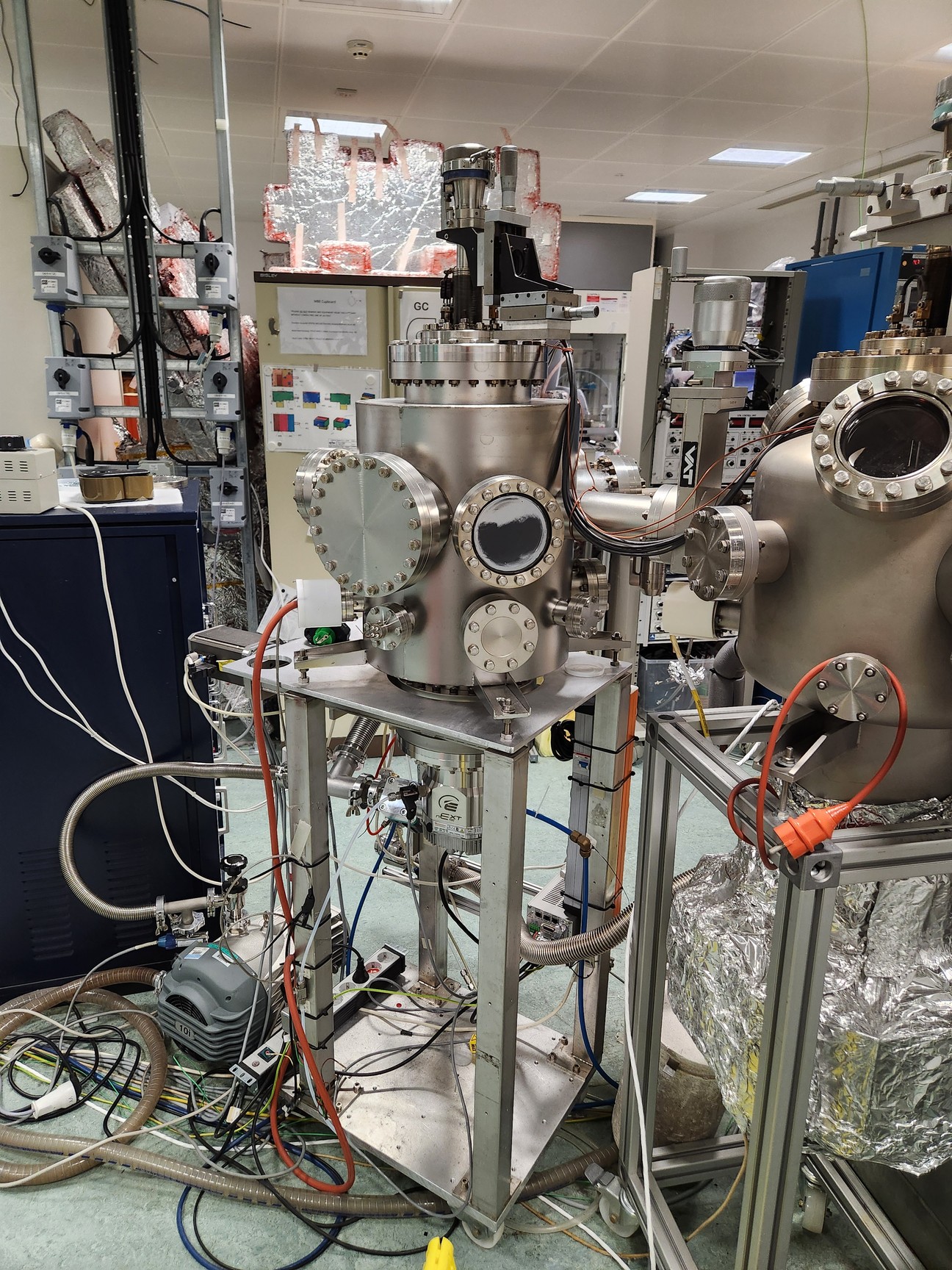

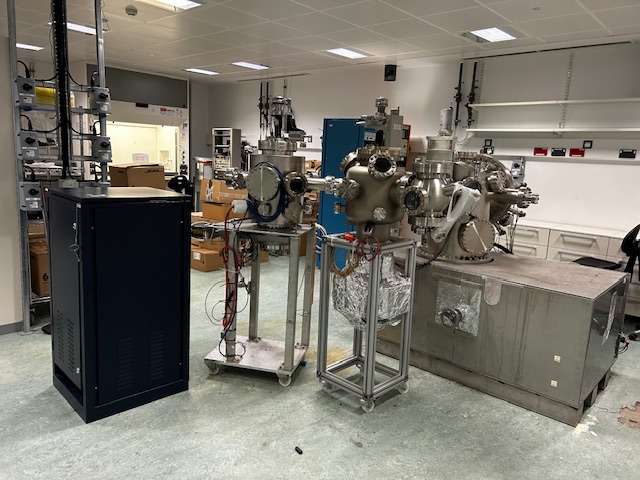

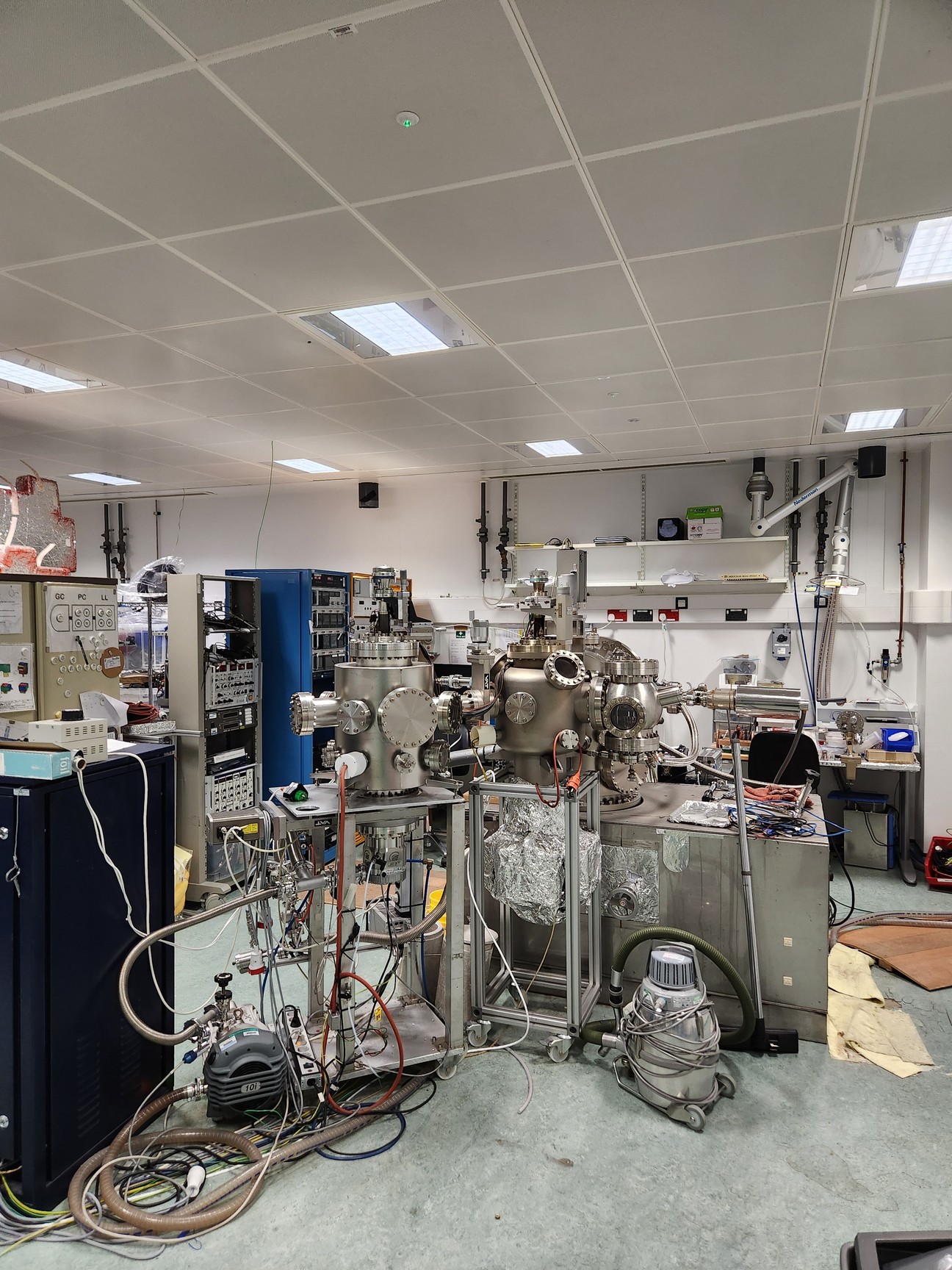

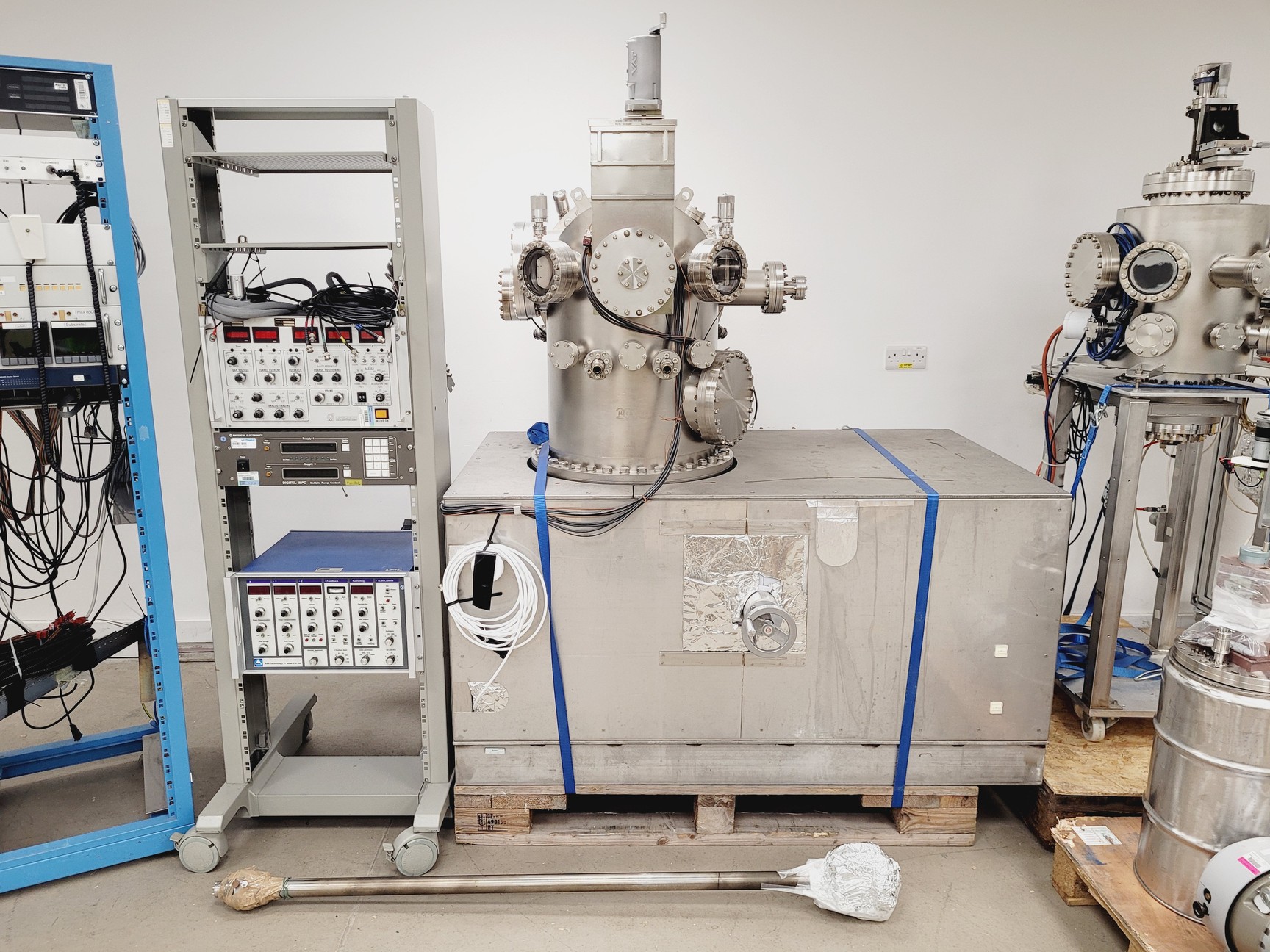

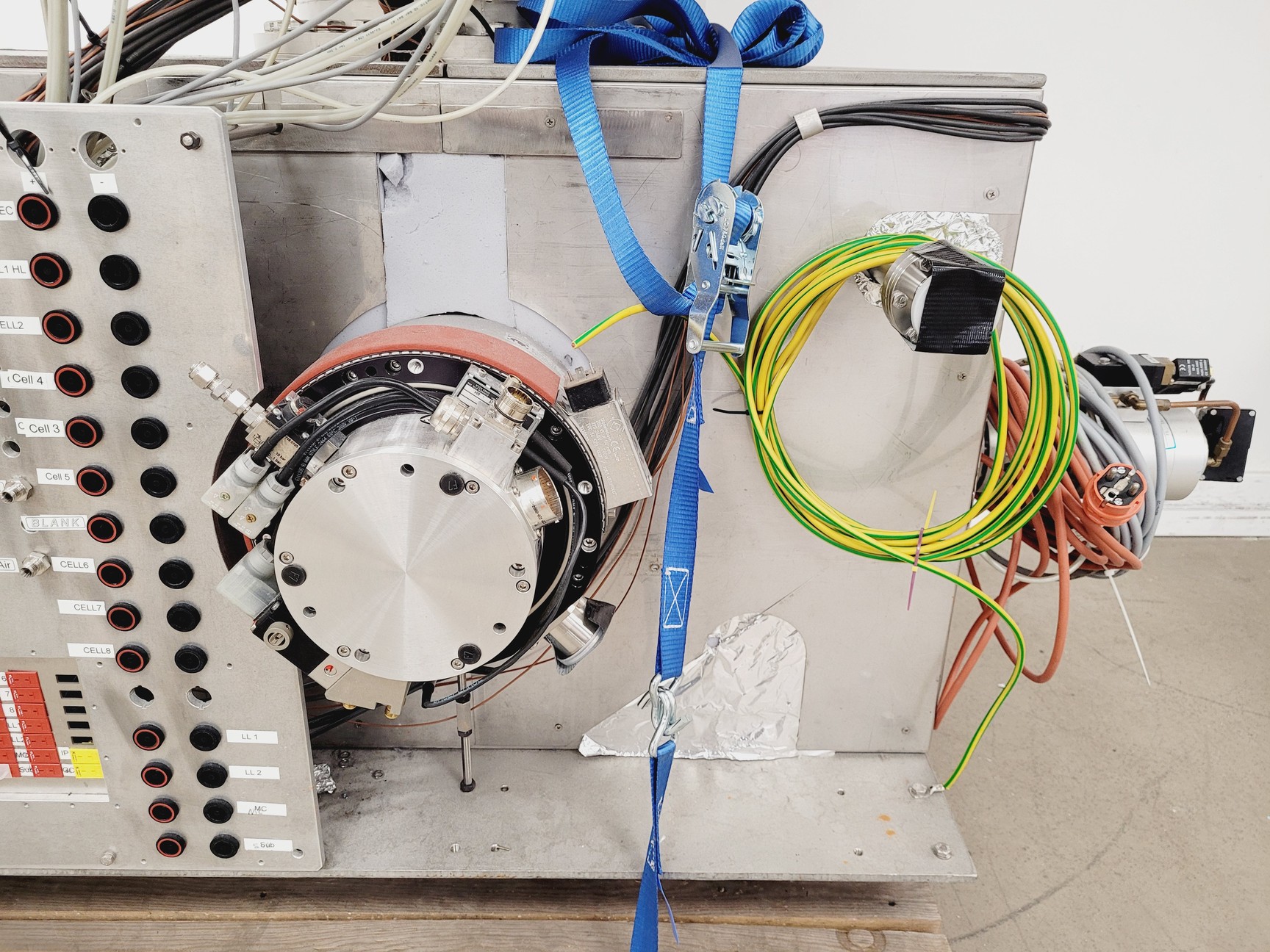

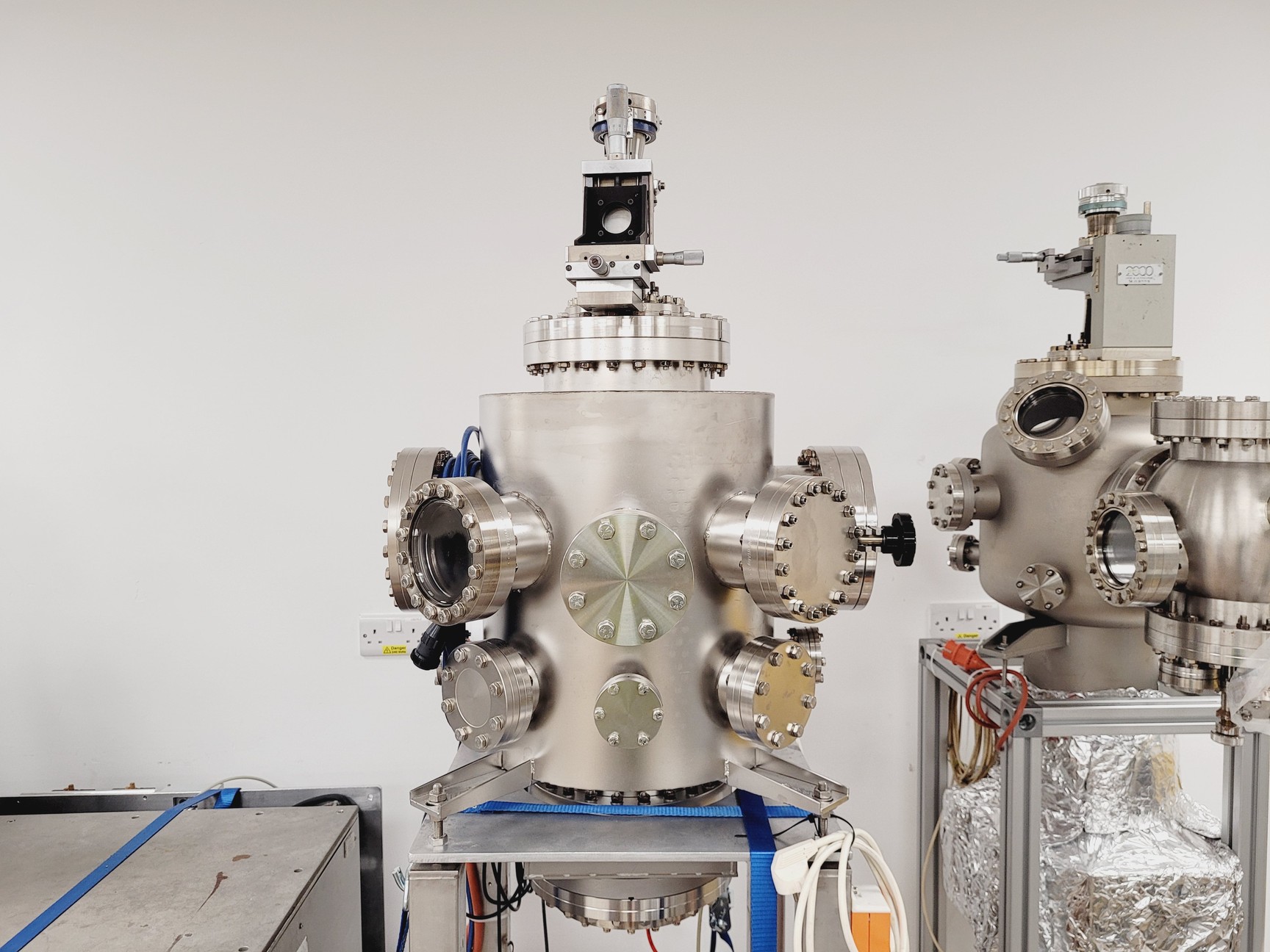

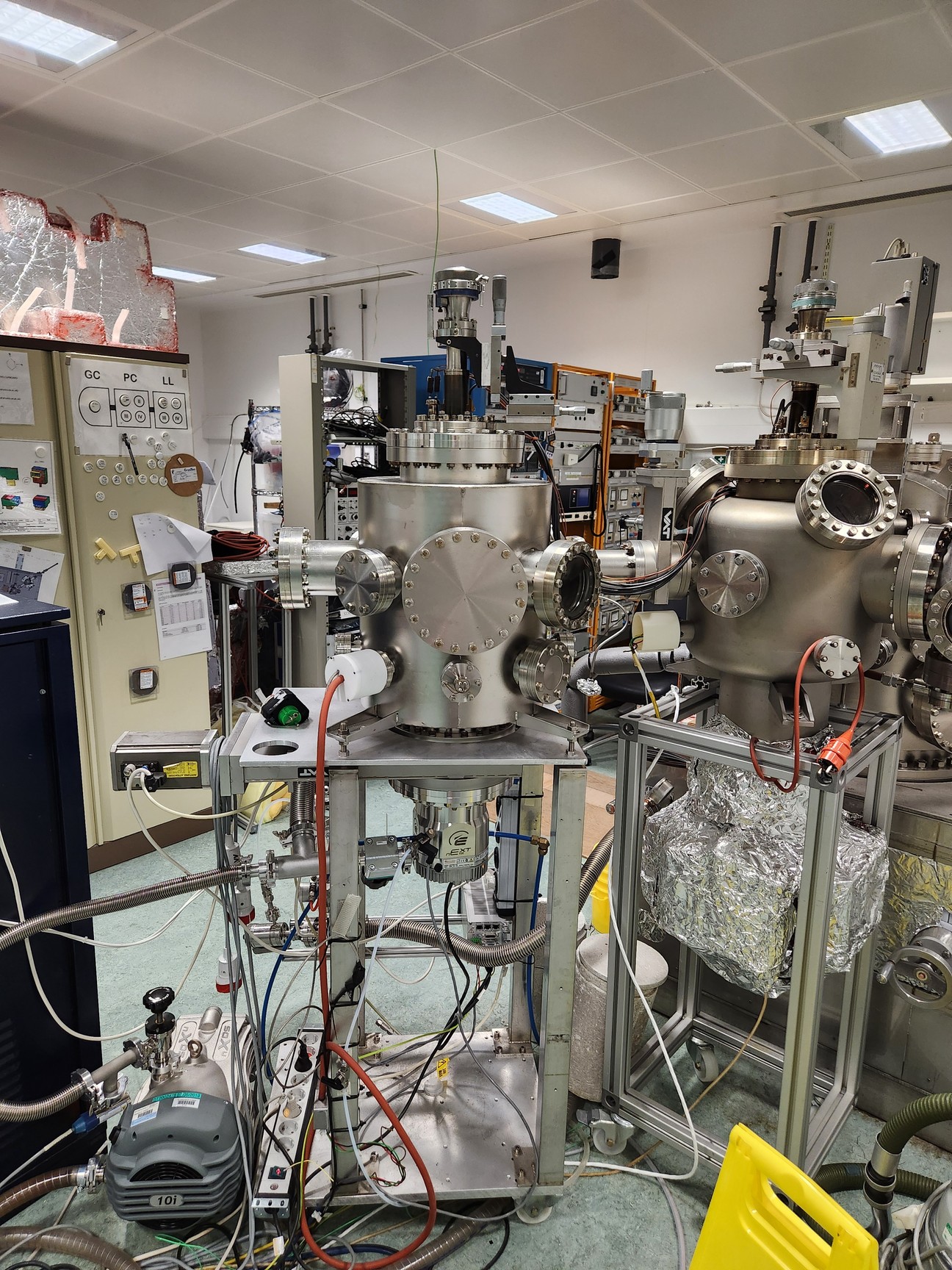

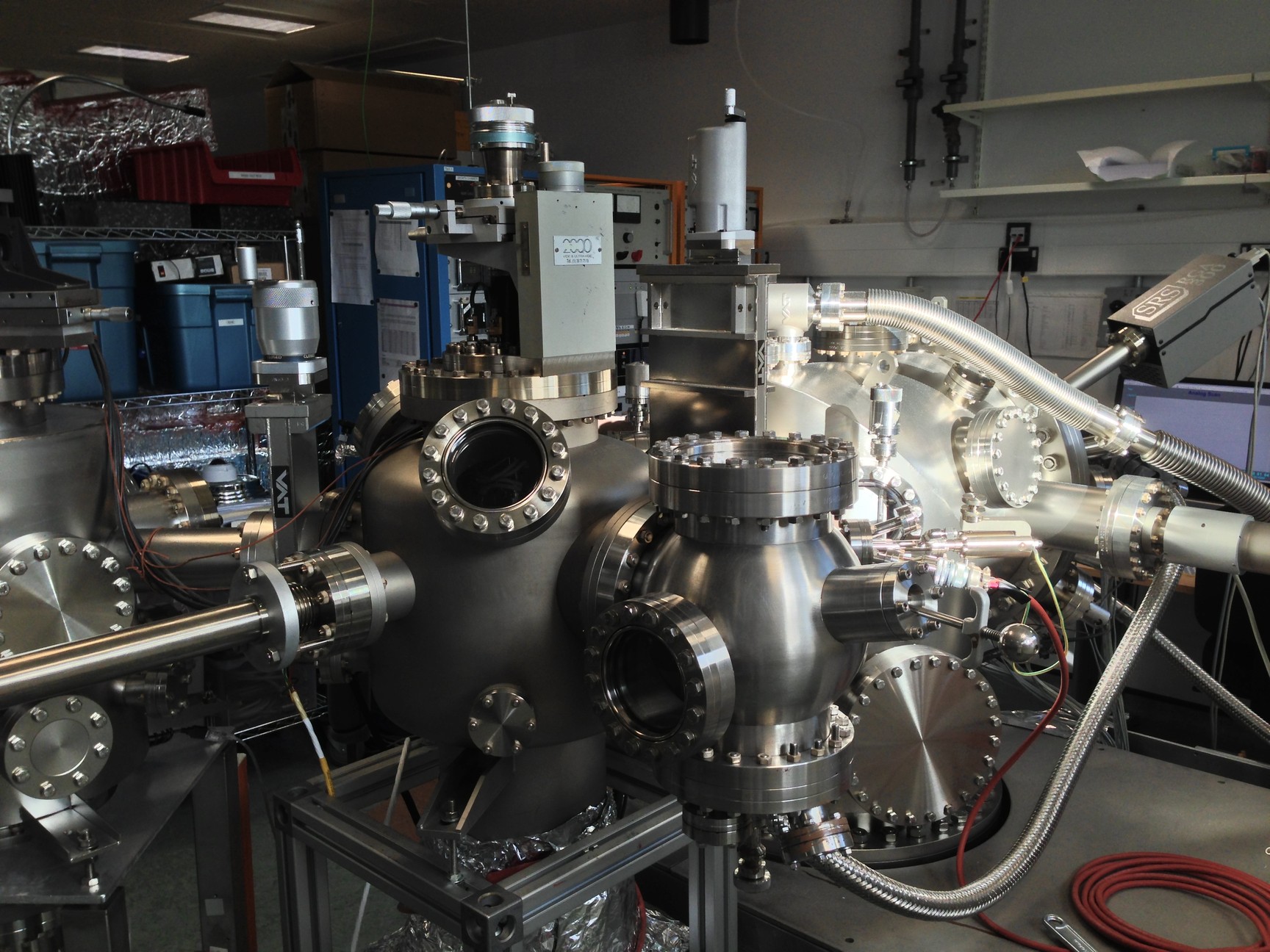

• Meca 2000 Main Unit
• Meca 2000 Second Unit
• Meca 2000 Third Unit

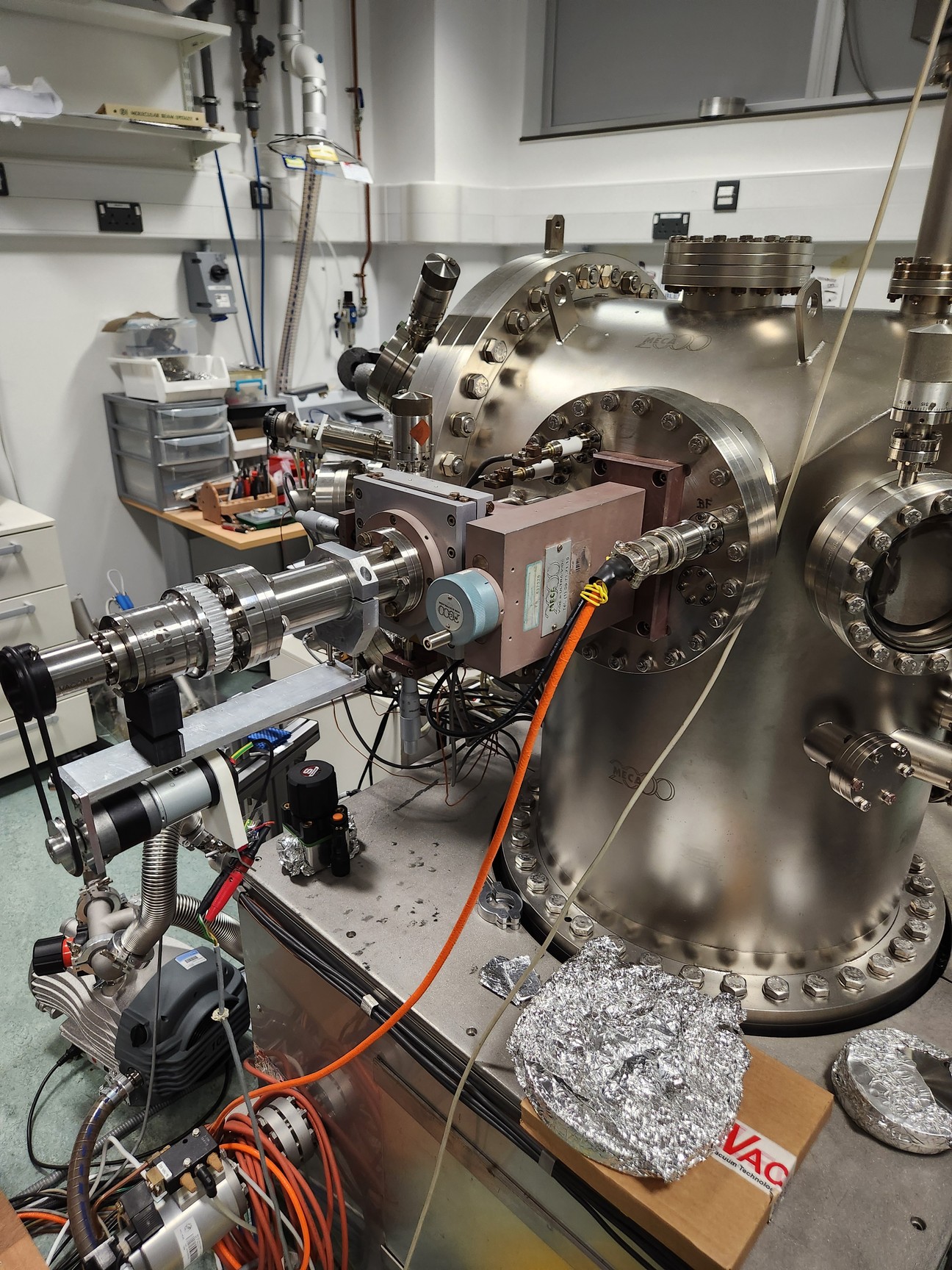

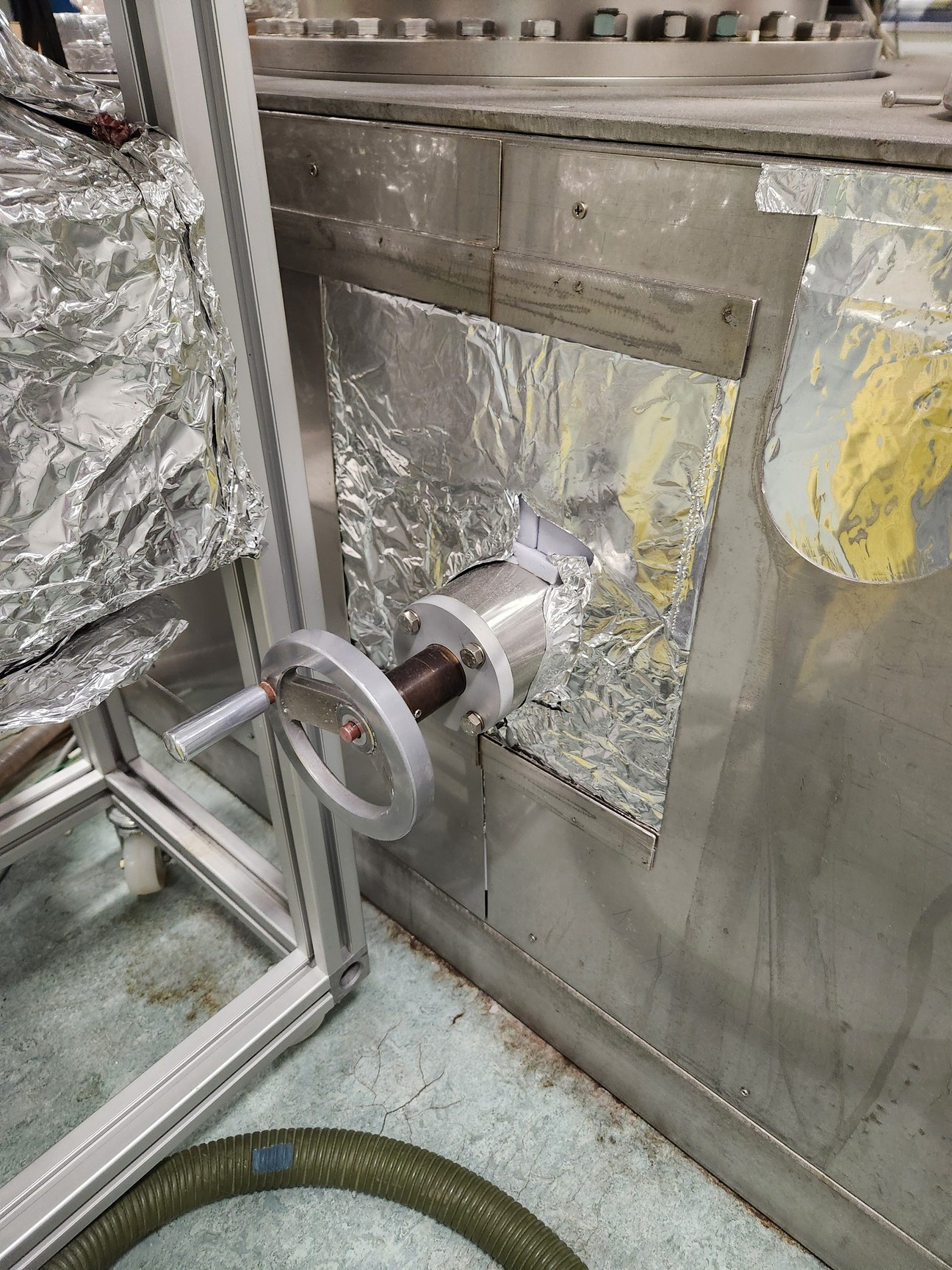

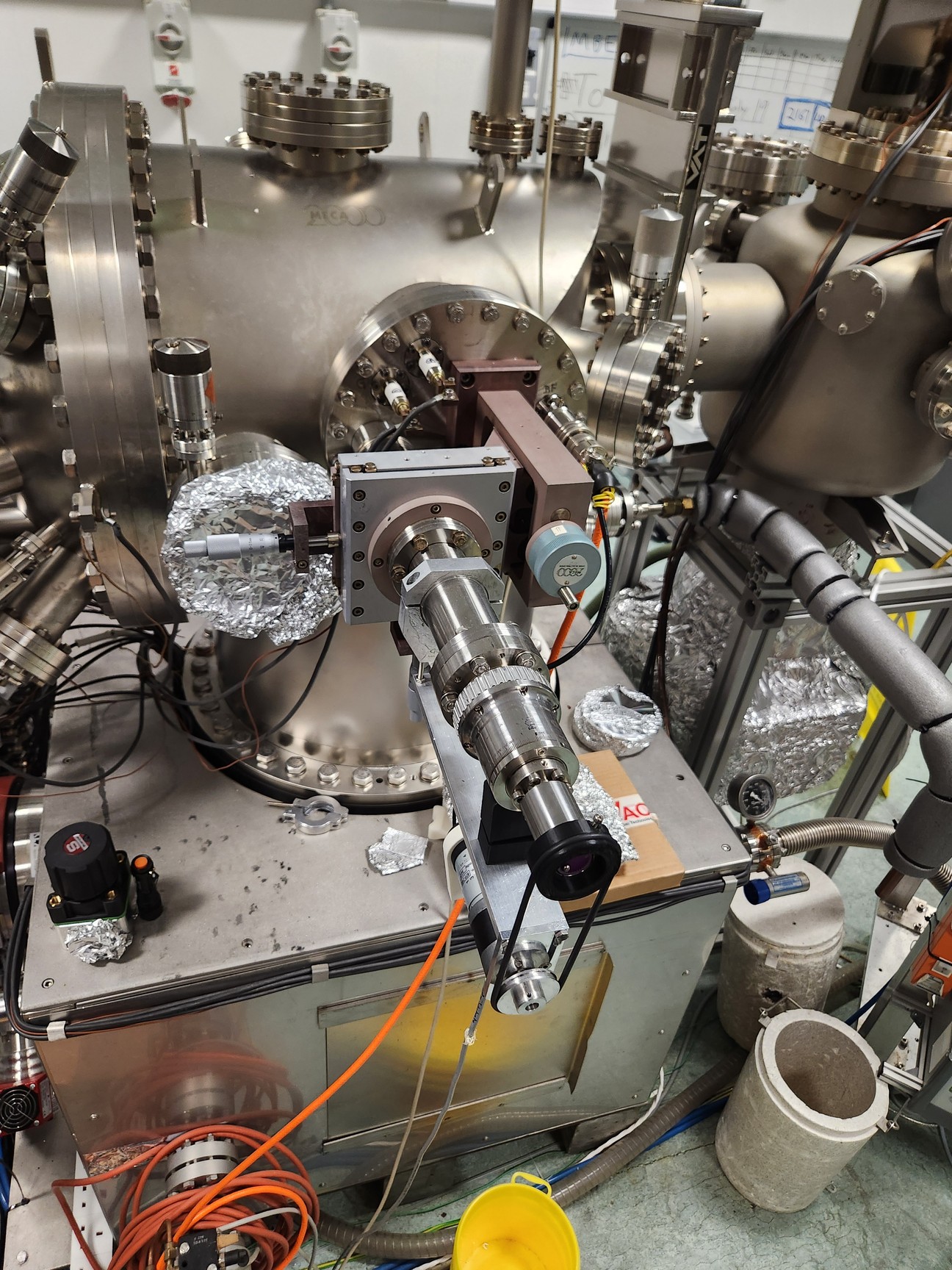

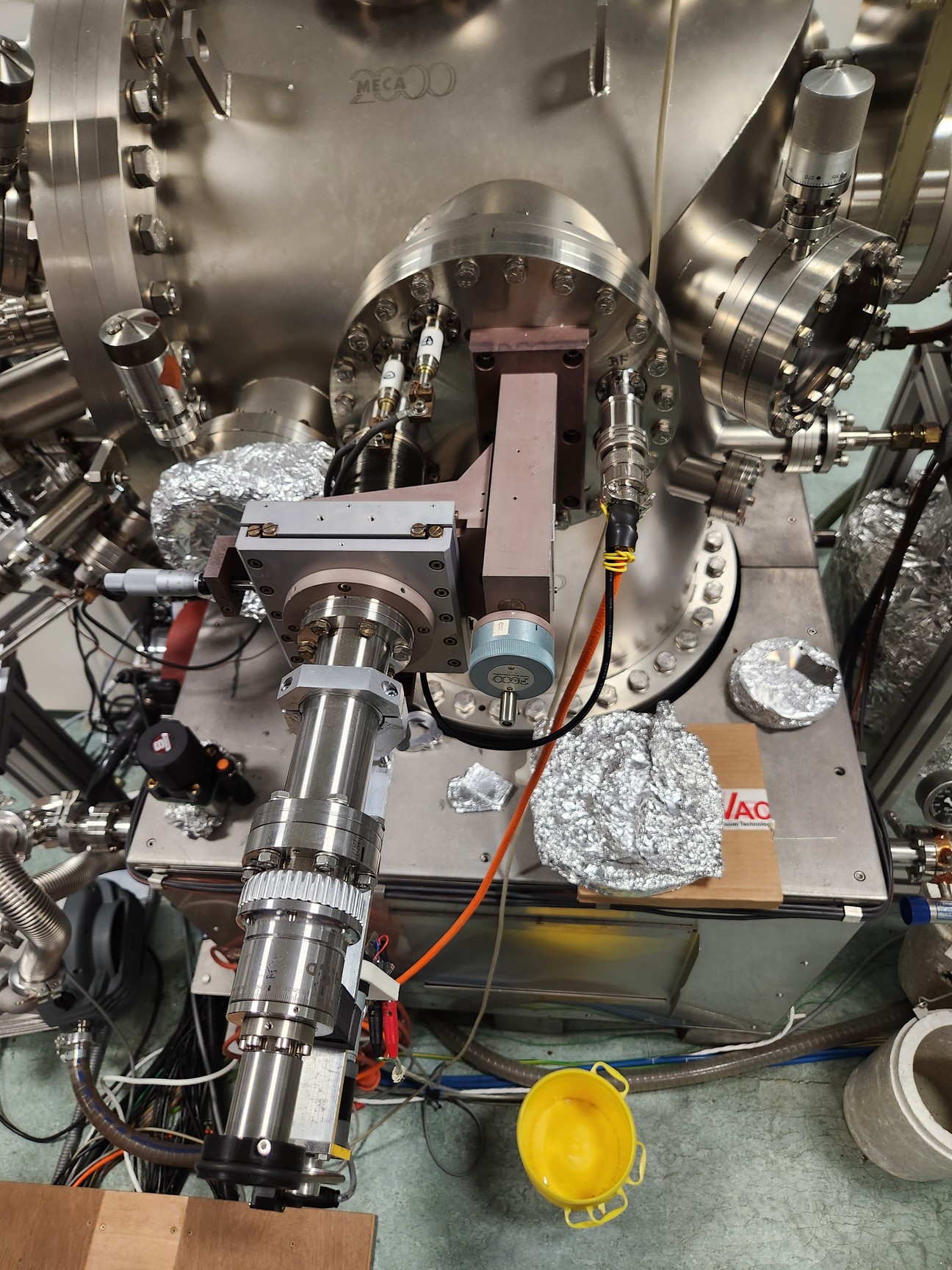

• Meca 2000 Sample Manipulator (rotation, heating, multi-axis positioning)

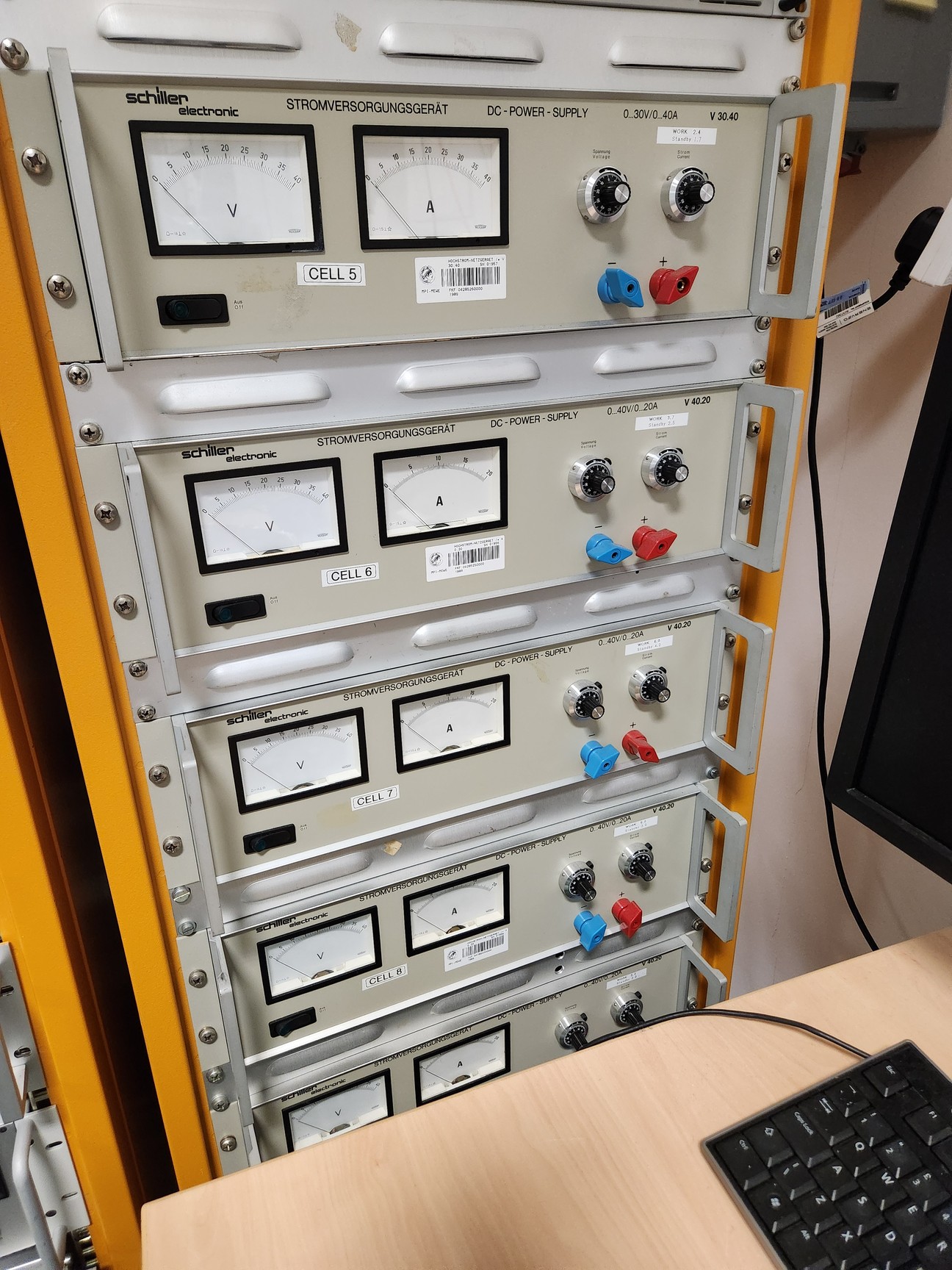

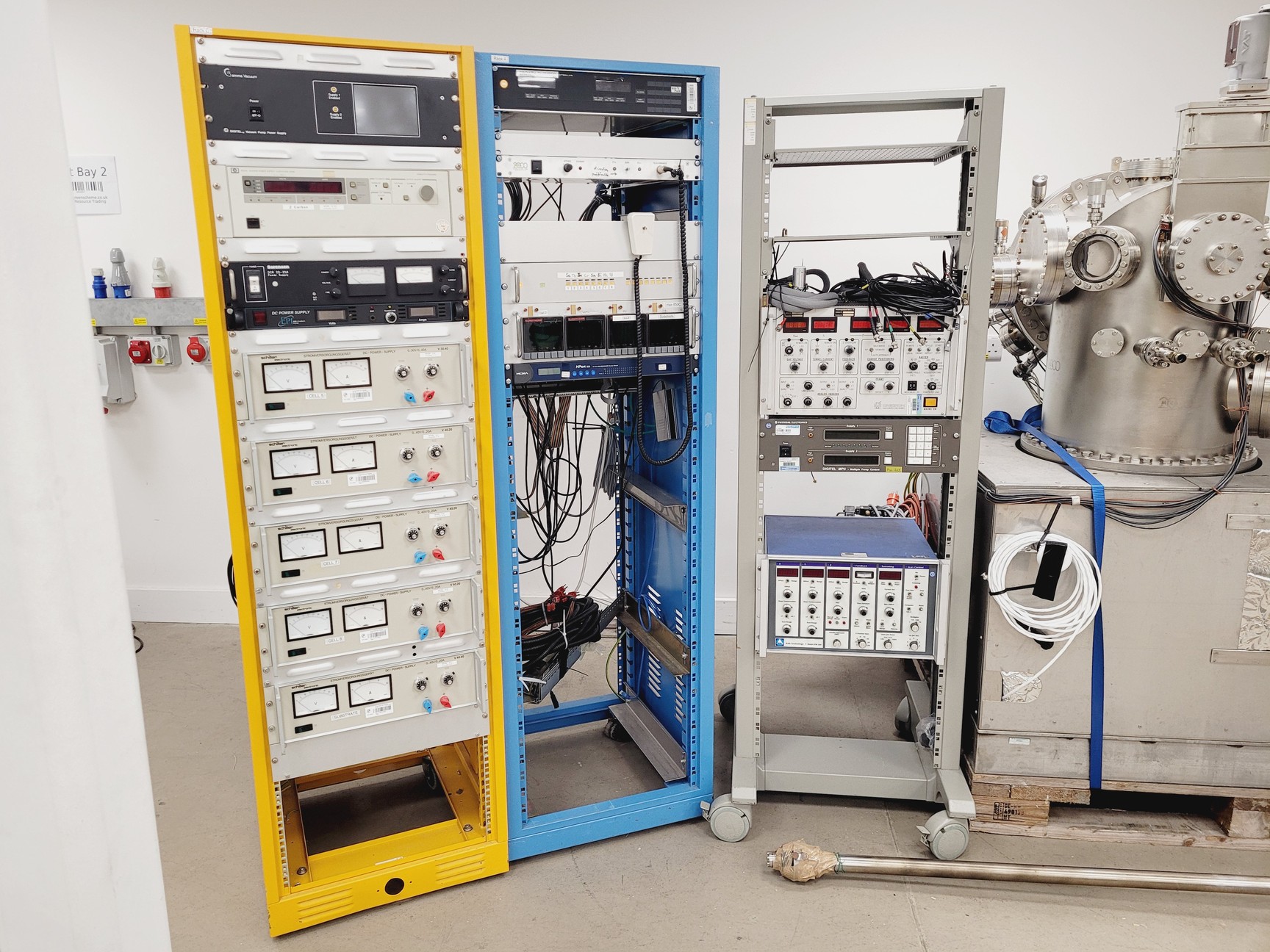

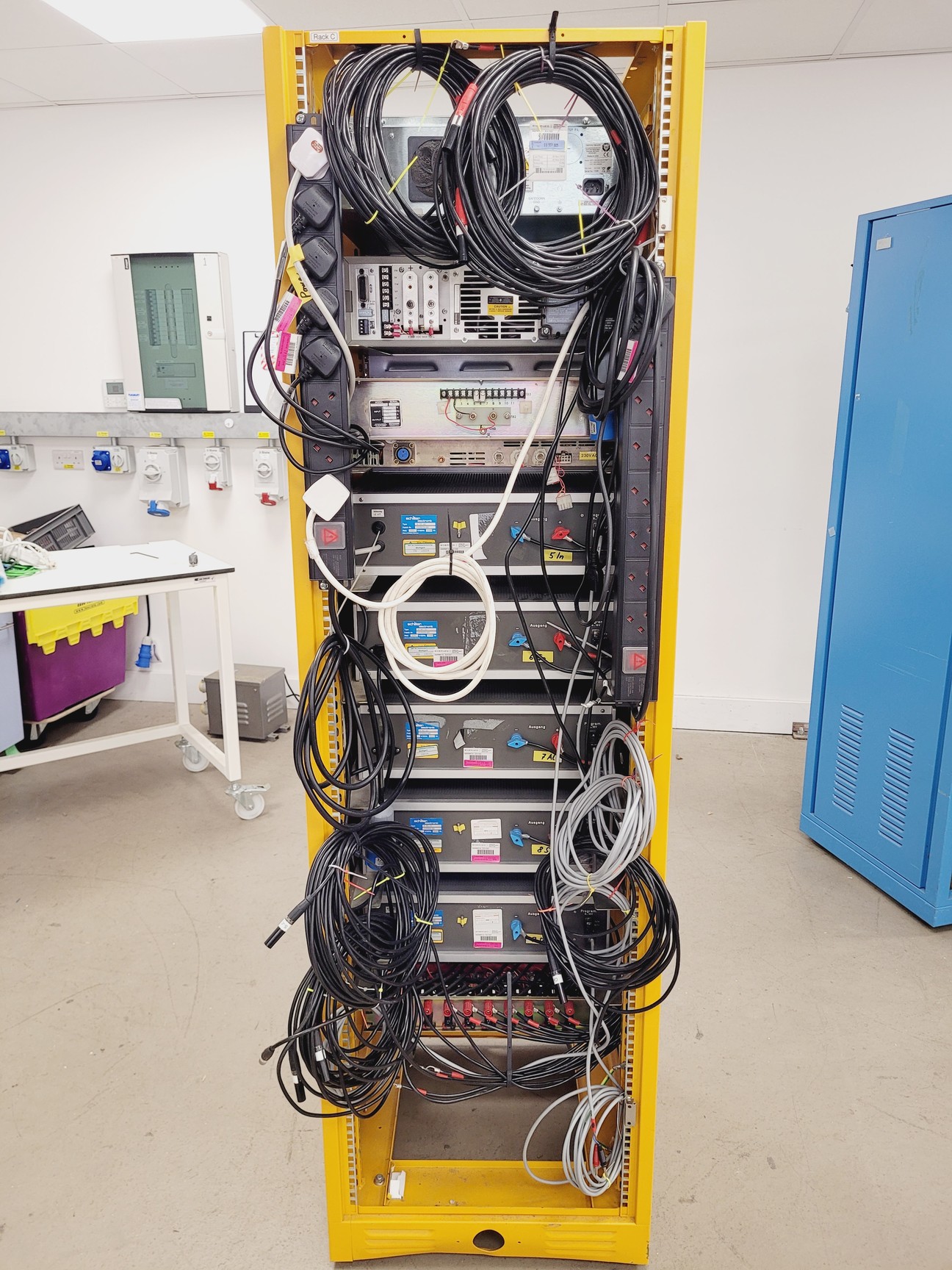

Yellow Server Rack:

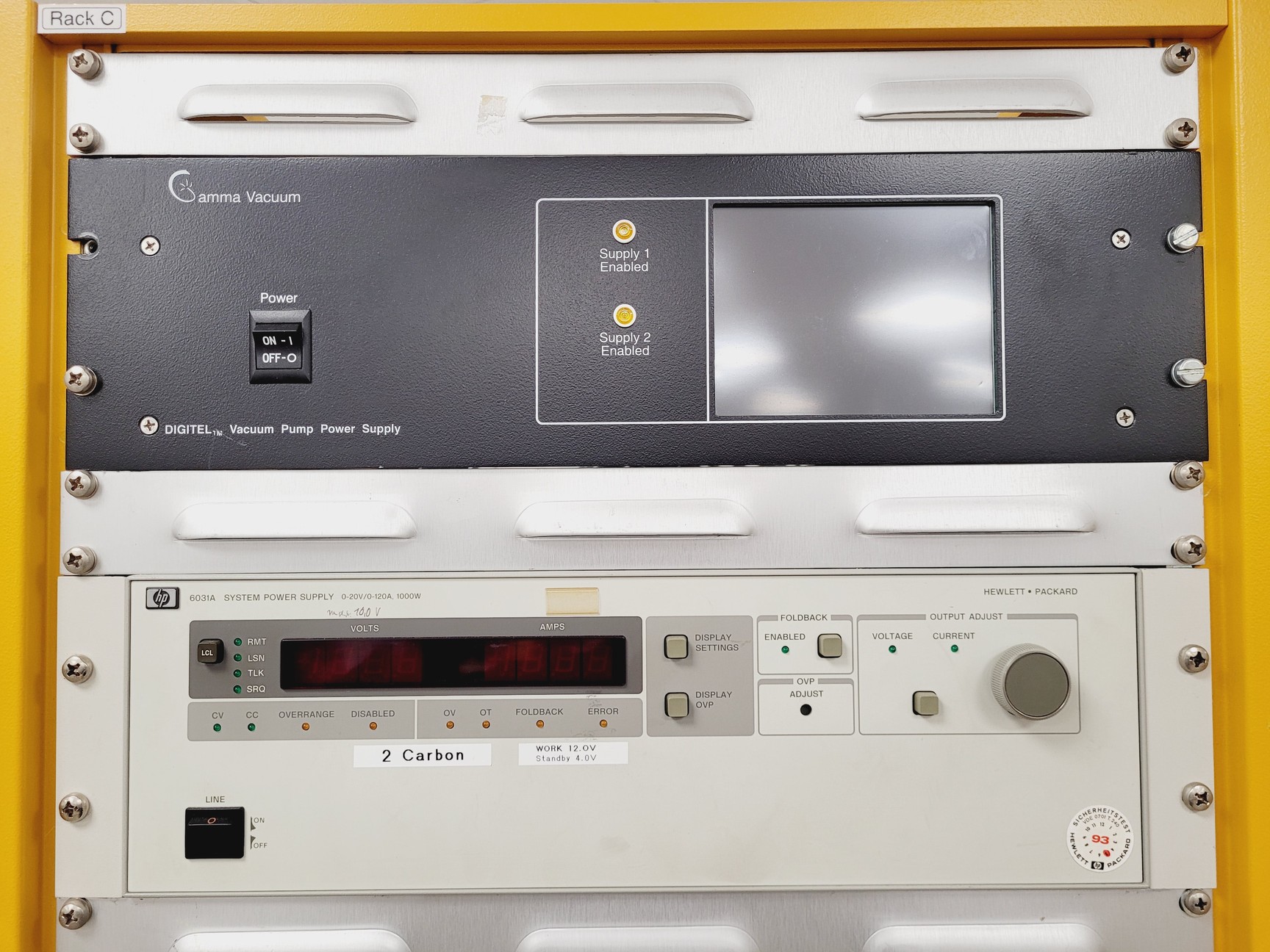

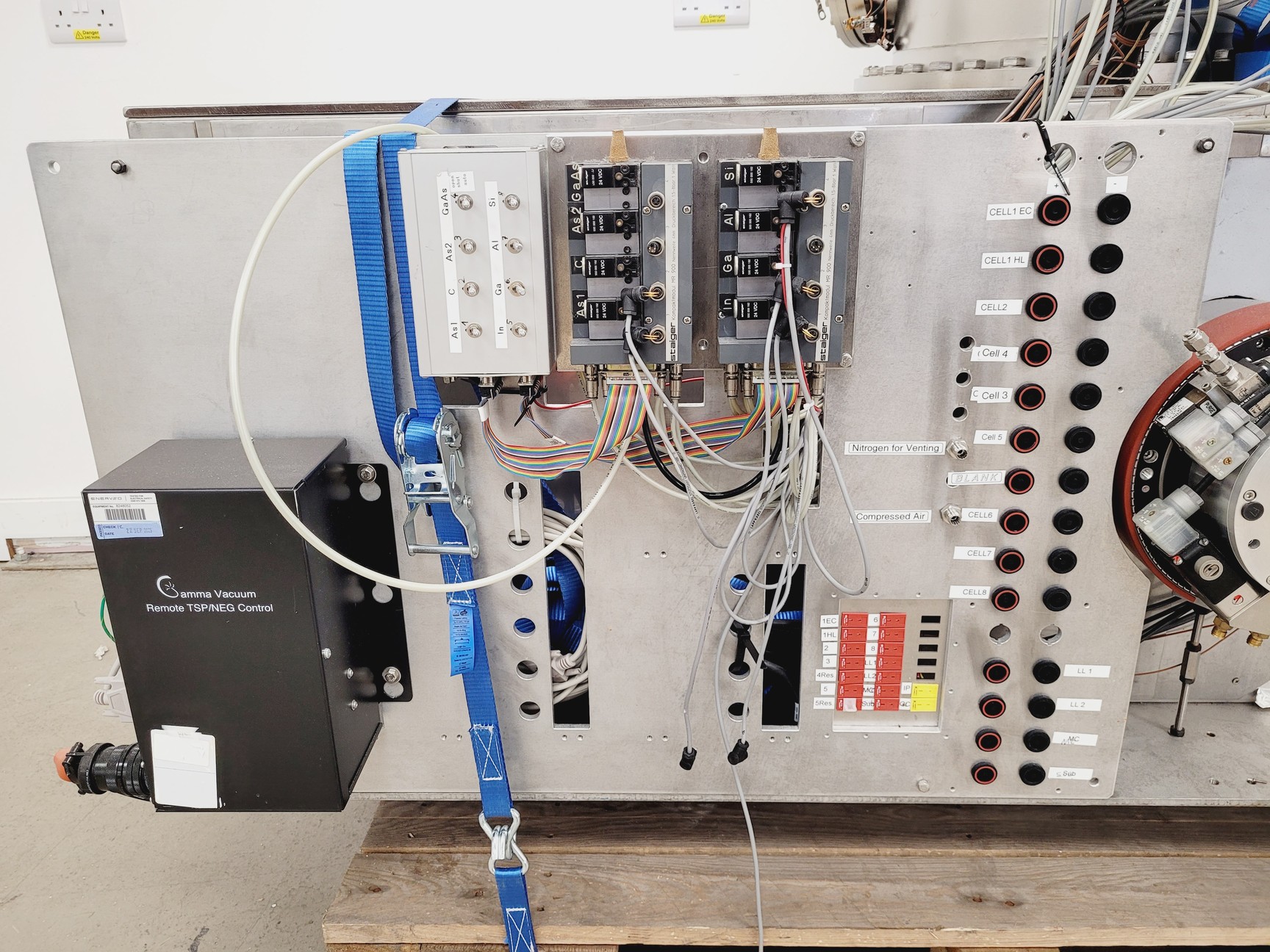

• Gamma Vacuum MPC-1-EC230-232-N-TSP Vacuum Power Supply
• HP 6031A System Power Supply

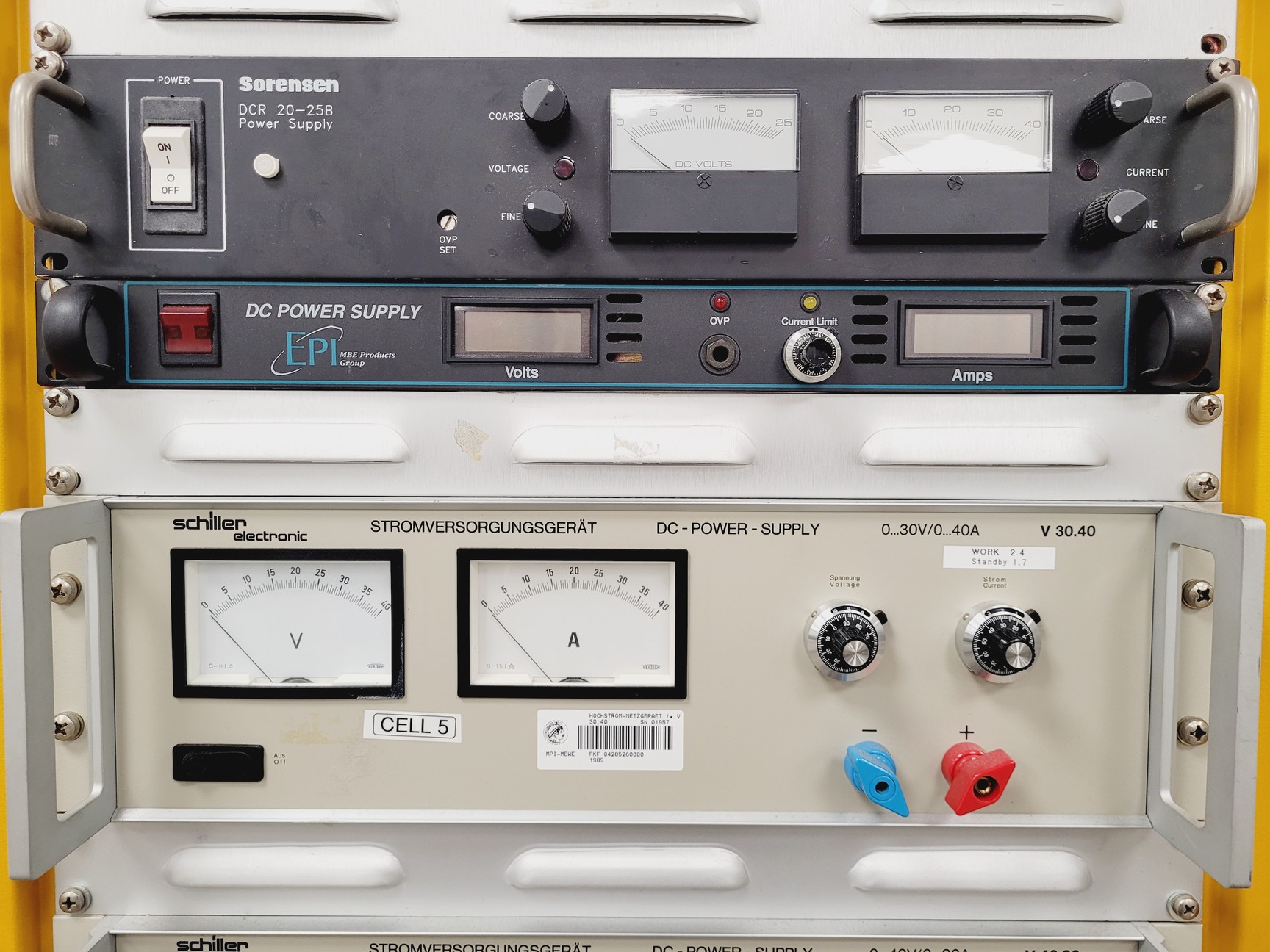

• Sorensen DCR 20-25B2M34 Power Supply
• EPI MBE Products Group DC Power Supply

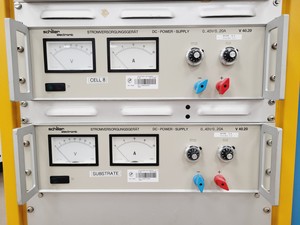

• Schiller Electronic Stromversorgungsgerät DC Power Supply V.30.40

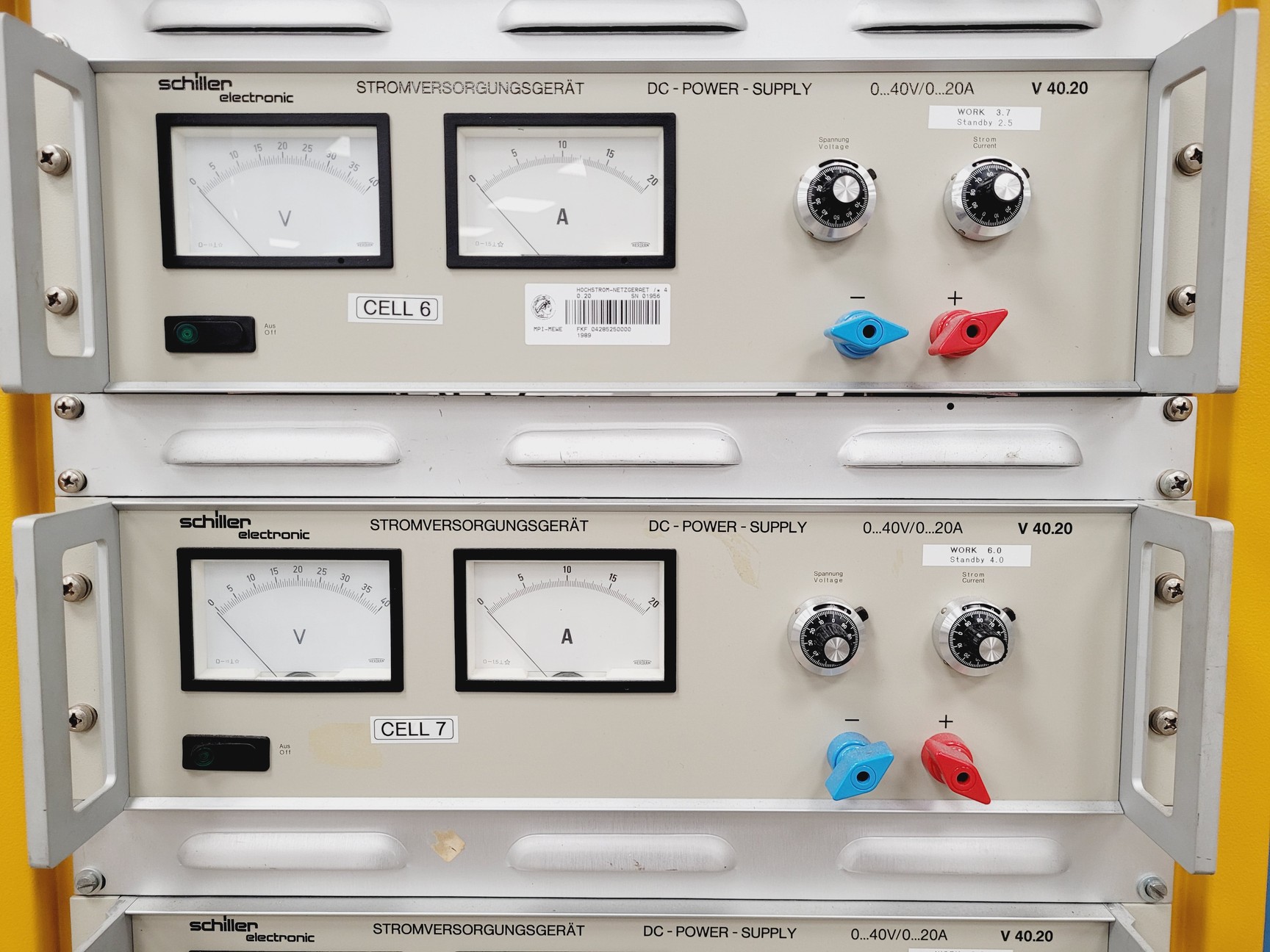

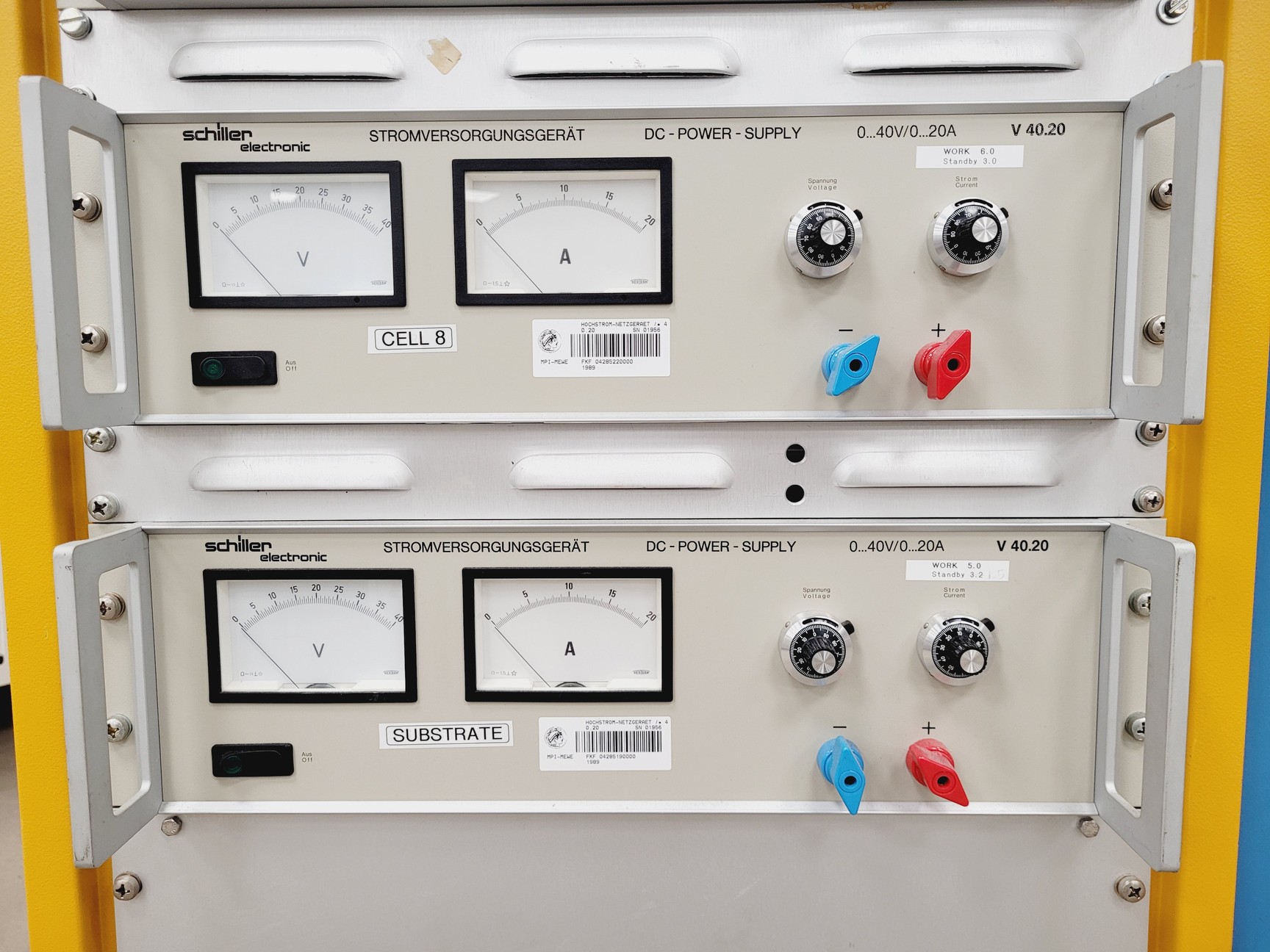

• 4 x Schiller Electronic Stromversorgungsgerät DC Power Supply V.40.20

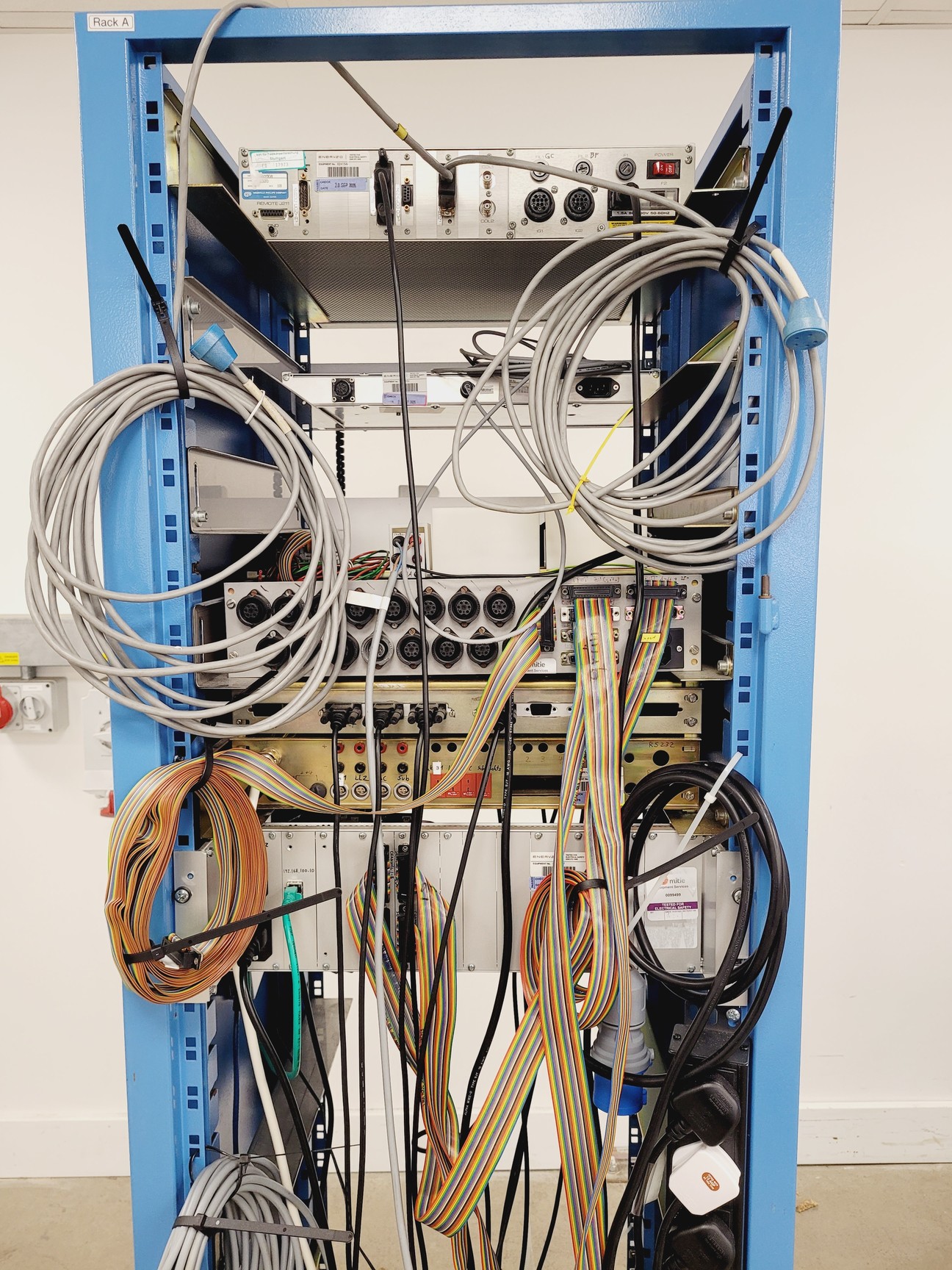

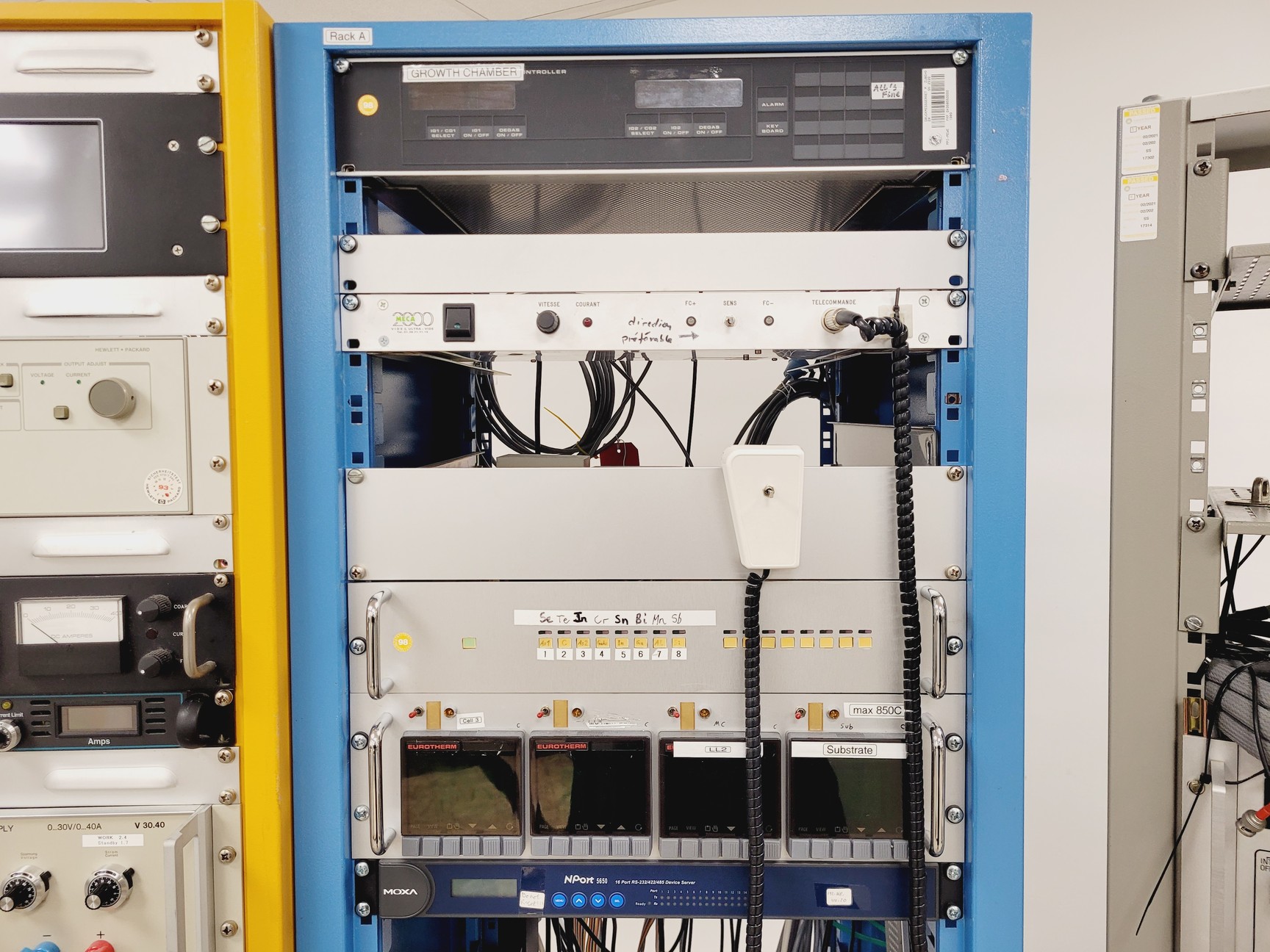

Blue Server Rack:

• Granville-Phillips 303 Vacuum Process Controller
• Meca 2000 Vide & Ultra-Vide
• 4 x Eurotherm Temperature Controllers
• Moxa NPort 5650 16-Port RS-232/422/485 Device Server

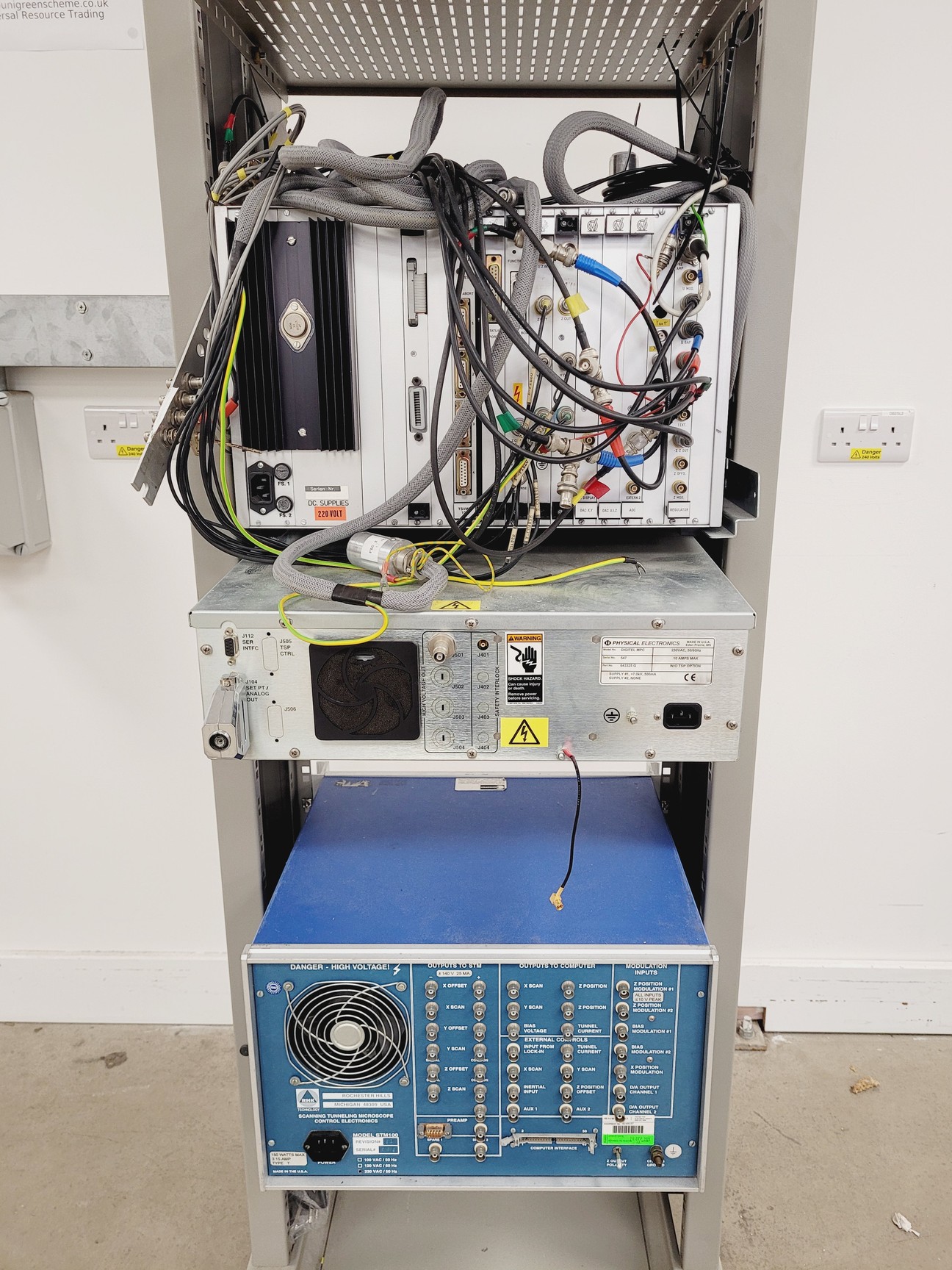

Grey Server Rack:

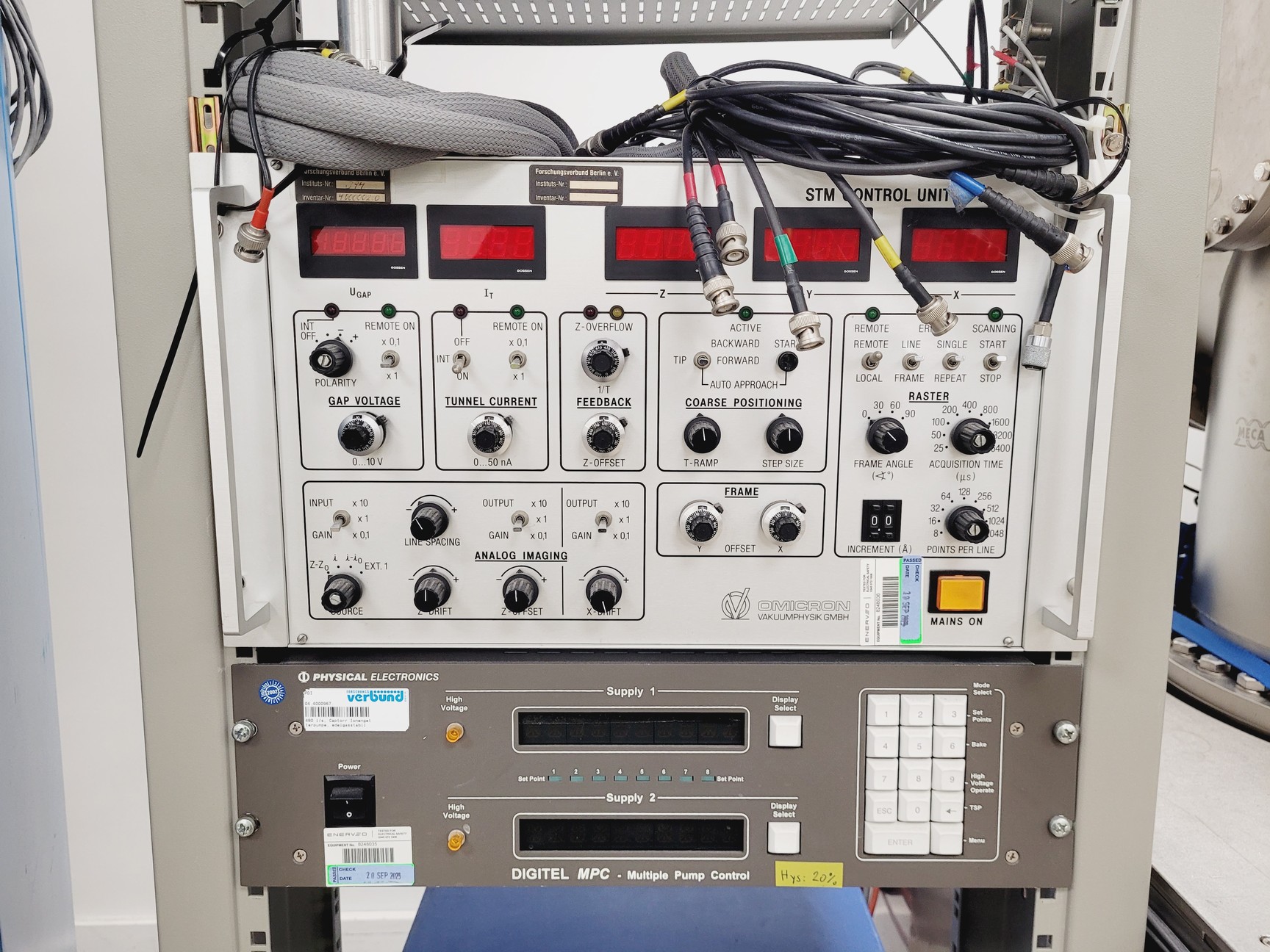

• Omicron STM Control Unit
• Physical Electronics Digital MPC Multiple Pump Control

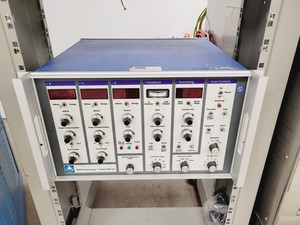

• RHK Technology STM 100 Control Unit

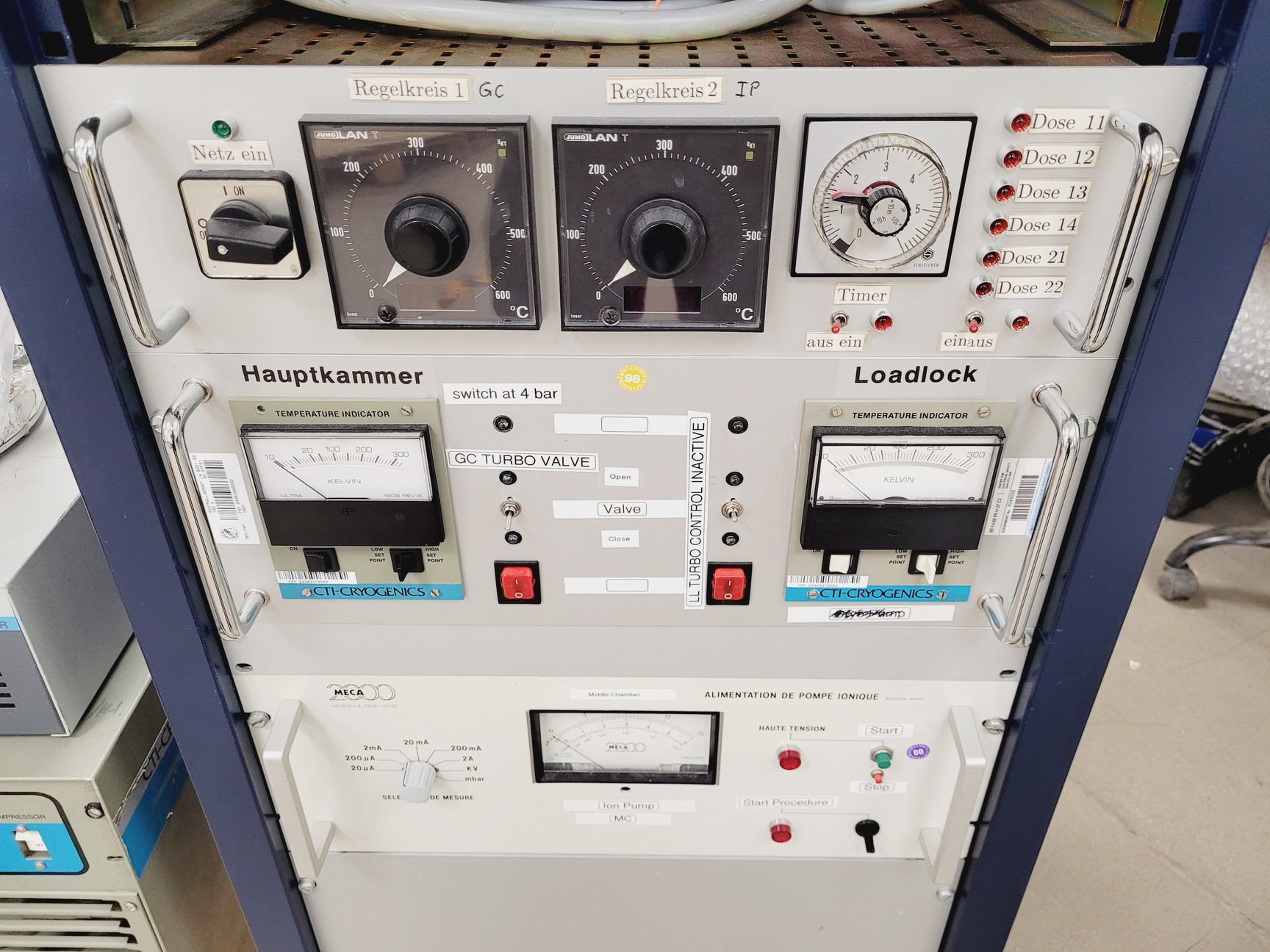

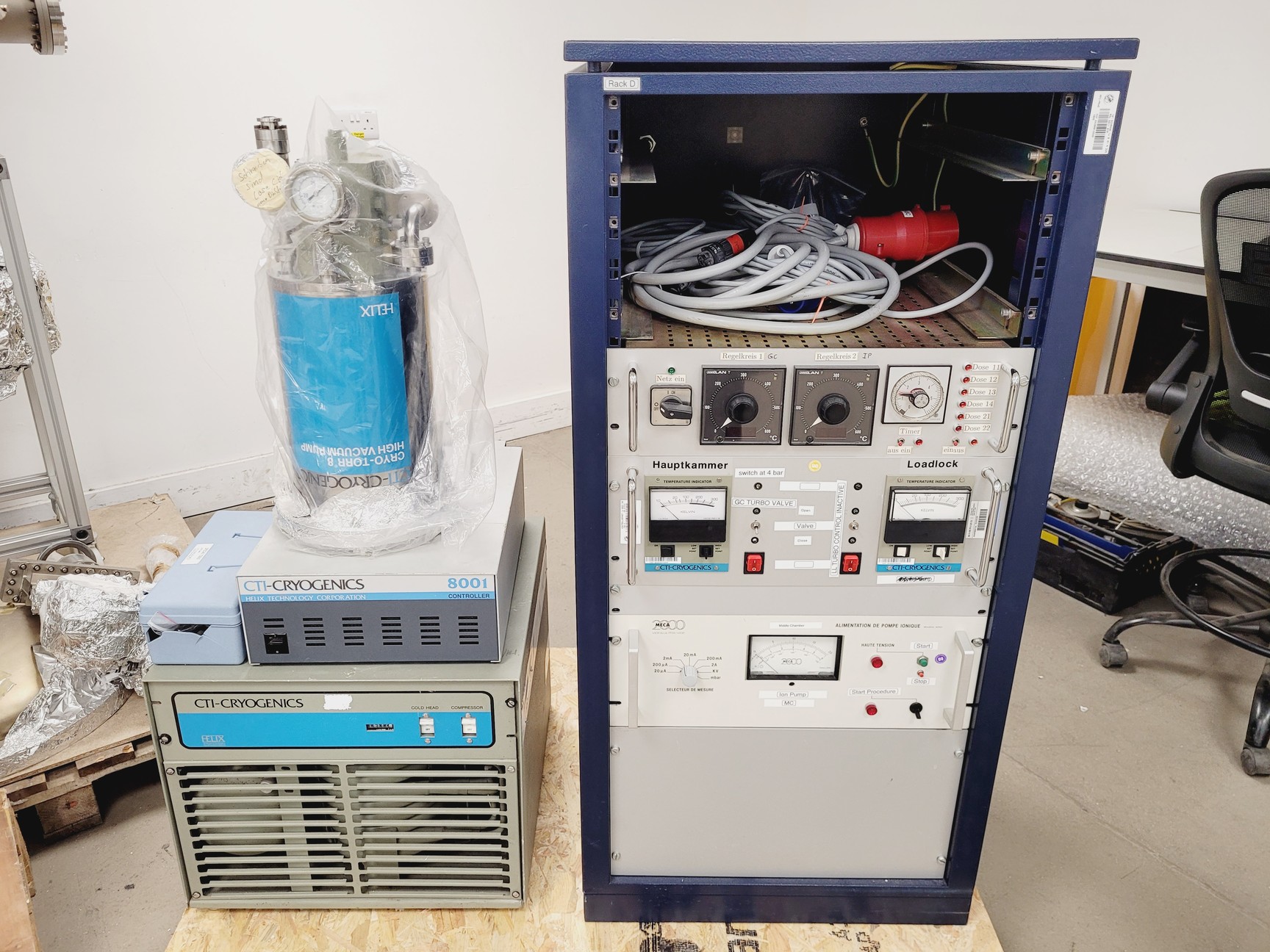

Dark Blue Server Rack:

• 2 x CTI-Cryogenics Temperature Controllers
• Meca 2000 APID Controller
• Power Supply with Temperature Controller and Timer

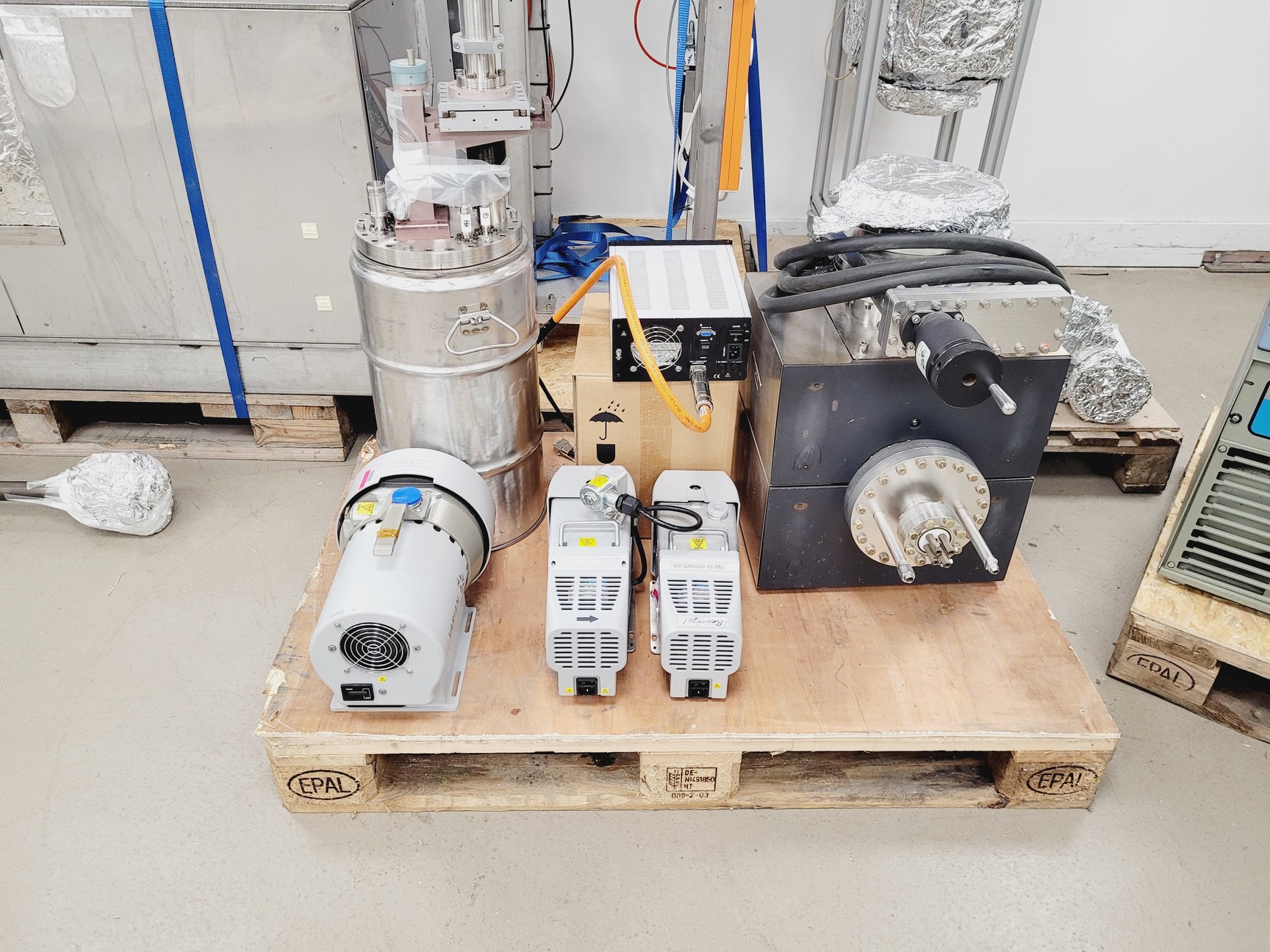

Vacuum & Pumping Equipment:

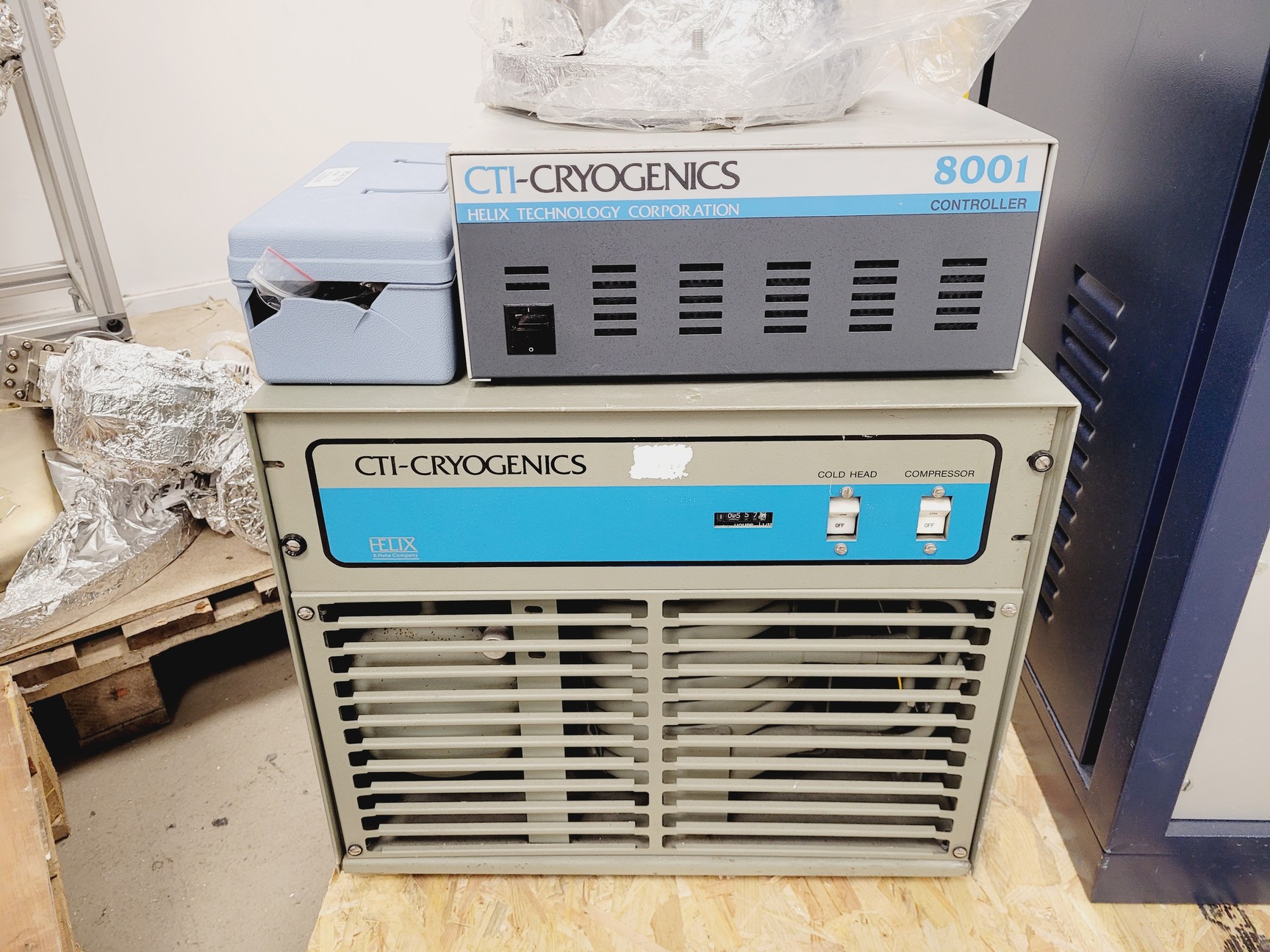

• CTI Cryogenics 8001 Controller
• CTI-Cryogenics Compressor SCW

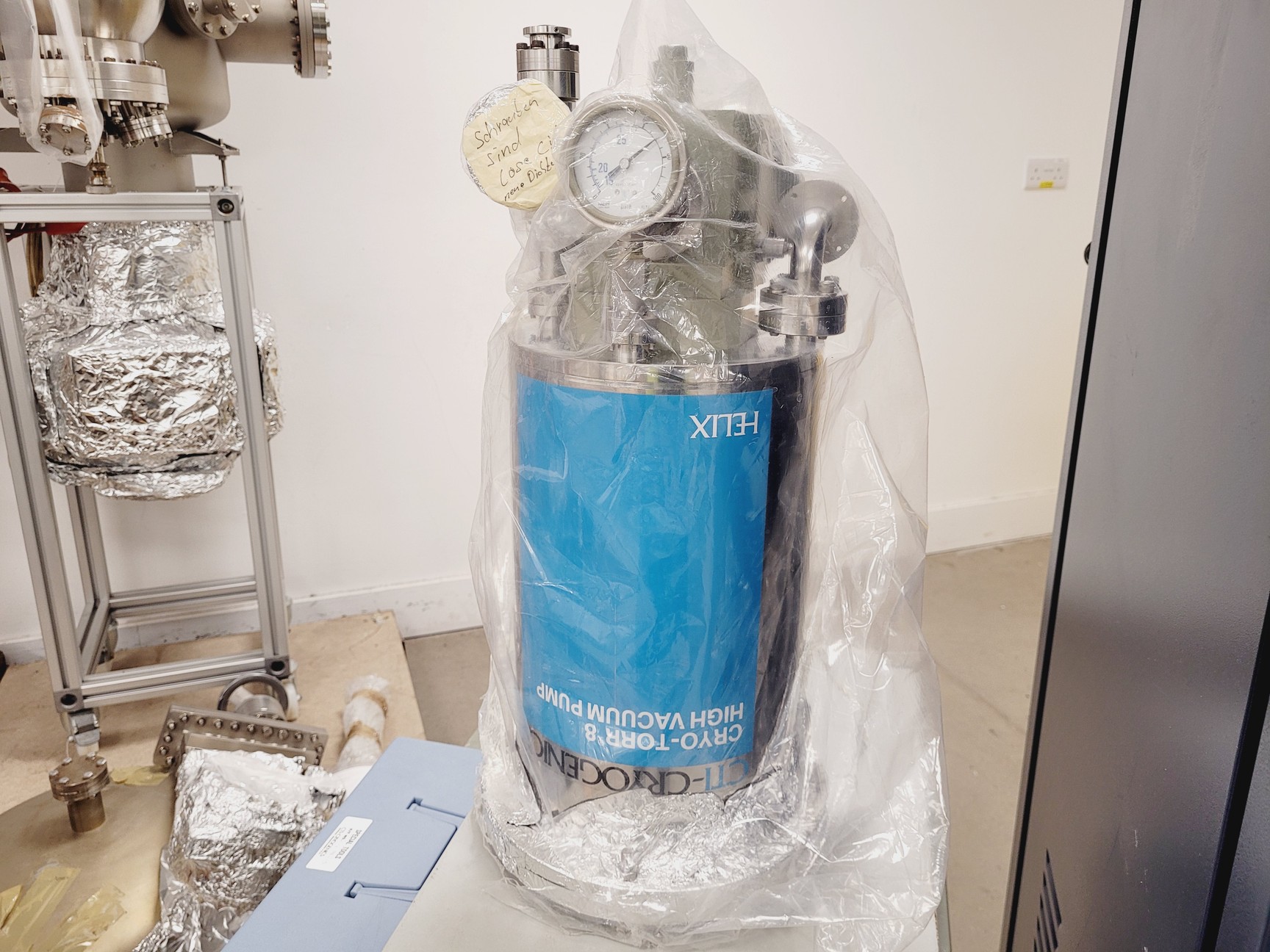

• CTI-Cryogenics Cryo-Torr 8 High Vacuum Pump

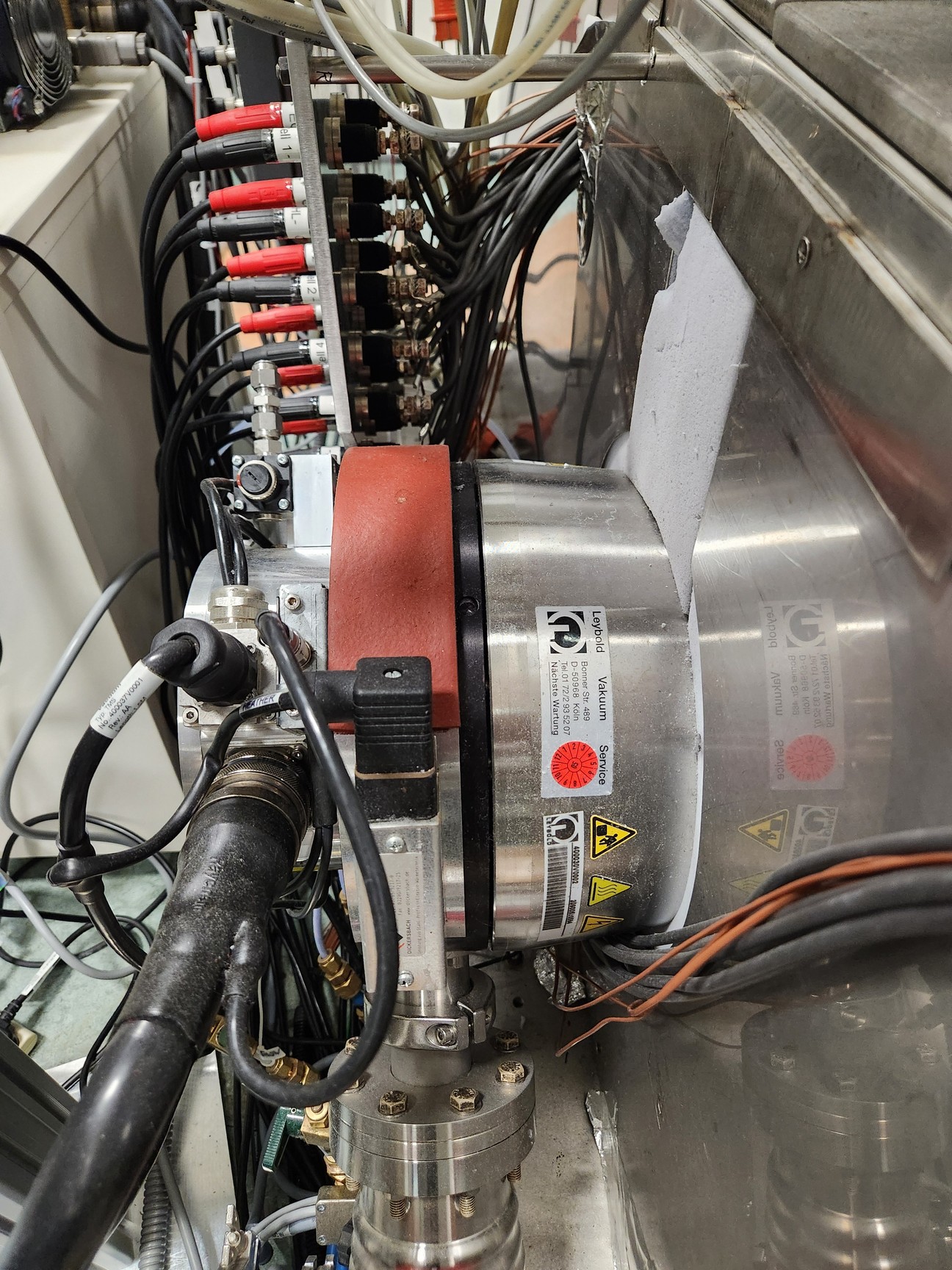

• Leybold MAG.DRIVE Digital

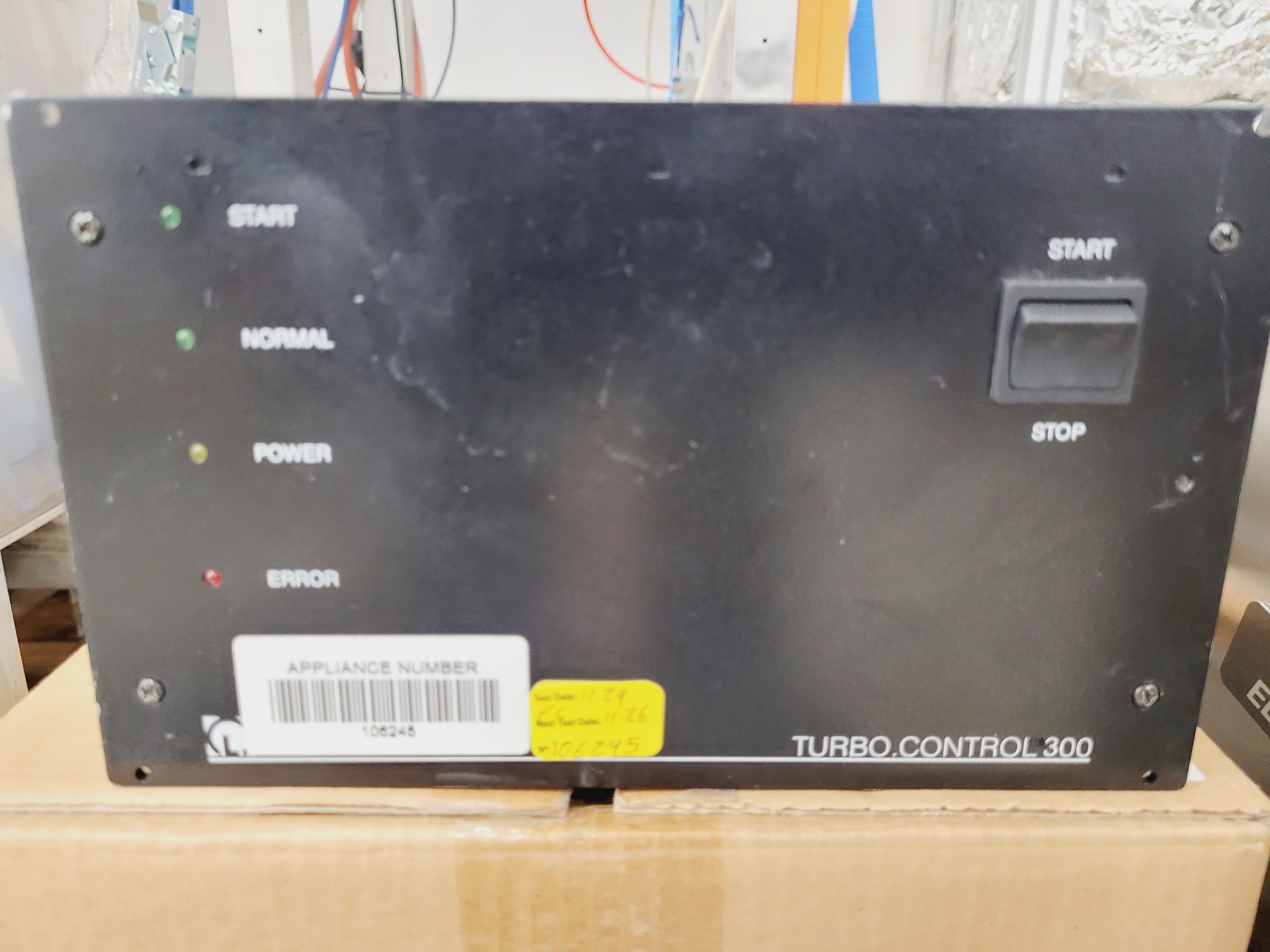

• Leybold Turbo Controller 300
• Pfeiffer Vacuum TMU 261 P
• Varian IDP 3 Vacuum Pump
• Agilent IDP 3 Vacuum Pump

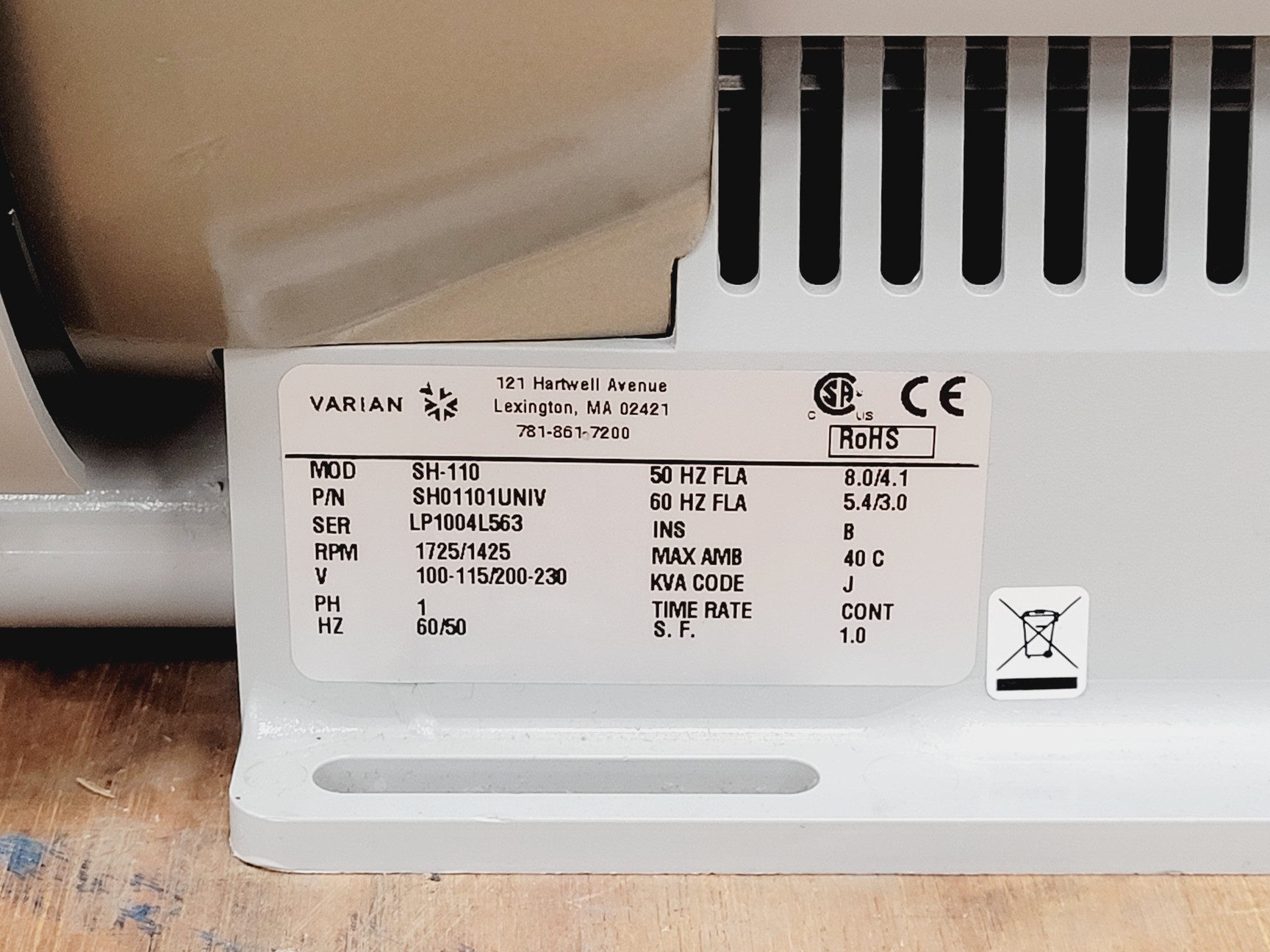

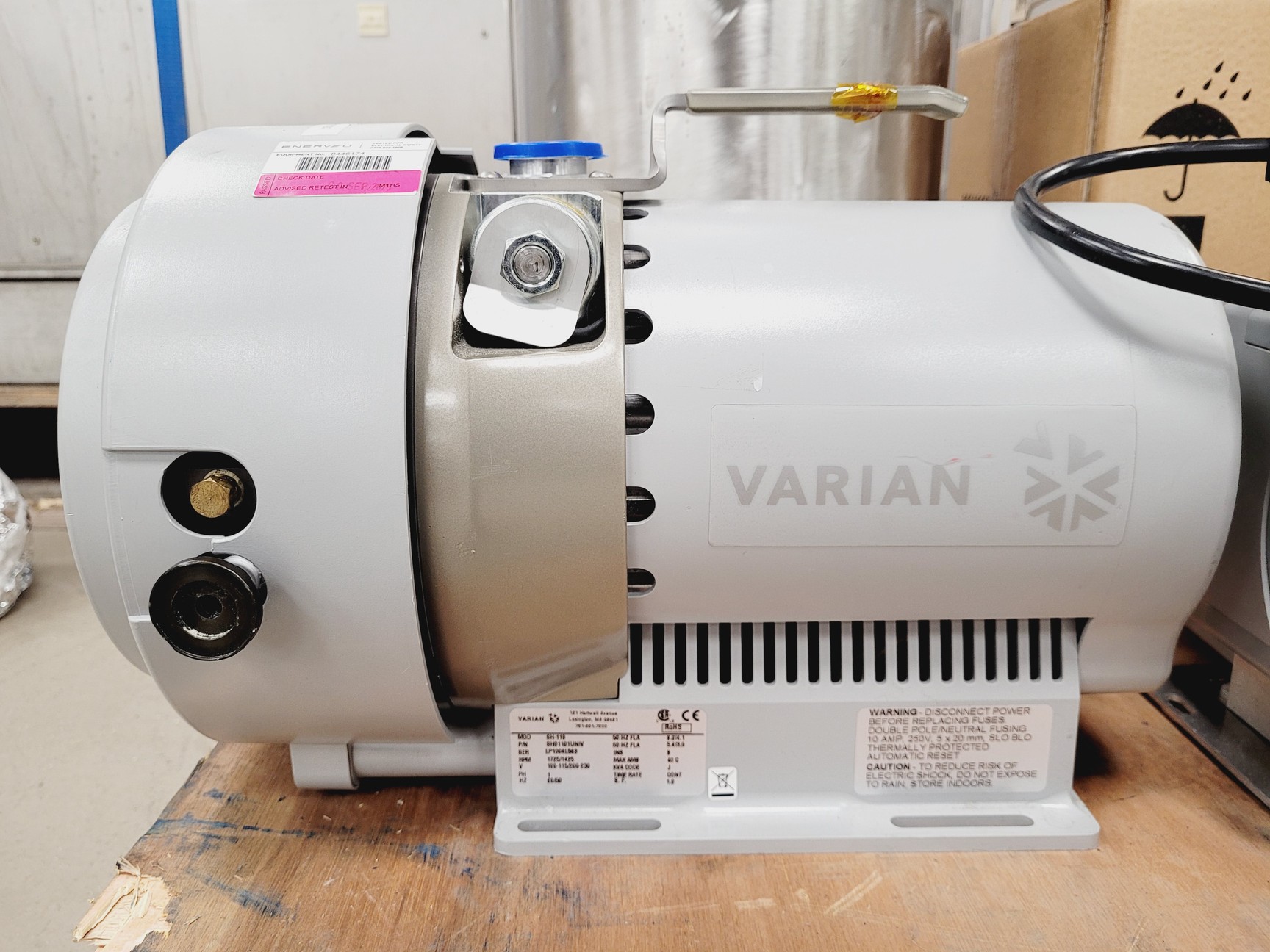

• Varian SH-110 Dry Scroll Vacuum Pump

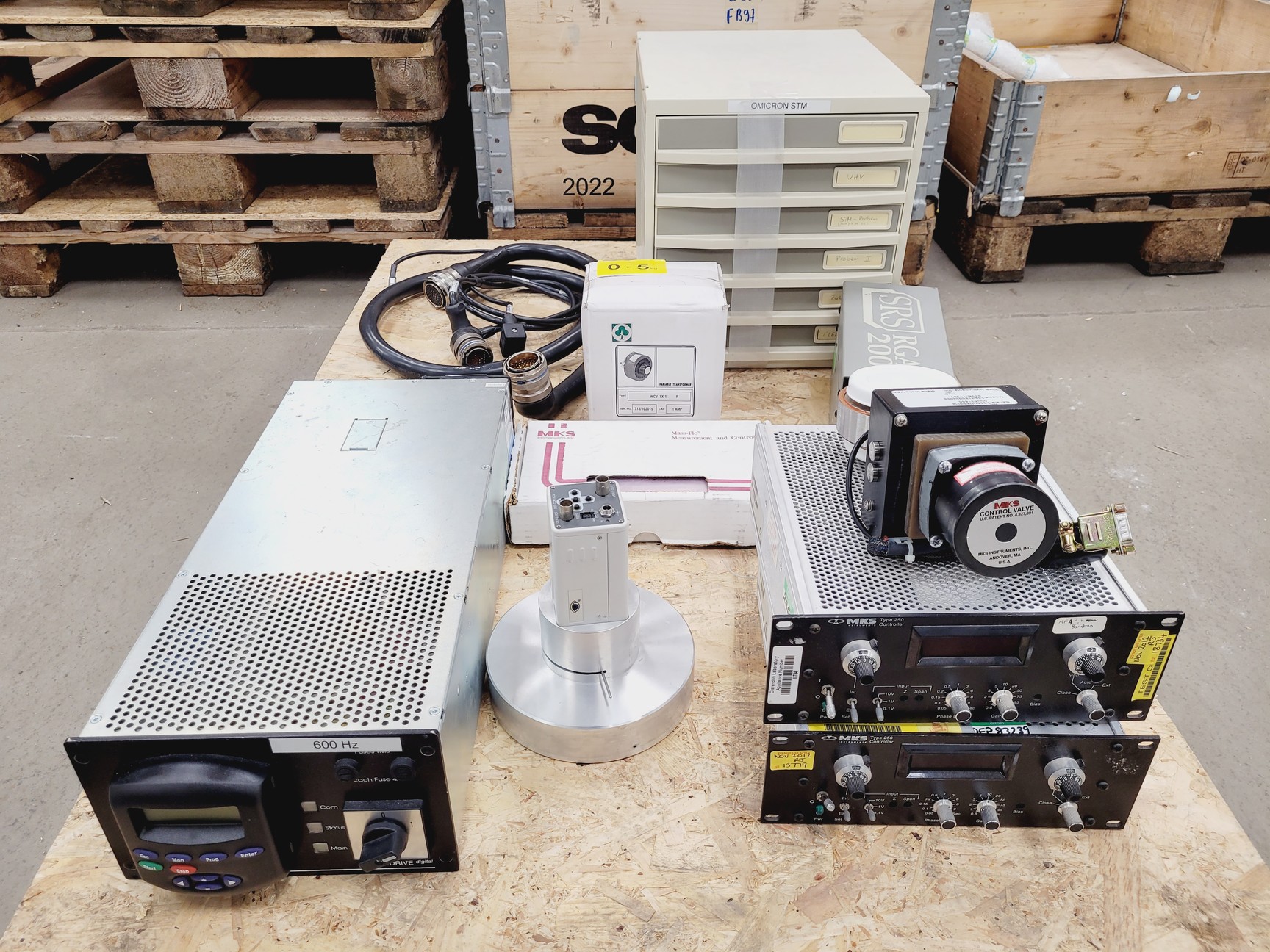

Measurement & Control Equipment:

• 2 x MKS Instruments Type 250 Controllers
• MKS Instruments 253B-11341
• MKS Instruments Mass Flow Measurement & Control
• SRS RGA 200
• RH4 Controller
• IR Thermometer
• 2 x Pirani Gauges with Controller

Deposition & Analytical Equipment:

• Physical Electronics Electron-Beam Evaporator

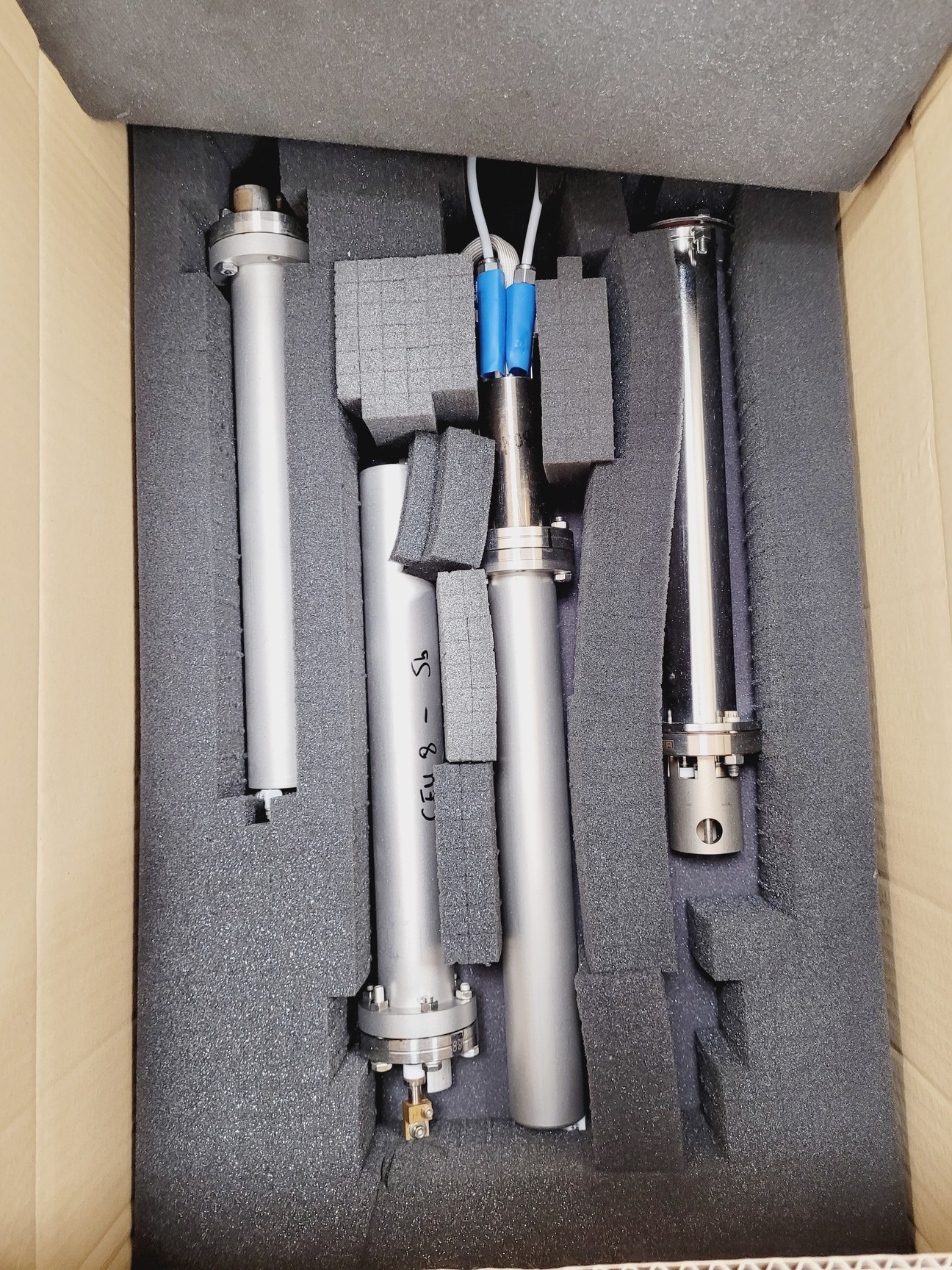

• 4 x Effusion Cells
• EHD kamPro02 1/2" Monochrome CCD Camera

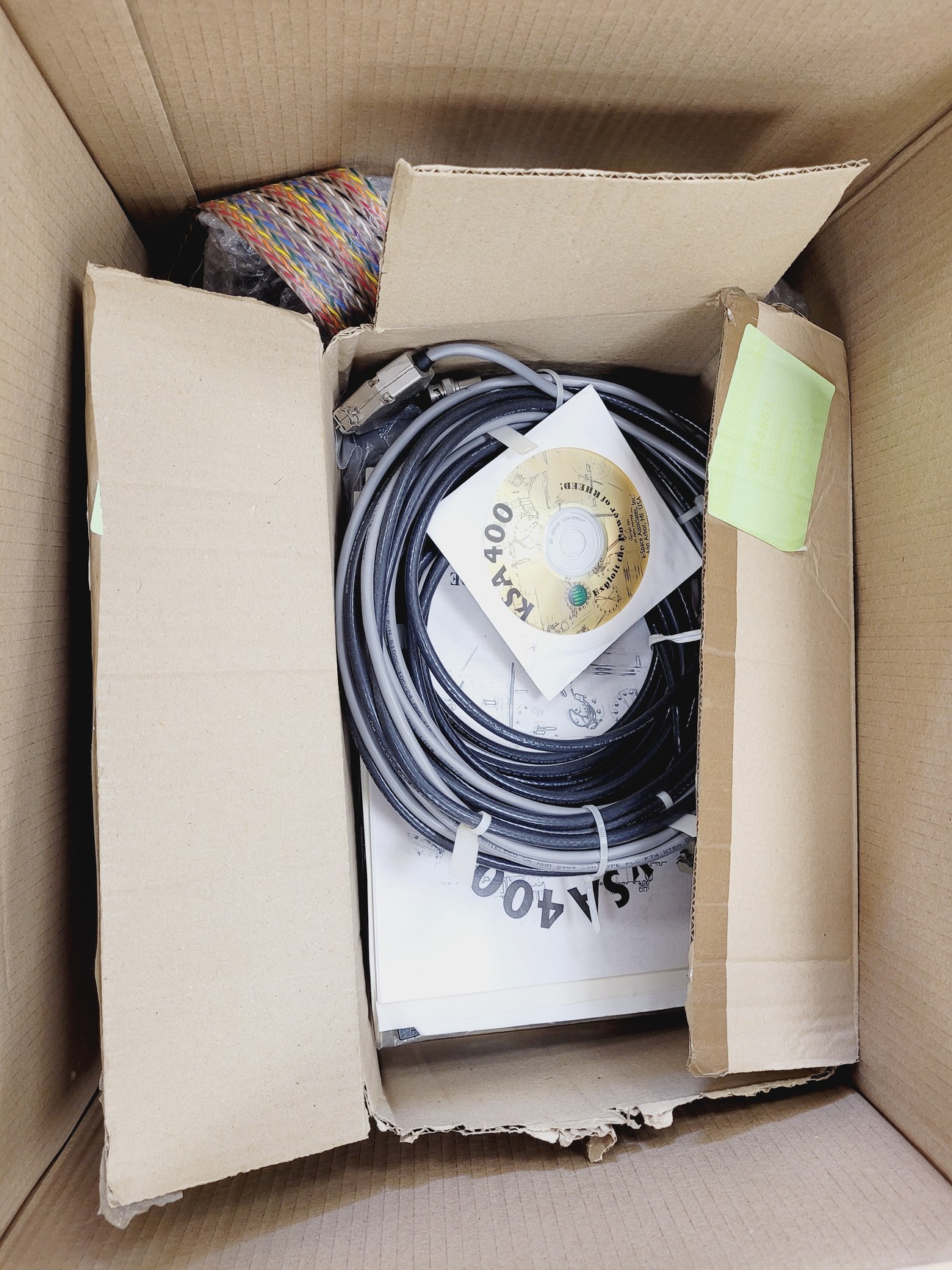

• RHEED Software KSA 400

Computing & Electronics:

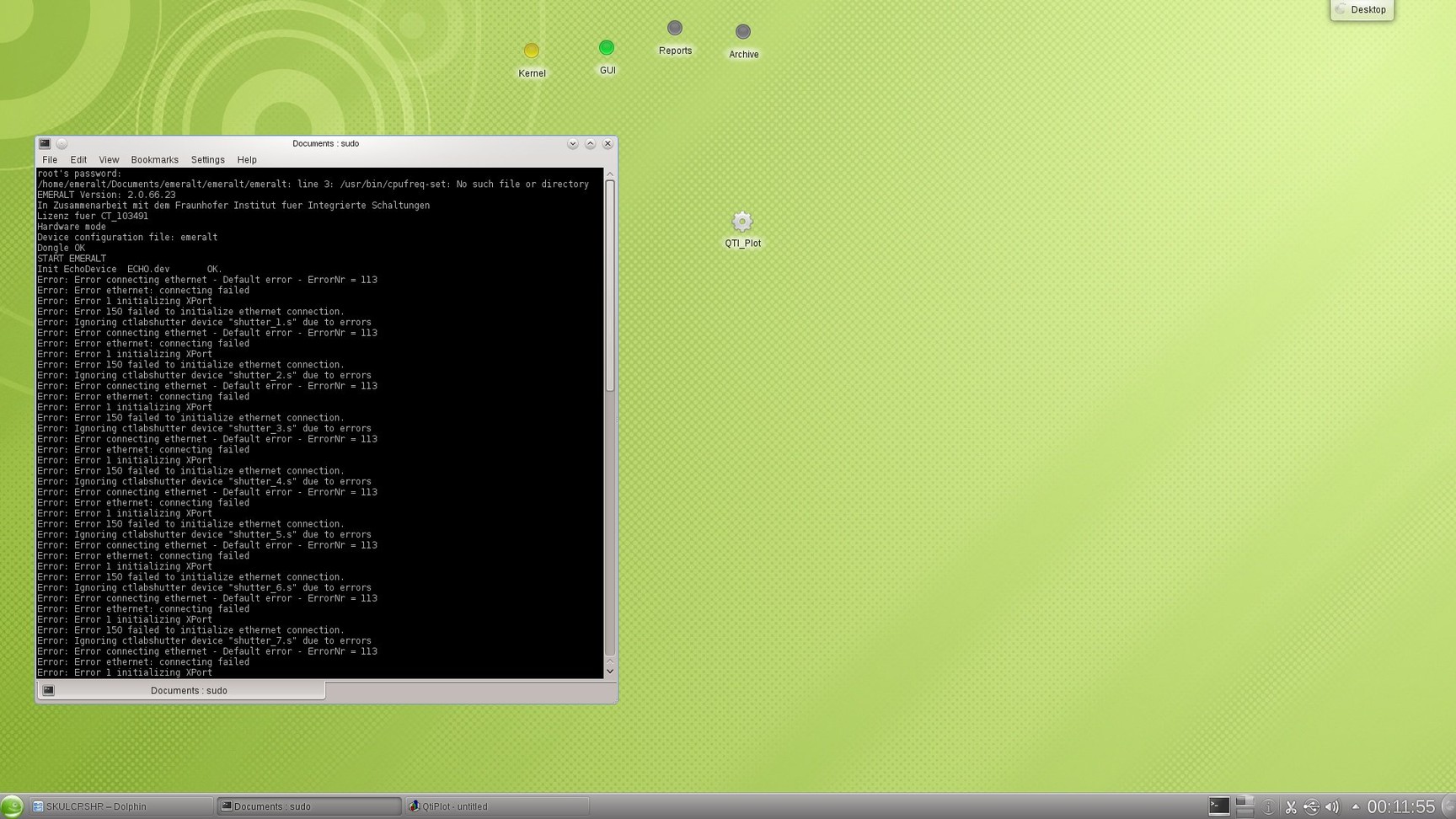

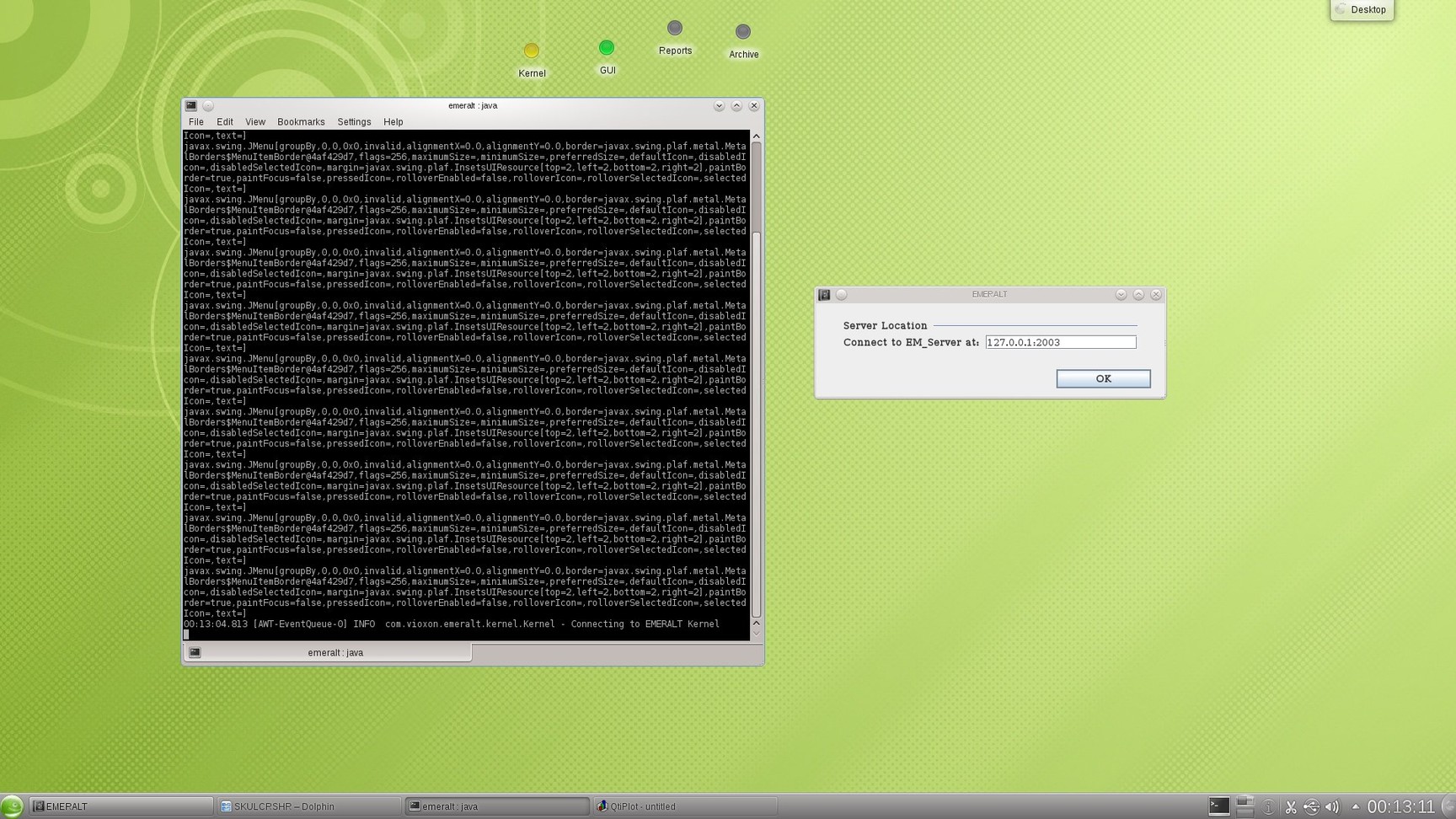

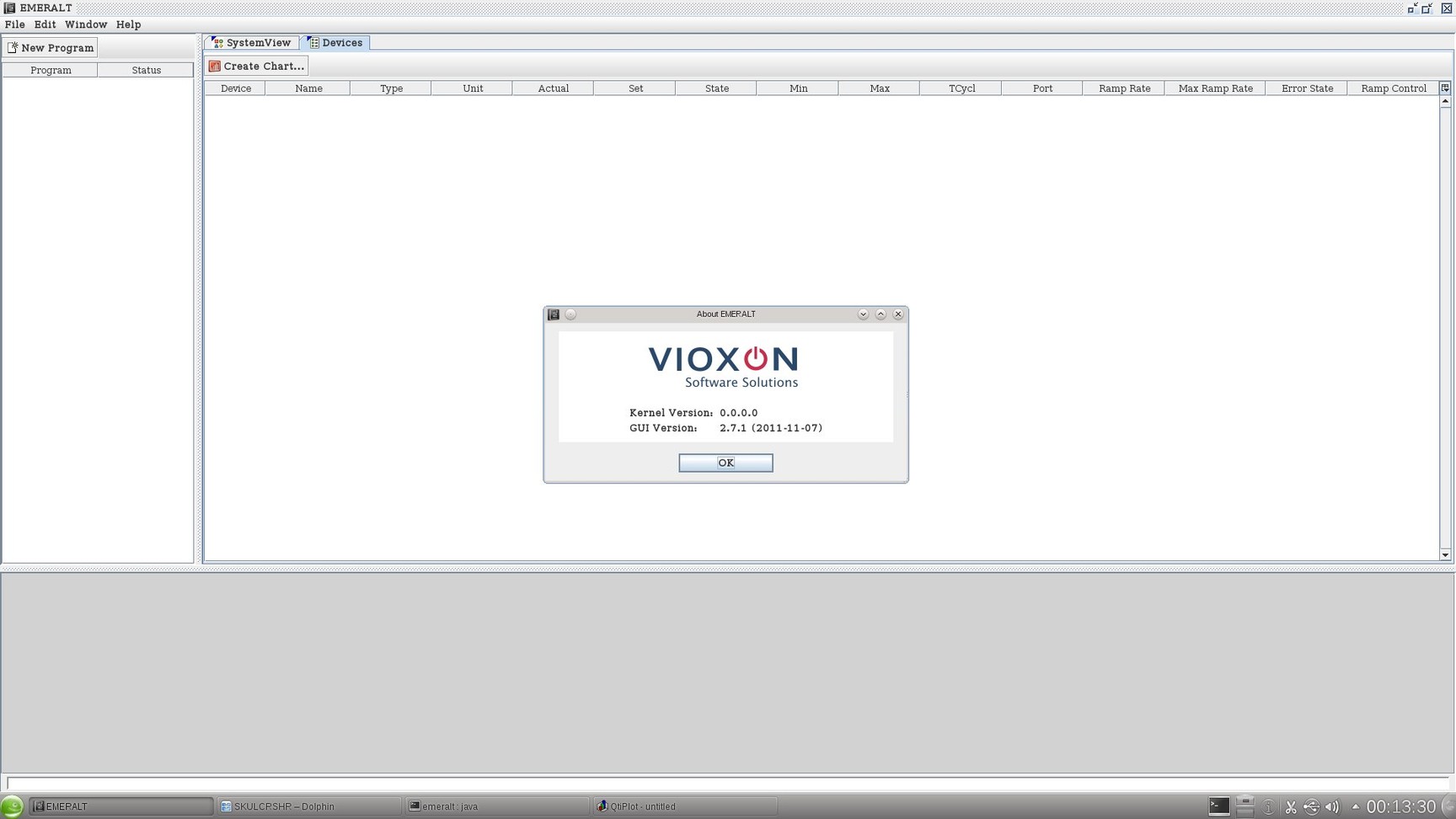

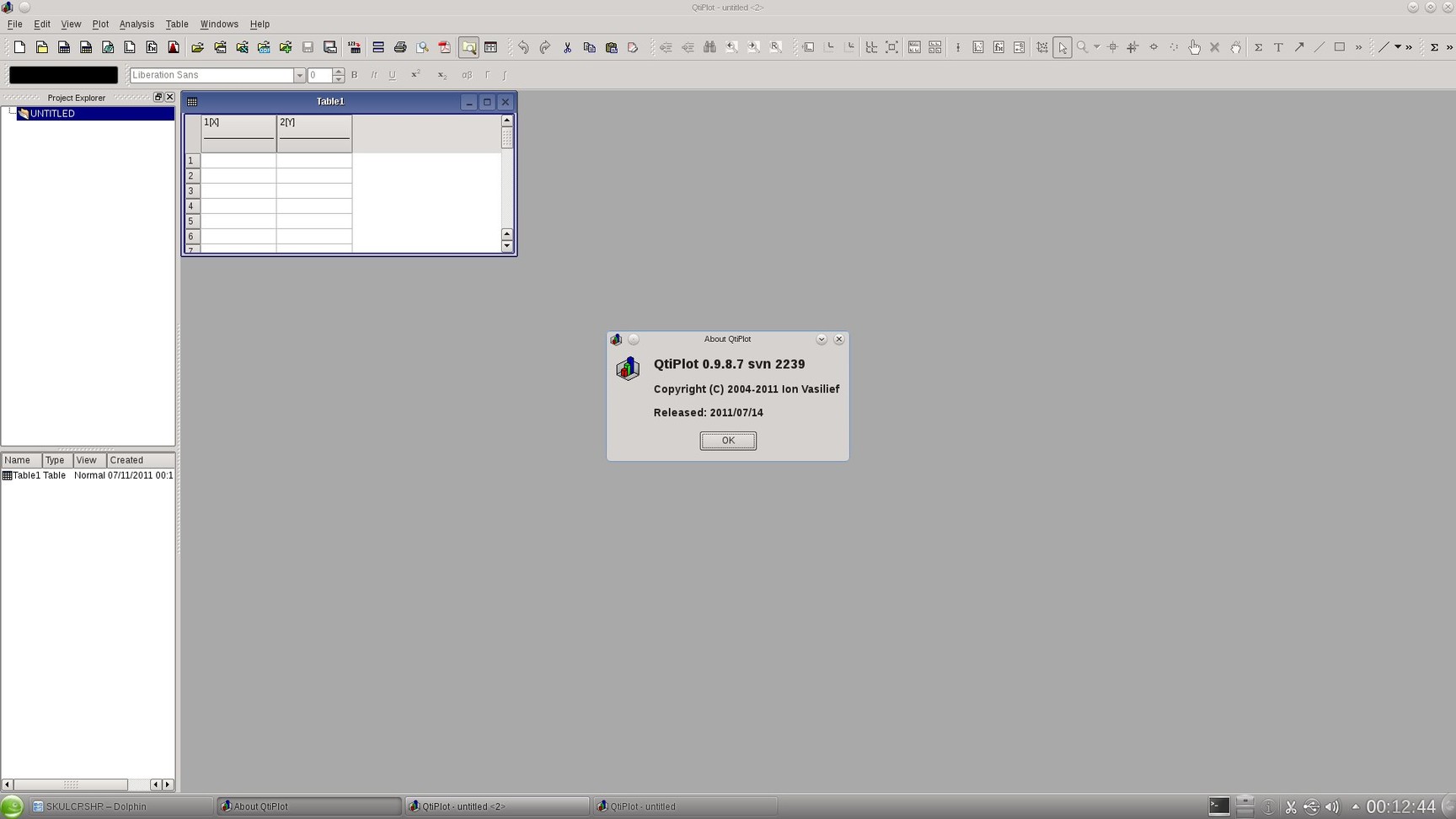

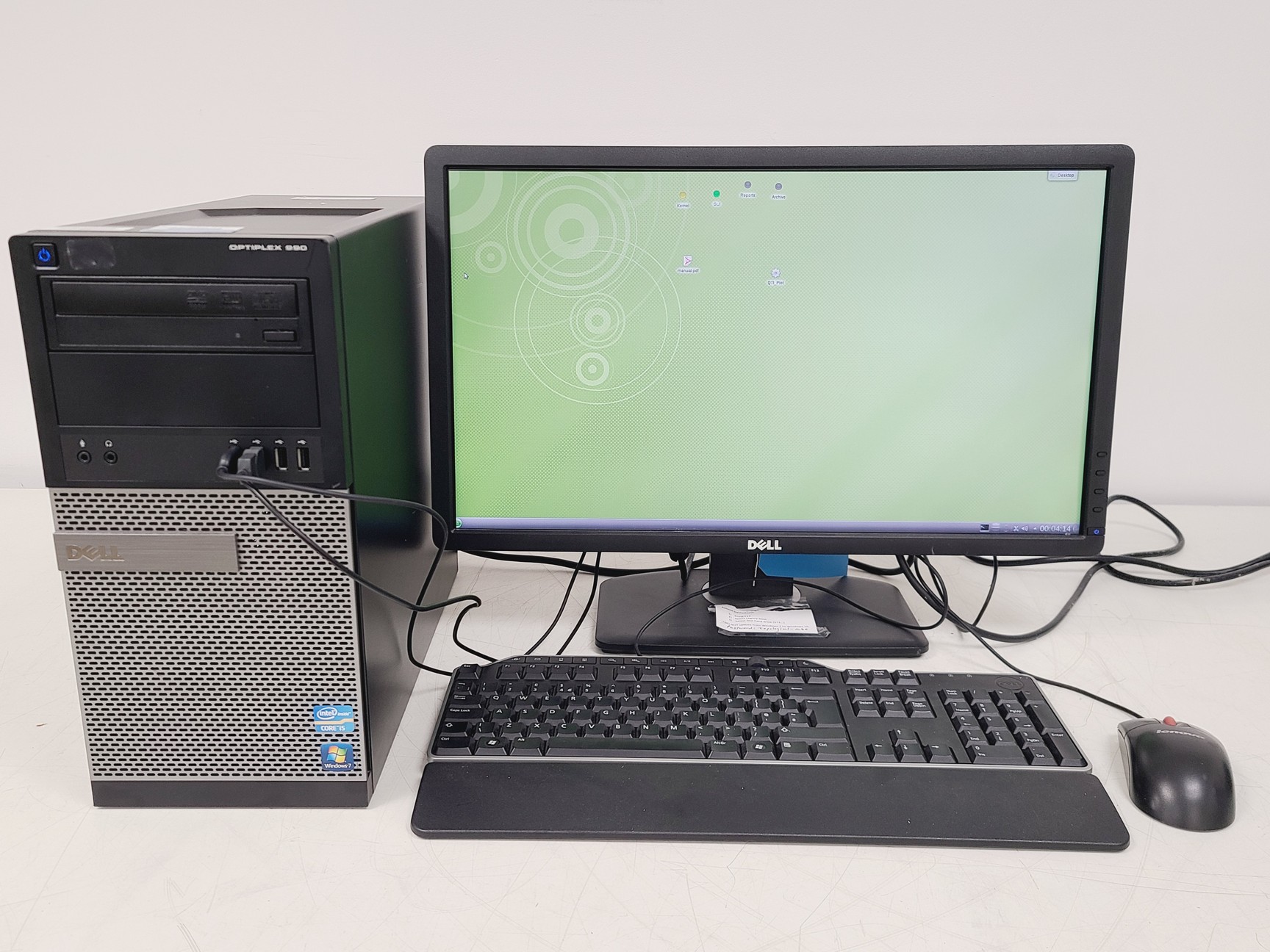

• Dell PC with Emerald Software
• Dell Monitor, Keyboard and Mouse
• 2 x Additional Control Units
• Variable Transformer WCV 1X-1
• Vacuum Hardware & Components:
• Various VAT Parts
• 1 x Actuated Butterfly Valve
• Actuated DN40CF Angled Gate Valve
• DN250CF Full Nipple
• 3 x 250CF Flanges

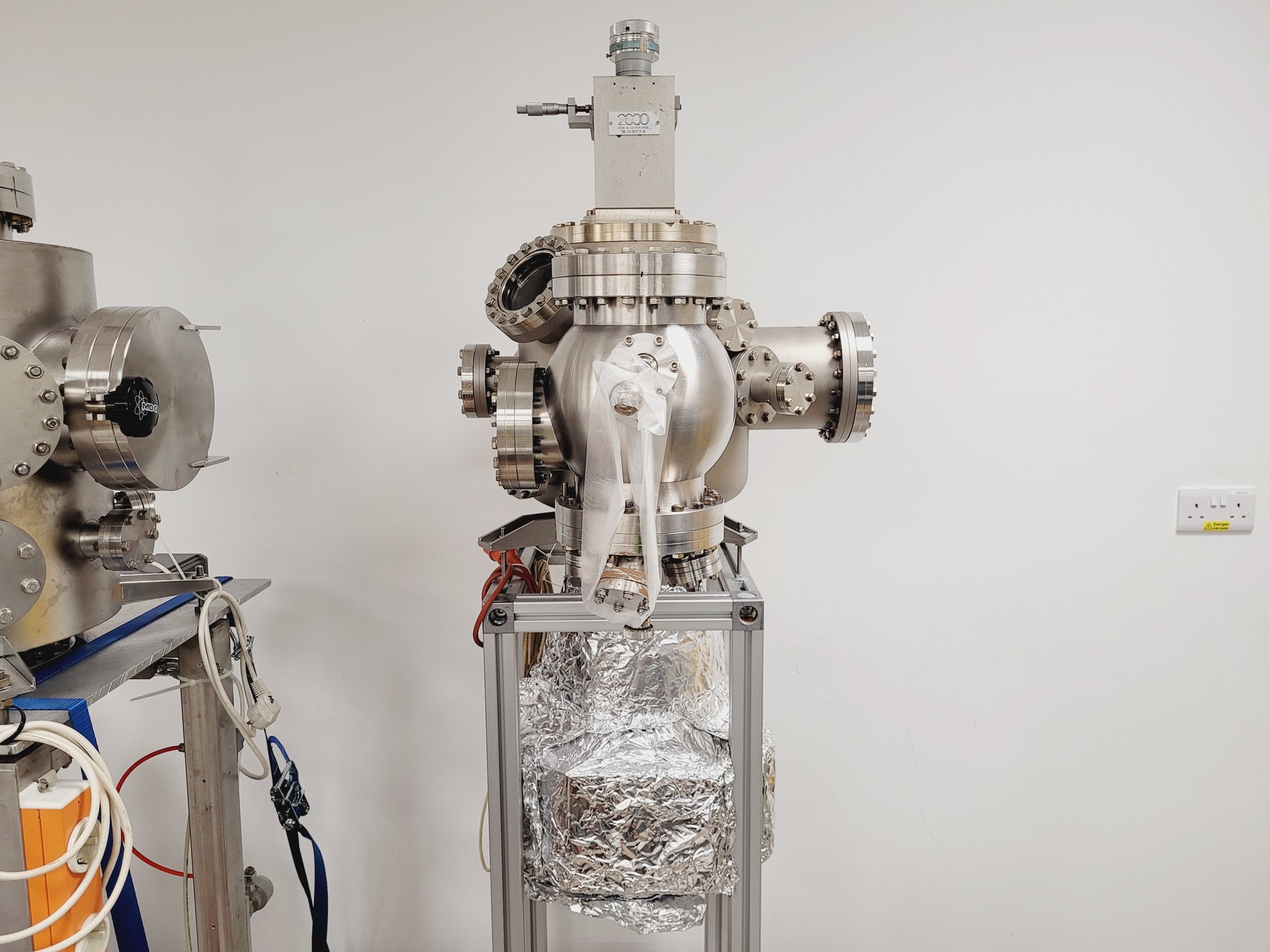

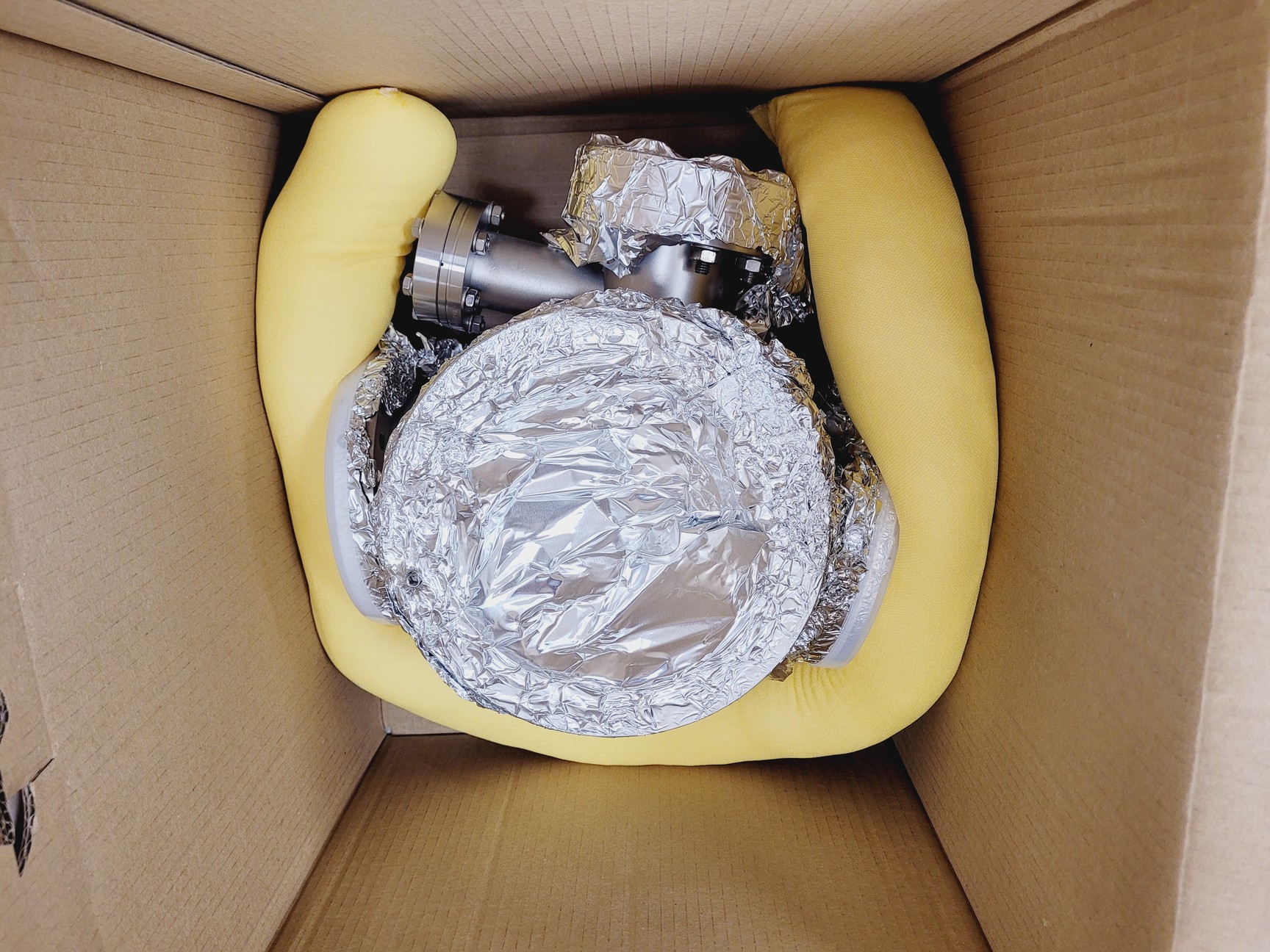

• Small UHV Chamber
• Imperial UHV Fasteners

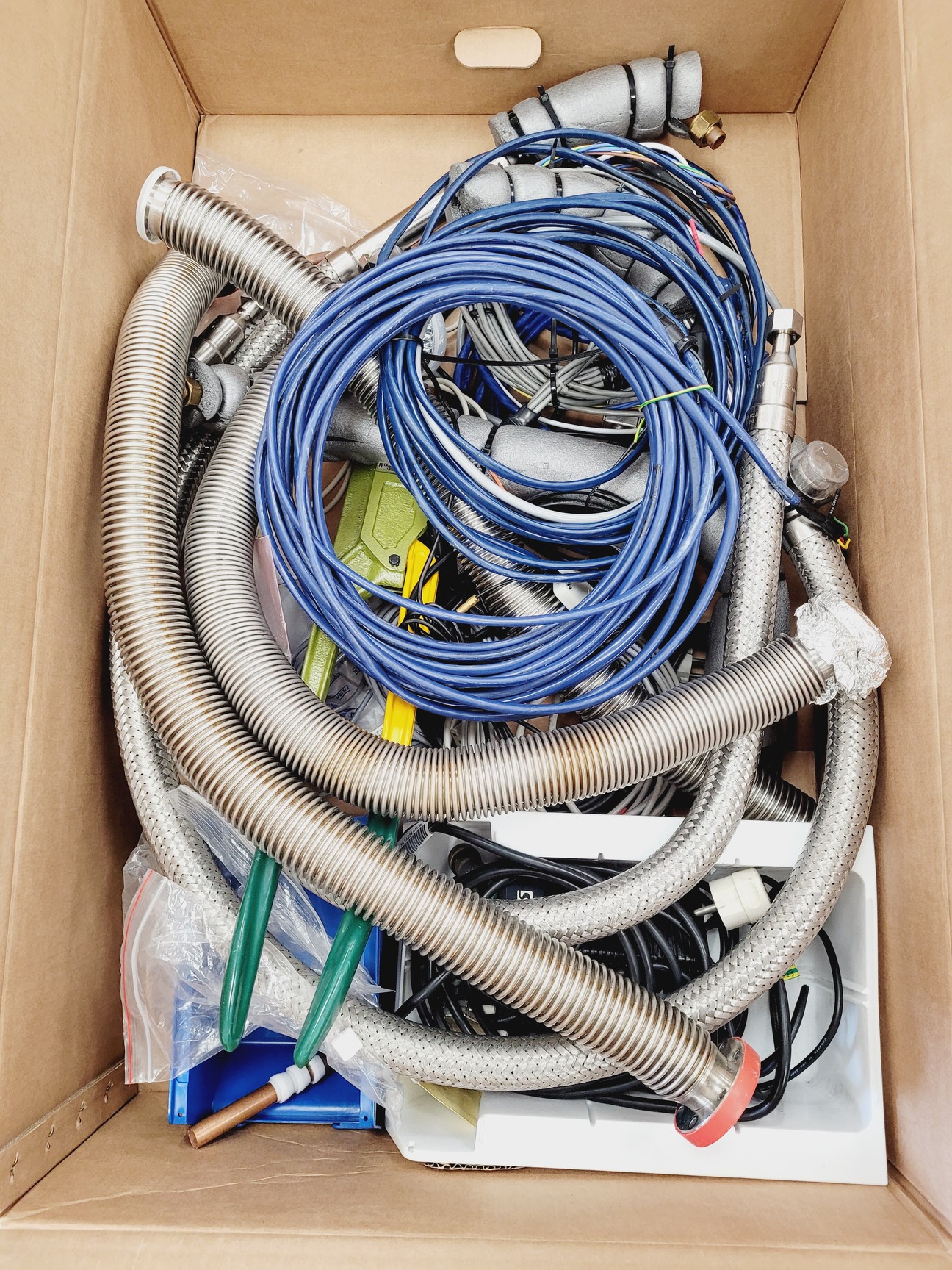

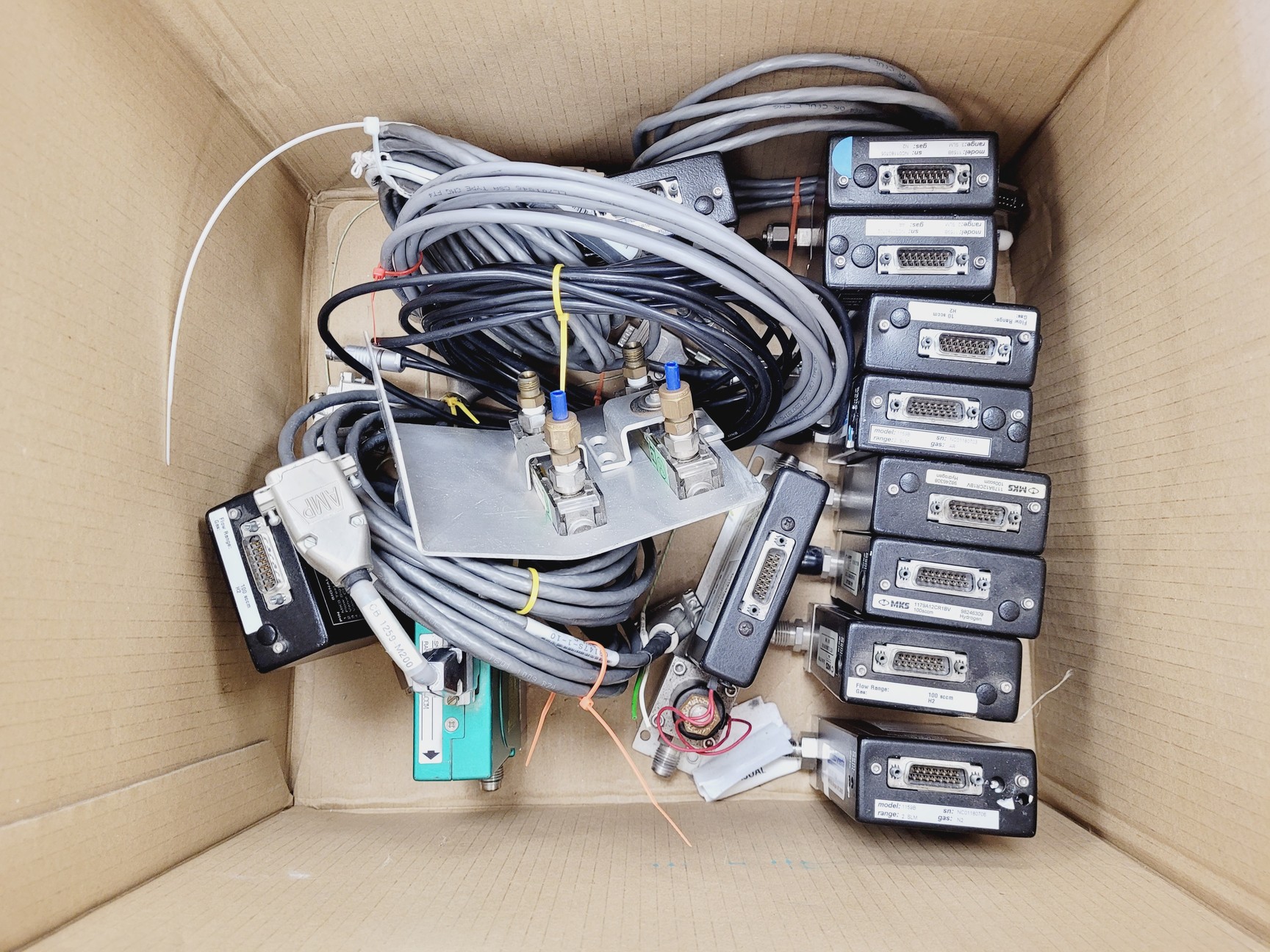

• Cryogenic Cooling Vacuum Gauge Cables
• Cryo Pump Cables

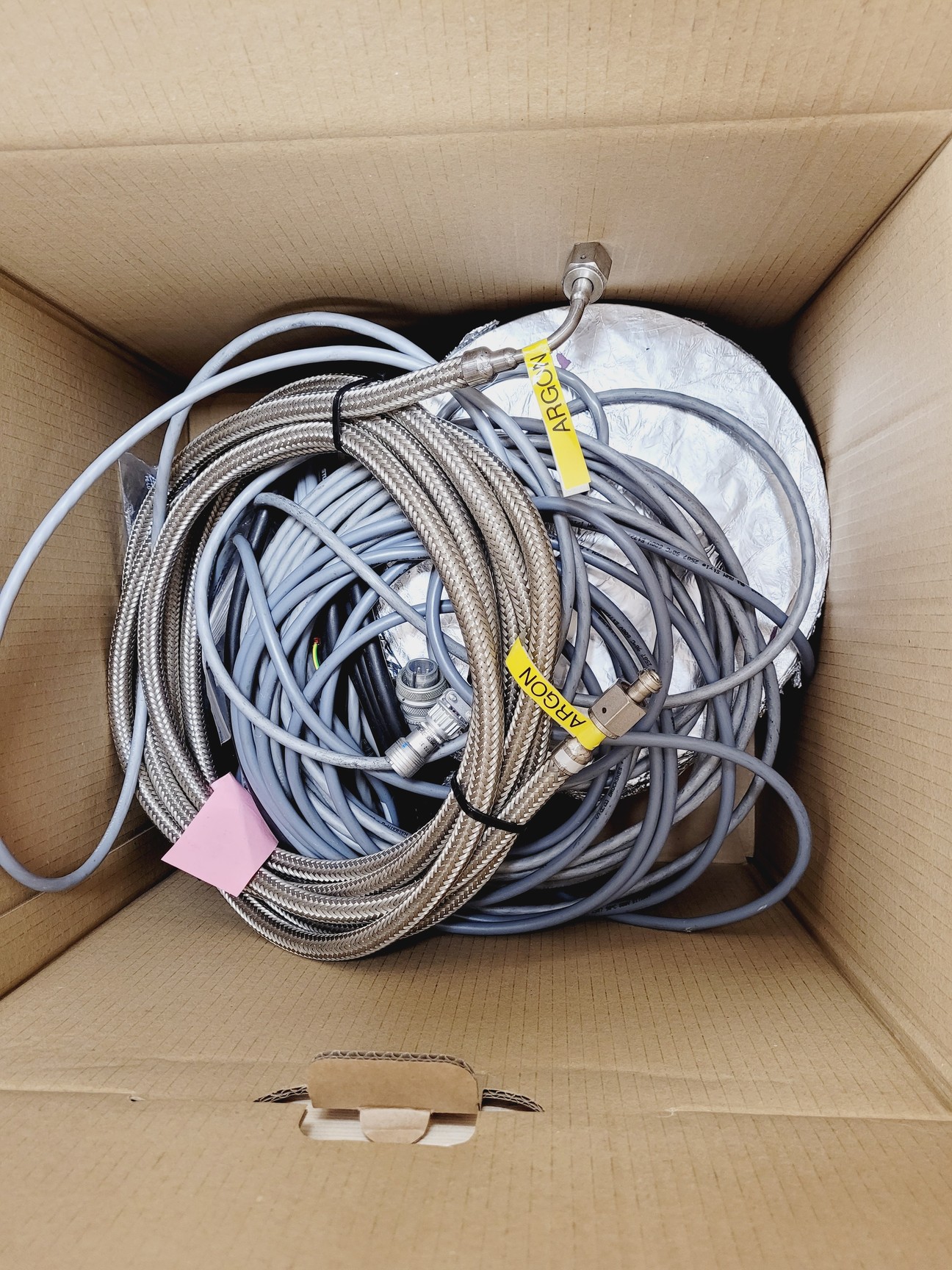

• Cable Sets

Additional Equipment:

• MBE Tools (substrates, holders and spare parts)

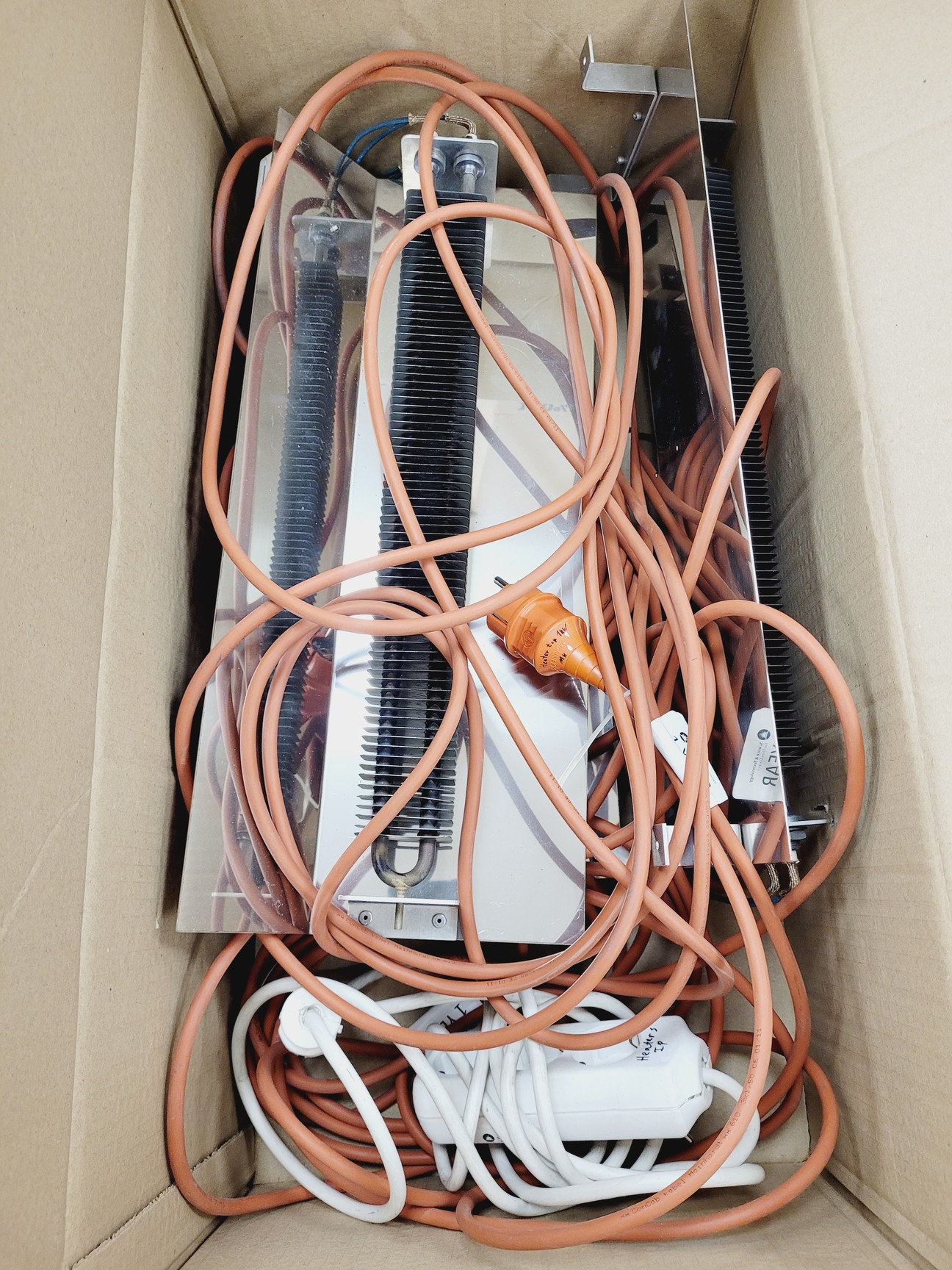

• Heaters
• Mass Flow Controller
• Tip Etcher
• UV Light

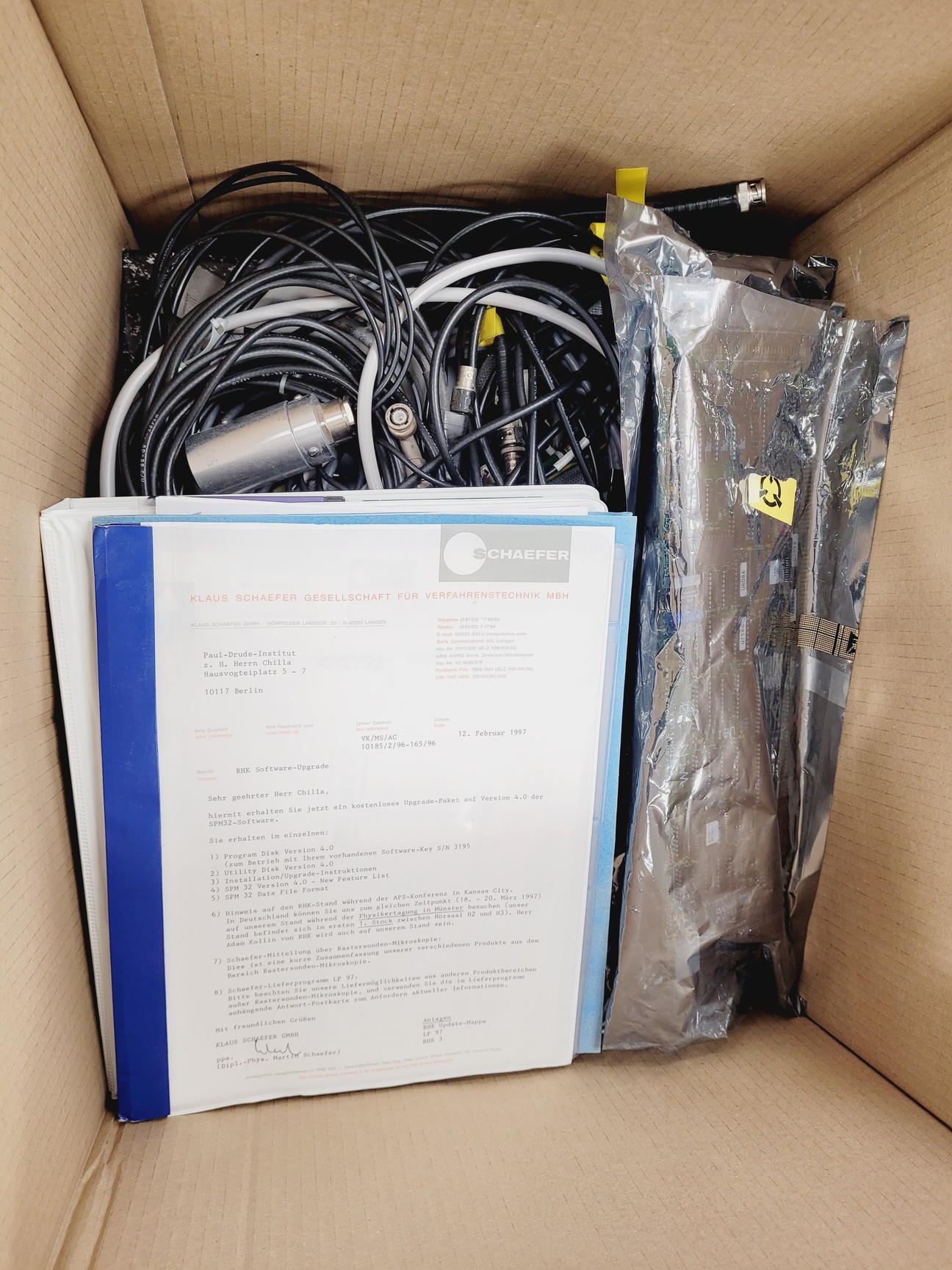

• Handbooks
• Cables
• Riveting Tool
