Zeiss Axiovert 200M Confocal Microscope System with LSM510 META & Multi-Laser
Item Code: ITEM-55353
Condition: Used
Brand: ZEISS
Location: Wales
£ POA
This item is new in stock and has not been priced yet. Please make an offer below, or get in touch with us for a price at , or by phone on +44 29 2086 4661.
Description
Zeiss Axiovert 200M Confocal Microscope System with LSM510 META & Multi-Laser Setup

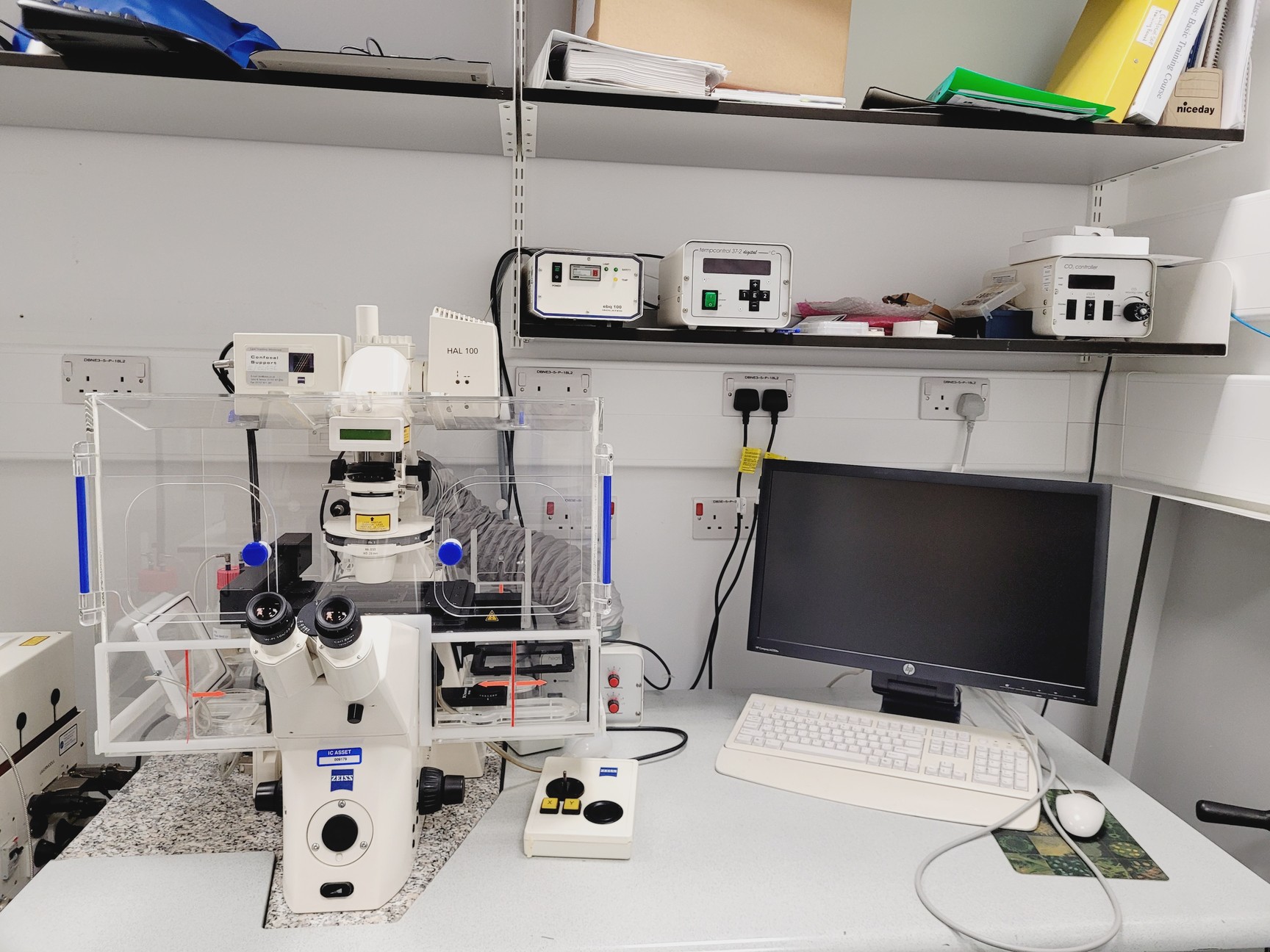

This system was removed from a university laboratory where it was surplus to requirements.
The previous owner confirmed it was in good working condition prior to removal, though advised there may be a potential laser-related issue.
The microscope and automated stage have been briefly tested and are functioning as expected, with test slide images successfully captured. Service records show the system was last serviced by Zeiss on 16/04/2014, where the switching mirror was replaced and META calibration completed, and it was reported as fully working at that time.
The system is in good used cosmetic condition with typical signs of general use. Further testing of the confocal and laser system has not been carried out.
The system comprises the following:

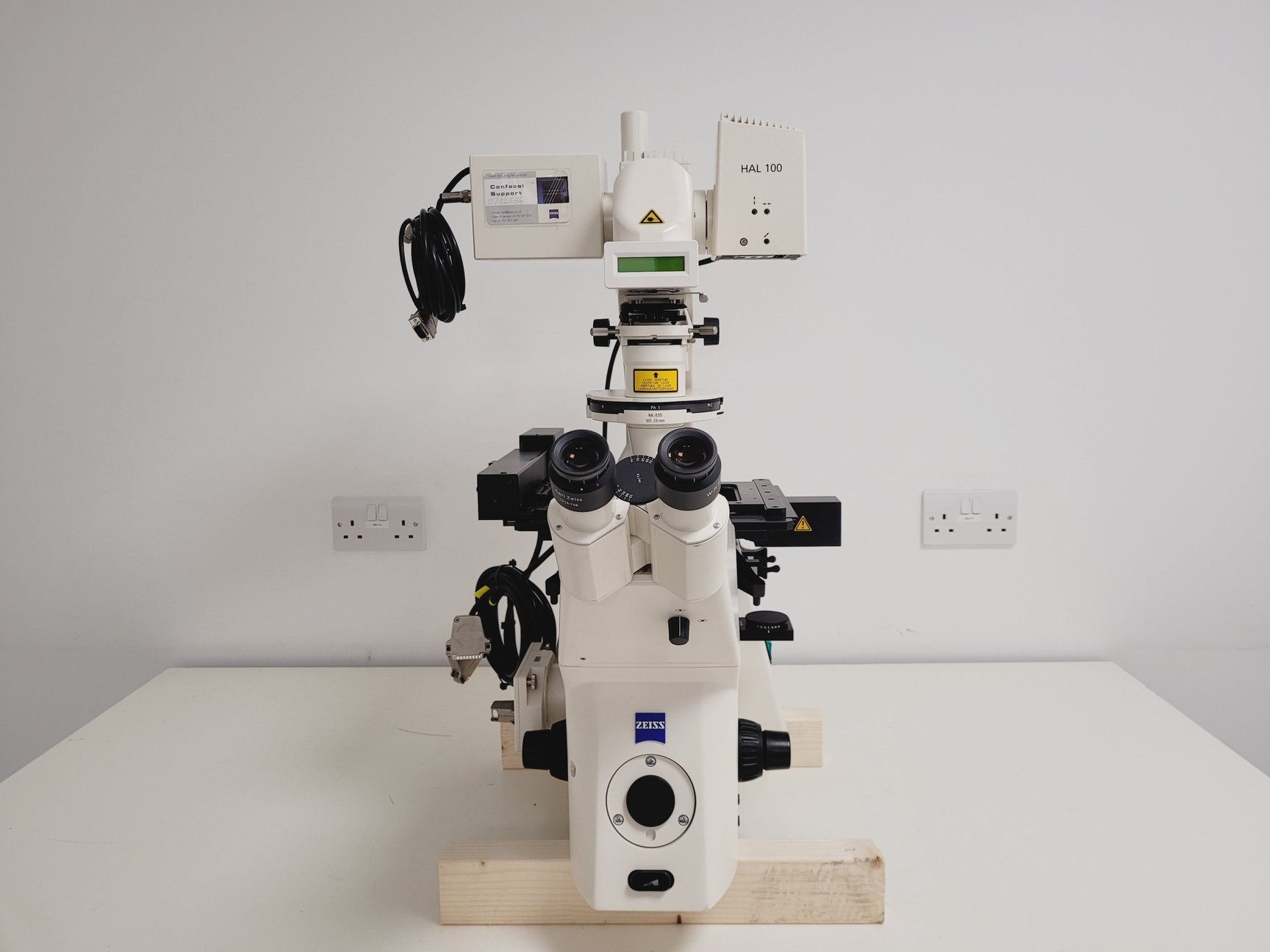

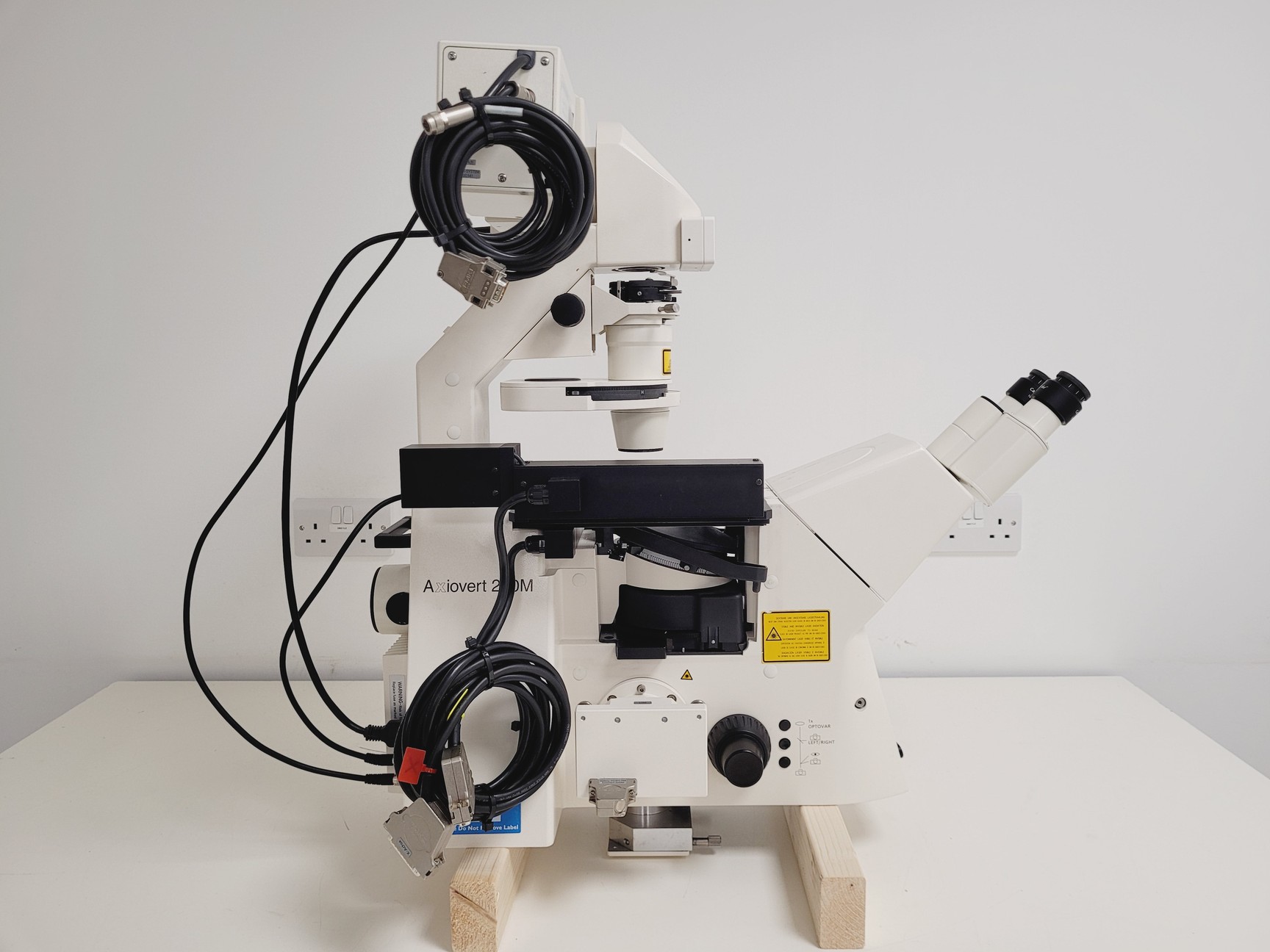

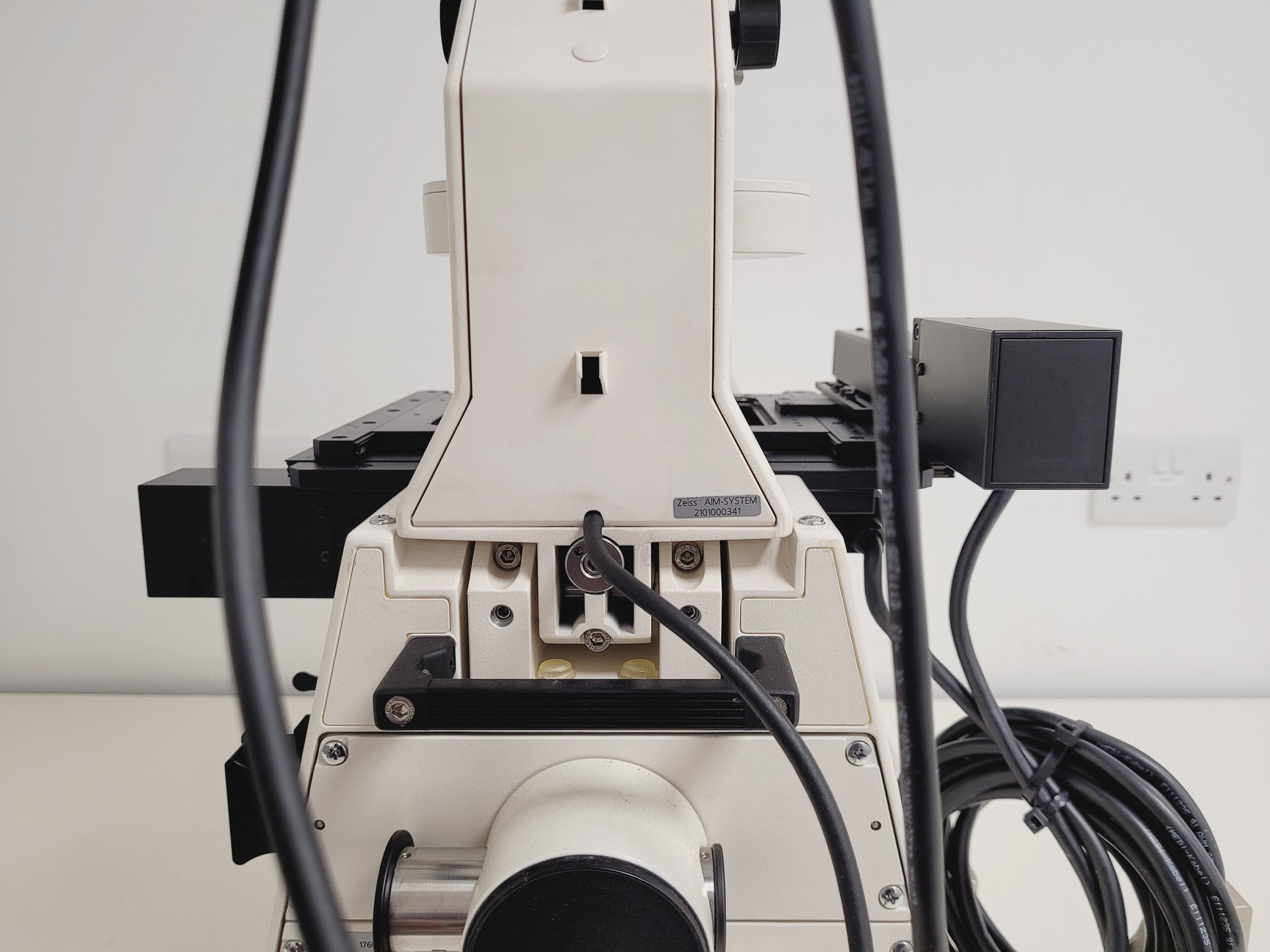

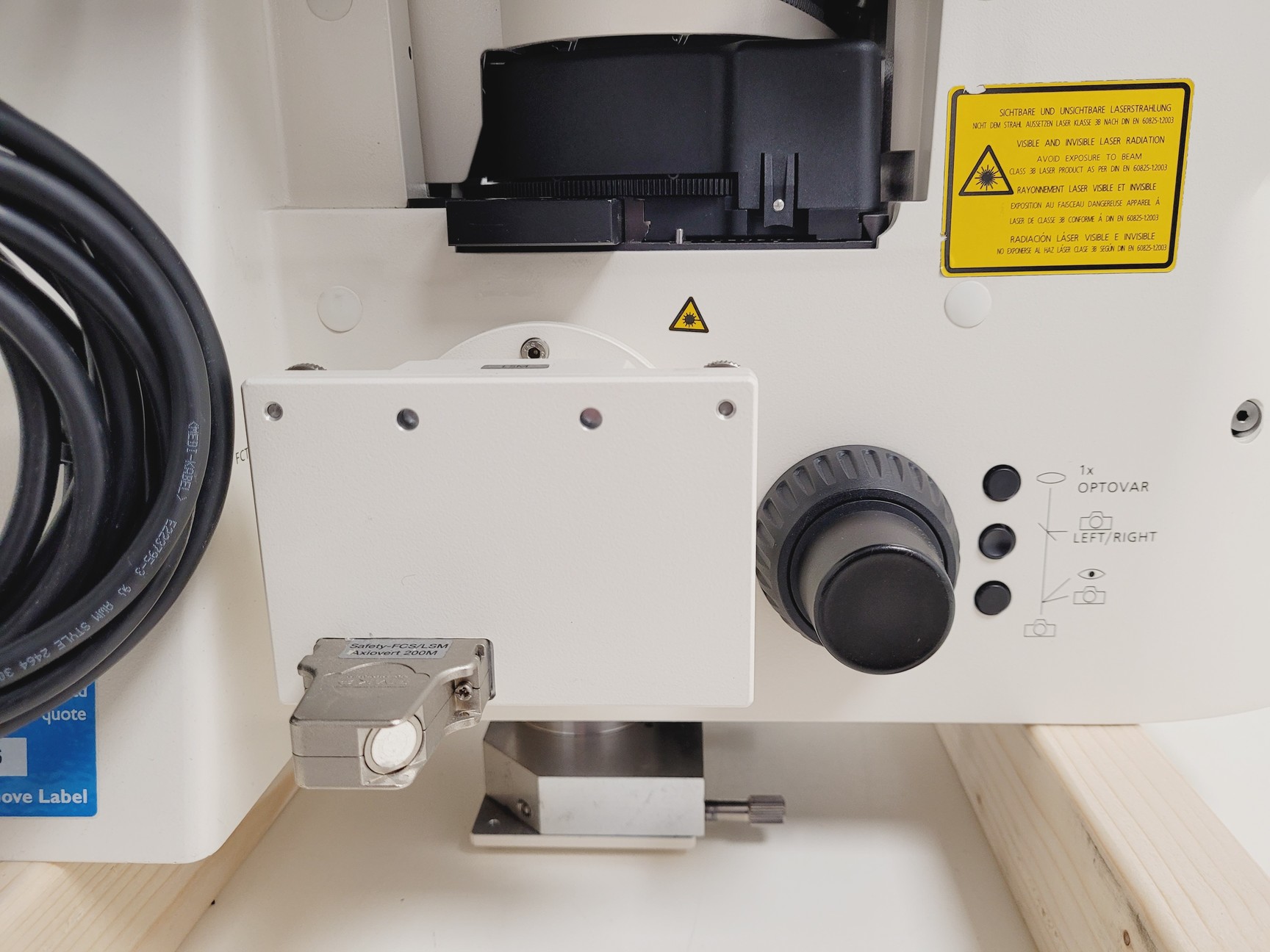

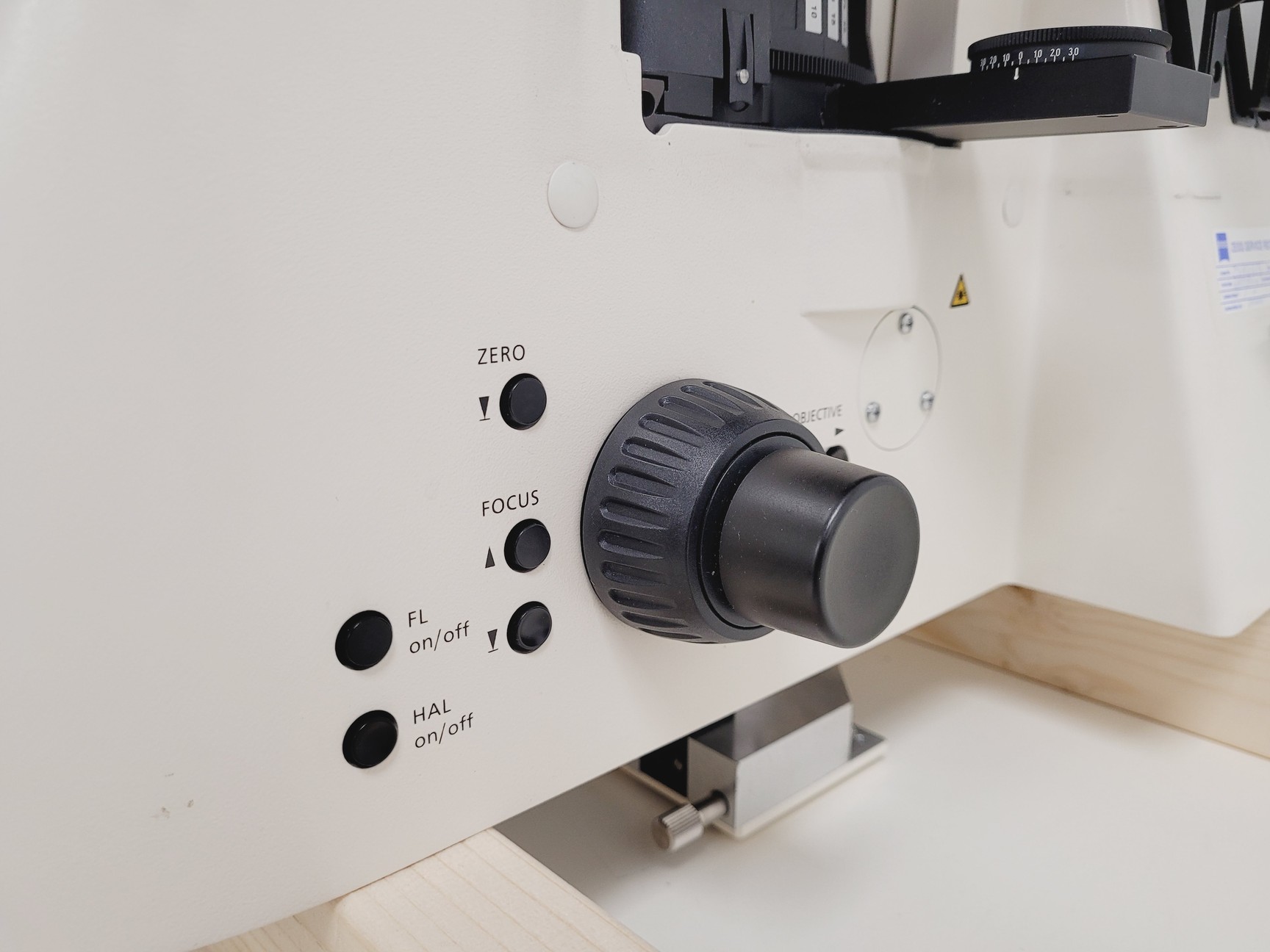

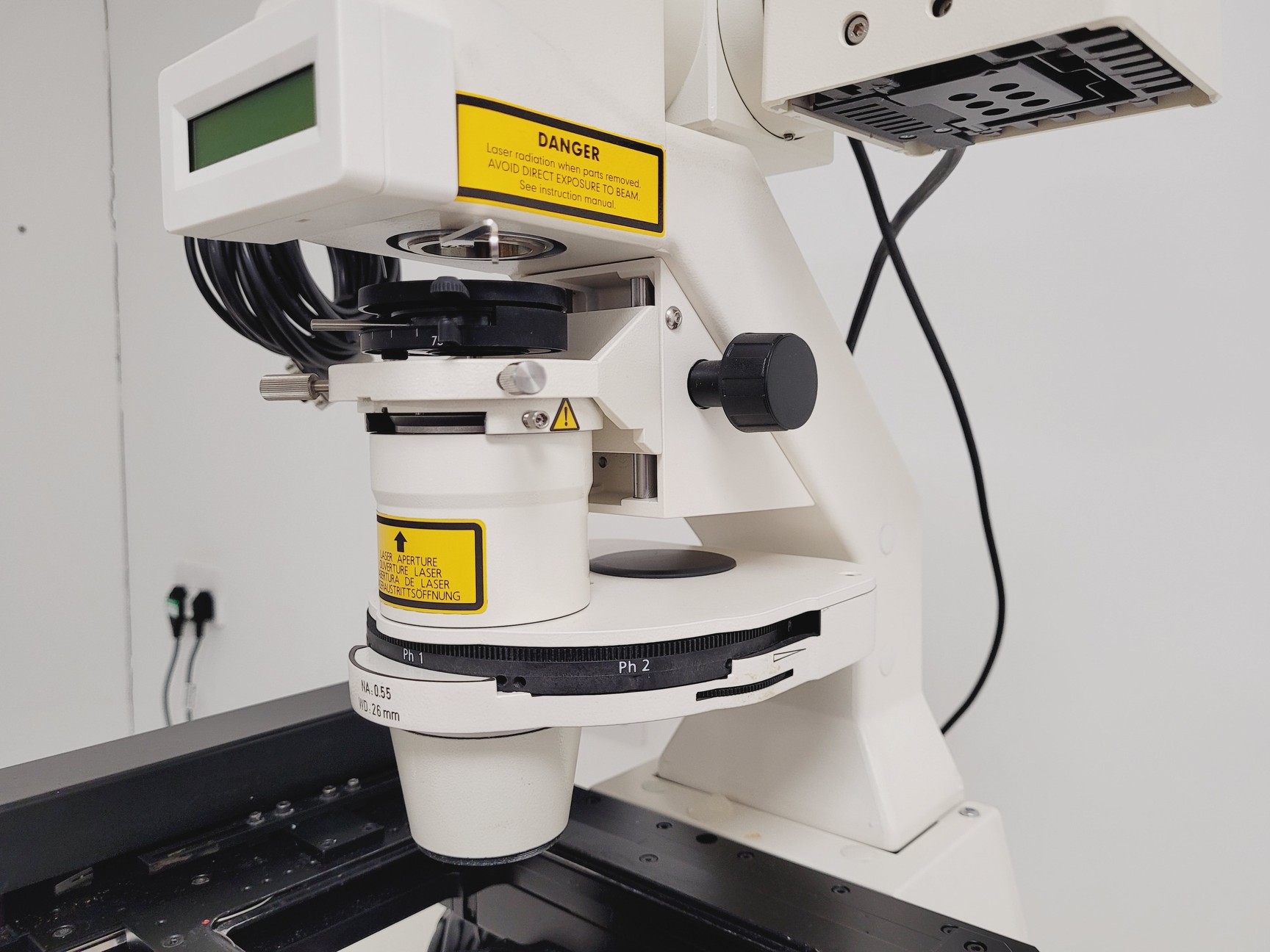

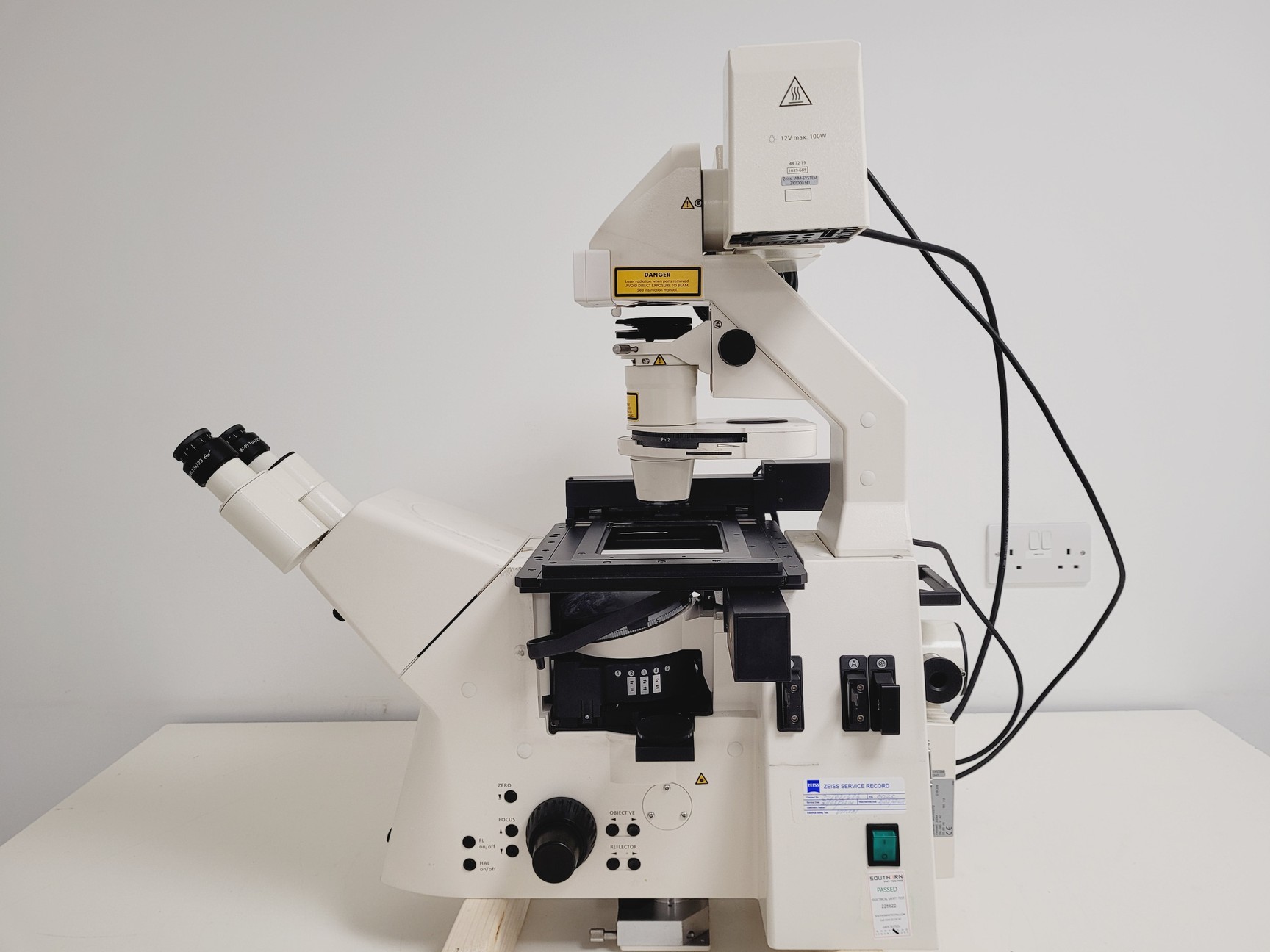

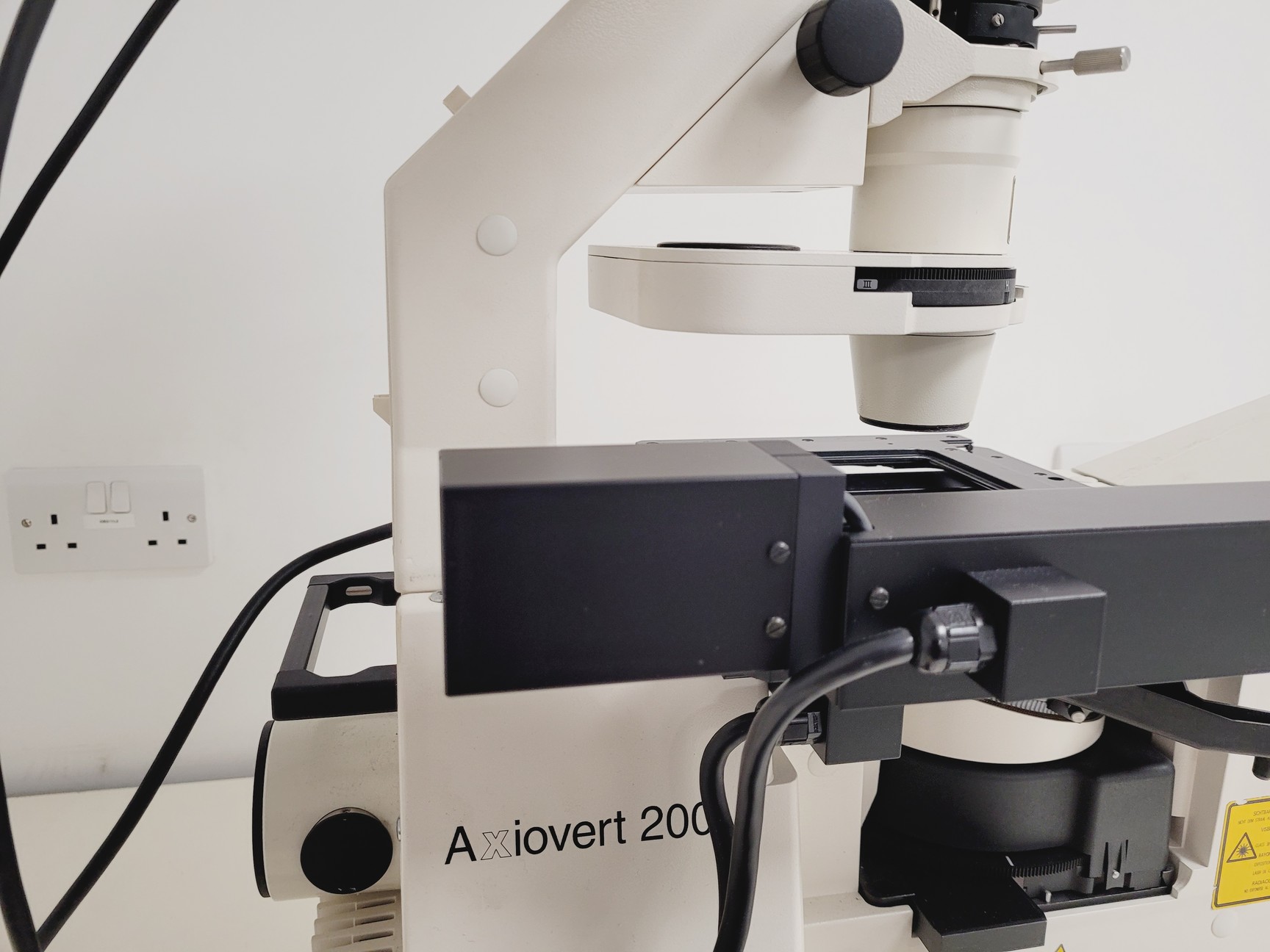

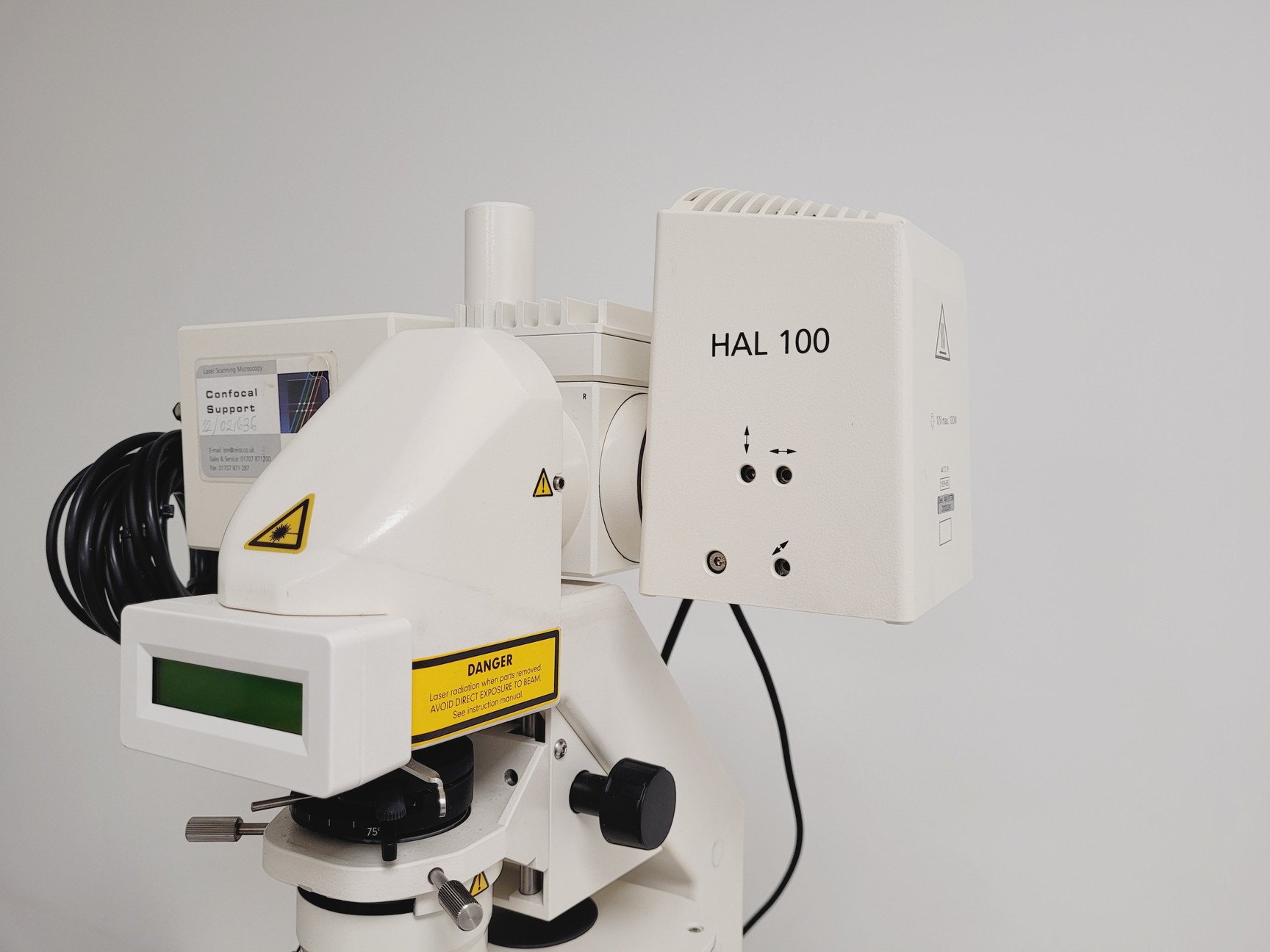

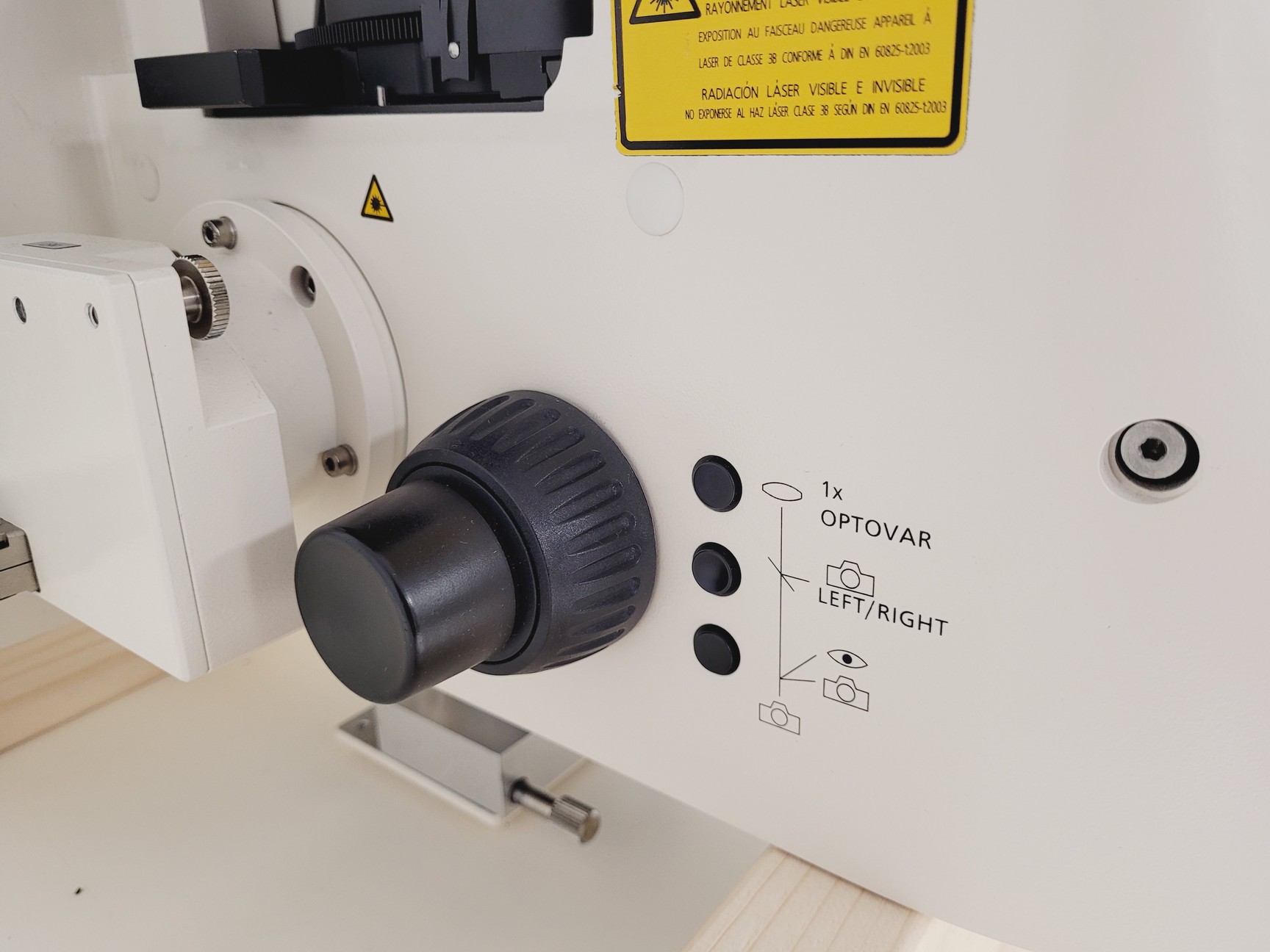

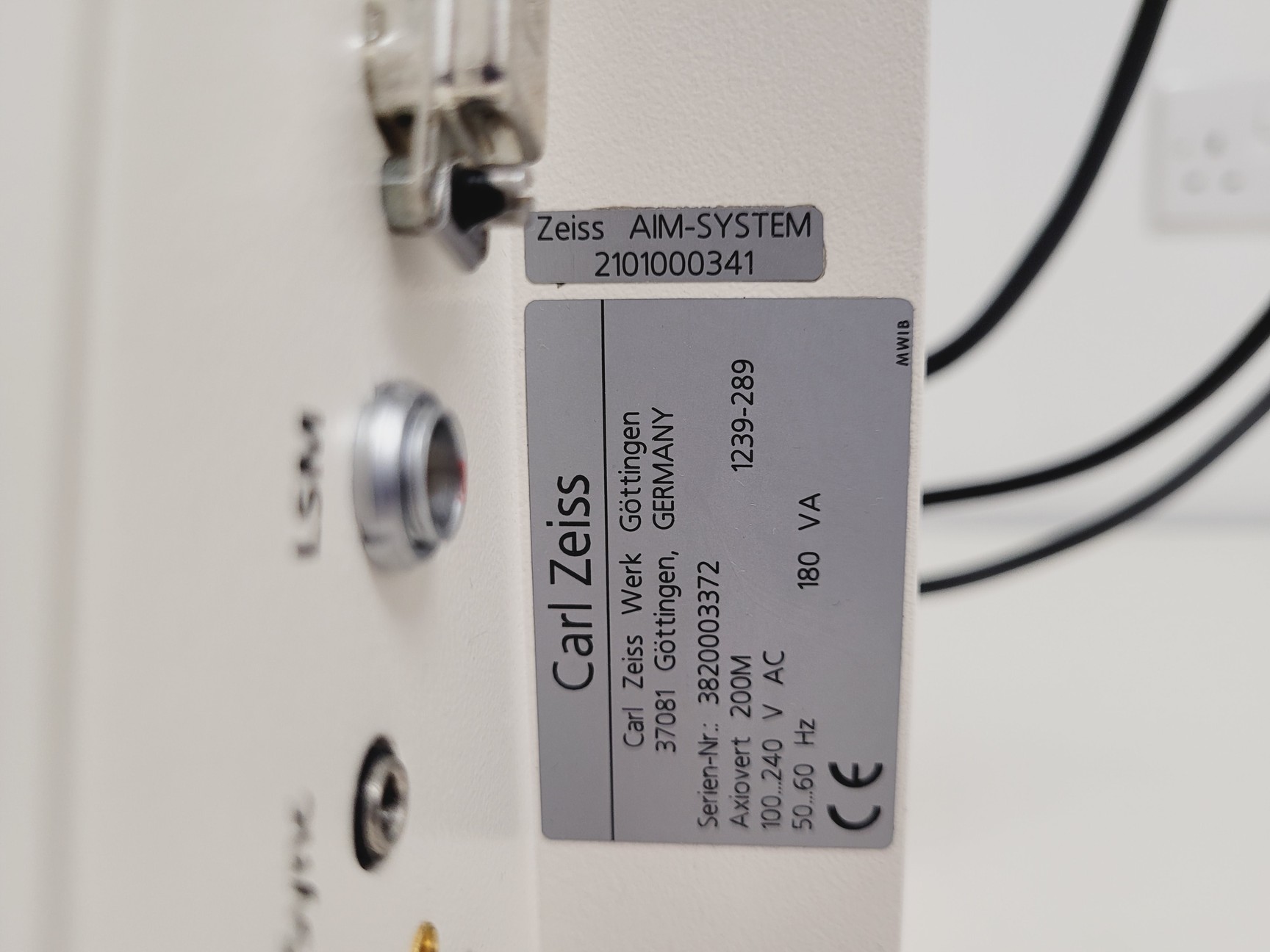

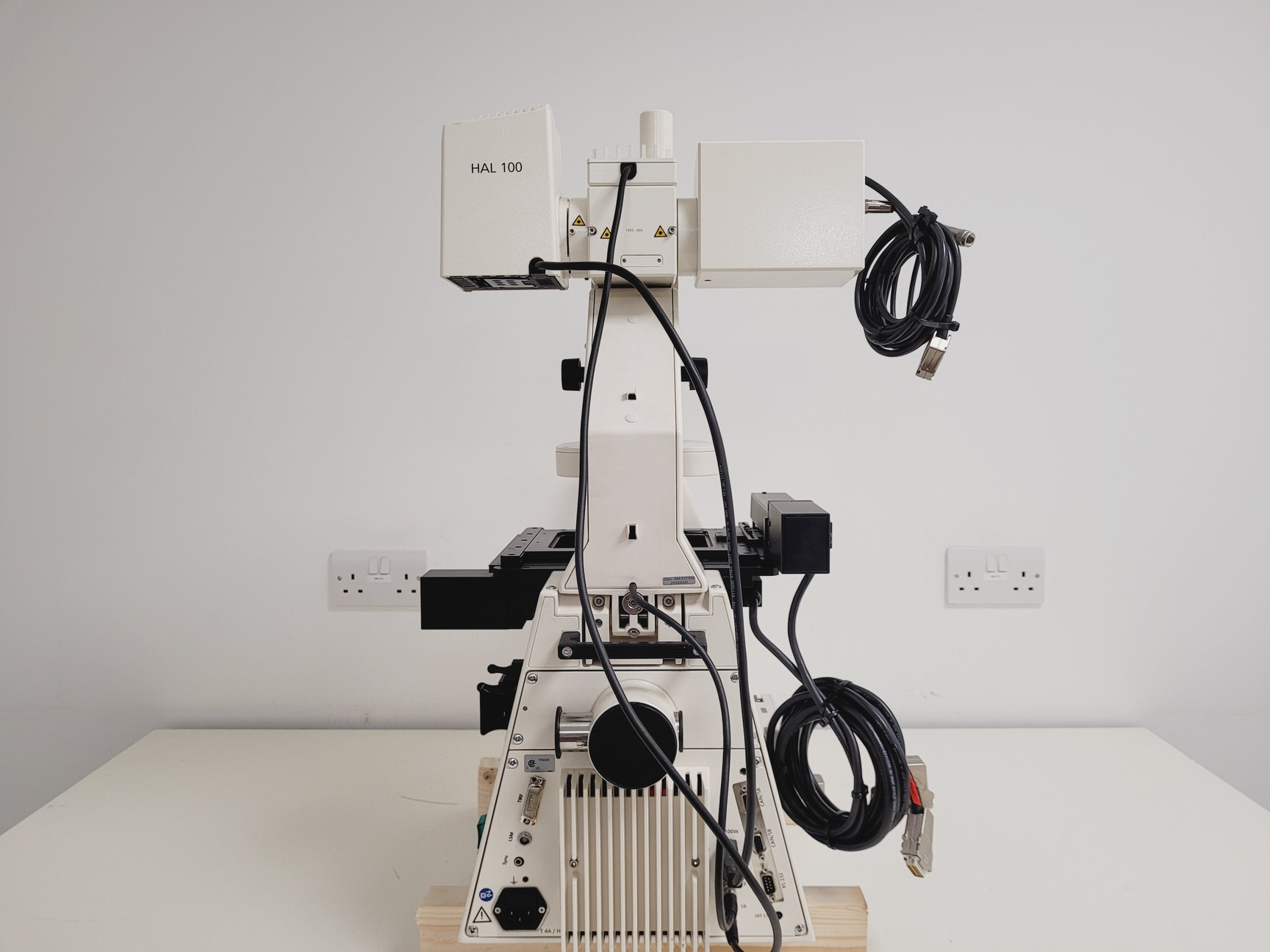

- Zeiss Axiovert 200M Confocal Microscope, fitted with:

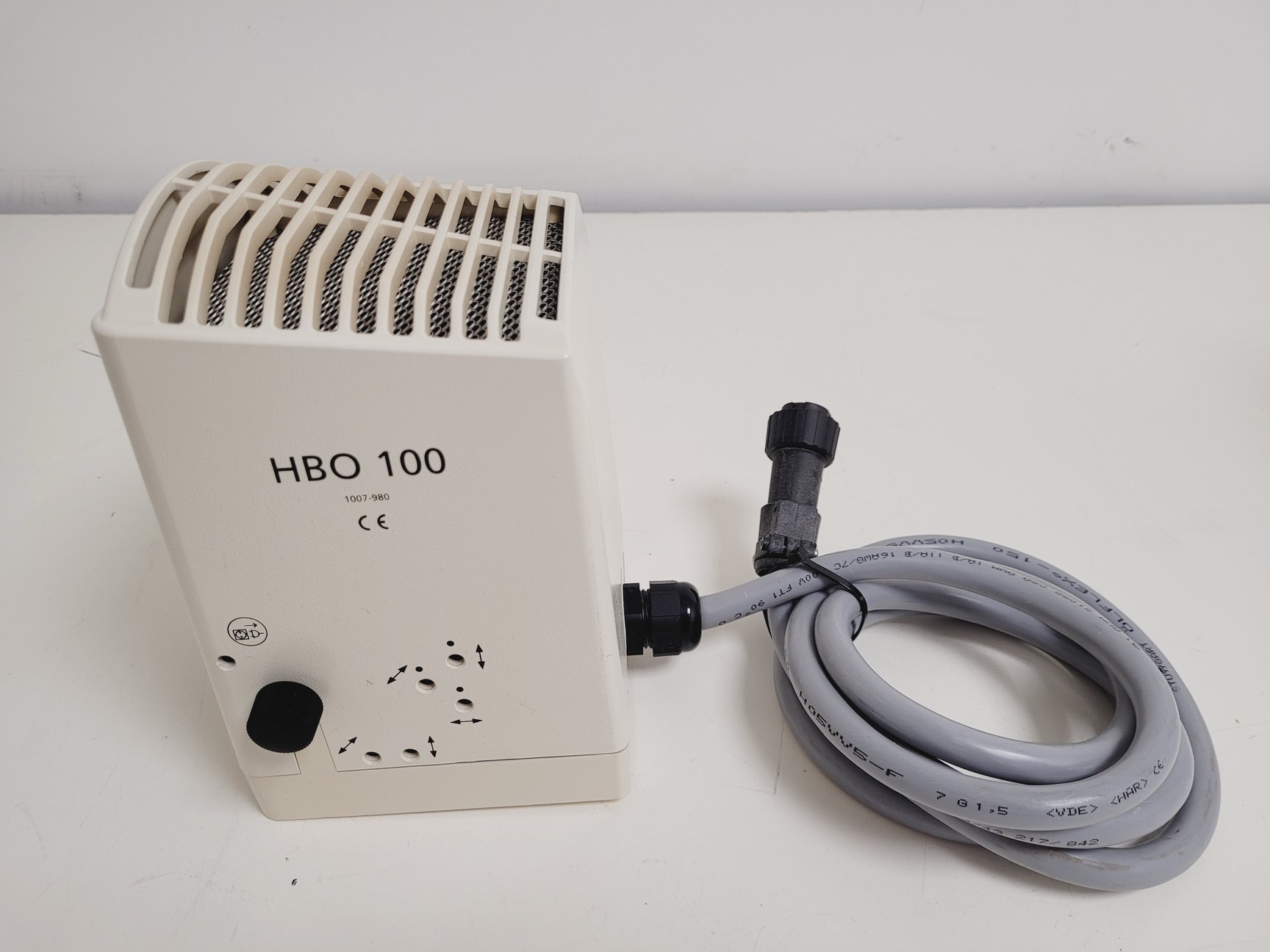

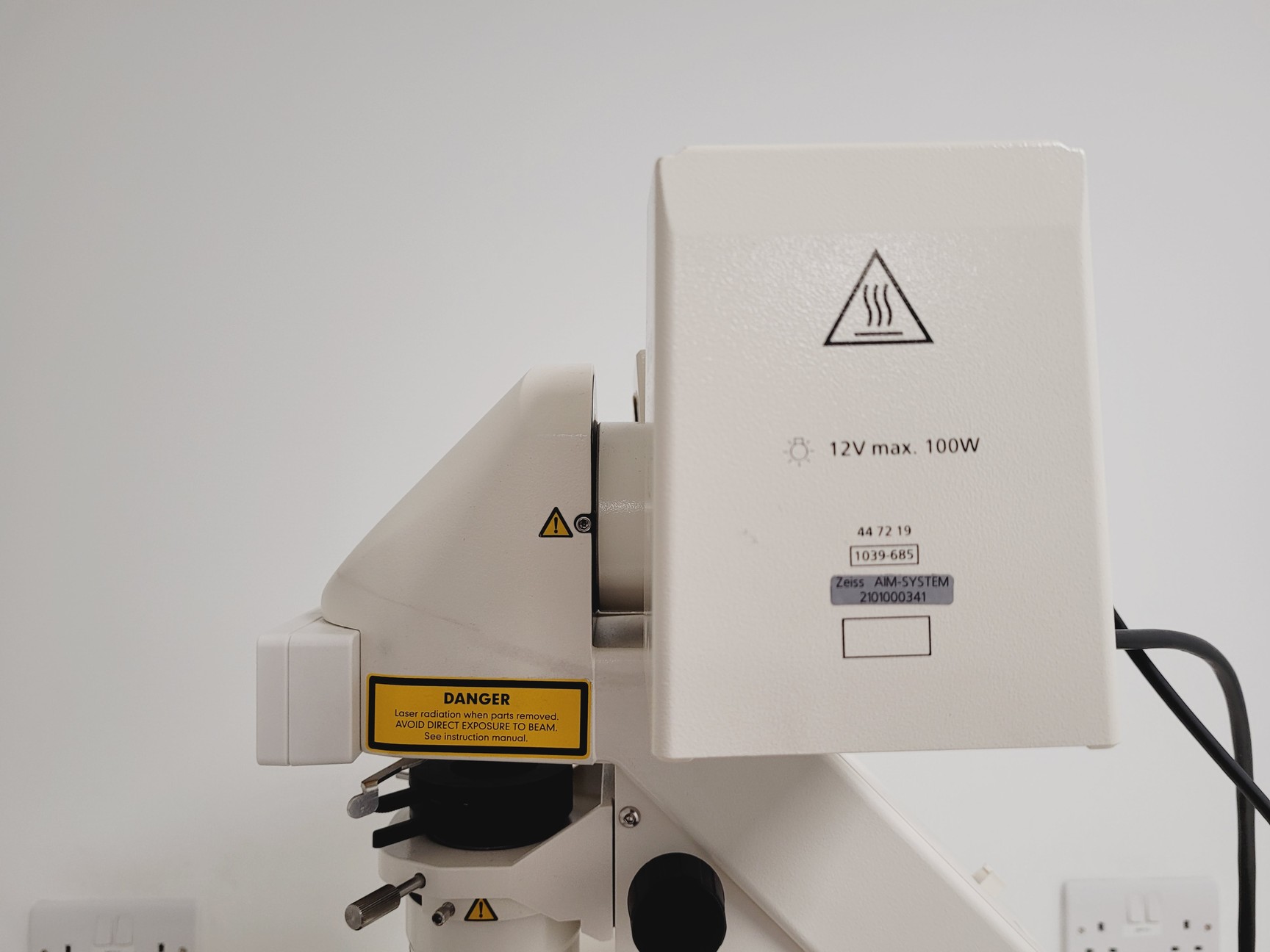

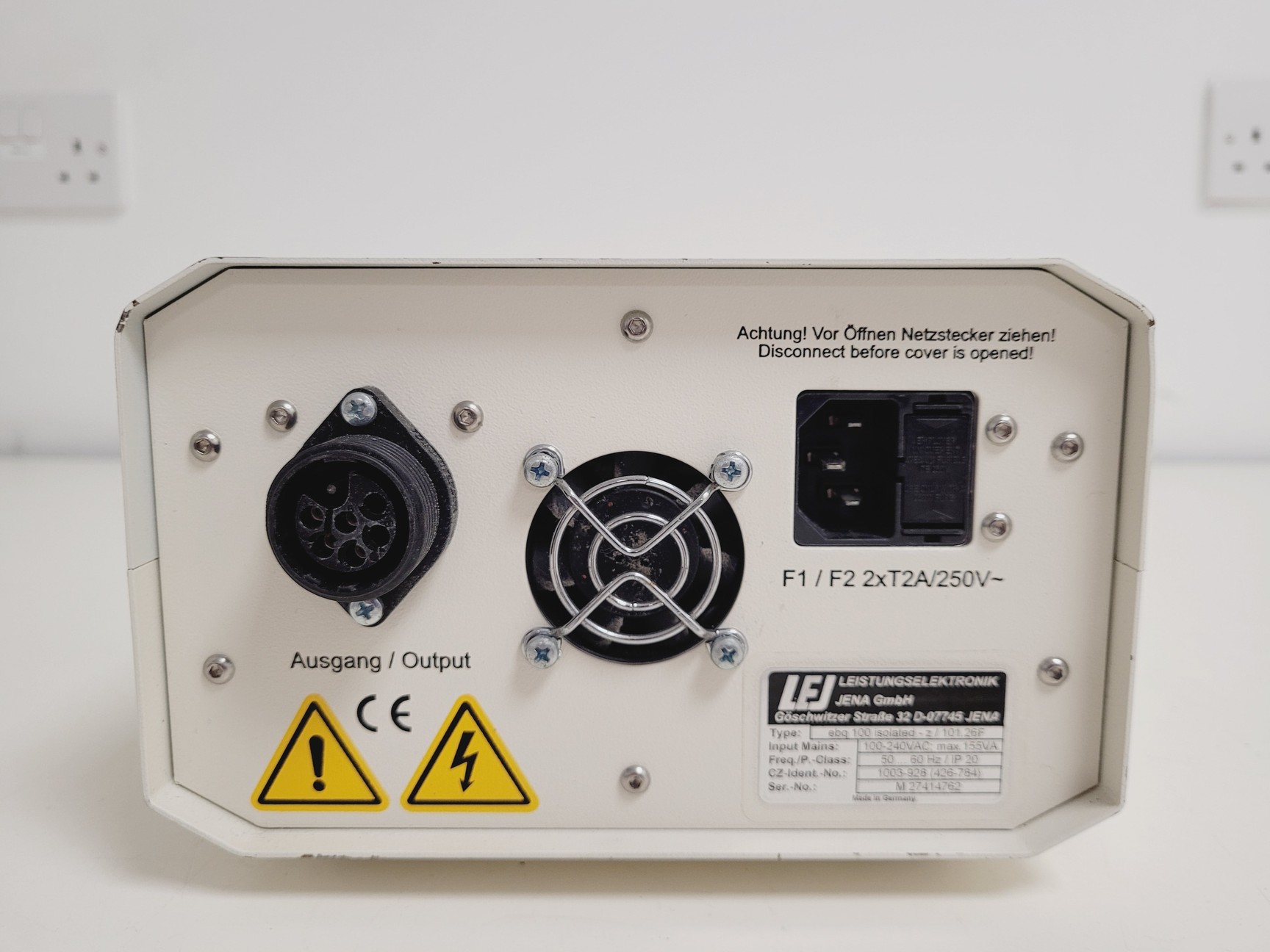

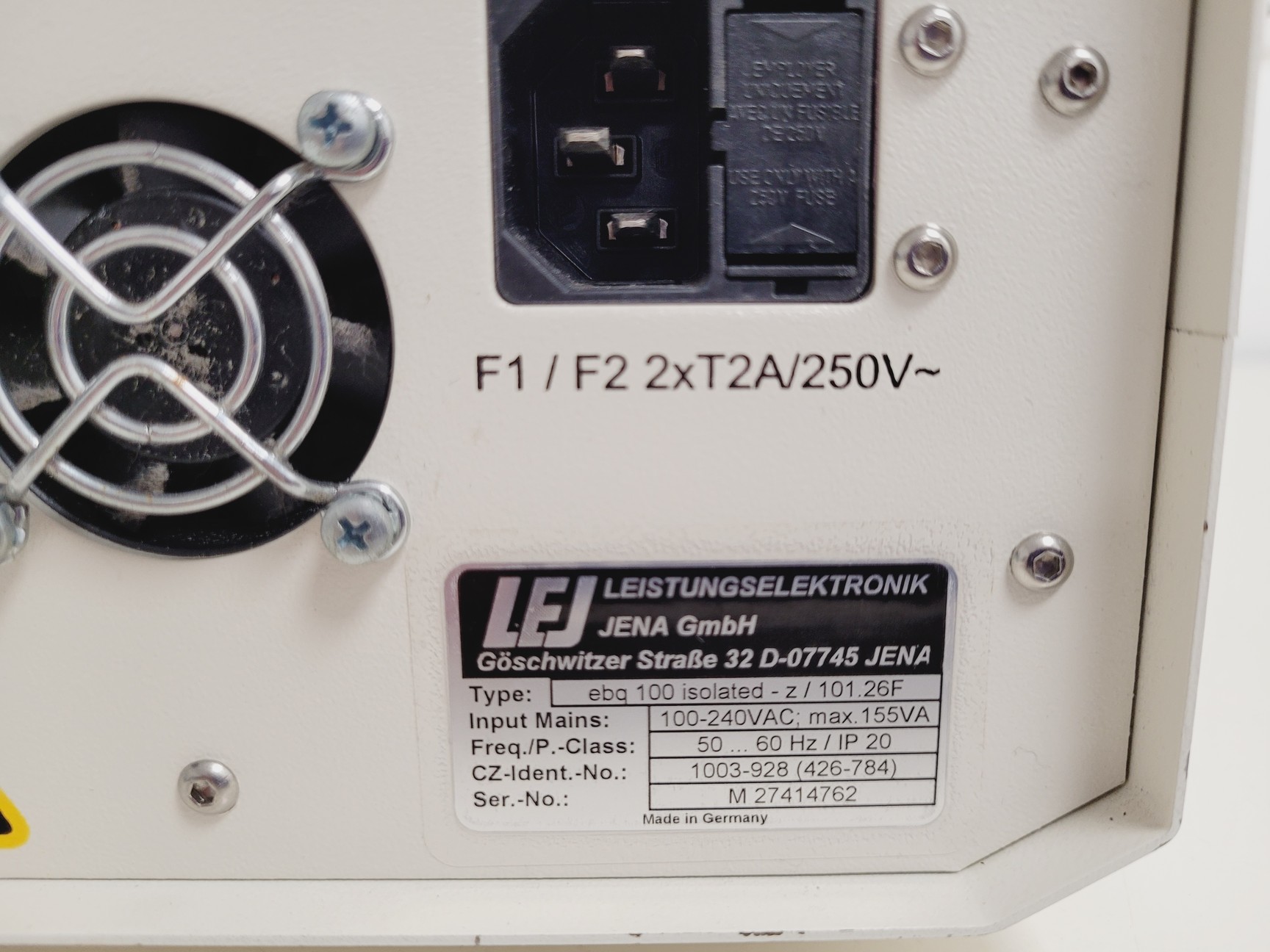

- Zeiss HBO100 Light Source (447219) with EQB100 PSU
- Zeiss 1095-490 Switching Mirror
- Zeiss 1058-431 Light Channel
- Zeiss 1005-847 Condenser NA 0.55 WD 26mm

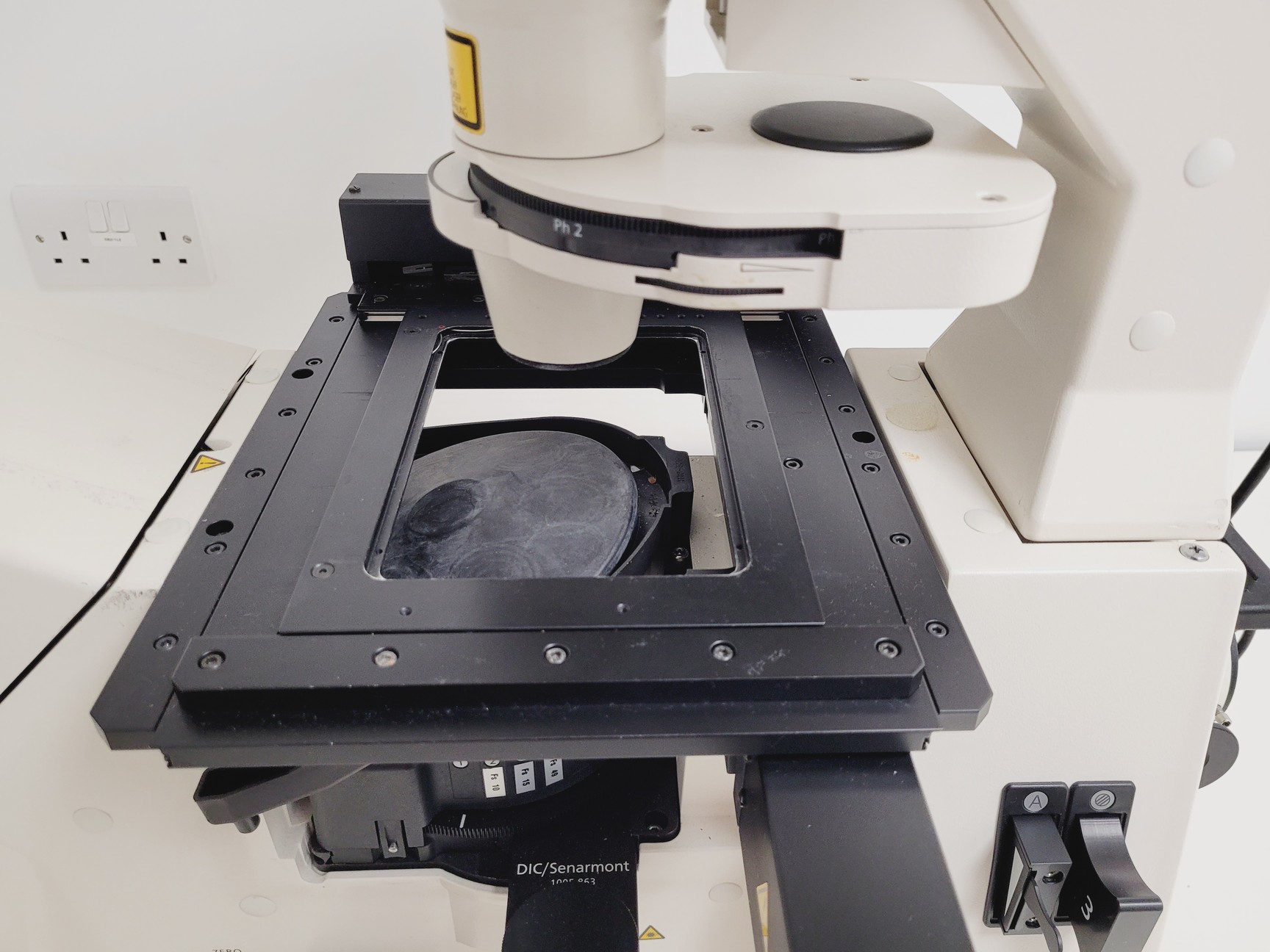

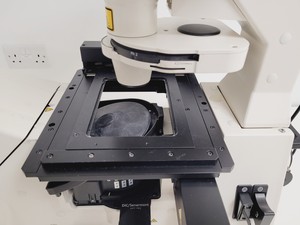

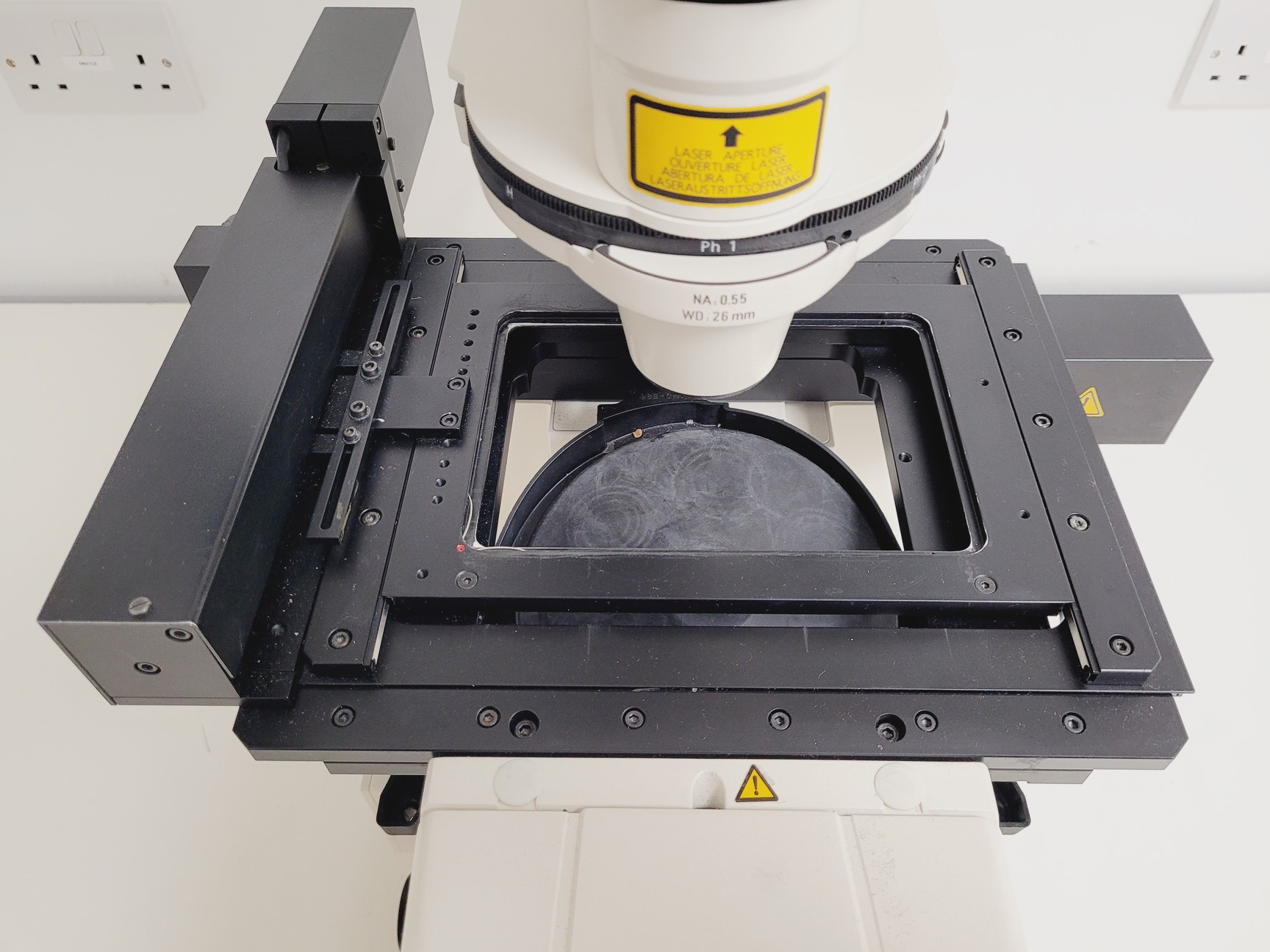

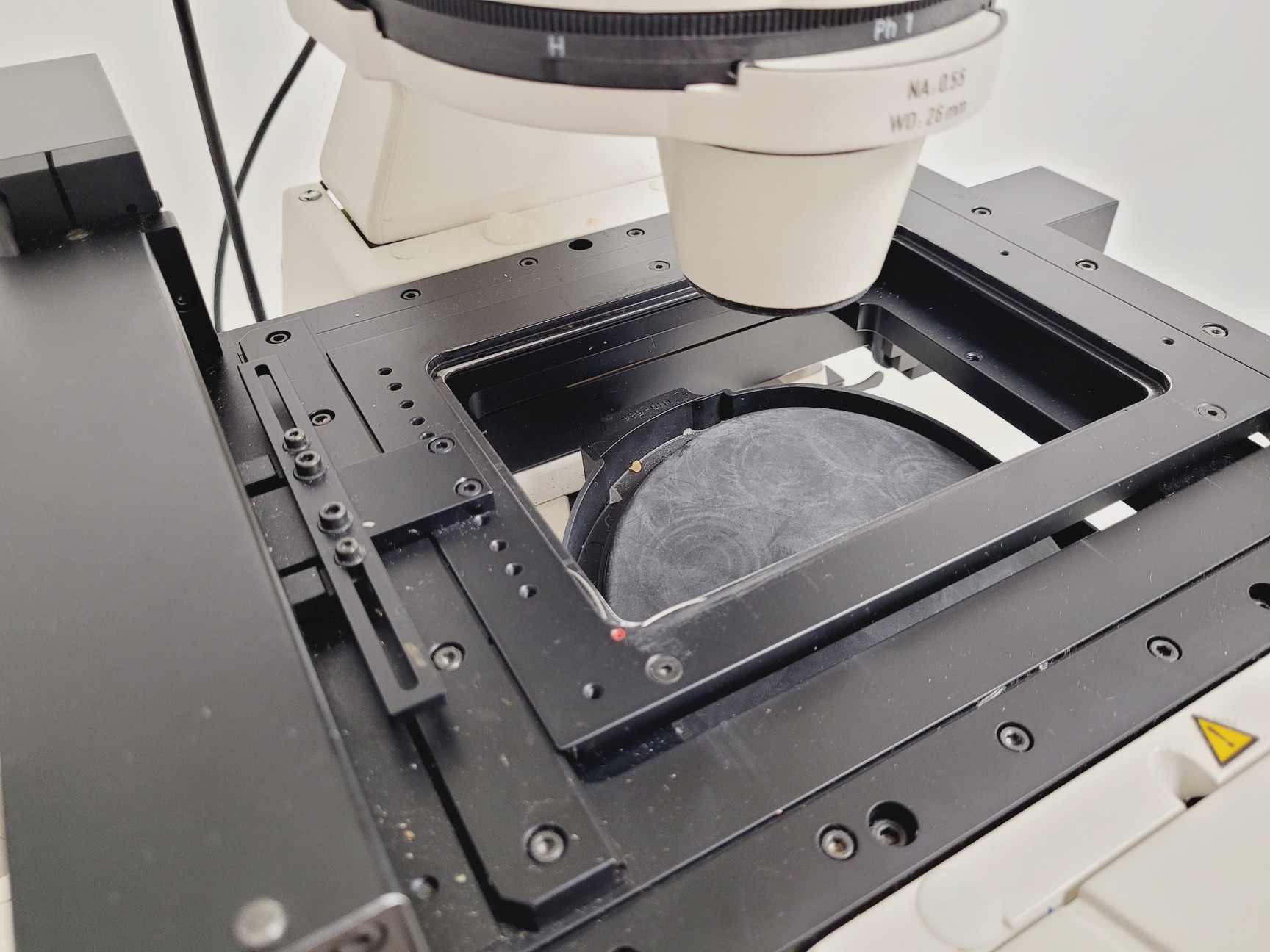

- Märzhäuser Scan 120x100 Automated Stage (90-25-414-0000) with inserts

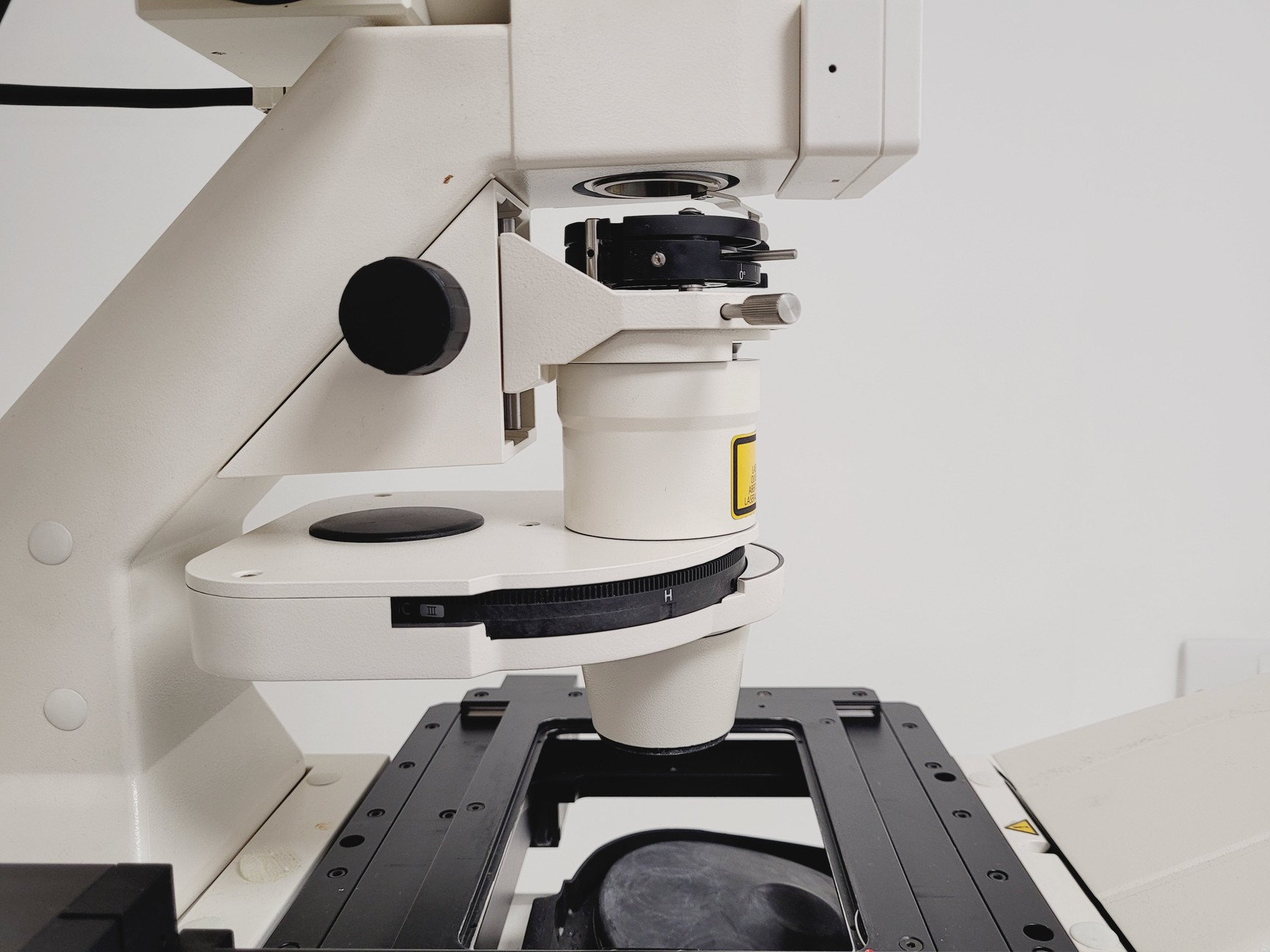

- Zeiss 6 Position Nosepiece

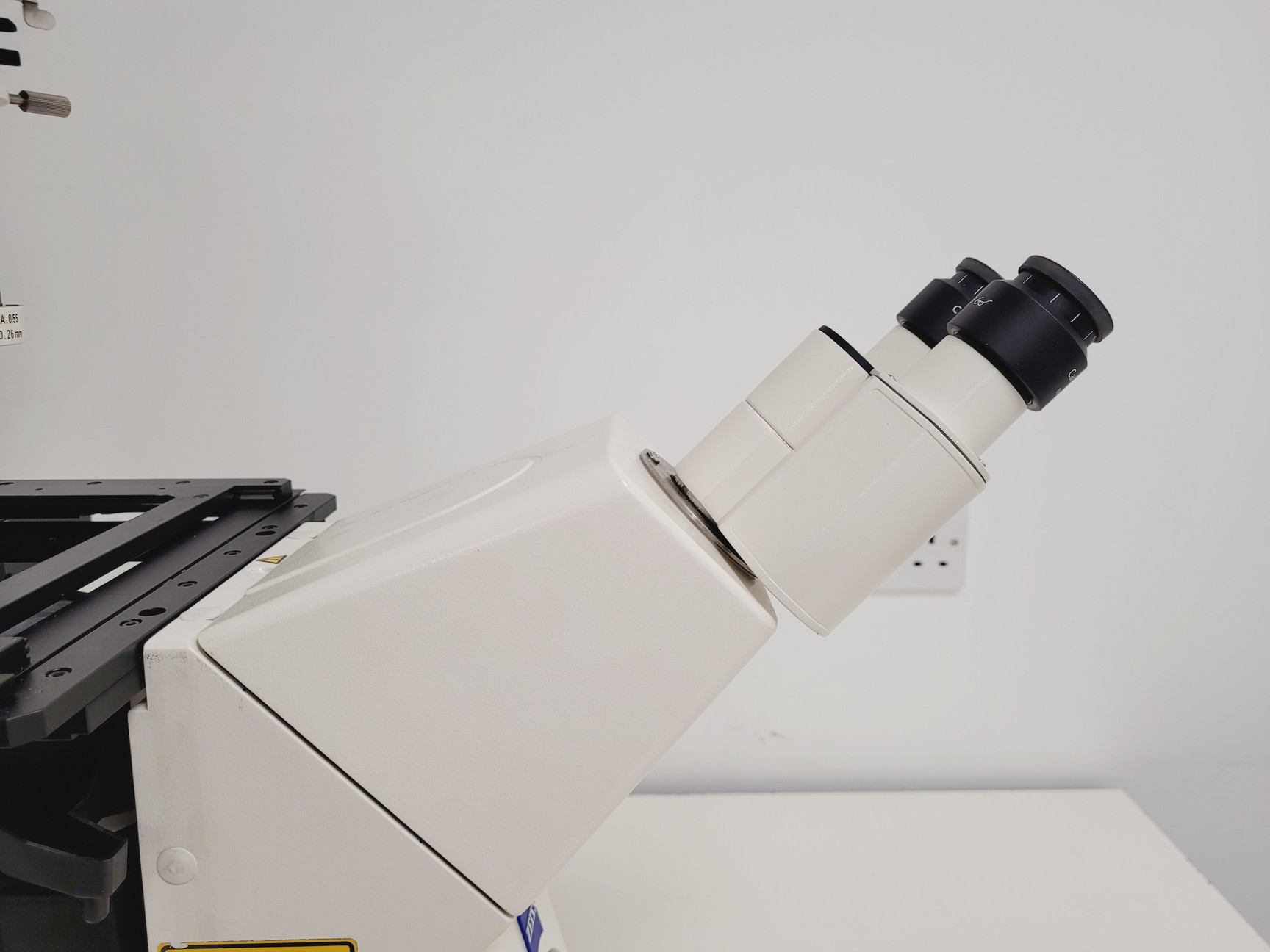

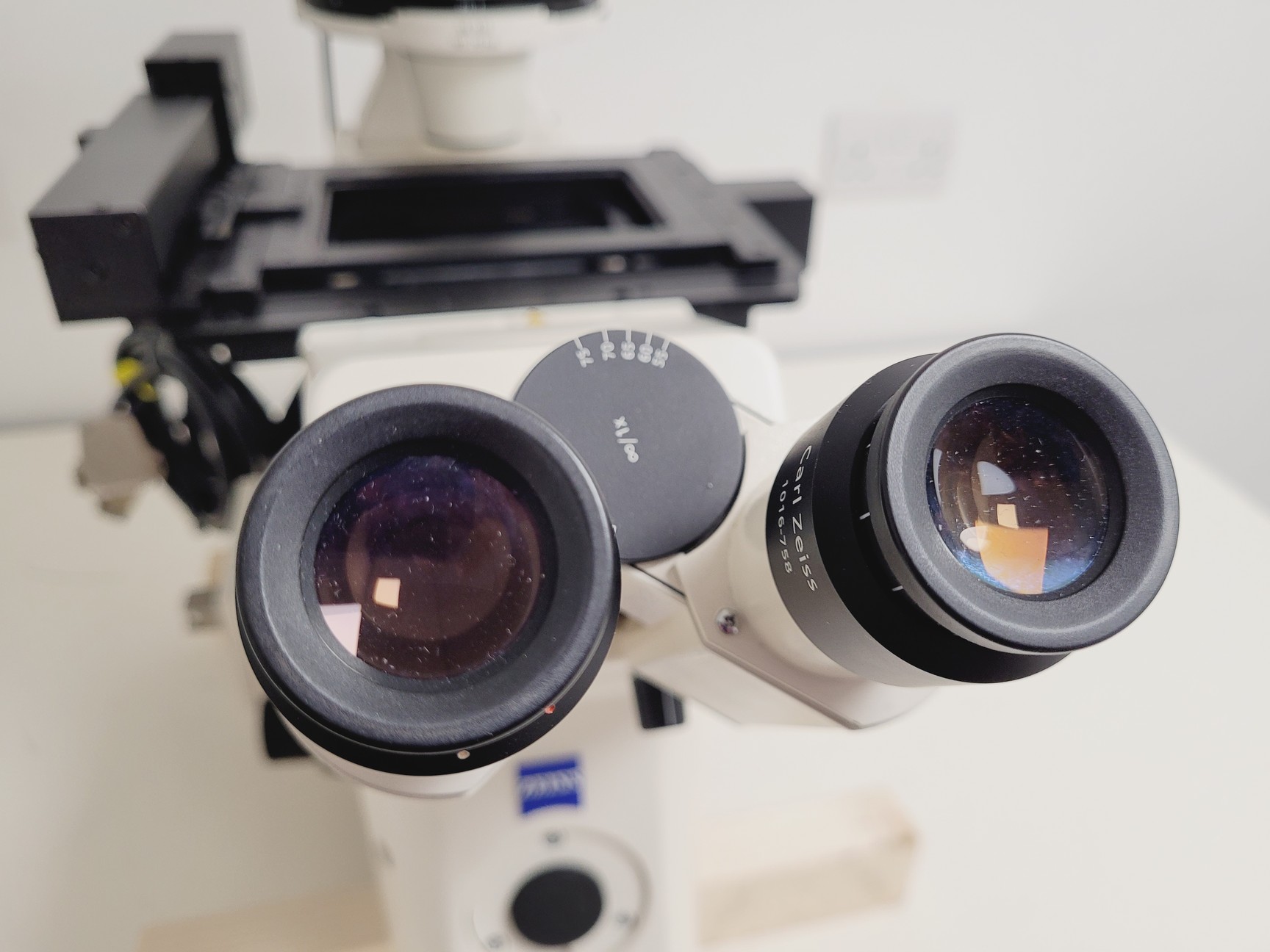

- Zeiss 1005-827 Binocular Tube
- 2 x Zeiss 1016-758 W-PI 10x/23 Eyepieces

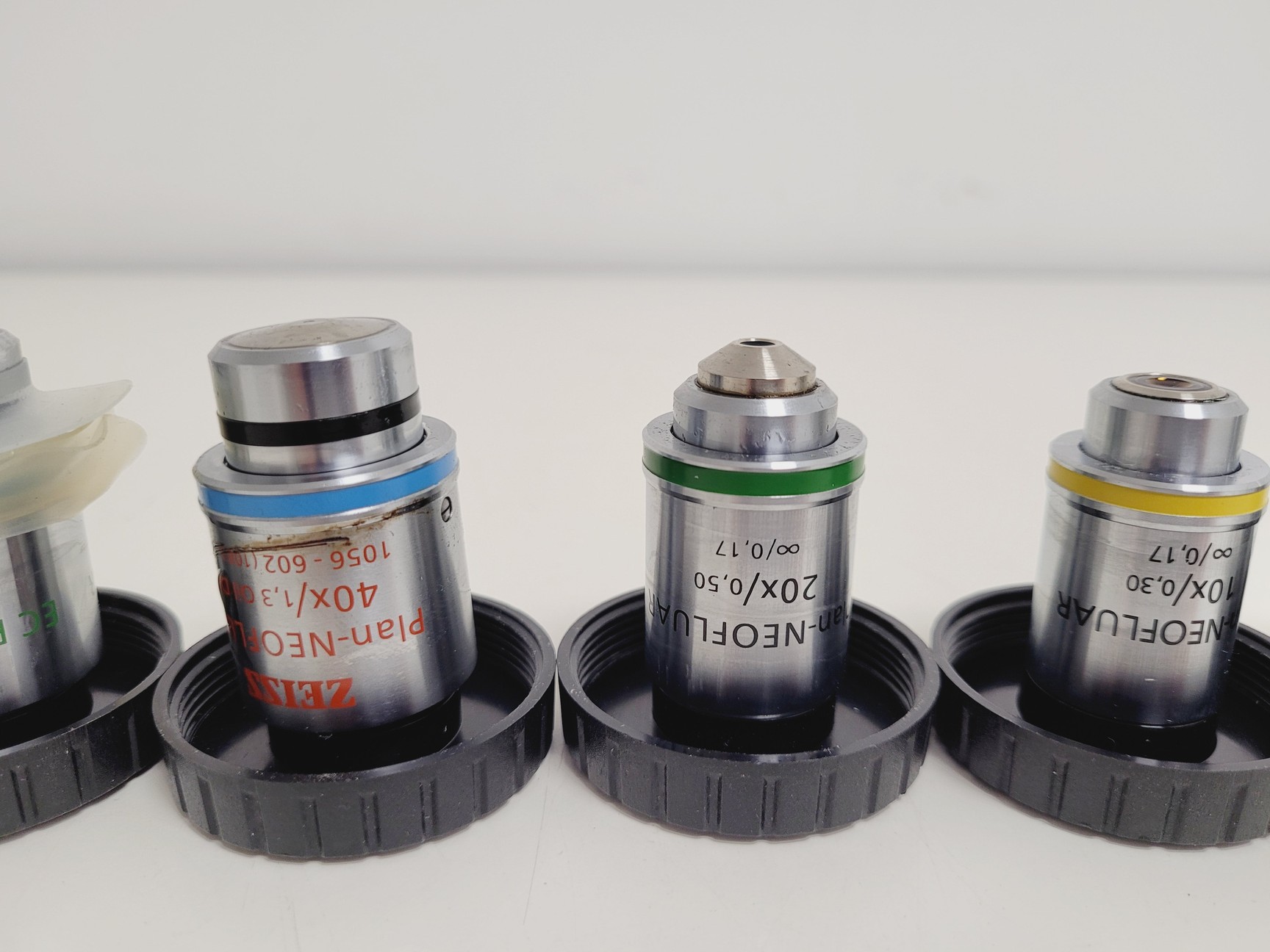

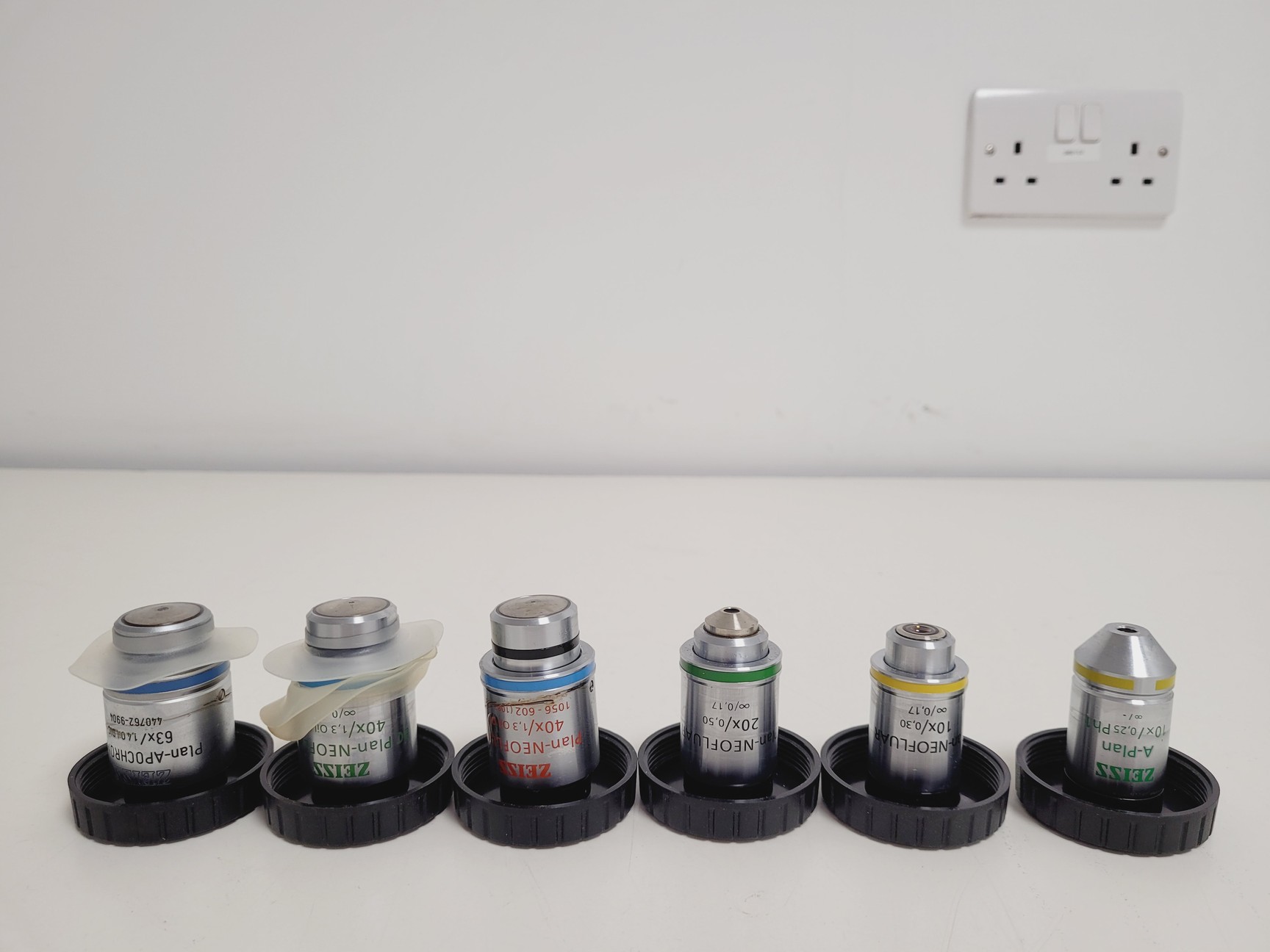

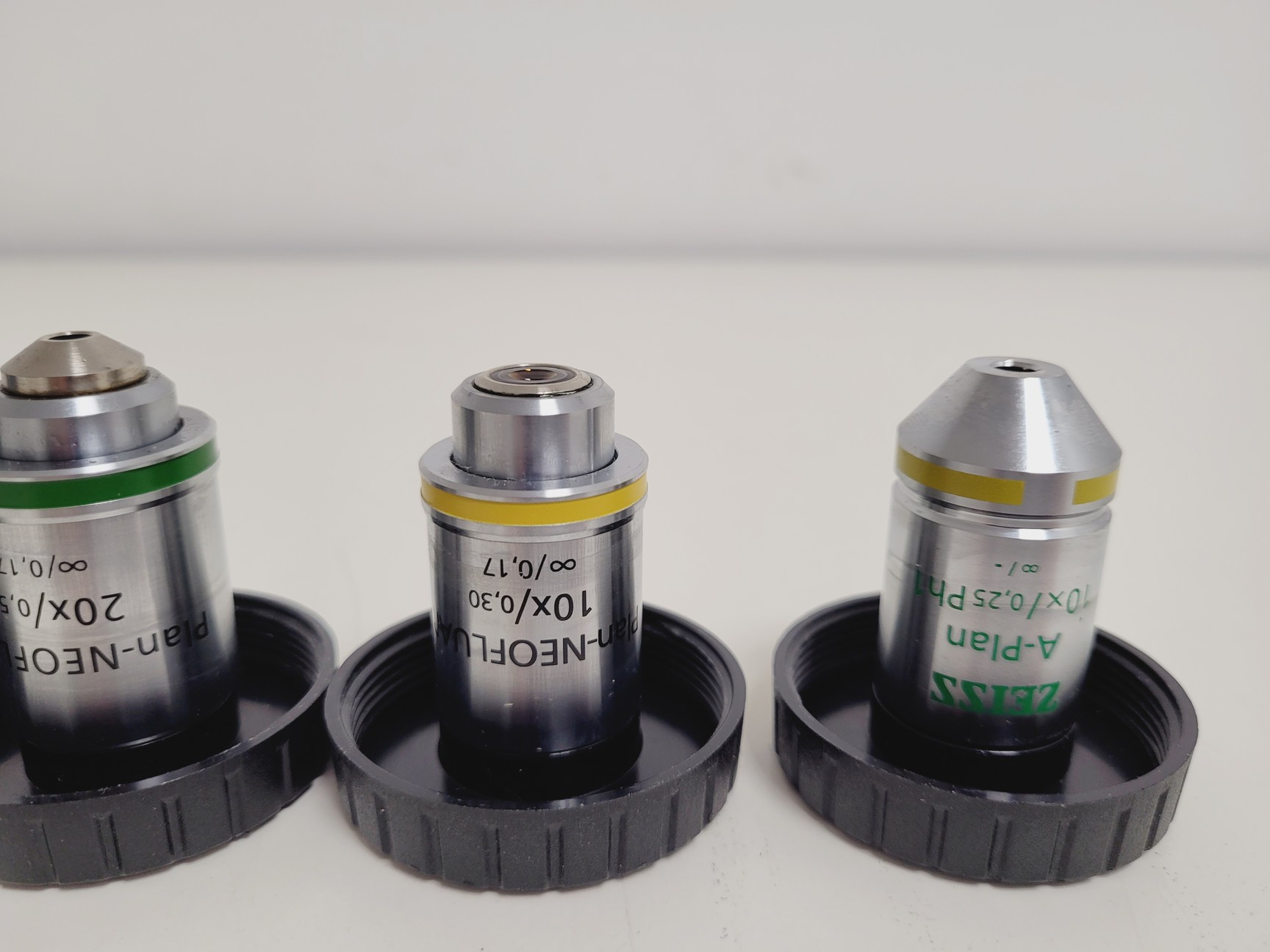

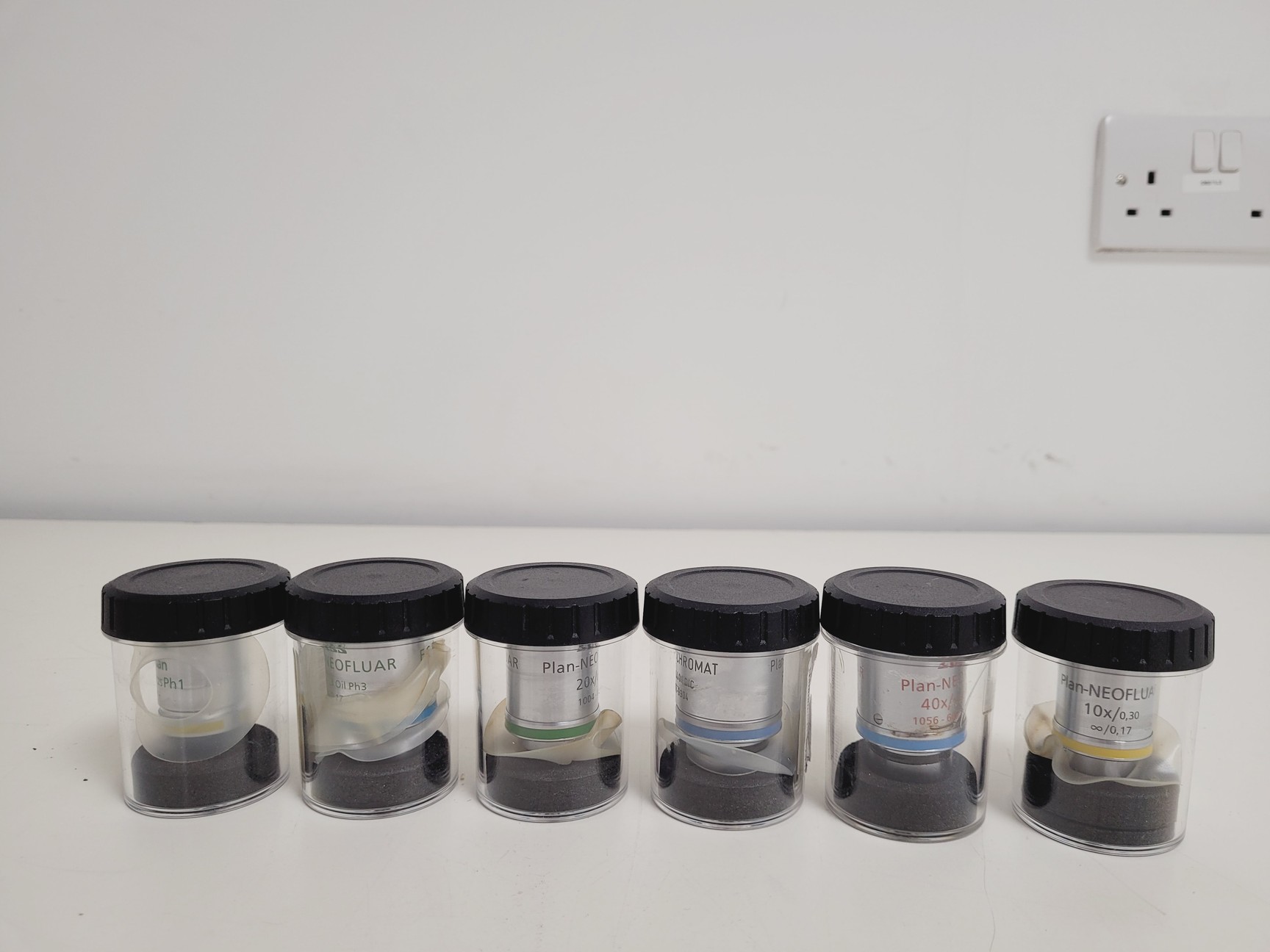

Objectives (Zeiss):
- Plan-NEOFLUAR 10x/0.30 ∞/0.17
- Plan-NEOFLUAR 20x/0.50 ∞/0.17

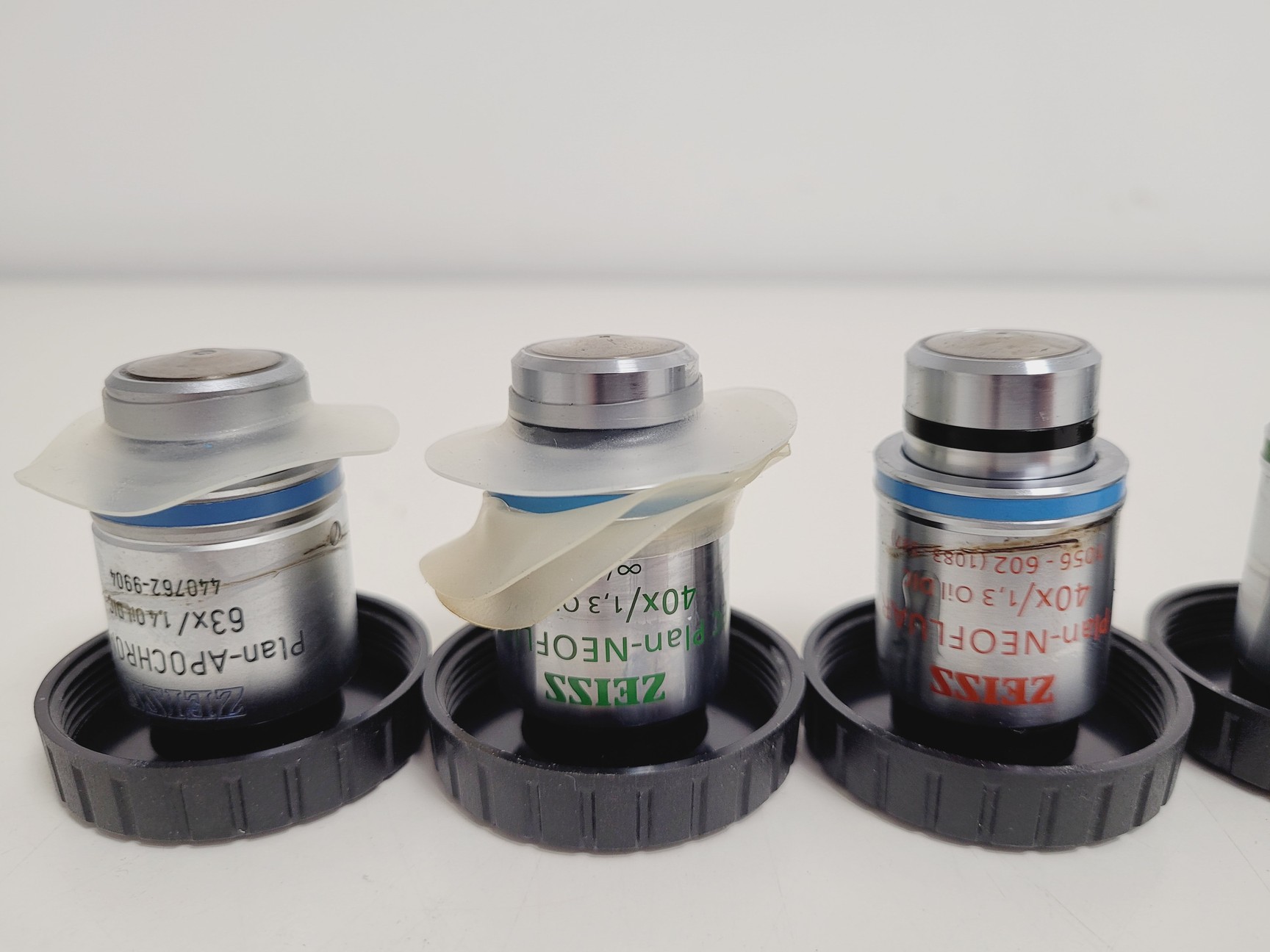

- EC Plan-NEOFLUAR 40x/1.3 Oil Ph3 ∞/0.17
- Plan-APOCHROMAT 63x/1.4 Oil DIC ∞/0.17

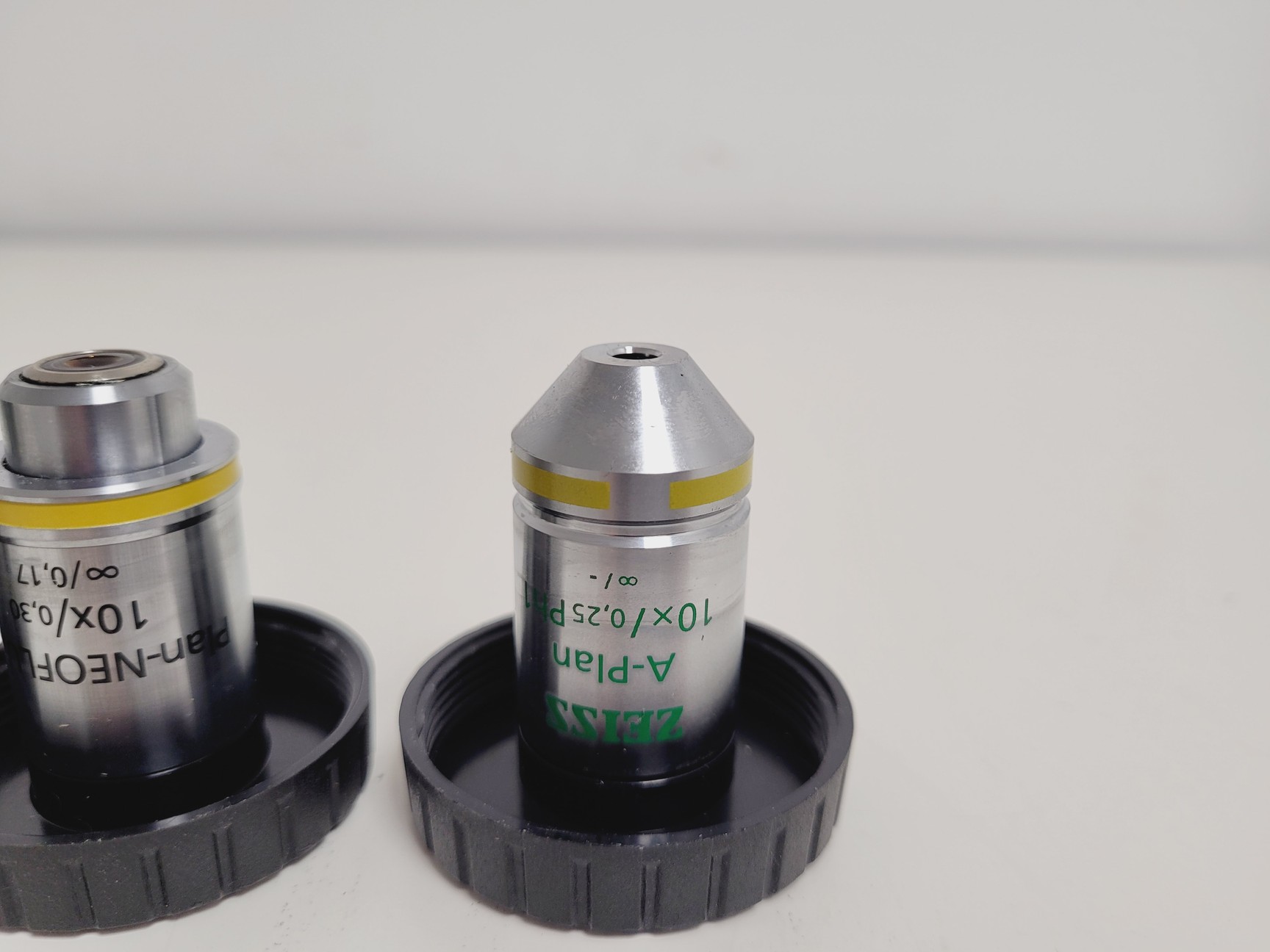

- A-Plan 10x/0.25 Ph1 ∞/-
- Plan-NEOFLUAR 40x/1.3 Oil DIC ∞/0.17
Laser Scanning & Illumination Components:

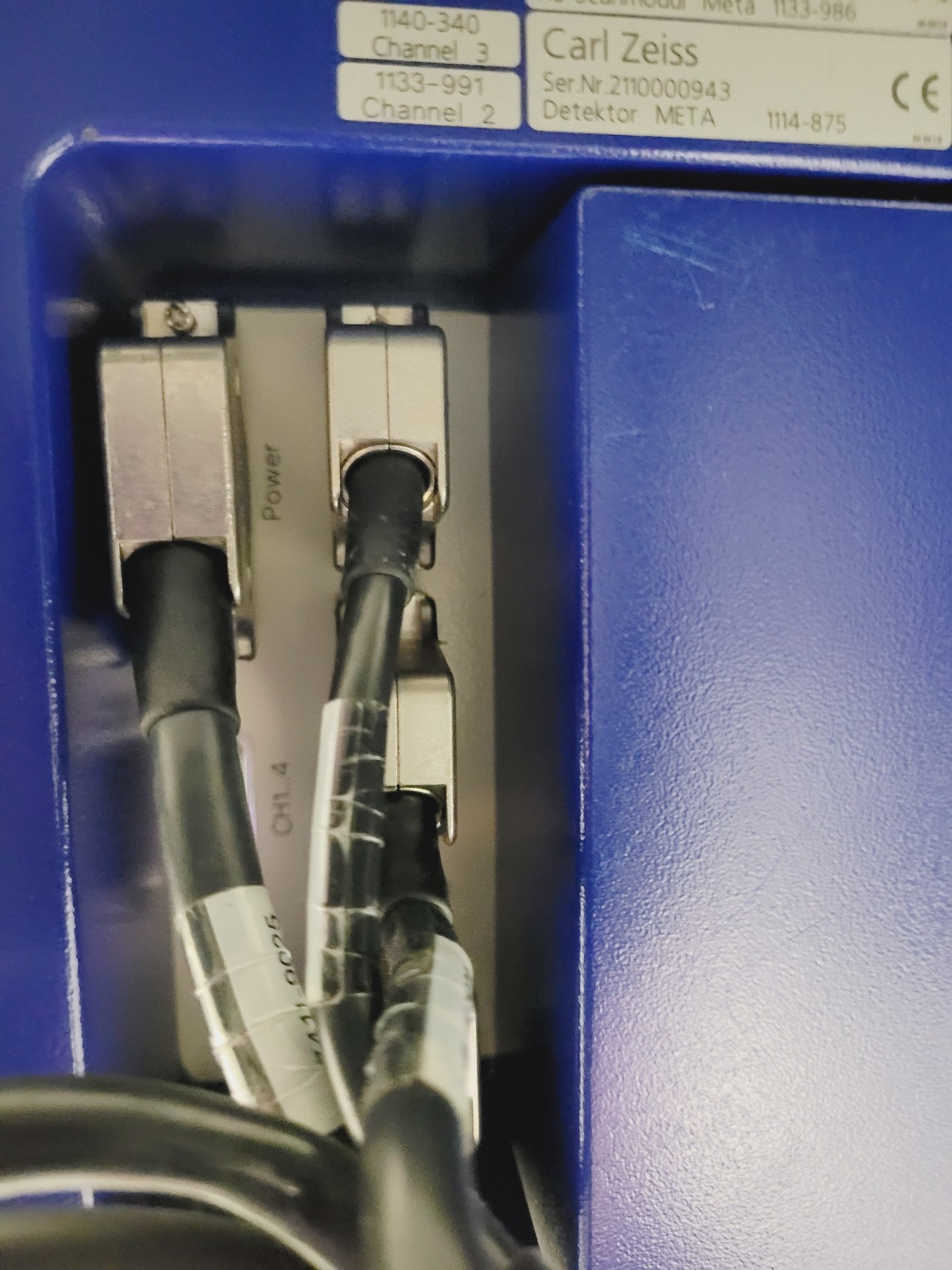

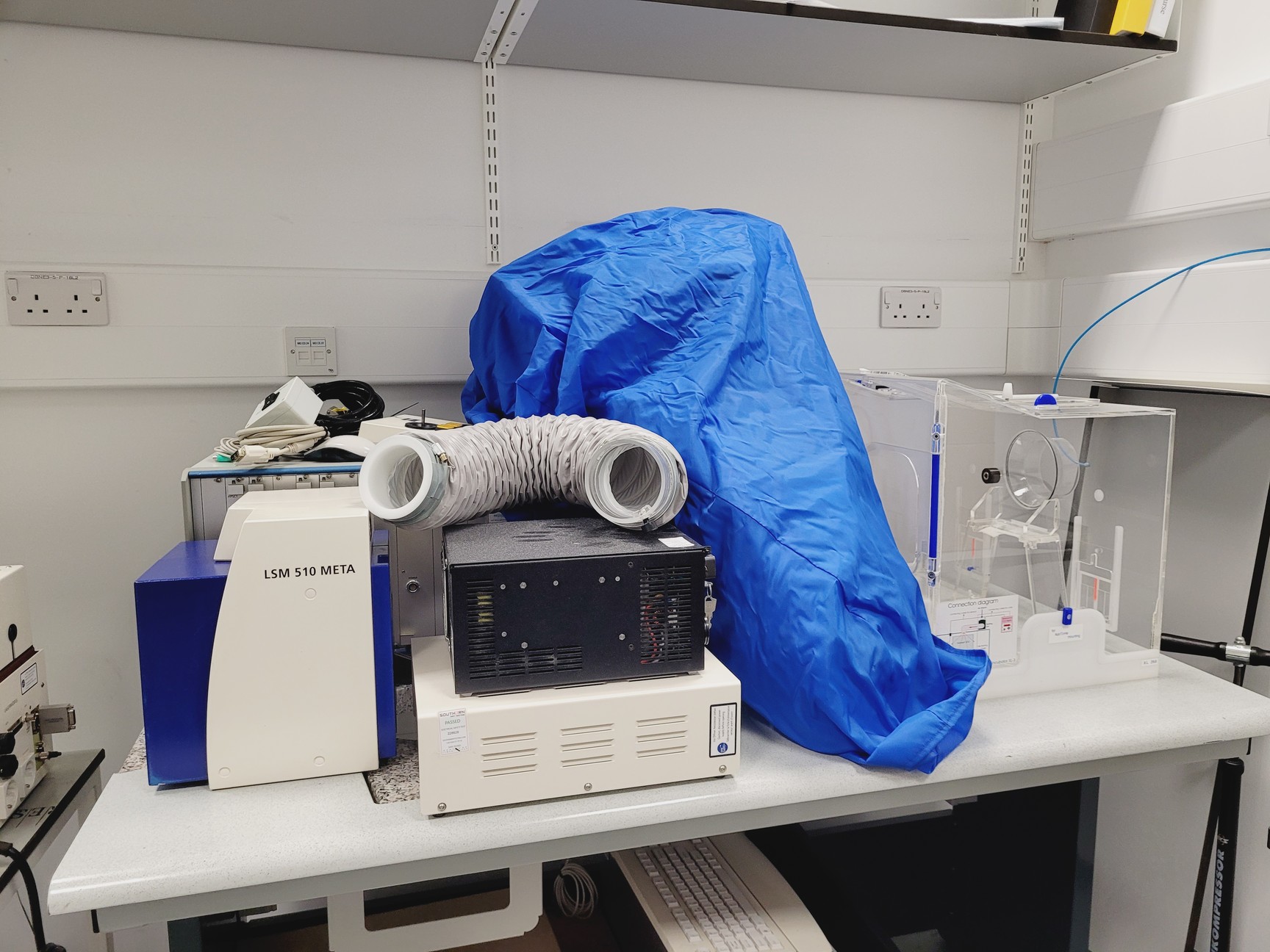

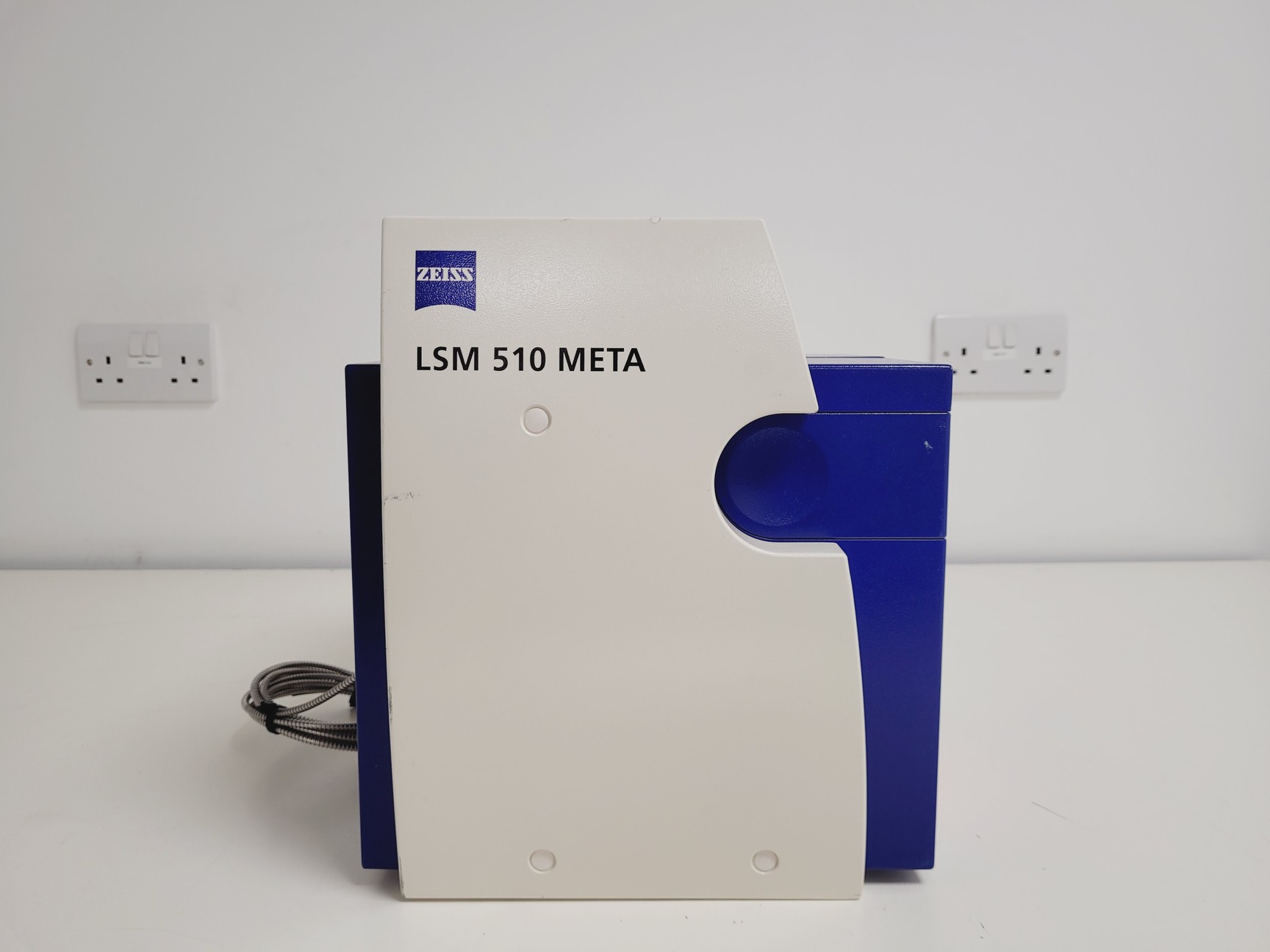

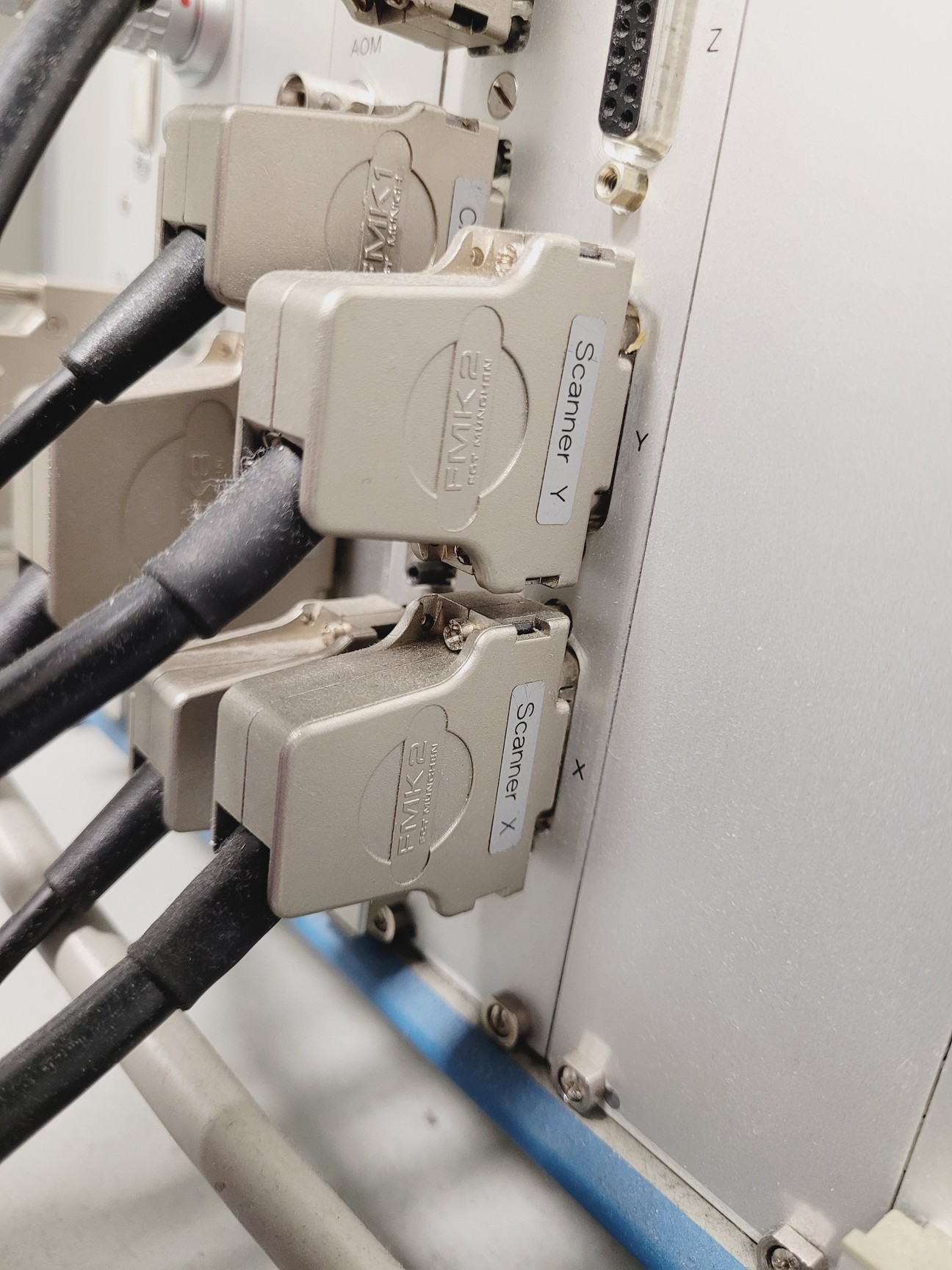

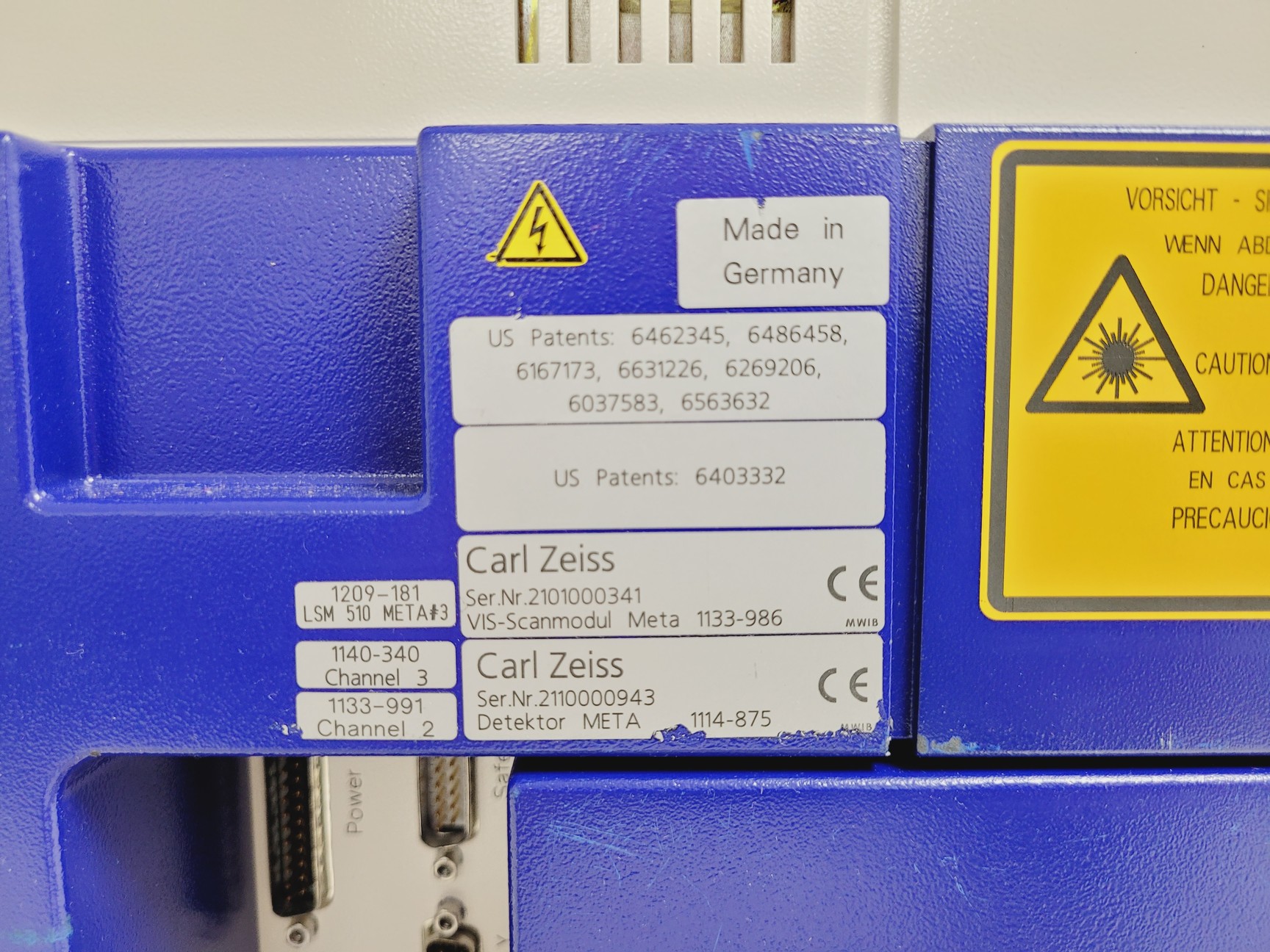

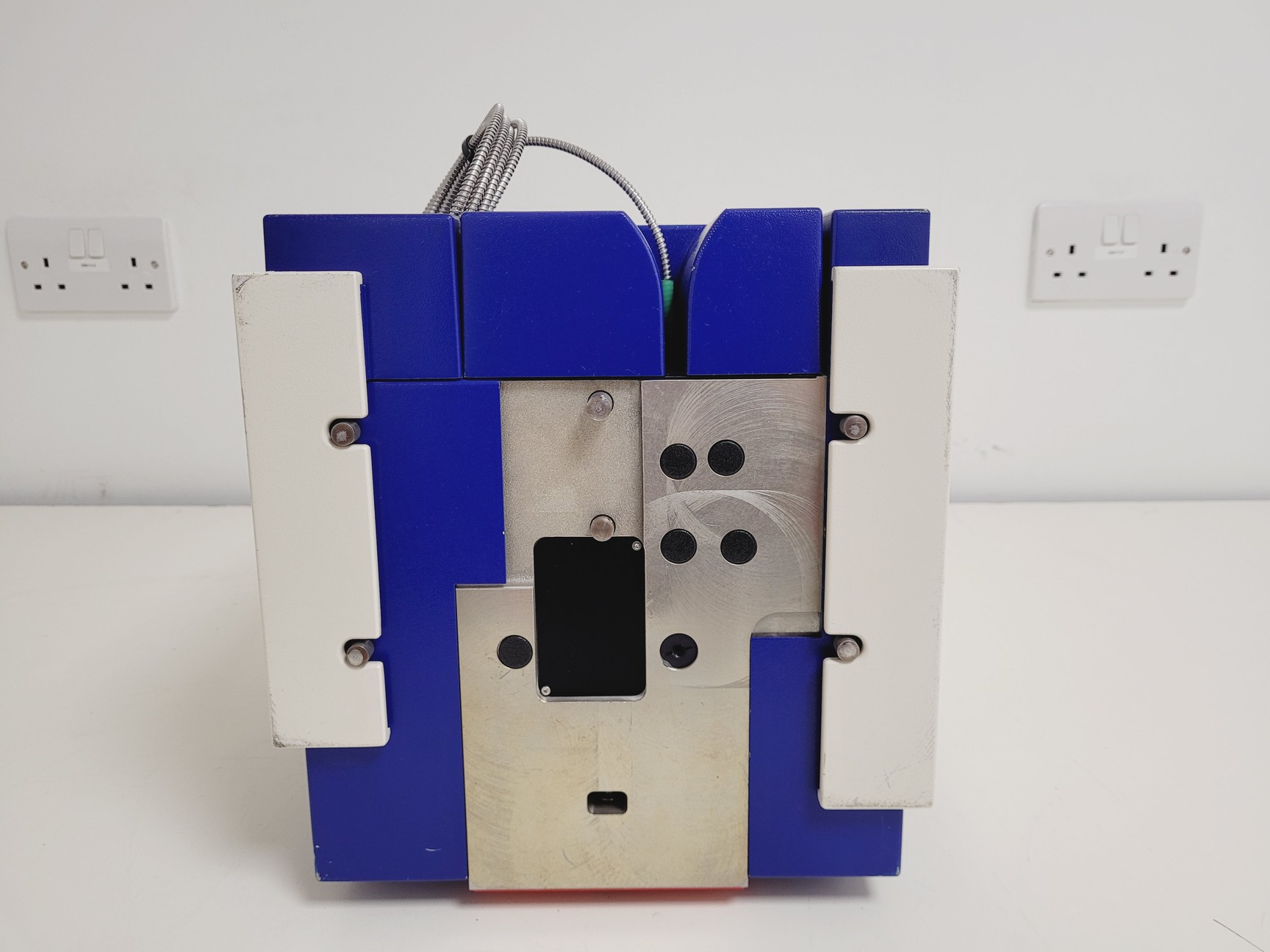

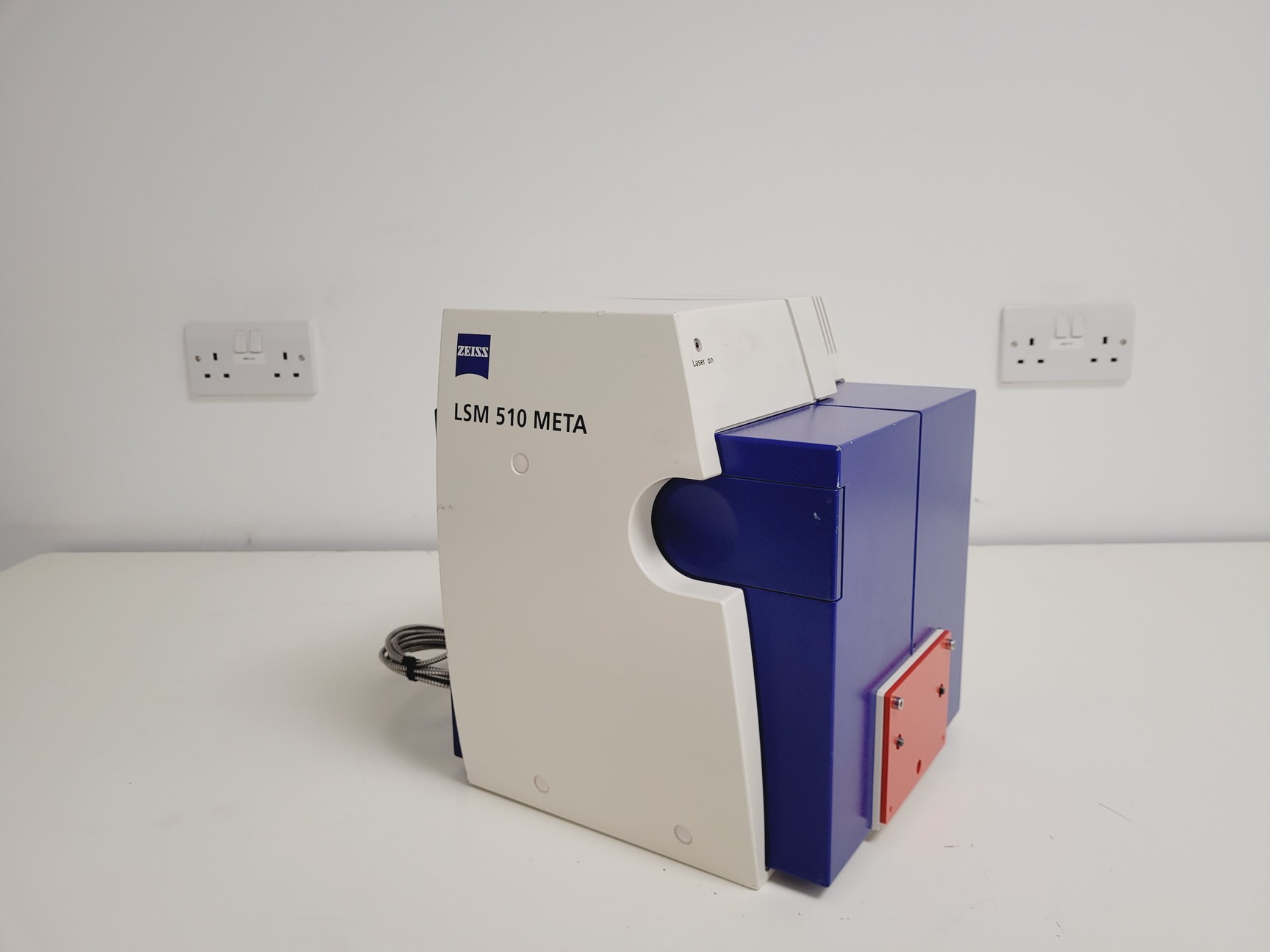

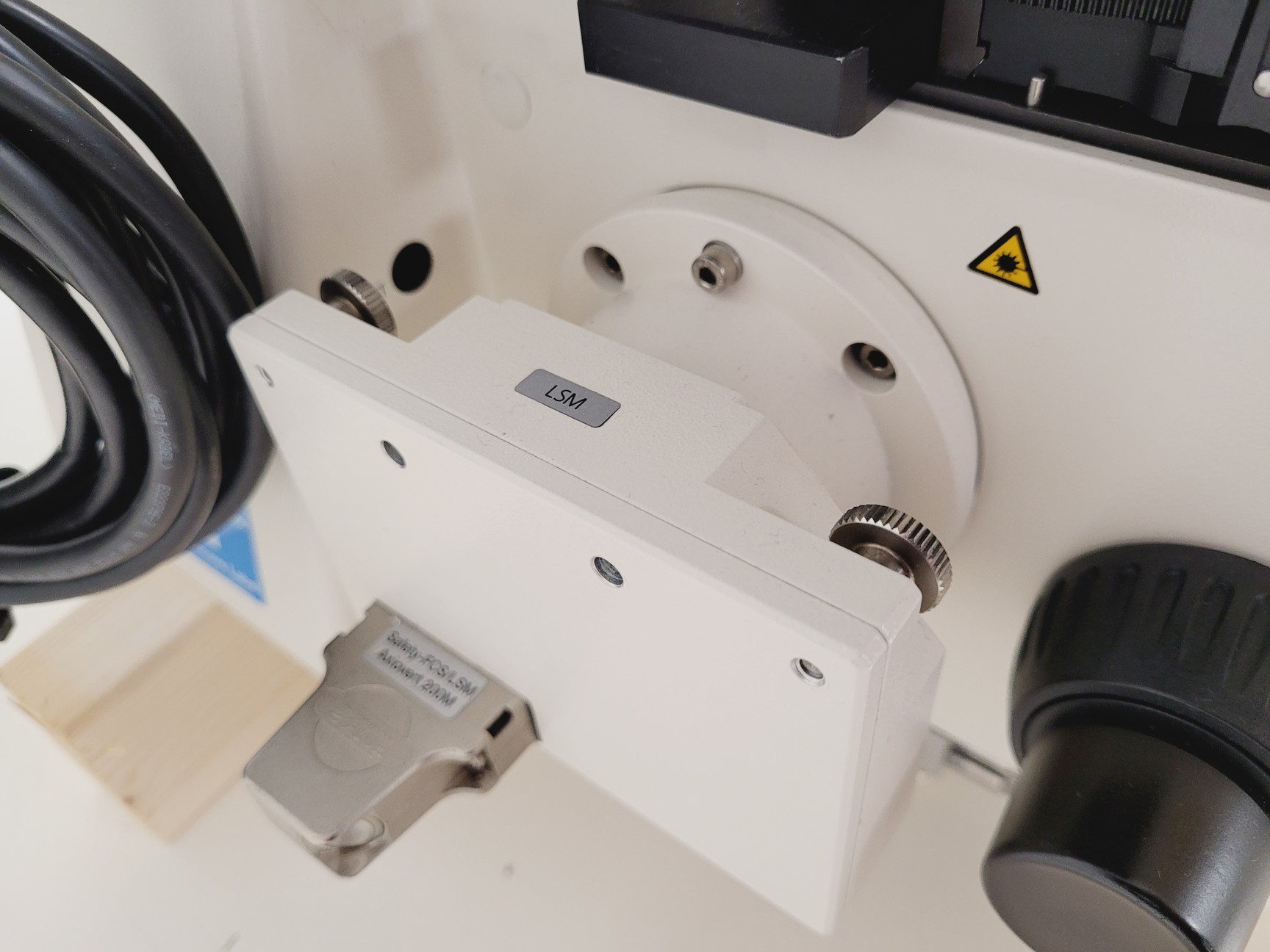

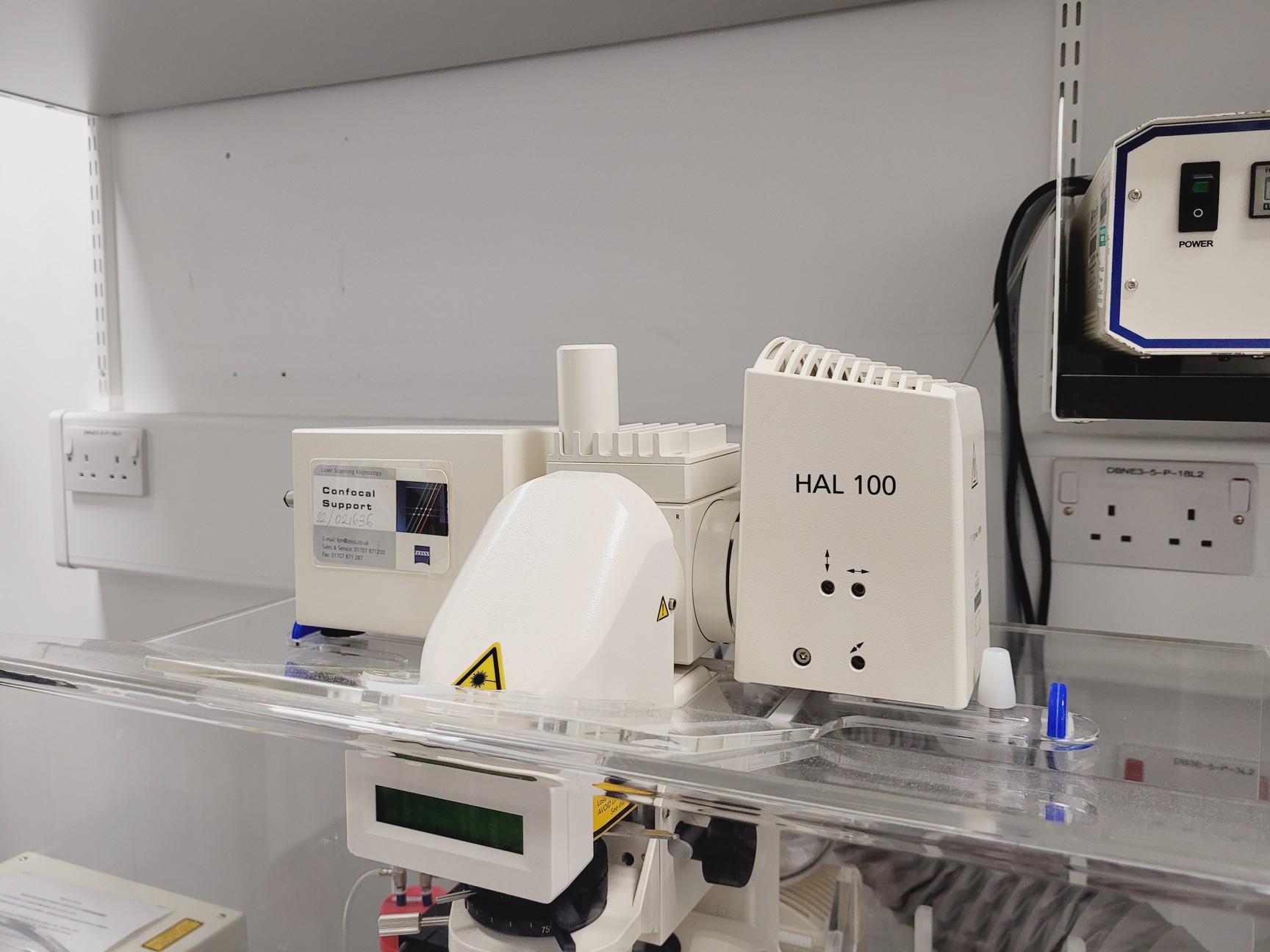

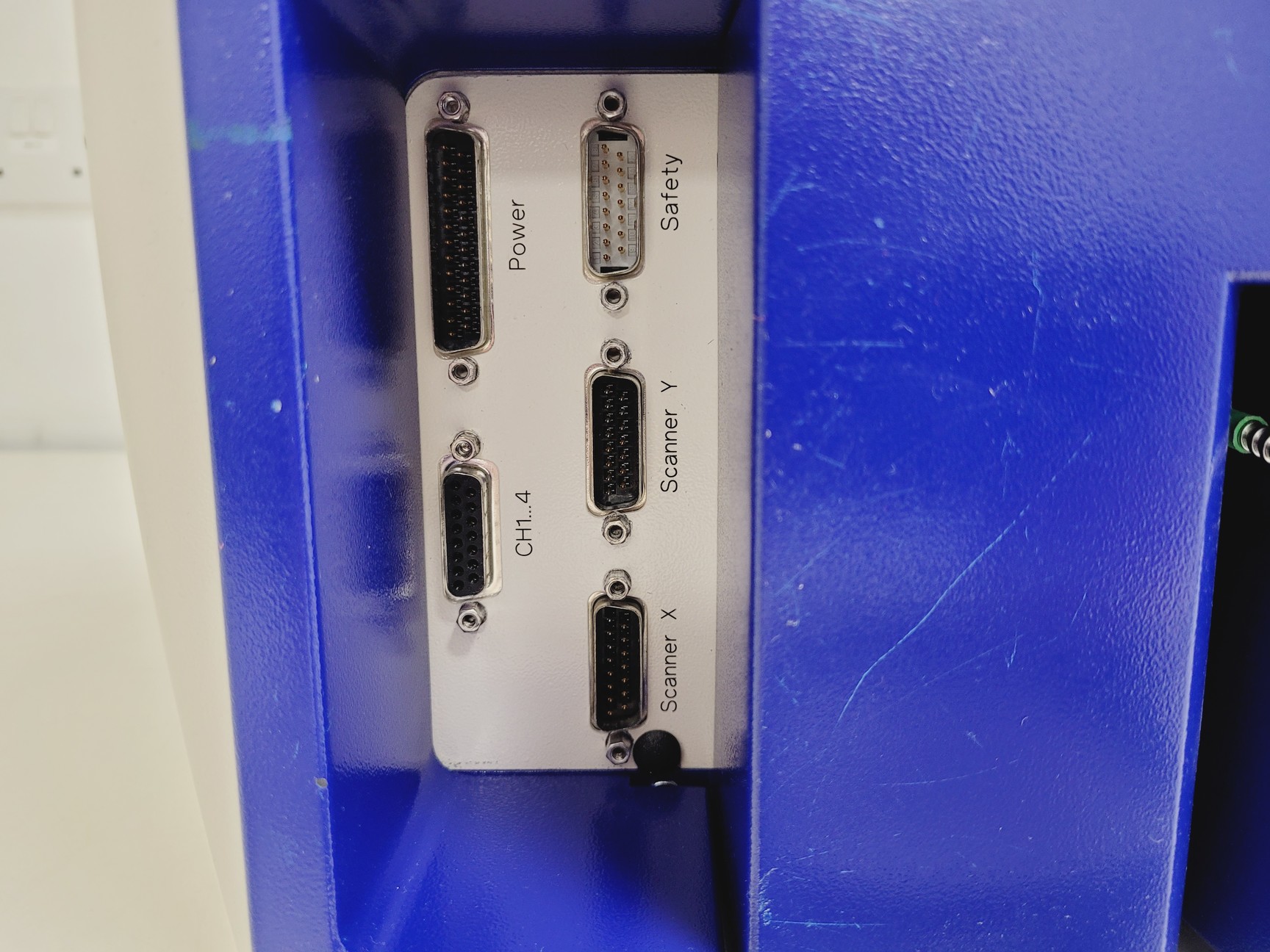

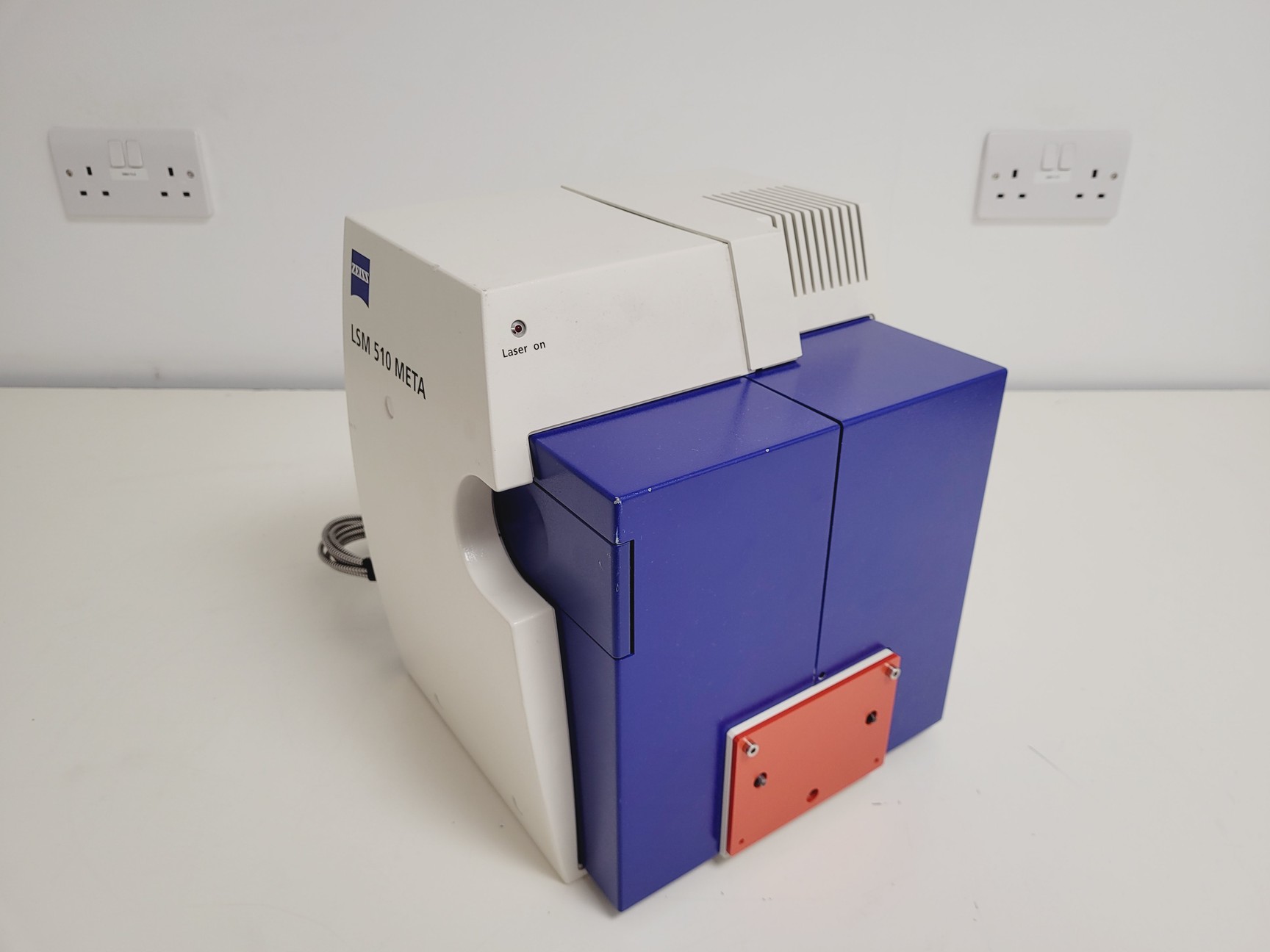

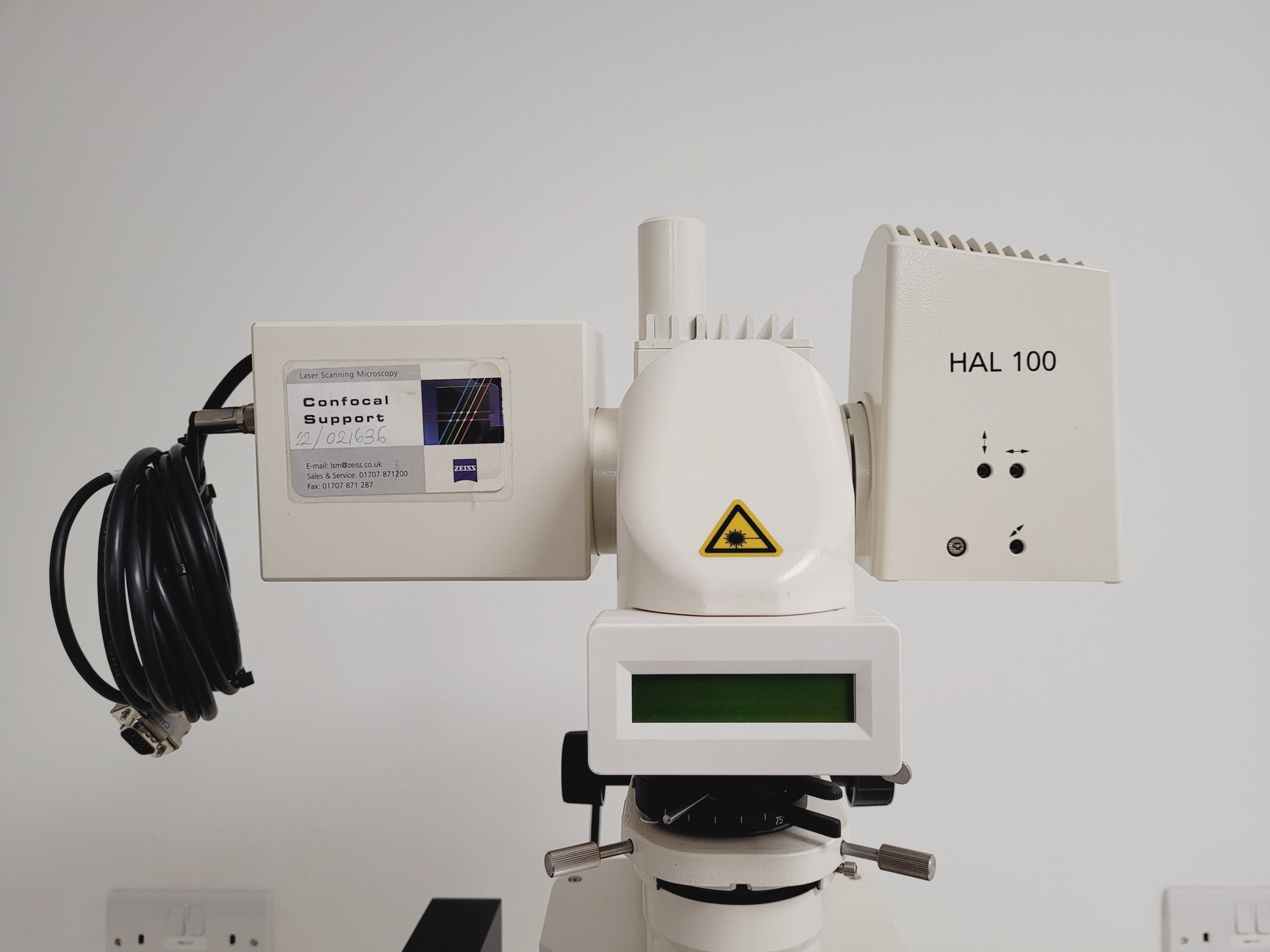

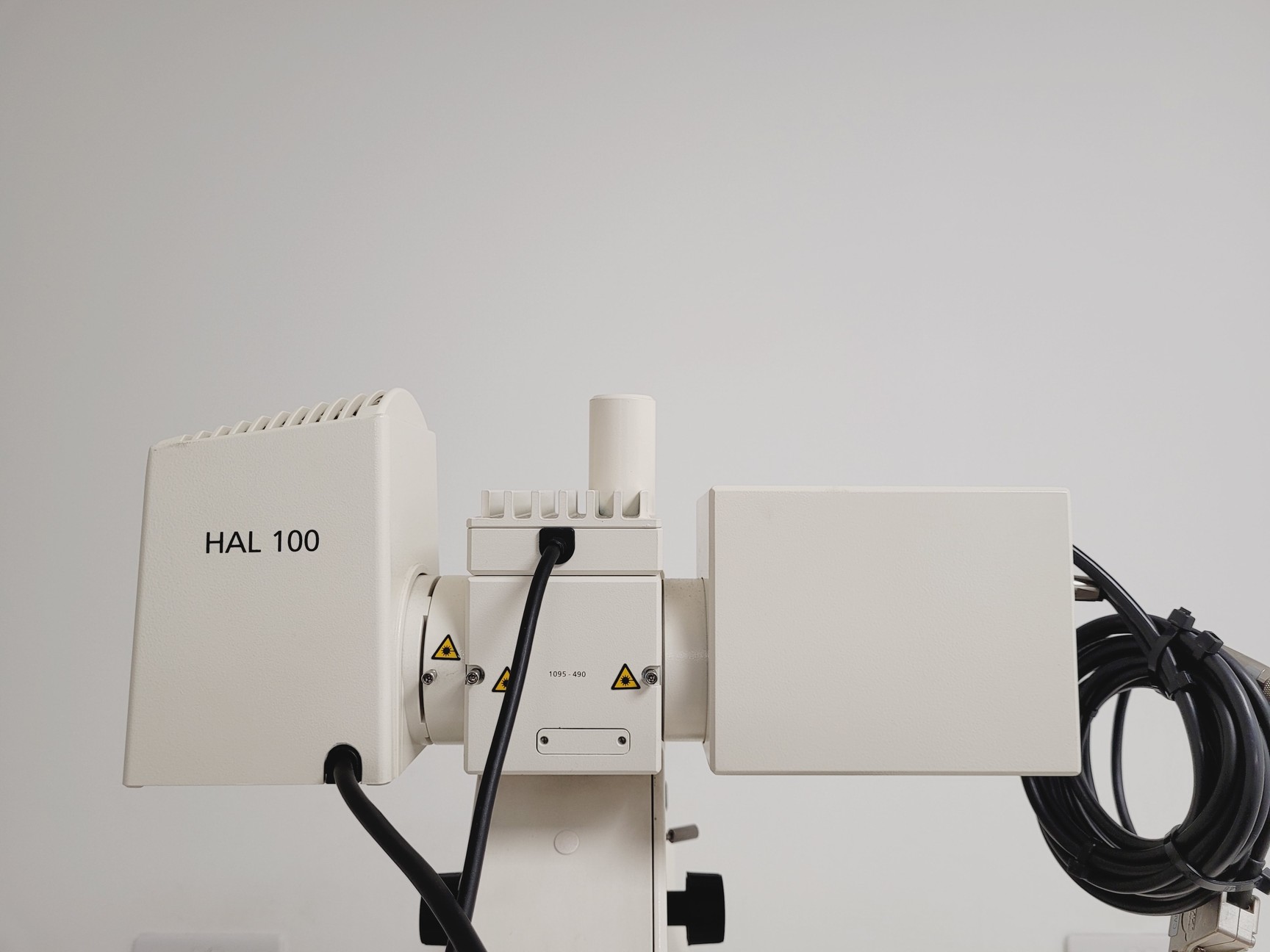

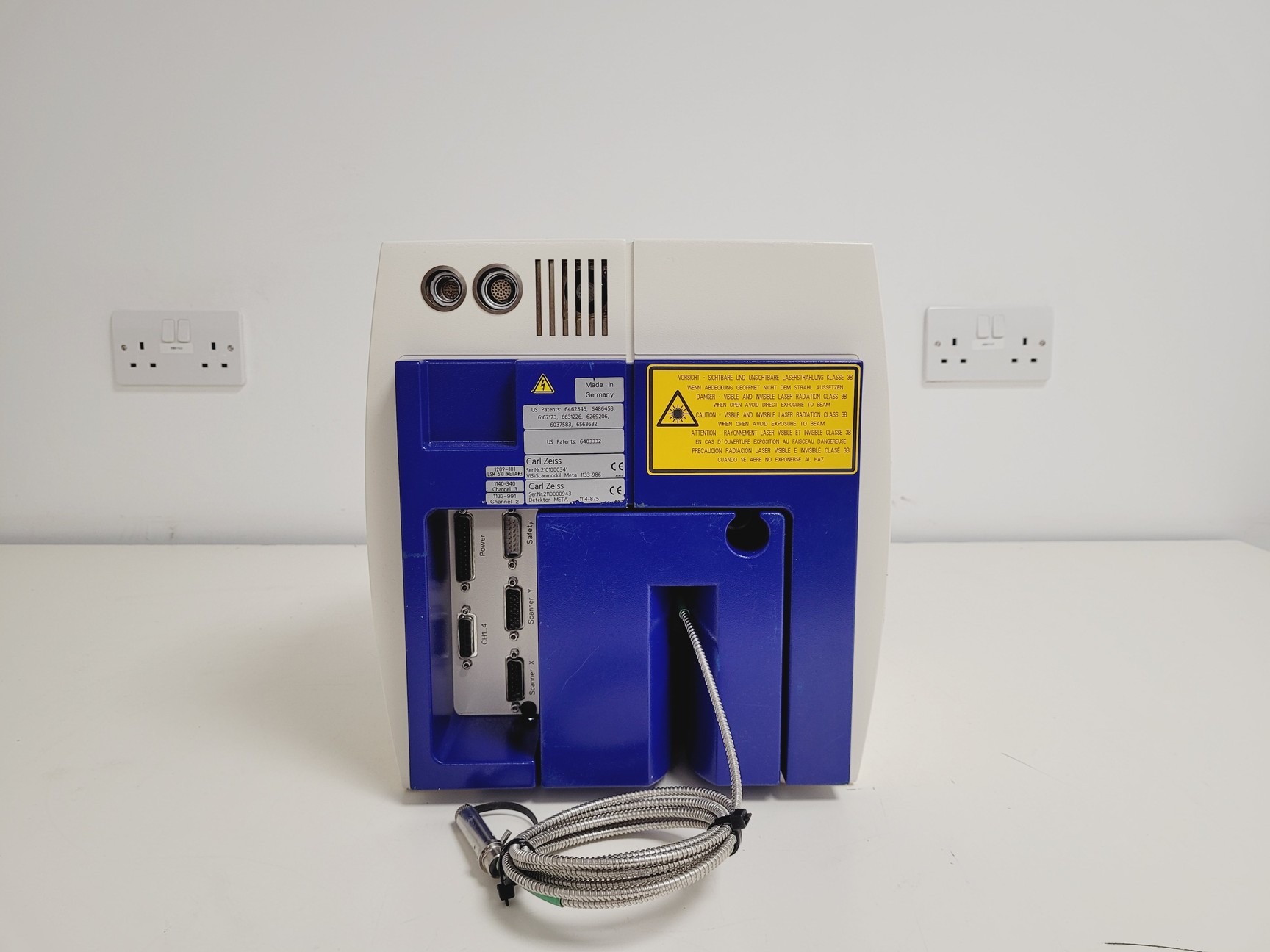

- Zeiss LSM510 META Scan Head

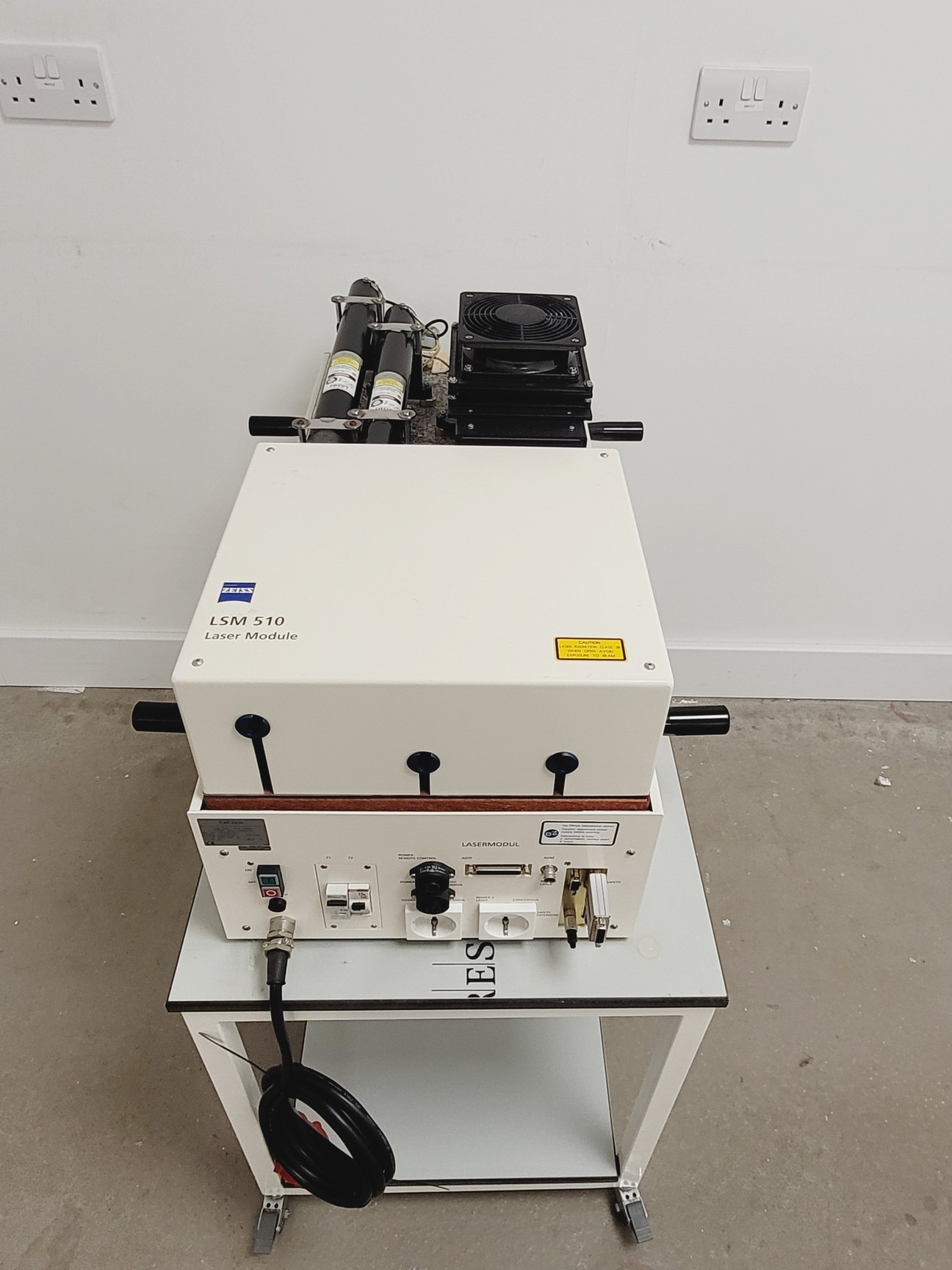

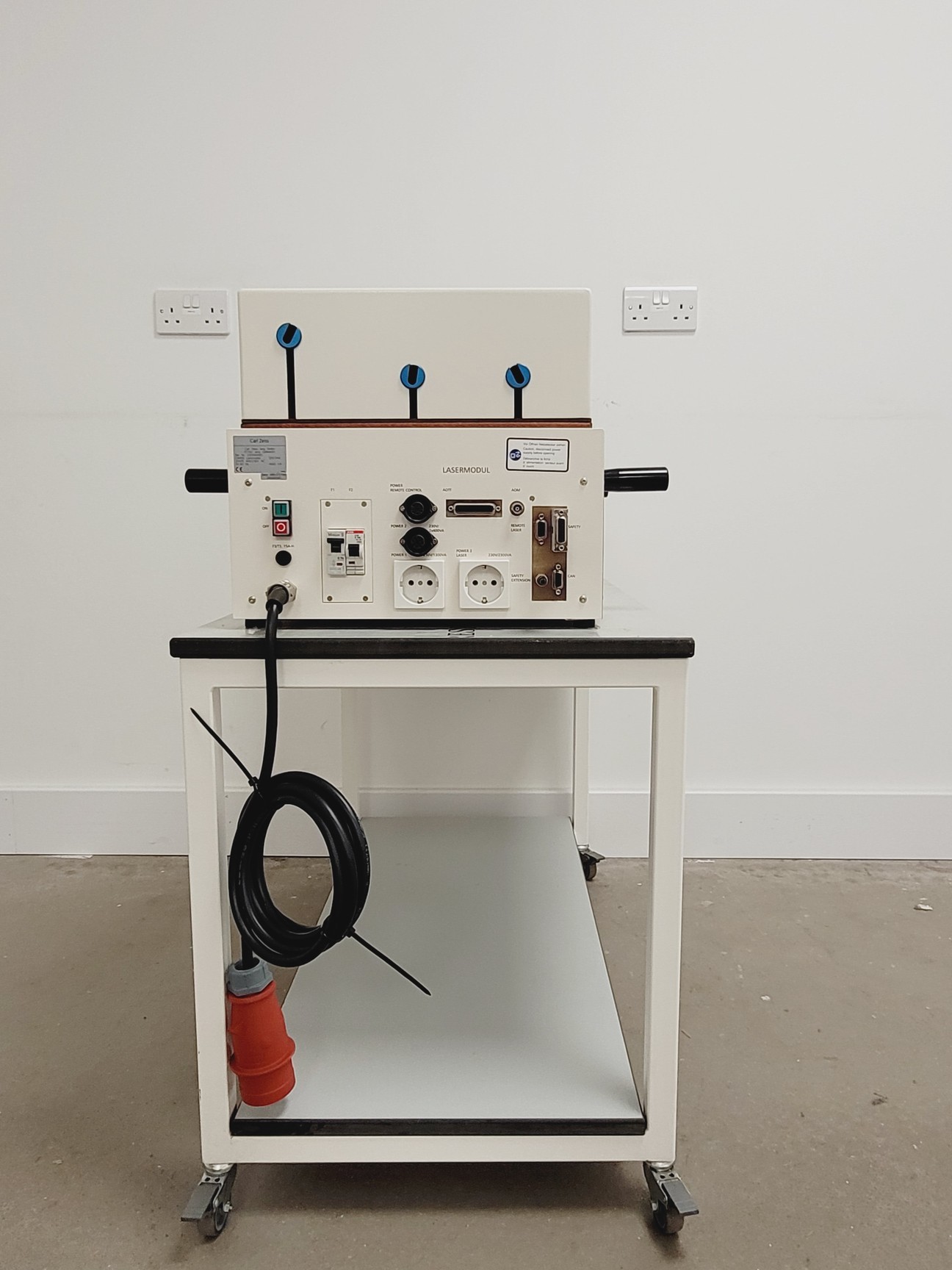

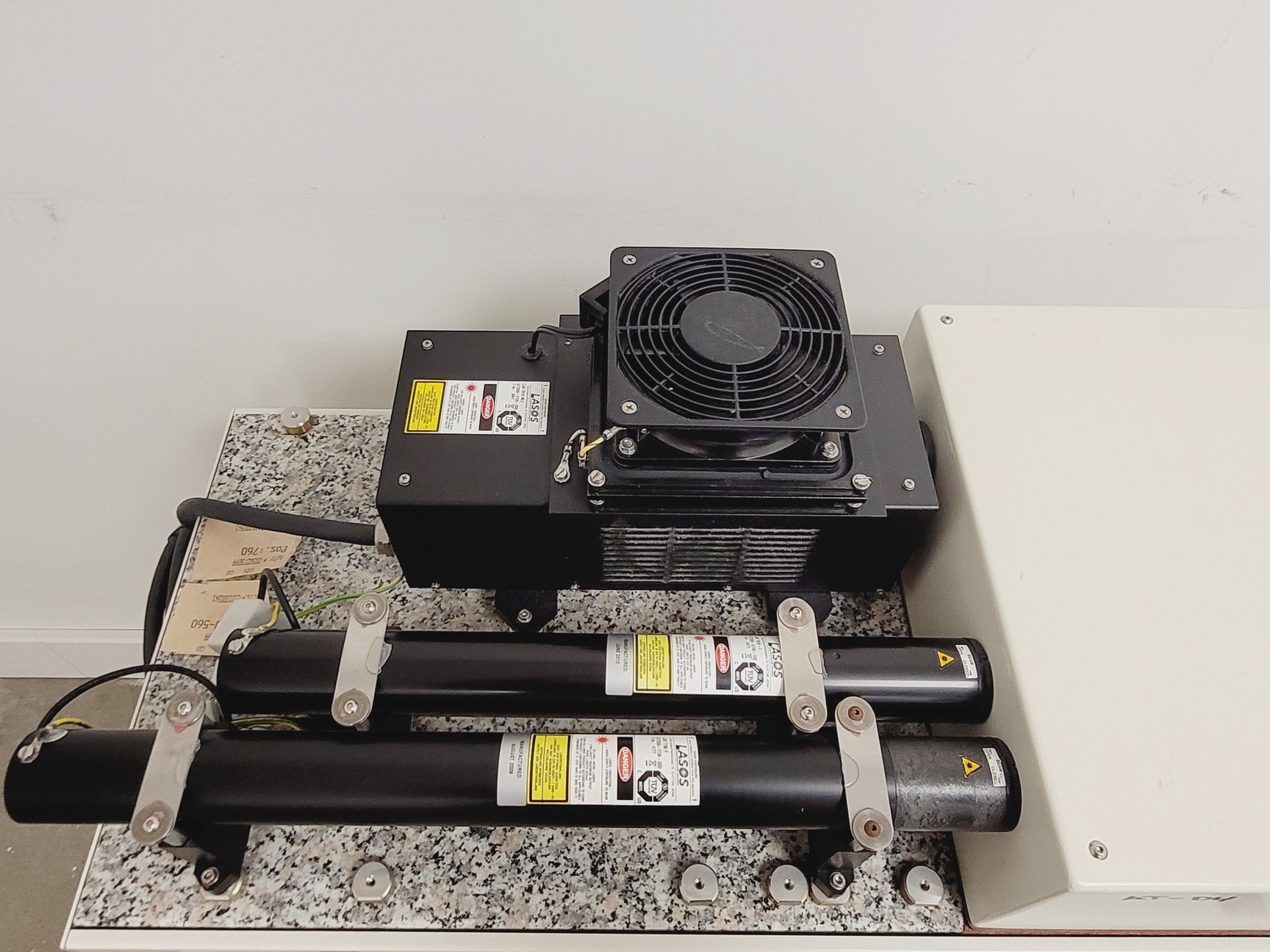

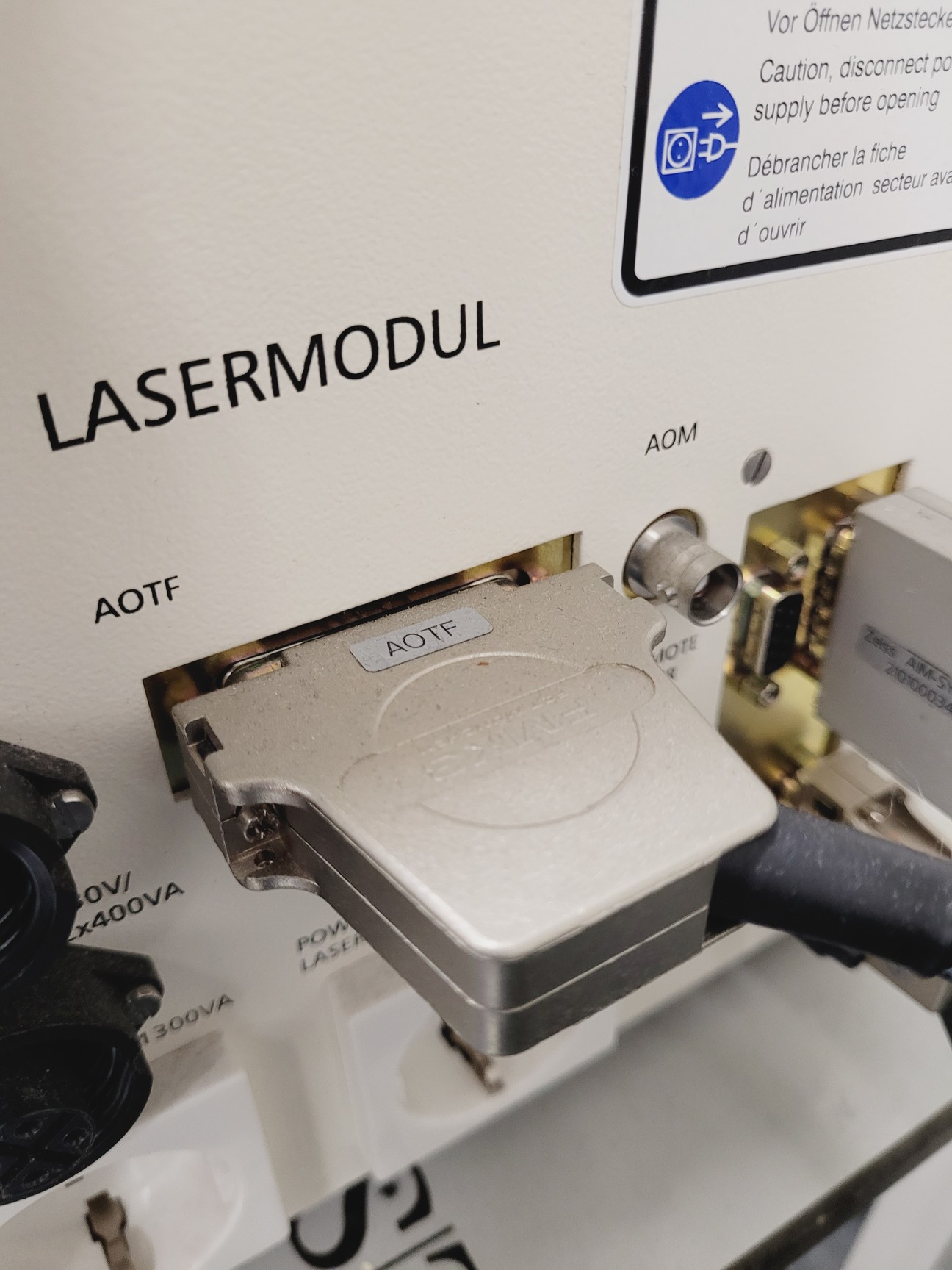

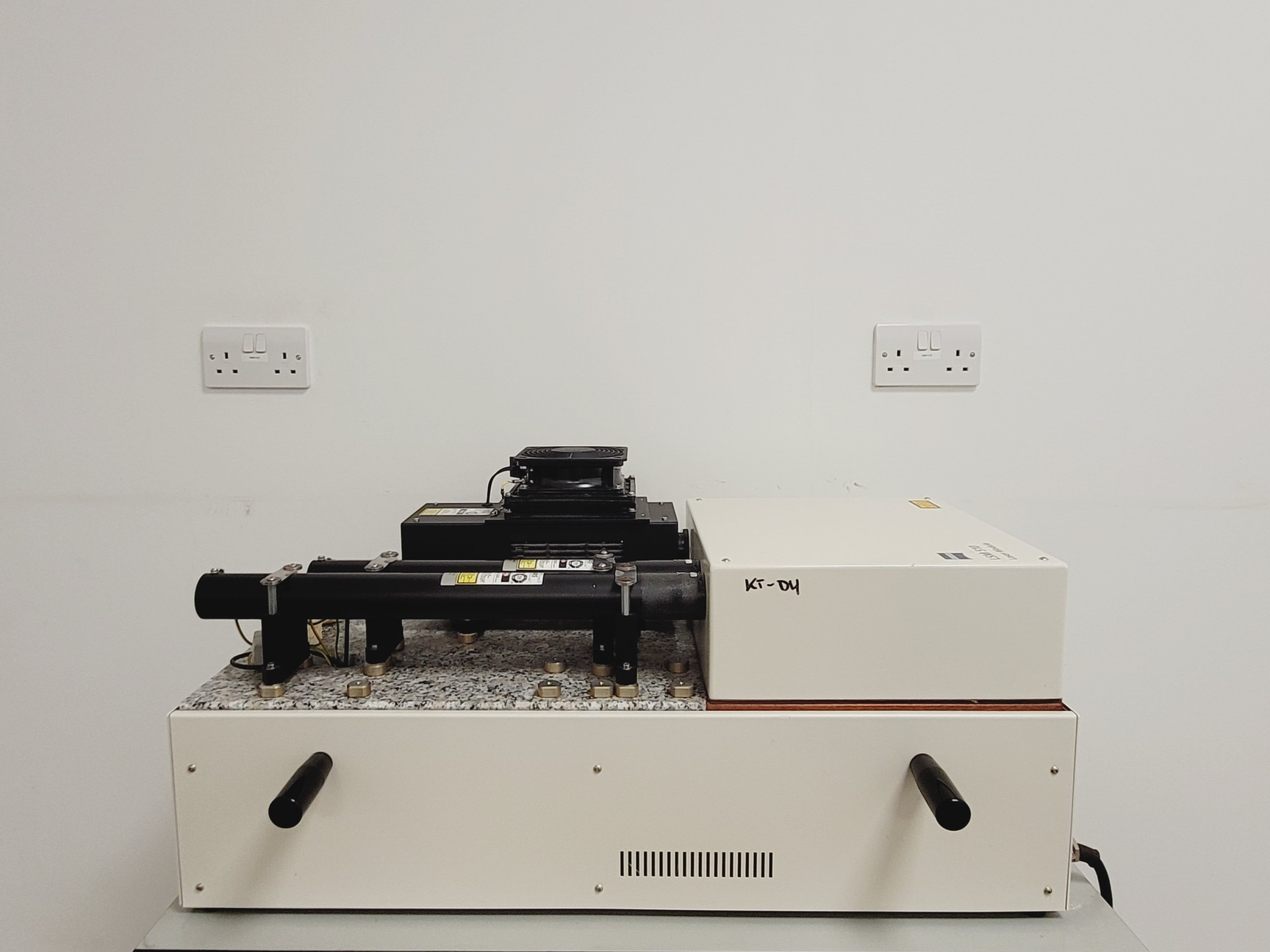

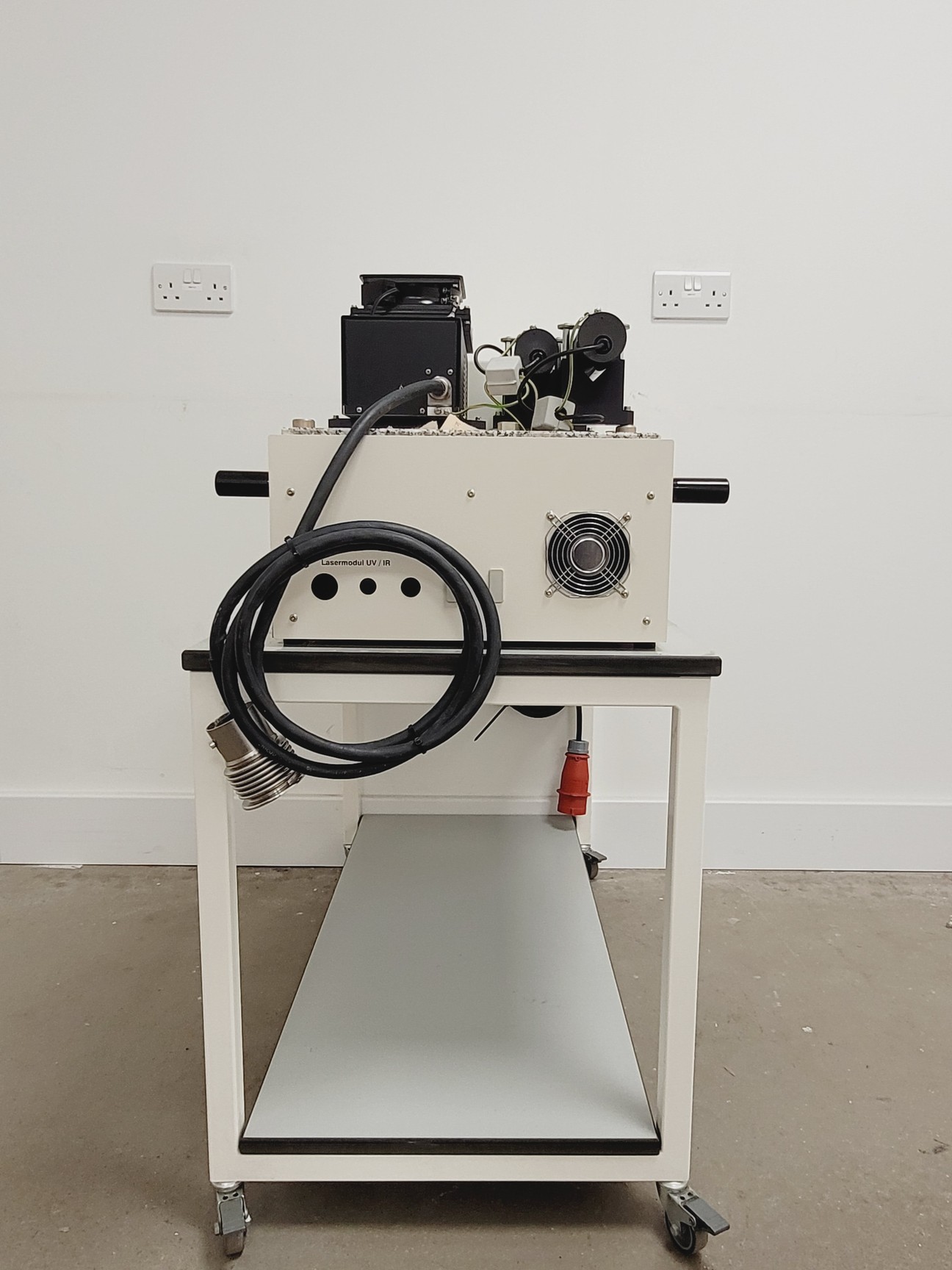

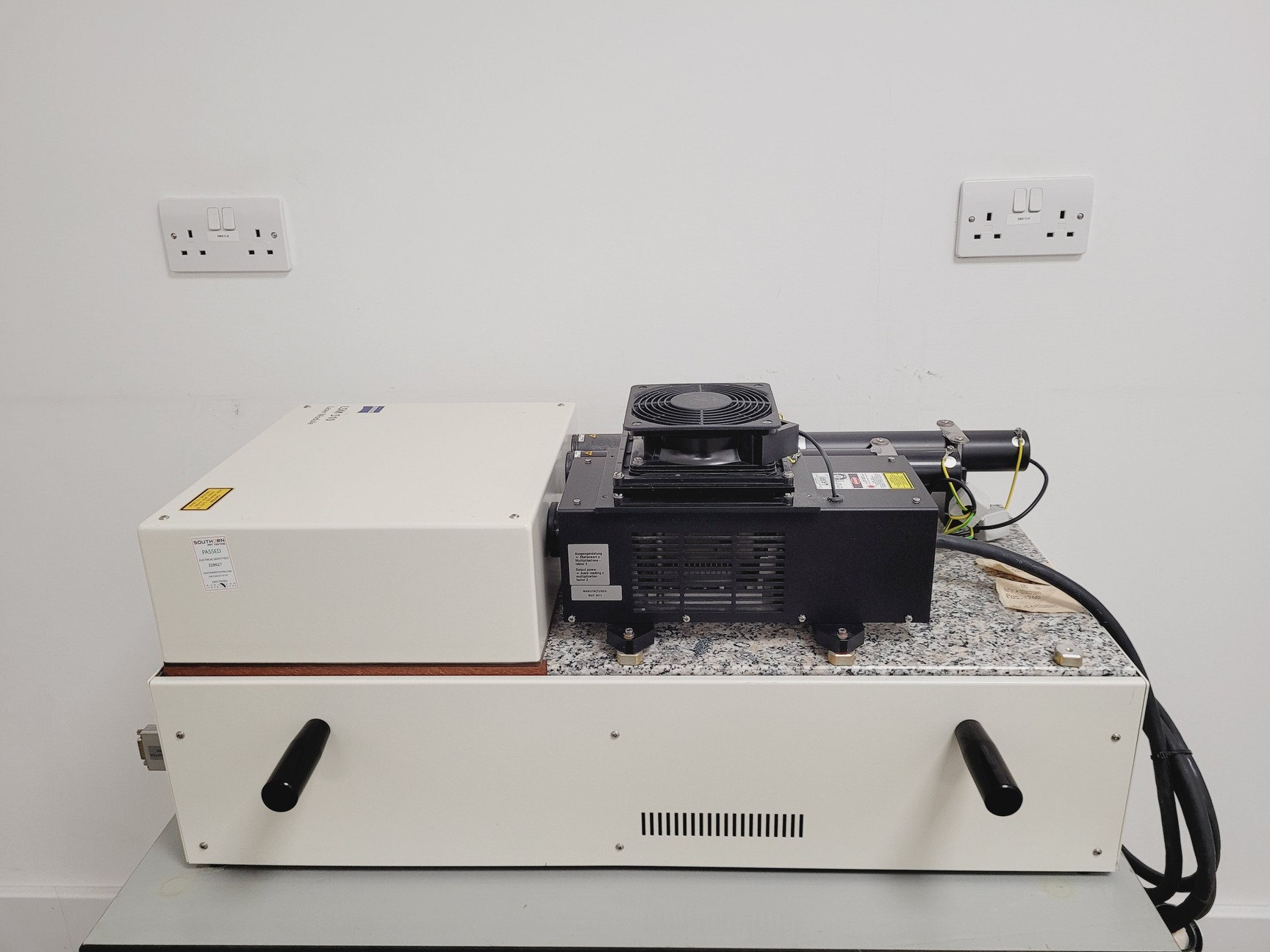

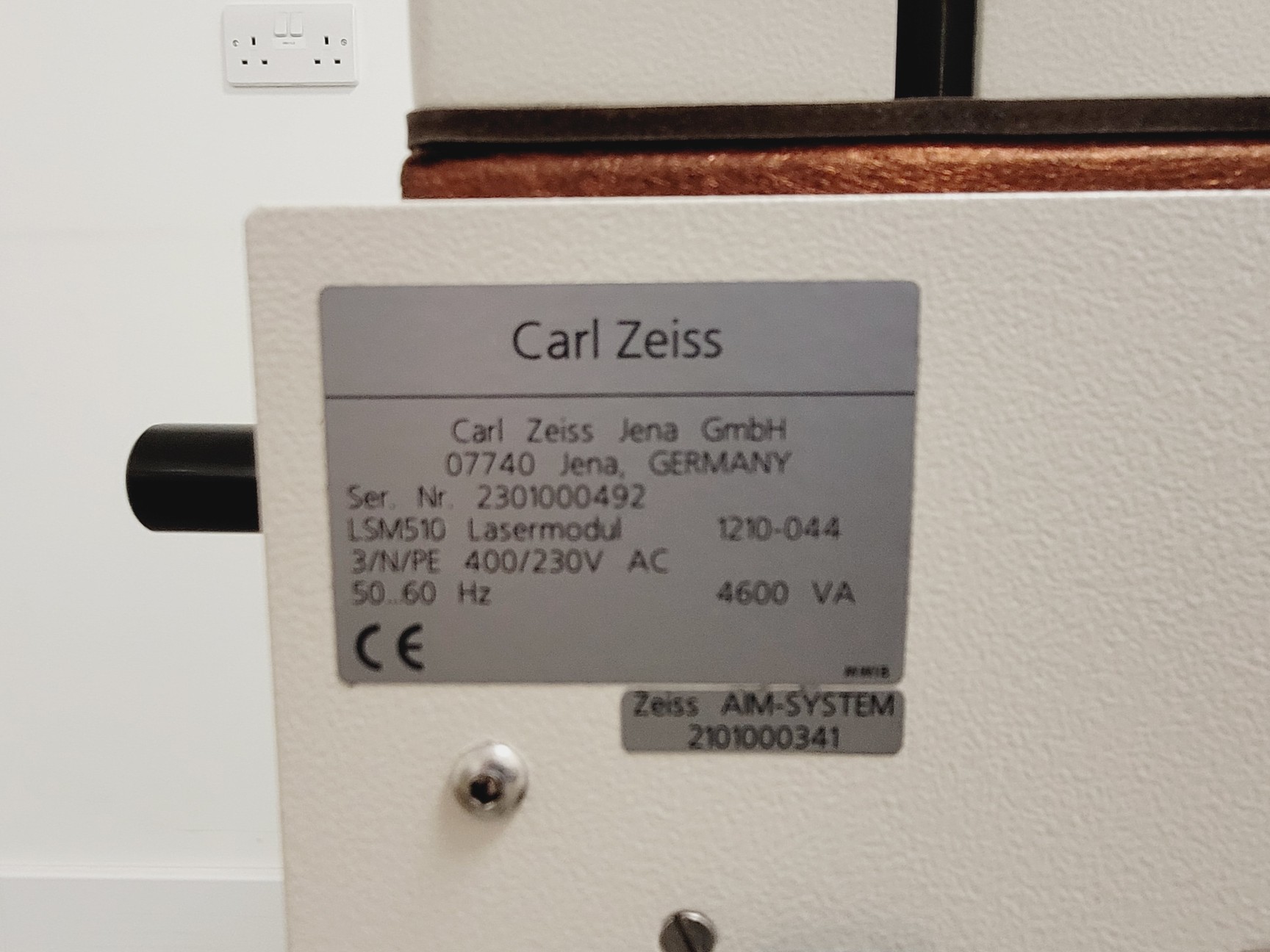

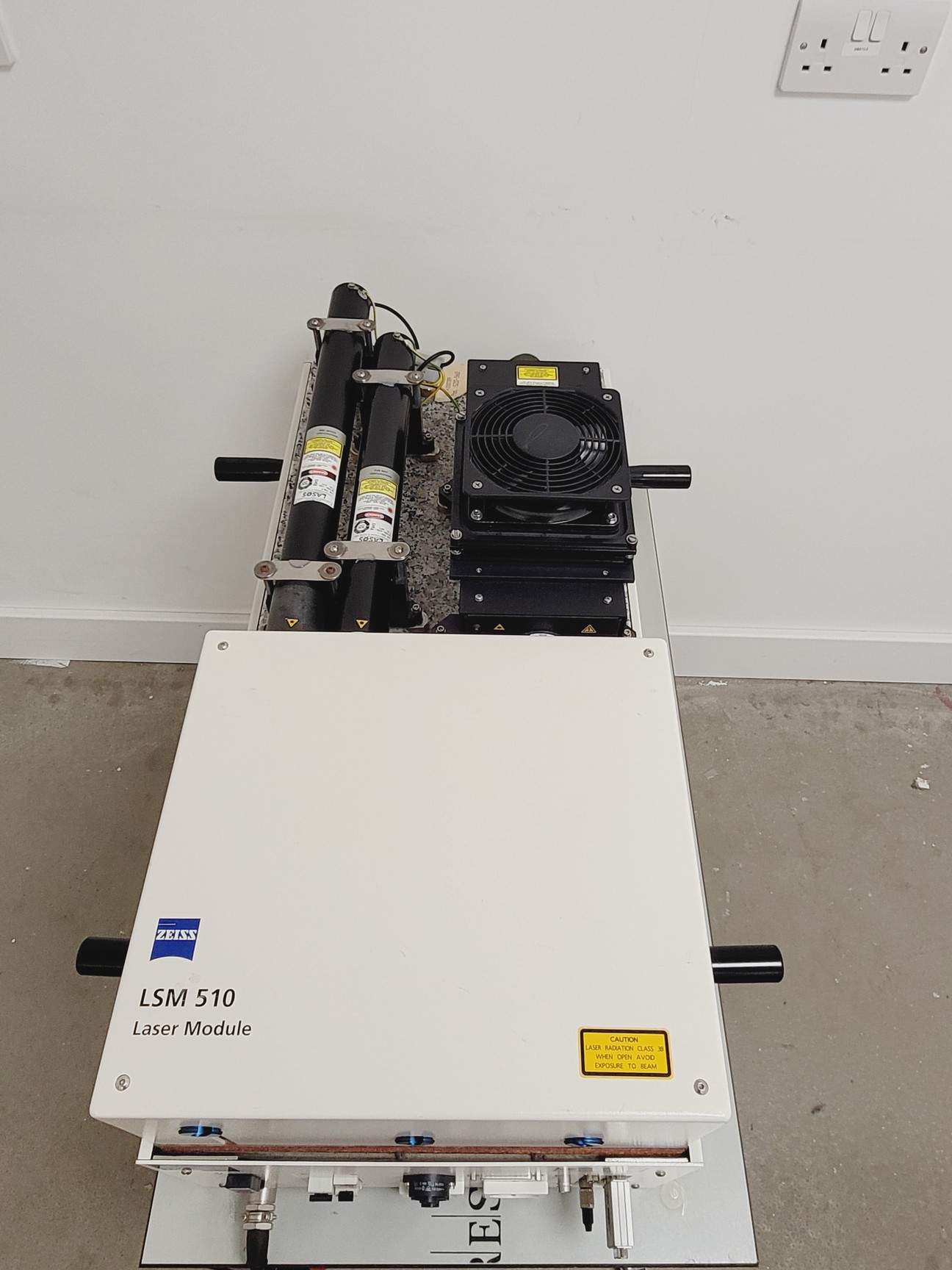

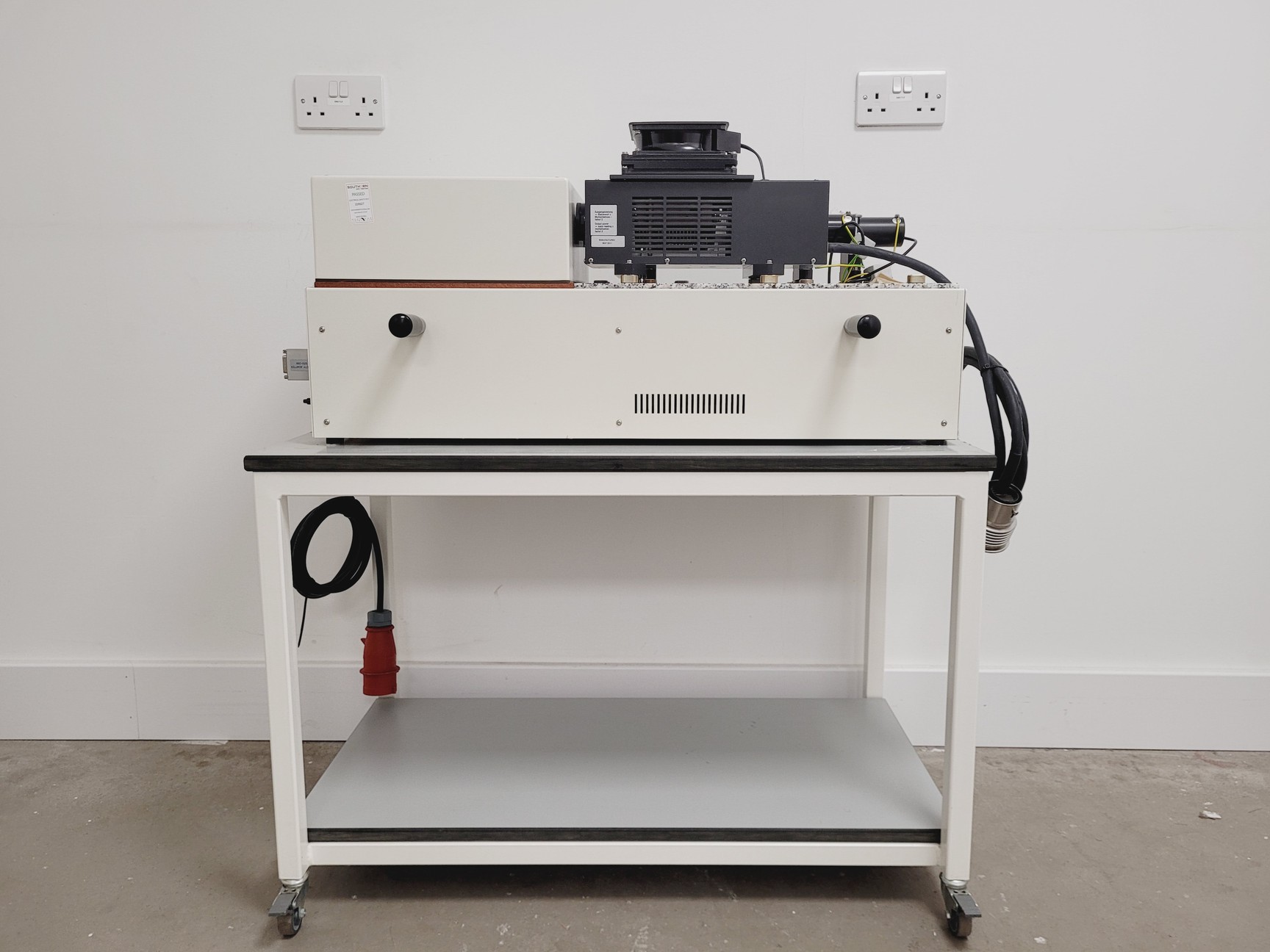

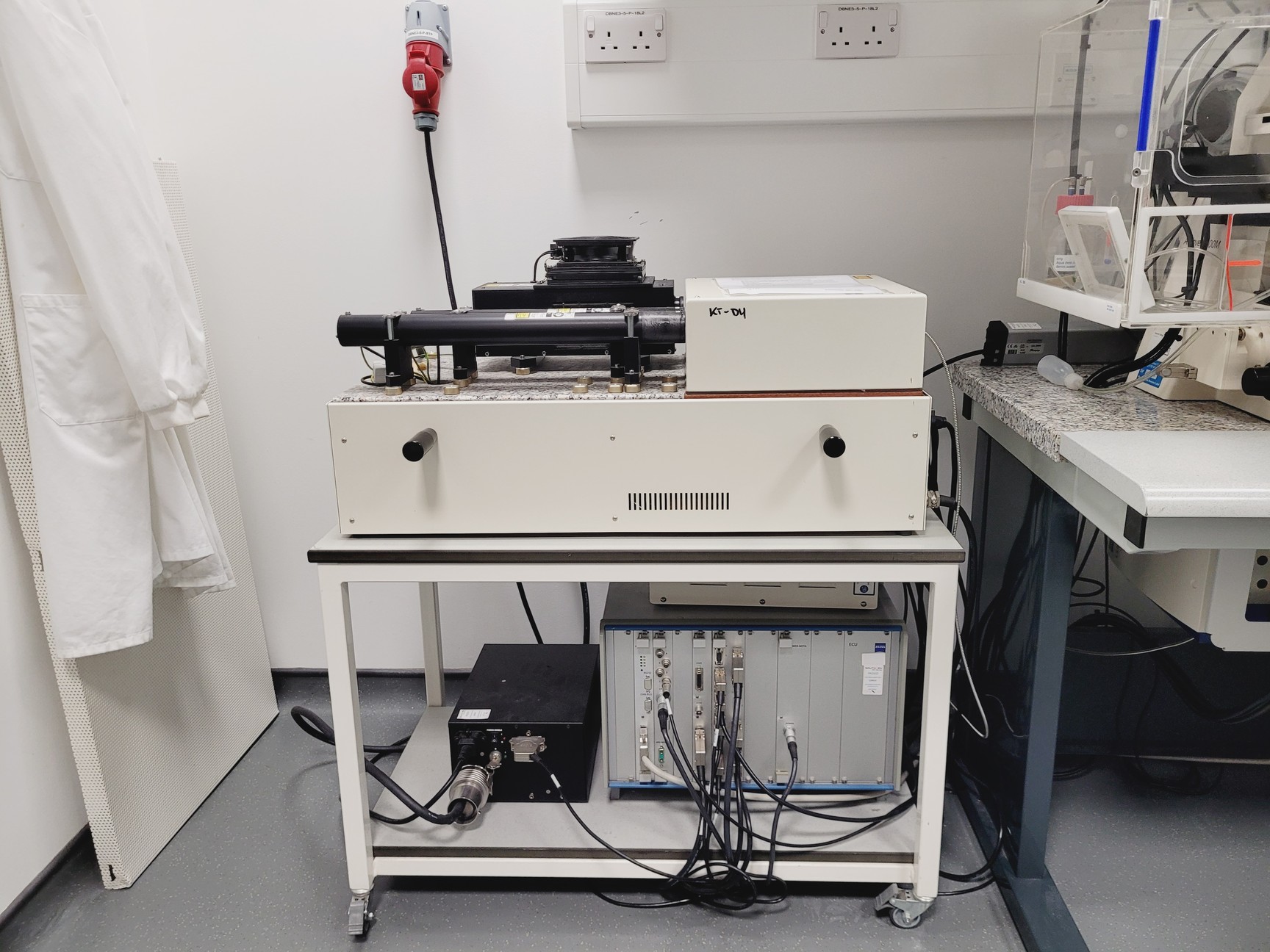

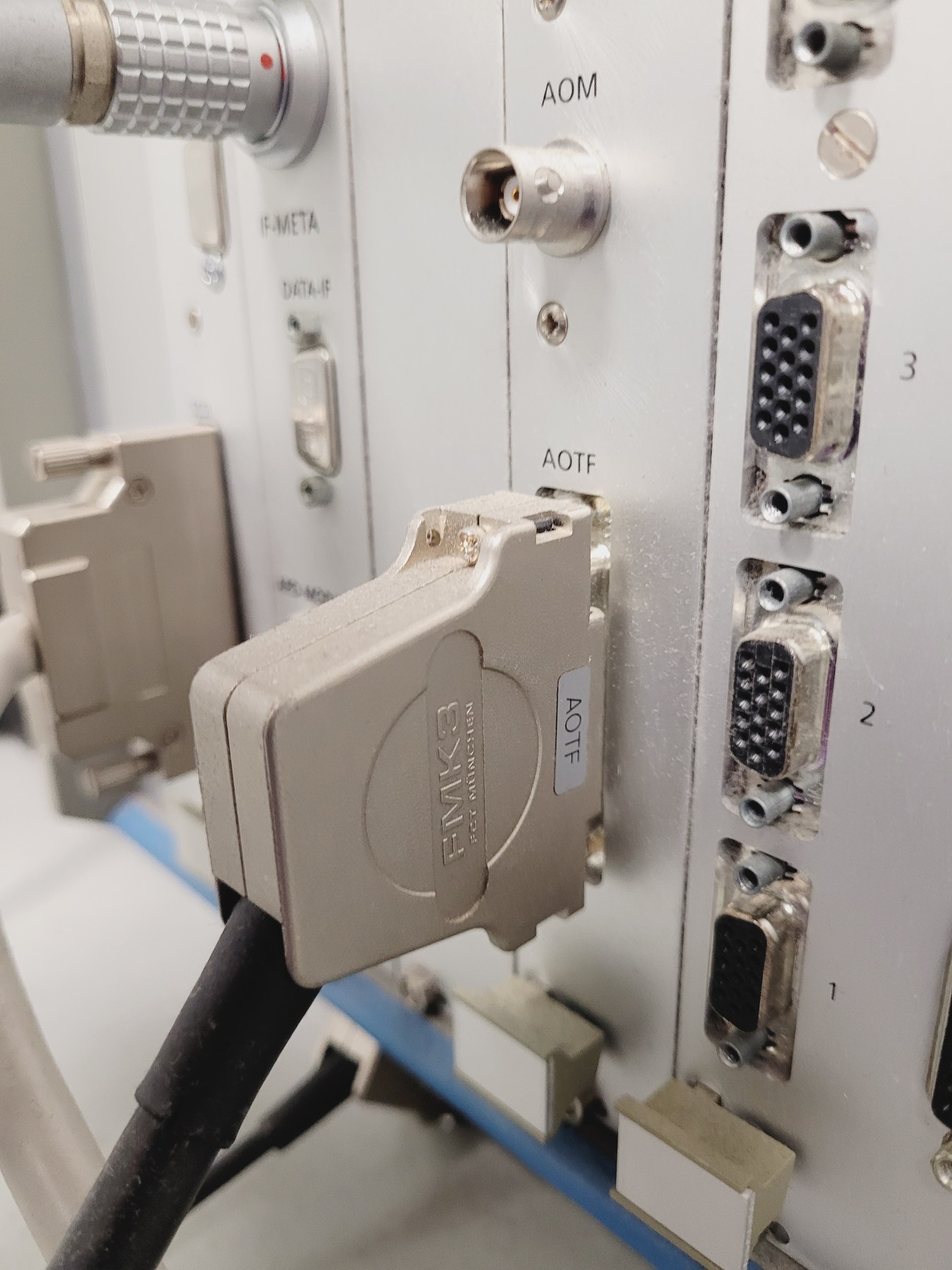

- Zeiss LSM 510 Laser Module including:

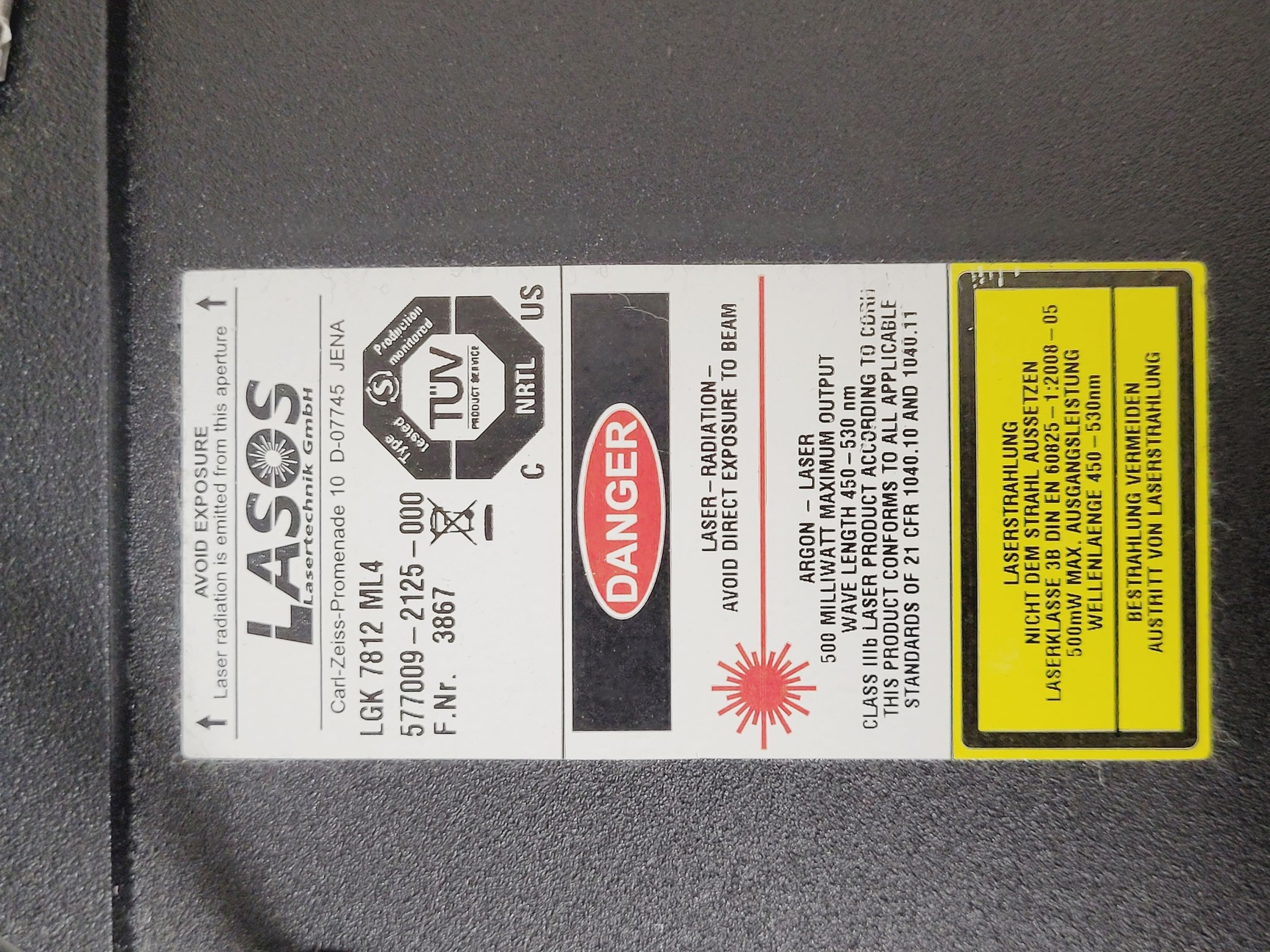

- Lasos LGK 7812 ML4 (450–530nm, May 2011)

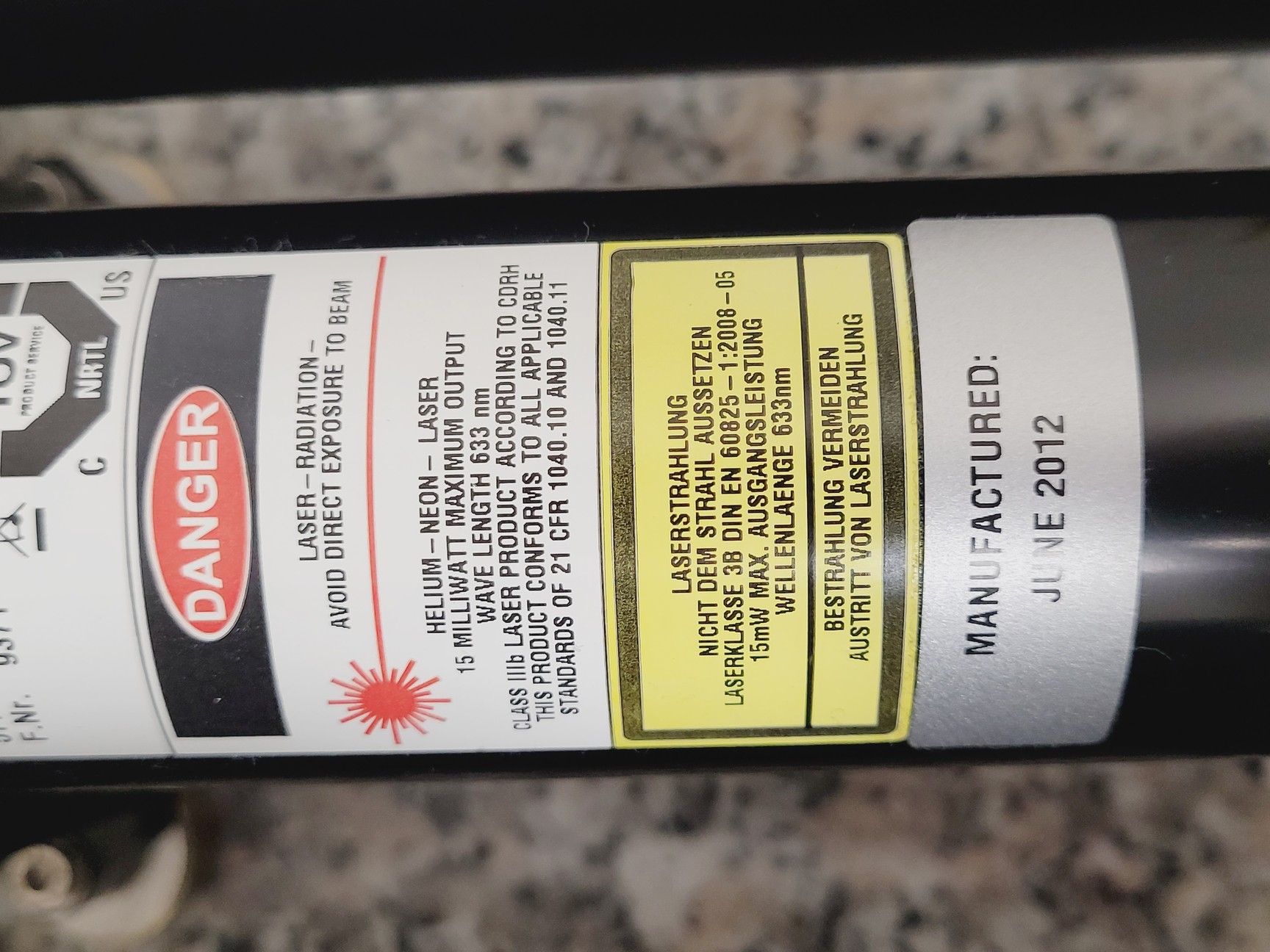

- Lasos LGK 7628-1 (633nm, June 2012)

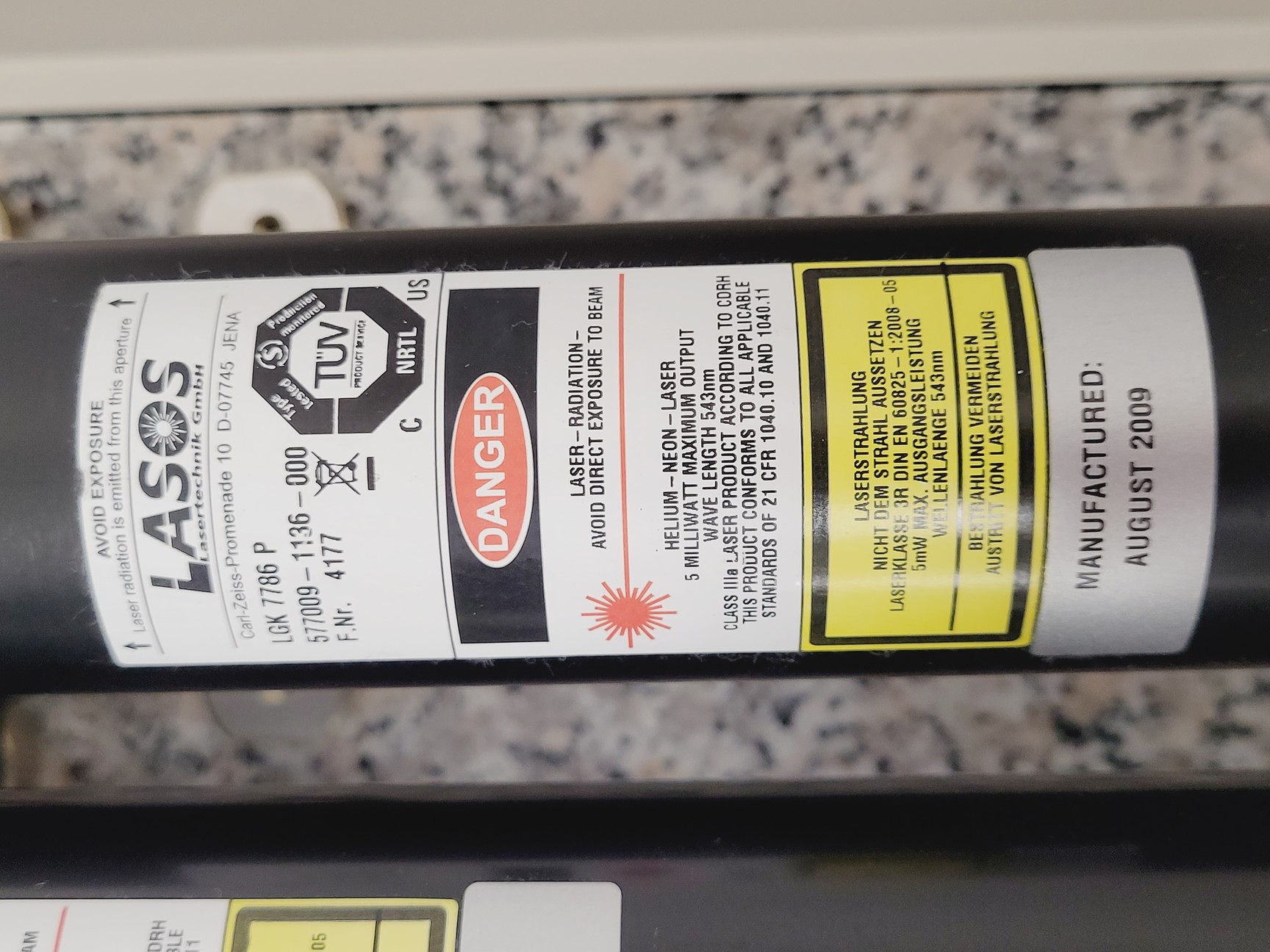

- Lasos LGK 7786 P (543nm, August 2009)

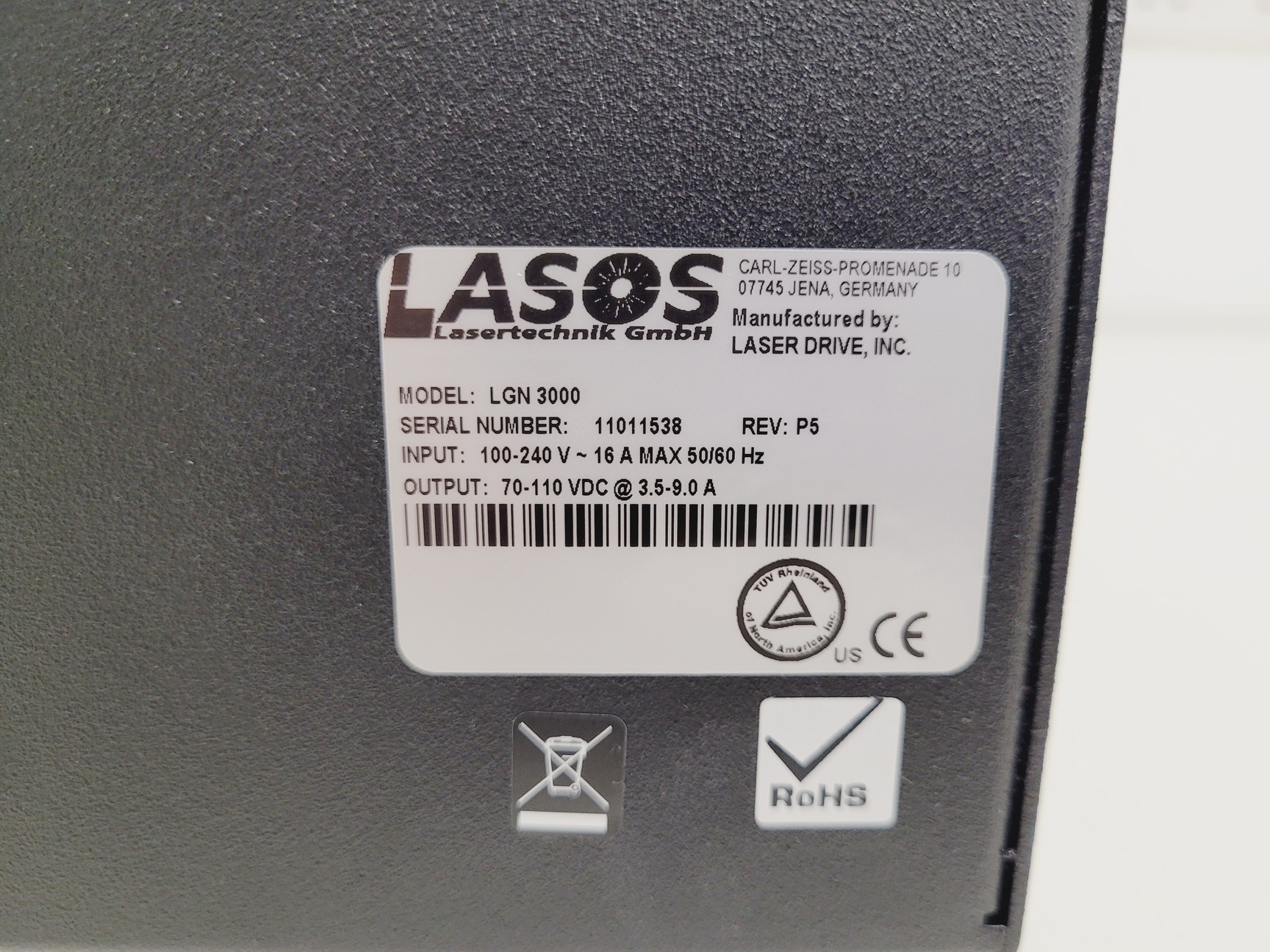

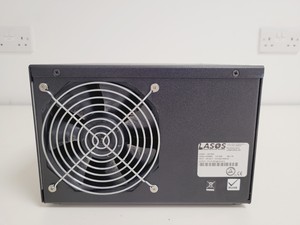

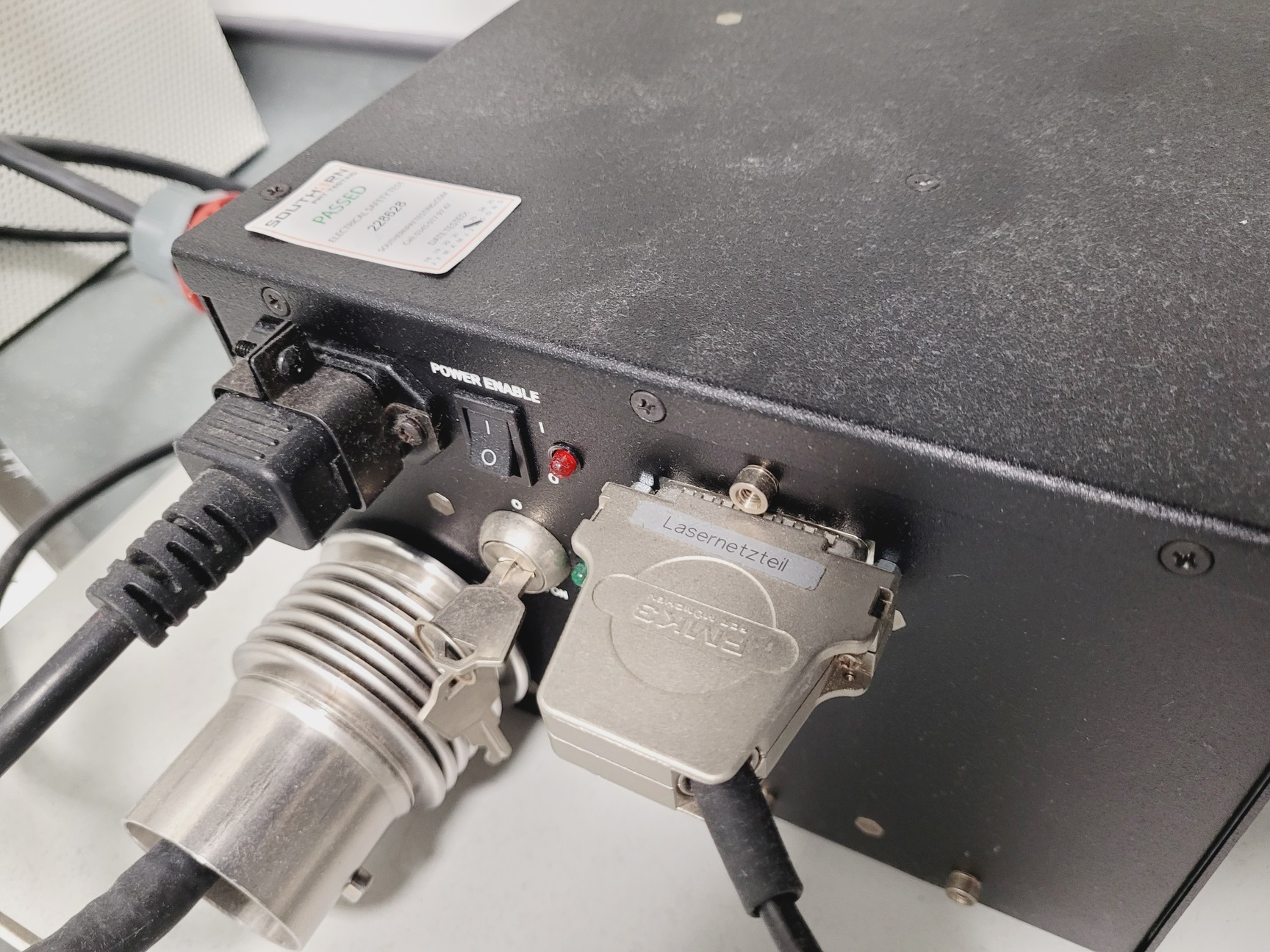

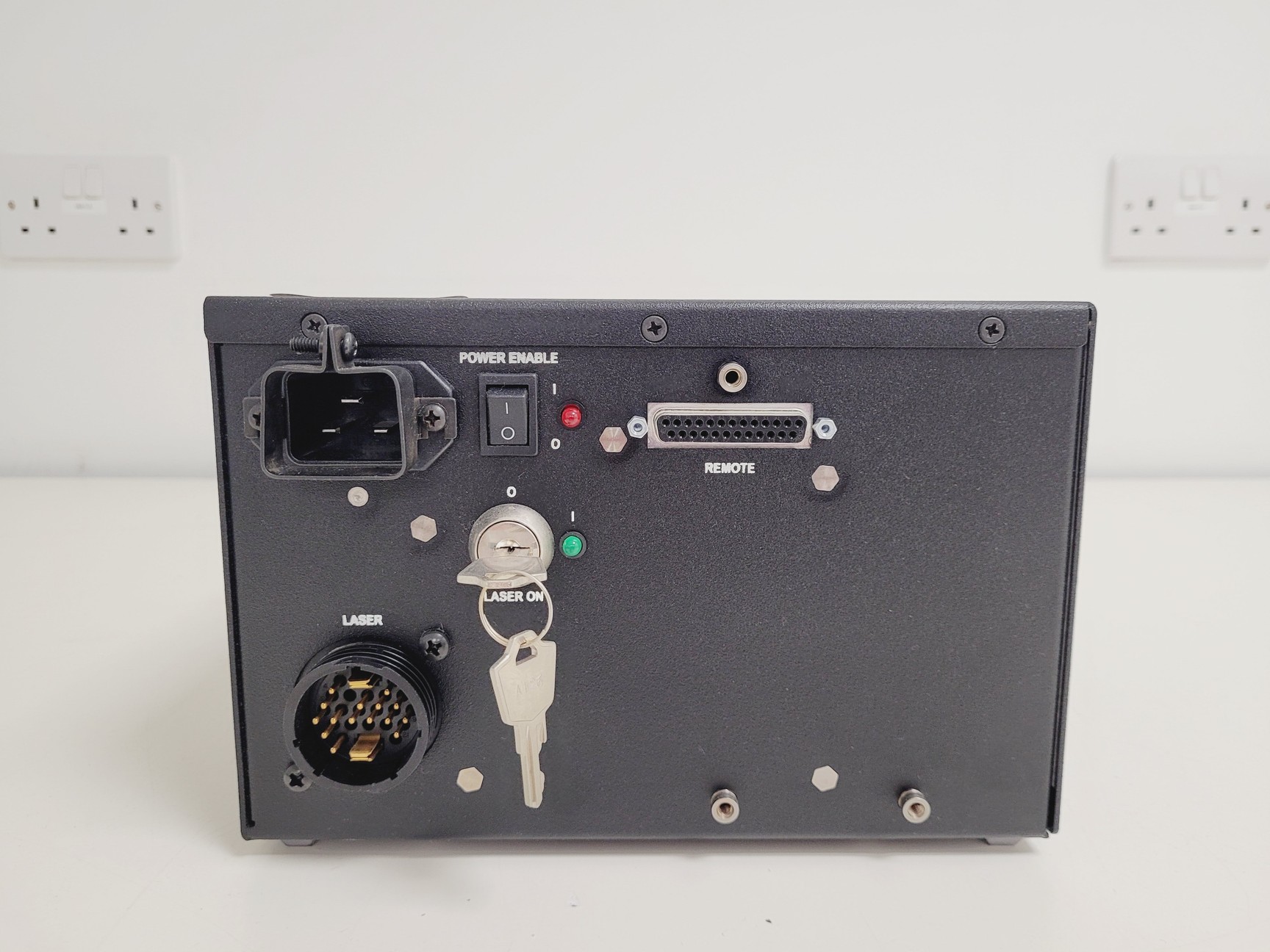

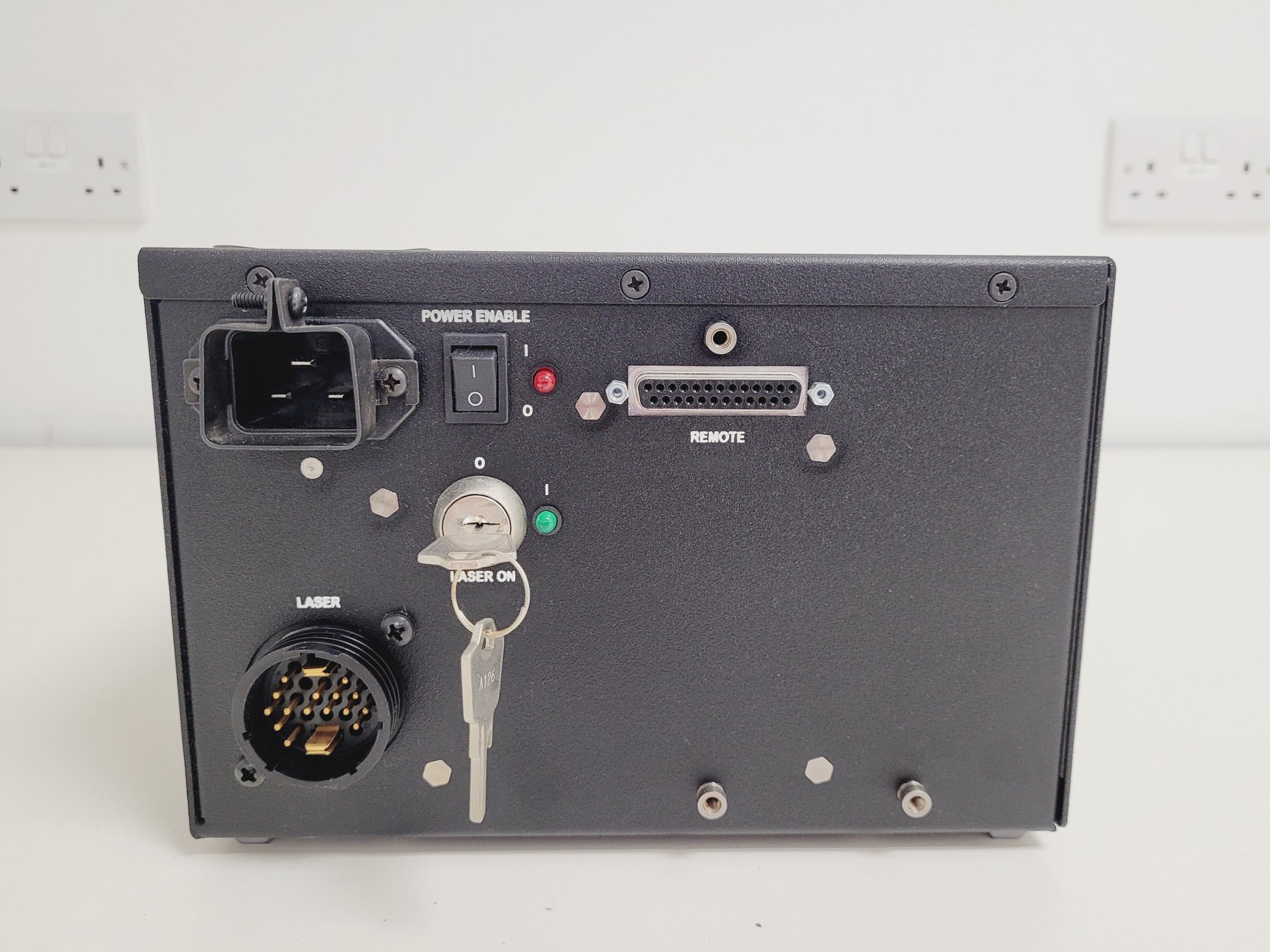

- Lasos LGN3000 Laser Power Supply

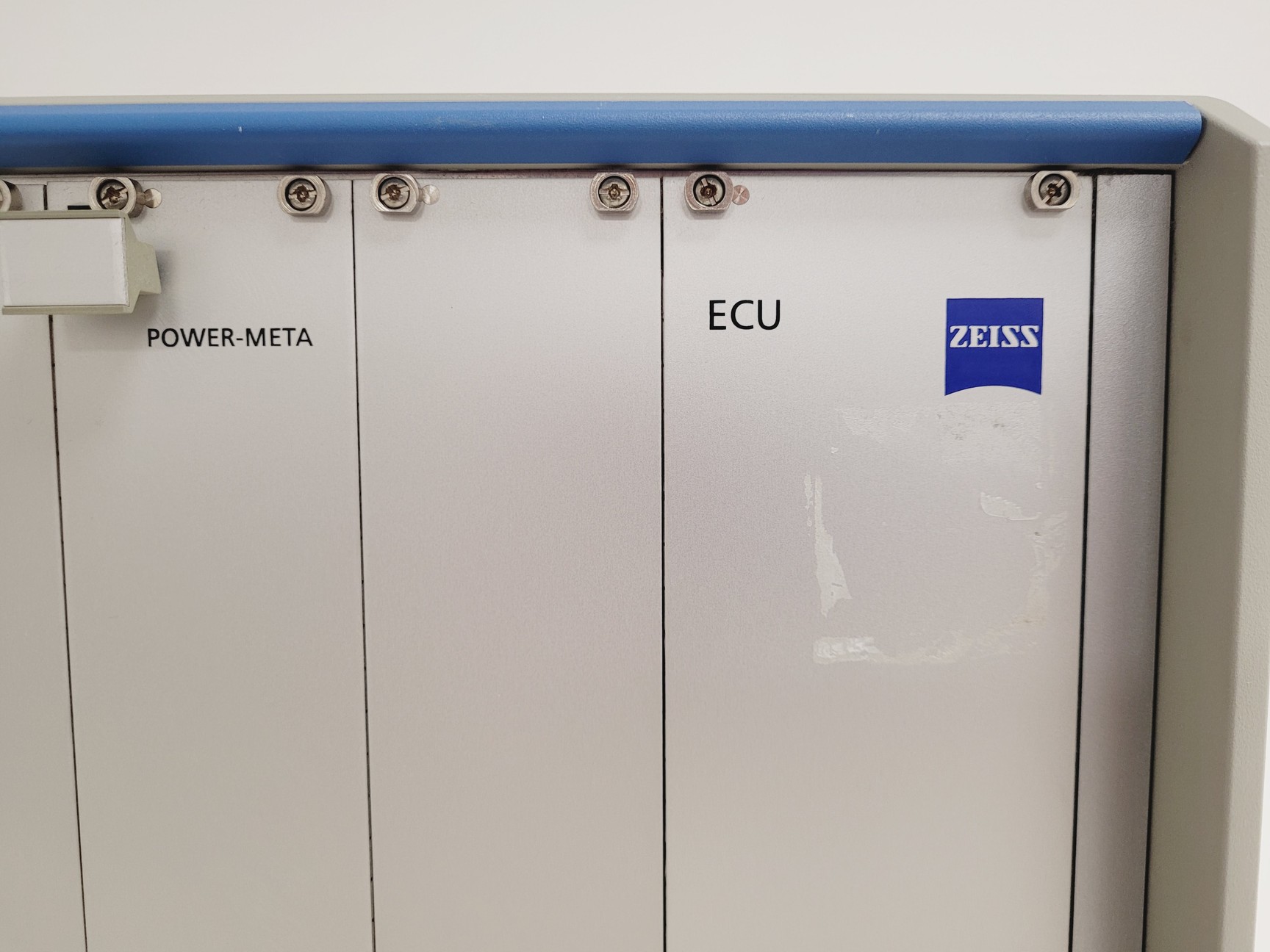

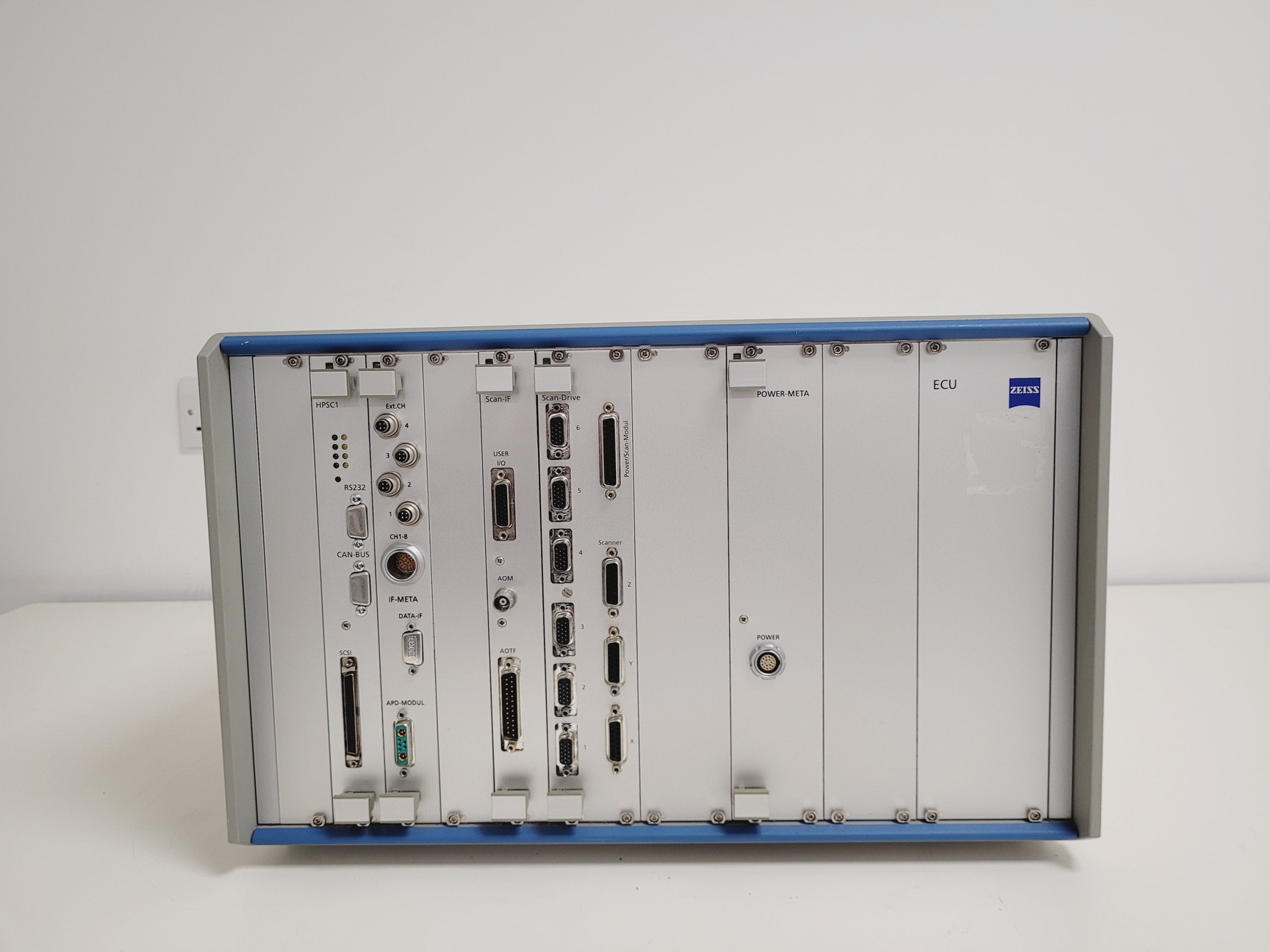

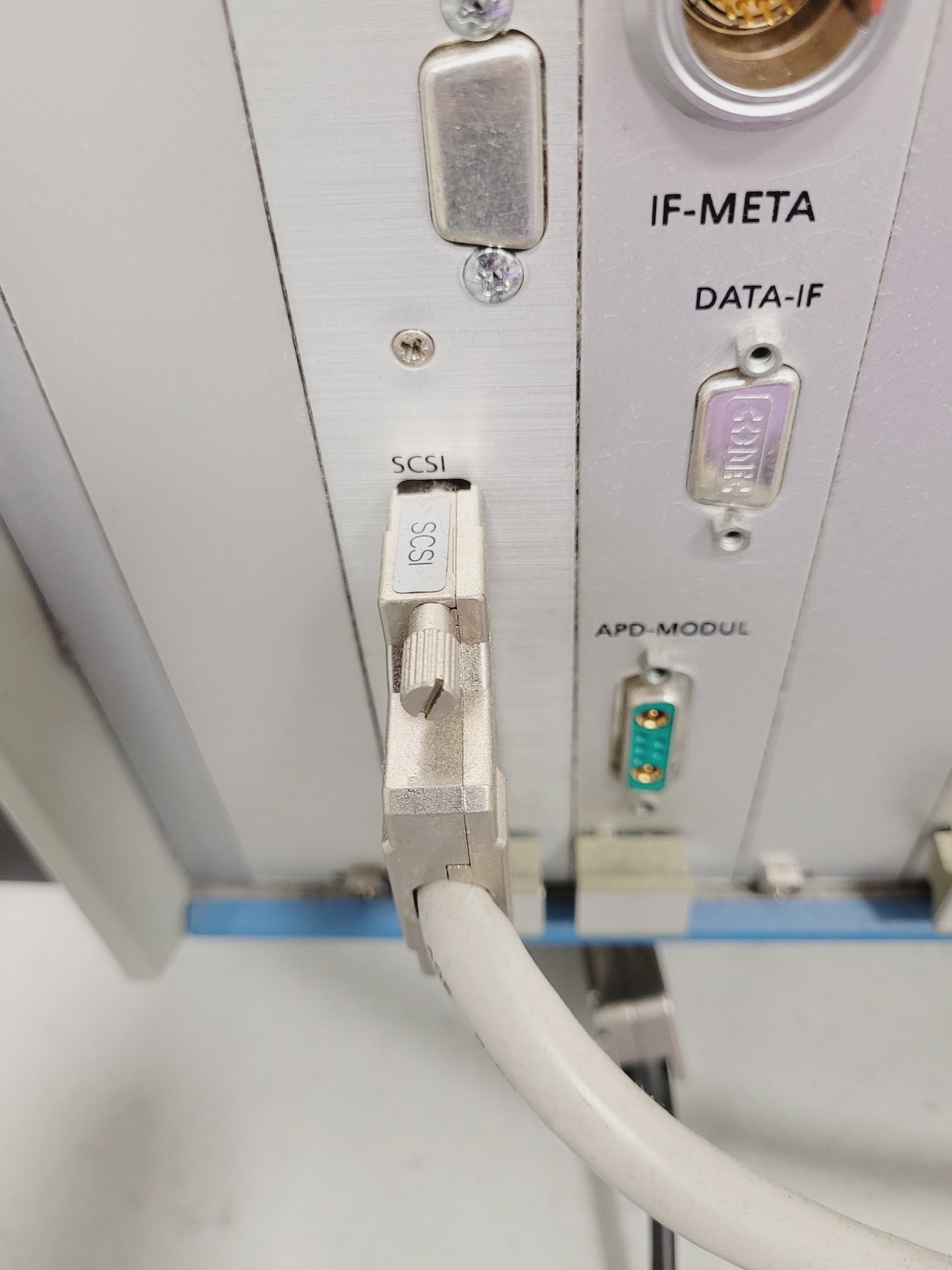

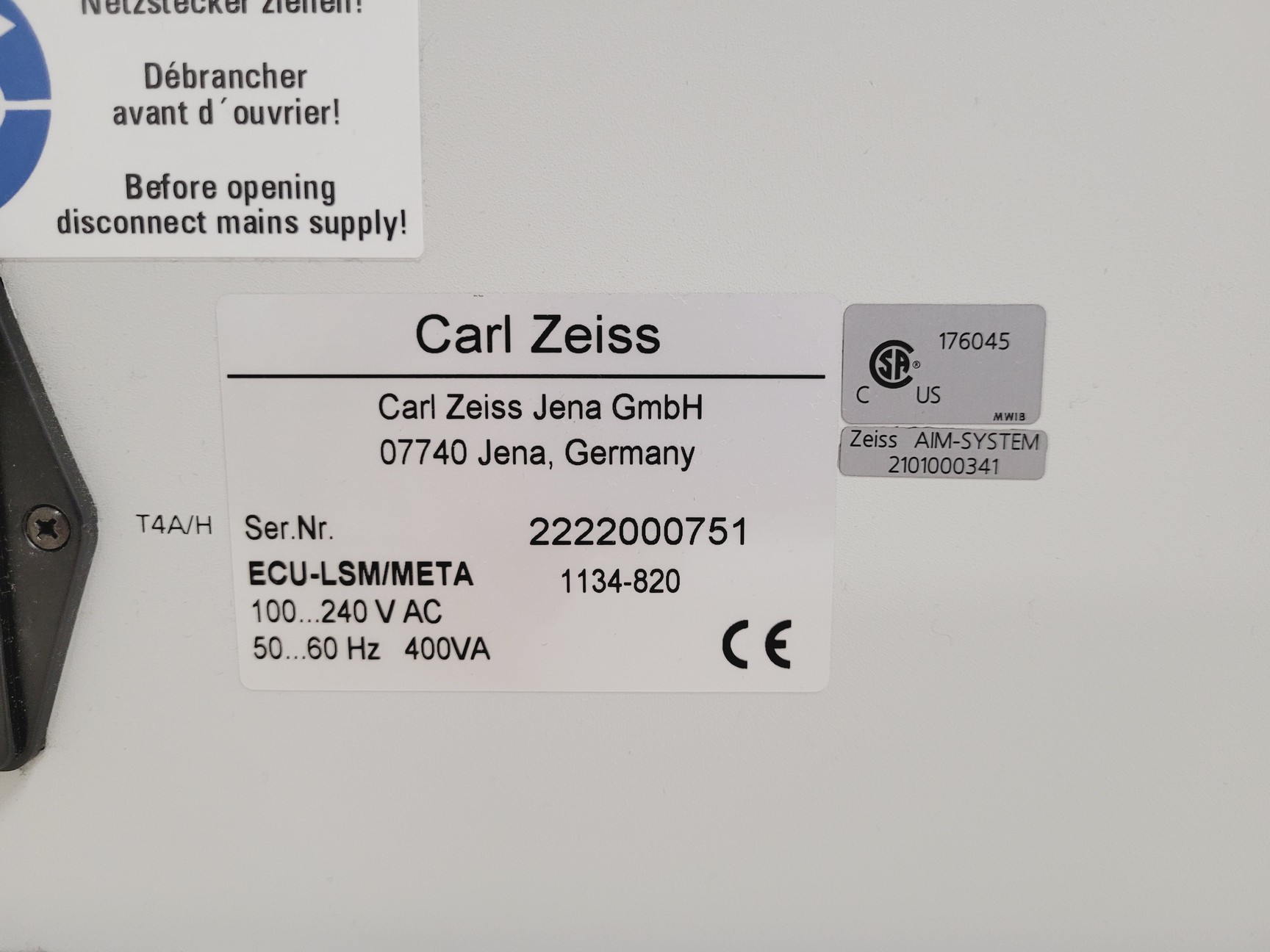

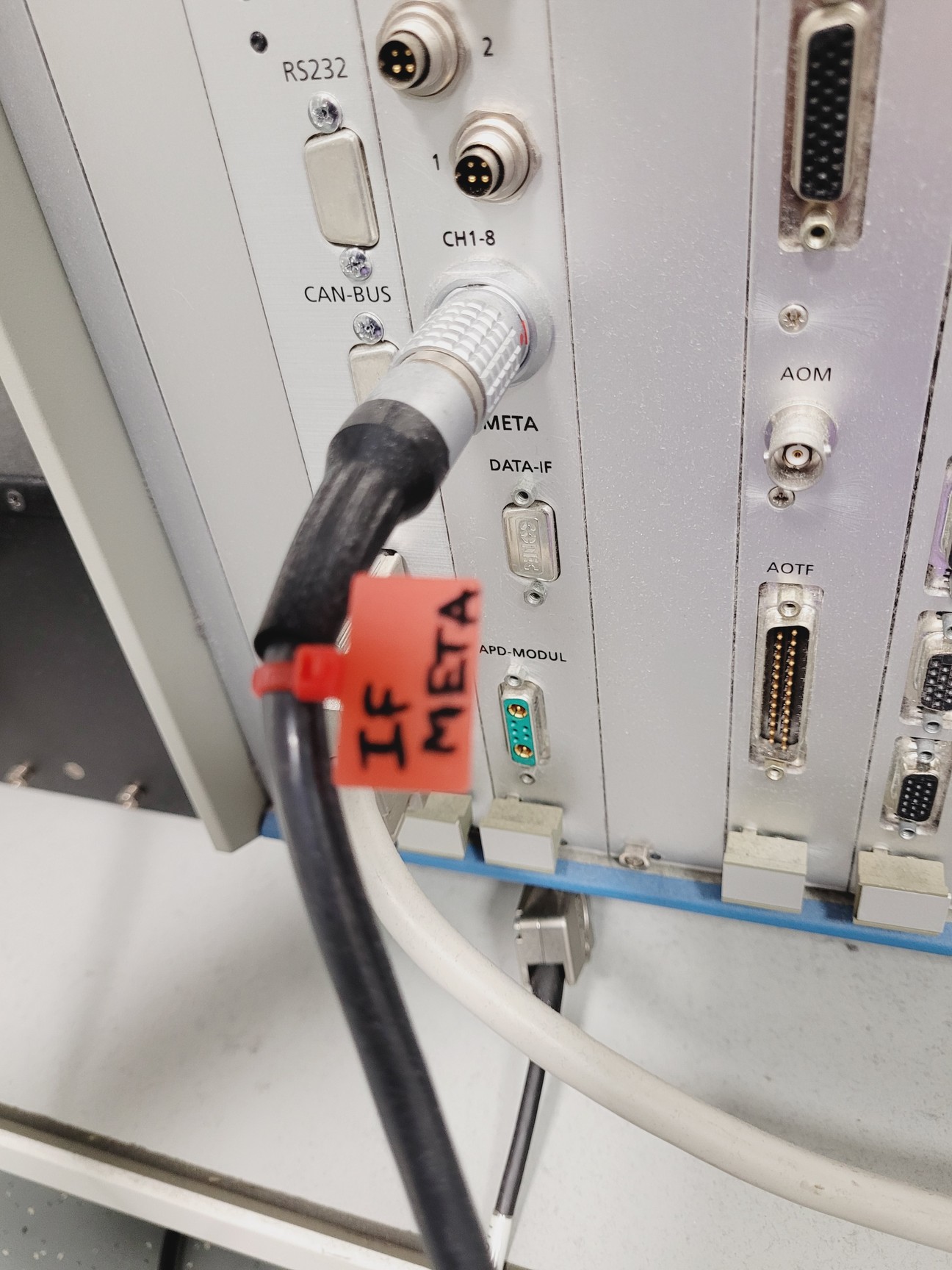

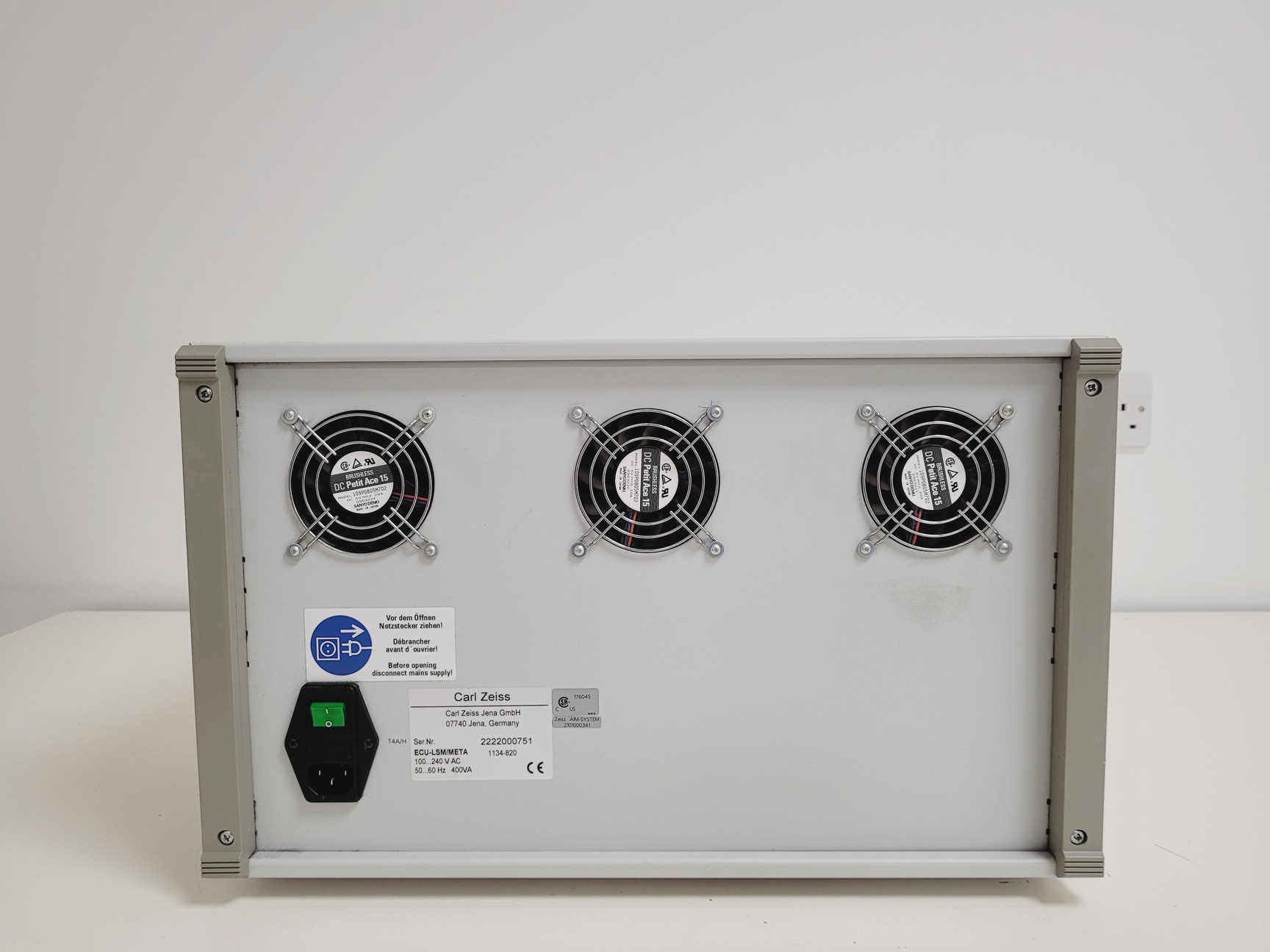

- Zeiss ECU

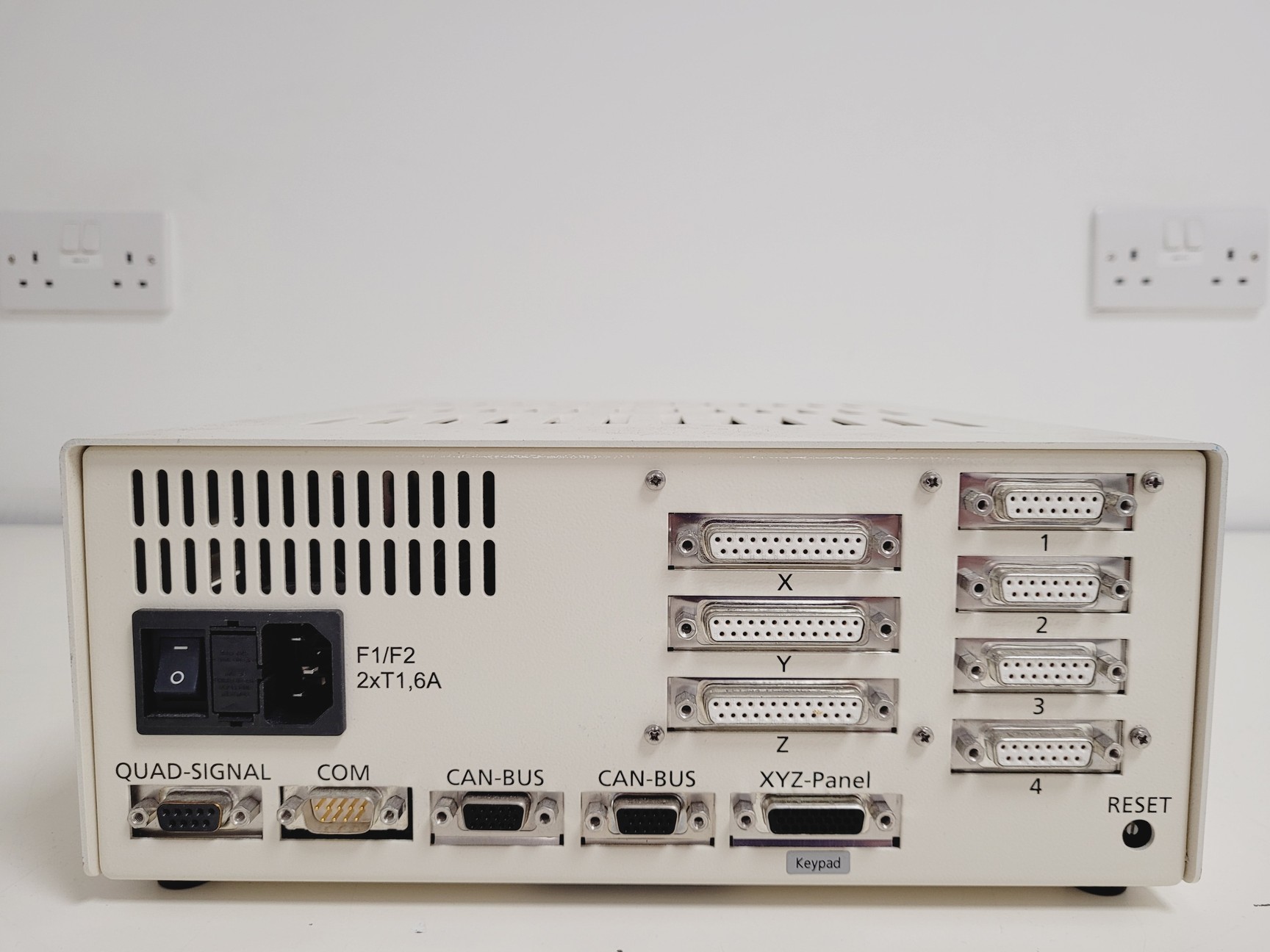

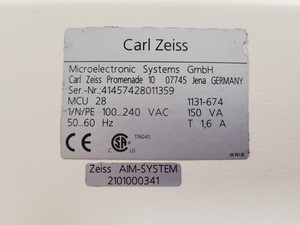

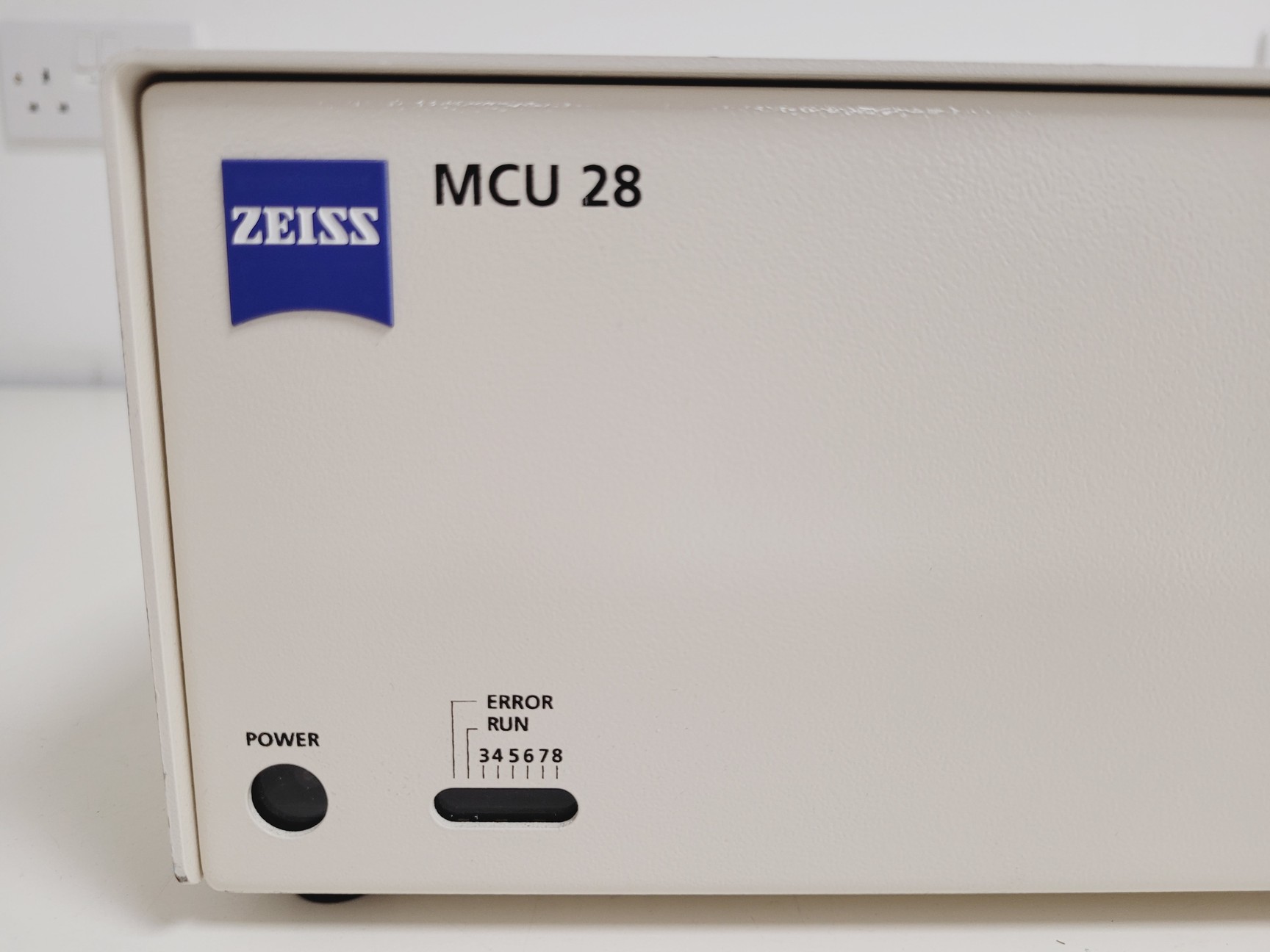

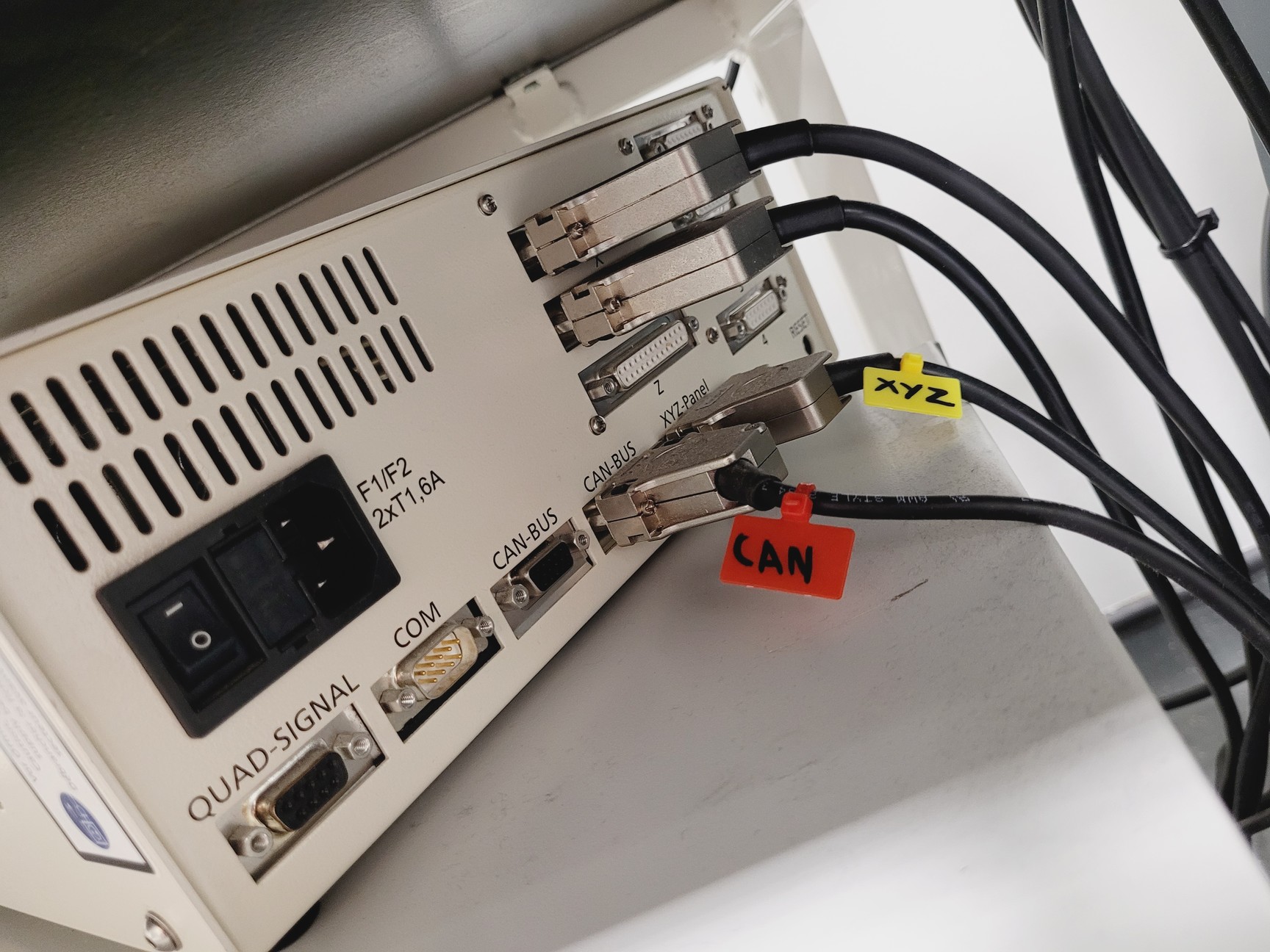

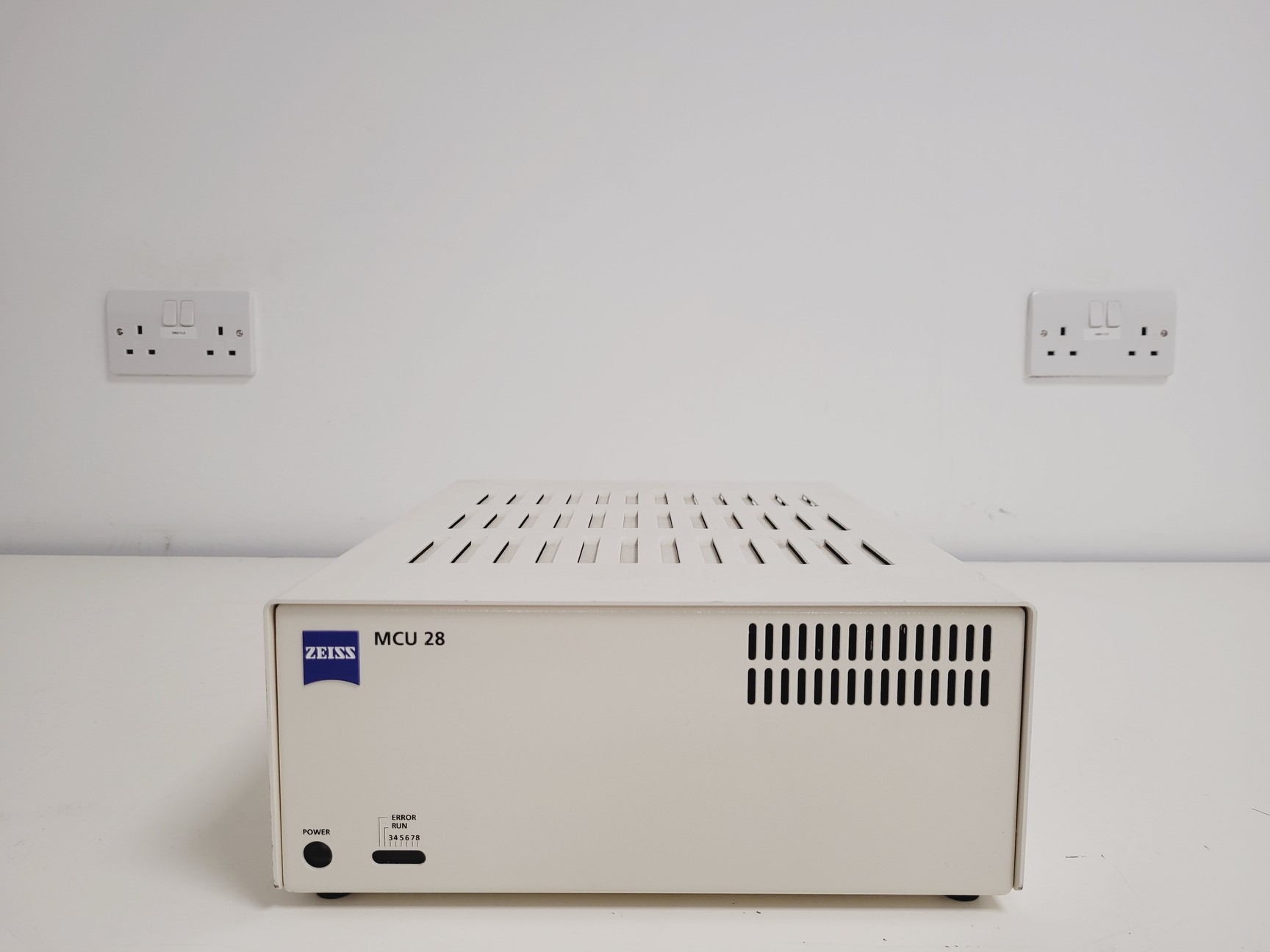

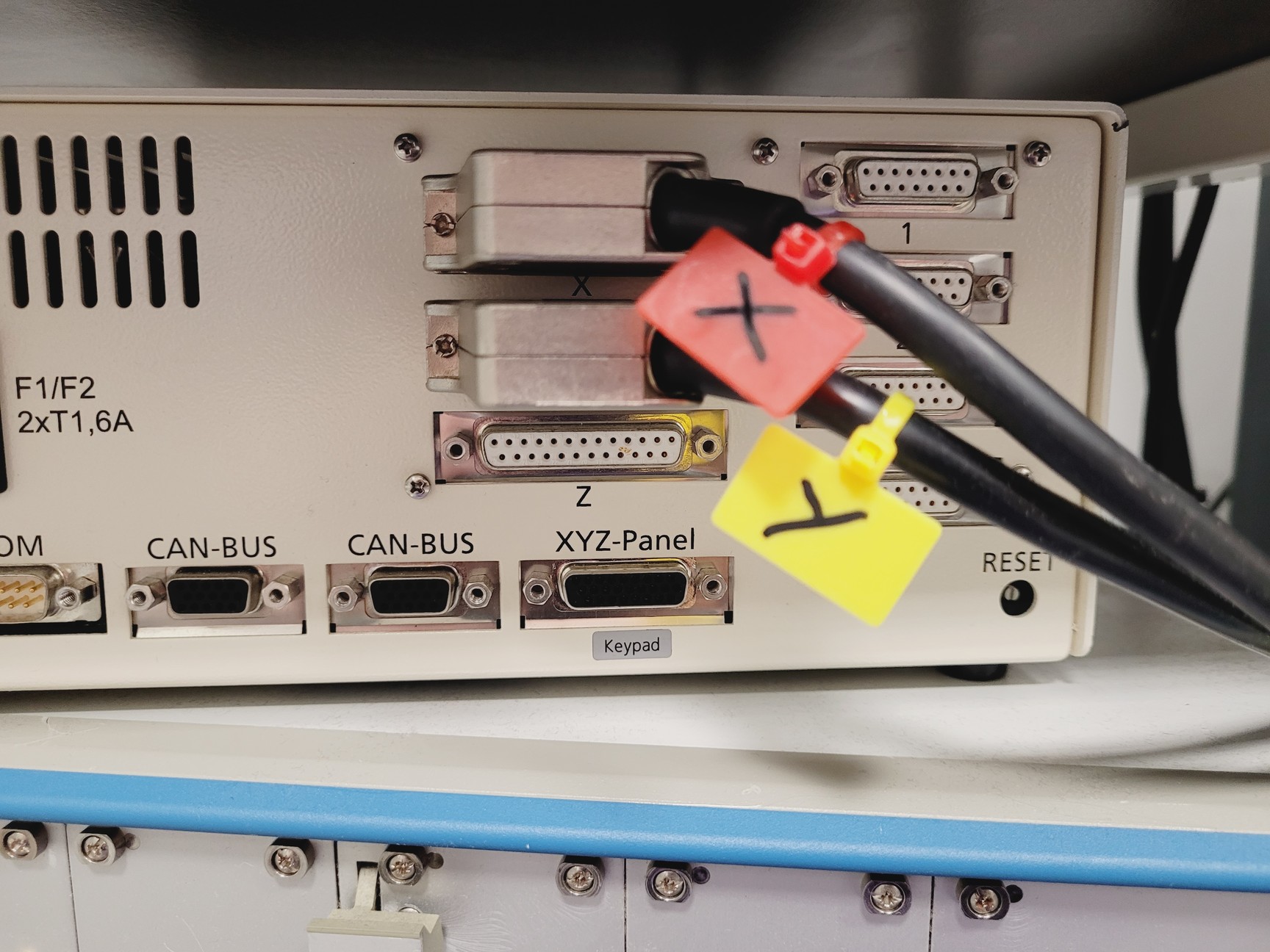

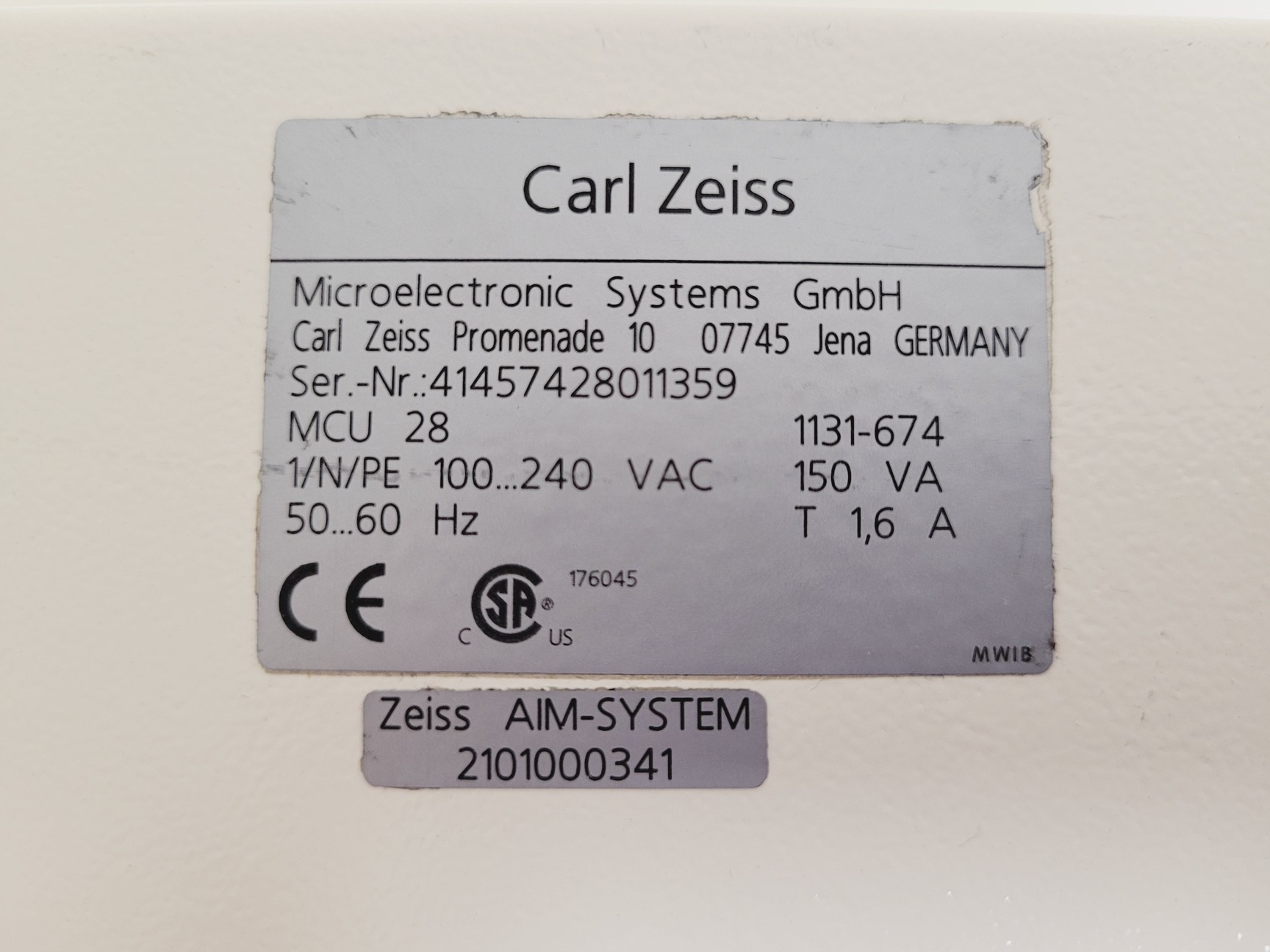

- Zeiss MCU 28 Stage Controller

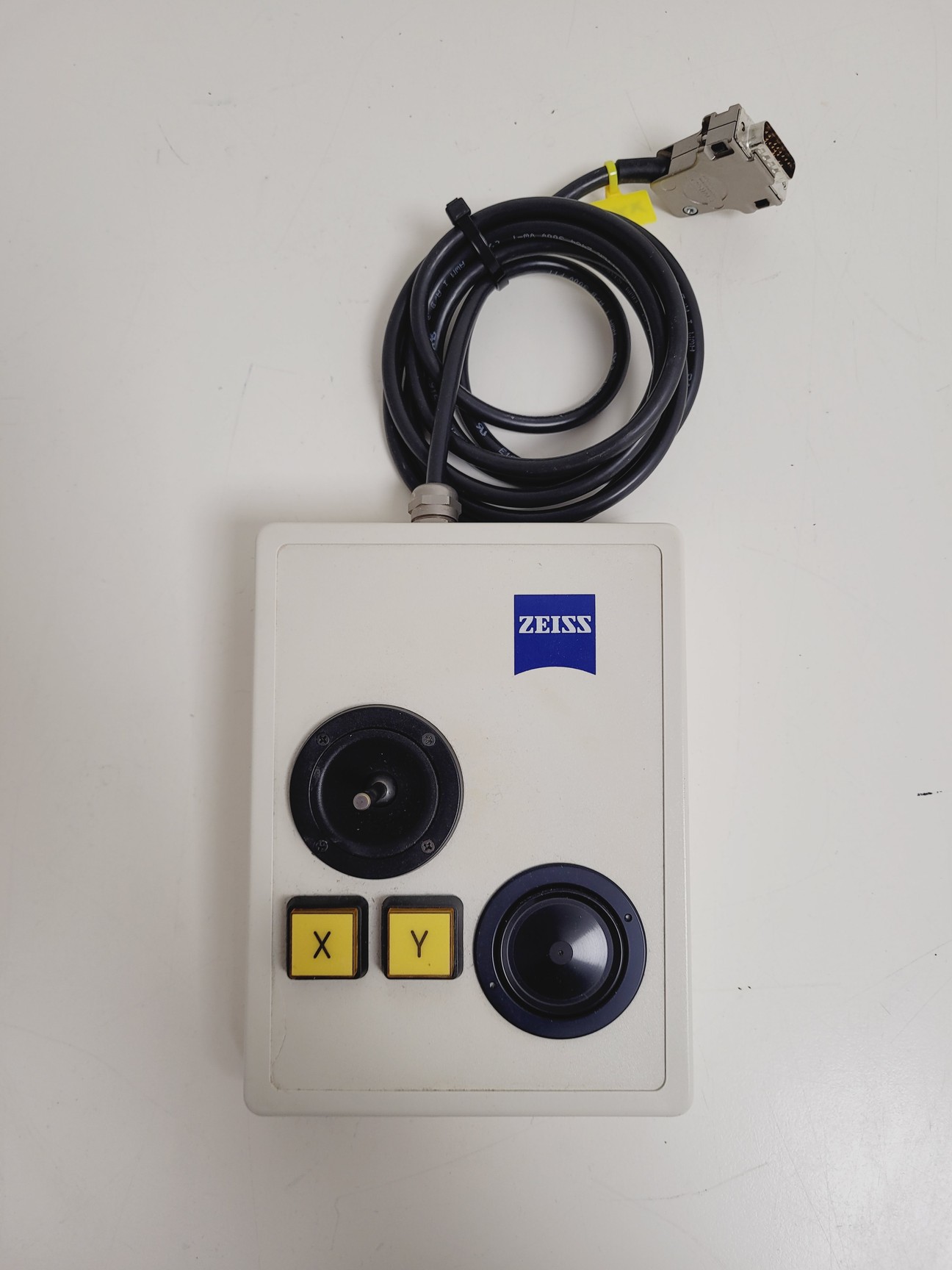

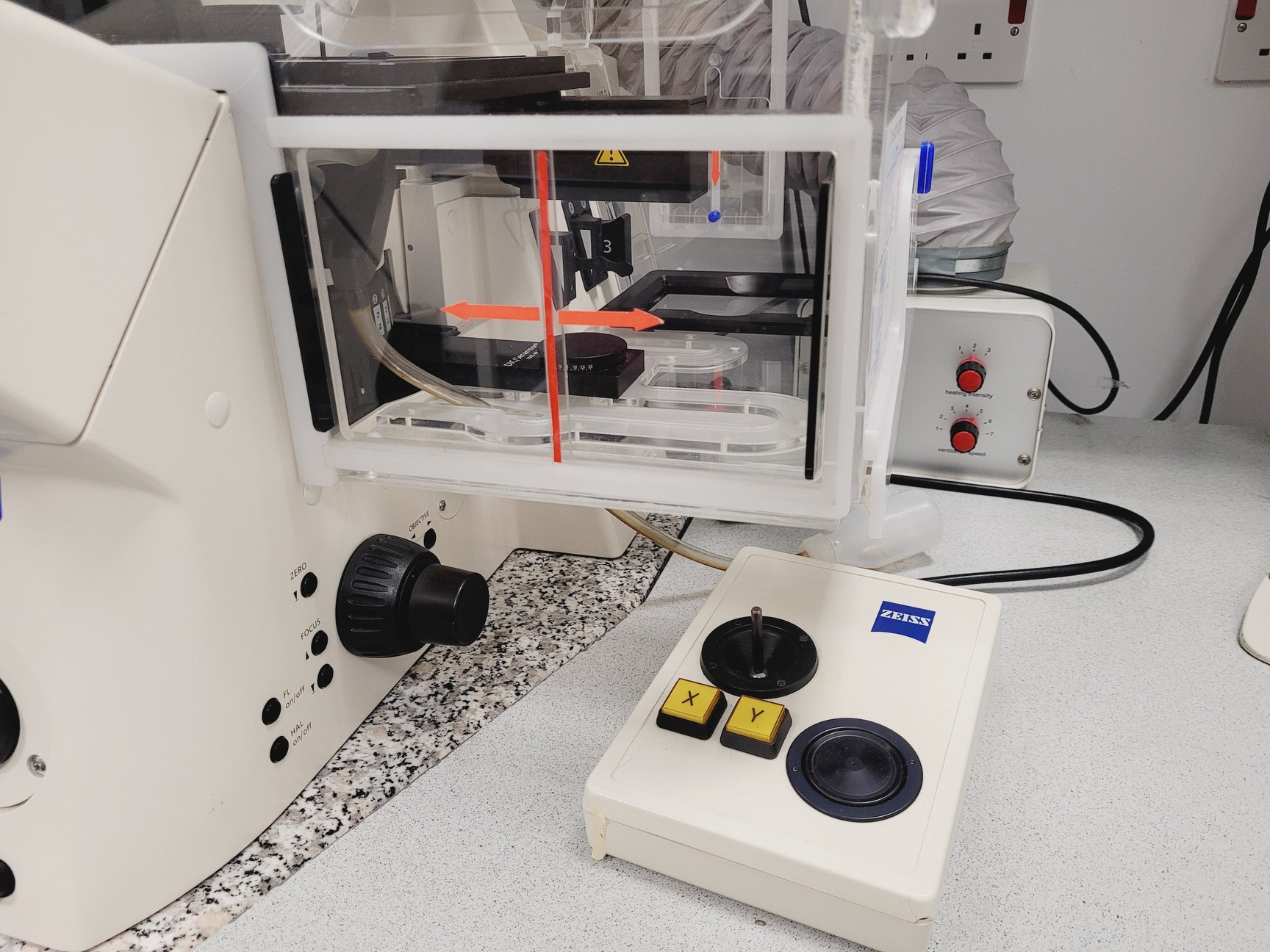

- Zeiss Bedienpult/WIS XY Joystick Controller

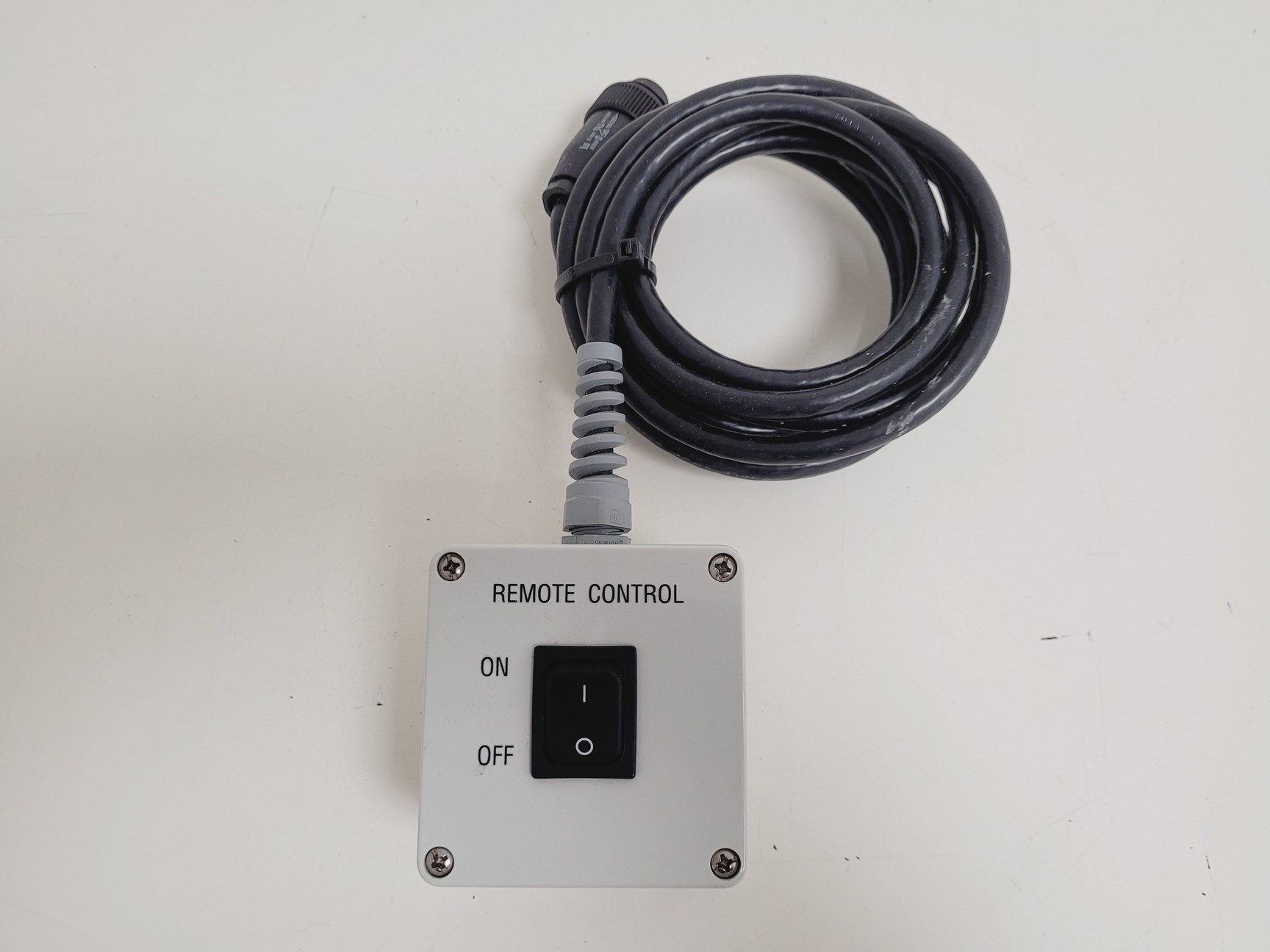

- Zeiss Remote Control
Optics & Filter System:

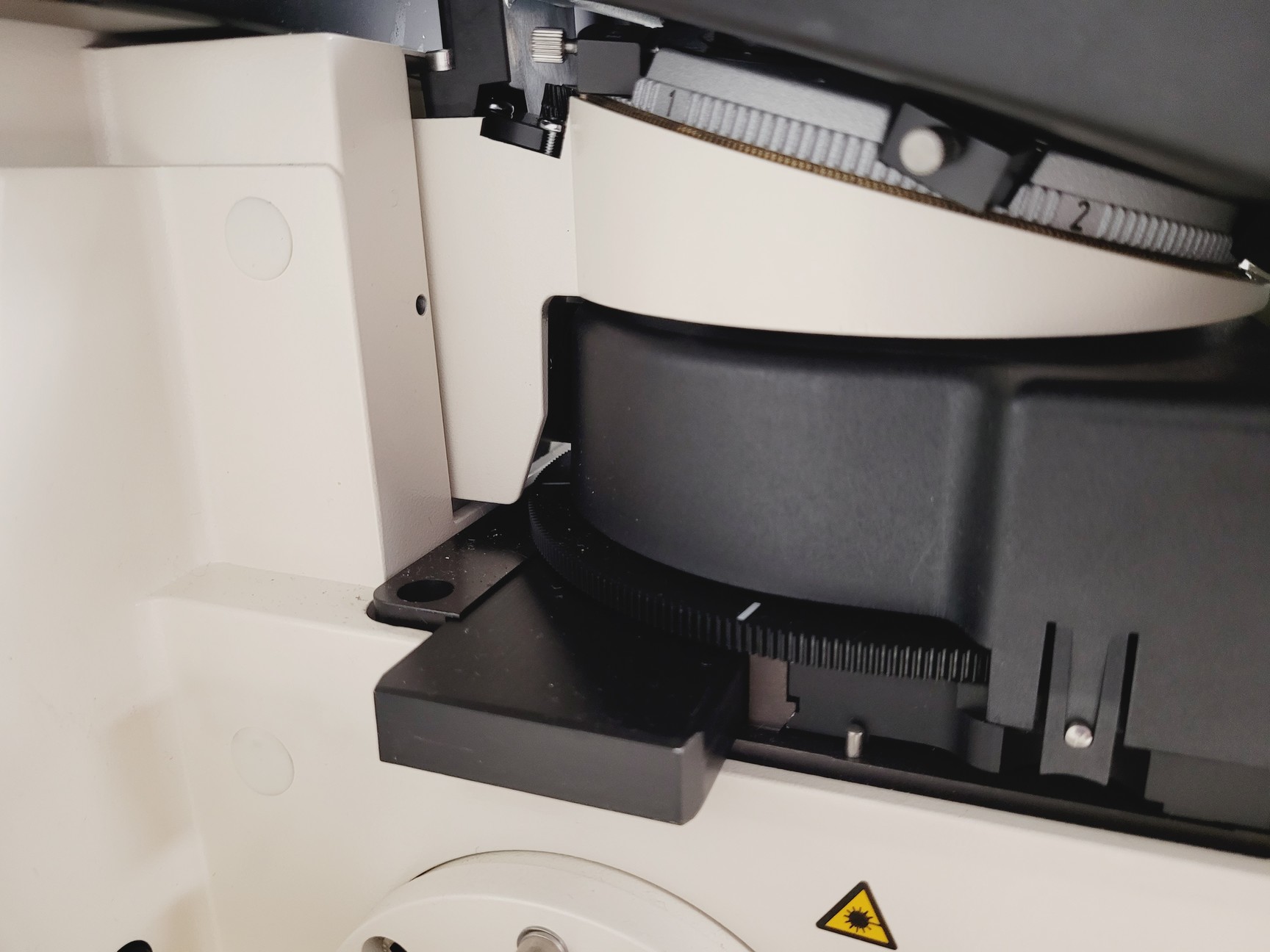

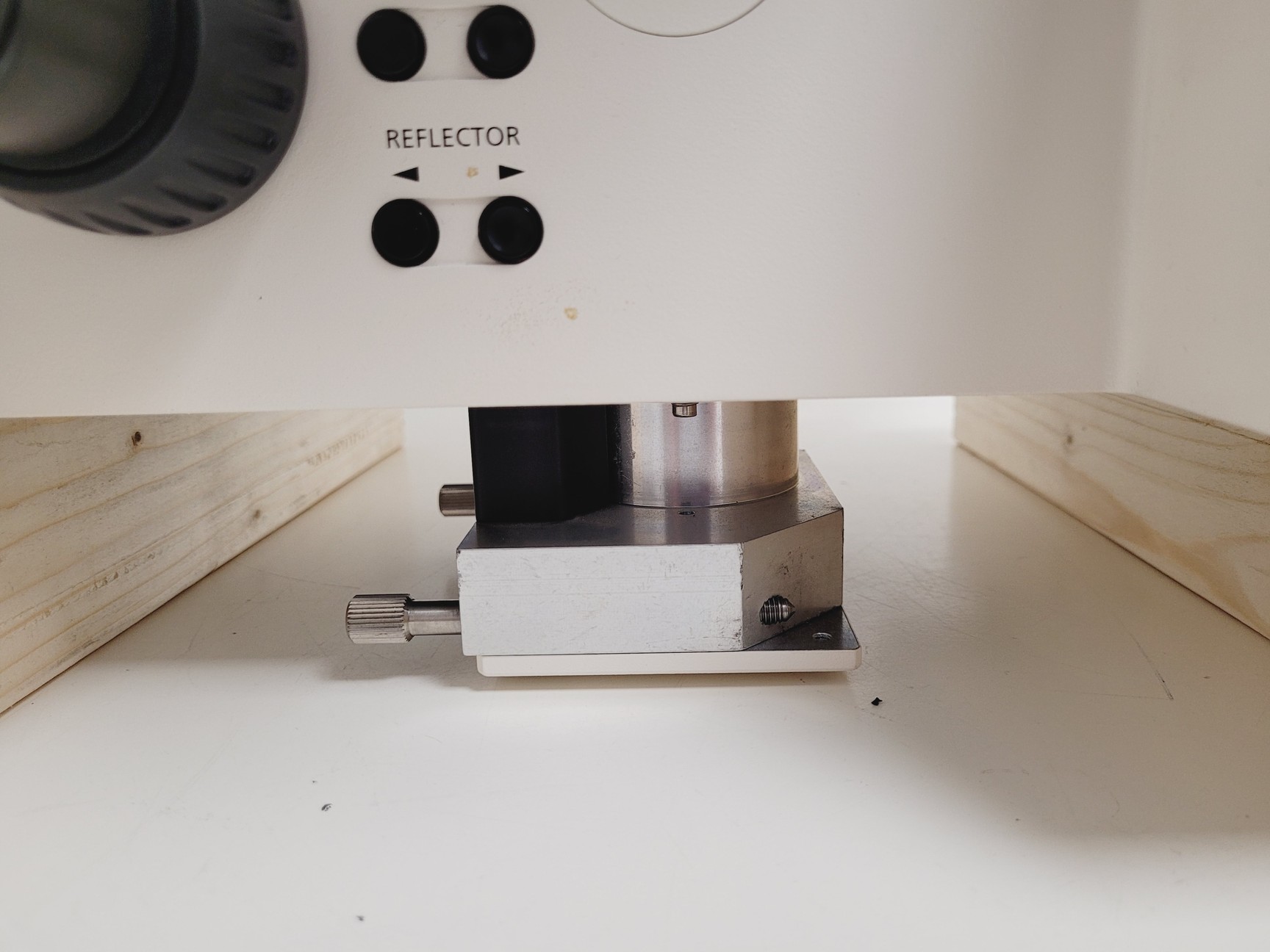

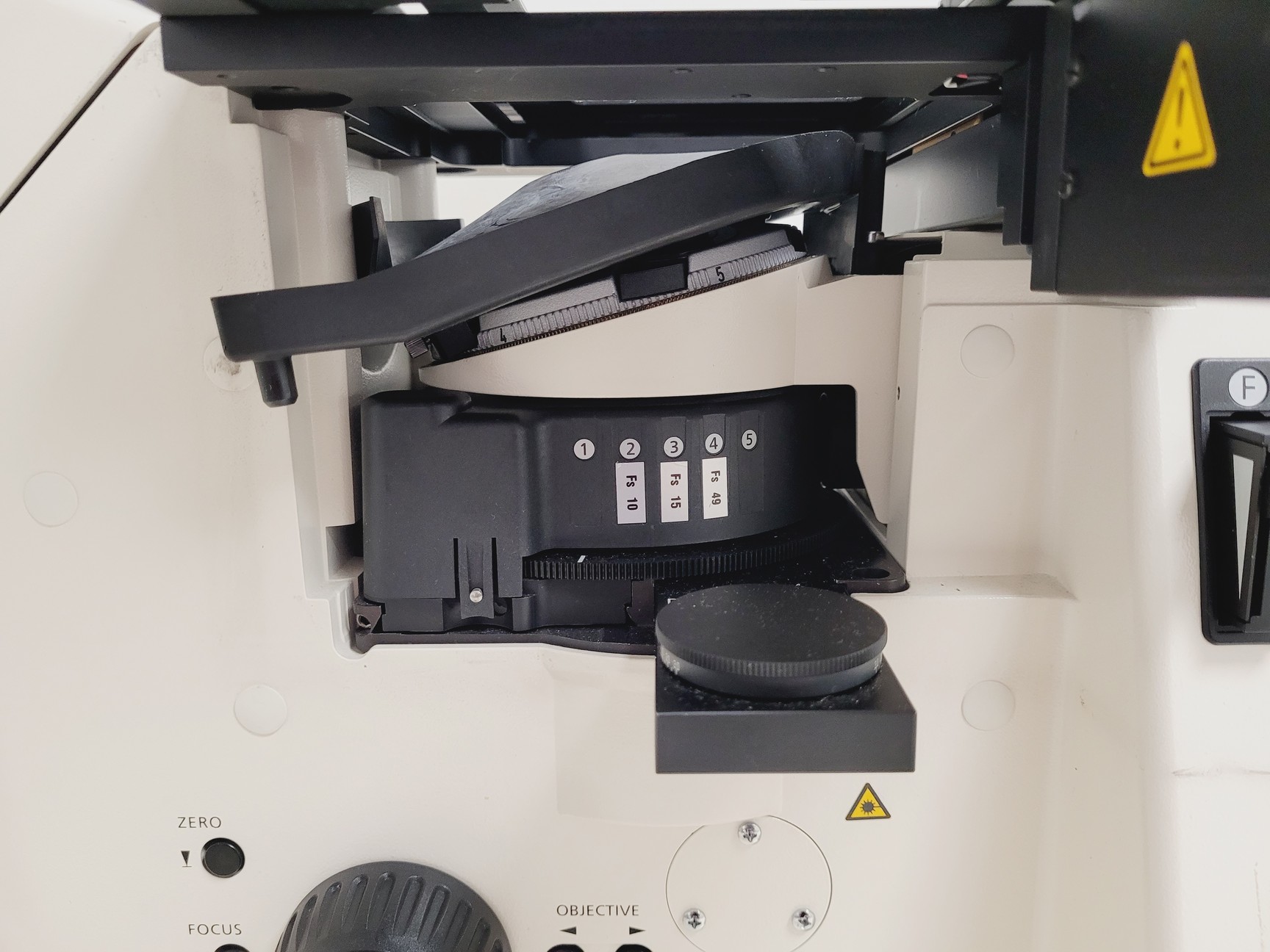

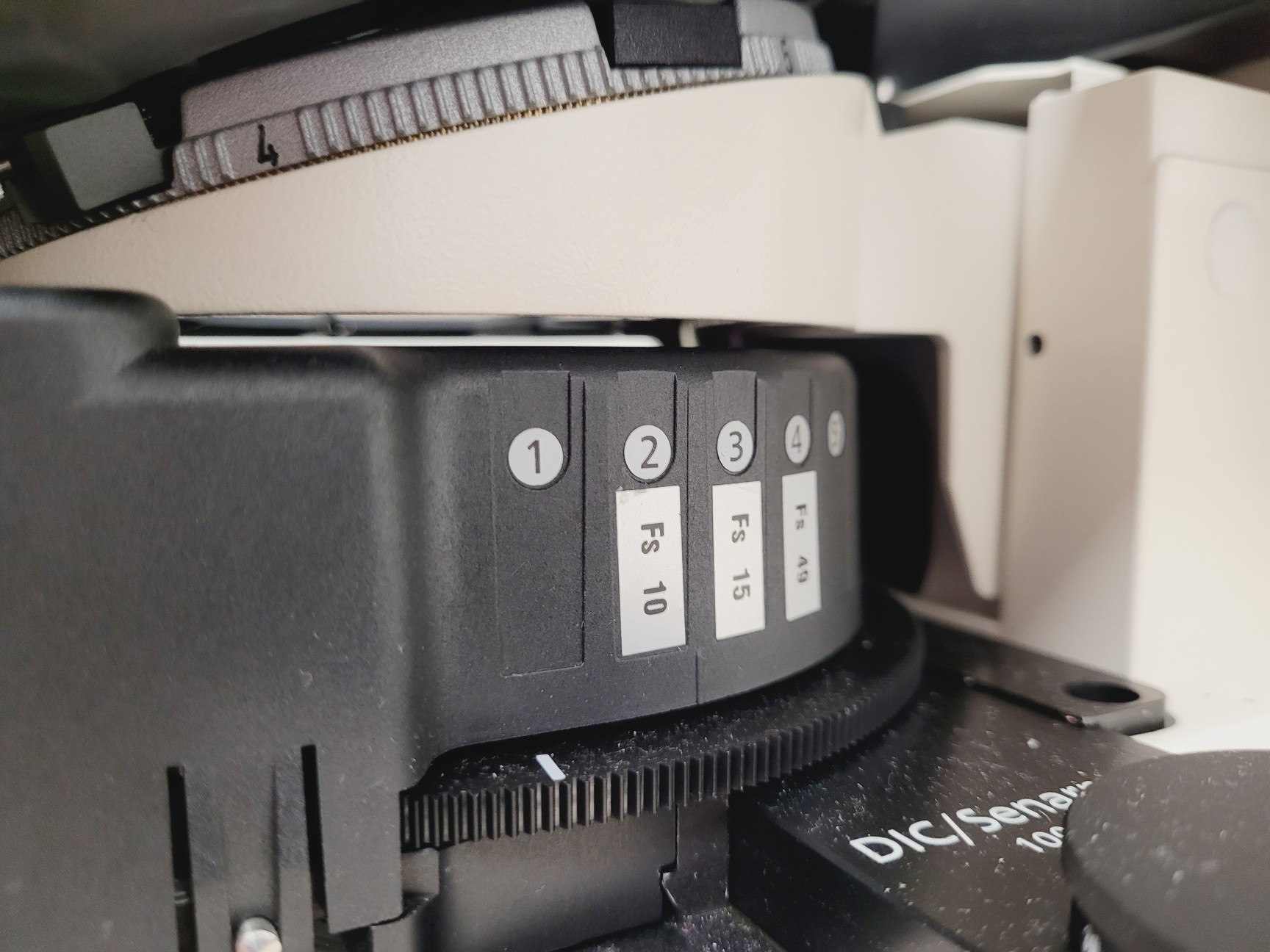

- Zeiss 5 Position Motorised Reflector Turret (1064-365)
- Filter Set 10 BP450-490 FT510 BP515-565
- Filter Set 15 BP546/12 FT580 LP590
- Filter Set 49 G365 FT395 BP445/50

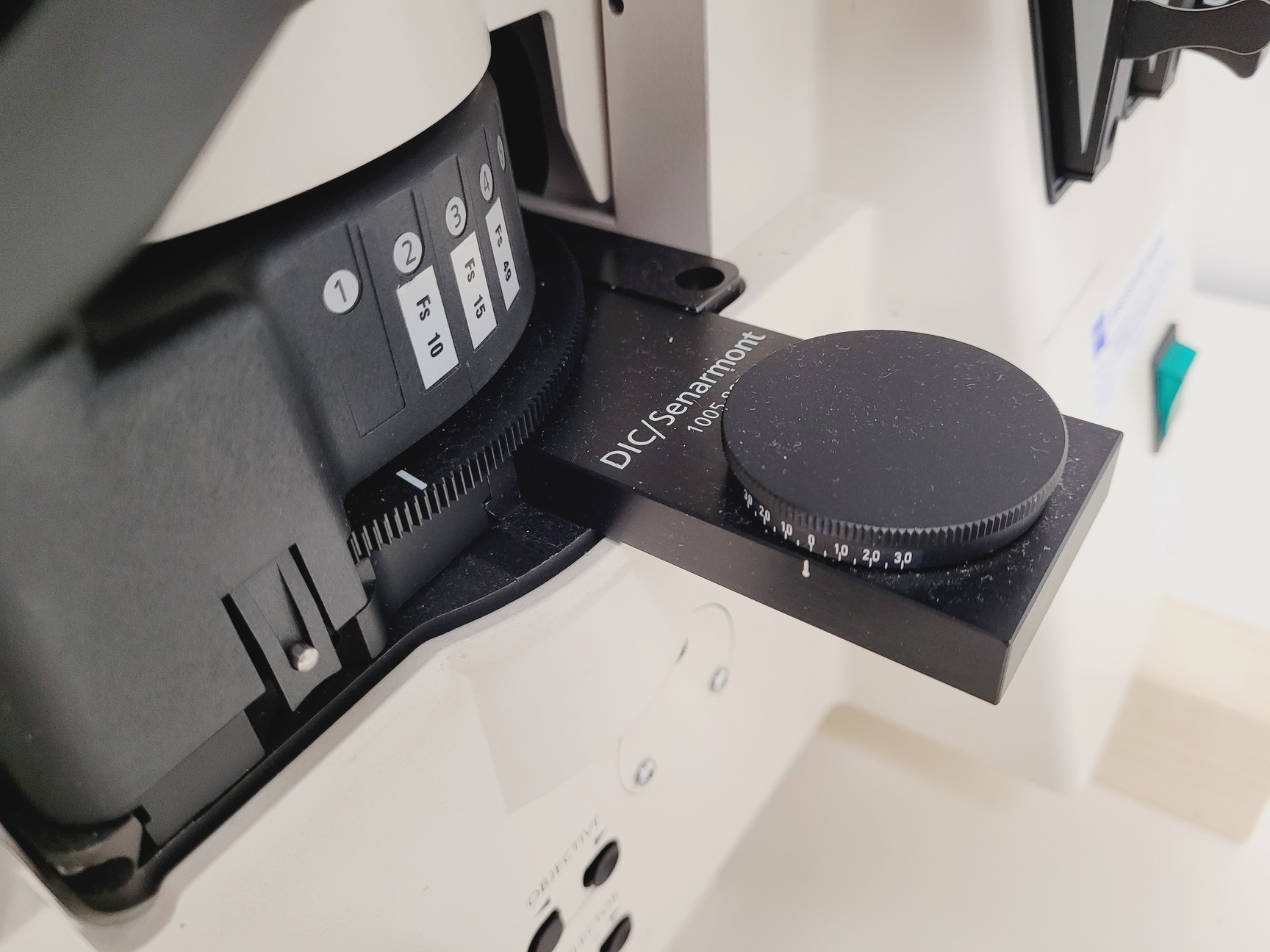

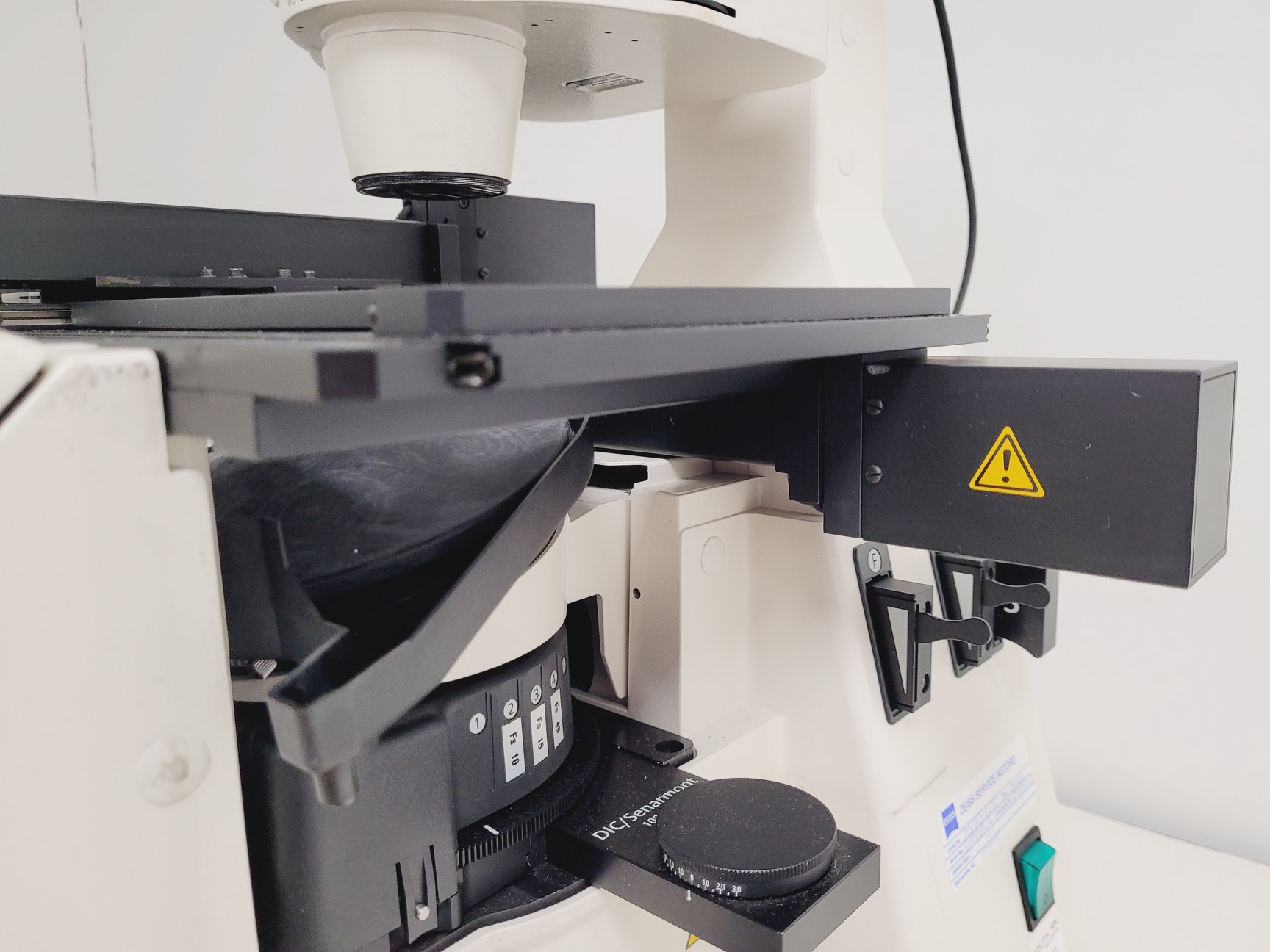

- Zeiss DIC/Senarmont (1005-863)

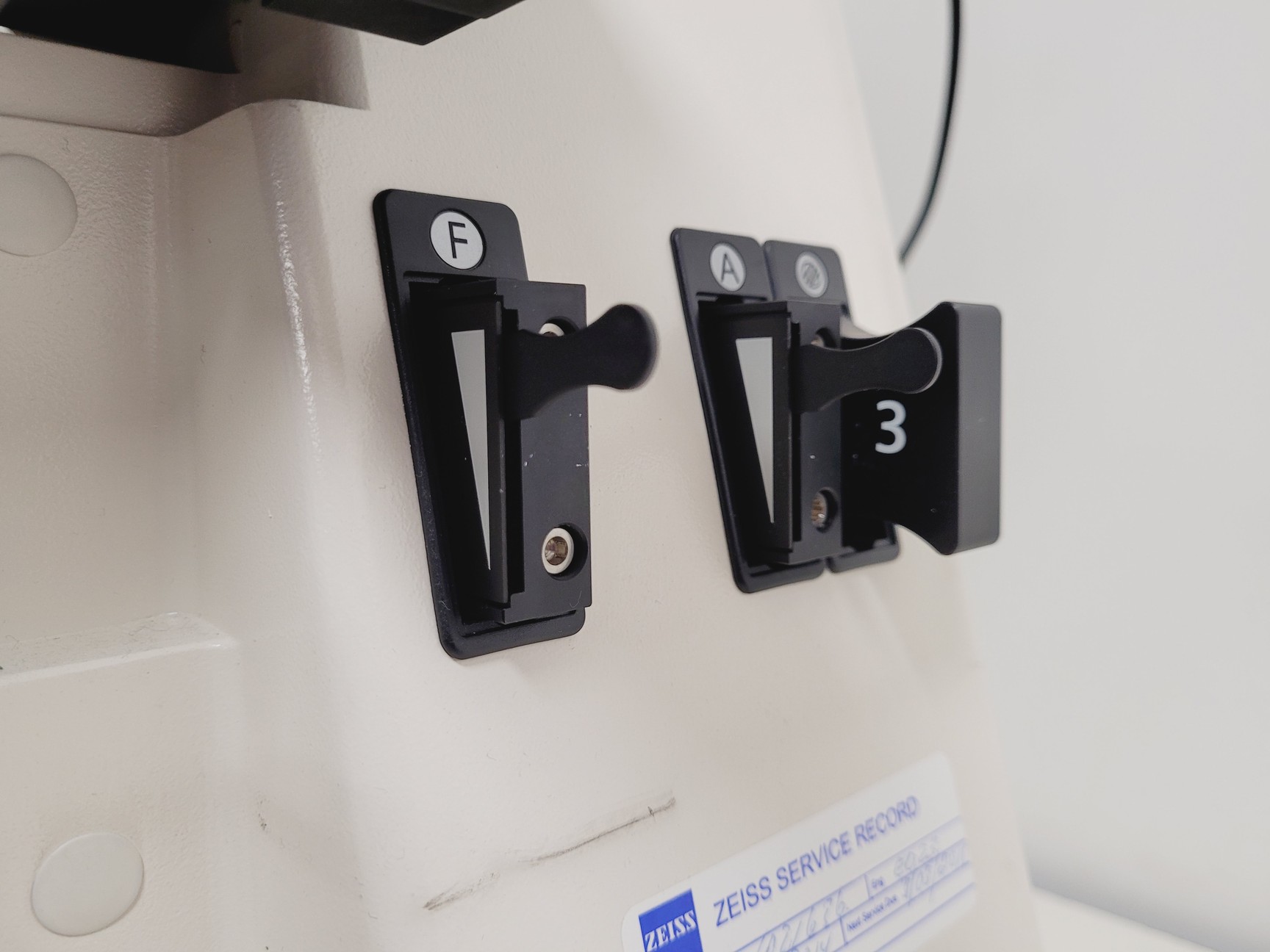

- 2 x Zeiss Iris Stop Sliders (one not functioning correctly)
Environmental Control:

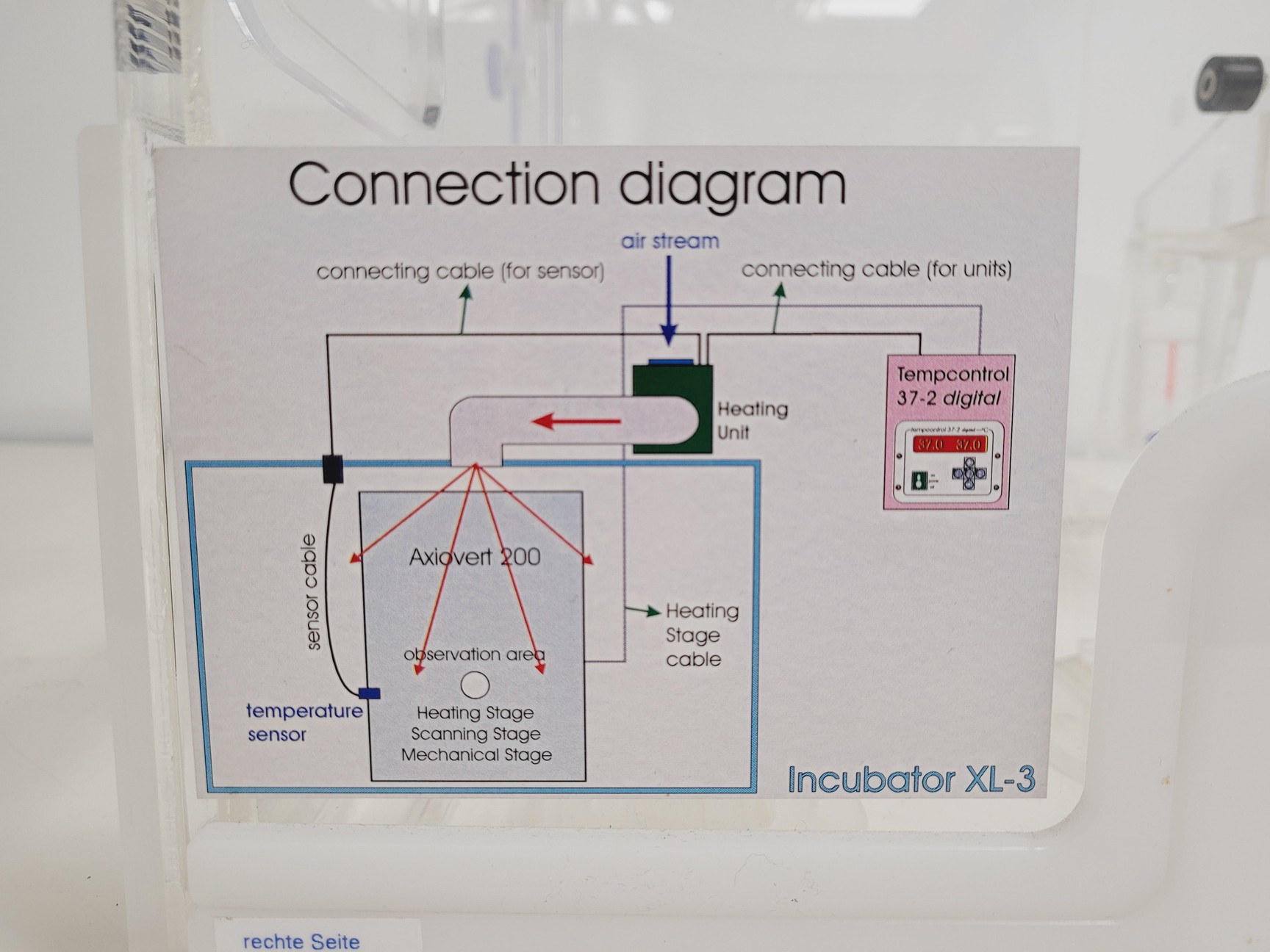

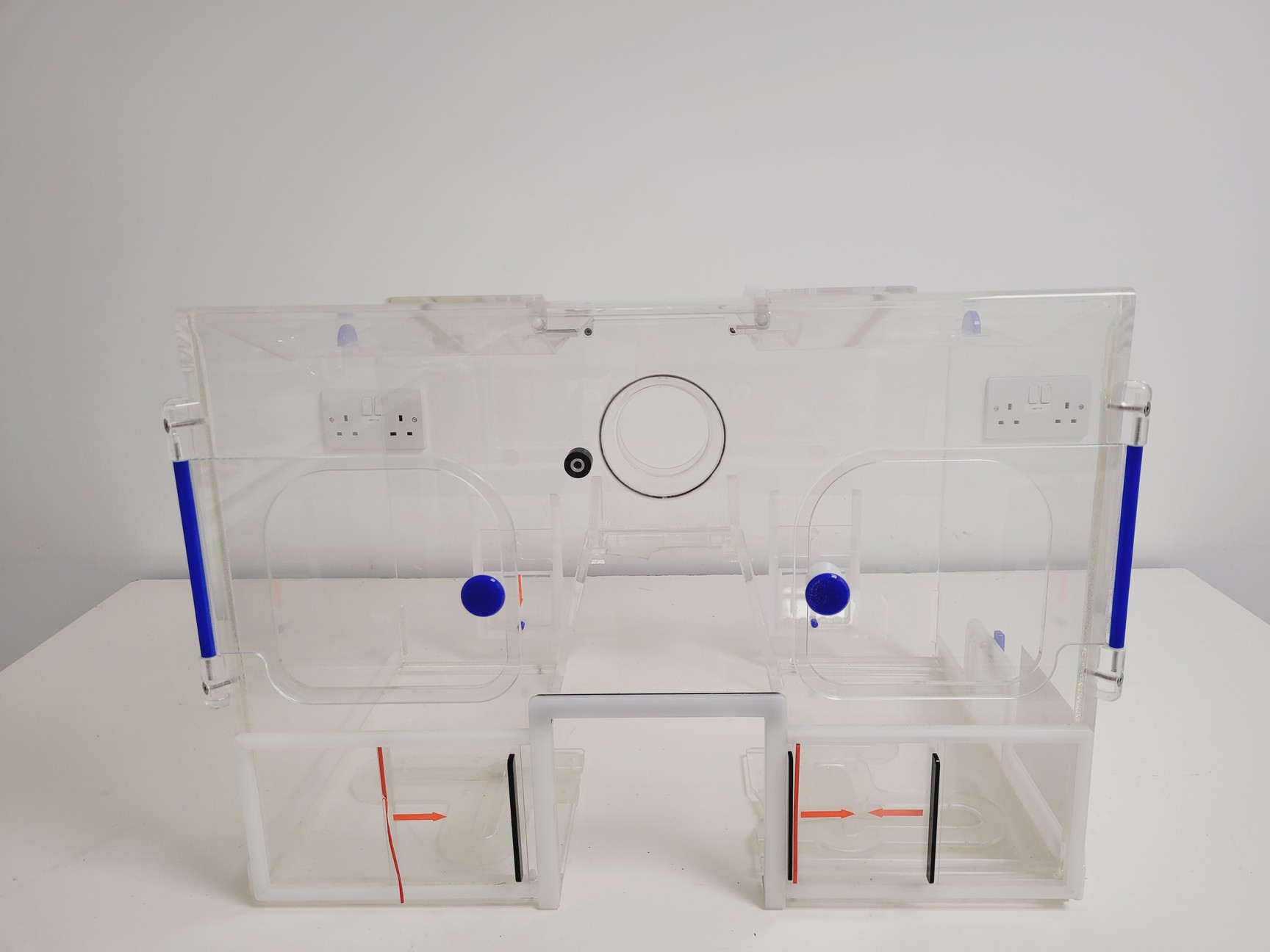

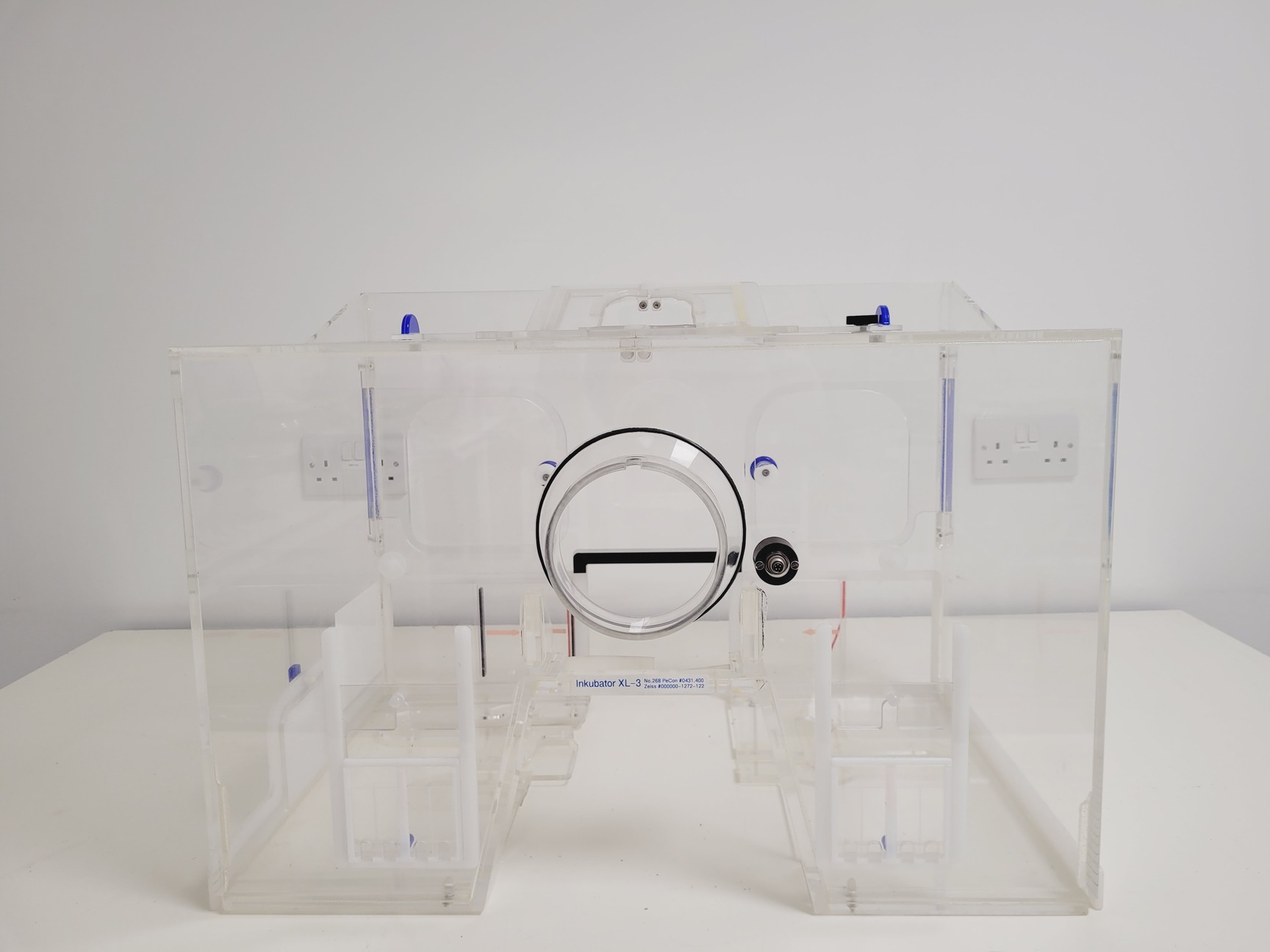

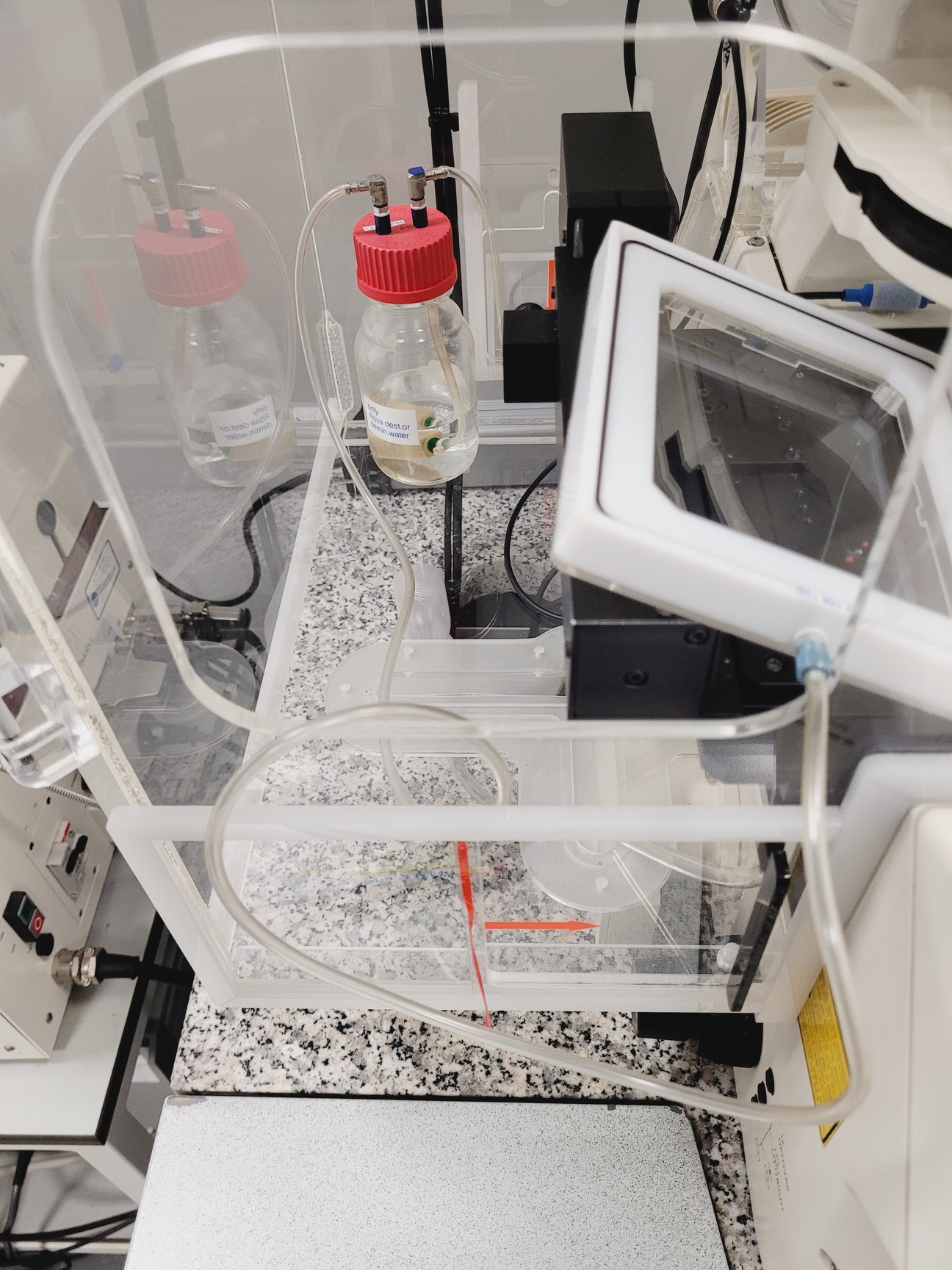

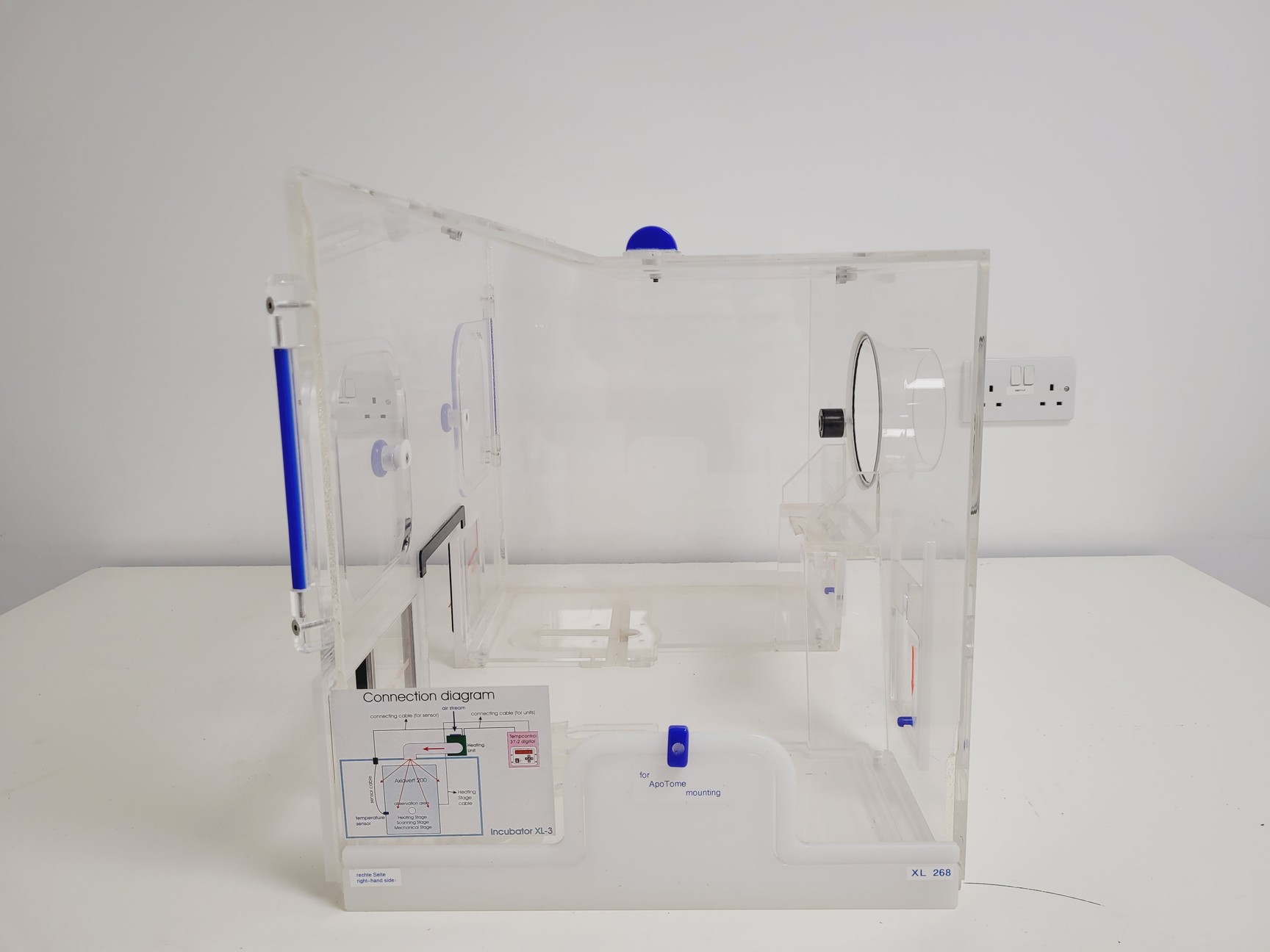

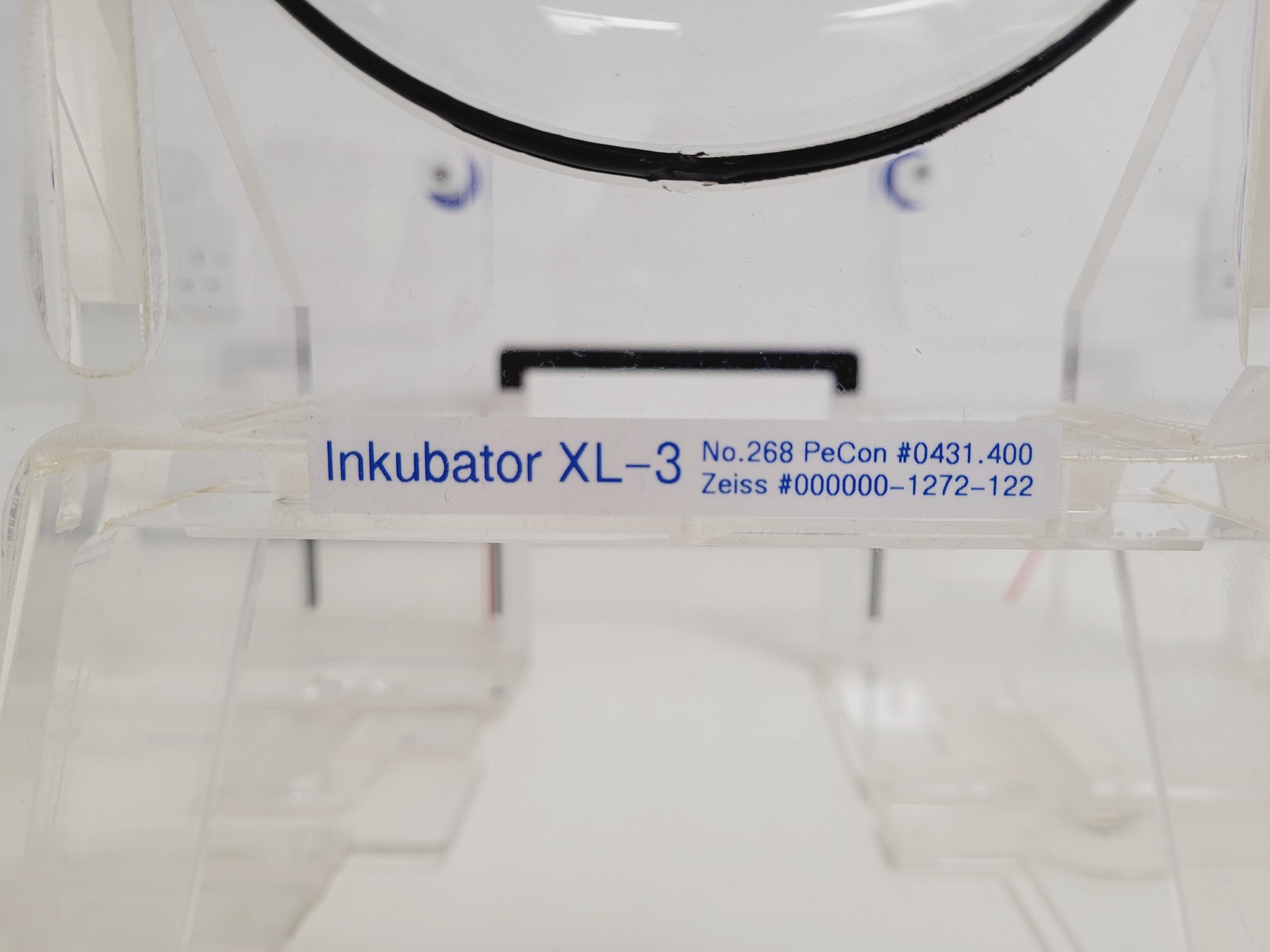

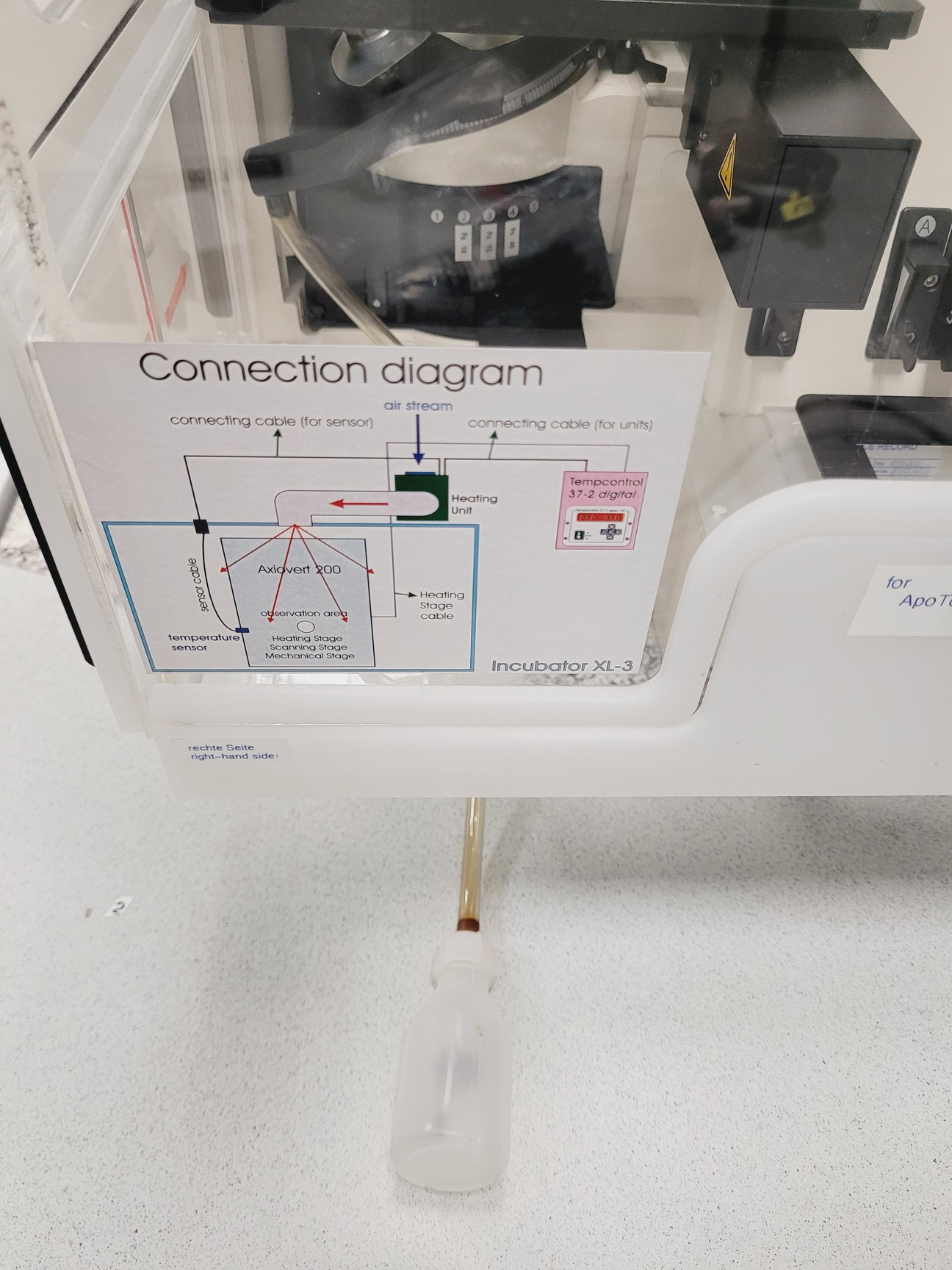

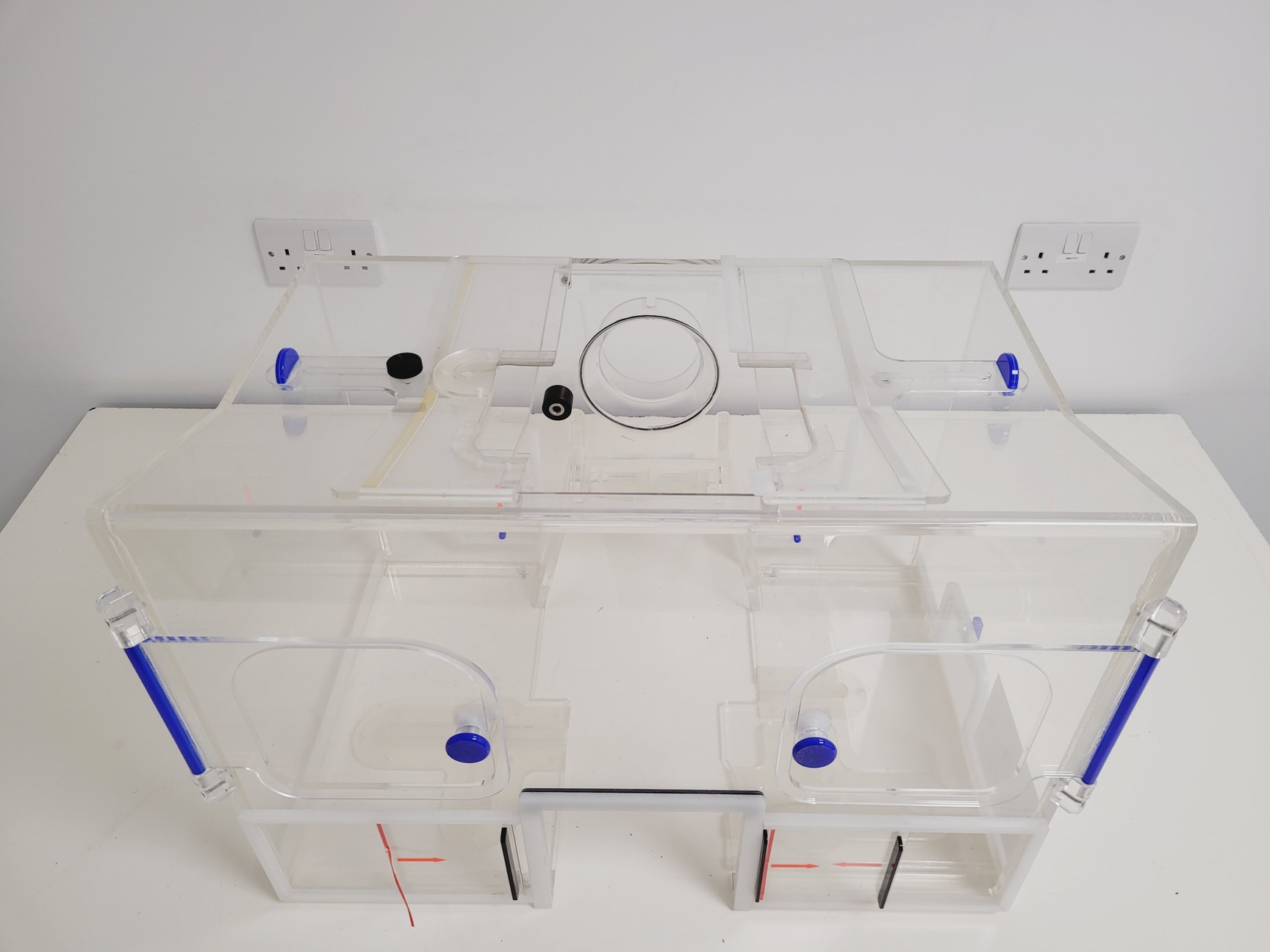

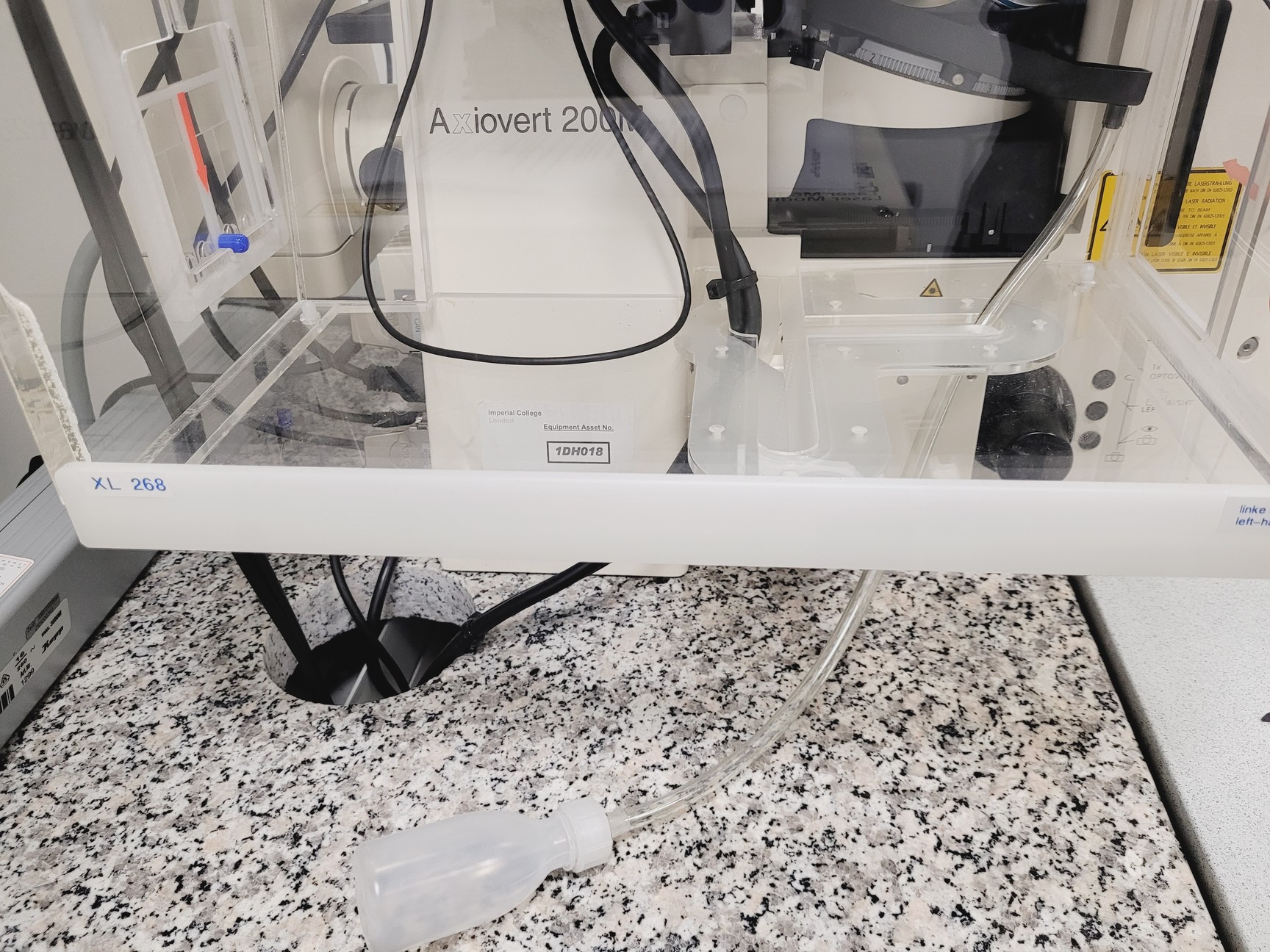

- PeCon Inkubator XL-3 Enclosure (one thumb screw missing)

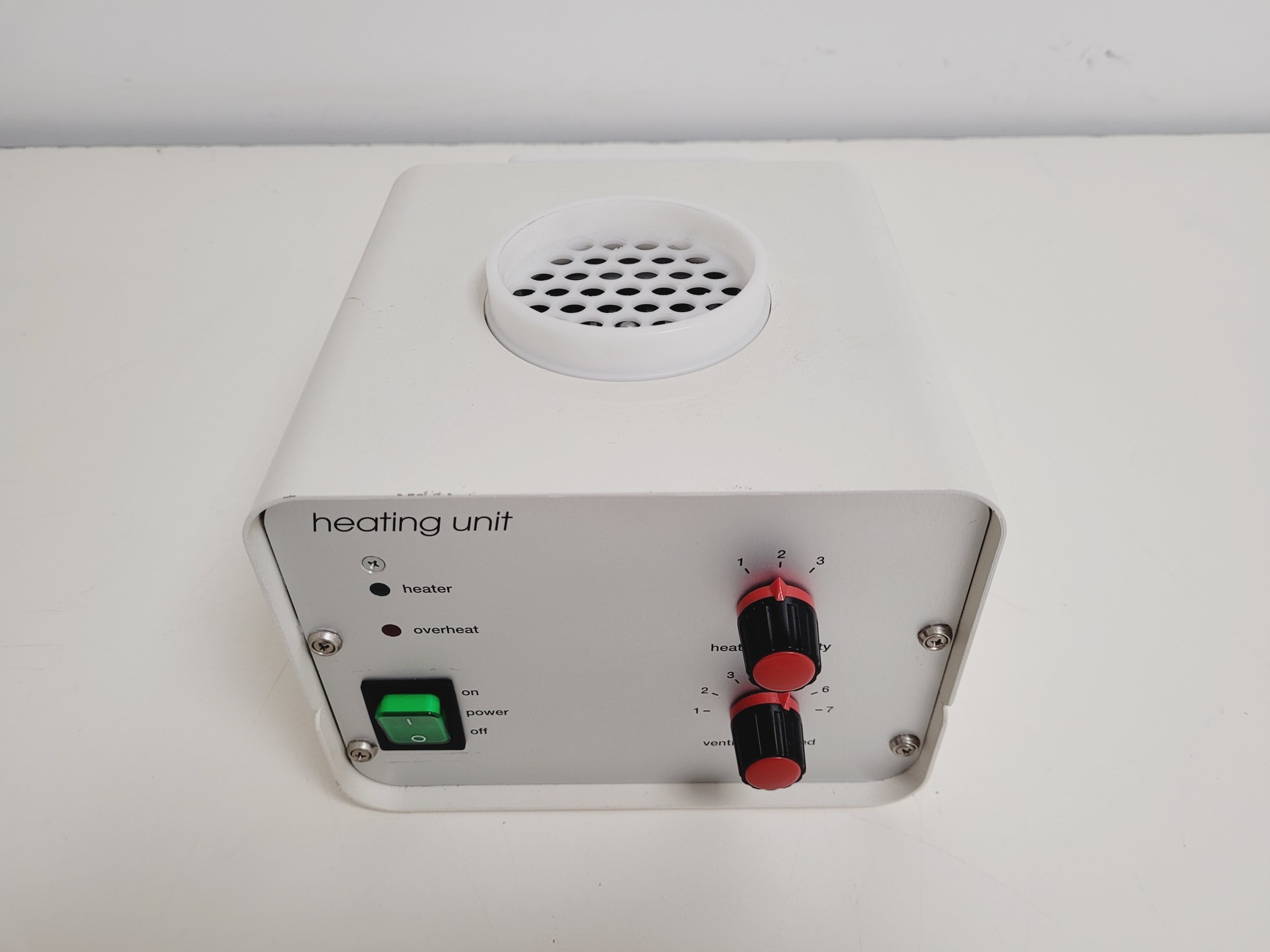

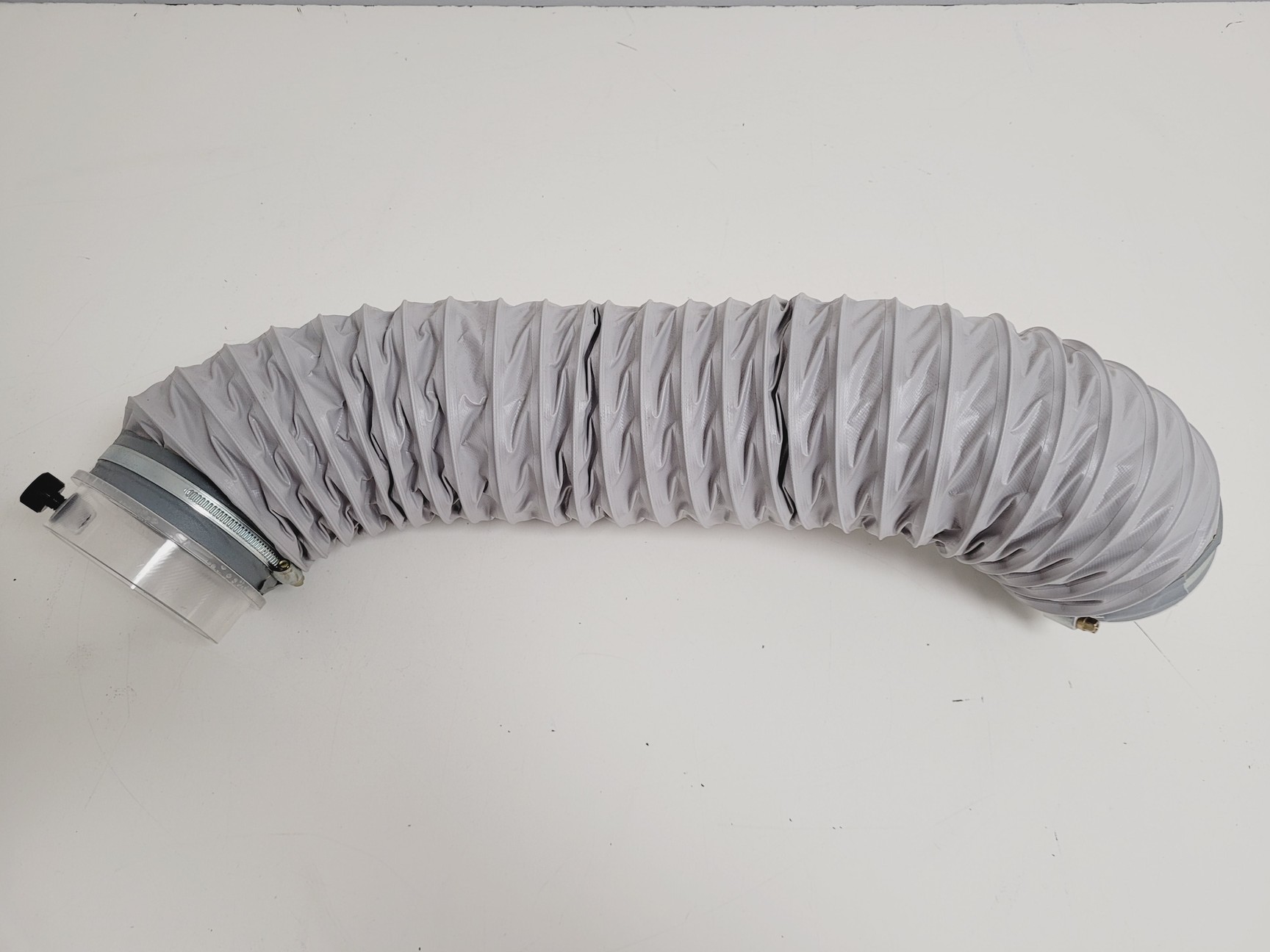

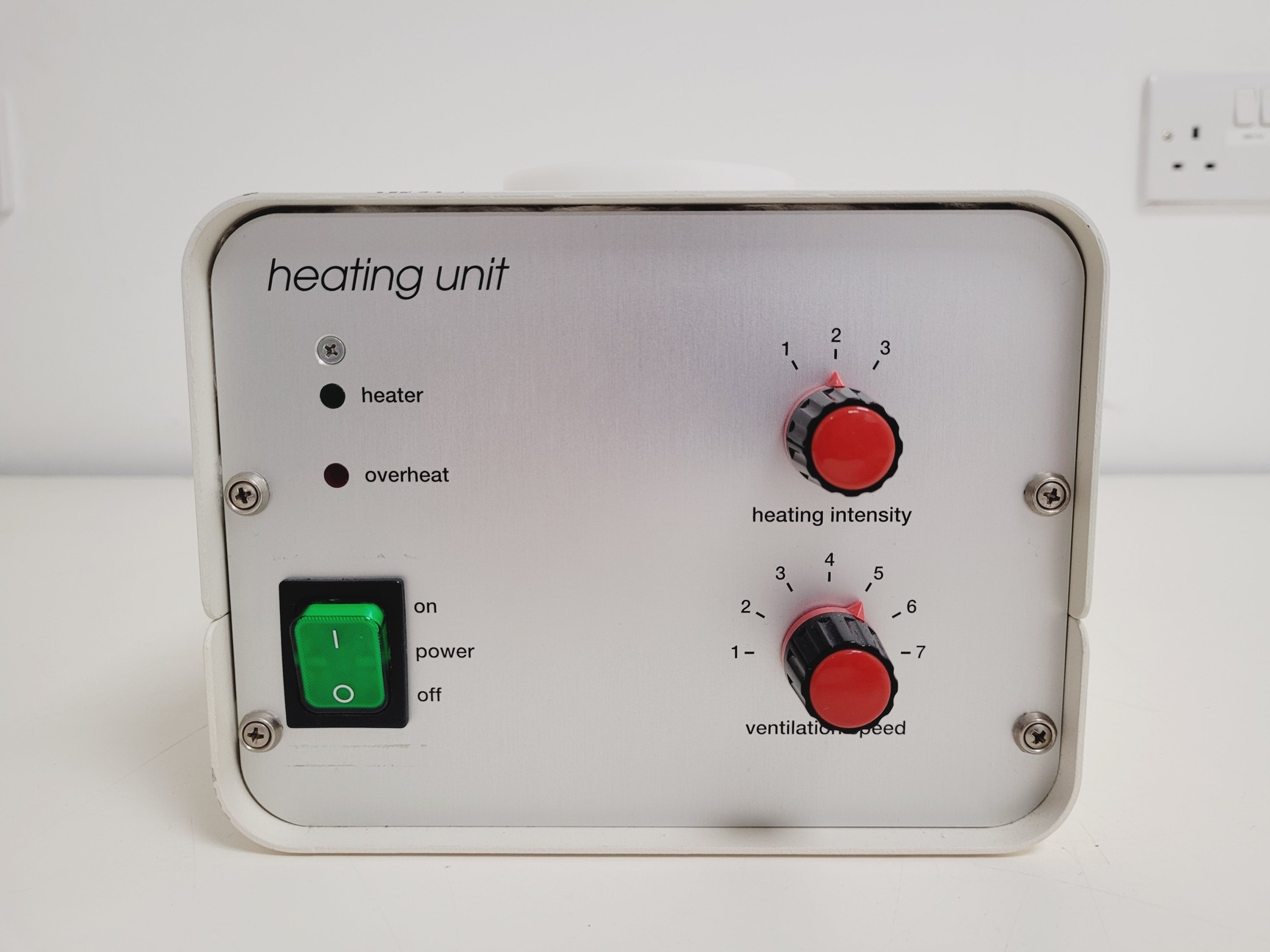

- Heating Unit with hose

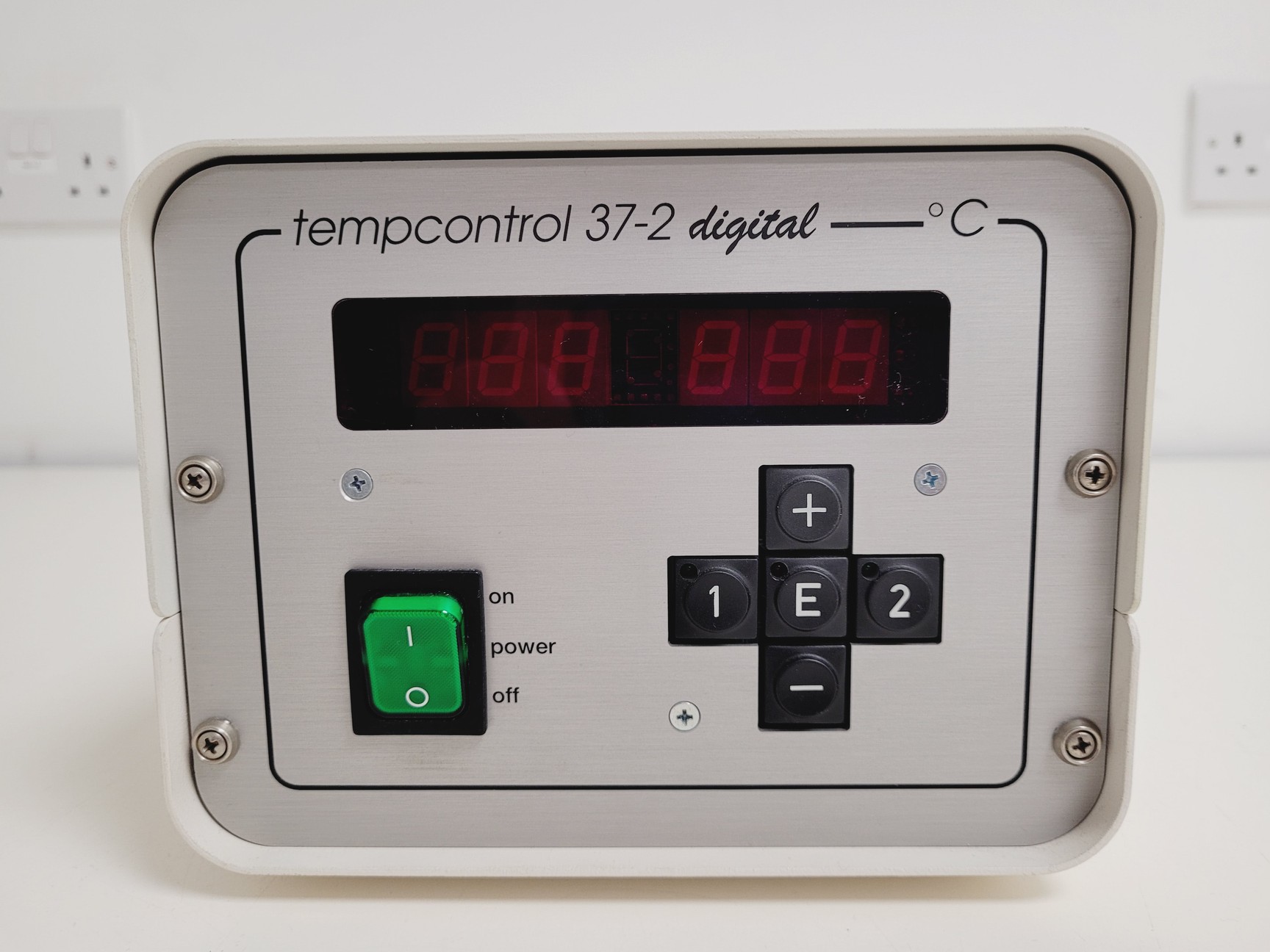

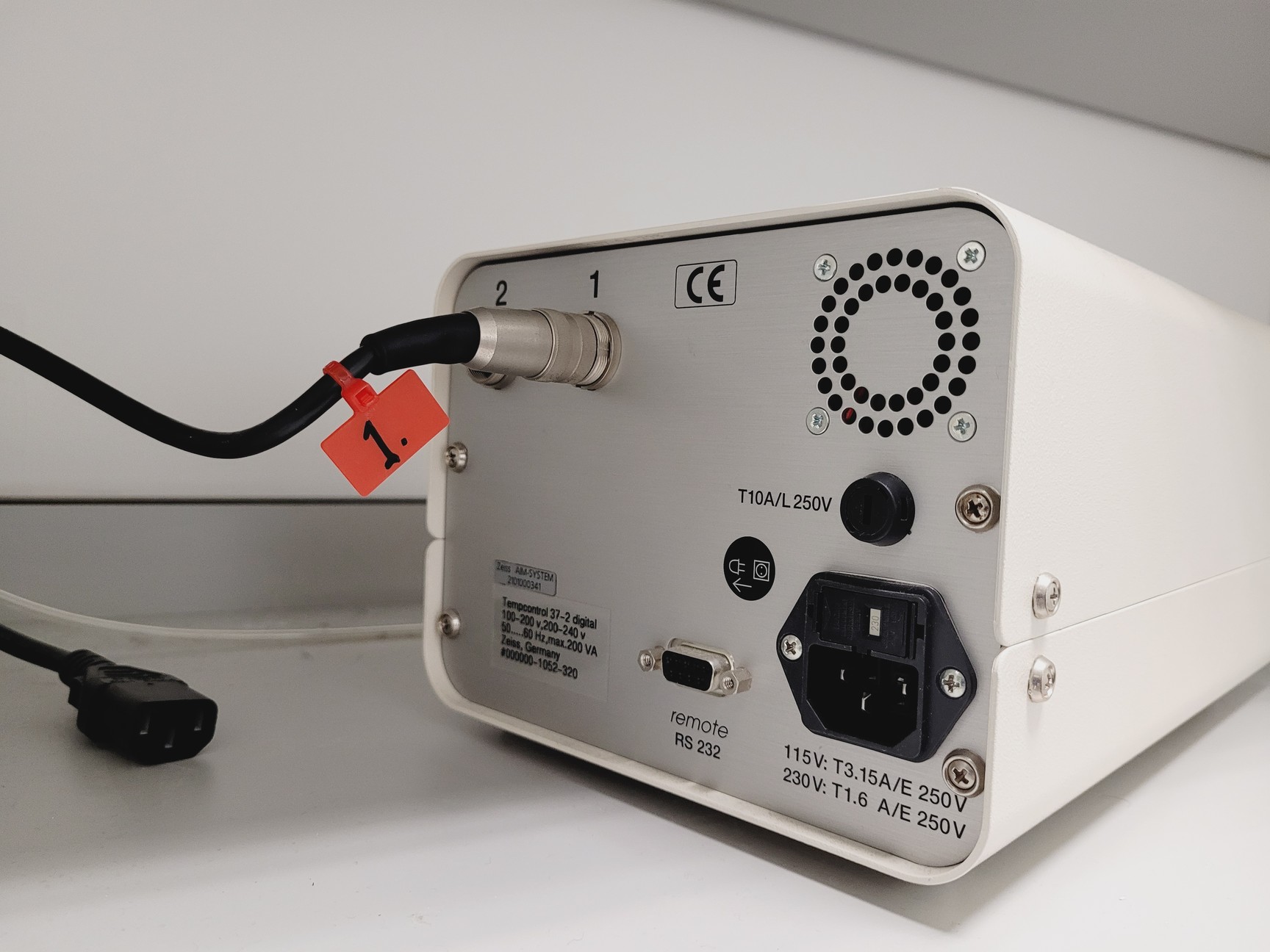

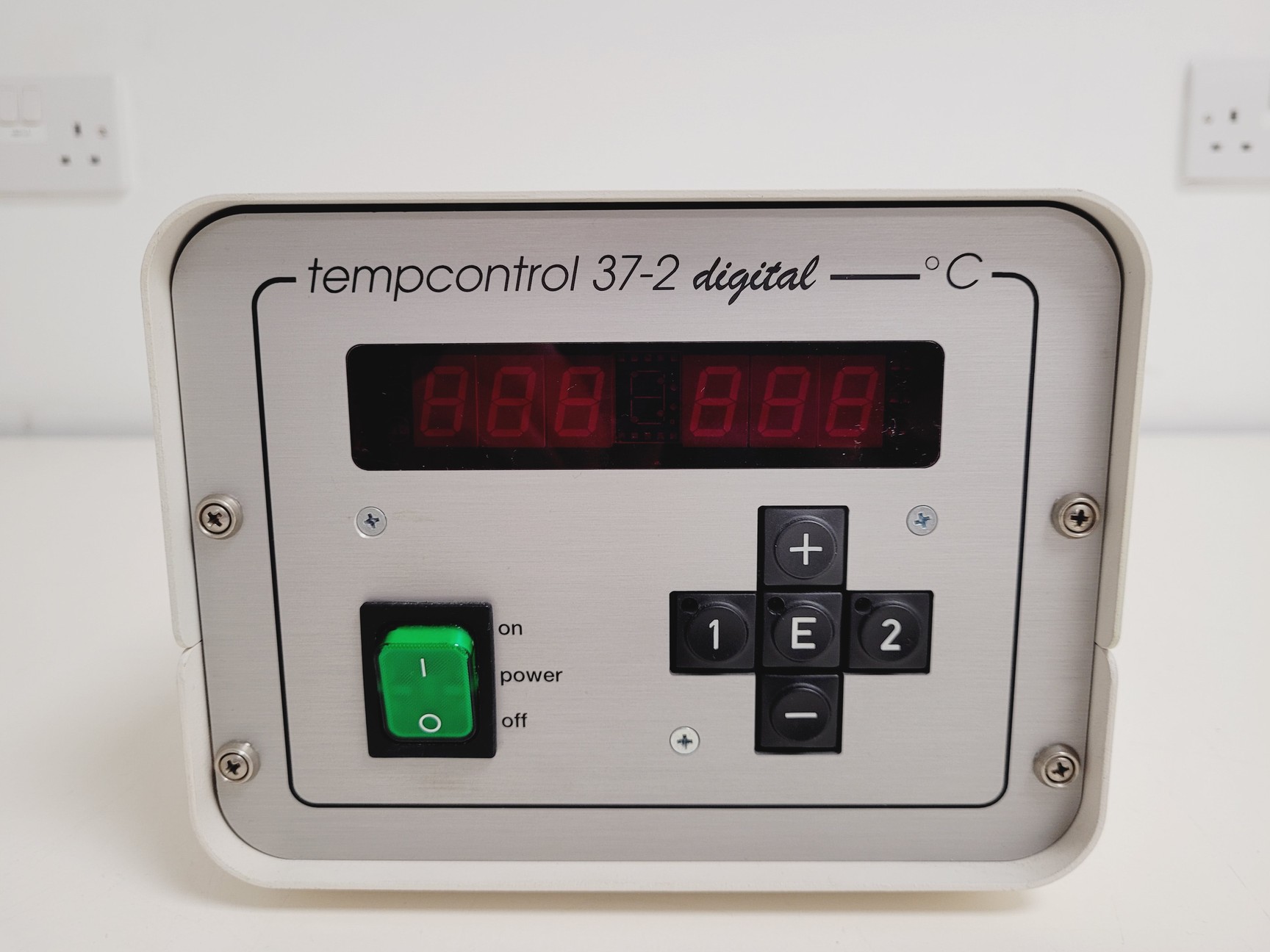

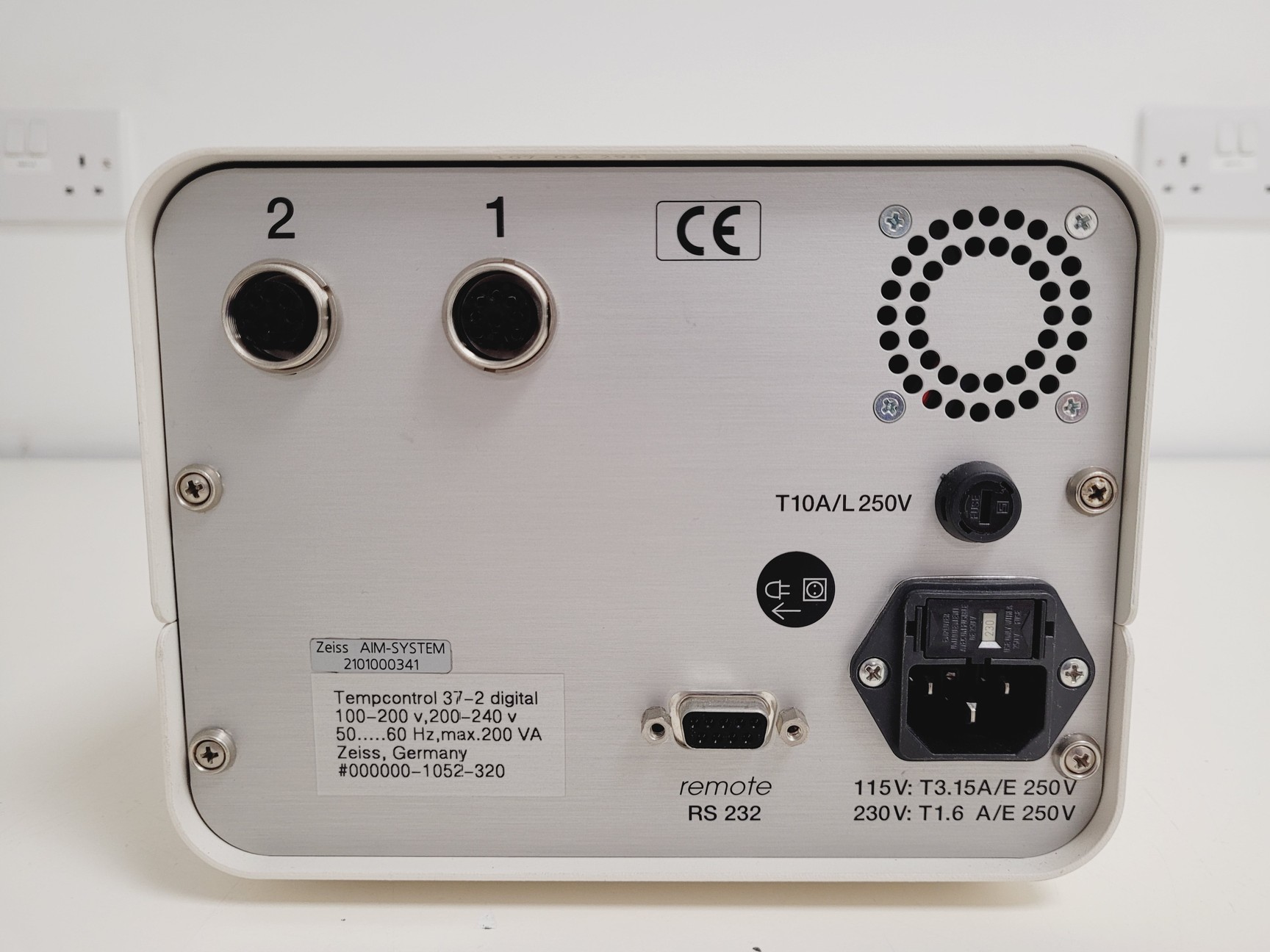

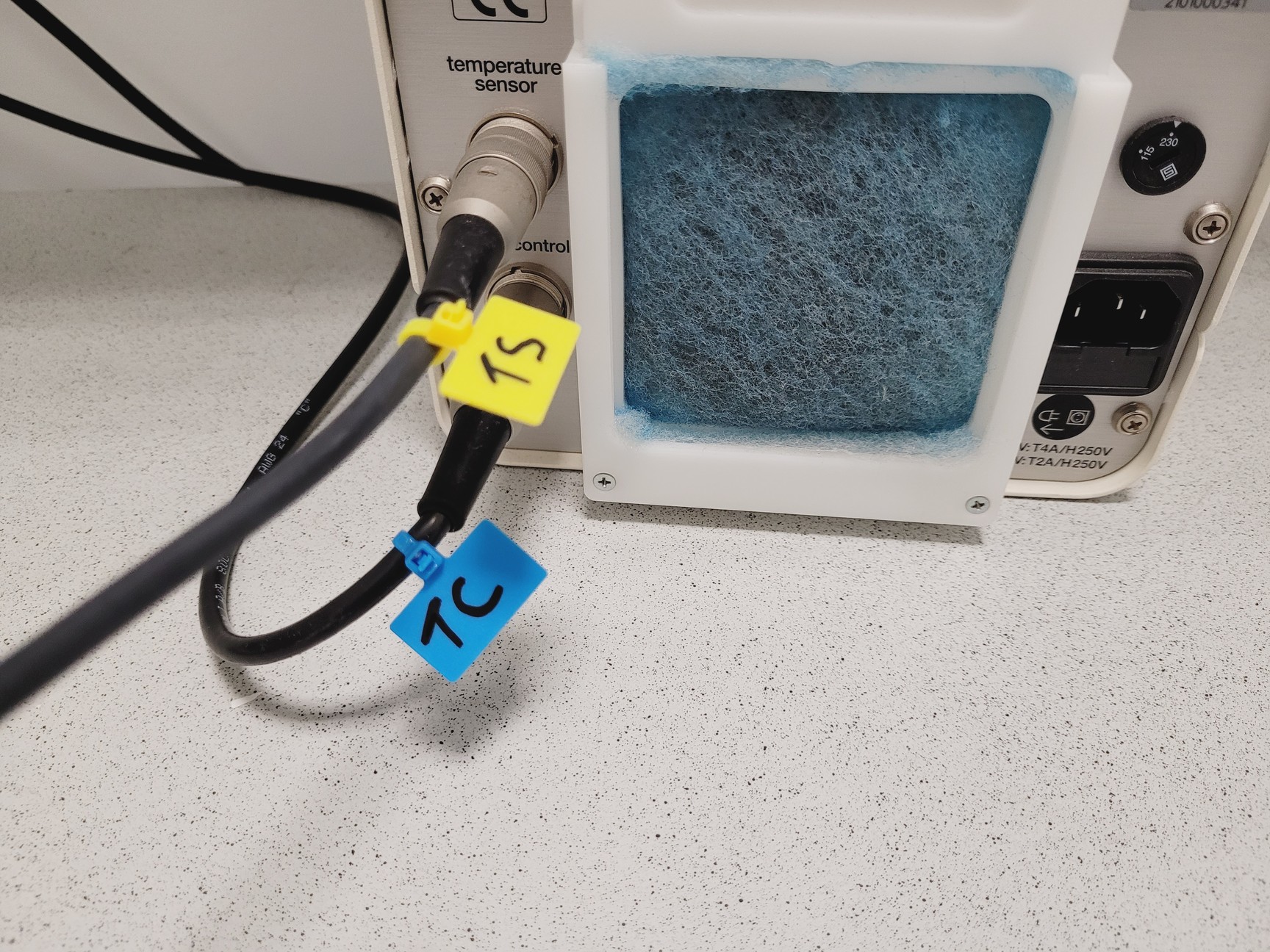

- Tempcontrol 37-2 Digital

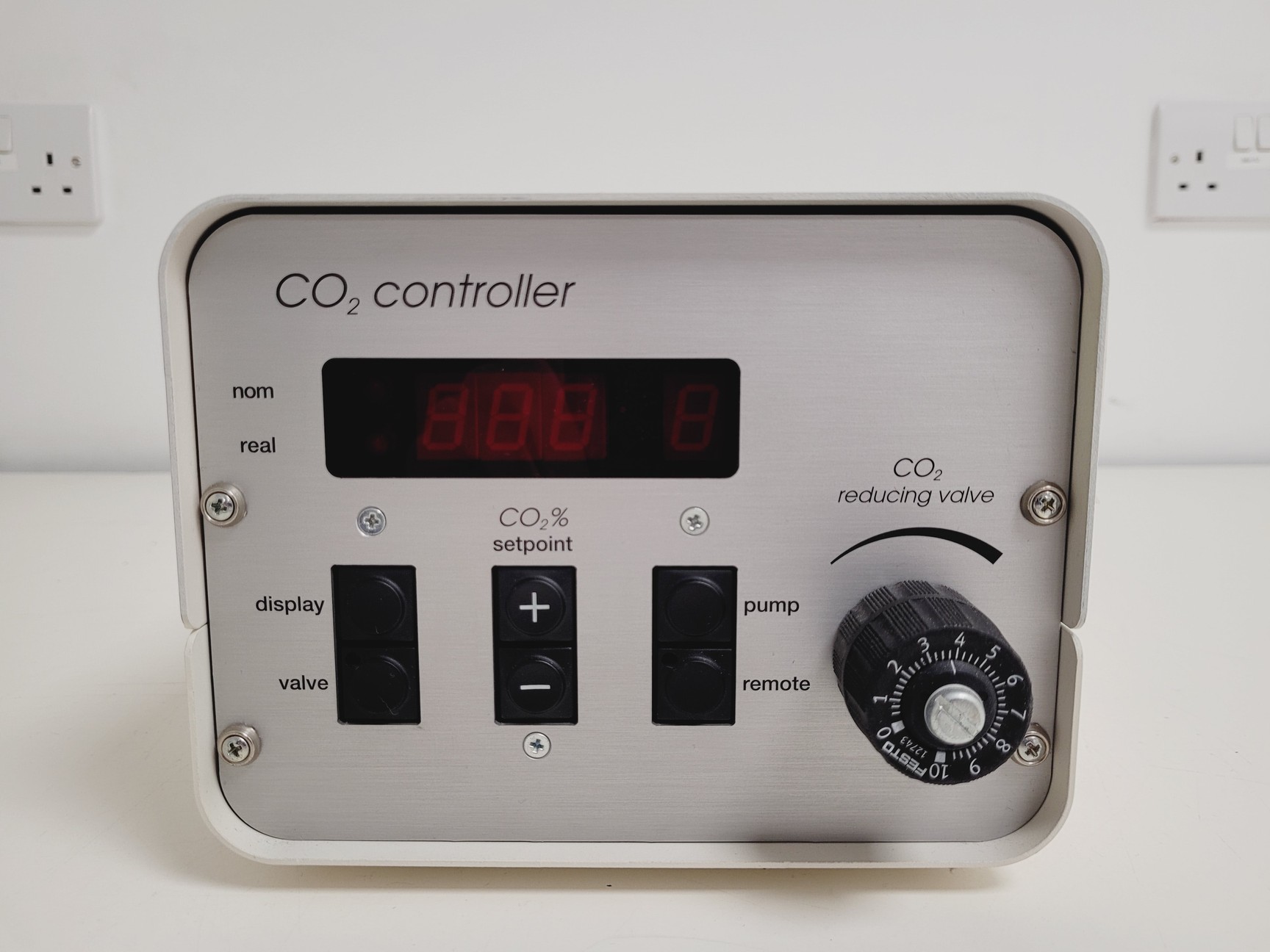

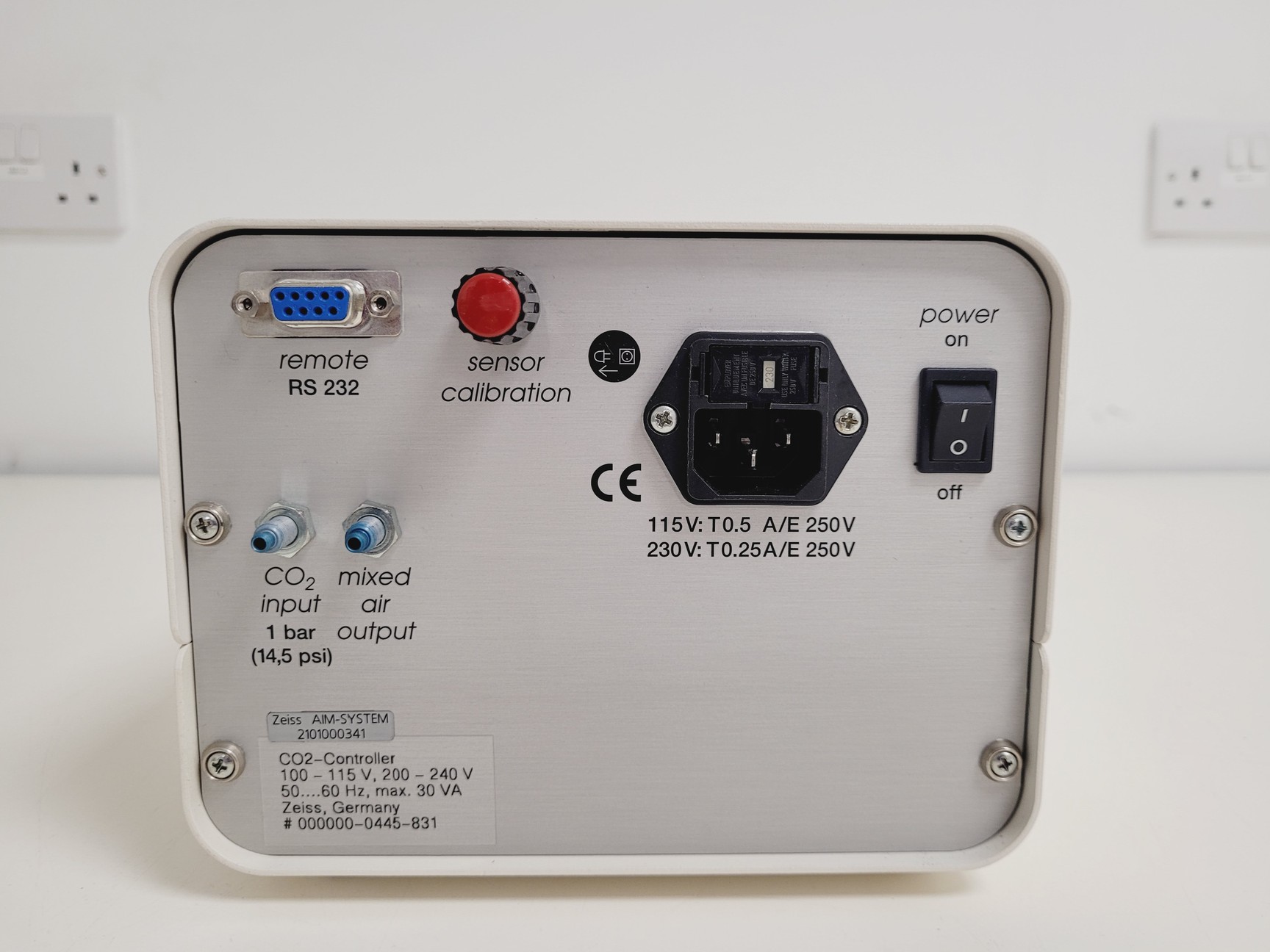

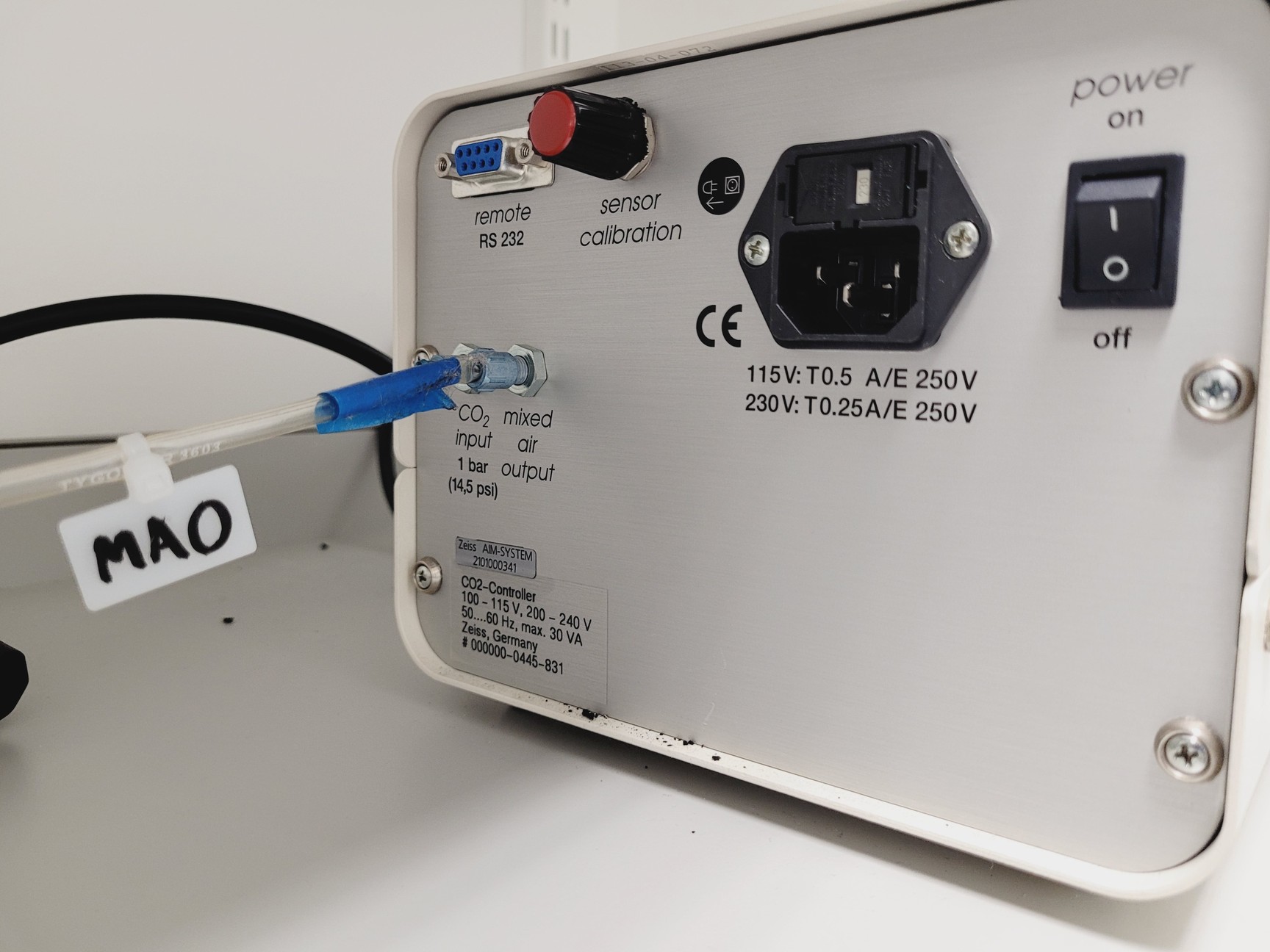

- CO₂ Controller
Computing & Software:

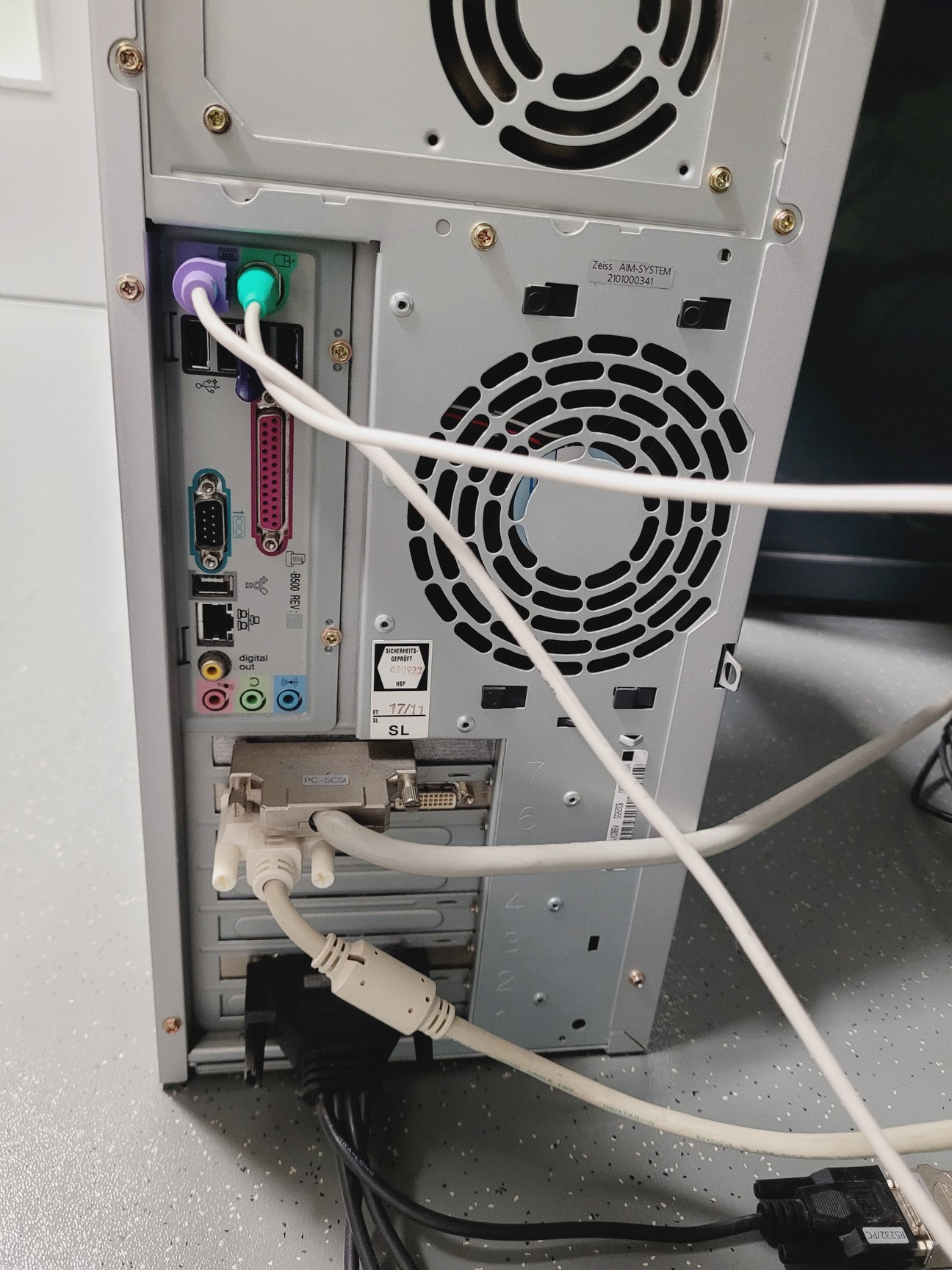

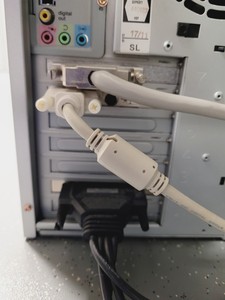

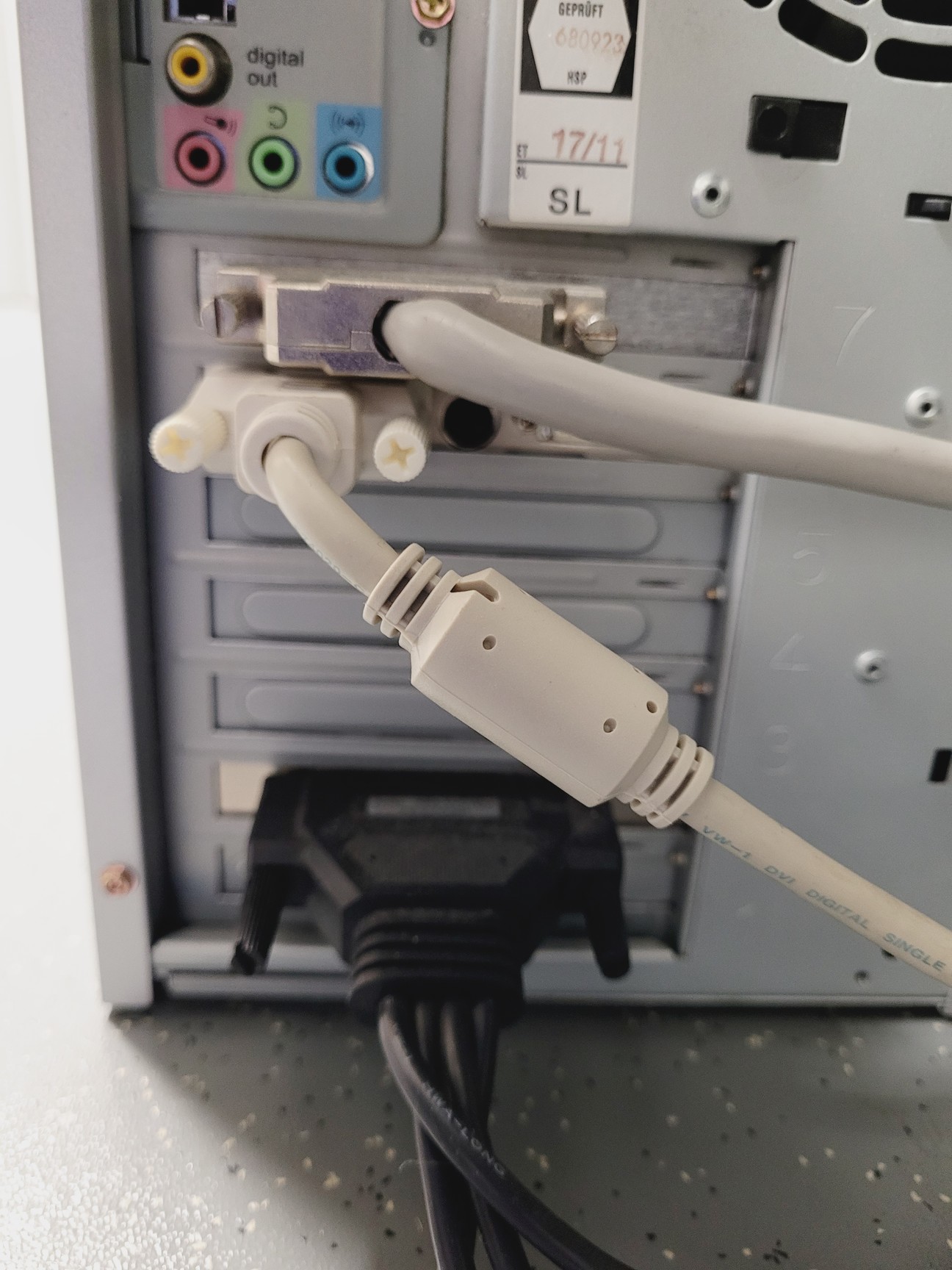

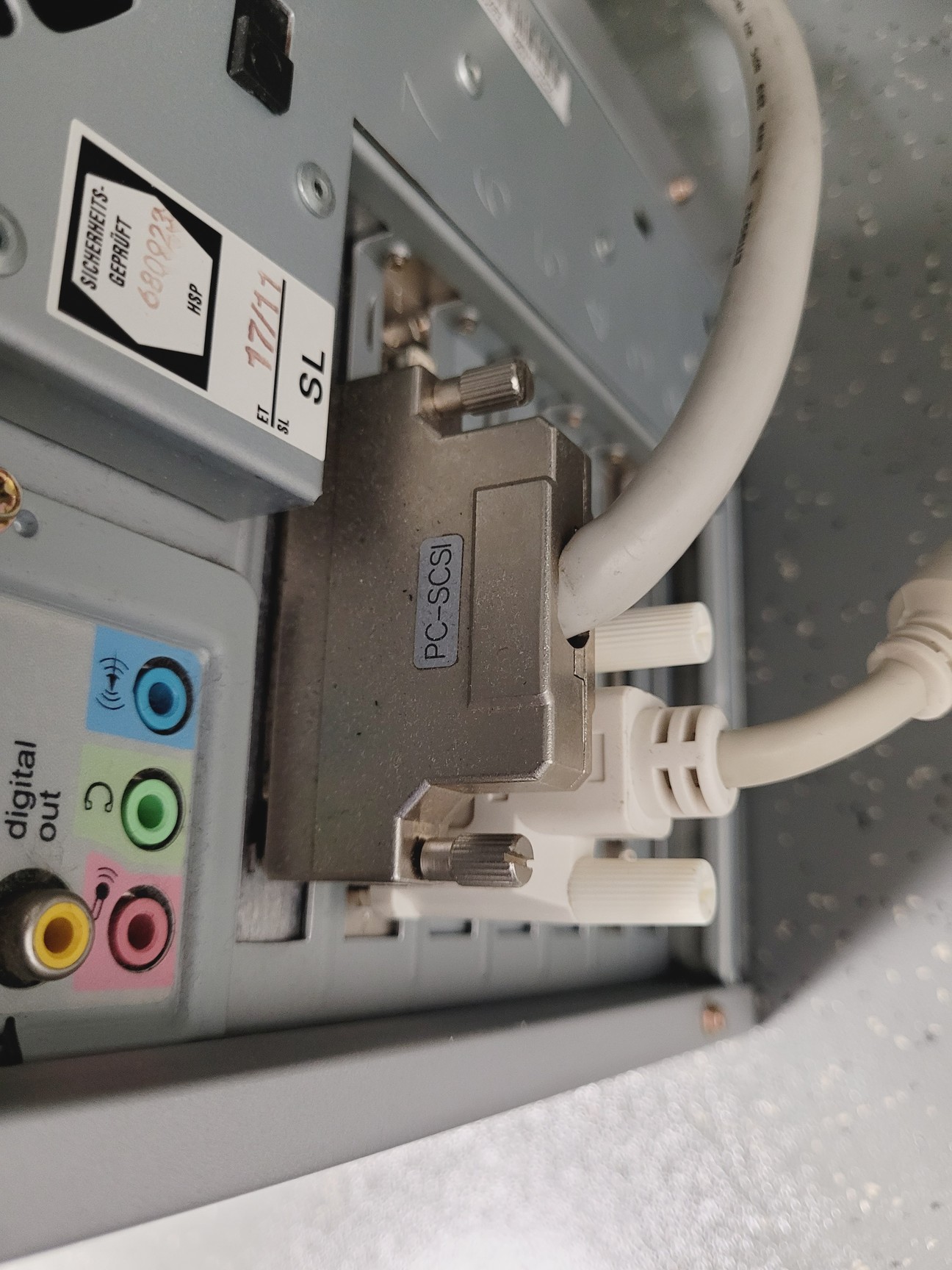

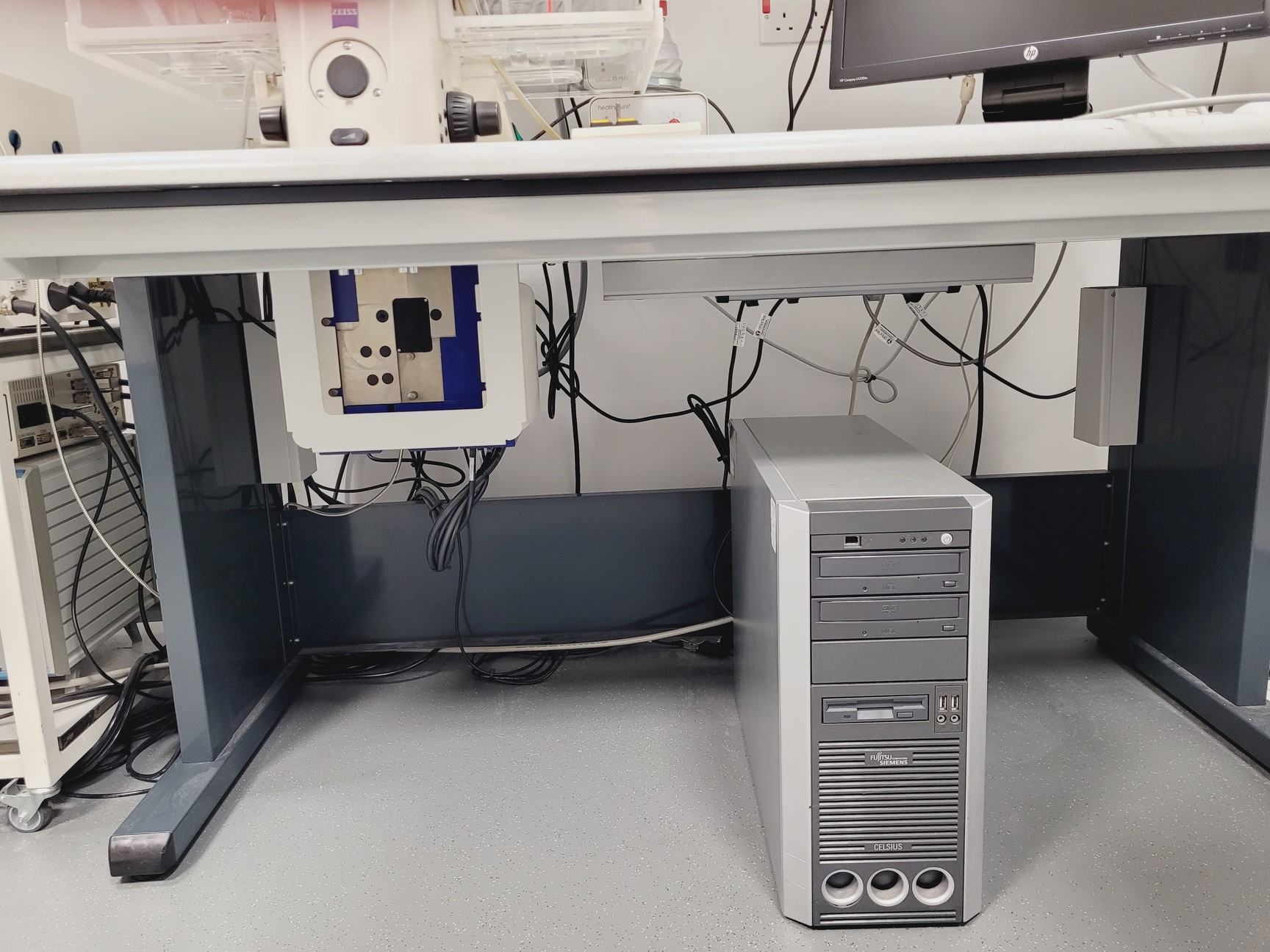

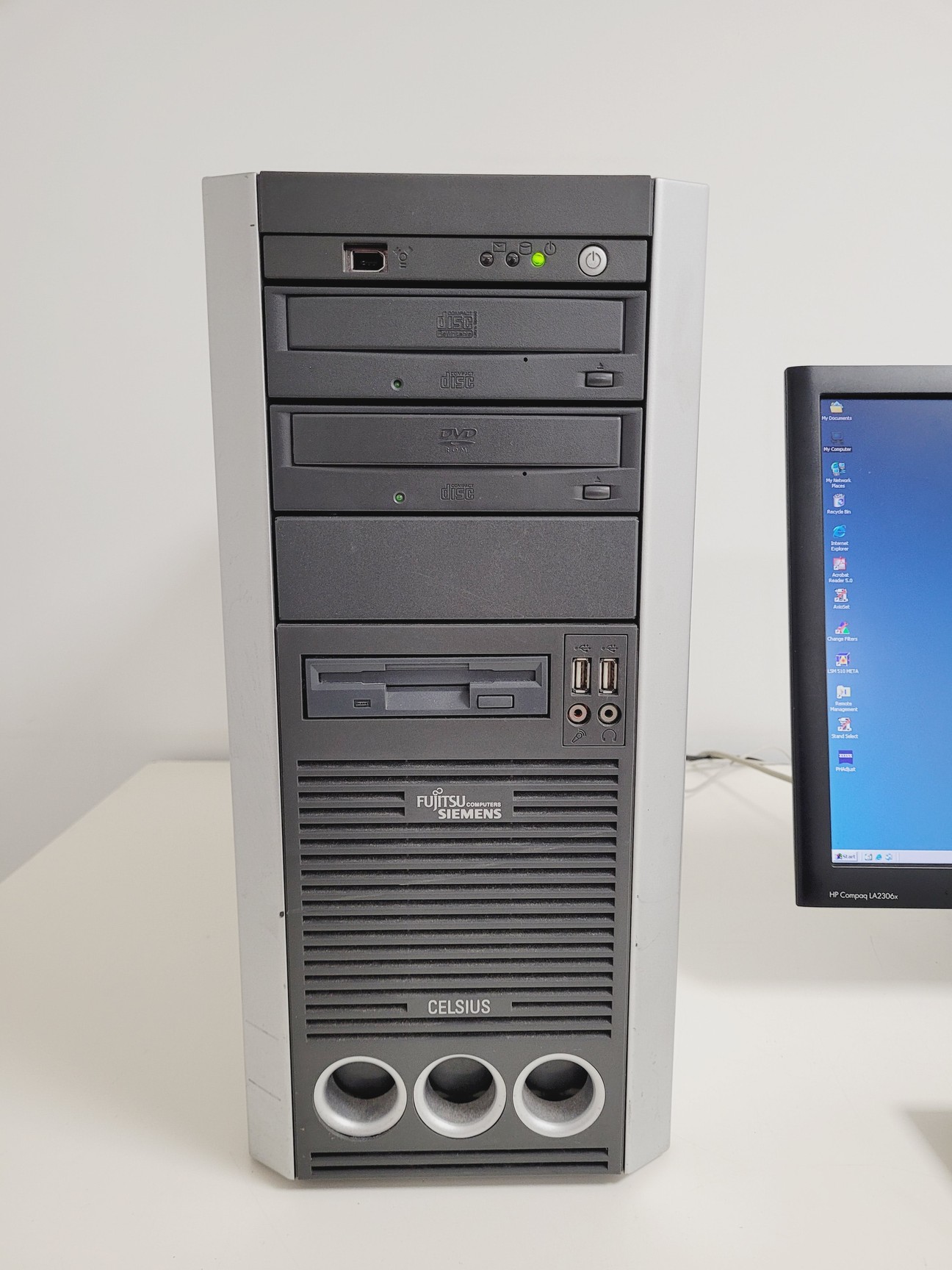

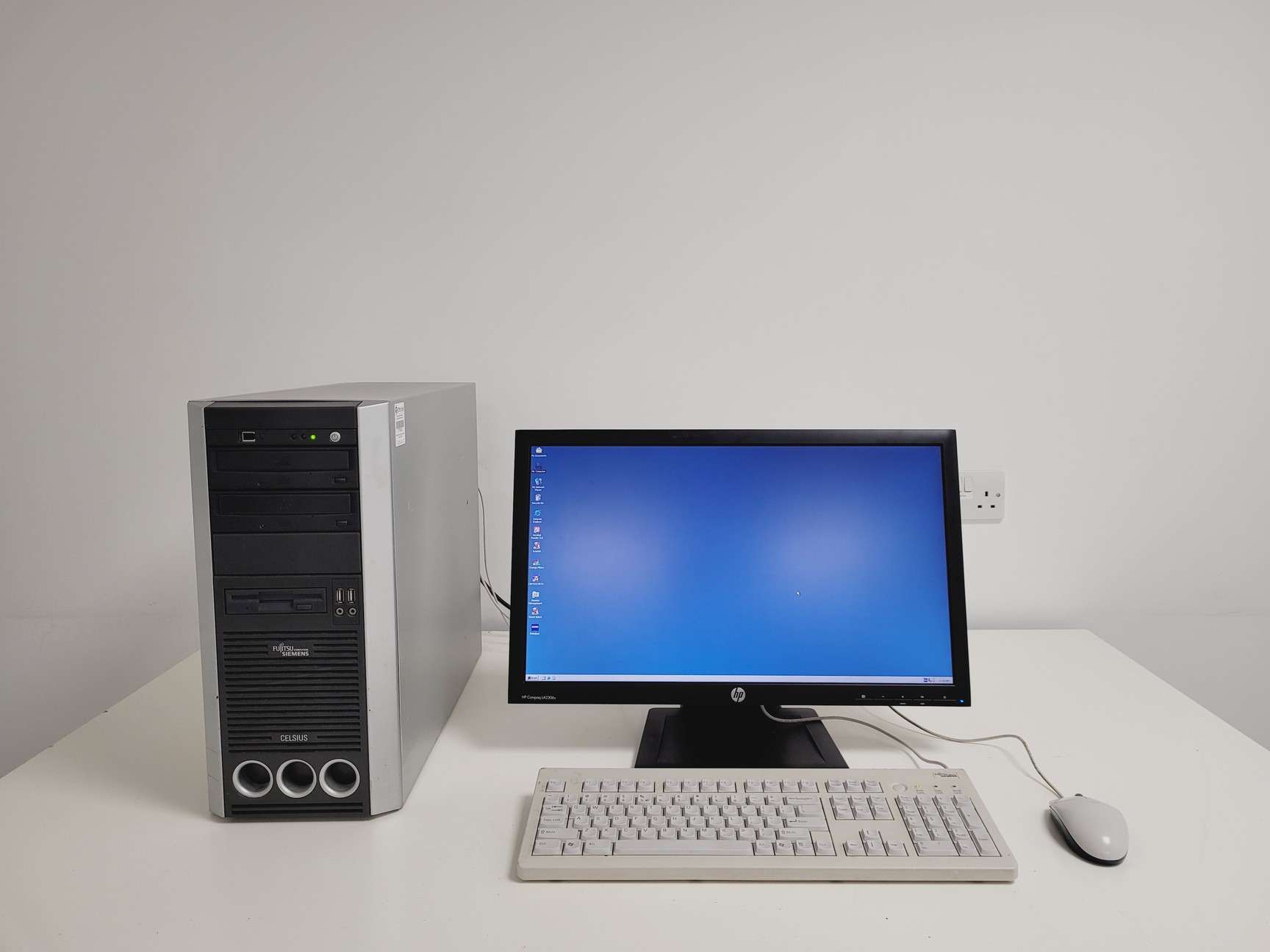

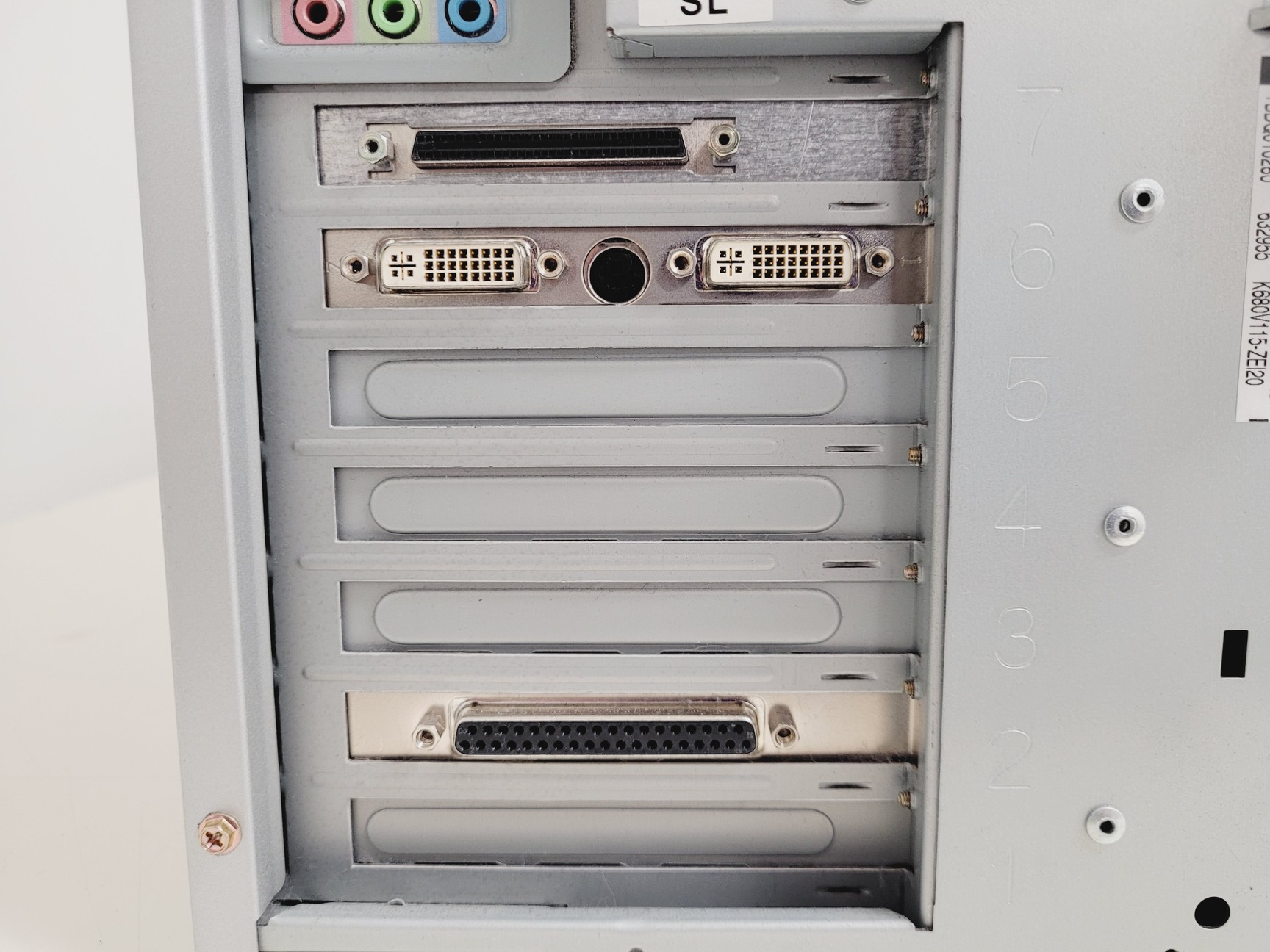

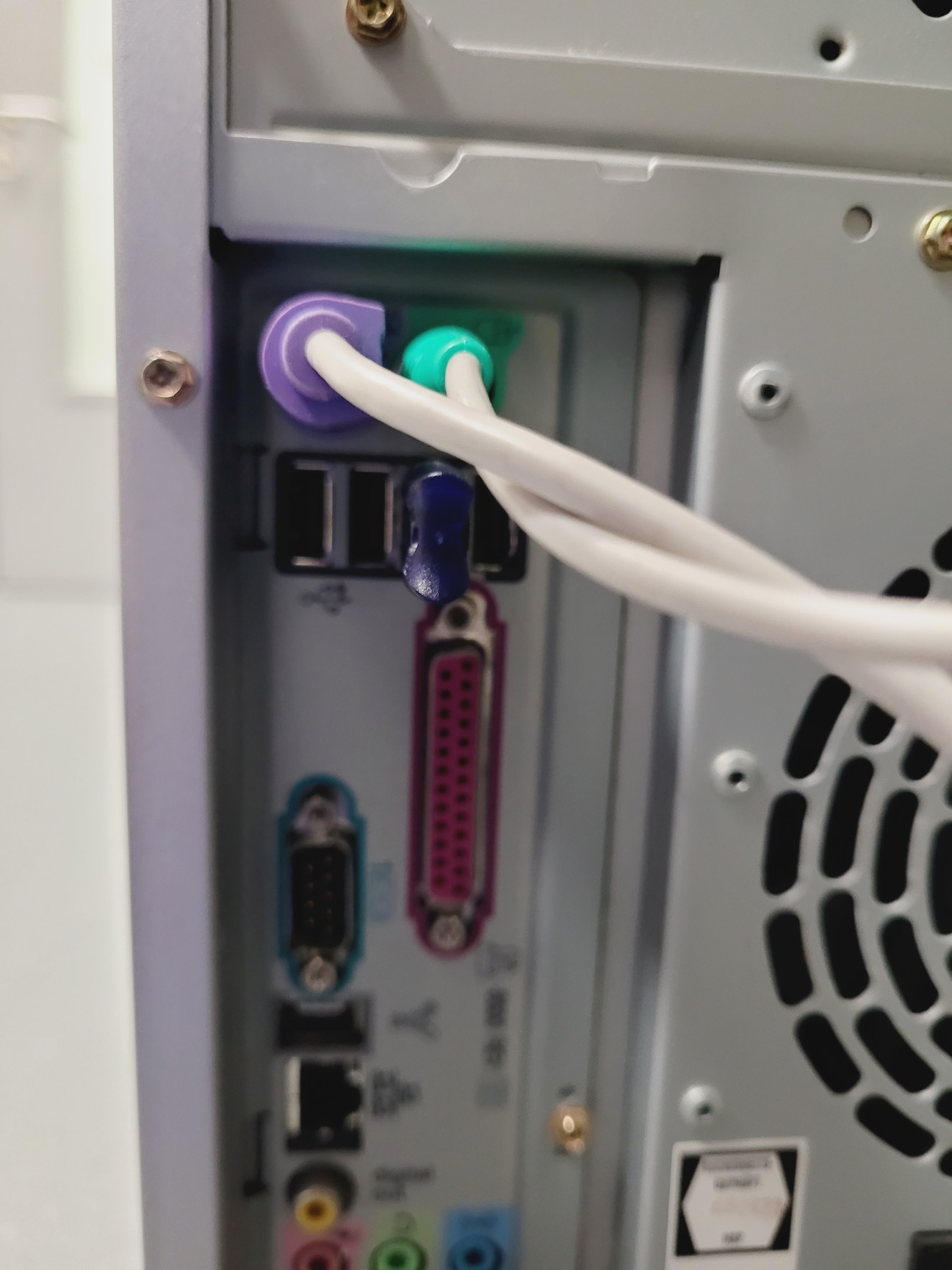

- Fujitsu Siemens Celsius PC (Windows 2000)

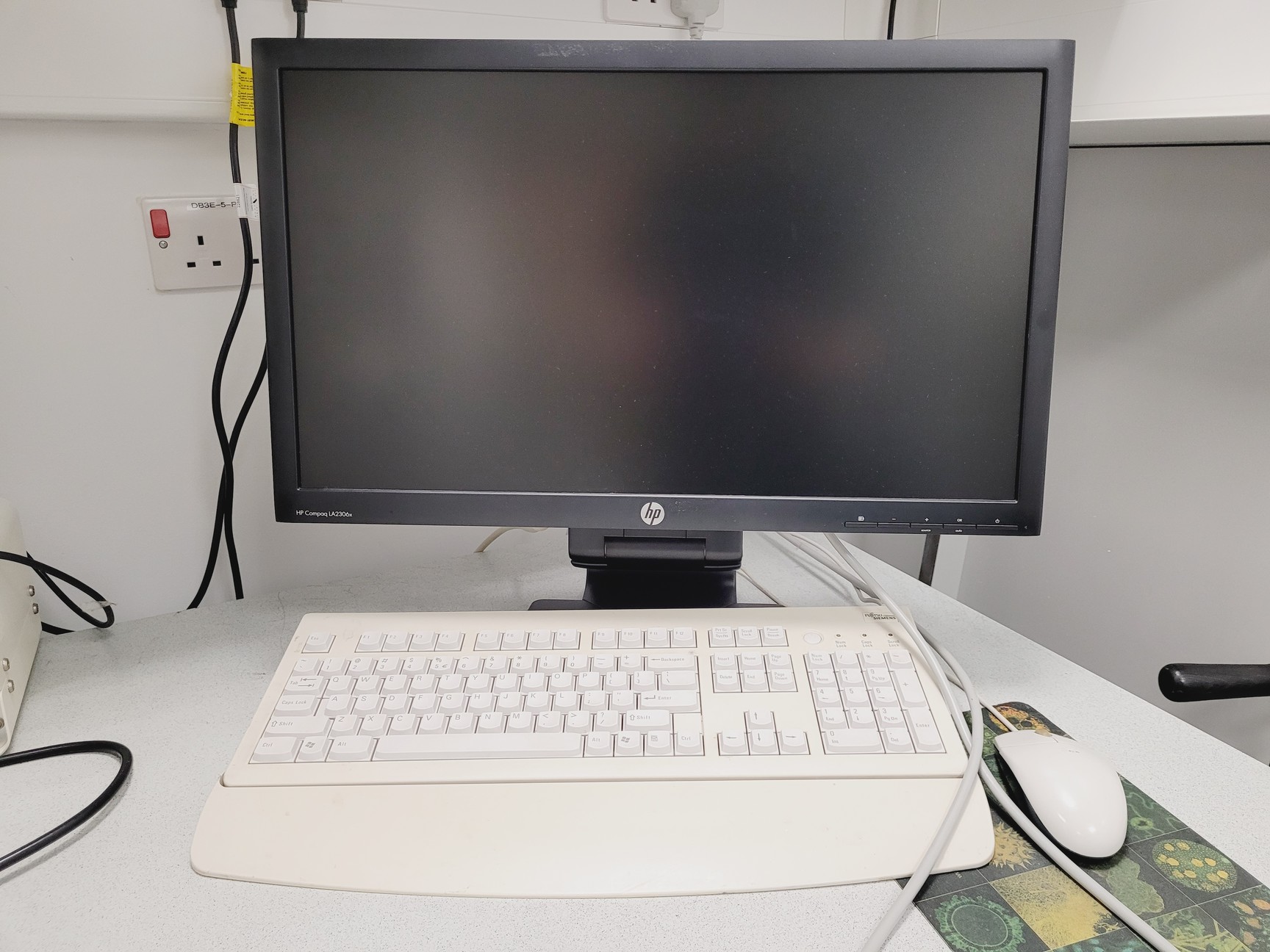

- Keyboard, monitor & mouse

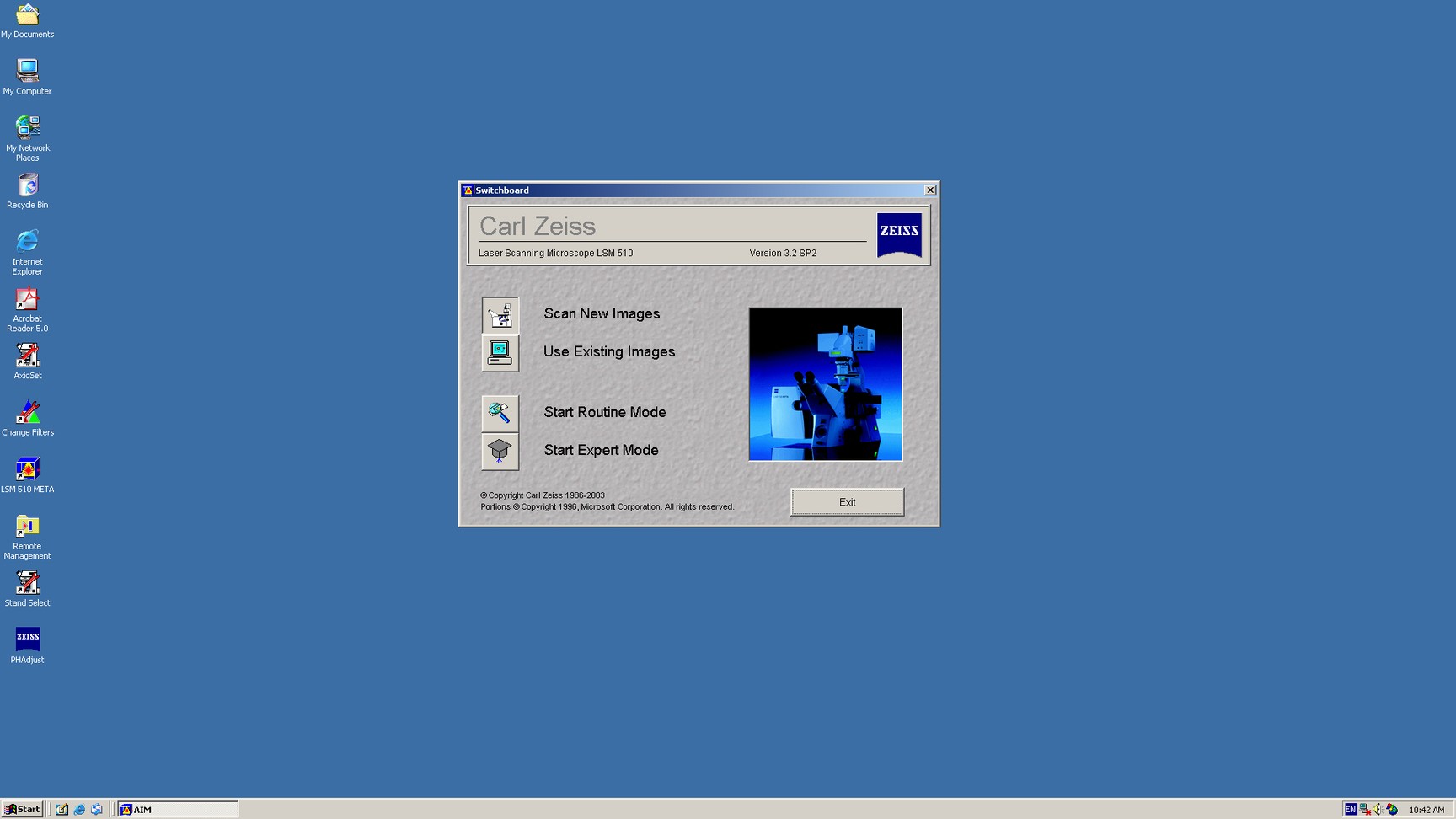

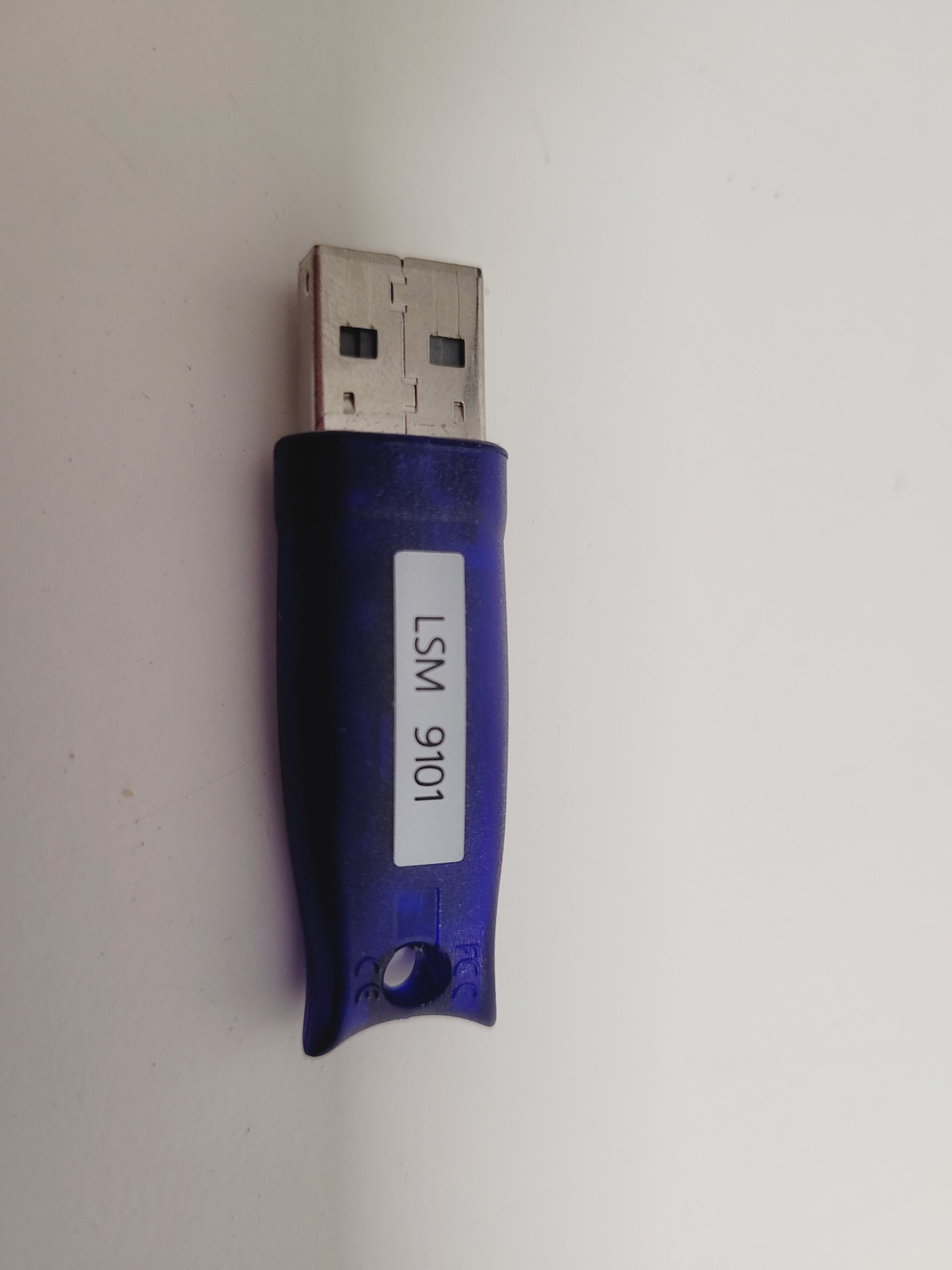

- Carl Zeiss software installed with USB license dongle
- (Note: DVD/CD drive belts require replacement)

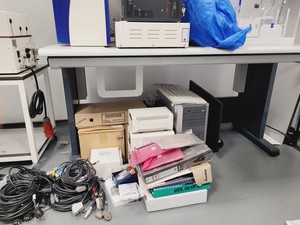

Additional:

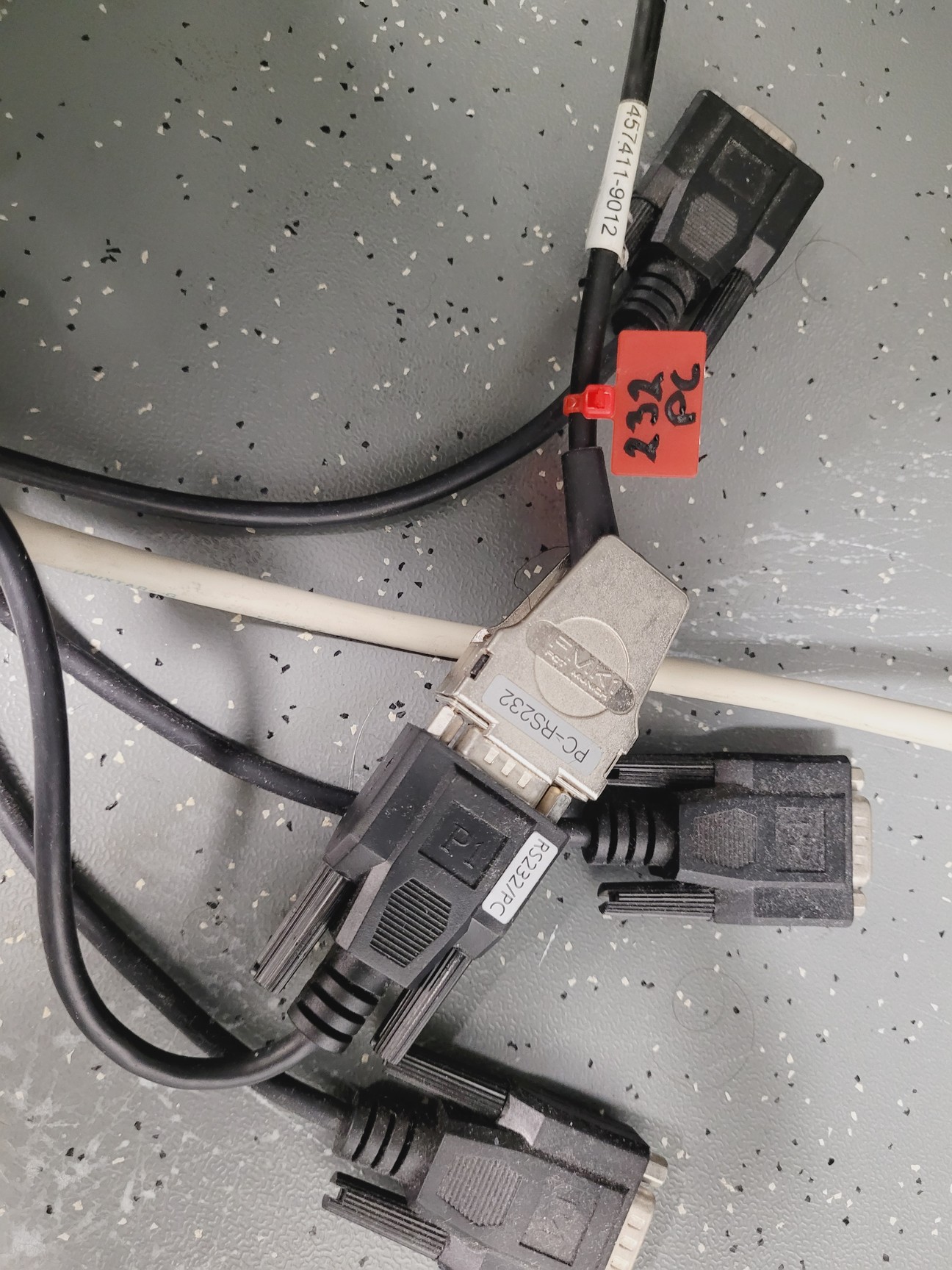

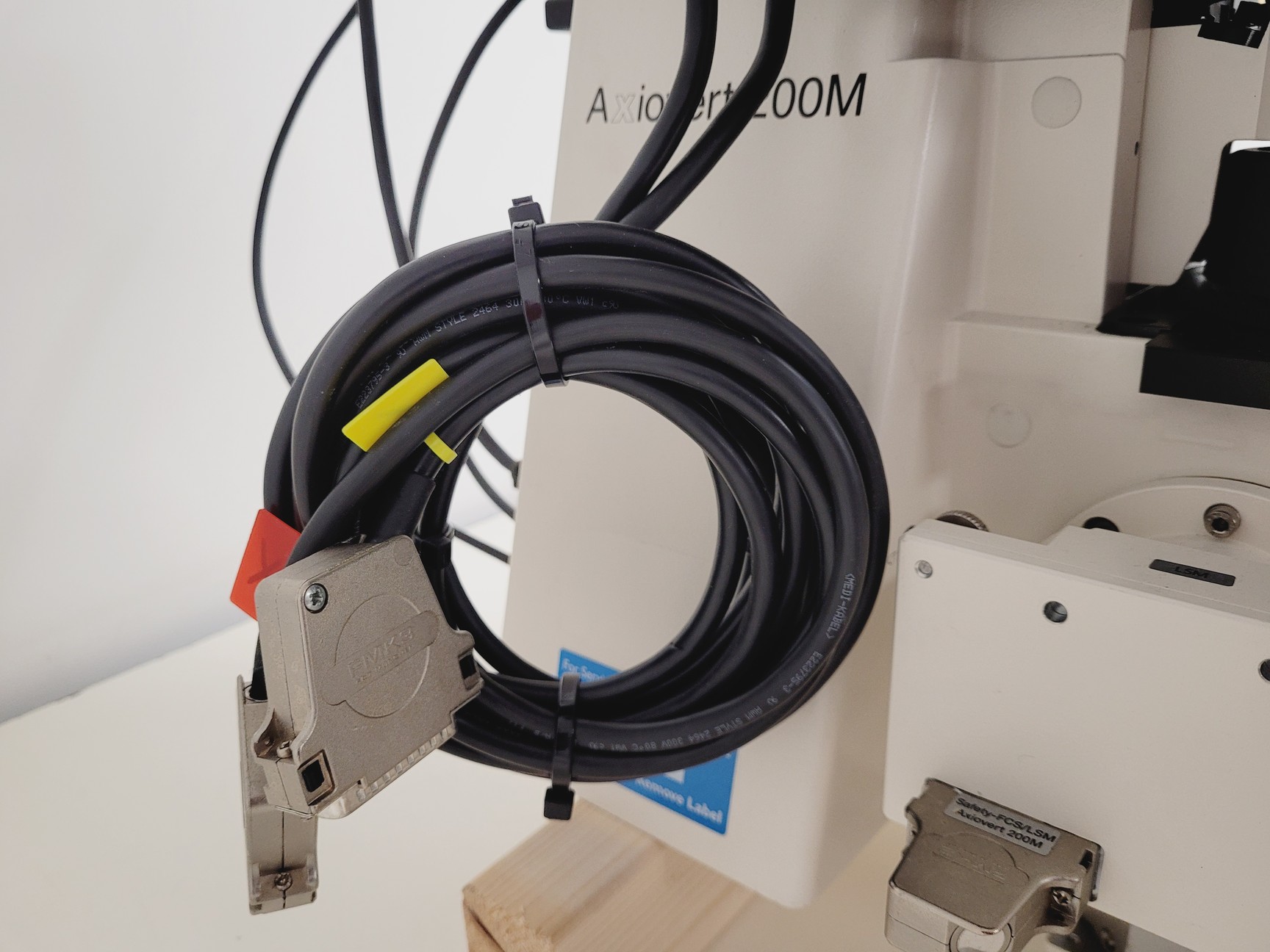

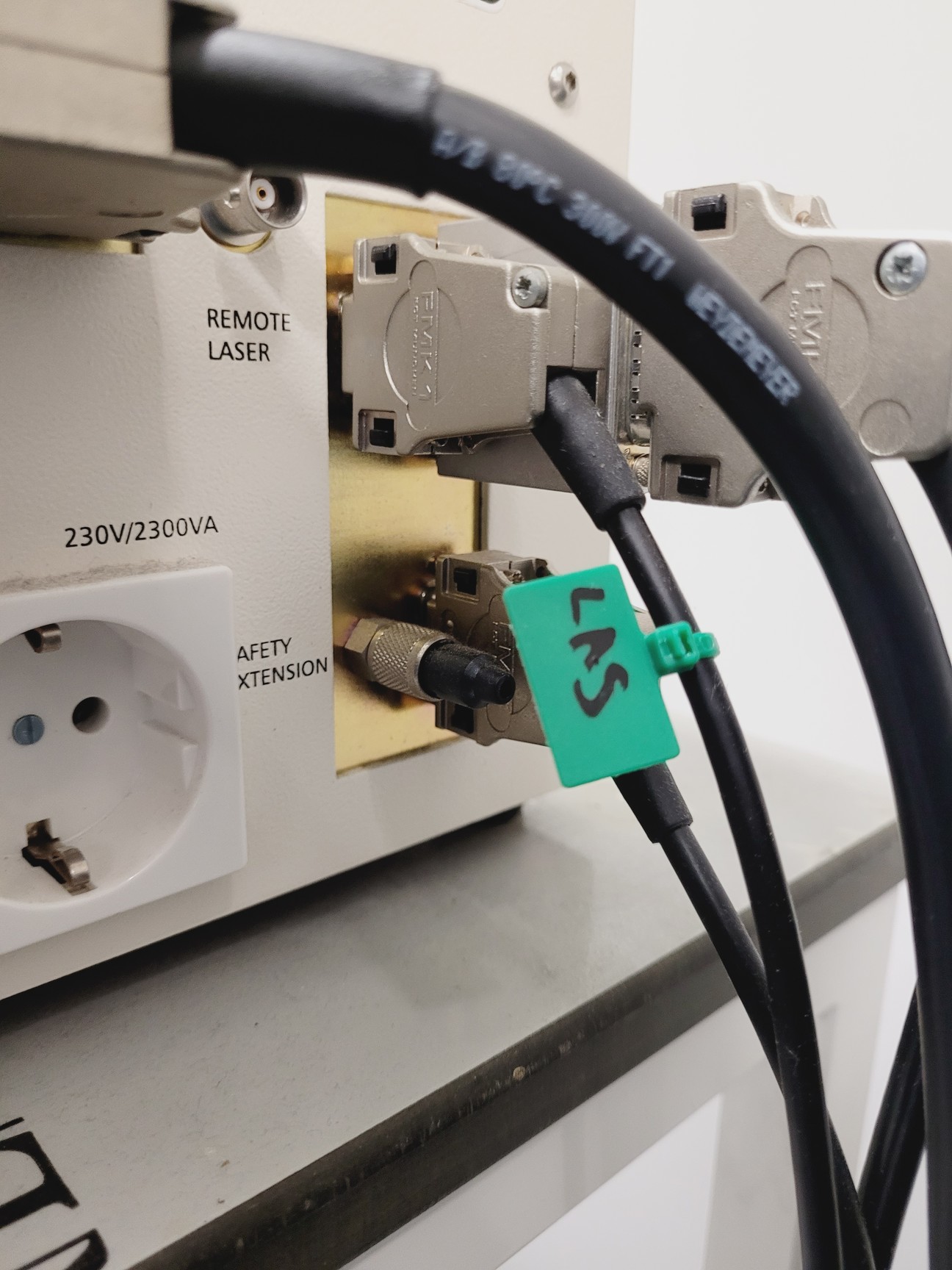

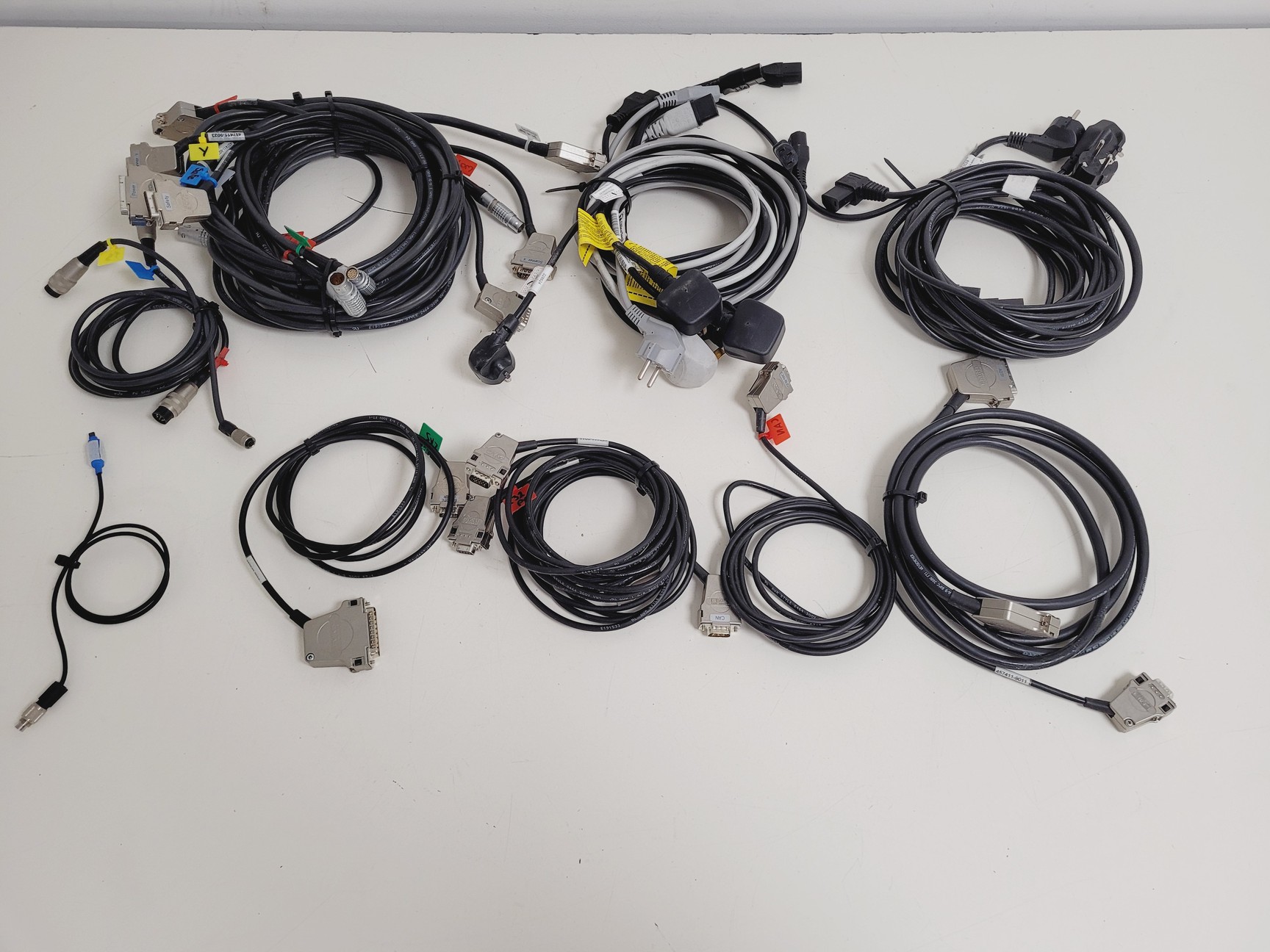

- Various connection cables
- Manuals and software discs

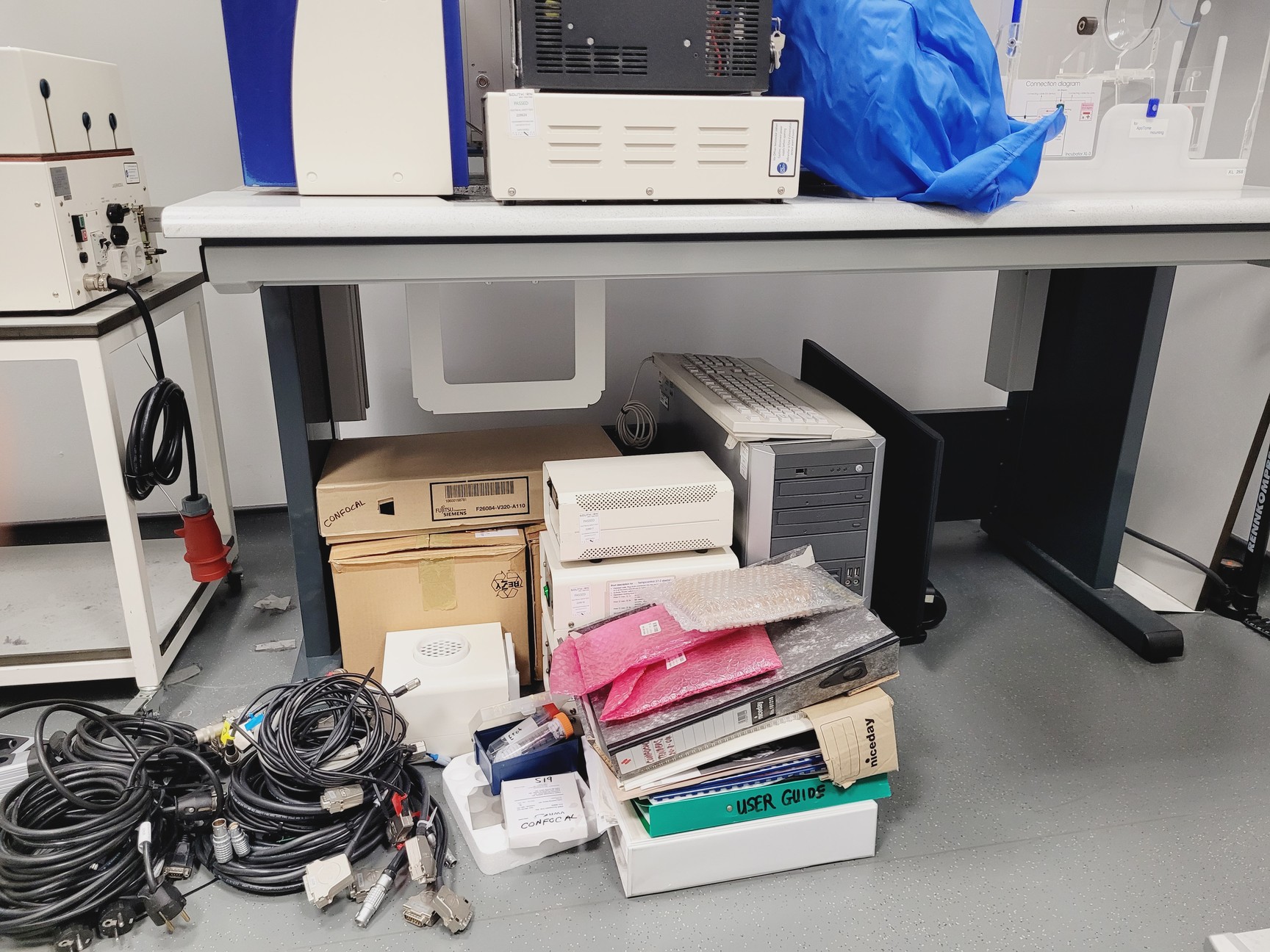

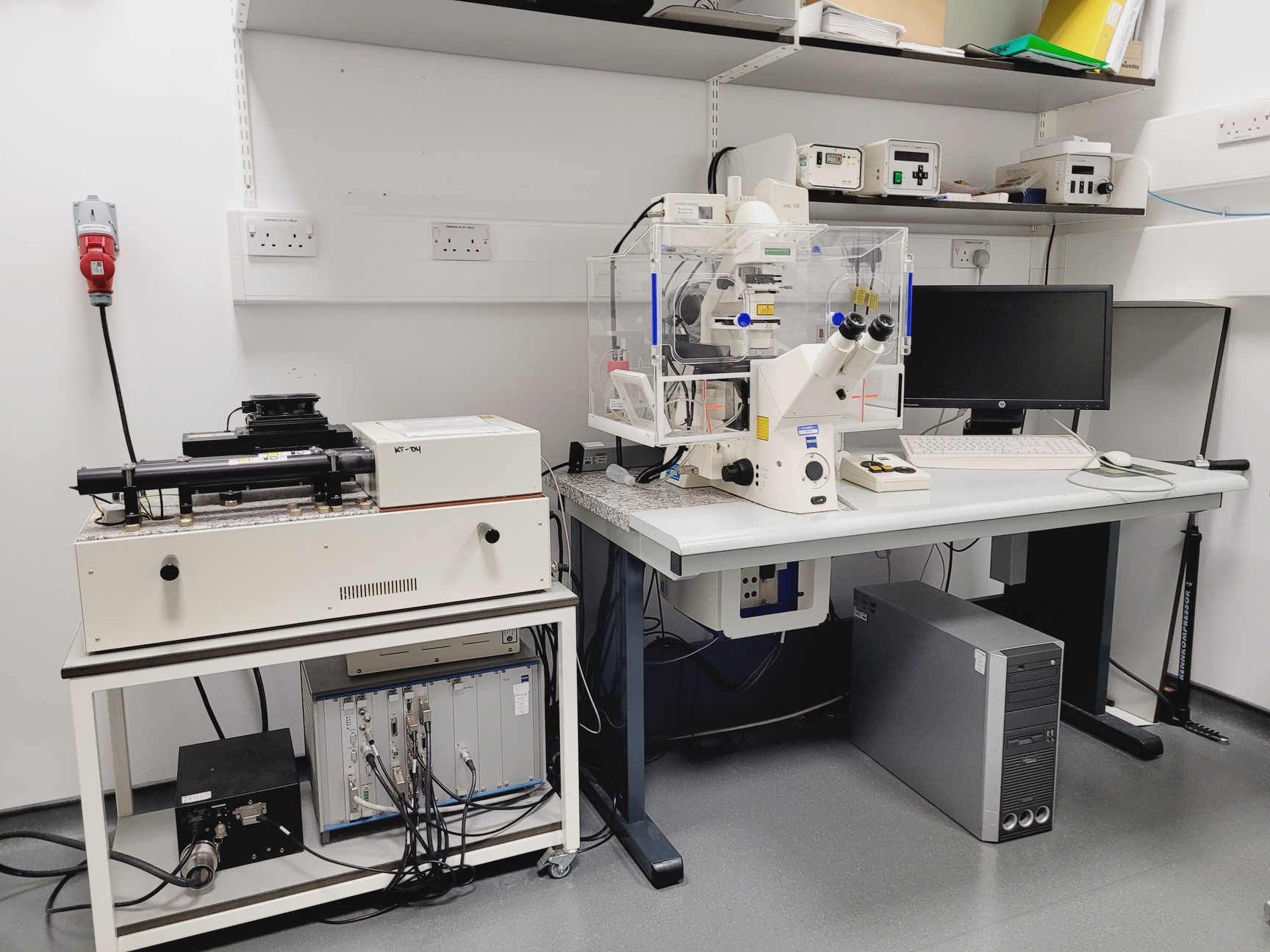

Please note: The main table shown in images is not included, though a suitable alternative may be available separately.
Item Details
Item external dimensions (L×W×H):
72 cm × 33 cm × 77 cm
Item weight: 30.0 kg
| Property | Value | Tested value |
|---|---|---|
| Contains Laser | Yes | |
| Laser Classification | Class III | |
| PAT Test | ||
| Powers On | N/A | Yes |
| Electrical Supply | N/A | 1-Phase |
| Plug Included? (1-Phase) | N/A | Yes - Standard UK 3-Pin Mains Plug (BS 1363) |
| PAT Test Result | N/A | Pass |
| Voltage | N/A | 240V |
| PAT Test Date | N/A | 30-04-2026 |
| Recertification Initial Checks | ||
| Overall Cosmetic Condition | N/A | Good |
| Safety Features | ||
| Emergency Stop Safety Check | N/A | N/A |
| Service Details | ||
| Last Service Date | N/A | 16/04/14 |
