Zeiss LSM710 Confocal Microscope with Elyra PS.1 SIM, PALM & STORM Lab
Item Code: ITEM-47314
Condition: Recertified
Brand: ZEISS
Location: Wales
£ POA
SOLD - Unfortunately this item is no longer available. However, we may have similar items available for sale. Please get in touch with us at , or by phone on +44 29 2086 4661.
Description

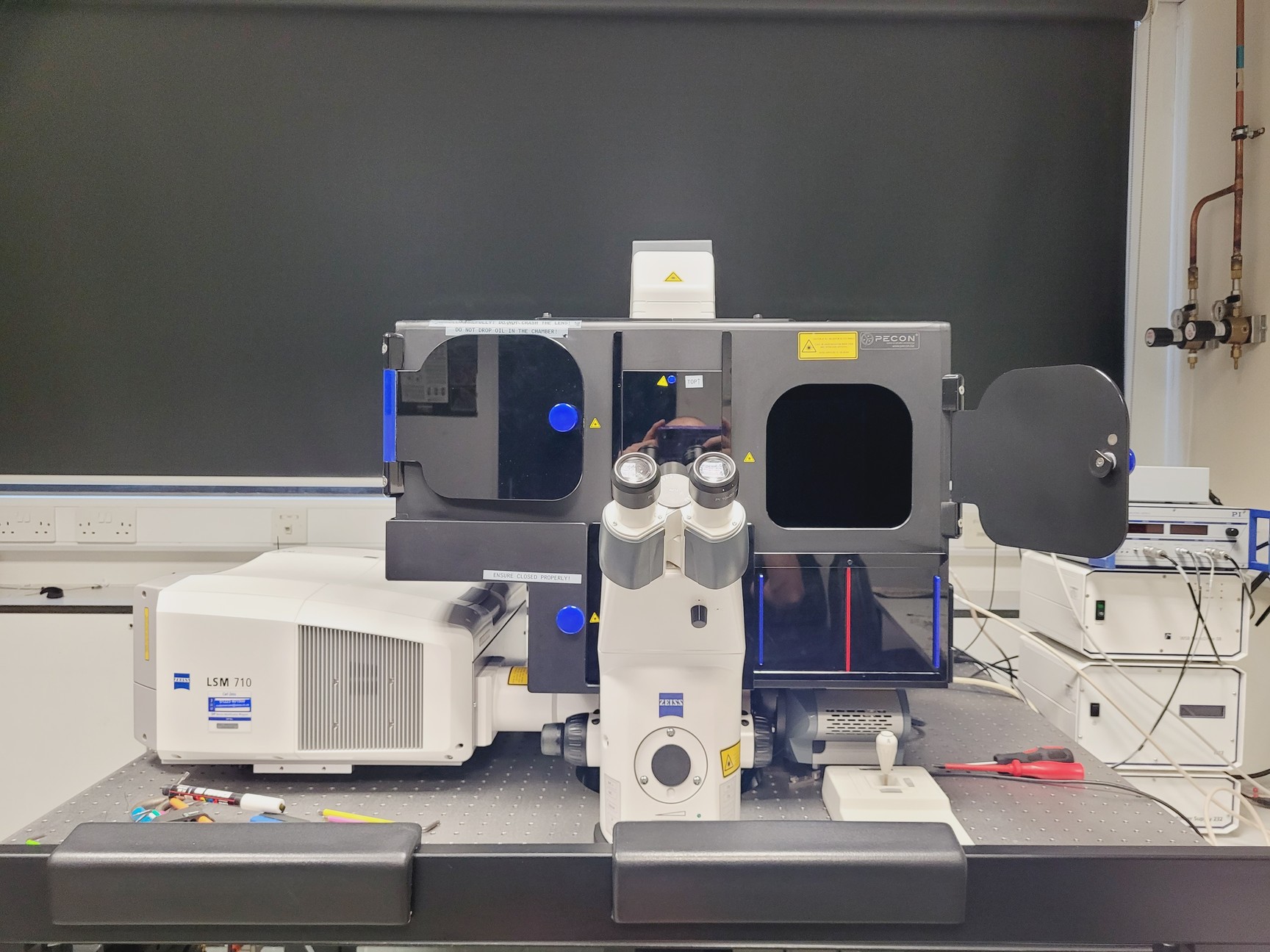

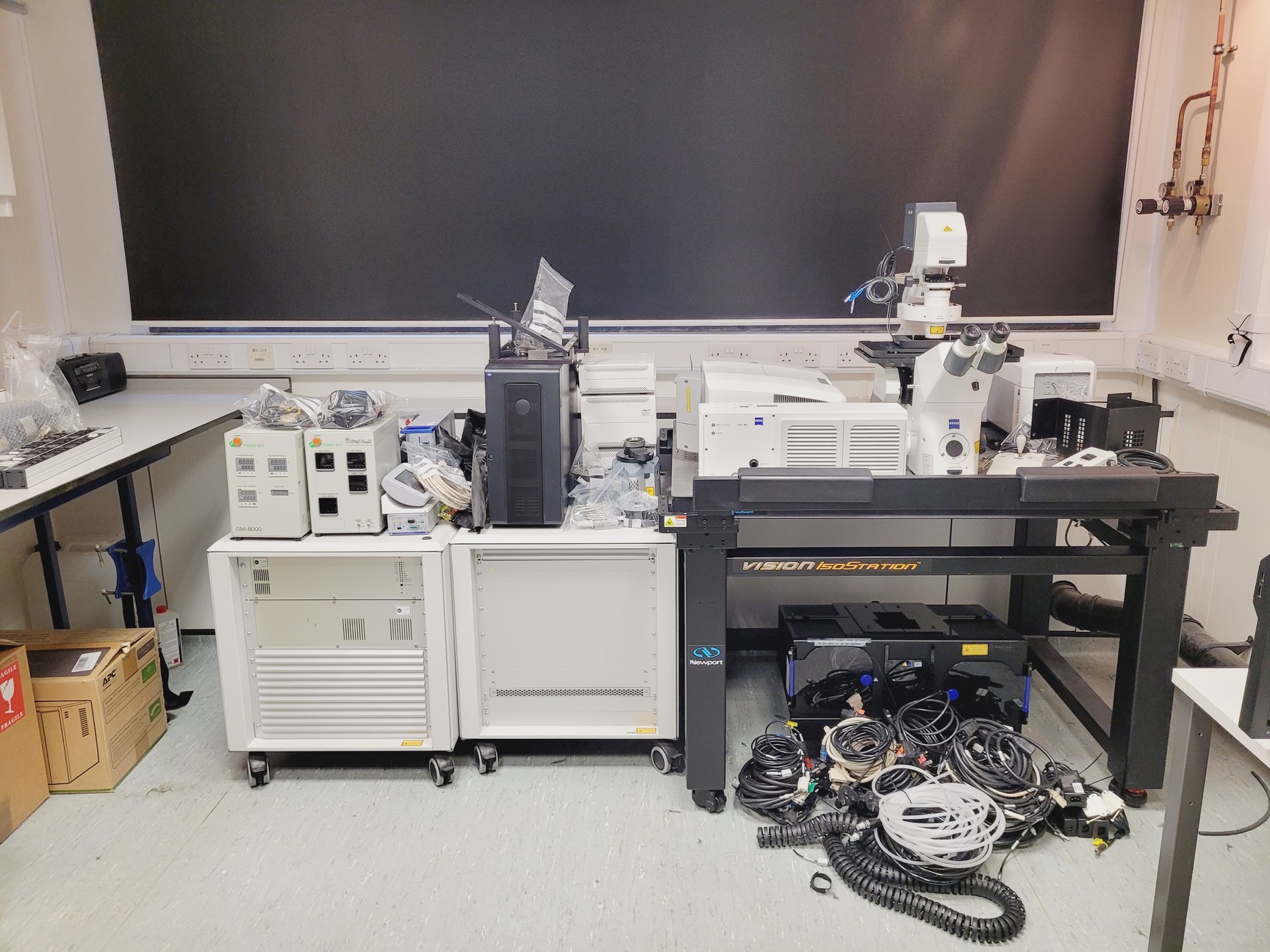

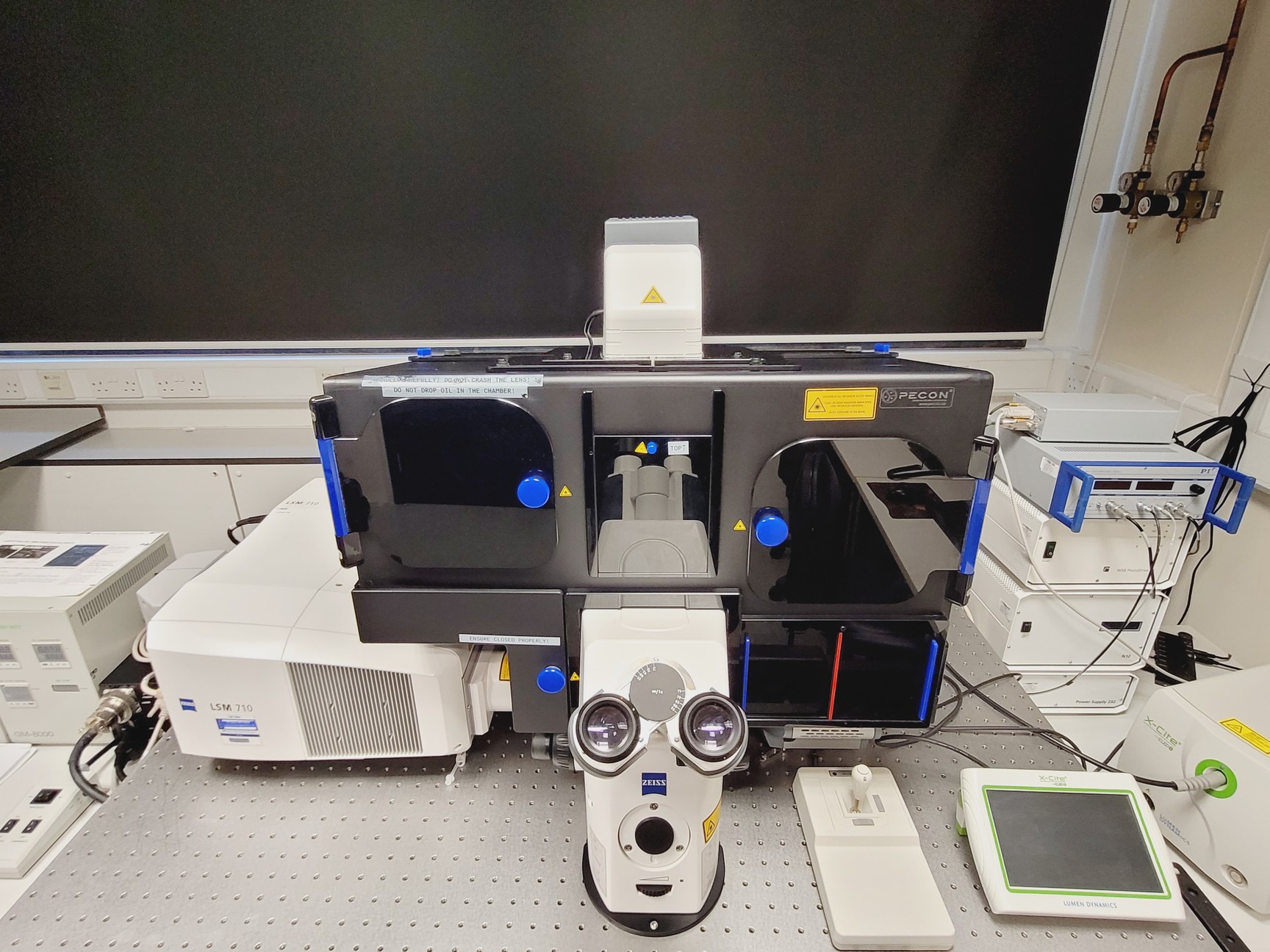

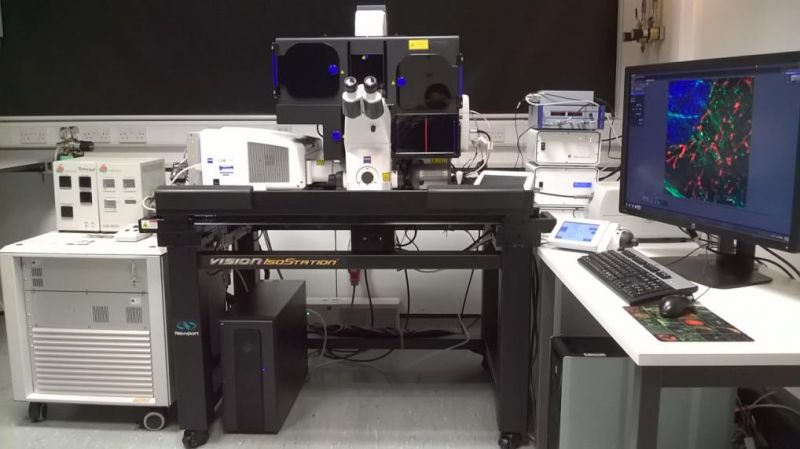

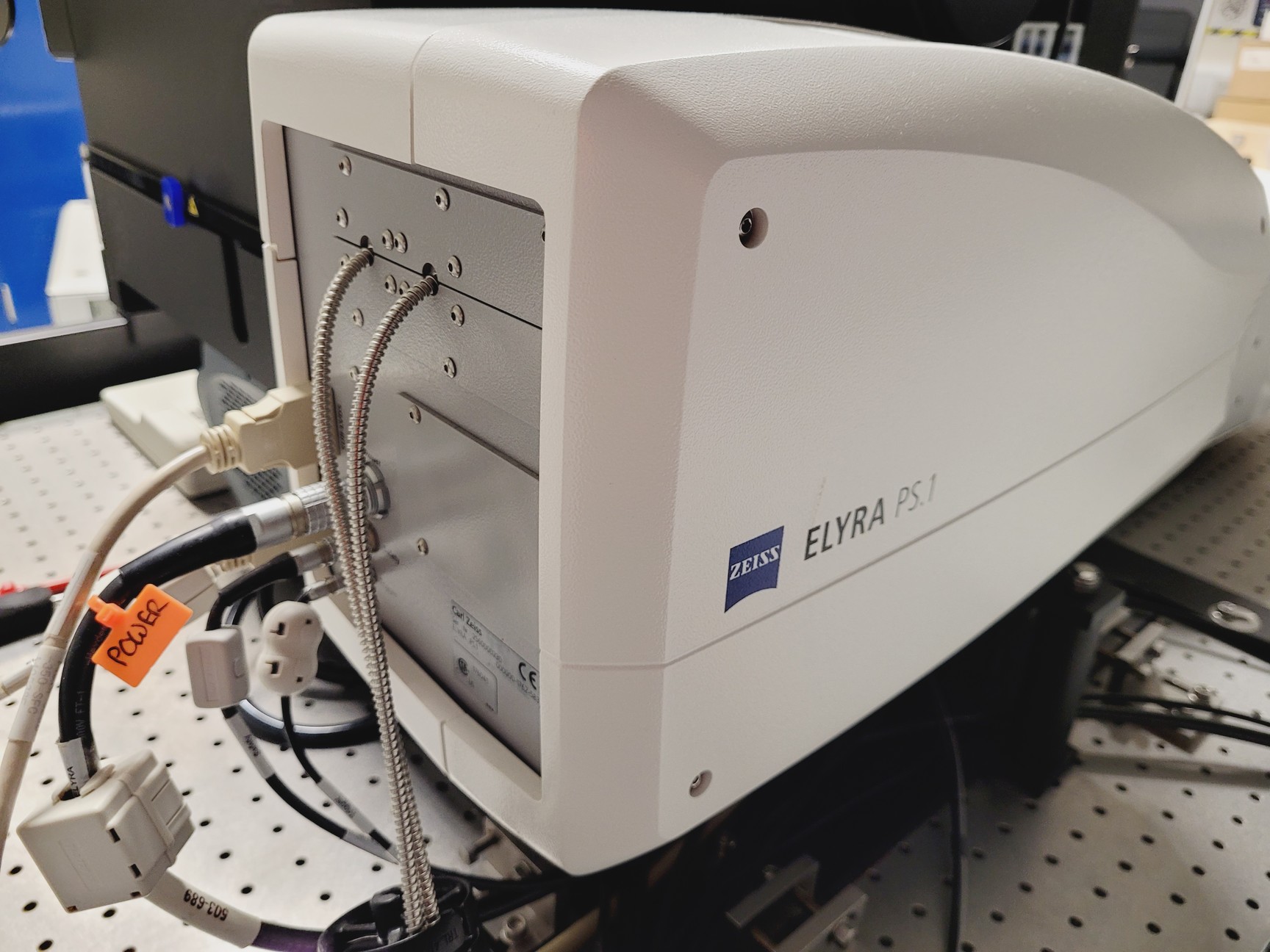

Zeiss LSM 710 Confocal with Elyra PS.1 Super-Resolution Microscope

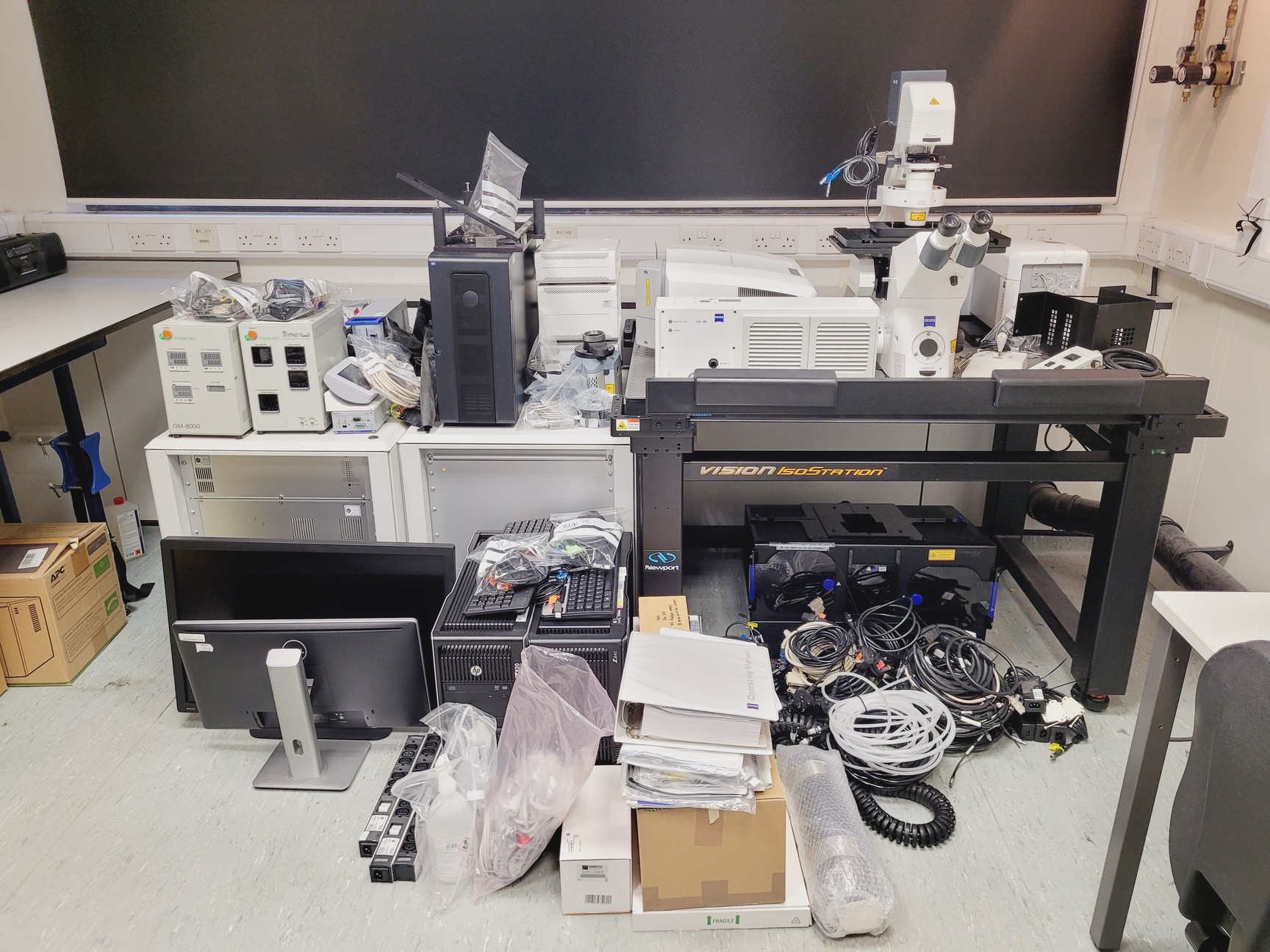

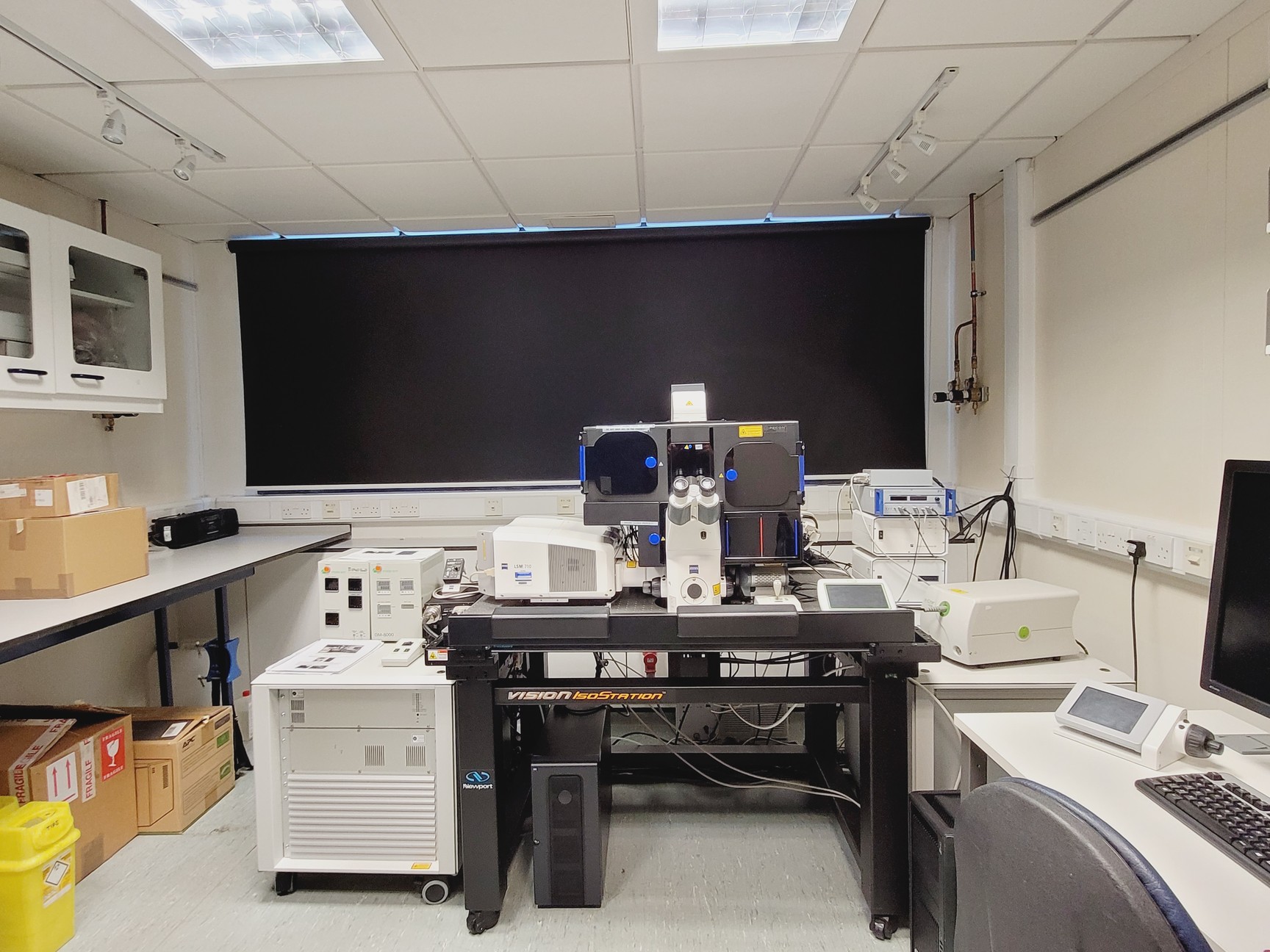

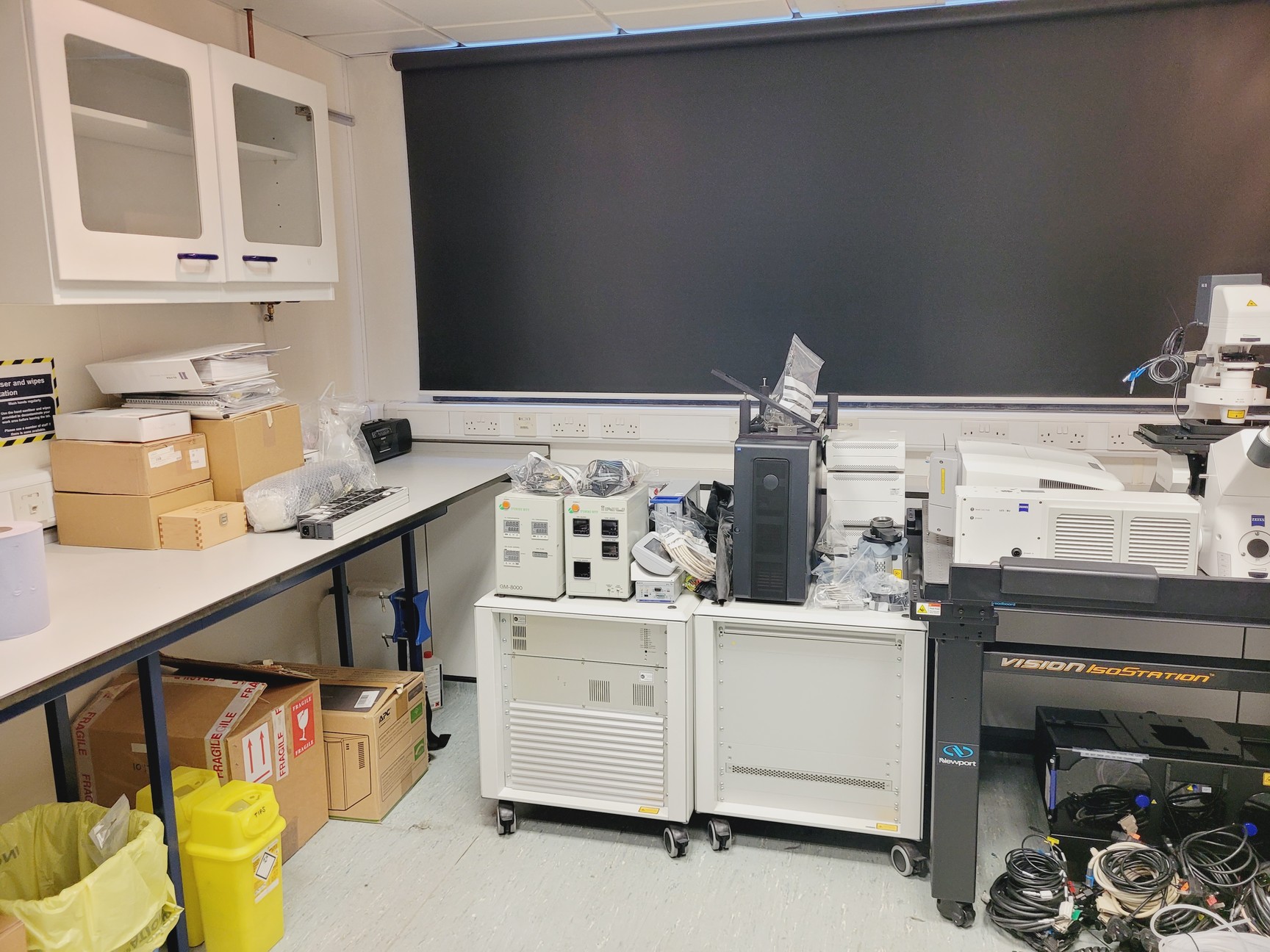

This system was removed from a university laboratory where it was surplus to requirements.

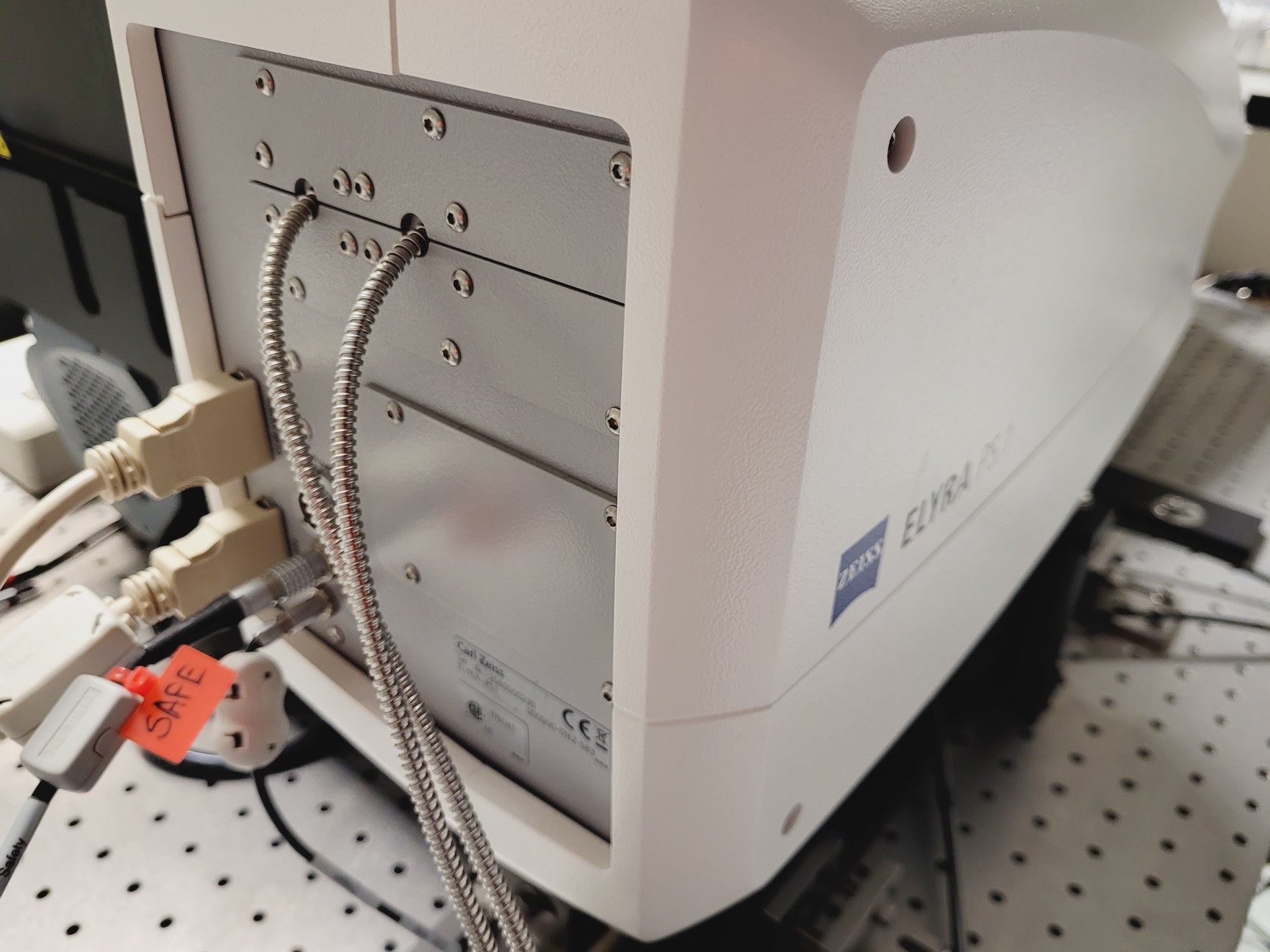

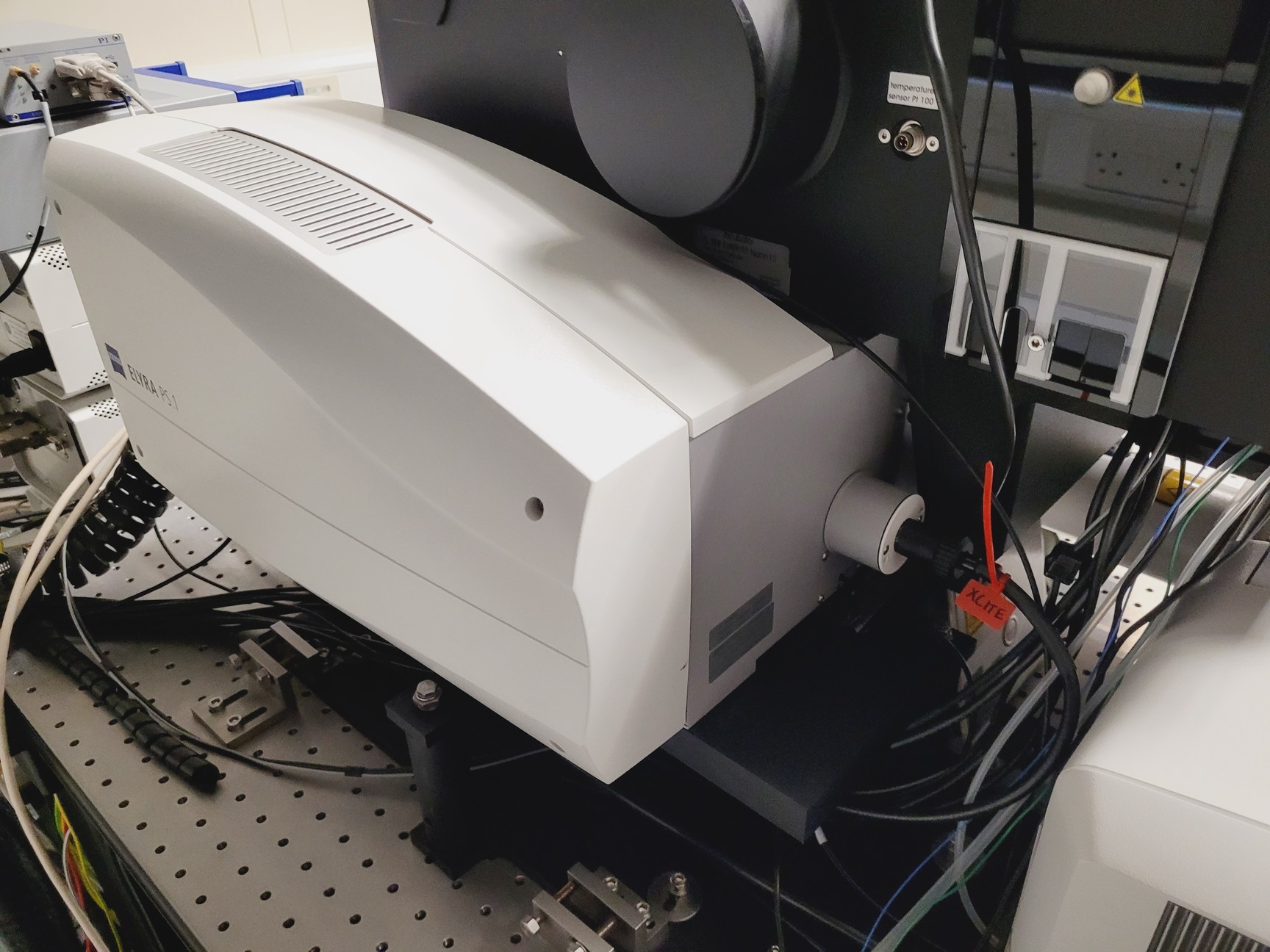

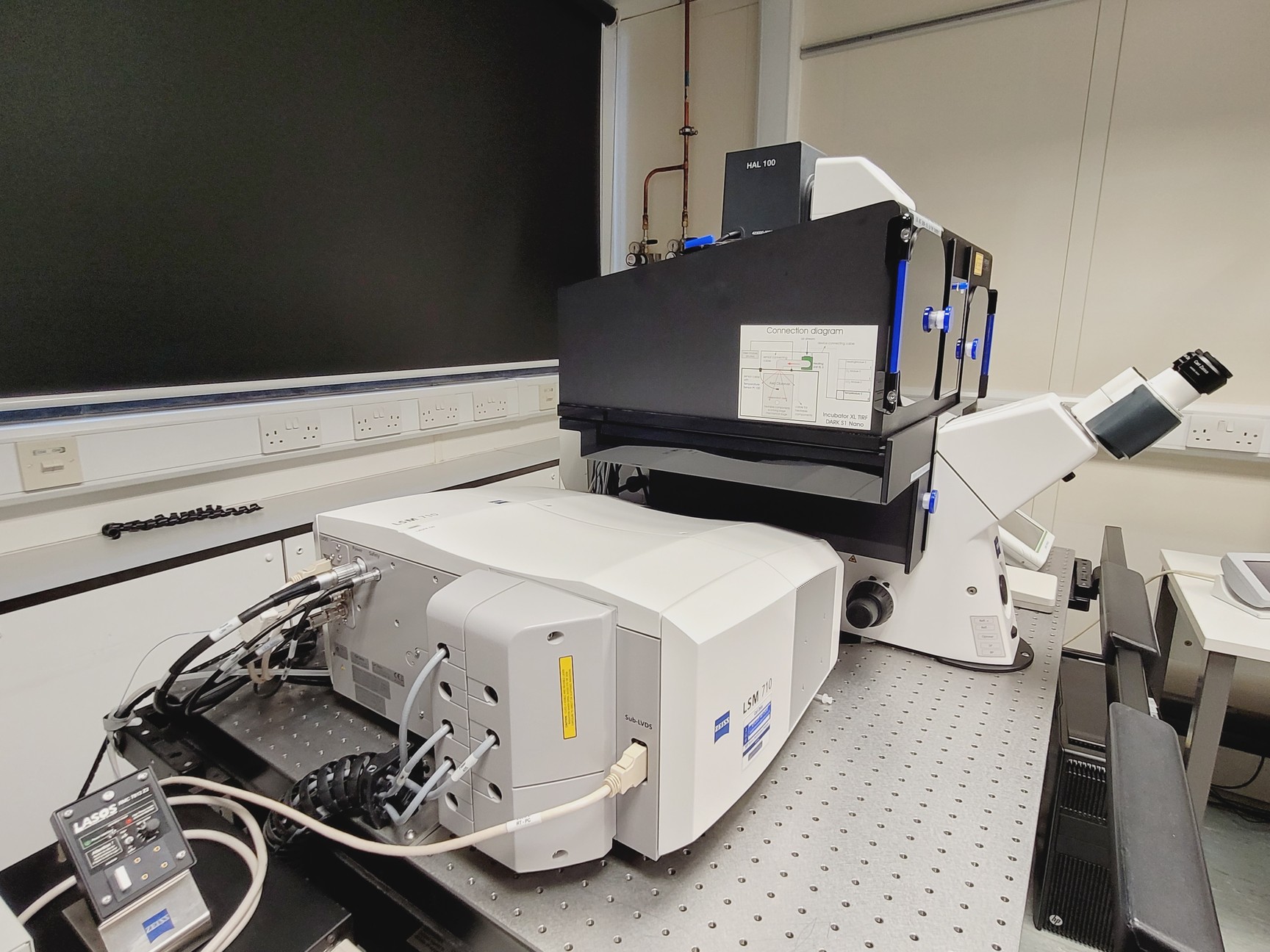

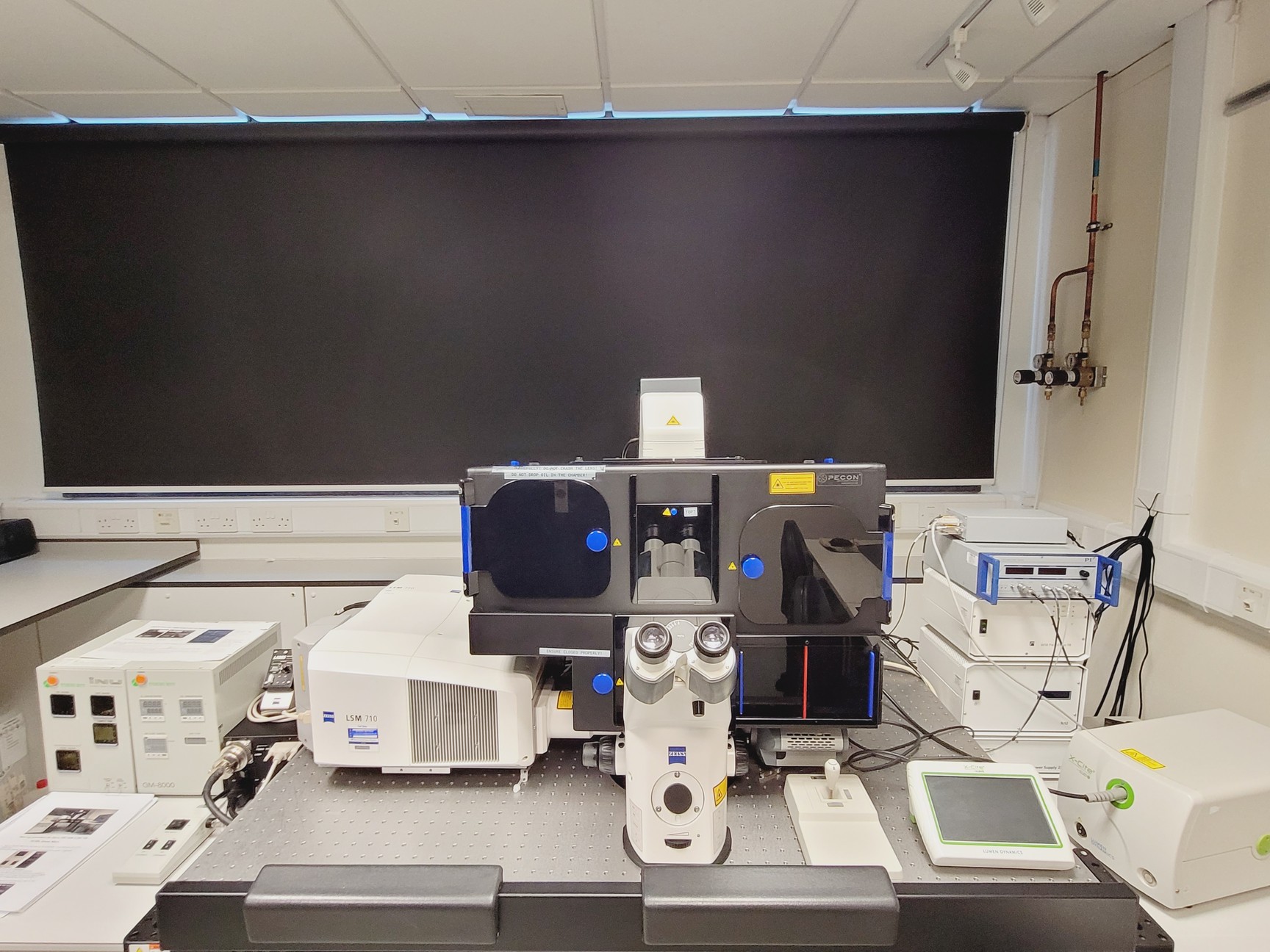

The LSM 710 Elyra PS.1 integrates an inverted laser scanning confocal microscope with the Elyra PS.1 super-resolution platform, enabling SIM, PALM, and STORM imaging with resolutions down to 10–100 nm at the single-molecule level.

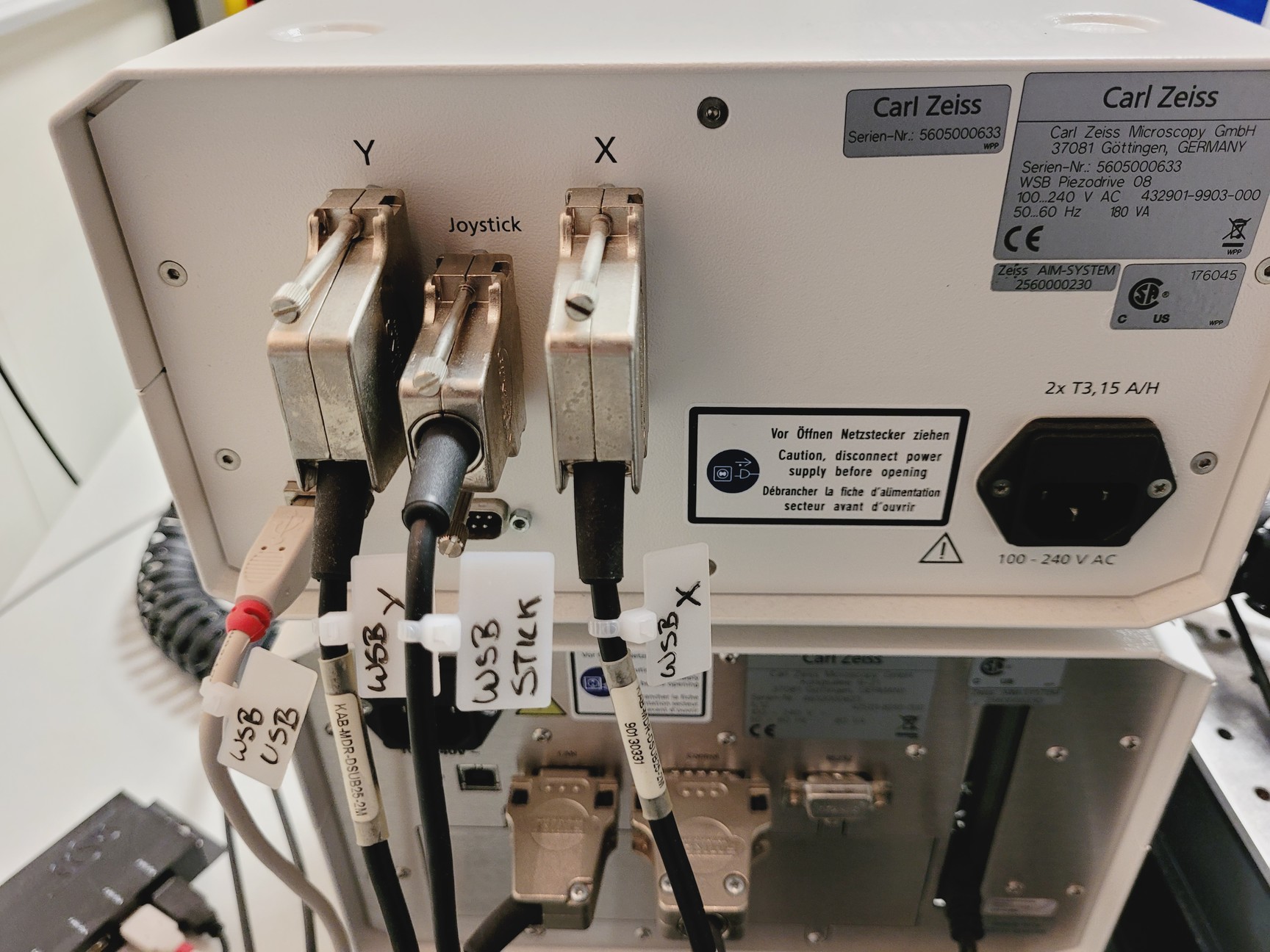

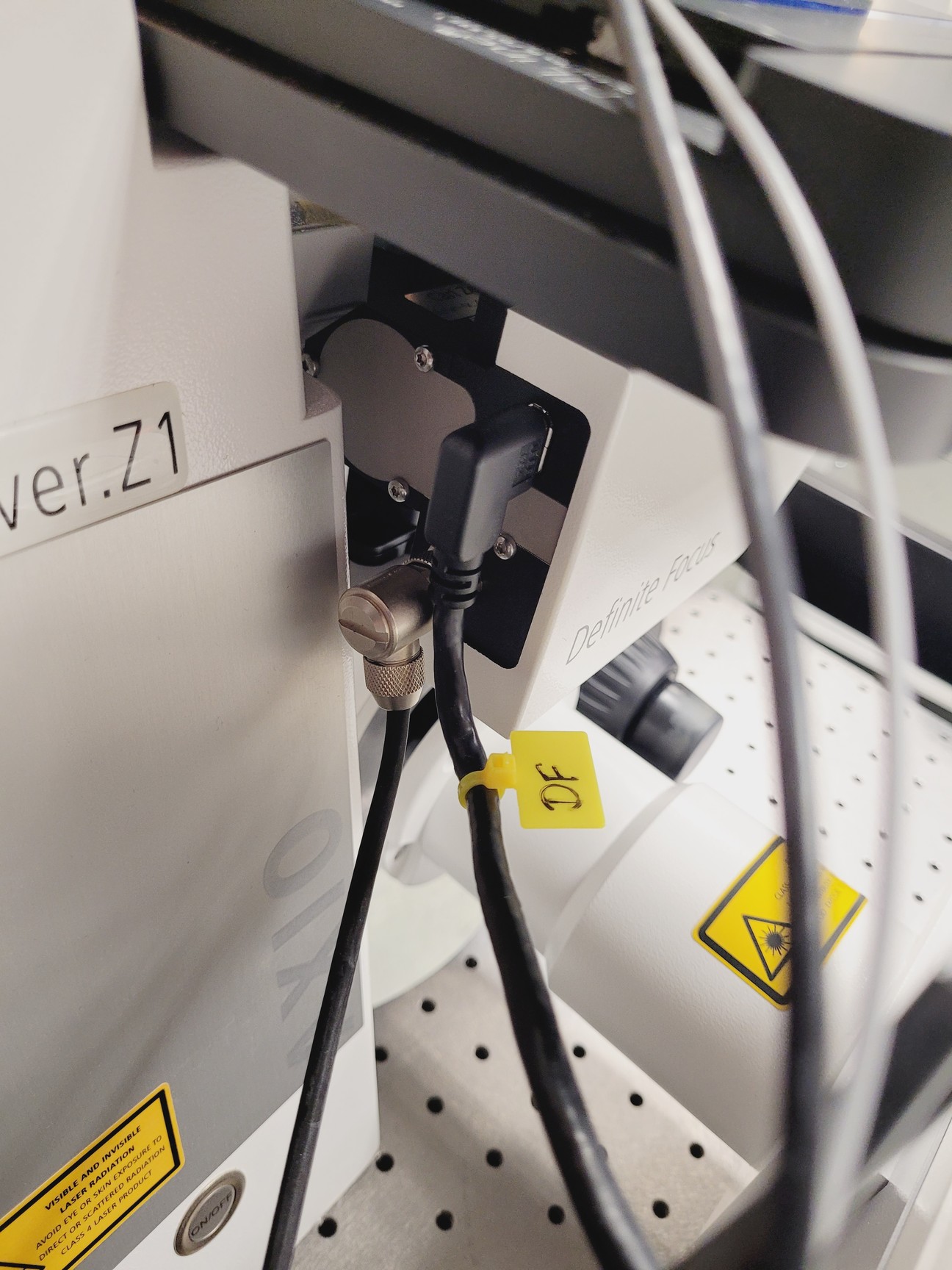

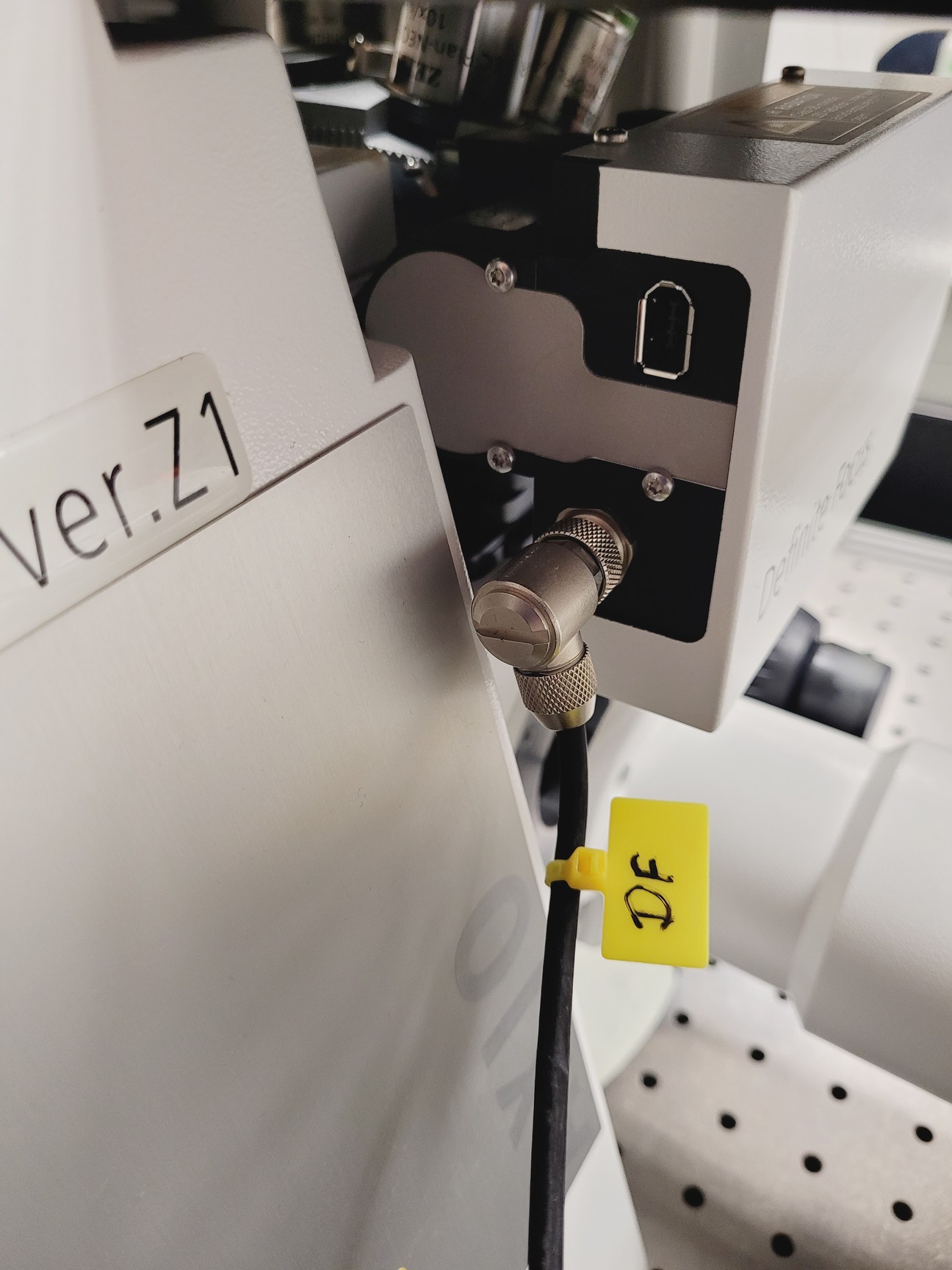

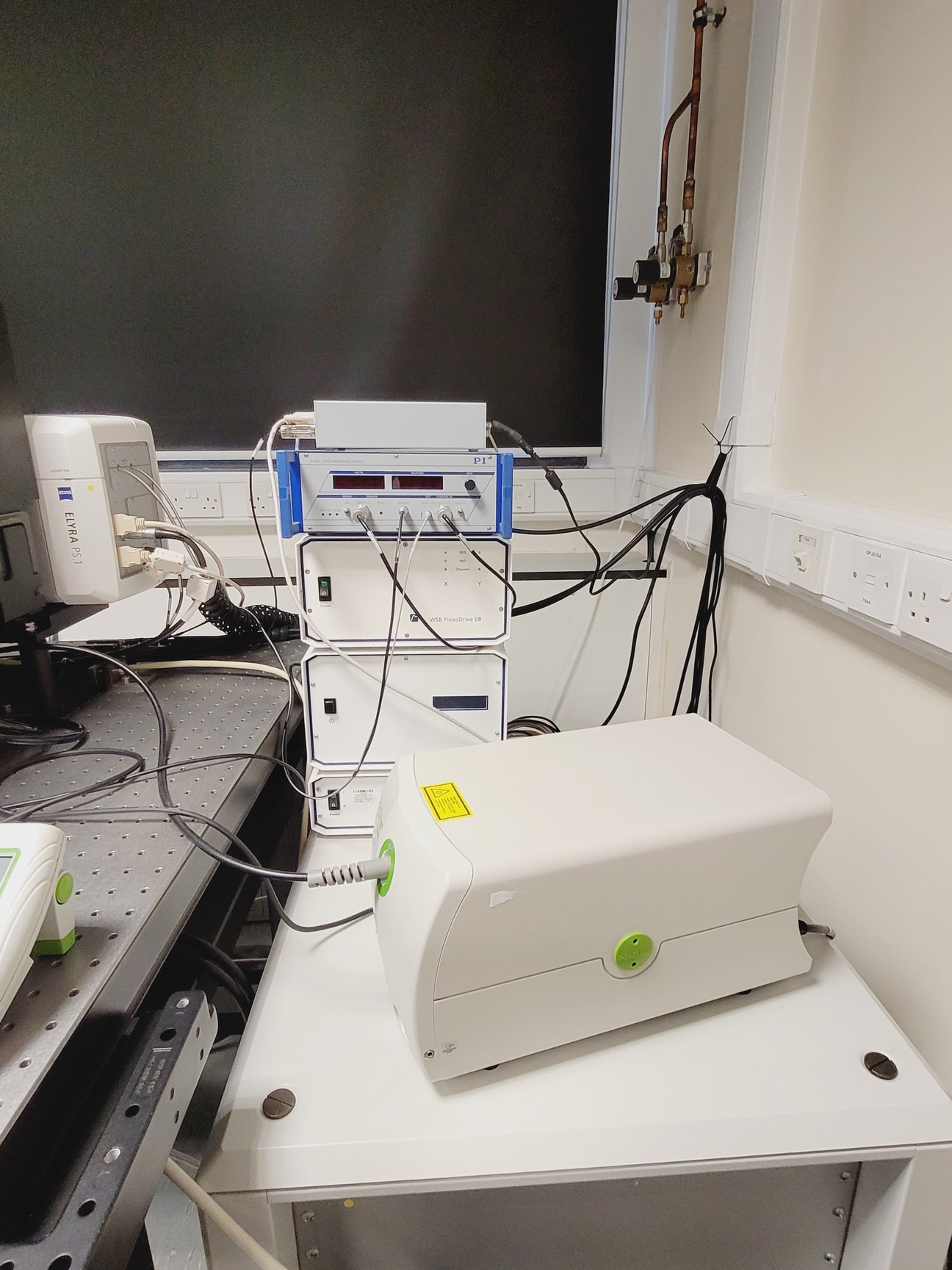

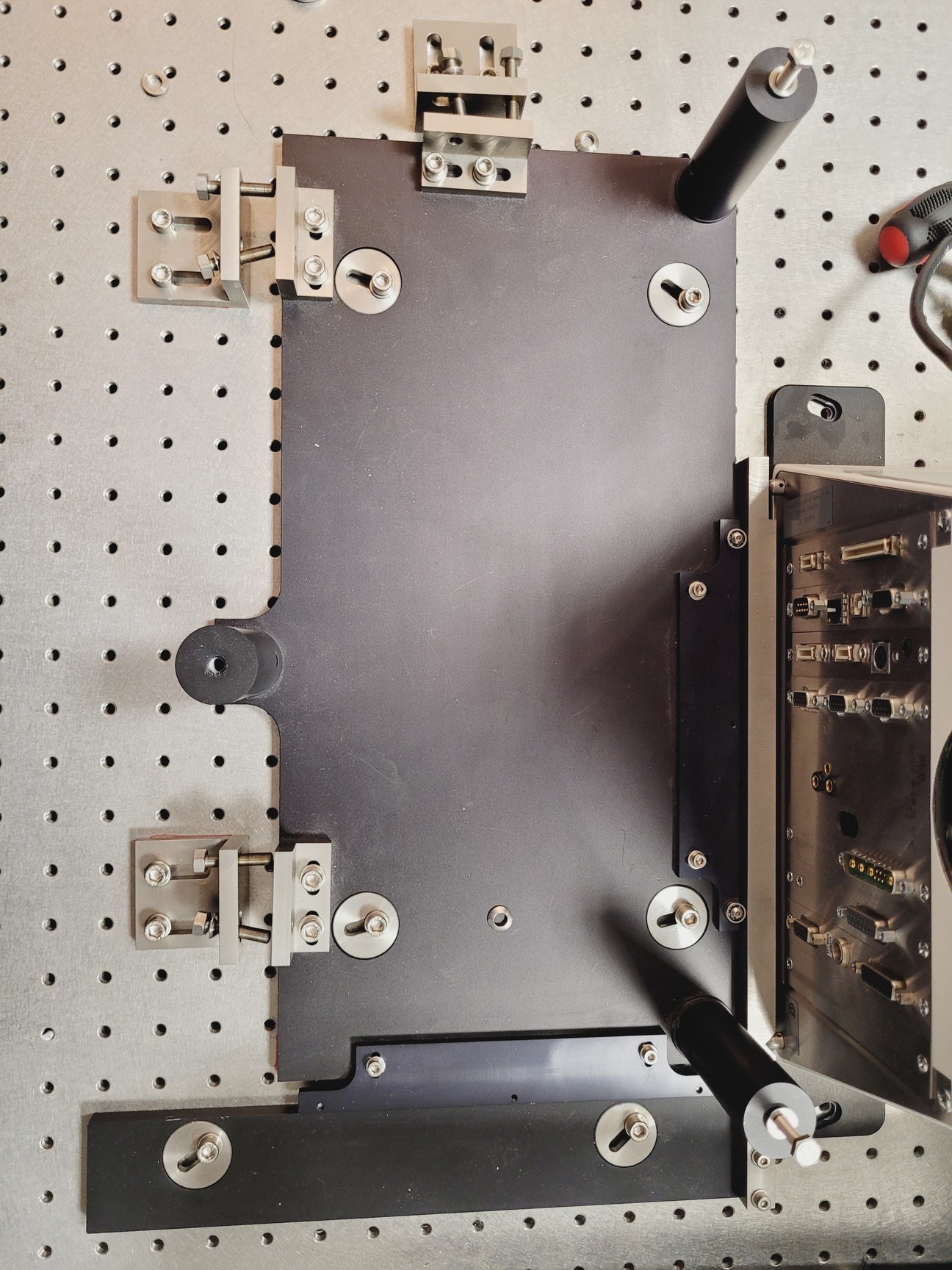

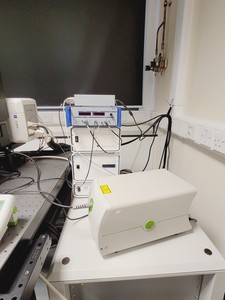

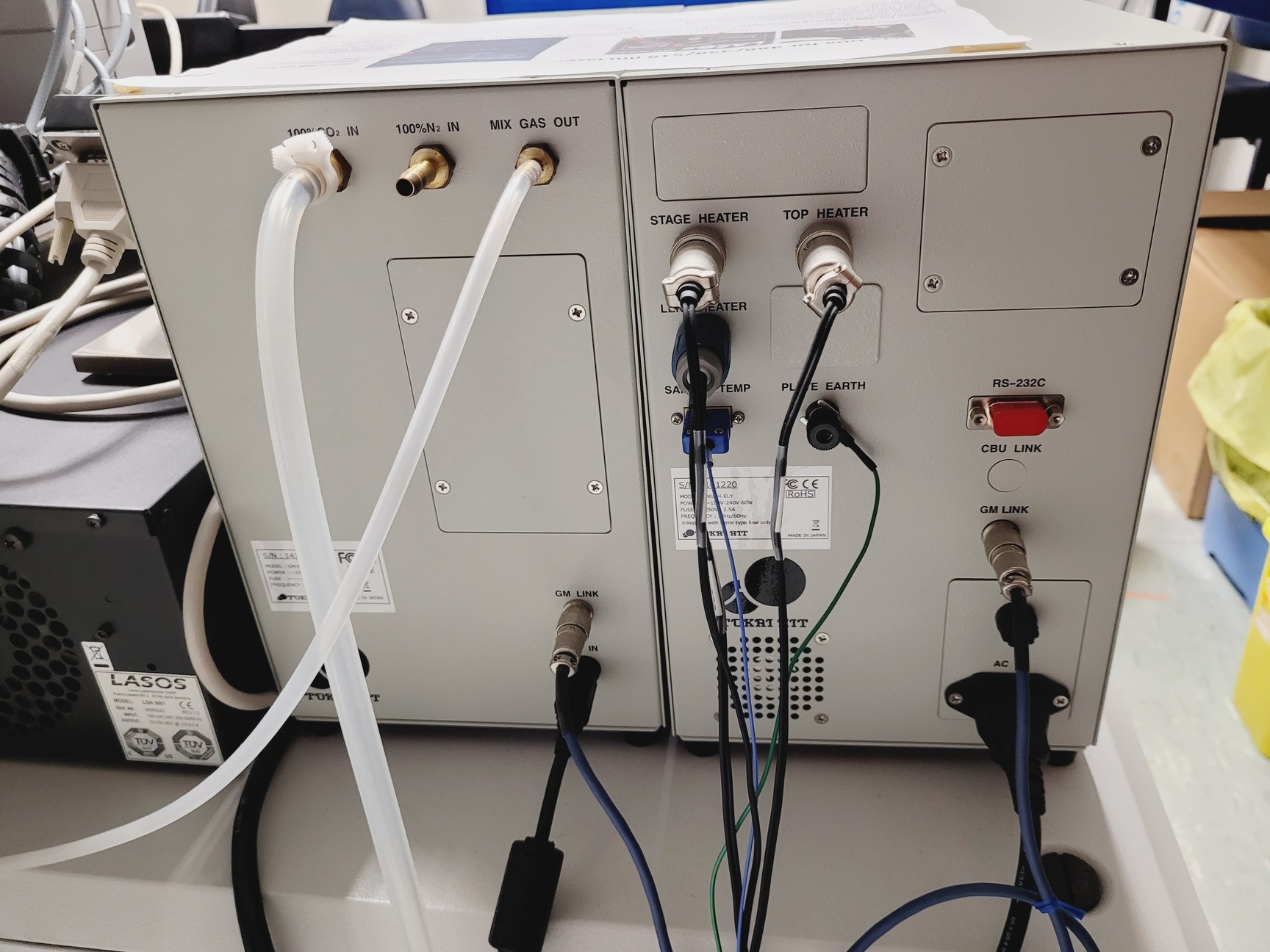

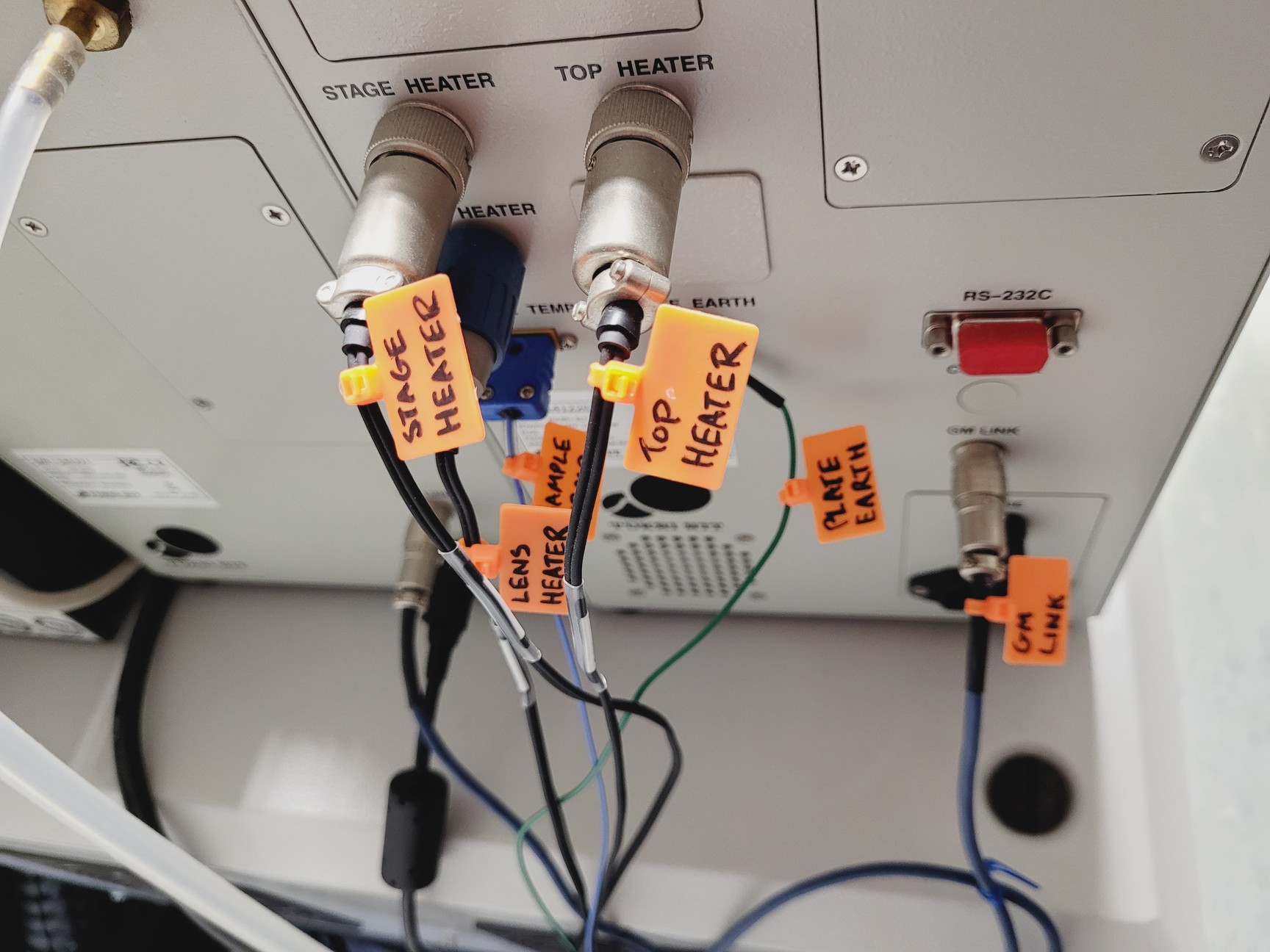

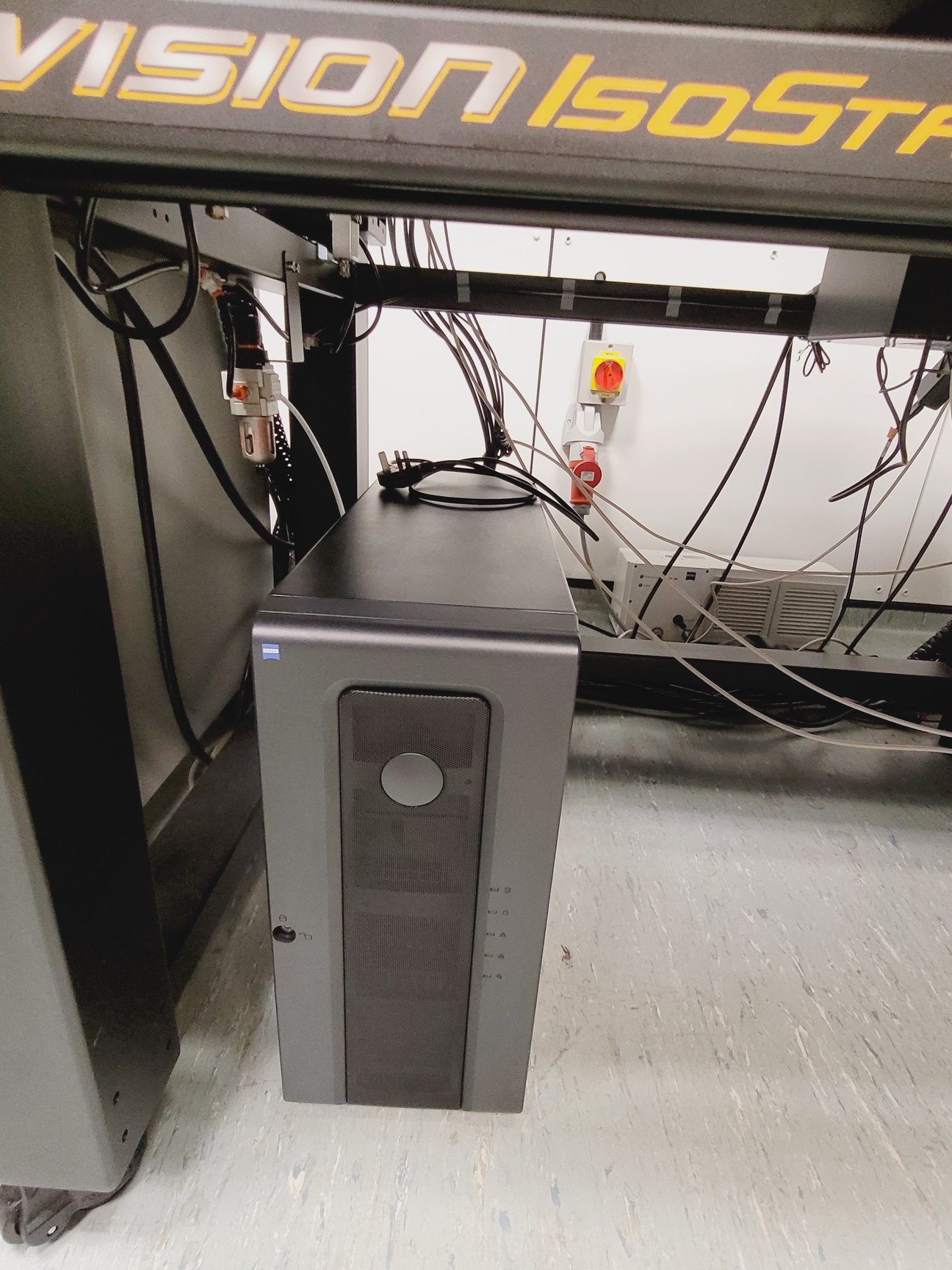

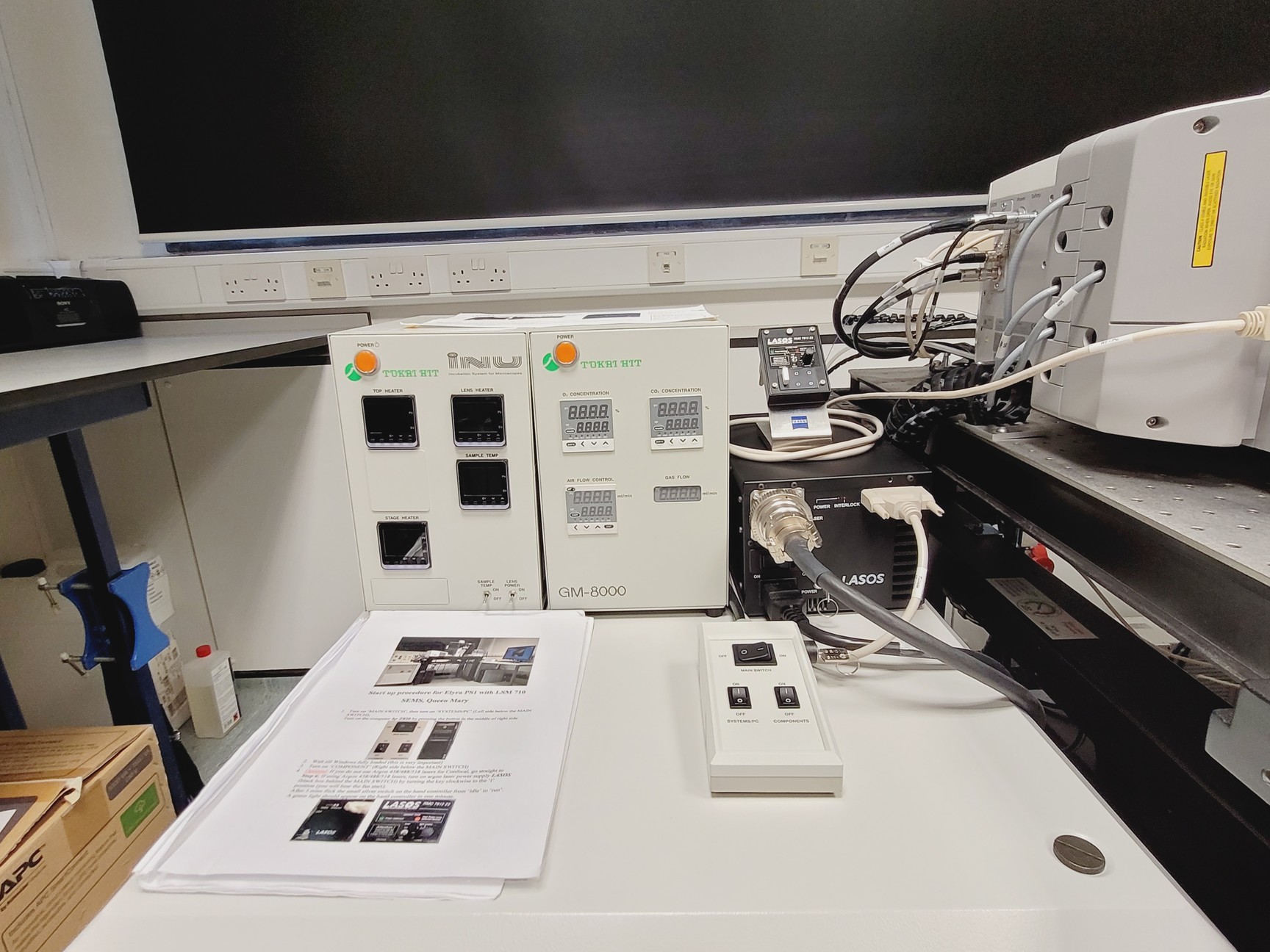

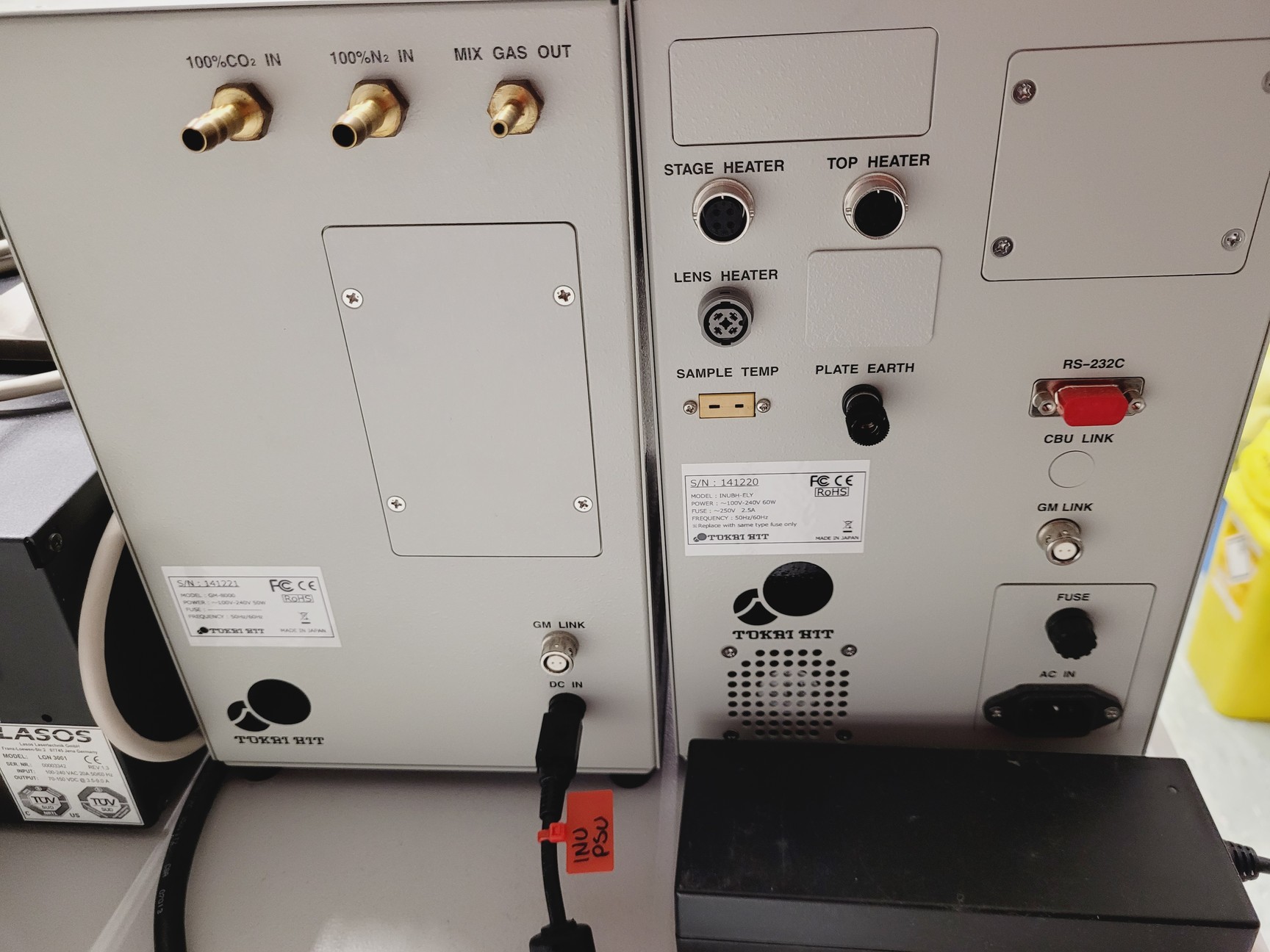

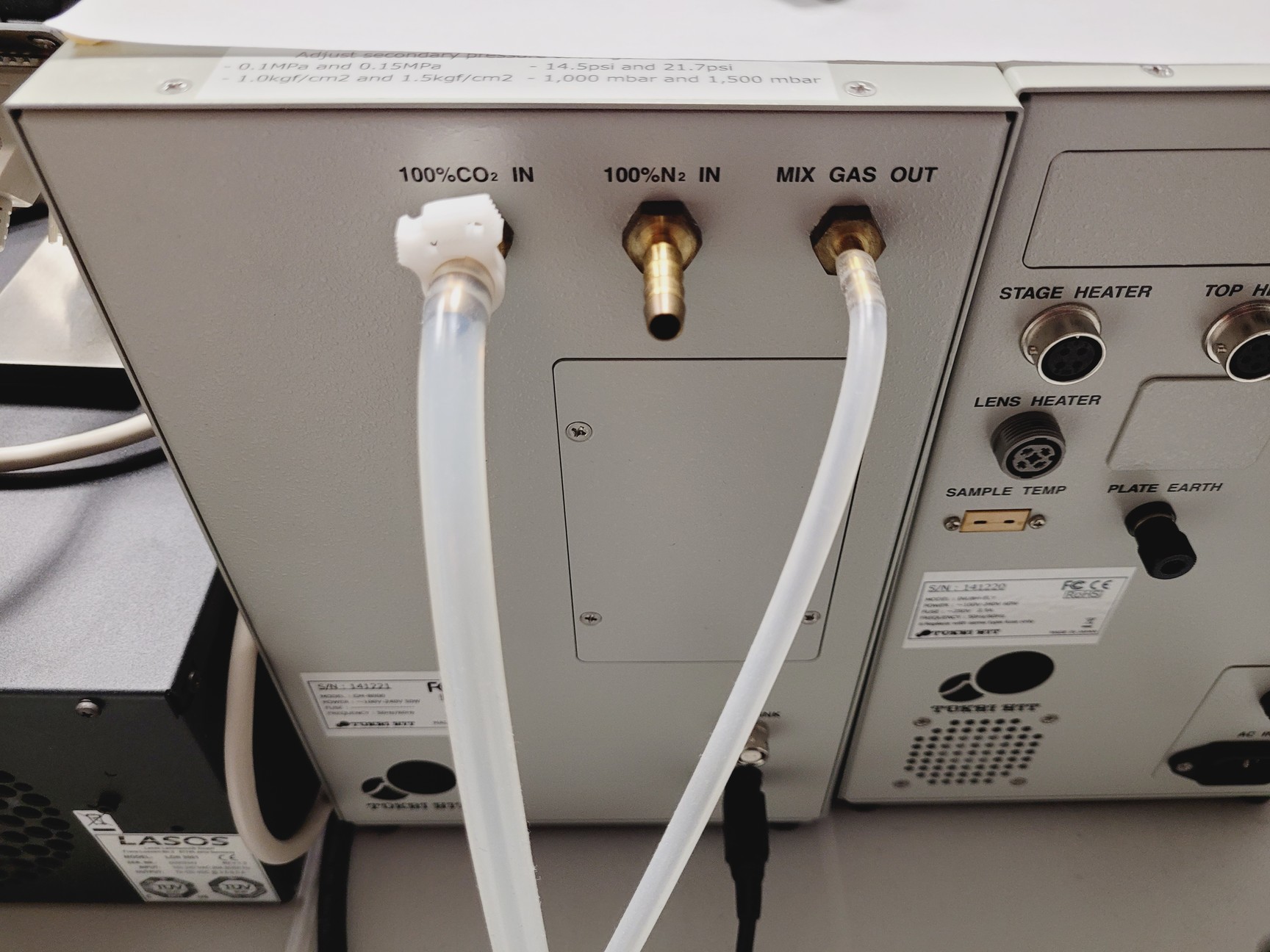

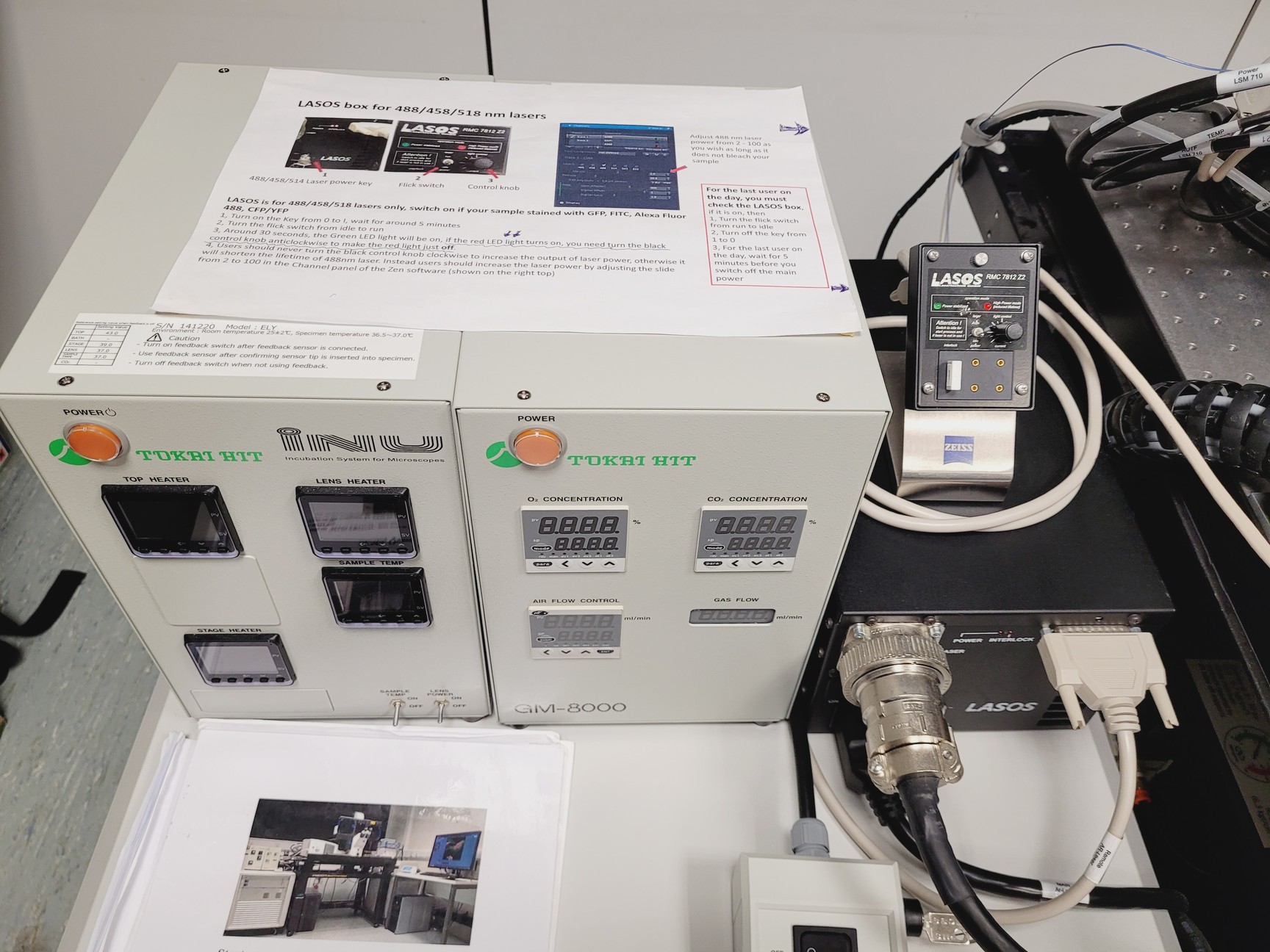

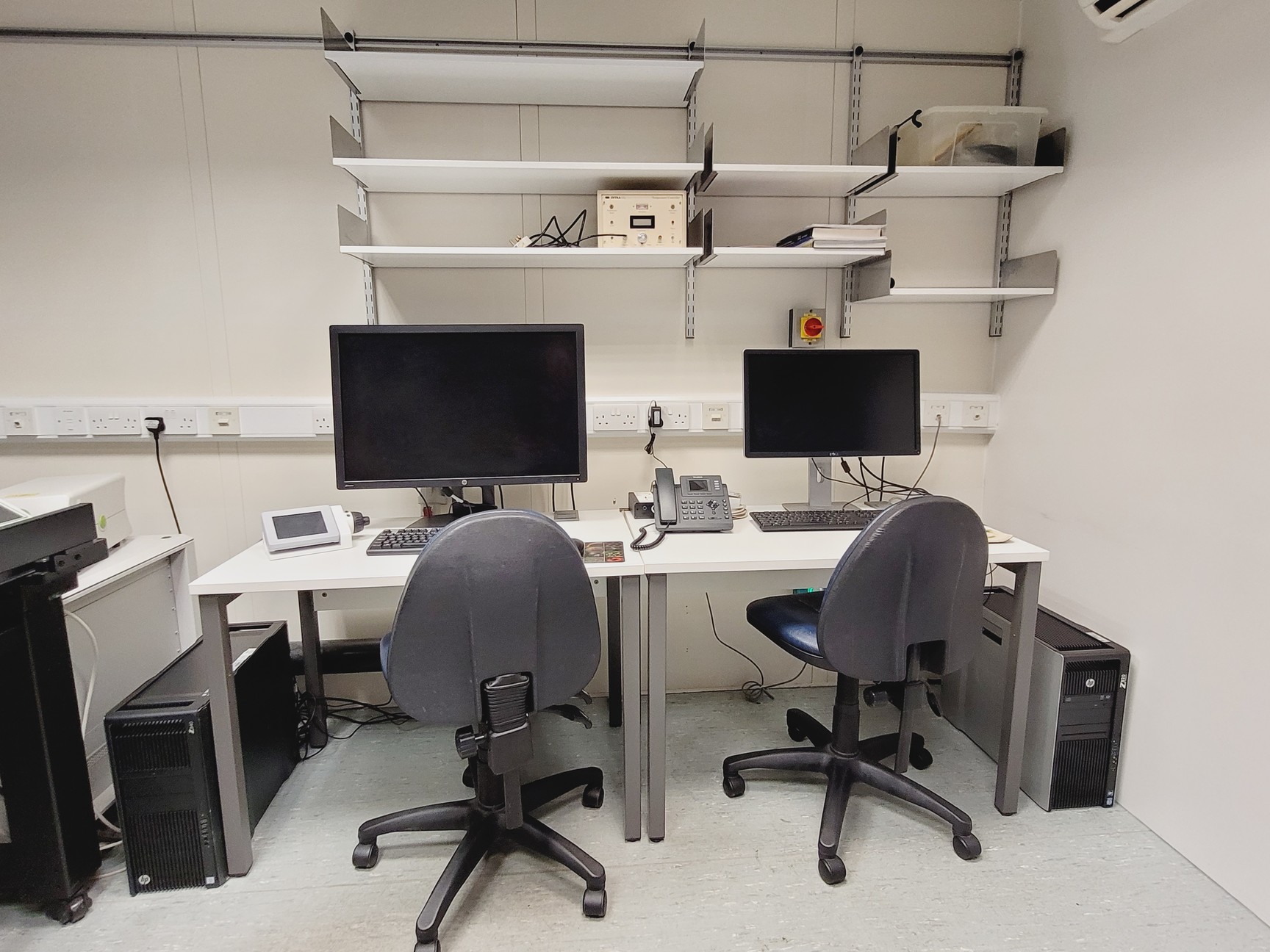

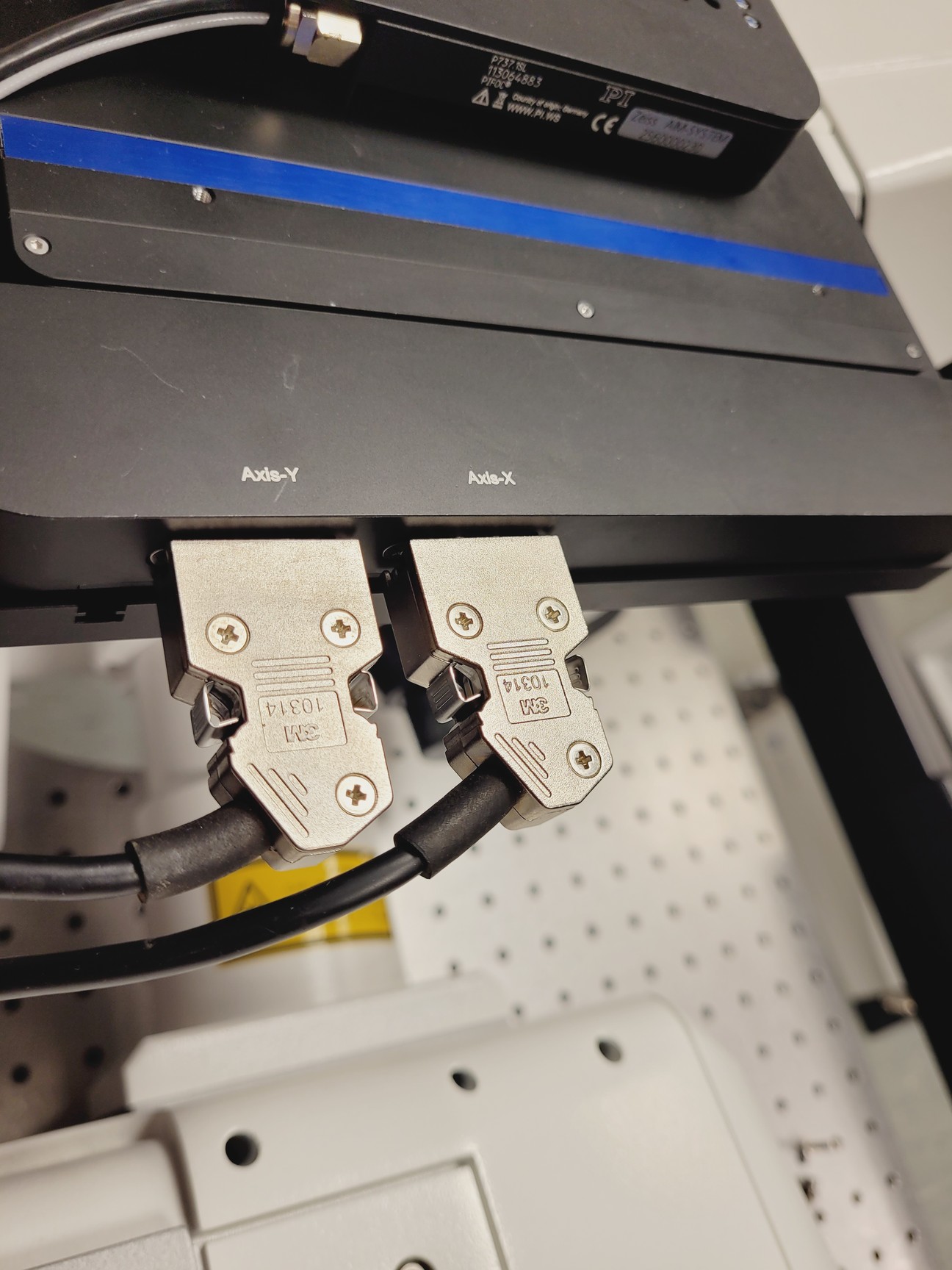

The system is equipped with ZEN 2012 software, a motorised X/Y stage, Definite Focus, and TIRF mode, supporting tiling, multiposition acquisition, time-lapse imaging, FRAP, and FRET. An on-stage environmental chamber with a 35 mm Petri dish adaptor, linked to a CO₂/N₂ controller, enables live-cell and hypoxic imaging. An offline data-processing workstation is also included.
Recent Service & Calibration
The system has recently been serviced, with the following work carried out:

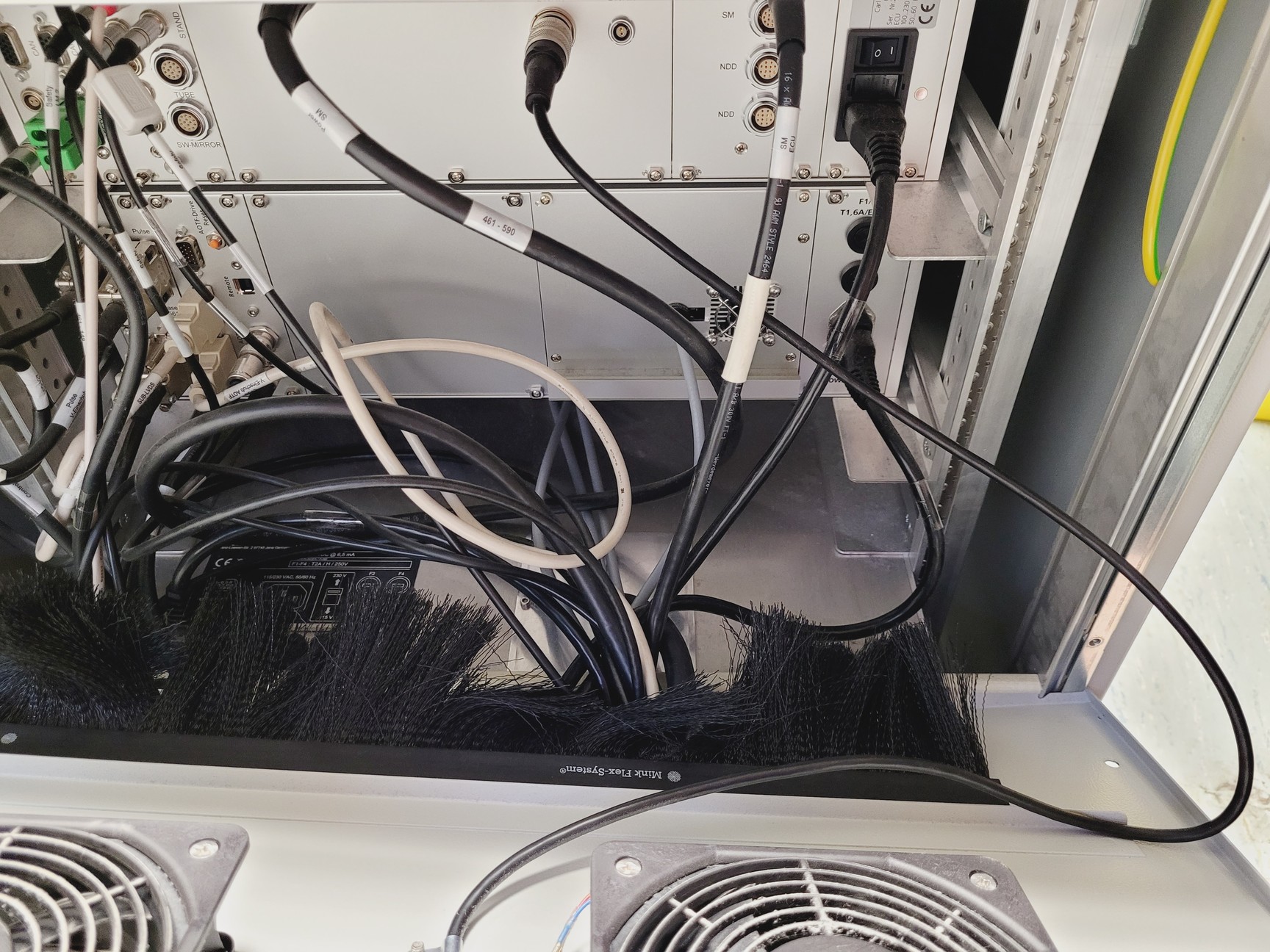

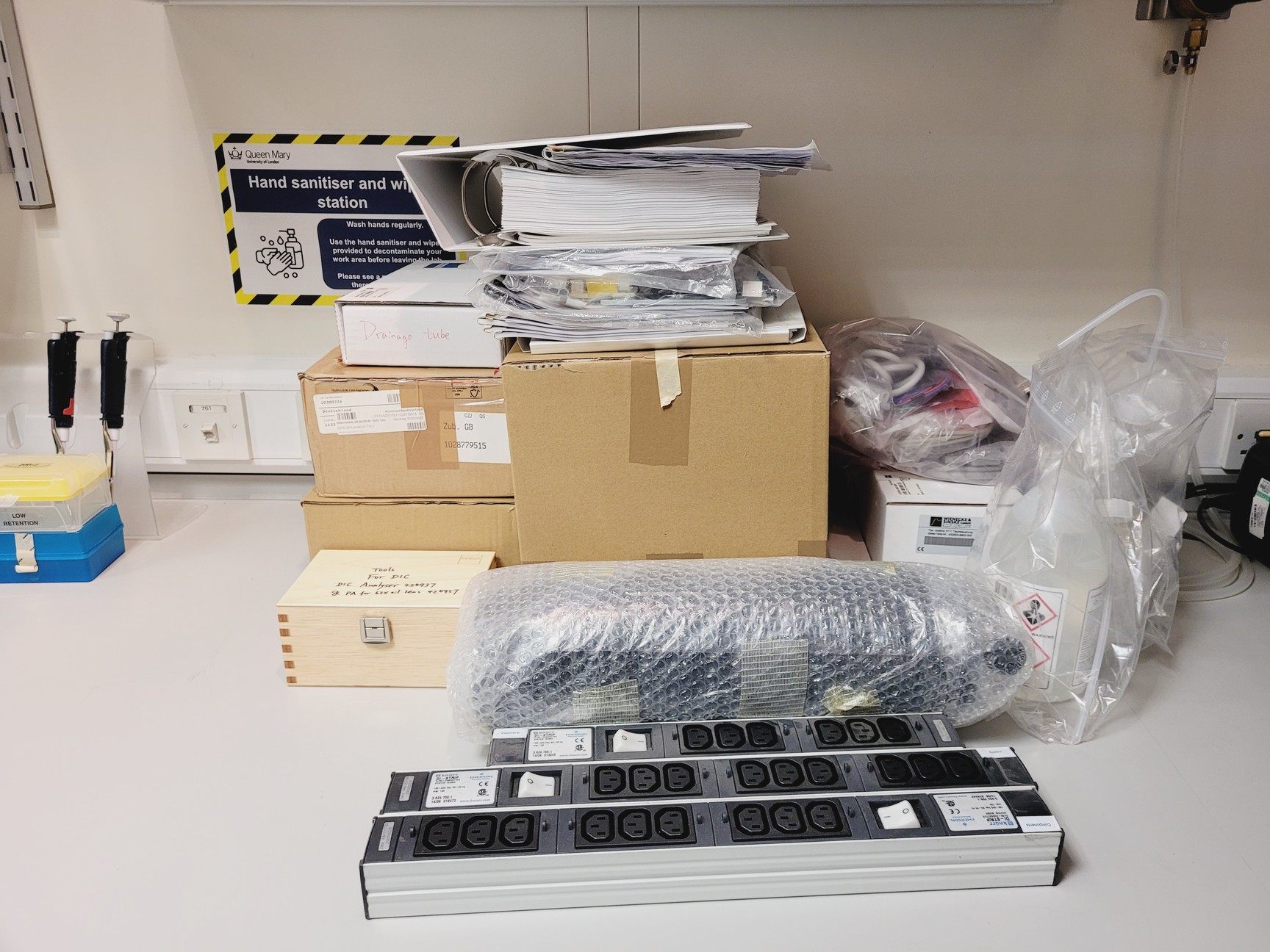

Resolved mains power issue by transferring components to a PowerStrip
Reloaded ZEN software and Hotfix 29 due to Windows errors

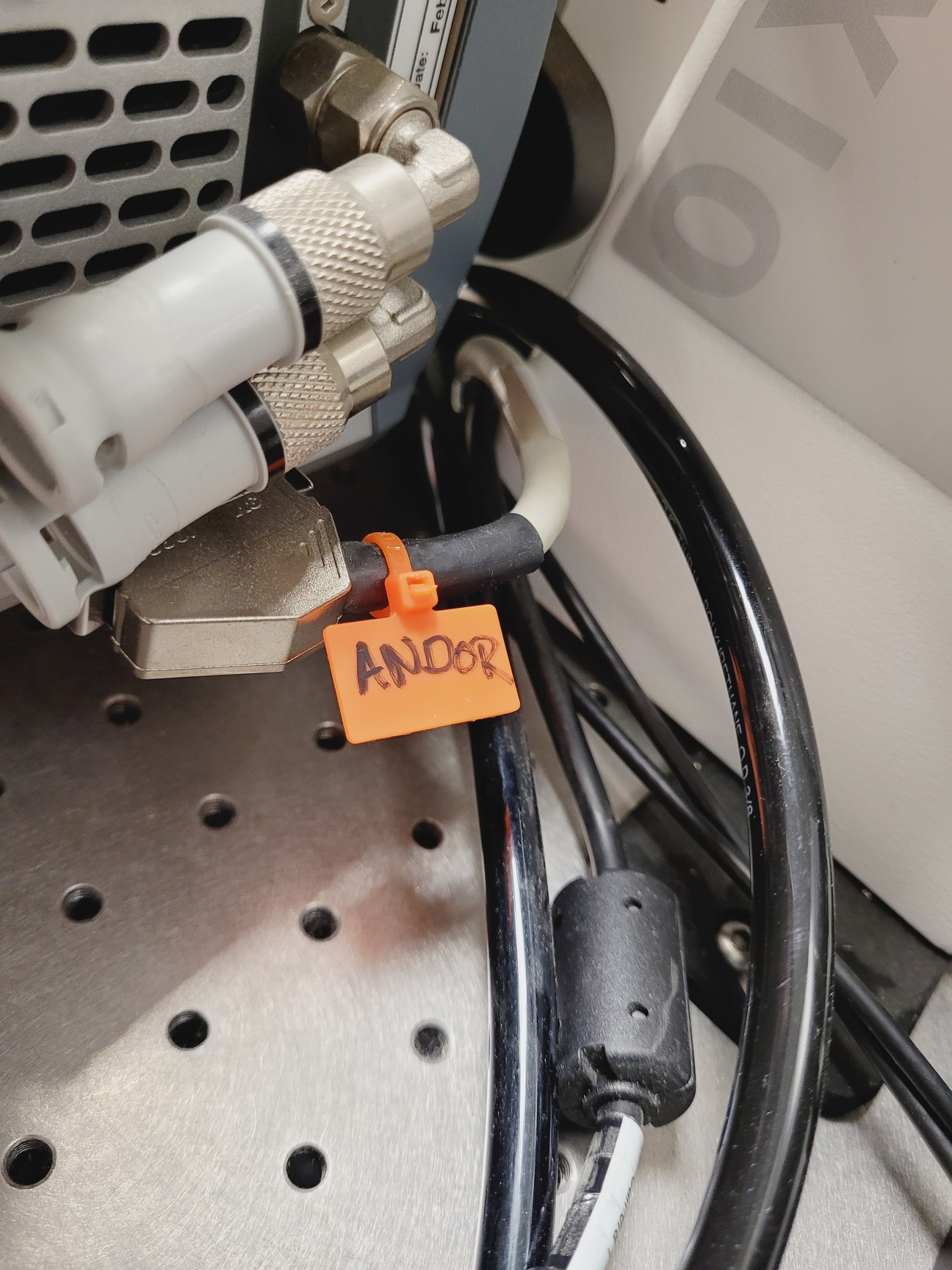

Addressed Andor camera temperature alarm by disabling liquid cooling in the database (internal fan enabled; liquid cooling hardware still present, likely chiller-related)
Scanner calibration completed after scanfield test failure (test now passes)

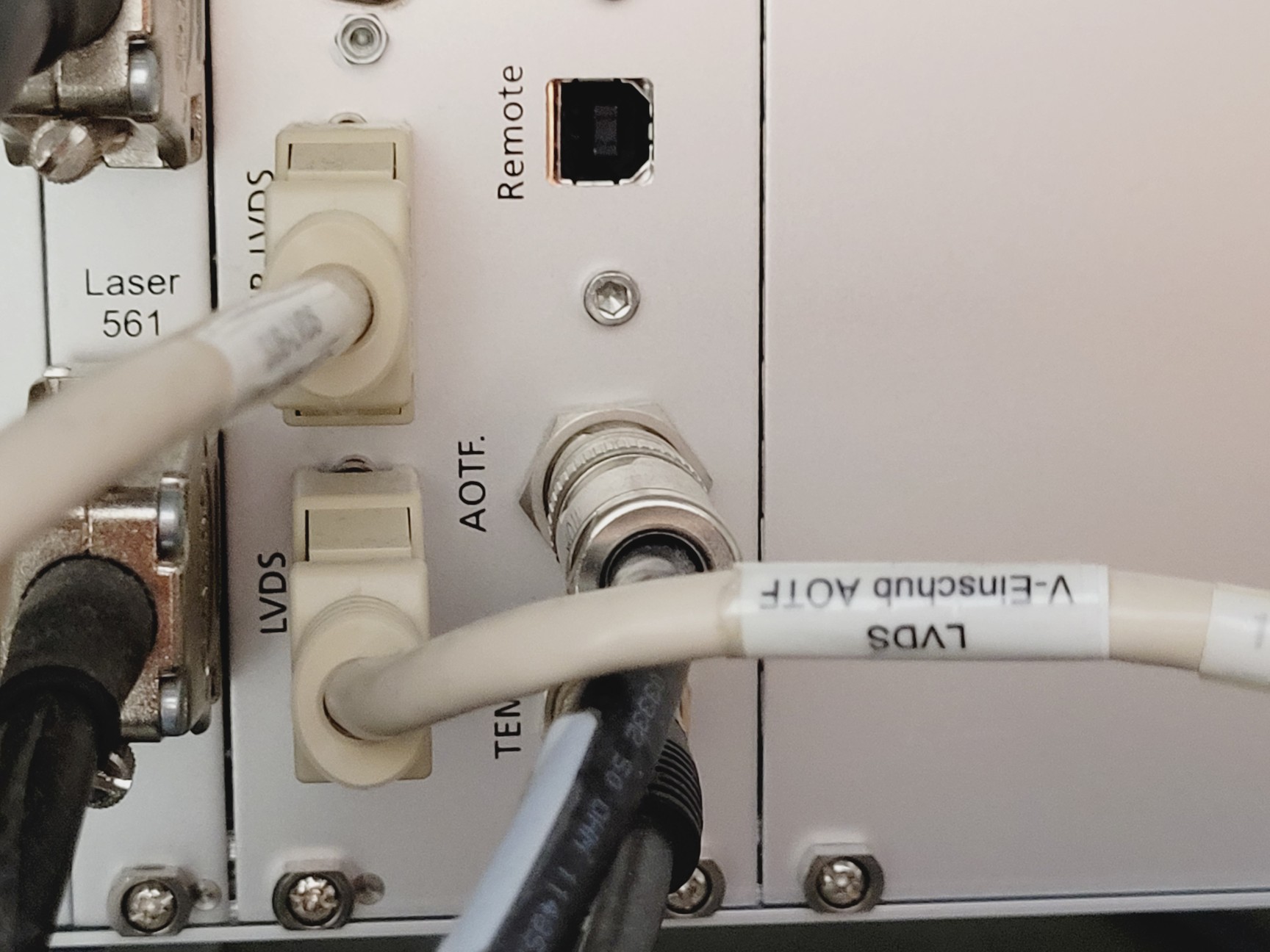

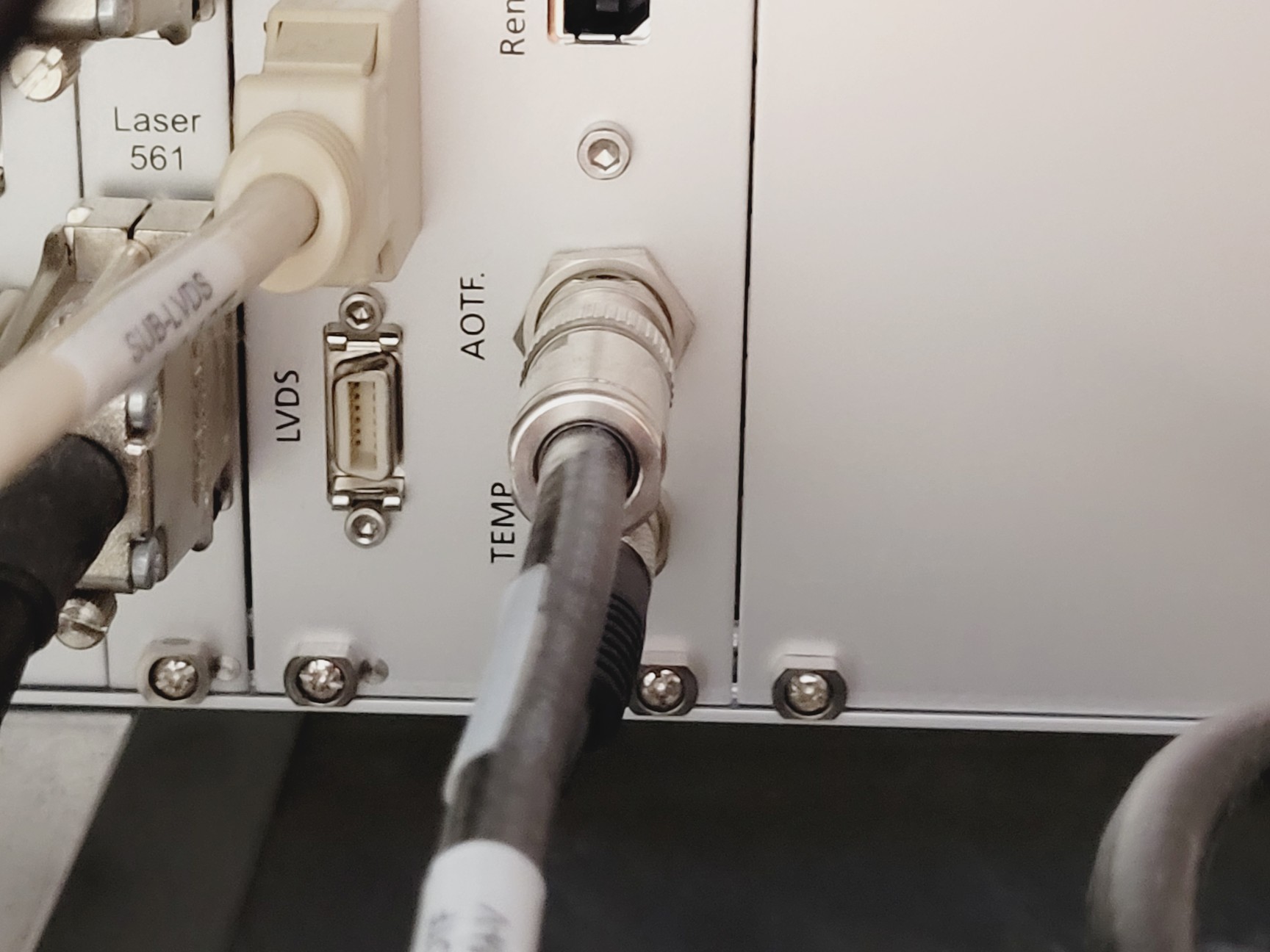

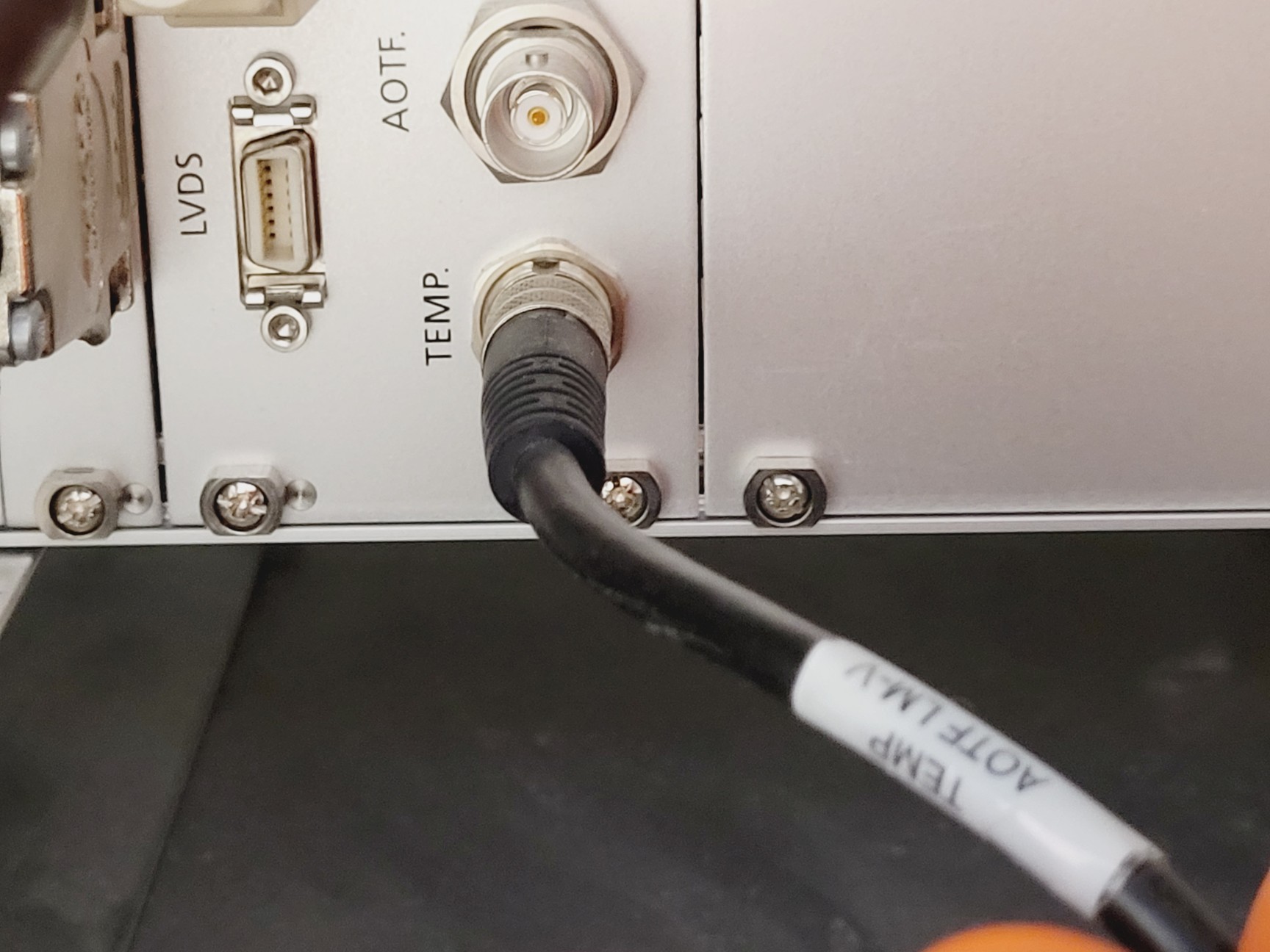

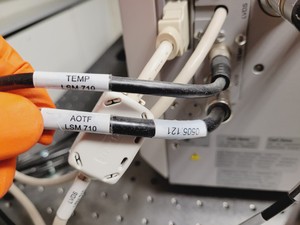

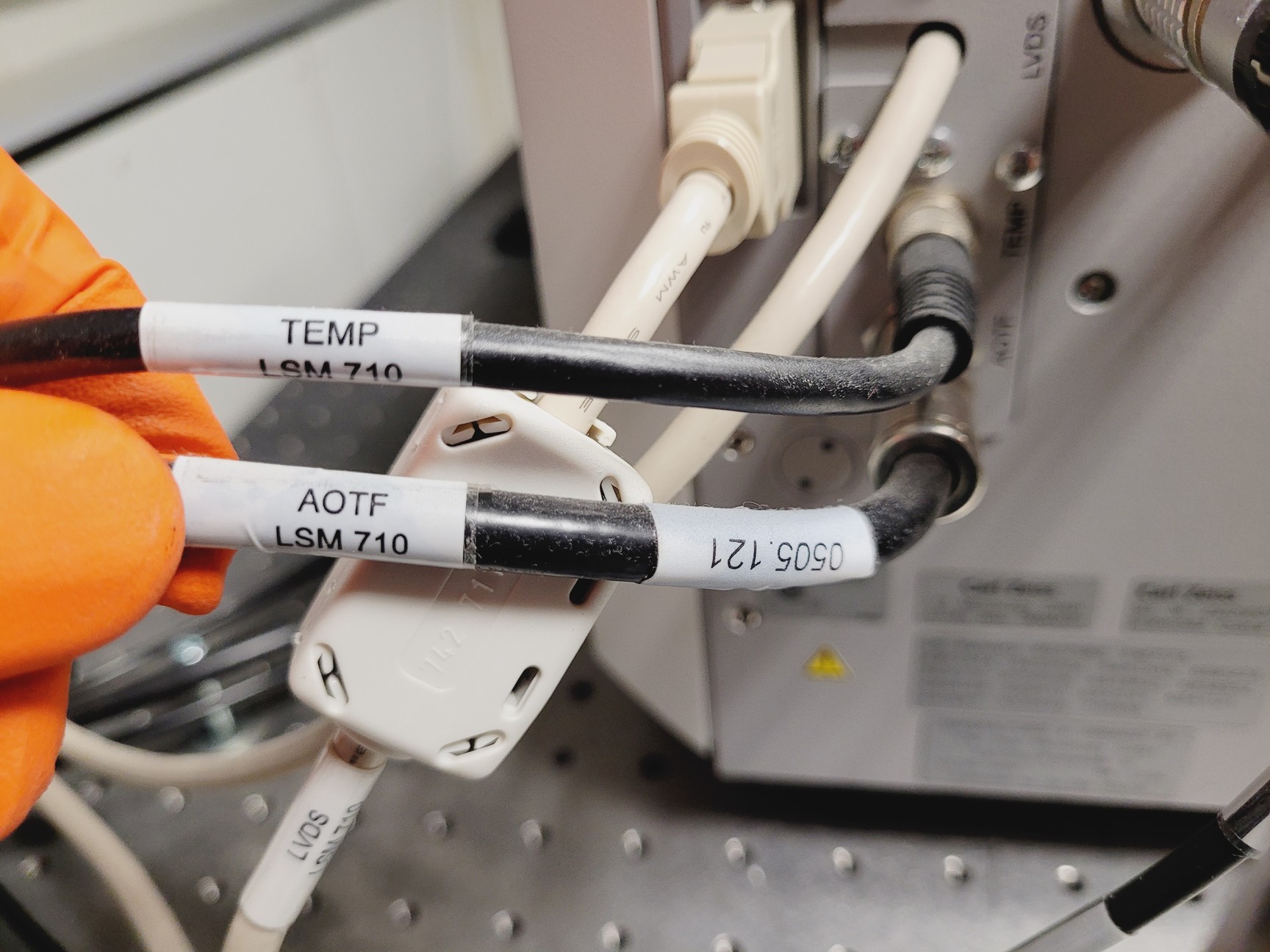

AOTF and linearity calibrated
Signal-to-noise ratio passes on all LSM channels

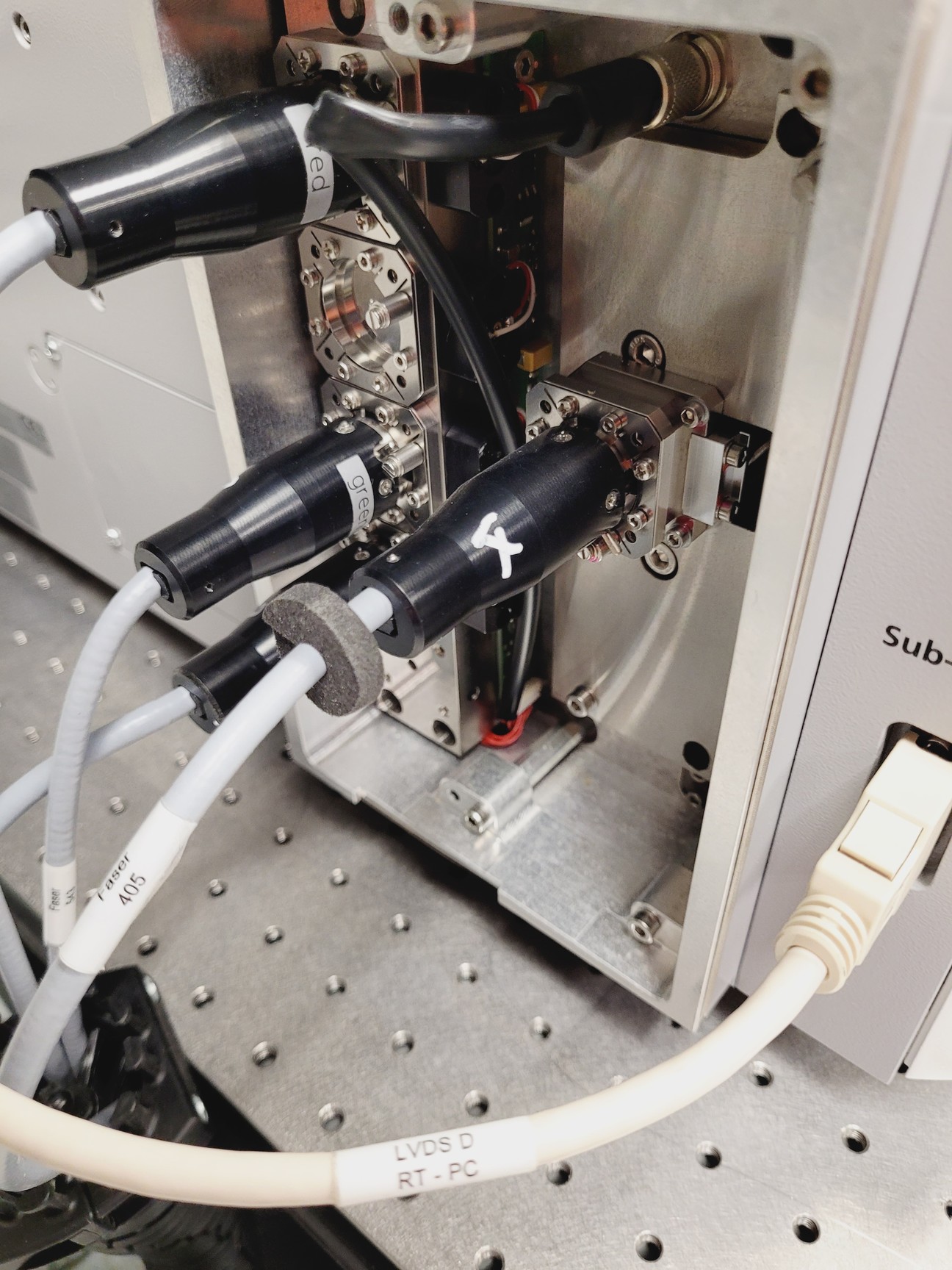

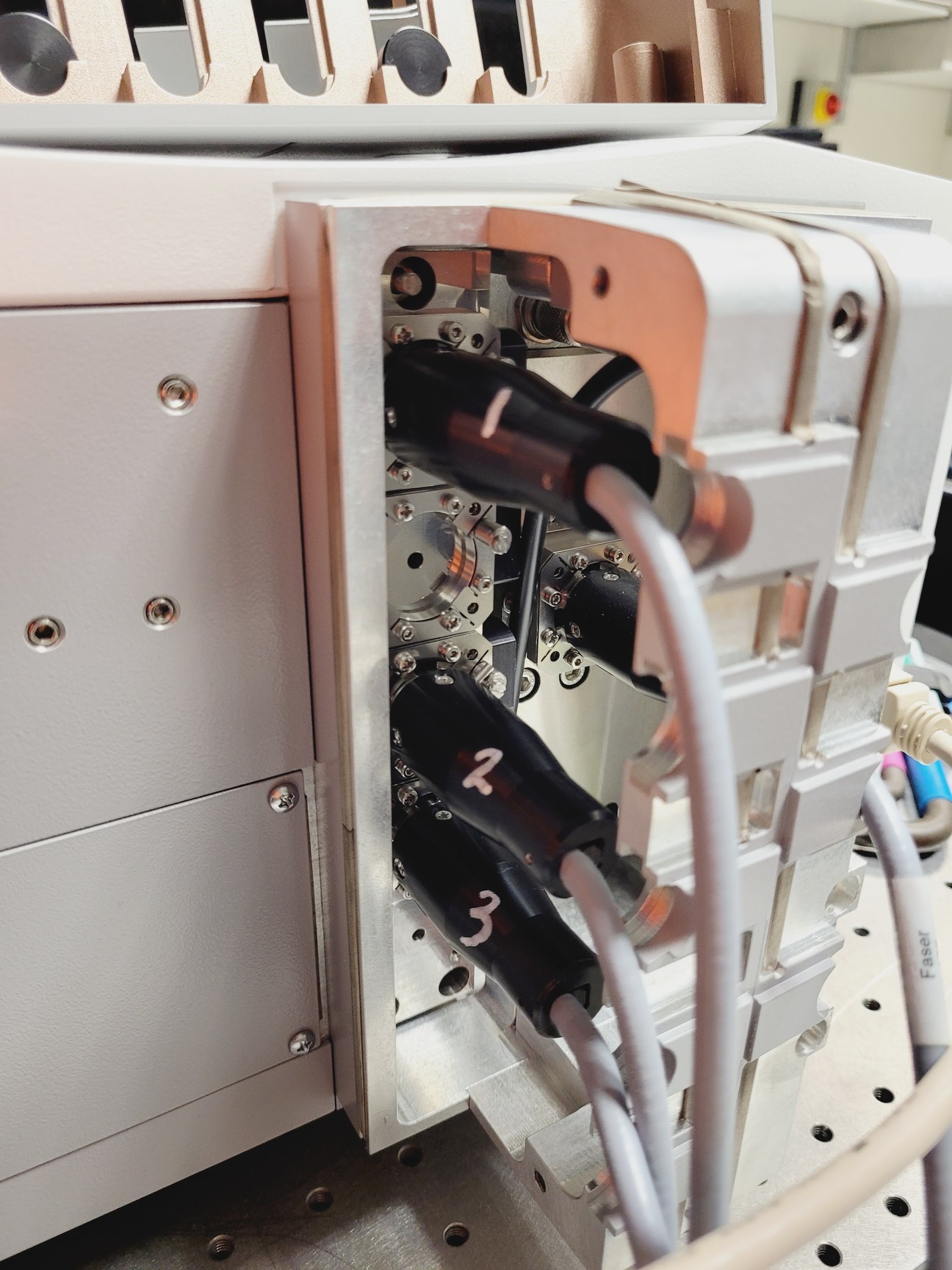

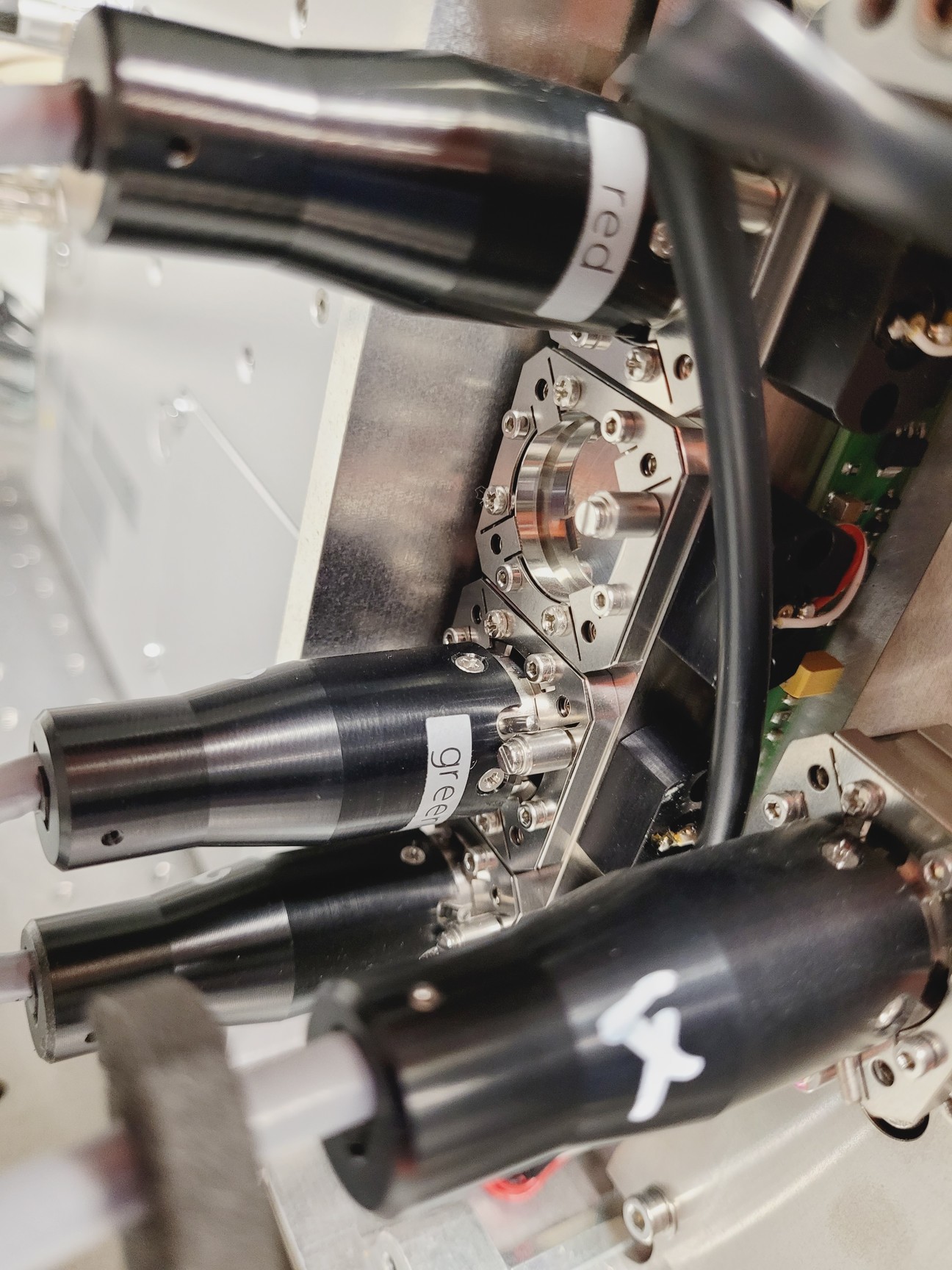

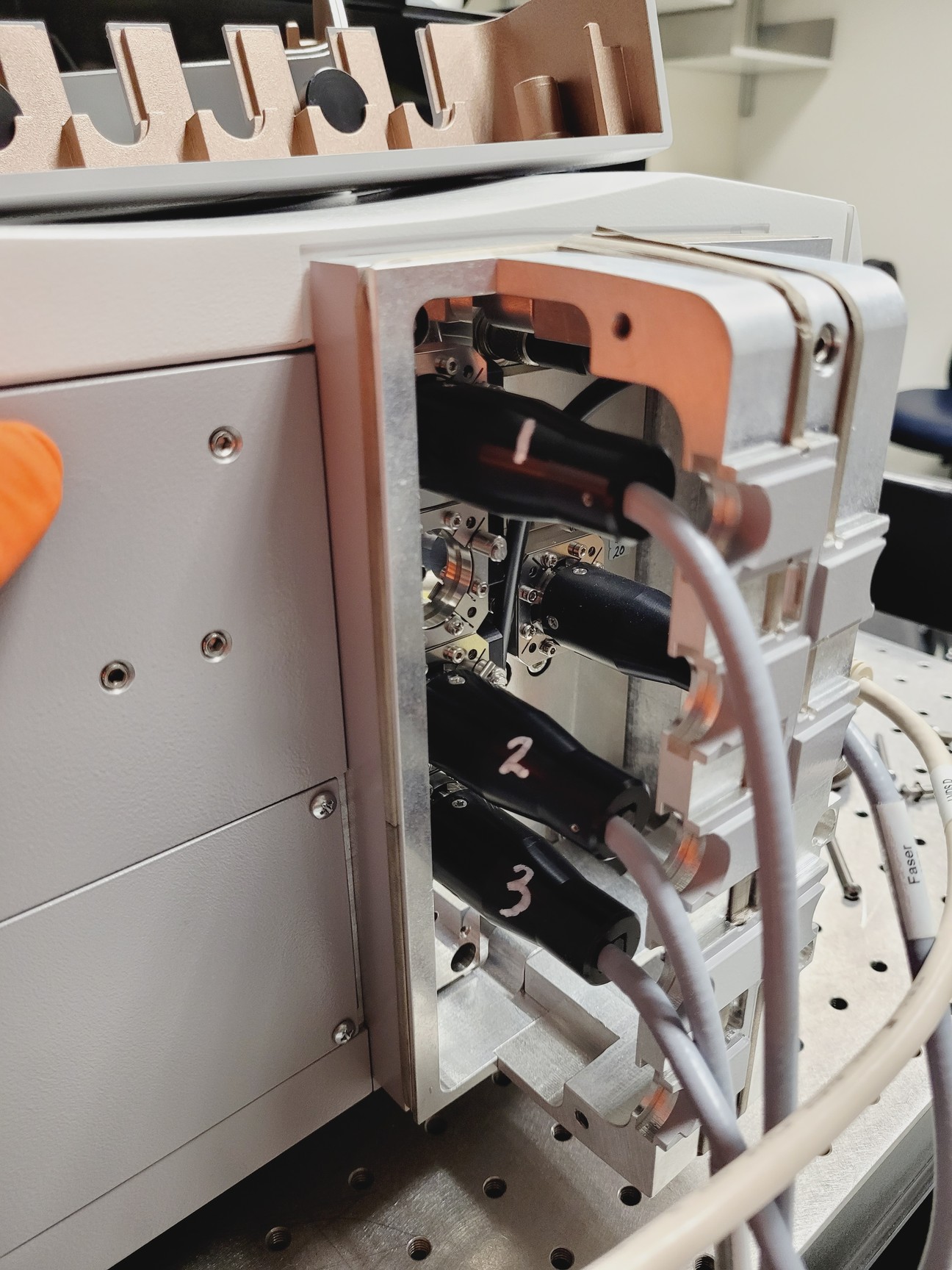

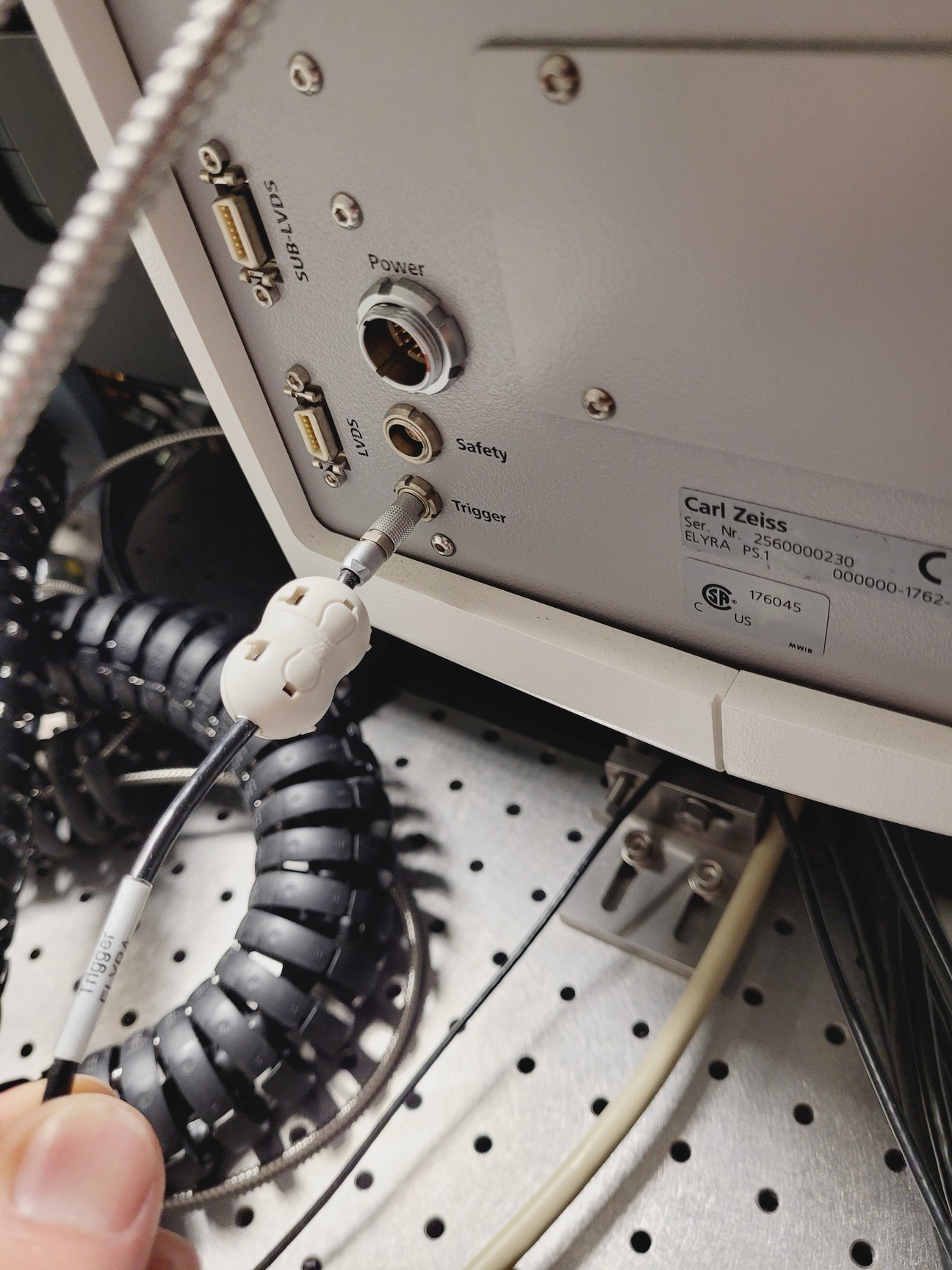

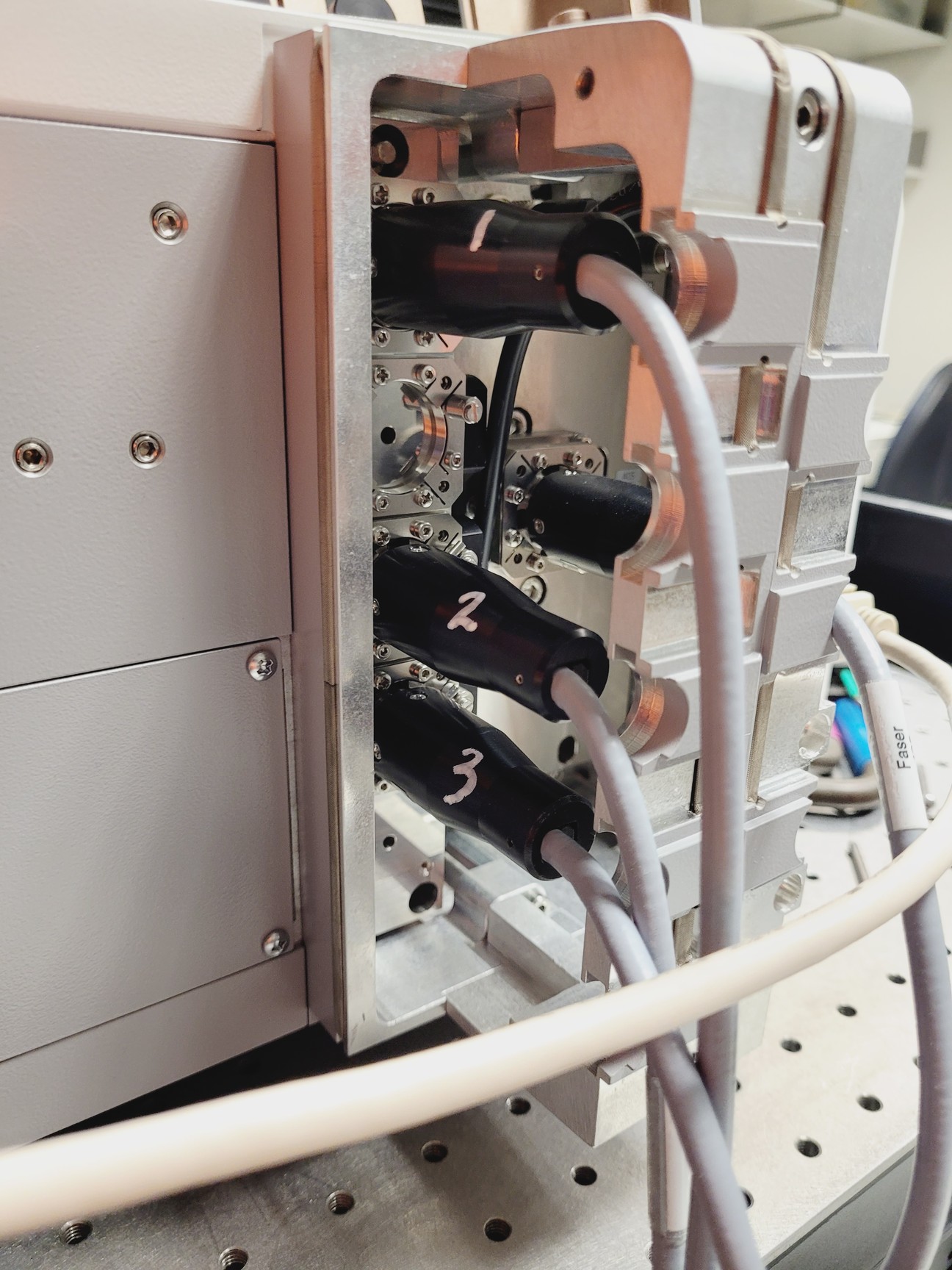

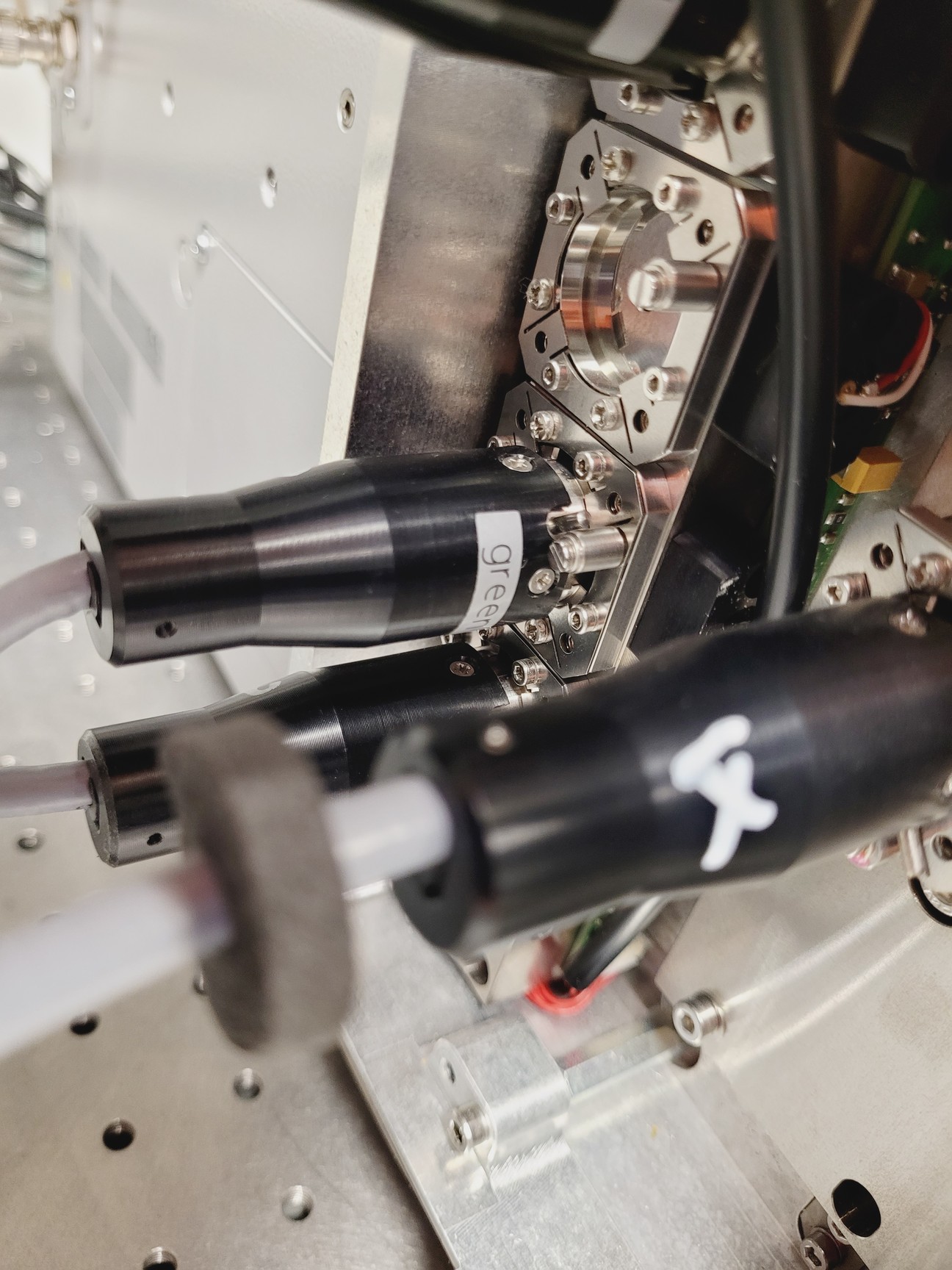

Elyra laser fibres realigned; Elyra head position and angle adjusted
BSC plates calibrated
Laser power measured and recorded for both LSM 710 and Elyra (all within spec)
Oculars and objectives cleaned
Test images acquired (10× and 20× objectives used; no immersion oil available at time of test)

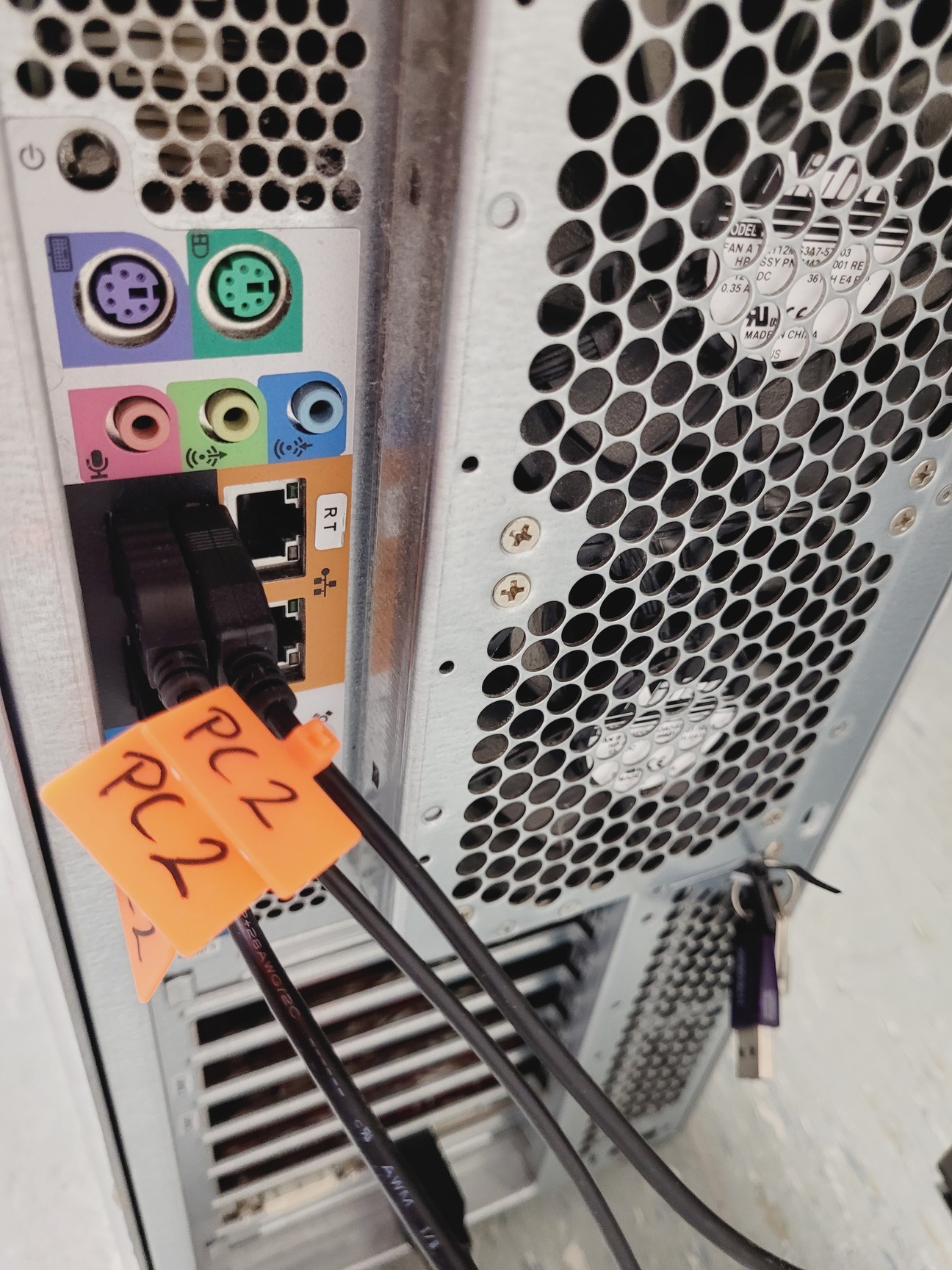

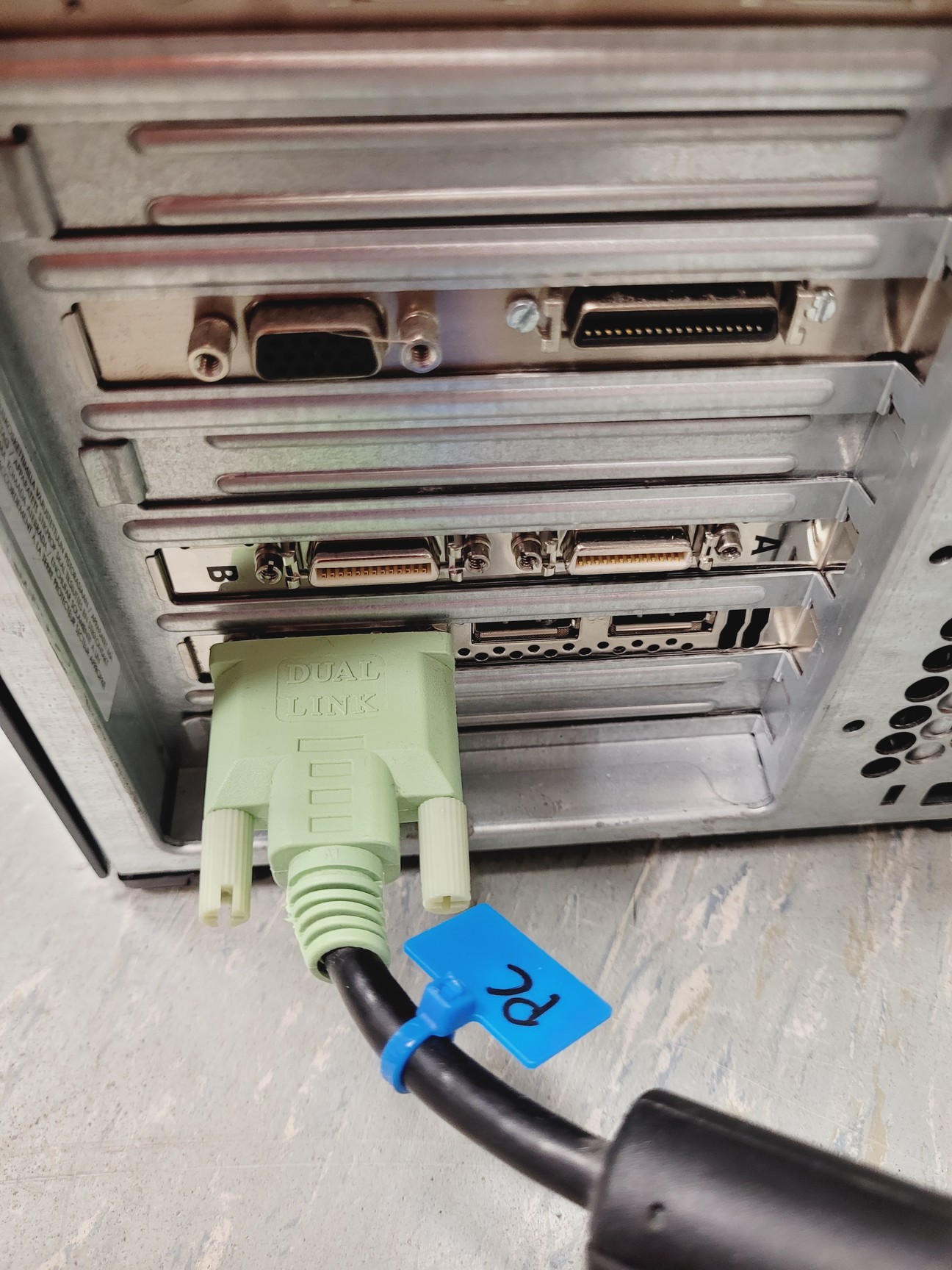

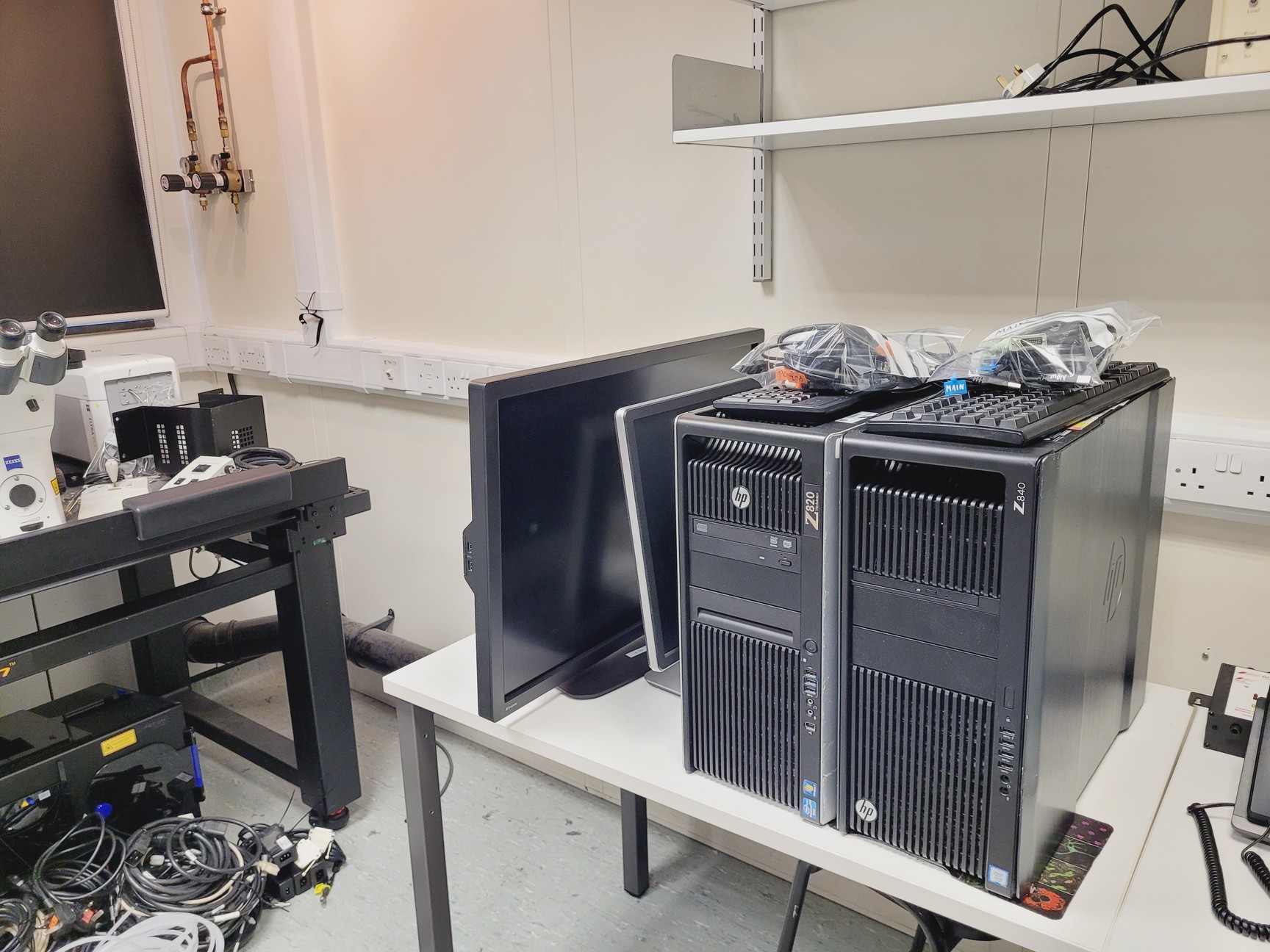

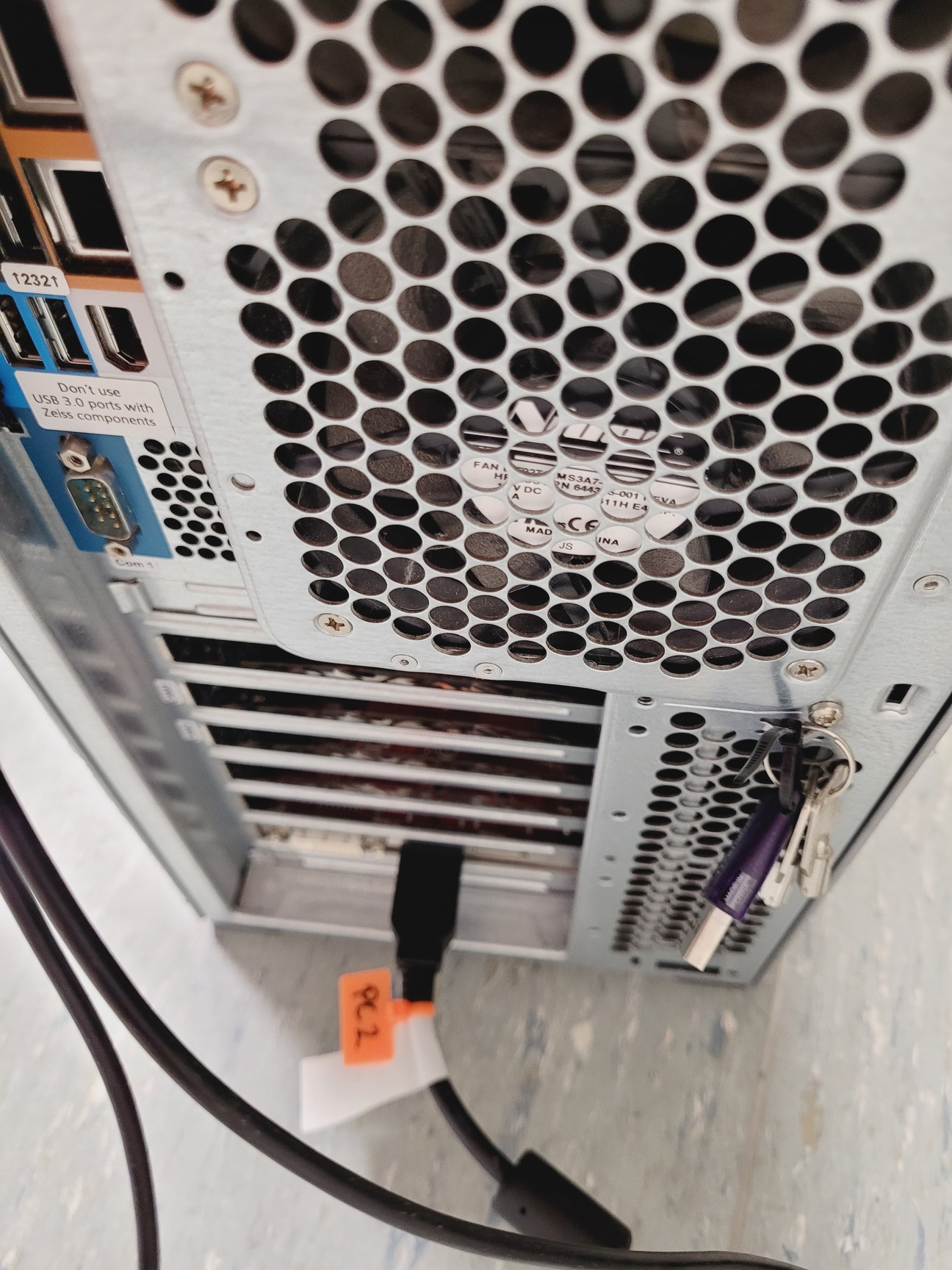

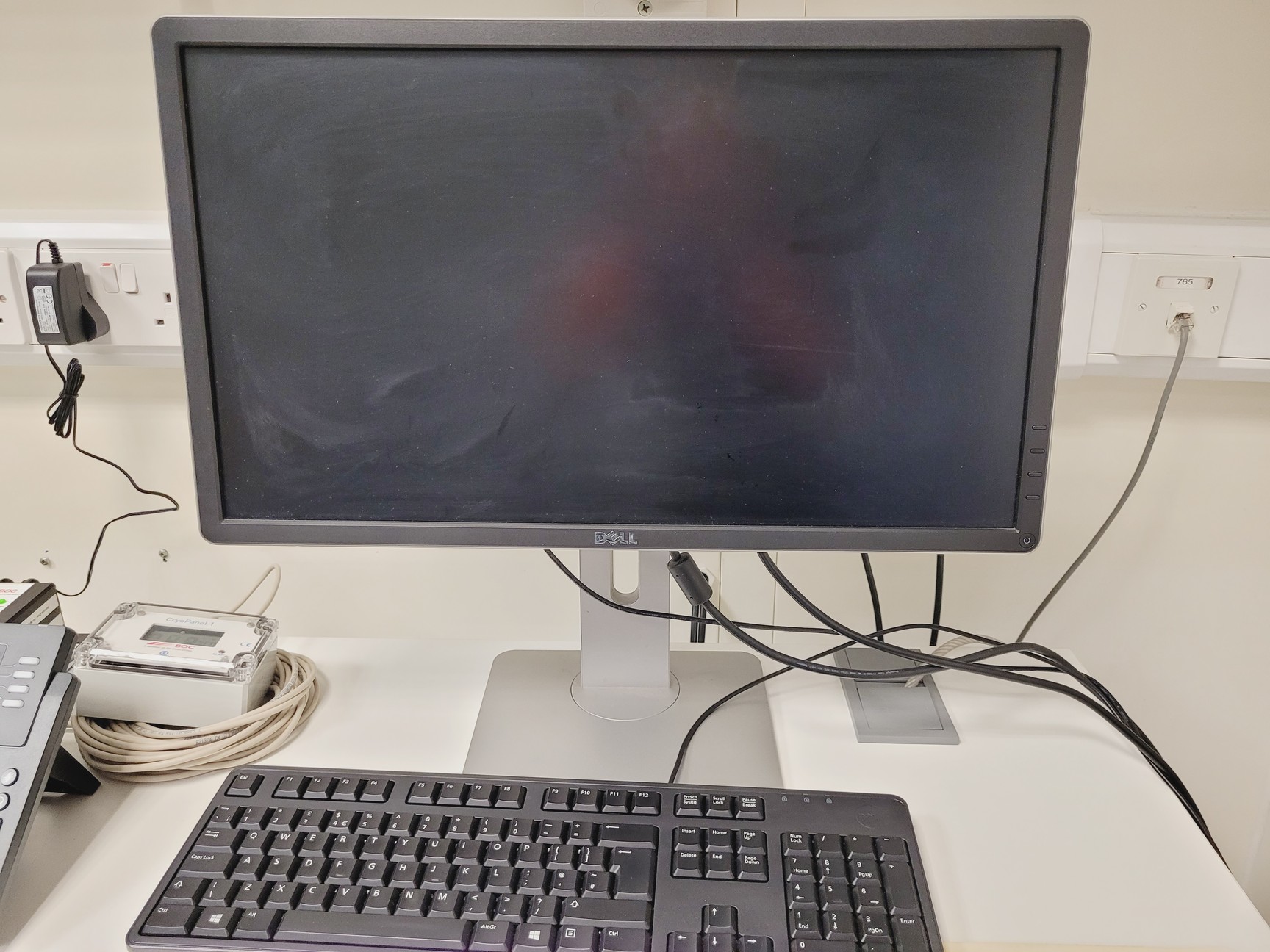

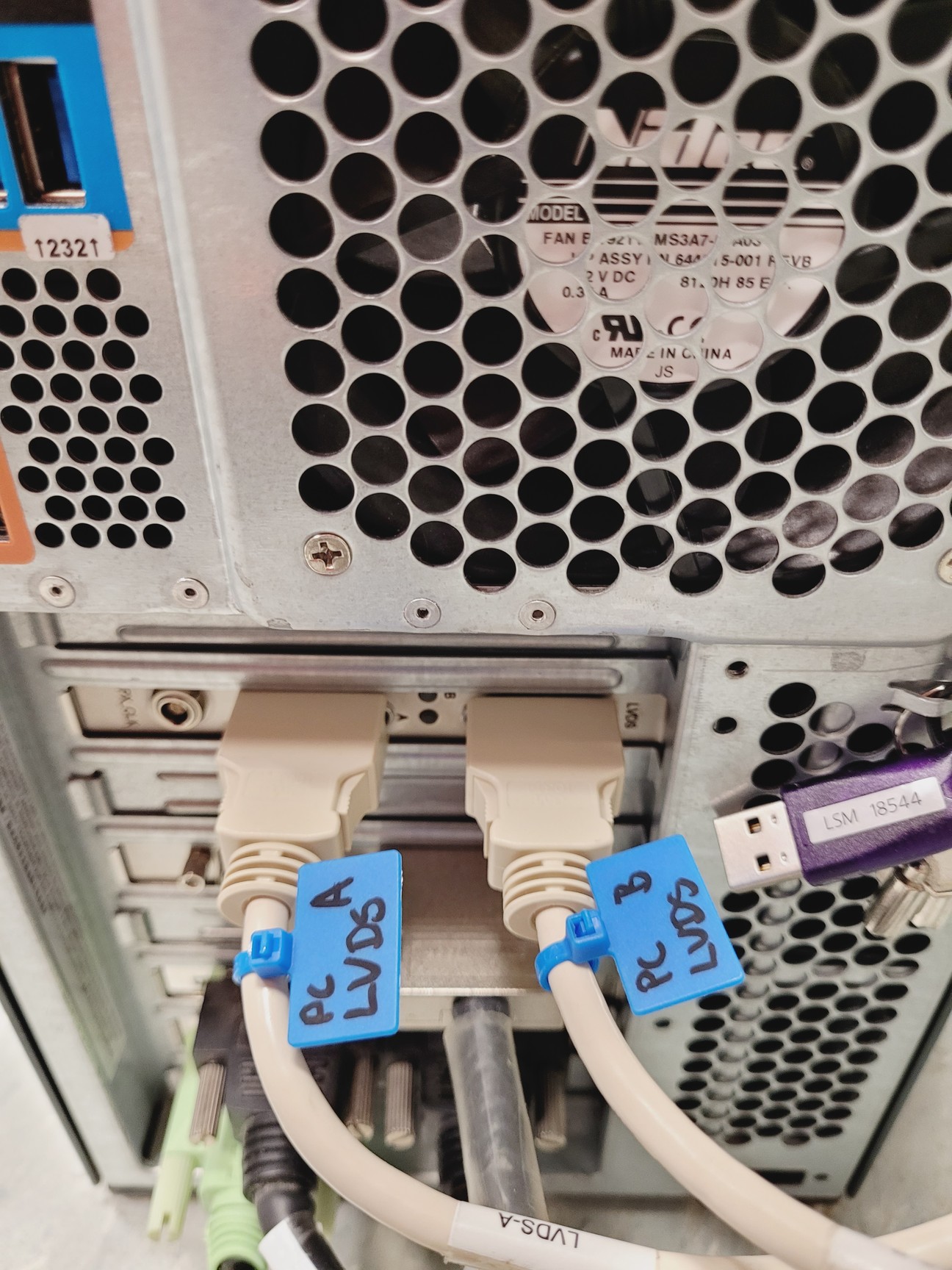

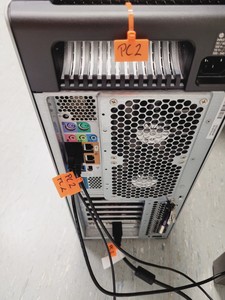

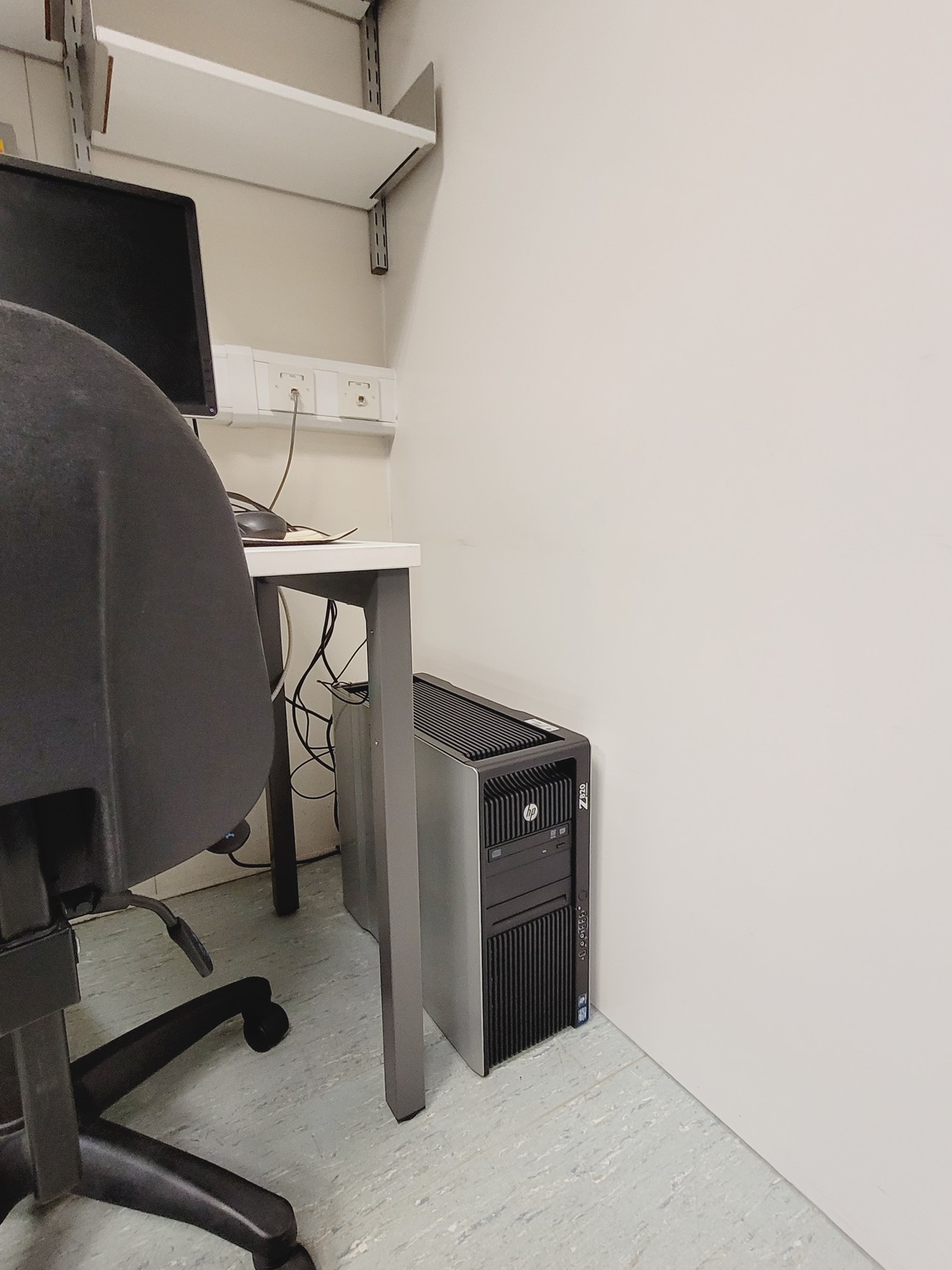

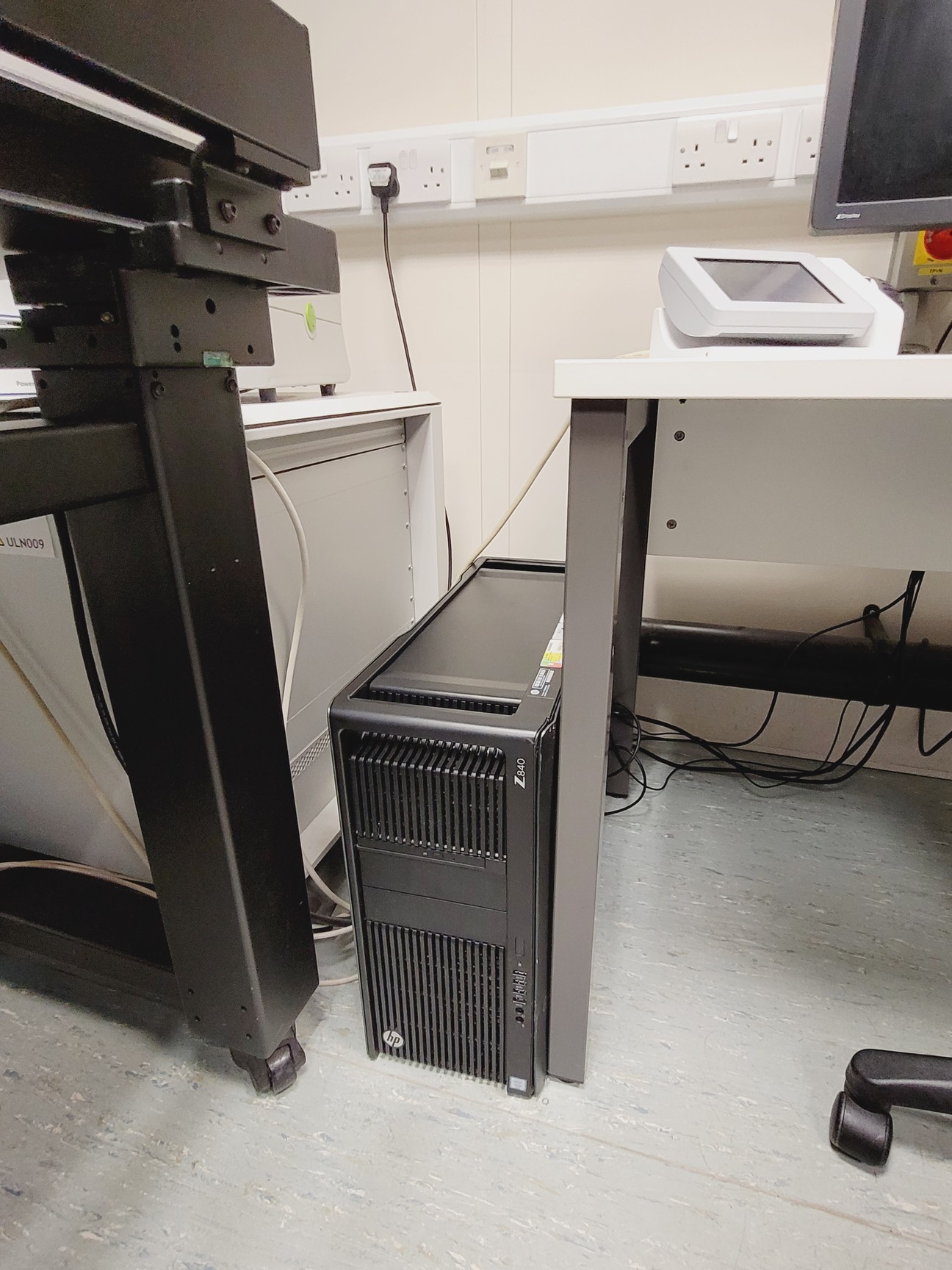

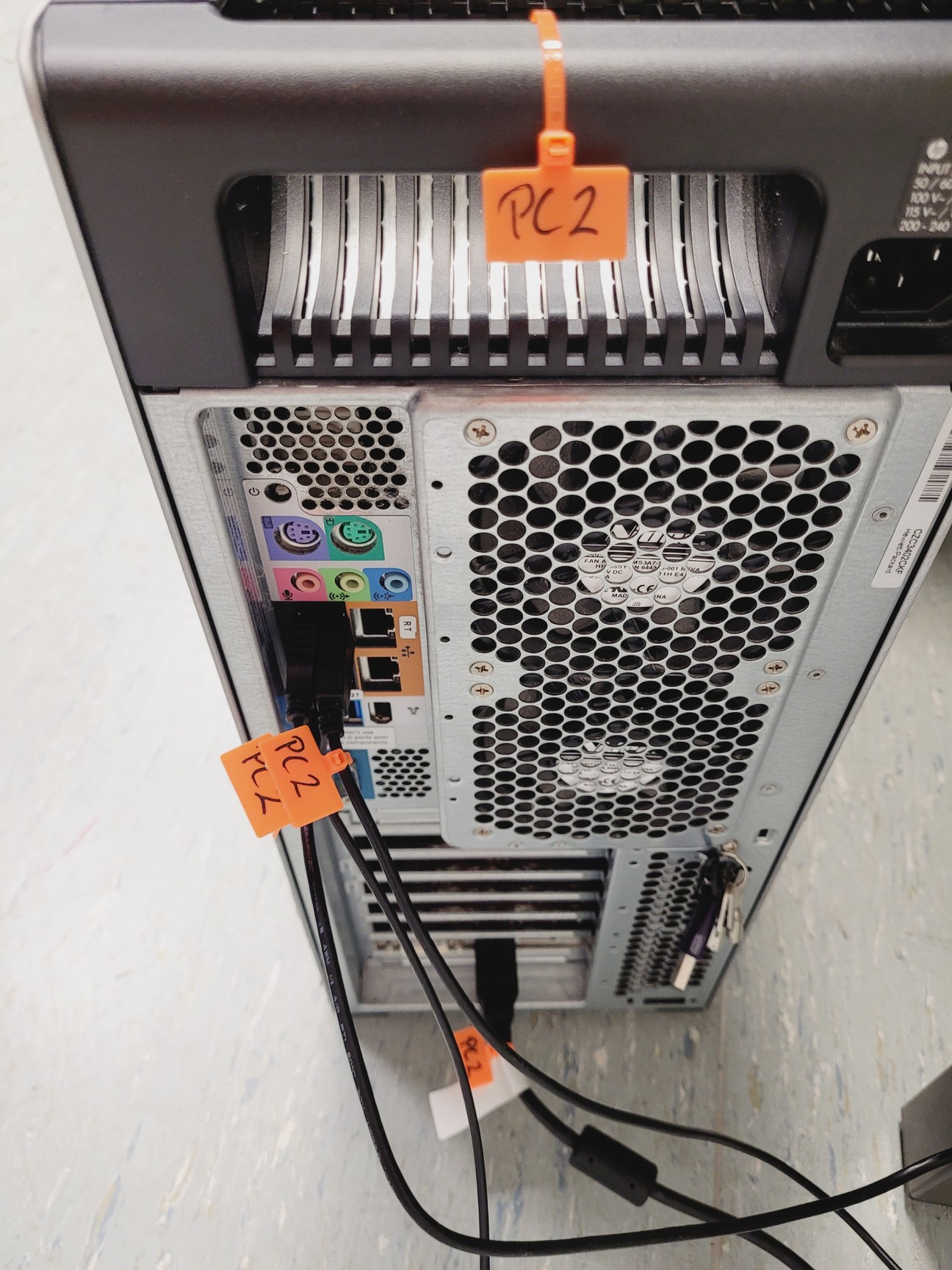

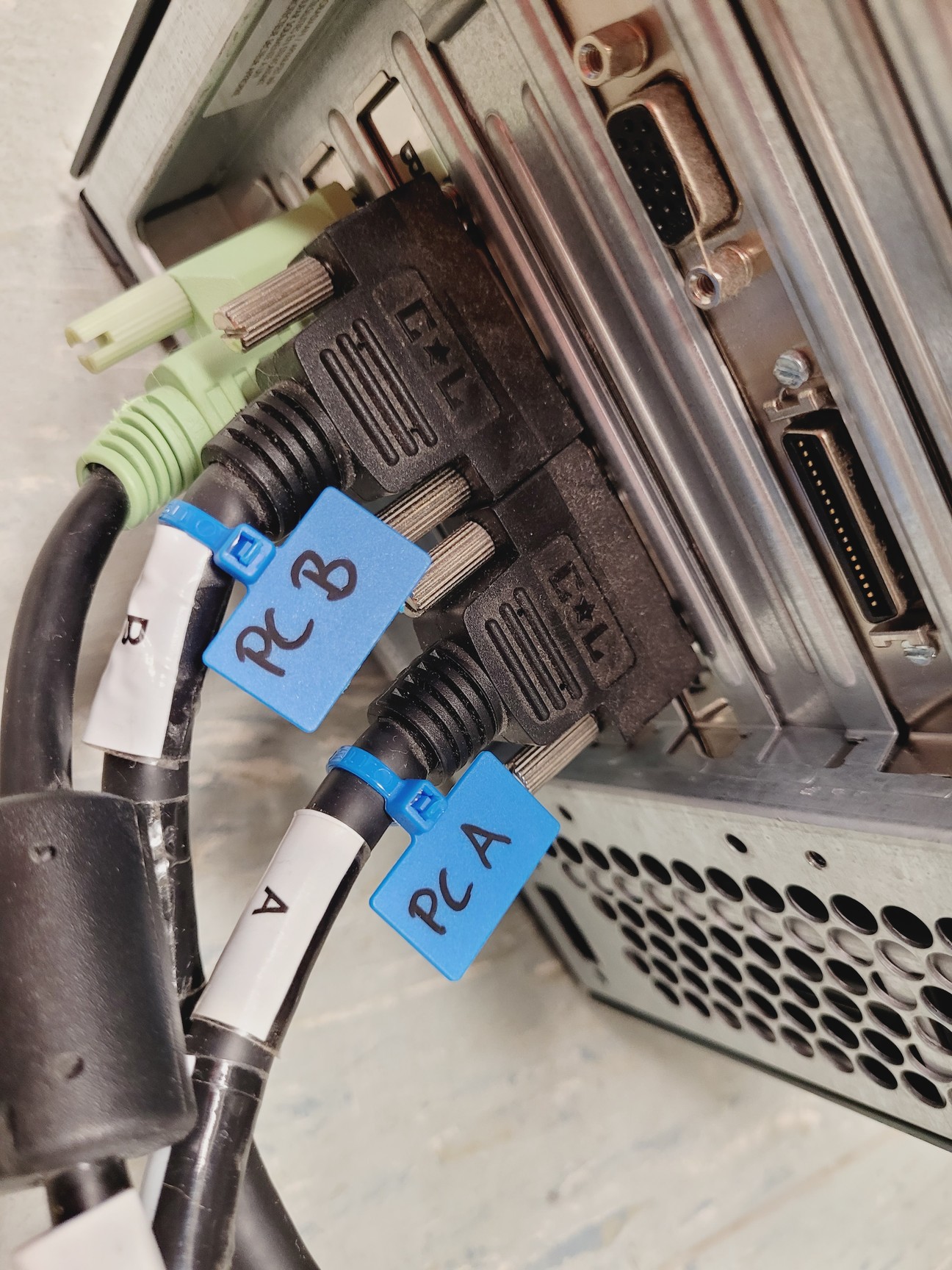

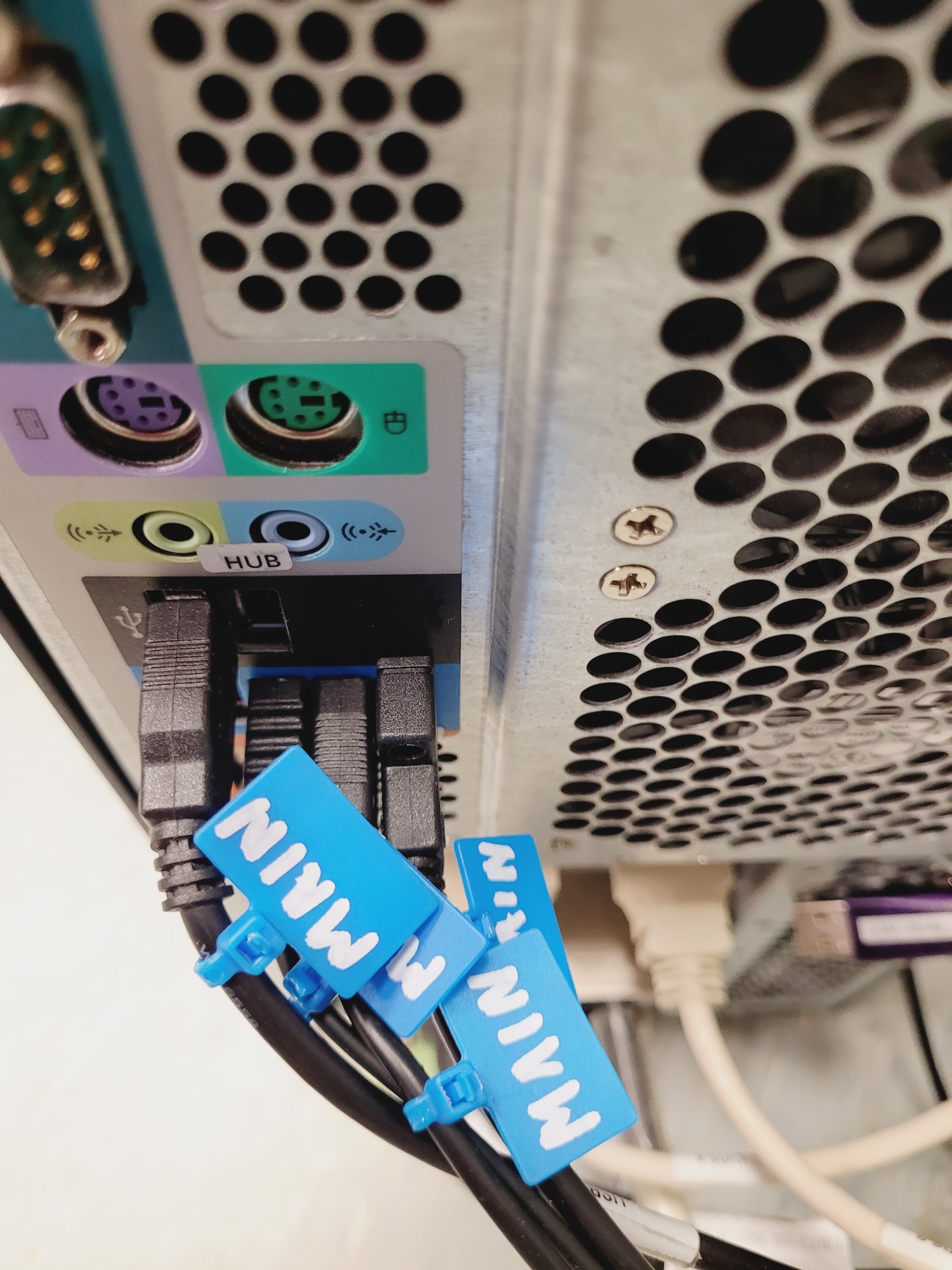

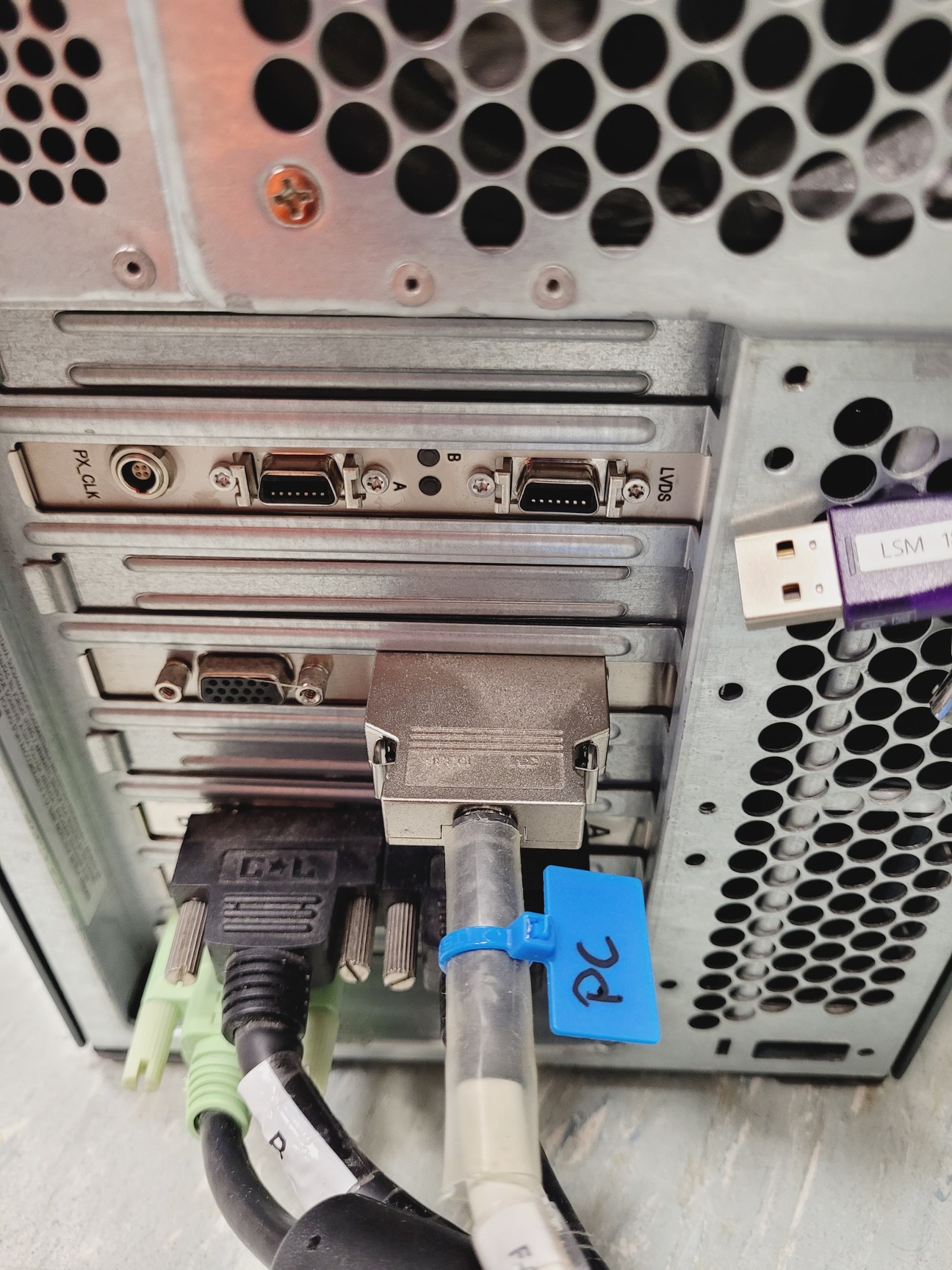

Processing PC checked: boots without errors; ZEN Black and ZEN Blue both operational
System Configuration
Objectives
- EC Plan-Neofluar 10×/0.3 M27
- EC Plan-Neofluar 20×/0.5 M27
- Plan-Apochromat 63×/1.4 Oil DIC M27
- Plan-Apochromat 100×/1.46 Oil DIC M27

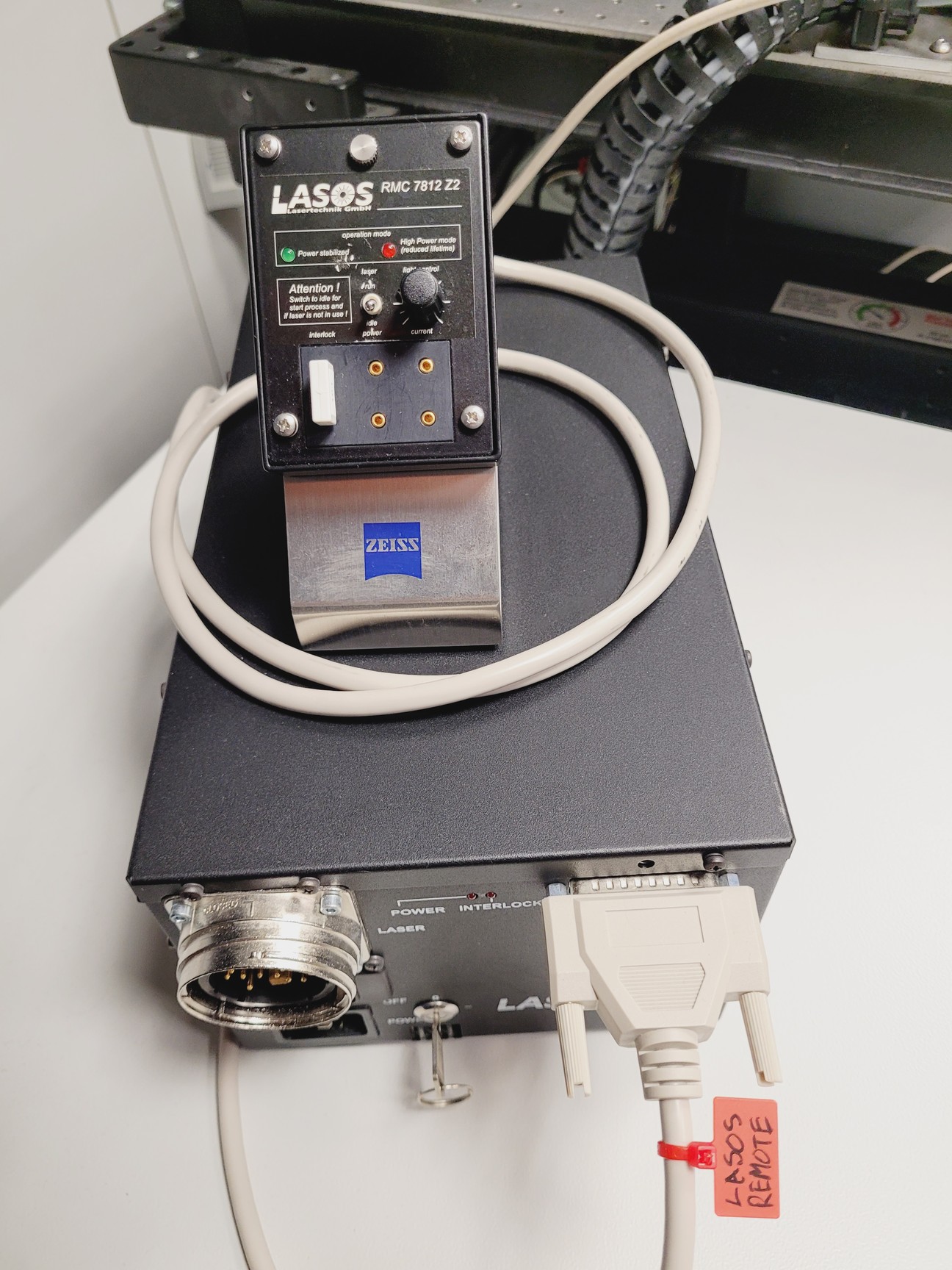

Lasers
LSM 710:
- Diode 405 nm (30 mW)
- Ar/ML 458/488/514 nm (35 mW)
- HeNe 543 nm (1 mW)
- HeNe 633 nm (5 mW)

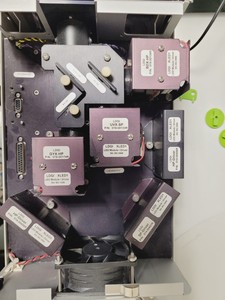

Elyra SIM / PALM:
- HR Diode 405 nm (50 mW)
- HR Diode 488 nm (100 mW)
- HR DPSS 561 nm (100 mW)
- HR Diode 642 nm (150 mW)
Cameras

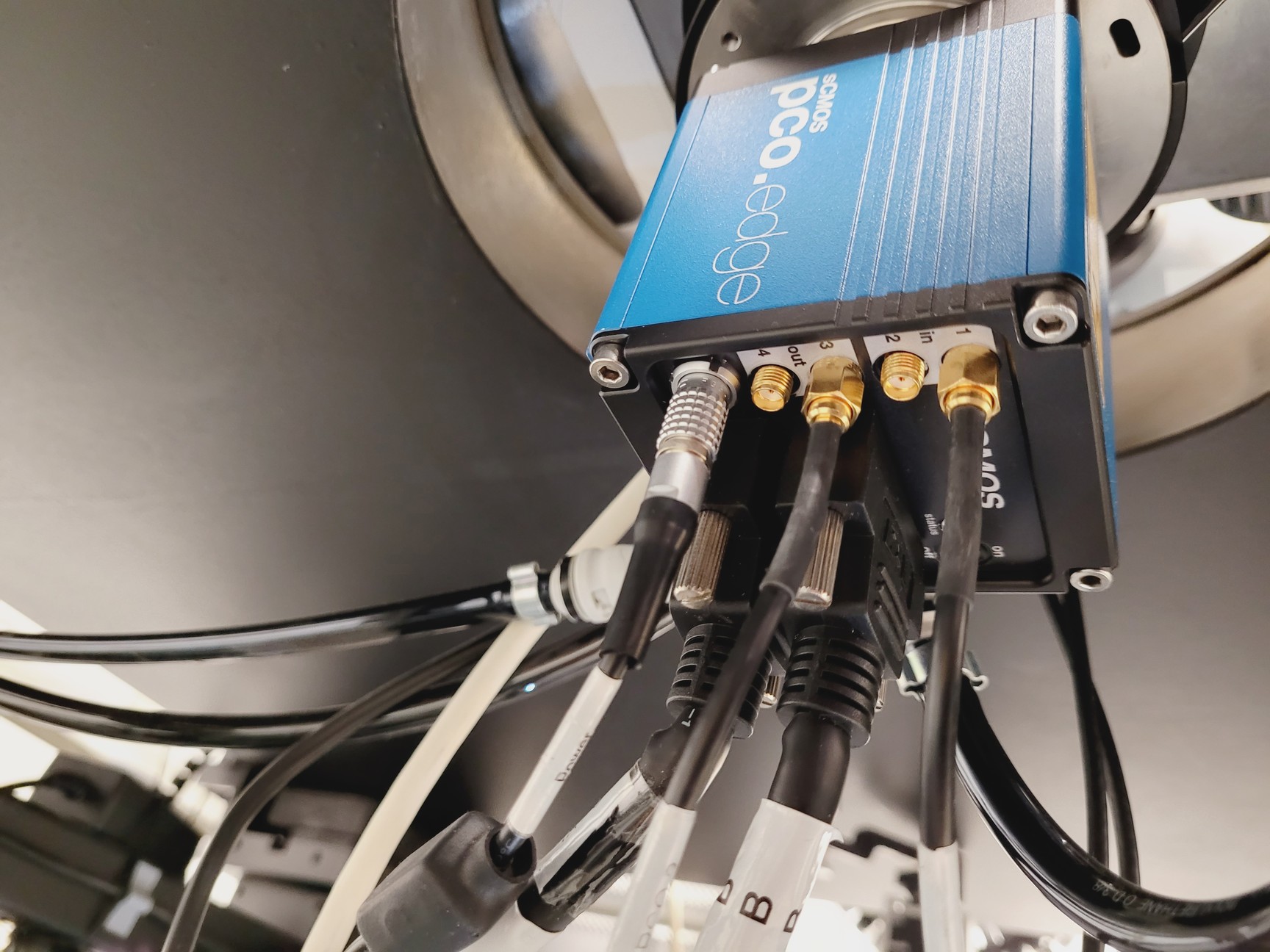

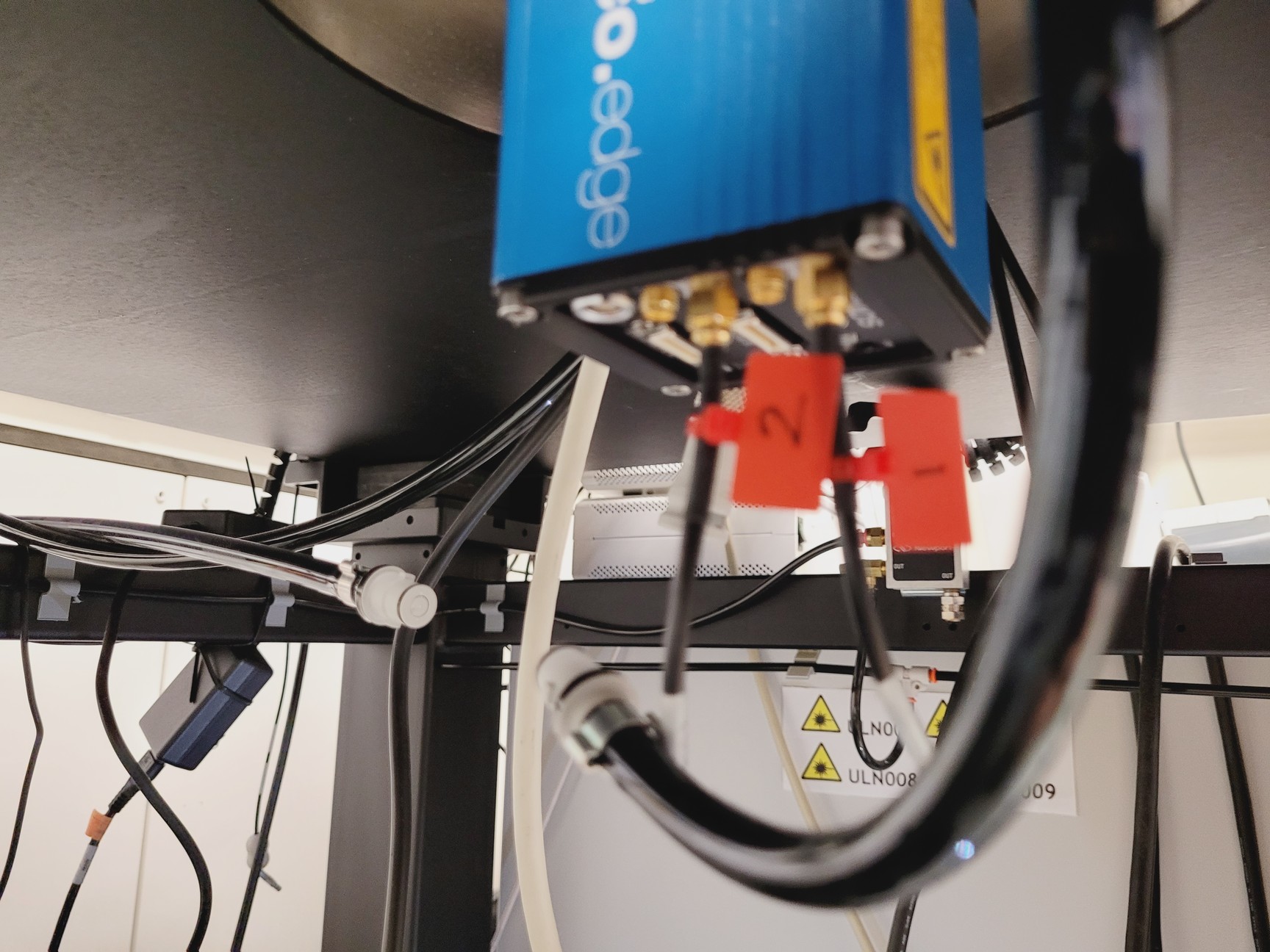

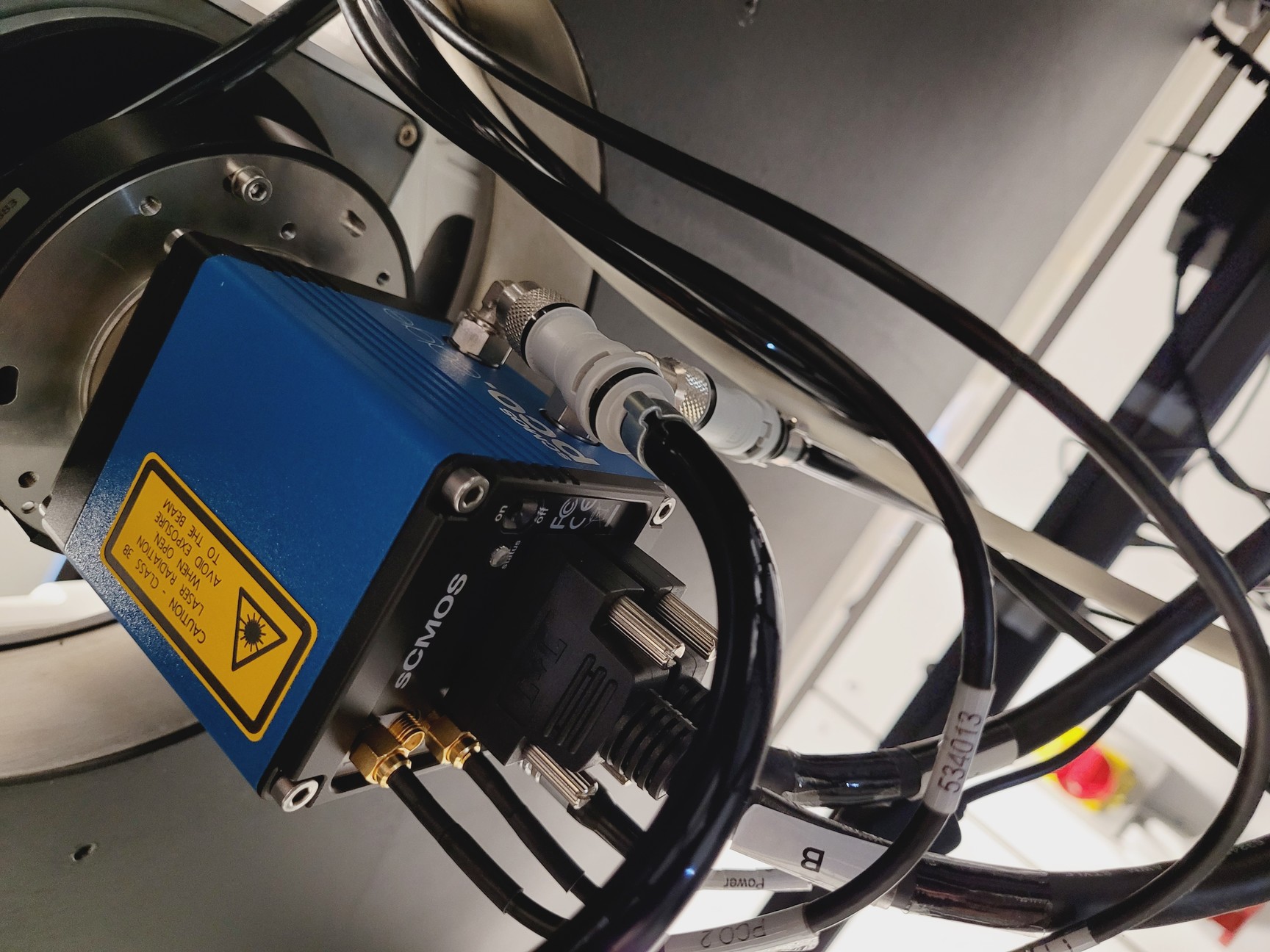

- pco.edge sCMOS (SIM)
- Andor iXon DU 897 back-illuminated EMCCD (PALM/STORM)
Item Details
| Property | Value | Tested value |
|---|---|---|
| Contains Laser | Yes | |
| Laser Classification | Class III |
Engineer's Certificate (download)
This item has been examined by an engineer.
Delivery
Free shipping is not available on this product. This item will be shipped by pallet delivery. Please contact us for a domestic or overseas shipping quote.
Additional terms and conditions
Class 3 lasers are classified as potentially hazardous devices that emit visible or invisible radiation. Direct exposure to the laser beam can cause damage to the eyes or skin. Safety precautions must always be followed during operation or exposure to prevent injury.
UniGreenScheme require signing of a Waiver Document to acknowledge the risk and outline the proposed use of the equipment. Completion of this Waiver is required prior to Dispatch. Waiver covers items with intended use, and those intended as "parts only".
Return policy
Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.
NOTE: No cables, remotes, accessories, power supplies, external PCs, software media, hardkeys, consumables or any other items are included unless shown in the item photos or detailed above.
