Zeiss PALM Microbeam System with PC & Software (Observer.Z1, XL-PALM Incubator)
Item Code: ITEM-48765
Condition: Recertified
Brand: ZEISS
Location: Wales
£ 15,000.00 exc. VAT (£ 18,000.00 inc. VAT)
If you are interested in this item or would like to place an order, please get in touch with us at , or by phone on +44 29 2086 4661.
Description

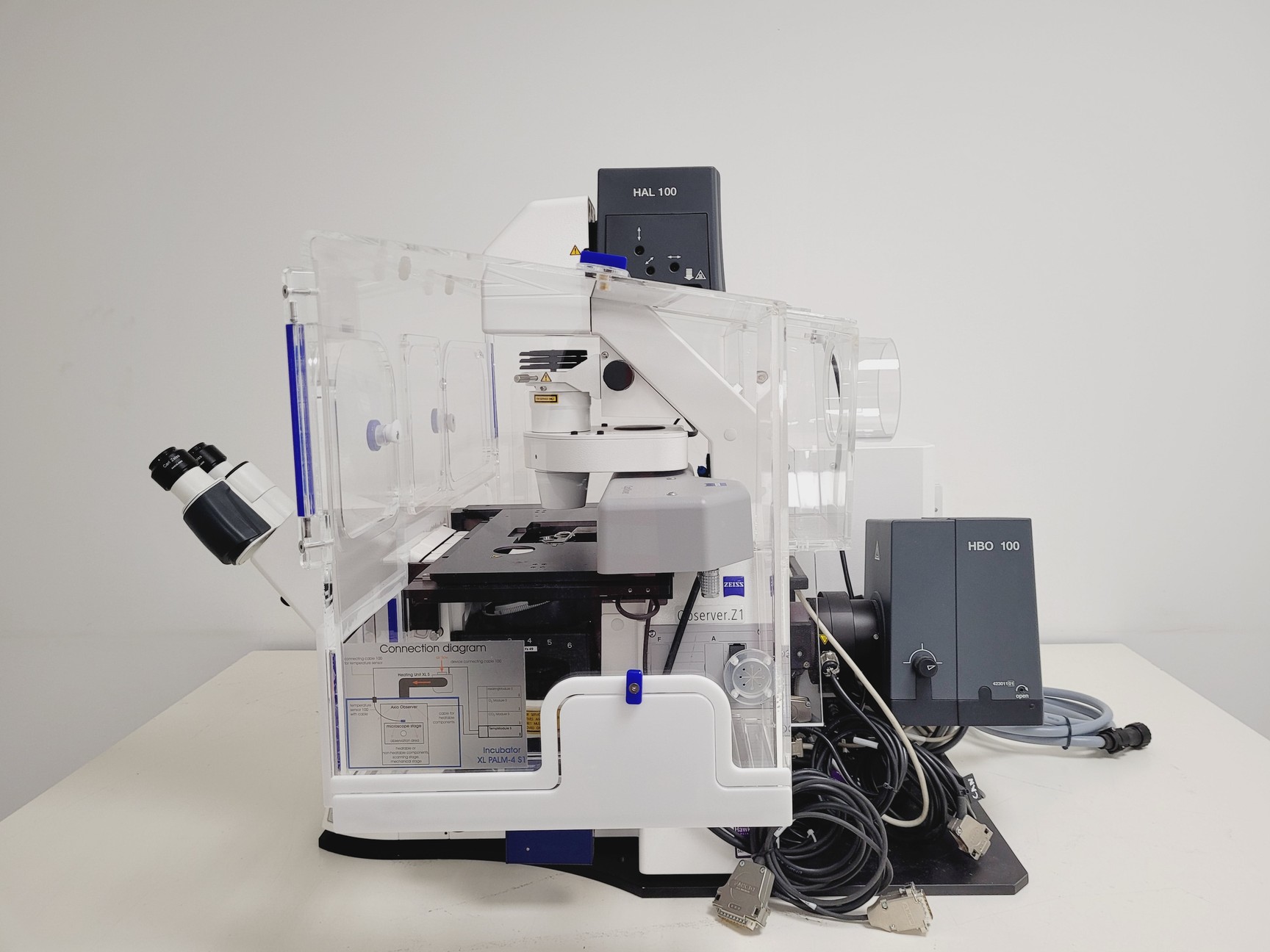

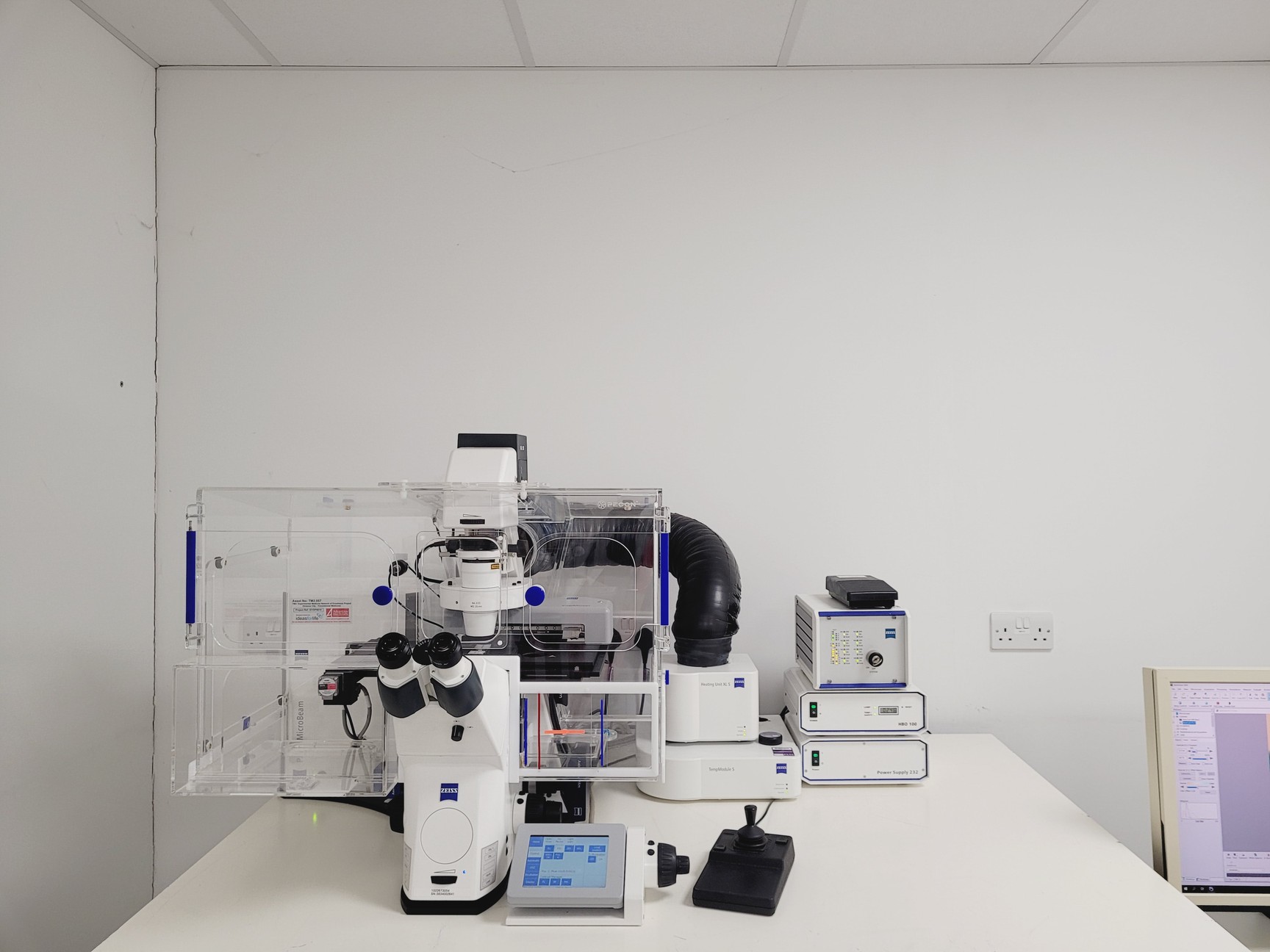

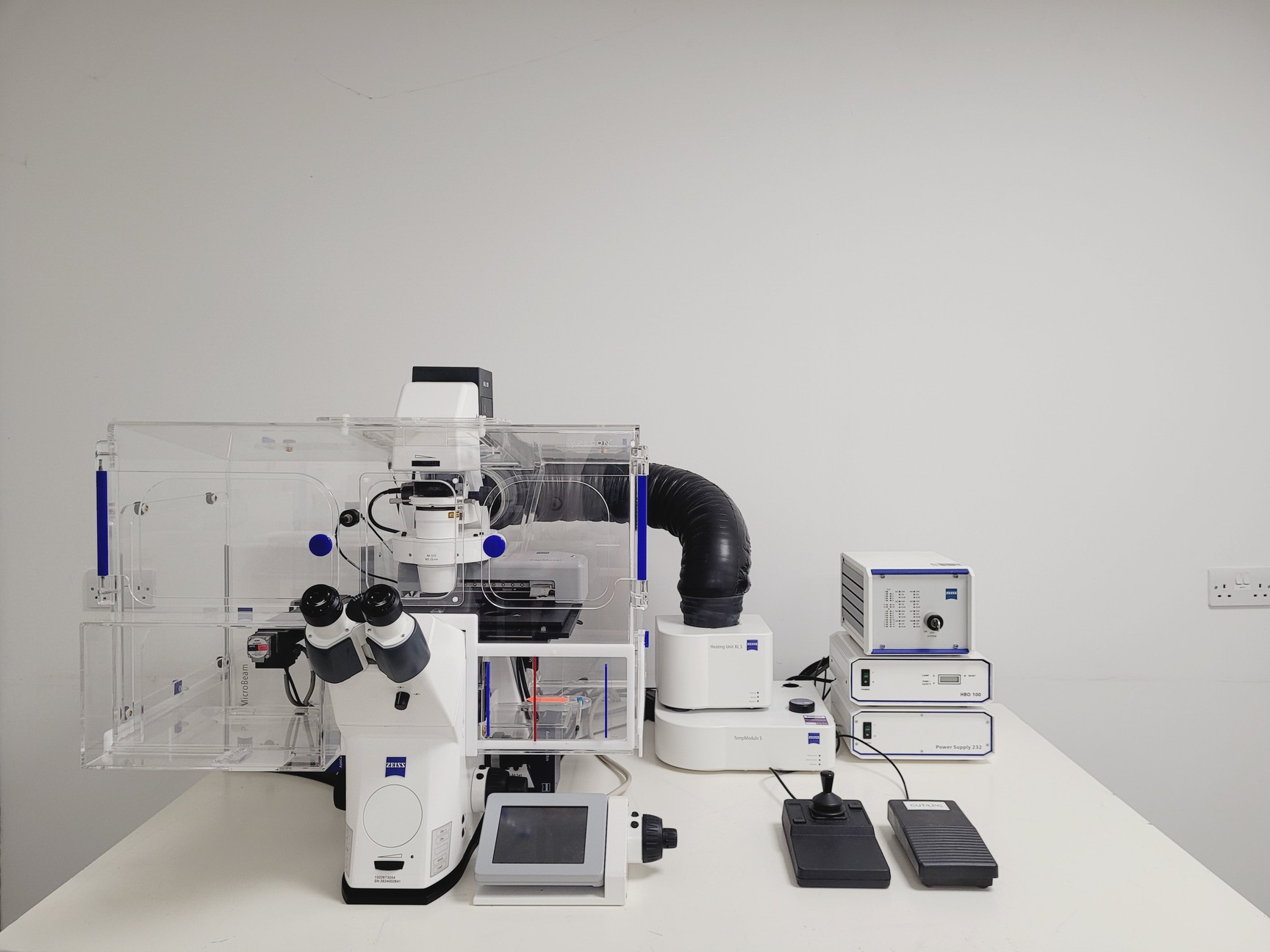

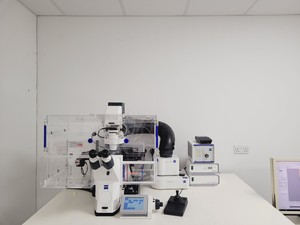

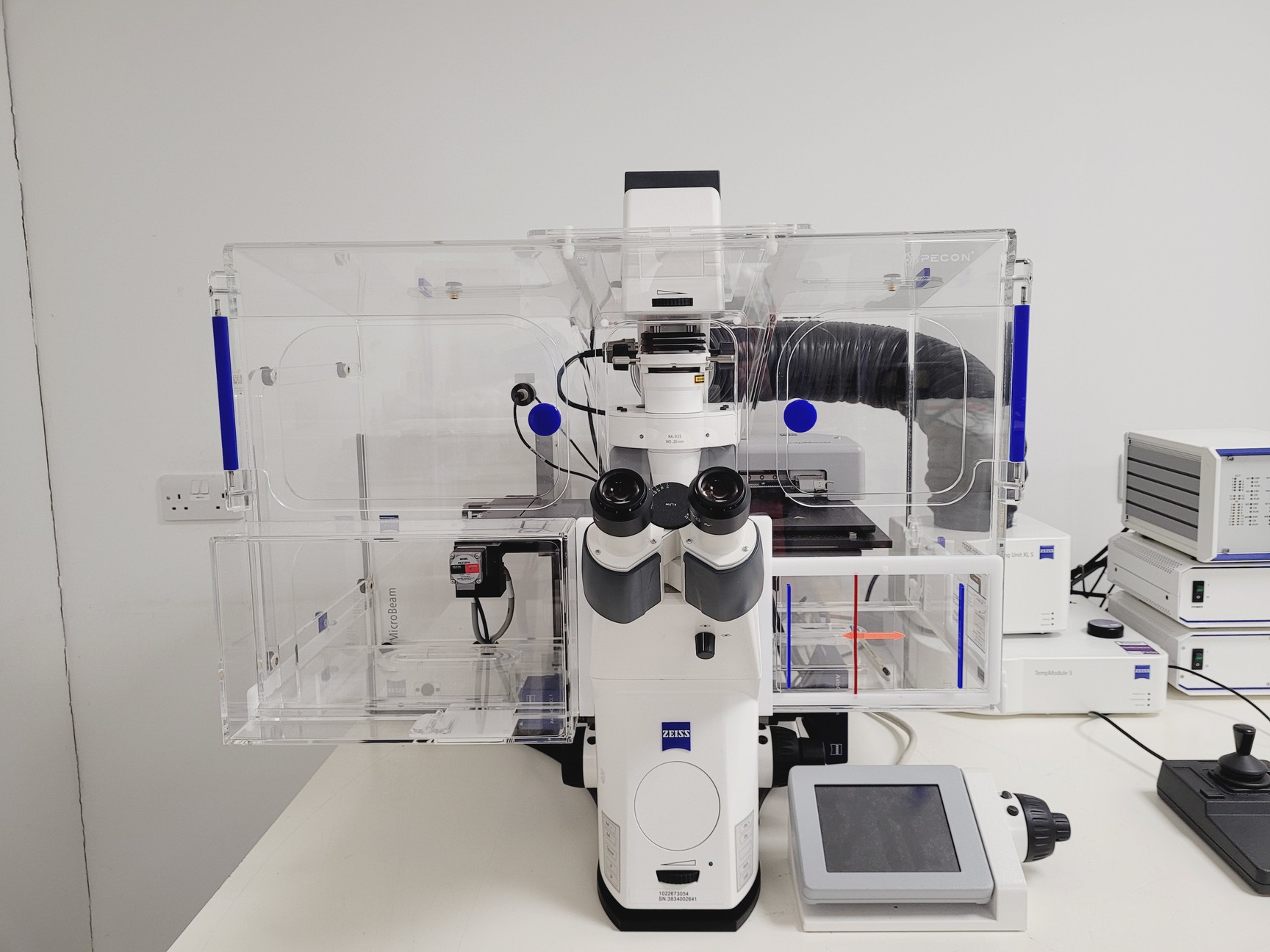

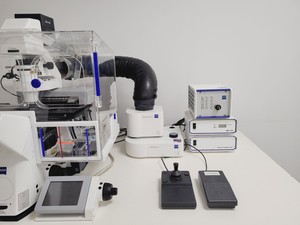

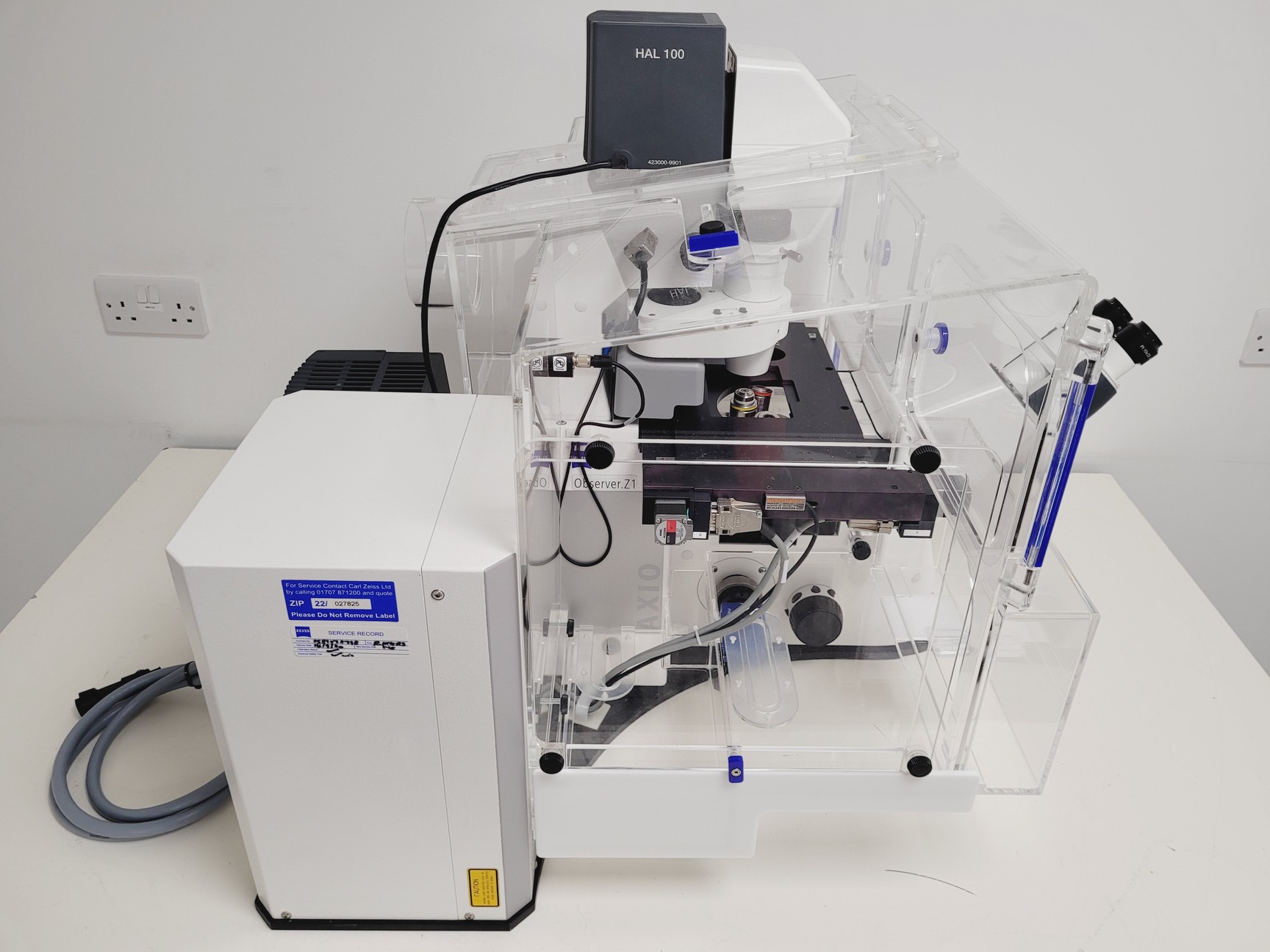

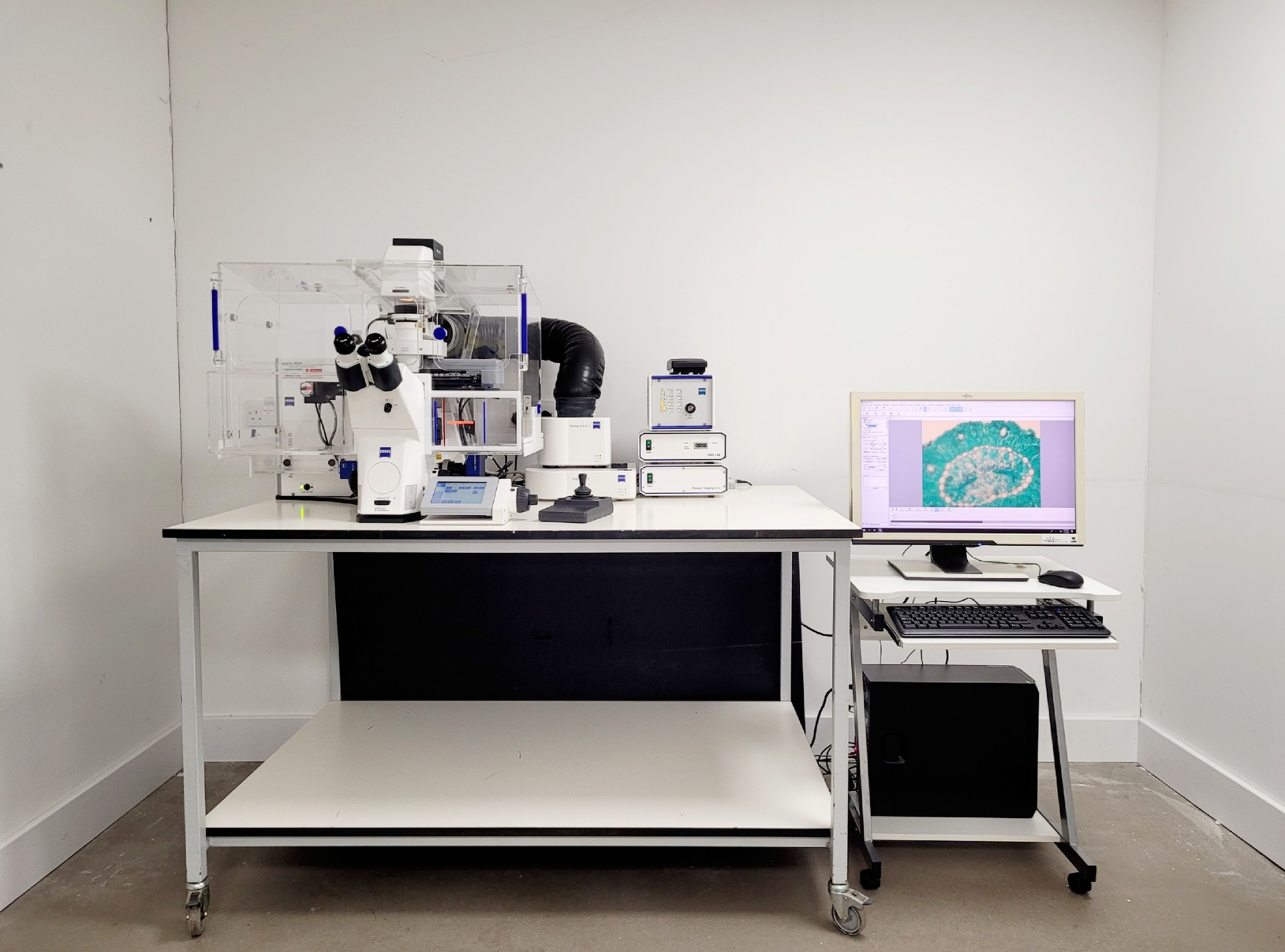

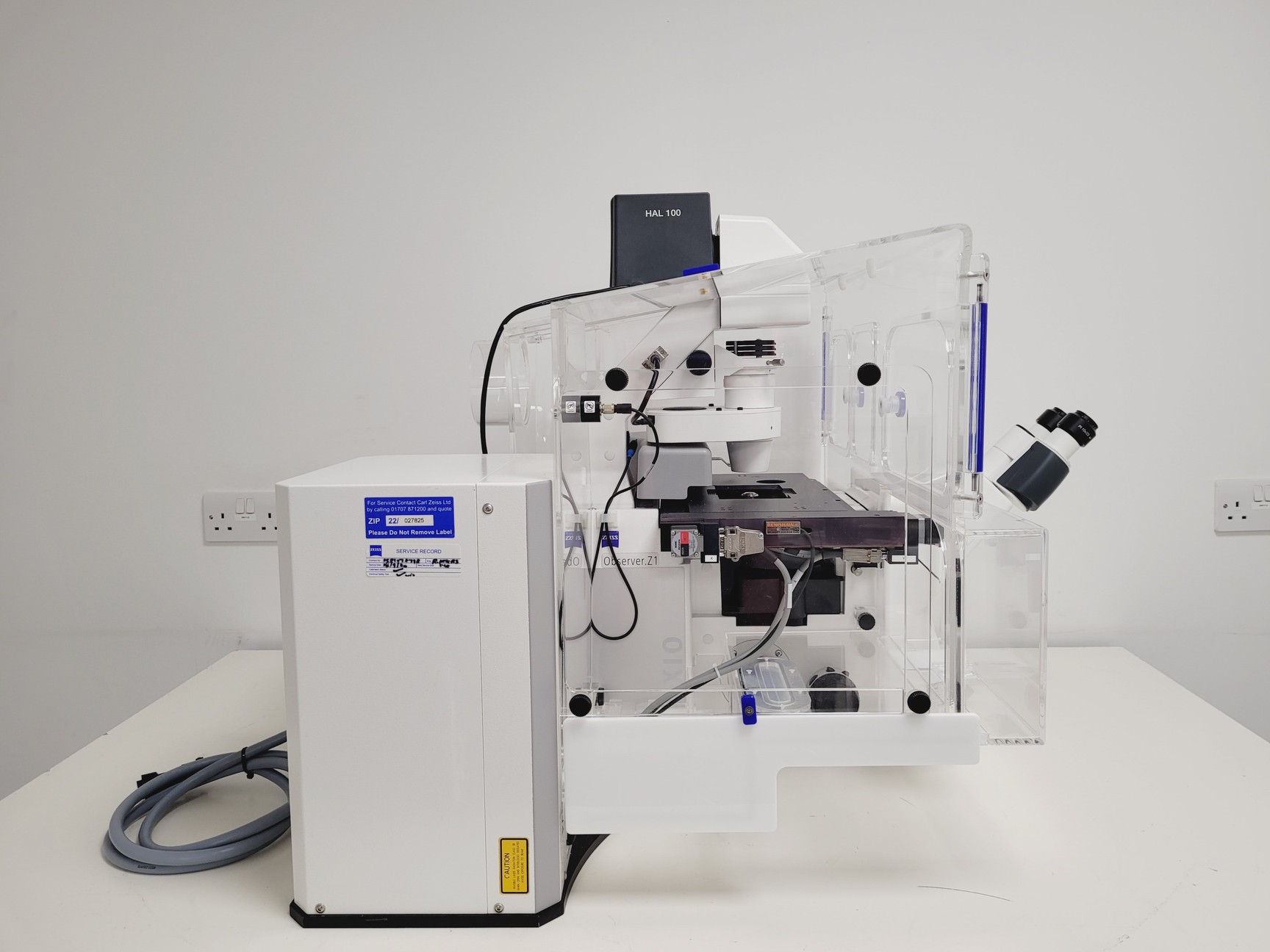

Zeiss PALM Microbeam System with PC & Software (Observer.Z1, XL-PALM Incubator)
This system was removed from a facility where it was surplus to requirements.

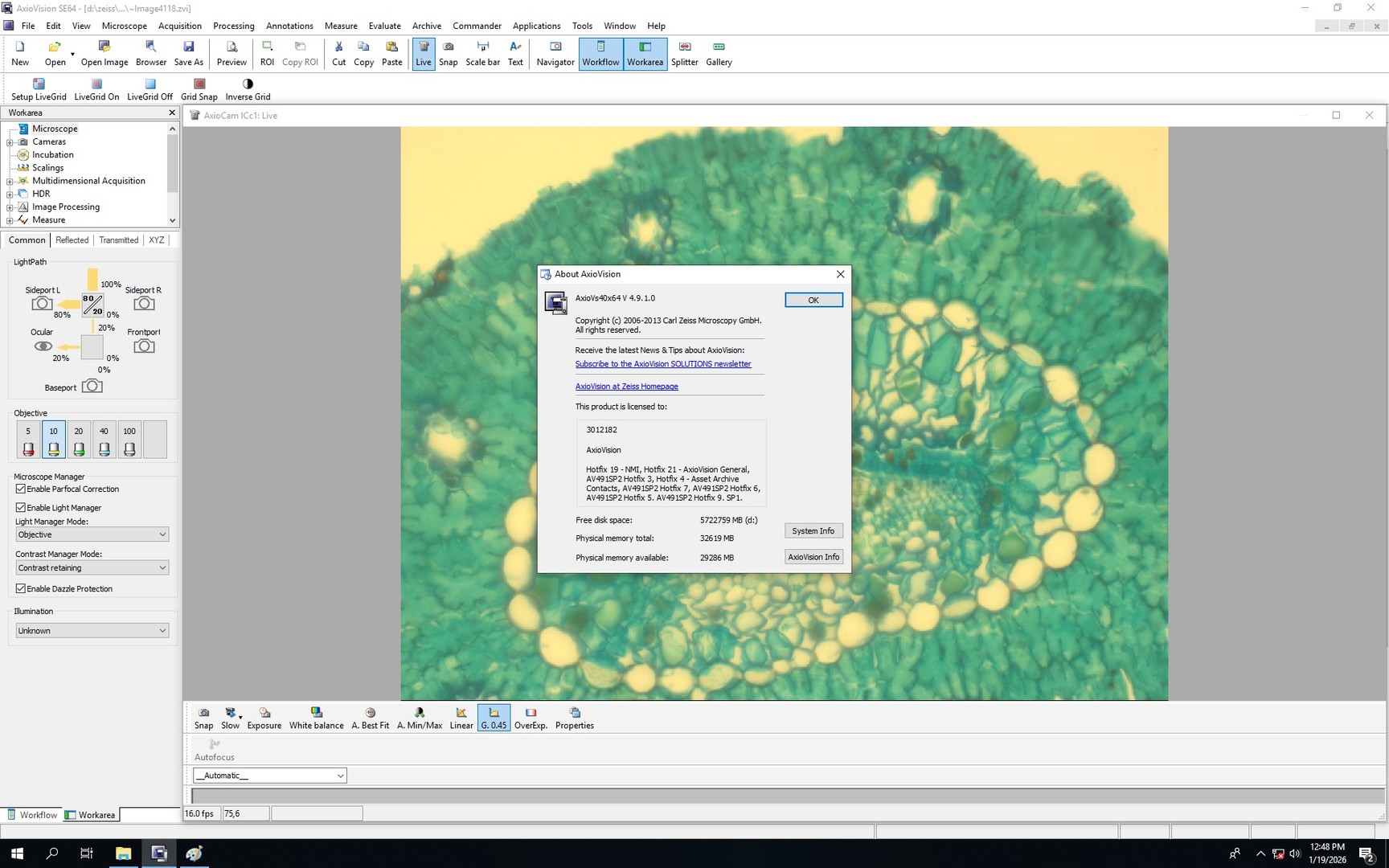

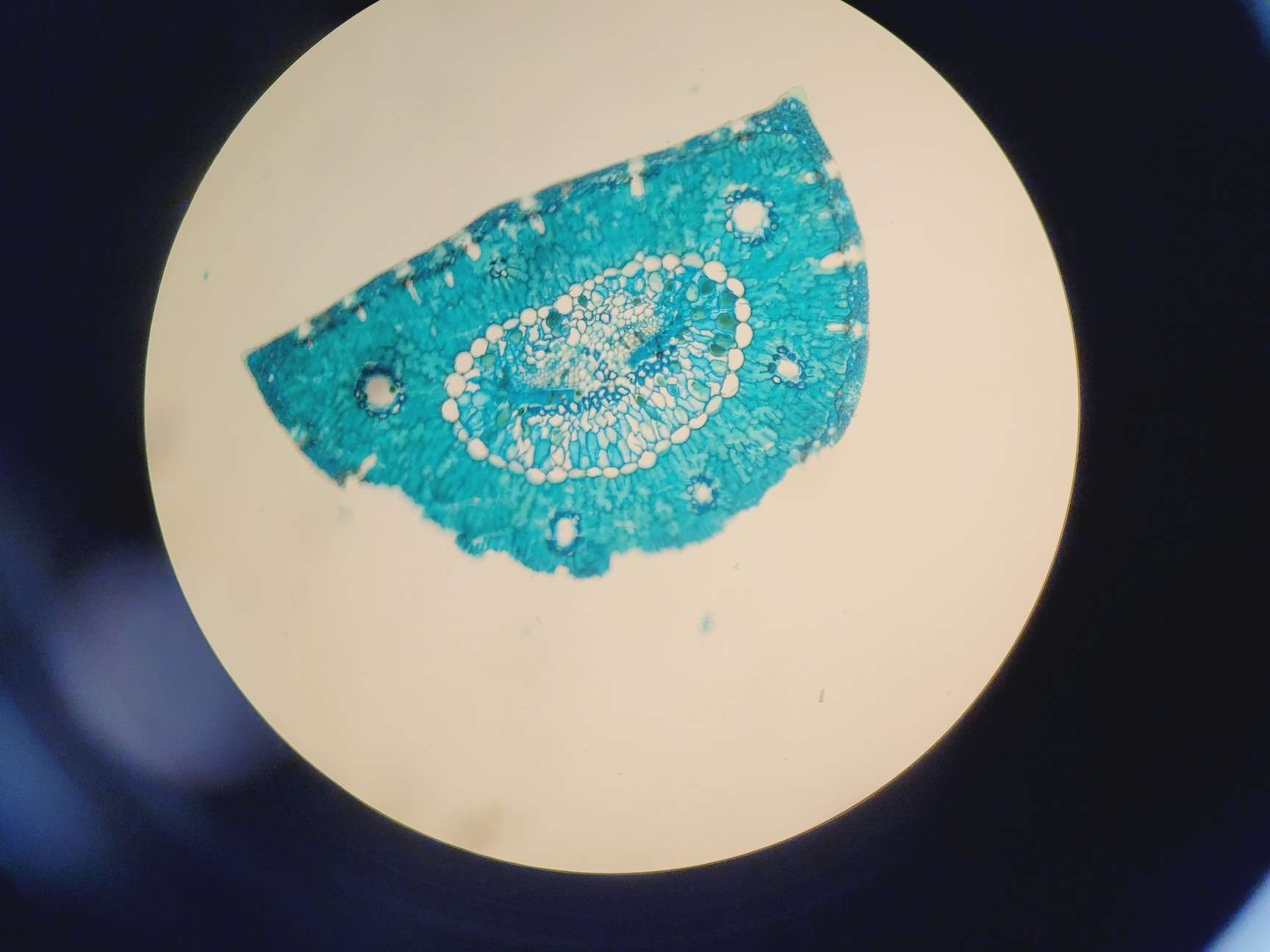

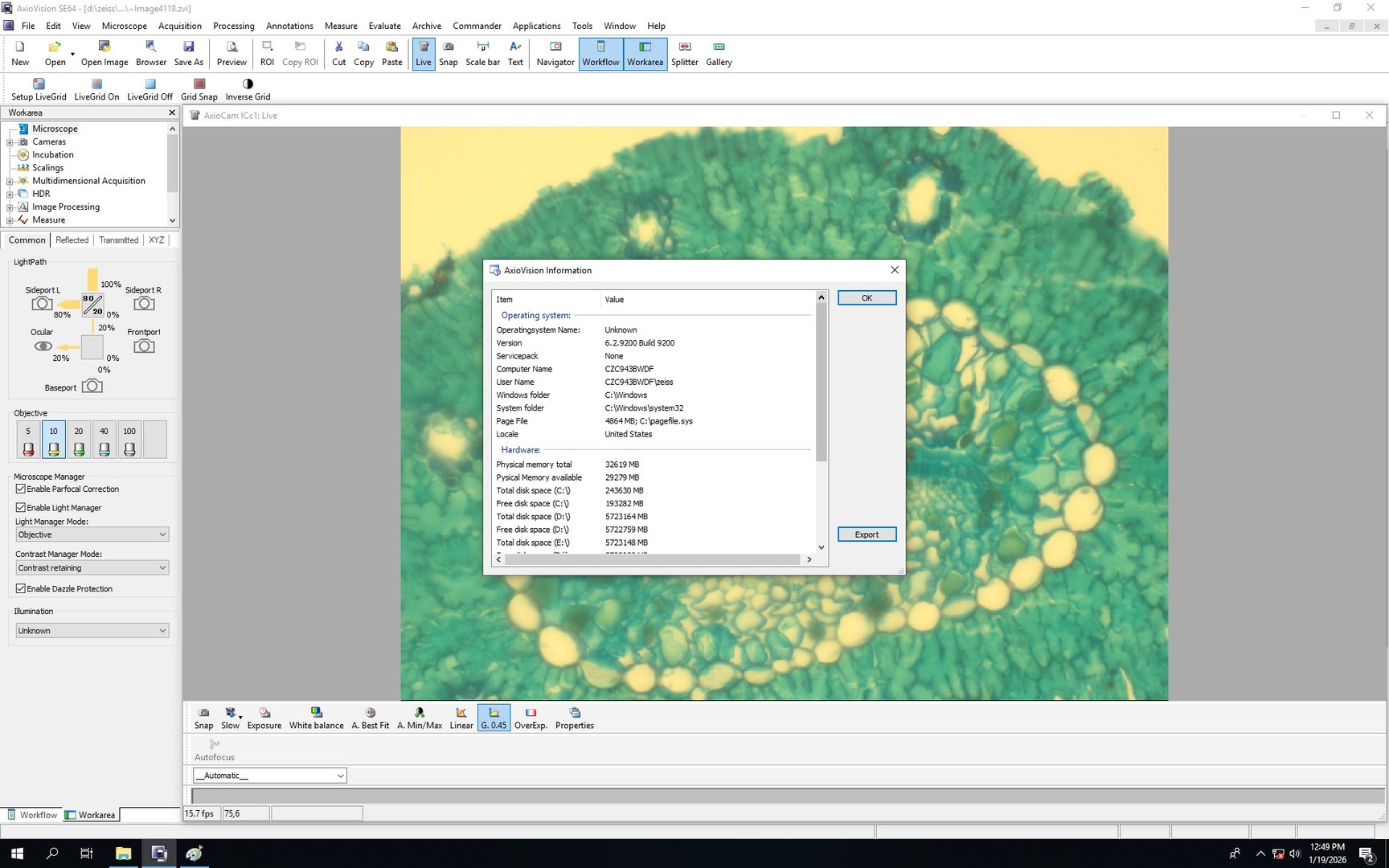

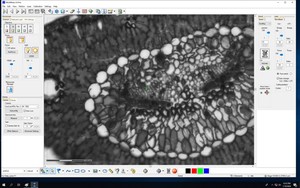

It is in very good used cosmetic condition. Both Zeiss AxioVision and PALMRobo software have been run and the system initialises as it should. Live camera images were successfully obtained through both software packages.
The system has been tested, however the laser has not been run due to testing restrictions regarding class 3+ lasers at our facility.
Included Components:
Microscope Base

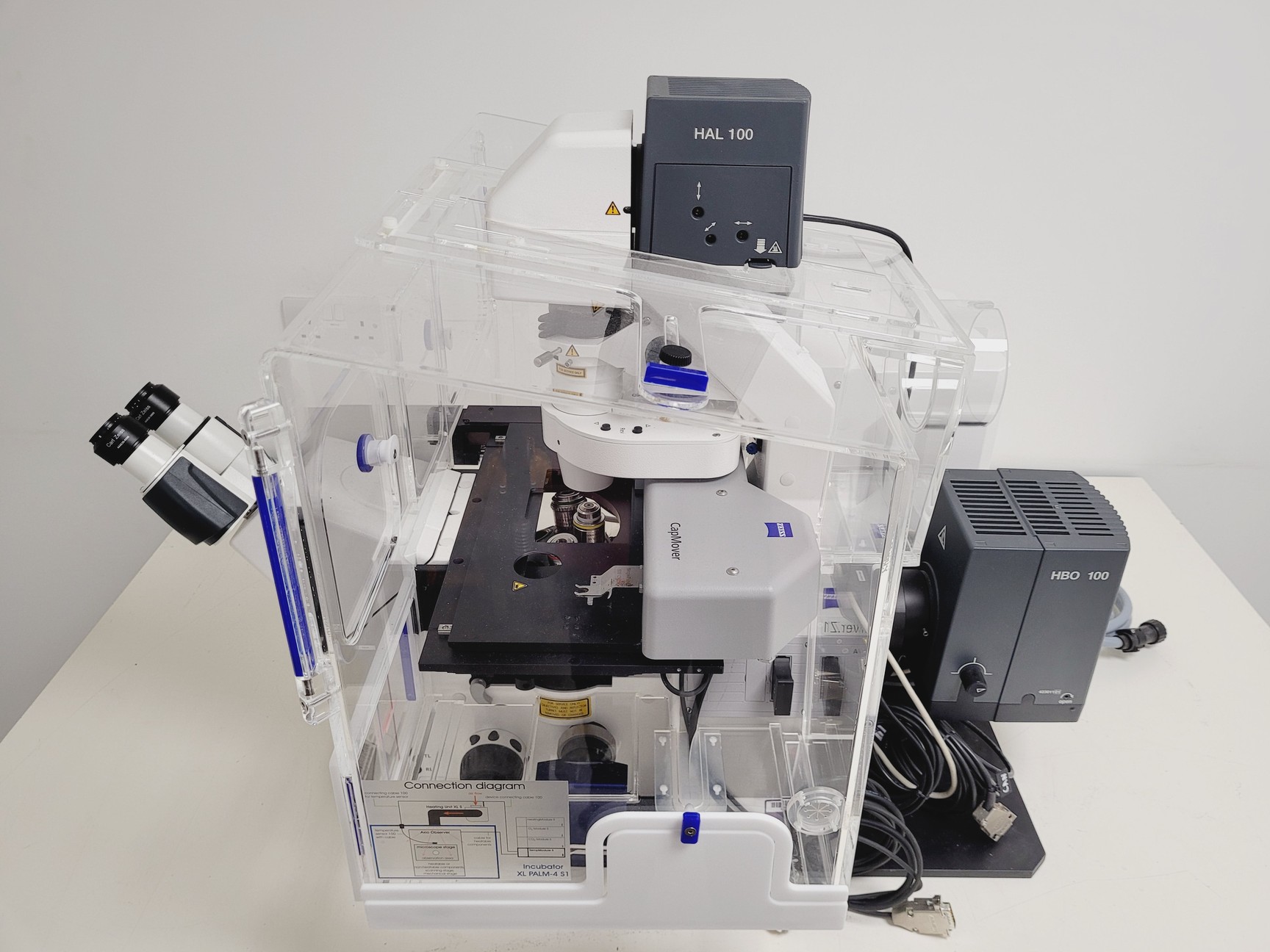

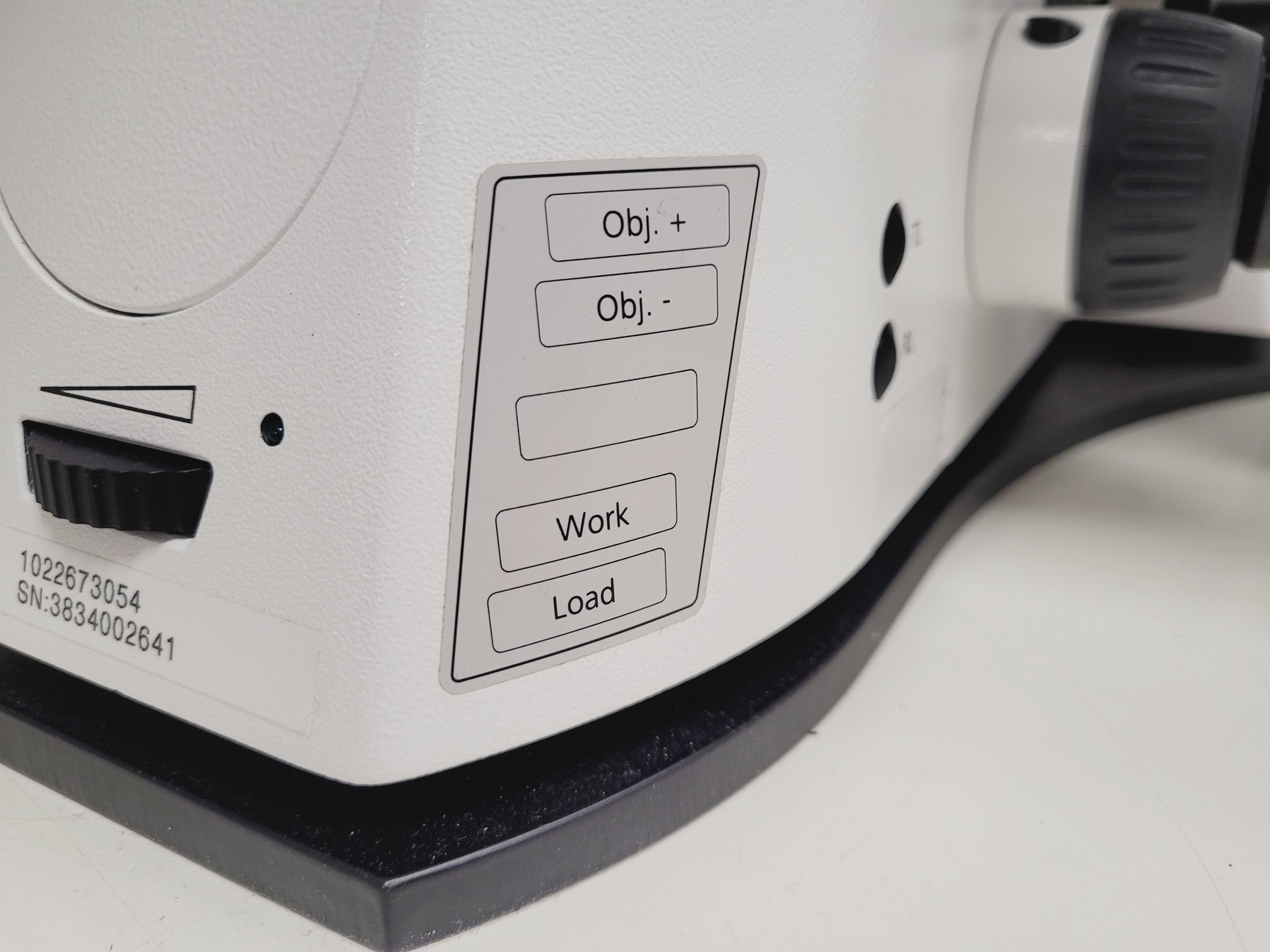

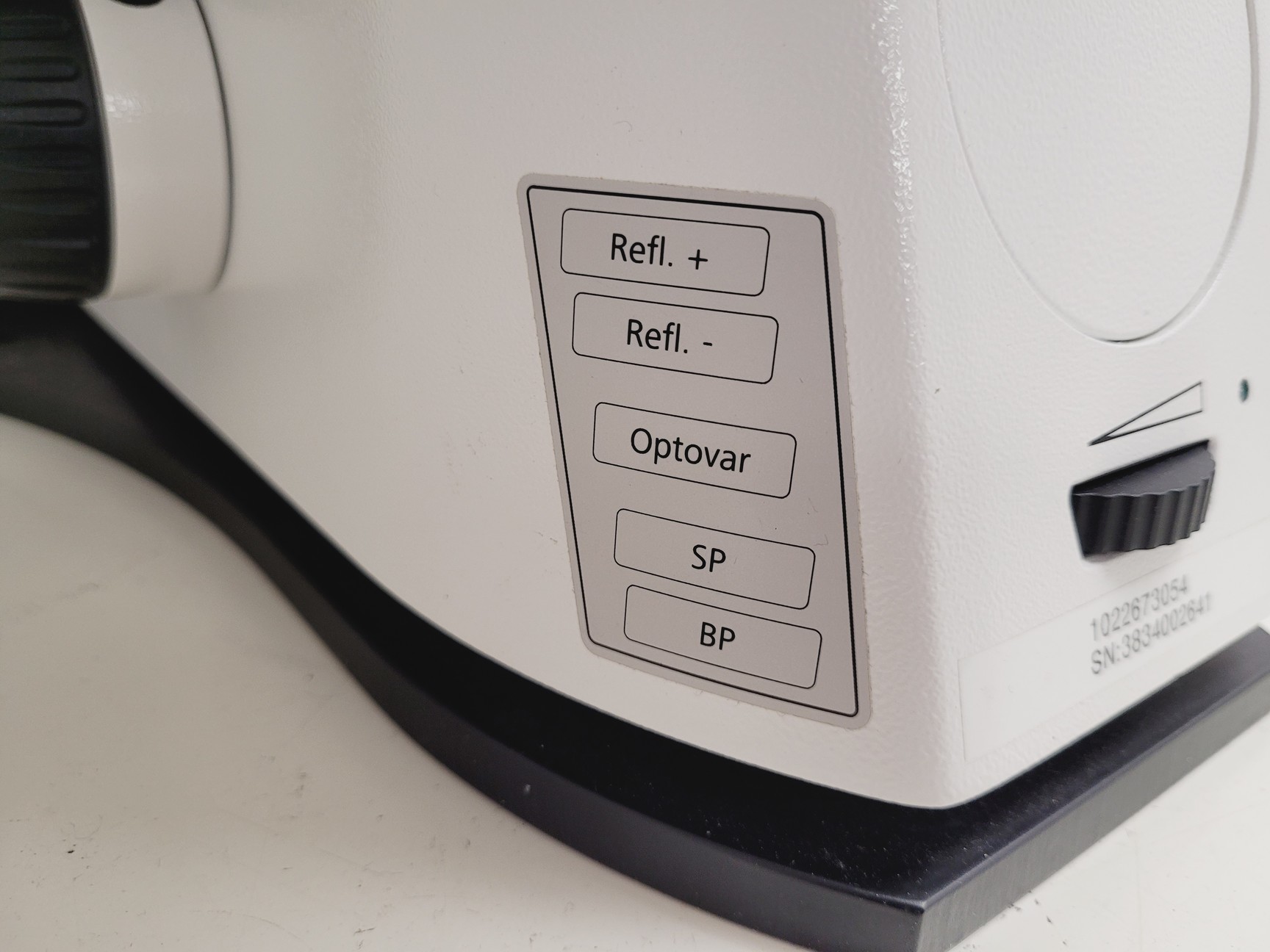

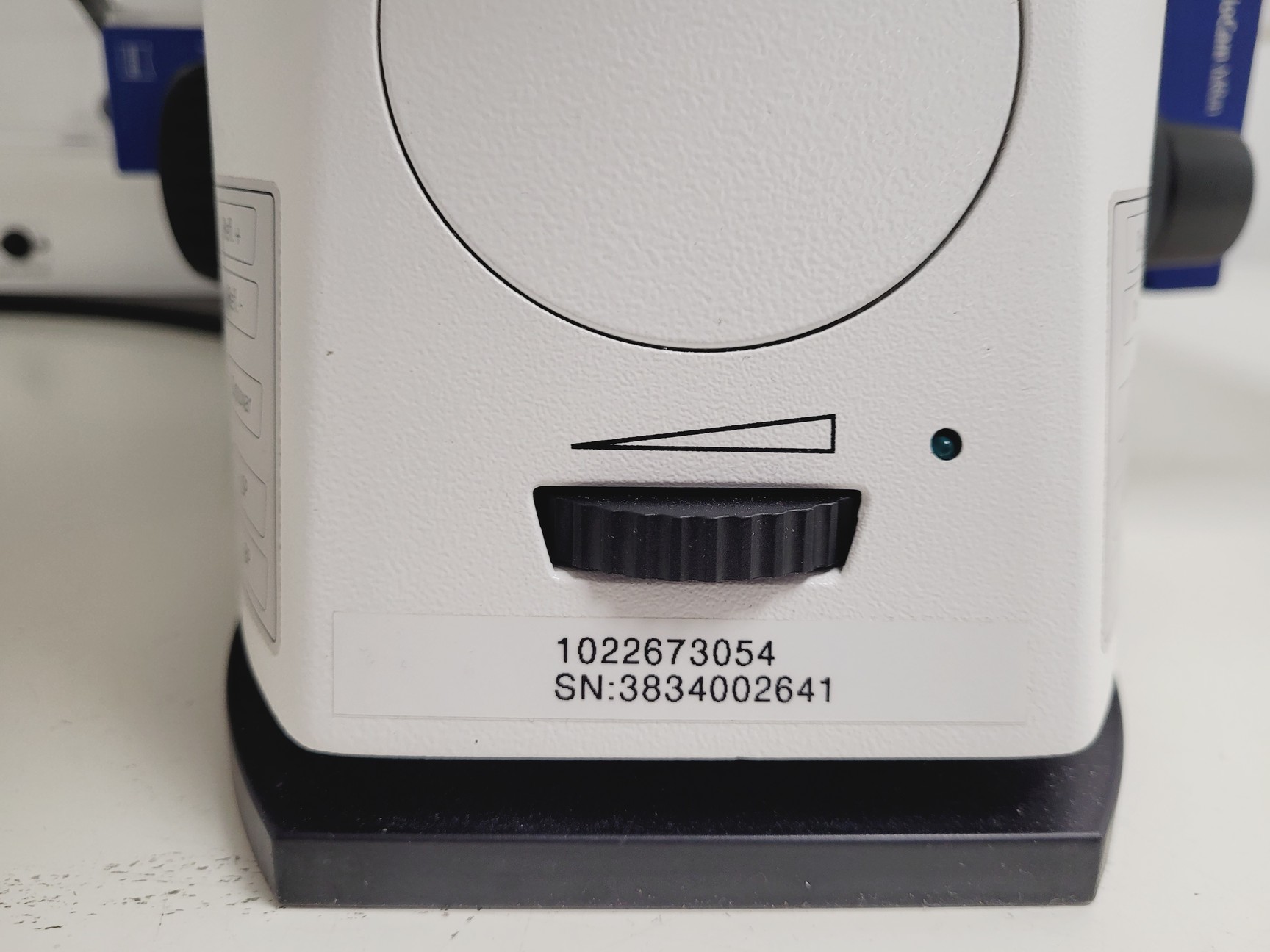

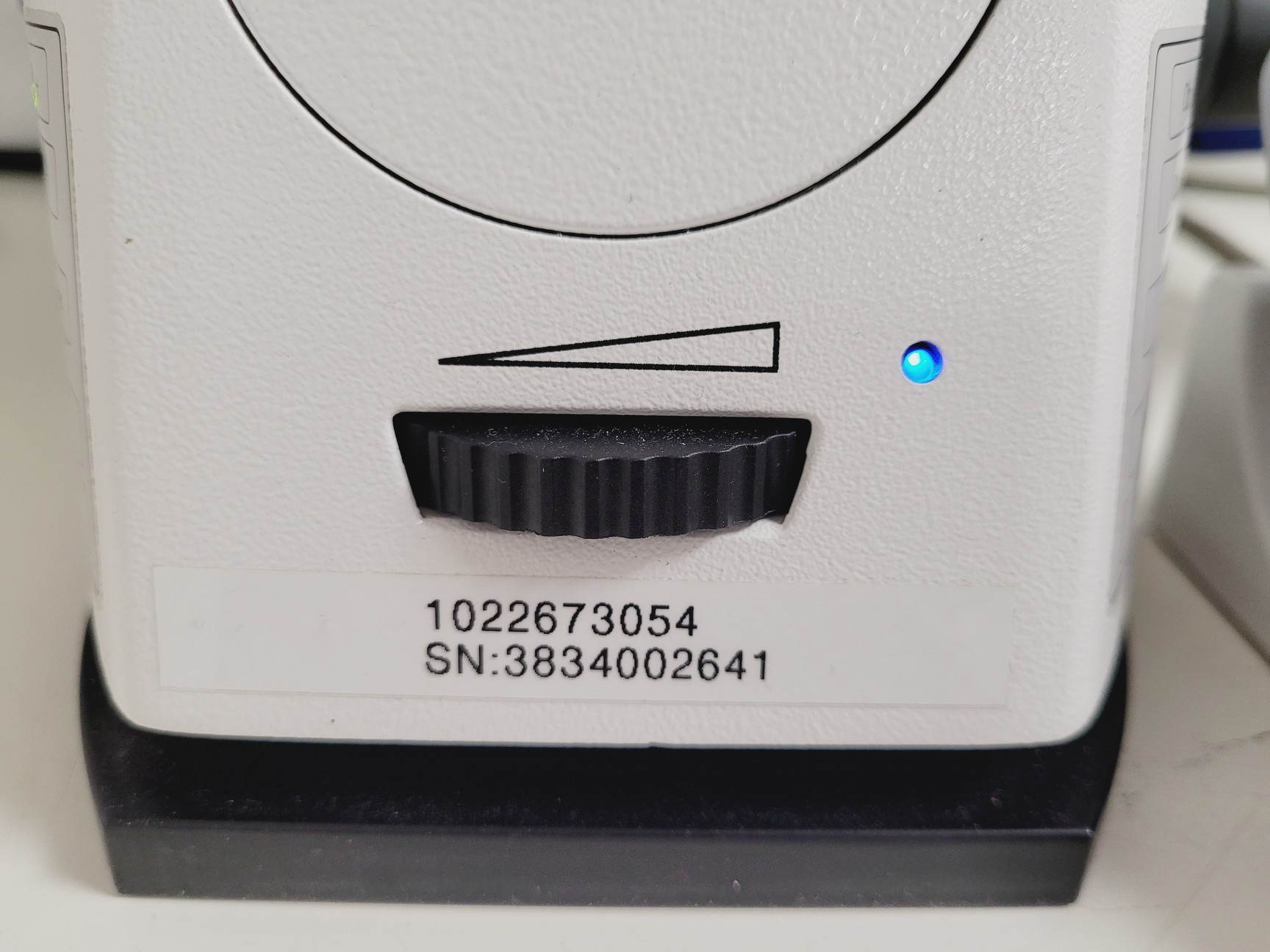

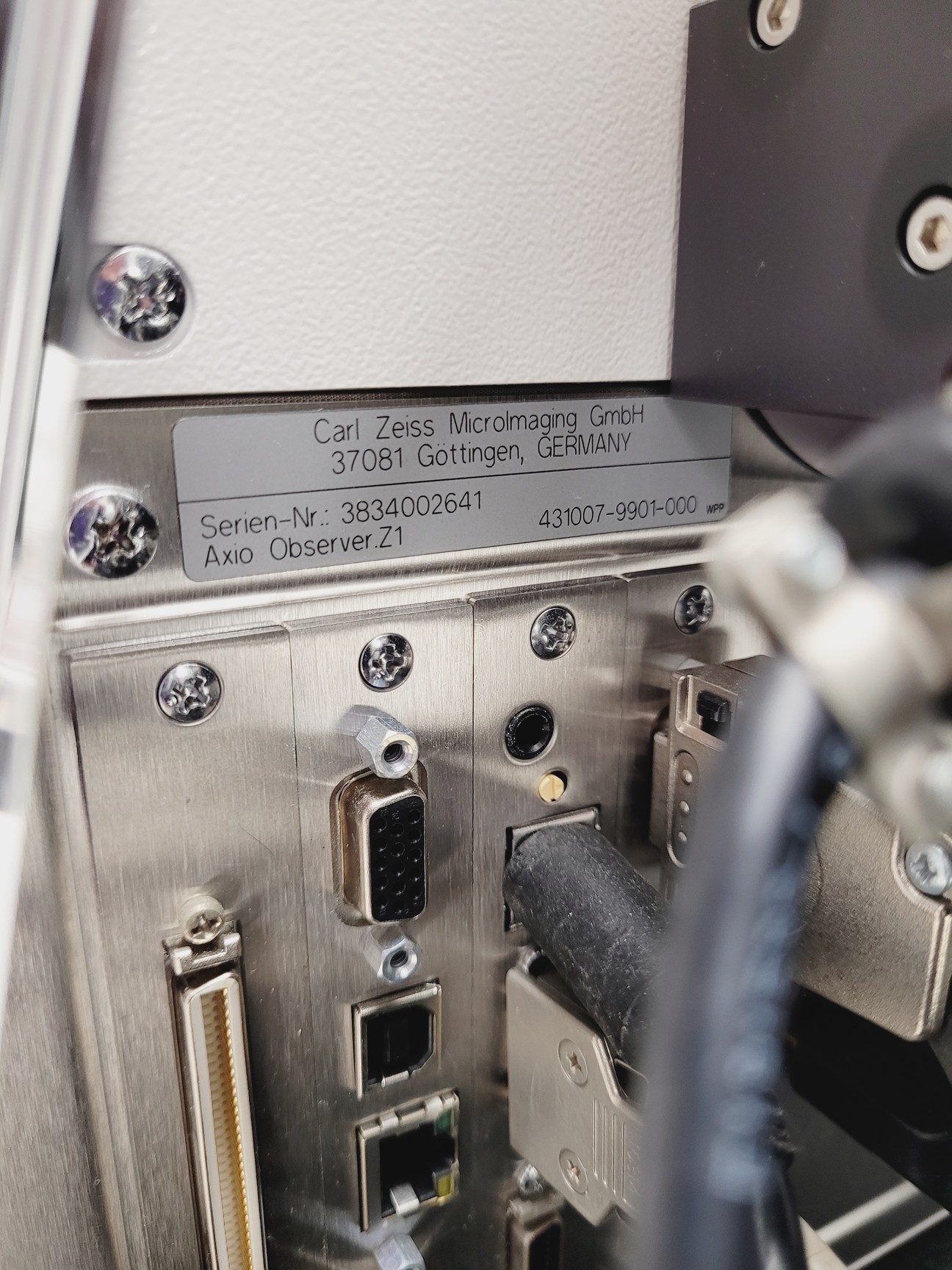

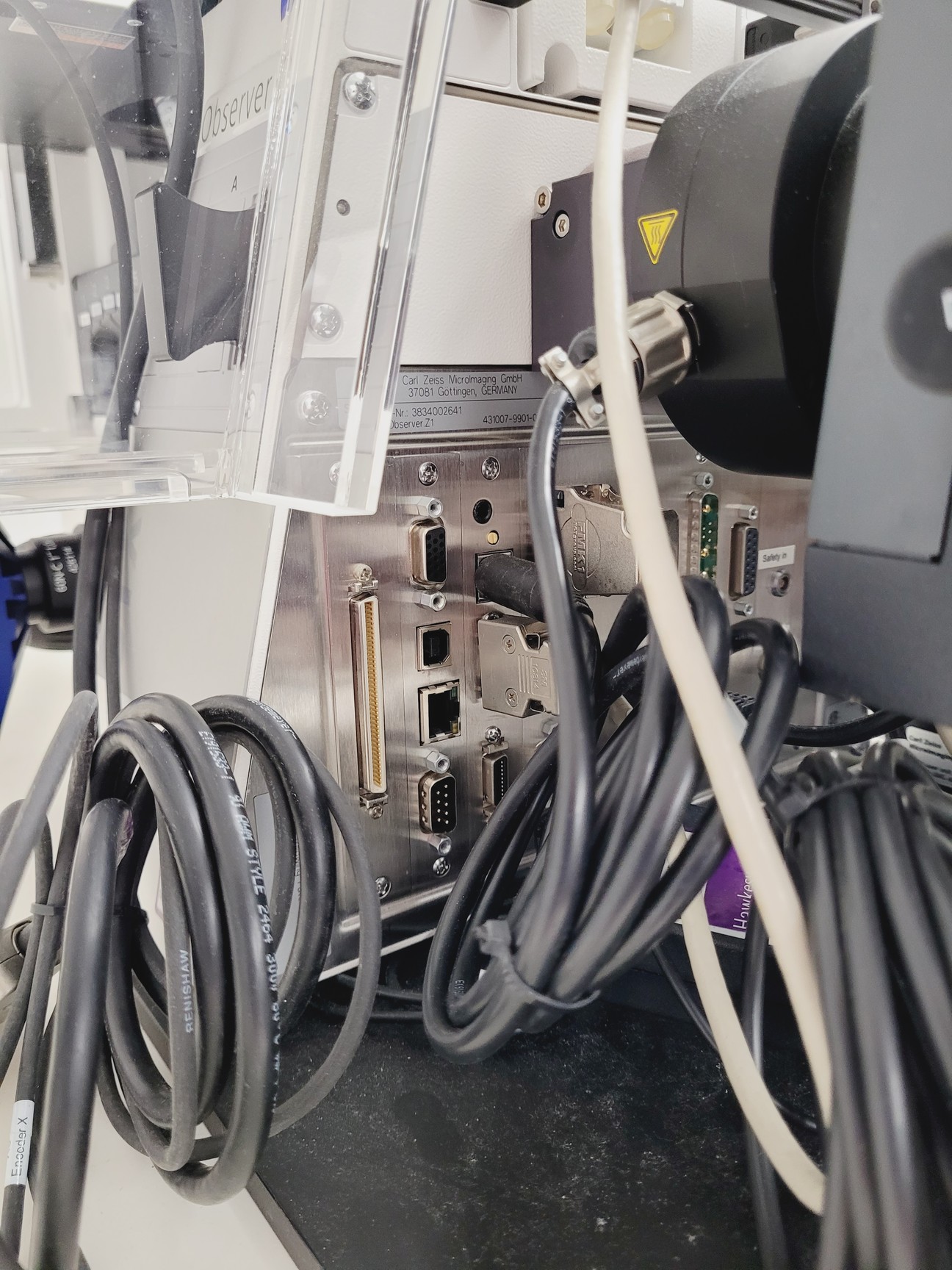

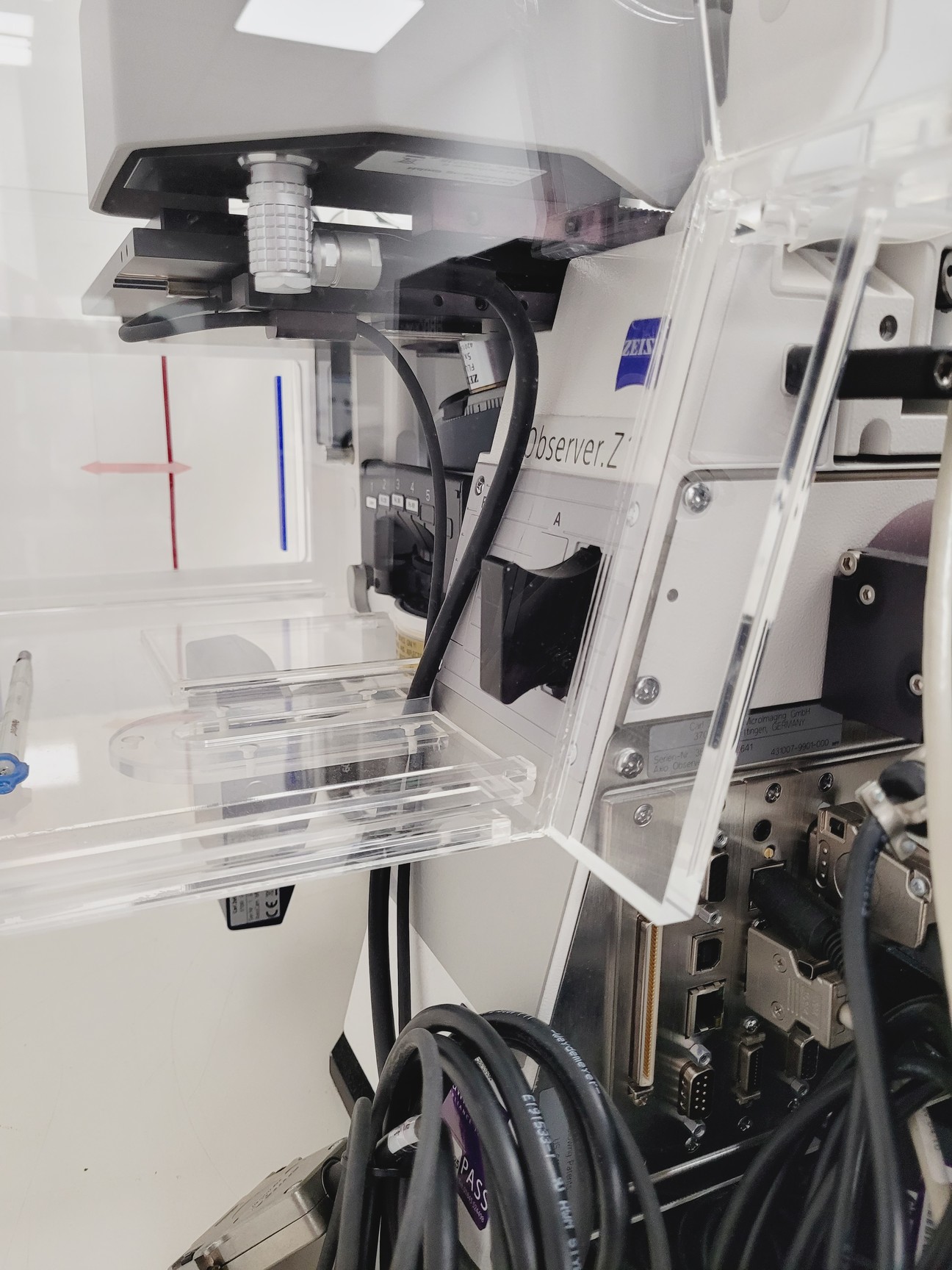

- Zeiss Observer.Z1 microscope
Illumination

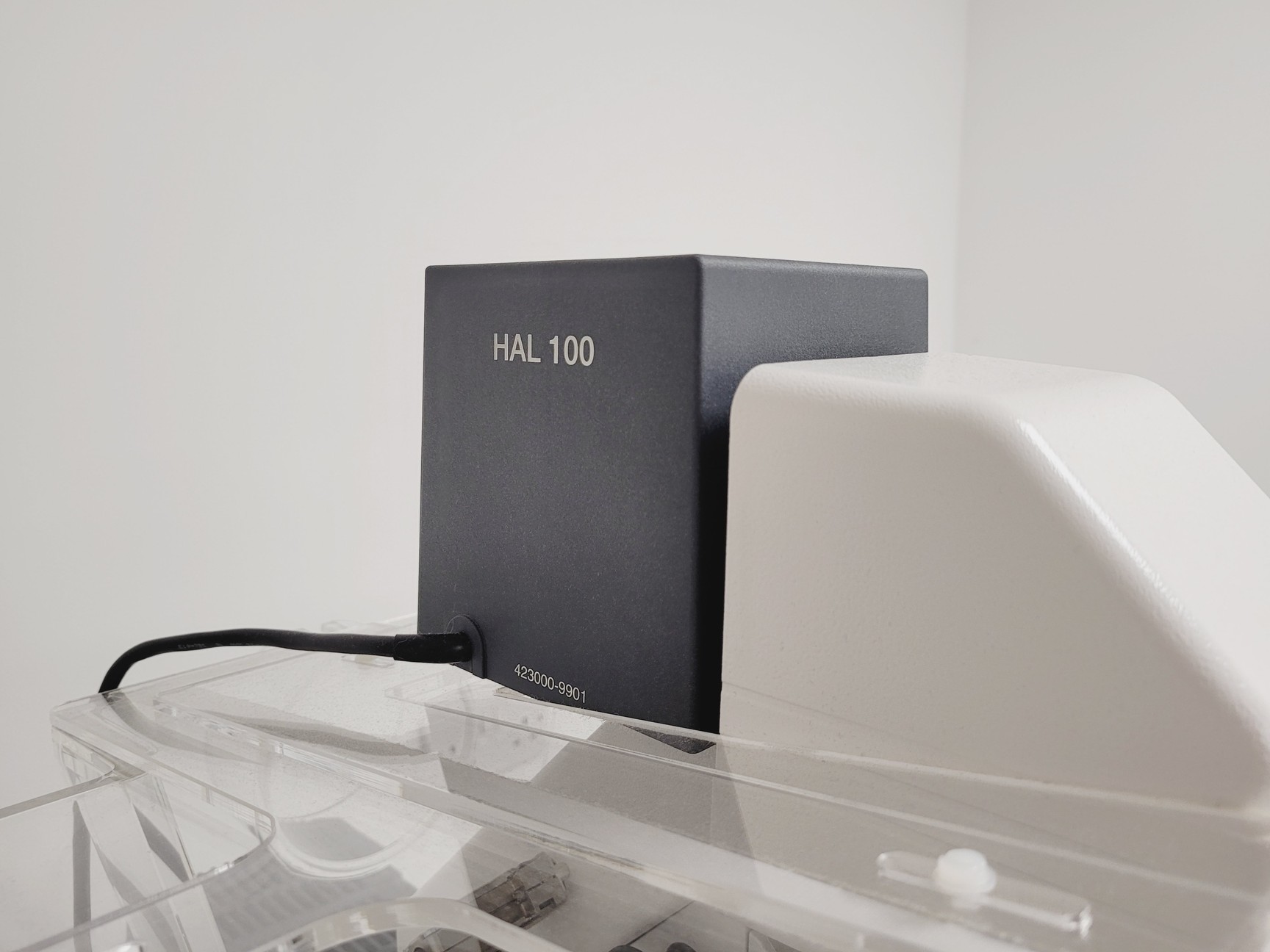

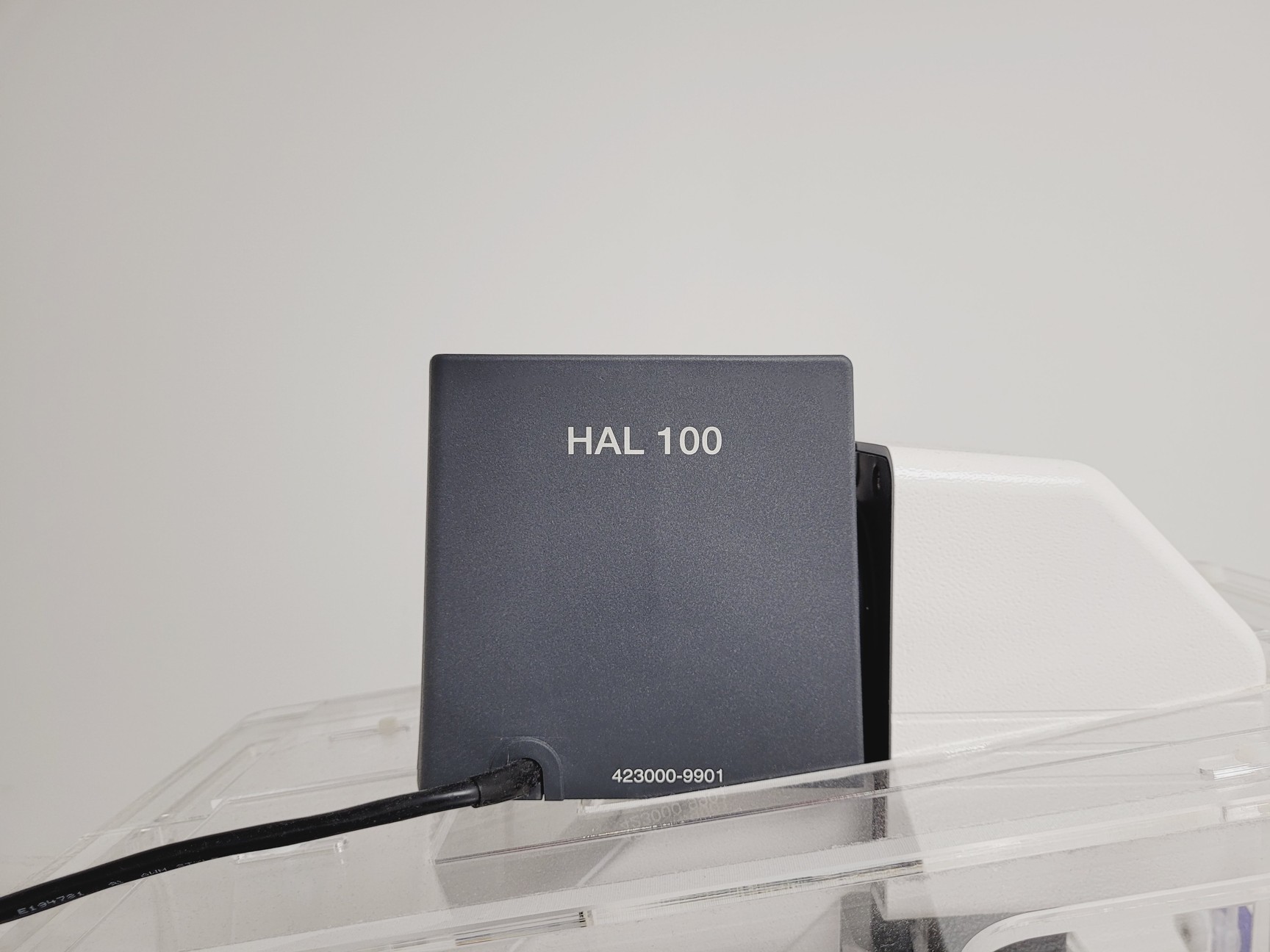

- HAL100 light source

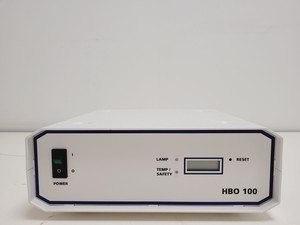

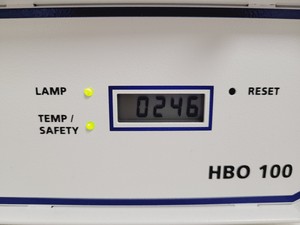

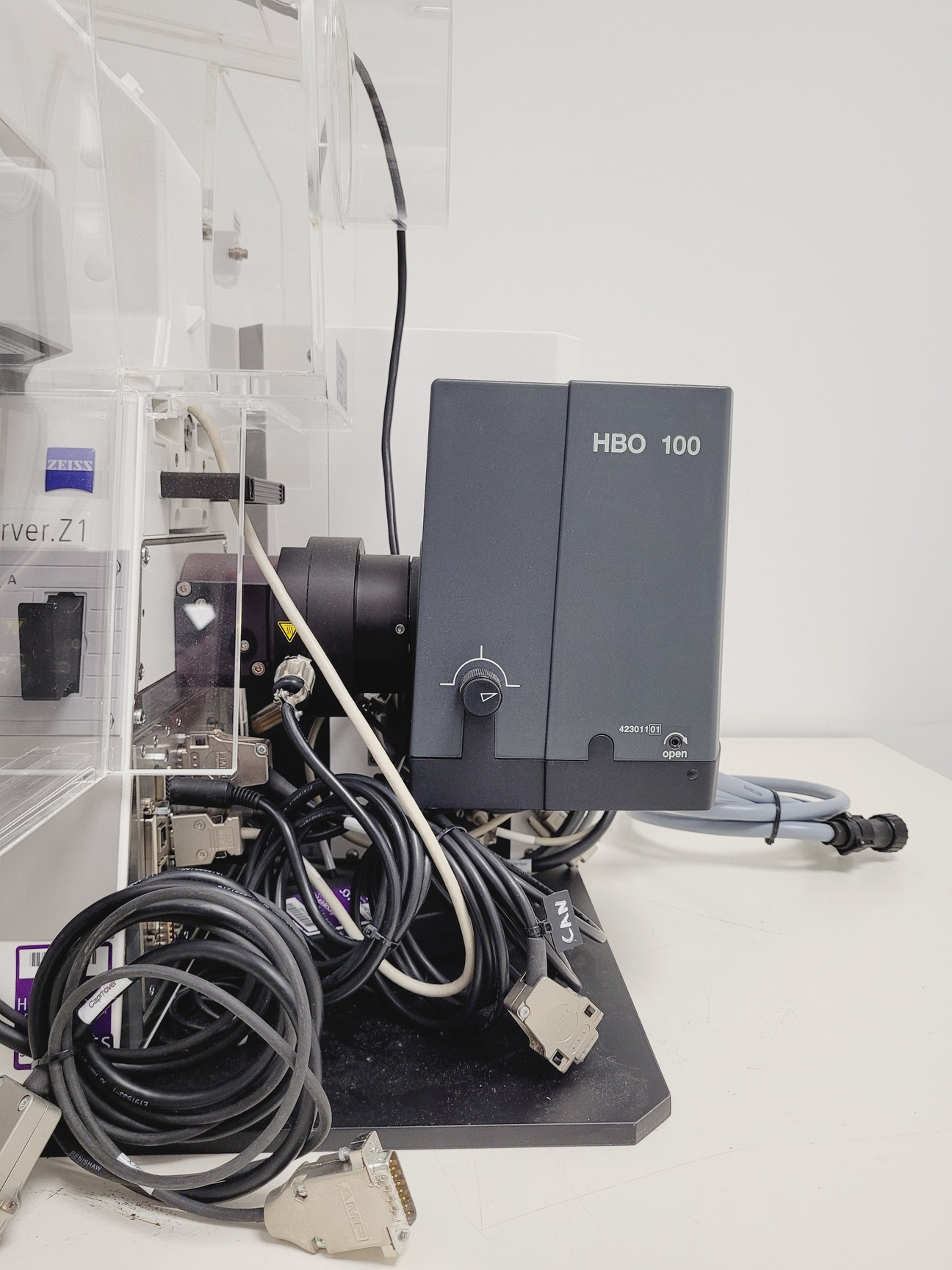

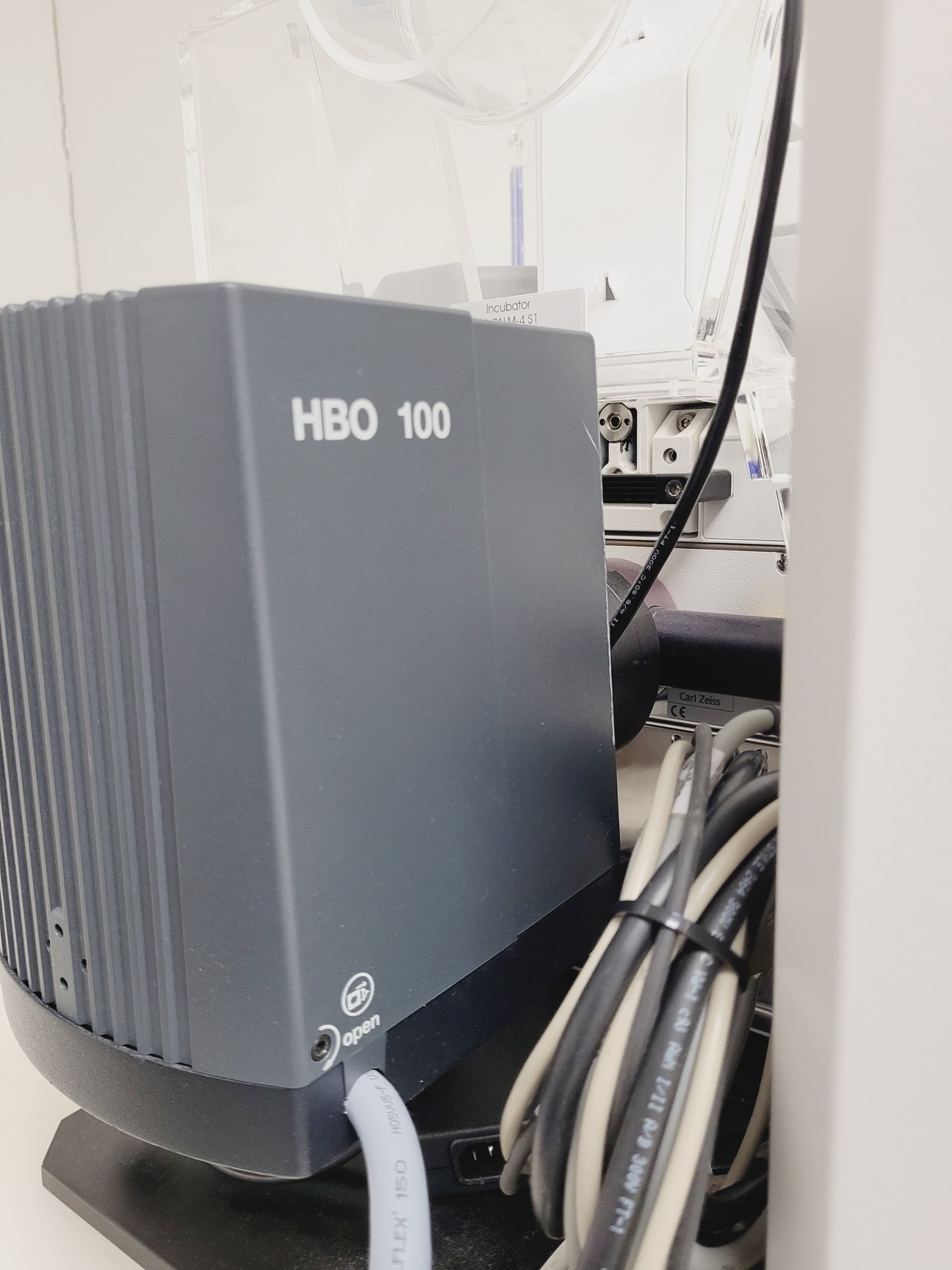

- HBO100 light source + HBO100 PSU (timer shows 0247)
Optics / Condenser / Stage
- Polarizer D with 2-position filter changer

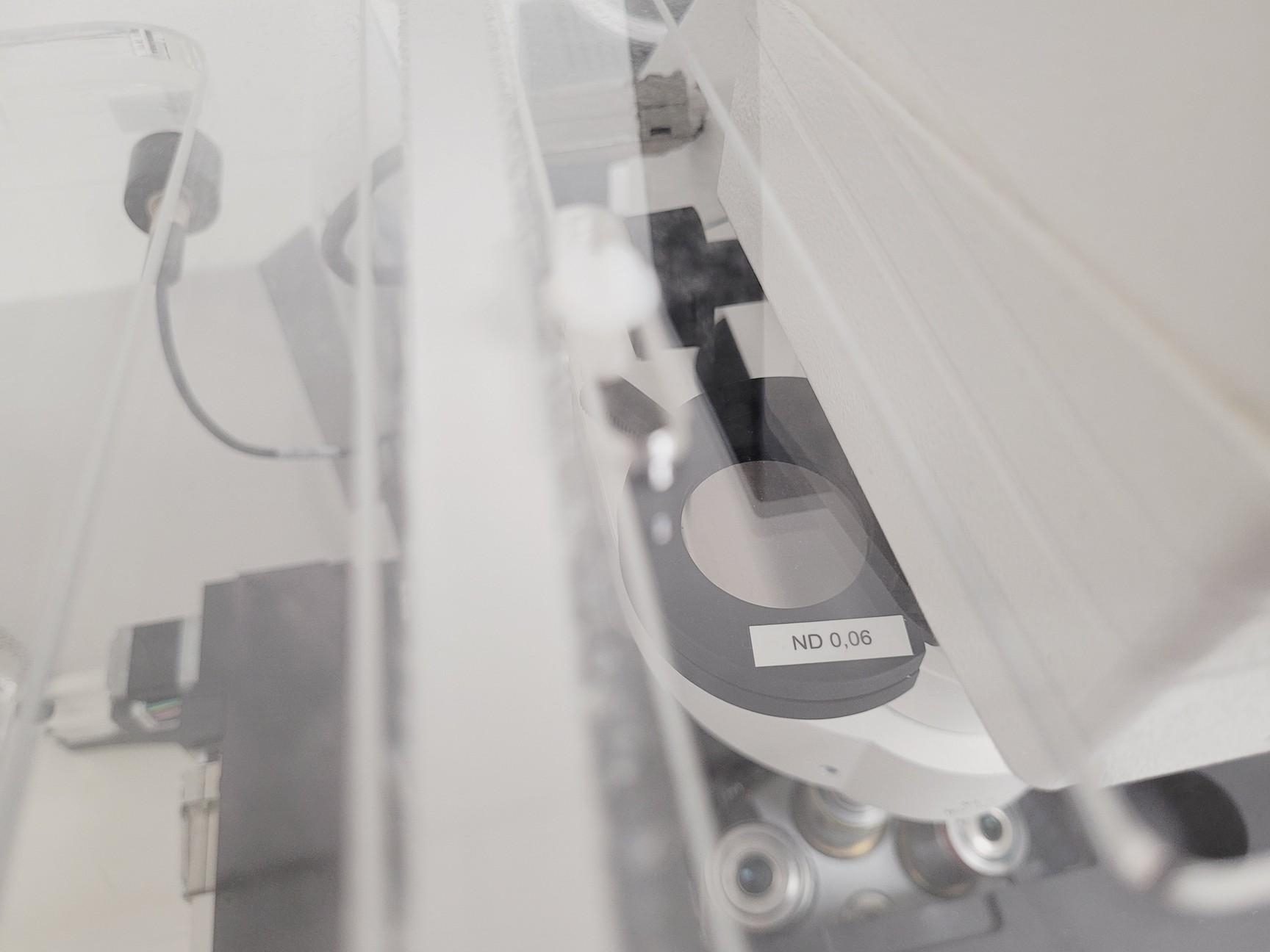

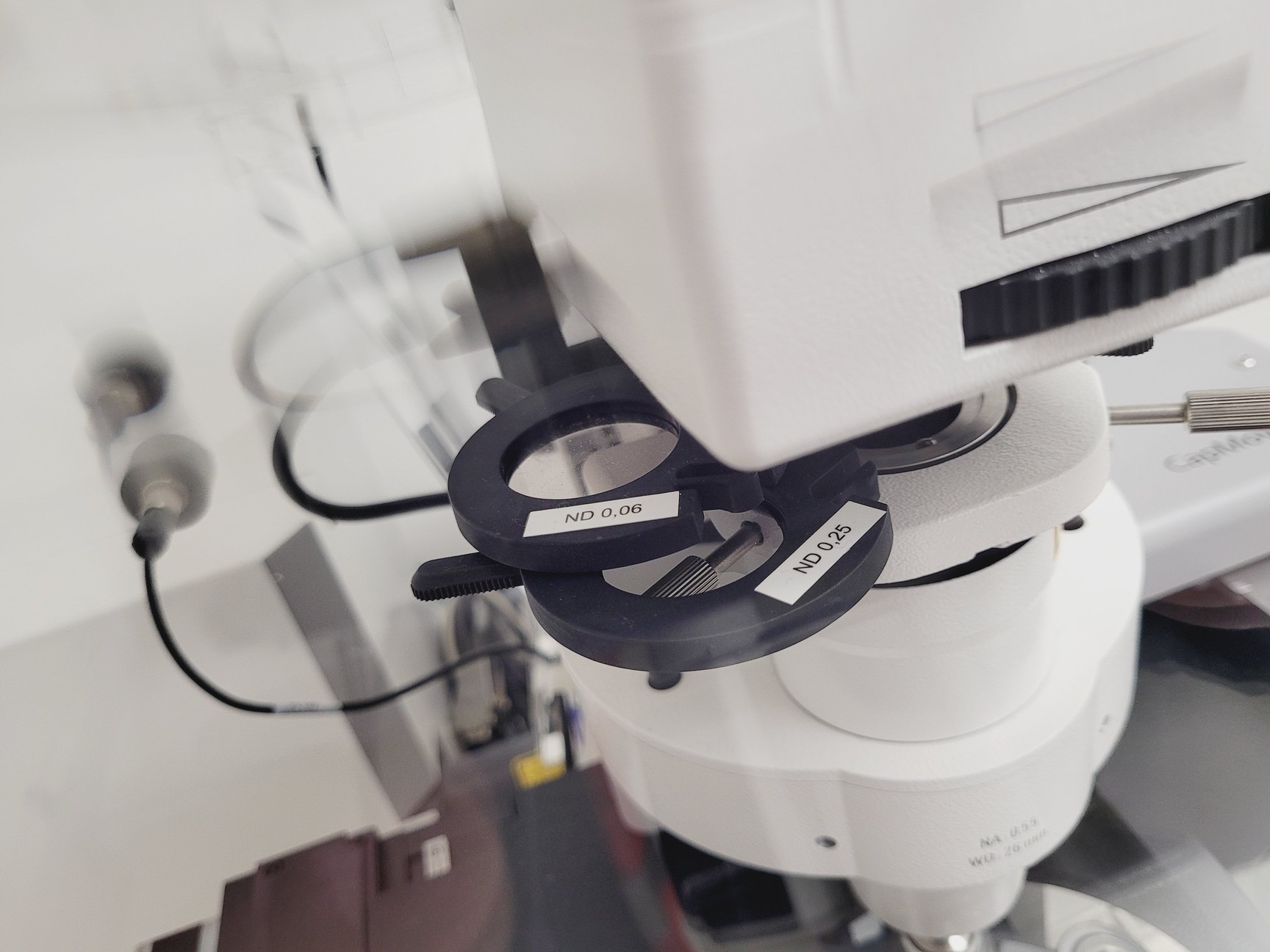

- Neutral density filter 0.06
- Neutral density filter 0.25

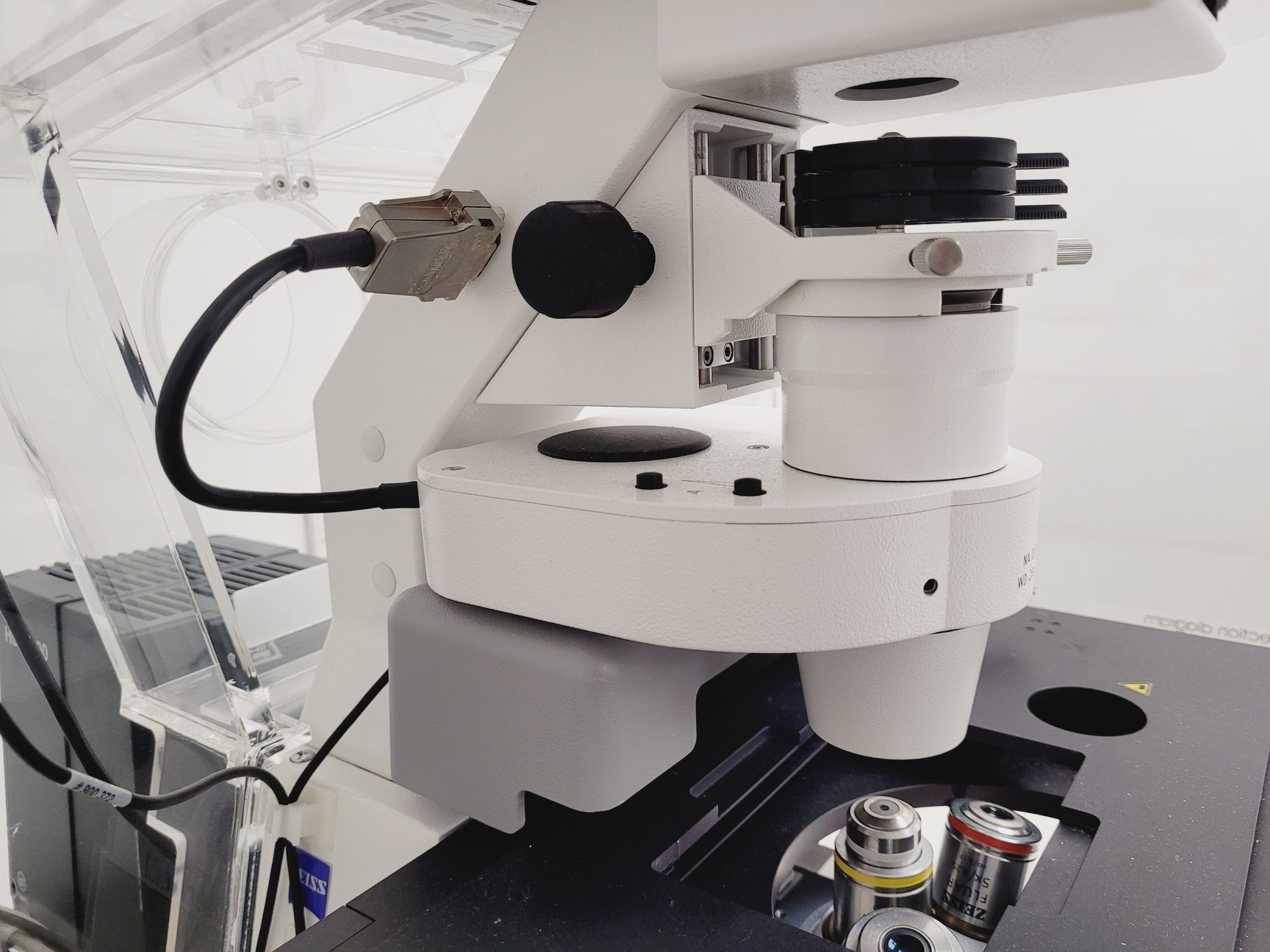

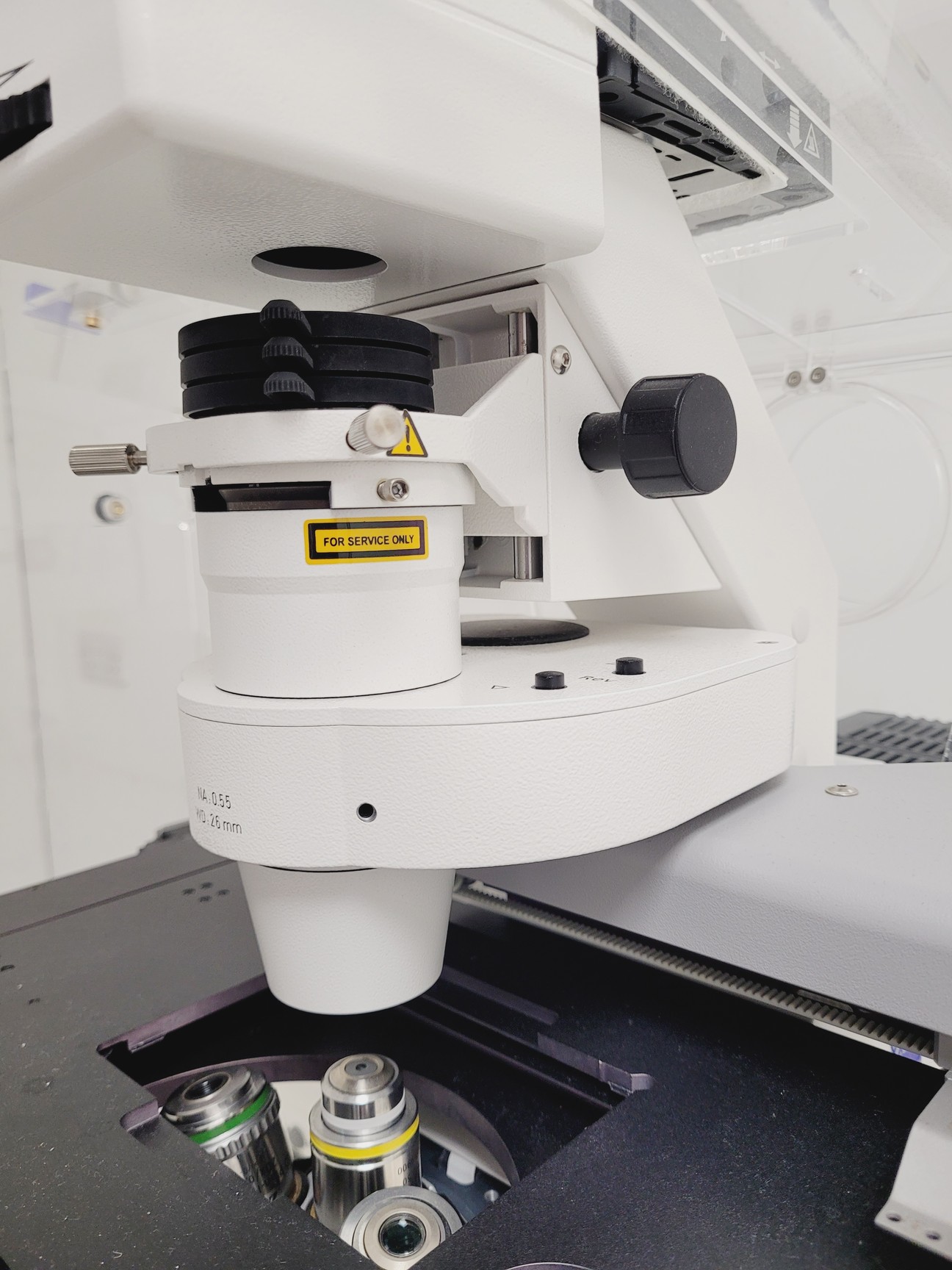

- Zeiss 424244 LD Condensor 0.55H (Ph1, Ph2, Ph3, DIC, DIC; 6 positions, motorised)

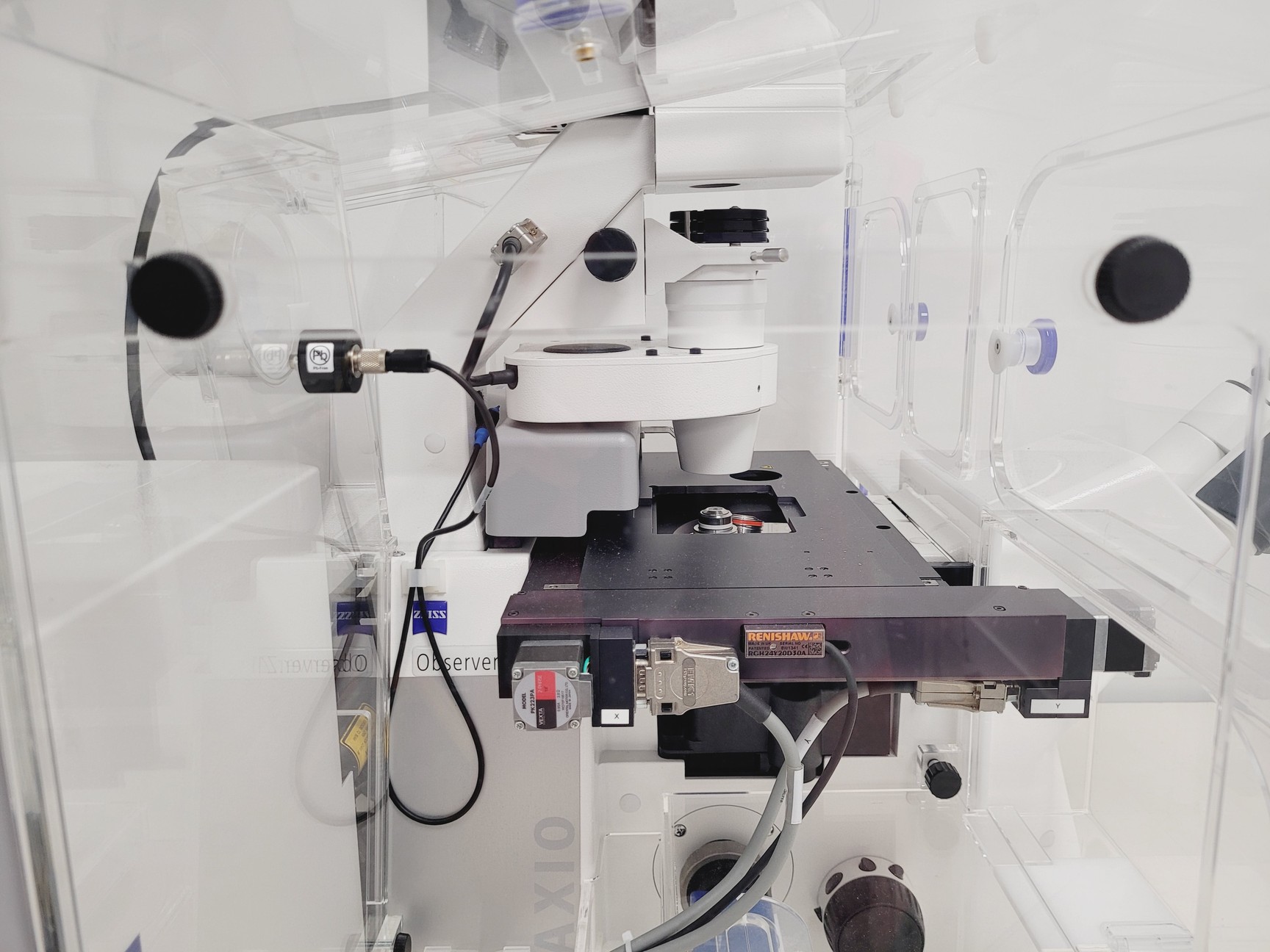

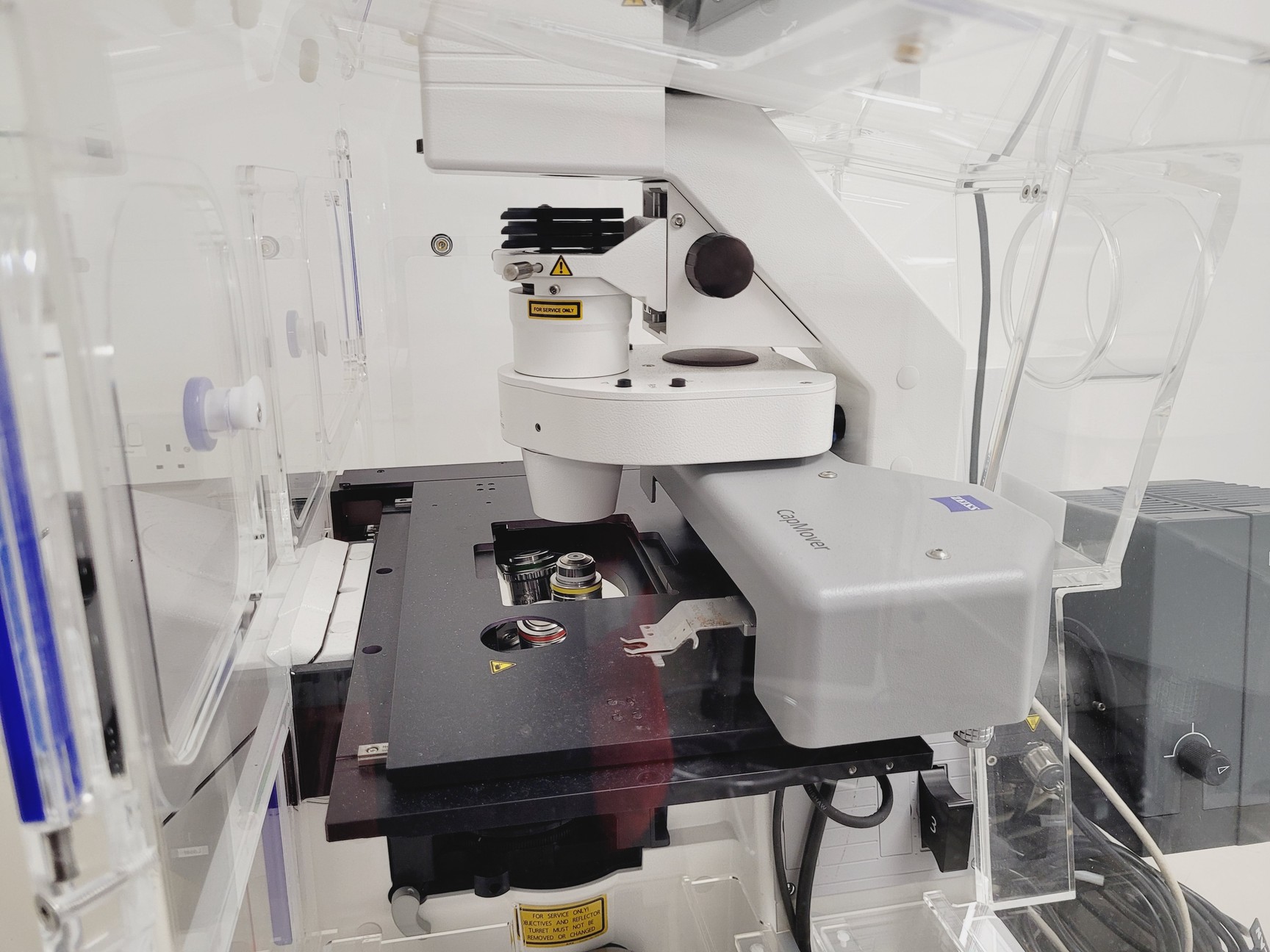

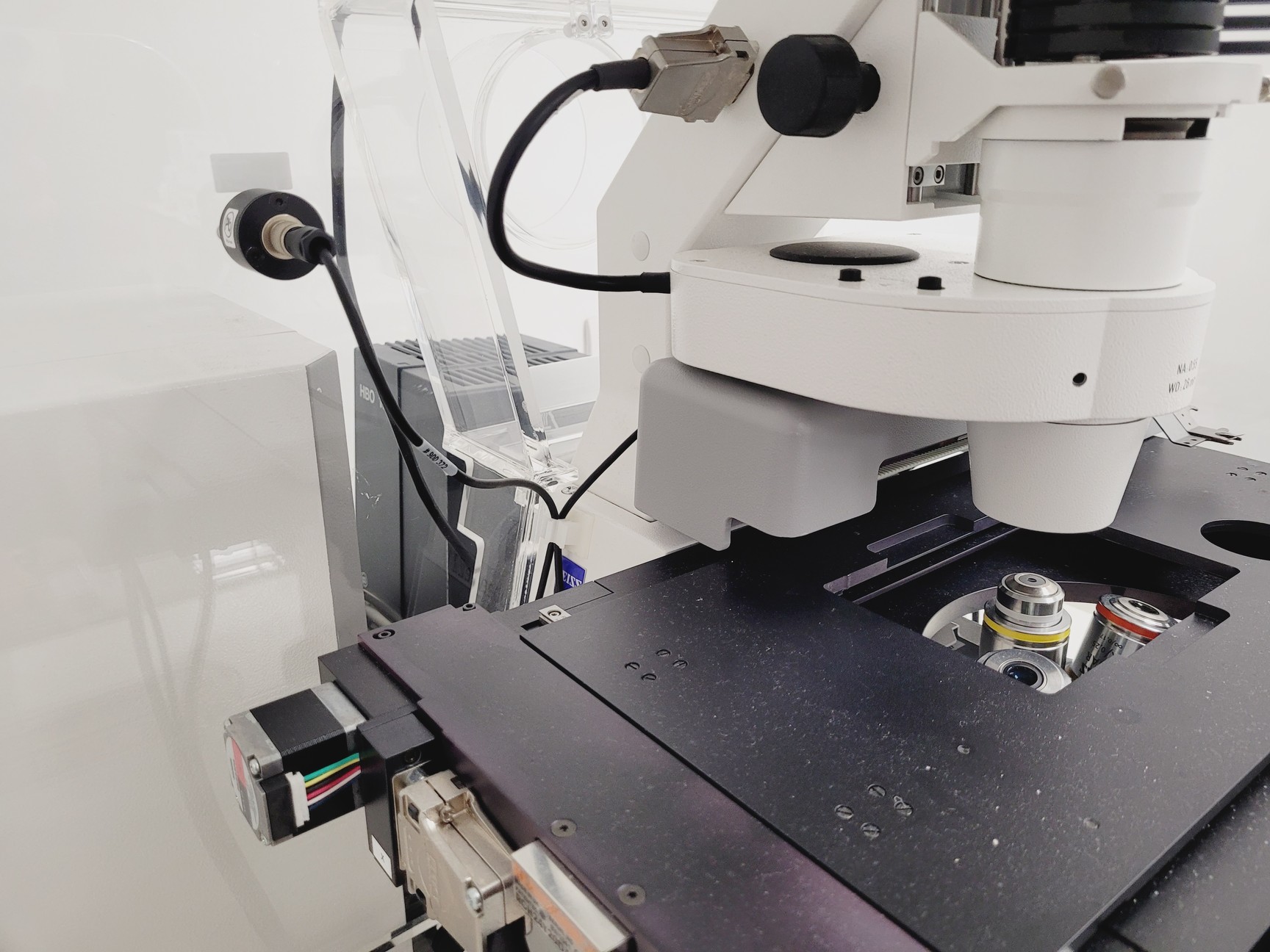

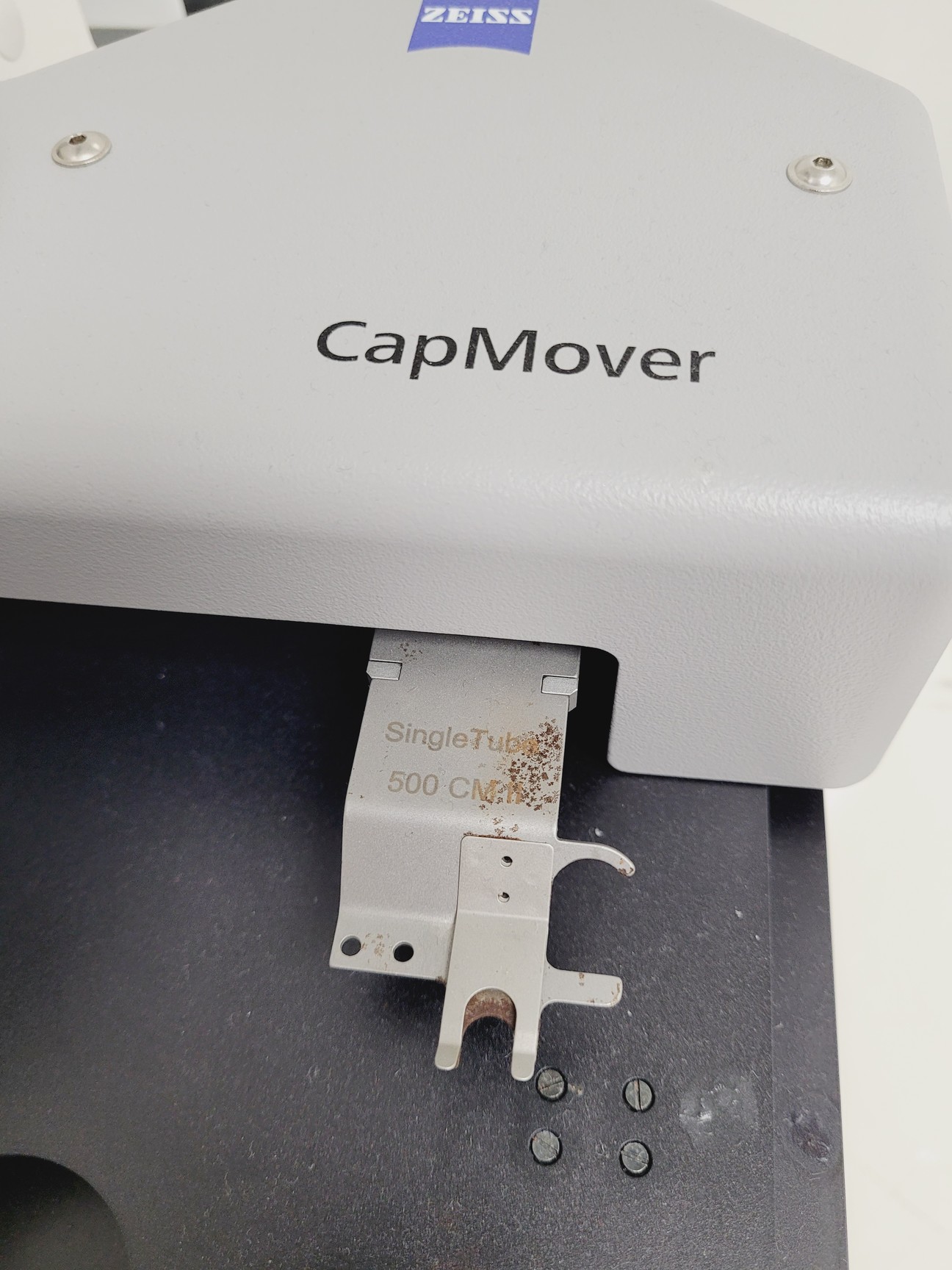

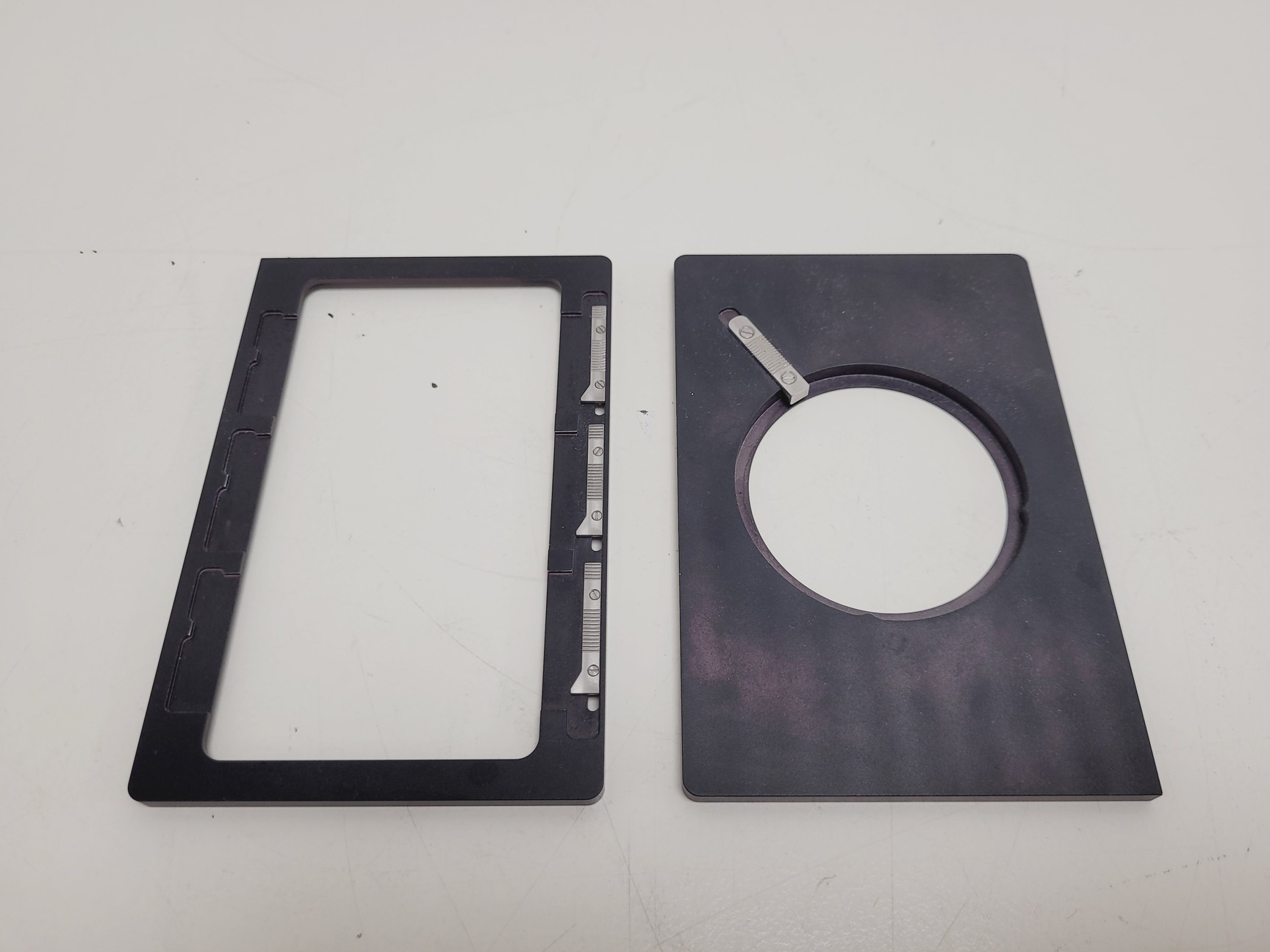

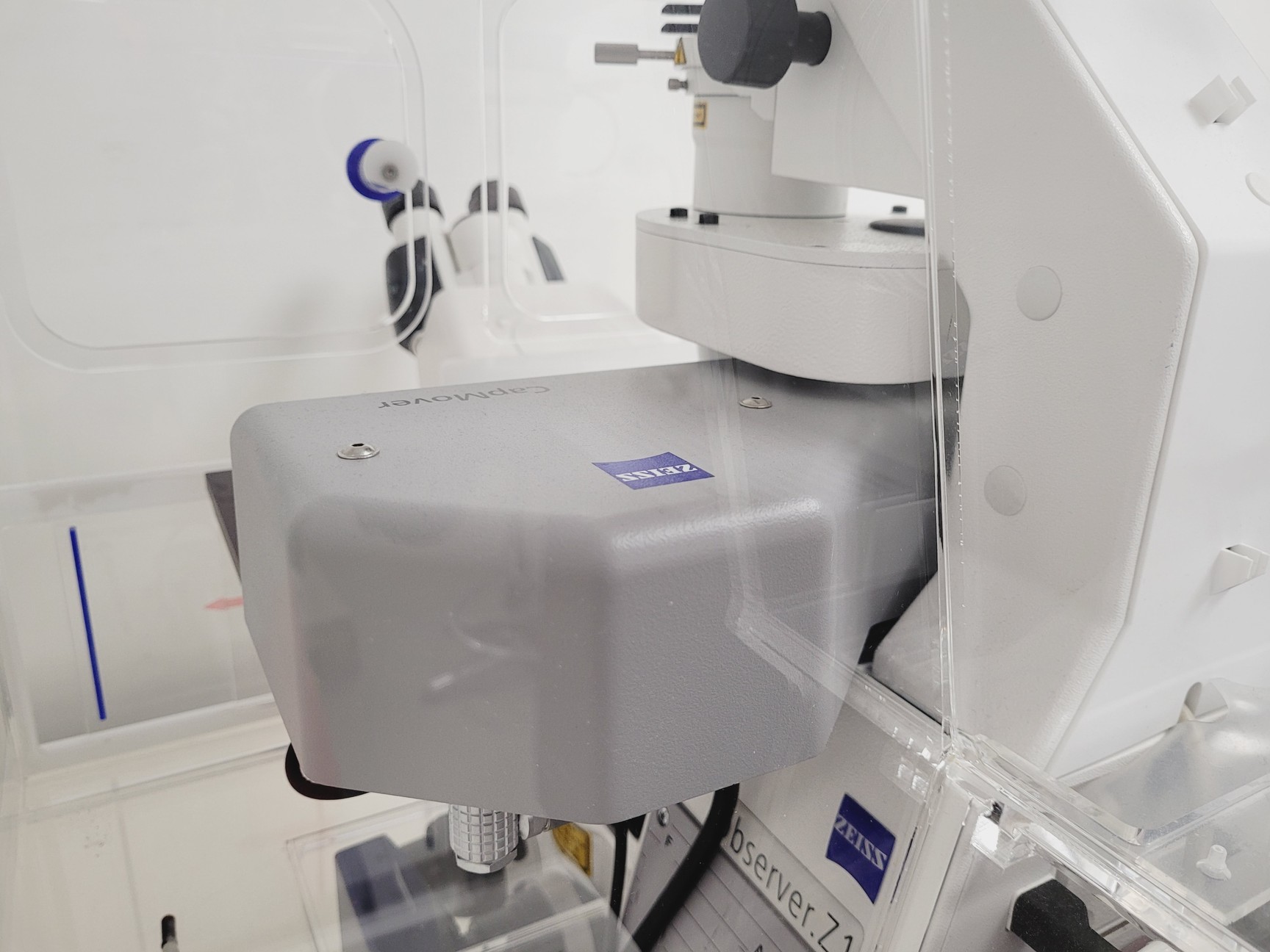

- Zeiss CapMover with scanning stage

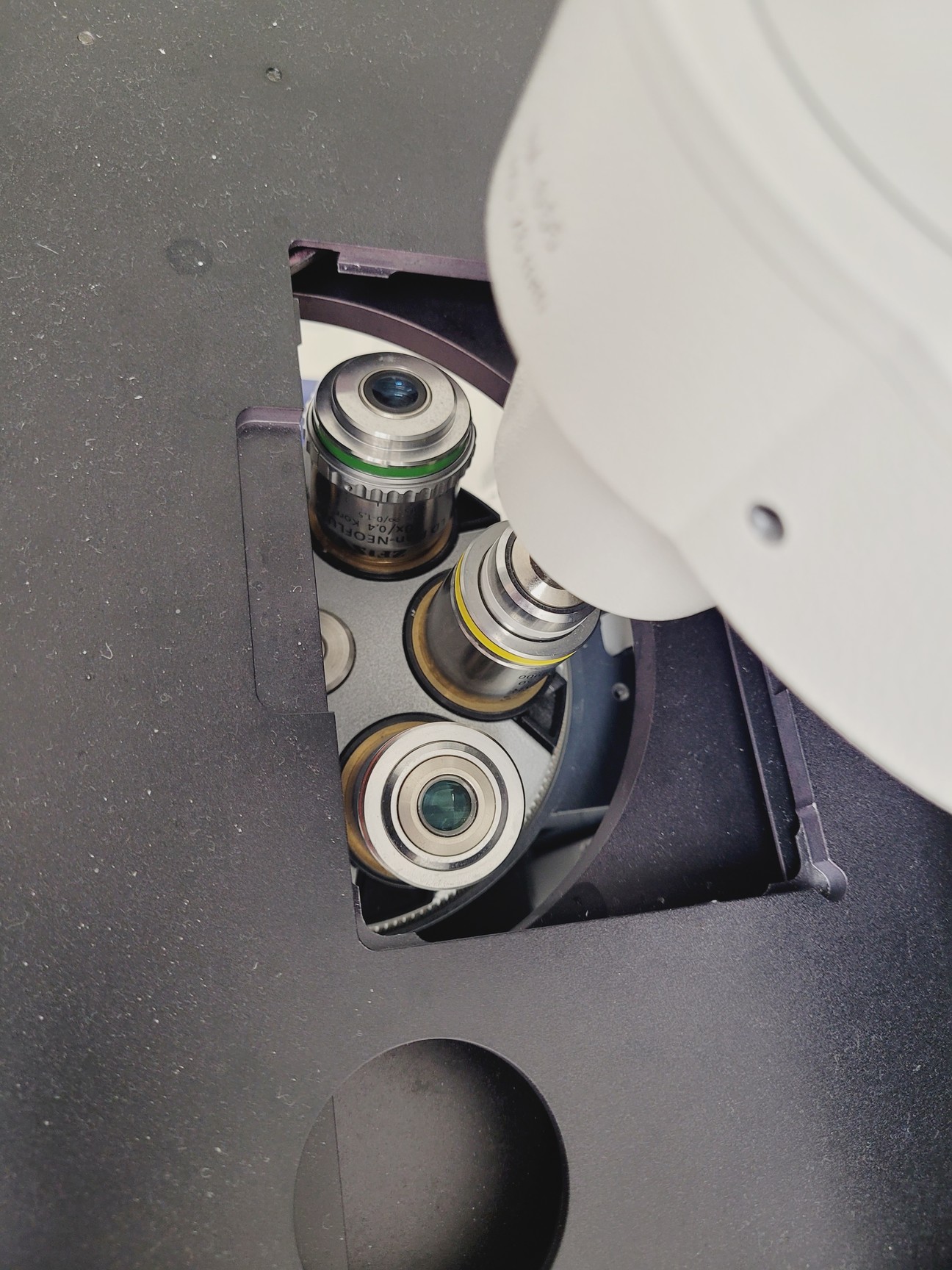

6-position motorised nosepiece with objectives:
- Zeiss FLUAR 5x/0.25 ∞/0.17
- Zeiss FLUAR 10x/0.50 ∞/0.17
- Zeiss LD Plan-NEOFLUAR 20x/0.4 korr ∞/0–1.5

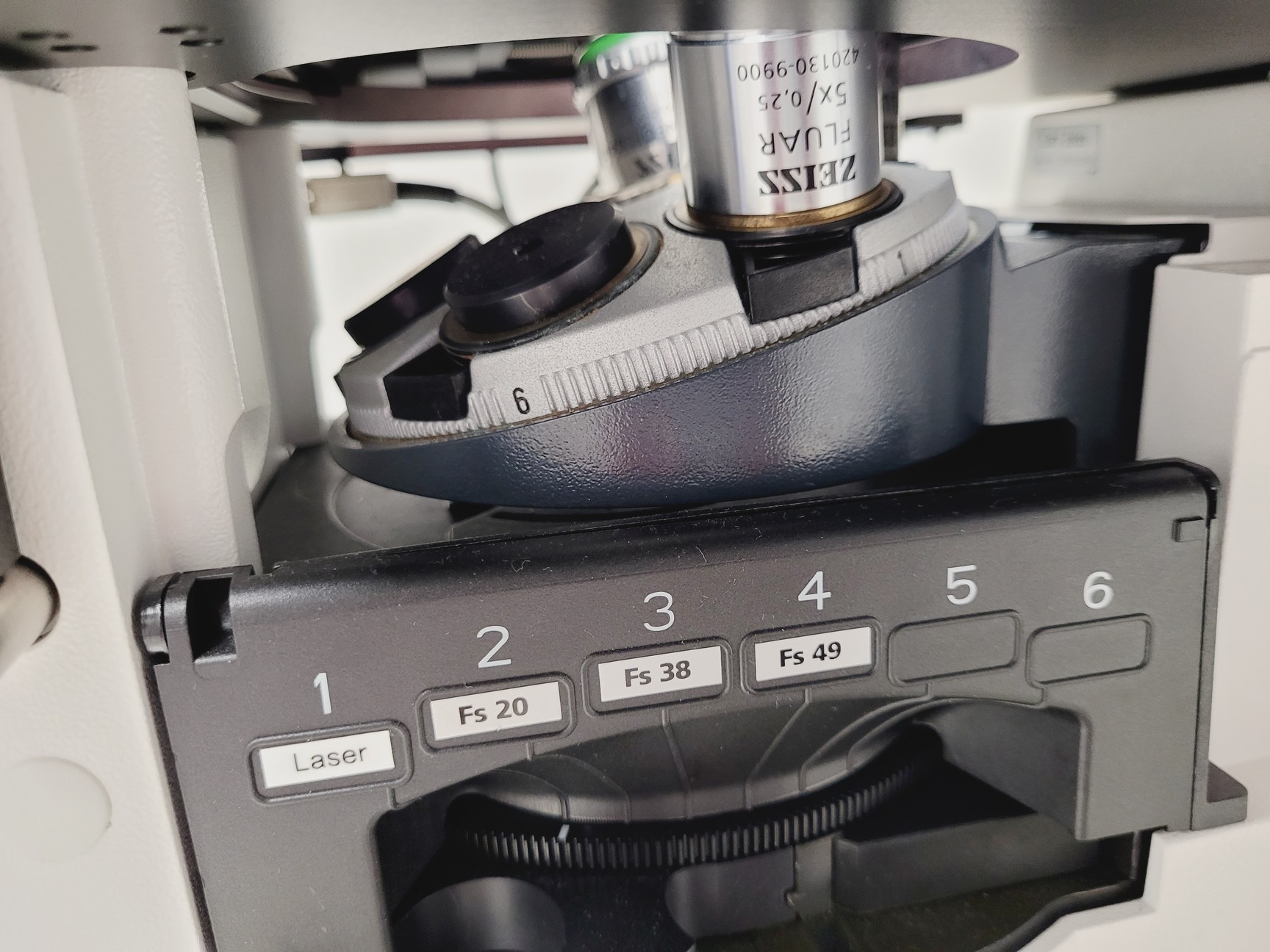

Reflector Turret

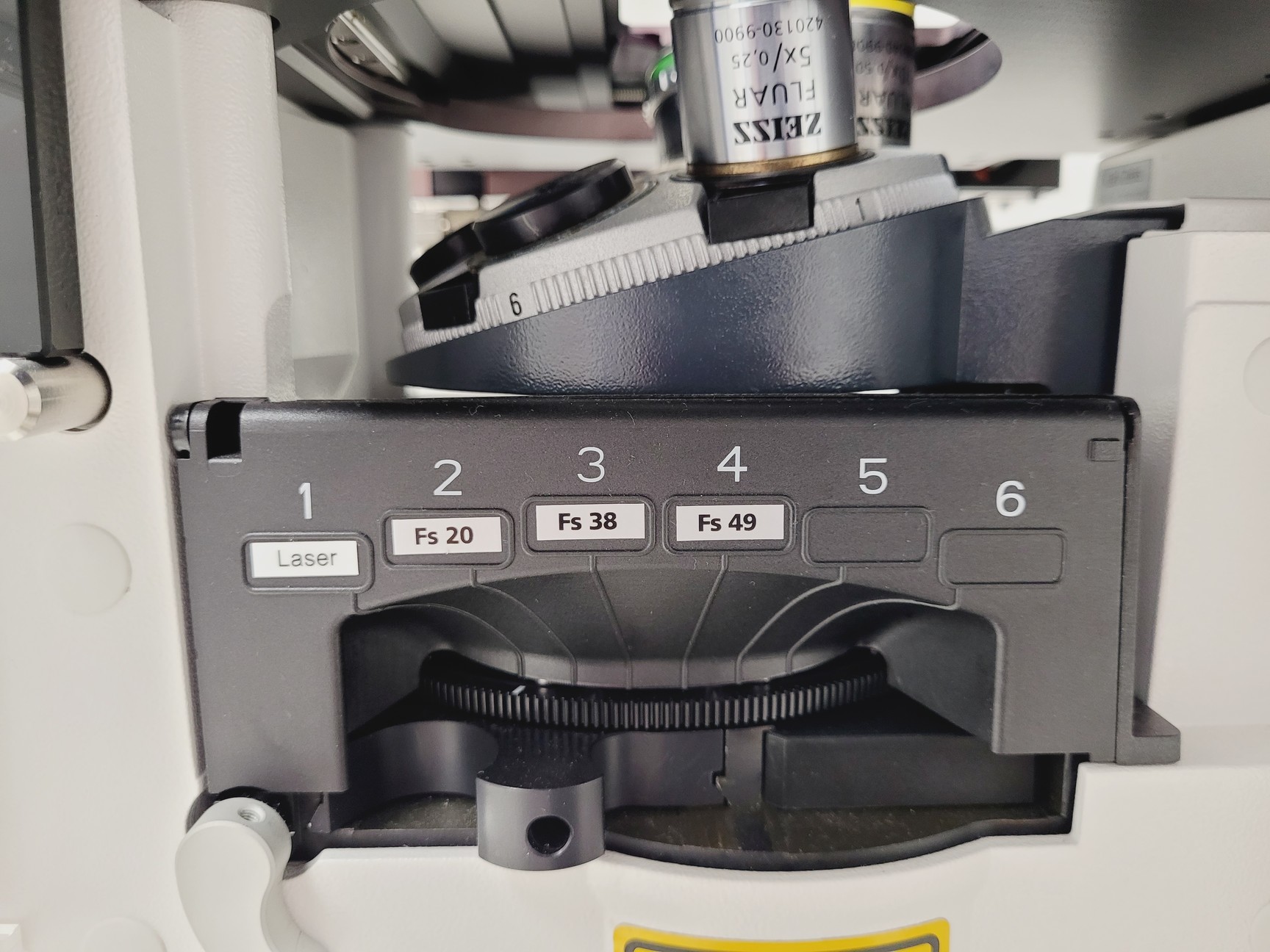

6-position reflector turret fitted with:
- Pos 1: Laser
- Pos 2: Fs20
- Pos 3: Fs38
- Pos 4: Fs49
- Pos 5: Empty
- Pos 6: Empty
Viewing / Cameras / Power
- Binocular tube 45°/23 with 2x Pl 10x/23 eyepieces

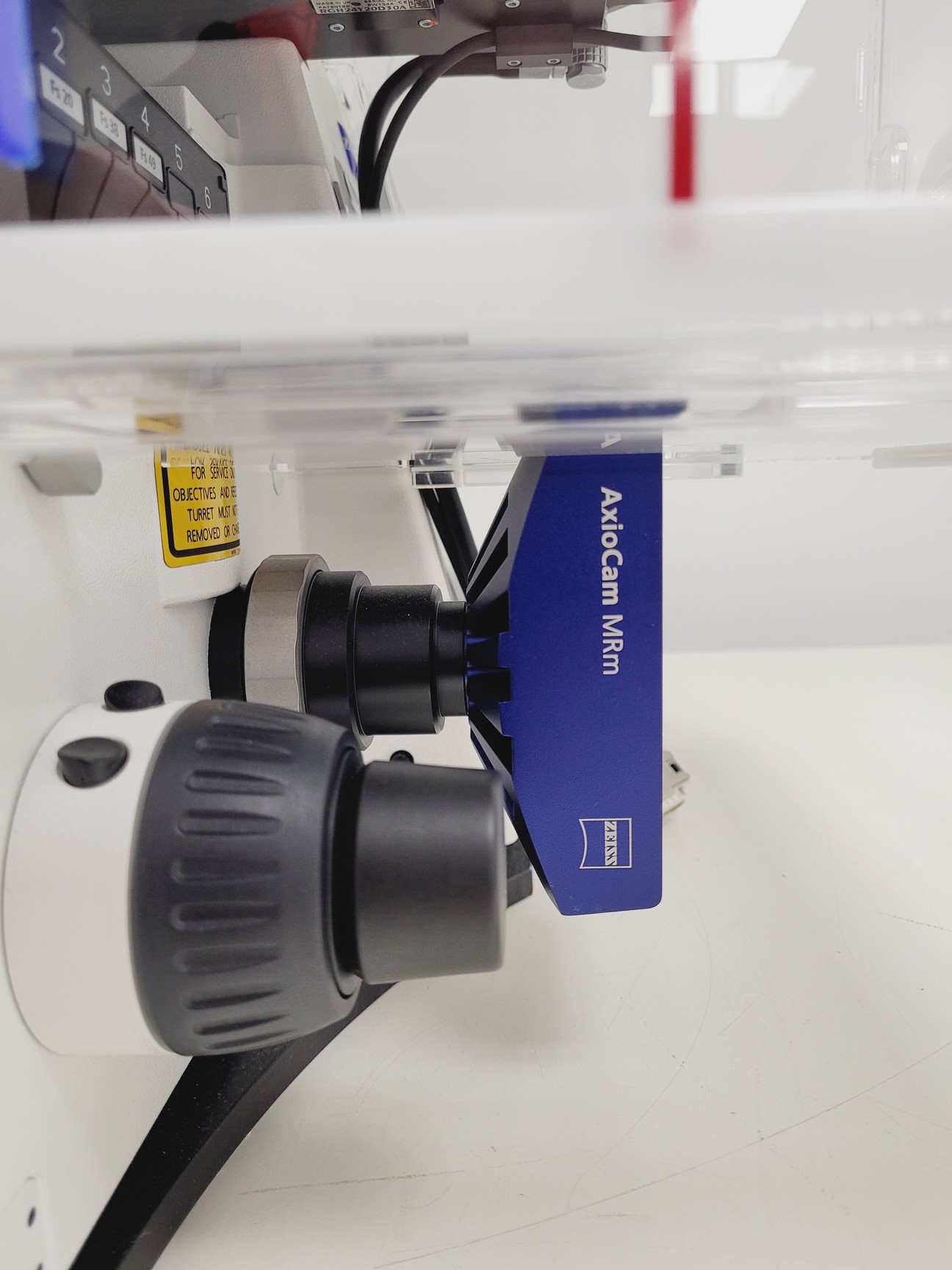

- Zeiss AxioCam MRm

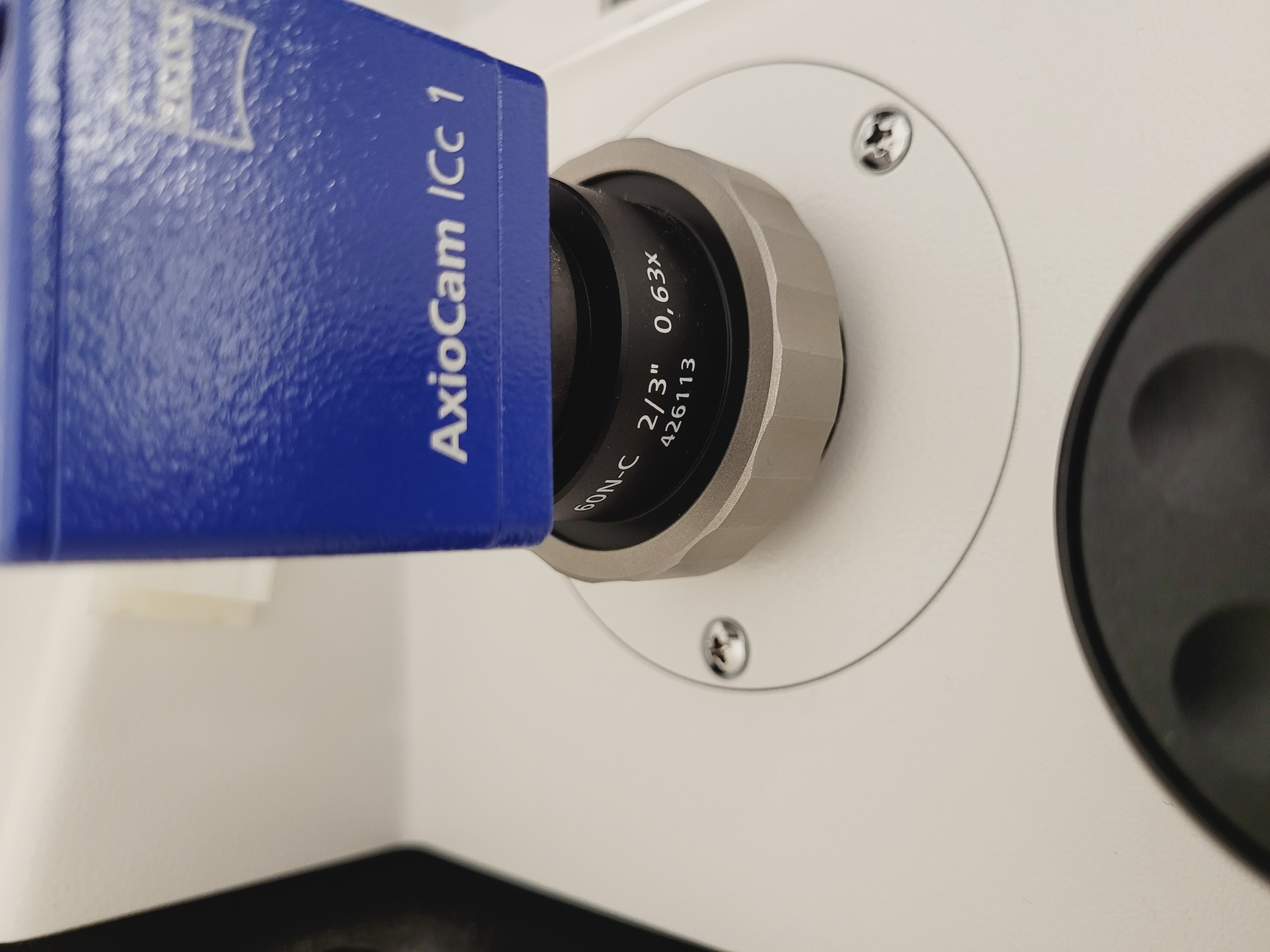

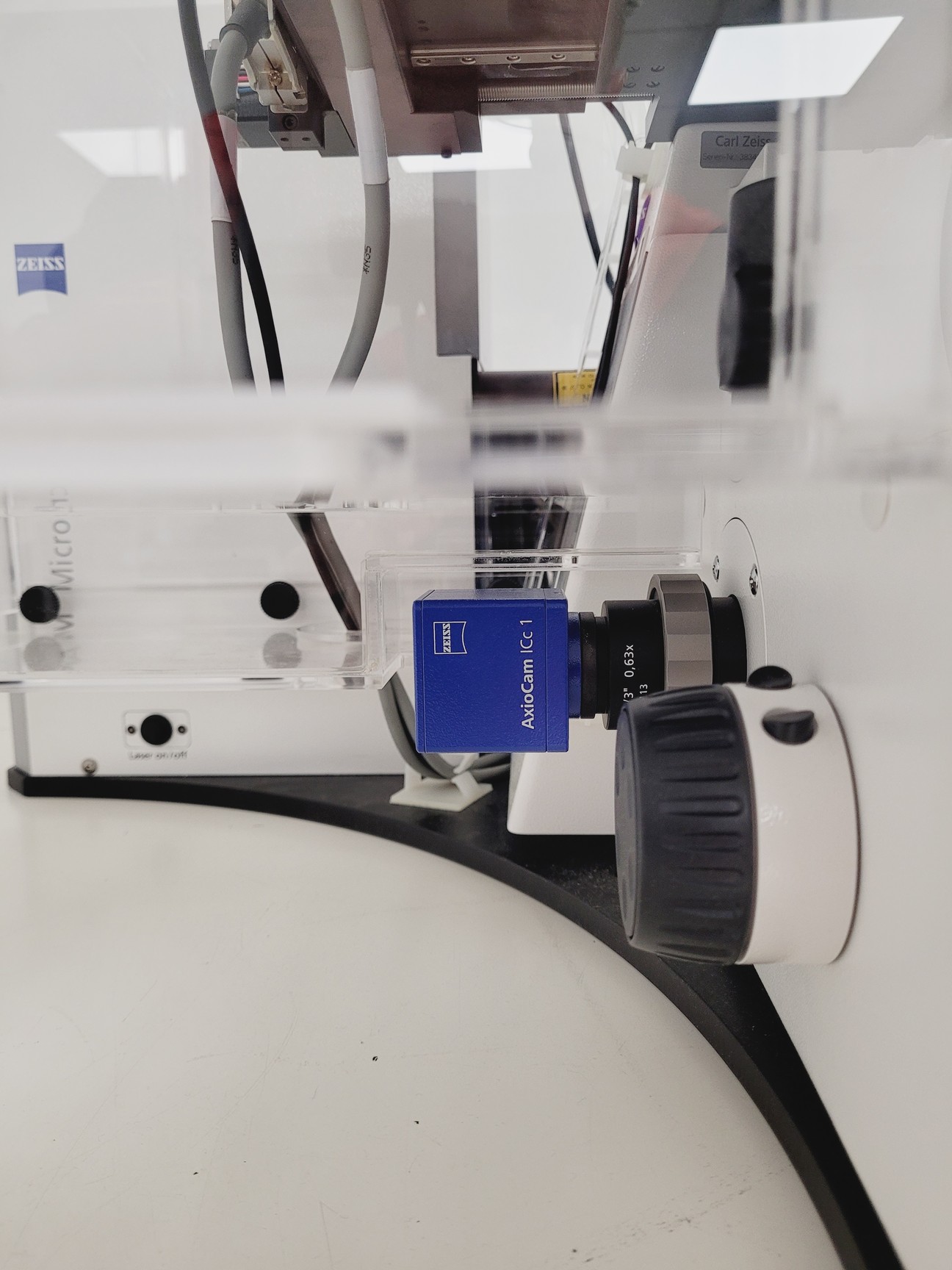

- Zeiss AxioCam ICc1

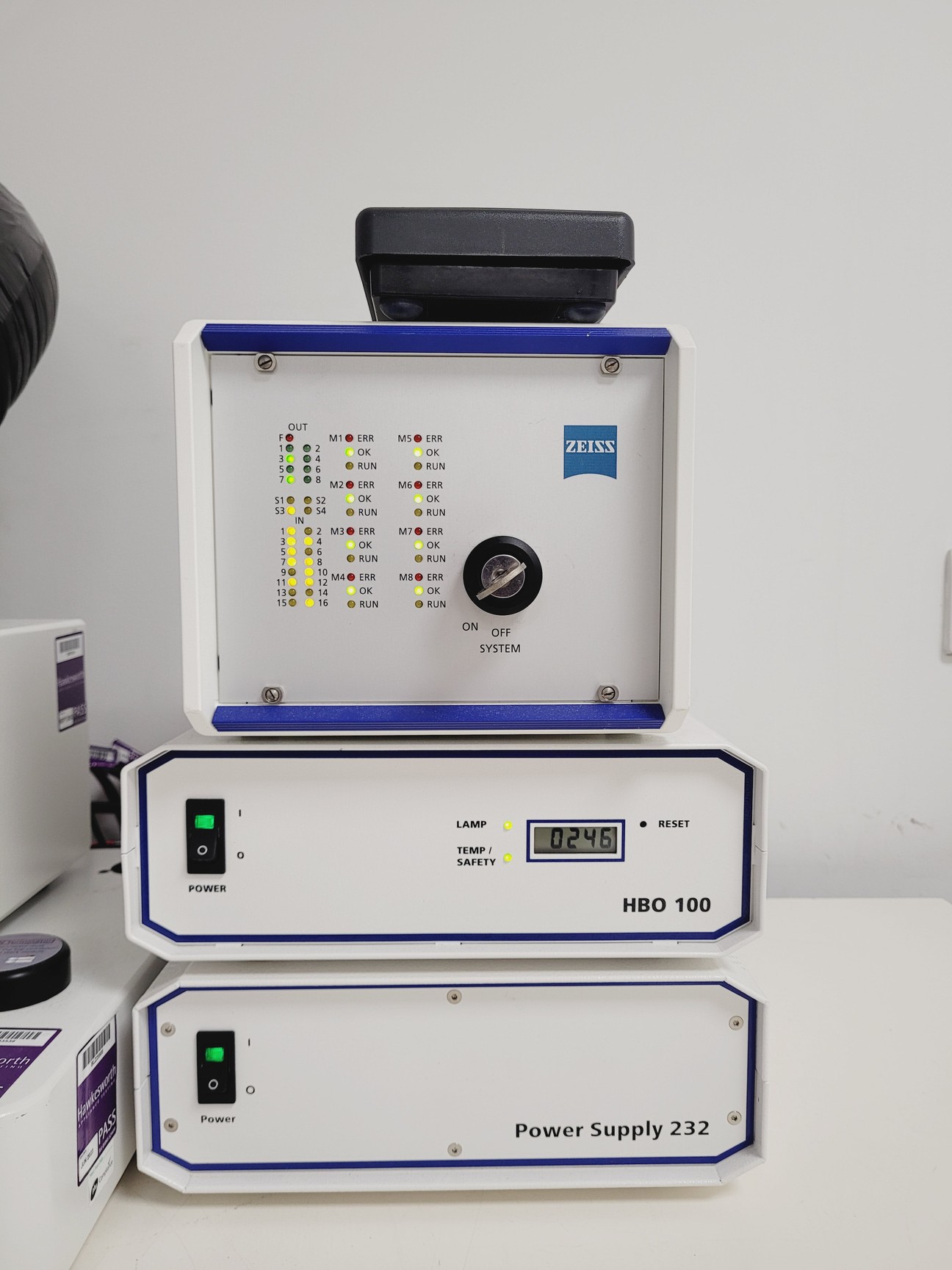

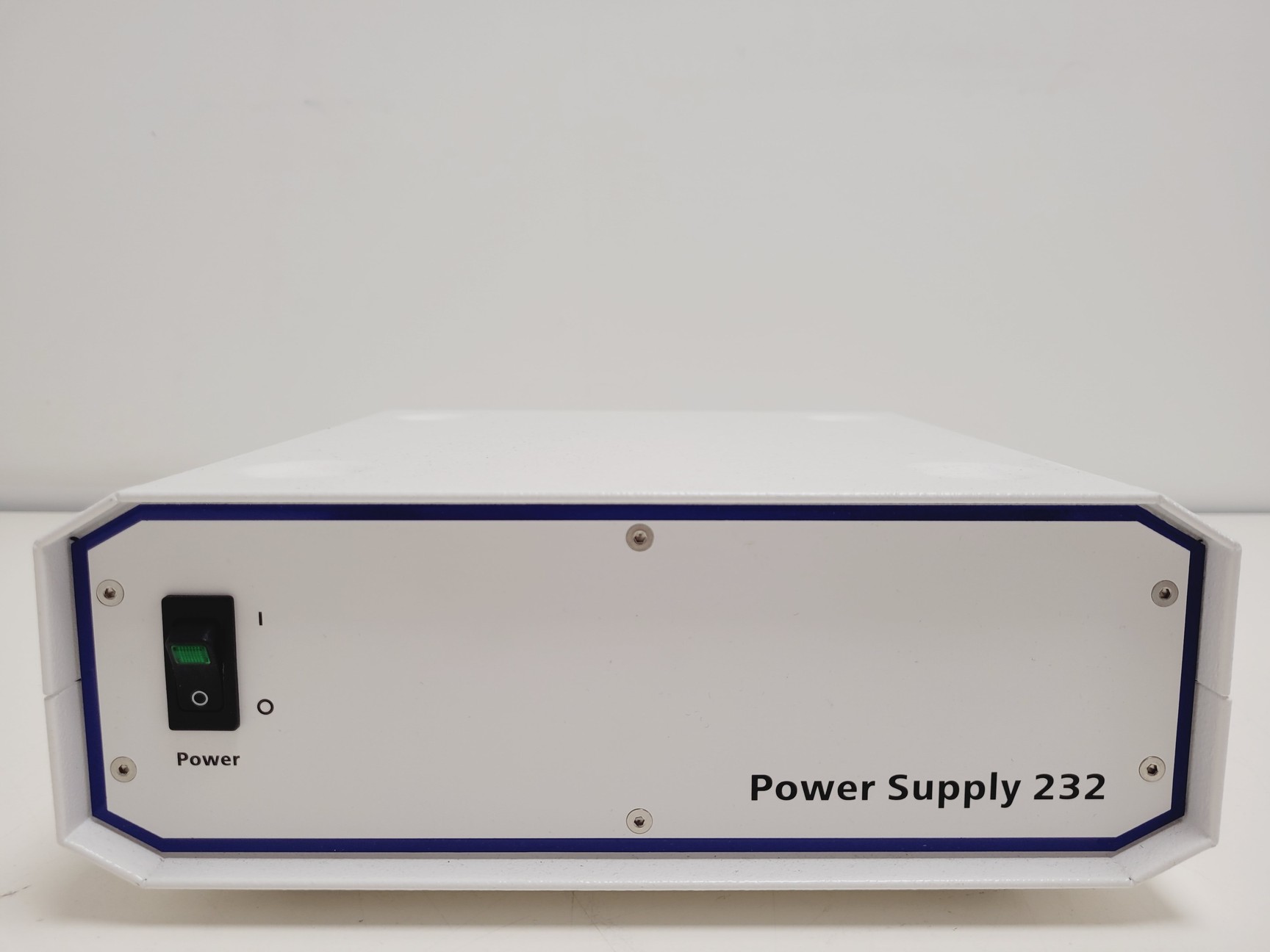

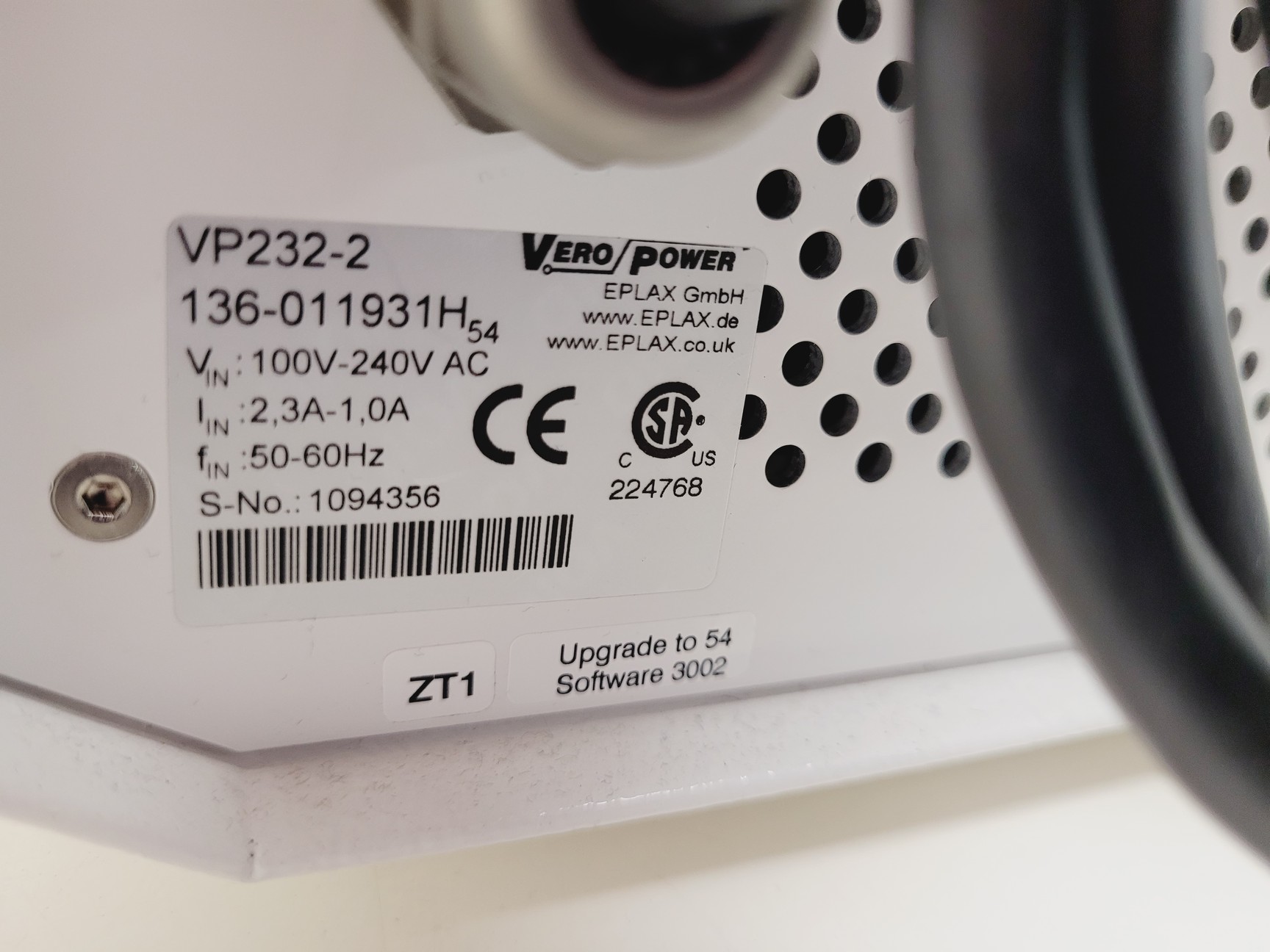

- Zeiss Power Supply 232
- PALM MicroBeam Components

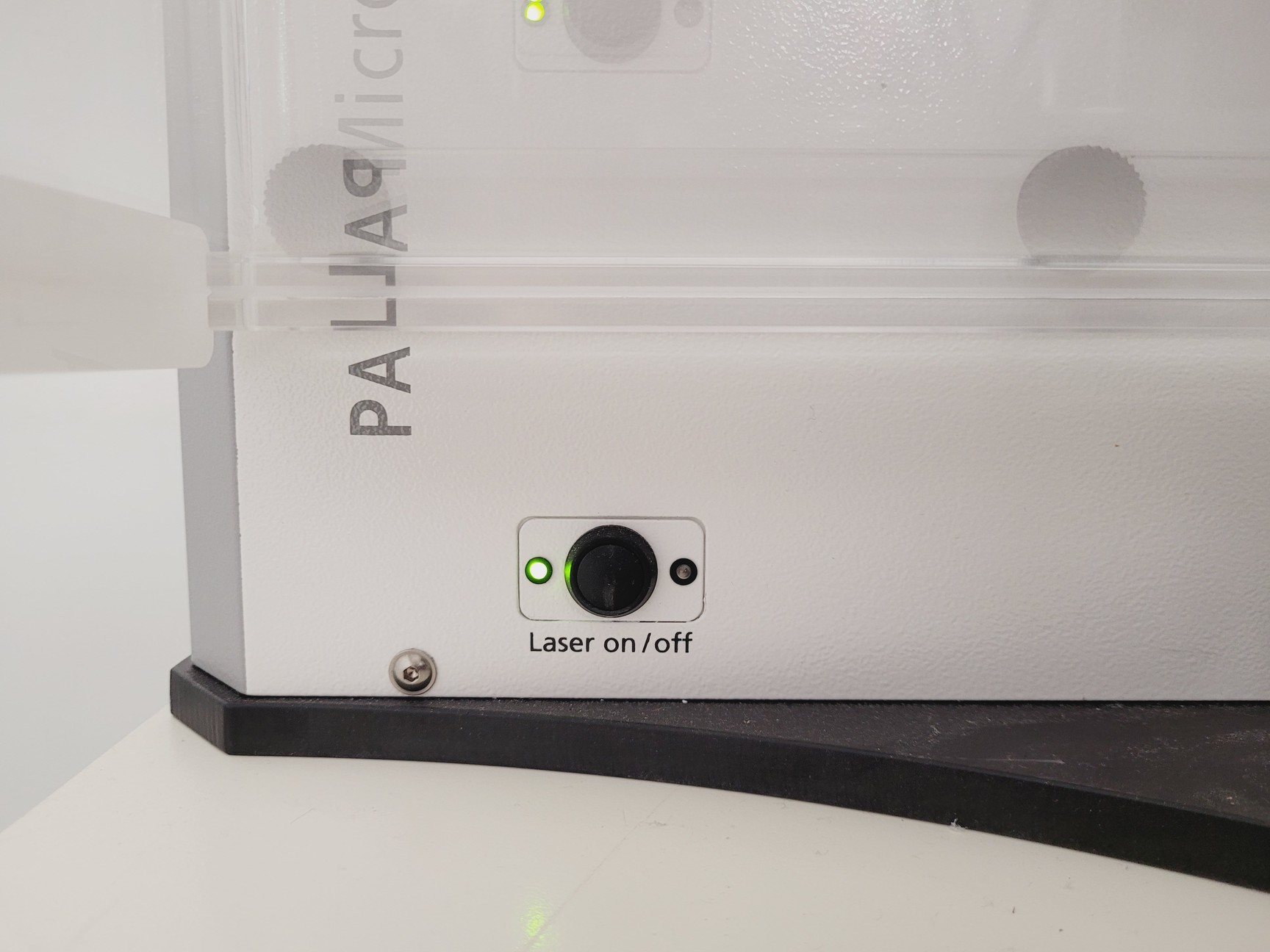

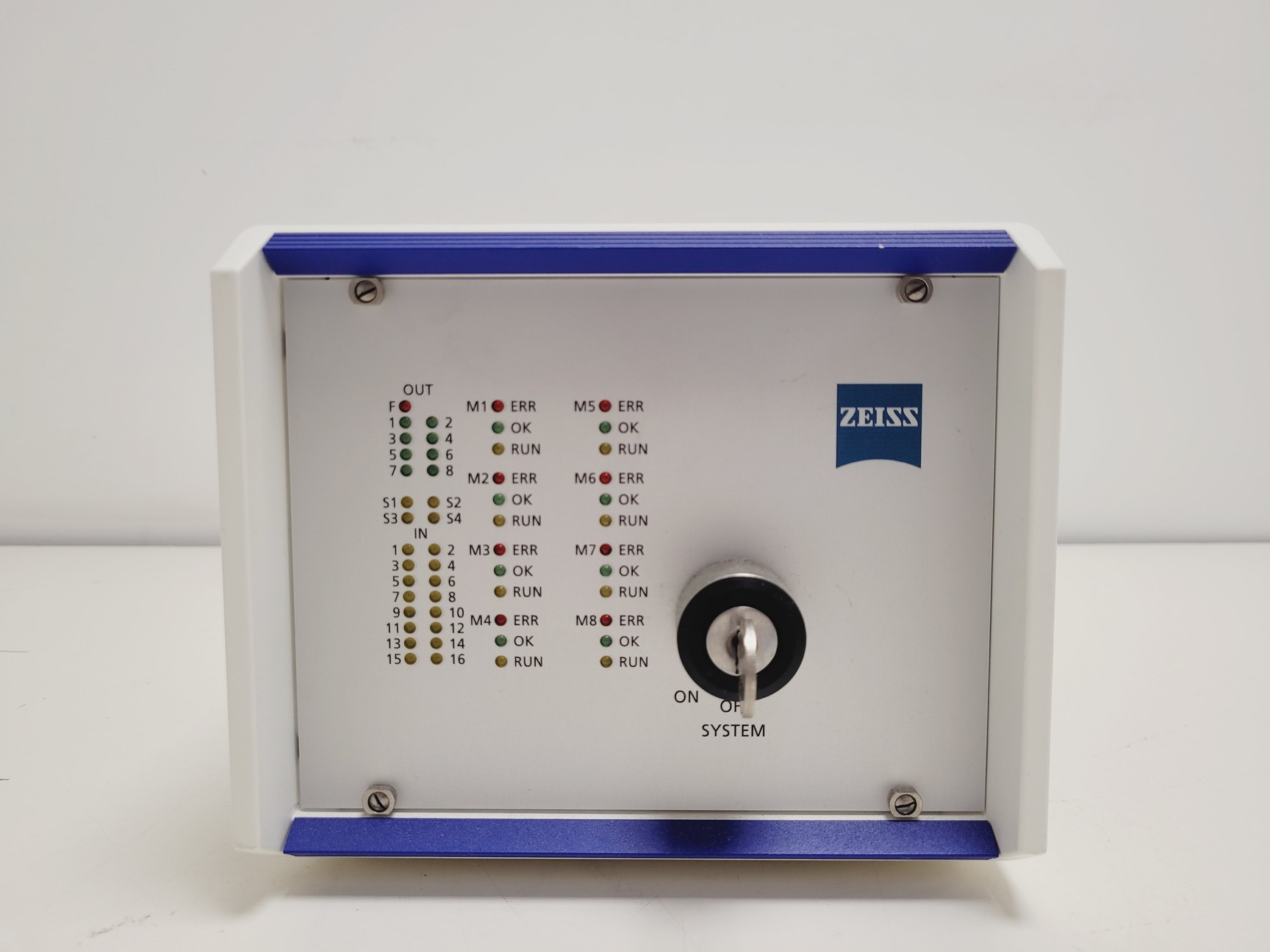

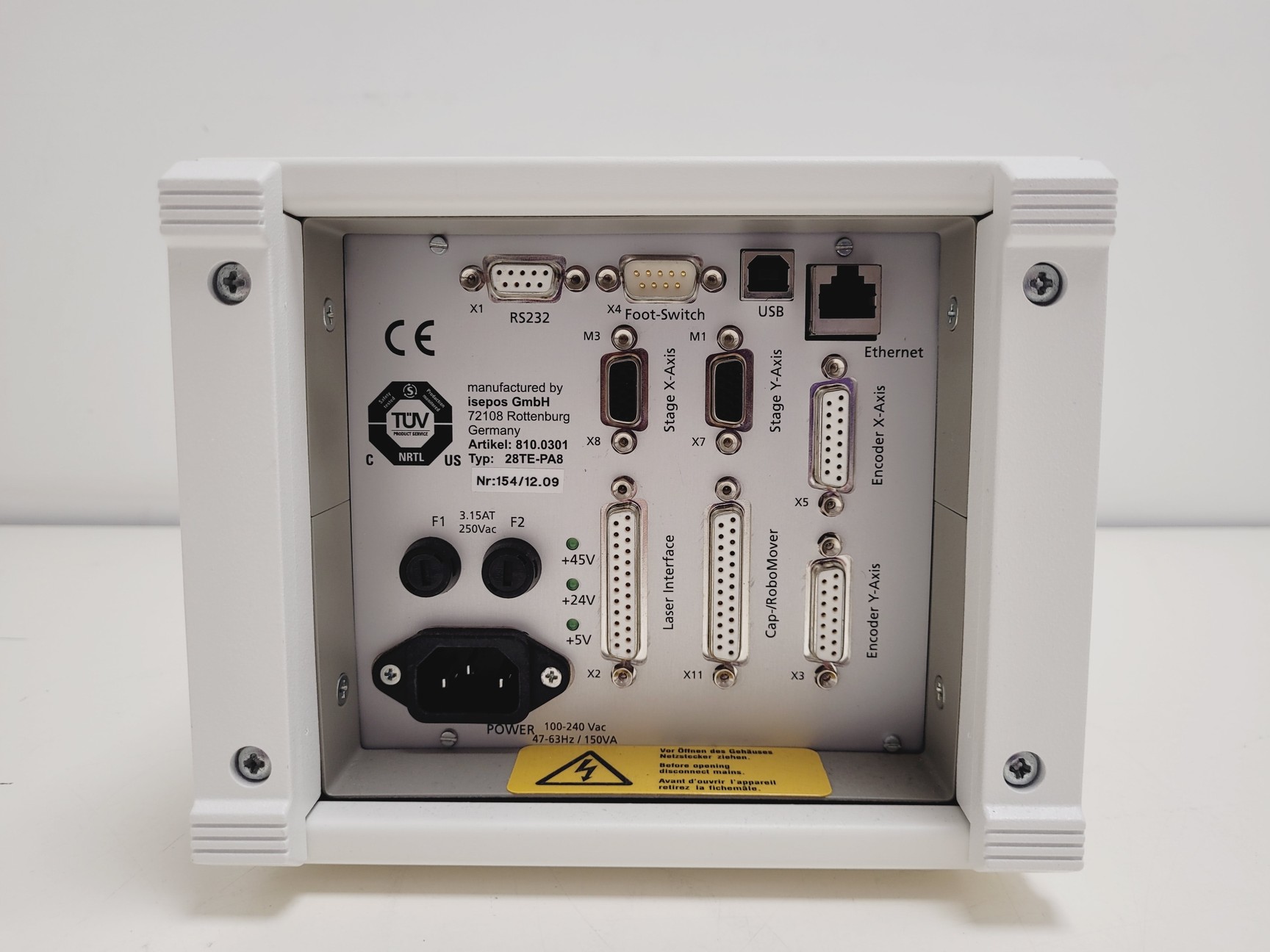

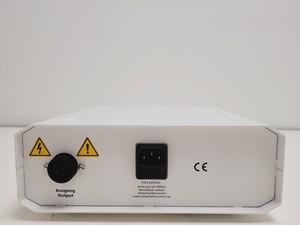

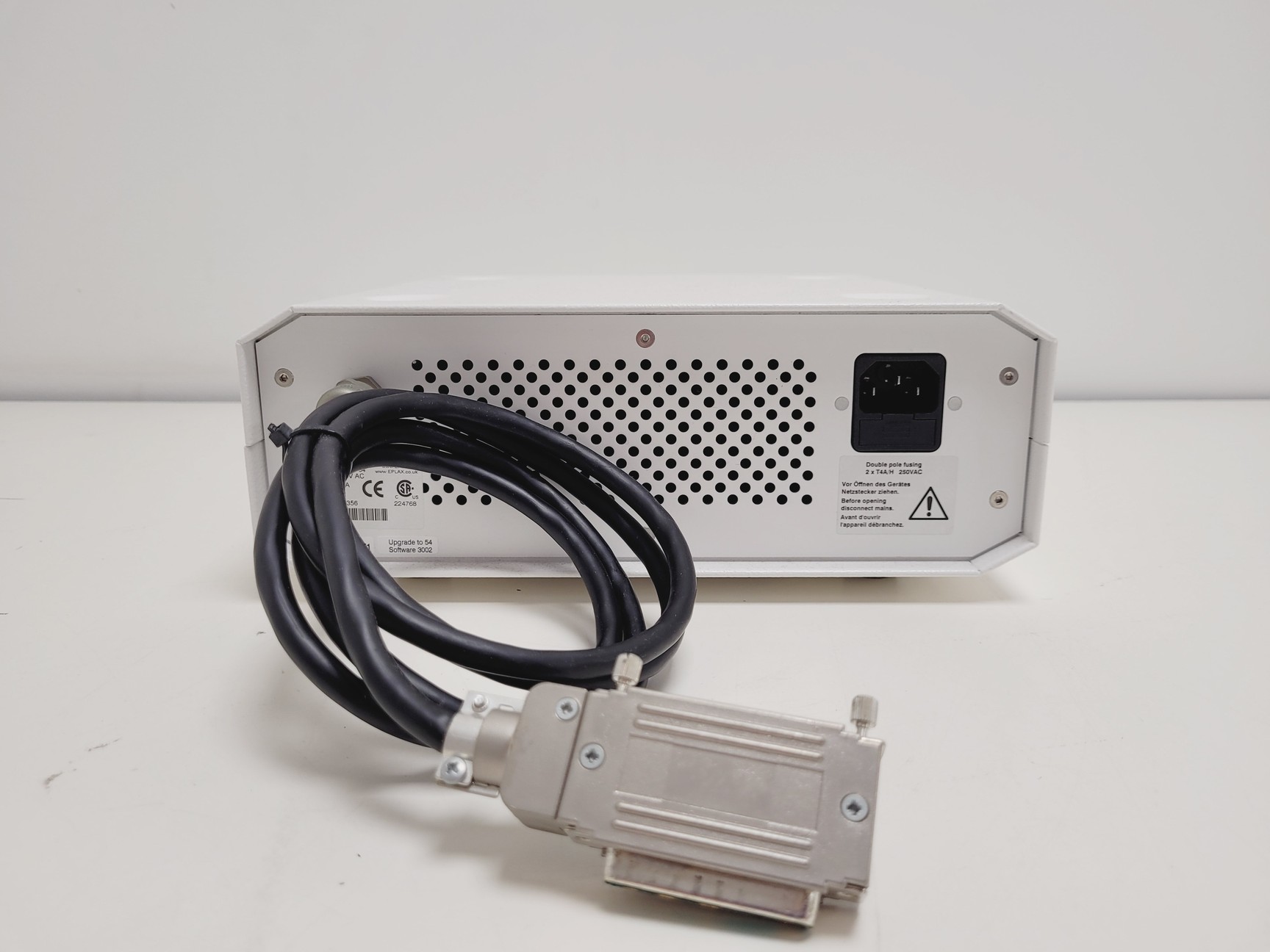

- Zeiss PALM MicroBeam laser unit with controller/power supply

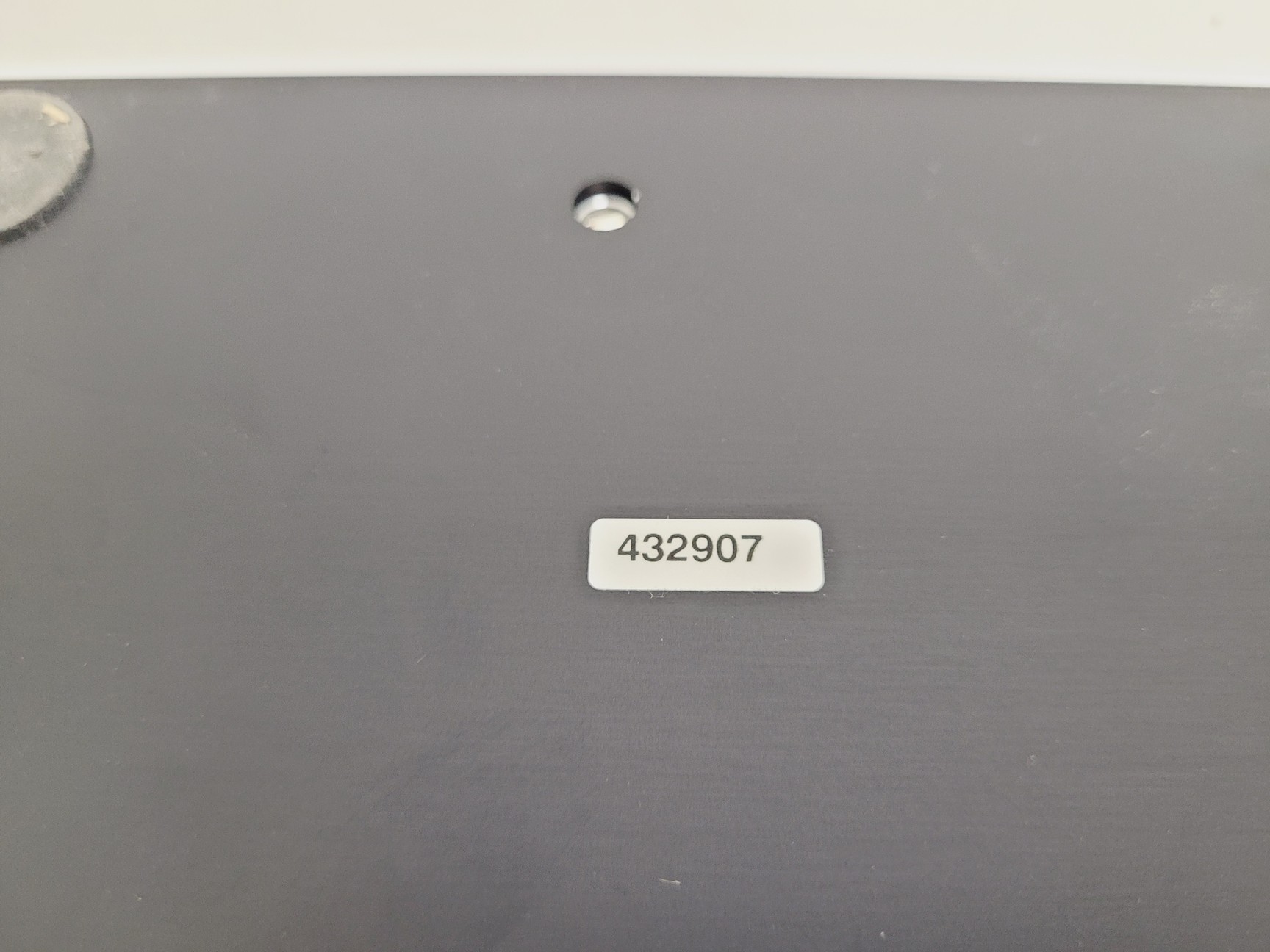

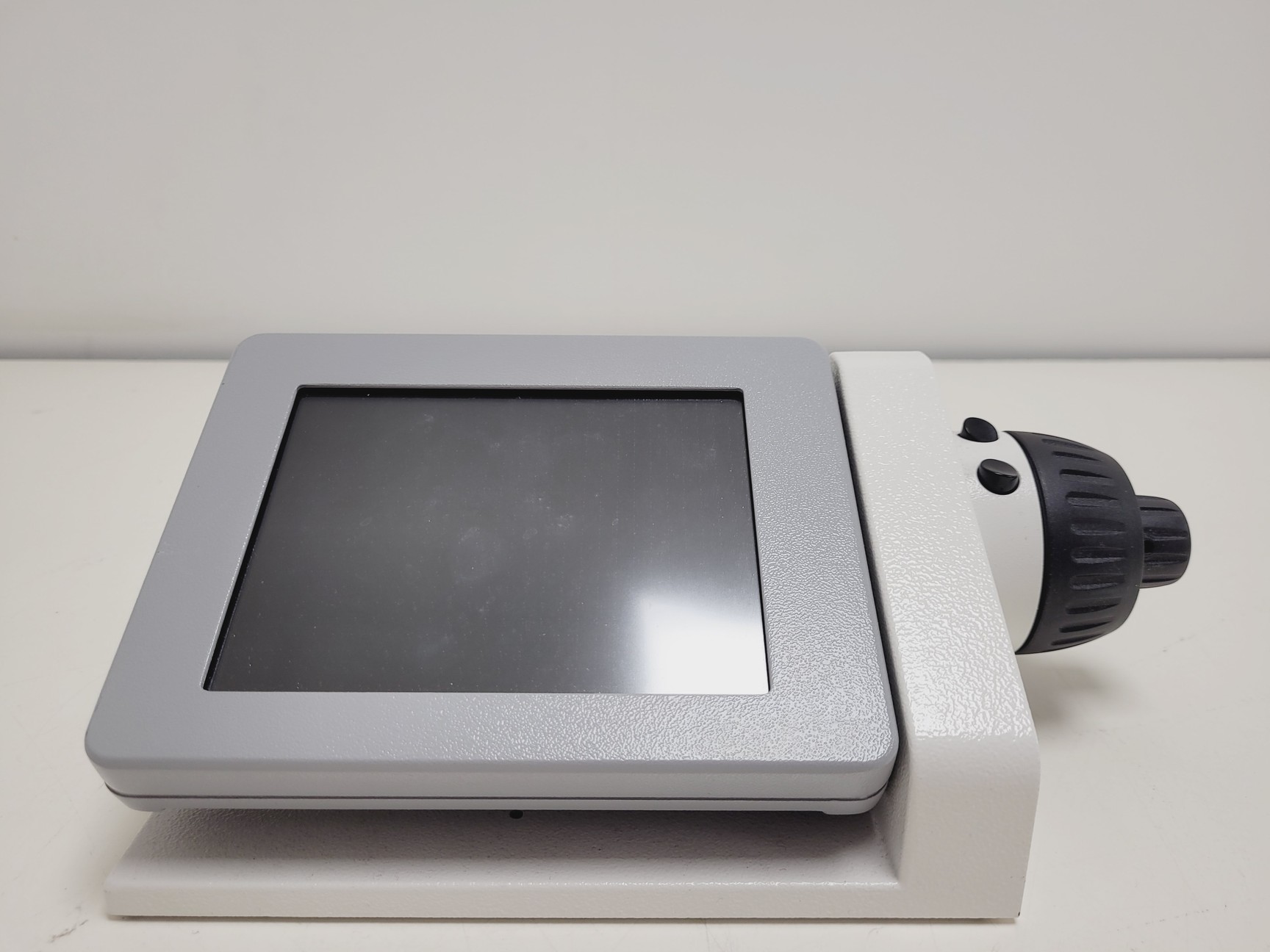

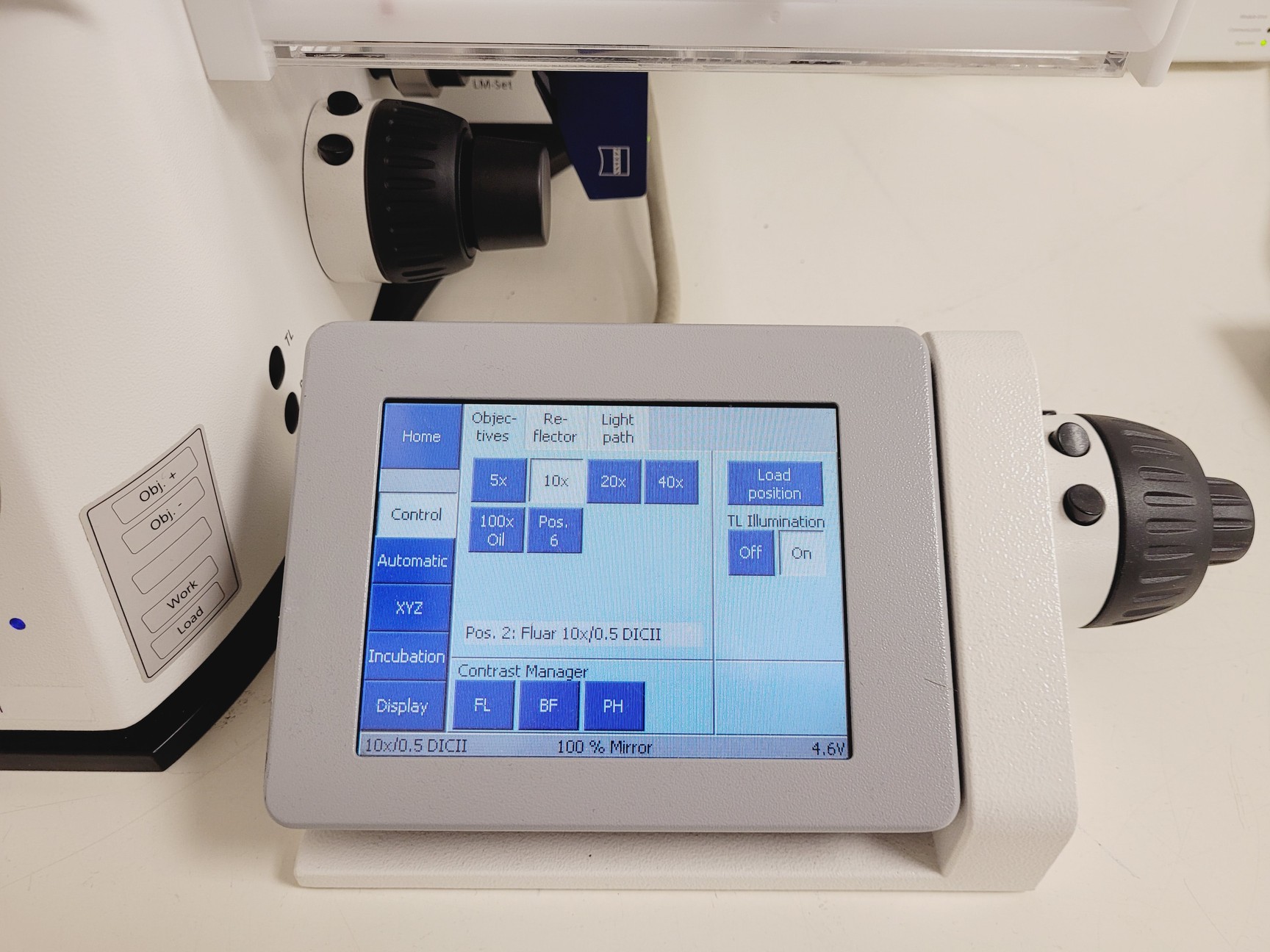

- Zeiss TFT display with docking station (432907)

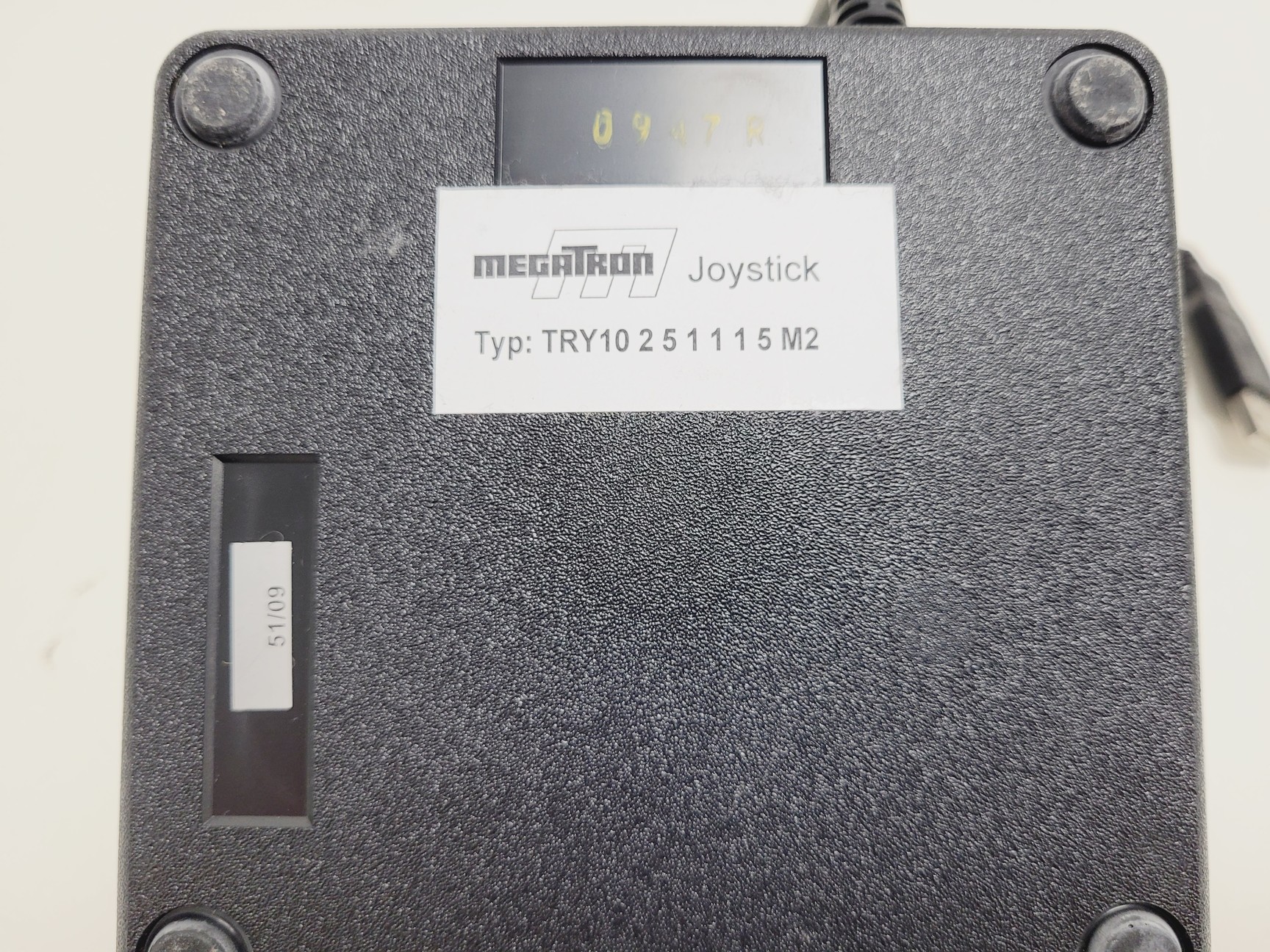

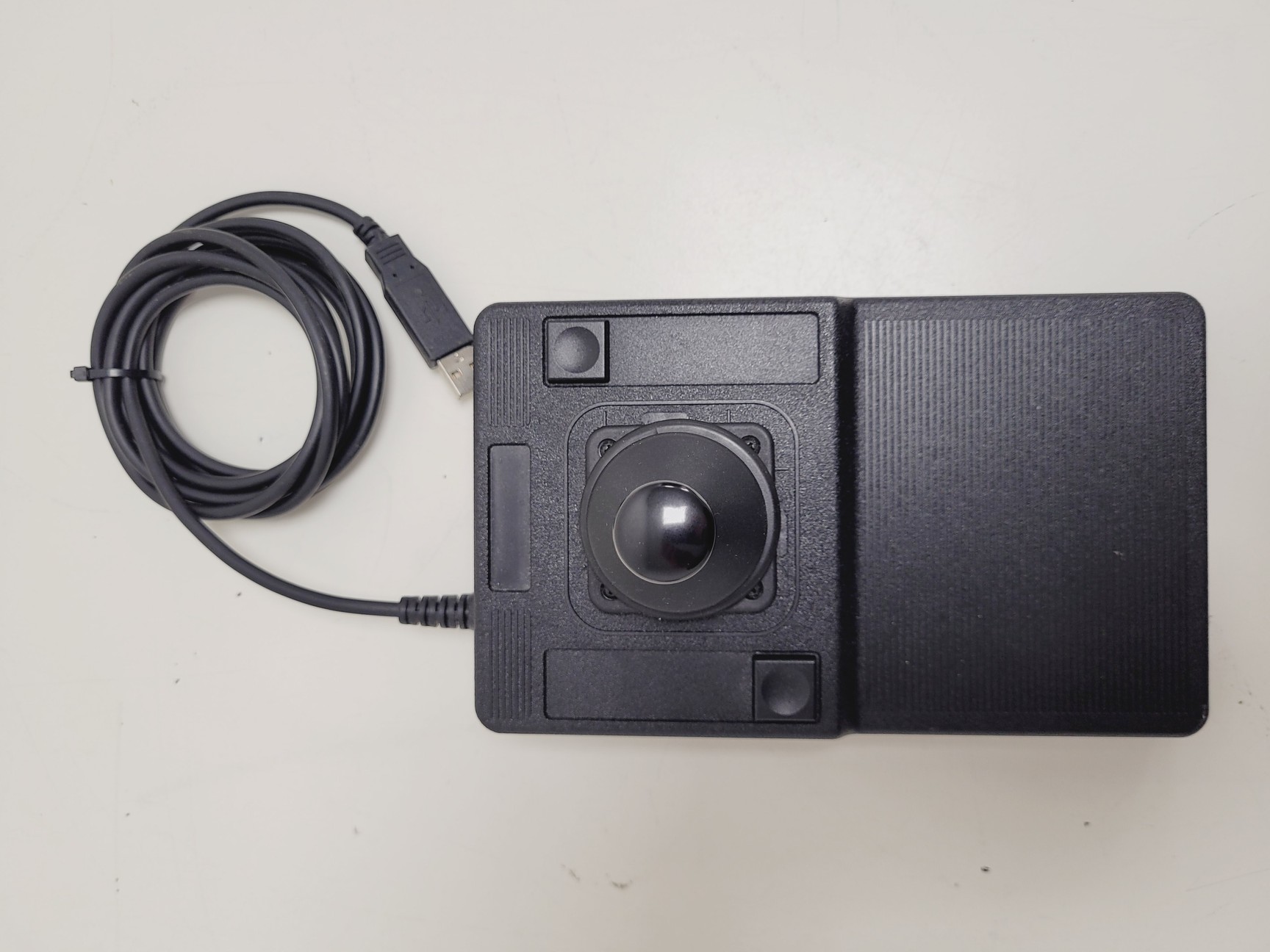

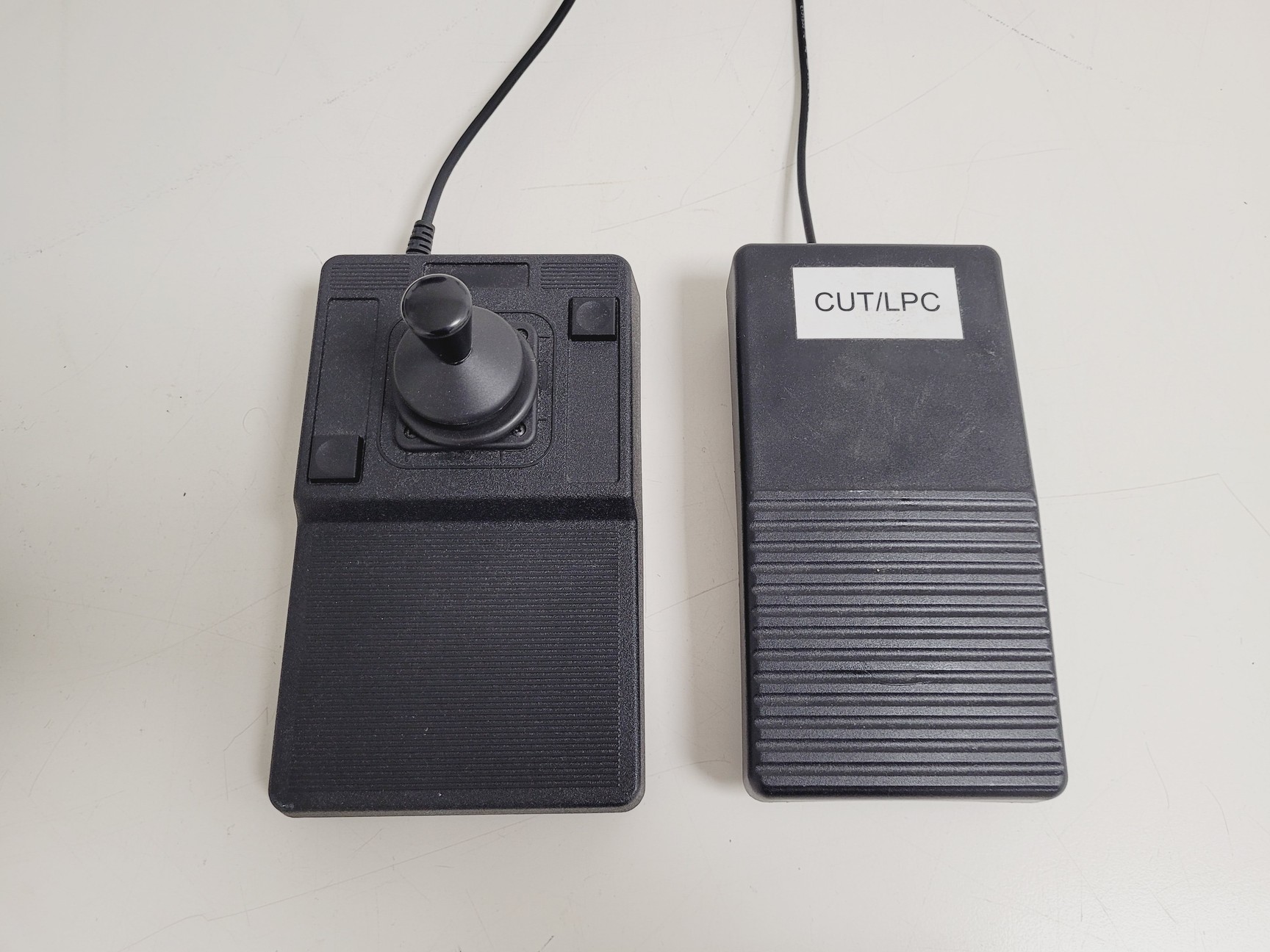

- Megatron joystick

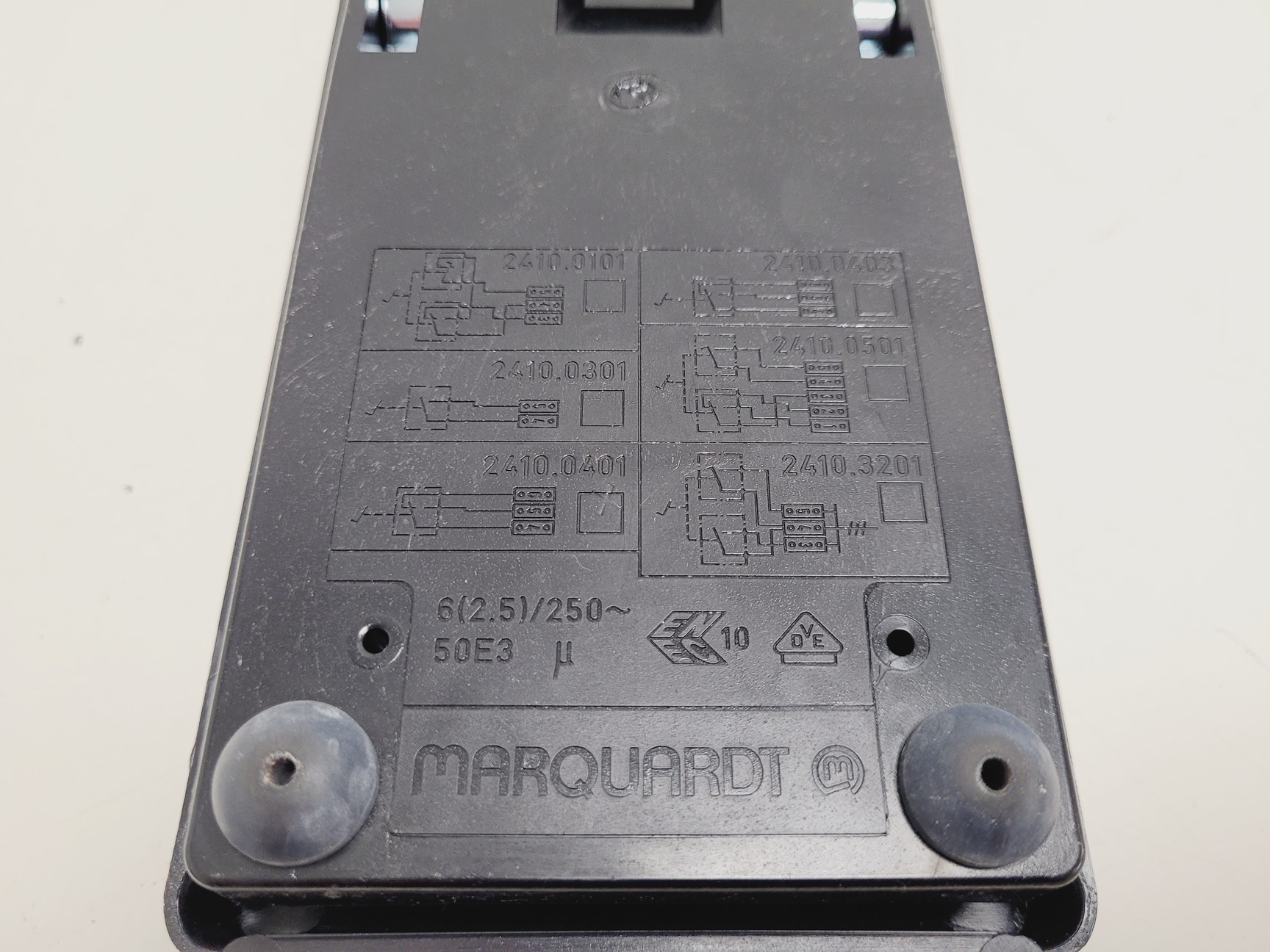

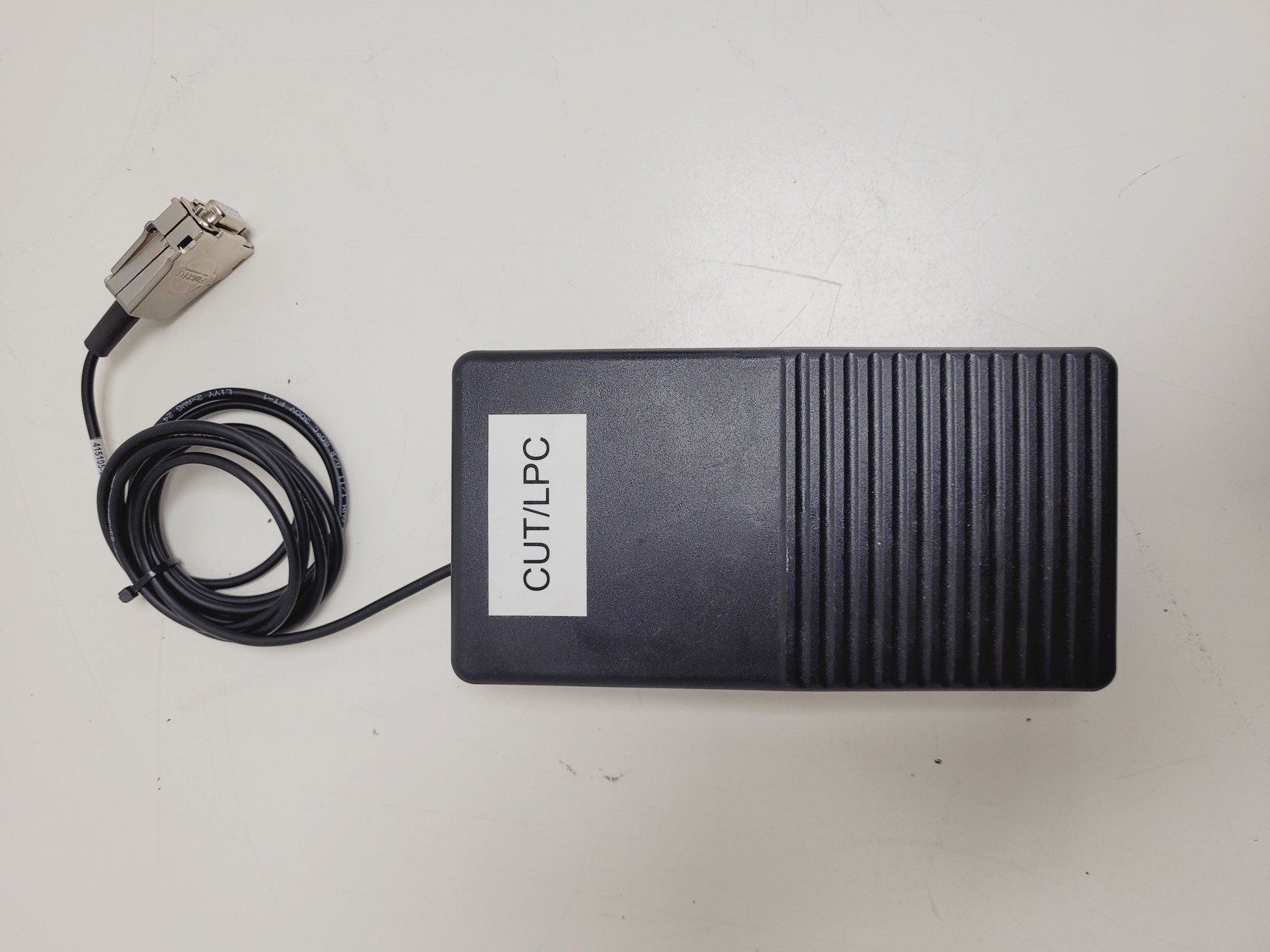

- Marquardt foot controller
- Incubation

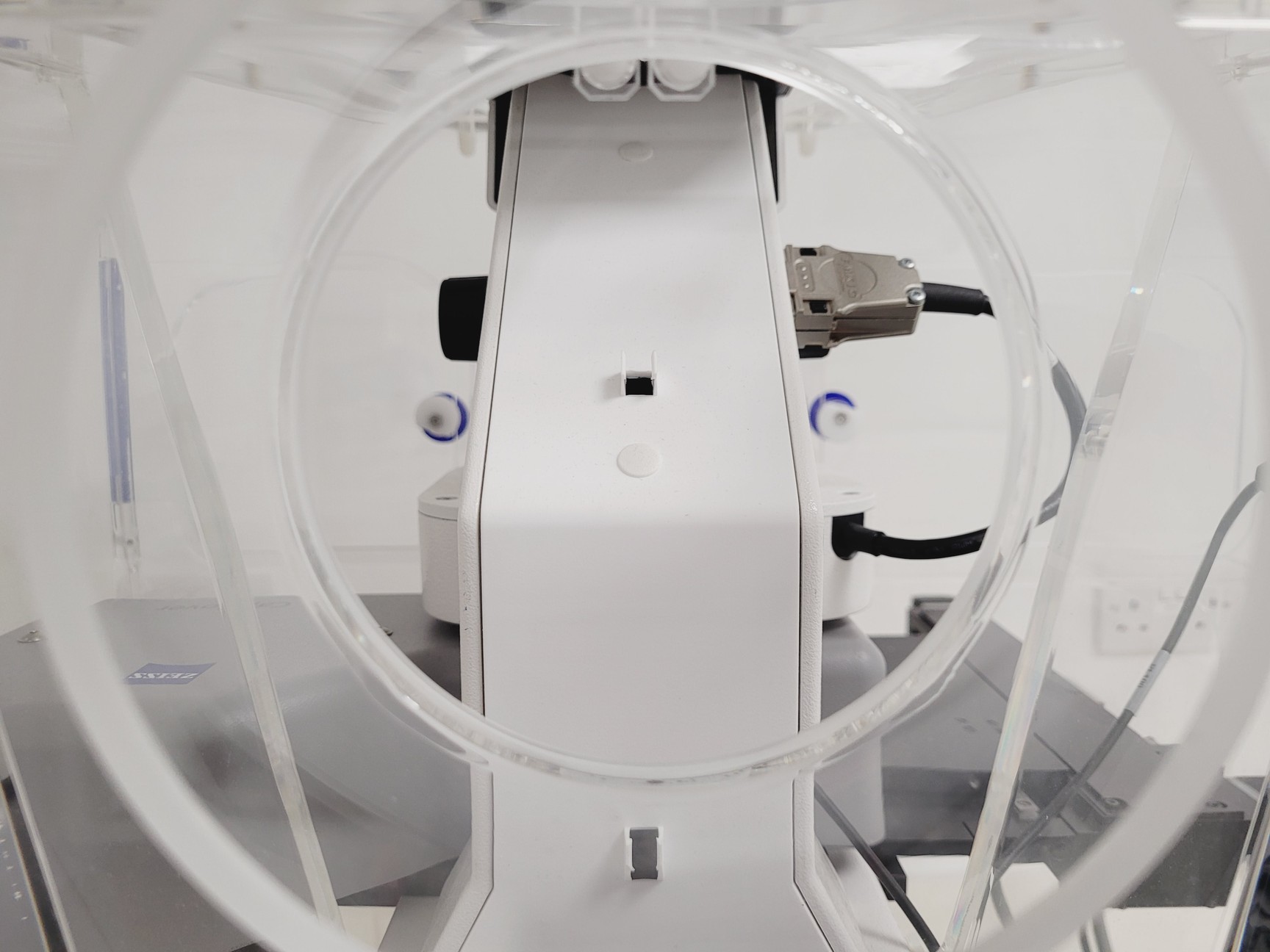

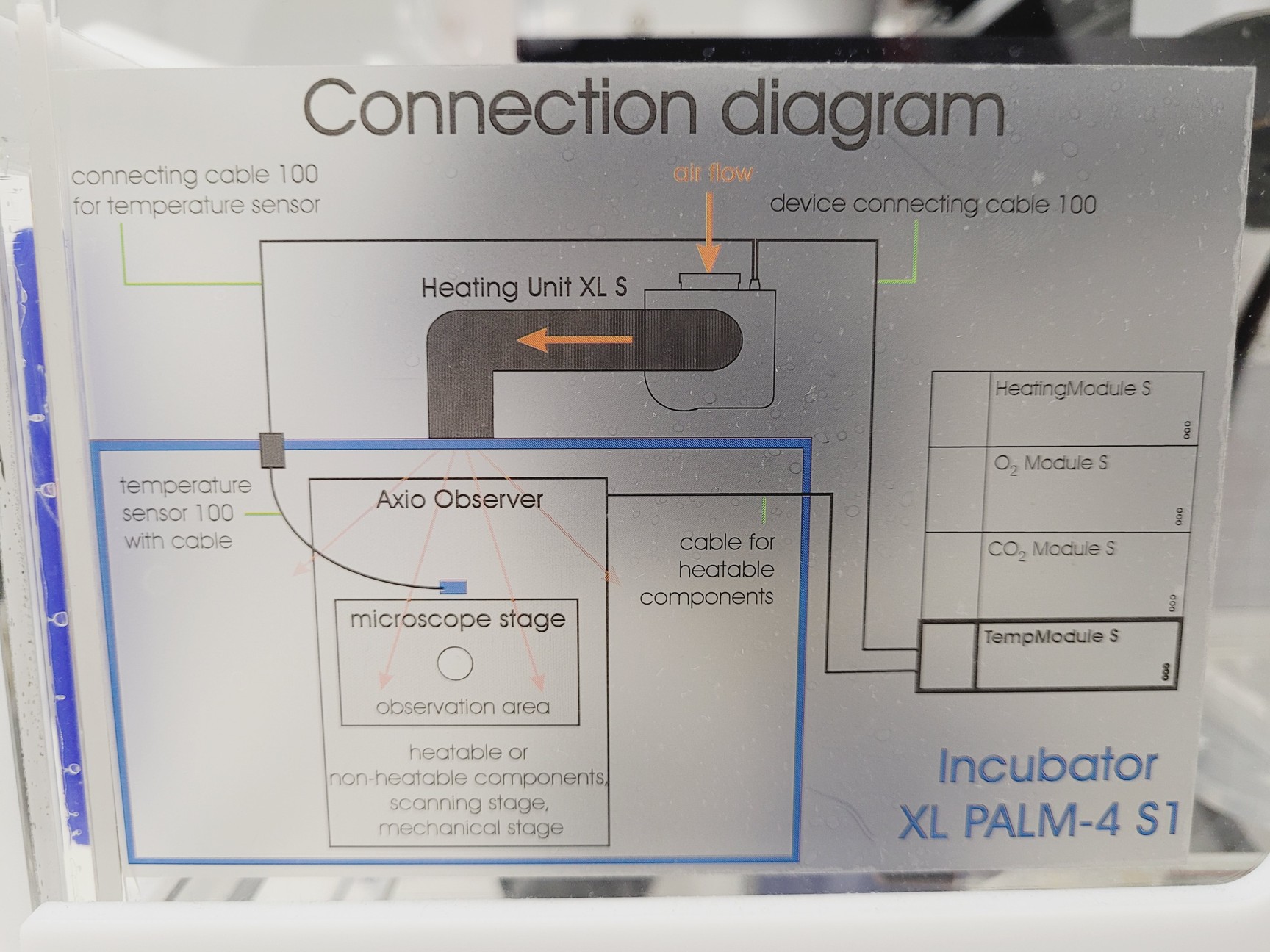

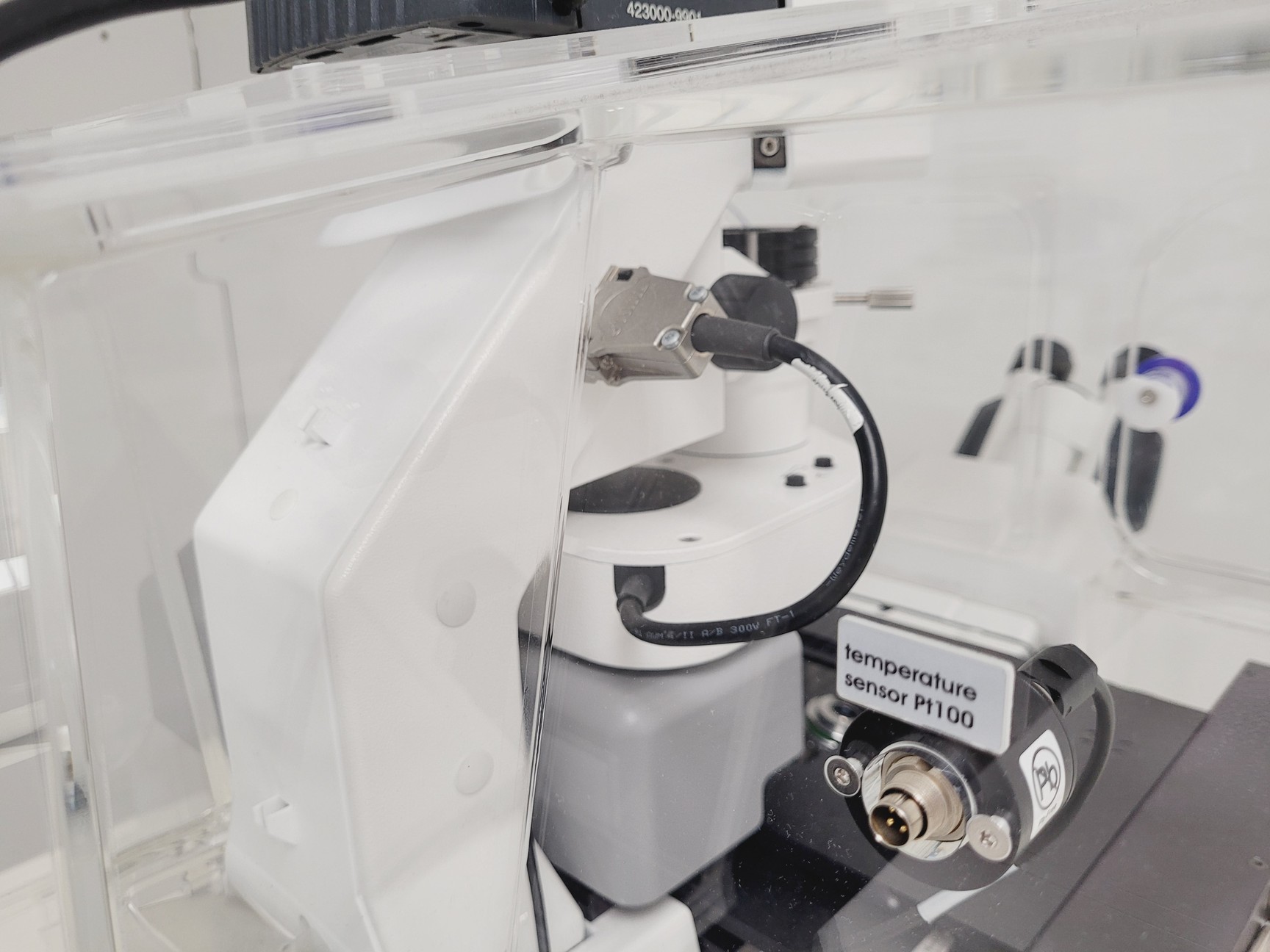

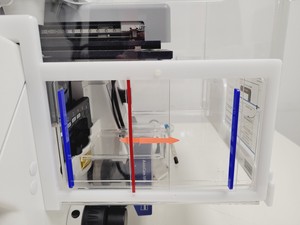

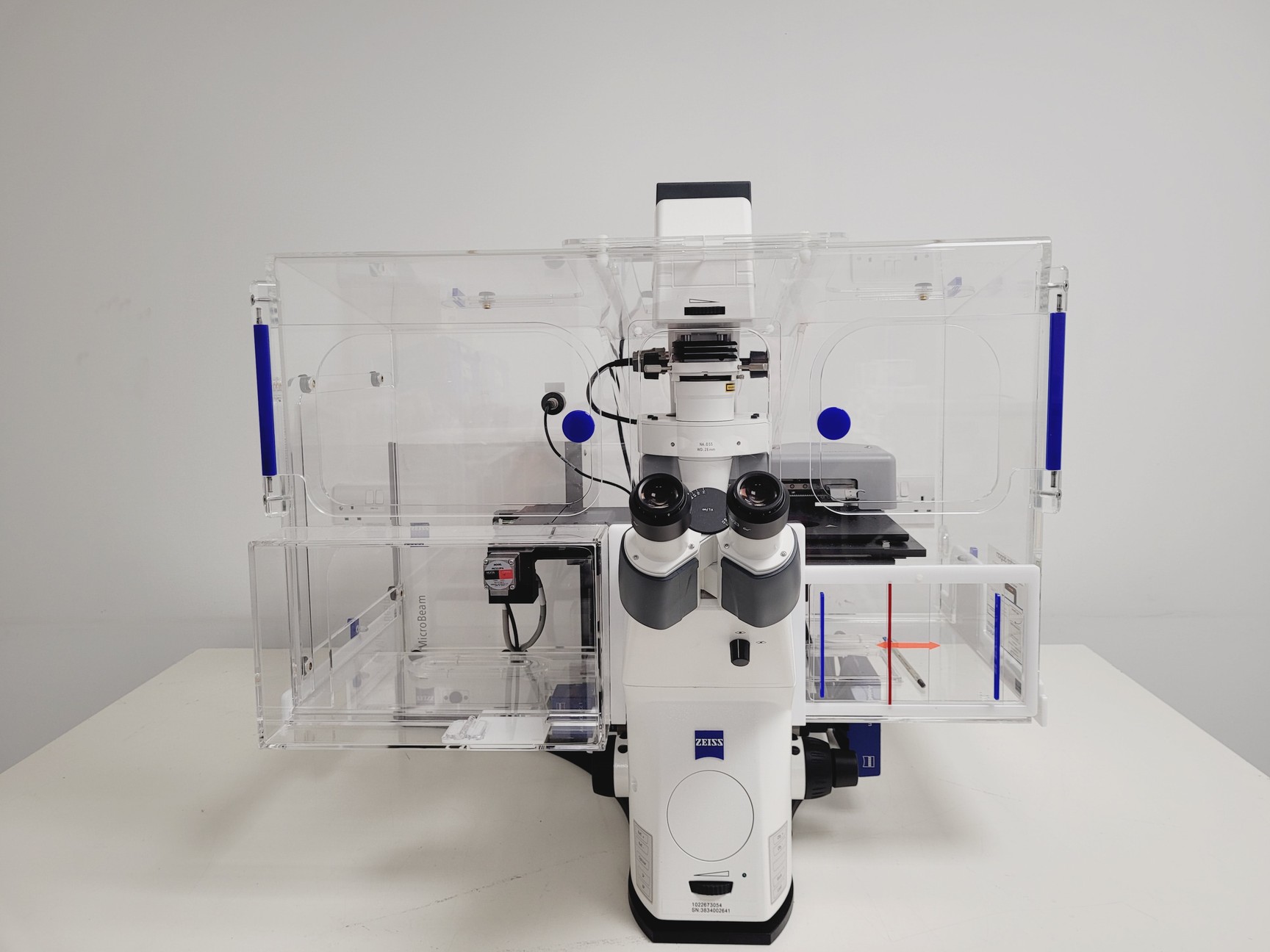

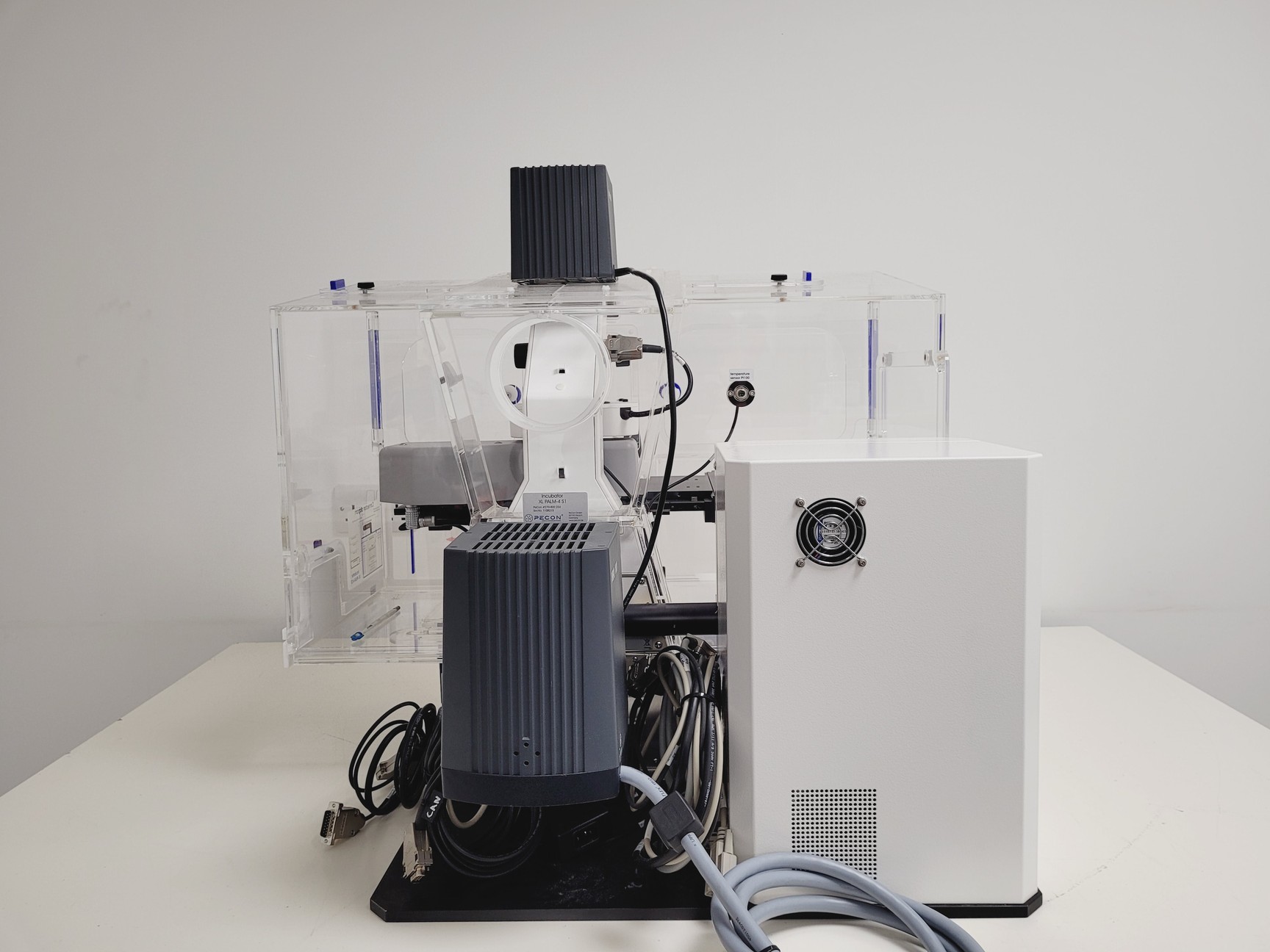

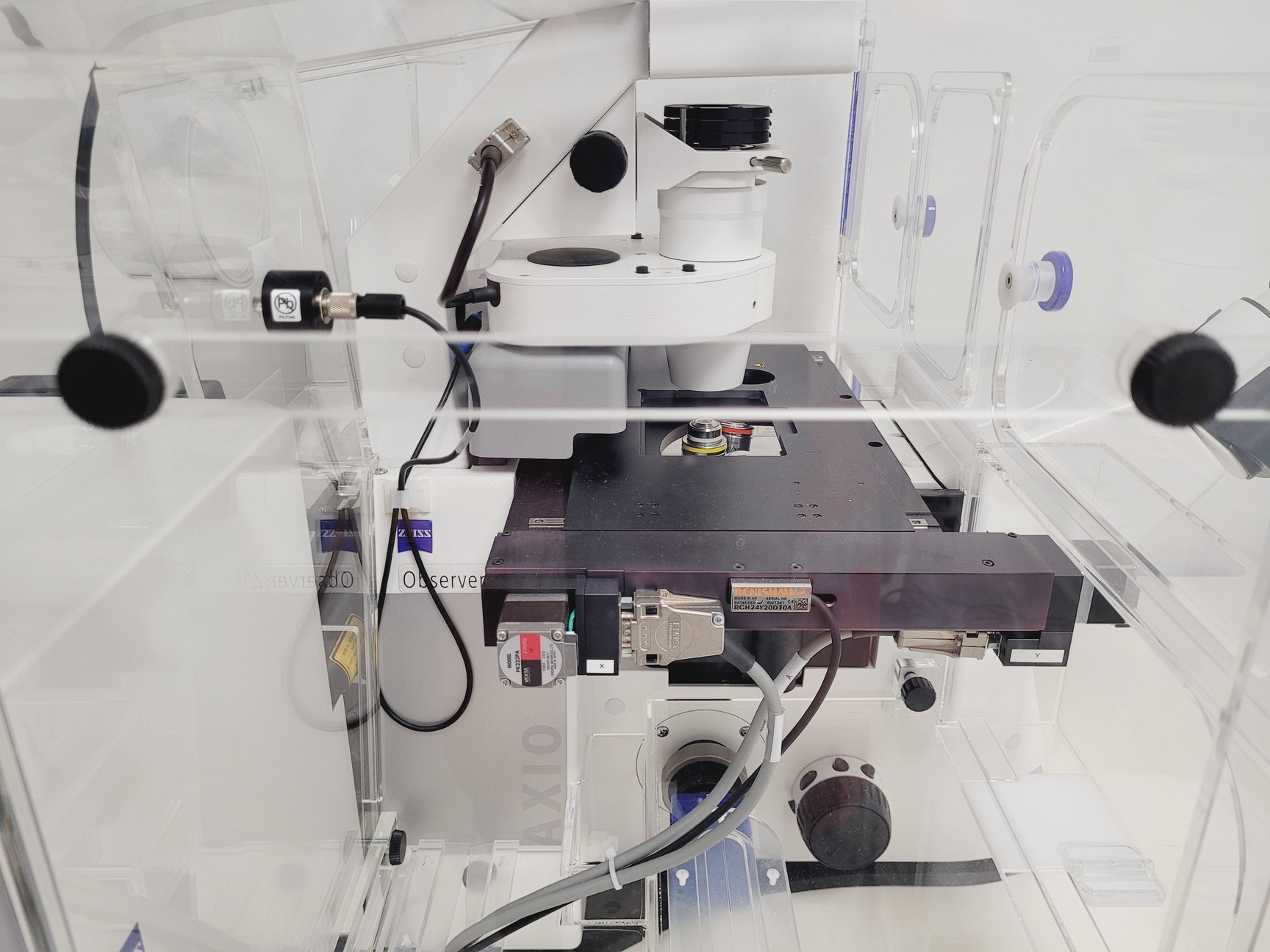

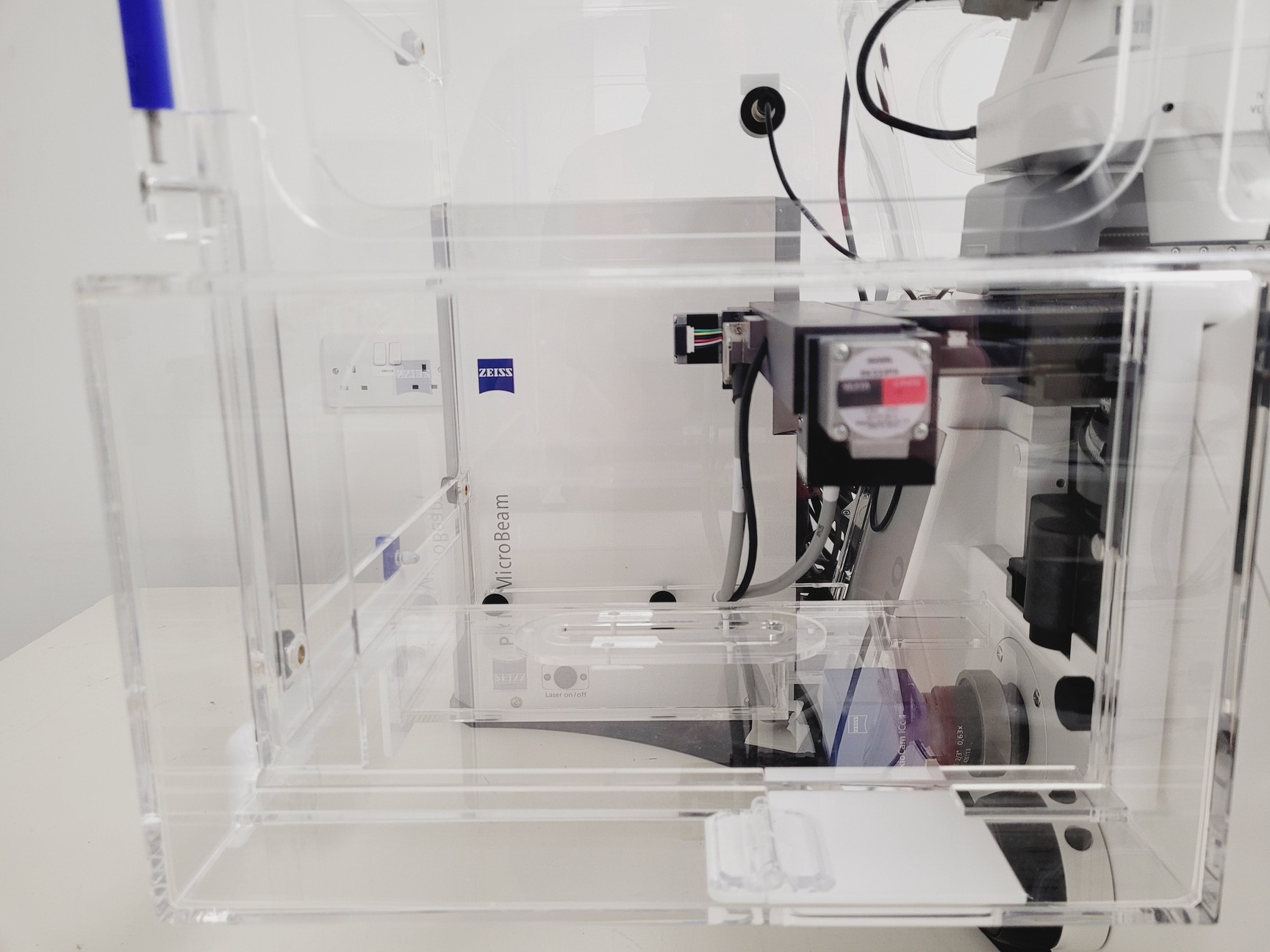

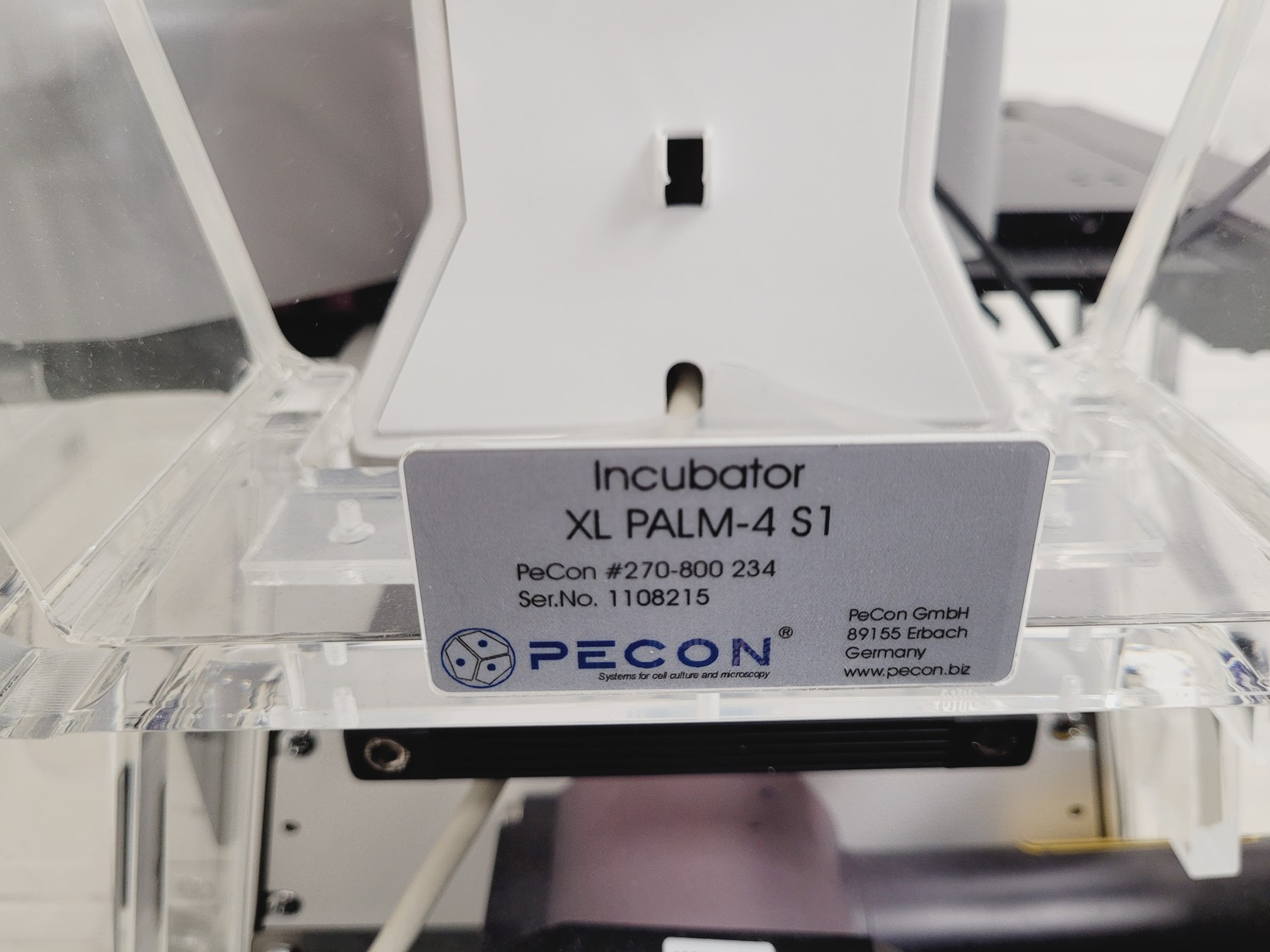

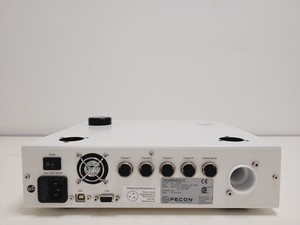

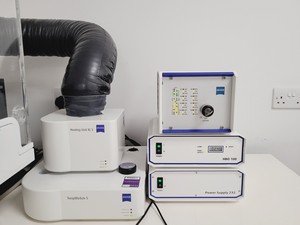

PECON XL-PALM-4 S1 incubator with:

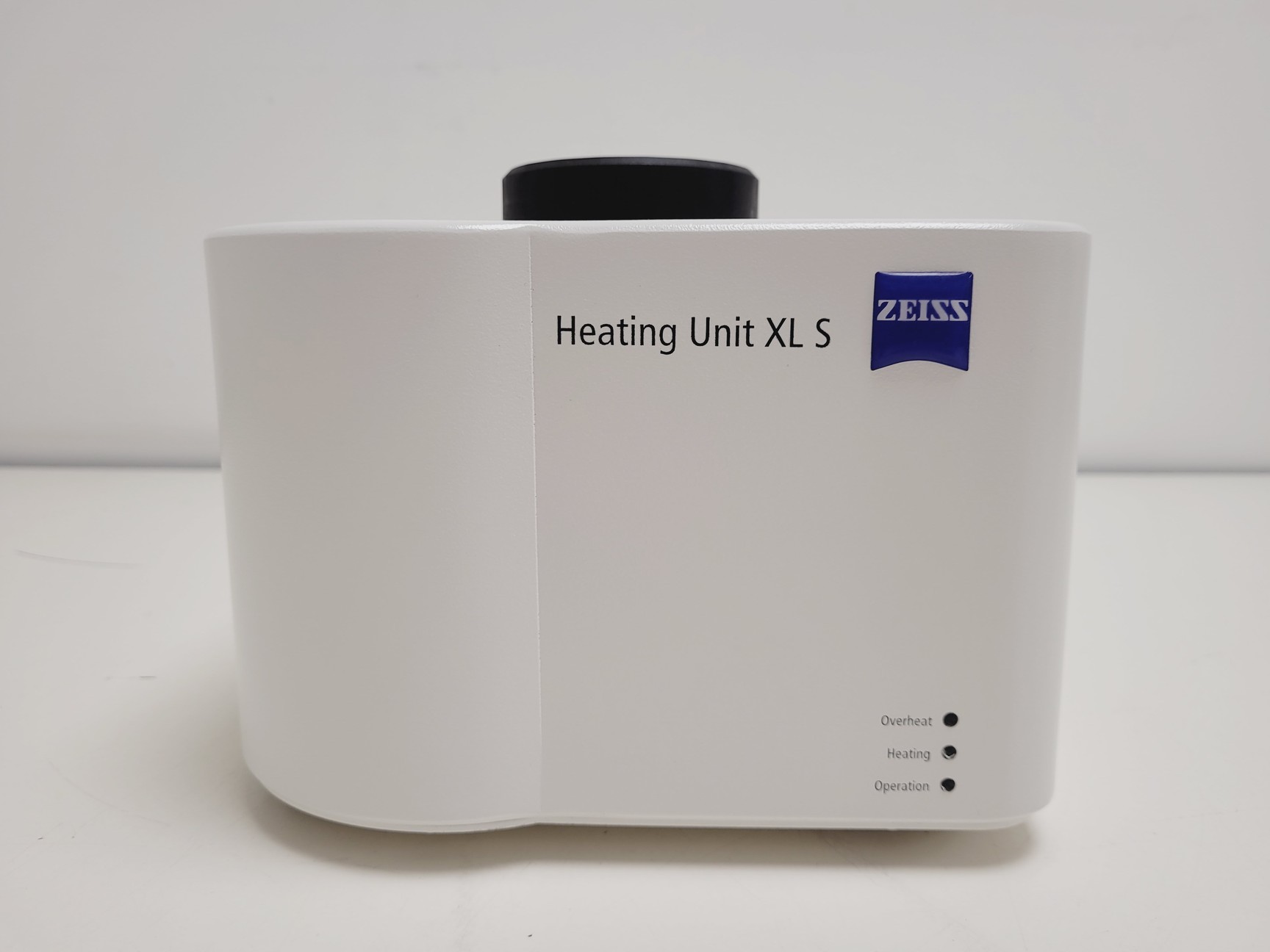

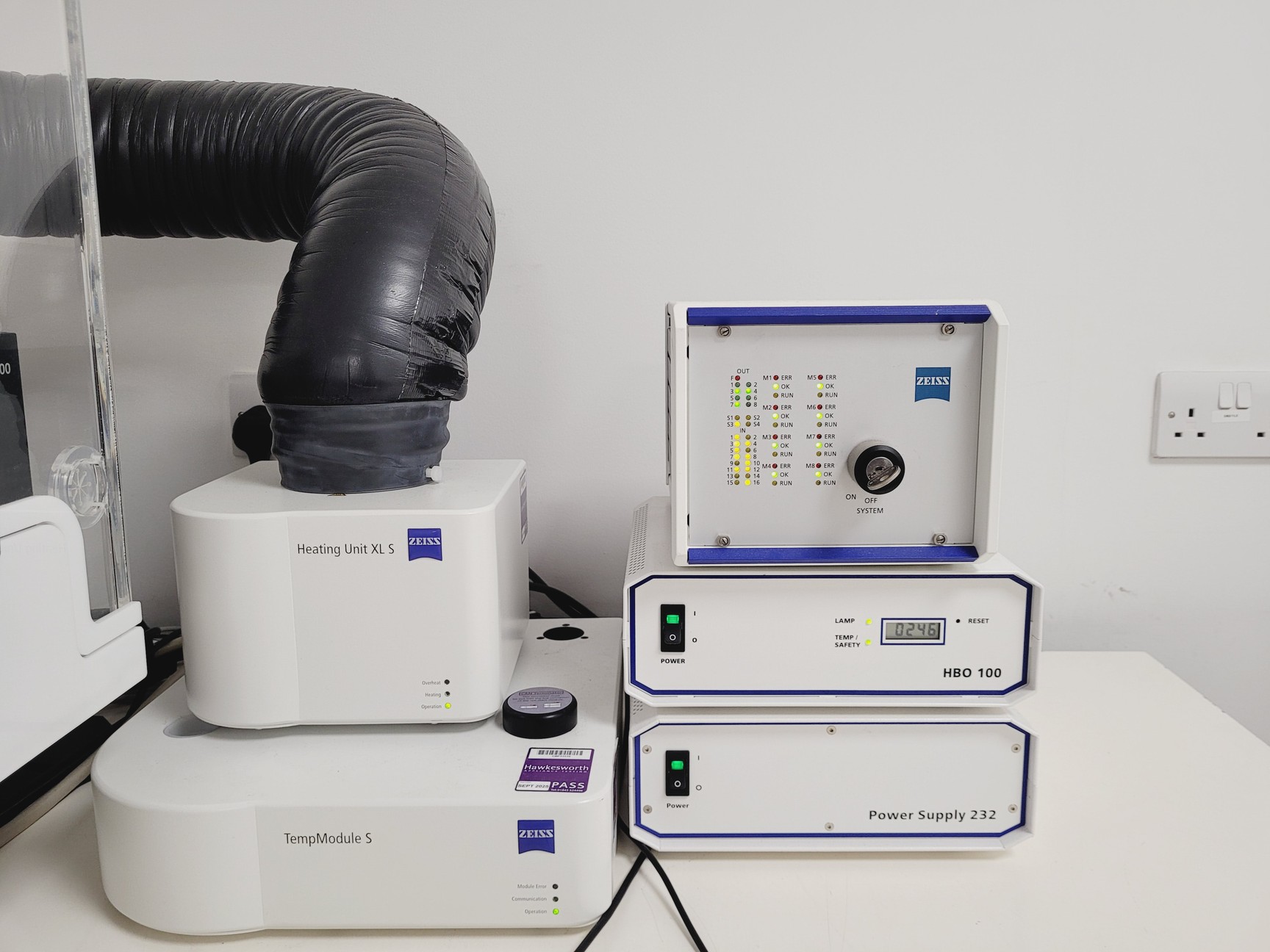

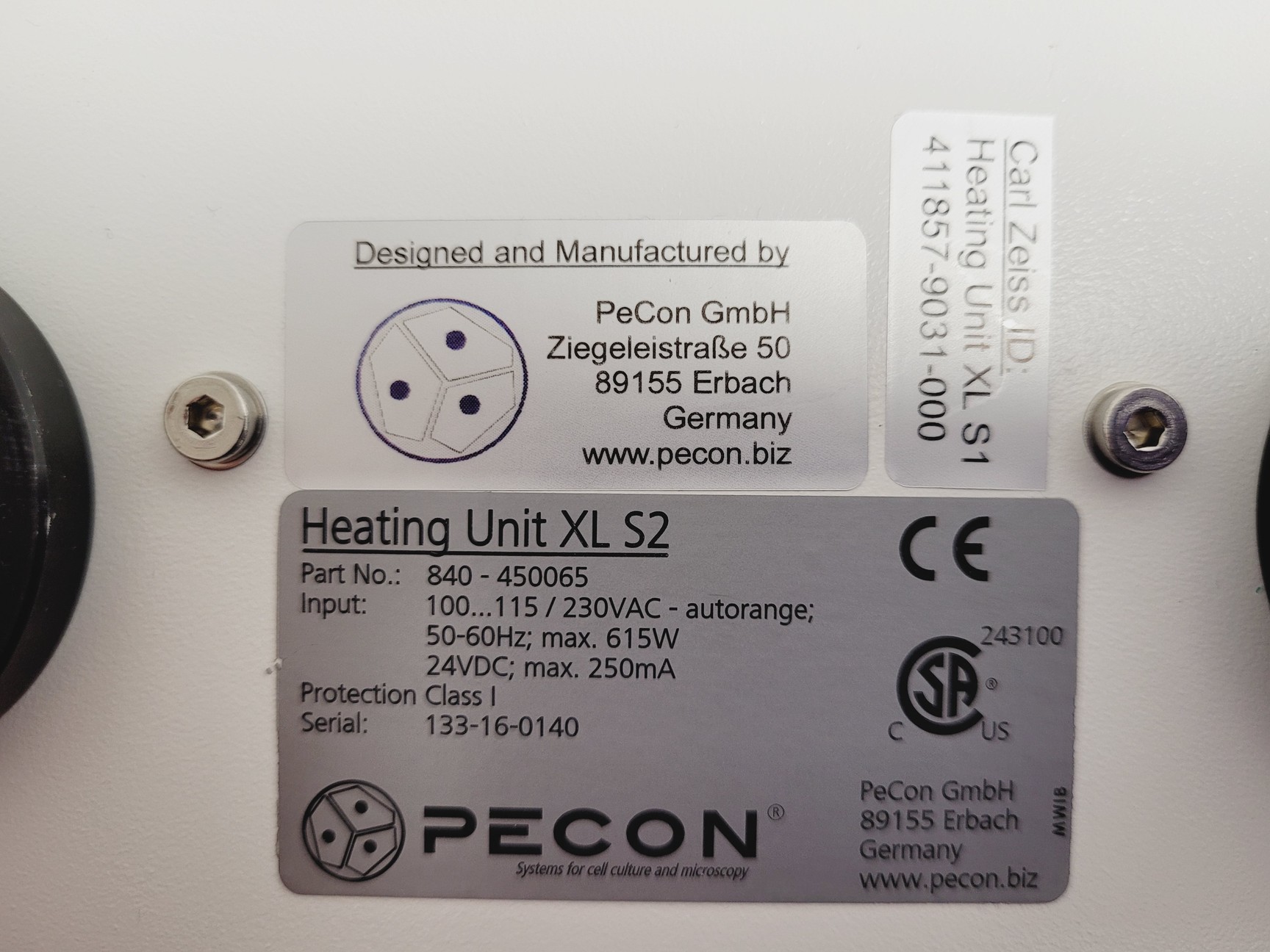

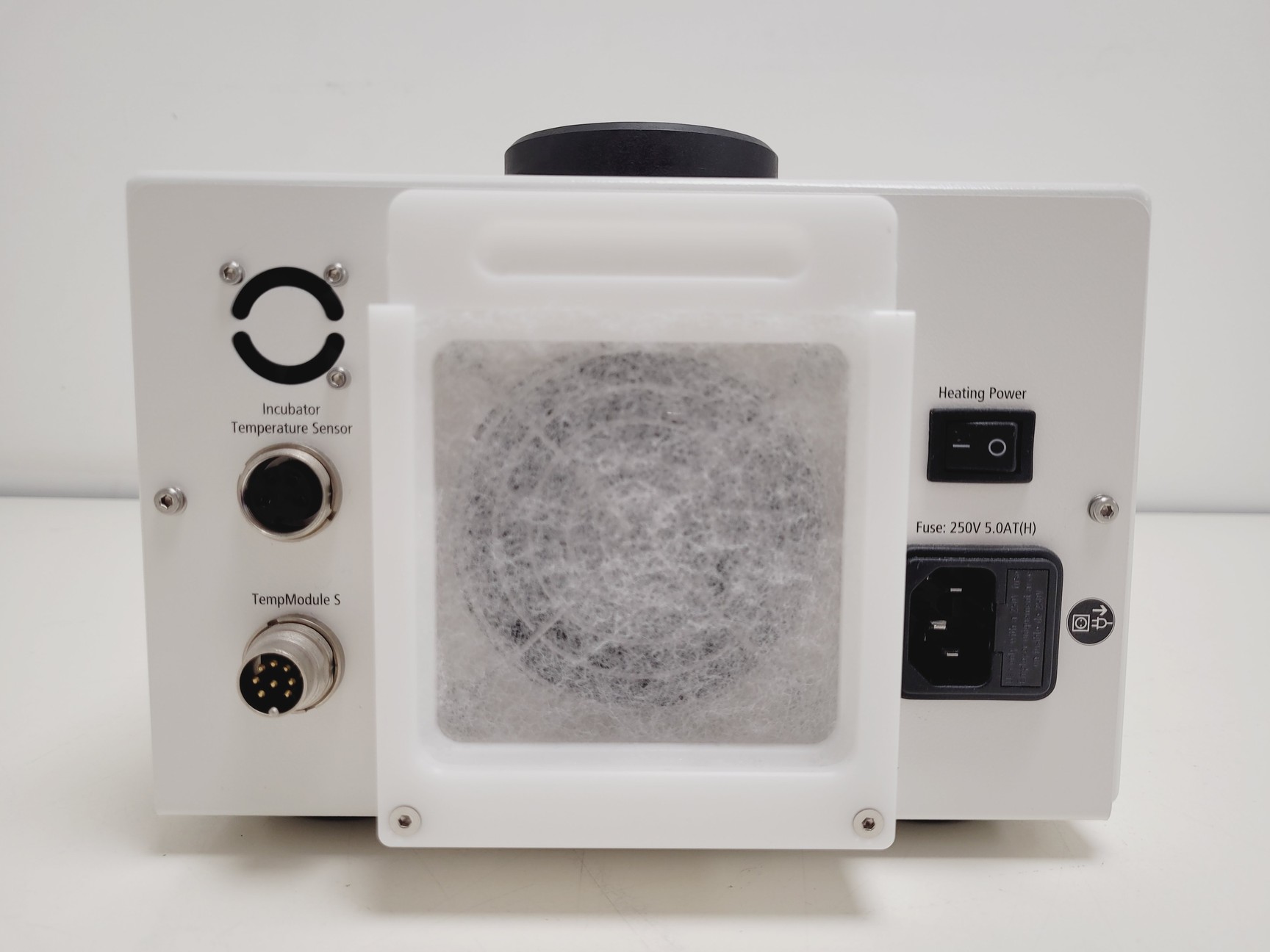

- Heating Unit XL S

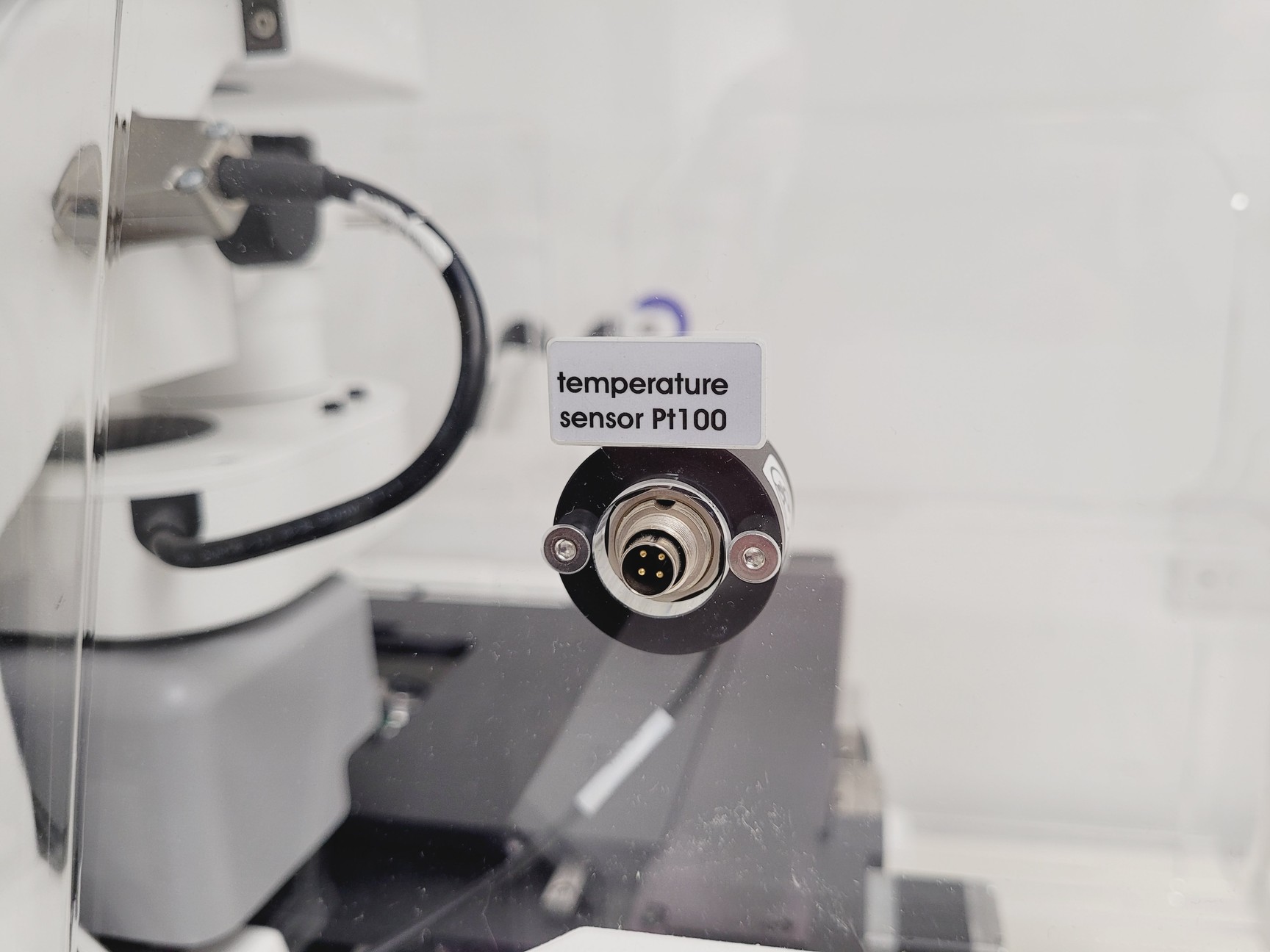

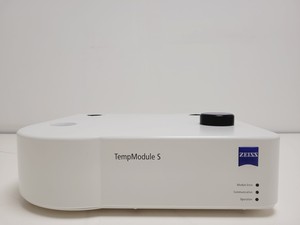

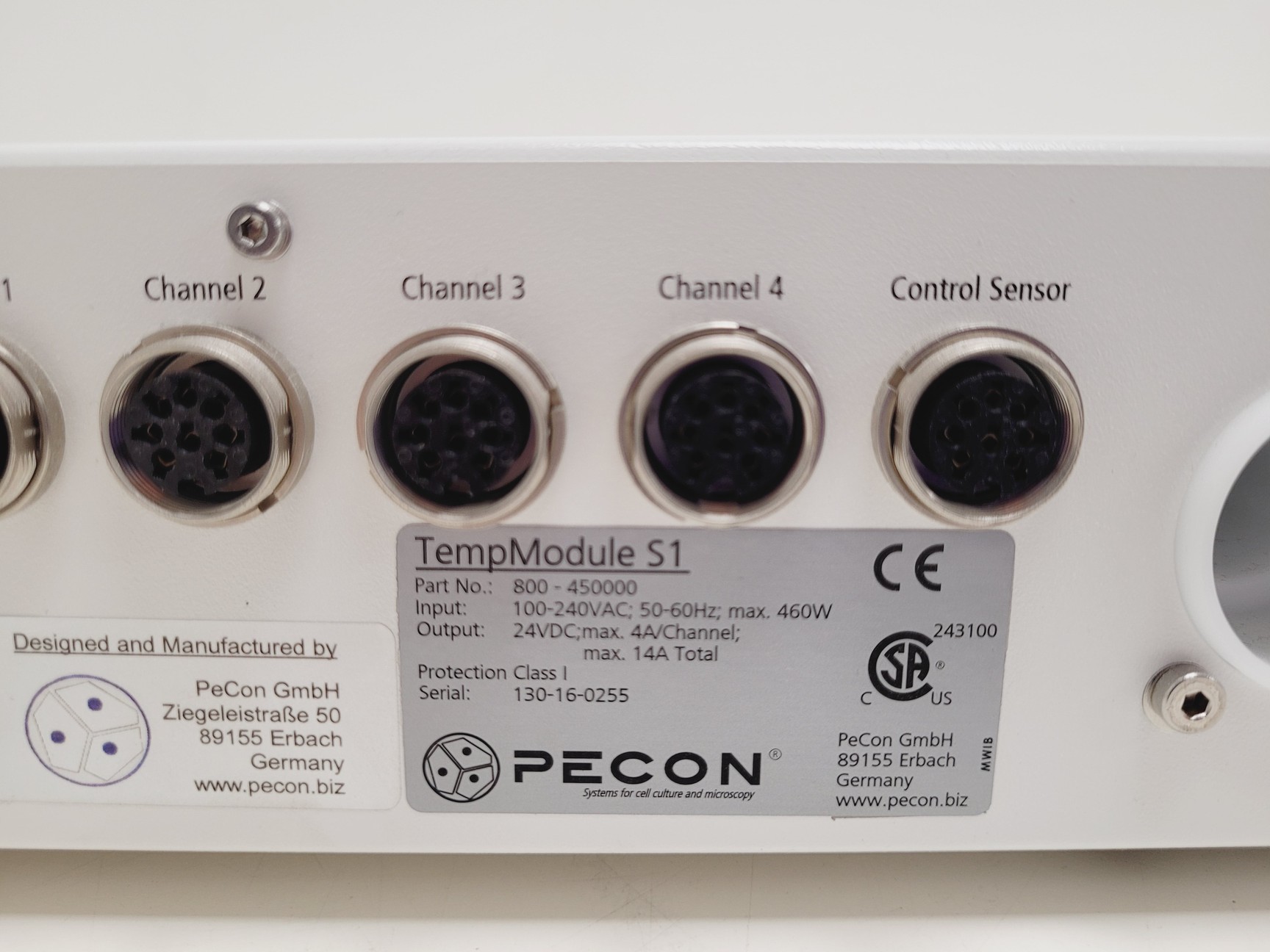

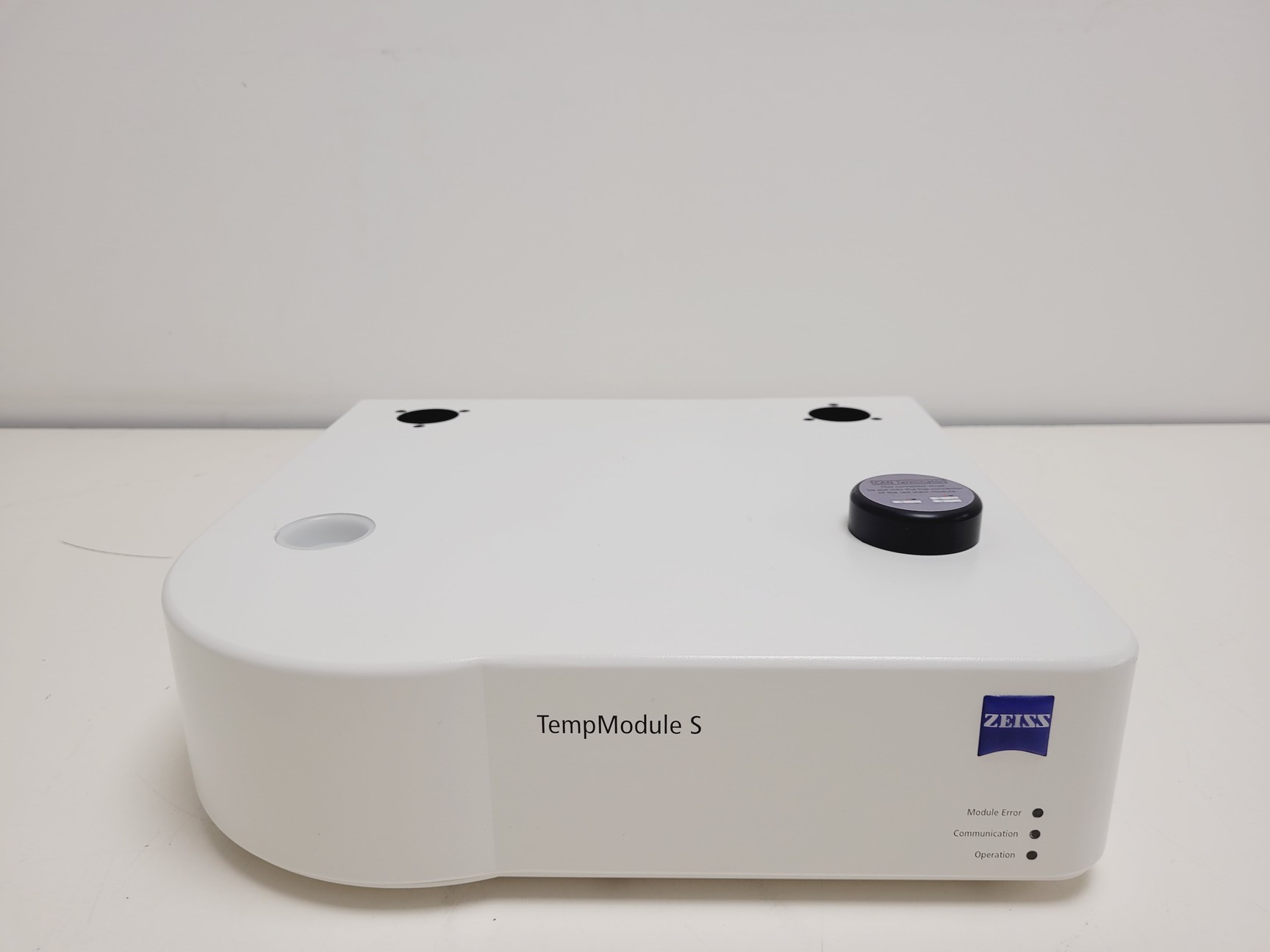

- TempModule S

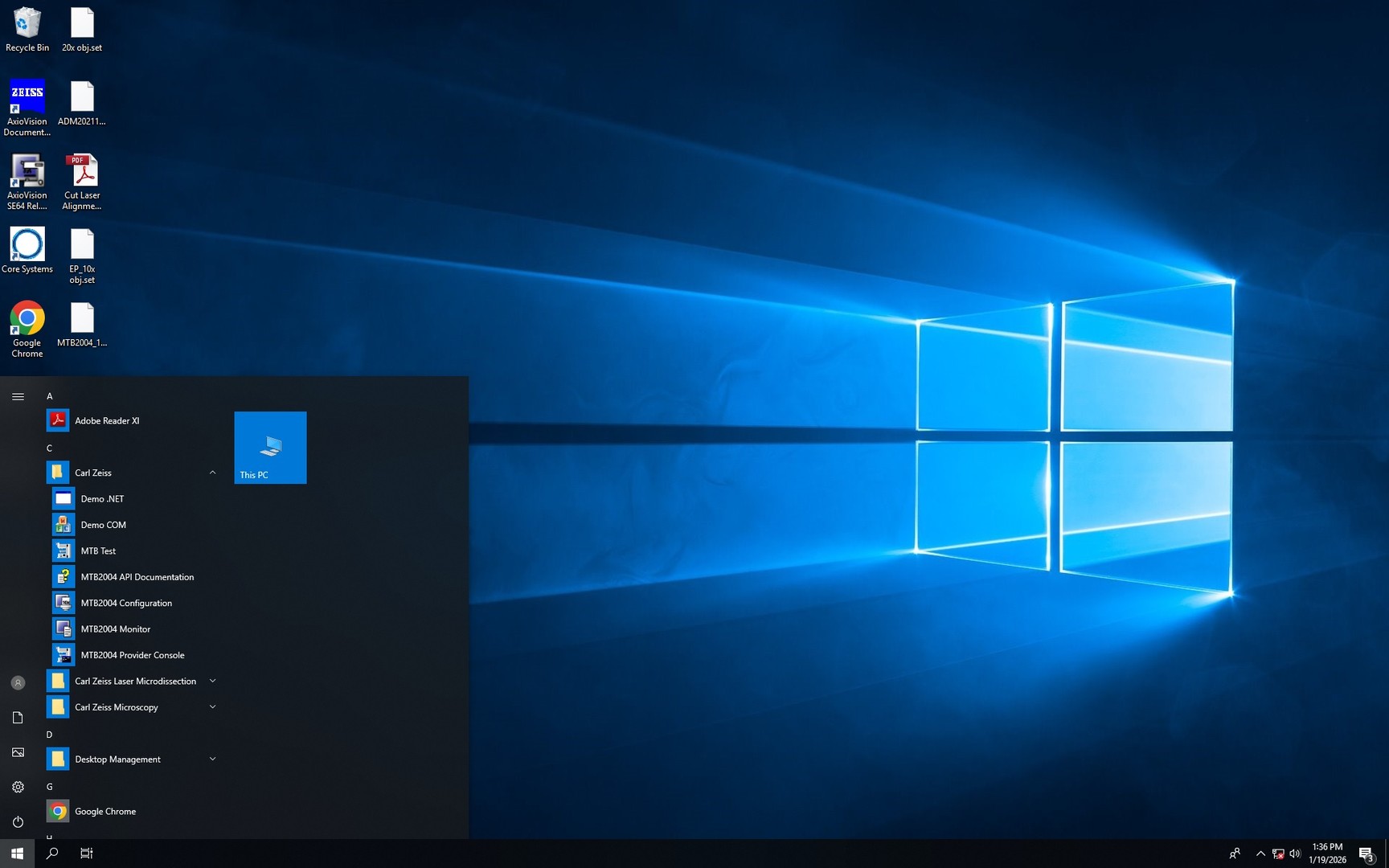

PC & Software

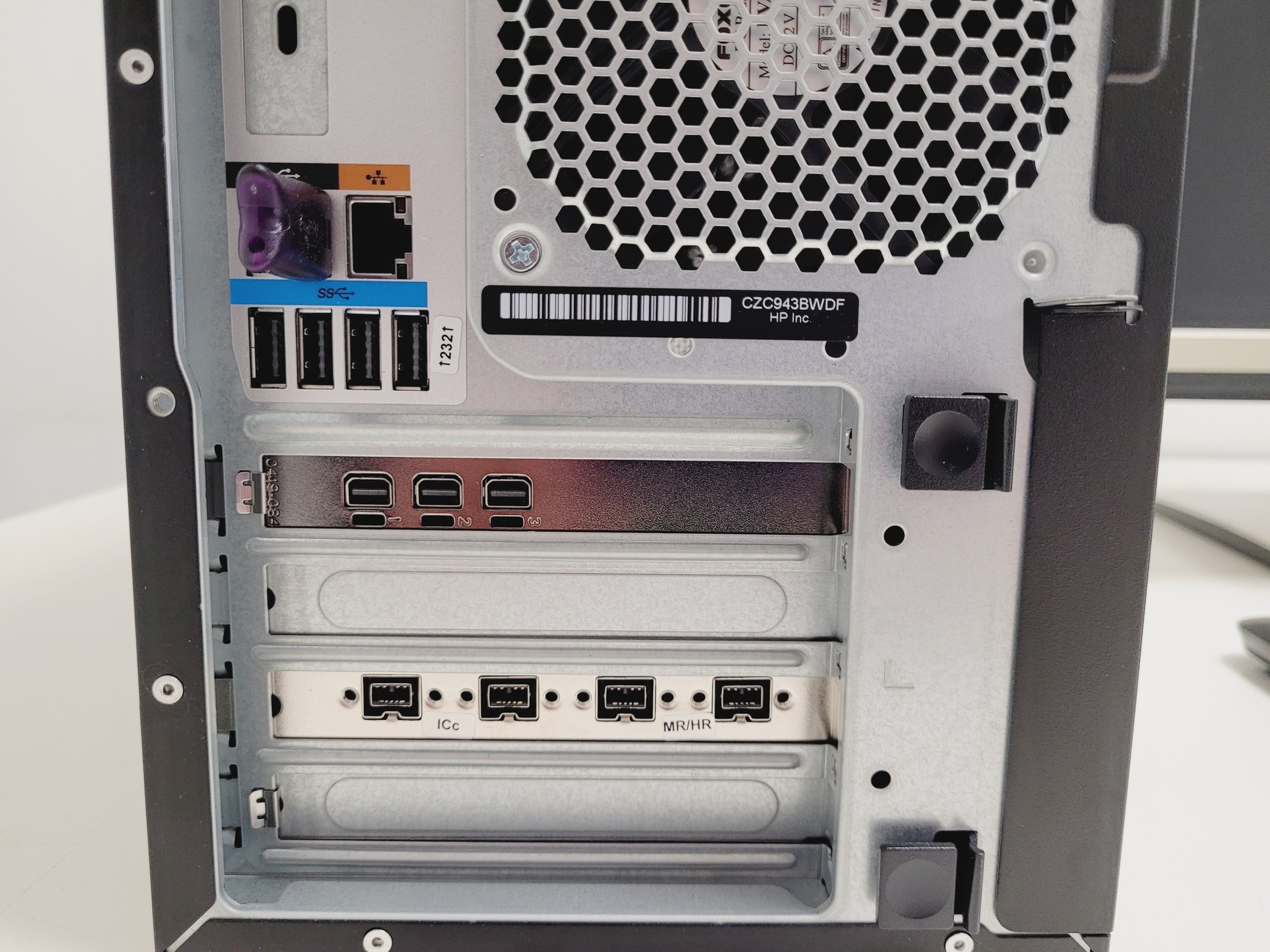

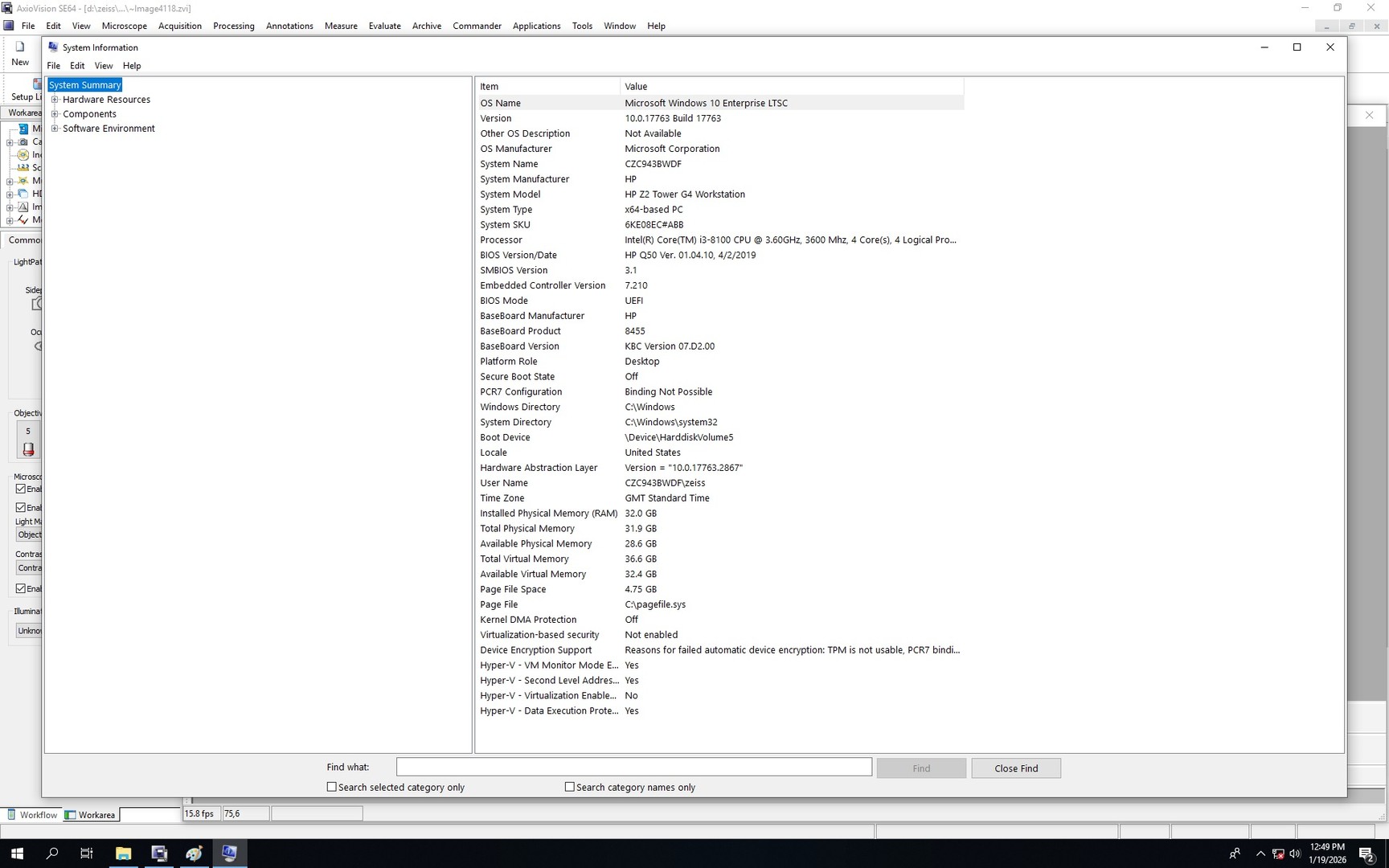

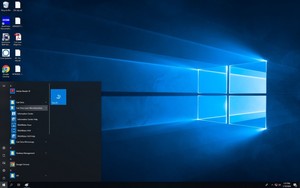

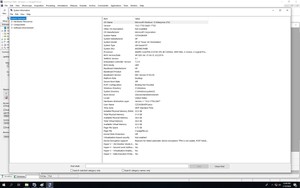

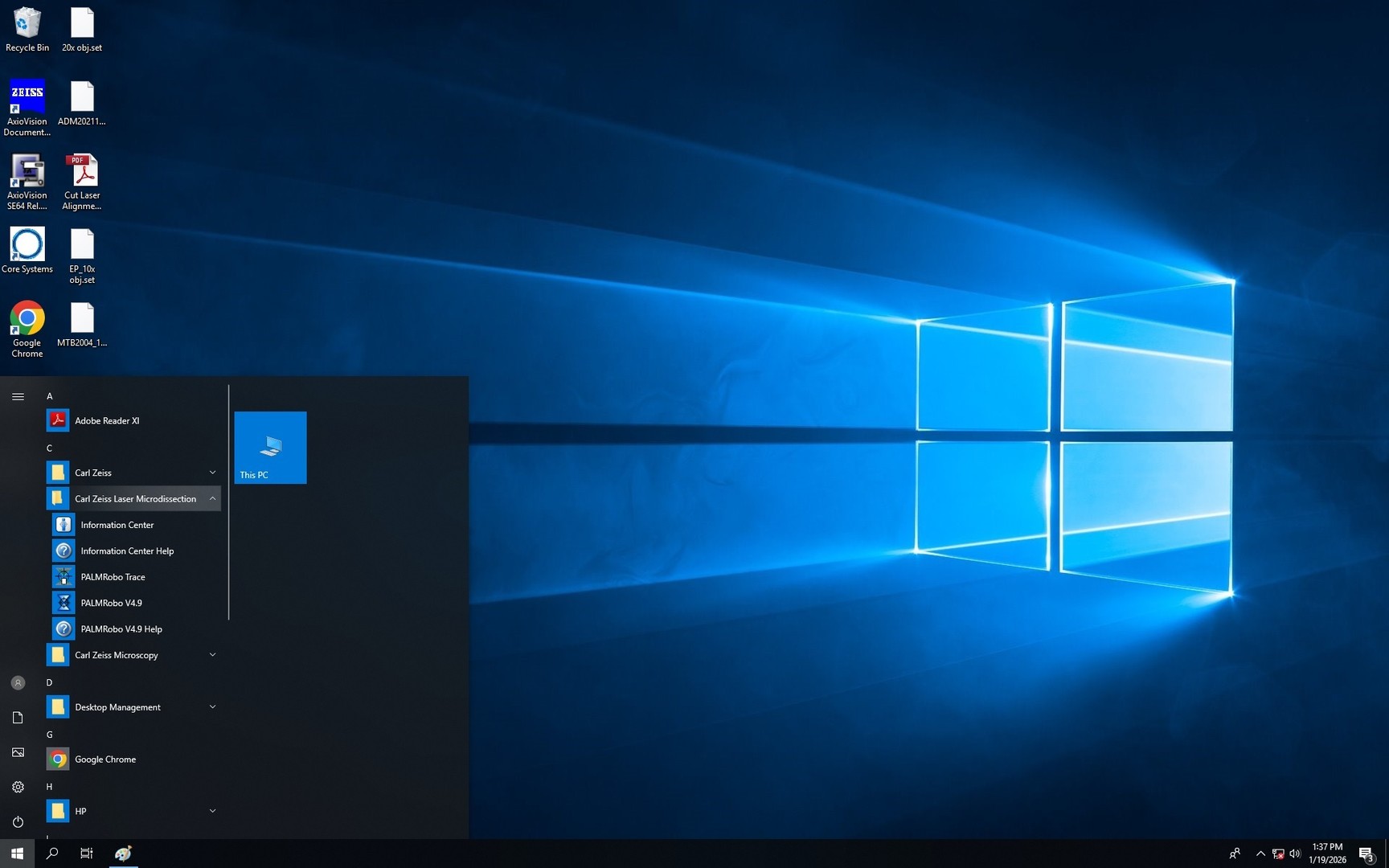

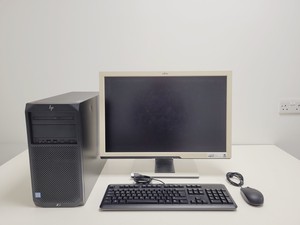

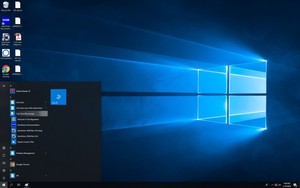

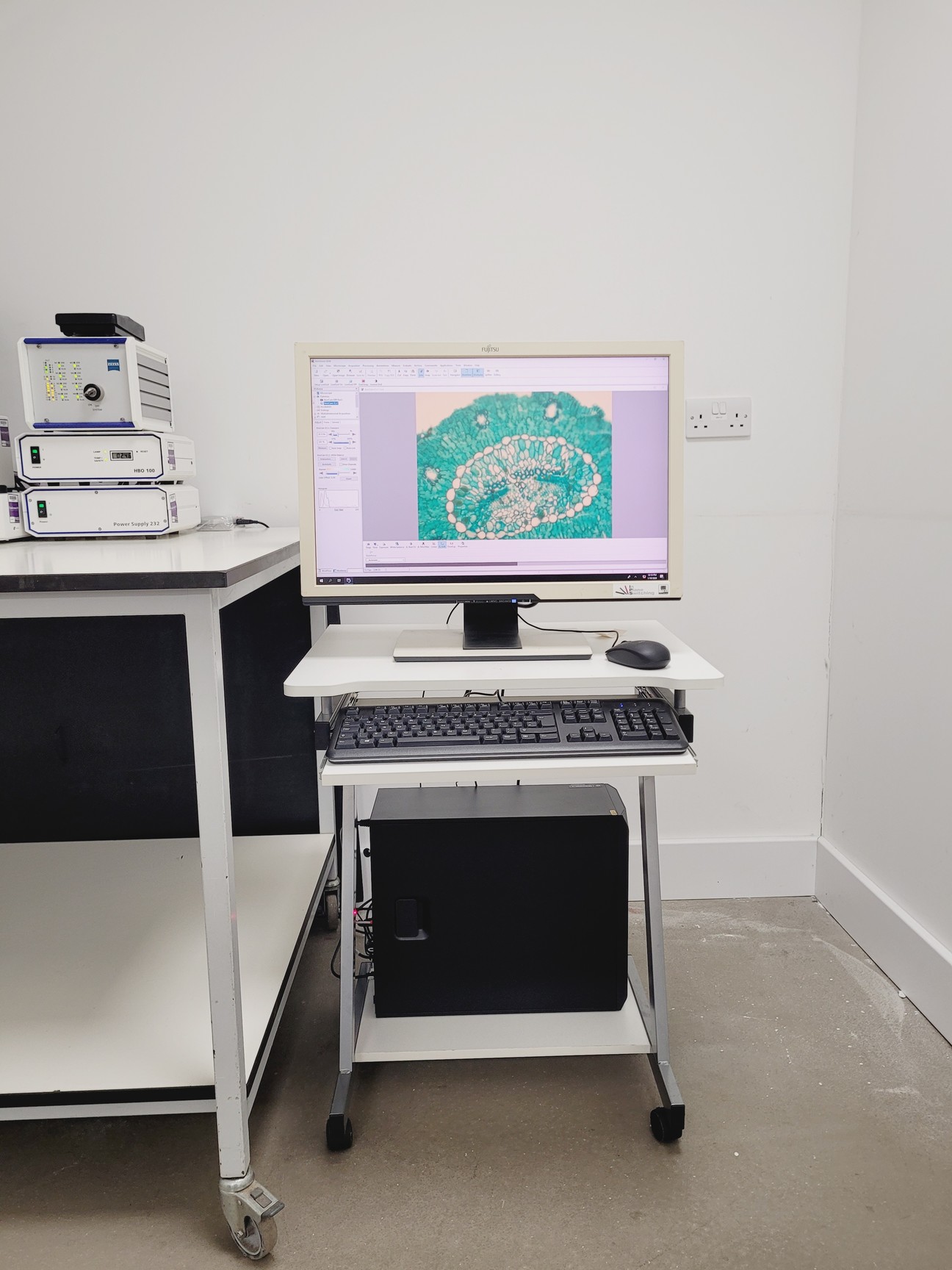

- HP PC with keyboard, monitor & mouse (Windows 10)

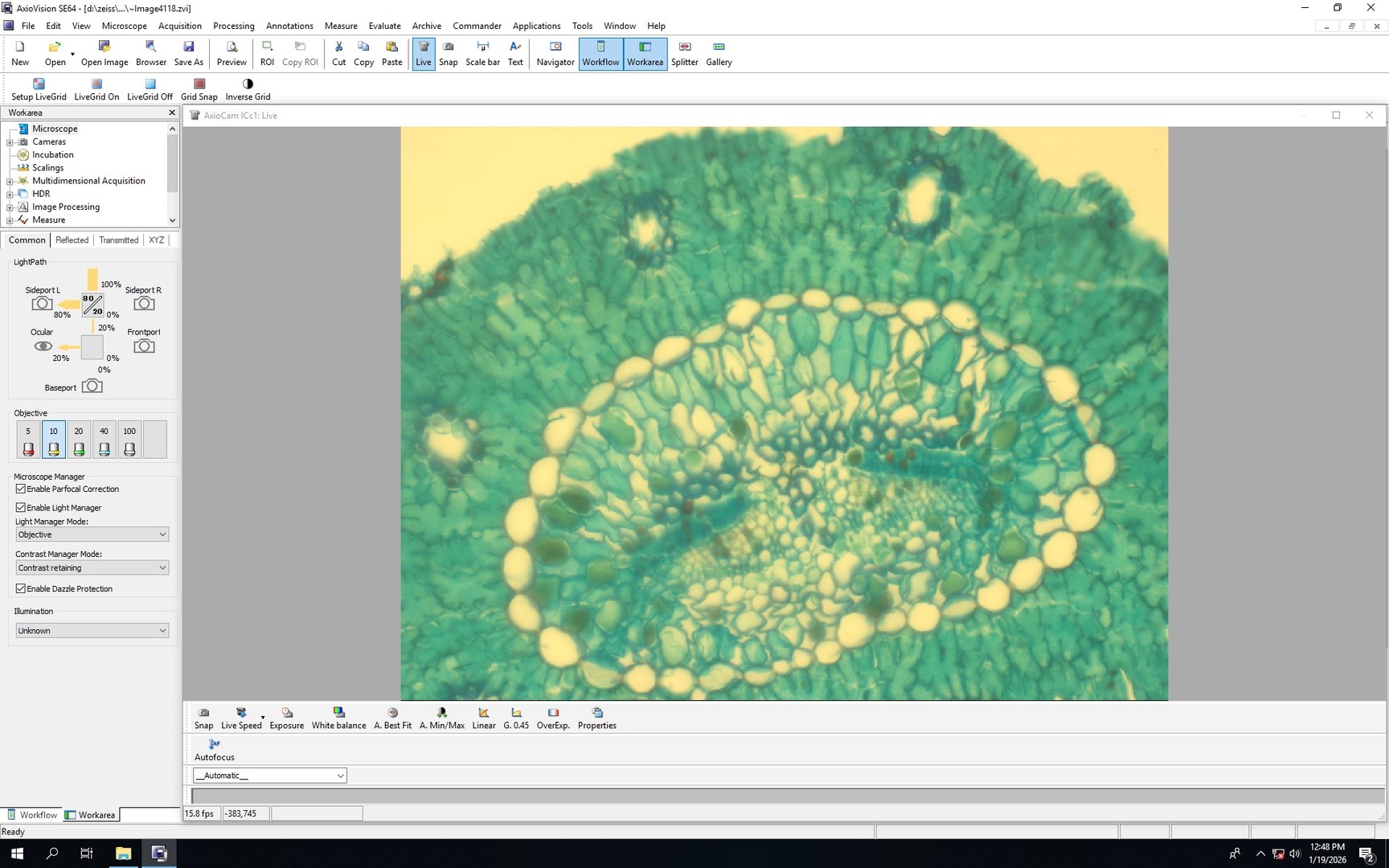

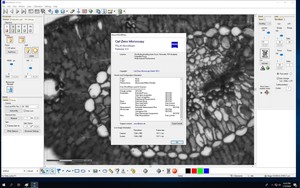

- Zeiss AxioVision 4.9.1.0

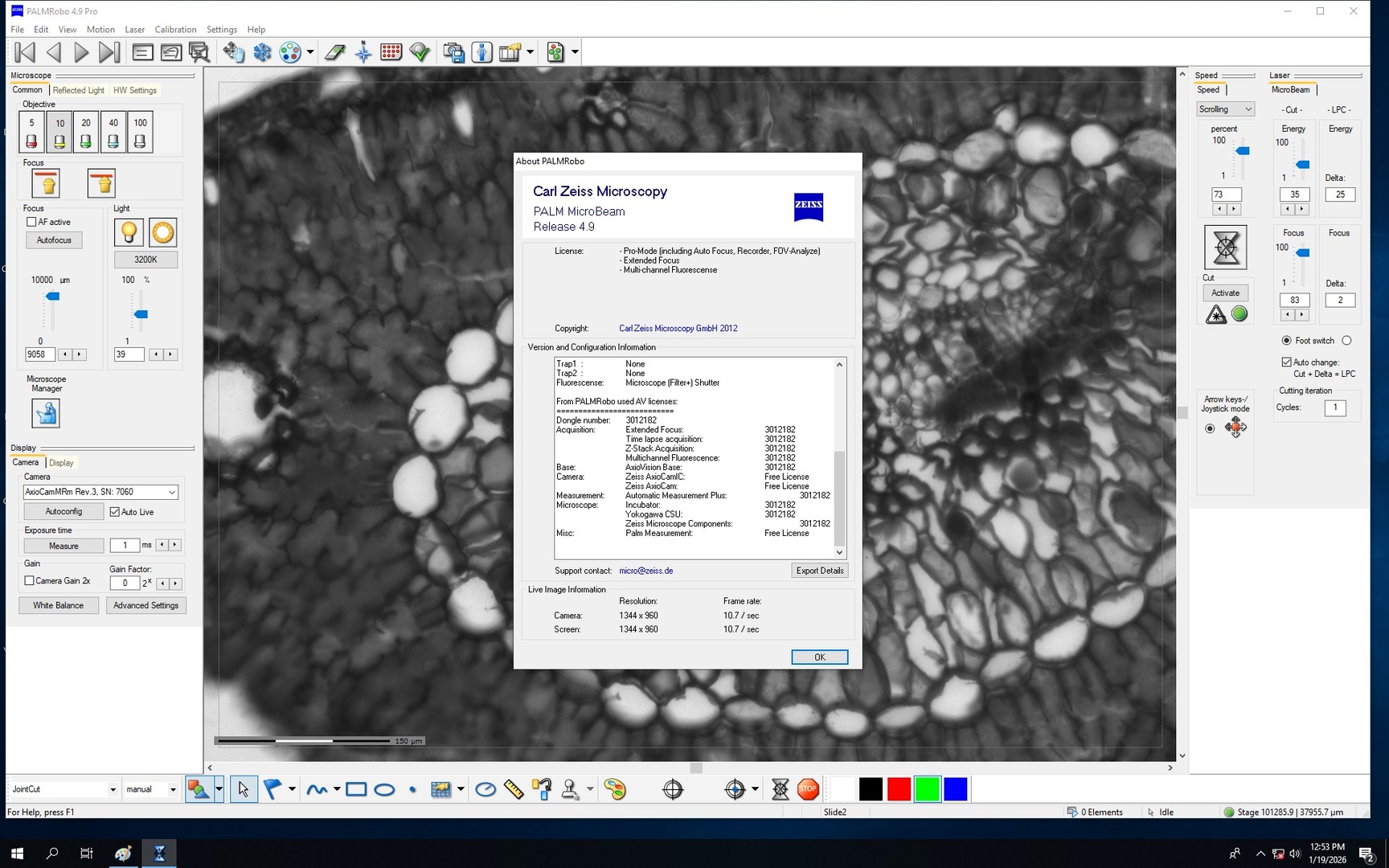

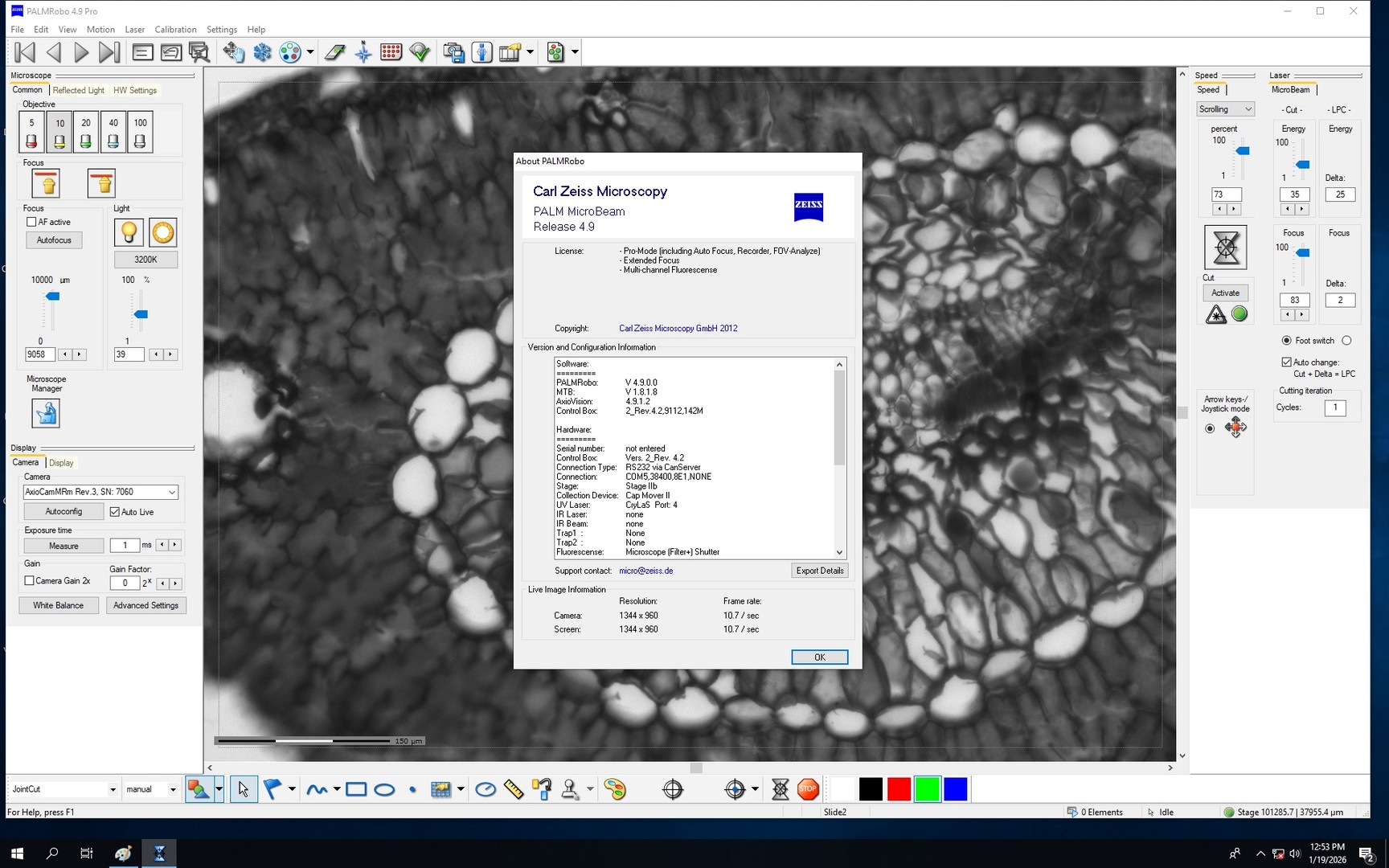

- Zeiss PALM MicroBeam 4.9
Collectors

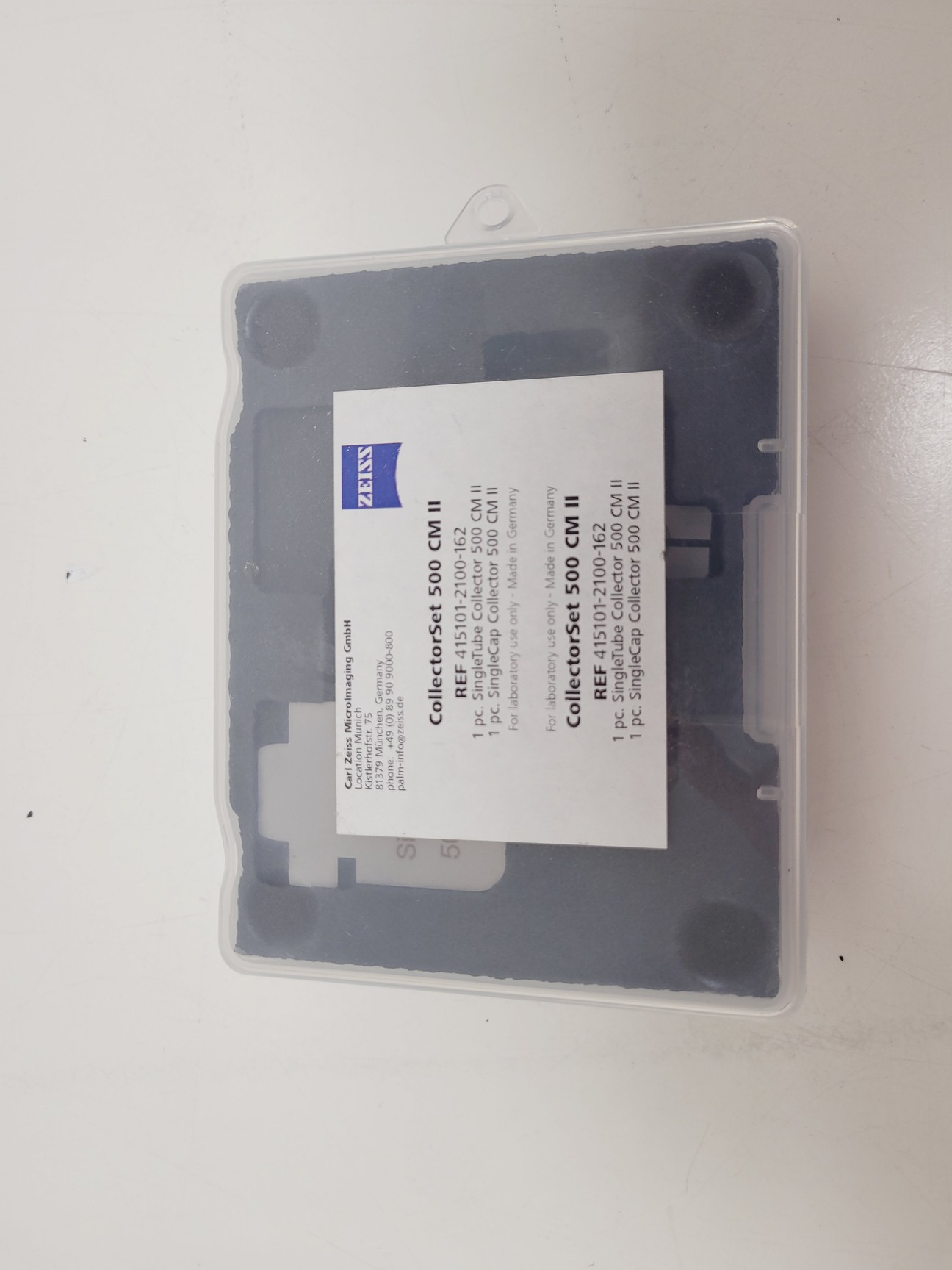

- Zeiss SingleTube Collector 500 CM II (fitted)

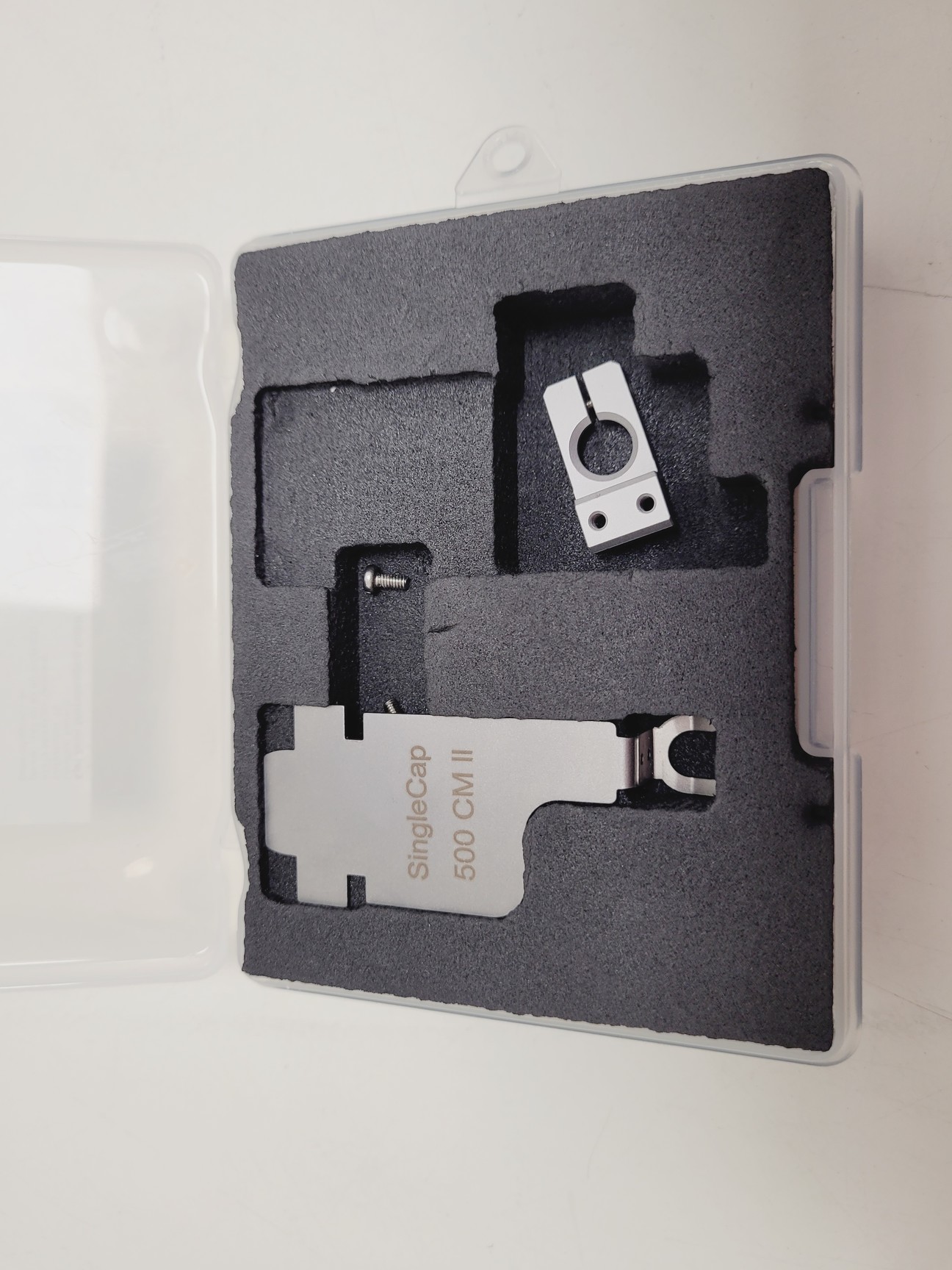

- Zeiss SingleCap Collector 500 CM II (boxed)

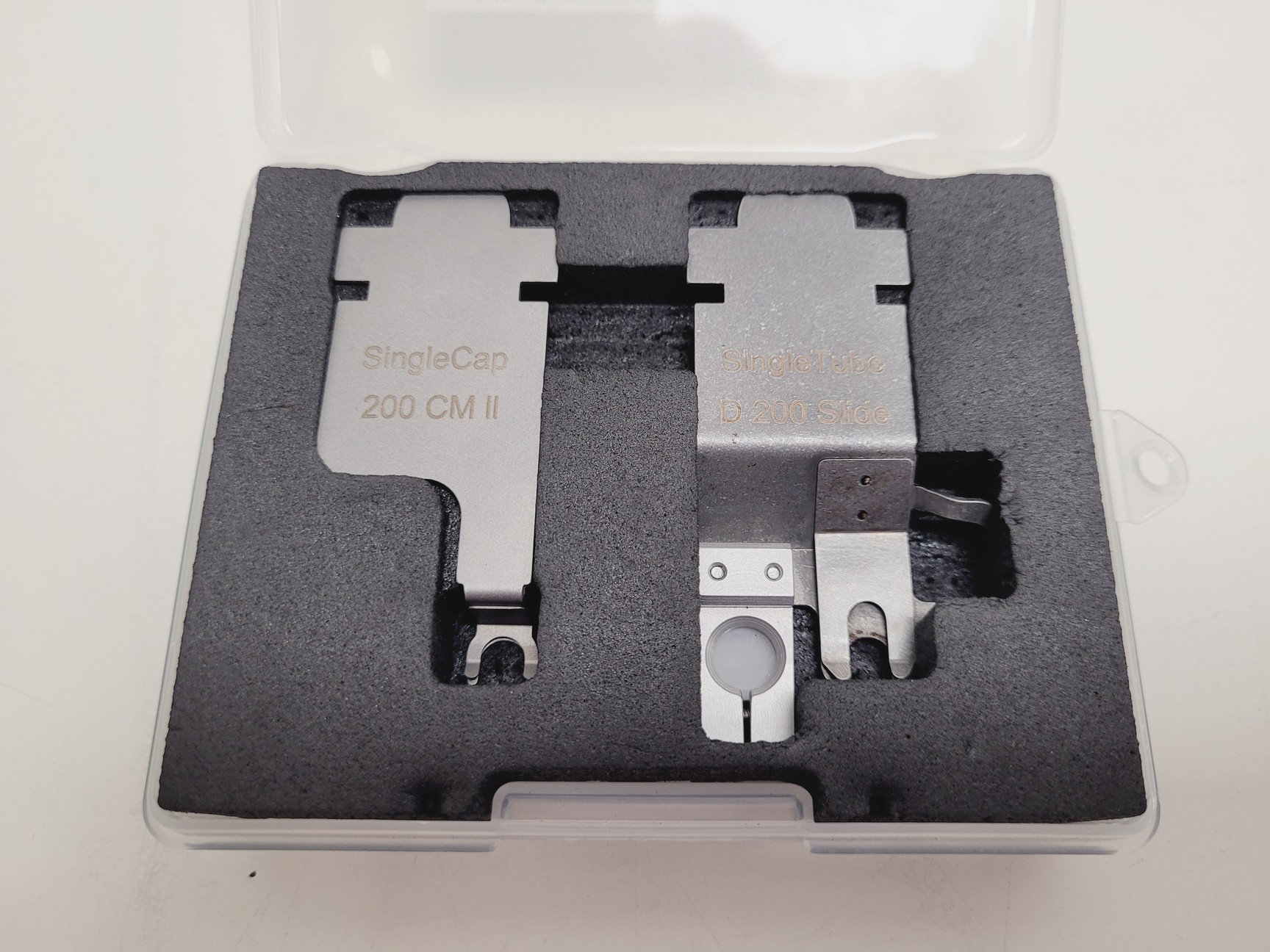

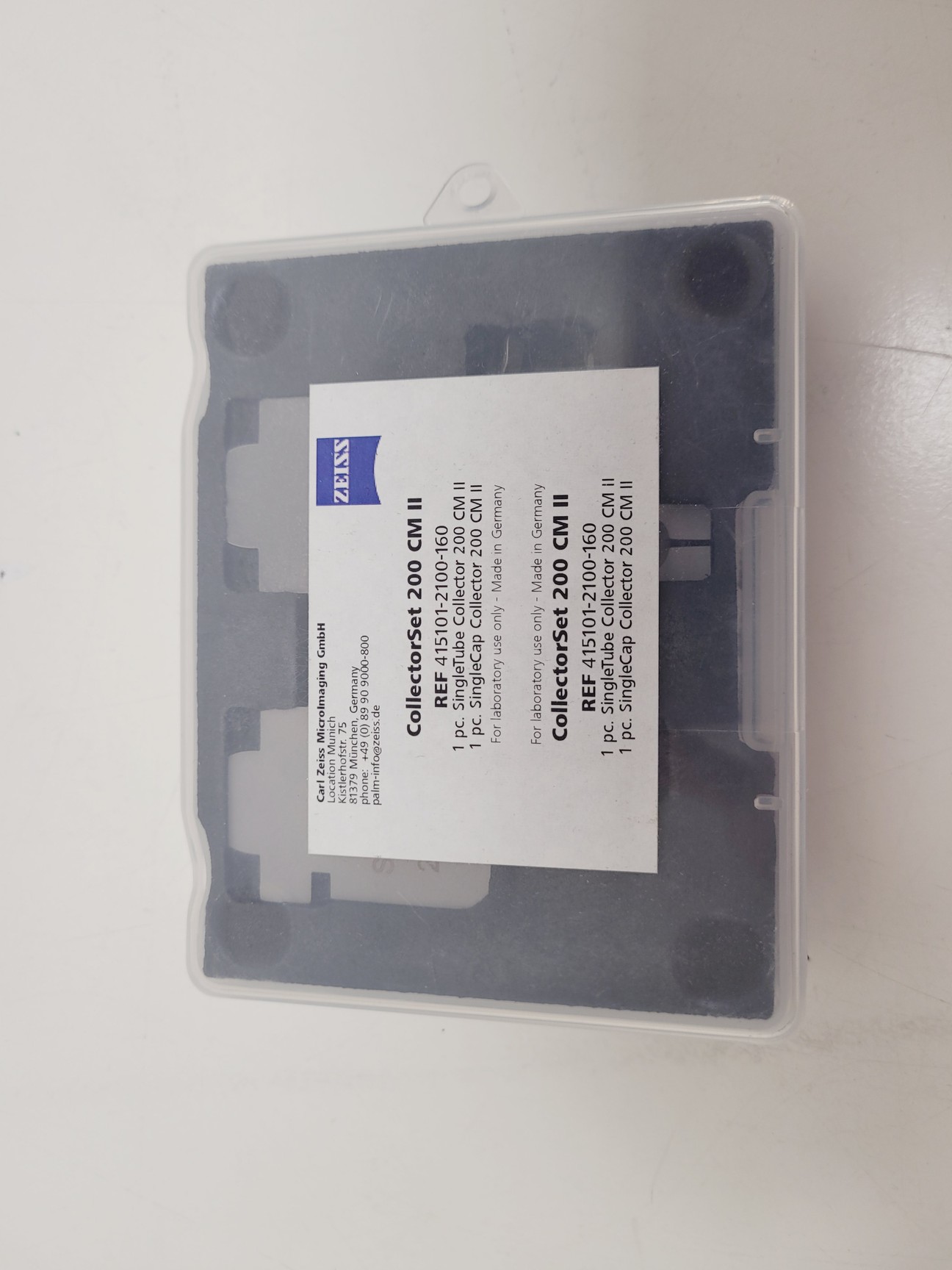

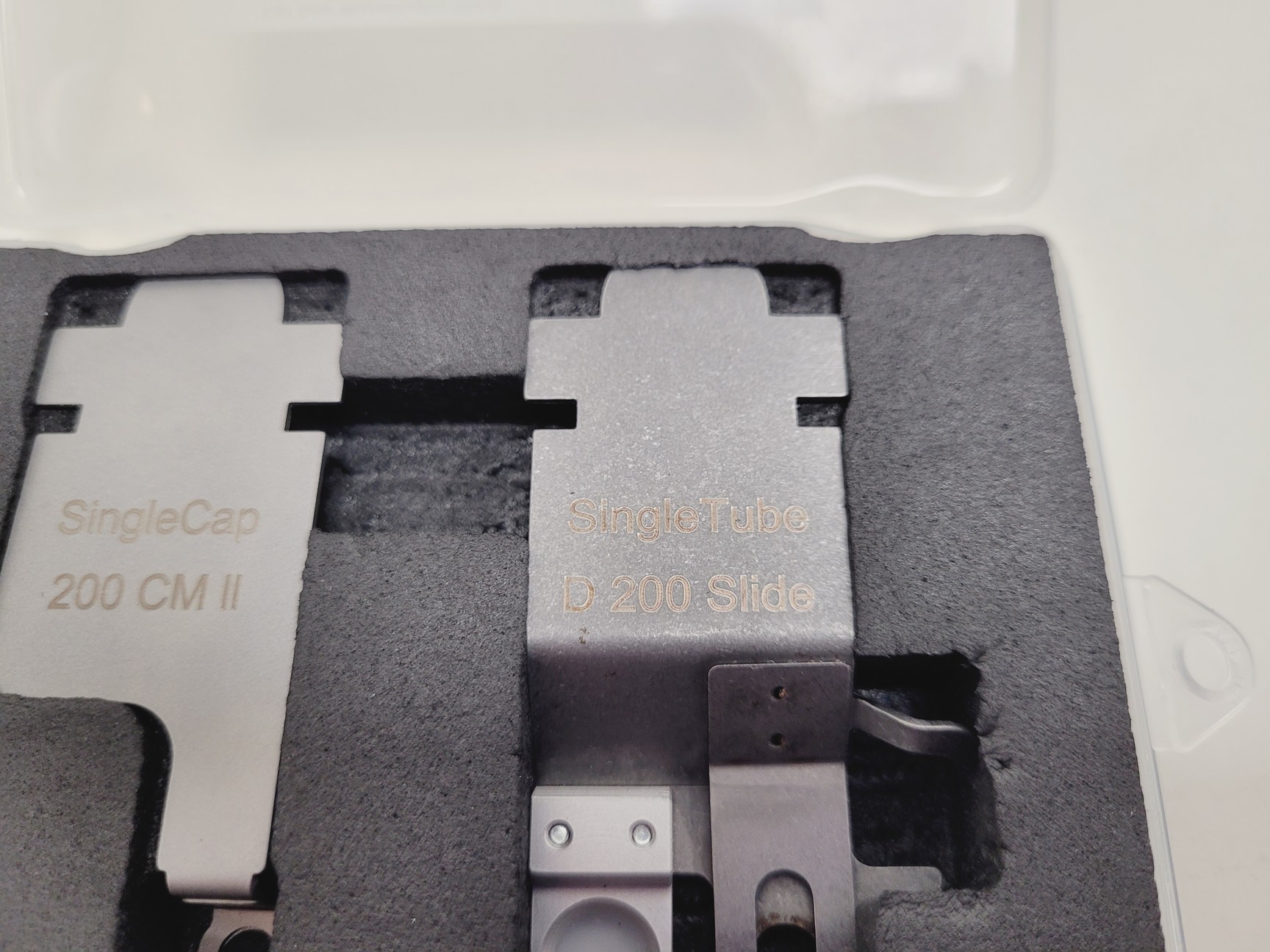

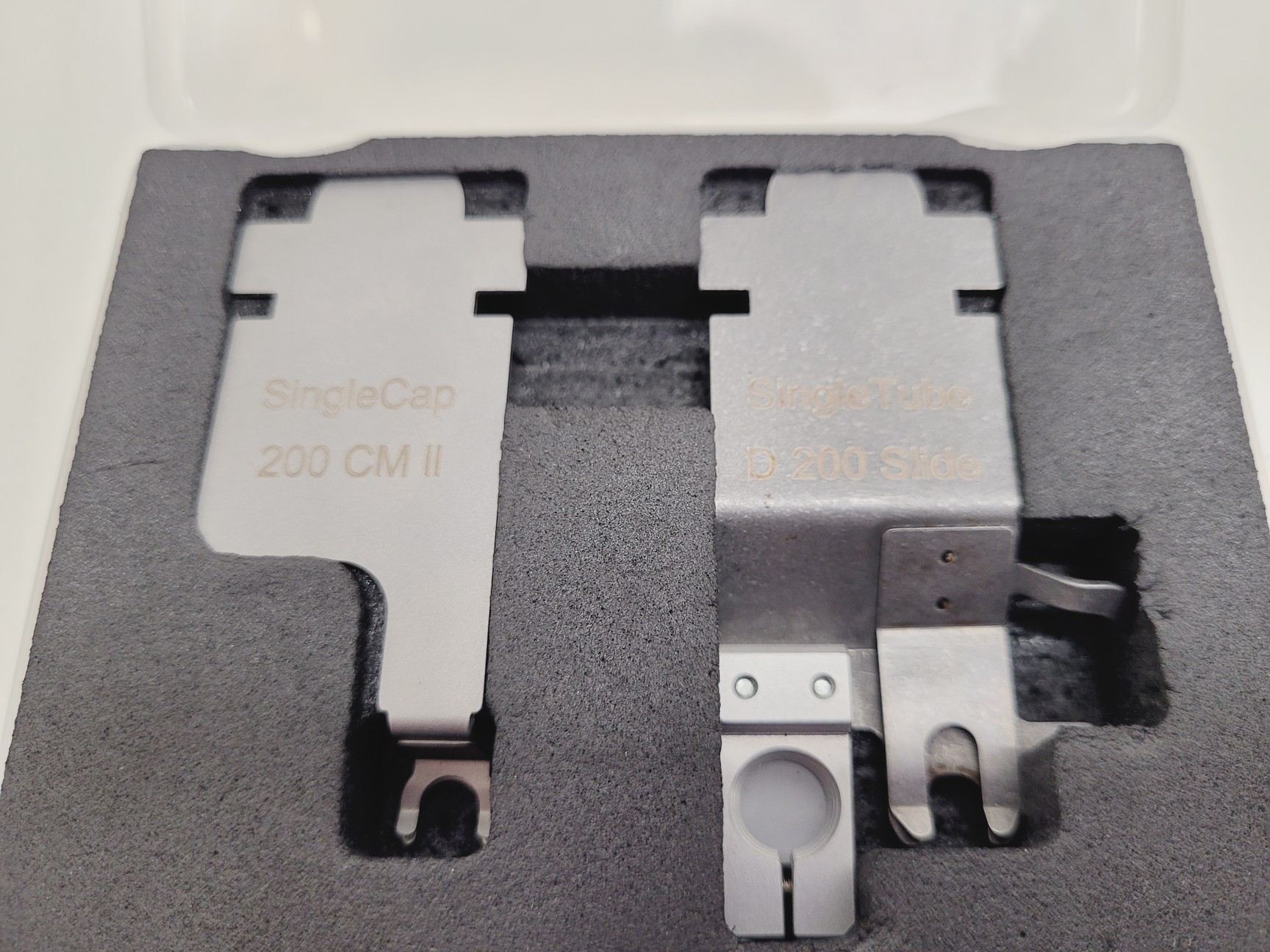

- Zeiss SingleTube Collector 200 CM II (boxed)
- Zeiss SingleCap Collector 200 CM II (boxed)
Other
- PC table/workstation
Item Details
| Property | Value | Tested value |
|---|---|---|
| Contains Laser | Yes | |
| Laser Classification | Class III | |
| 1. PAT Test | ||
| Electrical Supply | N/A | 1-Phase |
| Plug Included? (1-Phase) | N/A | Yes - Standard UK 3-Pin Mains Plug (BS 1363) |
| PAT Test Result | N/A | Pass |
| PAT Test Date | N/A | 19-01-2026 |
| Voltage | N/A | 240V |
| 3. Recertification Initial Checks | ||
| Overall Cosmetic Condition | N/A | Very Good |
| 6. Safety Features | ||
| Emergency Stop Safety Check | N/A | N/A |
| 7. Service Details | ||

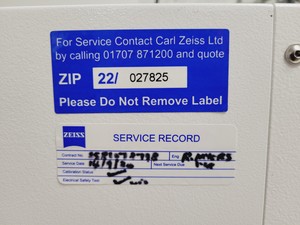

| Last Service Date | N/A | 2020 |
Engineer's Certificate (download)
This item has been examined by an engineer.
Delivery
Free shipping is not available on this product. This item will be shipped by pallet delivery. Delivery will be made to kerbside only, unless otherwise confirmed in writing. Please contact us for a domestic or overseas shipping quote.
Additional terms and conditions

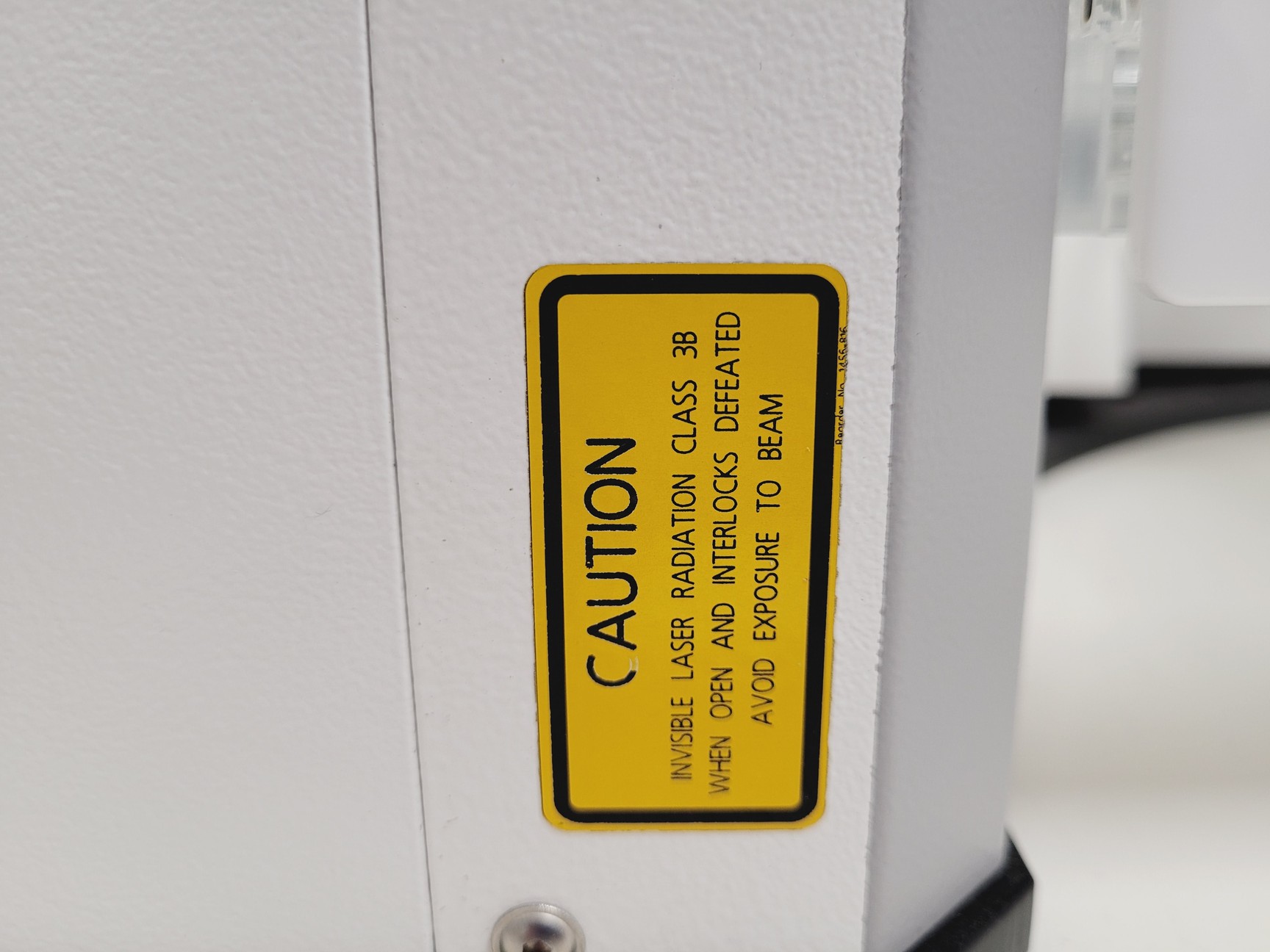

Class 3 lasers are classified as potentially hazardous devices that emit visible or invisible radiation. Direct exposure to the laser beam can cause damage to the eyes or skin. Safety precautions must always be followed during operation or exposure to prevent injury.
UniGreenScheme require signing of a Waiver Document to acknowledge the risk and outline the proposed use of the equipment. Completion of this Waiver is required prior to Dispatch. Waiver covers items with intended use, and those intended as "parts only".
Return policy
Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.
NOTE: No cables, remotes, accessories, power supplies, external PCs, software media, hardkeys, consumables or any other items are included unless shown in the item photos or detailed above.
