Olympus IX81 with Olympus MT20 Cell IR w/ Software - Complete System
Item Code: ITEM-51571
Condition: Used
Brand: Olympus
Location: Wales
£ POA
This item is new in stock and has not been priced yet. Please make an offer below, or get in touch with us for a price at , or by phone on +44 29 2086 4661.
Description

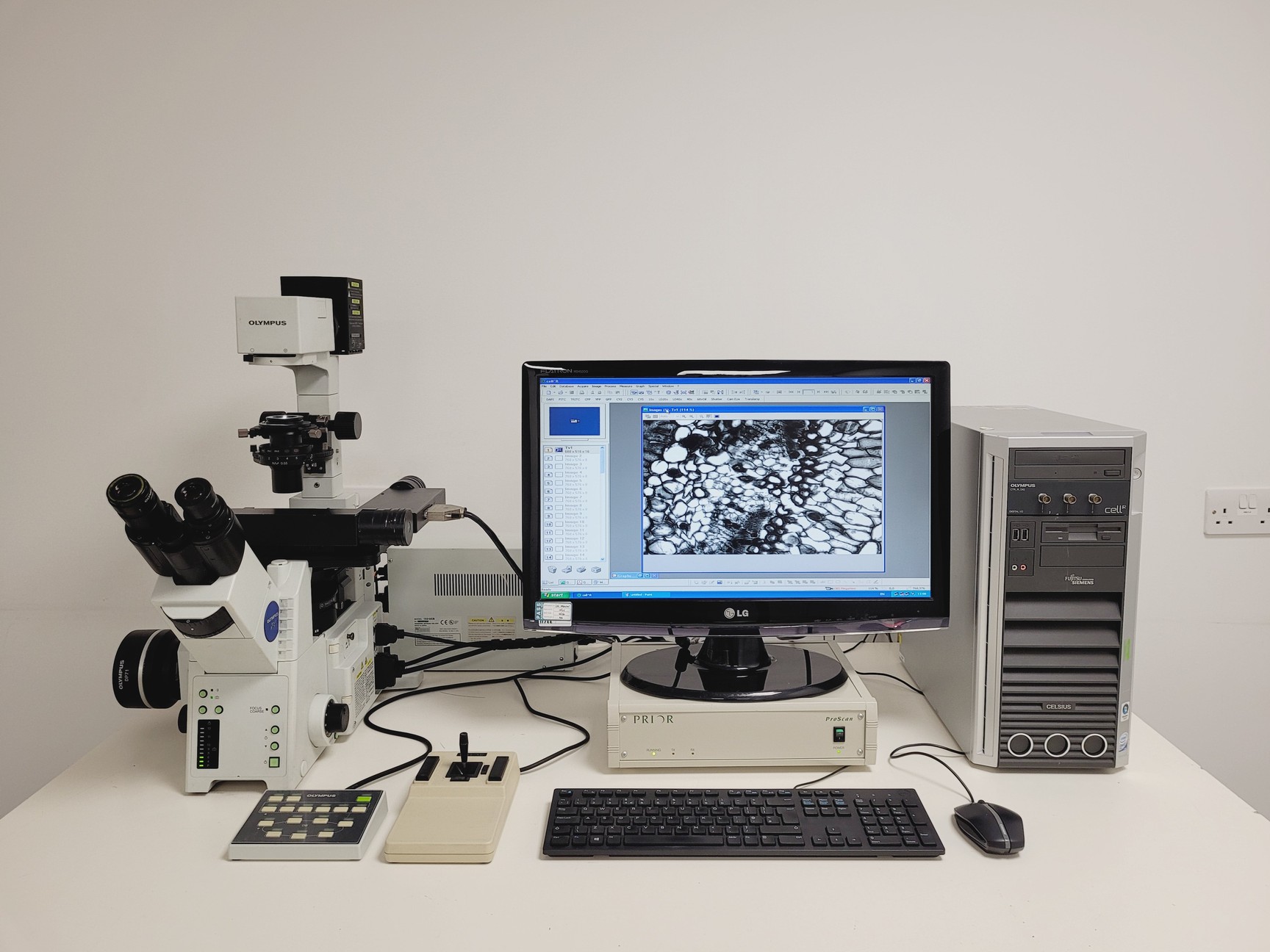

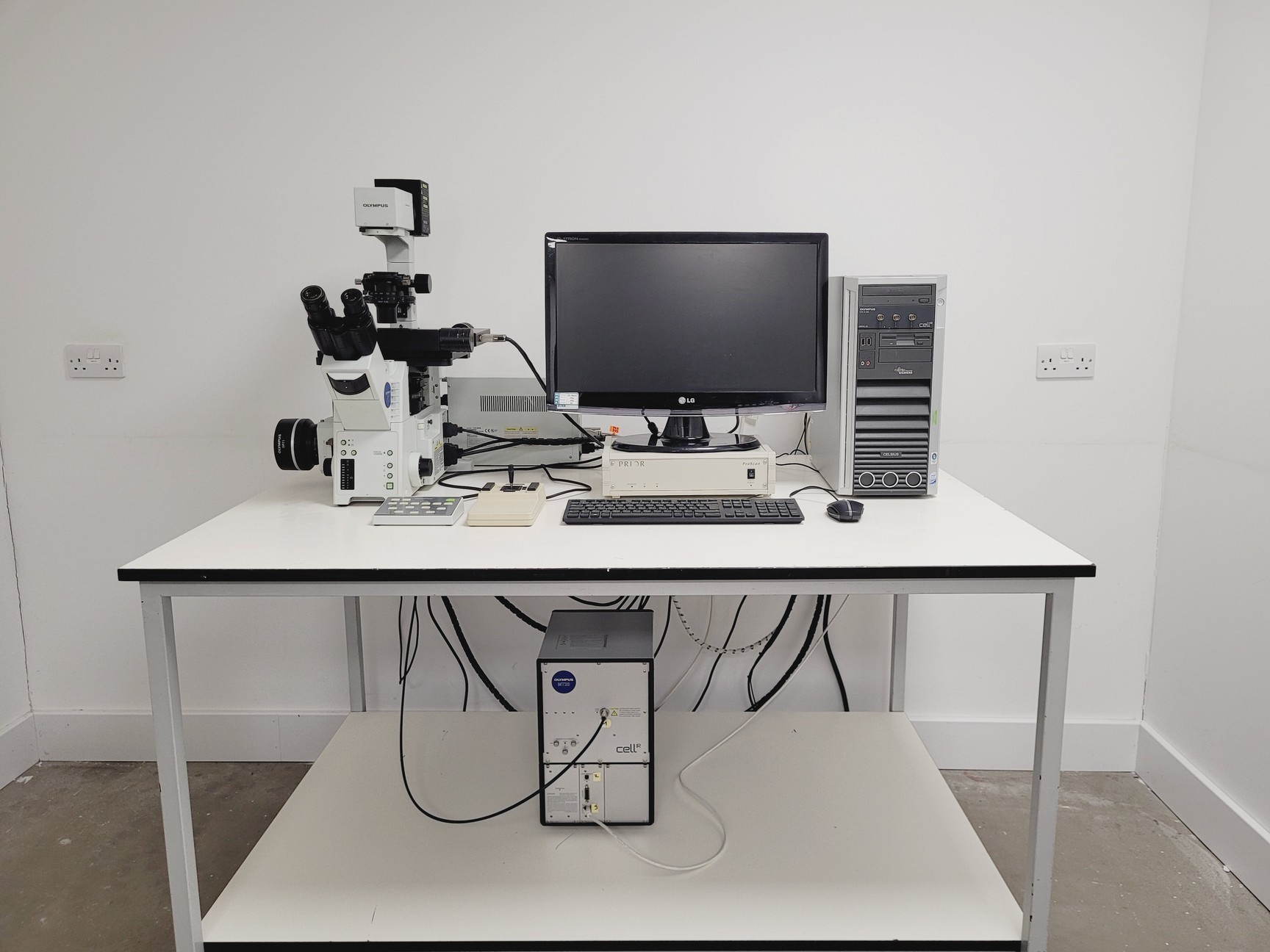

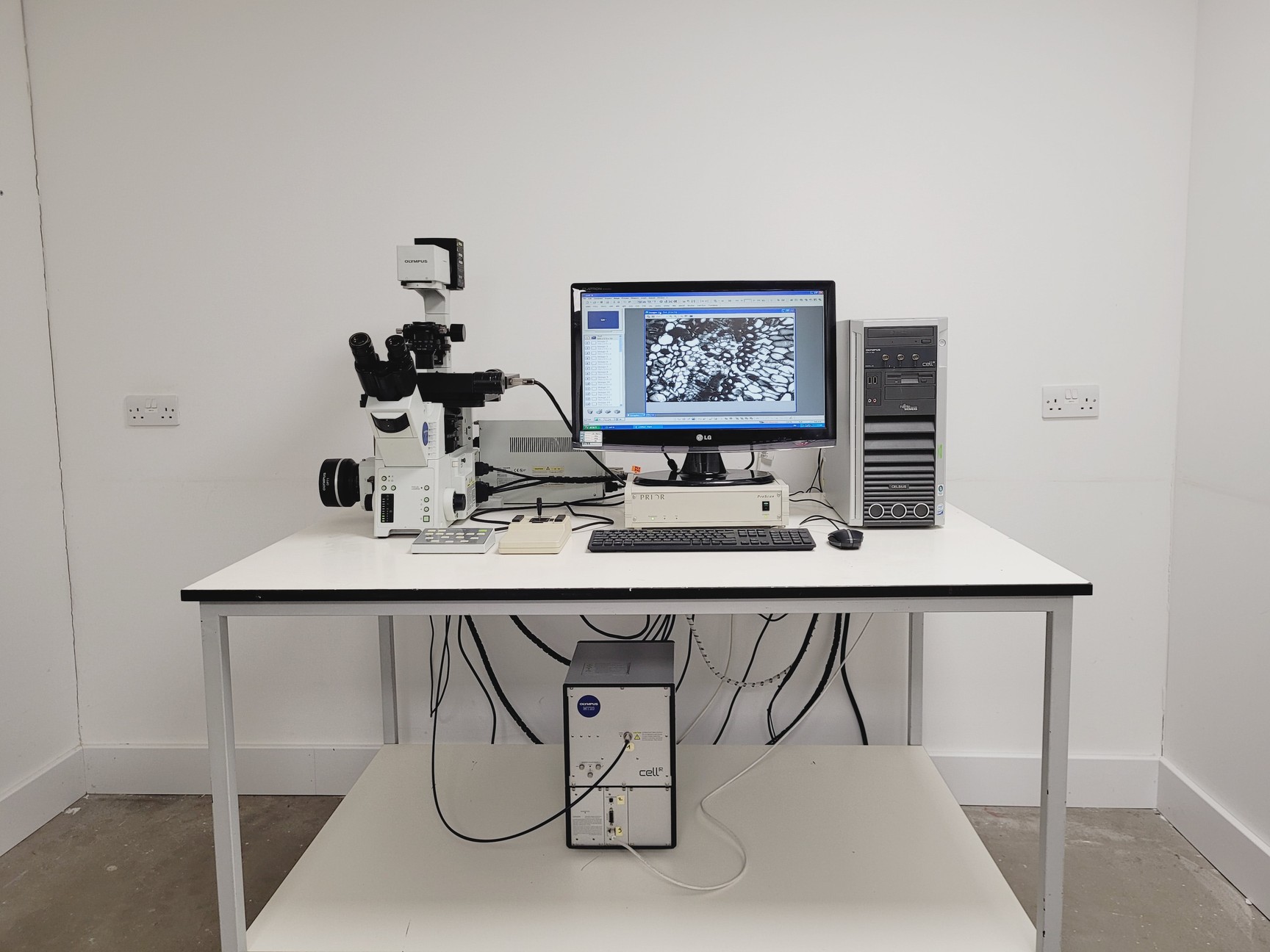

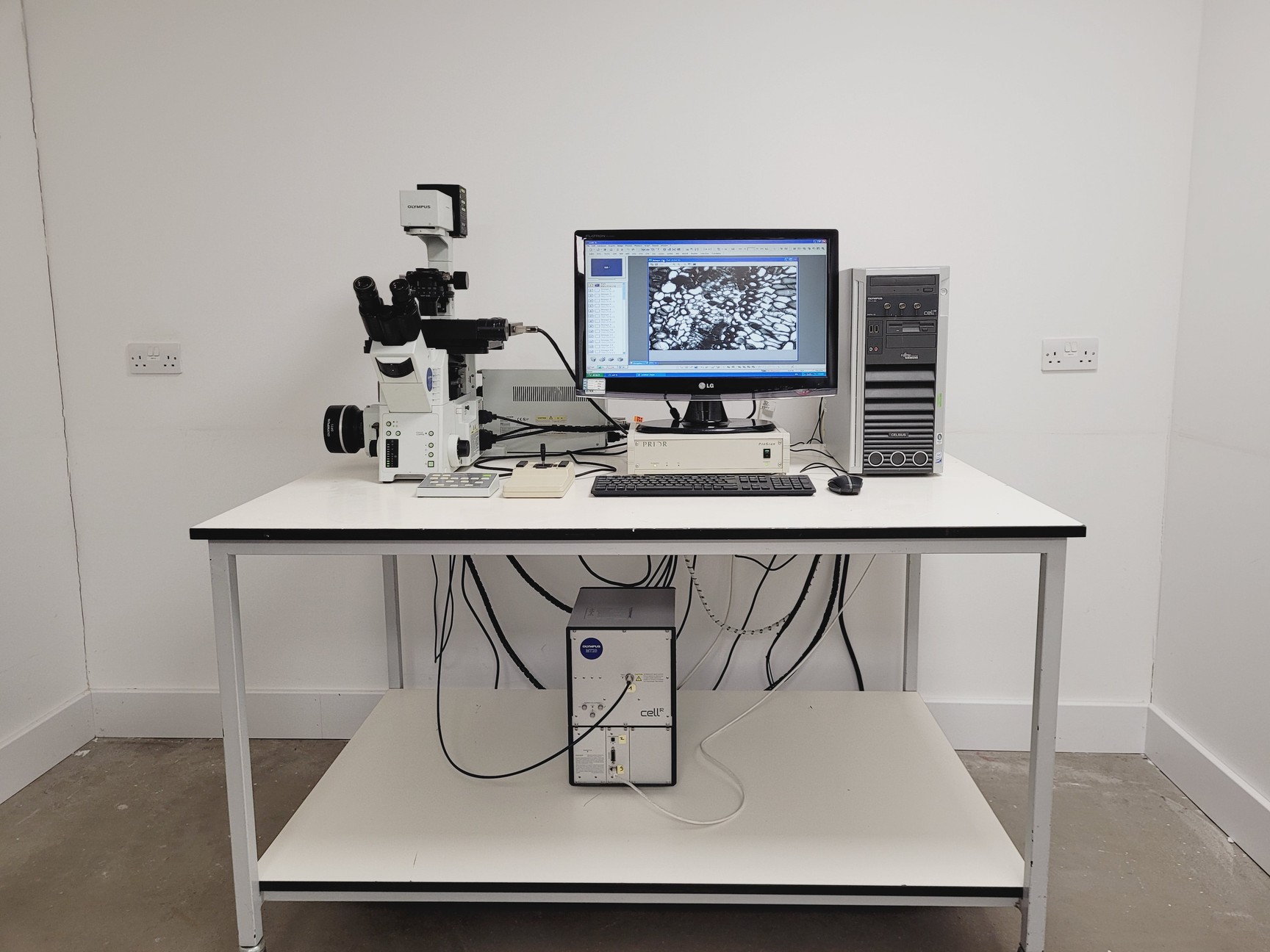

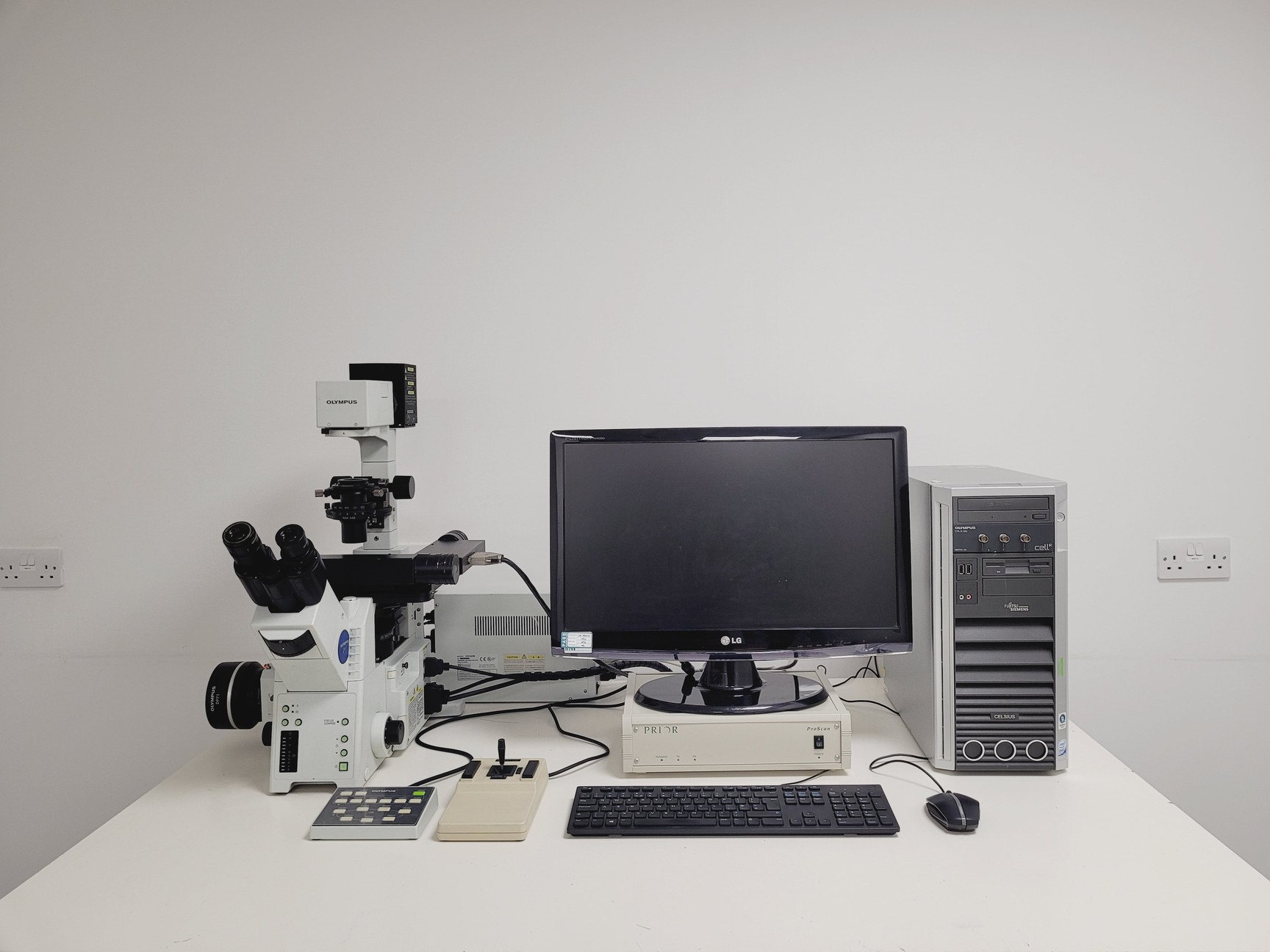

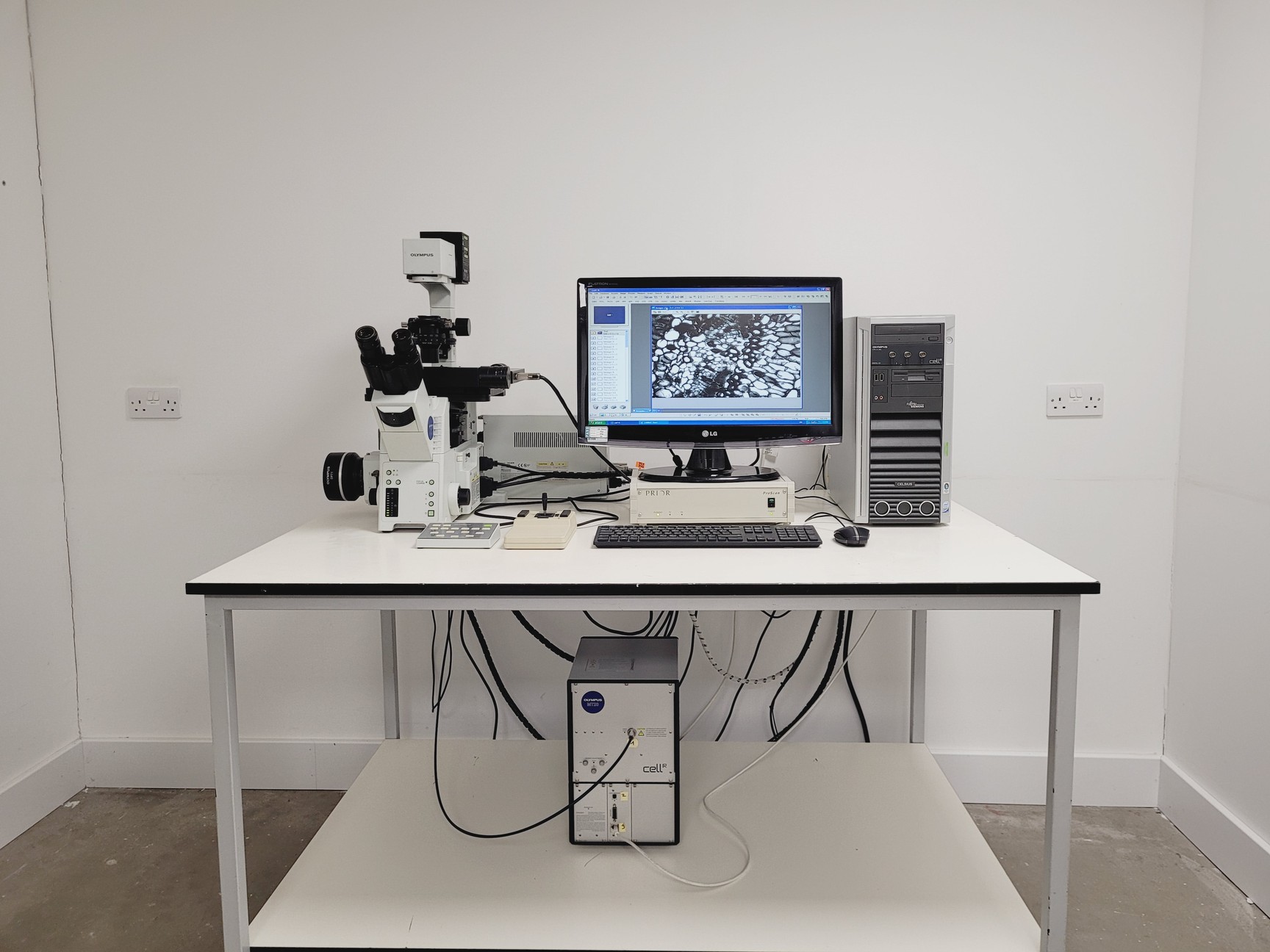

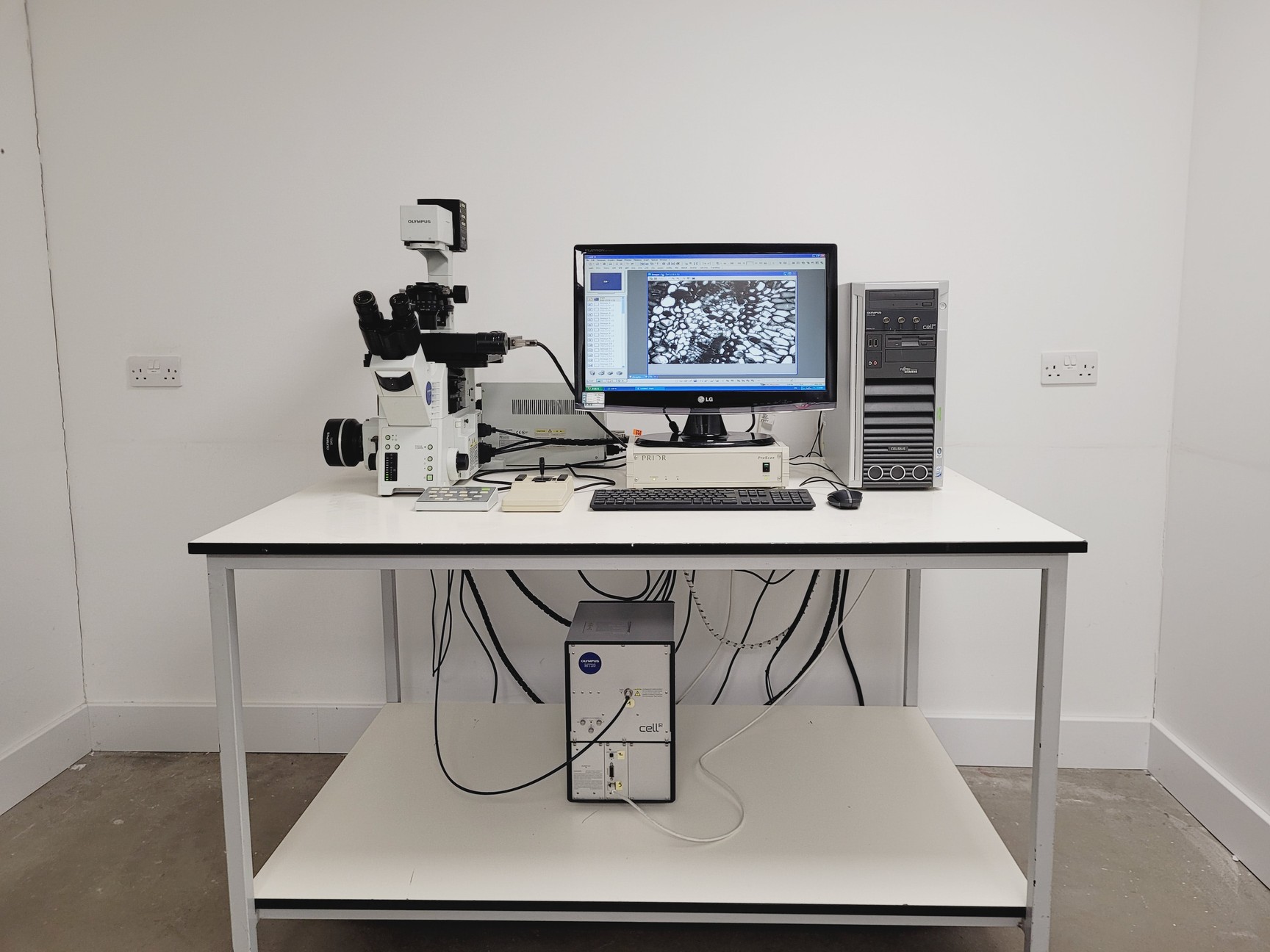

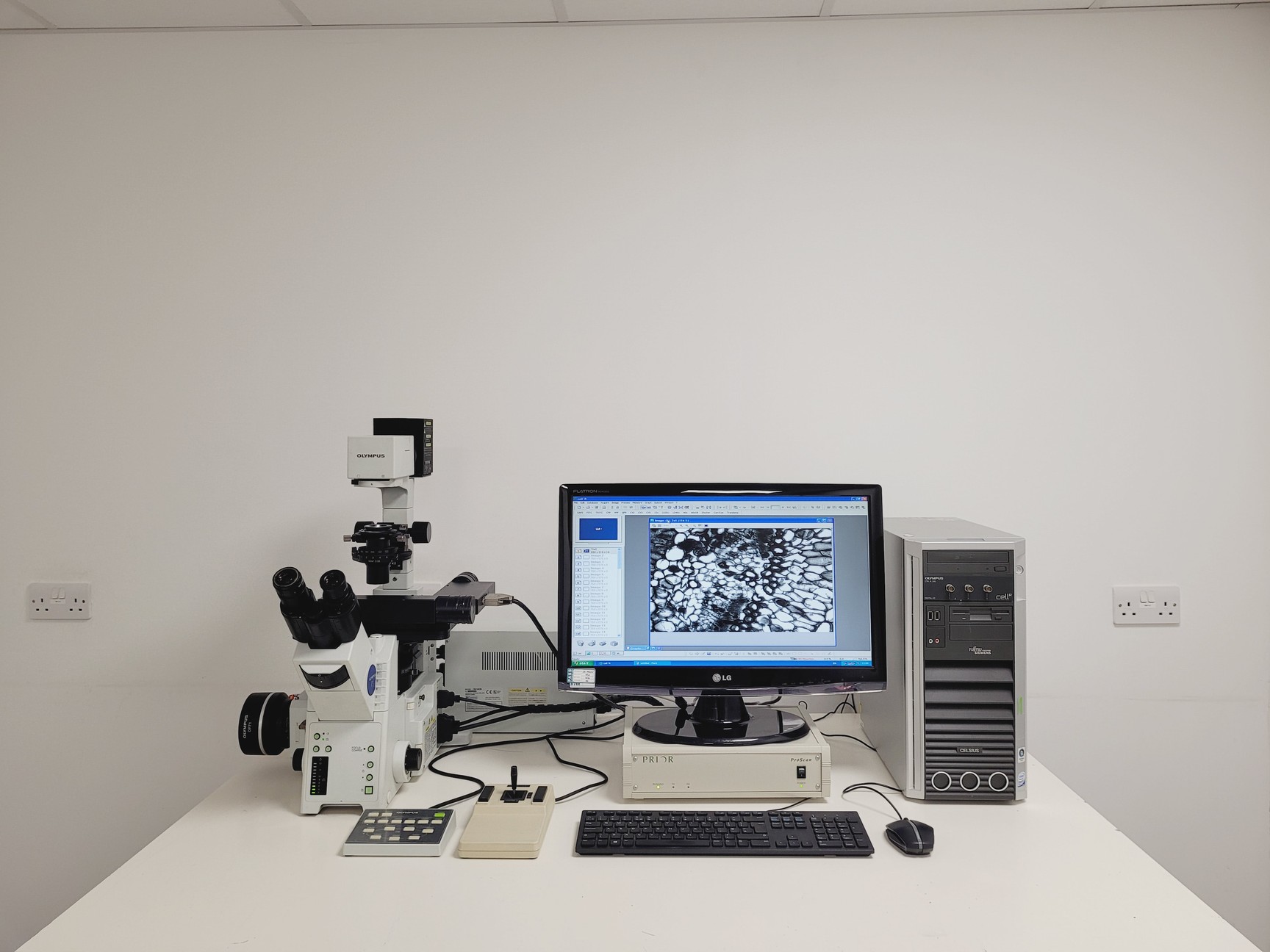

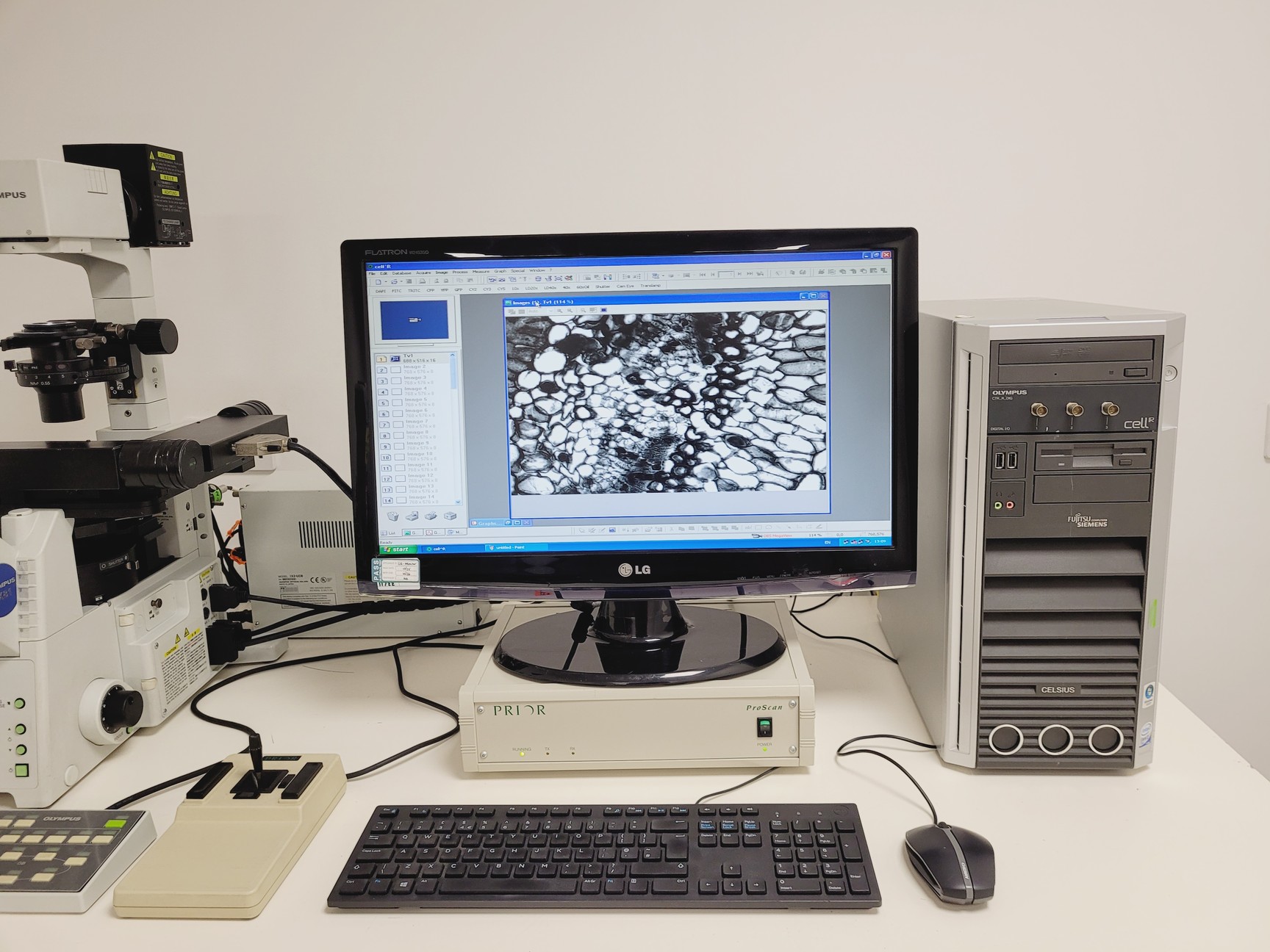

Olympus IX81 with Olympus MT20 Cell IR System
This system was removed from a facility where it was surplus to requirement.
It is in good cosmetic condition and in complete working order.

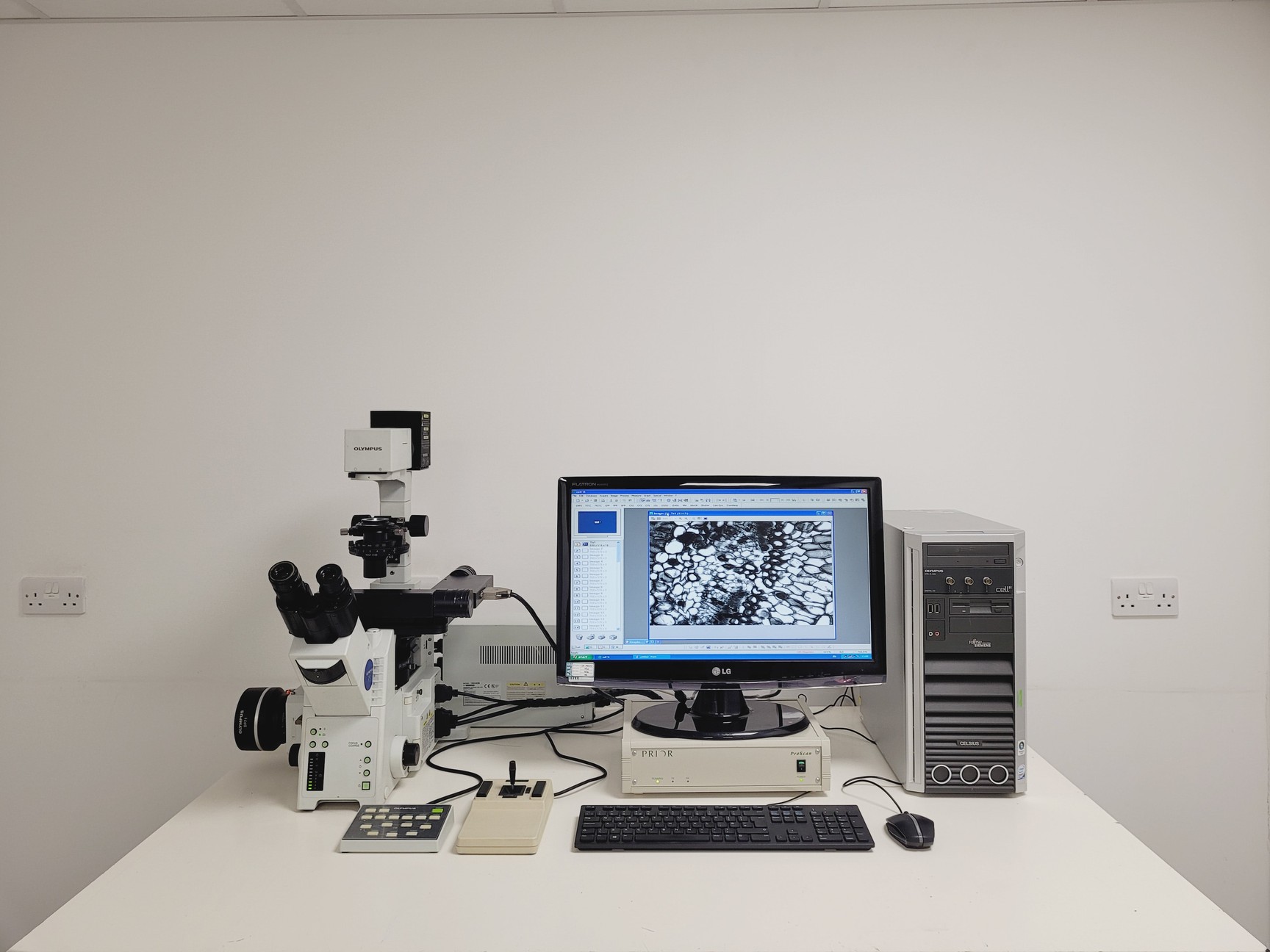

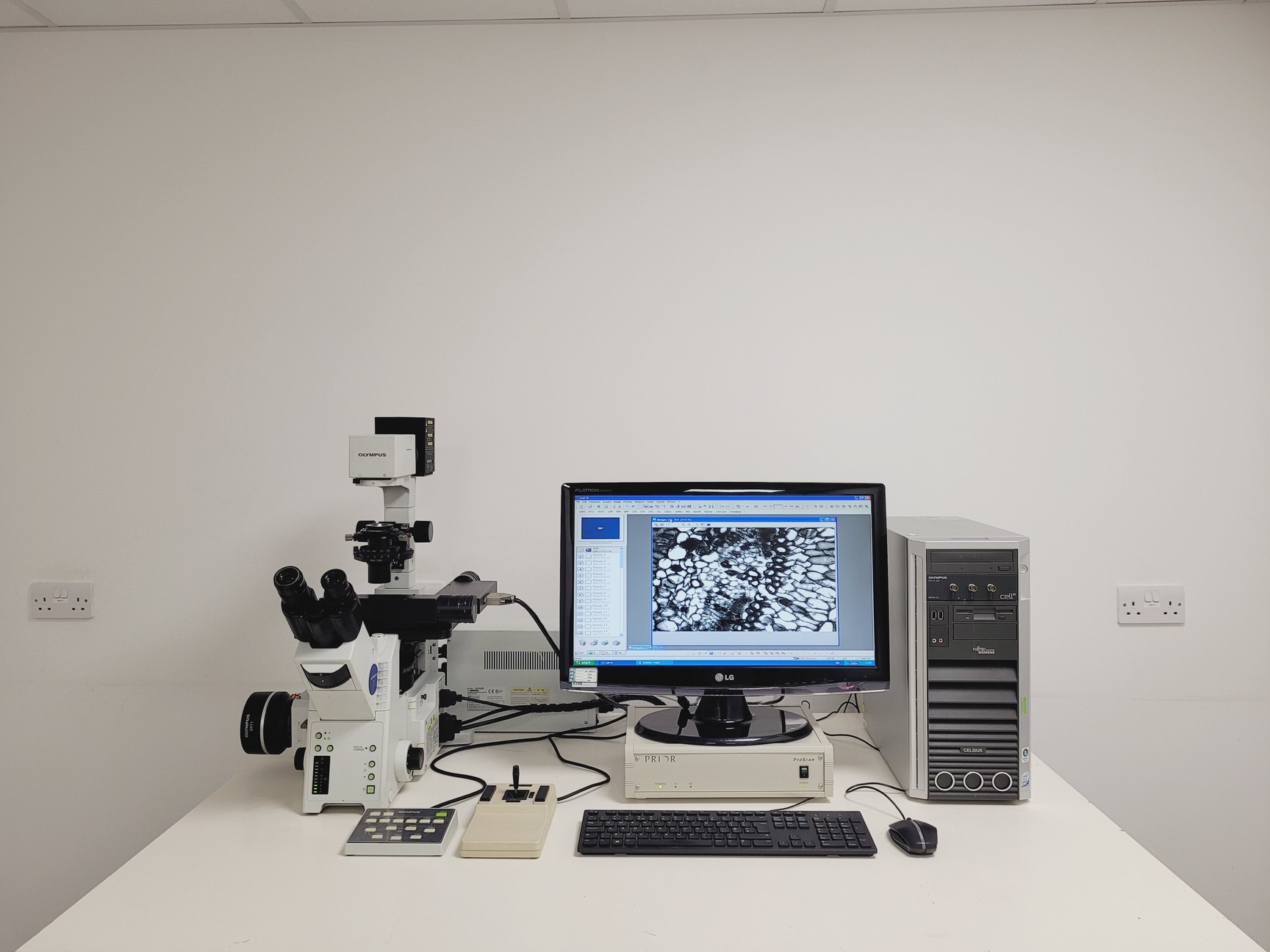

The system consists of:

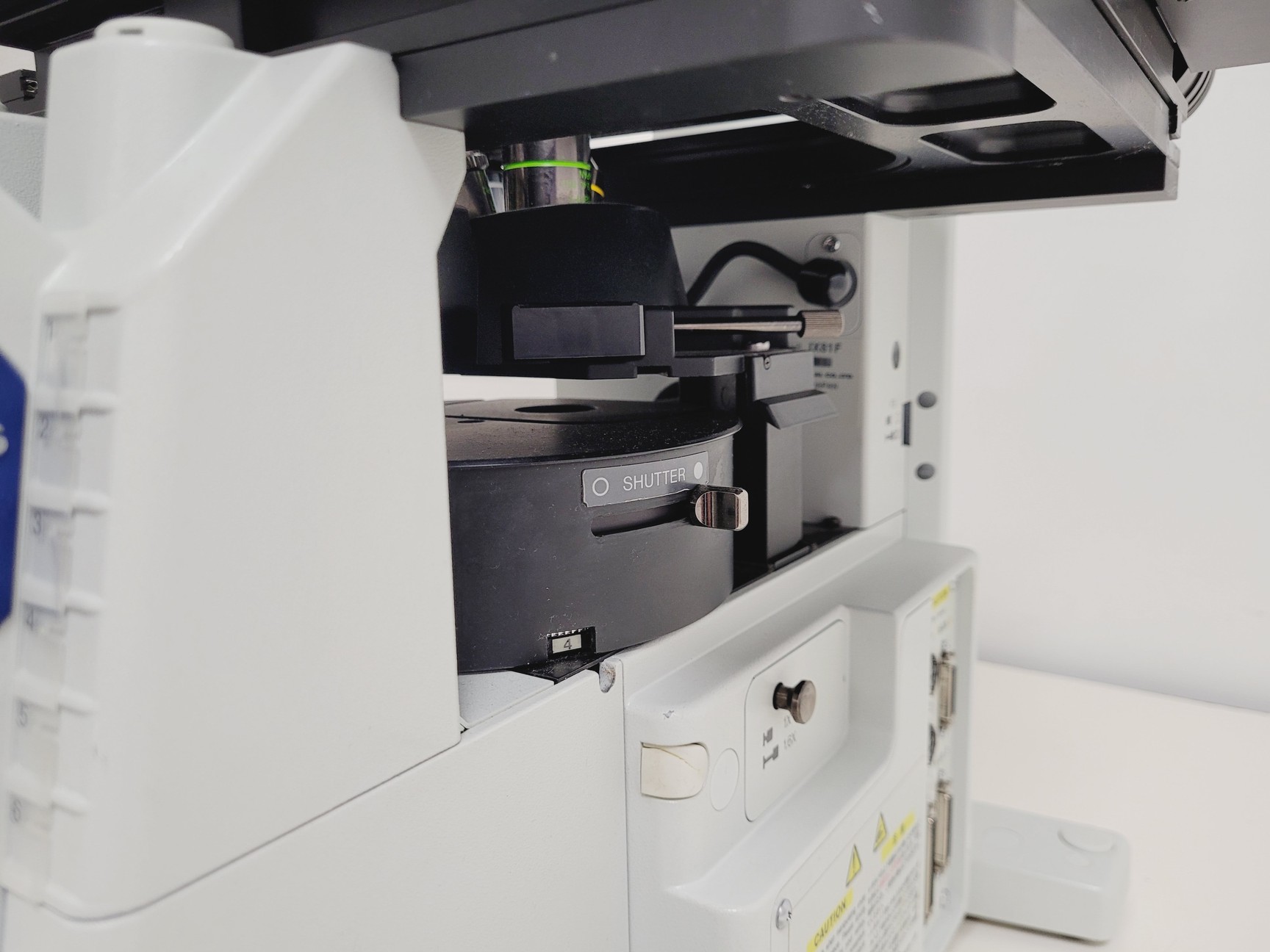

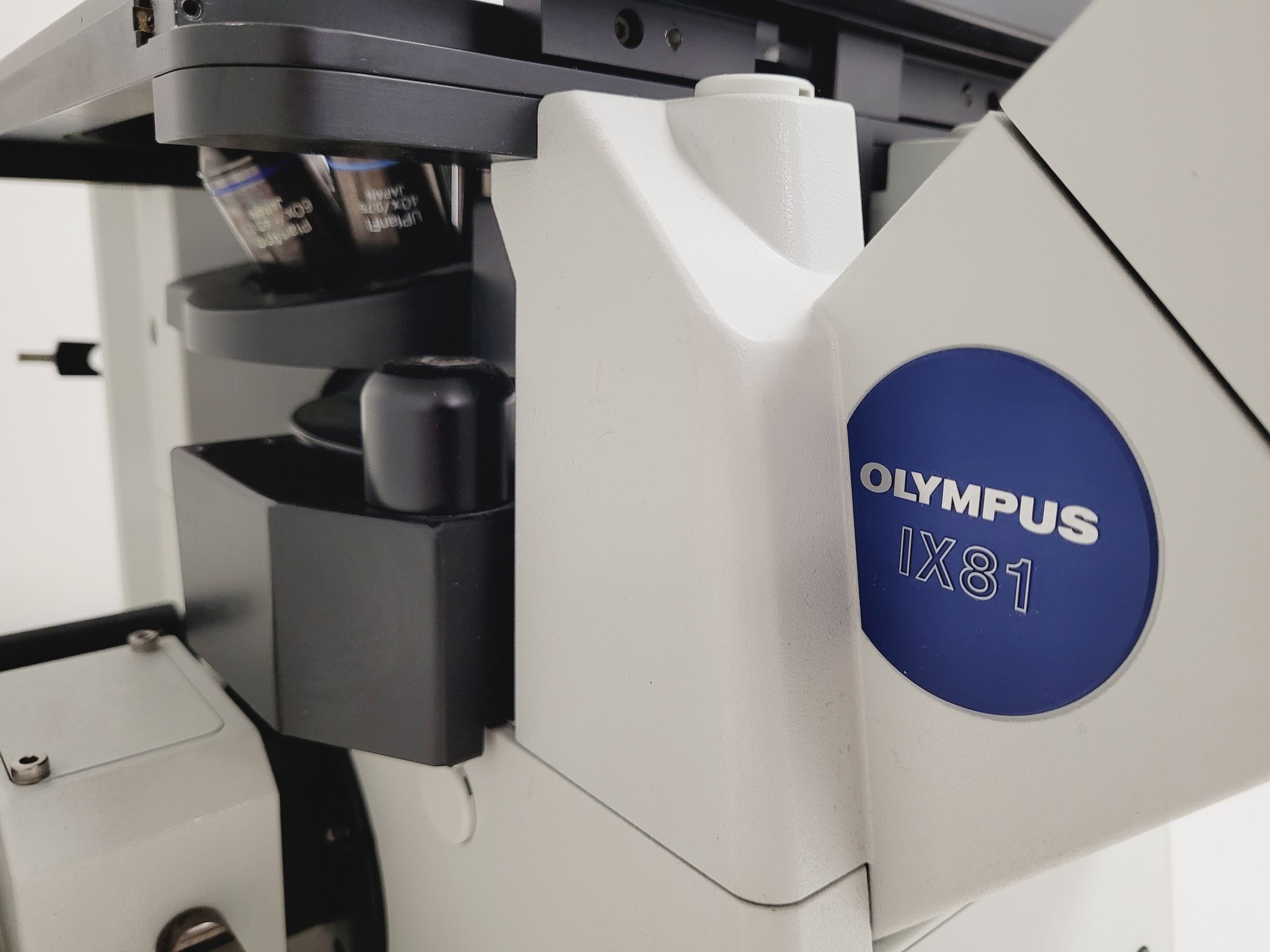

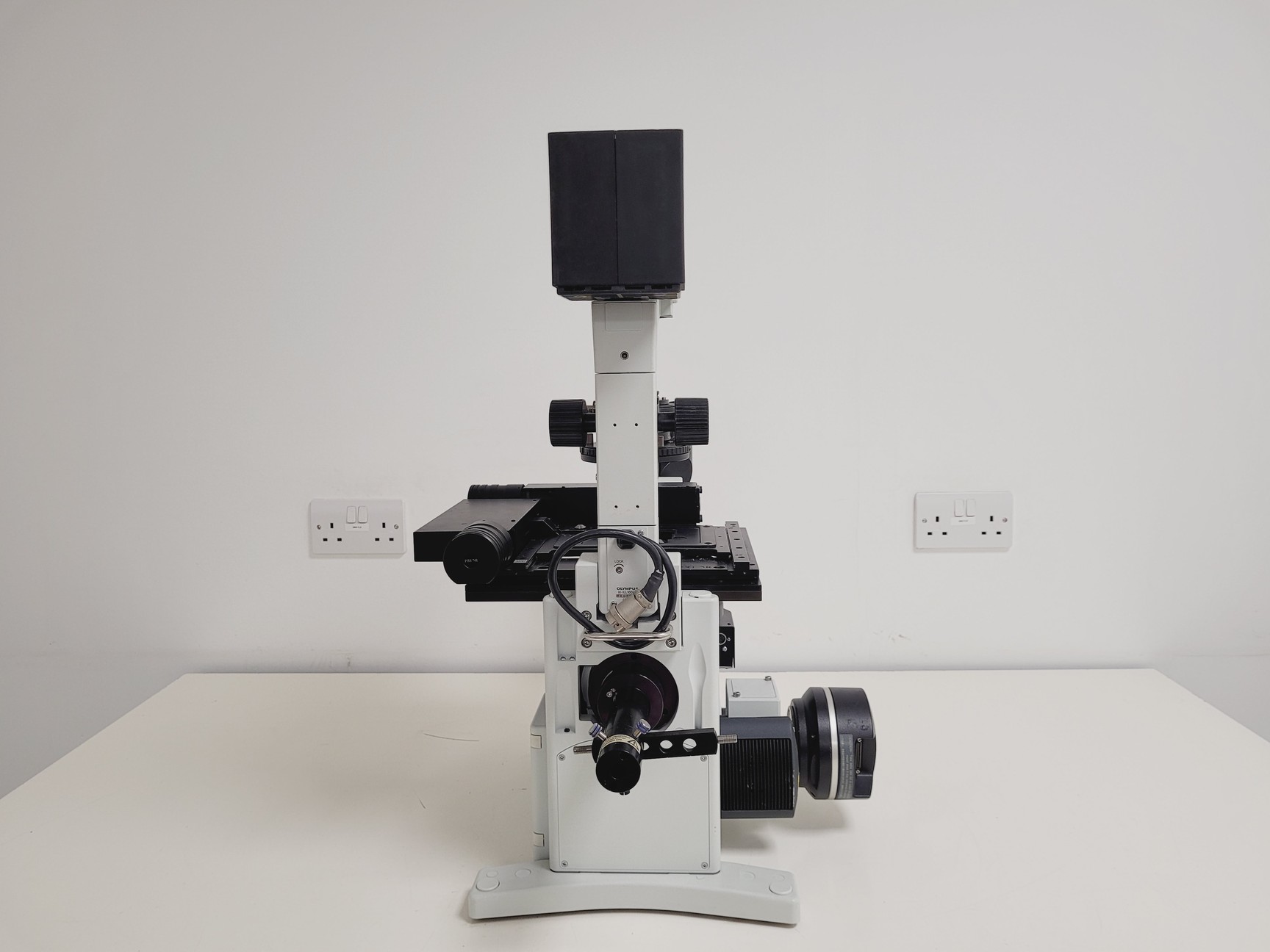

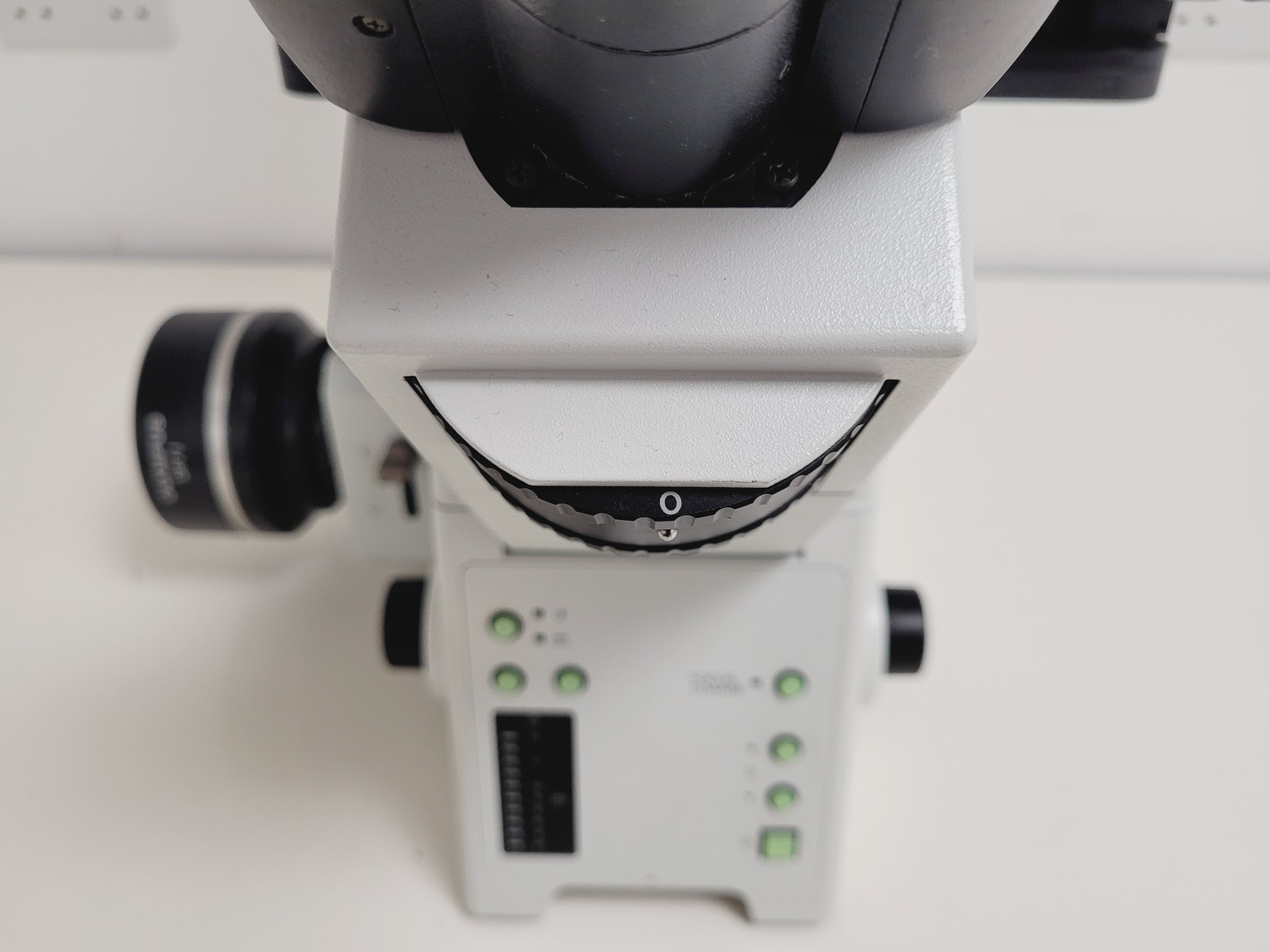

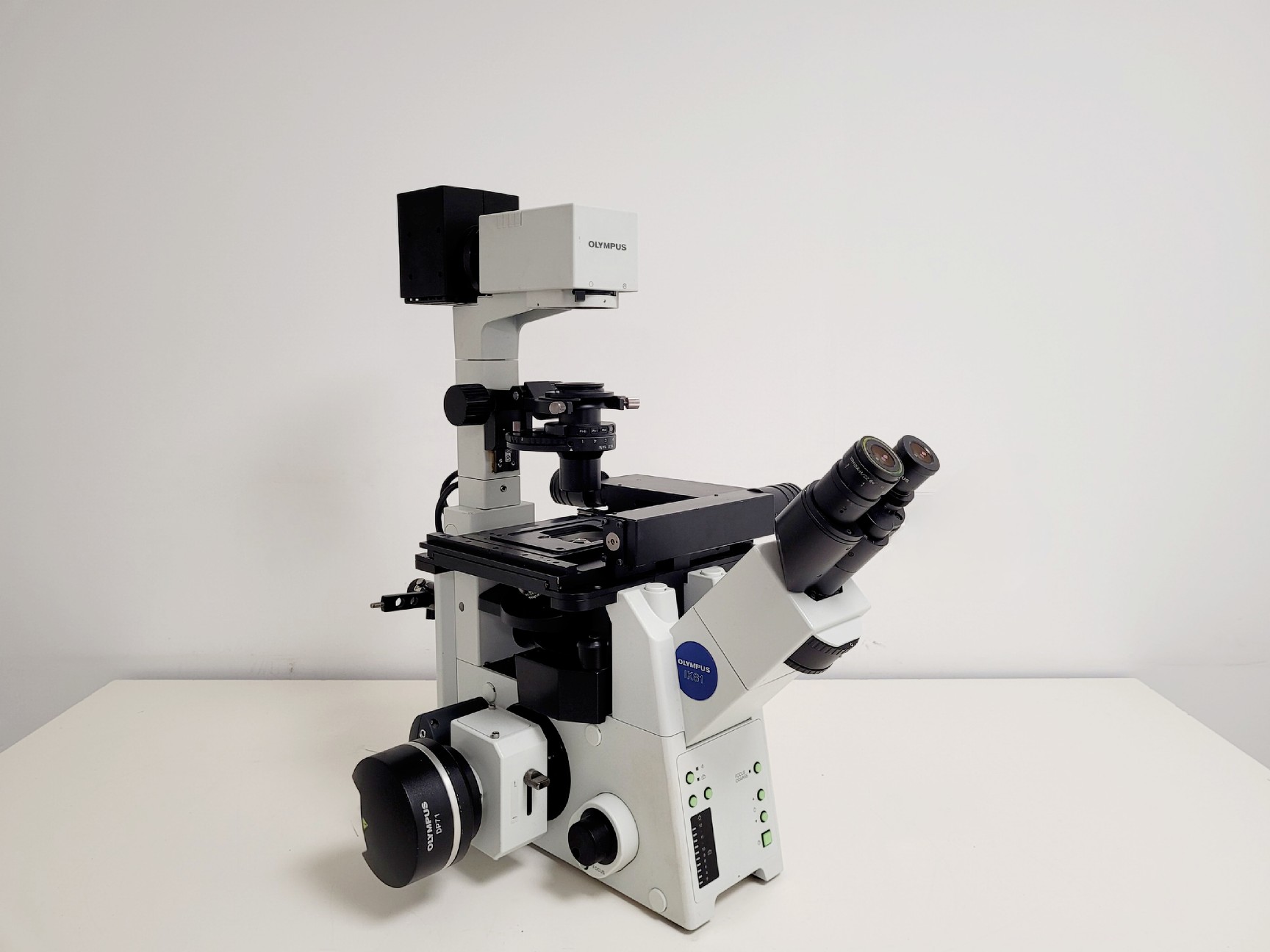

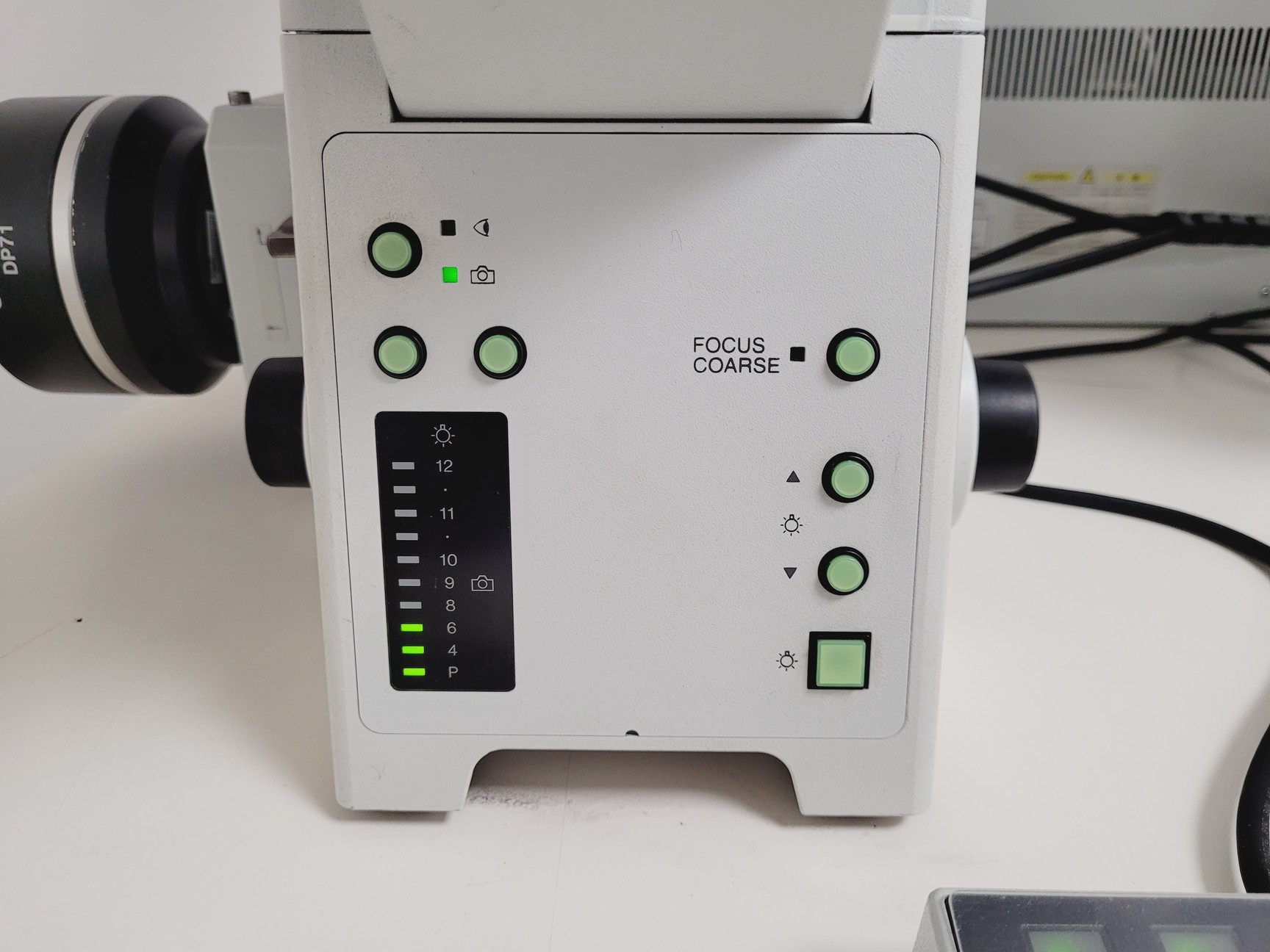

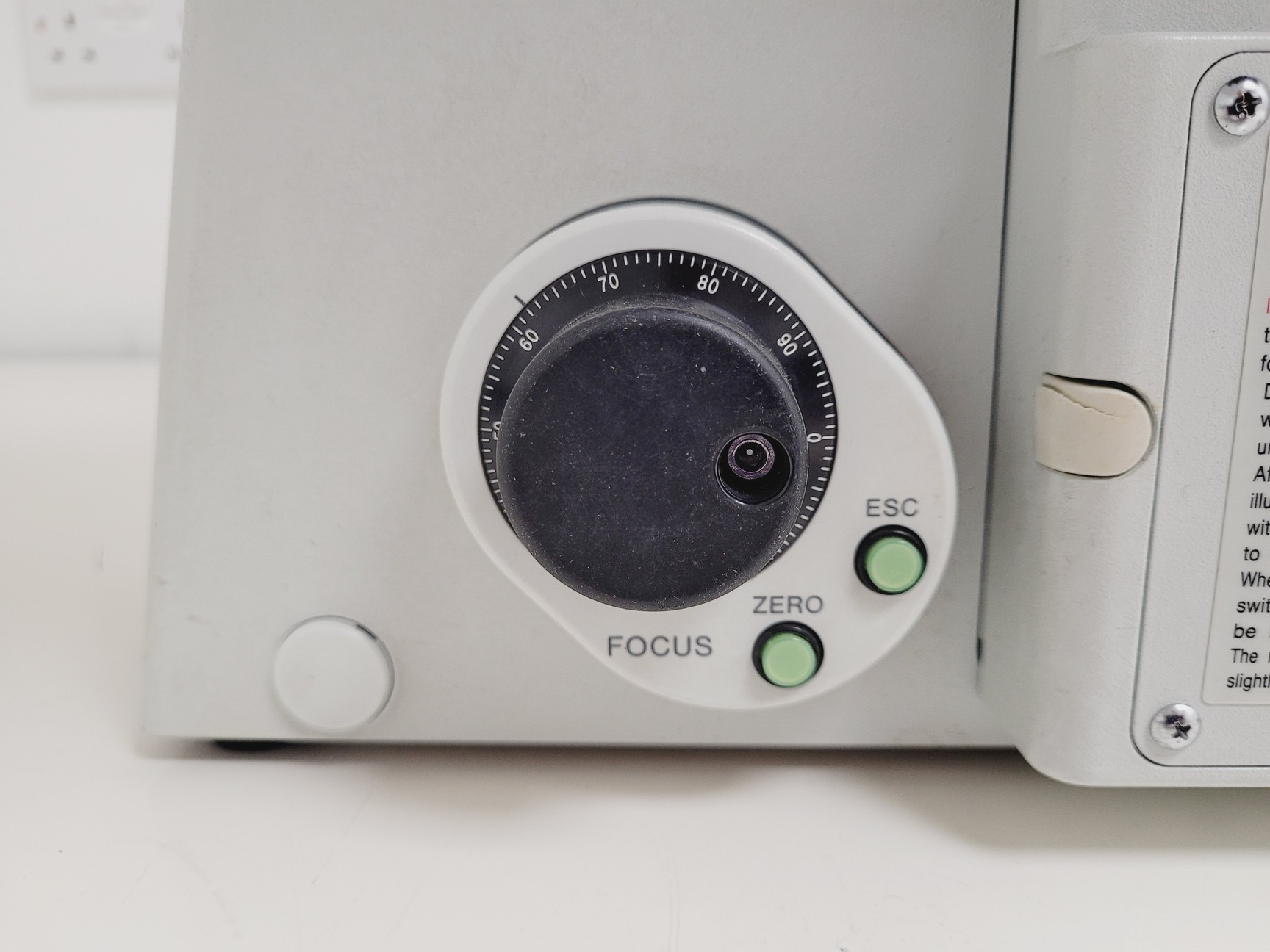

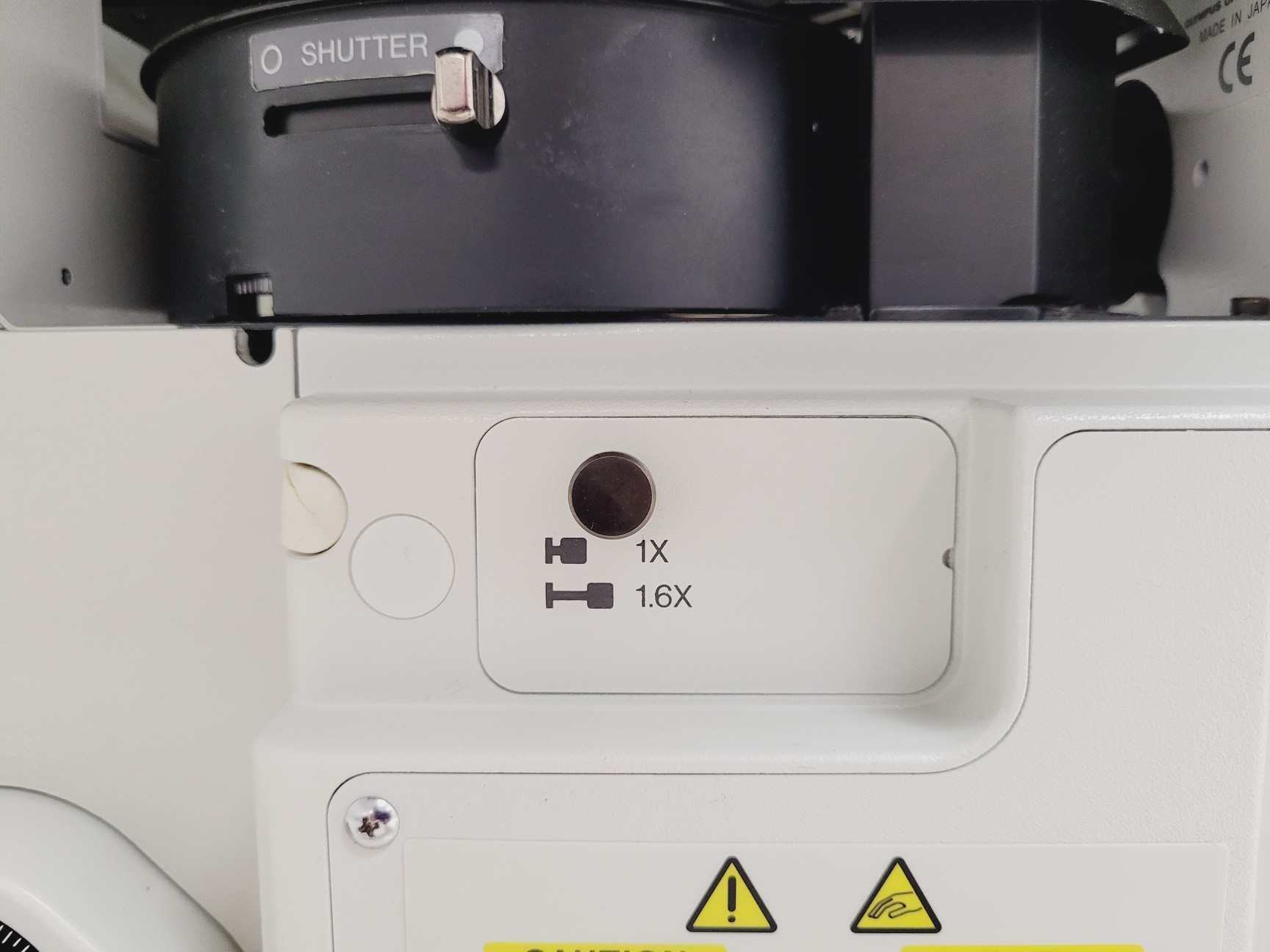

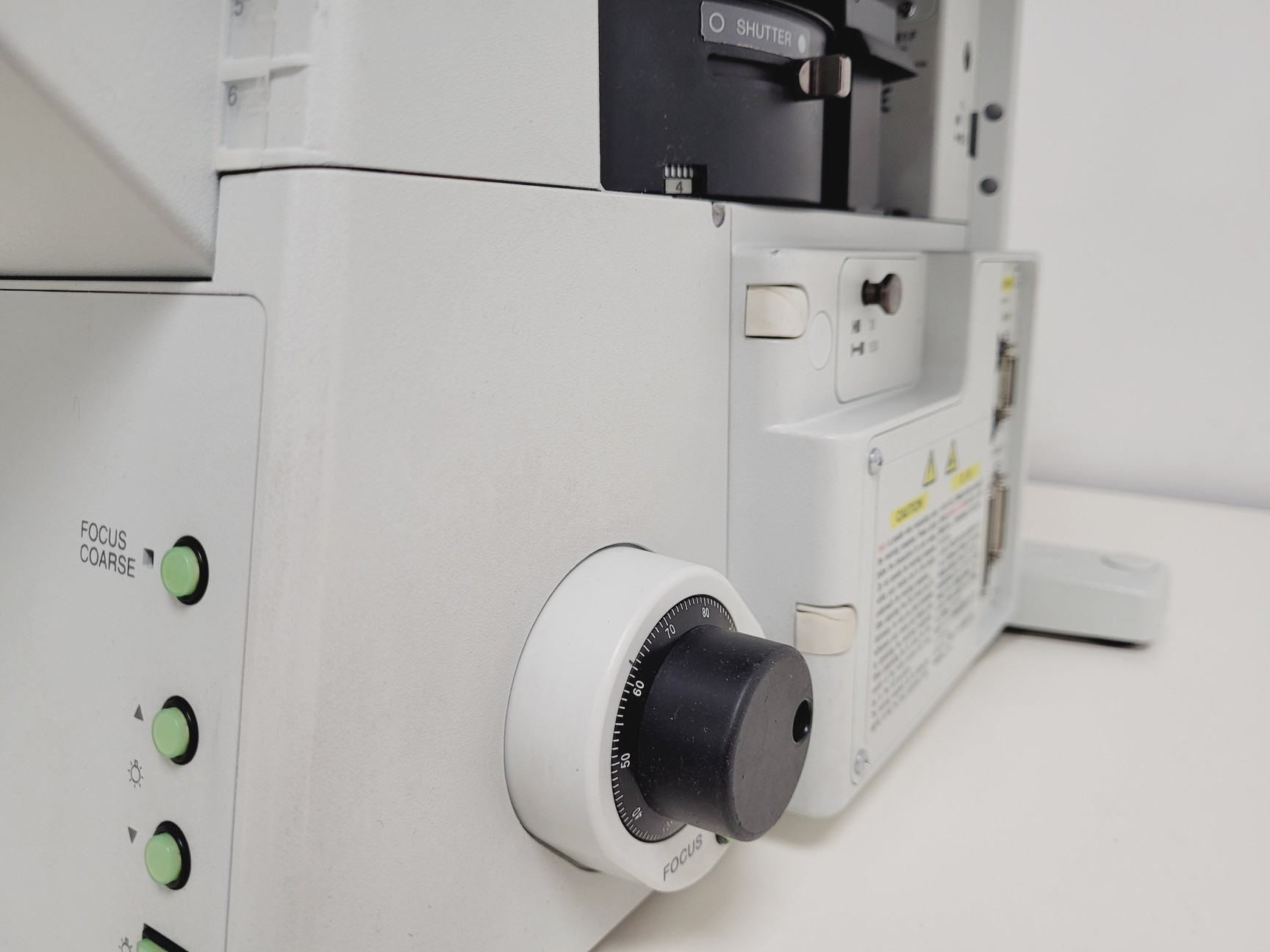

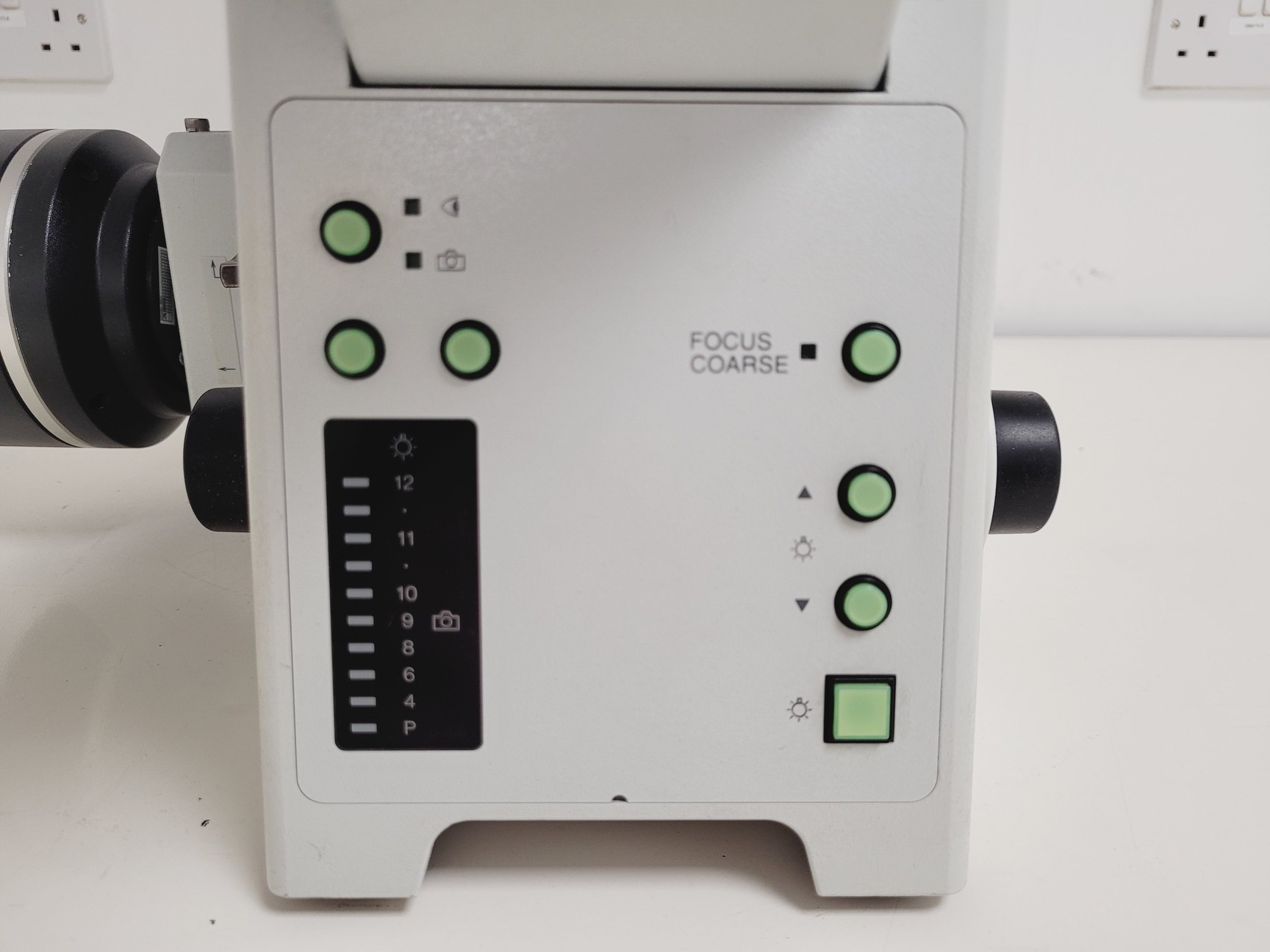

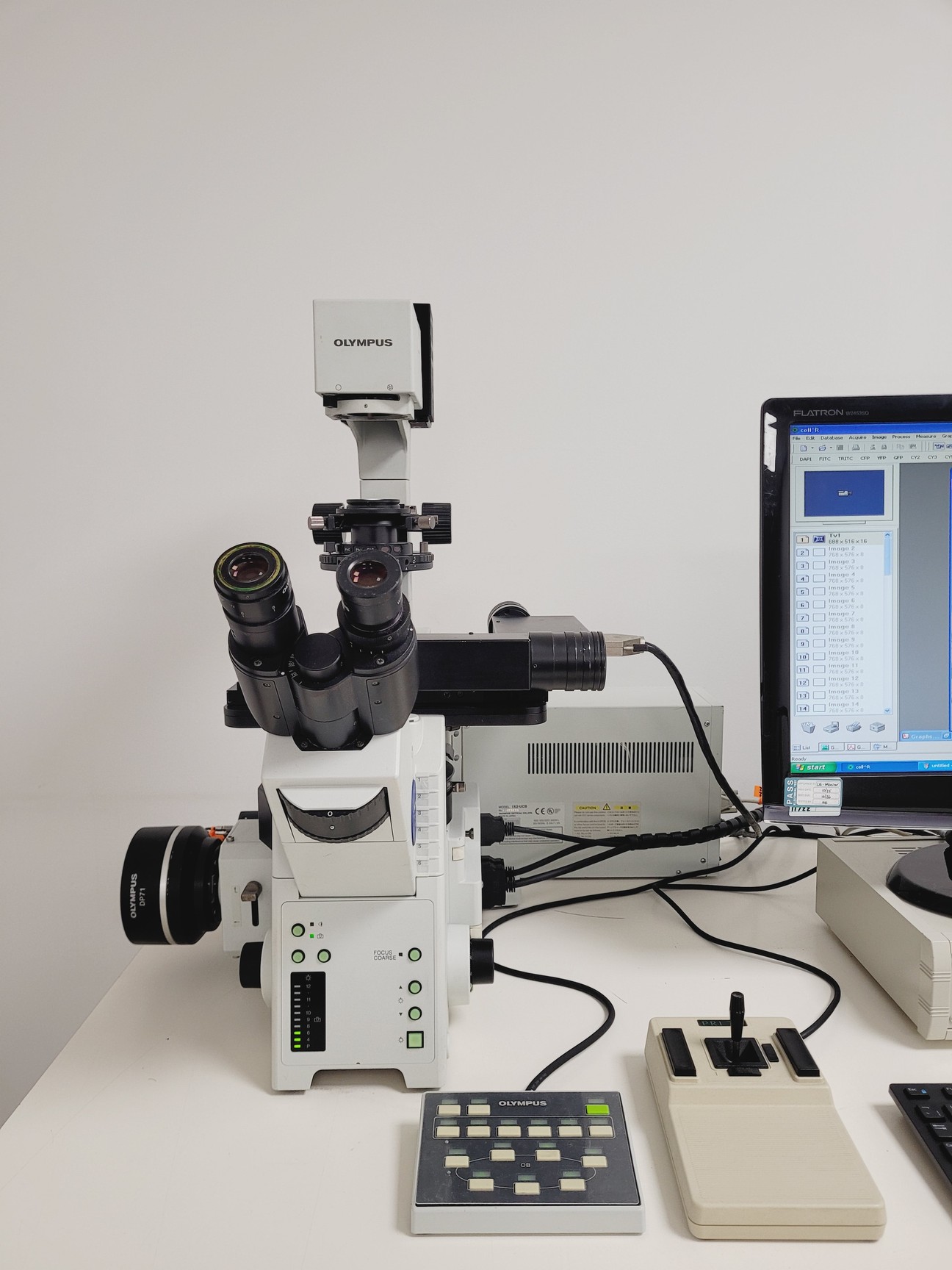

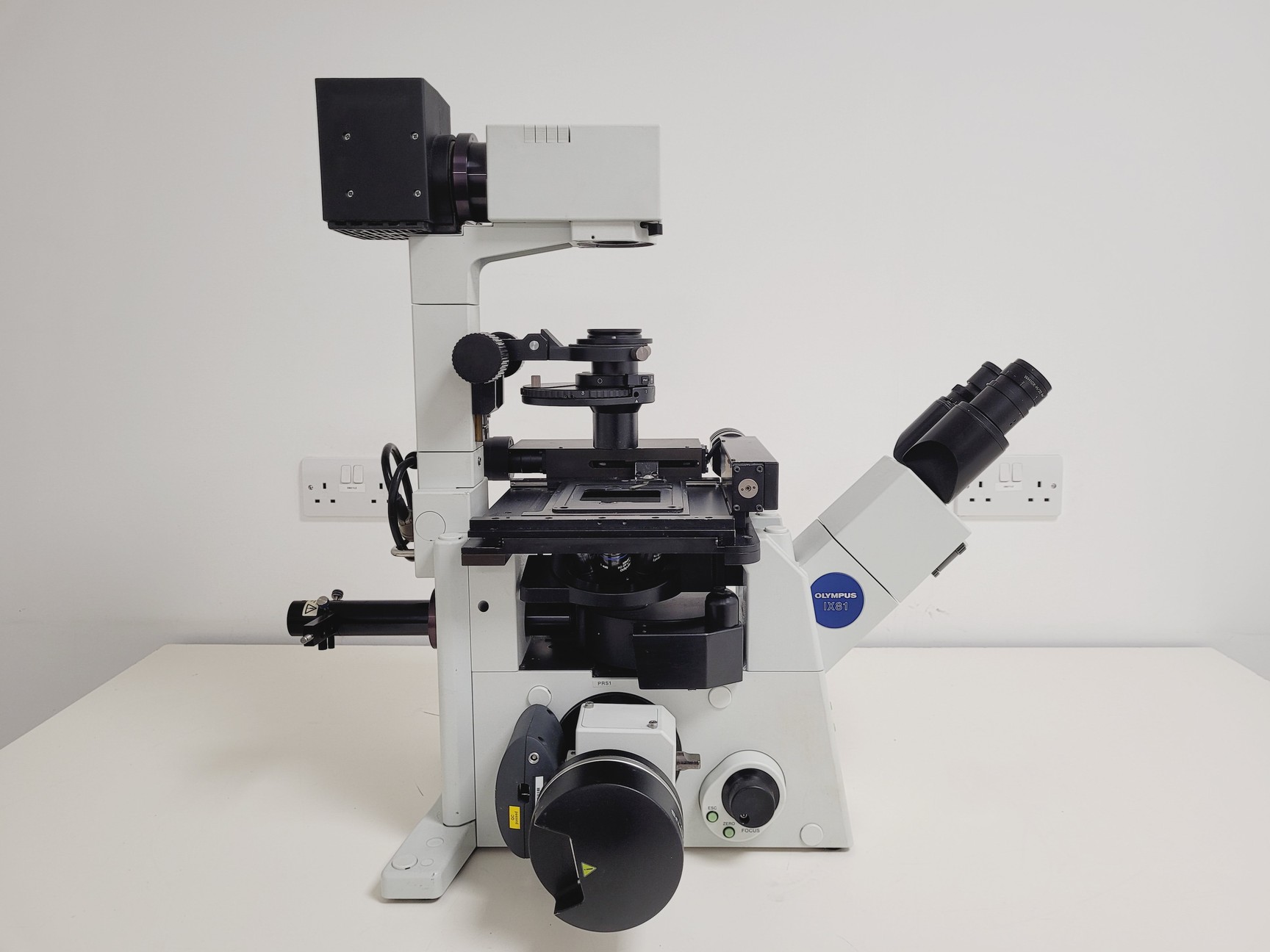

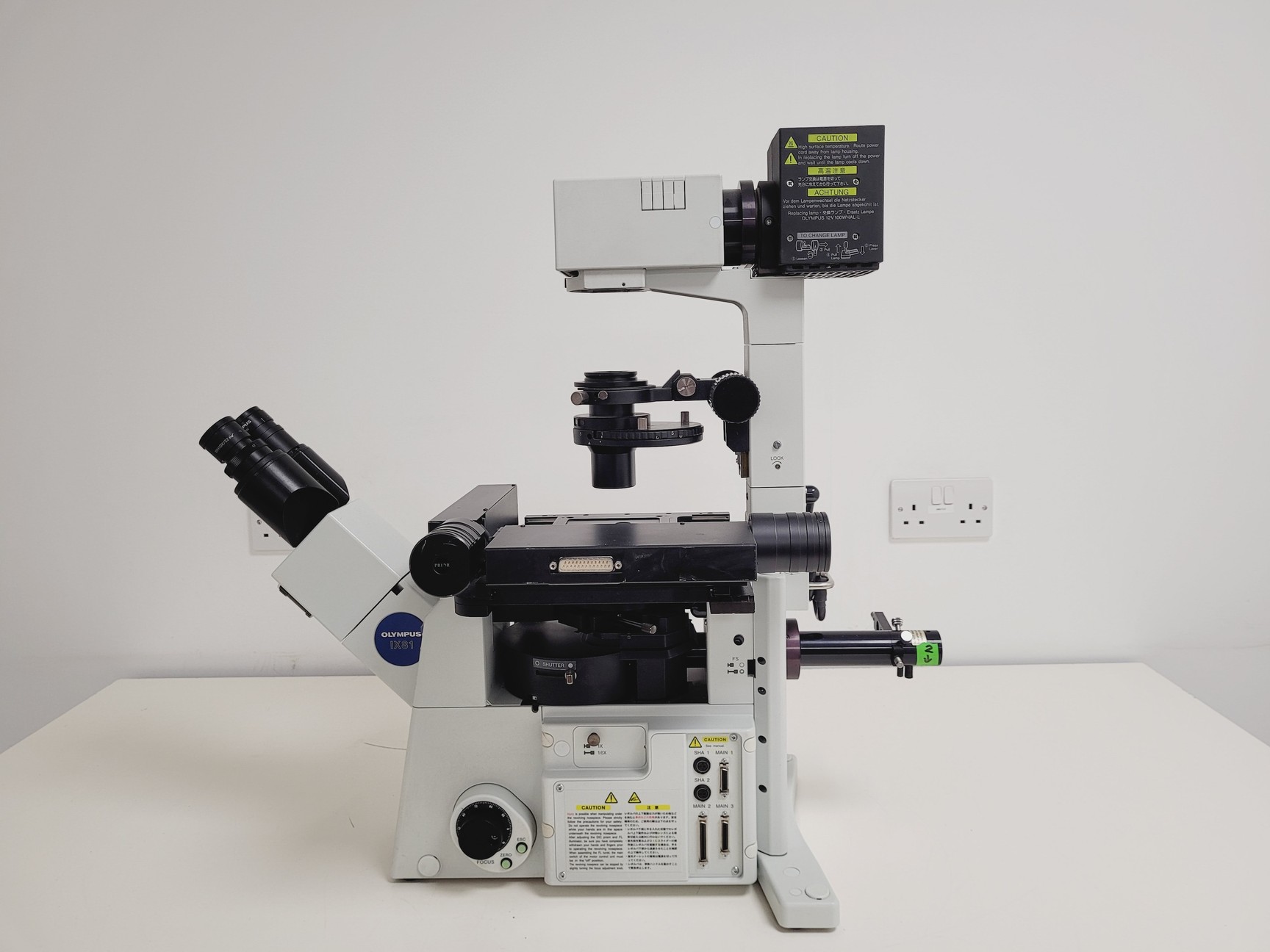

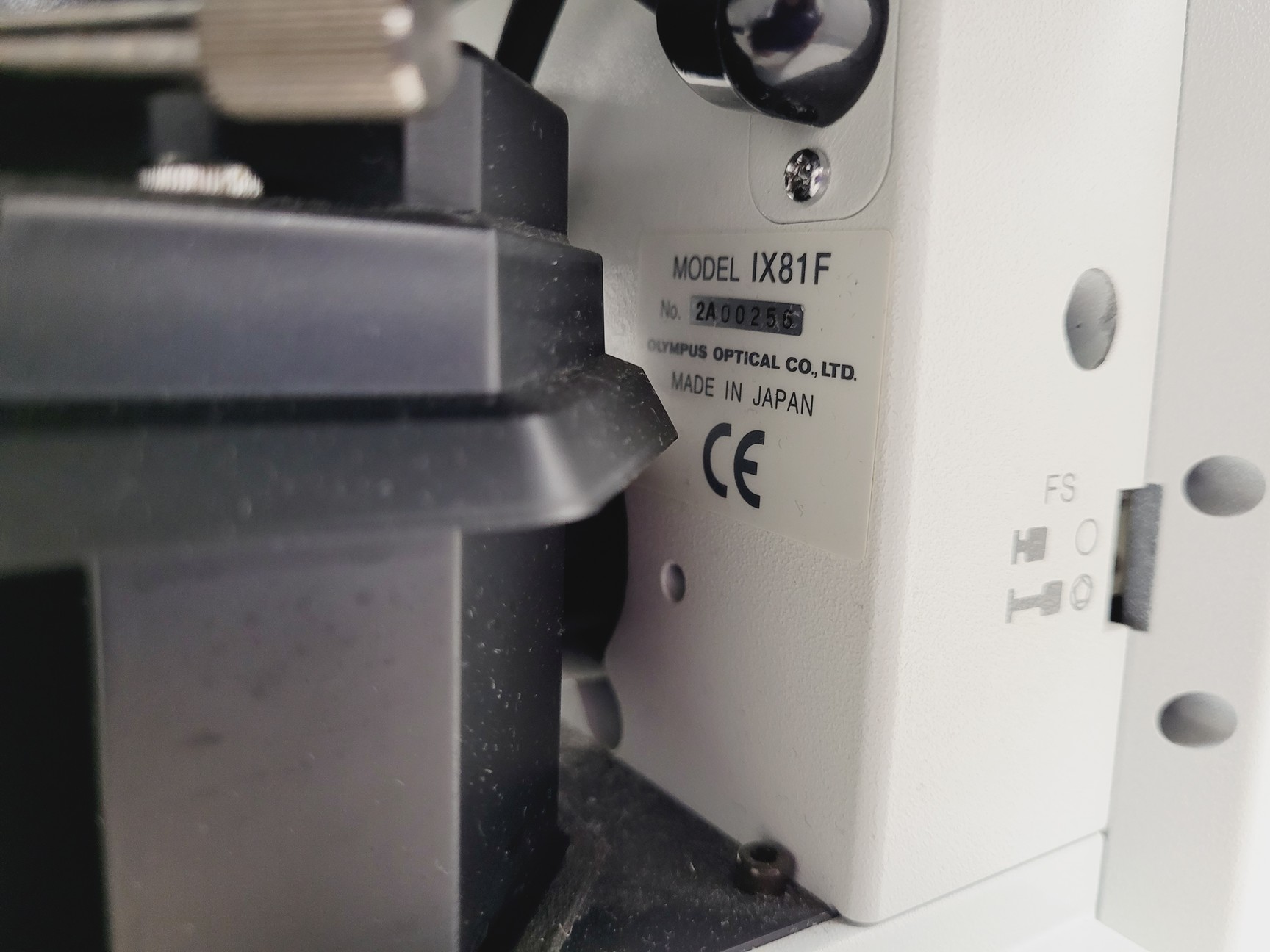

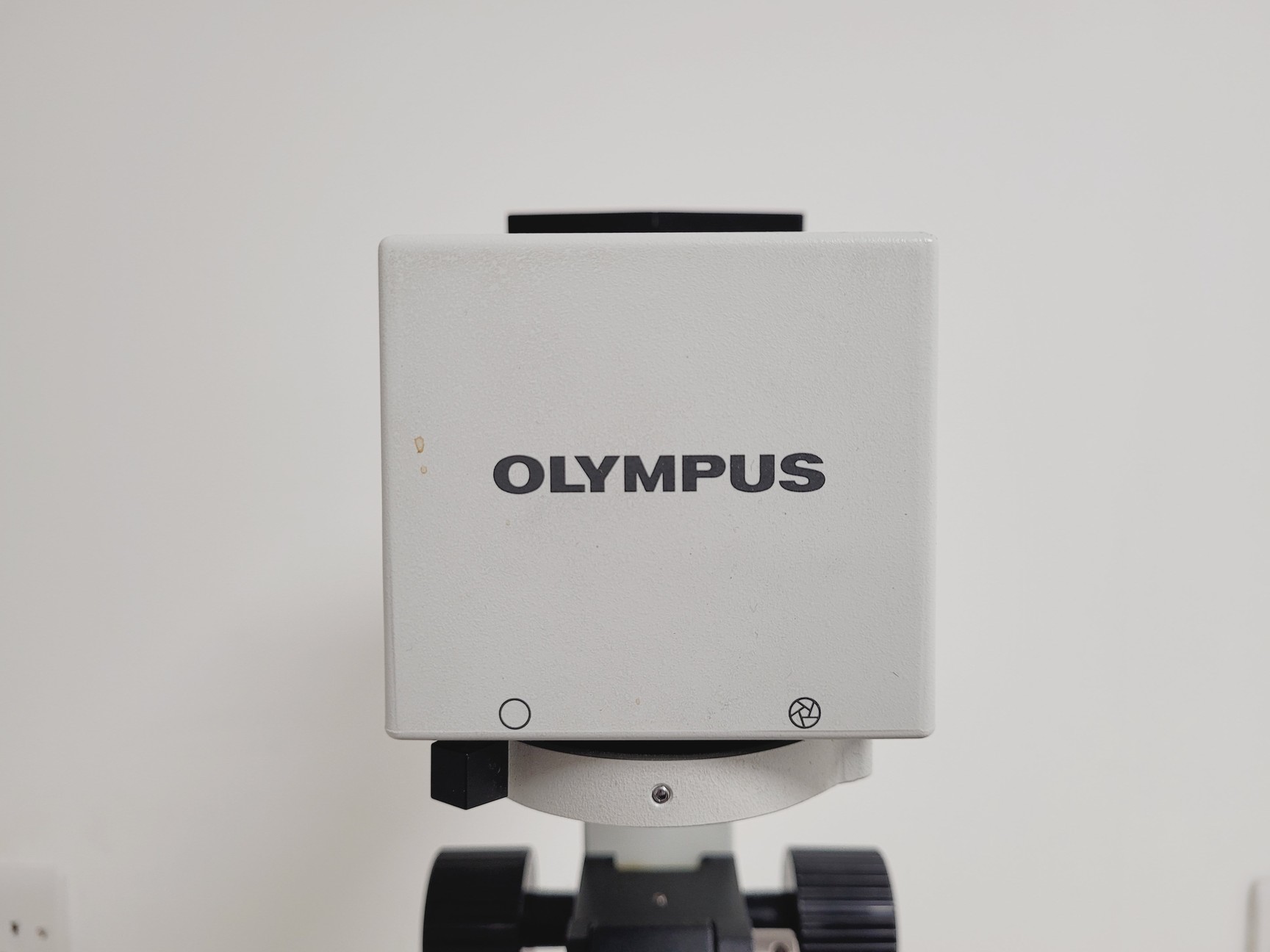

- 1 x Olympus IX81F Microscope fitted with:

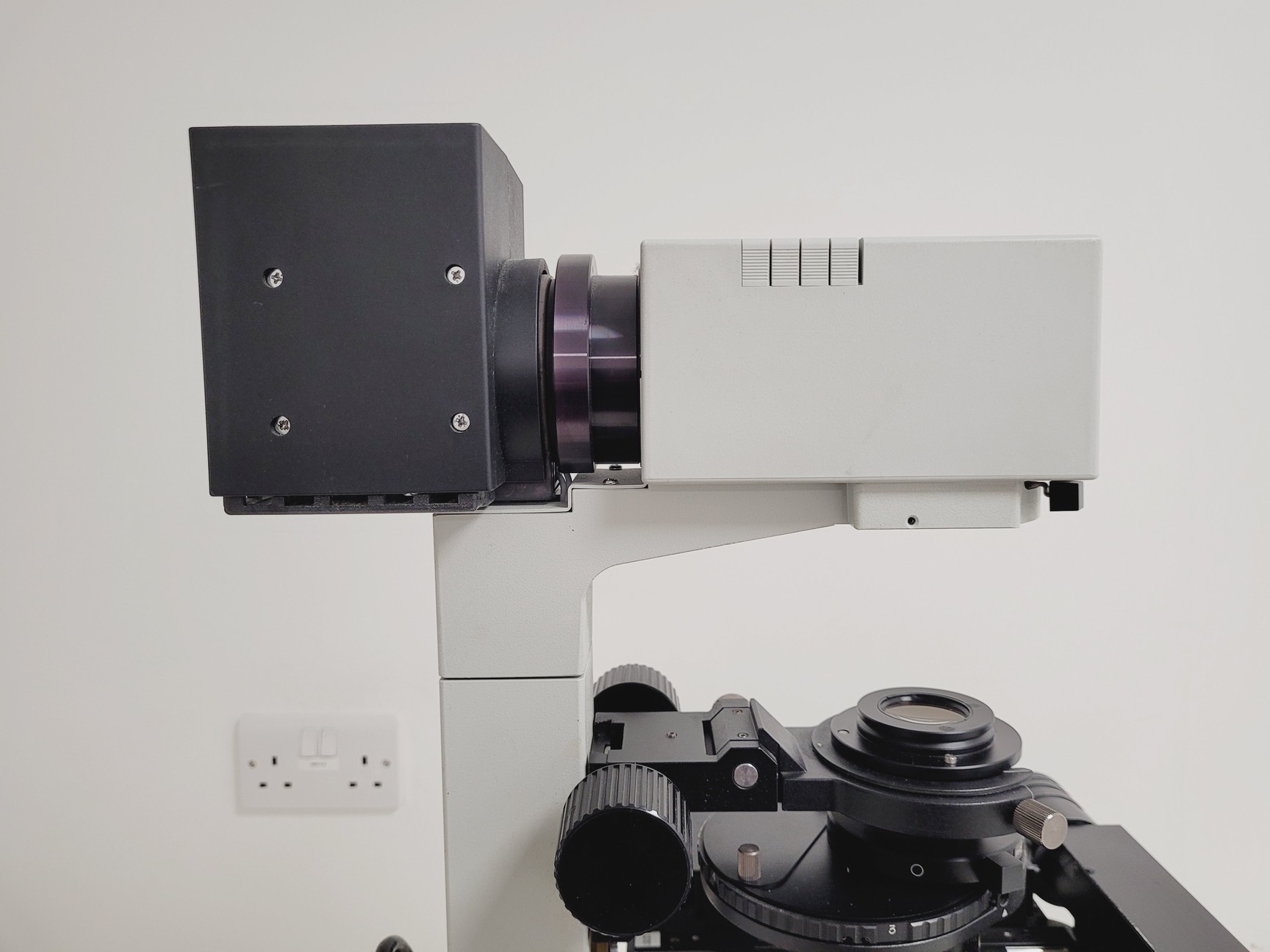

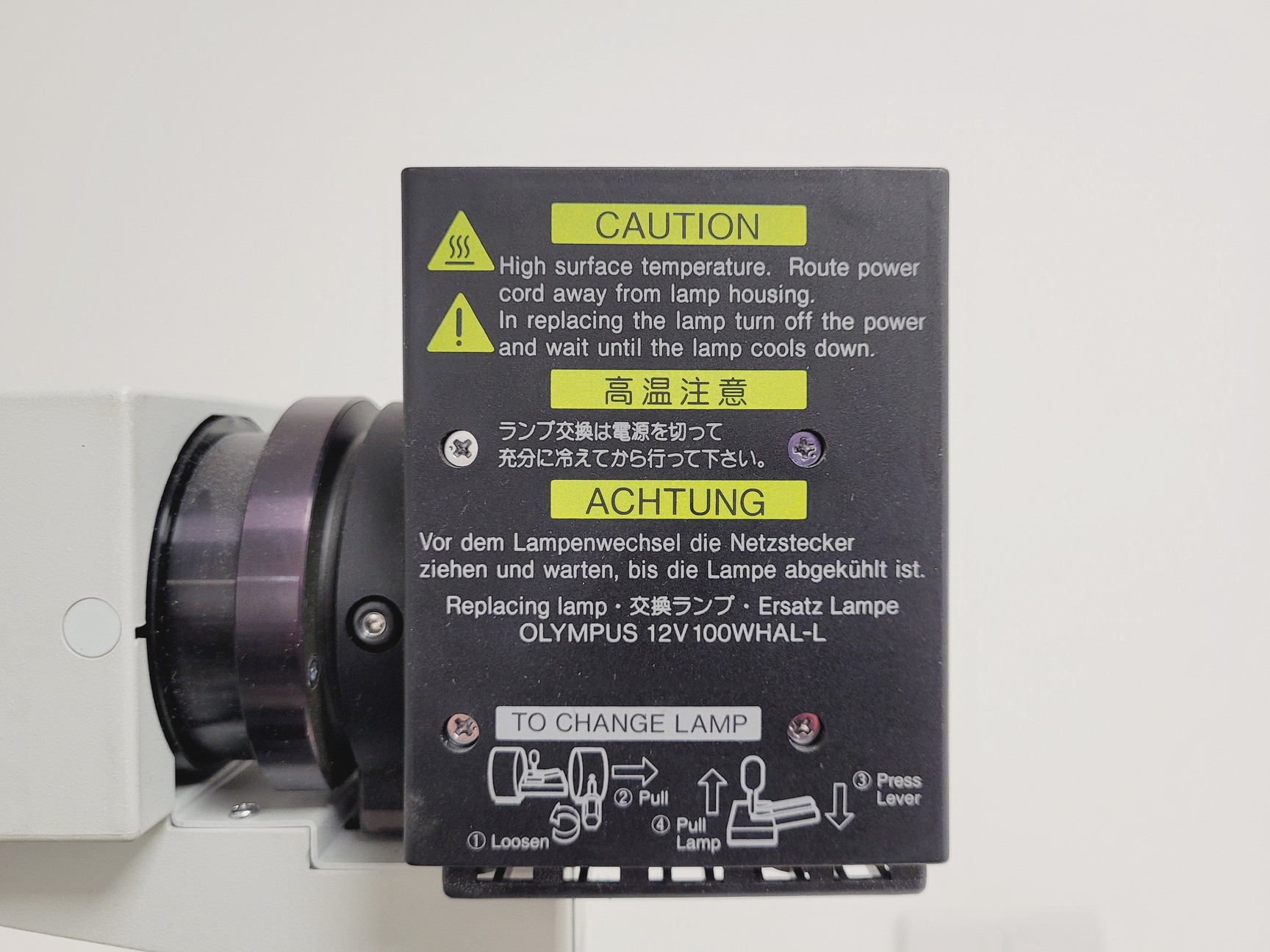

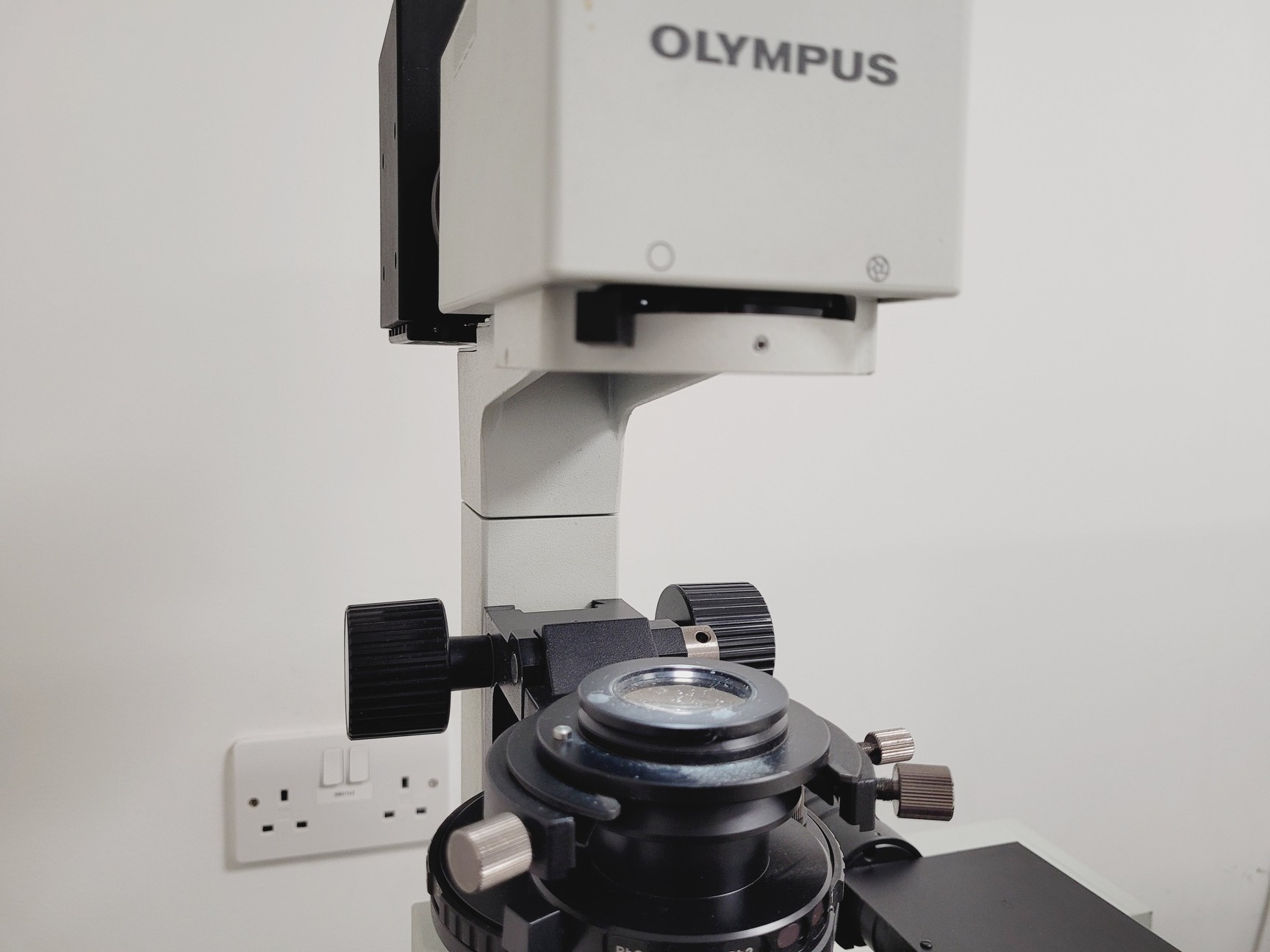

- 1 x Olympus 12V100WHAL-L Halogen Lamp.

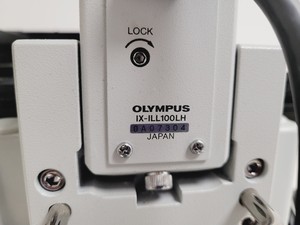

- 1 x Olympus IX-ILL100LH

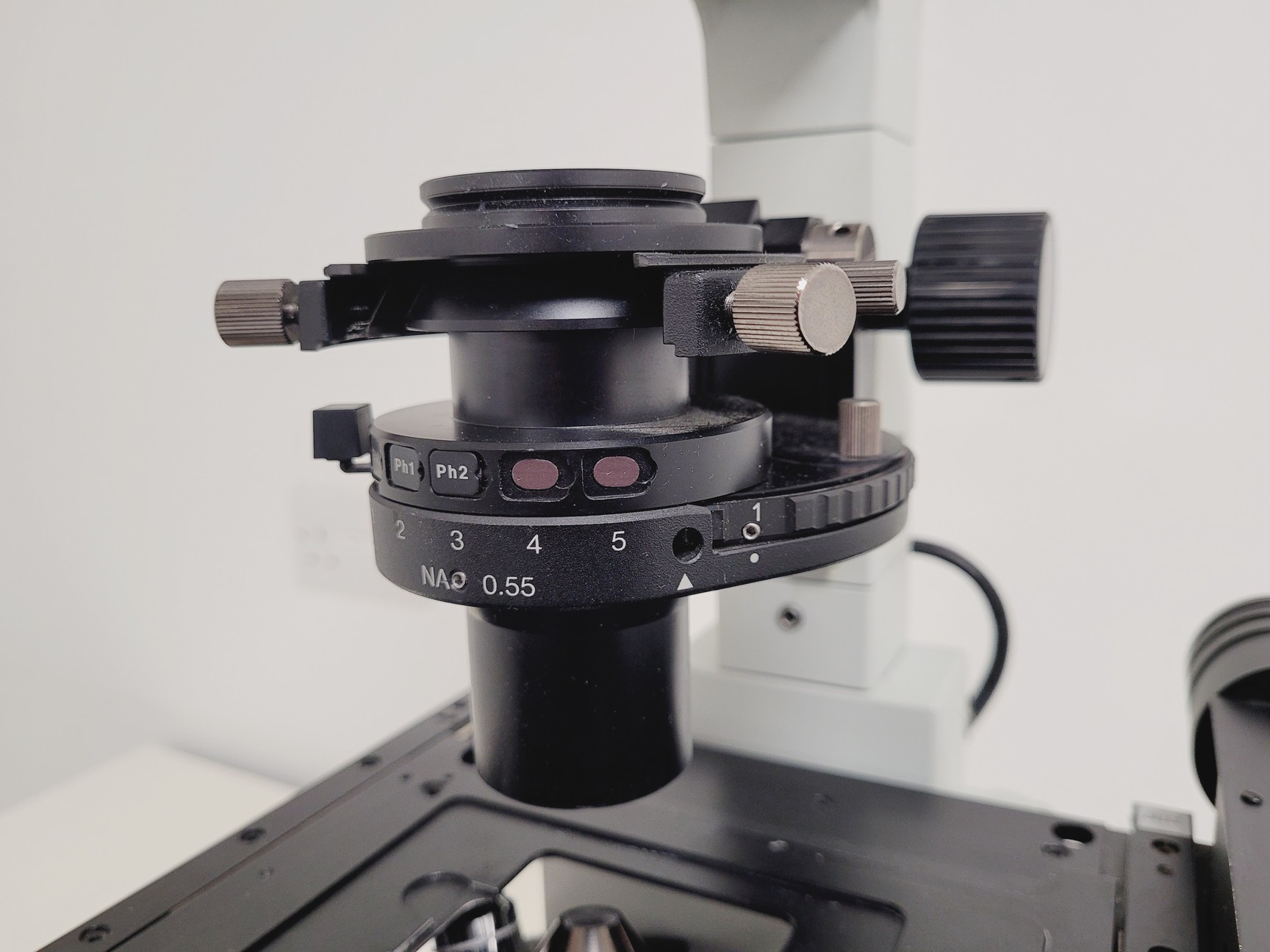

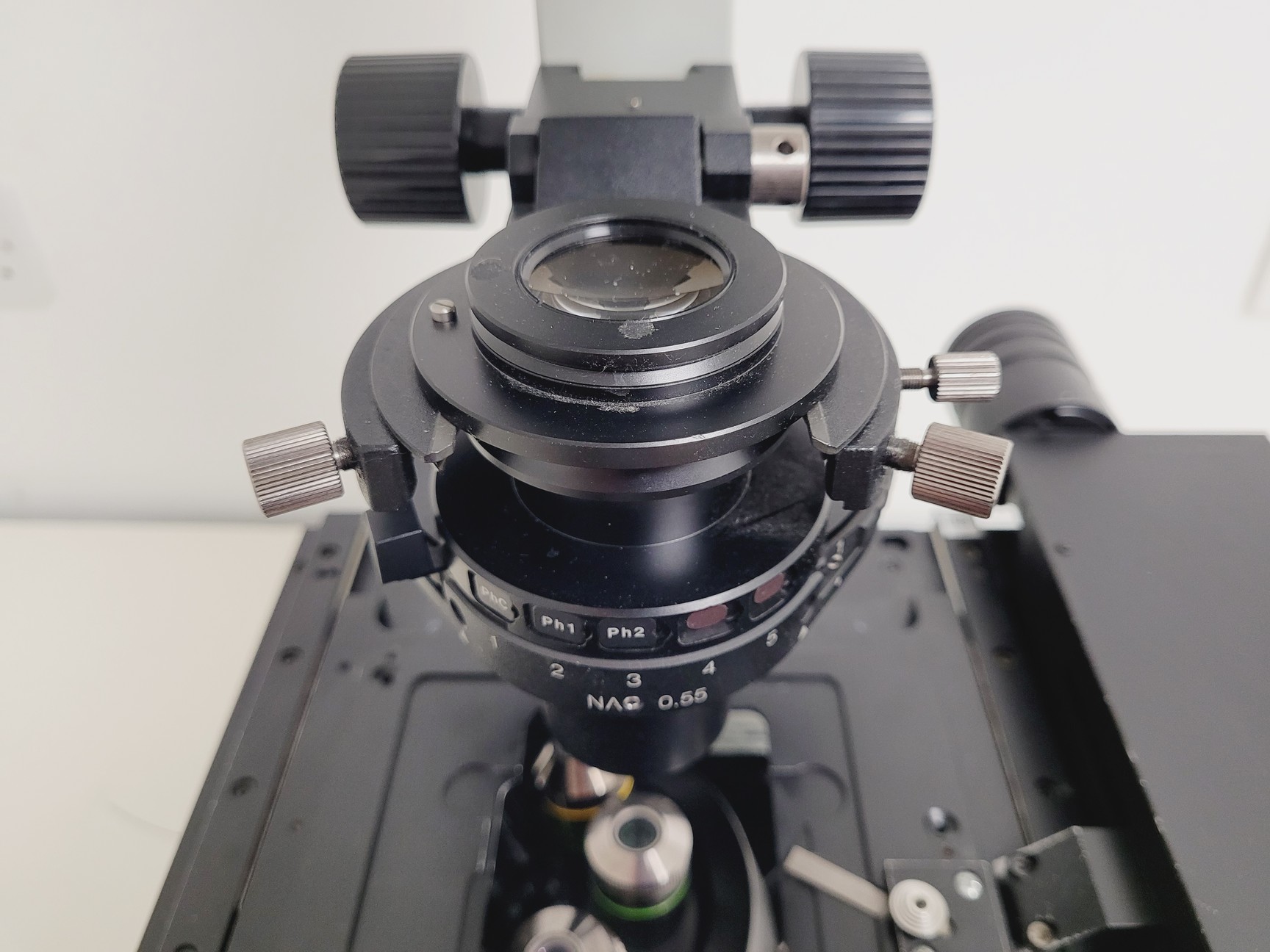

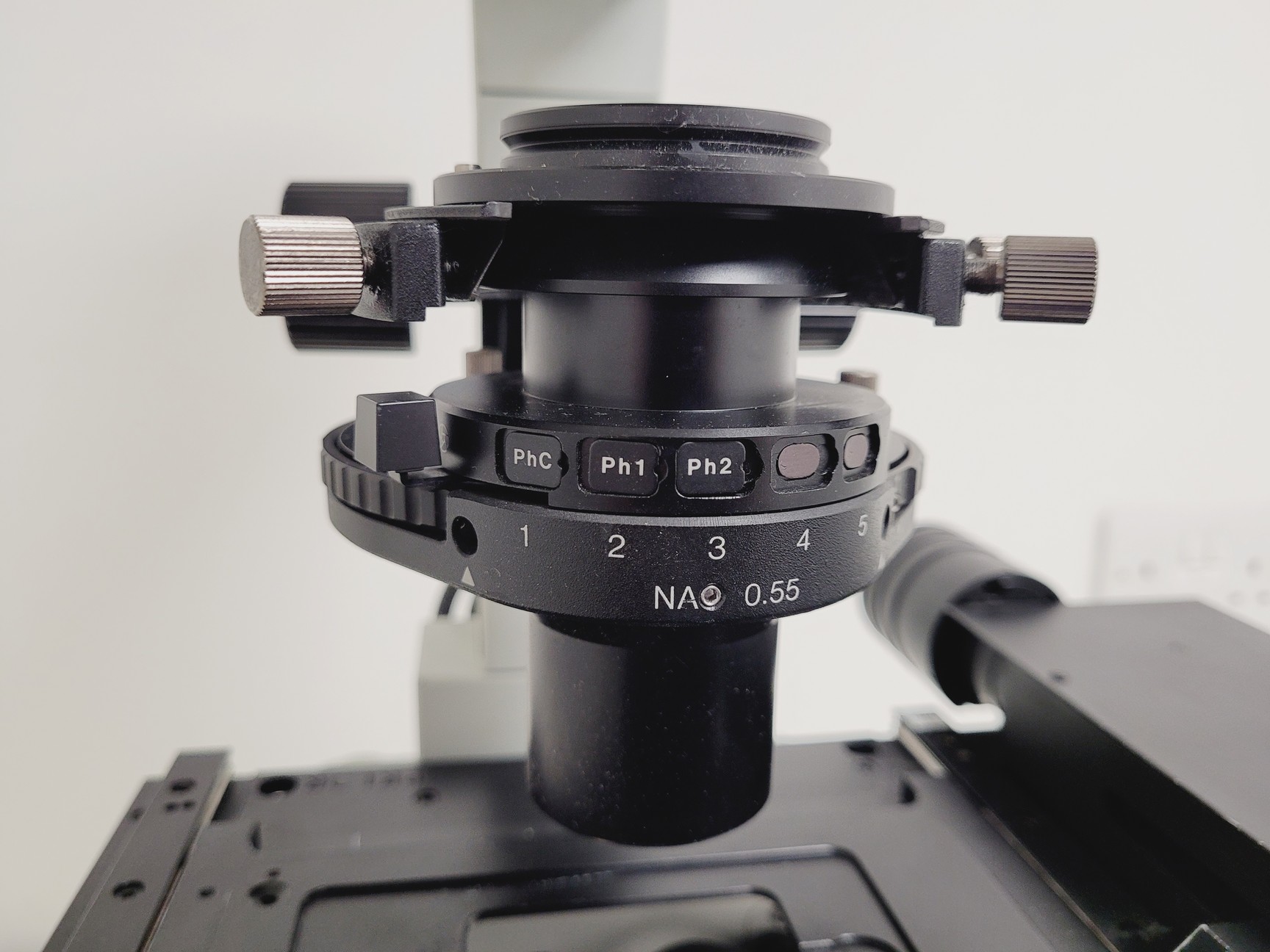

- 1 x Olympus IX-LWUCD NA 0.55 Condenser

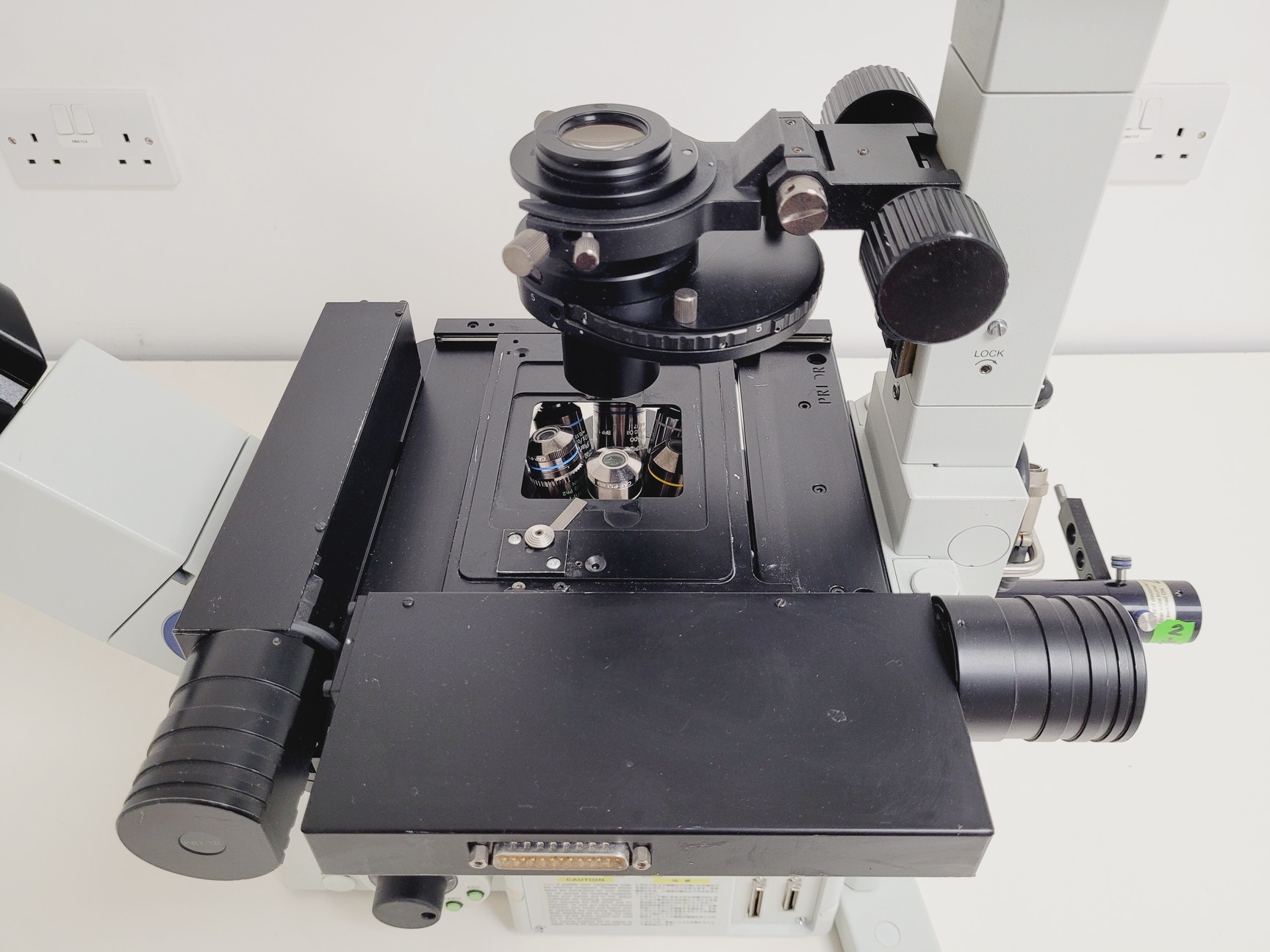

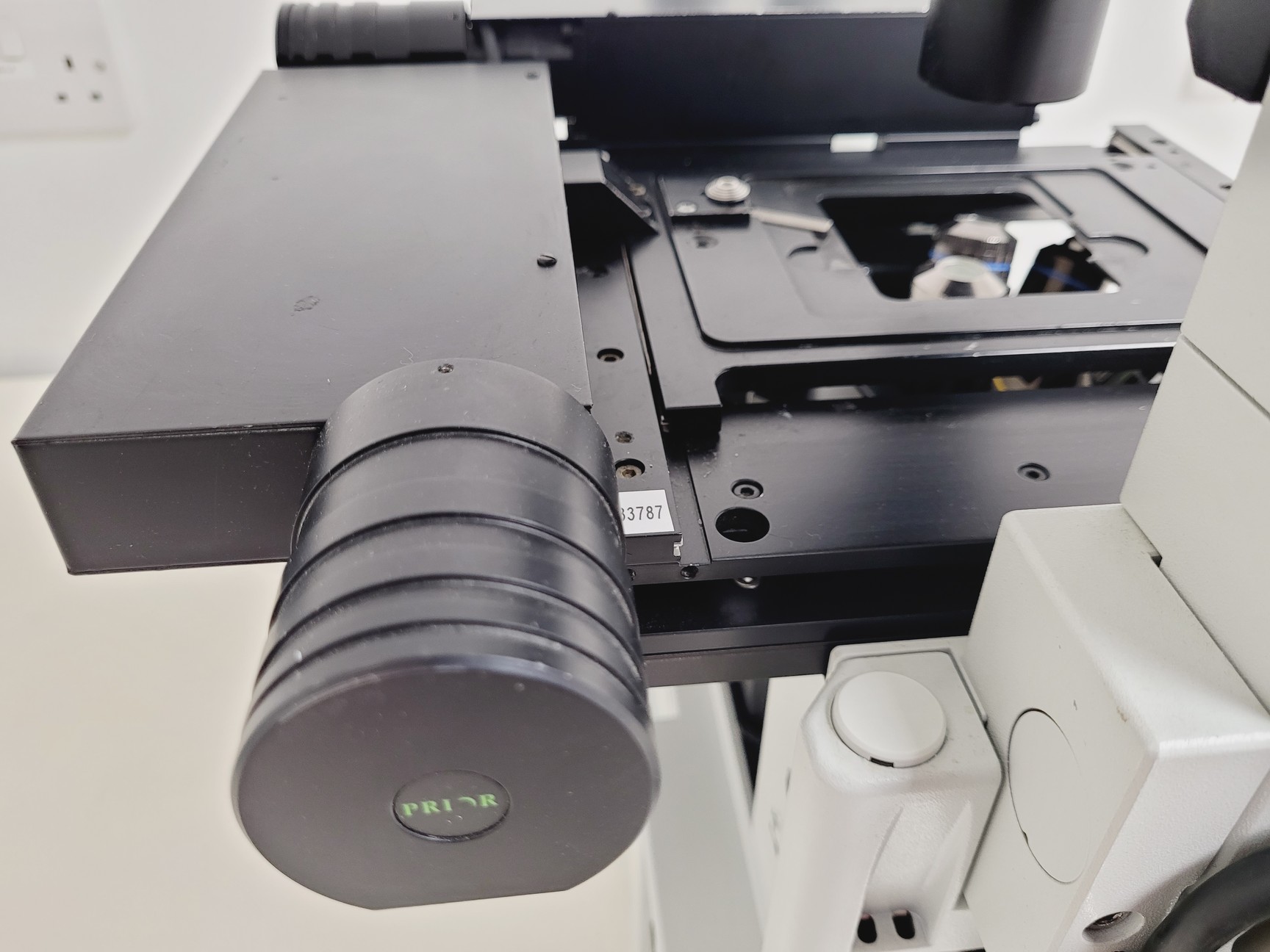

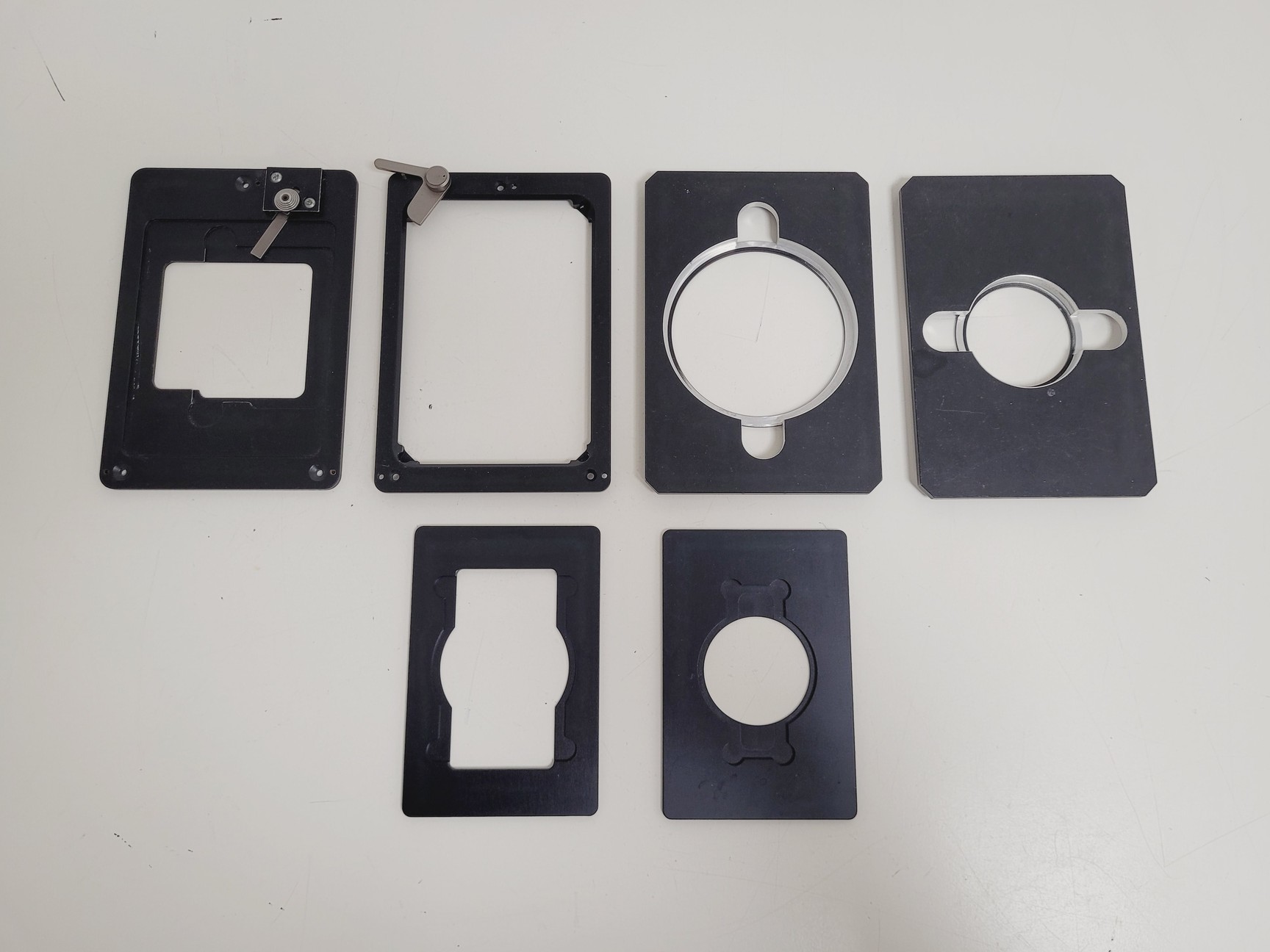

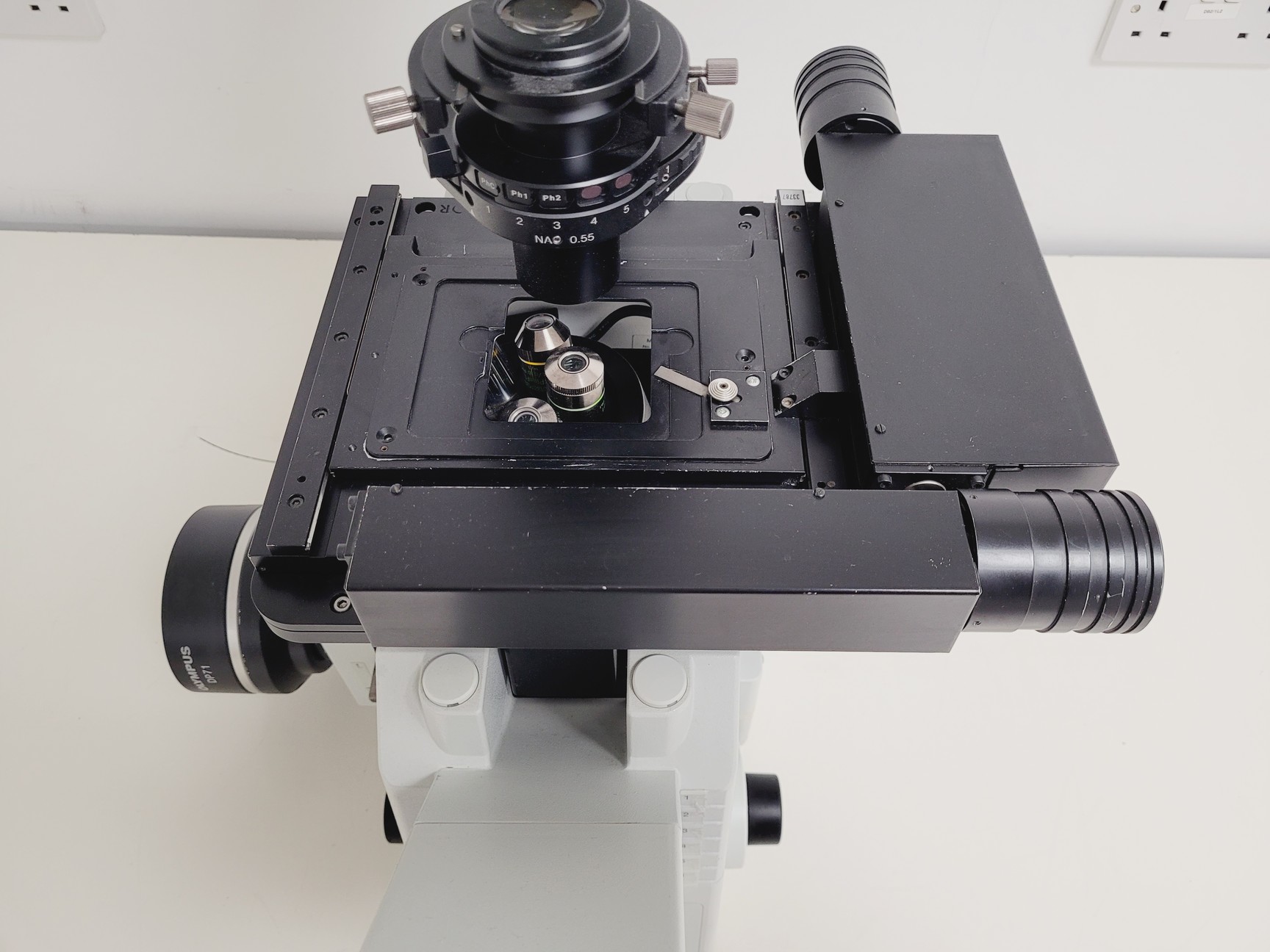

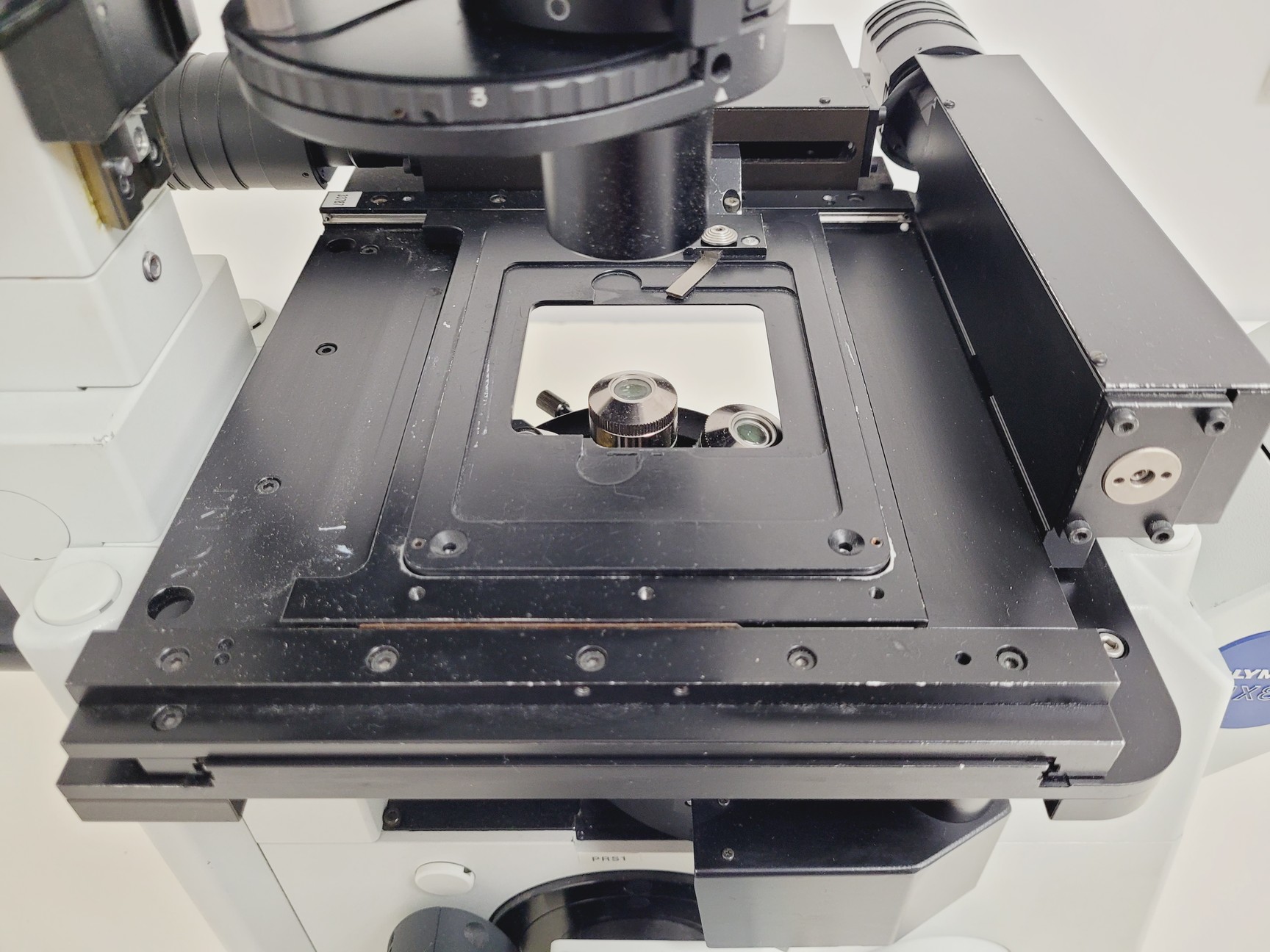

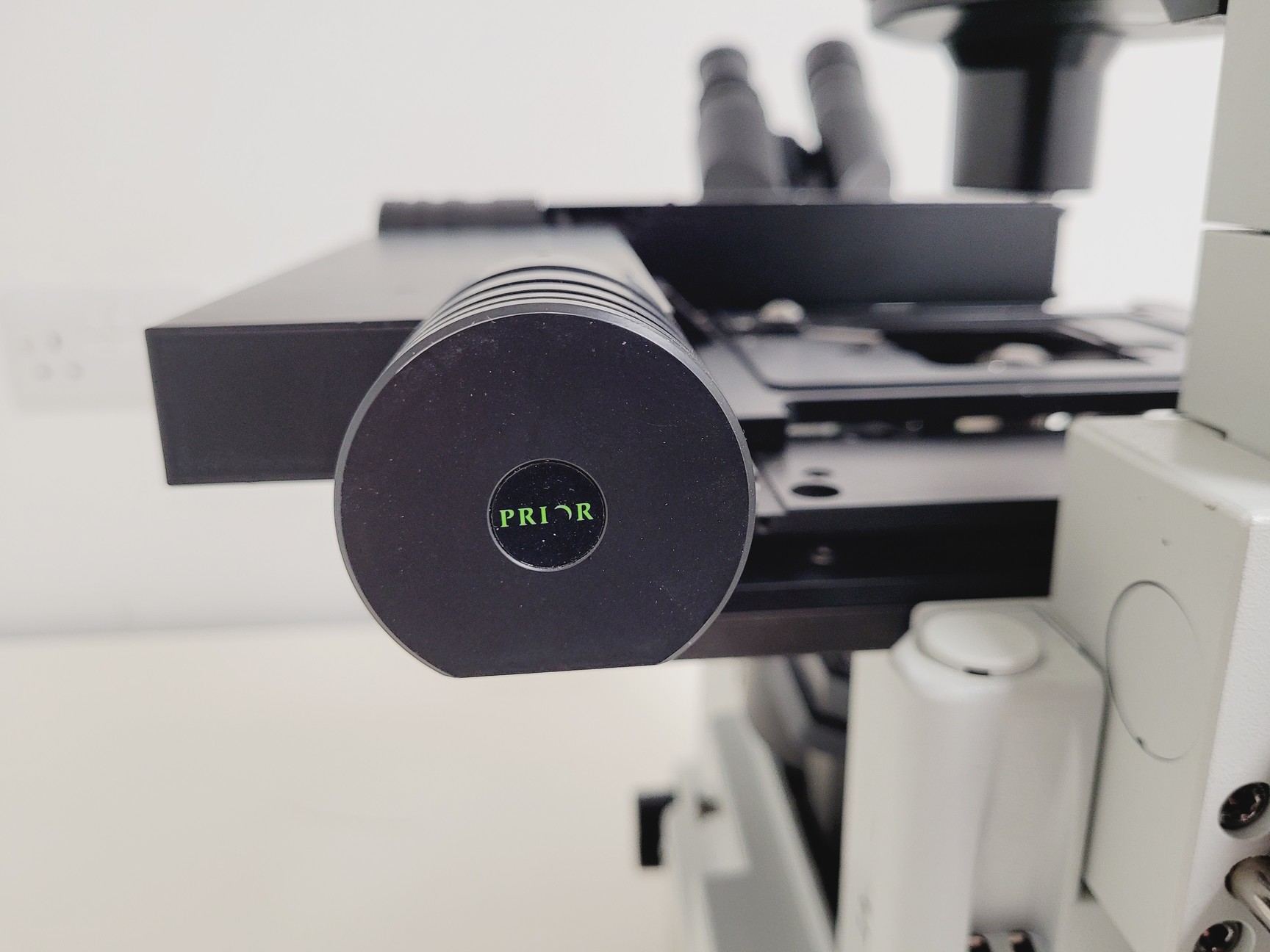

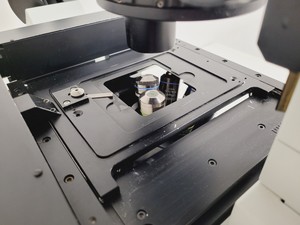

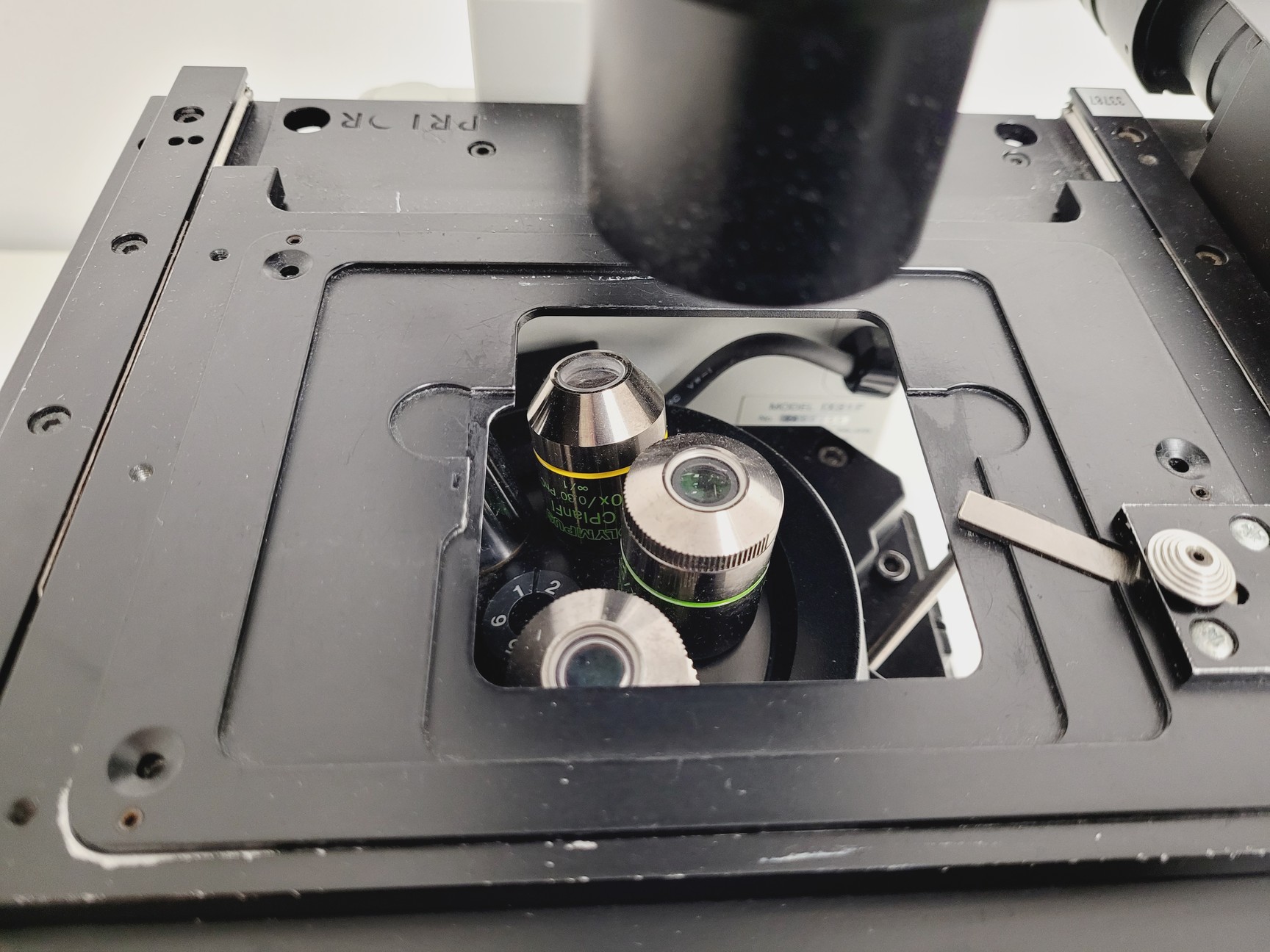

- 1 x Prior H107PIX2 Inverted Scanning Stage (With various inserts).

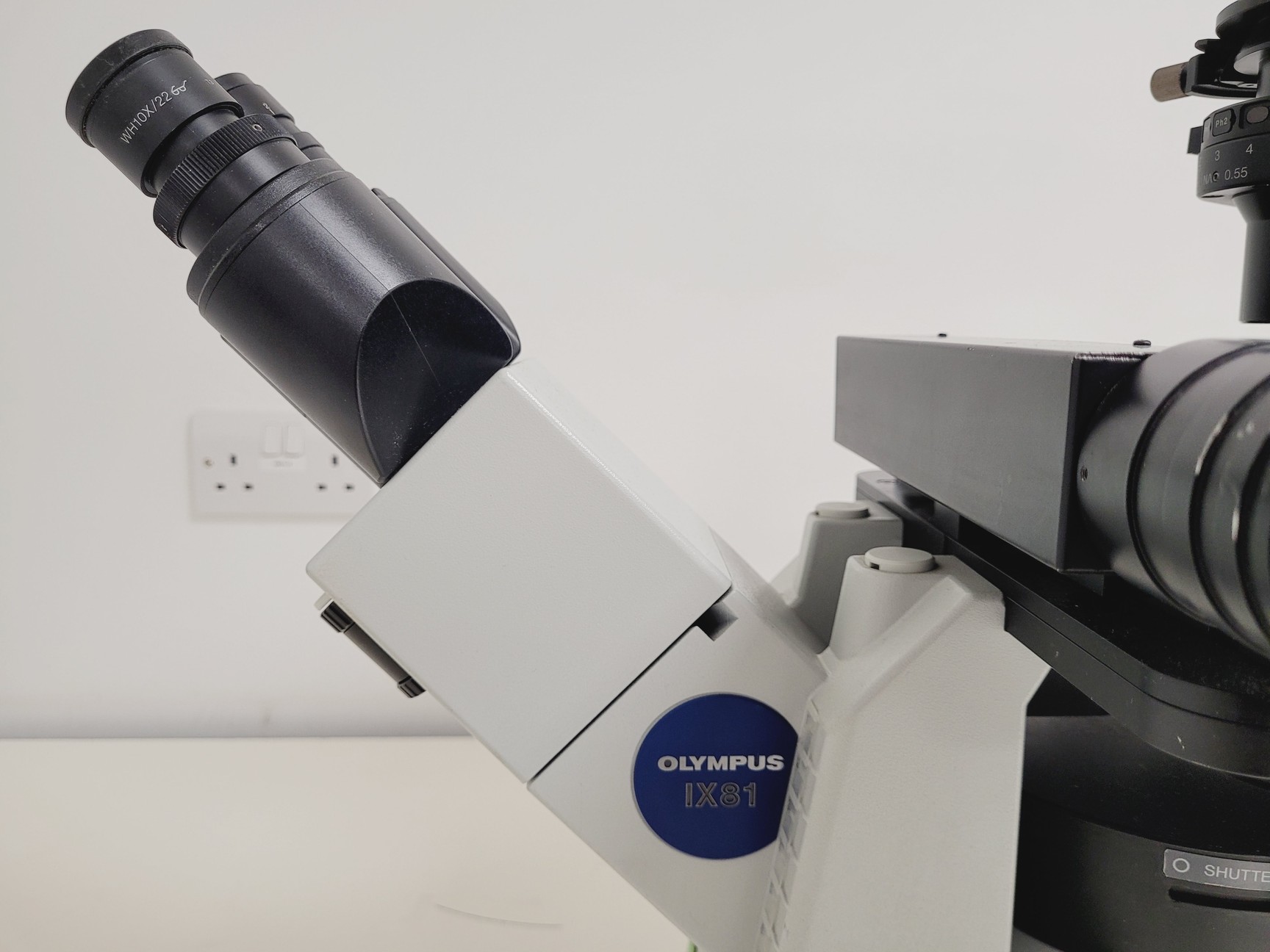

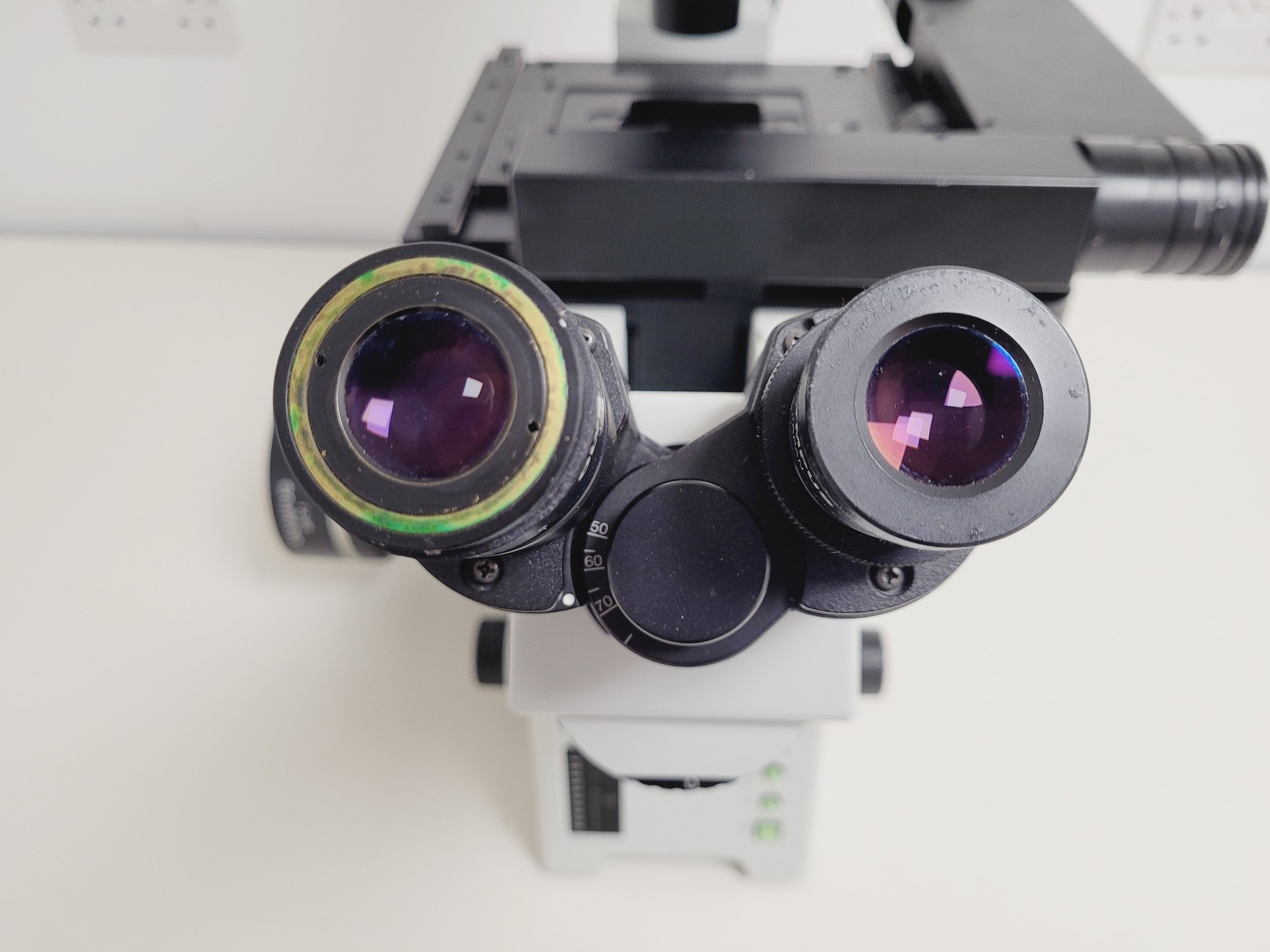

- 1 x Olympus U-BI90CT Binocular Head.
- 1 x Olympus WH10X/22 Eyepiece.
- 1 x Olympus WH10X-H/22 Eyepiece.

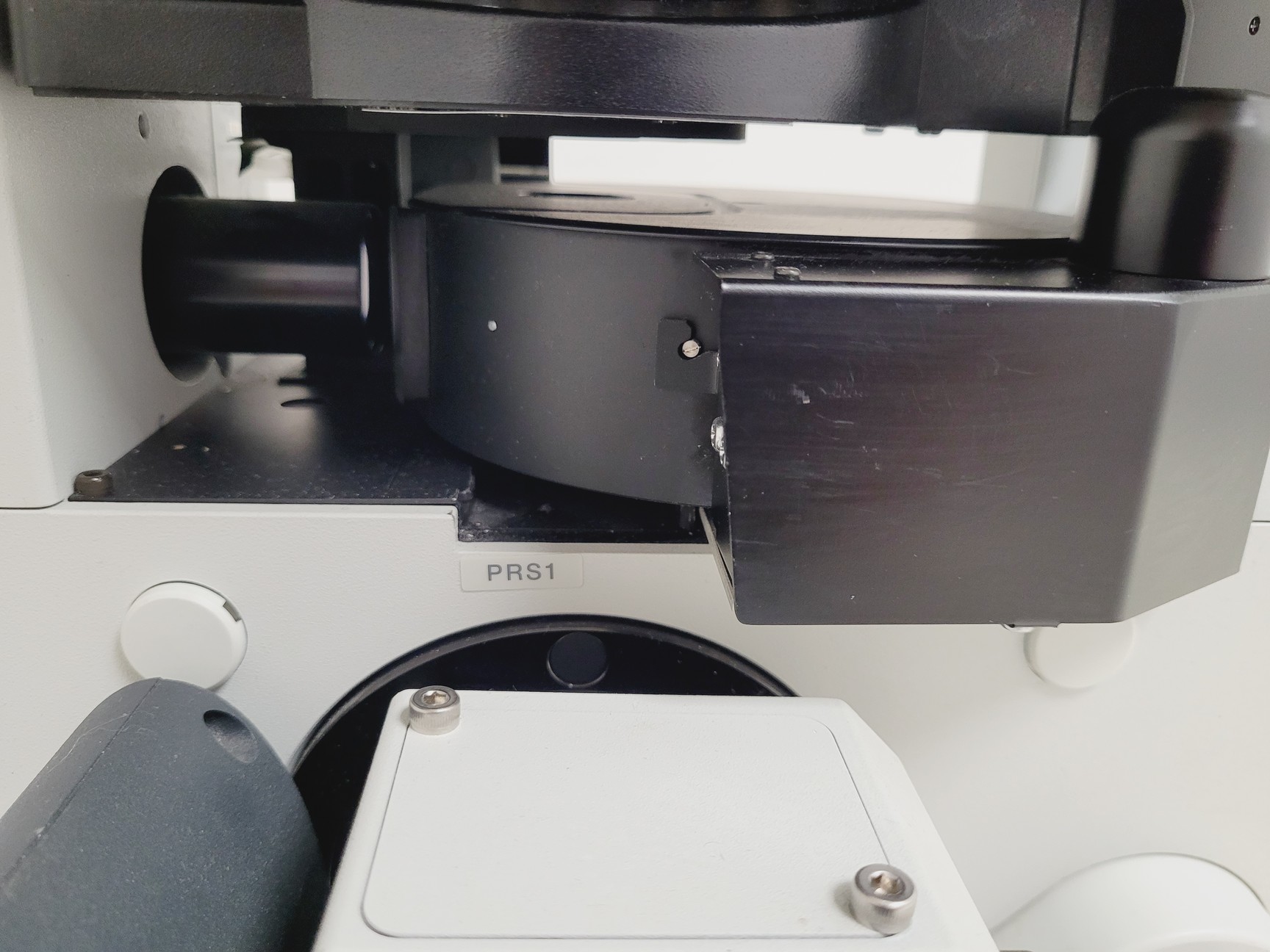

- 1 x Olympus IX2-RFACA Motorised 6 Position Florescence Cube Turret:
5 x Cubes fitted:
- U-MNIBA3
- TRITC
- U-MF2
- U-M61002 D/F/R 703
- U-M61009 CFP/YFP/CY5

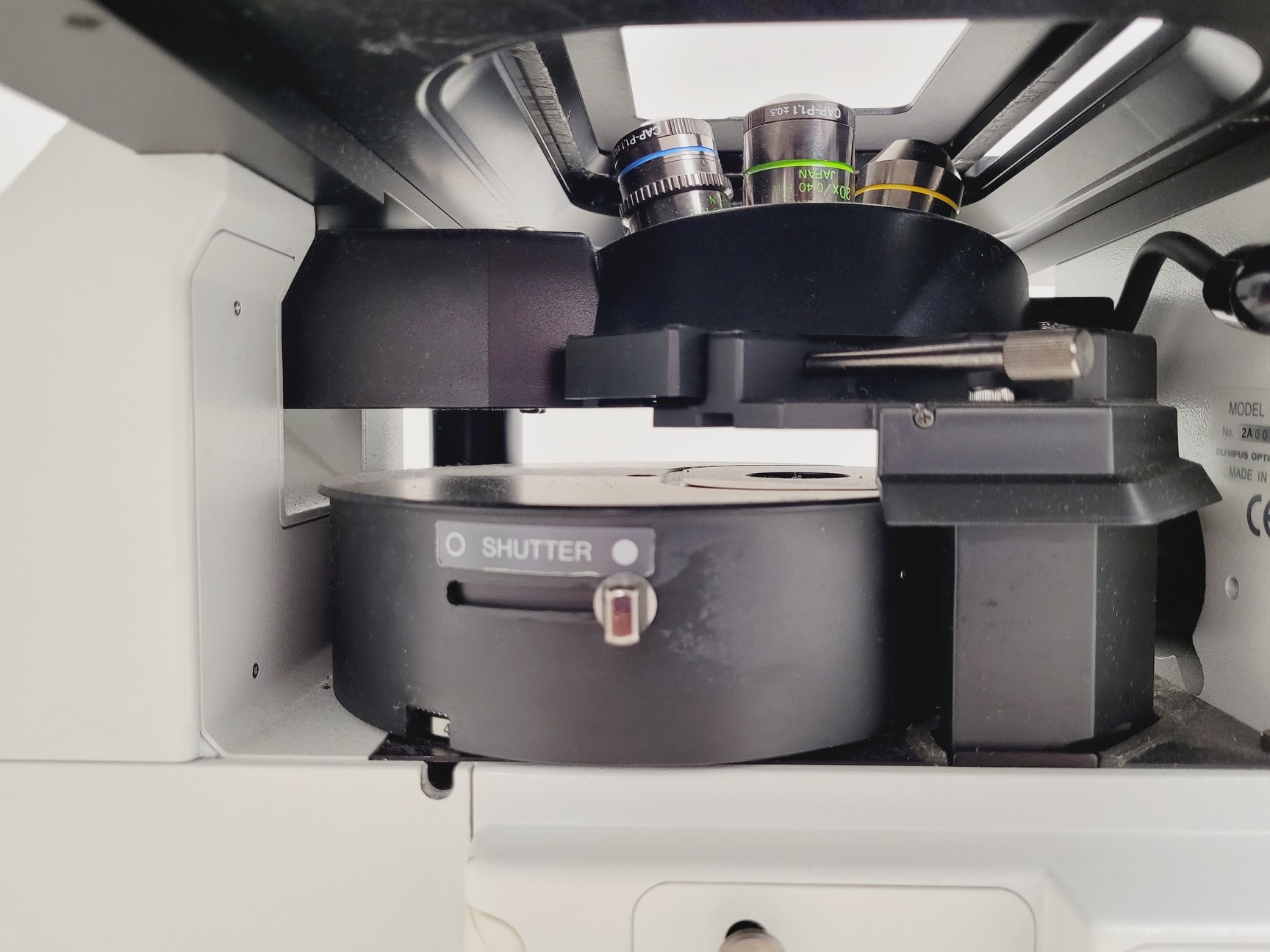

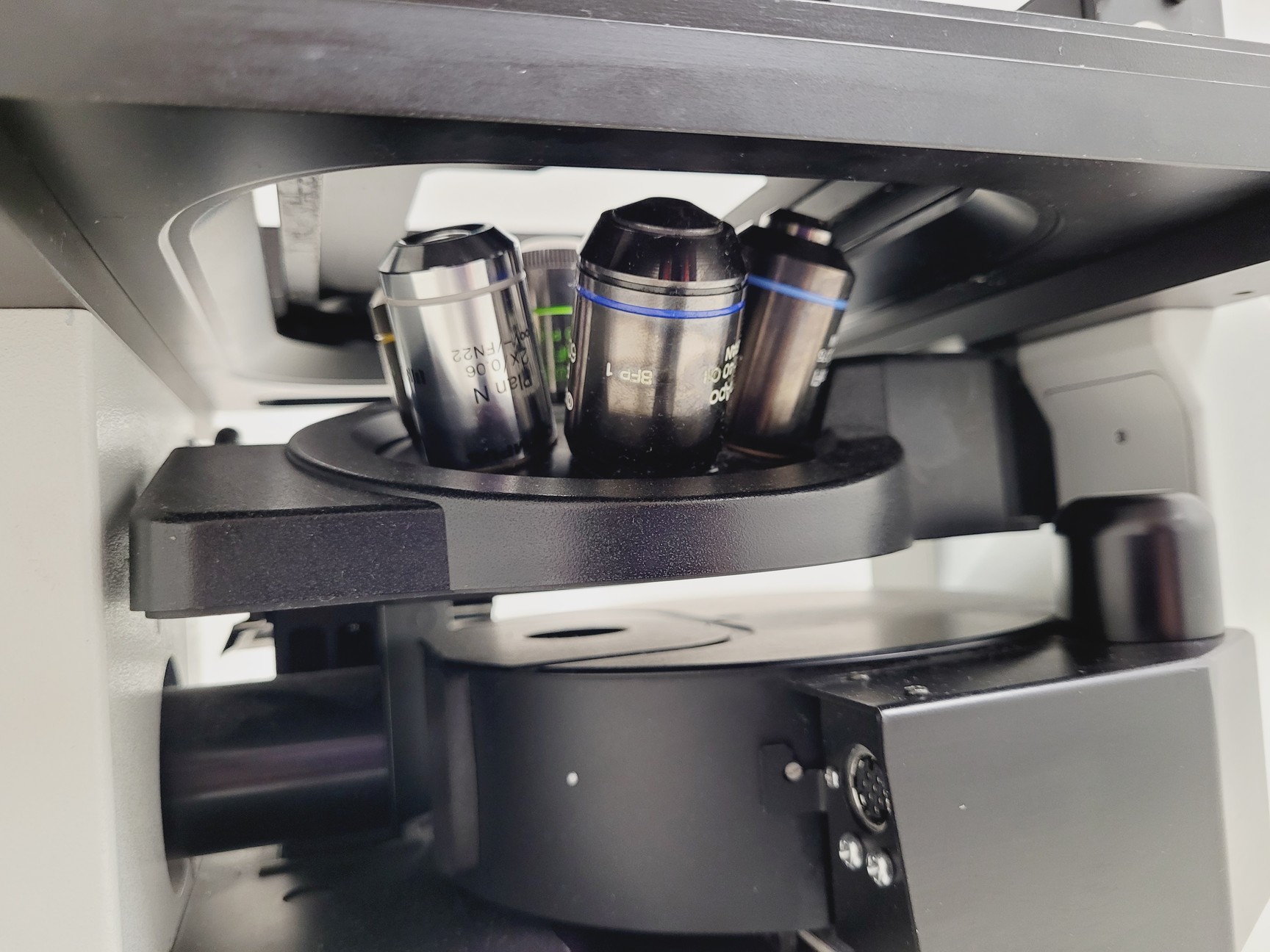

1x Olympus Motorised 6 Position nosepiece:
6 x Objectives Fitted:
- 1 x Olympus Plan N
2x/0.06
∞/-/FN22
- 1 x Olympus CPlanFl
10x/0.30 PhC
∞/1
- 1 x Olympus LCPlanFl
20x/0.40 Ph1
∞/
- 1 x Olympus LCPlanFl
40x/0.60 Ph2
∞/
- 1 x Olympus UPlanFl
40x/0.75
∞/0.17
- 1 x Olympus PlanApo
60x/1,40 Oil
∞/0,17
- 1 x Olympus U-DPCAD Dual Port C Mount Adapter.

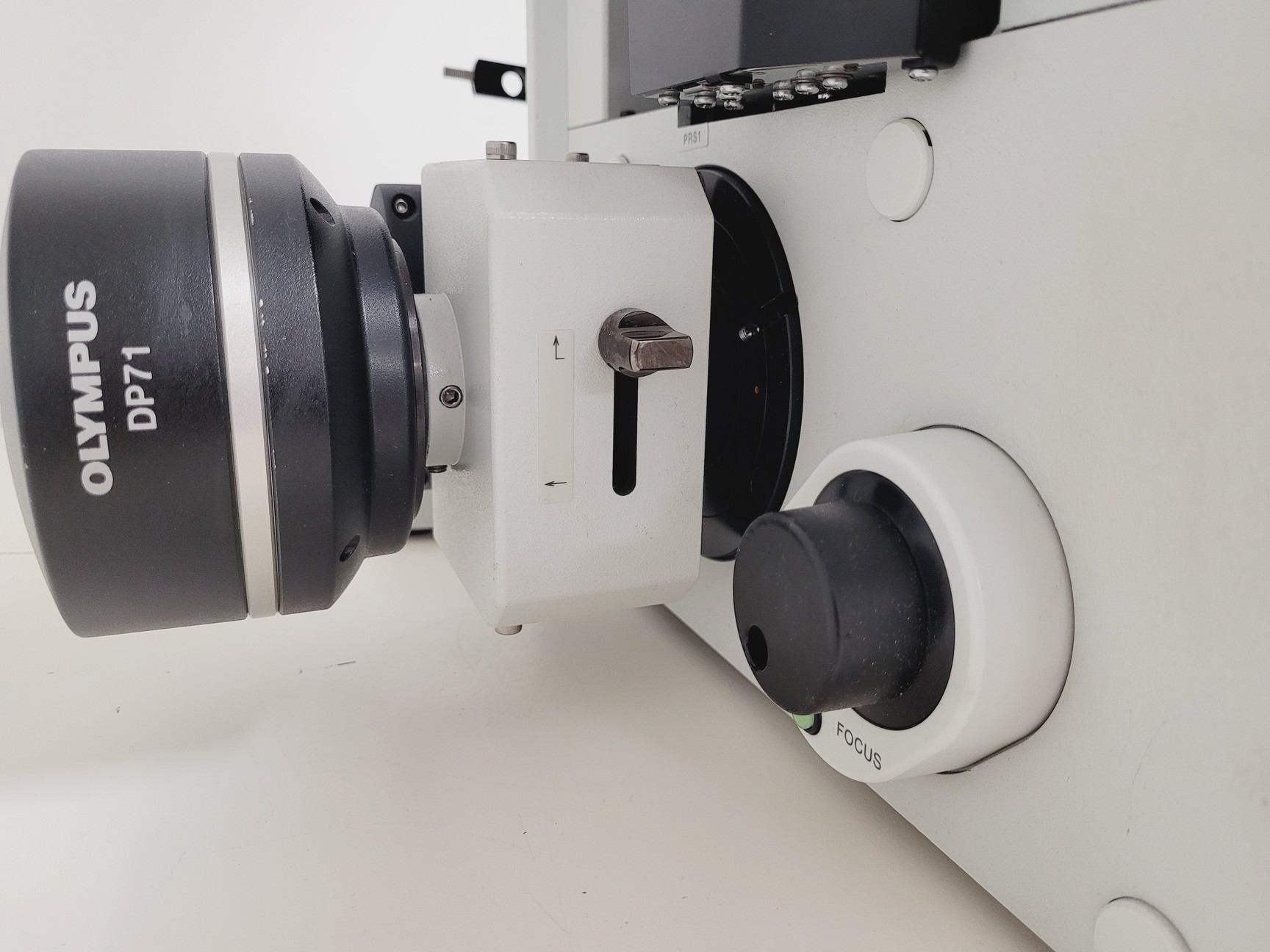

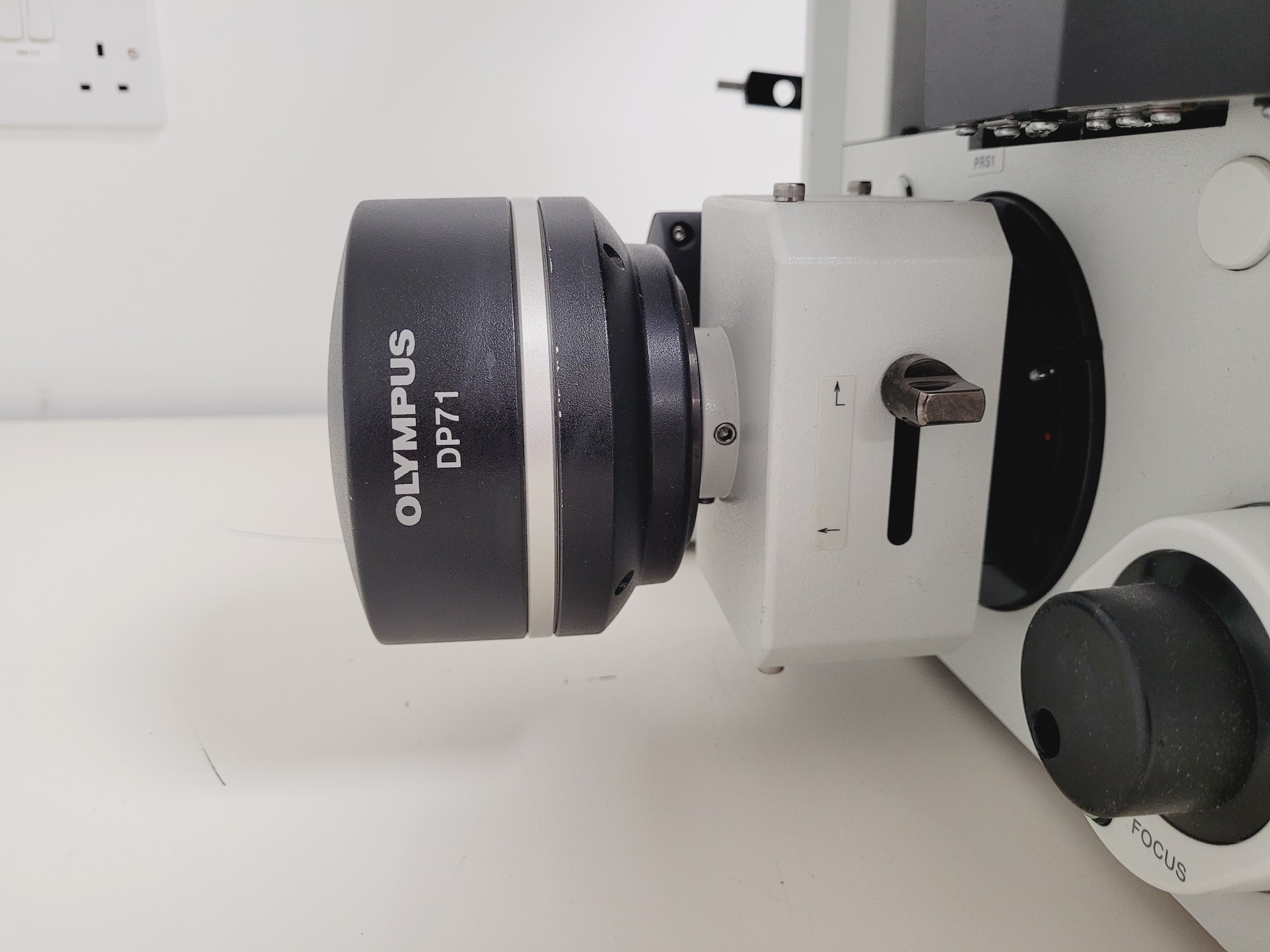

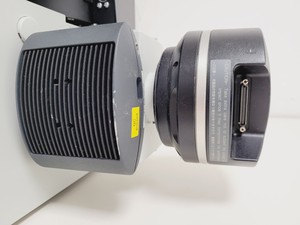

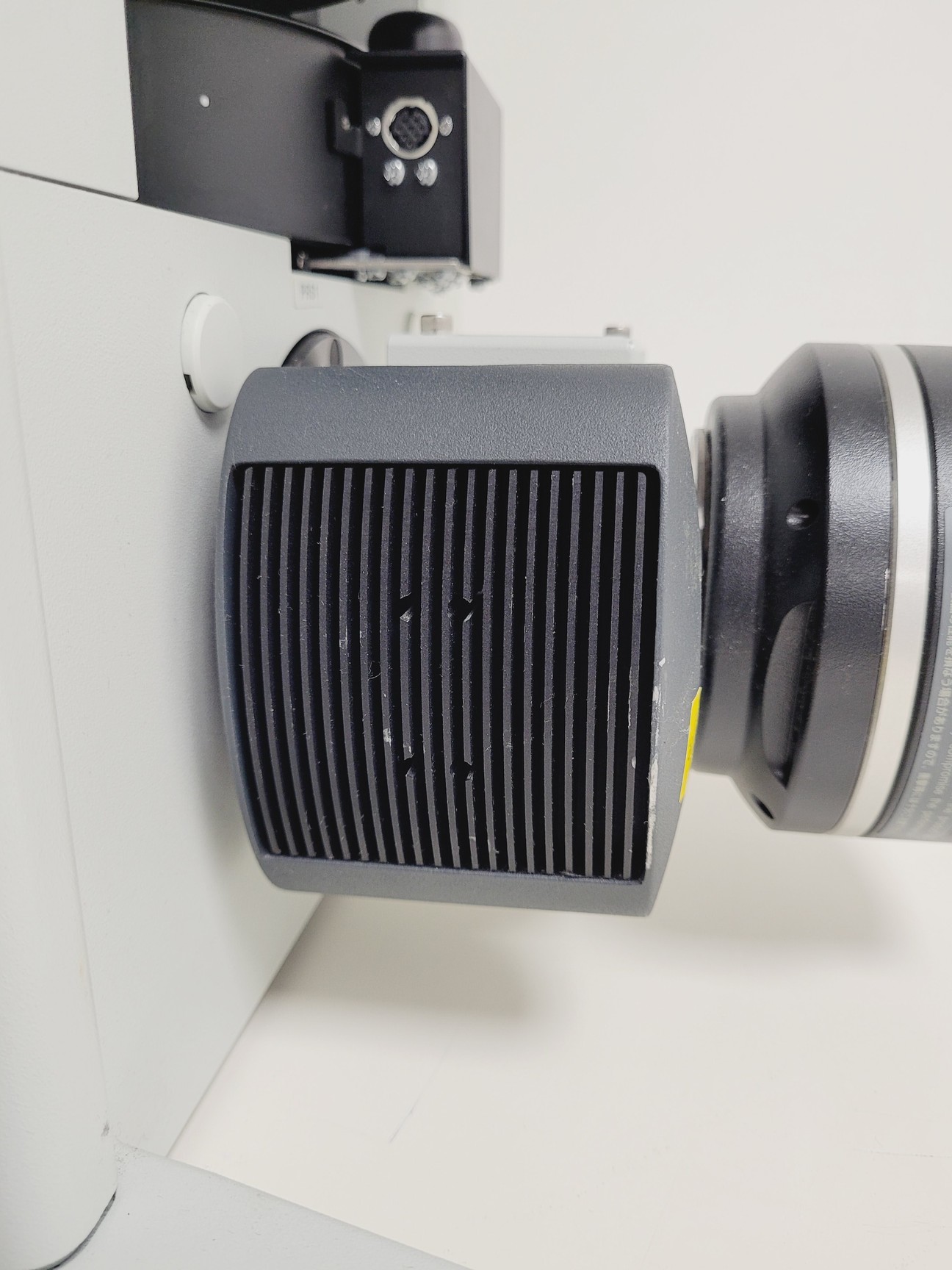

- 1 x Olympus DP71 Camera.
- 1 x Olympus F-View II Camera.

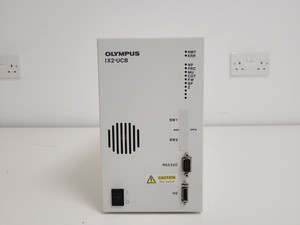

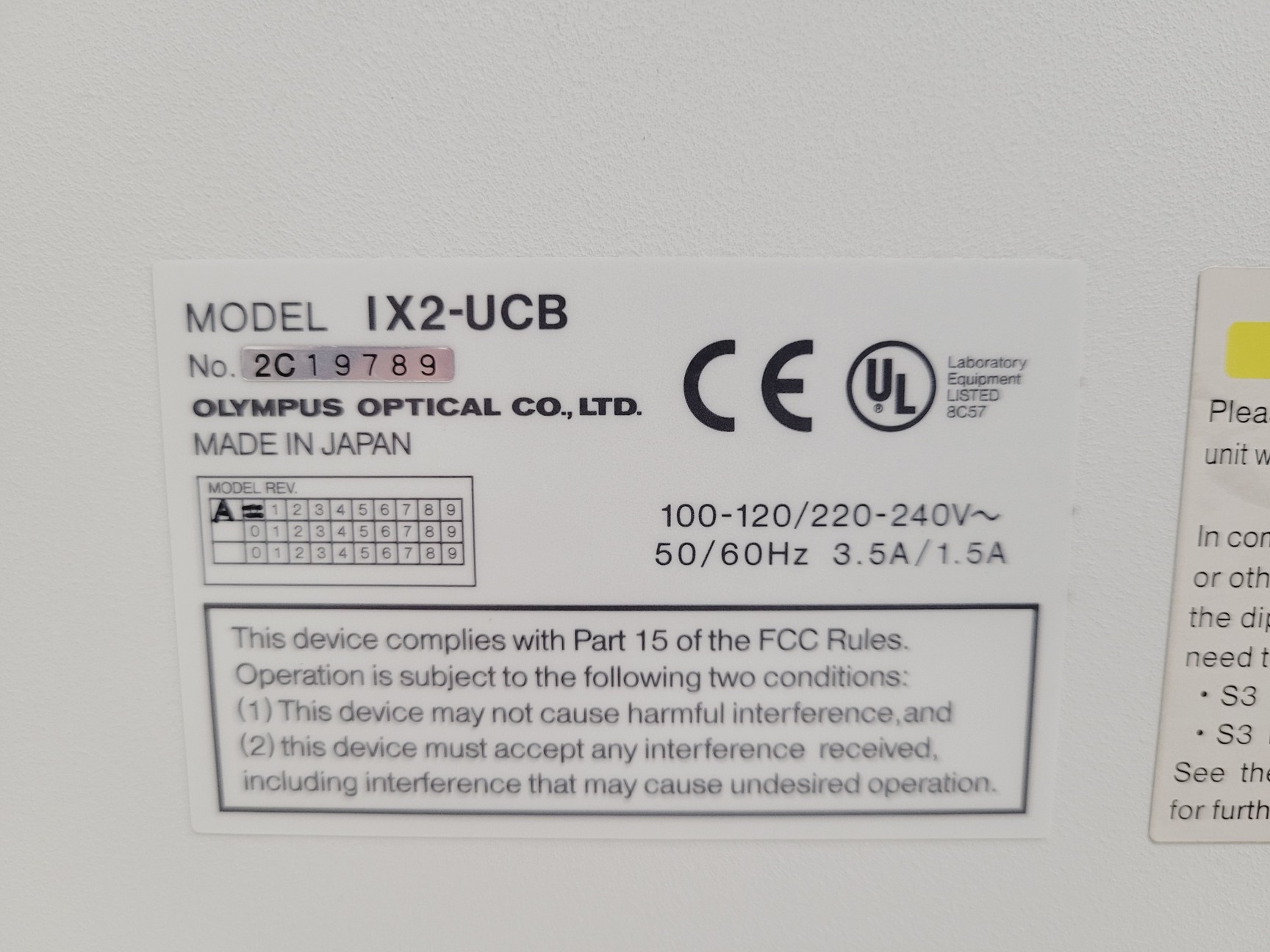

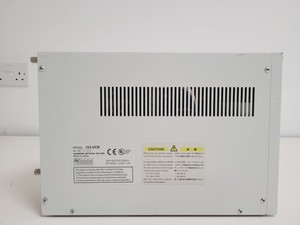

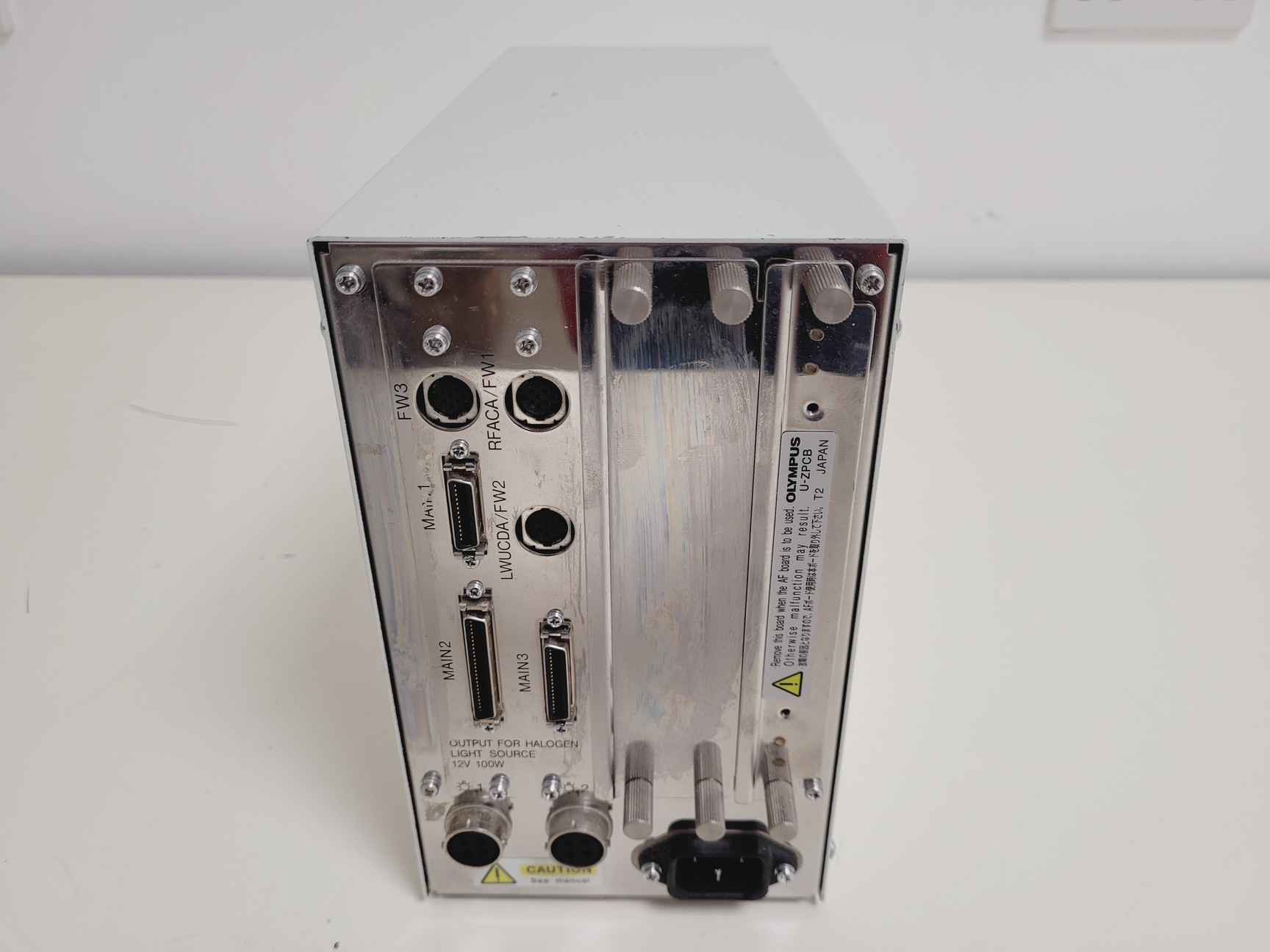

- 1 x Olympus IX2-UCB Controller.

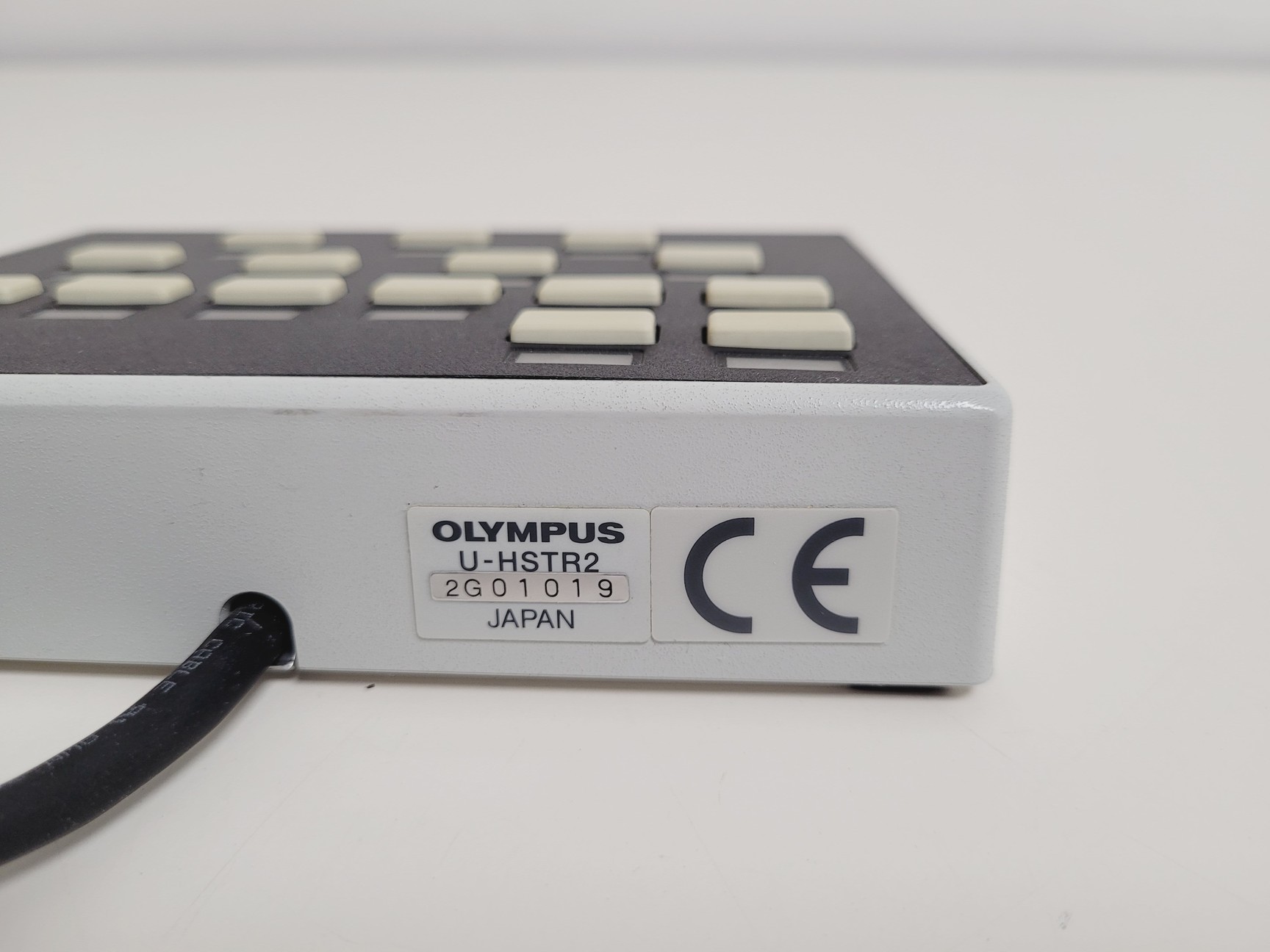

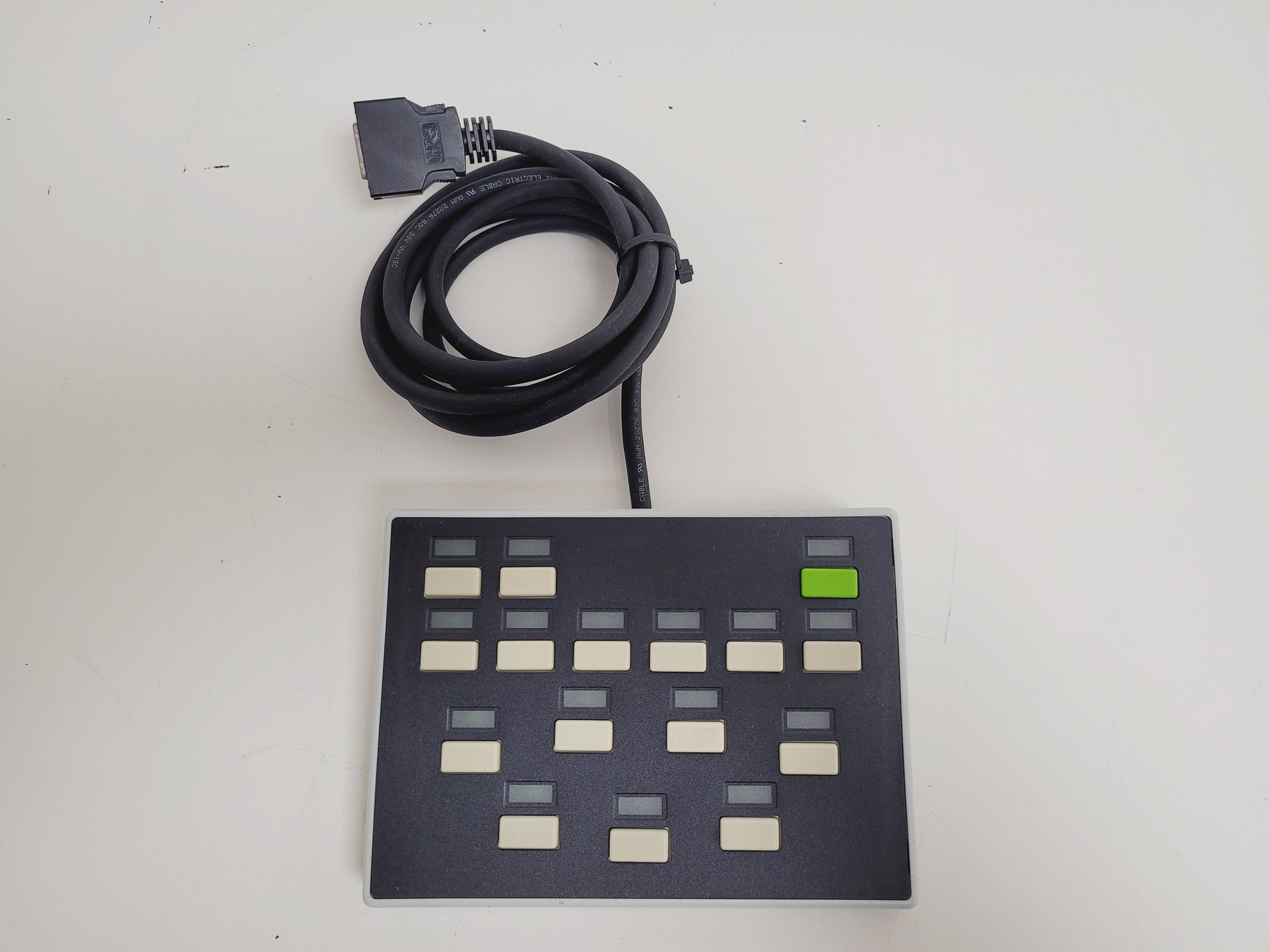

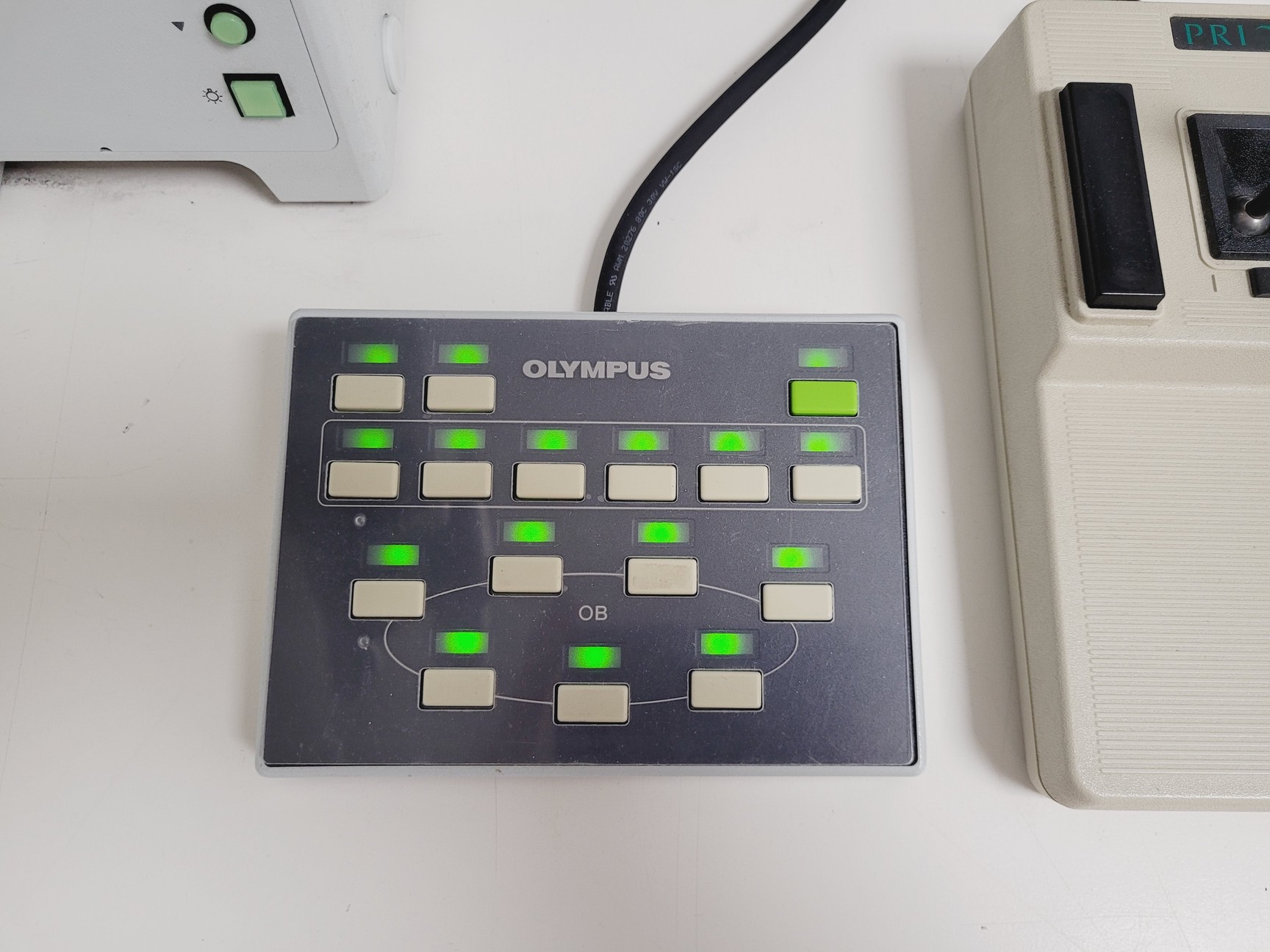

- With Olympus U-HSTR2 Remote.

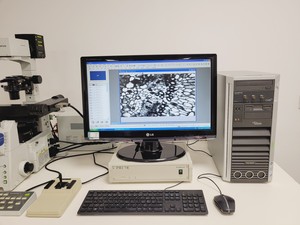

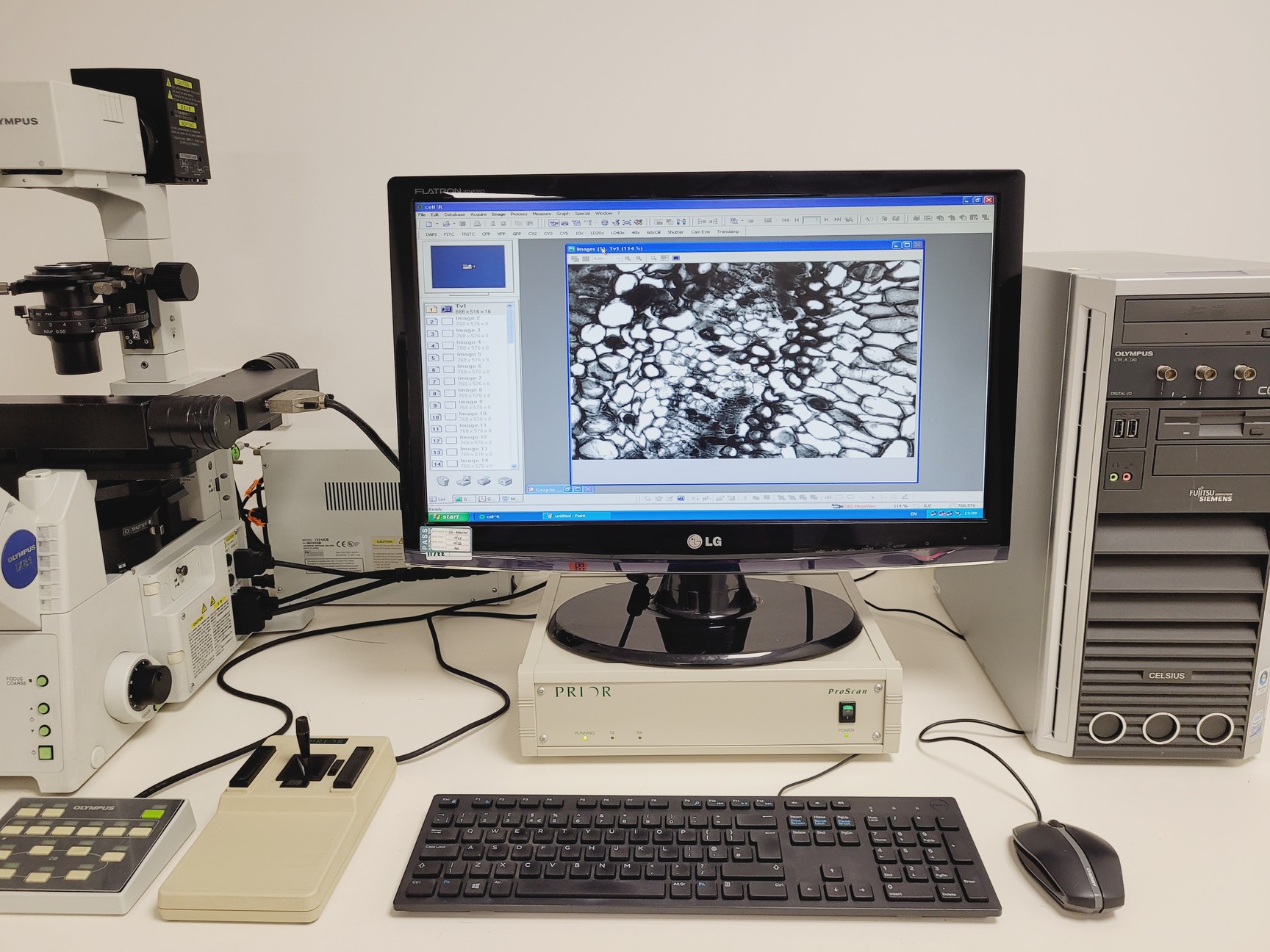

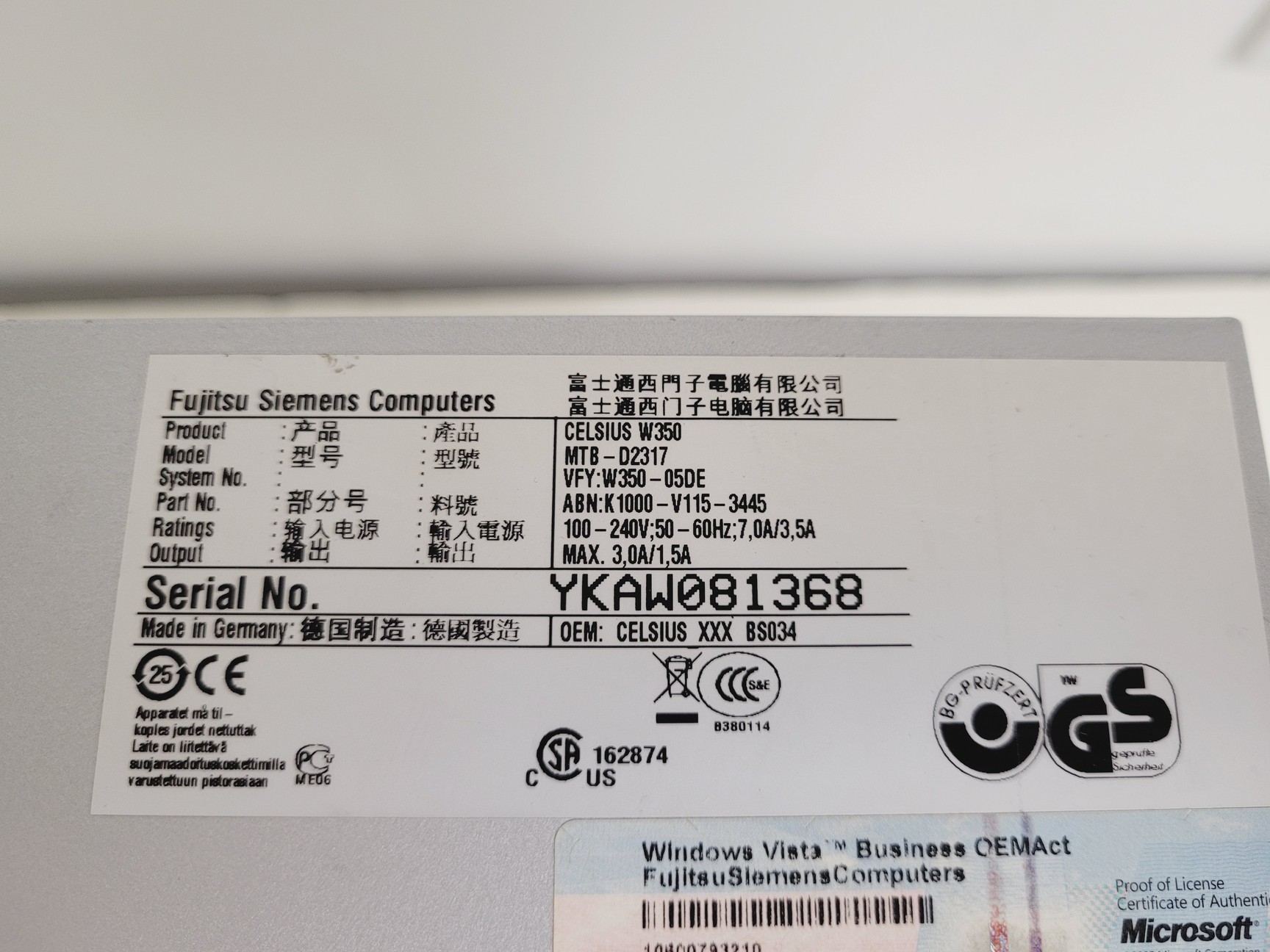

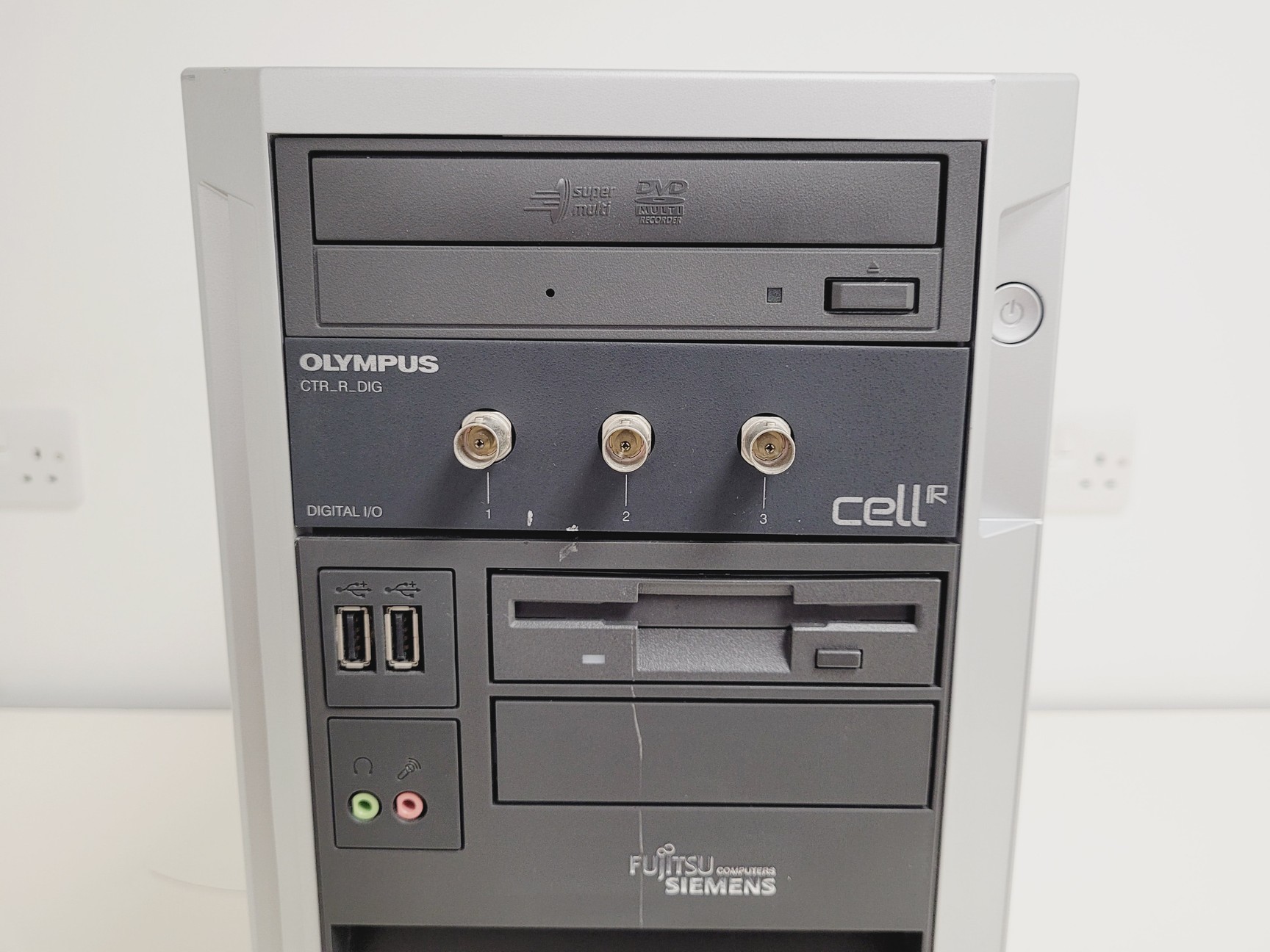

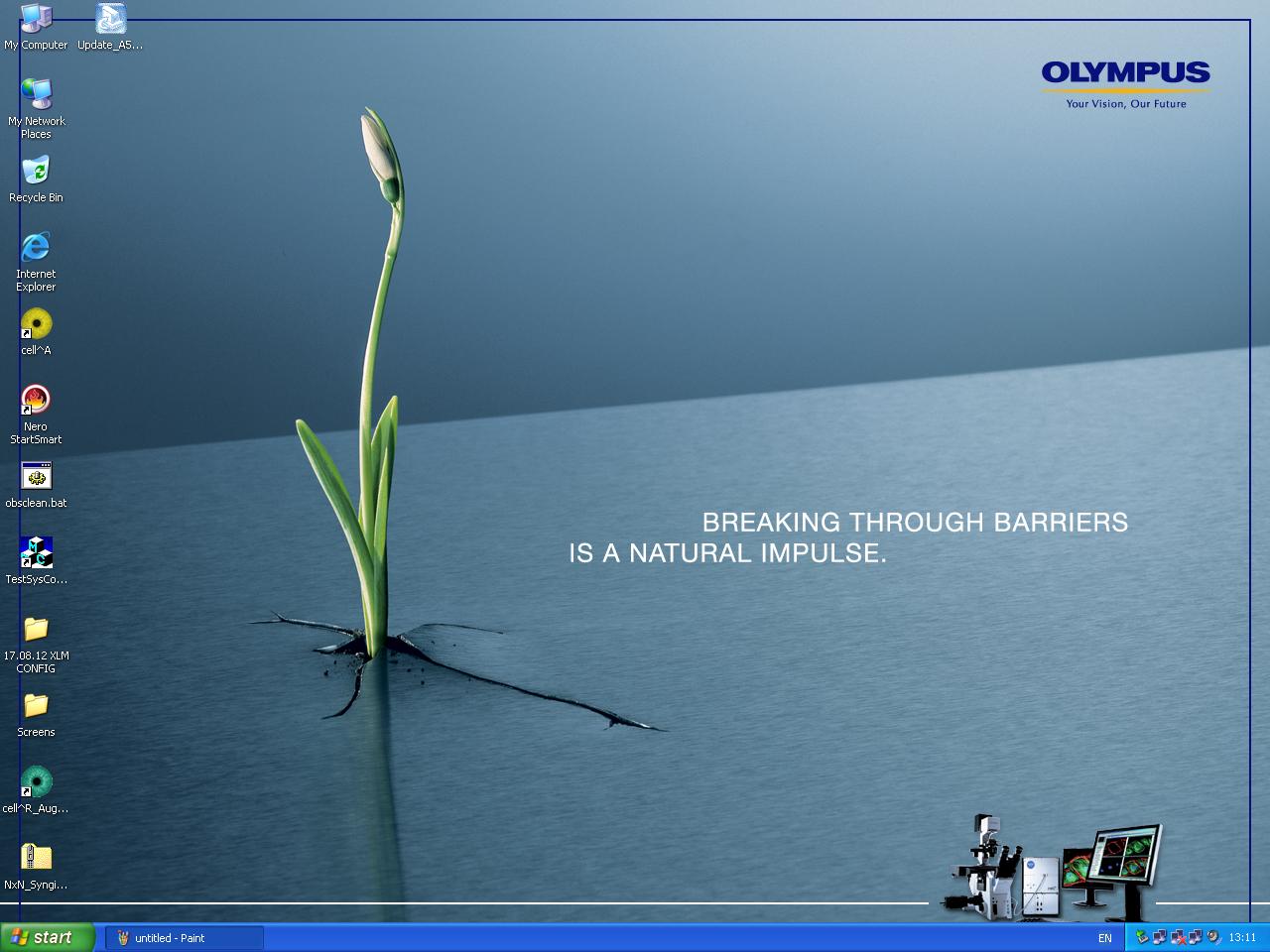

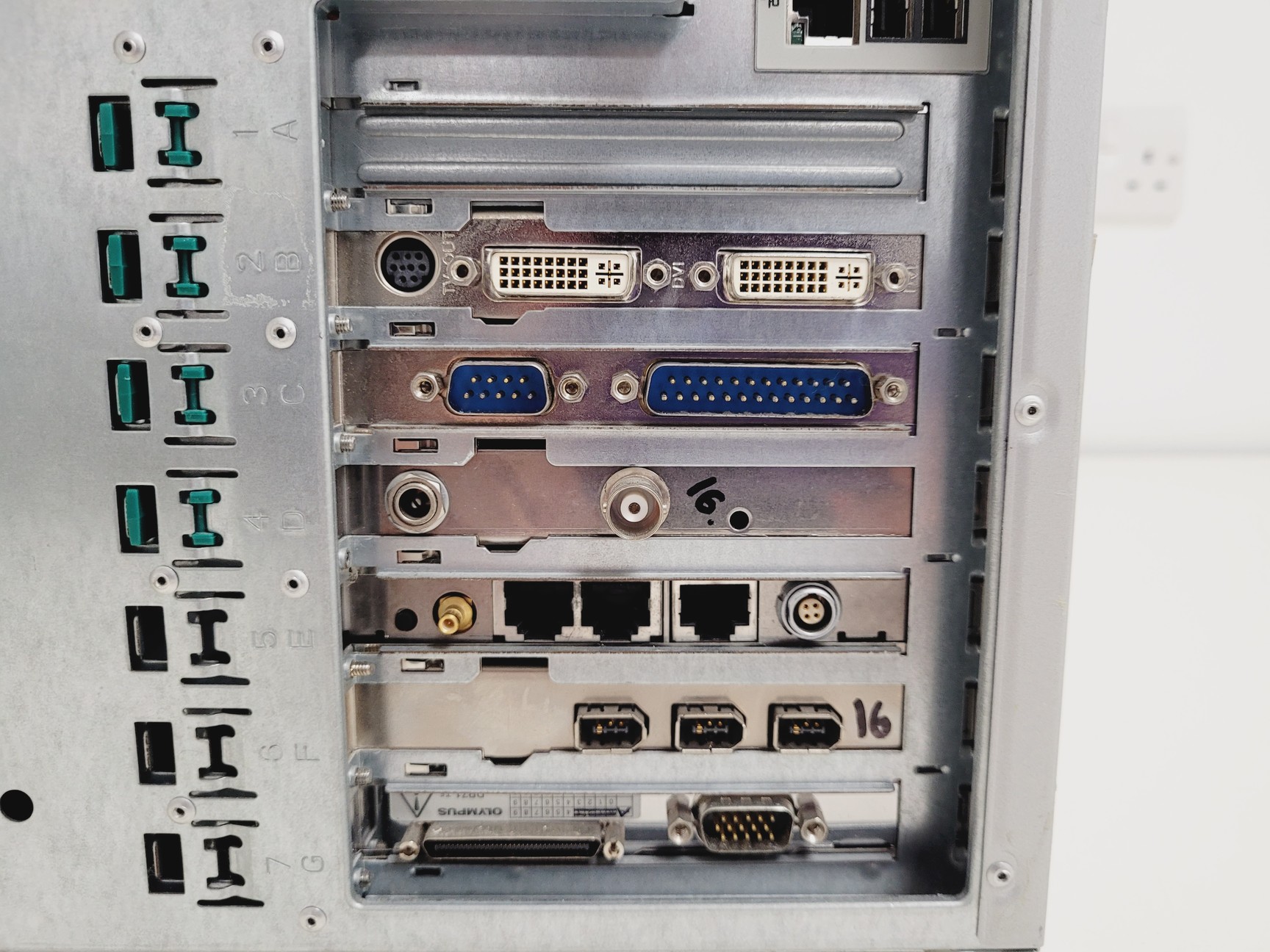

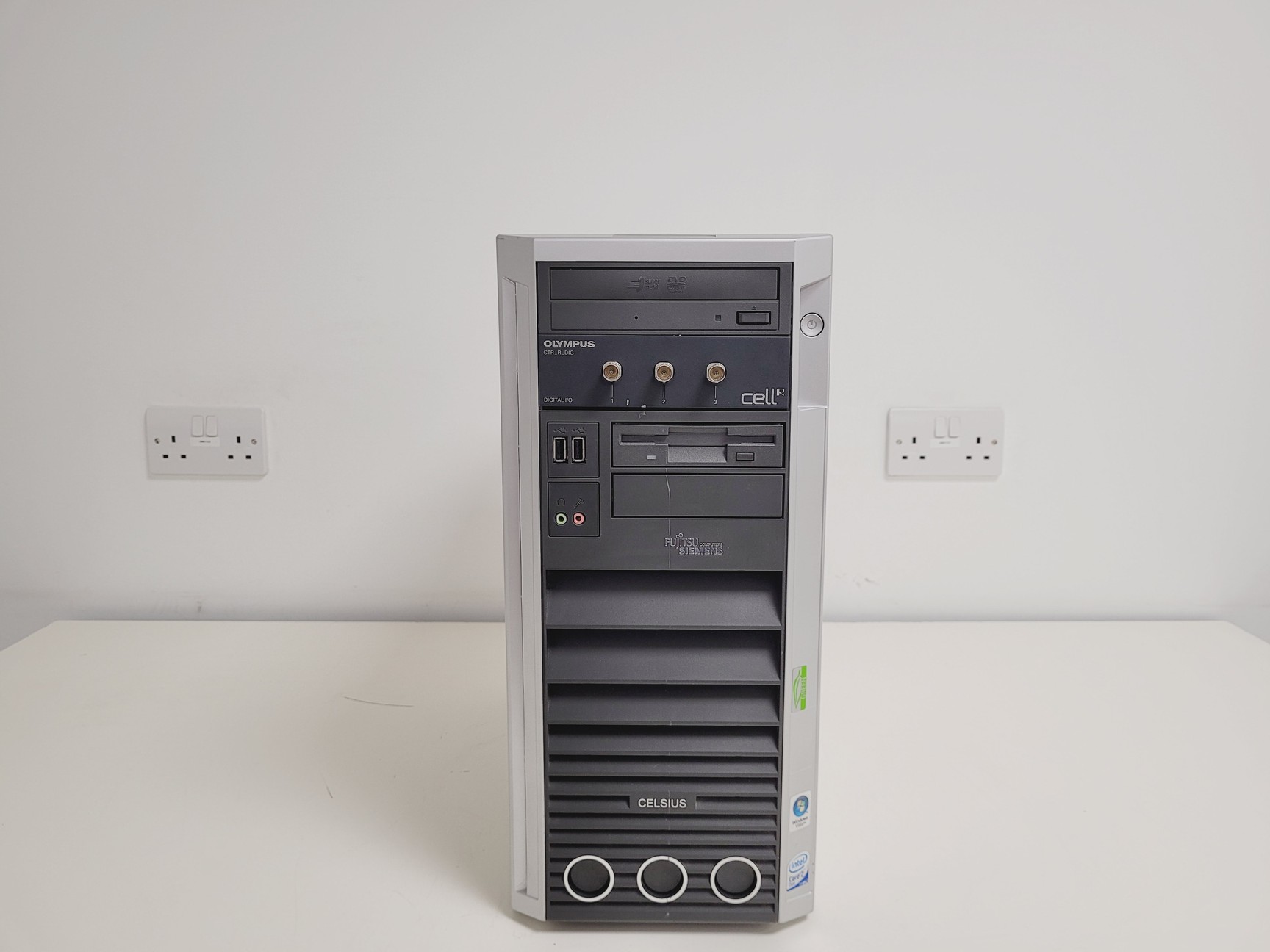

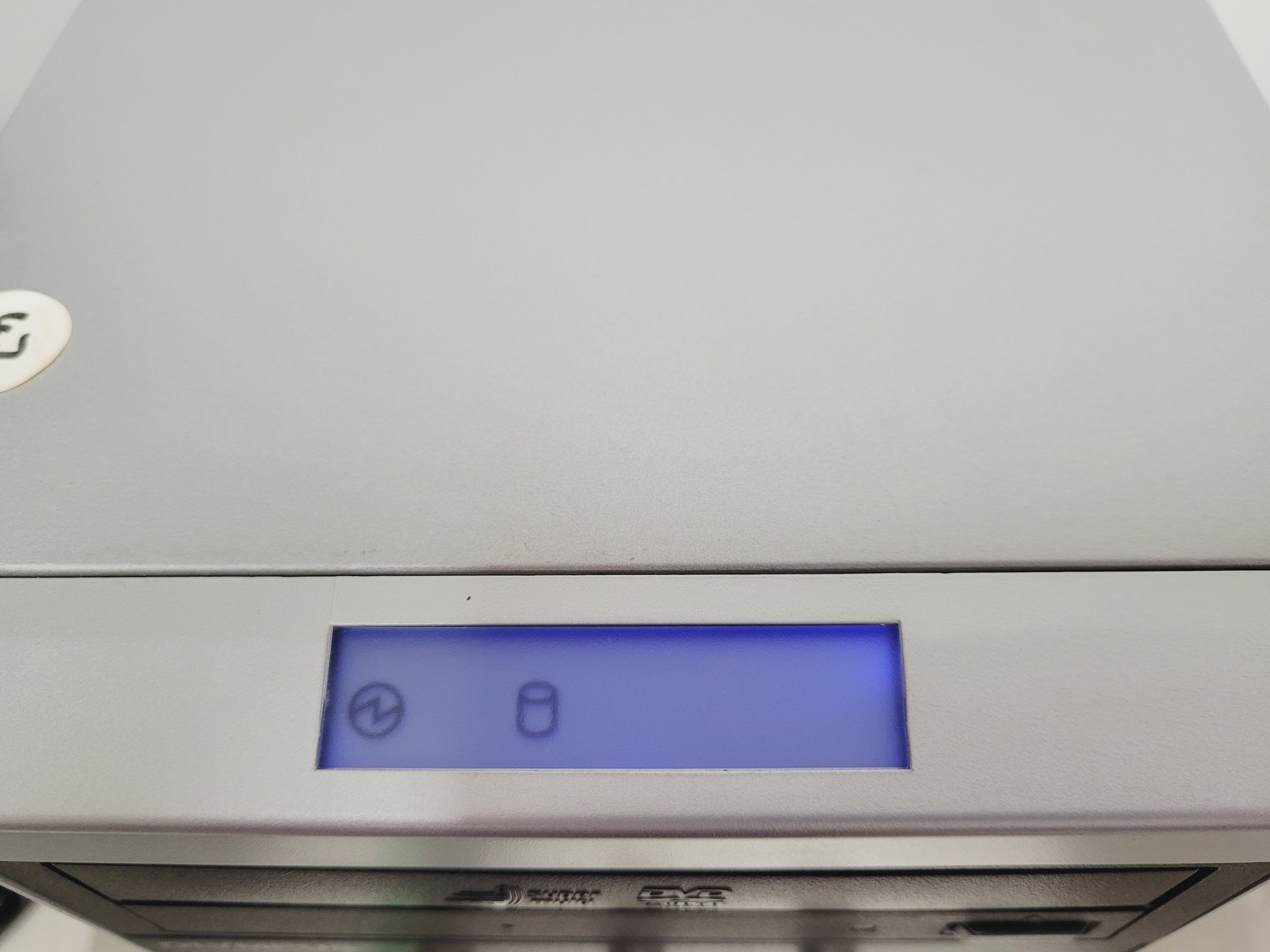

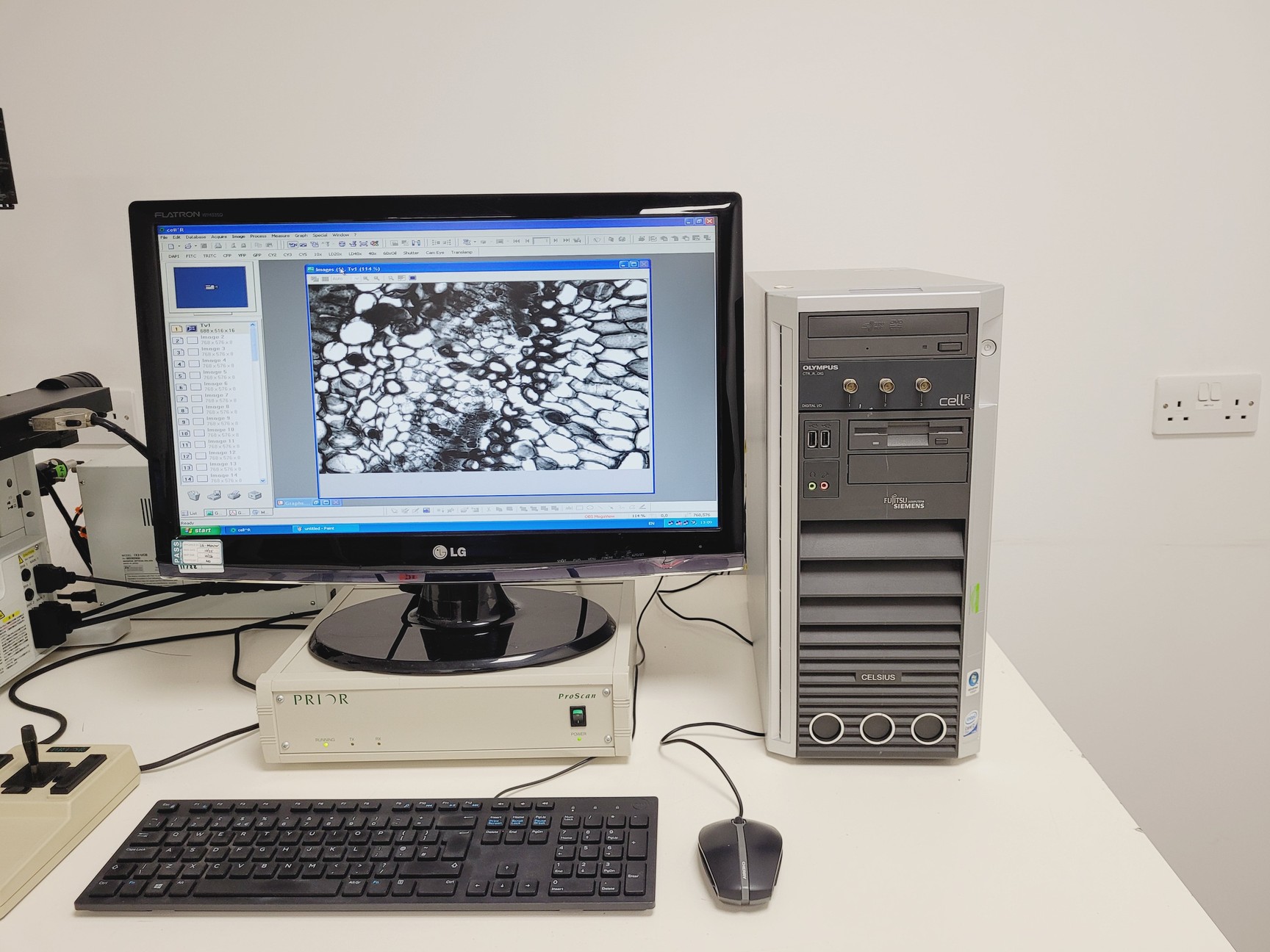

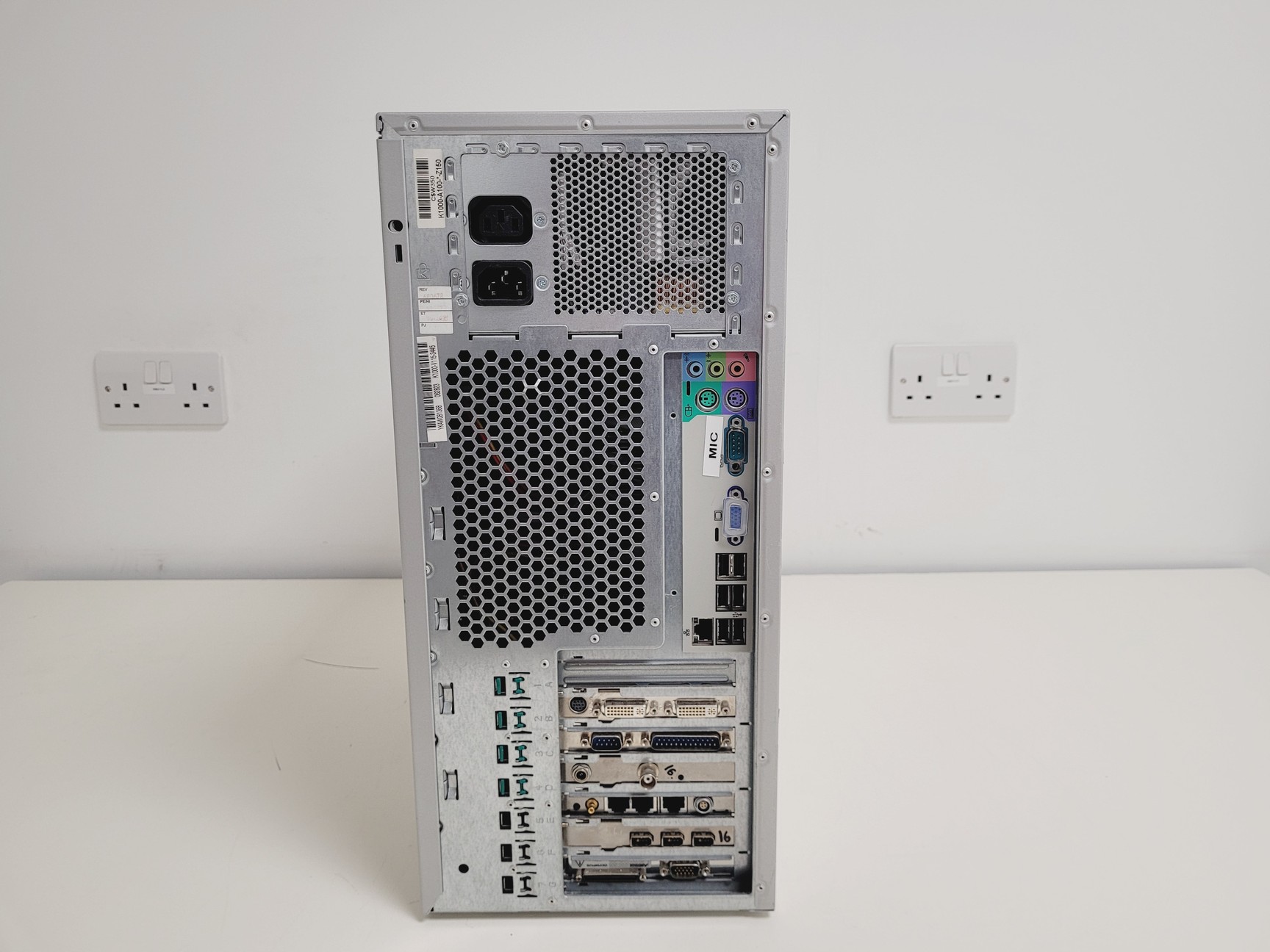

- 1 x Fujitsu Siemens PC running:
- Windows XP

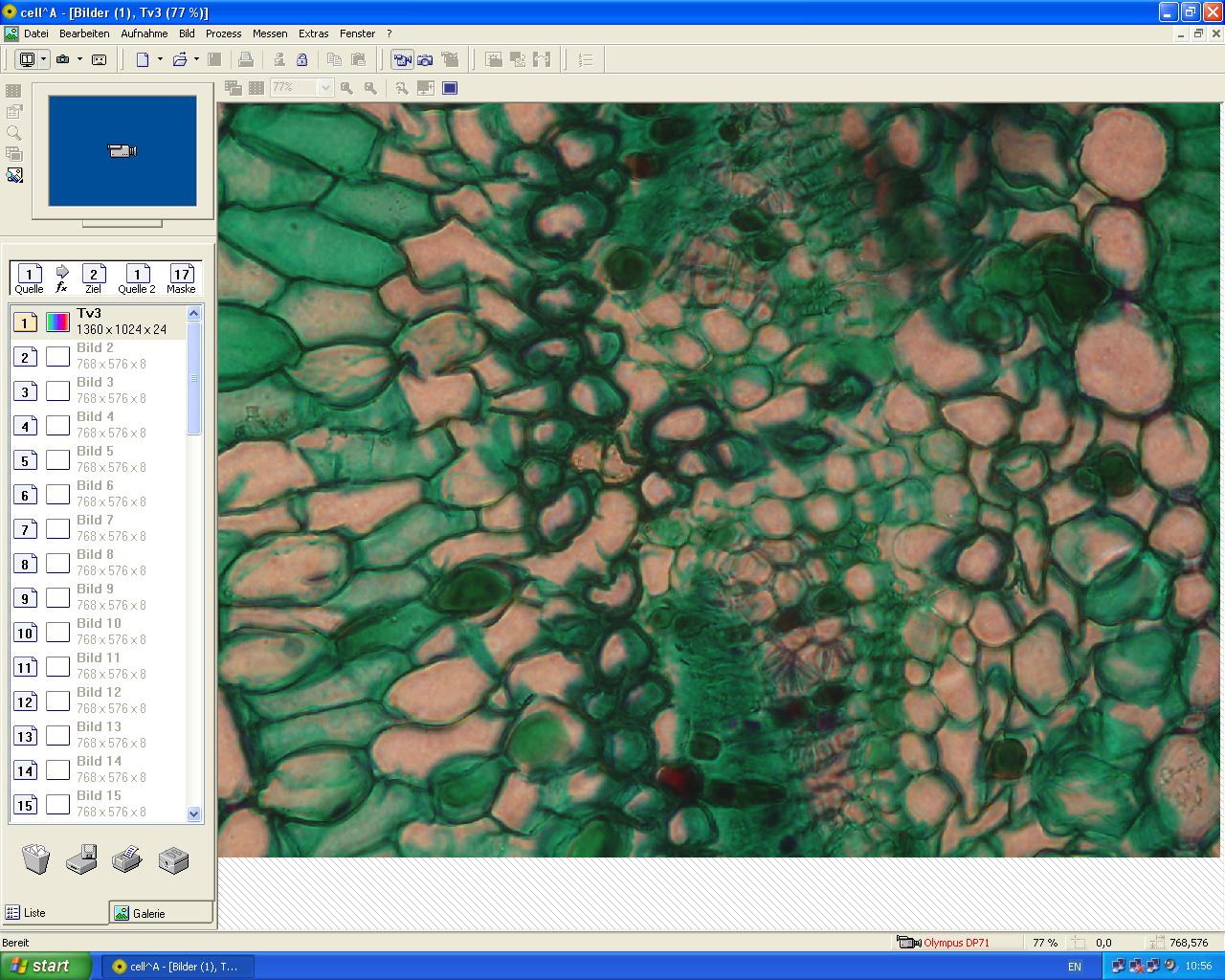

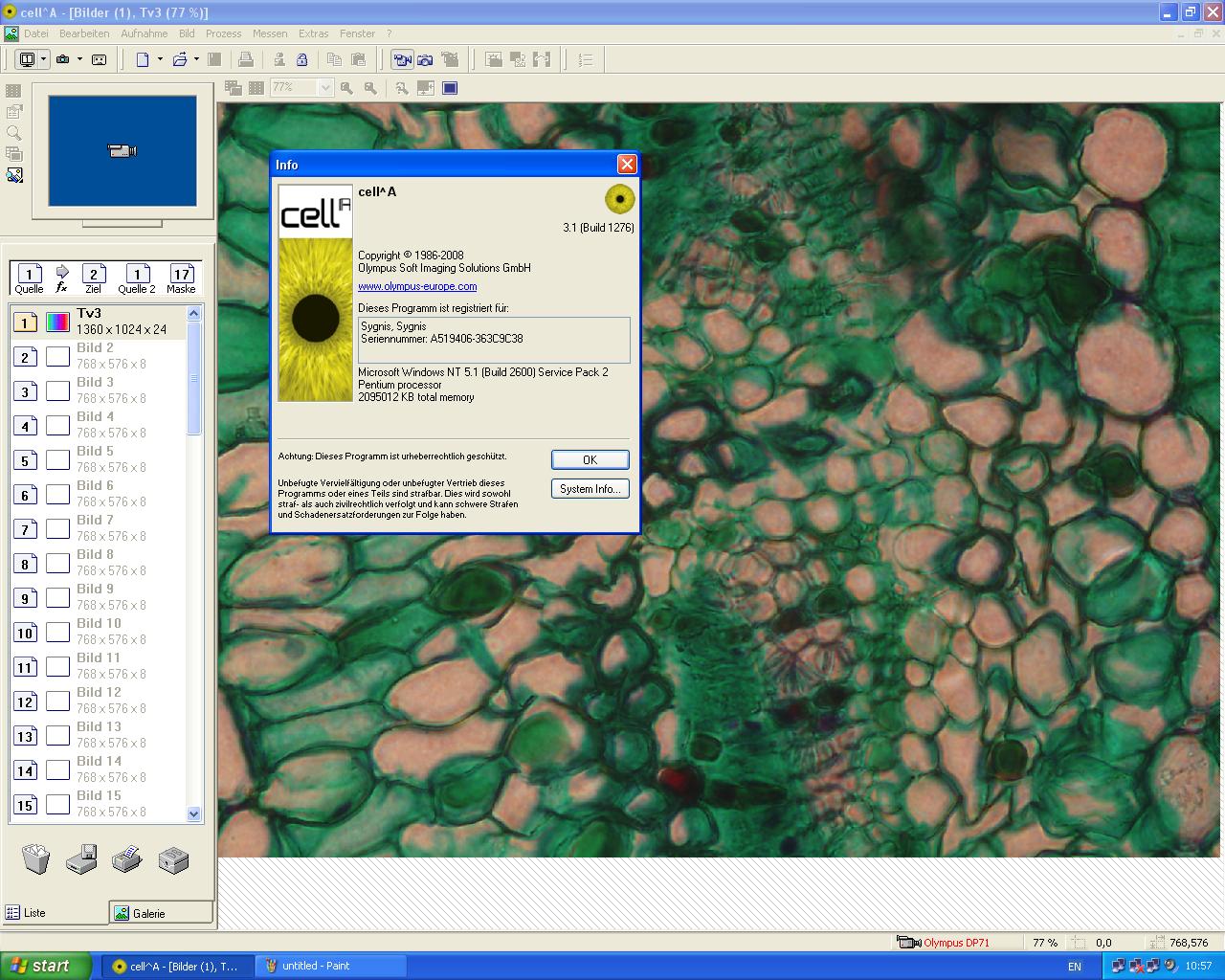

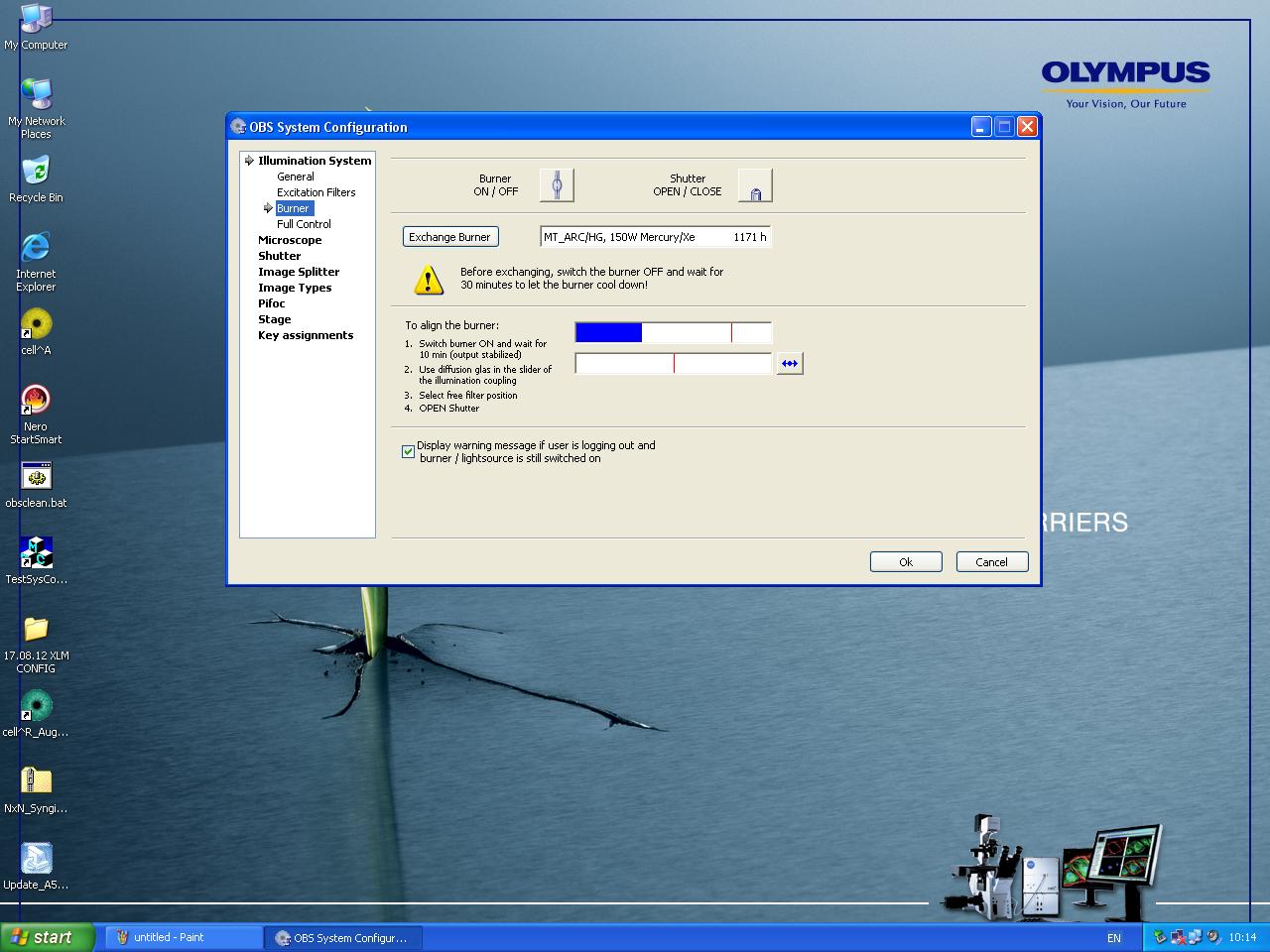

- Cell A (Has been installed in German)
- Will require re-installing and setting up for English language.

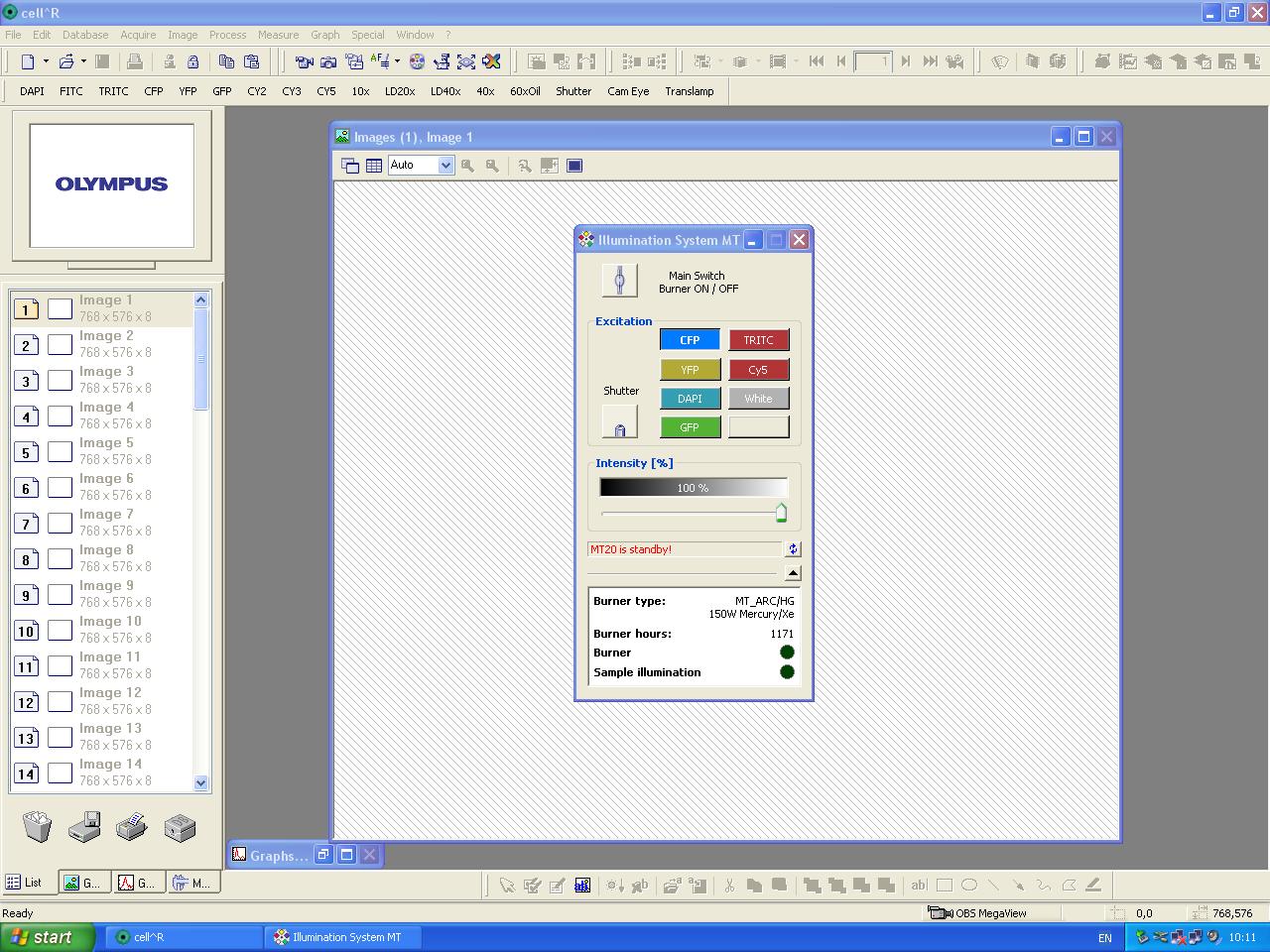

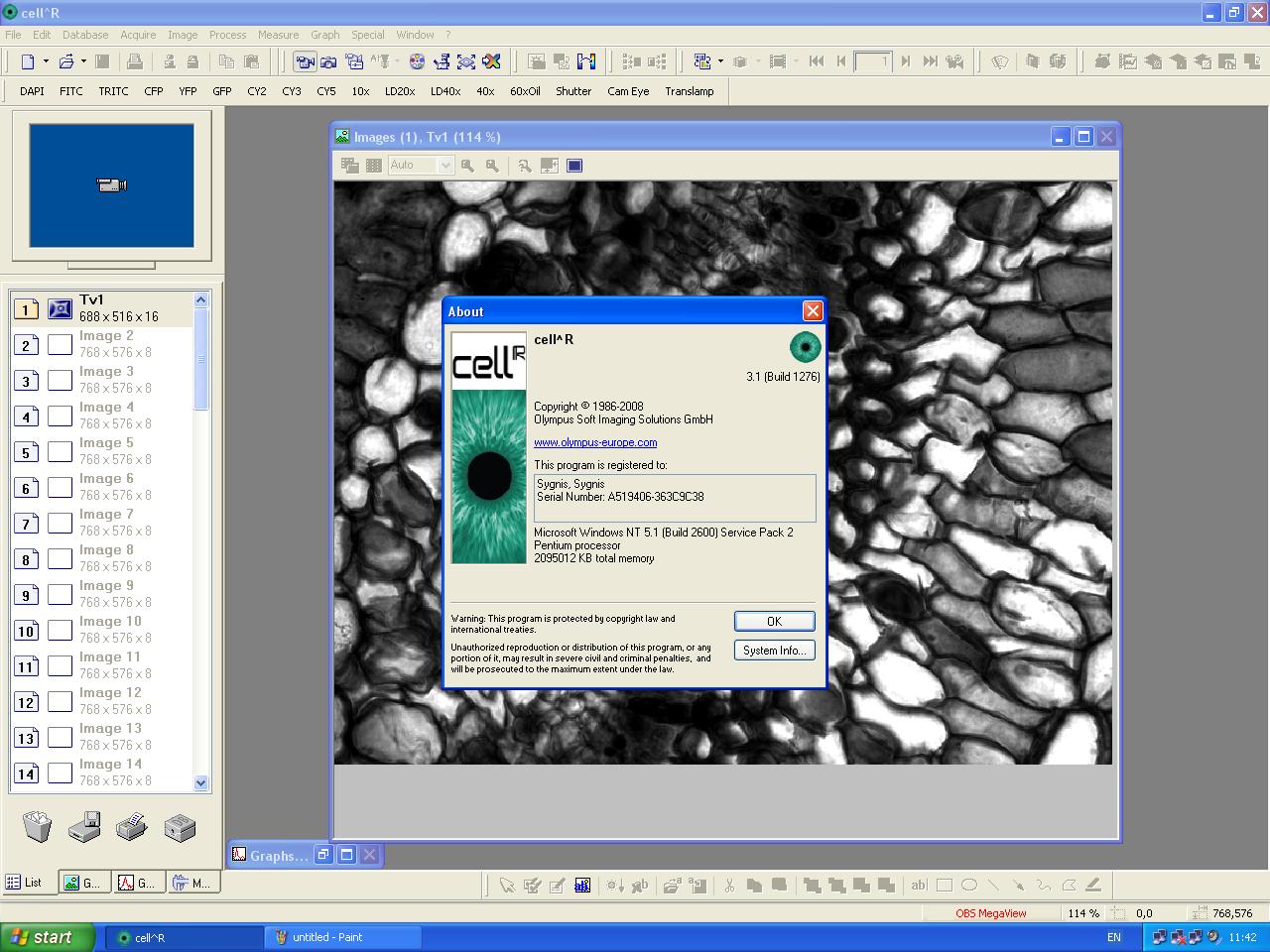

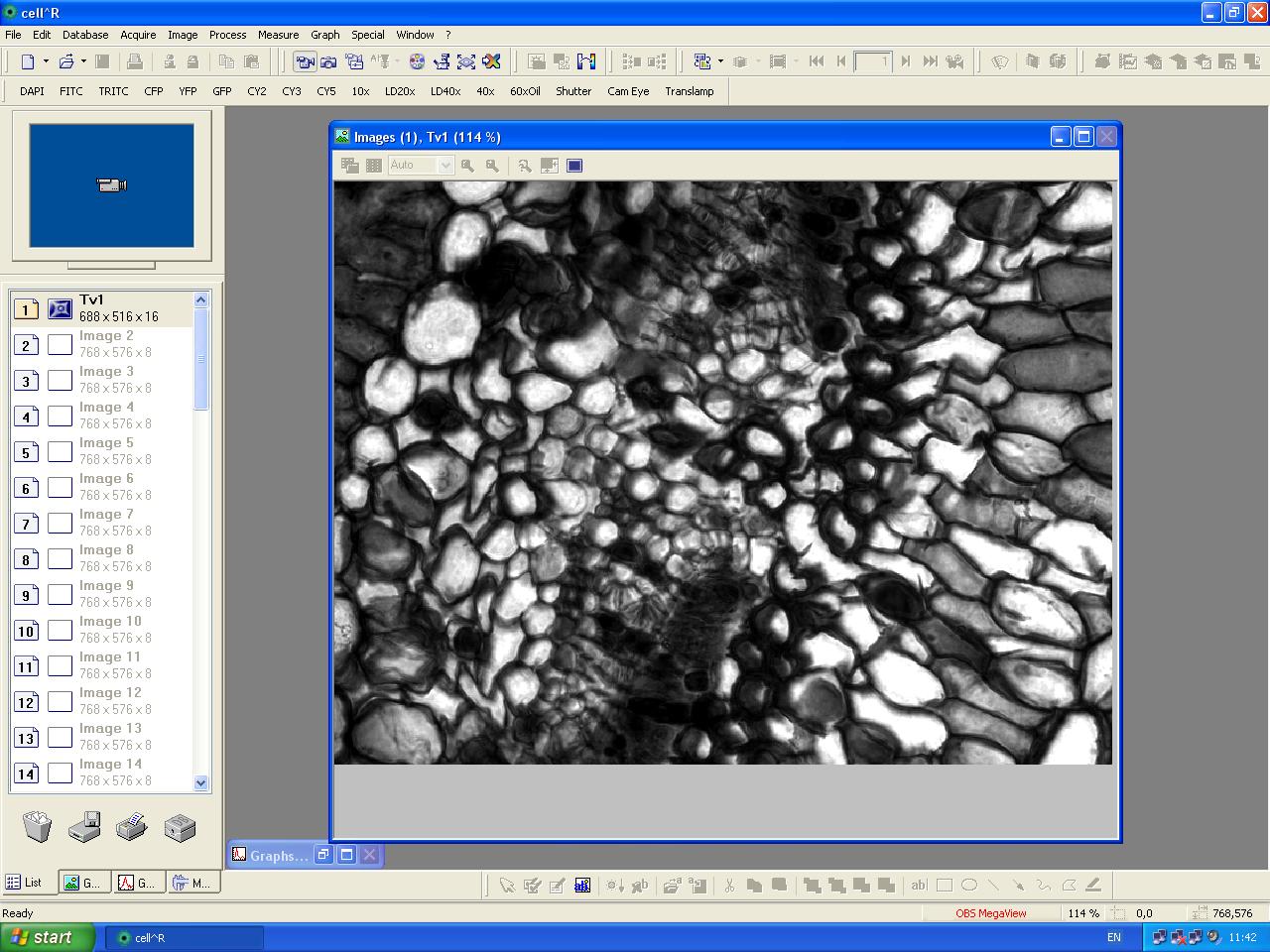

- Cell R (English)

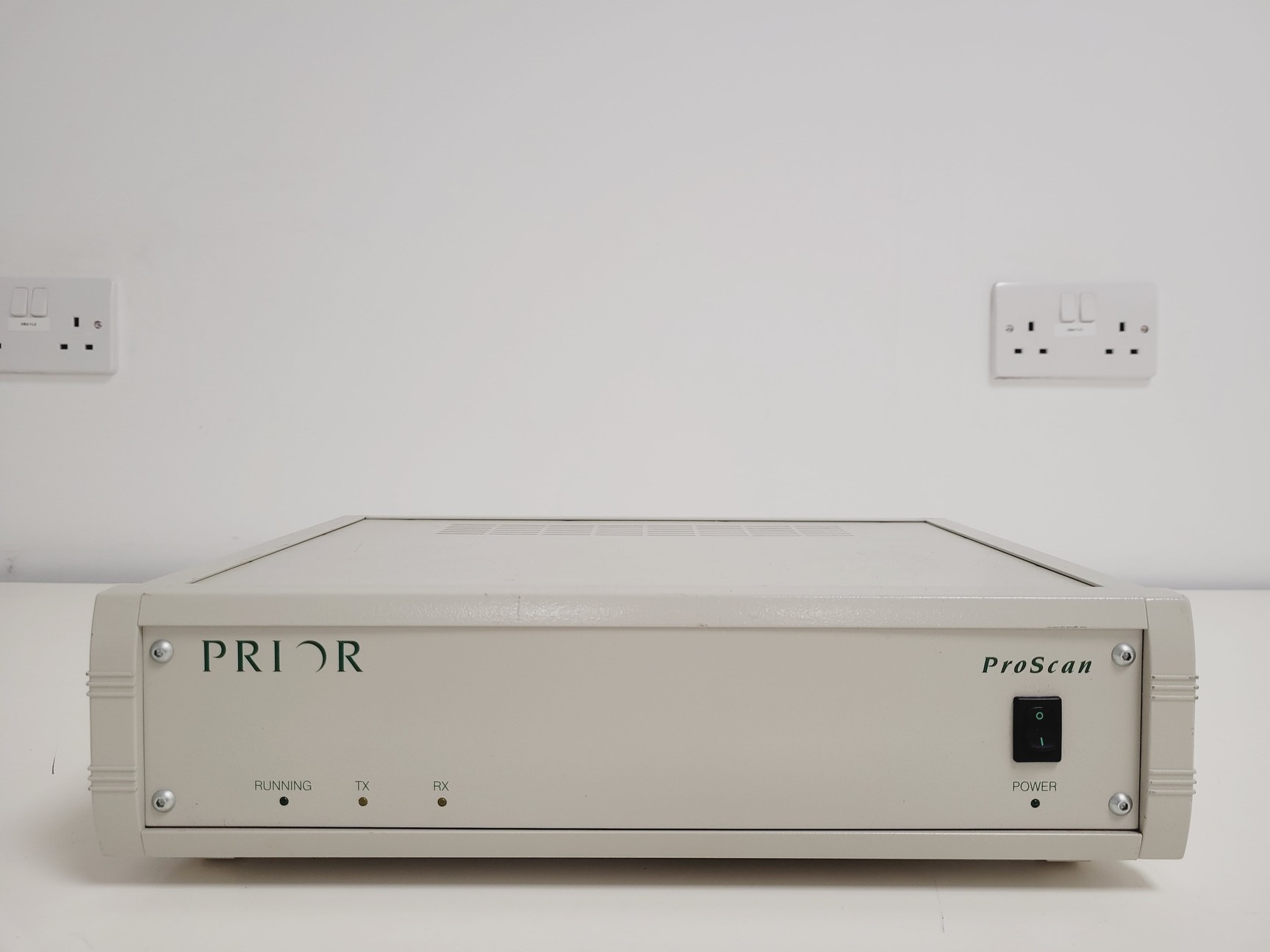

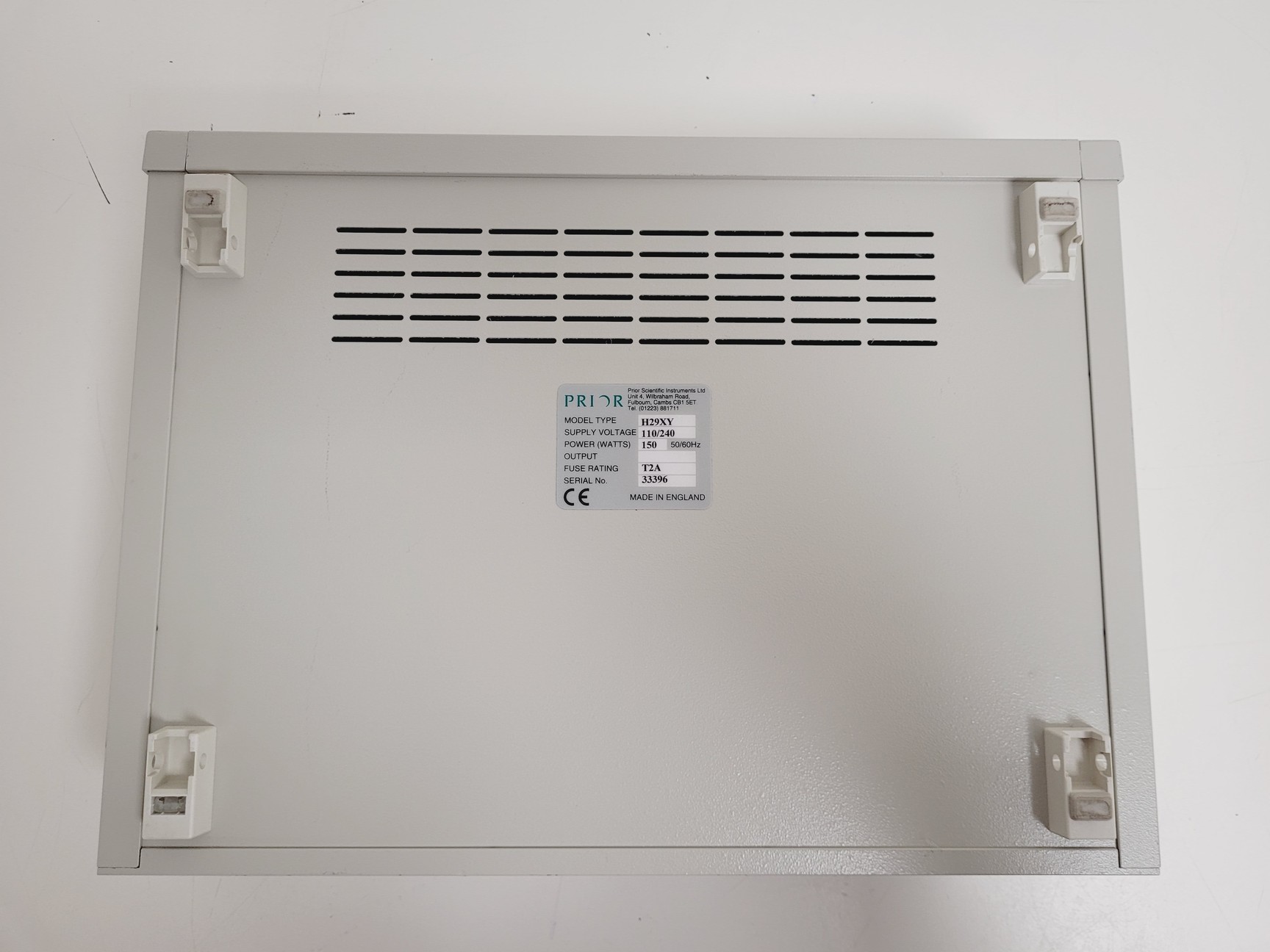

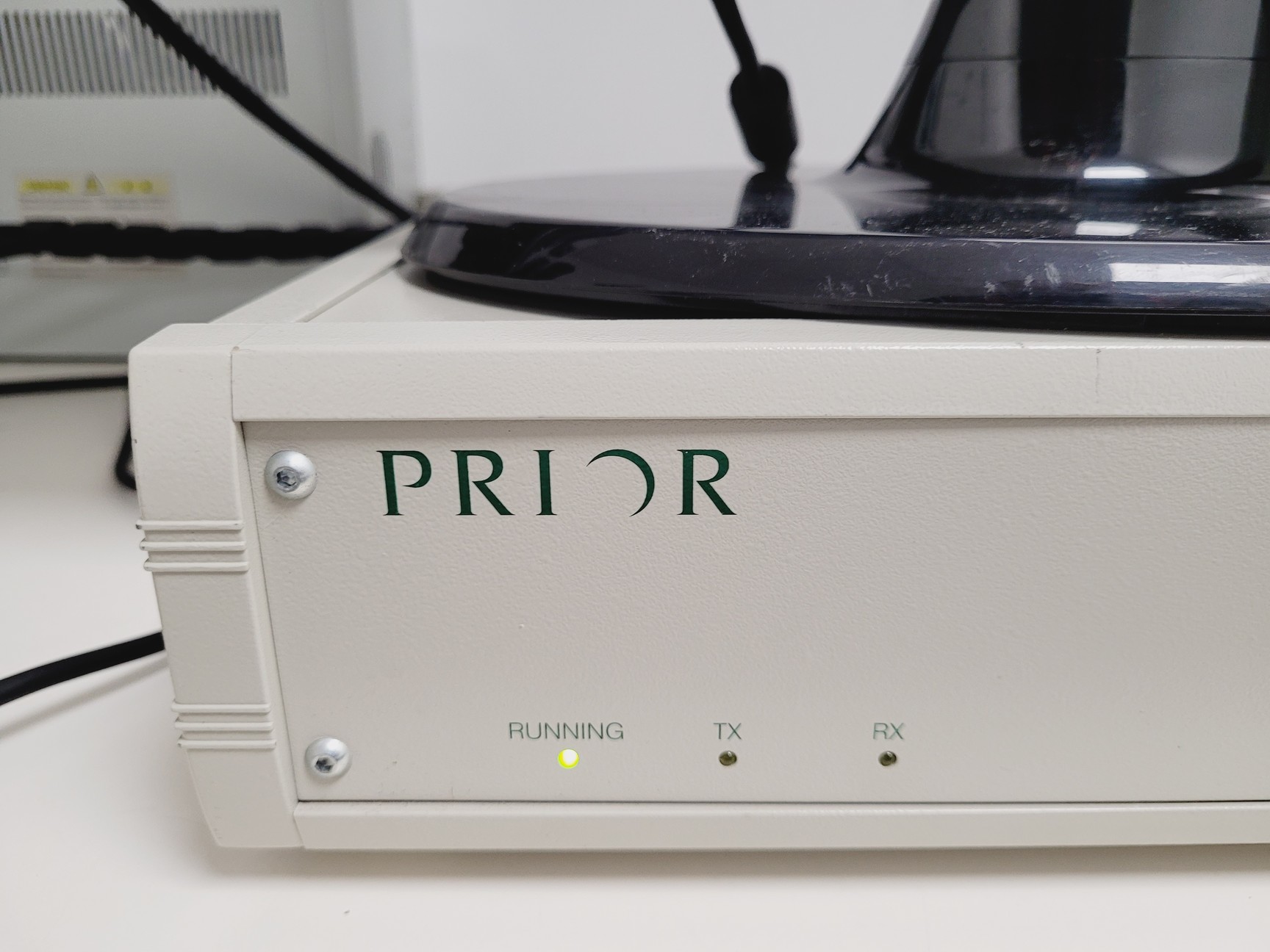

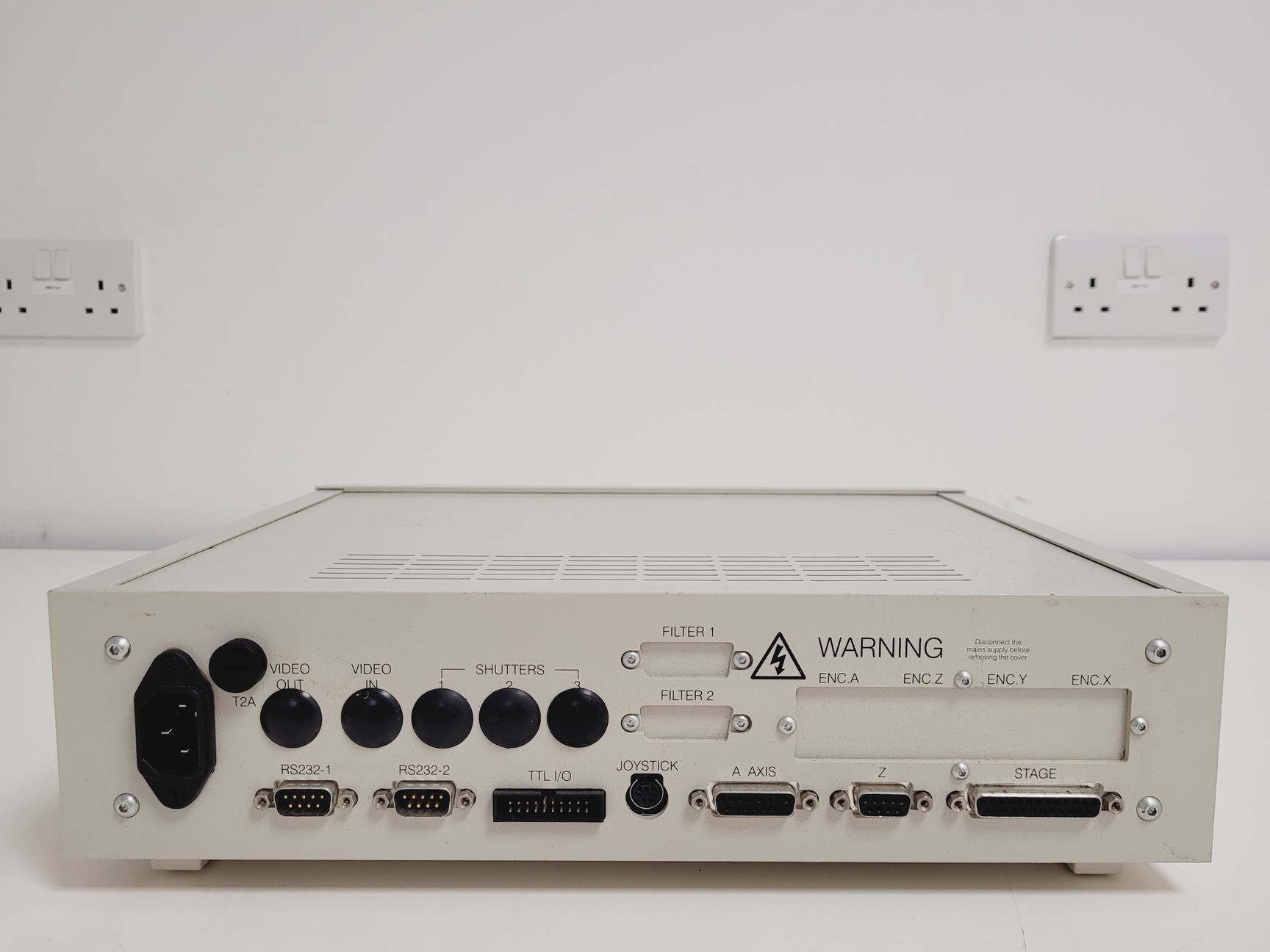

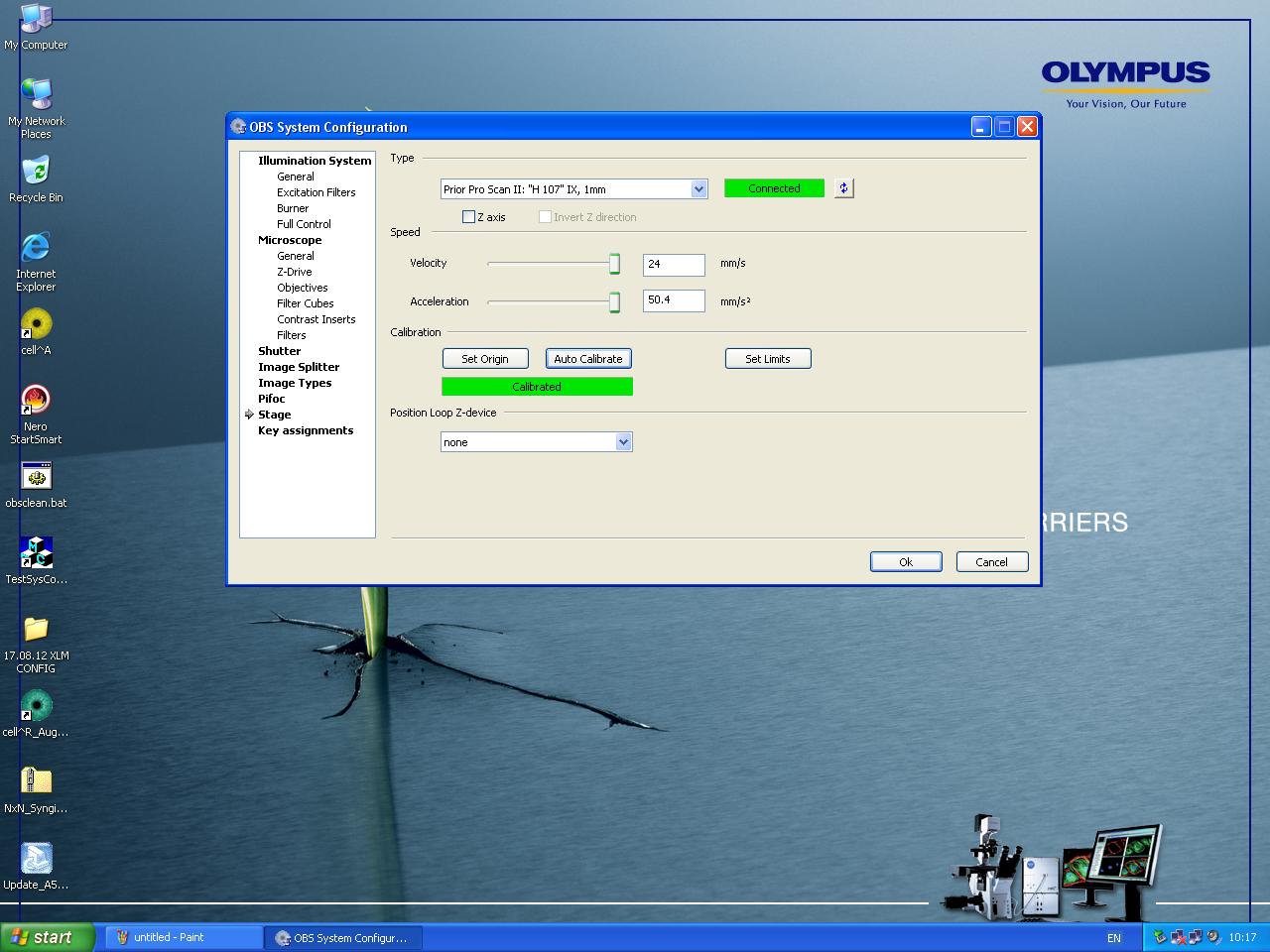

- 1 x Prior ProScan Controller

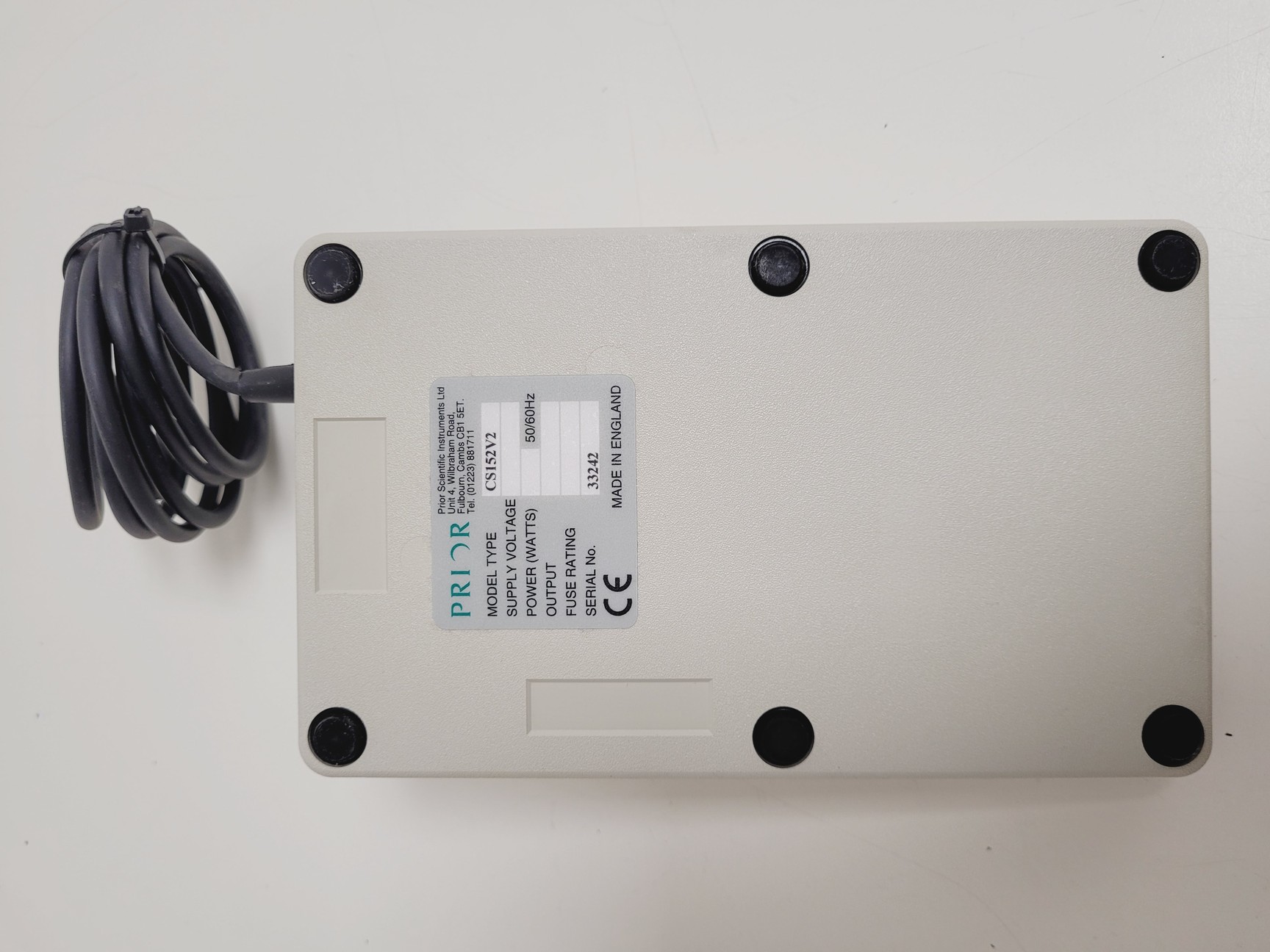

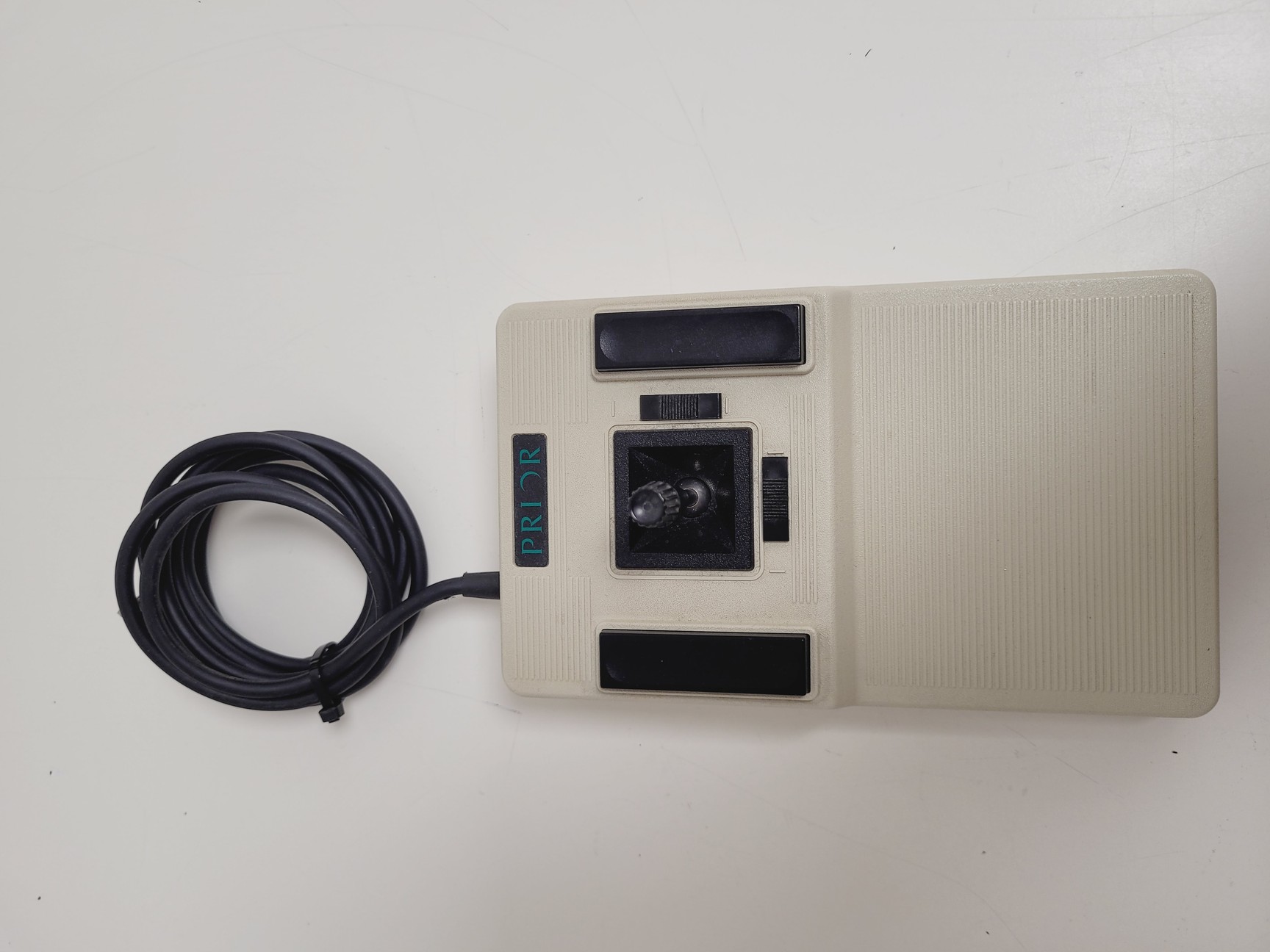

- With Prior CS152V2 Joystick.

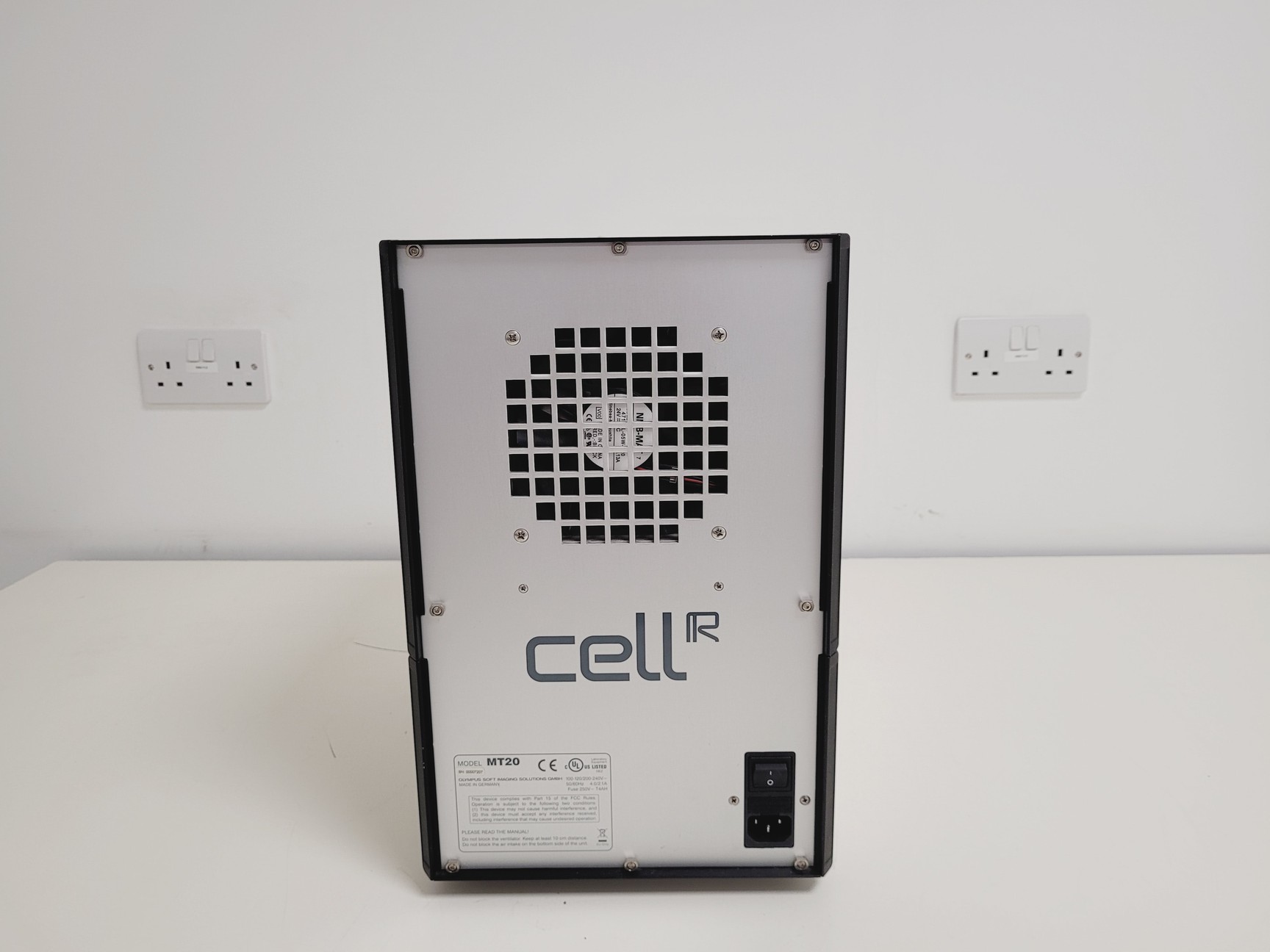

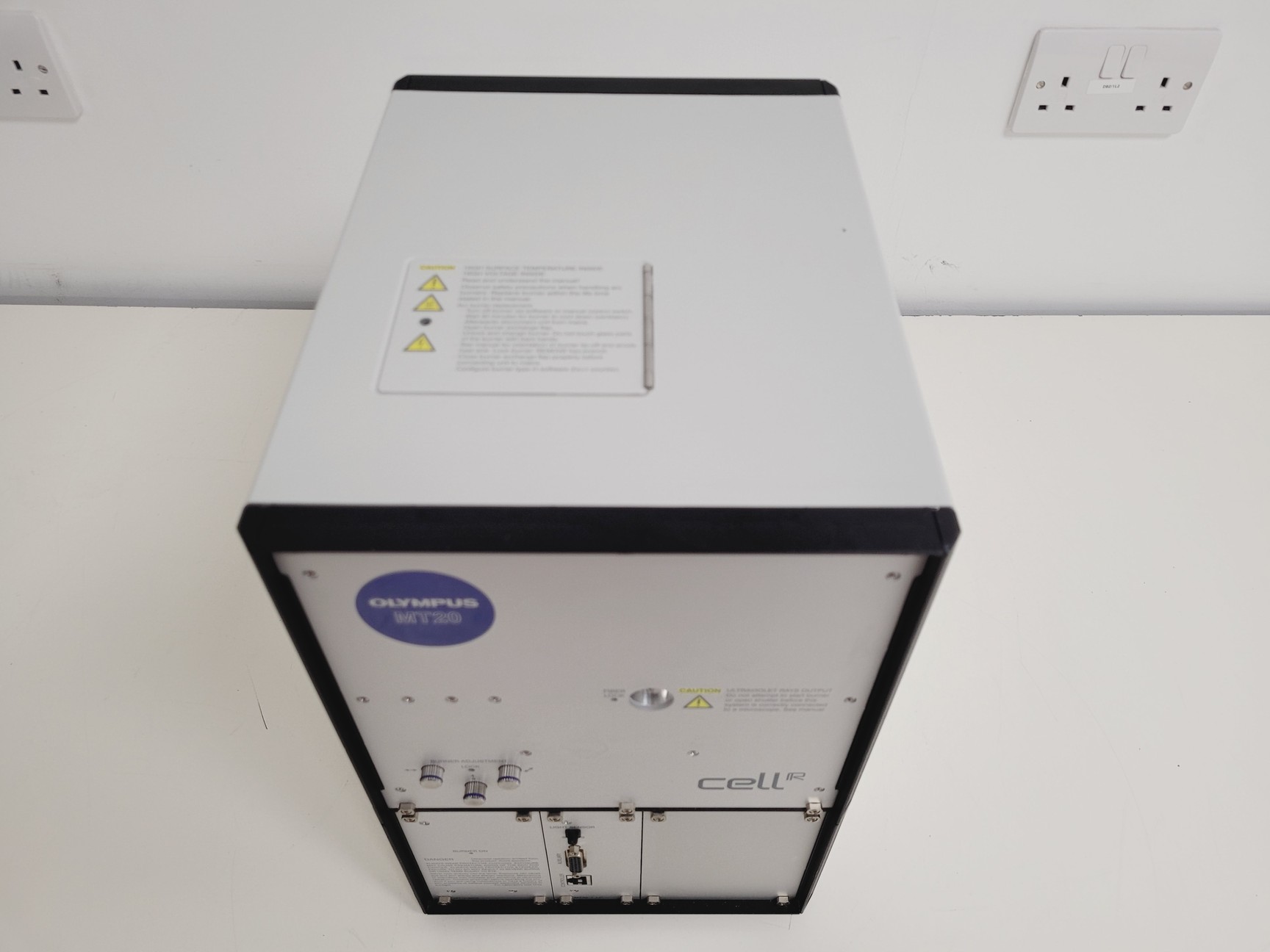

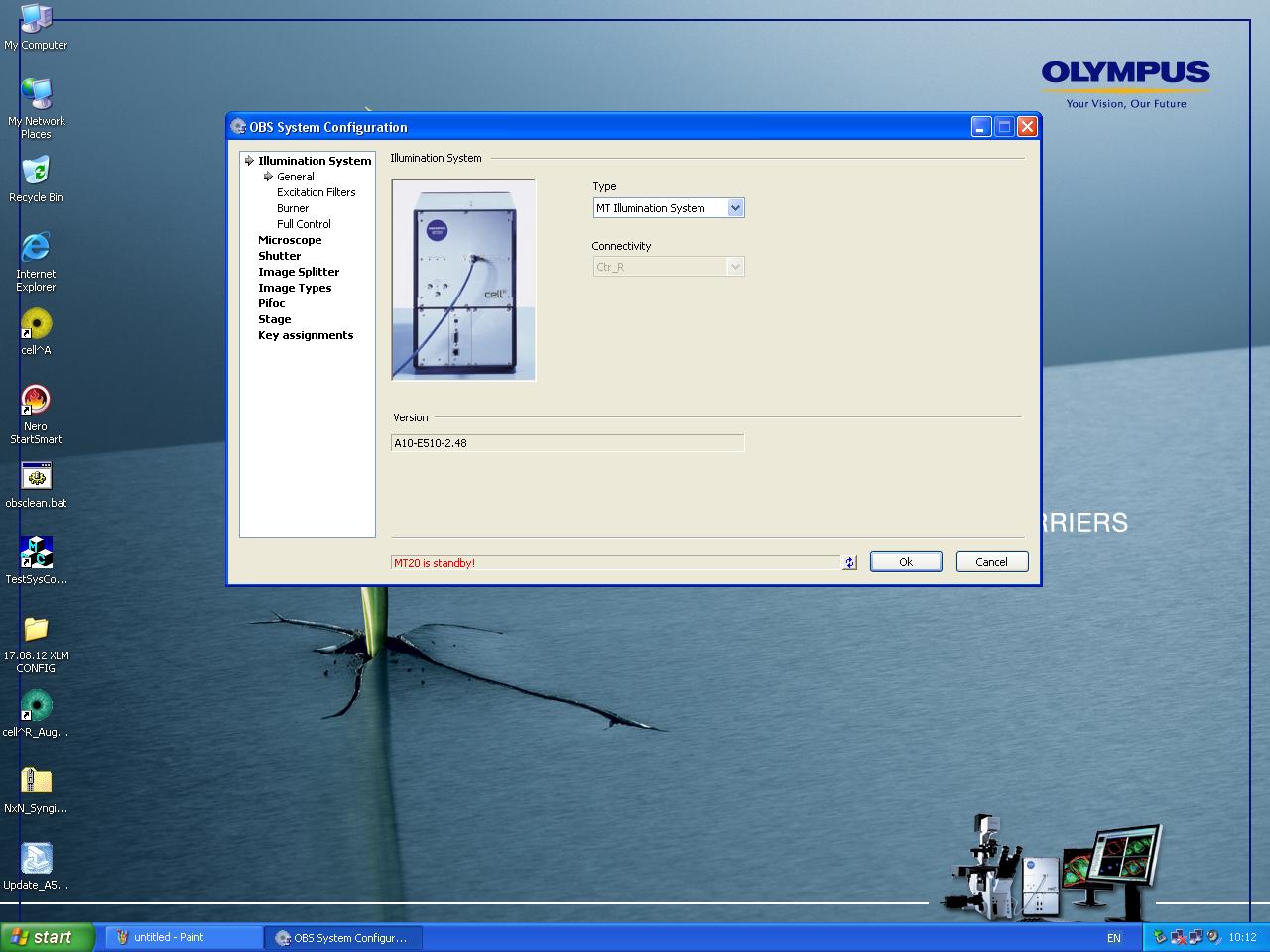

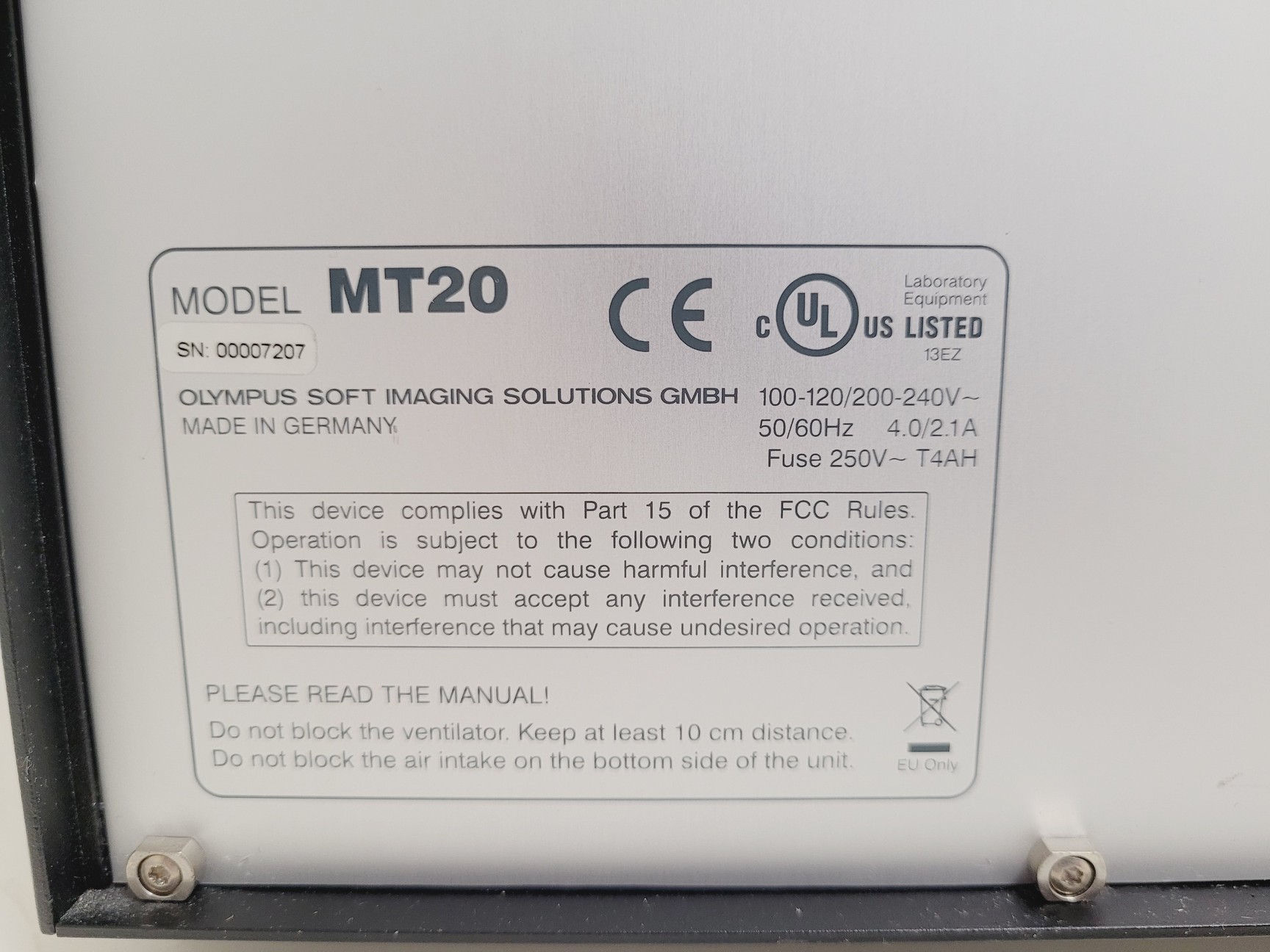

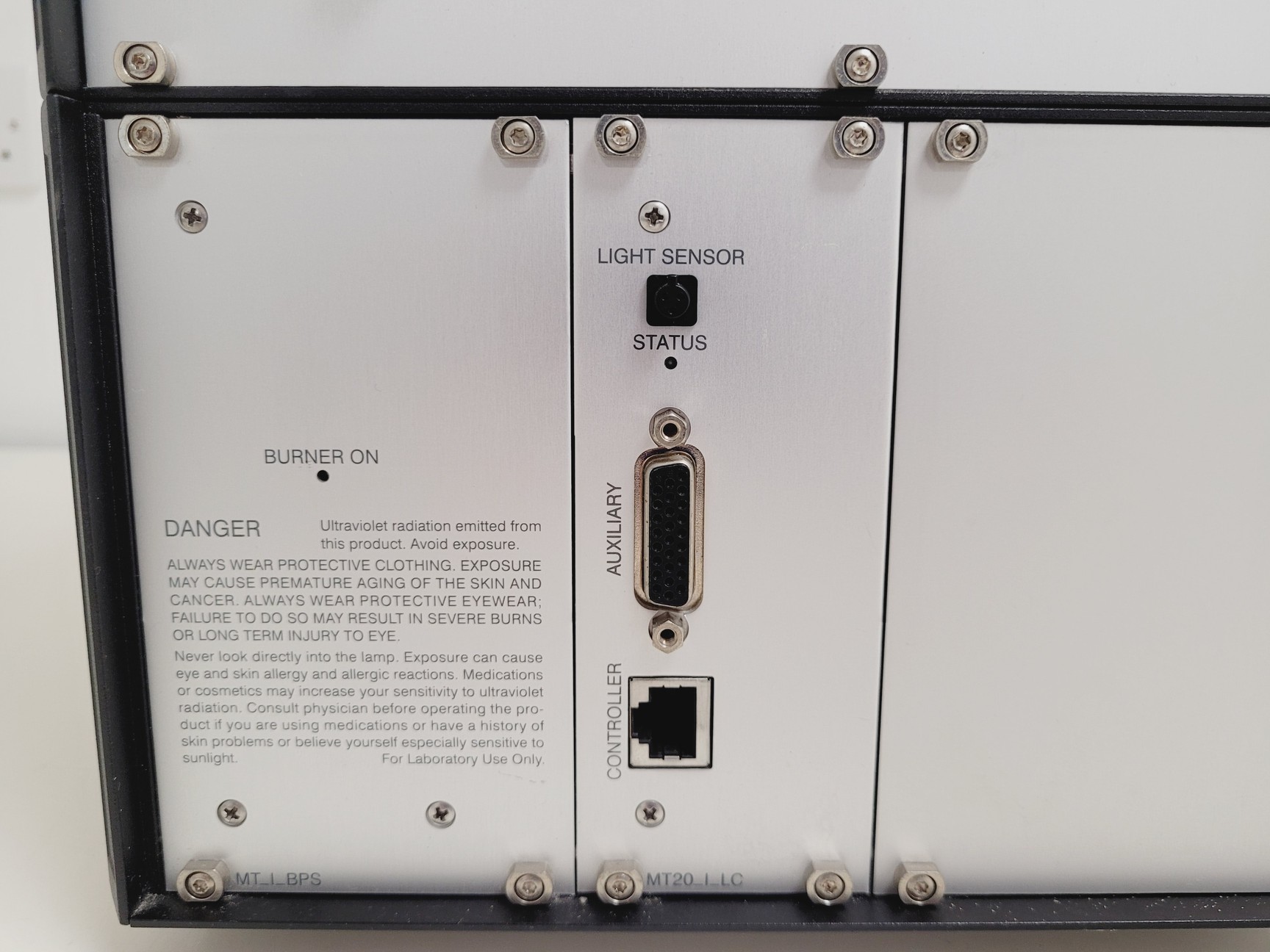

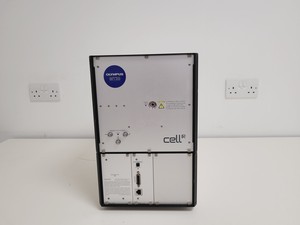

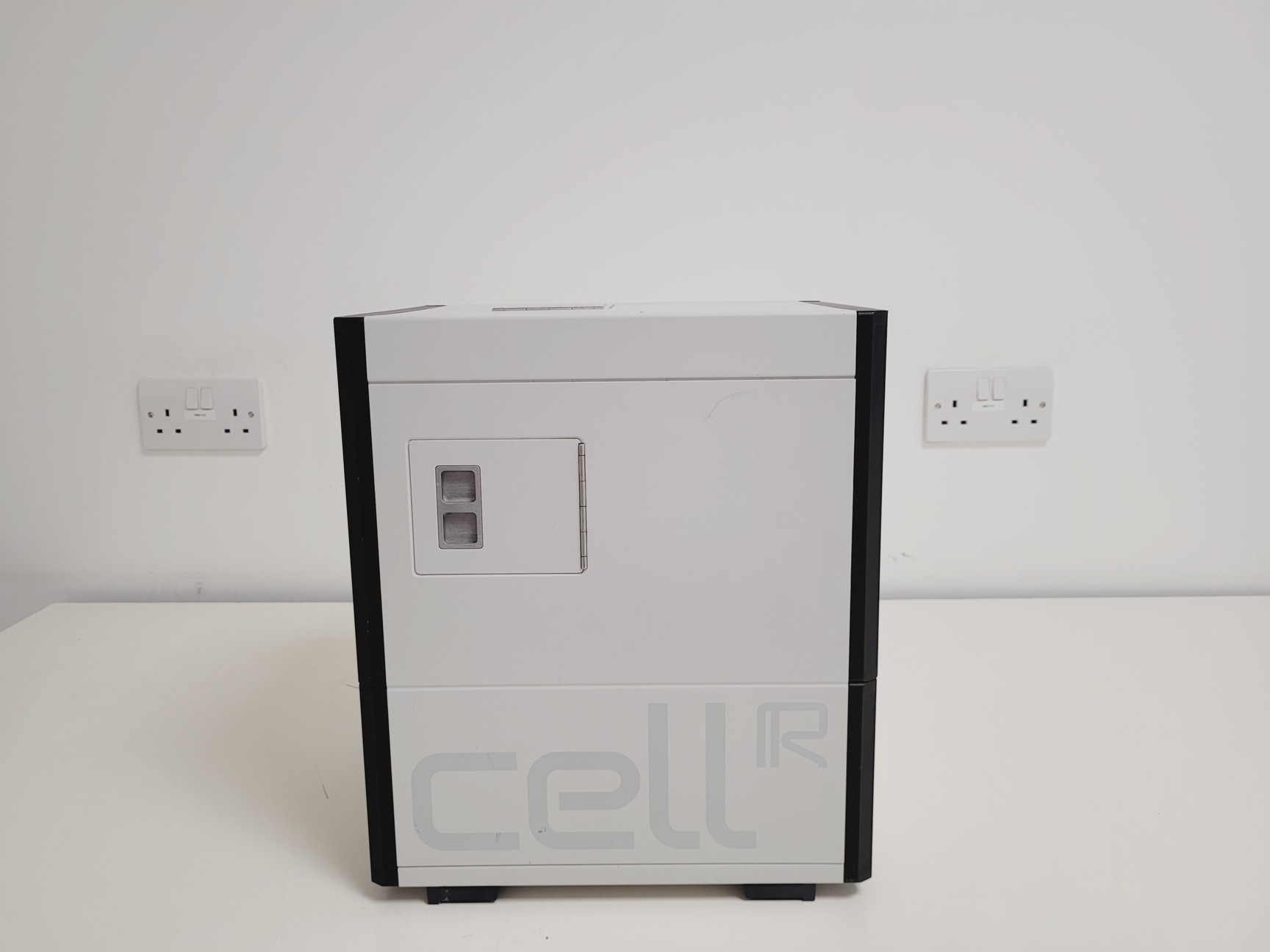

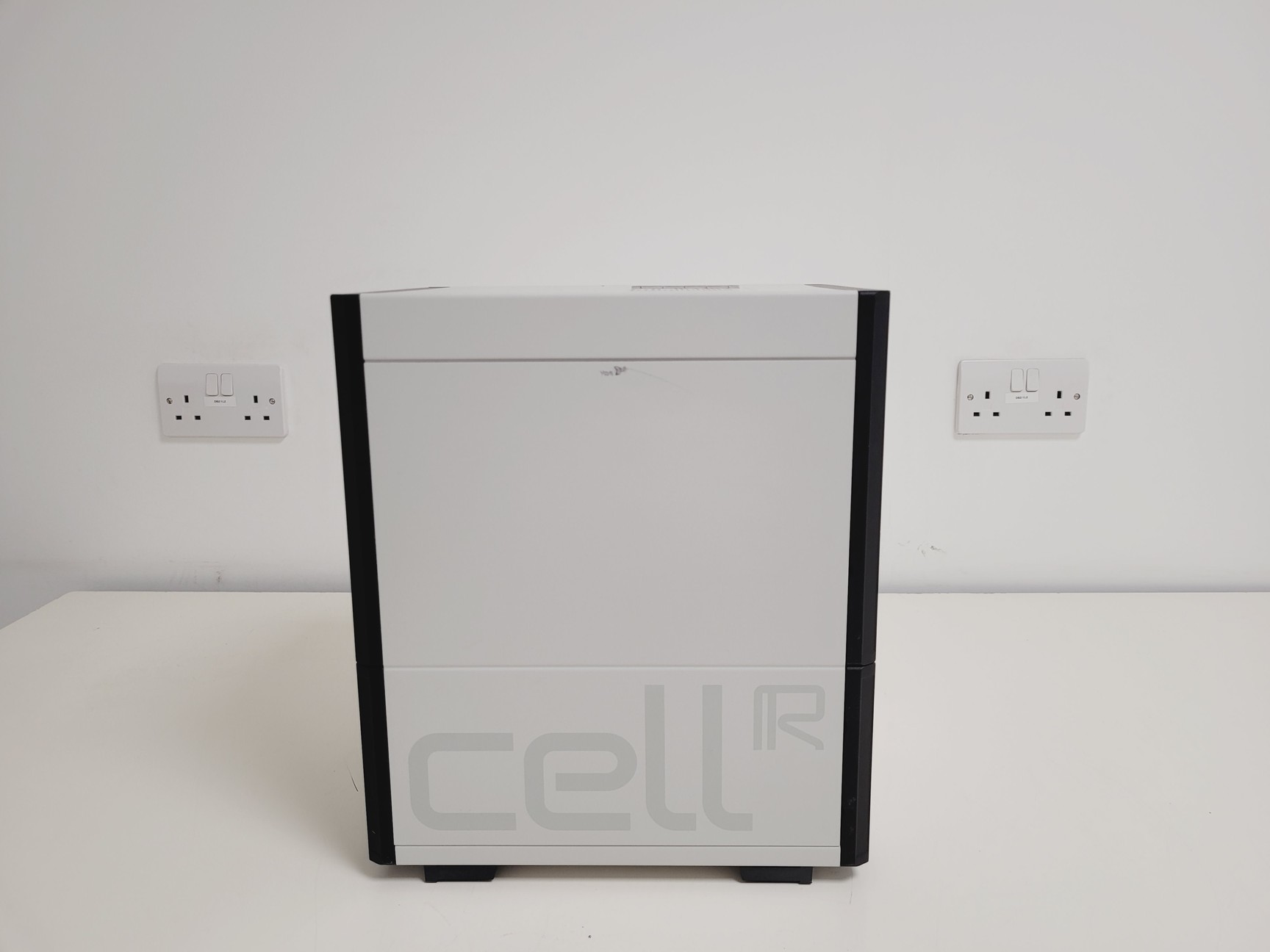

- 1 x Cell IR MT20 Unit.

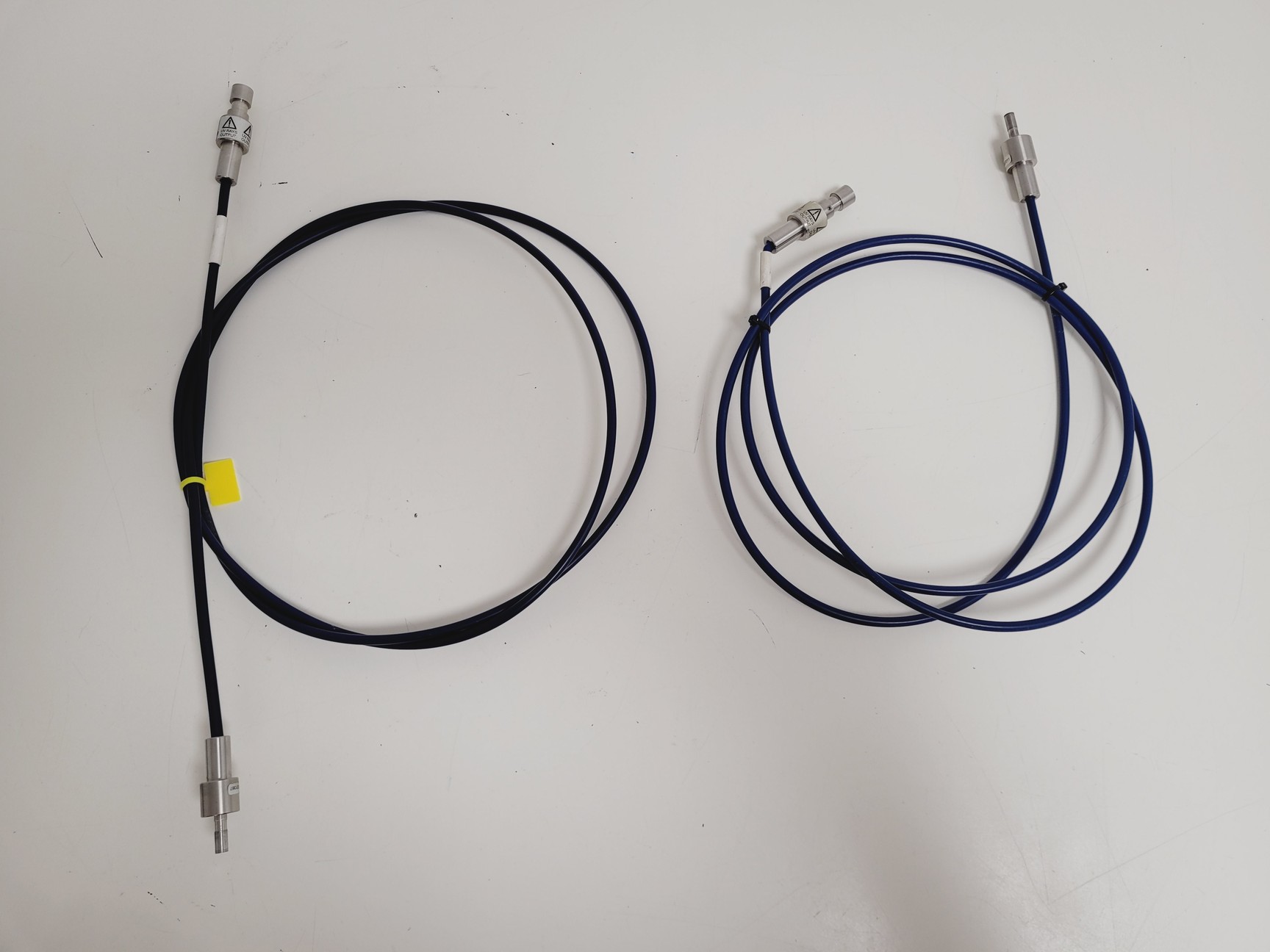

- With 2 x Fibres - One looks possibly damaged.
Also includes:
- Various manuals.
- Cell IR Software Discs
- Soft Imaging System Software Discs.

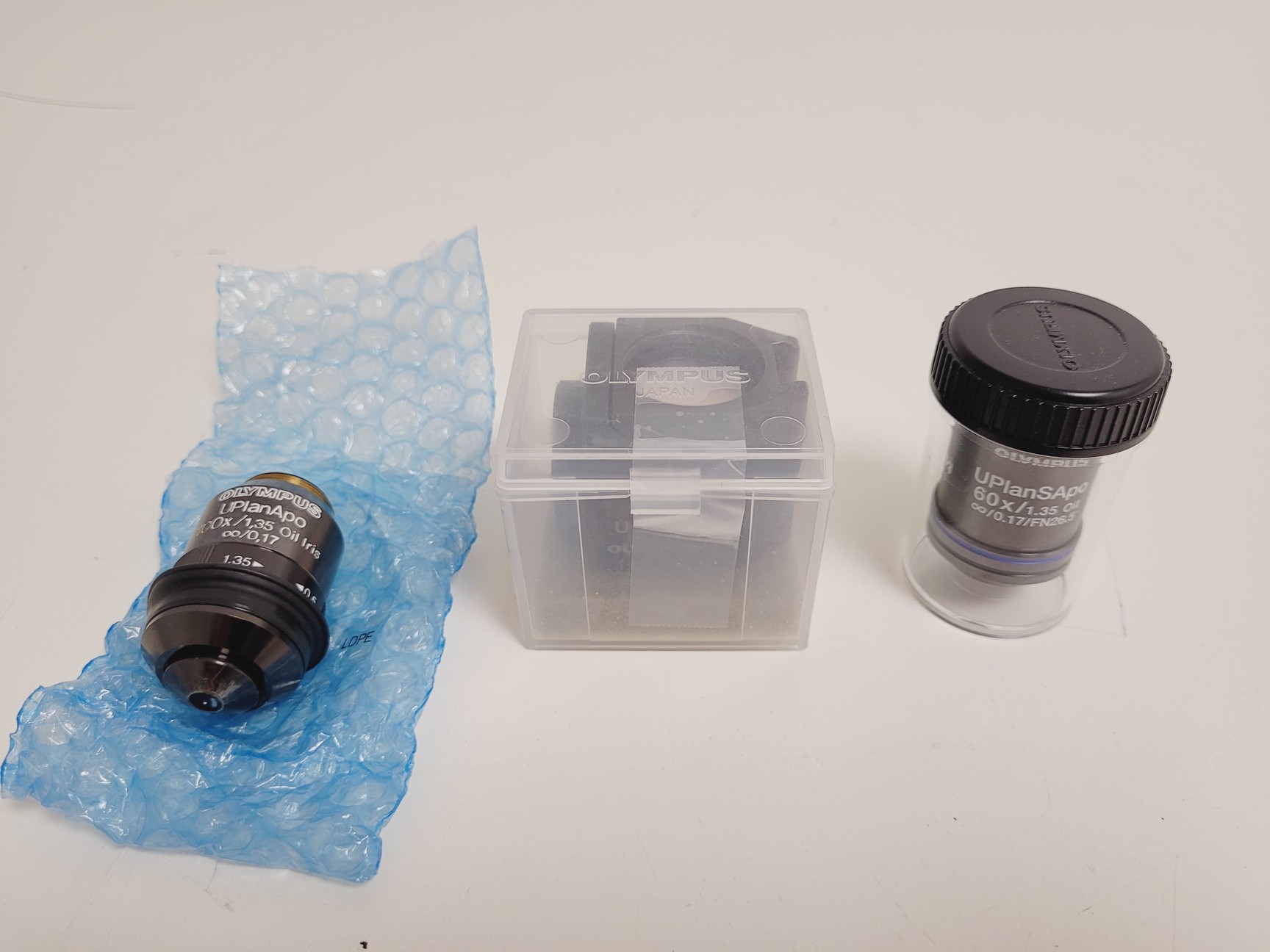

- 1 x Olympus UPlanSApo
- 60x/1.35 Oil
- ∞/0.17/FN26.5
- 1 x Olympus UPlanApo
- 100x/1.35 Oil Iris
- ∞/0,17
- 1 x Olympus U-MF2 Filter Cube(Appears to be brand new in box)

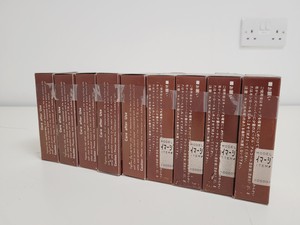

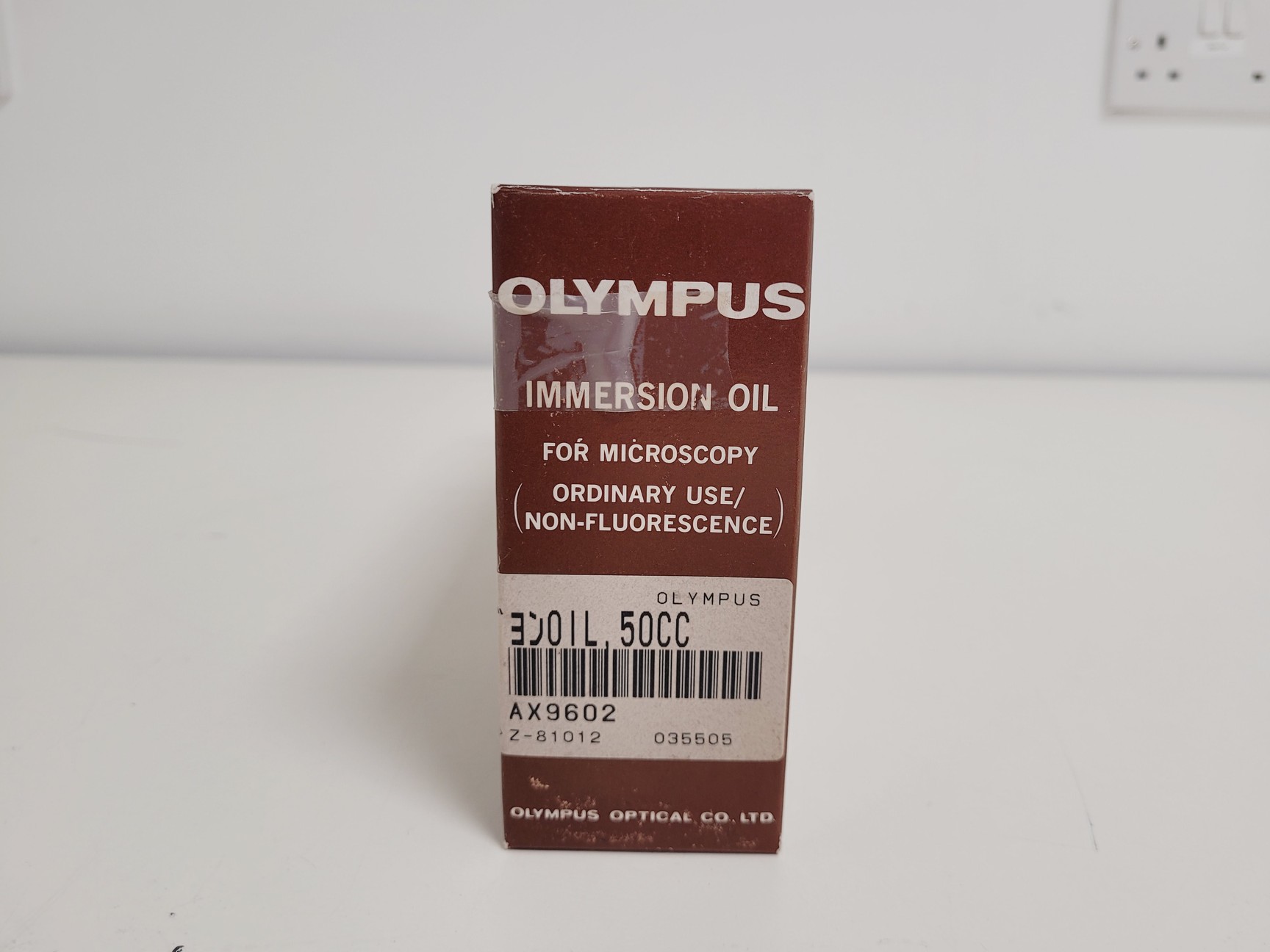

- 9 x Boxes of Olympus Immersion Oil(Brand new in boxes)

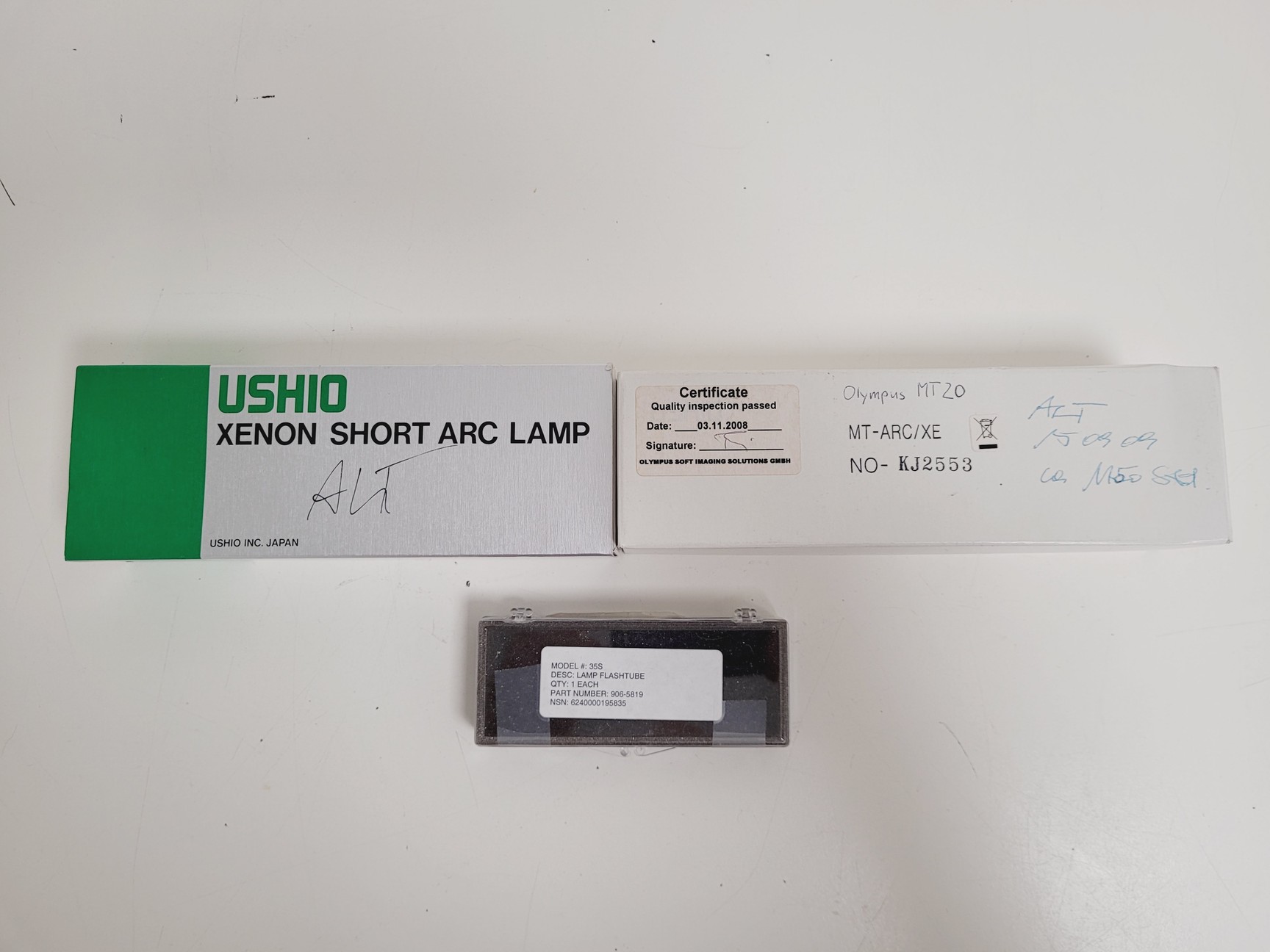

- 2 x Spare Arc Lamps(Unknown)
- 2 x Leica 541006 C-Mount.
Item Details
Item external dimensions (L×W×H):
68 cm × 45 cm × 66 cm
Item weight: 35.0 kg
| Property | Value | Tested value |
|---|---|---|
| Contains Laser | No | |
| PAT Test | ||
| Electrical Supply | N/A | 1-Phase |
| Plug Included? (1-Phase) | N/A | Yes - Standard UK 3-Pin Mains Plug (BS 1363) |
| PAT Test Result | N/A | Pass |
| Voltage | N/A | 240V |
| PAT Test Date | N/A | 25-02-2026 |
| Recertification Initial Checks | ||
| Overall Cosmetic Condition | N/A | Good |
| Safety Features | ||
| Emergency Stop Safety Check | N/A | N/A |
| Service Details | ||
| Last Service Date | N/A | Unknown |
Delivery
Free shipping is not available on this product. This item will be shipped by pallet delivery. Delivery will be made to kerbside only, unless otherwise confirmed in writing. Please contact us for a domestic or overseas shipping quote.
Return policy
Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.
NOTE: No cables, remotes, accessories, power supplies, external PCs, software media, hardkeys, consumables or any other items are included unless shown in the item photos or detailed above.
