Hitachi S-4800 Field Emission Scanning Electron Microscope with Oxford Ultim Max 40 EDS

This item is sold on behalf of a client where it will be removed from a lab where it is surplus to requirements.

The system has been regularly serviced and was last visited by Hitachi in February 2025. It has seen little use since that service. It is currently installed and has recently gone into an error state relating to the shutter door between the sample chamber and the exchange chamber. The seller believes this may be resolved locally but it may require a Hitachi service visit and, in any case, Hitachi involvement is expected for decommissioning and recommissioning at a new site. It is therefore offered on the basis that it will require service/commissioning work at the buyer’s cost.

System Overview

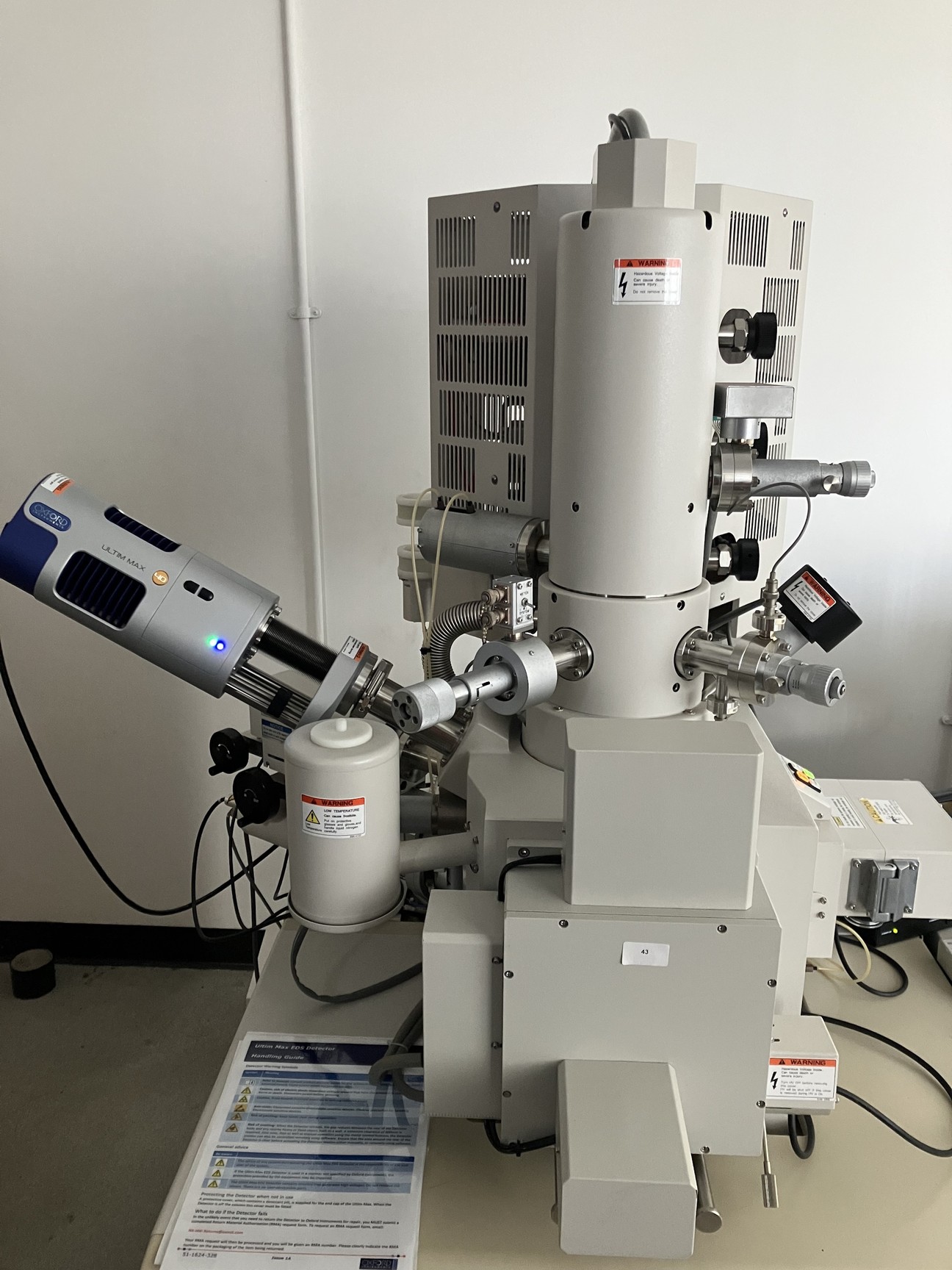

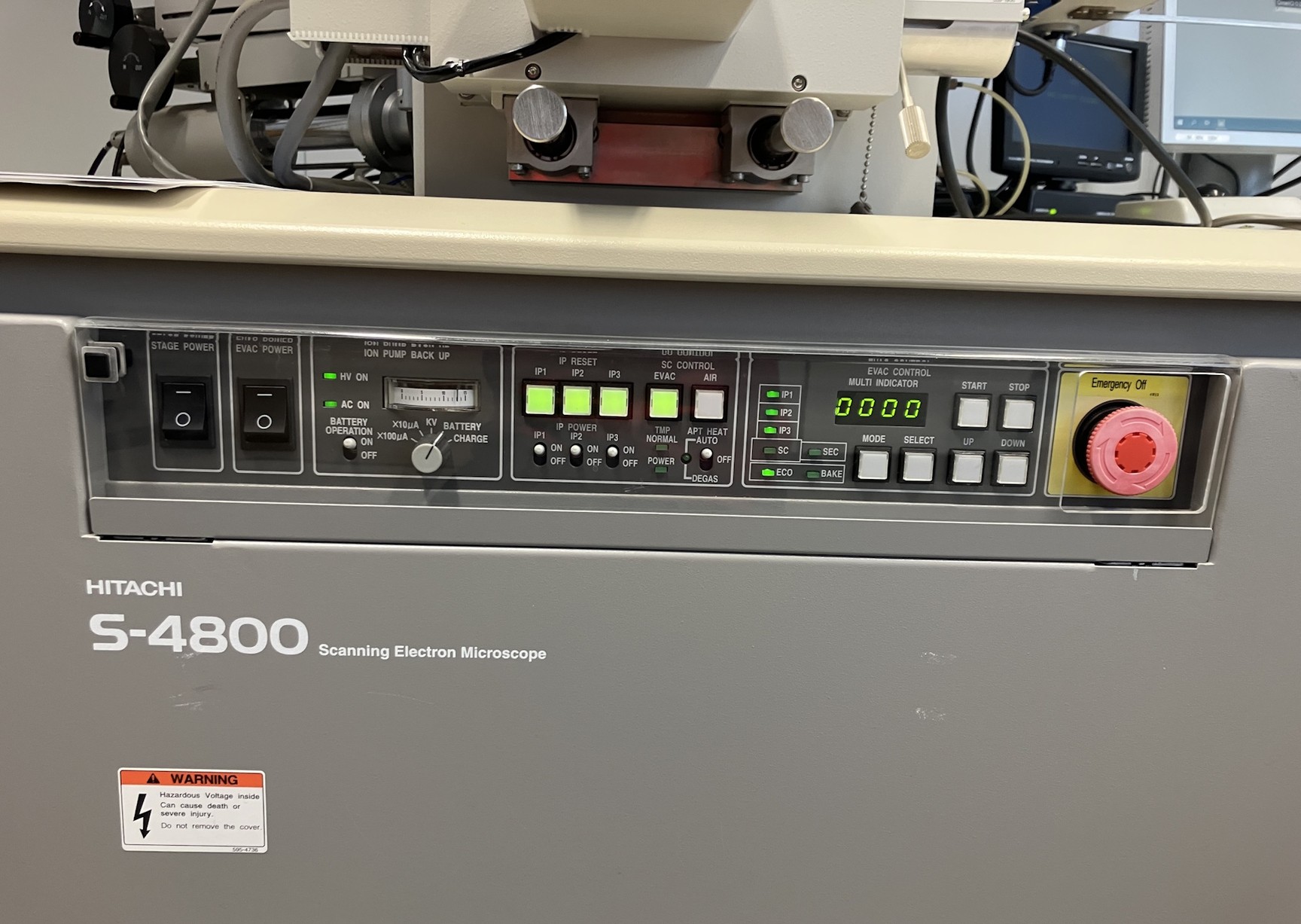

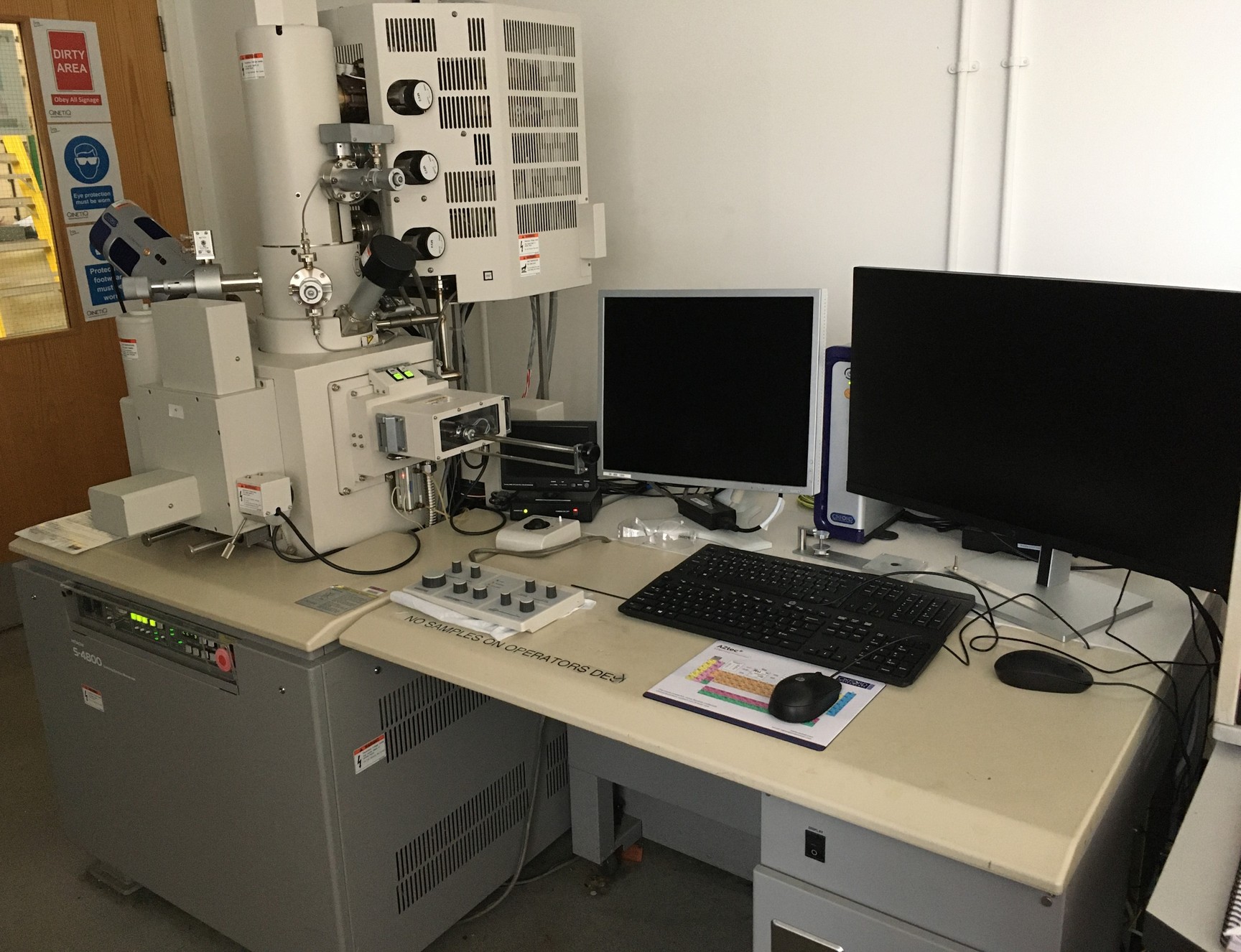

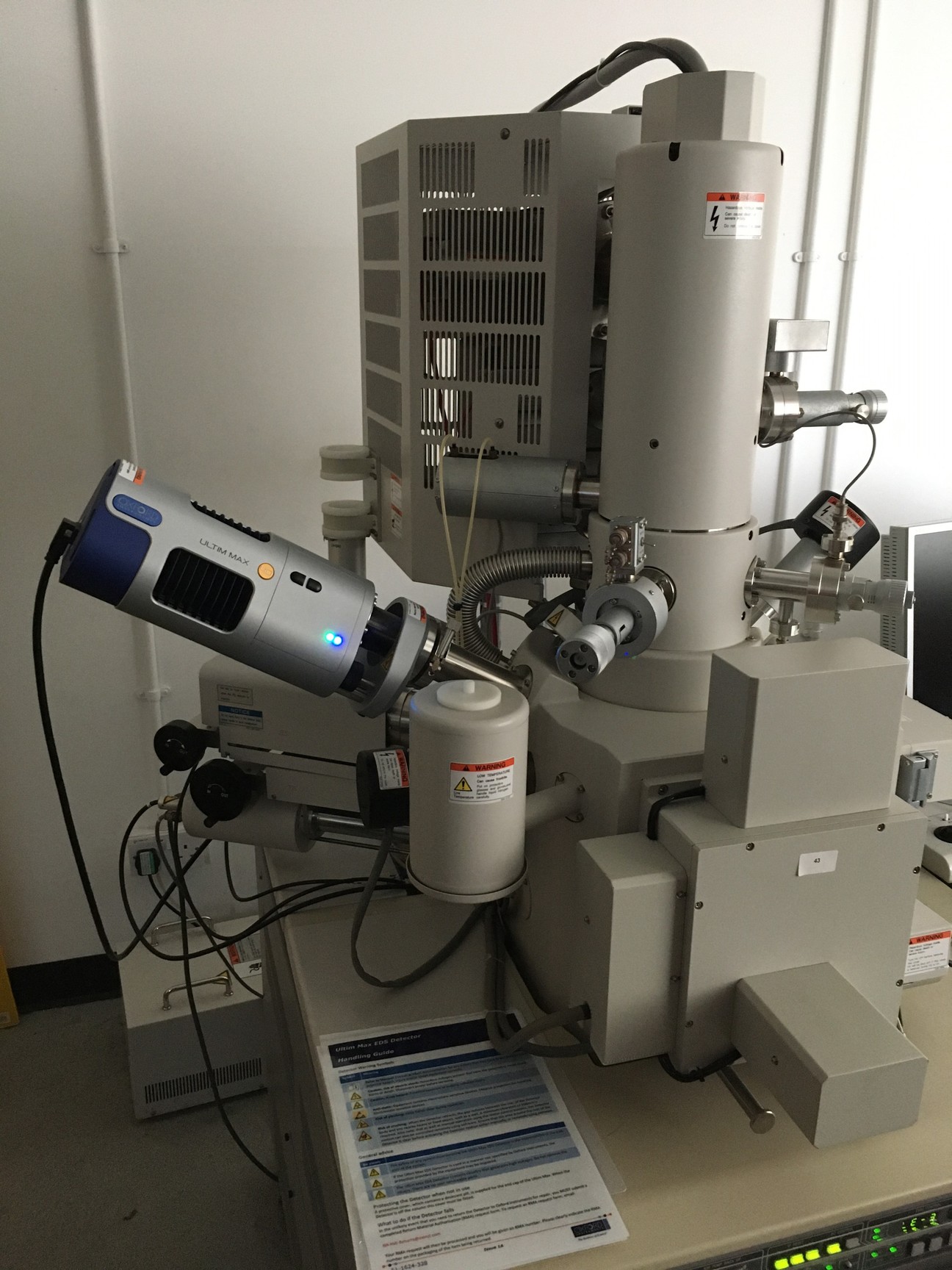

• Model: Hitachi S-4800 Field Emission Scanning Electron Microscope (FE-SEM)
• Stage: Type 2 motorised stage (installed c.2008)

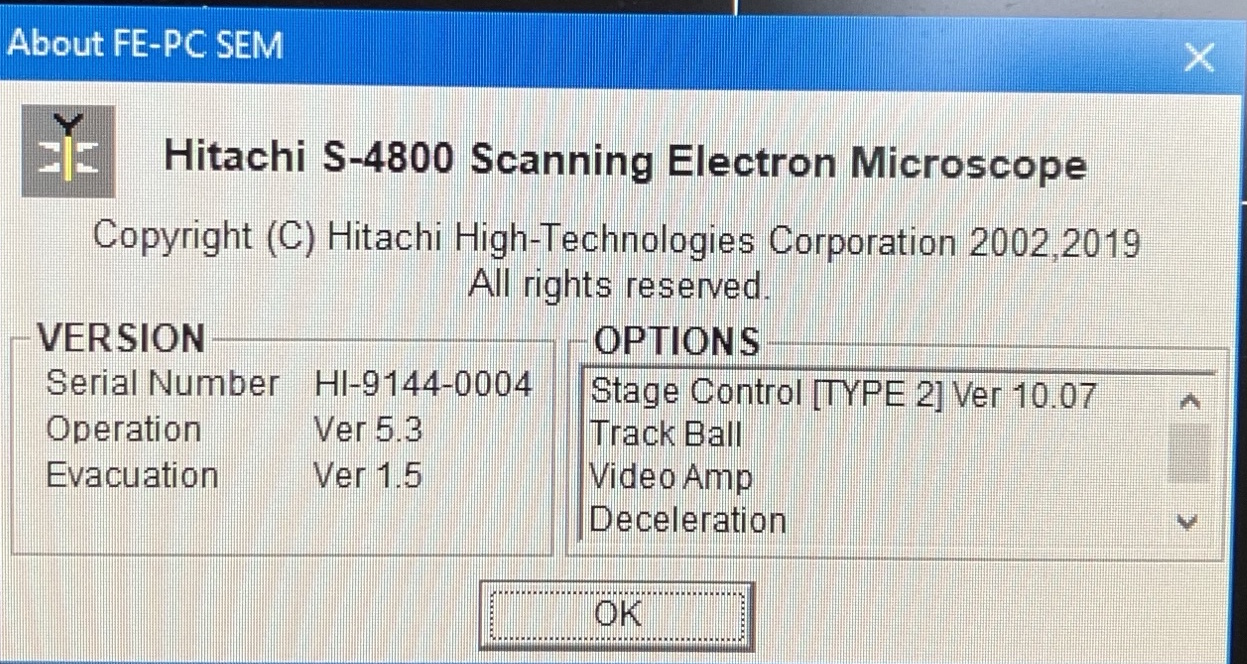

• Control PC & Software: Windows 10 PC with PC-SEM (installed 2021)
• EDS System: Oxford Instruments Ultim Max 40 EDS (purchased 2024) with separate PC and software for EDS acquisition/analysis
• Service History: Regular preventative maintenance by Hitachi from 2021–2025 (approx. every six months plus ad-hoc fault visits)
• Last Service: 4–5 February 2025 – 2-day preventative maintenance visit including column bake-out and image stability checks

The seller has confirmed that Oxford Instruments have advised the EDS ownership transfer is straightforward, and they do not charge for transferring registration to the new owner.

Key Features

• High-resolution field emission SEM platform suitable for advanced materials characterisation
• Type 2 motorised stage for flexible sample positioning

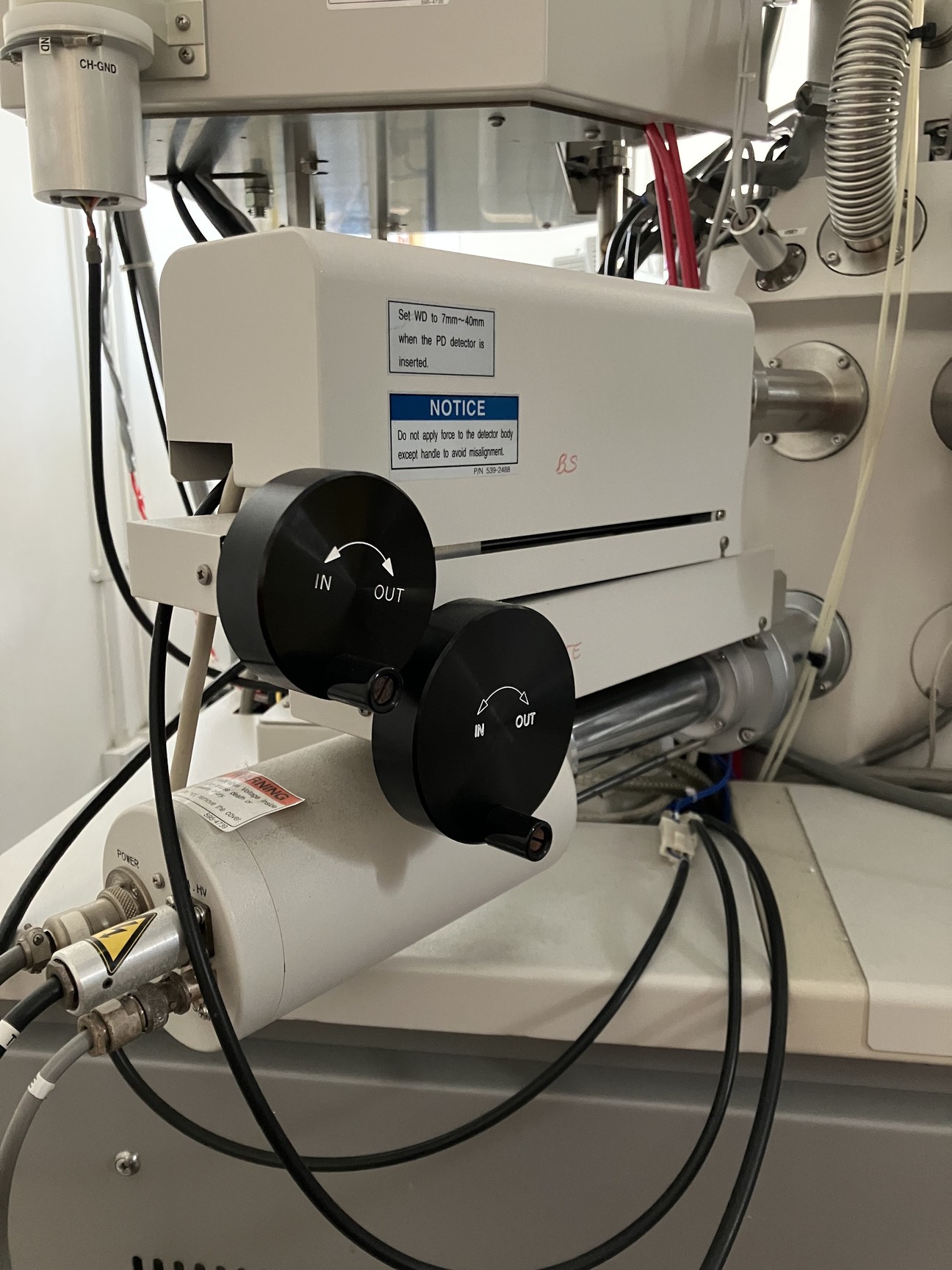

• 5-channel solid state backscattered electron (BSE) detector
• Transmitted electron detector
• Ion pump backup power supply
• Modern Windows 10 control PC with PC-SEM software (installed 2021)
• Oxford Ultim Max 40 EDS detector (2024) with dedicated PC and analysis software
• Includes compressor, scroll pump and chiller required for operation (as stated by the seller)

Condition & Status

• Historically well maintained with regular Hitachi preventative maintenance
• Last serviced February 2025 and lightly used since
• Currently in an error state due to the shutter door between the sample chamber and exchange chamber being open
• Expected to require a Hitachi service visit for fault resolution and for disassembly/reassembly during relocation.
• System remains powered and installed; it has not yet been decommissioned.

Contamination & Use History

• Open-access instrument used predominantly for metal and ceramic powders
• External surfaces can be cleaned by the seller prior to removal
• Column is routinely baked out during service visits and the chamber has been cleaned when deemed appropriate by the service engineer

Included with This System

• Hitachi S-4800 FE-SEM with type 2 motorised stage
• Windows 10 control PC with PC-SEM software (installed 2021)
• Oxford Instruments Ultim Max 40 EDS detector (2024) with dedicated PC and EDS software
• 5-channel solid state BSE detector
• Transmitted electron detector
• Ion pump backup power supply

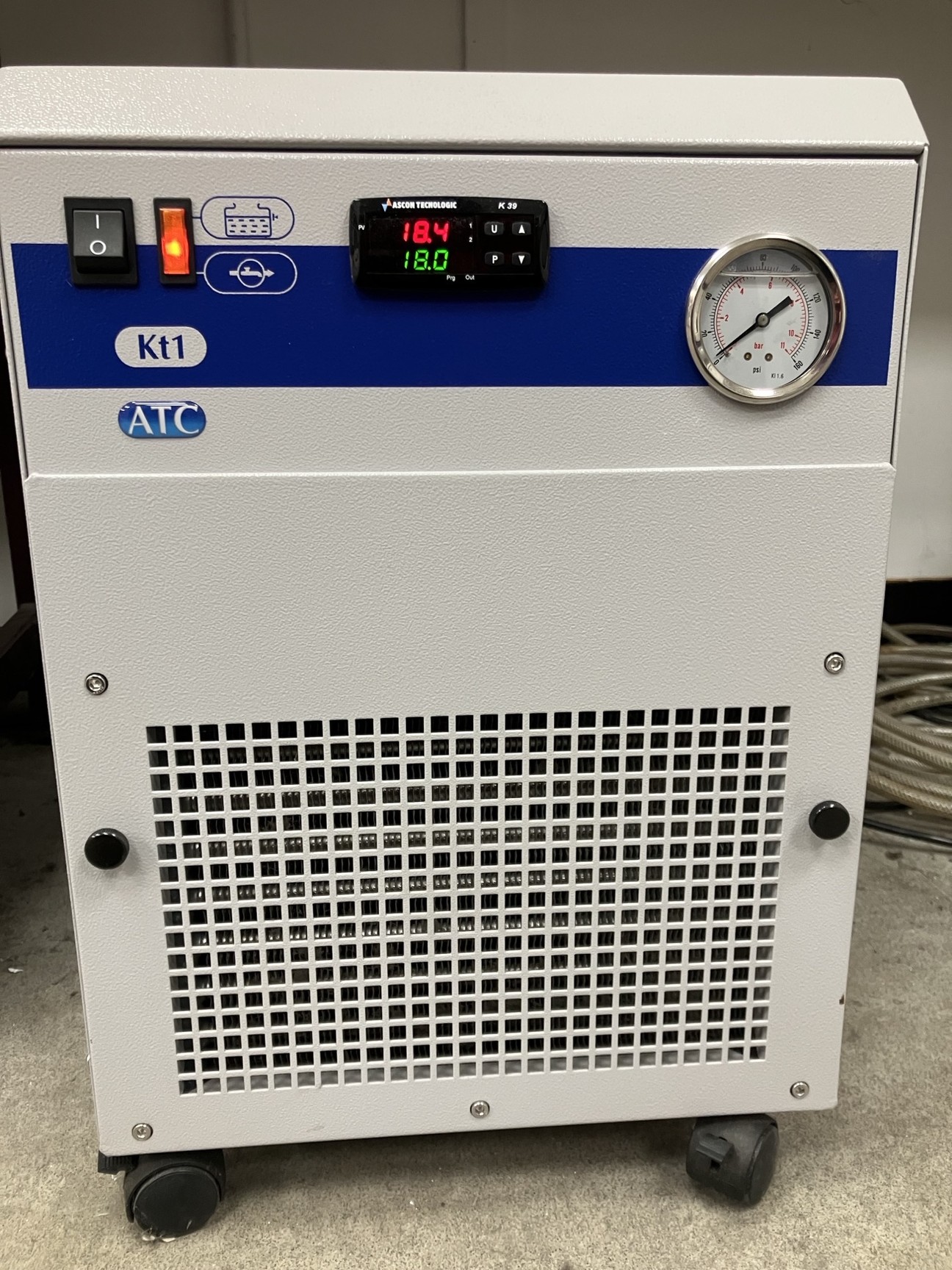

• Compressor, scroll pump and chiller as used to run the instrument
• Associated cables and connections present at the time of collection
• Logistics & Responsibilities

The system is still installed; decommissioning, disassembly, packaging, transport and recommissioning are not included and must be arranged and funded by the buyer.

The seller has indicated that the system originally arrived in multiple containers and was assembled by Hitachi, and they expect a similar process will be required for removal and installation at the new site.

It is available for collection from Farnborough, Hampshire, UK.
