BETOL BK32 Koellman Gear - Polymer Extruder

Item Code: ITEM-07844

Condition: Used

Brand: Betol

Location: Scotland

£ POA

Not in stock

SOLD - Unfortunately this item is no longer available. However, we may have similar items available for sale. Please get in touch with us at , or by phone on +44 29 2086 4661.

Description

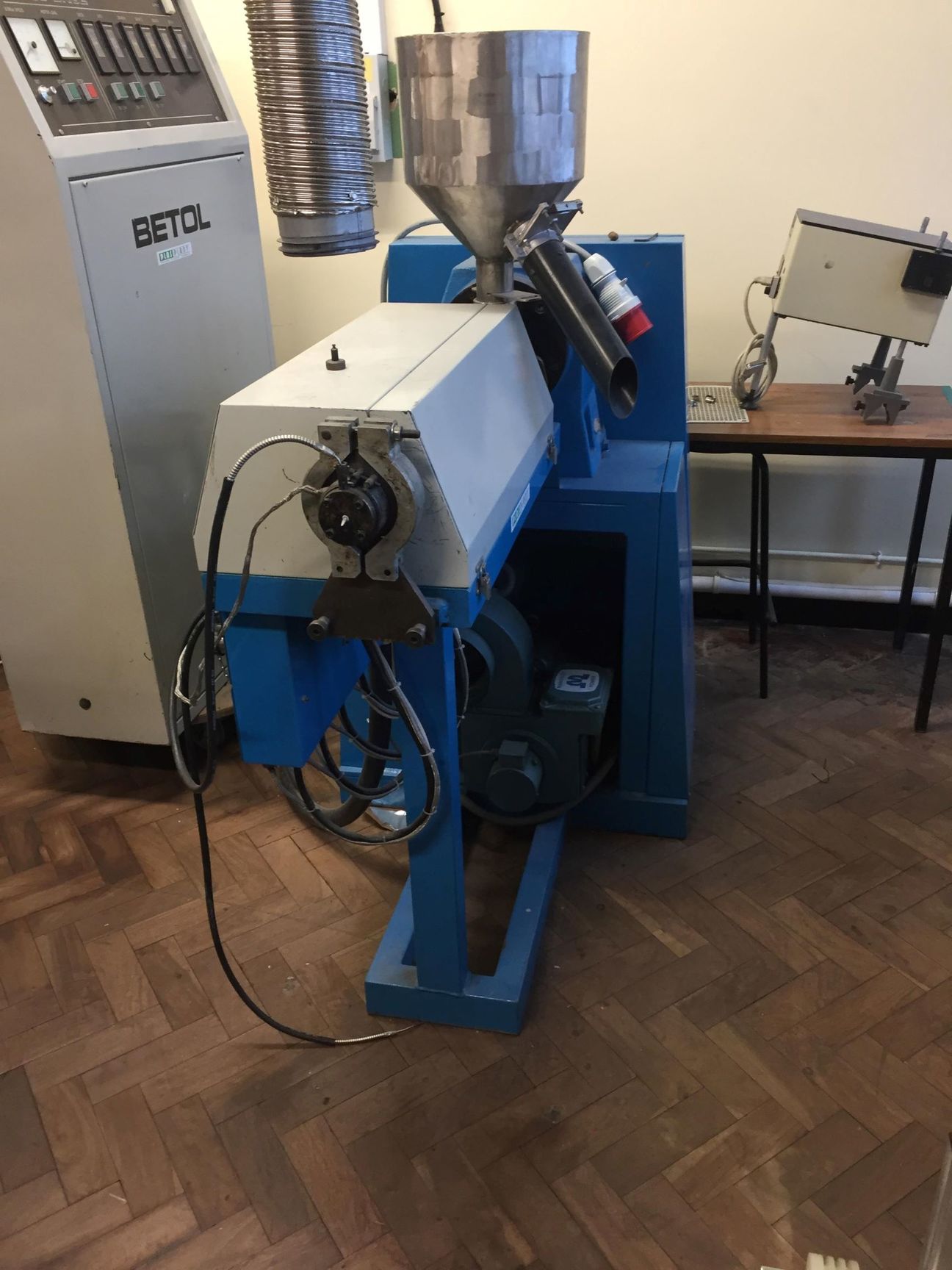

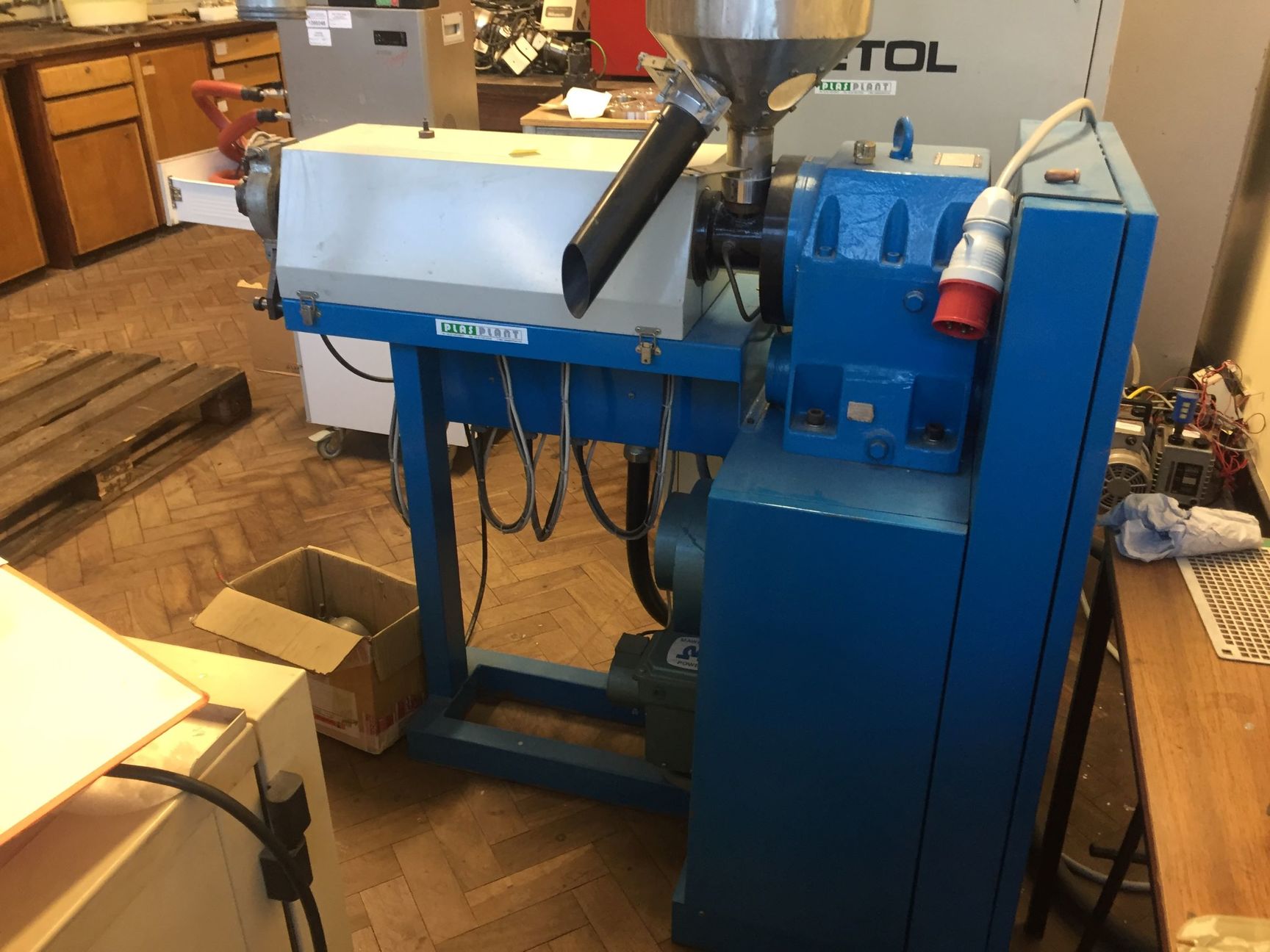

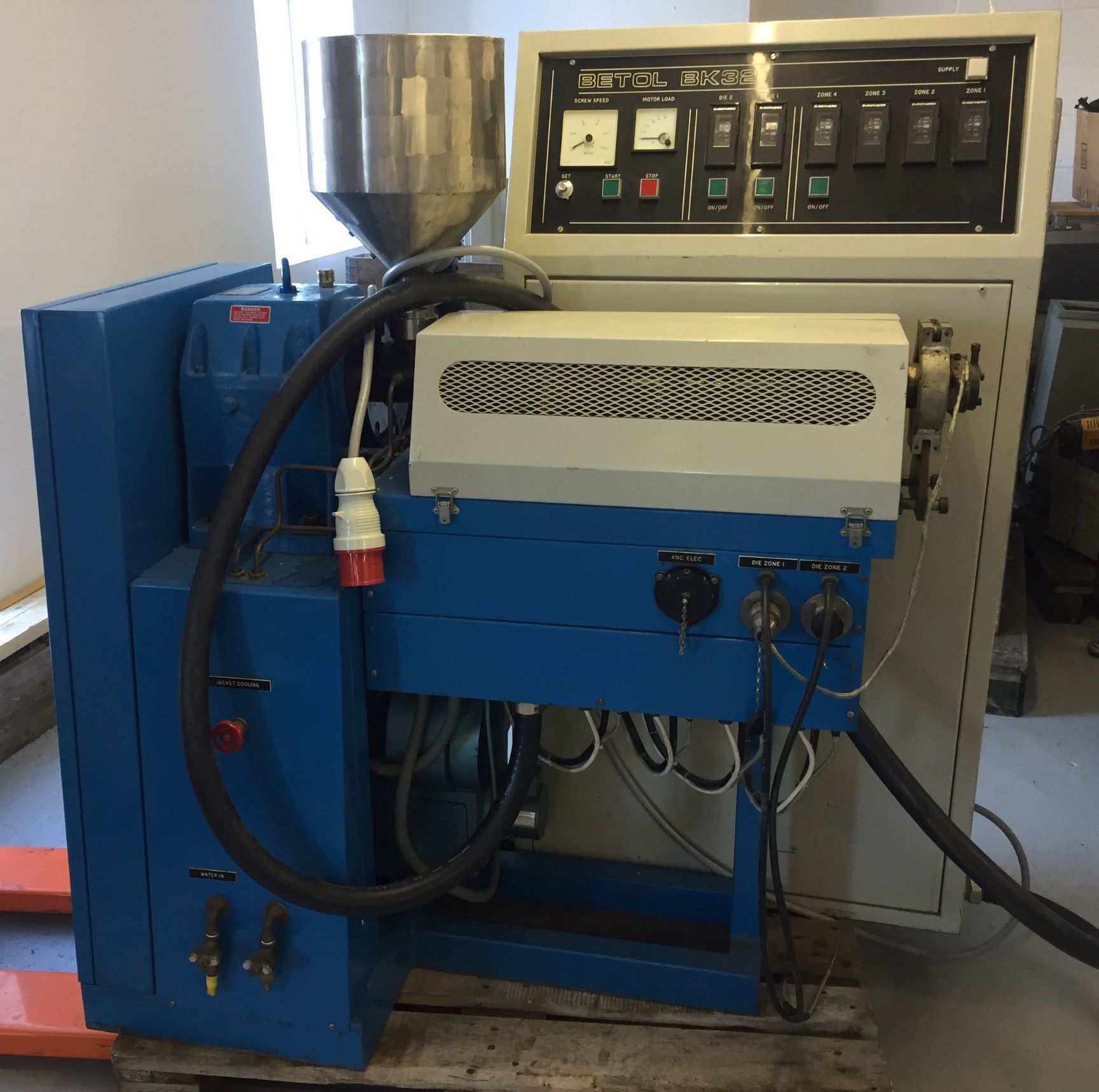

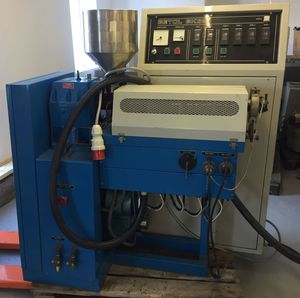

BETOL BK32 Koellman Gear Polymer Extruder came to us from a working laboratory in a top UK university and we were assured it is in full working order, very little used in laboratory - being sold as surplus to requirements.

Technical details

Screw diameter 32mm

Bursting Disc pressure (kg/cm2) 345

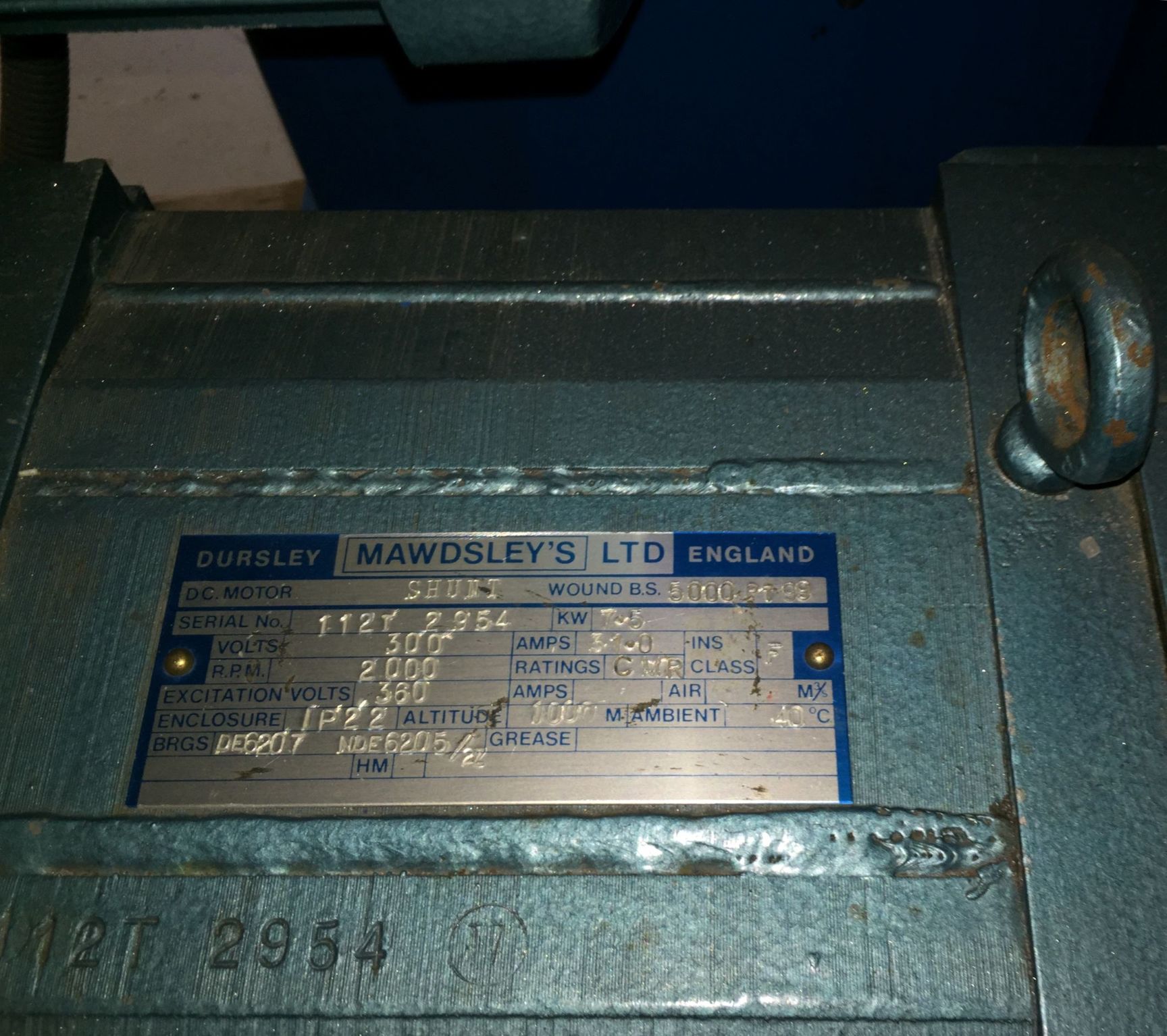

Main Drive (KW) 7.5

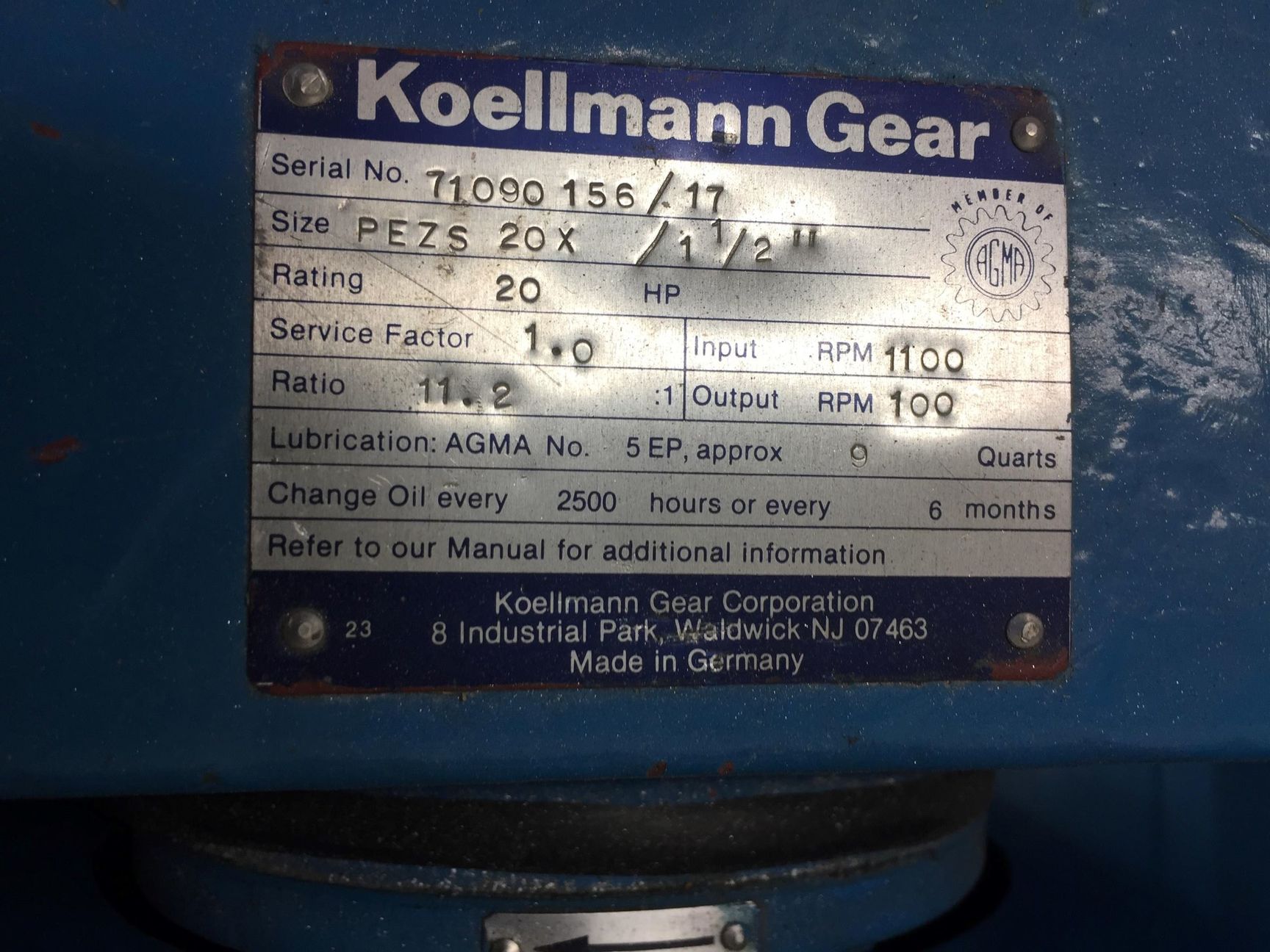

Rated Torque of Gearbox 1350

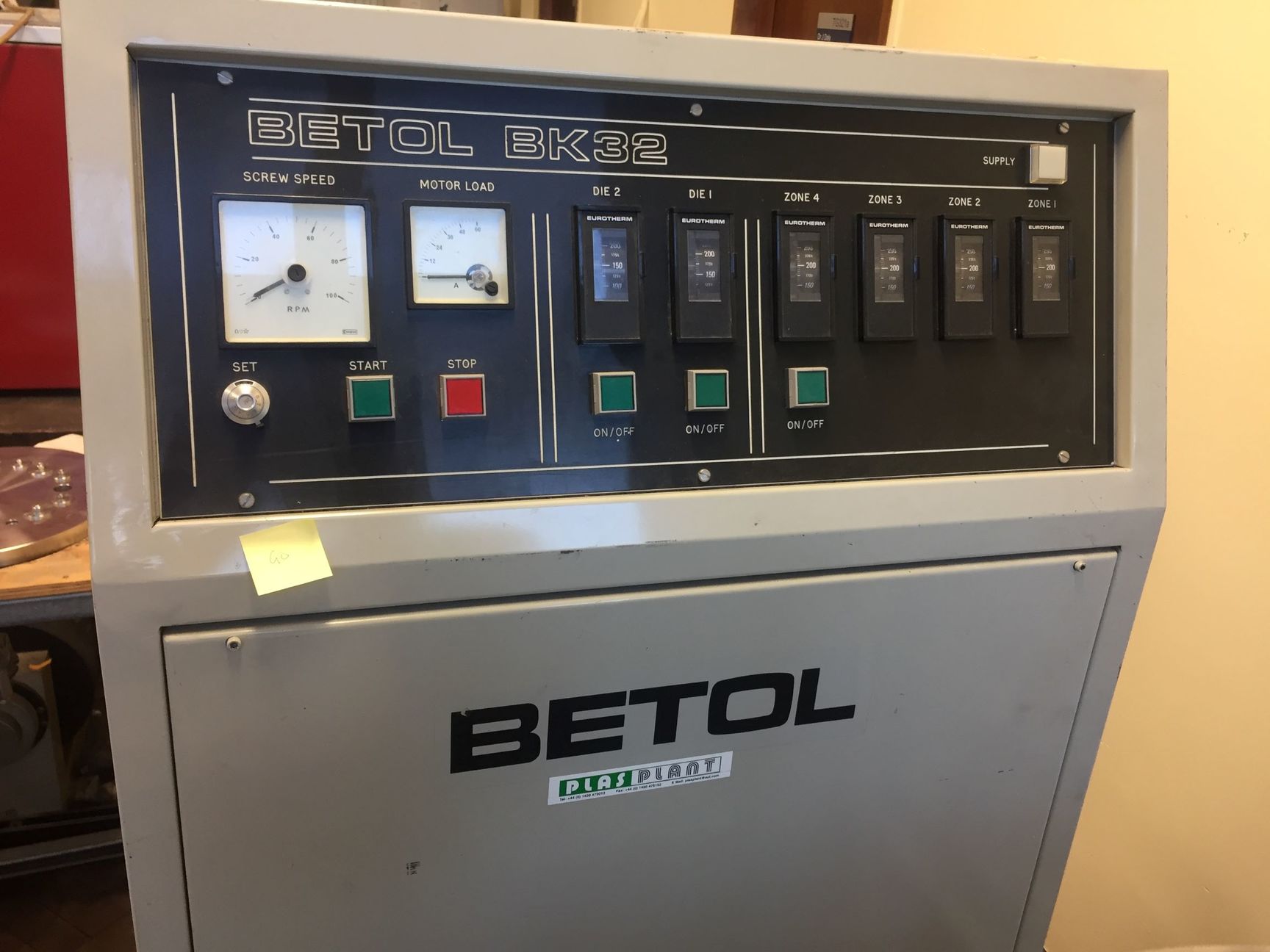

Barrel Heating Zones 4

Heating Power per Zone (KW) 1.9

Die Heating Zones 2

Maximum Output* (kg/hr) 30

Hopper Capacity (kg) 18

Height (mm) 1660

Length (mm) 1490

Width (mm) 820

Approximate Net wt (kg) 785

*Depending on material specification grade

BETOL Single barrel extruder does not need very high rev values to work. Example for PE it can processed at about 22 RPM (maximum RPM 100)
This extruder can blend compatible pigment and polymer together but is not meant for concentrated compound blending. It is best used with pellitised concentrates.
