This Instron Model 1332 Servo Hydraulic Fatigue Test System was removed from a university materials testing lab where it was surplus to requirements.

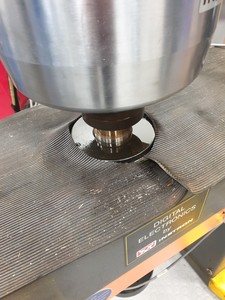

The system was reportedly in good working order prior to removal from the facility, but we were informed that one of the hydraulic jaws has a leak. They told us the seal had been replaced but they had seen little improvement and the jaw would need repairing. We were informed that it could still be used with a flat plate solution as opposed to a jaw. We have not tested the unit at our site.

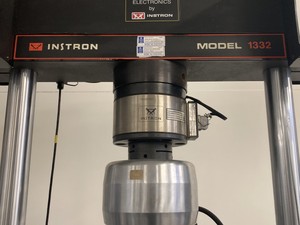

The machine has a 100kN load cell. It is a Type 2513-502 dynamic load cell.

Outside of the faulty hydraulic jaw, it looks to be in great condition cosmetically.

There is a PC with software included.

Instron Fast Track 2 - which includes:

-223 Calibration Module

-ArbySpy

-DAX (Data Aquisition)

-FT Console & Config

catman 3.1

National Instuments Software

-Measurement & Automation

-NI Spy

-NI-488.2

Spider32 Setup

Please note - this unit is very tall measures 2.8m on a pallet, and weighs 1,280kg. You are welcome to arrange a delivery - we can assist by loading it onto a flatbed, or loading it on without a pallet into a vehicle with a tall space. Alternatively, we may be able to assist loading it horizontally if necessary.

Alternatively - please enquire about delivery options - there are a number of solutions we can offer both within the UK and internationally, depending on your requirements.
