1g Dynamics Dynamic Shaker and Amplifier Type DMA31E/D10-300 & CF-300 Cooler Lab
Item Code: ITEM-15342
Condition: New
Brand: 1g Dynamics
£ POA
SOLD - Unfortunately this item is no longer available. However, we may have similar items available for sale. Please get in touch with us at , or by phone on 029 2086 4661.
Description
Dynamic Shaker and Amplifier Type DMA31E/D10-300 & CF-300 Cooler.
This system was purchased by one of our university clients but was never used for the intended project. We have been asked to sell it on their behalf.
Dynamic Shaker and Amplifier type DMA31E/D10-300
The unit is brand new and has never been used.
Included is;
System Model: DMA31E/D10-300
Complete vibration system as listed below:
Input Power: 400V/50Hz/3 Phase or specified as customer requirement

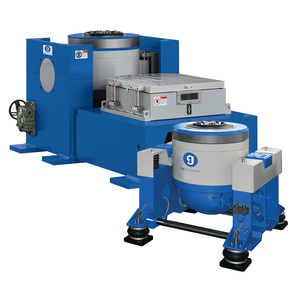

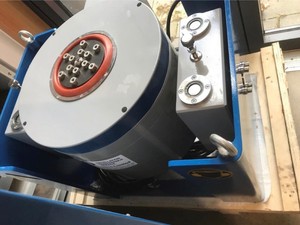

1) D10-300 Electro-dynamic Shaker with Trunnion, Vertical Pneumatic Load Support for maximum 120 Kg
Sine Force: 3 kN
Random Force: 3 kN
Shock Force (6 ms, 1/2 Sine): 6 kN Frequency Range: DC~ 5,000 Hz Maximum Acceleration (Bare Table): 100g Maximum Velocity: 2 m/s
Maximum Displacement (Peak to Peak): 40 mm
Armature Diameter: 150 mm
Effective Moving Mass: 2.0 kg

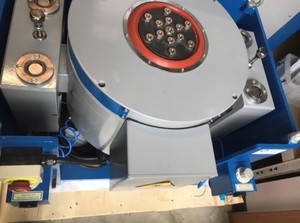

Grid Pattern: 13 stainless steel M8 Inserts, 6 on 60 mm Ф, 6 on 120 mm Ф

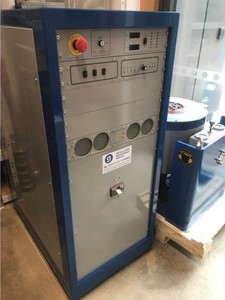

2) DMA41E Digital Power Amplifier
Power Output: 3.2 kVA
Signal to Noise Ratio: Greater than 65dB
Amplifier Efficiency: Greater than 90%
Interconnected cable between DMA41E power amplifier and D10-300 shaker, 5 meters in length

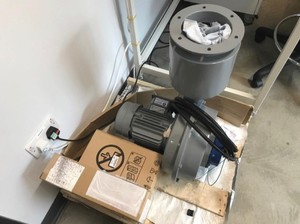

3) CF-300 Cooling Blower with Silencer Power Requirements: 0.75 kW
Cooling Blower with 4 meters of flexible hose
4) Standard Accessories equipped with the system Pressure Regulating Valve
Internal Load Support
Air Isolated Trunnion
5) Two sets of Operating/Maintenance manuals and drawings in English
Vibration control
To supply a vibration controller model IMV K2 to perform your vibration tests, consisting of the following:
1 Front end DSP box
2 analogue inputs (Control / Measure)
1 analogue output (Drive)
Random software VTS-9201
Sine software VTS-9202
2 x 10mv/g accelerometer with 5 mtr low noise microdot cable
Cost (new): ~£27,500 (ex VAT) Purchased: Jan 2020
Delivery
Free shipping is not available on this product. This item will be shipped by pallet delivery. Please contact us for a domestic or overseas shipping quote.
Return policy
Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.
NOTE: No cables, remotes, accessories, power supplies, consumables or any other items are included unless shown in the item photos or detailed above.
