PRISM TSE 16TC Twin Screw Bench-top Extruder for Theermoplastic Compounding

Item Code: ITEM-07512

Condition: Used

Brand: Brabender Technologie

Location: Scotland

£ POA

Not in stock

SOLD - Unfortunately this item is no longer available. However, we may have similar items available for sale. Please get in touch with us at , or by phone on +44 29 2086 4661.

Description

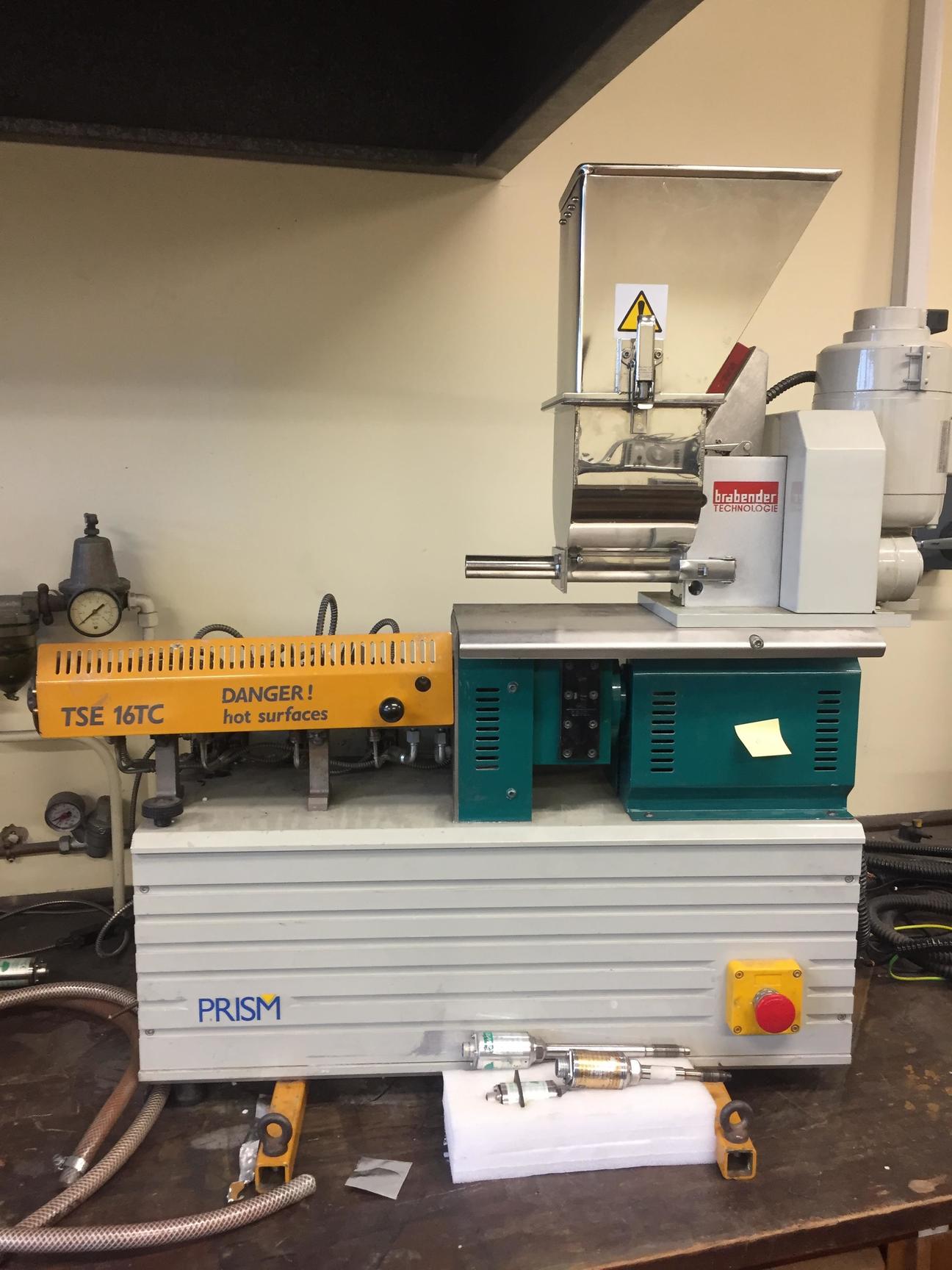

Twin Screw PRISM 16TC Benchtop Extruder

This thermoplastic compounding extruder system has been recently collected from a working laboratory in a top UK university as a surplus to requirements.
It has never been used in industrial environment.
We were told by the laboratory technician that this system is fully operational and in great working order, it has always been serviced/maintained by authorised company.
It comes with a Data Sheet and Instruction Manual

Technical details

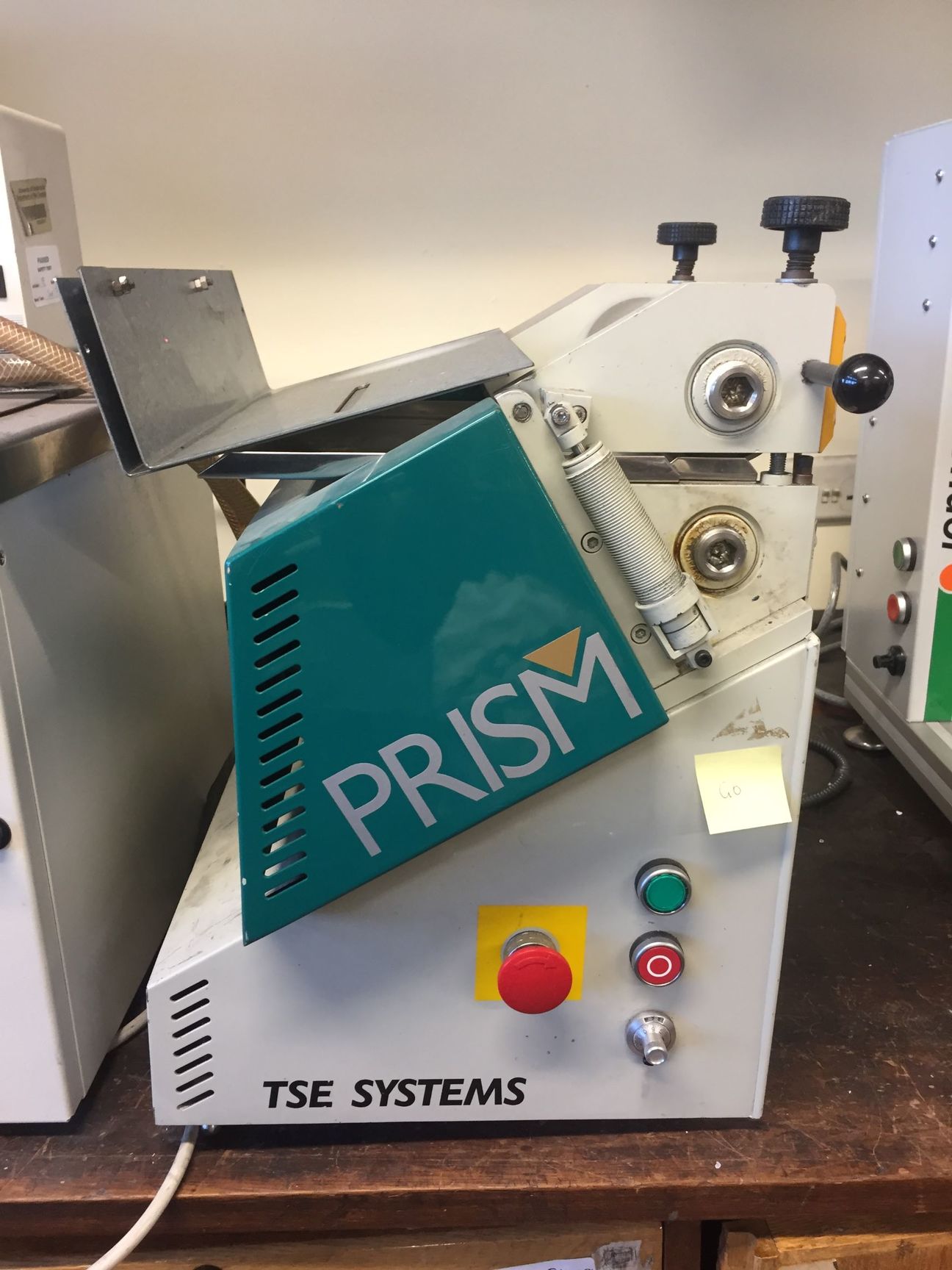

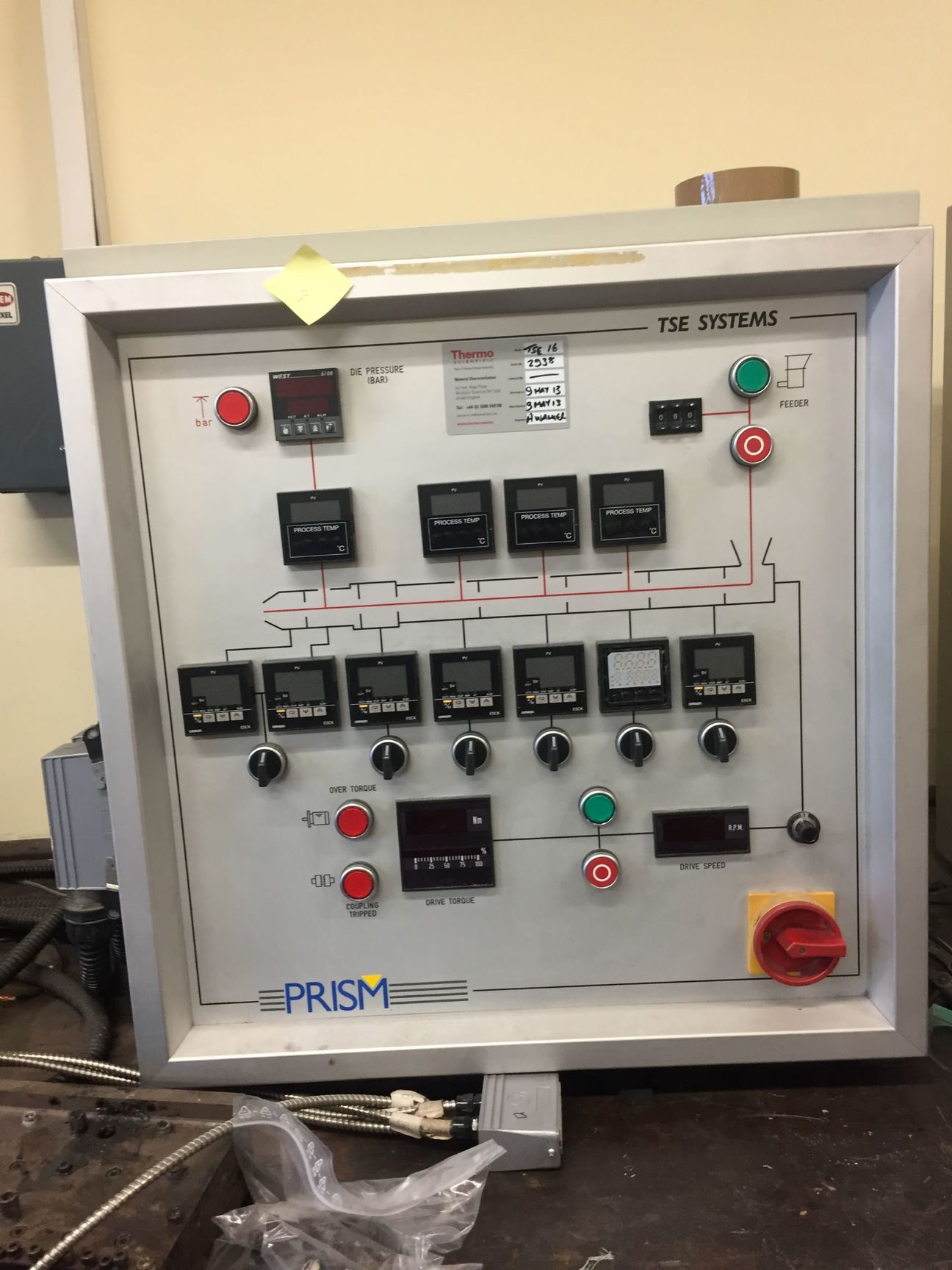

The PRISM TSE 16 TC extruder is designed for bench-top operation. The horizontally split barrels are quick to open, giving easy access to screws and process contact surfaces for cleaning or configuration changes. The barrel has additional ports for feeding solids and liquids, or for venting. A simple manual control panel houses controls and instruments to operate the extruder and feeders.

Maximum speed: 500RPM
Barrel Length: 25D (400mm)
Drive Power: 1.25KW
Max. Torque/Shaft: 12Nm
Max Operating Temperature: 300C
Max operating pressure: 100BAR
Electrics: 22/240V, 1Phase, 50Hz, +Neutral
Year of Manufacture: 1998

Delivery

Free shipping is not available on this product. This item will be shipped by pallet delivery. Please contact us for a domestic or overseas shipping quote.

Return policy

Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.

NOTE: No cables, remotes, accessories, power supplies, consumables or any other items are included unless shown in the item photos or detailed above.
