Universal Laser System VLS 3.50 Laser System Cutting Engraving
Item Code: ITEM-08414
Condition: Used
Brand: Universal Laser Inc.
£ POA
SOLD - Unfortunately this item is no longer available. However, we may have similar items available for sale. Please get in touch with us at , or by phone on +44 29 2086 4661.
Description

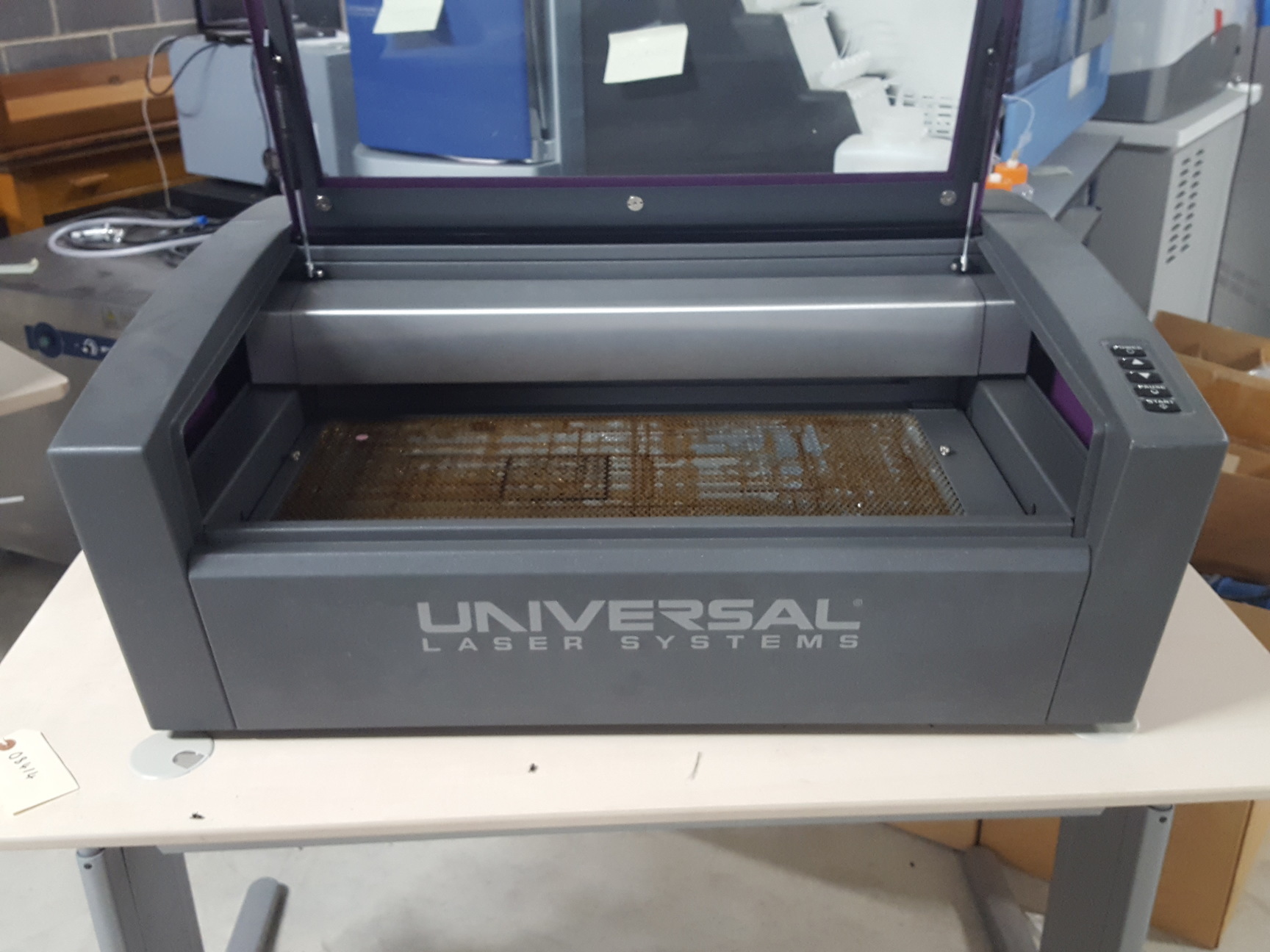

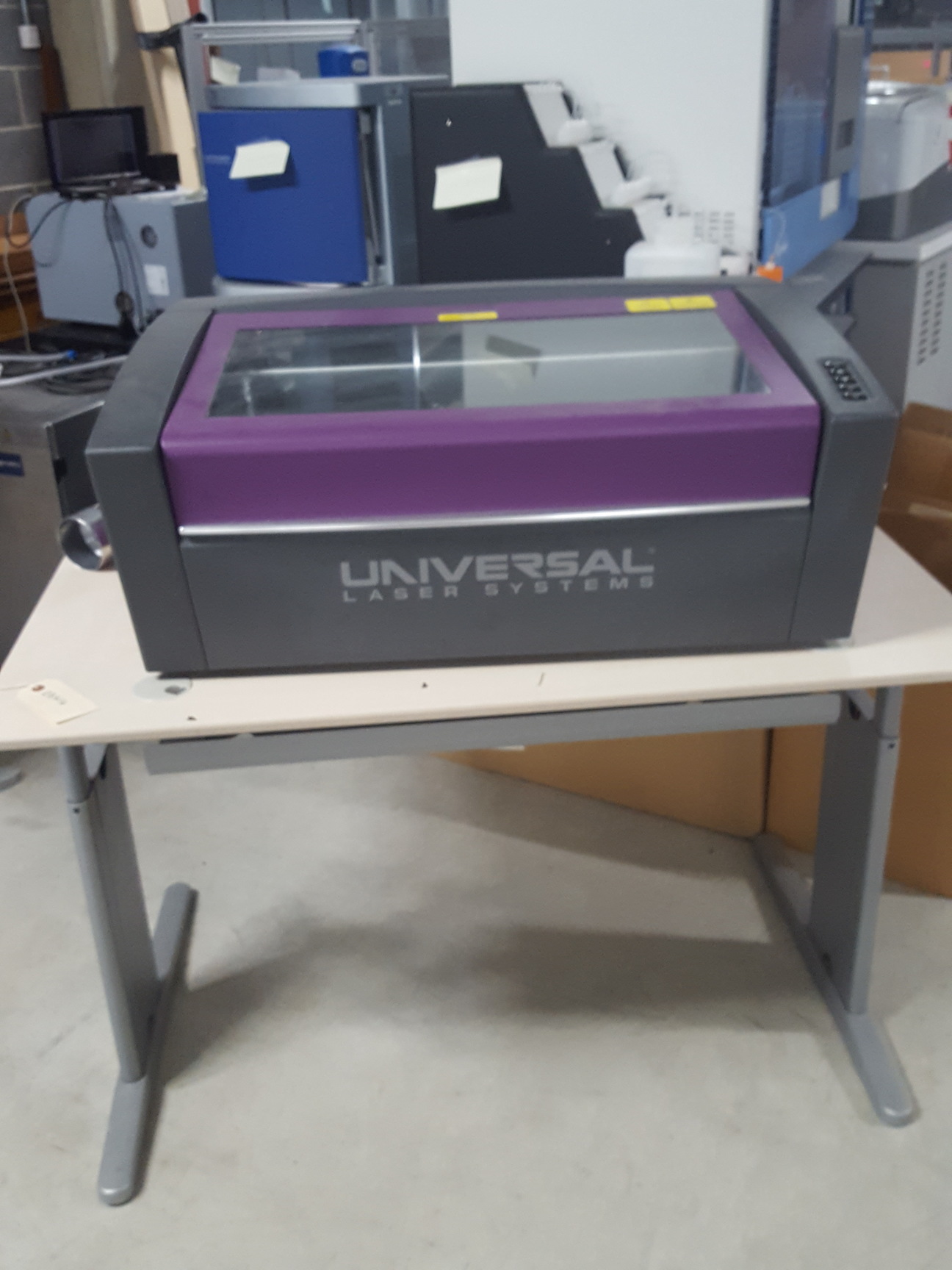

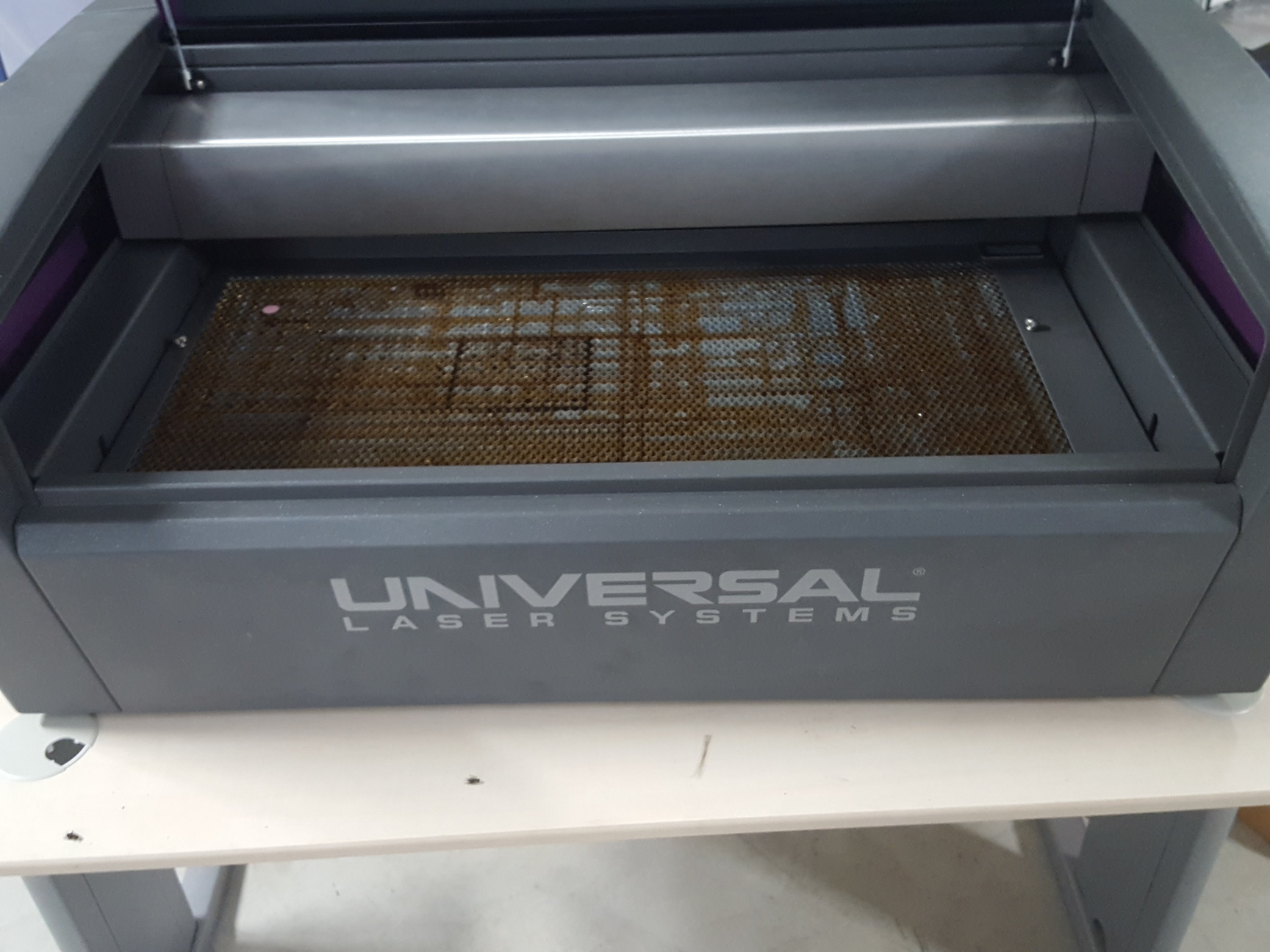

This unit was removed from a lab as surplus to requirements. It is only the system as shown in the photos. There is no PC or other accessories included.
It appears to have been manufactured in January 2015.
Technical information:
The VLS3.50 Desktop is a compact and economical entry level platform that offers a material processing envelope of 24" x 12" x 4" or 1,152 in³ (610 x 305 x 102 mm or 18,878 cm³). The VLS3.50 can be equipped with one of five 10.6µm CO<sub style="color: rgb(19, 19, 19); background-color: rgb(255, 255, 255);">2</sub> laser sources ranging in power from 10 to 50 watts or one 9.3µm CO<sub style="color: rgb(19, 19, 19); background-color: rgb(255, 255, 255);">2</sub> 30 watt or 50 watt laser source.
| Laser Material Processing Area (W x H) | 24 x 12 in (610 x 305 mm) | |
| Maximum Part Size (W x H x D) | 26.75 x 14.6 x 4 in (679 x 370 x 102 mm) | |
| Overall Dimension (W x H x D) | 34 x 14 x 25 in (864 x 356 x 635 mm) | |
| Rotary Capacity | Max Diameter: 4.5 in (115 mm) | Min Diameter: 1 in (25.4 mm) |
| Motorized Z Axis Lifting Capacity | 20 lbs (9 kg) | |
| Available Focus Lenses | 2.0 in (50 mm) | HPDFO™ (High Power Density Focusing Optics) |
| Laser Platform Interface Panel | Five button keypad | |
| Computer Requirements | Requires dedicated PC with Windows® 7/8/10 32/64 bit and one available USB port (2.0 or higher) | |
| Optics Protection | Ready for compressed-air-based optics protection | |
| Cabinet Style | Desktop | |
| Laser Options | 10, 25, 30, 40 and 50 Watts | |
| Weight | 95 lbs (43 kg) | |
| Power Requirements | 110V/10A | 220V-240V/5A |
| Exhaust Requirements | One 3 in (76 mm) port | 250 CFM @ 6 in static pressure (425 m<sup style="background-color: rgb(255, 255, 255); color: rgb(51, 51, 51);">3</sup>/hr at 1.5 kPa) |
Delivery
The price includes free economy delivery (3-5 working days) to Mainland UK Postcodes EXCLUDING the following postcodes:
AB31-38, AB40-52, AB54-56, AB63 IV1-28, IV30-32, IV36-56, IV63 KA27-28 KW1-17 PA20-38, PA41-49, PA60-78 PH4-44, PH49-50 PO30-41 TR21-25 BT, GS, GY, HY, IM, JE, TDCU, ZE
If you live in one of the above postcodes please enquire for a shipping quote. Your item will be carefully packed and dispatched within 24 hours (Mon–Fri) of receiving payment.
International buyers please contact us for an overseas shipping quote.
Return policy
Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.
NOTE: No cables, remotes, accessories, power supplies, consumables or any other items are included unless shown in the item photos or detailed above.
