Set of Flanges from a Balzers UHV Thin Film Deposition Chamber UMS 630.

12 Flanges in total.

1 x Largest item measures 26cm in Diameter

3 x 21cm diameter flanges (no lens) with plastic covers (orange, yellow & black)

1 x 21cm diameter flange with viewing lens/glass with clear cover

1 x 21cm diameter flange with 5cm hole with red plug and clear cover

1 x 11.5cm diameter Full flange (no lens)

3 x 11.5cm Diameter flanges with viewing lens/glass

2 x 7cm Diameter Full flanges (no lens) 1 with Plastic orange cover.

5 x Bags of nuts and bolts to fit flanges.

They are generally in good condition but have been previously used and will require a professional clean-up prior to use.

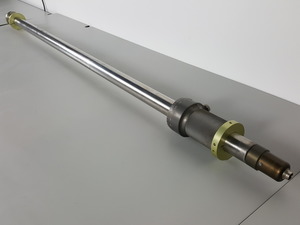

This BALZERS Model 4306 Rod/ Sample Transfer Arm was removed from a university lab where it was surplus to requirements.

The item was originally part of Balzers UHV Thin Film Deposition Chamber Model UMS 630.

It has Balzers 4306 etched, which we think is possibly a part number?

The arm extends from 147cm to 260cm and the hole diameter on the end is 3.1mm (6 holes)

The item appears in good condition and includes a bag of nuts, washers and an arched piece.

The items were originally part of a Balzers UHV Thin Film Deposition Chamber.

4 folders of manuals:

1 x MicroVAX 3100 & VAXserver 3100 Customer hardware information.

1 x Balzers blue folder full of spec and diagrams.

1 x Plain Blue folder labelled Modifications & Diagrams 1992 & 1993.

1 x White Balzers folder, more spec and instructions, slightly water damaged on the outside but the paperwork inside is fine.

3 x Balzers floppy discs - Installation, Application & Backup

9 x Floppy discs labelled Reflection 1 - 9

Diamond Crystal and Molecular Structure Visualization Version 3.0 CD

This HARTING 20 Foot 42 Pin Plug & Connector Cable from UHV System was removed from a university lab where it was surplus to requirements.

It was originally part of Balzers UHV Thin Film Deposition Chamber and appears in good cosmetic condition. It has not been tested.

HARTING Cable with plug 31 Pin Female from UHV System

This was removed from a Balzers UHV Thin Film Deposition Chamber. It was situated in a university and was surplus to requirements.

The unit is approximately 35 feet long and appears in good cosmetic condition other than the missing connector.

HARTING Cable with Connector 19 Feet Long from UHV

This was removed from a Balzers UHV Thin Film Deposition Chamber which was taken from a university lab where it was surplus to requirements.

The unit is missing the plug from one end but is in otherwise good condition.

This HARTING Han Plug & Connector Cable (33 Feet) from UHV system was removed from a university lab where it was surplus to requirements.

The Cable is approximately 33 feet long and was originally part of Balzers UHV Thin Film Deposition Chamber.

The item appears in good cosmetic condition but has not been tested.

This sale is for a large collection of various UHV equipment as removed from a university chemistry lab as surplus to requirements.

The lab provided a brief description of the contents as below. Please enquire for any further information you may want and we may be able to sell contents separately.

1. VAT gate valve (originally between STM and buffer chamber)

2. STM chamber

3. Hydrogen cleaning and SIMS chamber

4. Cryo-cooled TSP tube from (3)

5. hydraulically formed bellows from (3) [US size flange, 4-5/8 inch]

6. Ion gauge from (3)

7. Three cold cathode gauges, from (2) and (3)

8. ‘T’ piece tube

9. Two adapter flanges

10. HV feedthrough on bellows

11. KF16 pneumatic valve

12. HV feedthrough

13. Loadlock chamber from Varian MBE chamber

14 Trasnfer arm from (13)

15. Long elbow piece from (13)

16. Assorted flanges – blanks and windows, from (2), (3) and (13)

17. Rotary mechanism

18. Assorted metalwork

This UHV Vacuum Spectrometer Control Unit was removed from a university where it was surplus to requirements.

Both parts of the unit power on and when adjusting the settings on the main unit the display reacts accordingly. It however has not been tested any further than this.

The unit is in reasonably good condition but the power input on the main unit is a little loose and can require a bit of movement to get the unit powered on.
