MDC MFG Inc. Stainless Steel Substrate Stage w/ Stepper Motor
Item Code: ITEM-50229
Condition: Used
Location: Wales
£ 500.00 exc. VAT (£ 600.00 inc. VAT)
If you are interested in this item or would like to place an order, please get in touch with us at , or by phone on +44 29 2086 4661.
Description

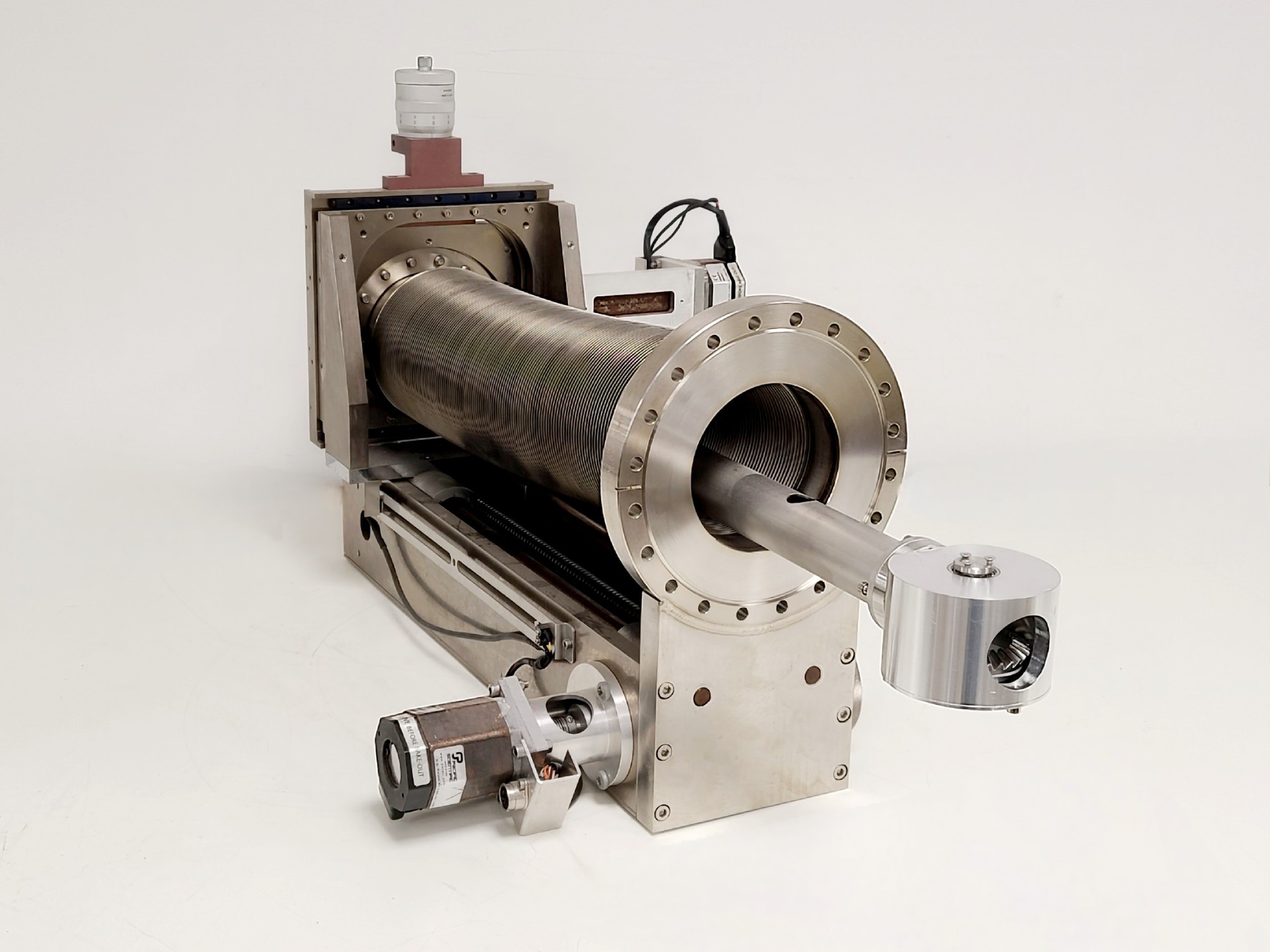

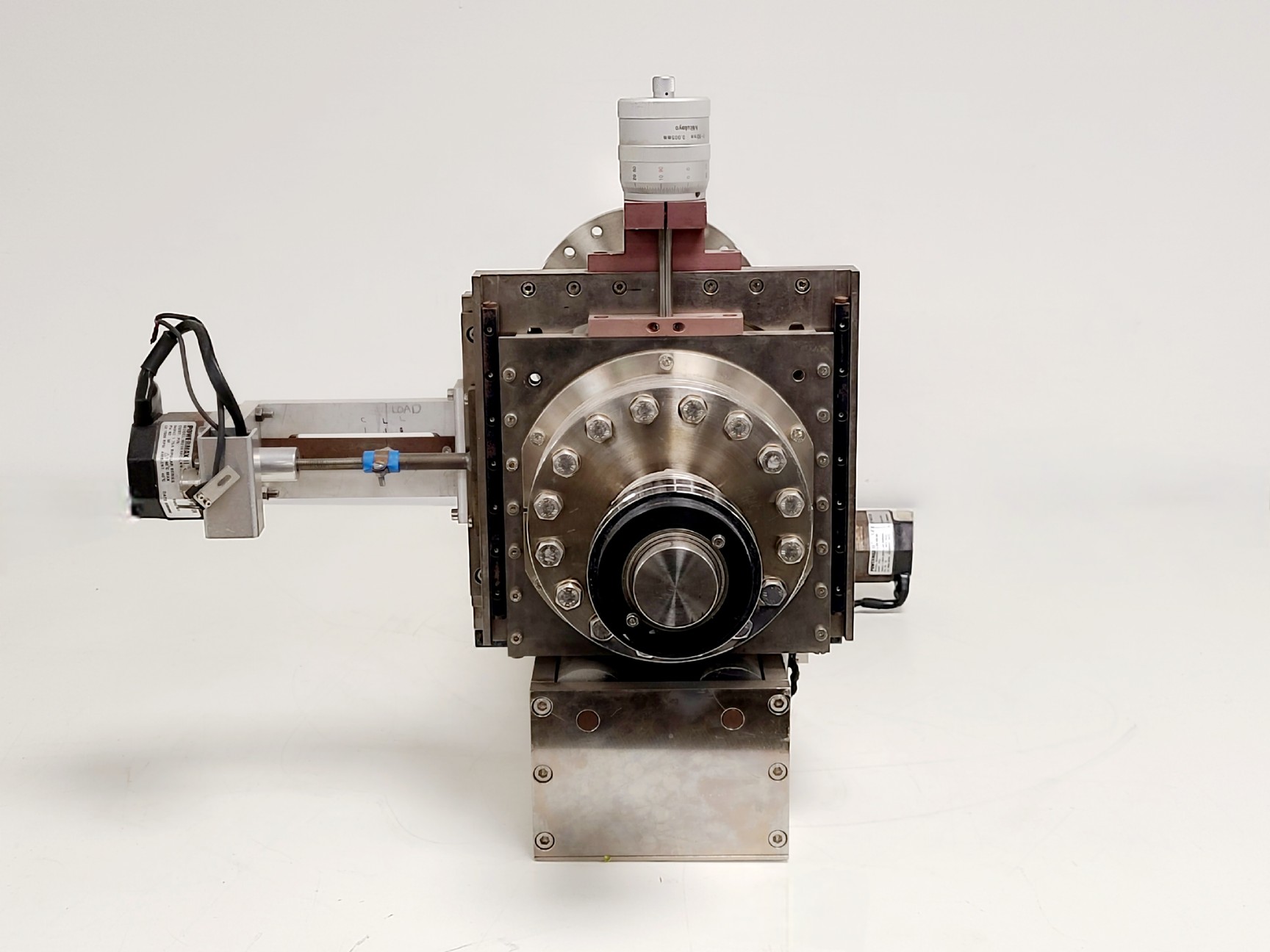

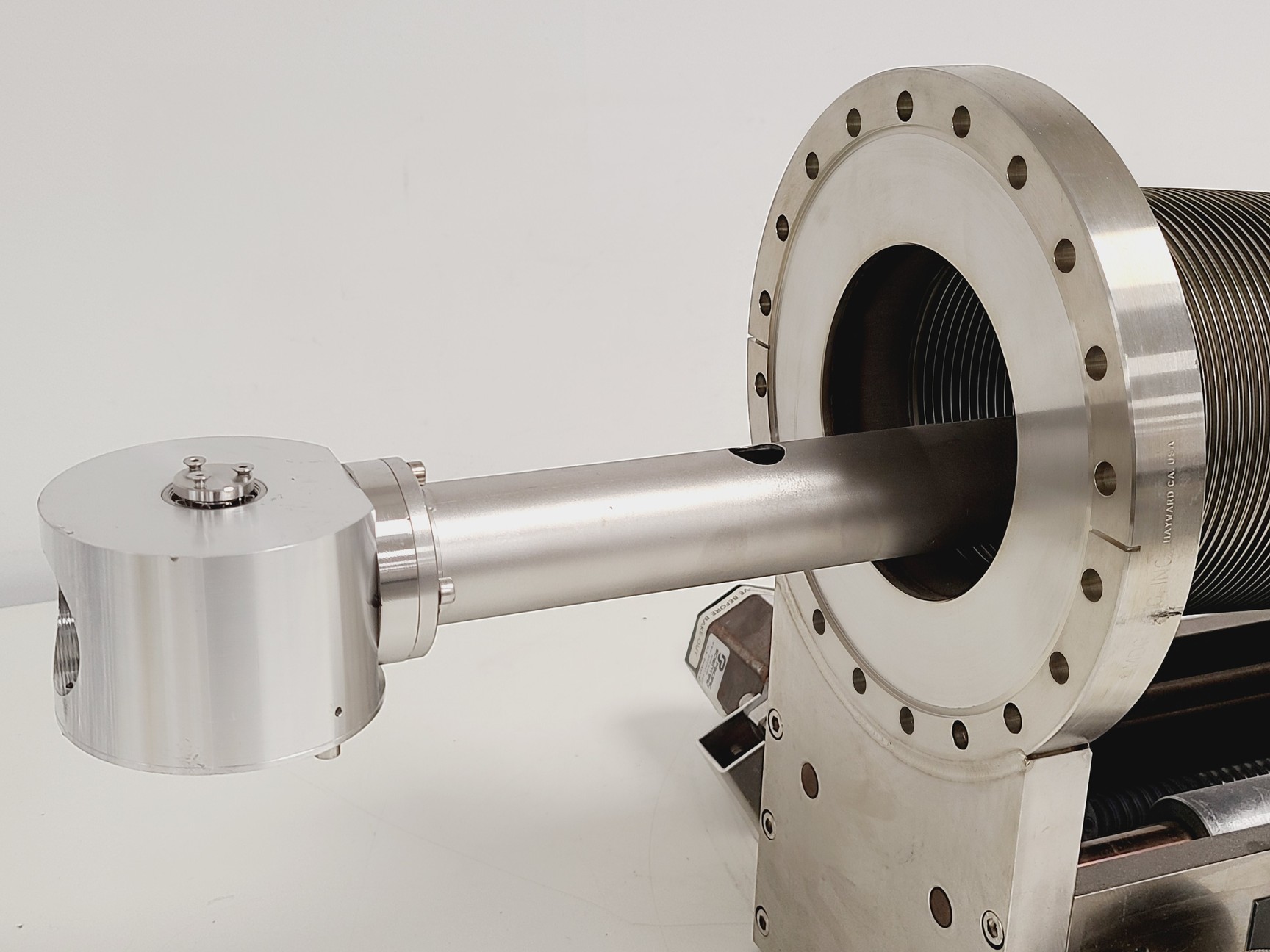

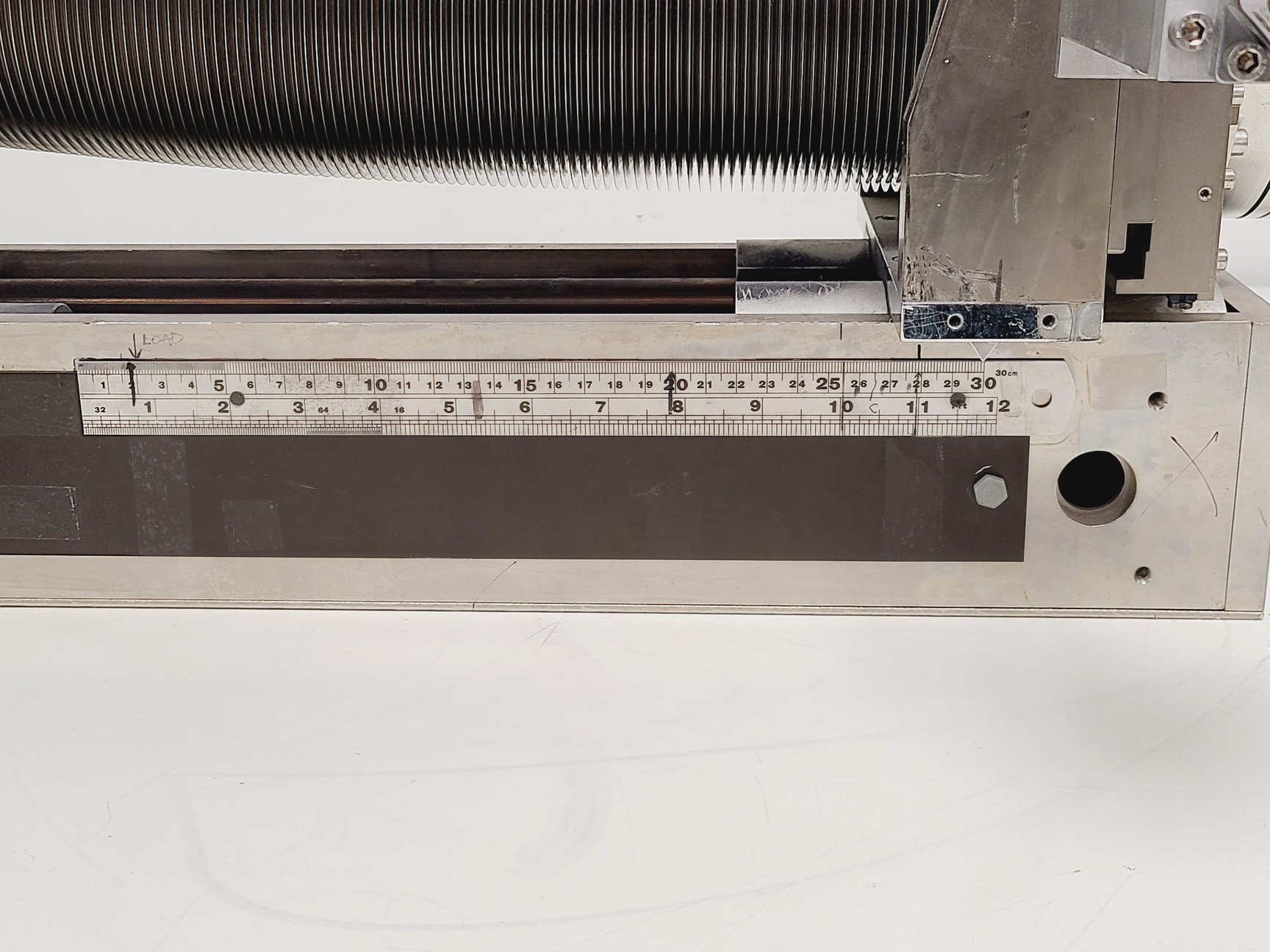

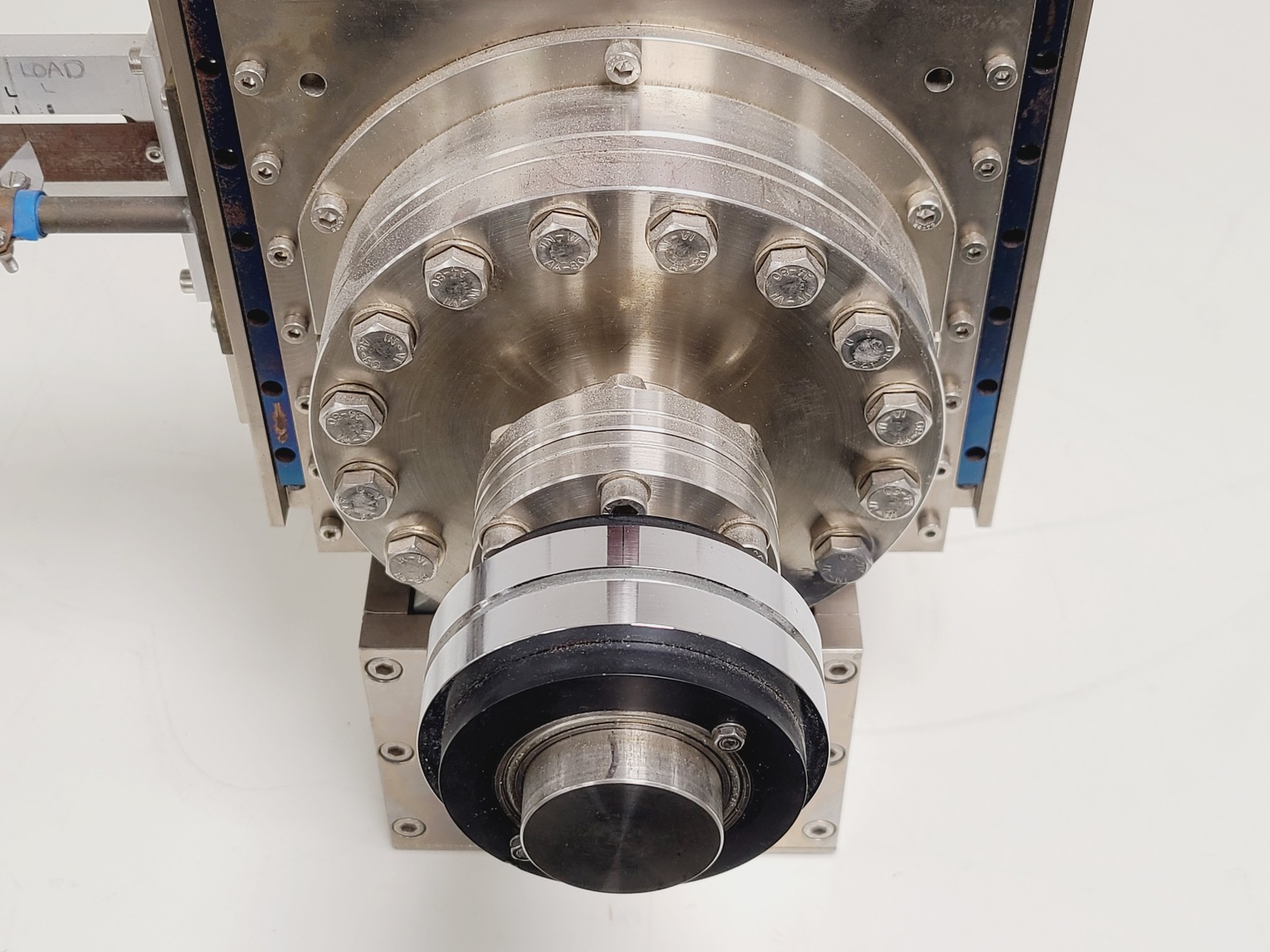

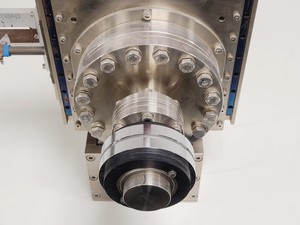

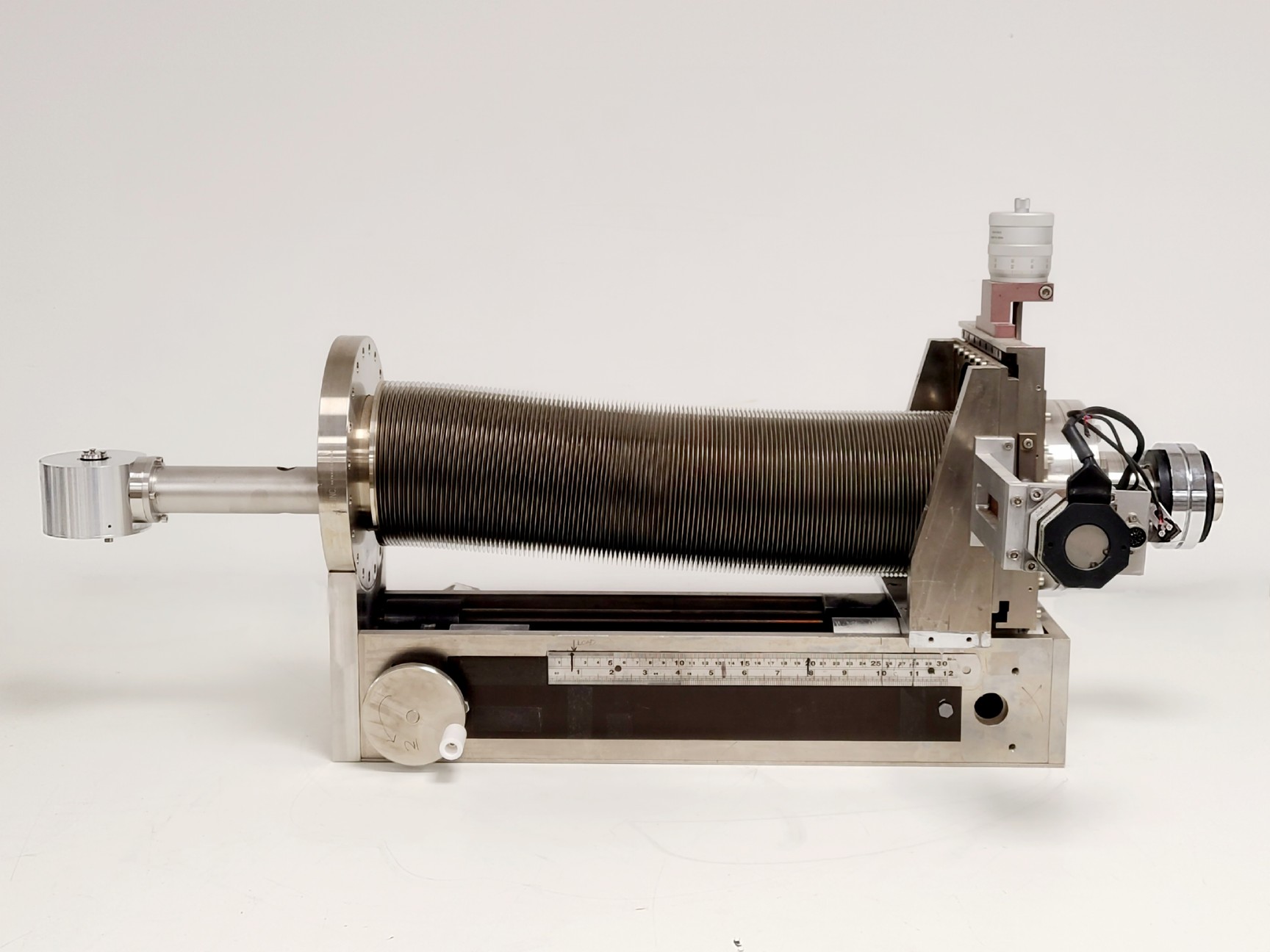

MDC MFG Inc. Stainless Steel Substrate Stage with Dual Stepper Motors
This item was removed from a facility where it was surplus to requirements.

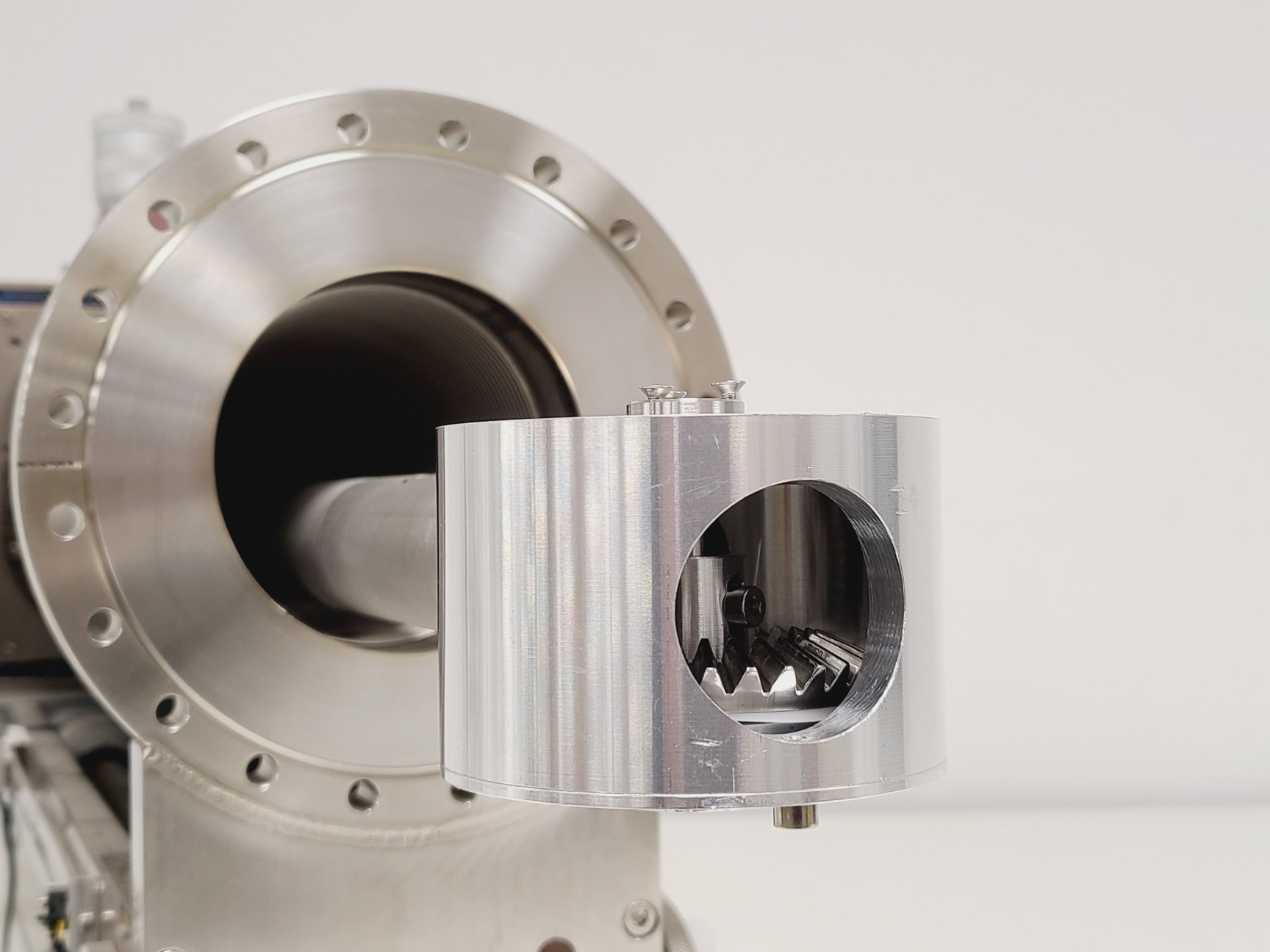

It is in good cosmetic condition. The assembly consists of a high-precision rotary substrate drum designed for thin-film deposition, coating, and surface-treatment applications.

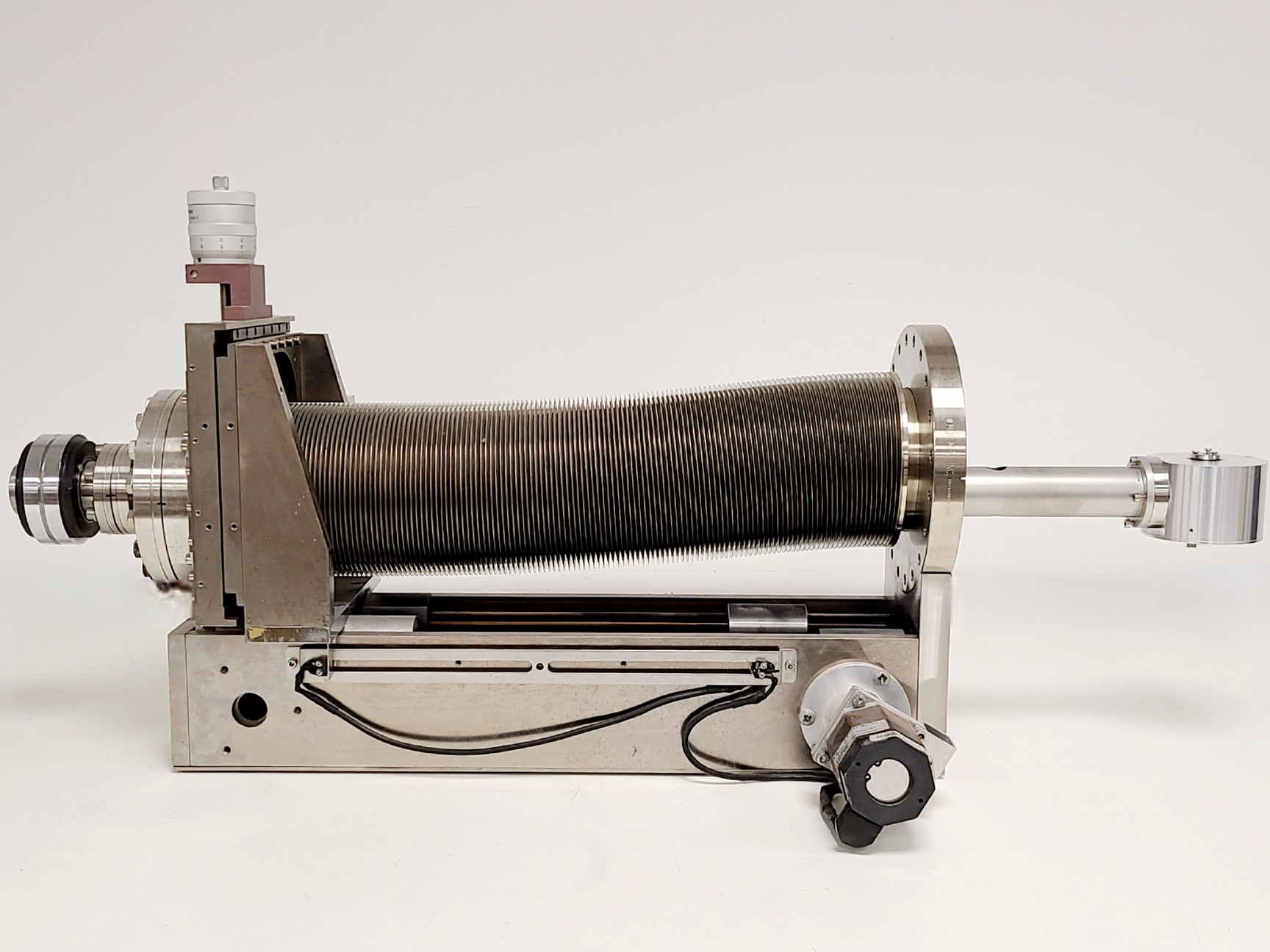

The stage features a large-format stainless-steel drum supported by precision bearings and driven by two stepper motors, one mounted at each end, allowing controlled and stable rotation. The unit has not been powered or functionally tested at our facility.
Construction & Features:
- Heavy-duty stainless-steel construction

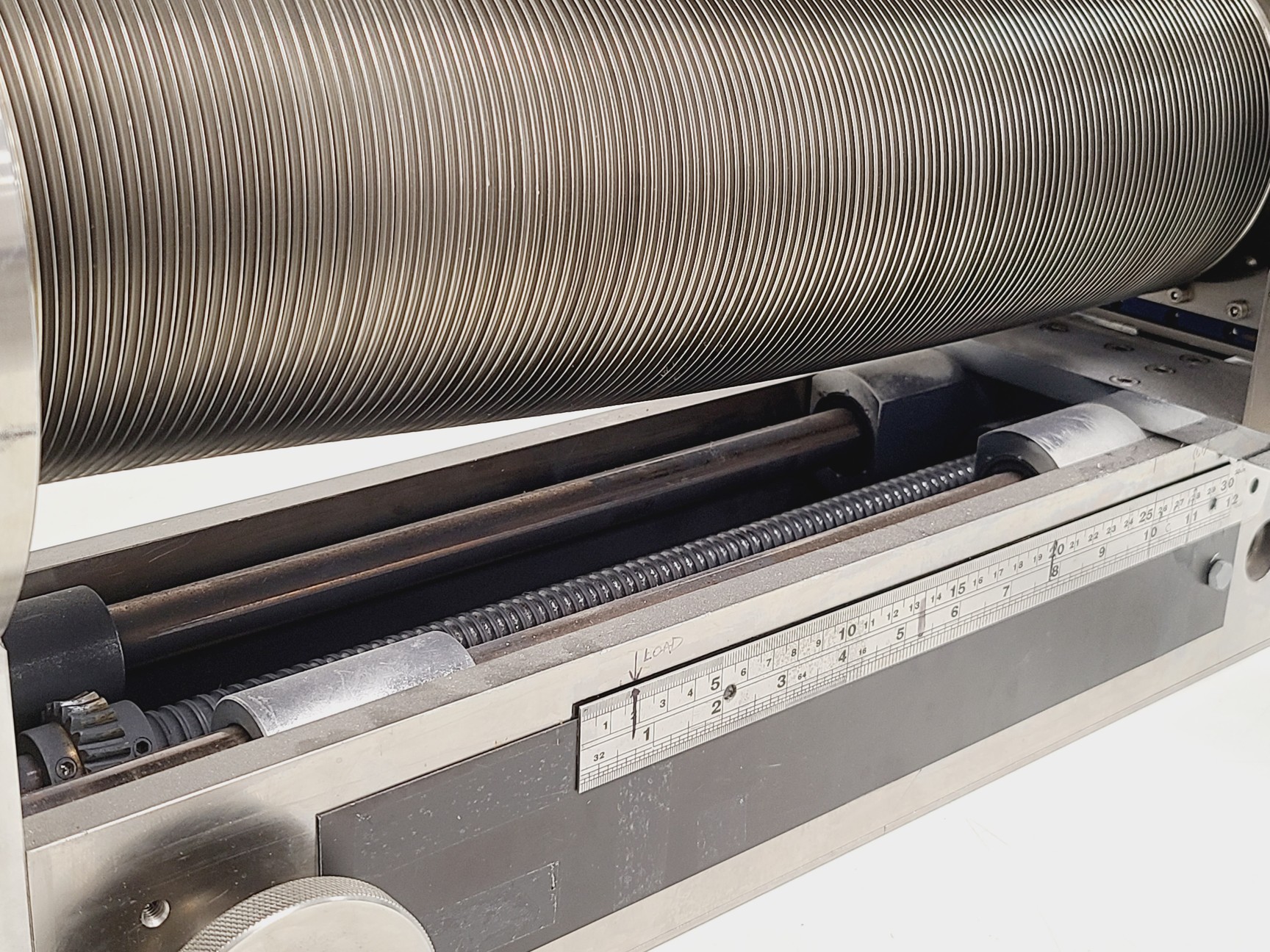

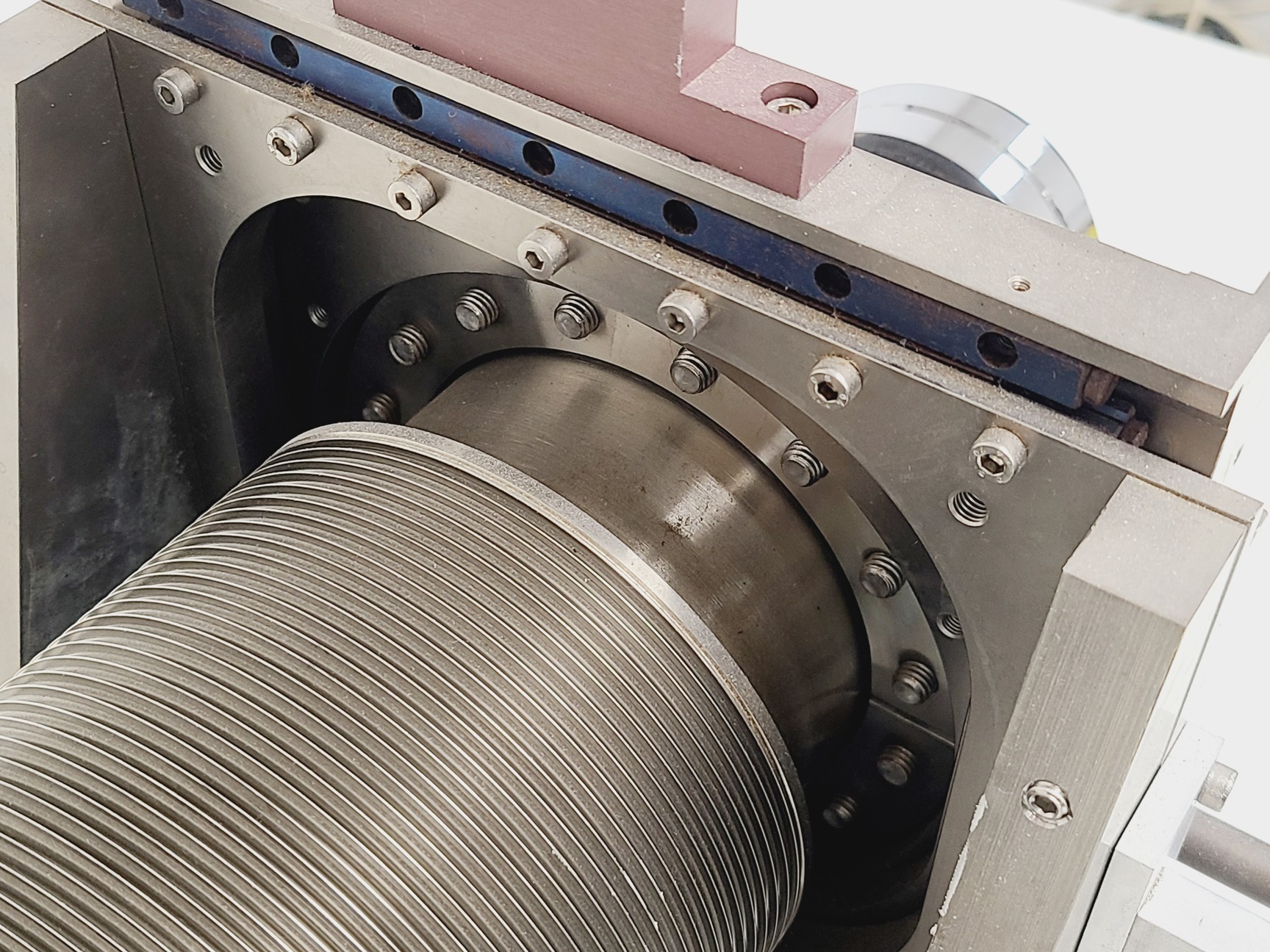

- Large cylindrical drum with fine ribbing for improved heat transfer and mechanical stability
- Precision bearing support
- Dual stepper-motor drive for accurate rotational control
- Suitable for vacuum and UHV thin-film deposition systems

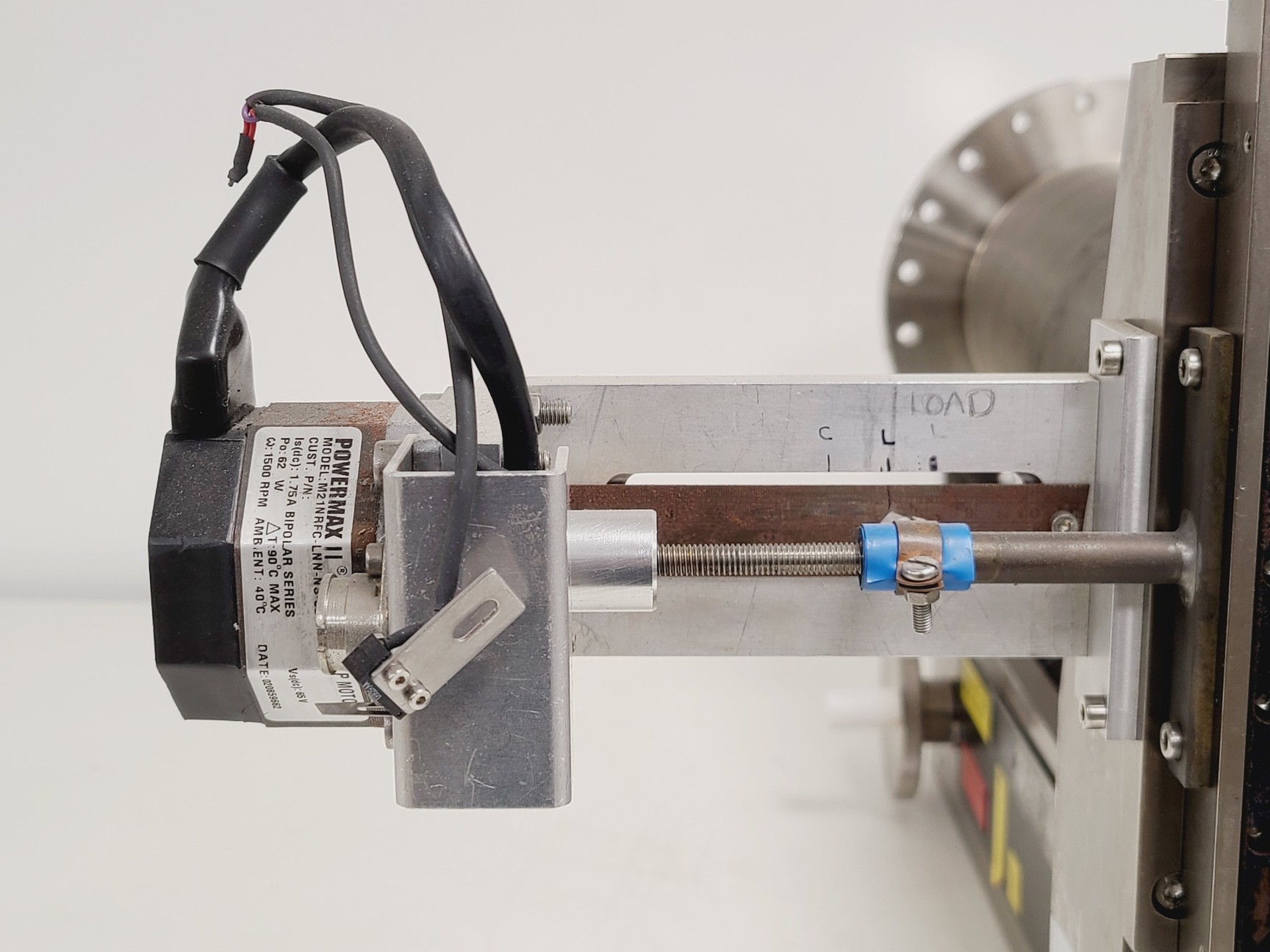

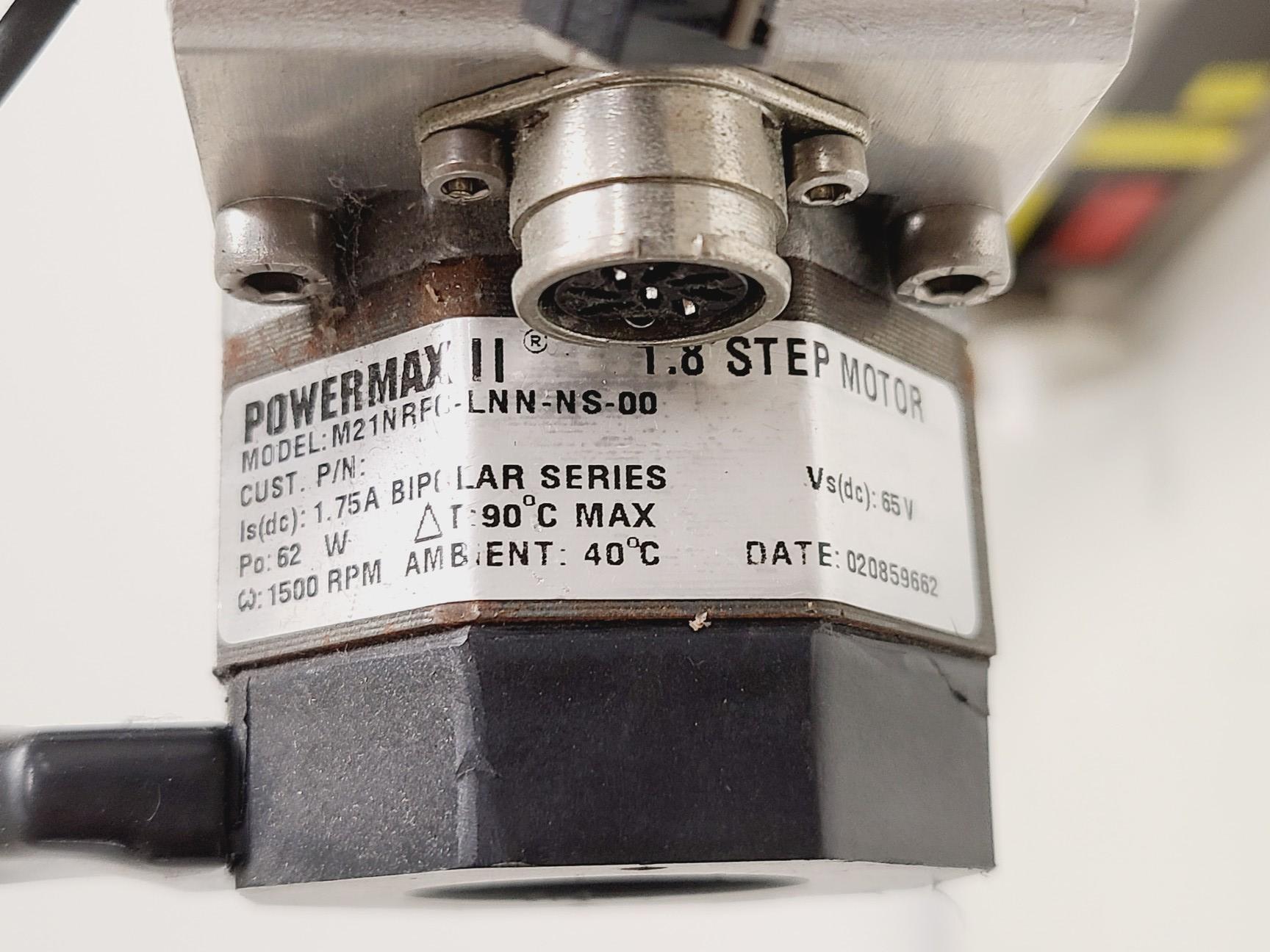

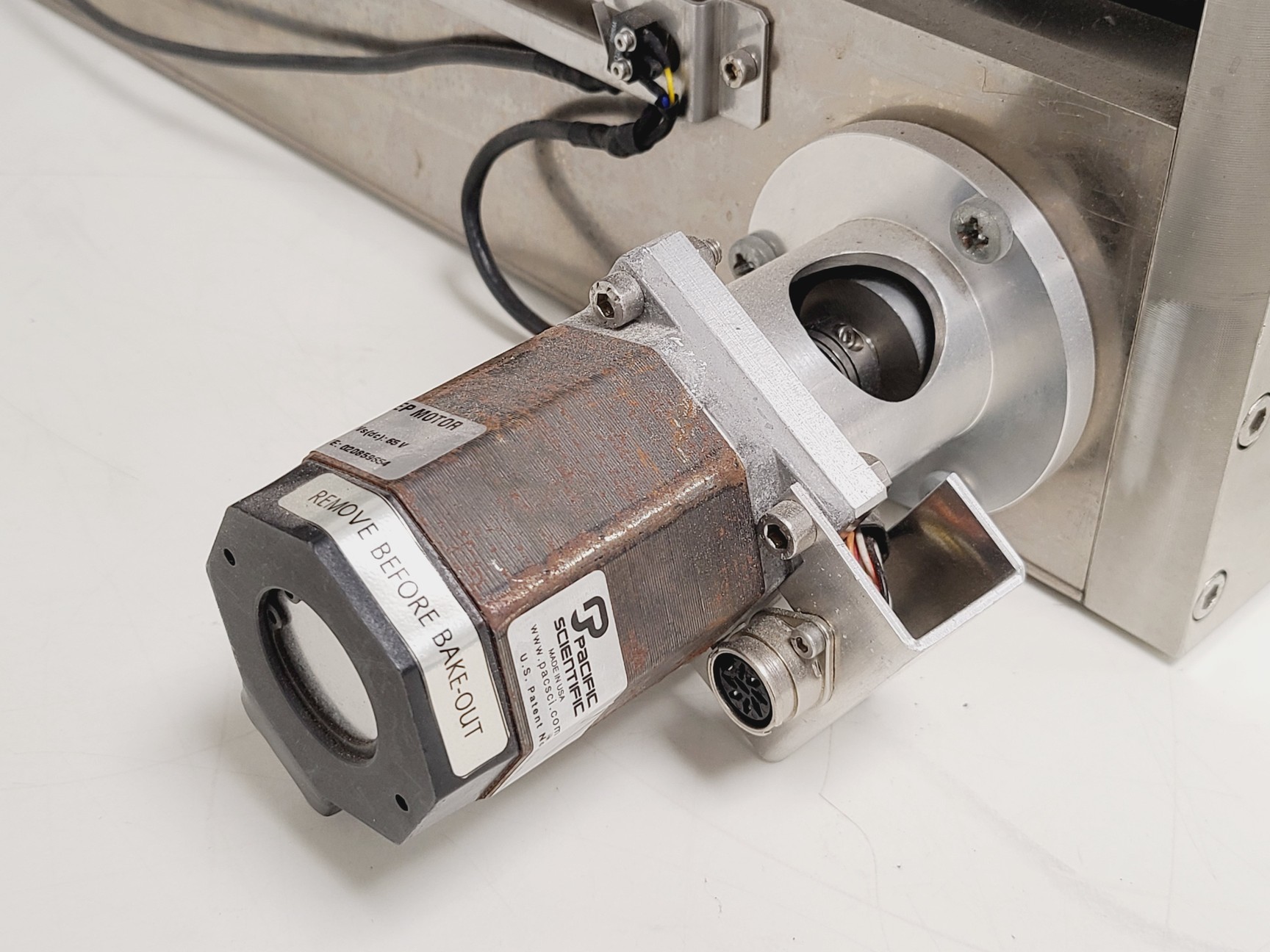

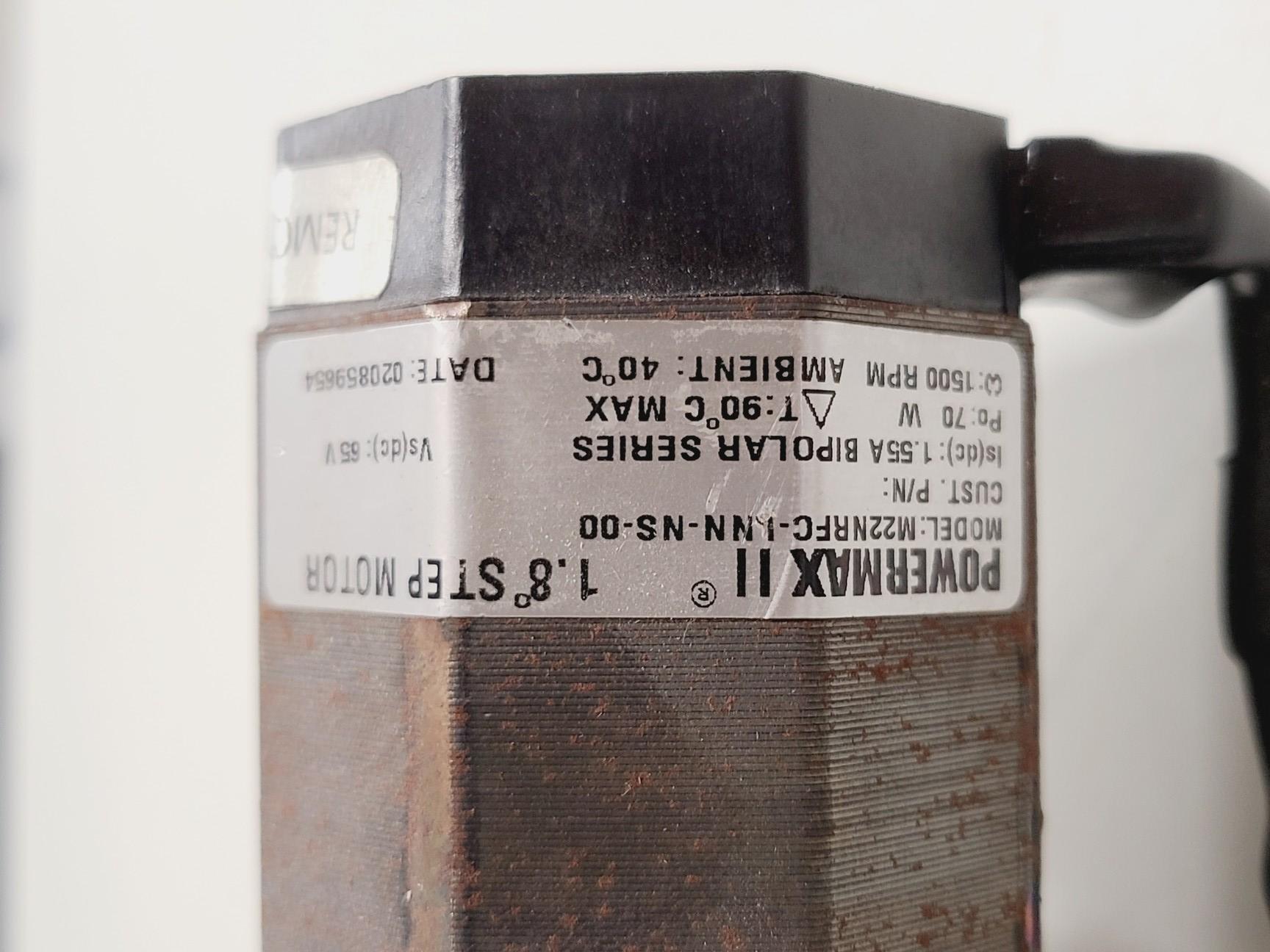

Stepper Motor Details (2 × fitted):
- Manufacturer / Series: PowerMax II
- Step Angle: 1.8°
Models:
- M22NRFC-LNN-NS-00
- M21NRFC-LNN-NS-00
- Current: 1.55 A / 1.75 A (Bipolar Series)
- Power: 70 W / 62 W
- Speed: Up to 1500 RPM
Temperature Rating:
- Motor: 90°C max
- Ambient: 40°C
Item Details
| Property | Value | Tested value |
|---|---|---|
| 3. Recertification Initial Checks | ||
| Overall Cosmetic Condition | N/A | Average |
| 6. Safety Features | ||
| Emergency Stop Safety Check | N/A | N/A |
| 7. Service Details | ||
| Last Service Date | N/A | Unknown |
Delivery
Free shipping is not available on this product. This item will be shipped by pallet delivery. Please contact us for a domestic or overseas shipping quote.
Return policy
Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.
NOTE: No cables, remotes, accessories, power supplies, external PCs, software media, hardkeys, consumables or any other items are included unless shown in the item photos or detailed above.
