Leica CTR 6000 TCS SP5 Laser Scanning Confocal Microscope System Lab
Item Code: ITEM-42009
Condition: Used
Brand: Leica
£ 40,000.00 exc. VAT (£ 48,000.00 inc. VAT)
If you are interested in this item or would like to place an order, please get in touch with us at , or by phone on +44 29 2086 4661.
Description

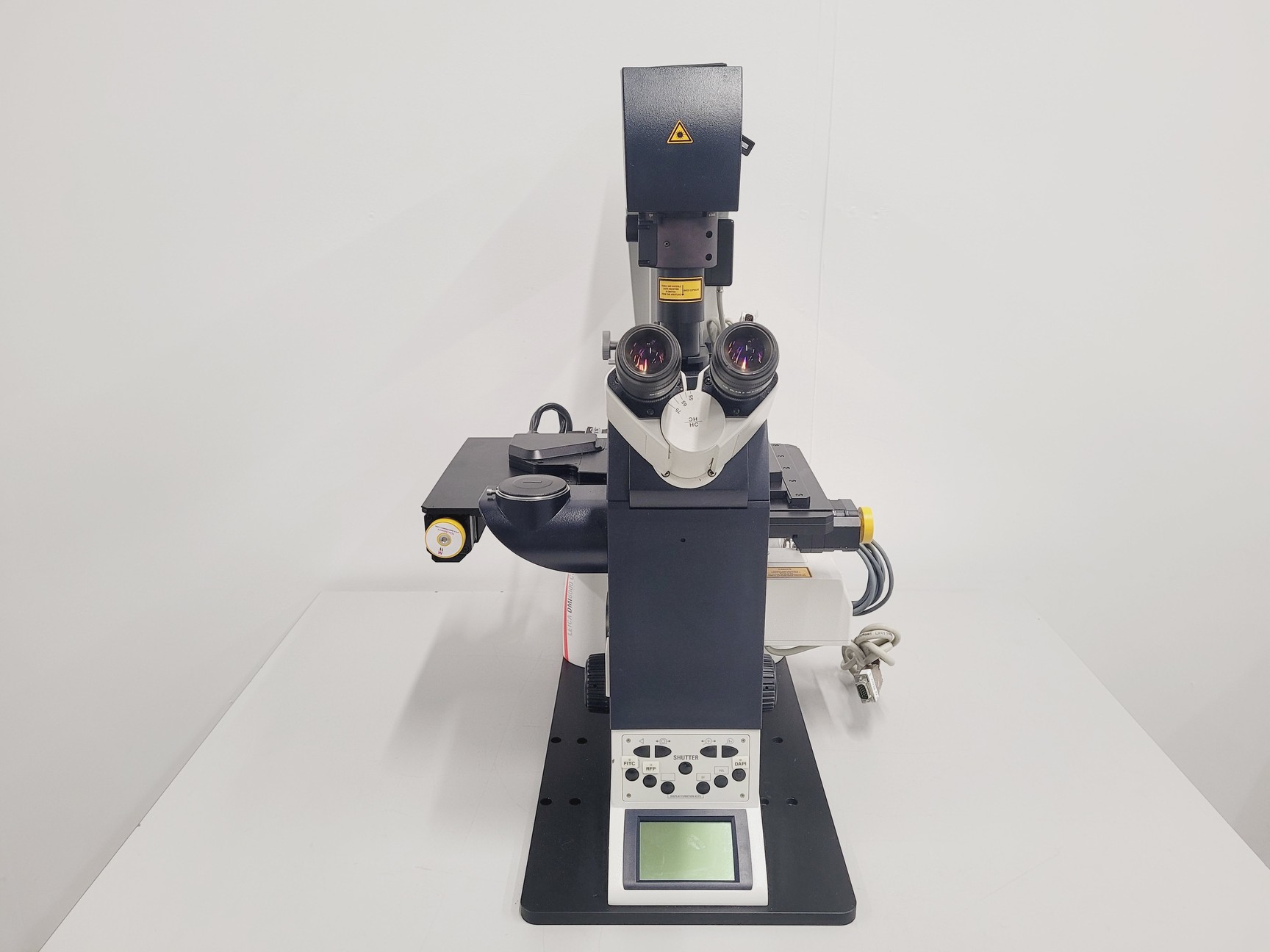

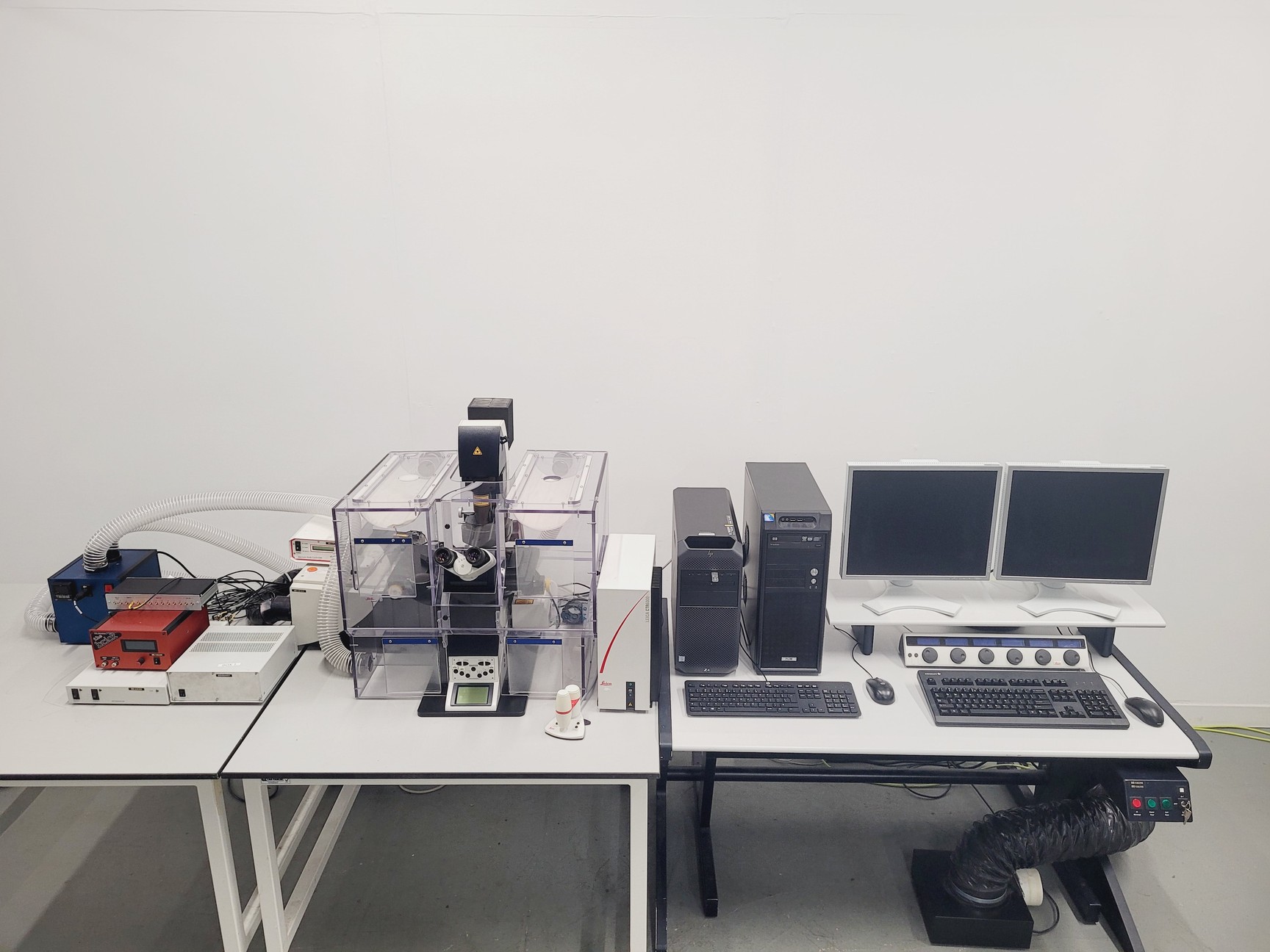

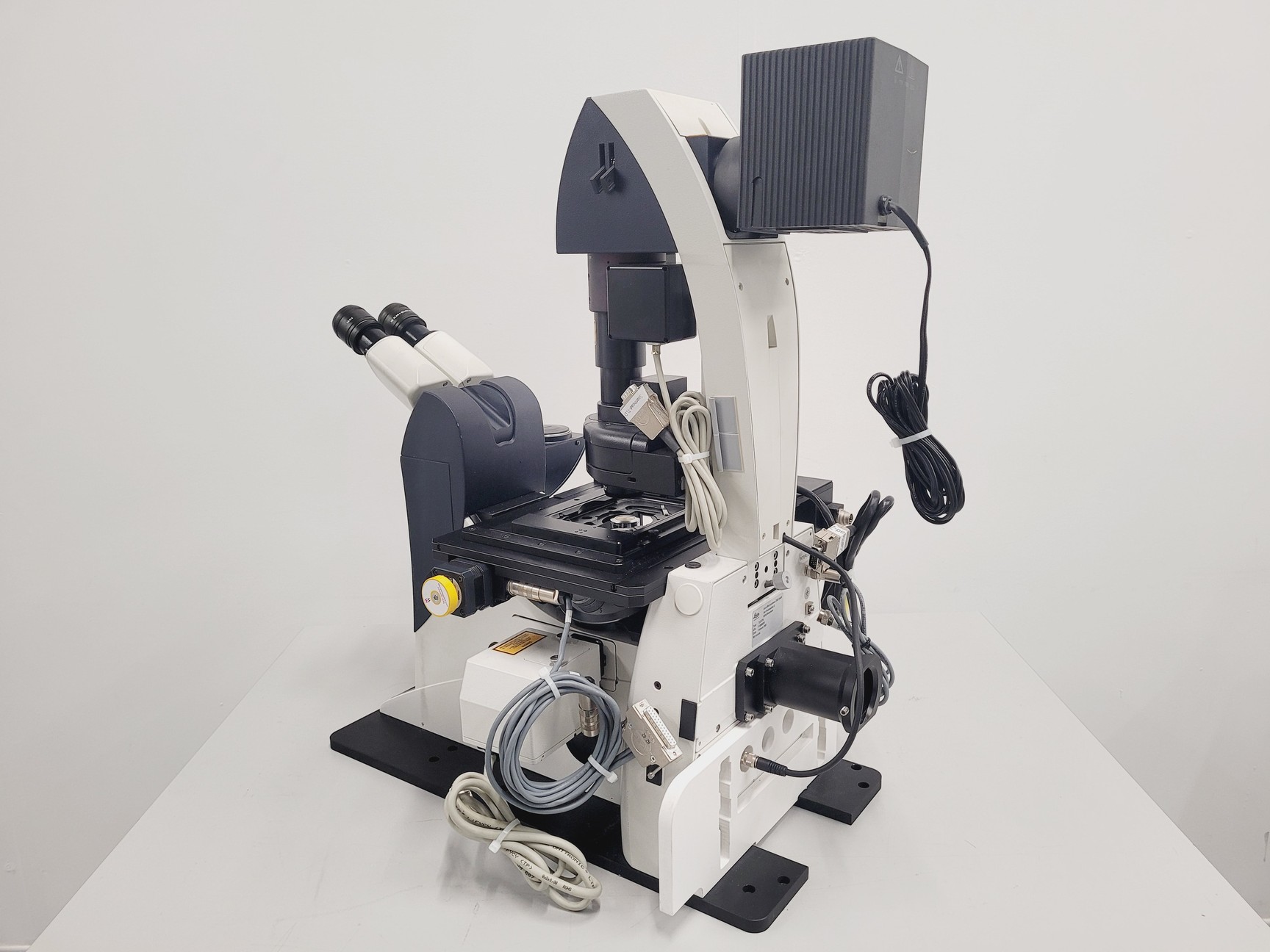

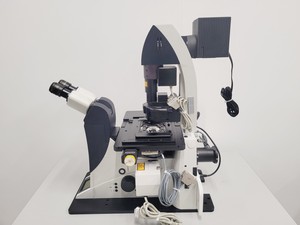

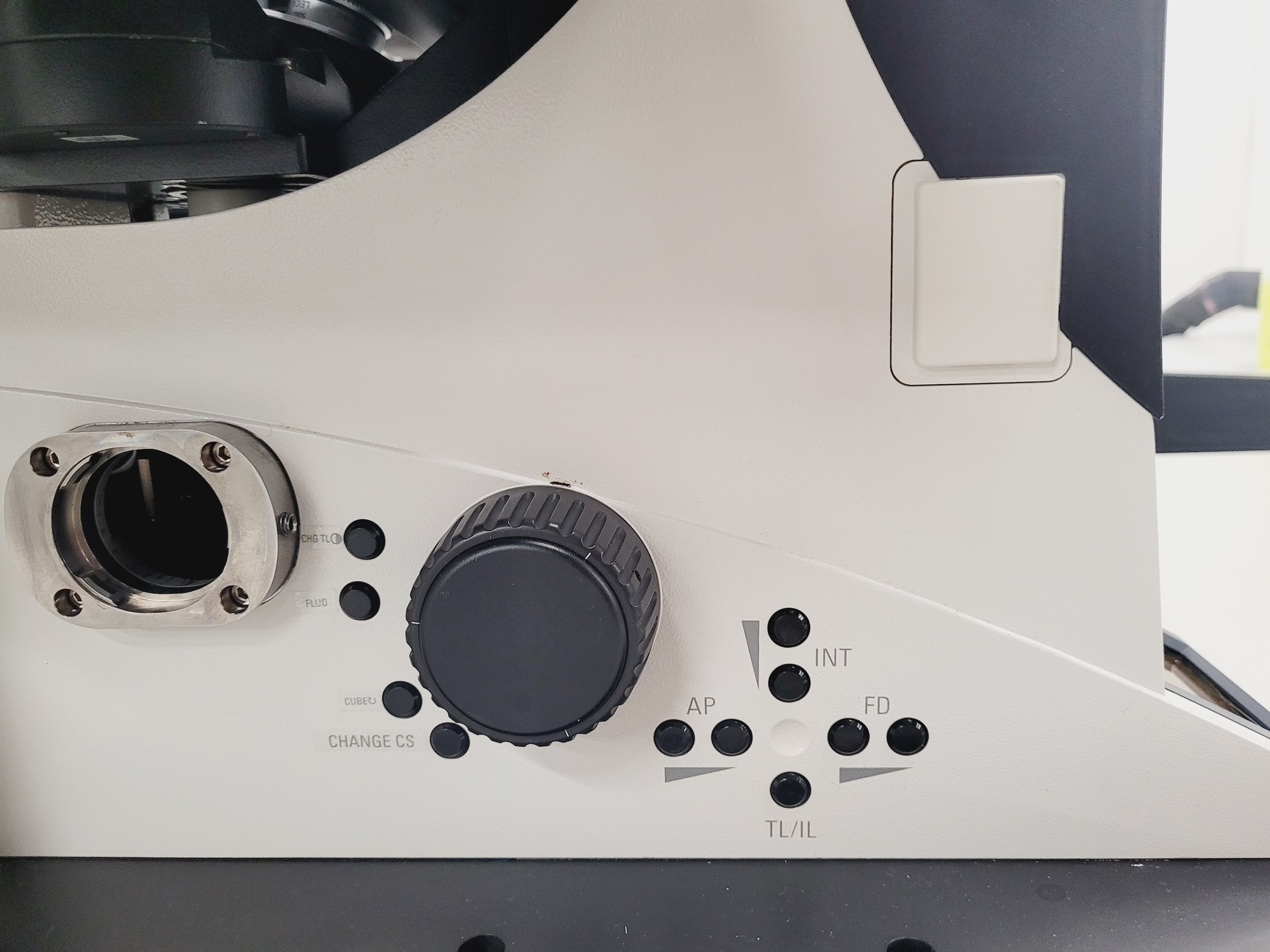

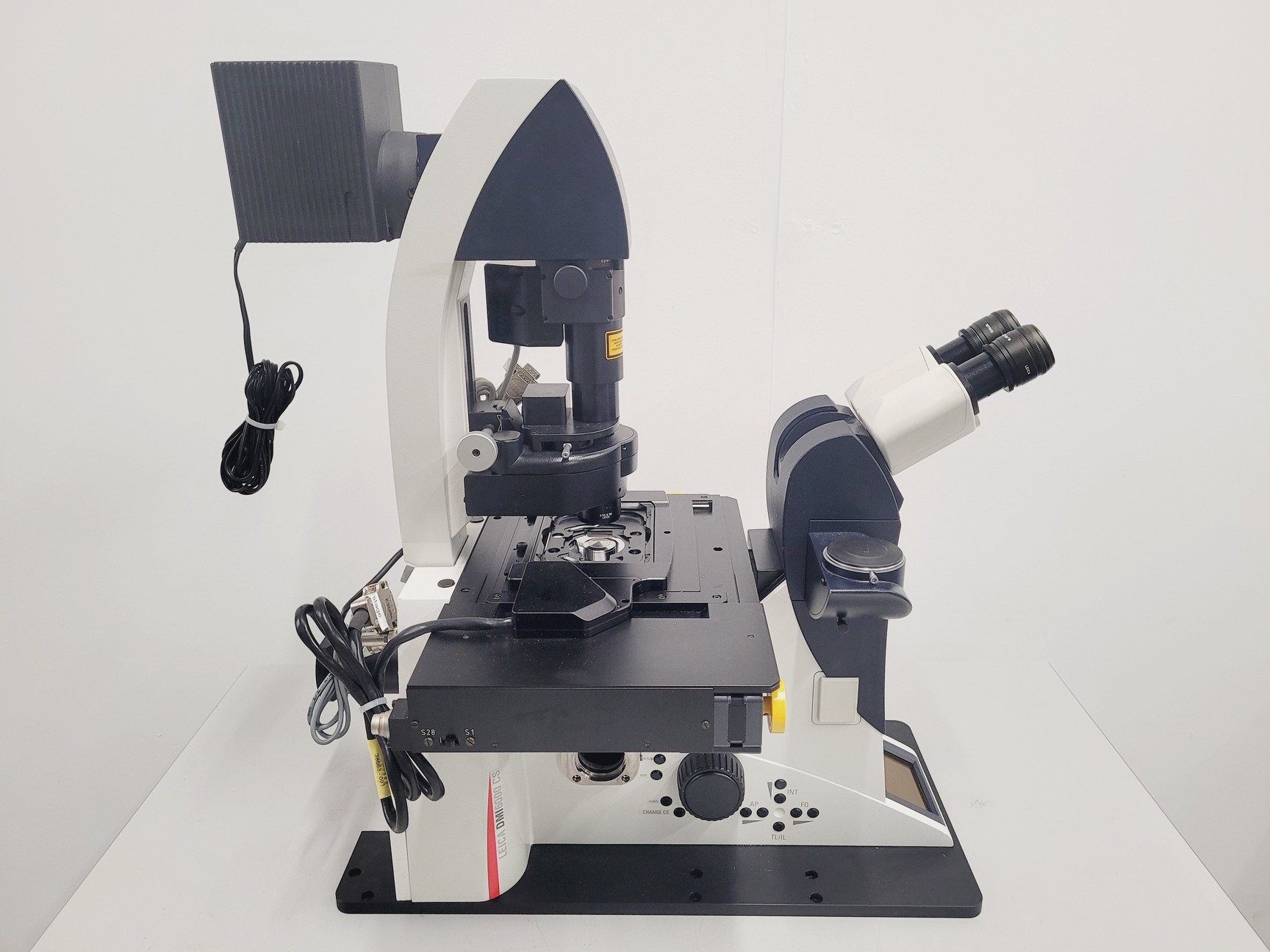

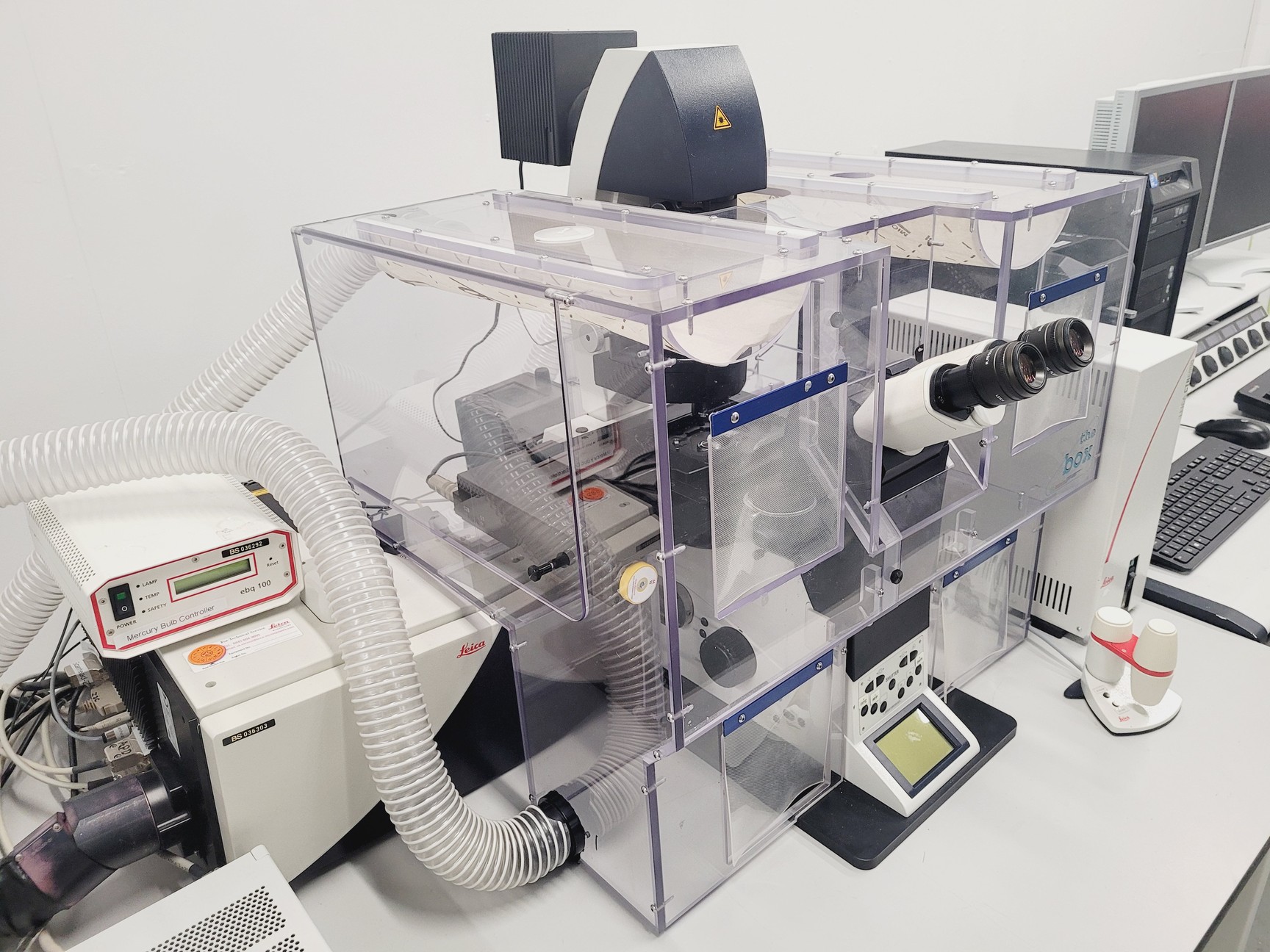

Leica CTR 6000 TCS SP5 Laser Scanning Confocal Microscope
This system was removed from a laboratory where it was surplus to requirements.

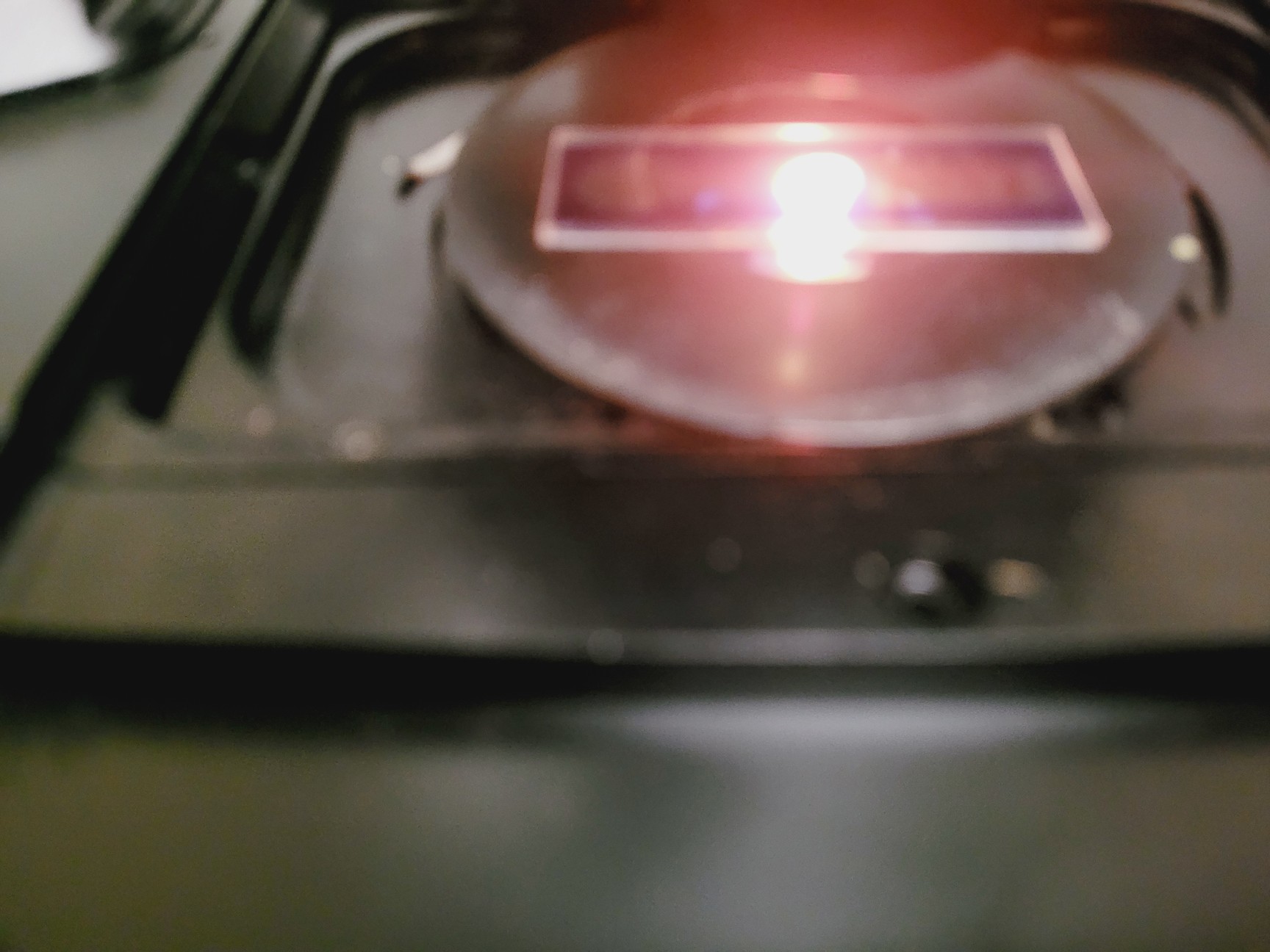

The system powers on, with all units functional, including the stage and light sources.

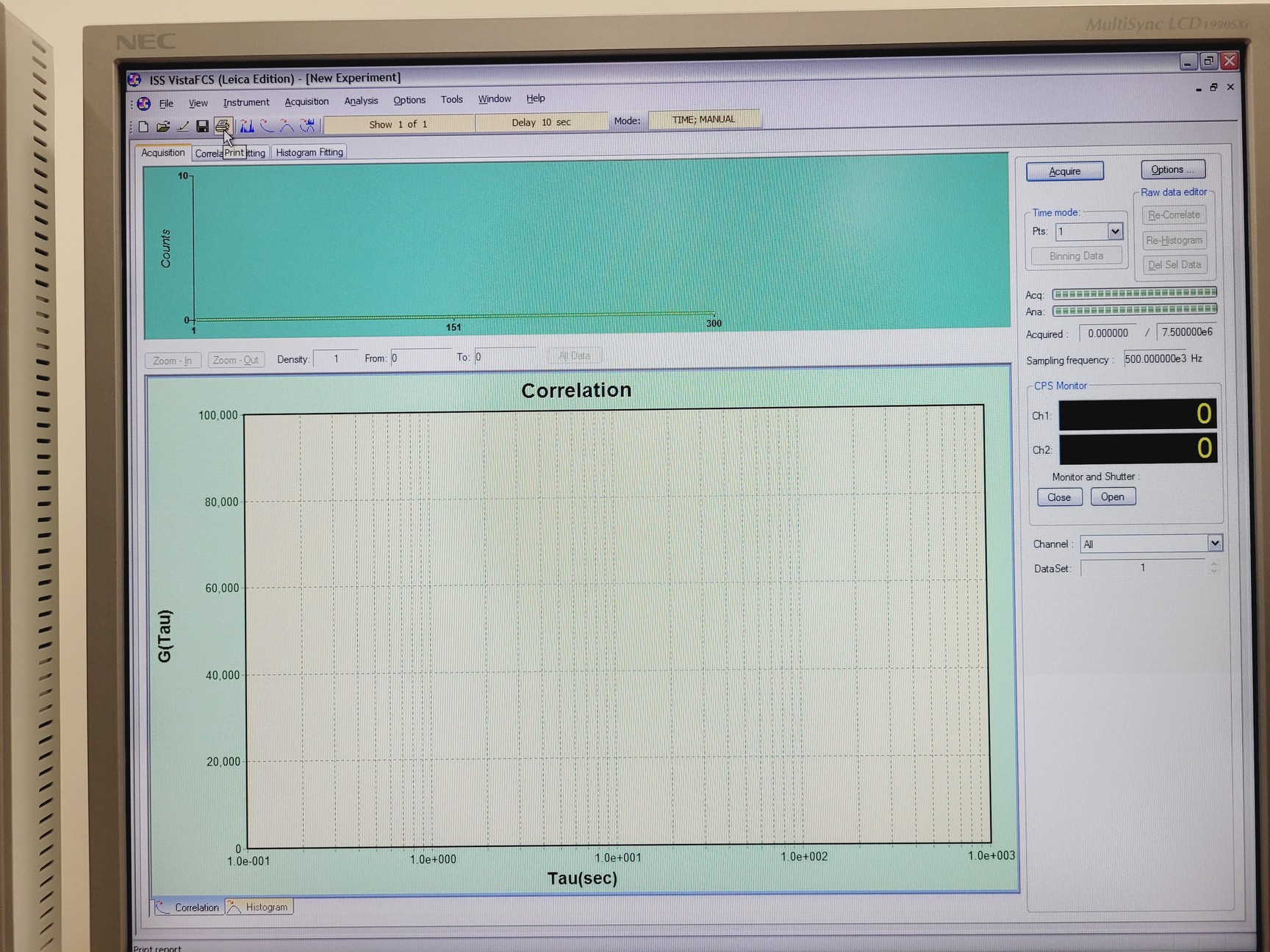

According to the previous owner, the system features a Leica SP5 confocal with 3 PMT and 2 hybrid detectors, along with an FCCS system that includes 2 SPAD detectors. The filters for the detectors are beginning to delaminate and will need replacing. The SP5 computer is relatively new and has been updated to Windows 10. A full environmental chamber for temperature and CO2 control is also included.

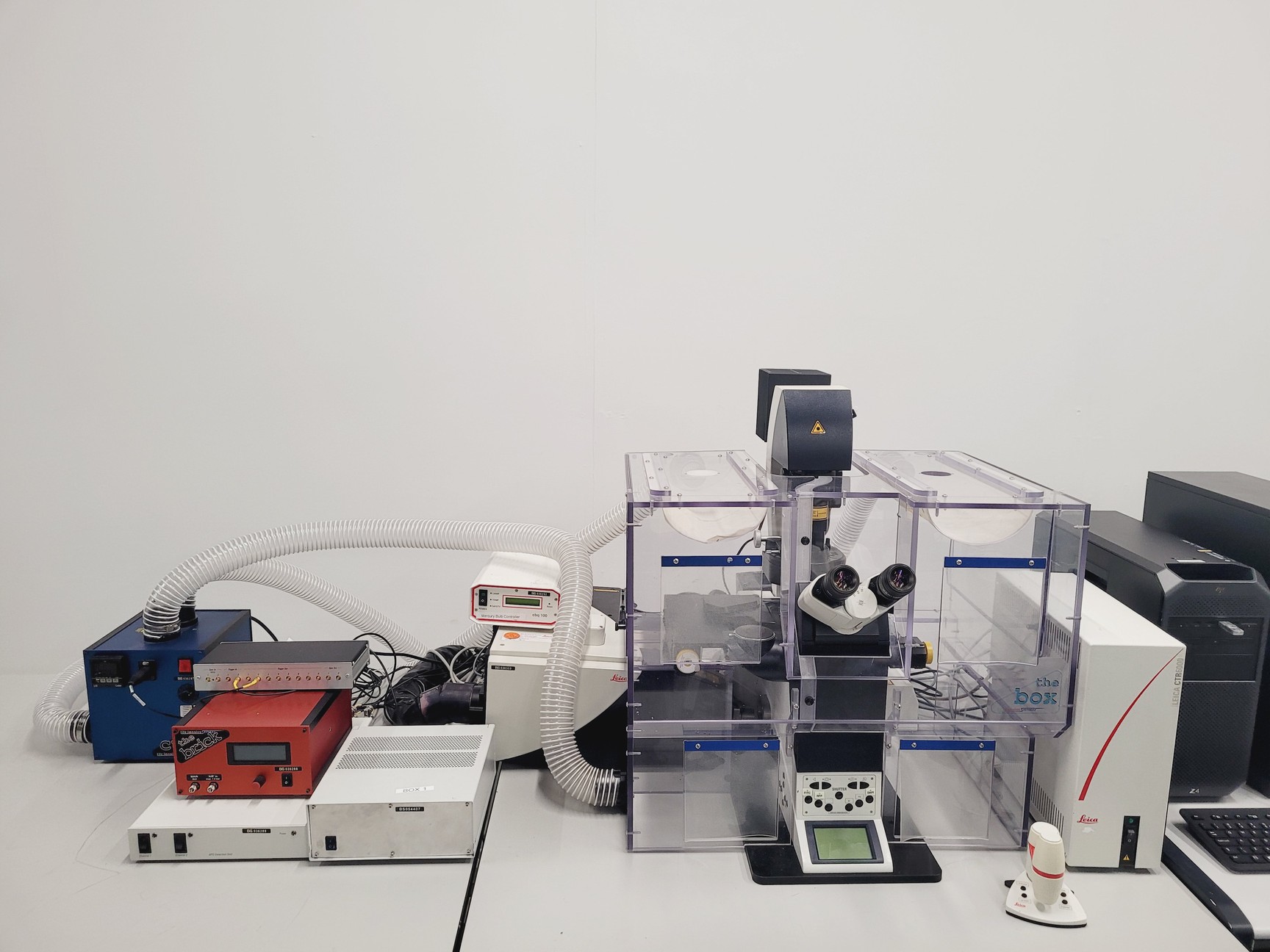

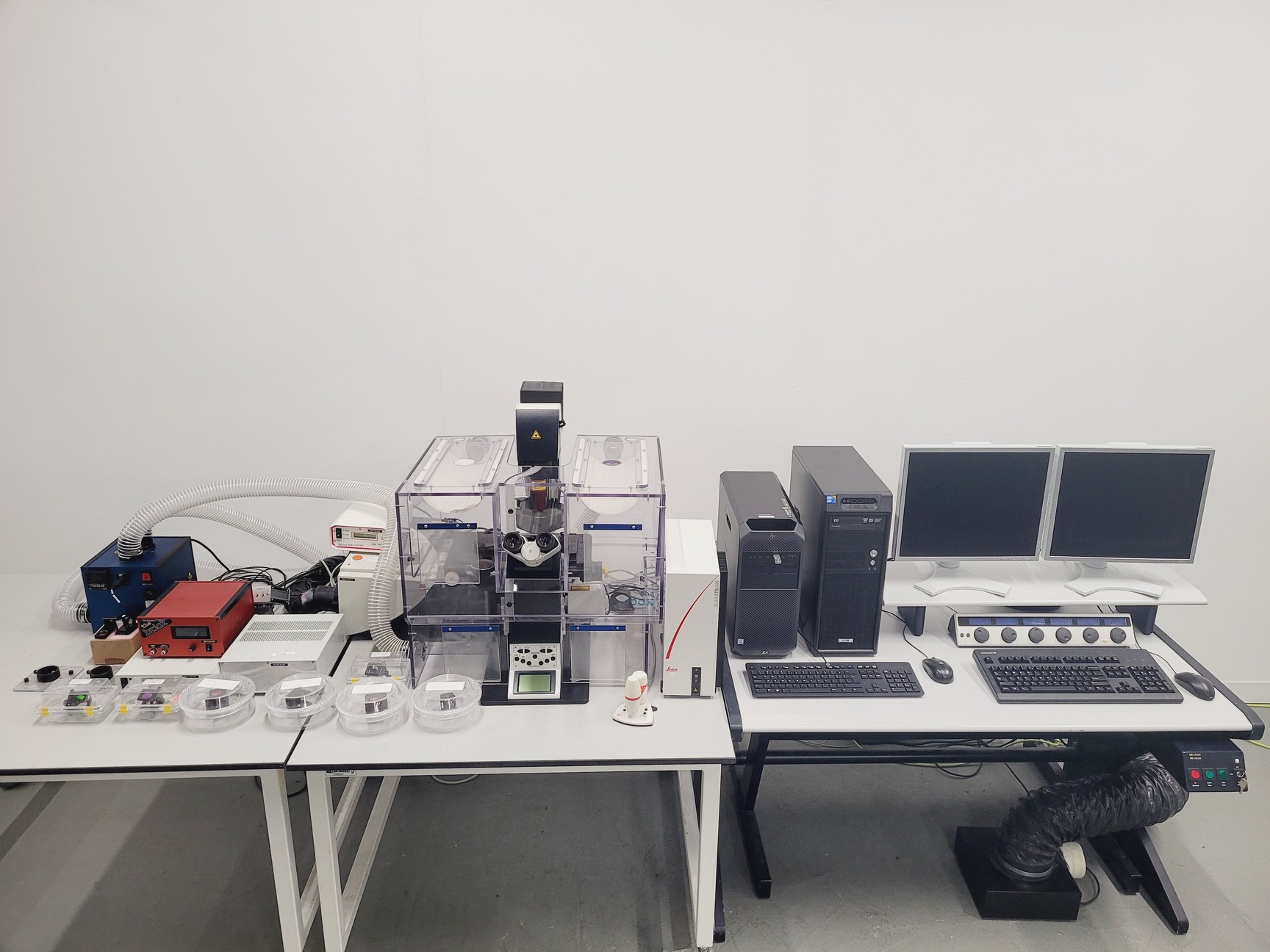

The system consists of:

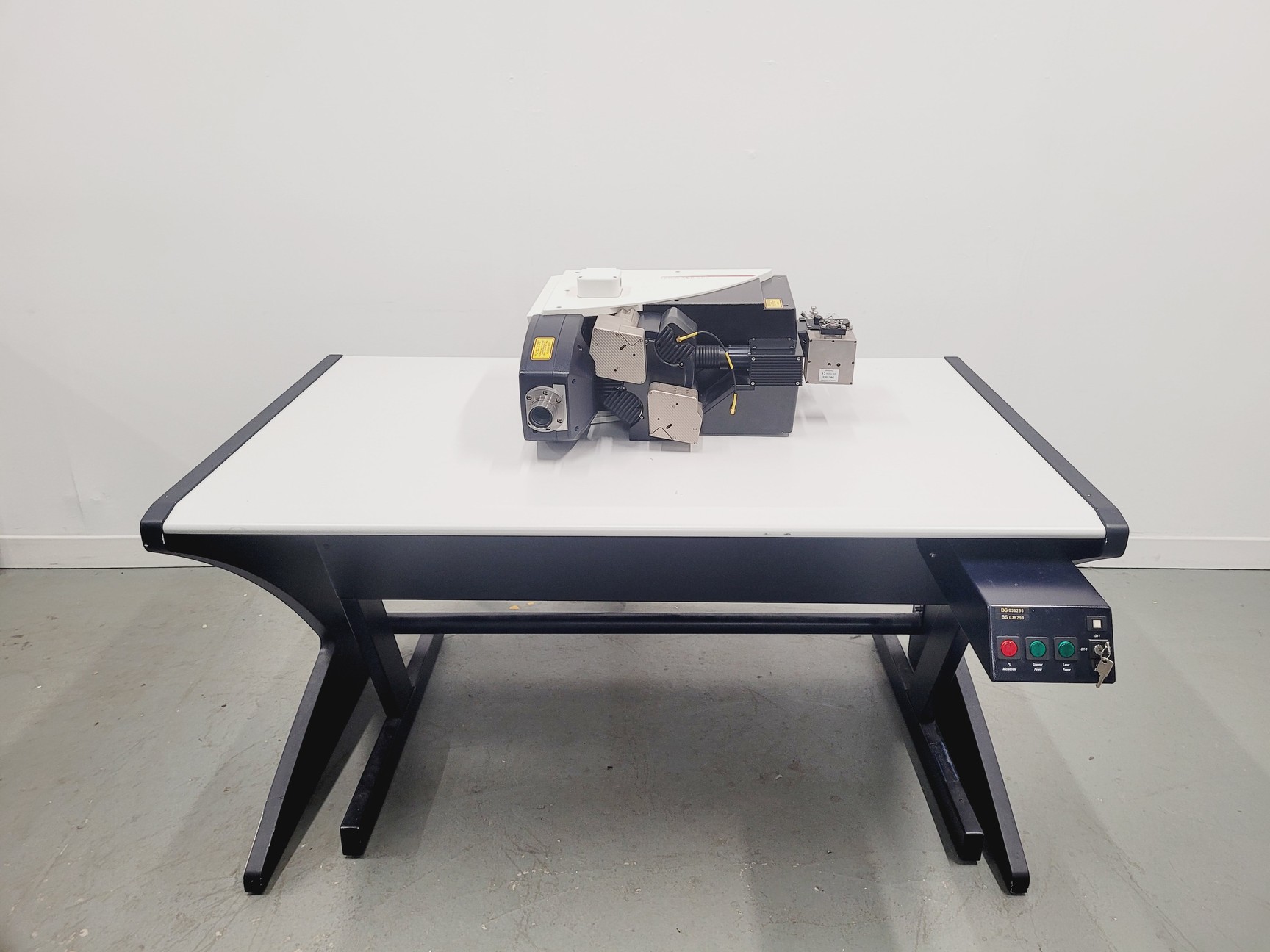

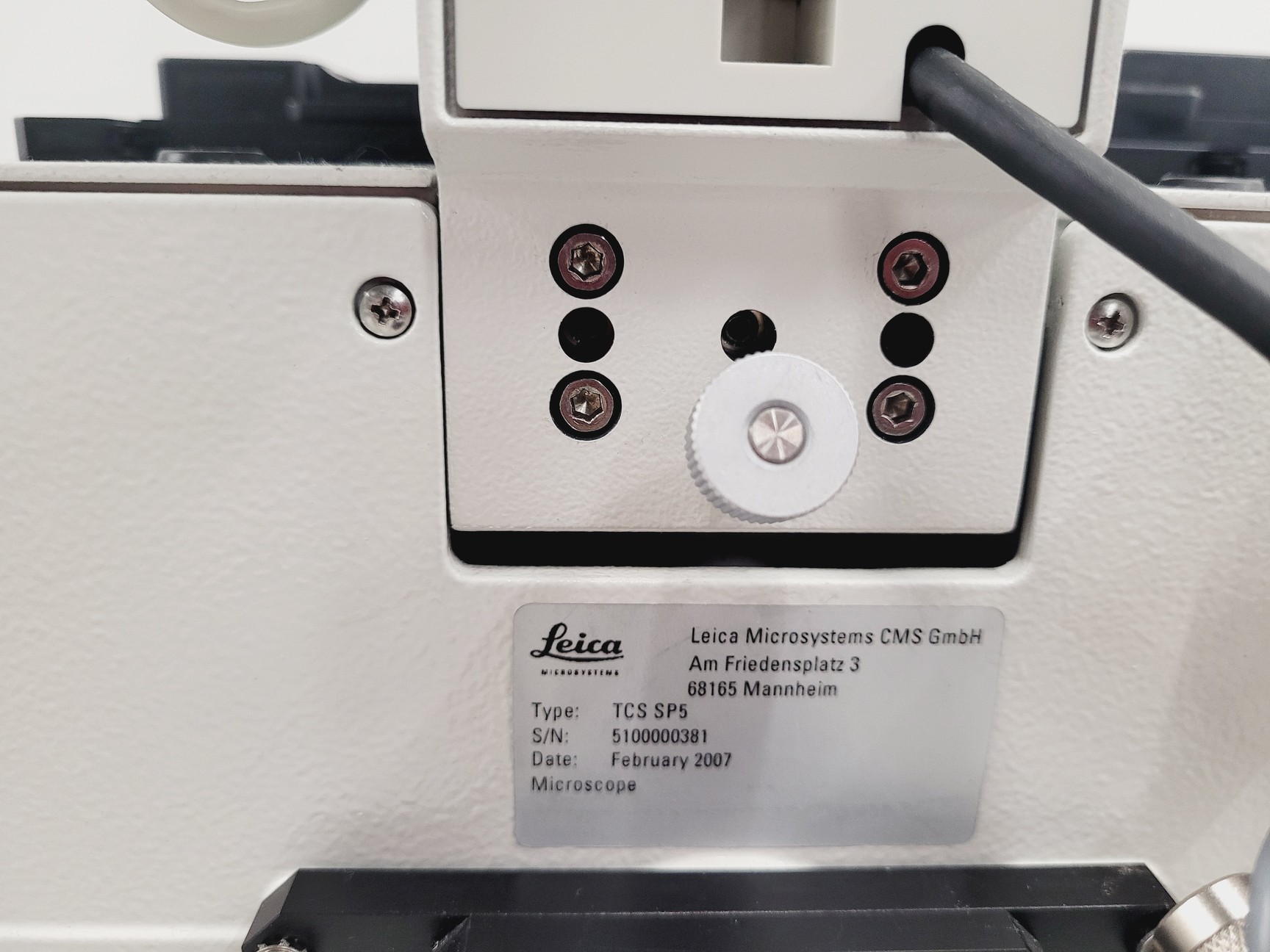

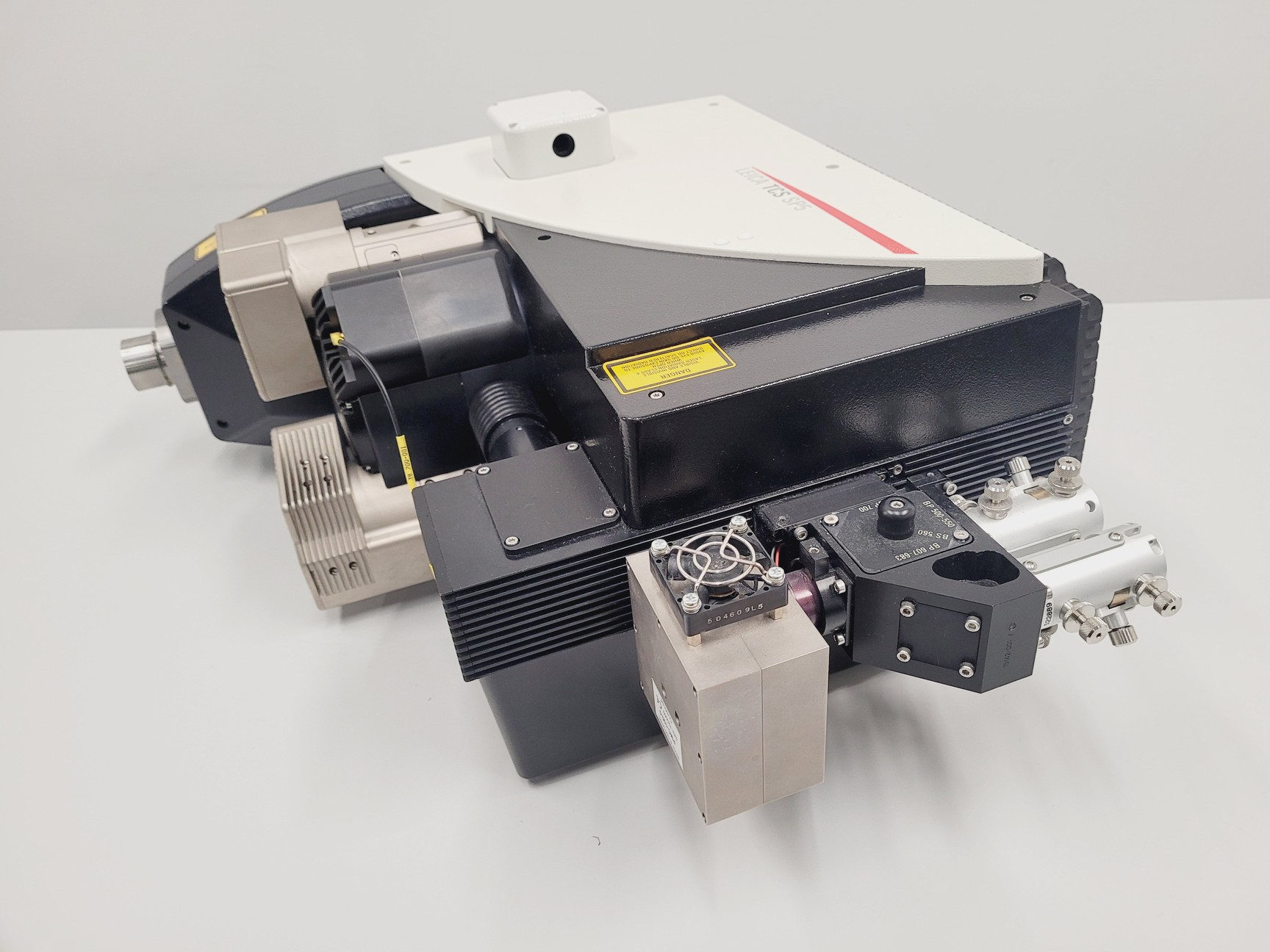

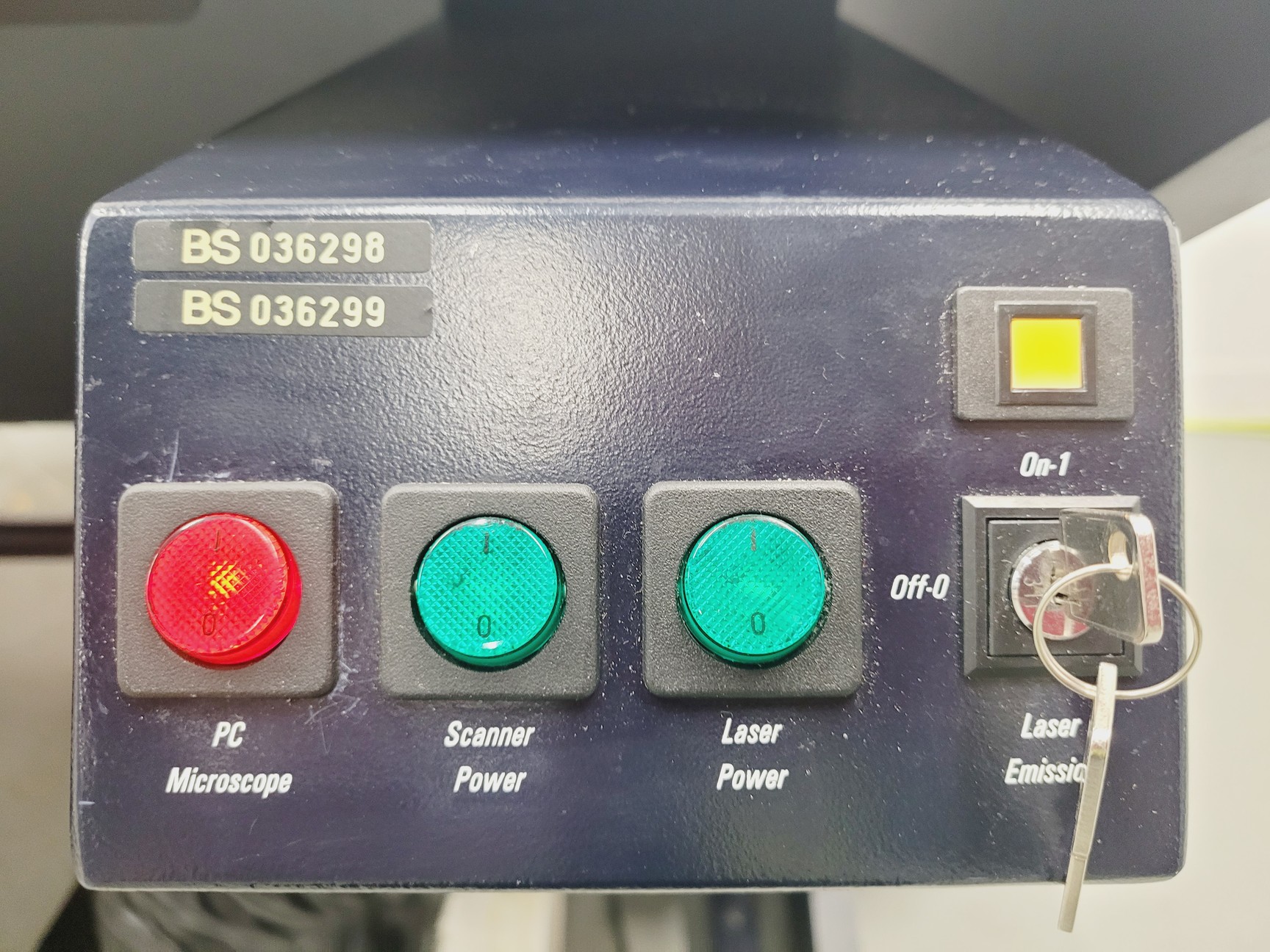

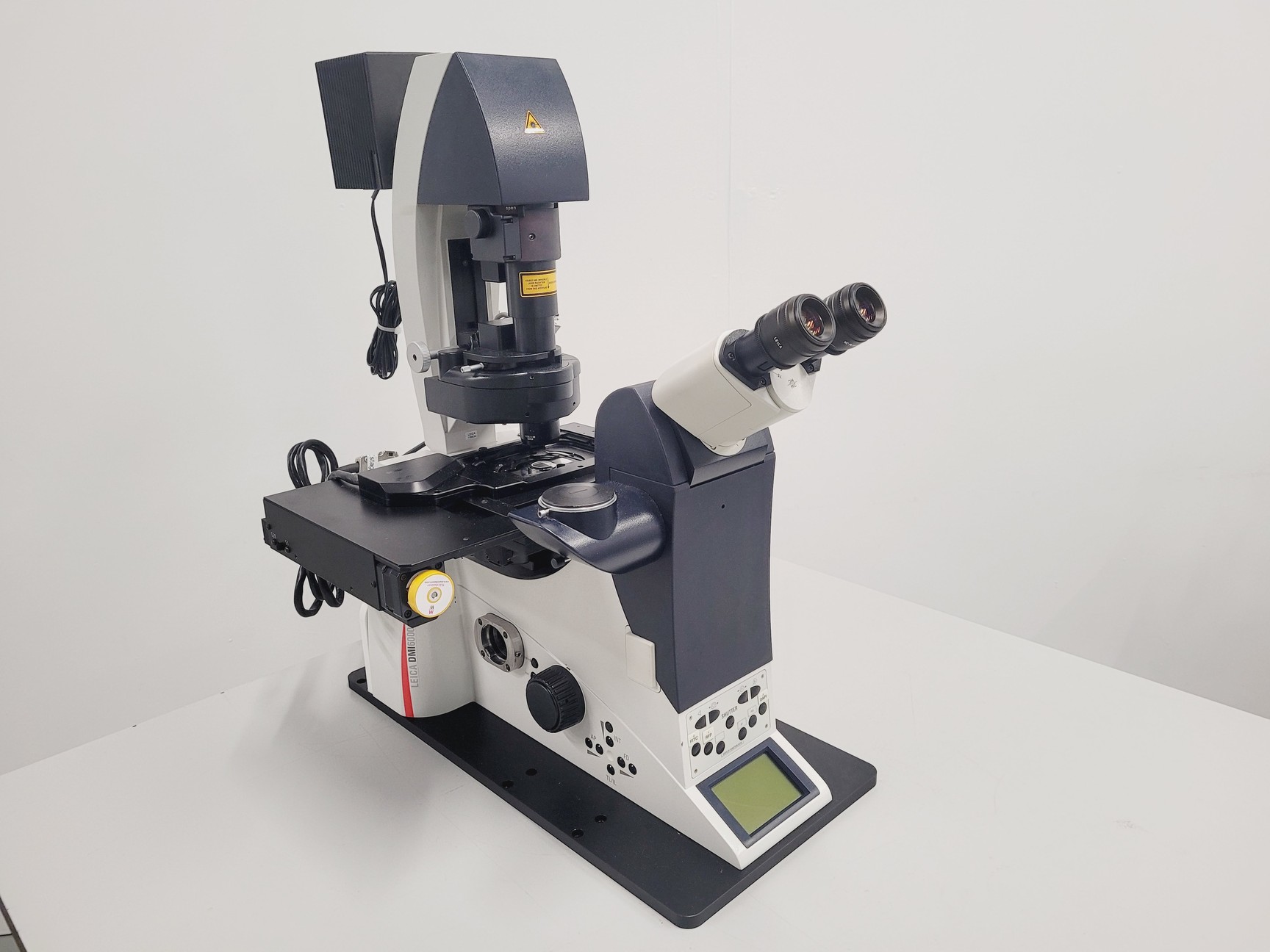

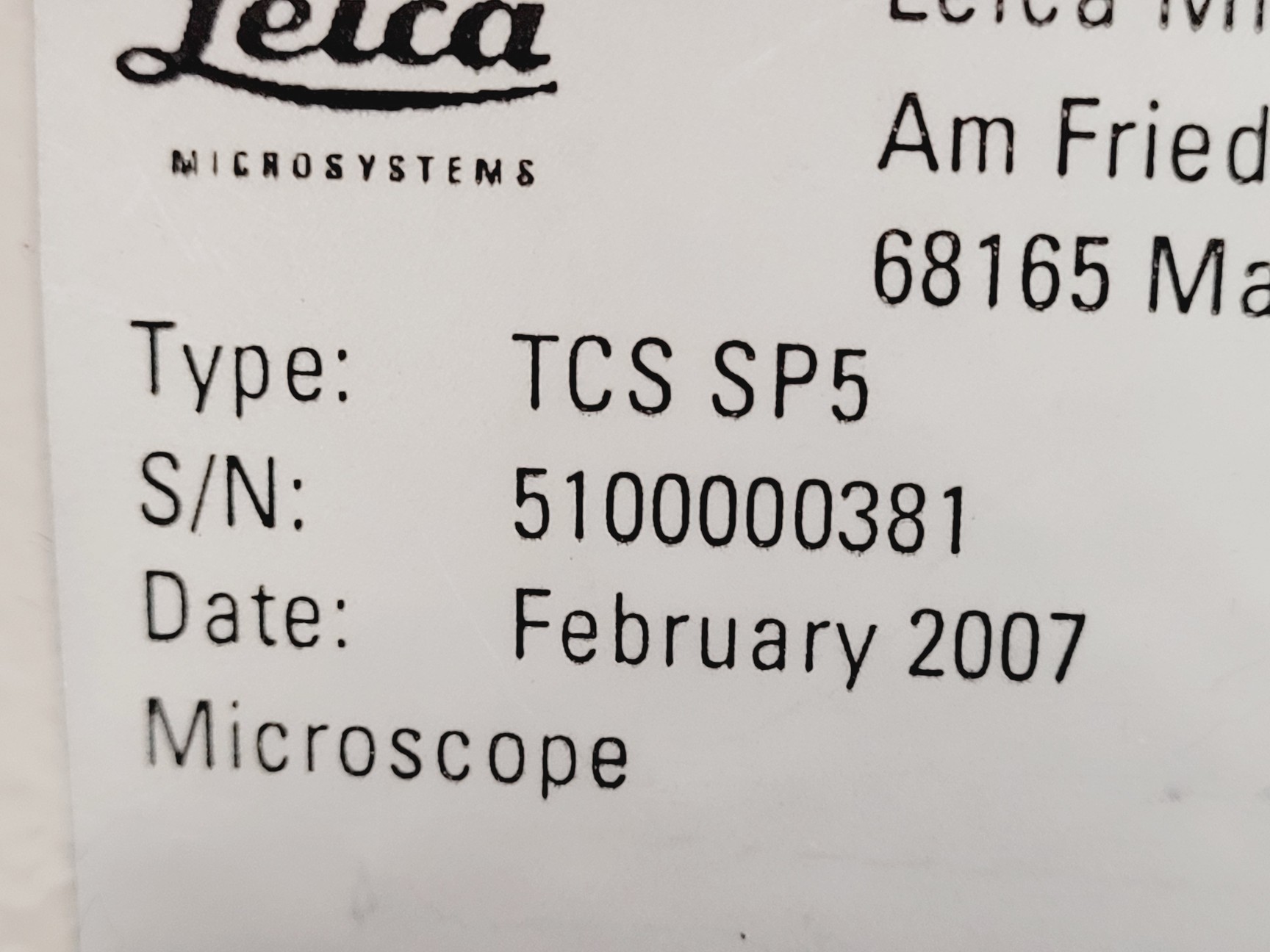

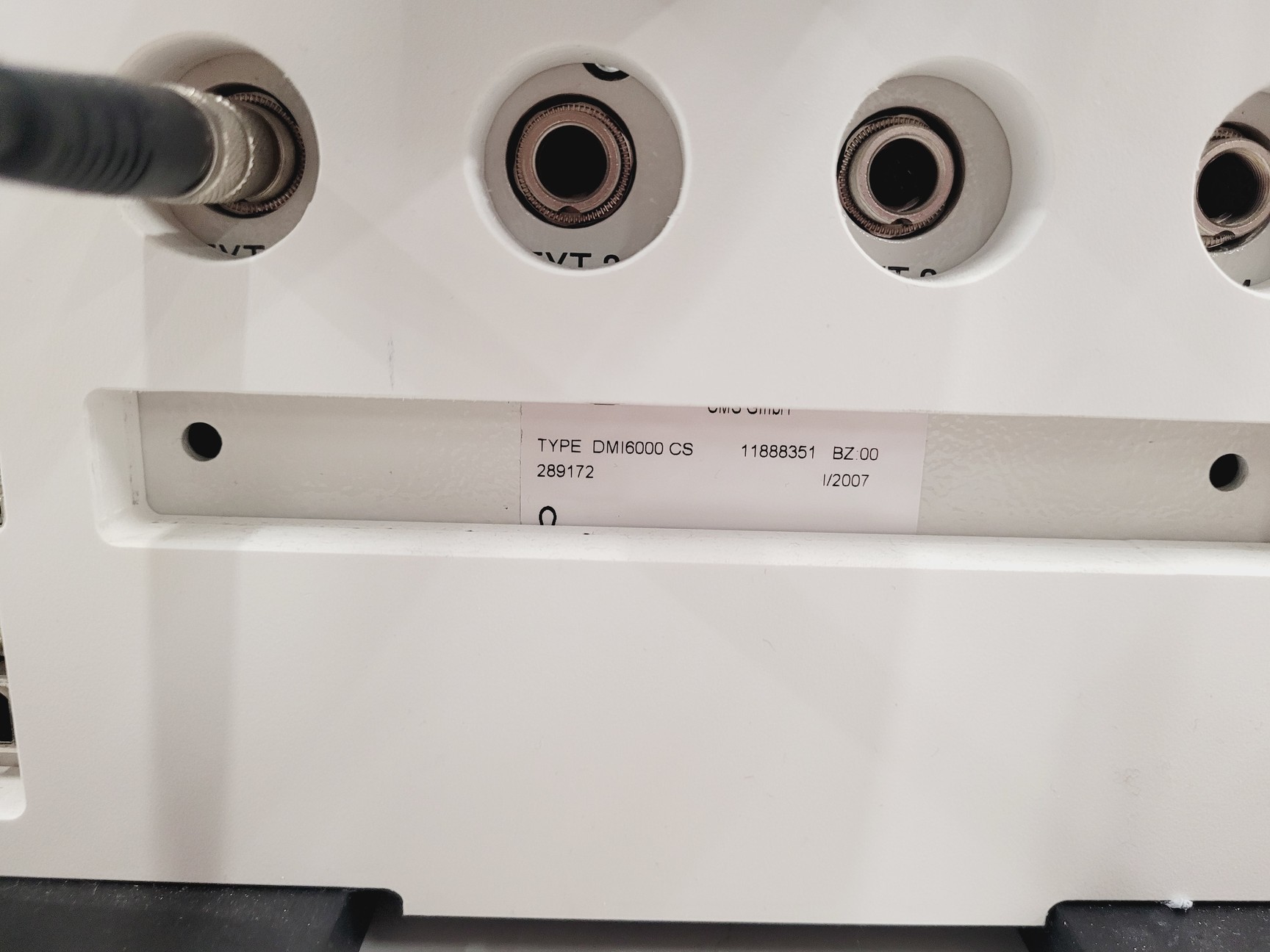

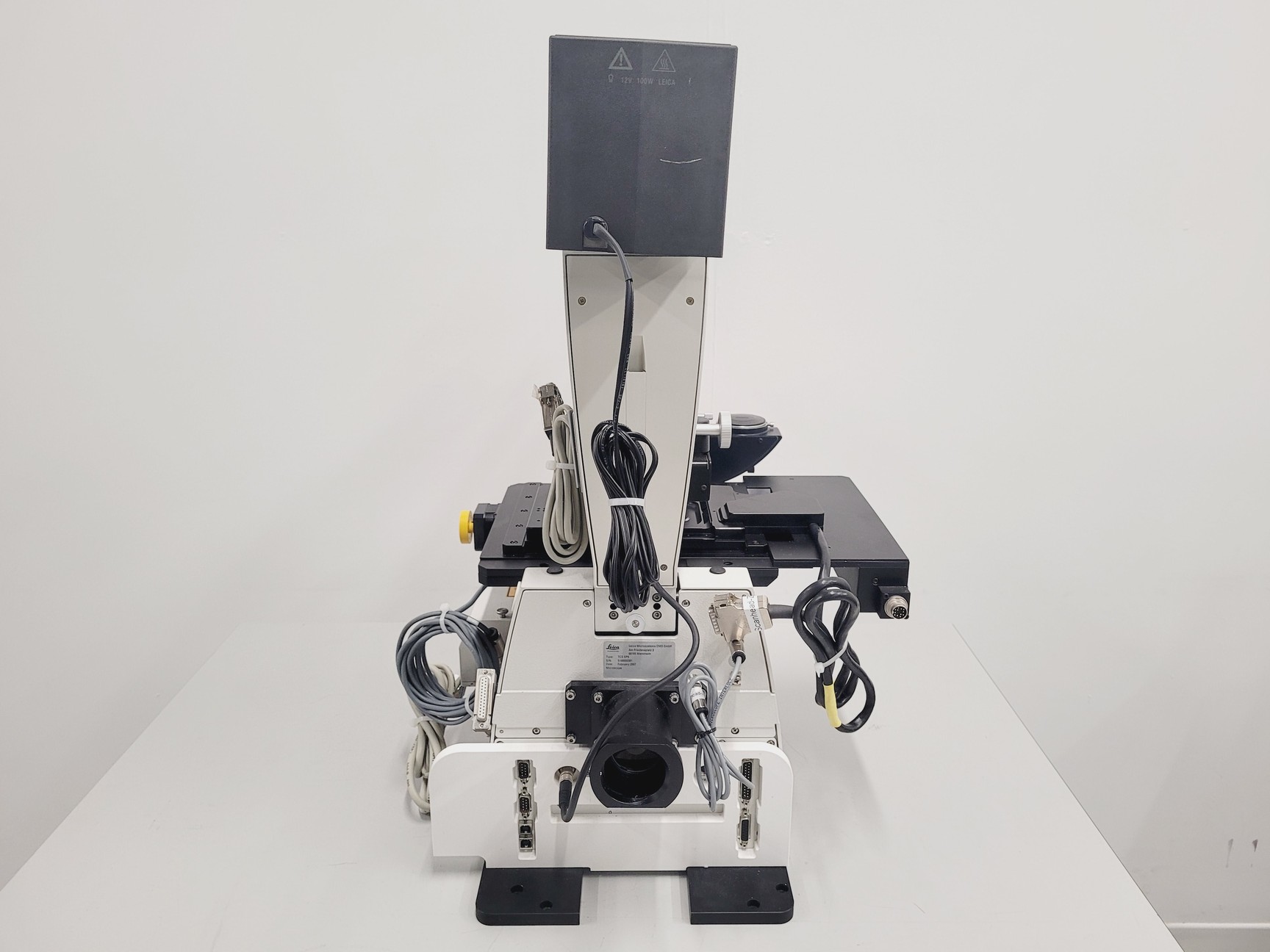

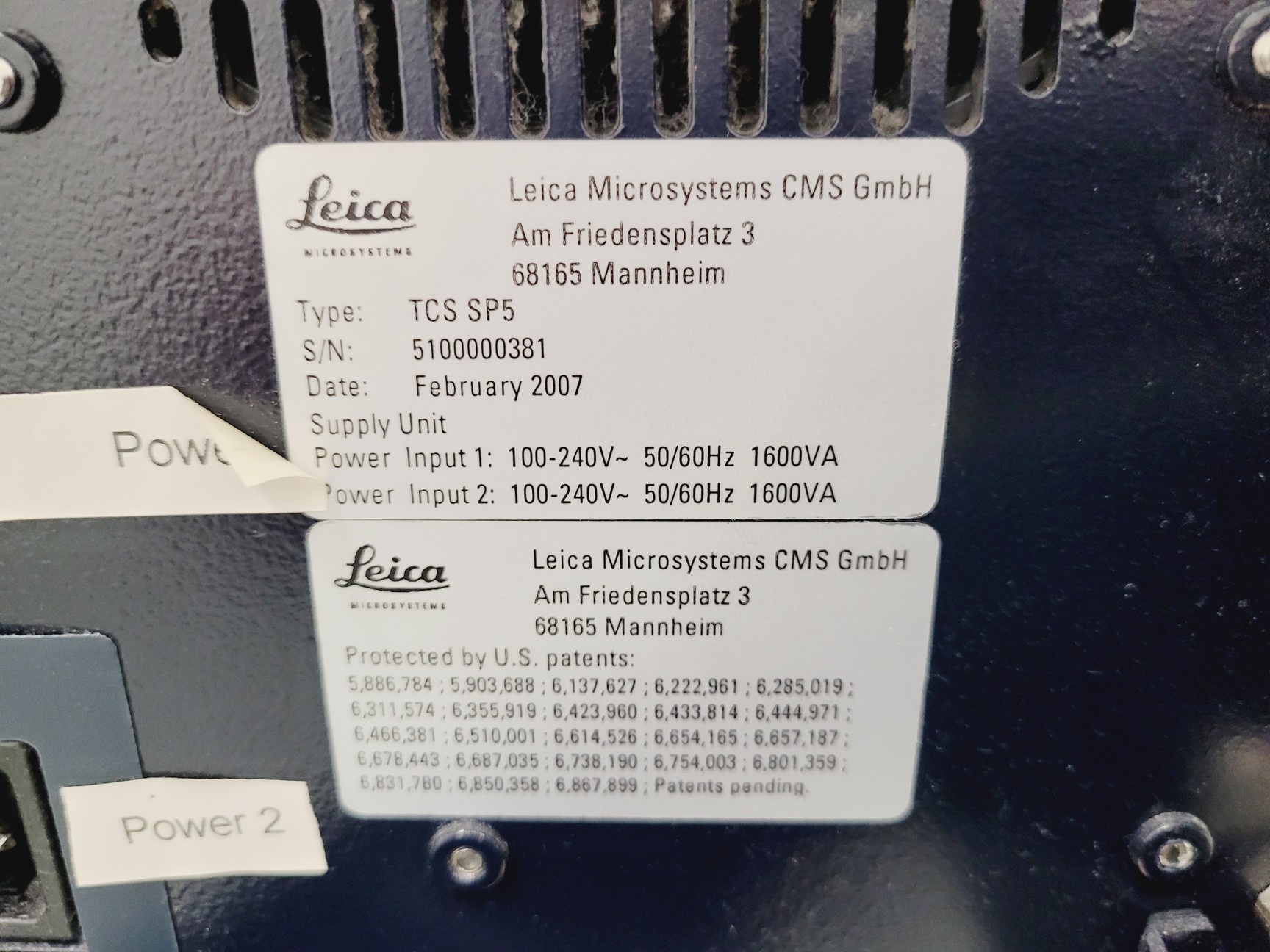

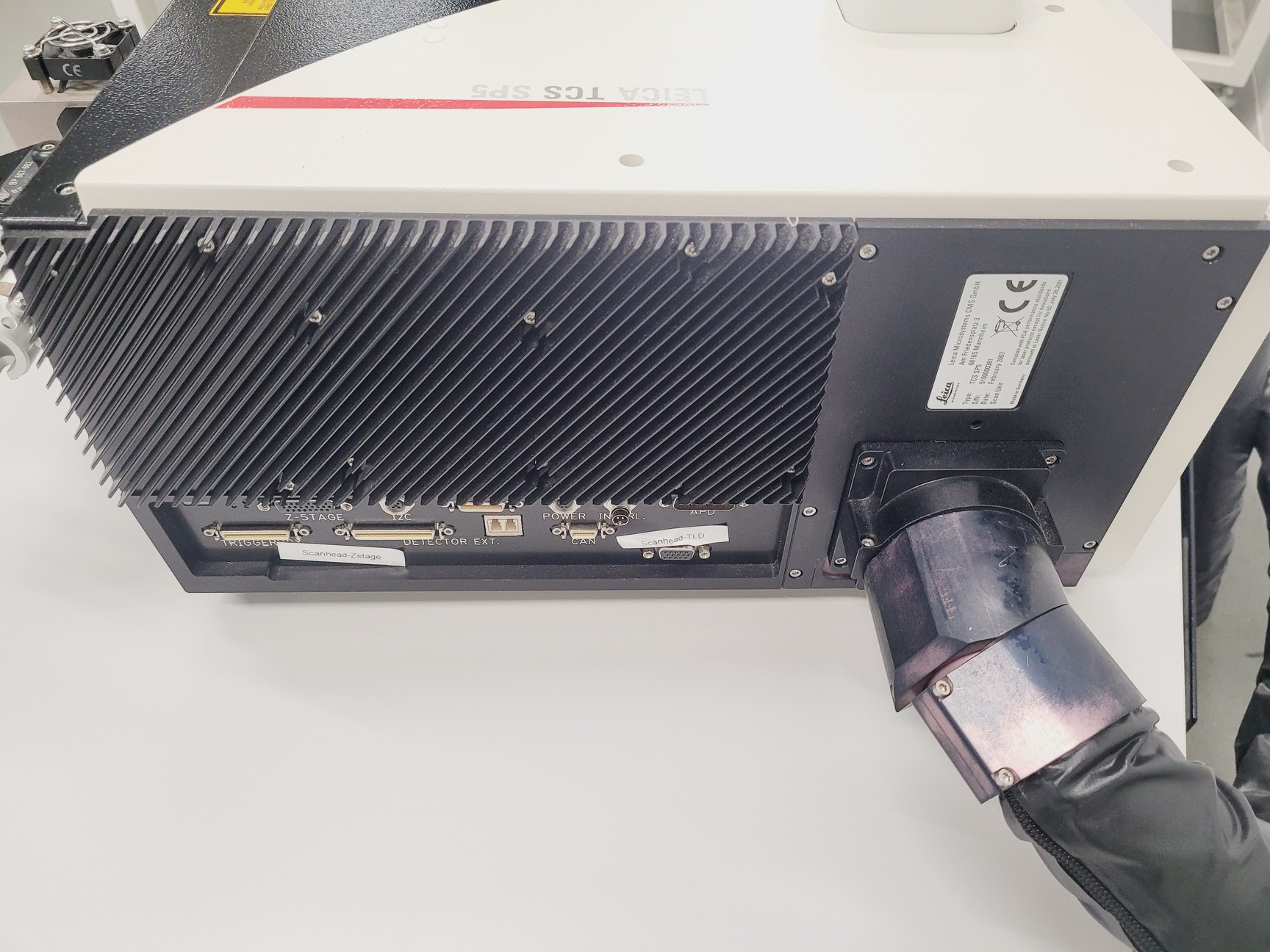

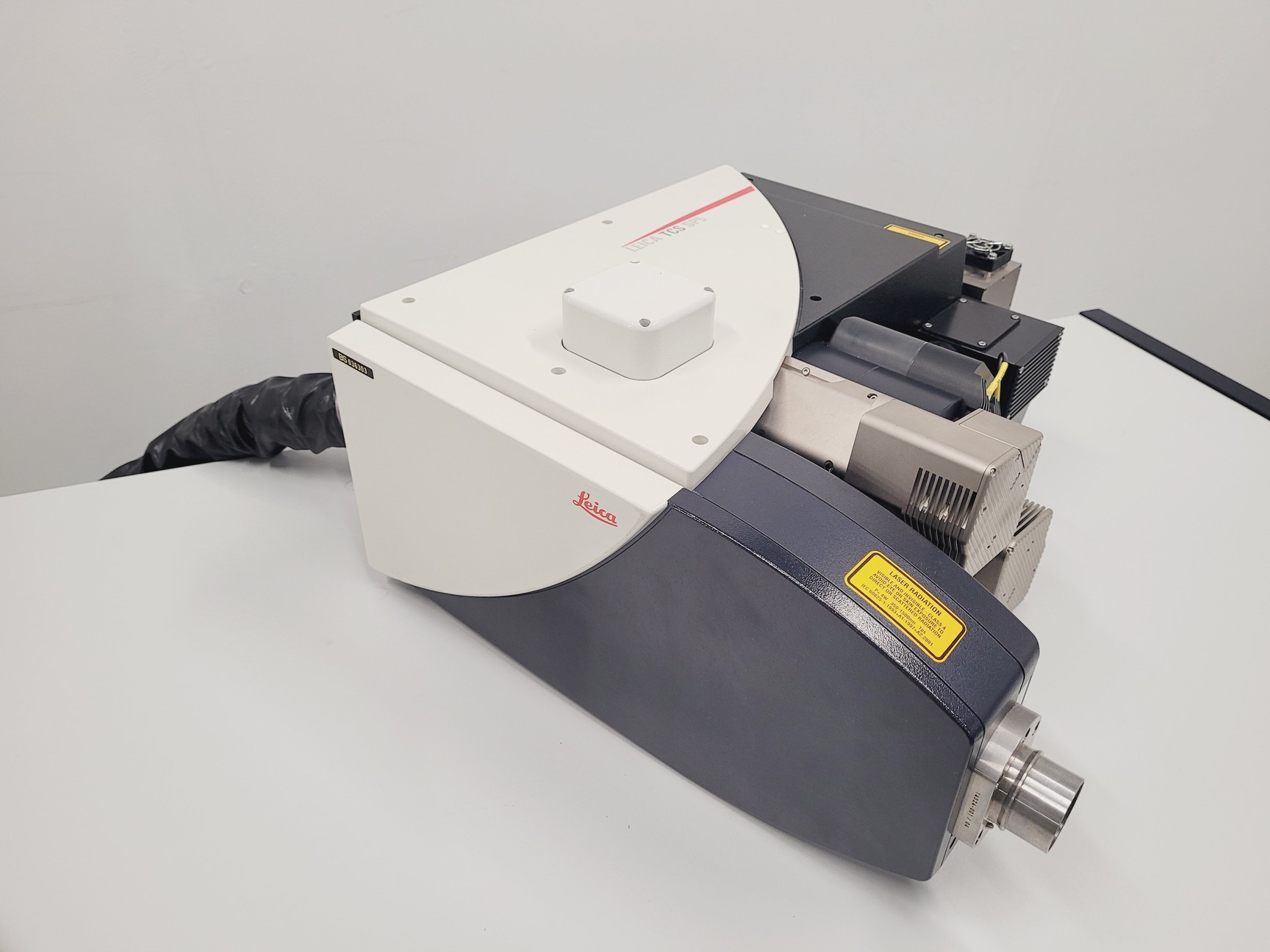

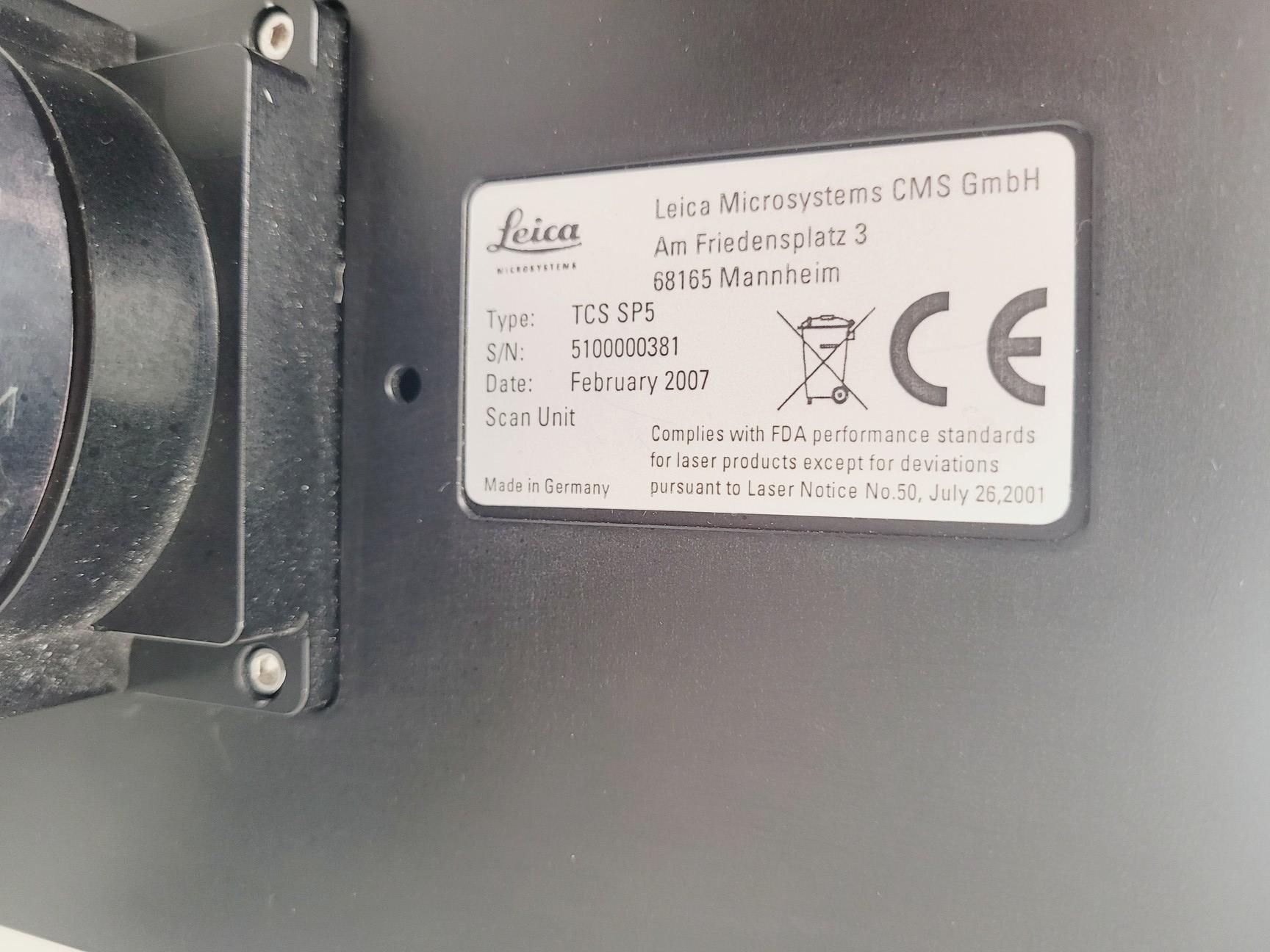

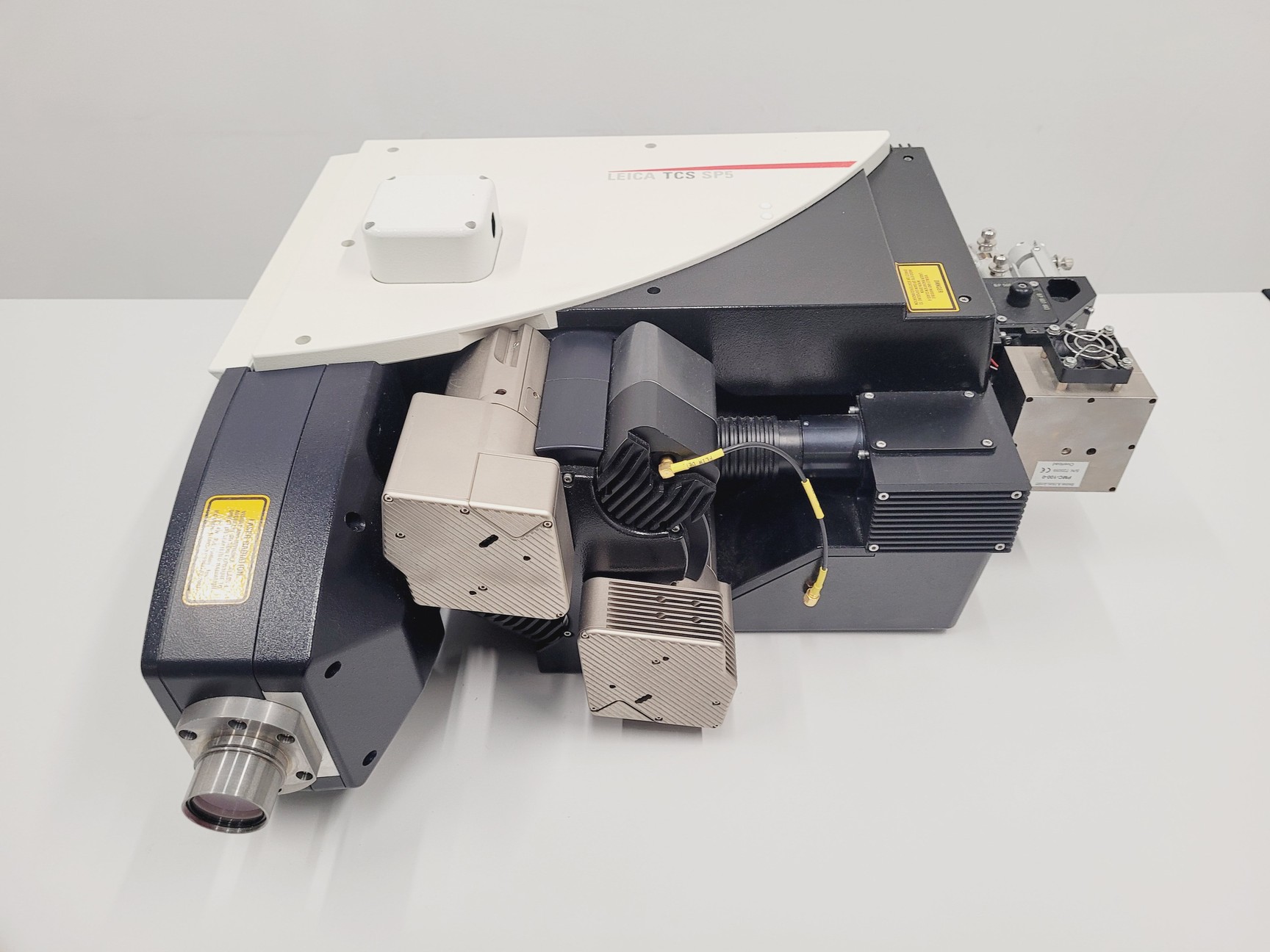

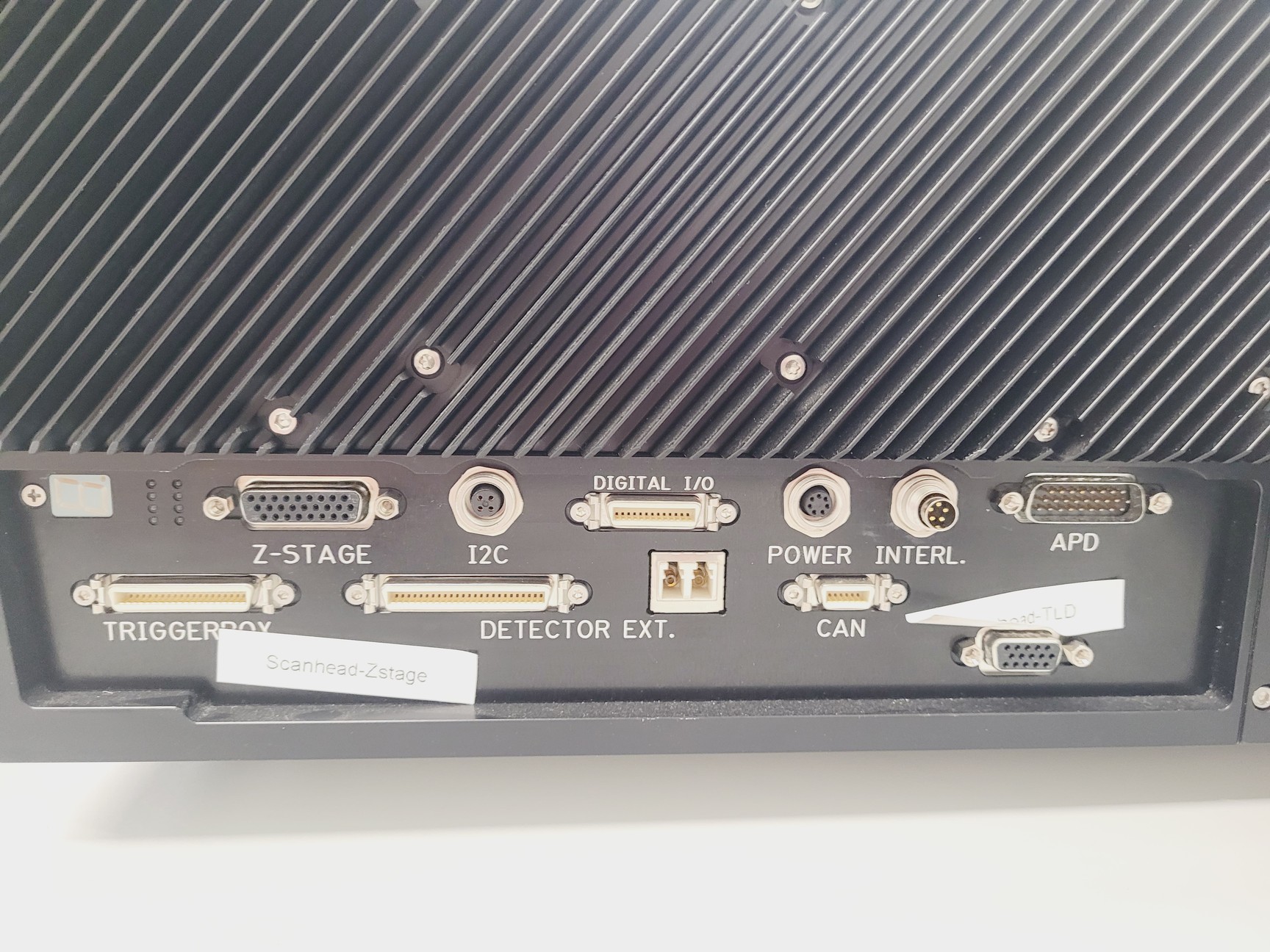

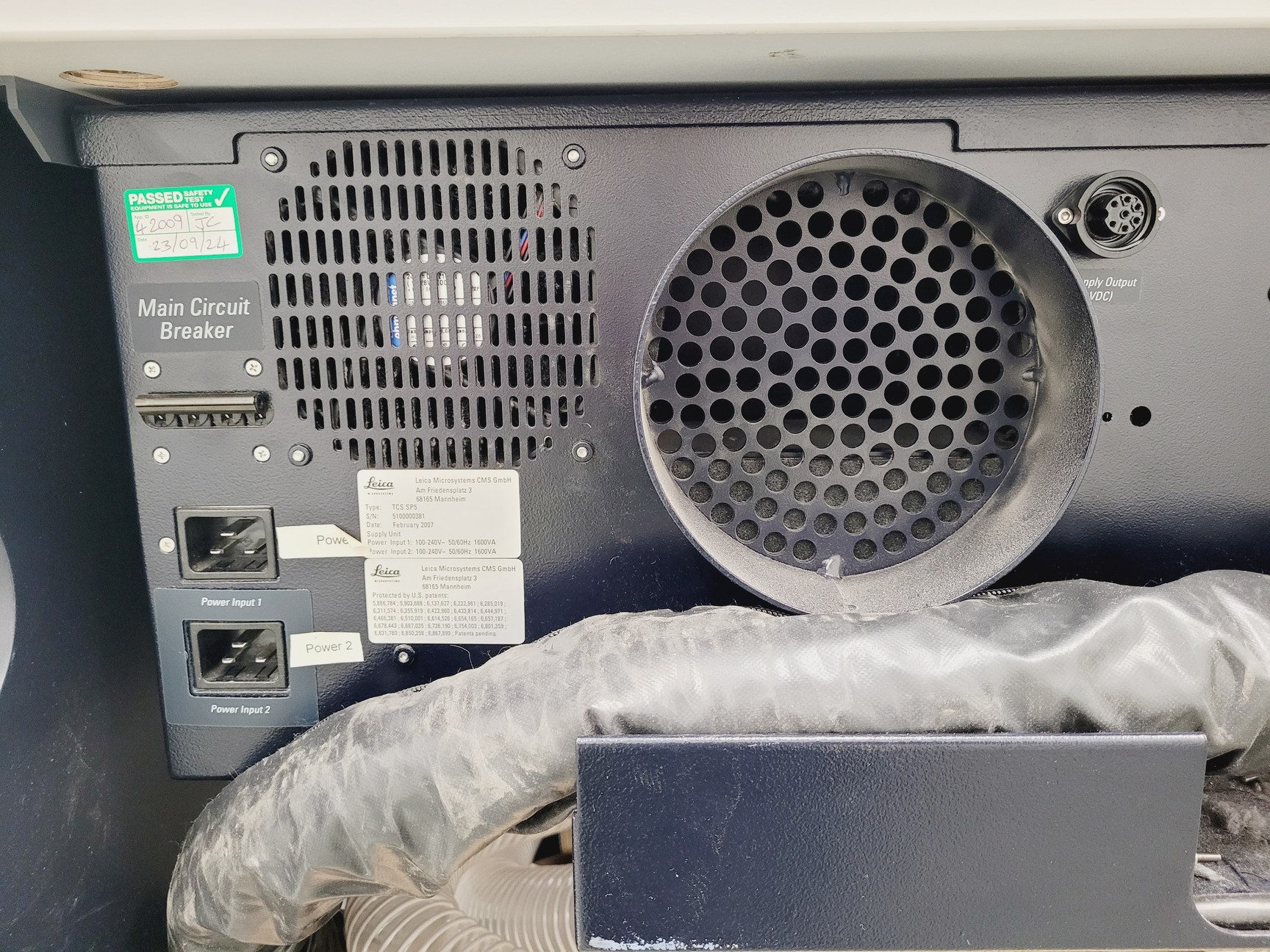

- TCS SP5 Control Desk, Microscope, and Scan Unit (Serial No. 510000038, Year: 2007)

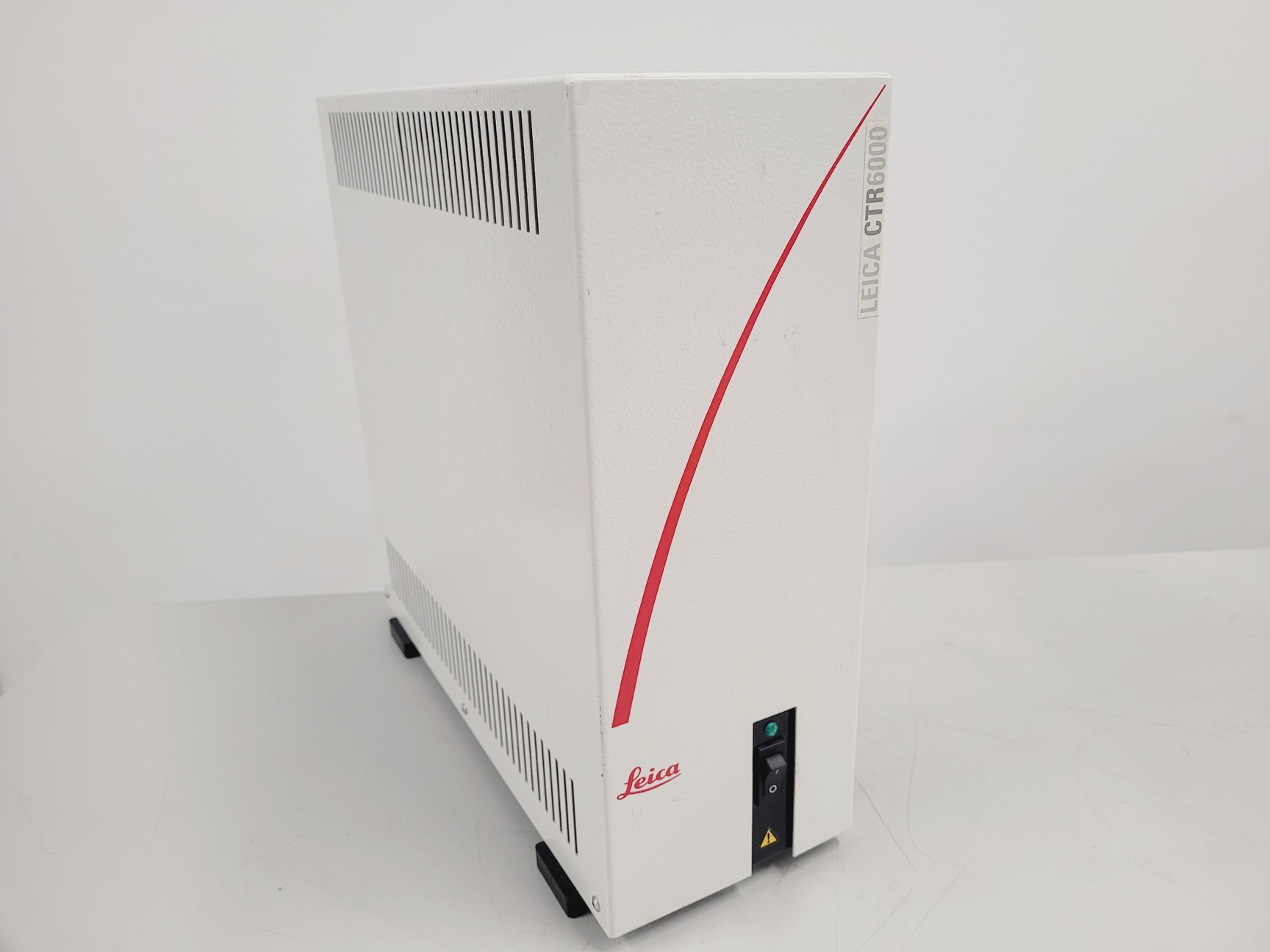

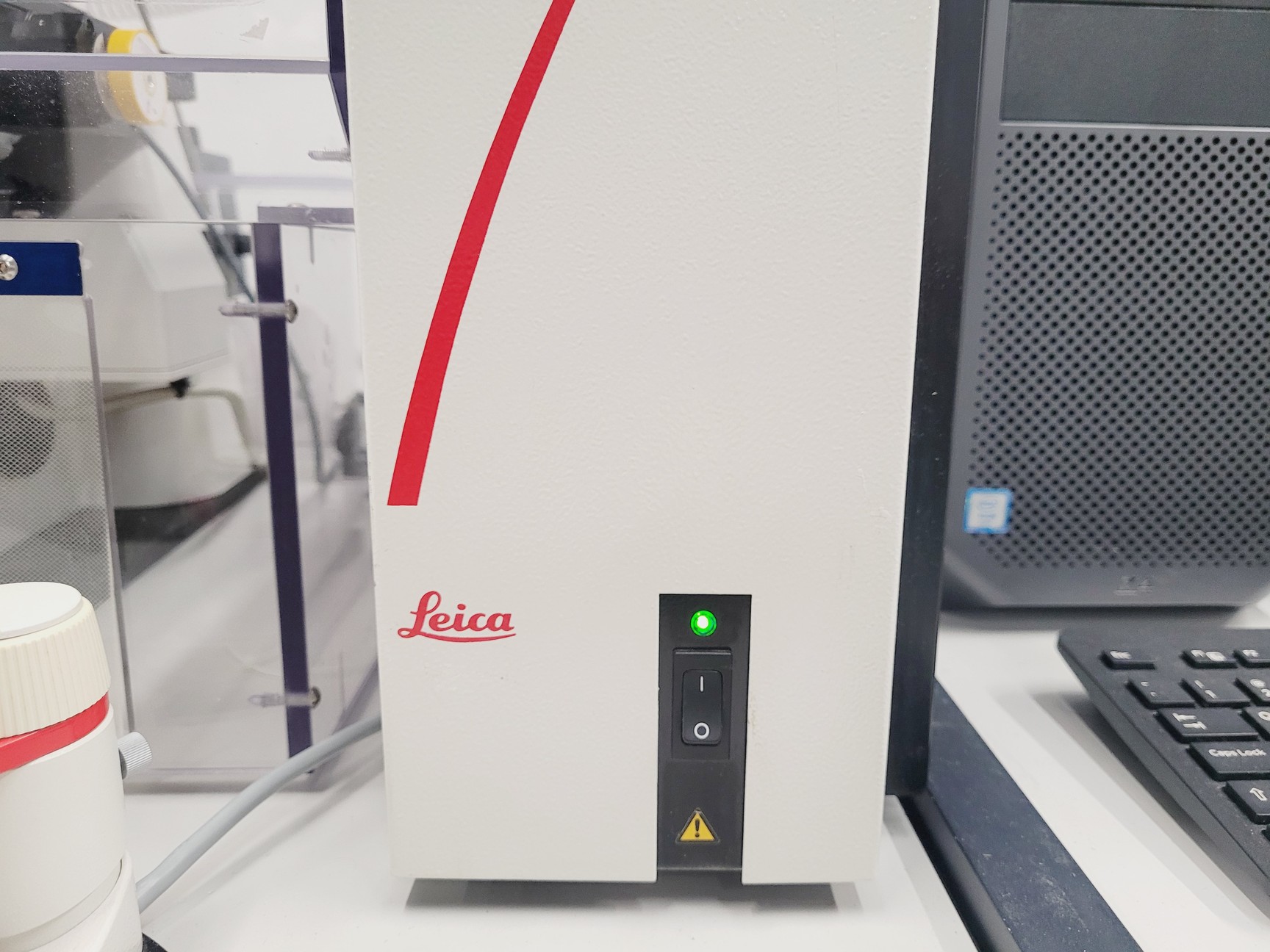

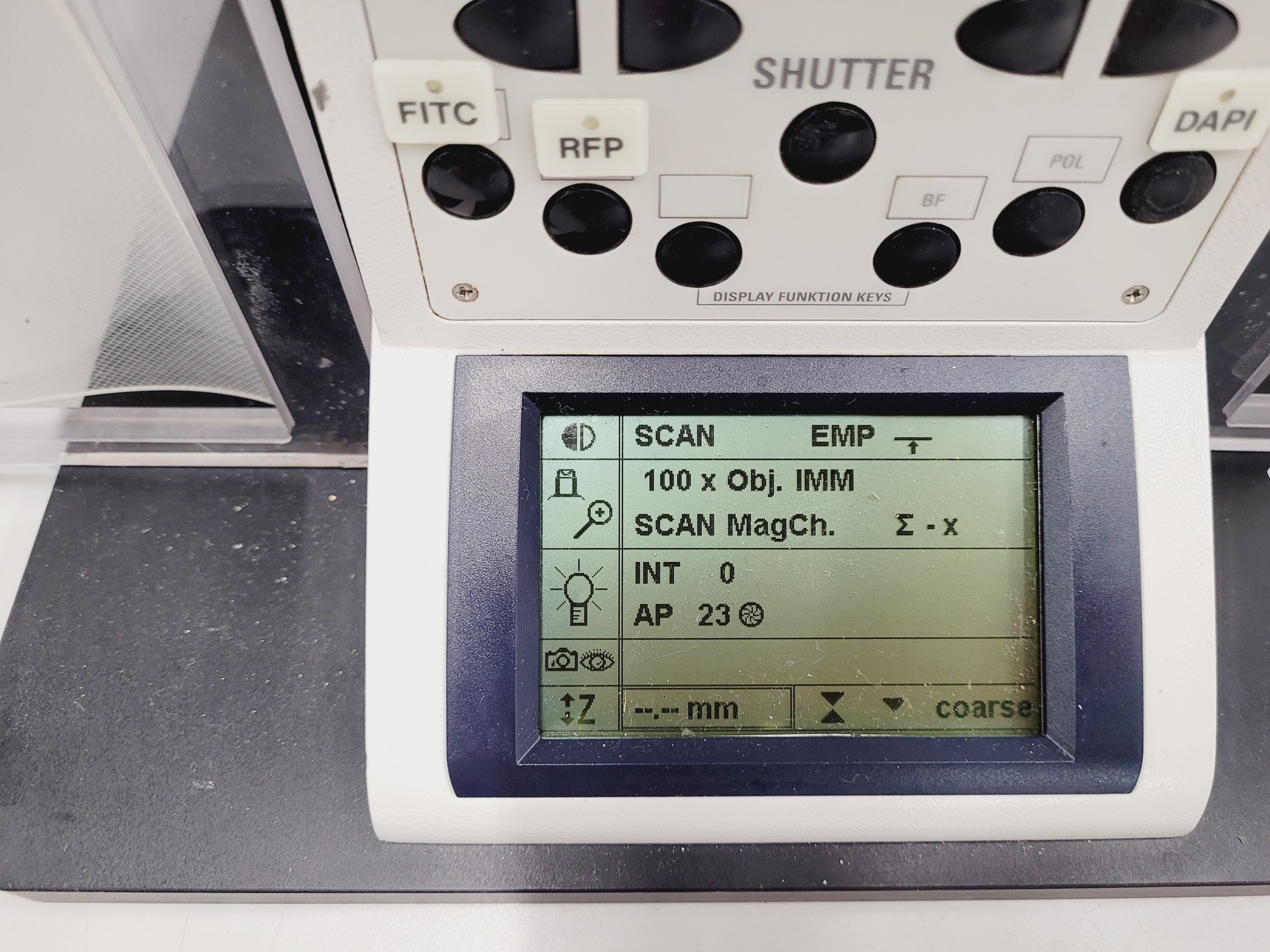

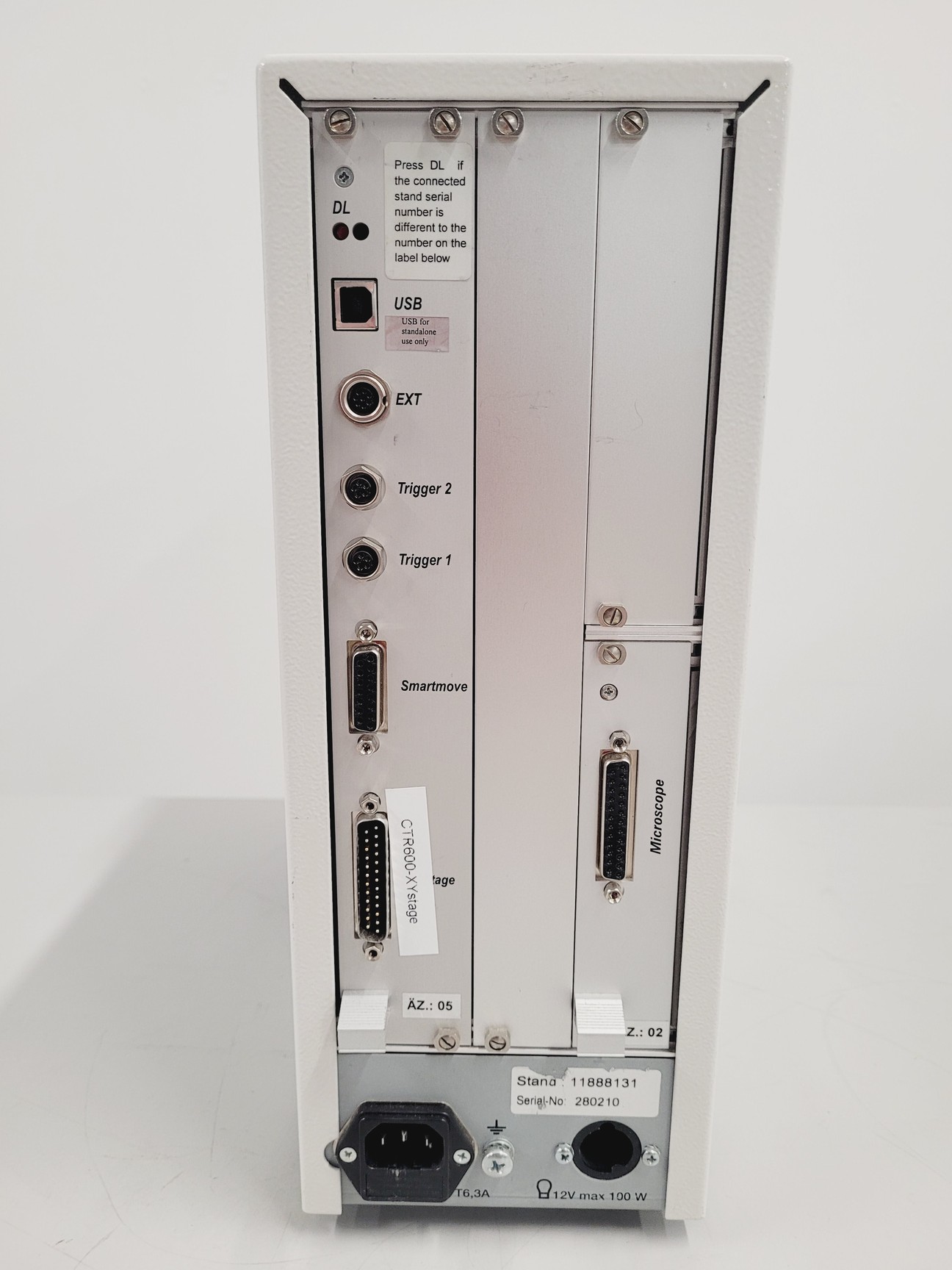

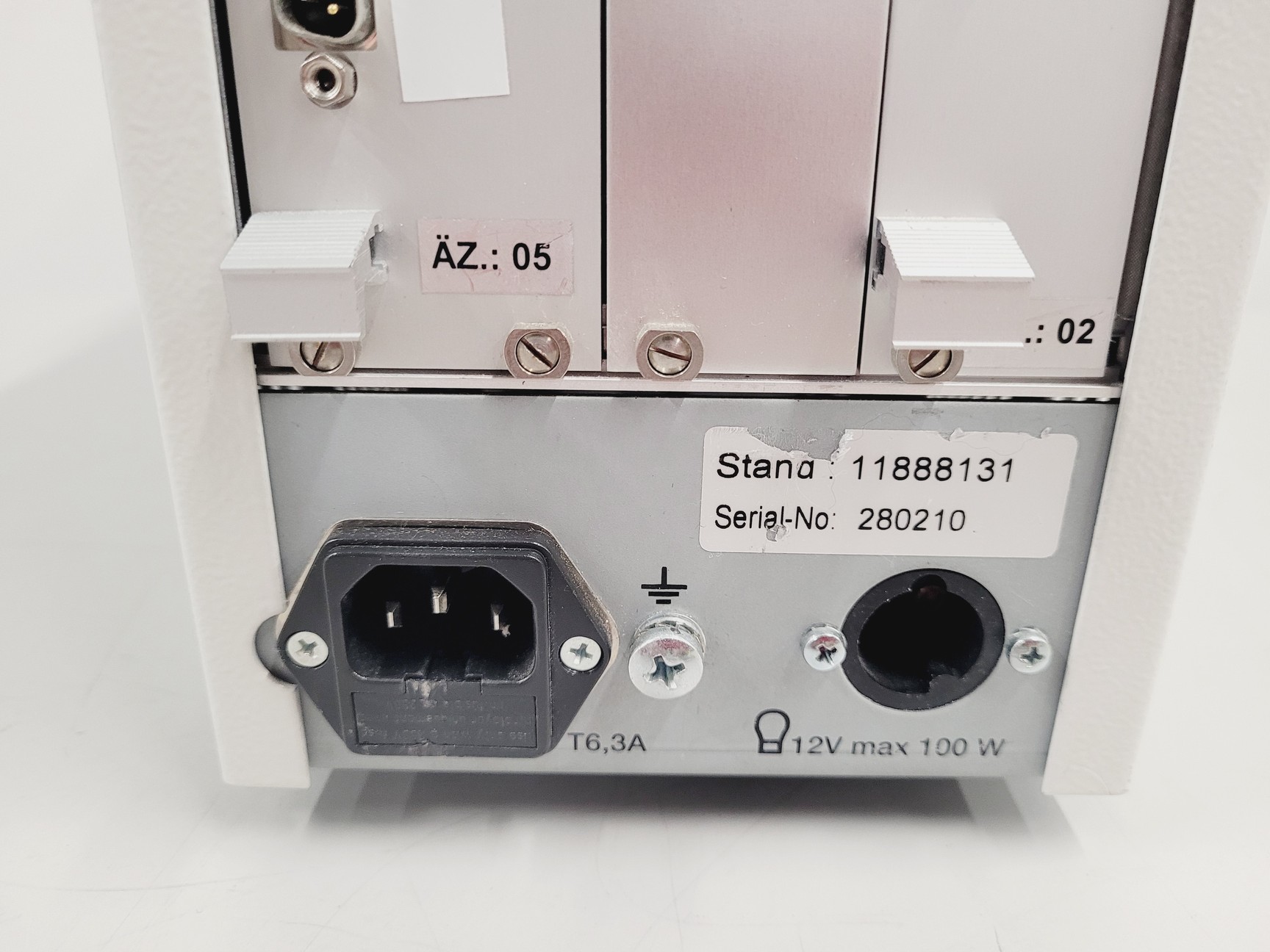

- Leica CTR 6000 Controller (Serial No. 280210)

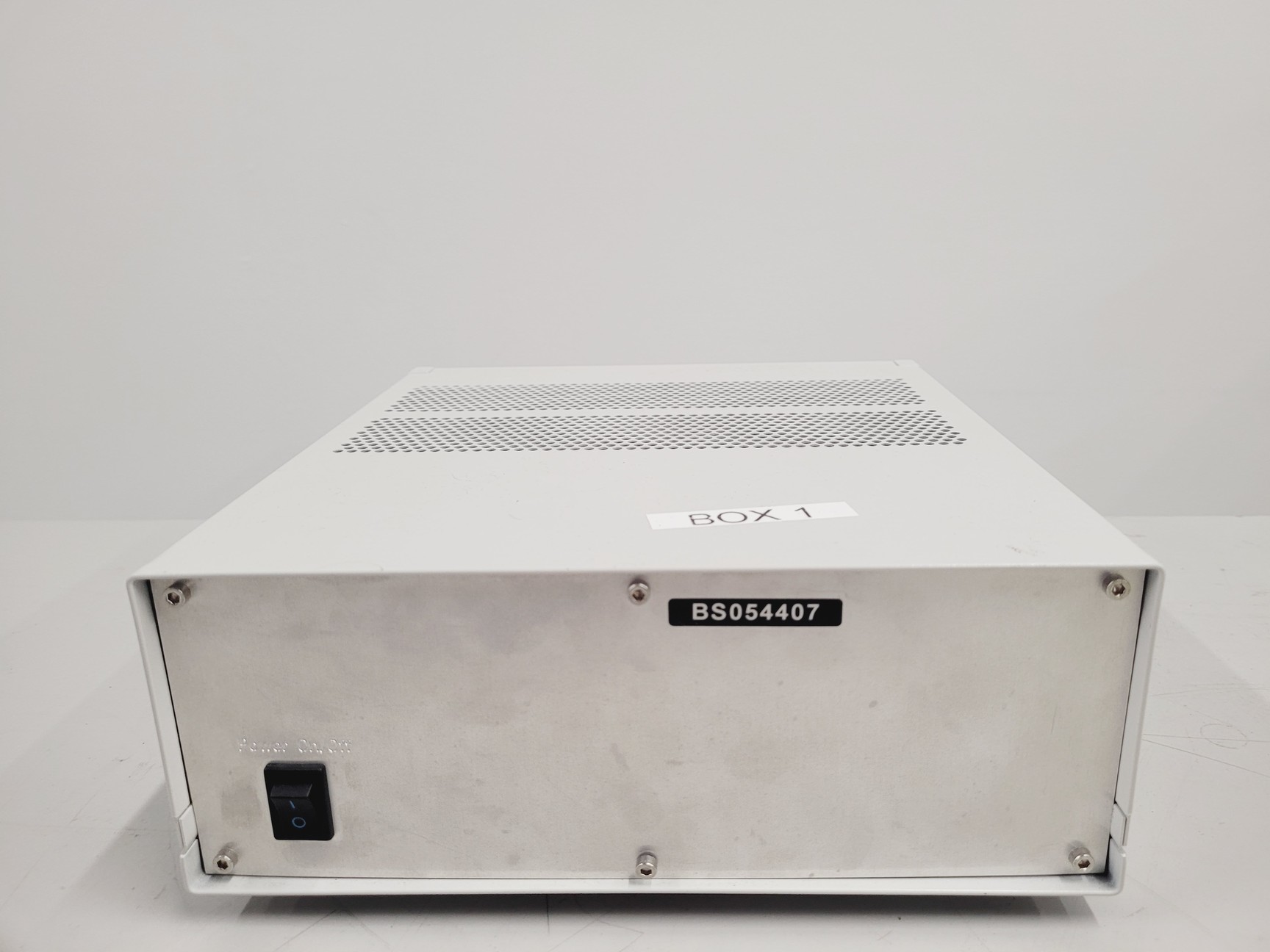

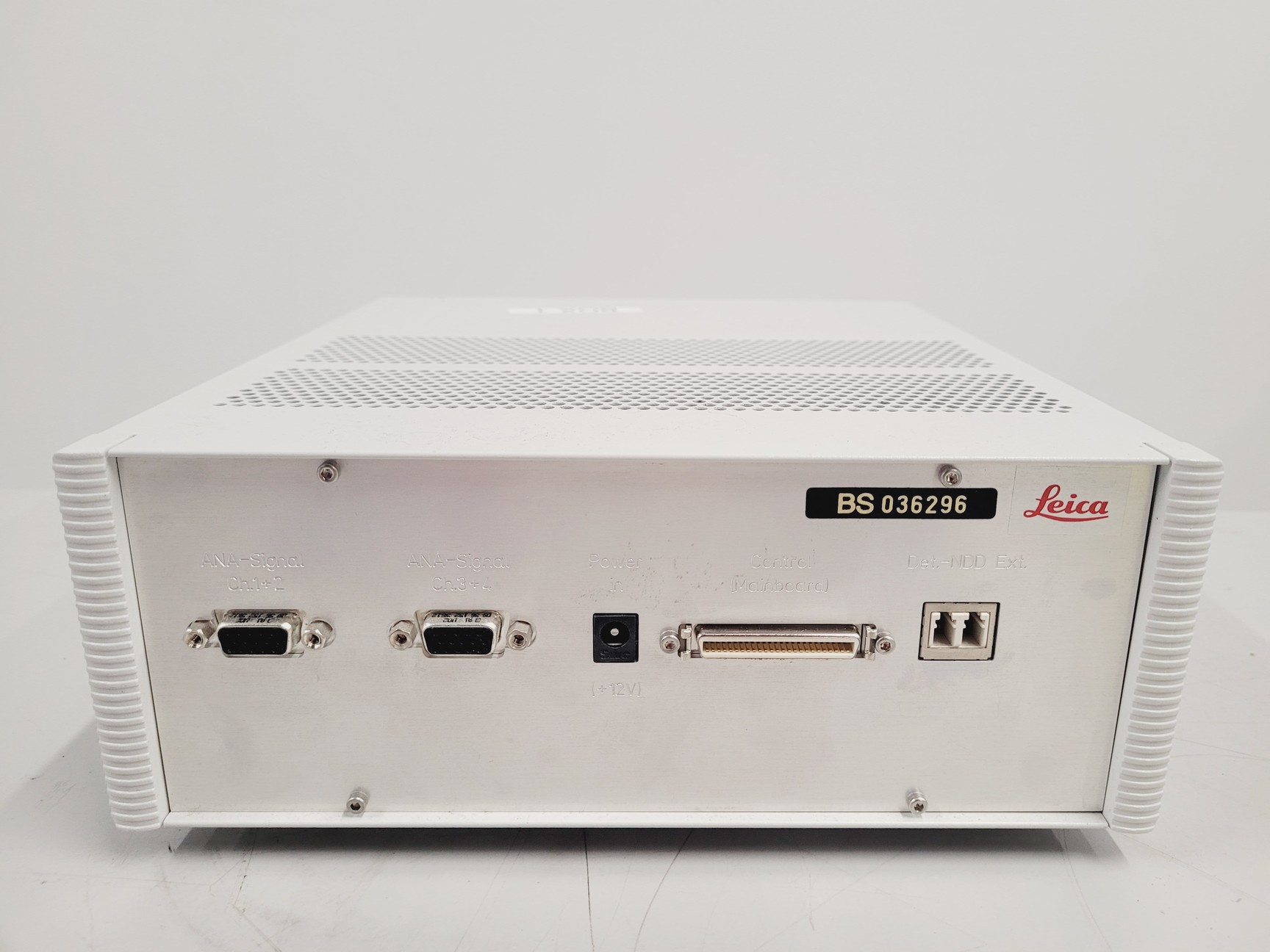

- Leica CMS Detection Unit (Part No. BS054407)

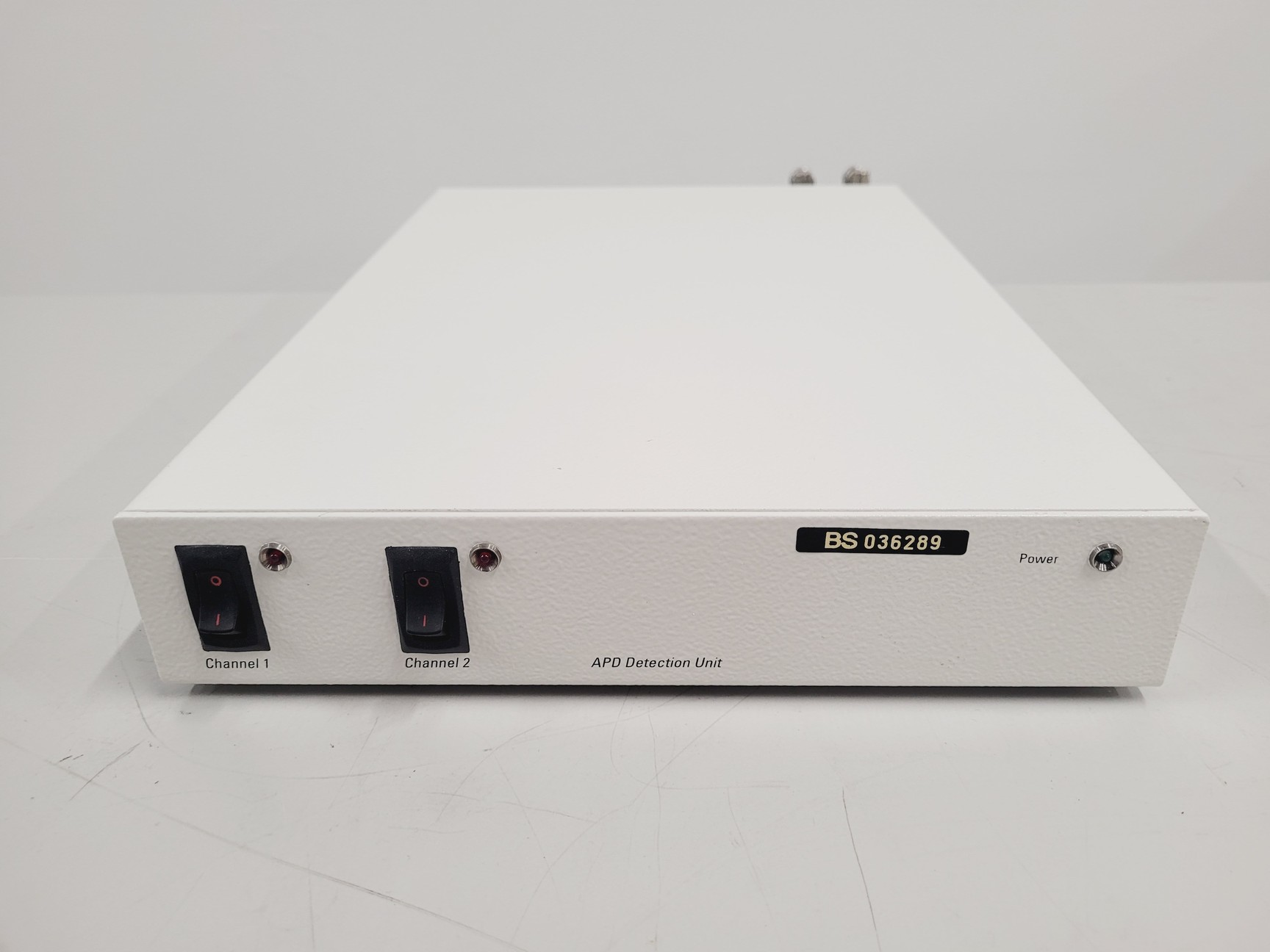

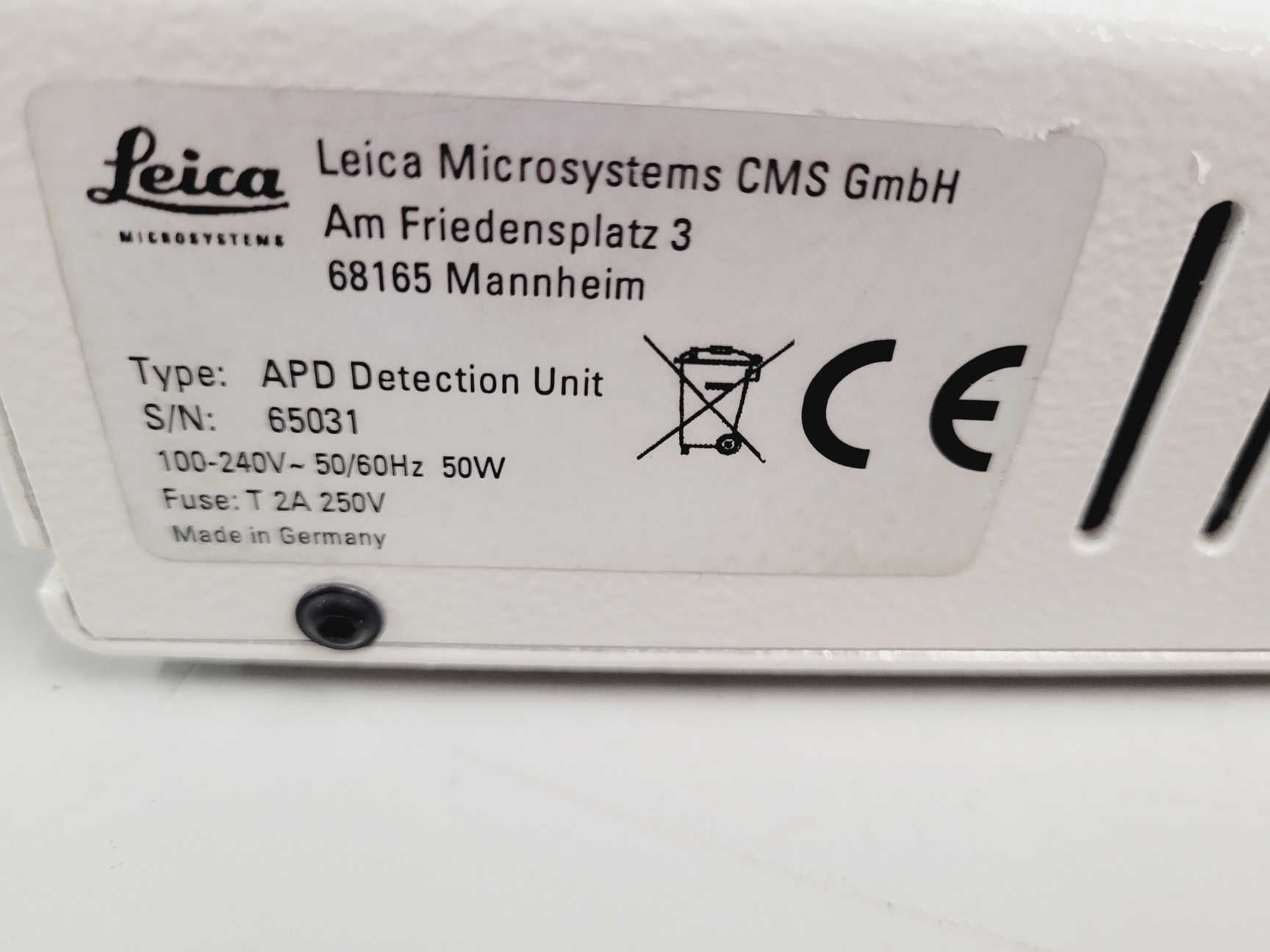

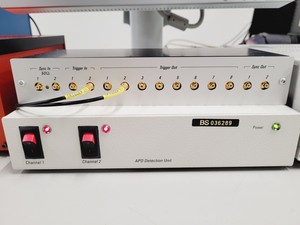

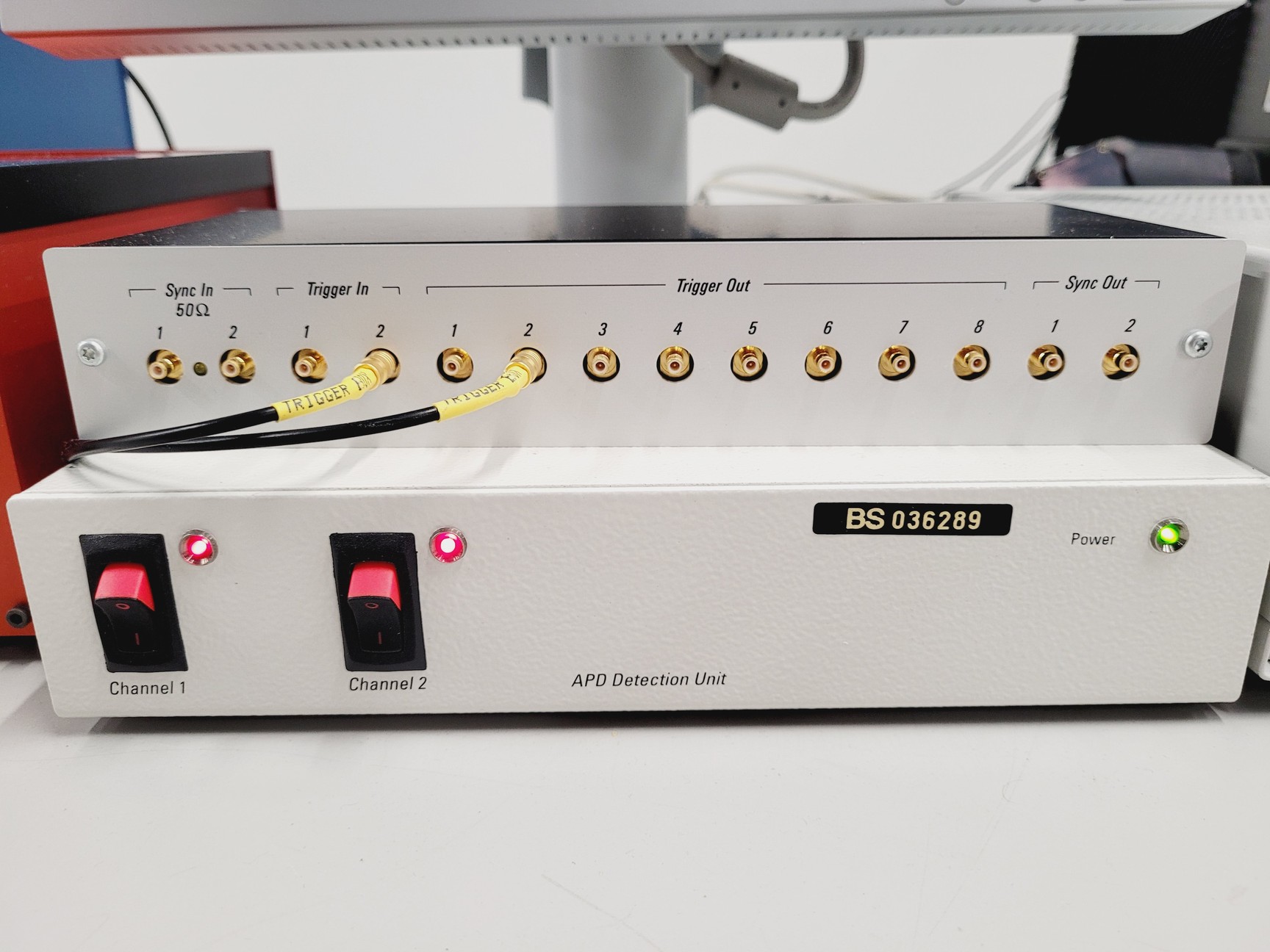

- Leica APD Detection (Serial No. 65031)

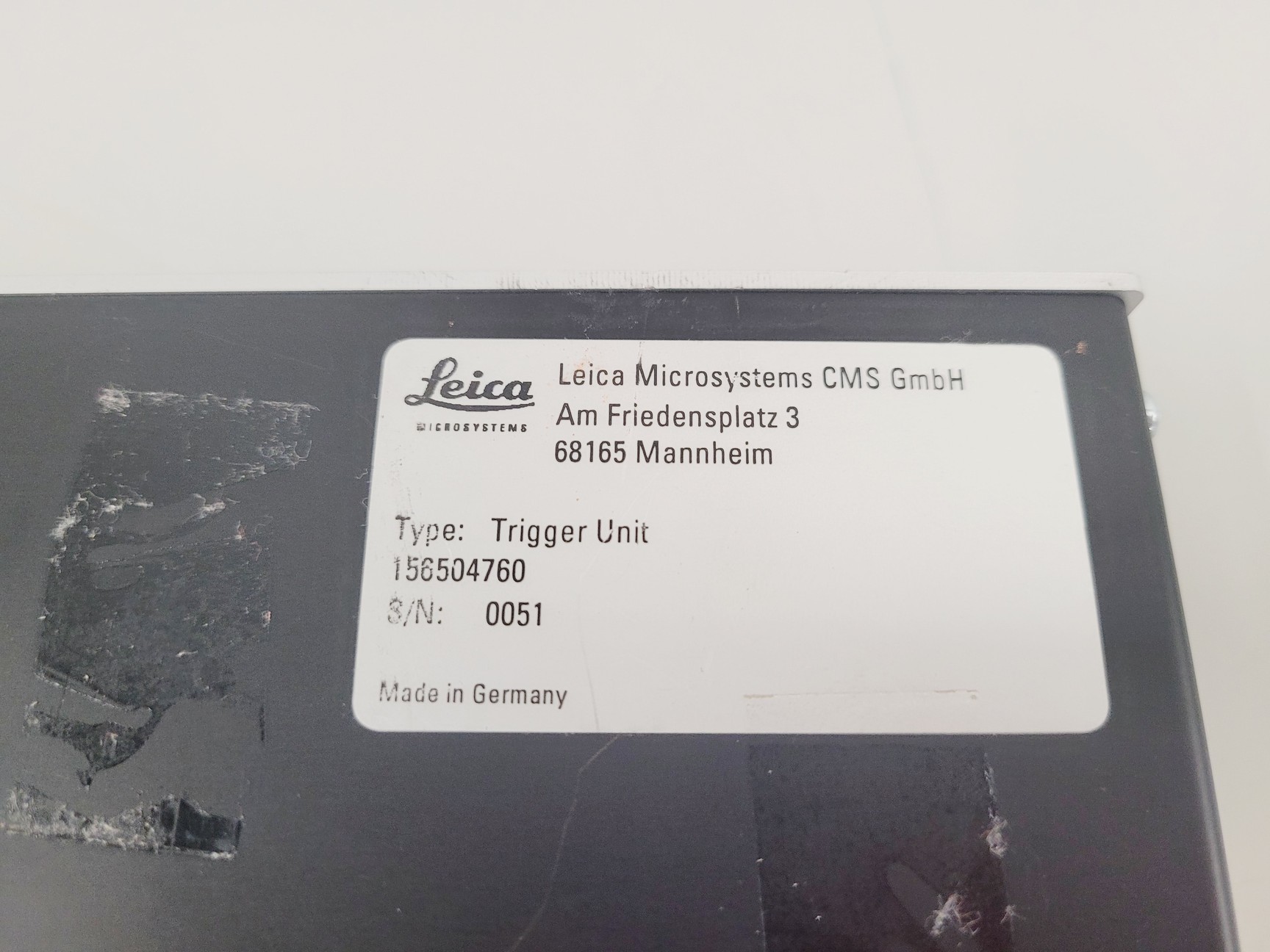

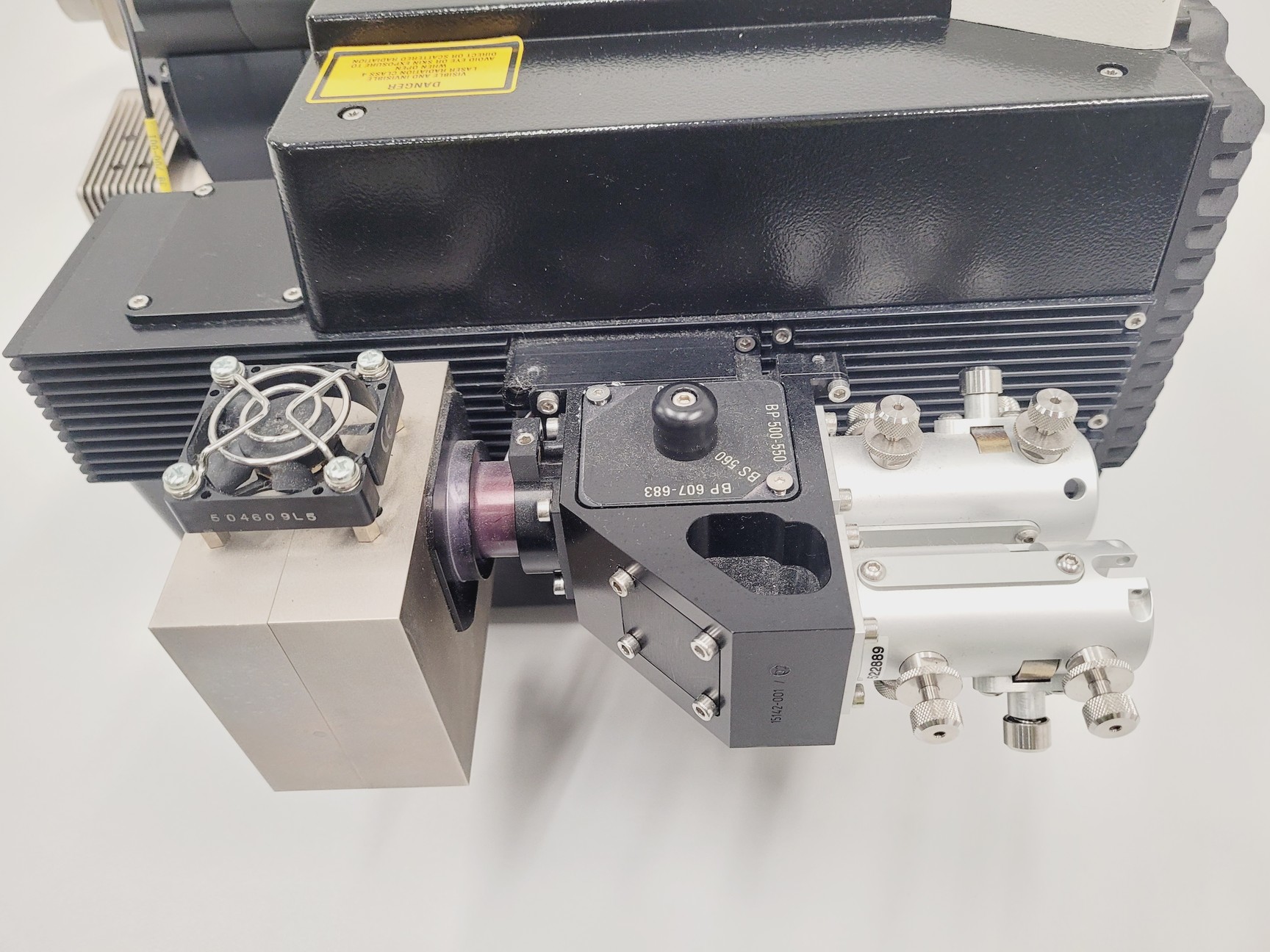

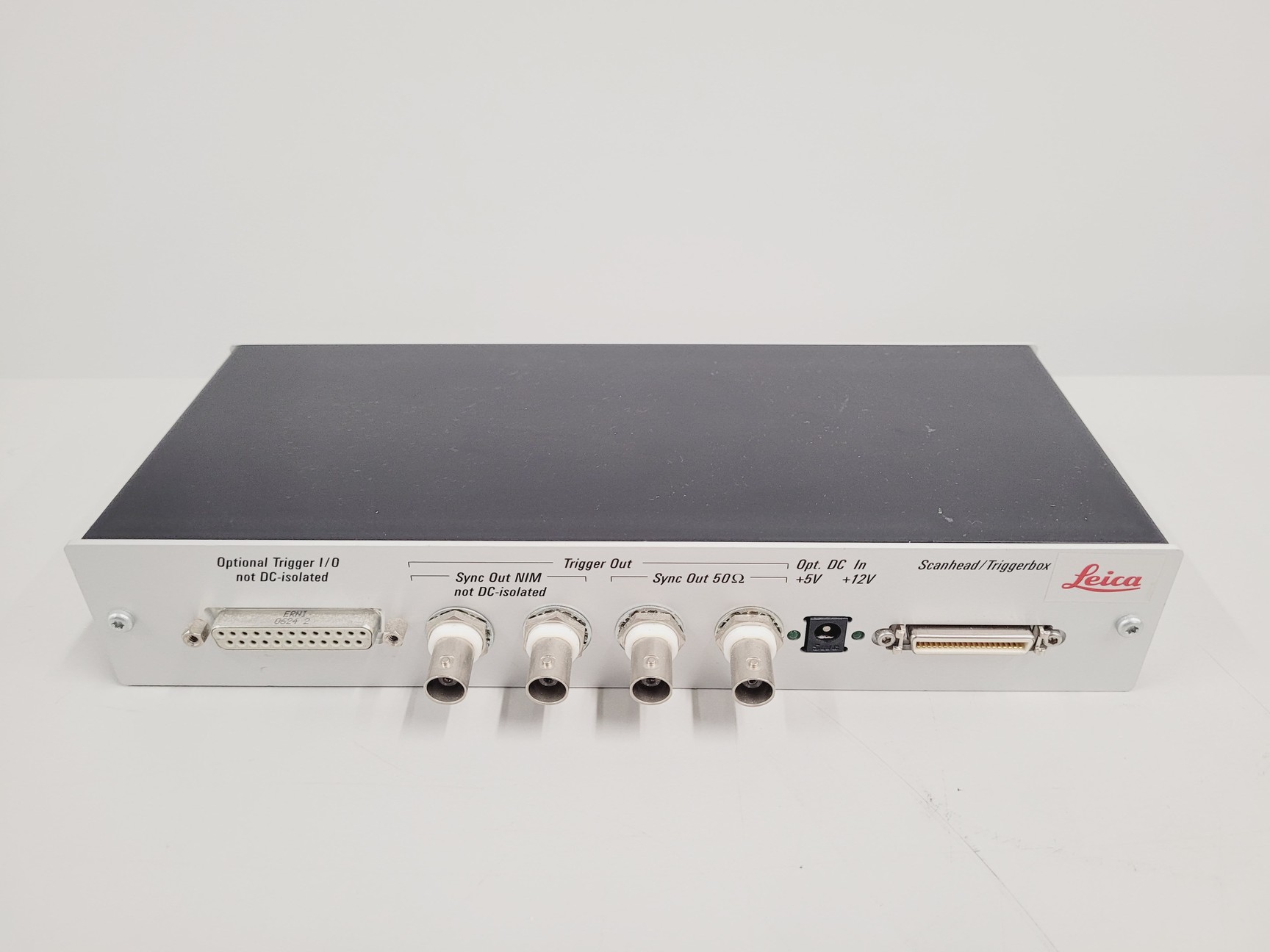

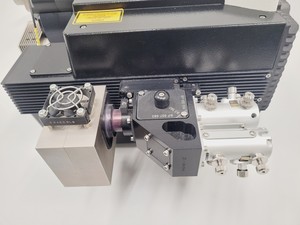

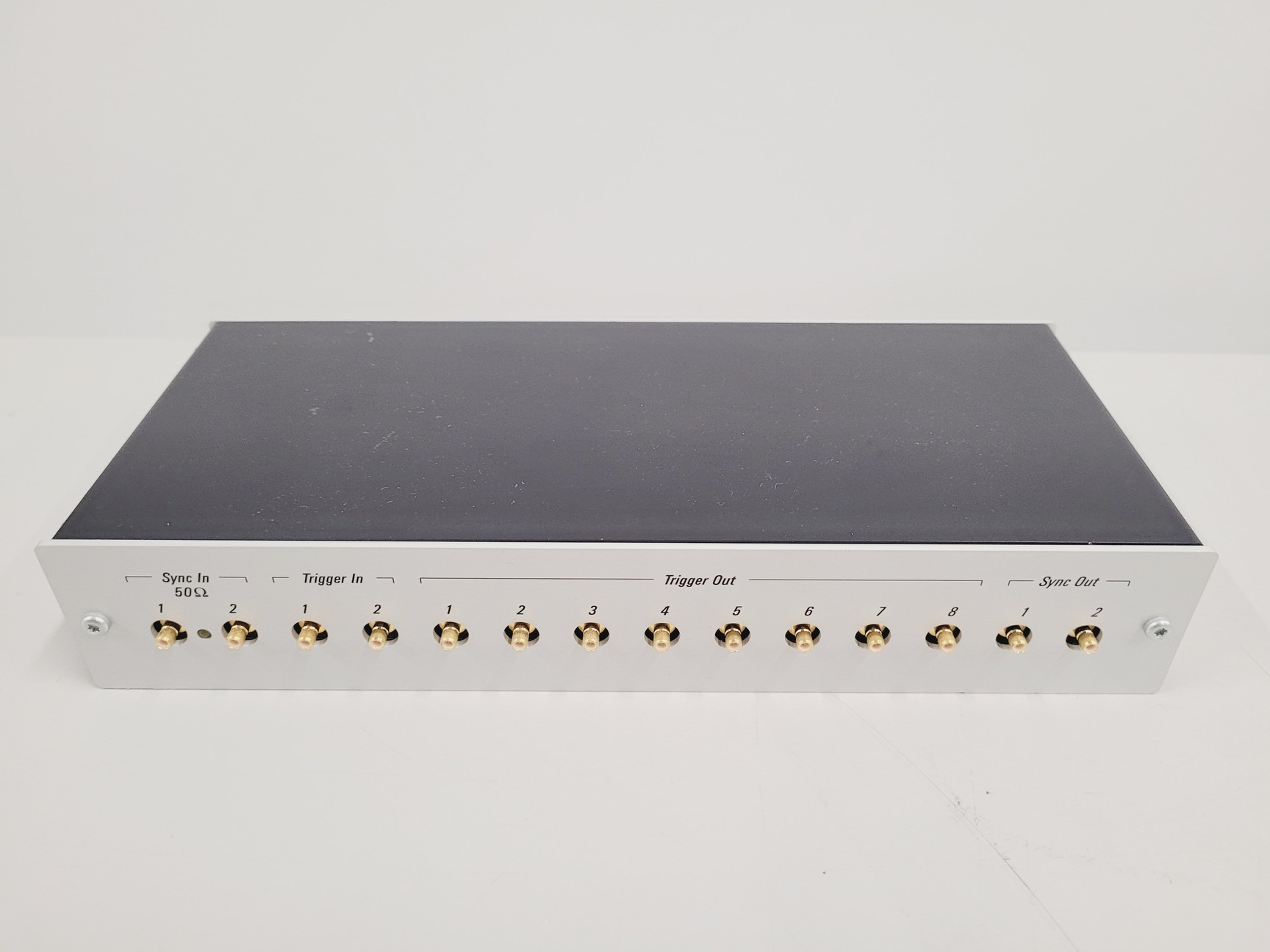

- Leica Scan Head/Trigger Box (Serial No. 0051)

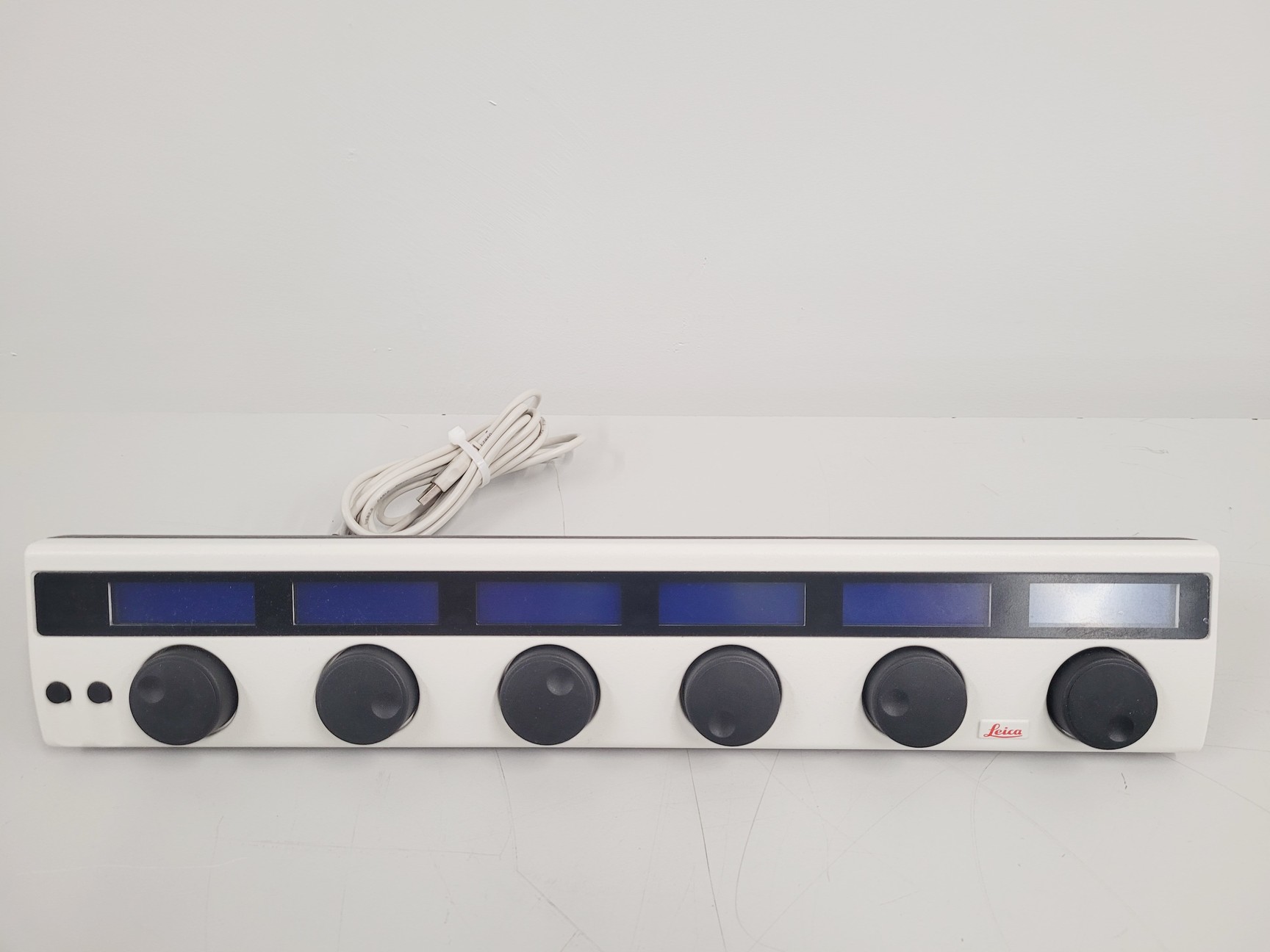

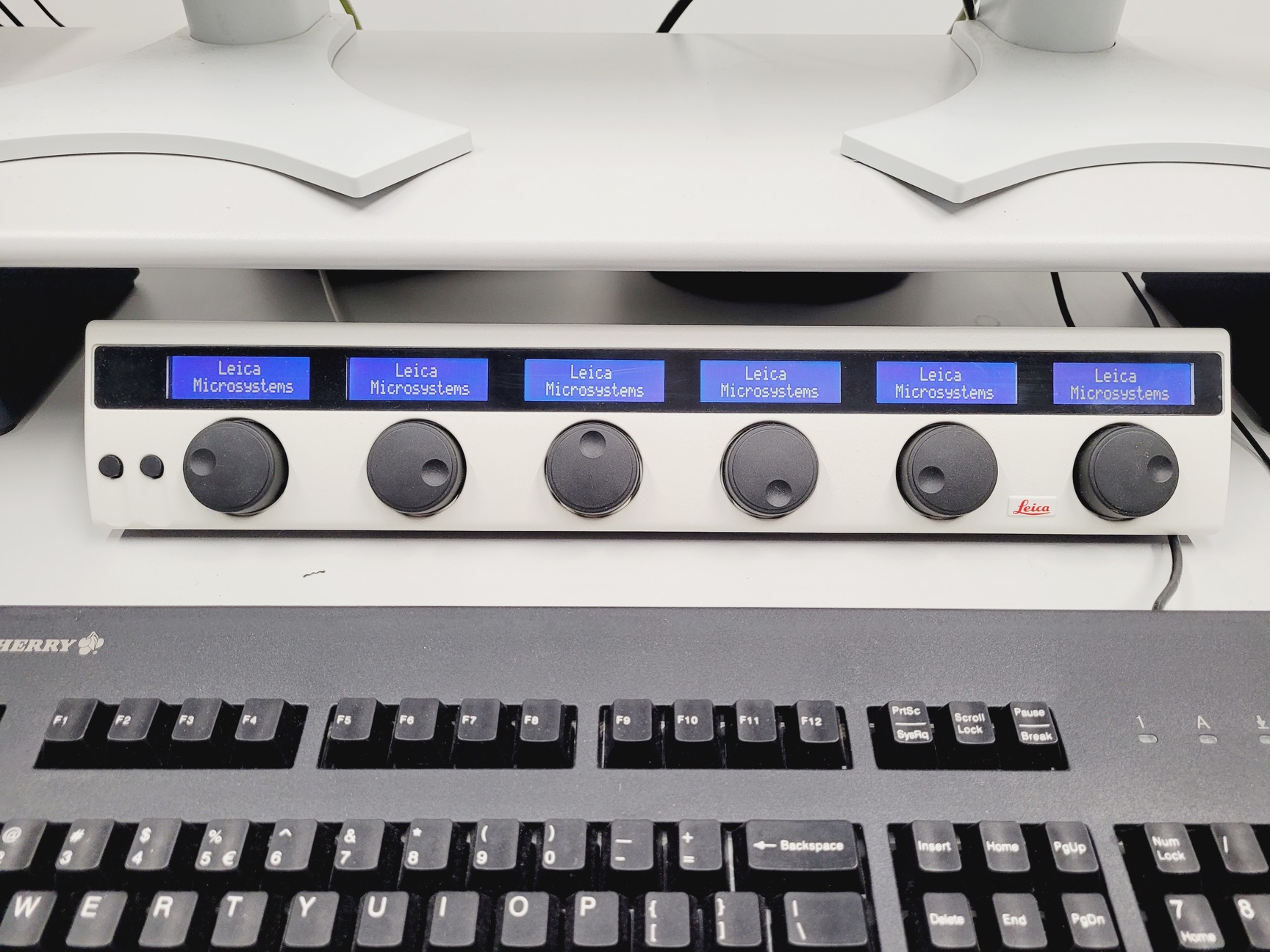

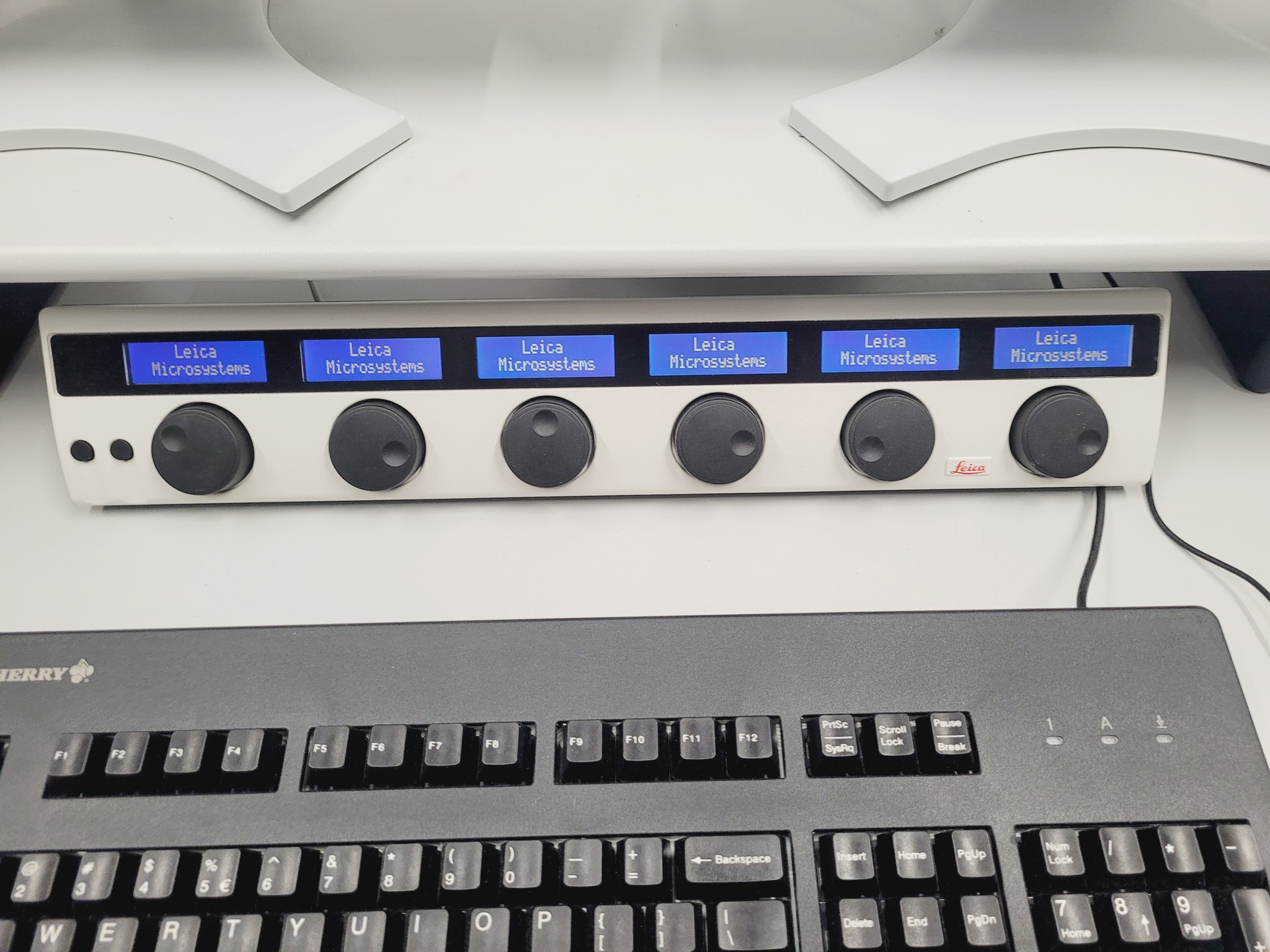

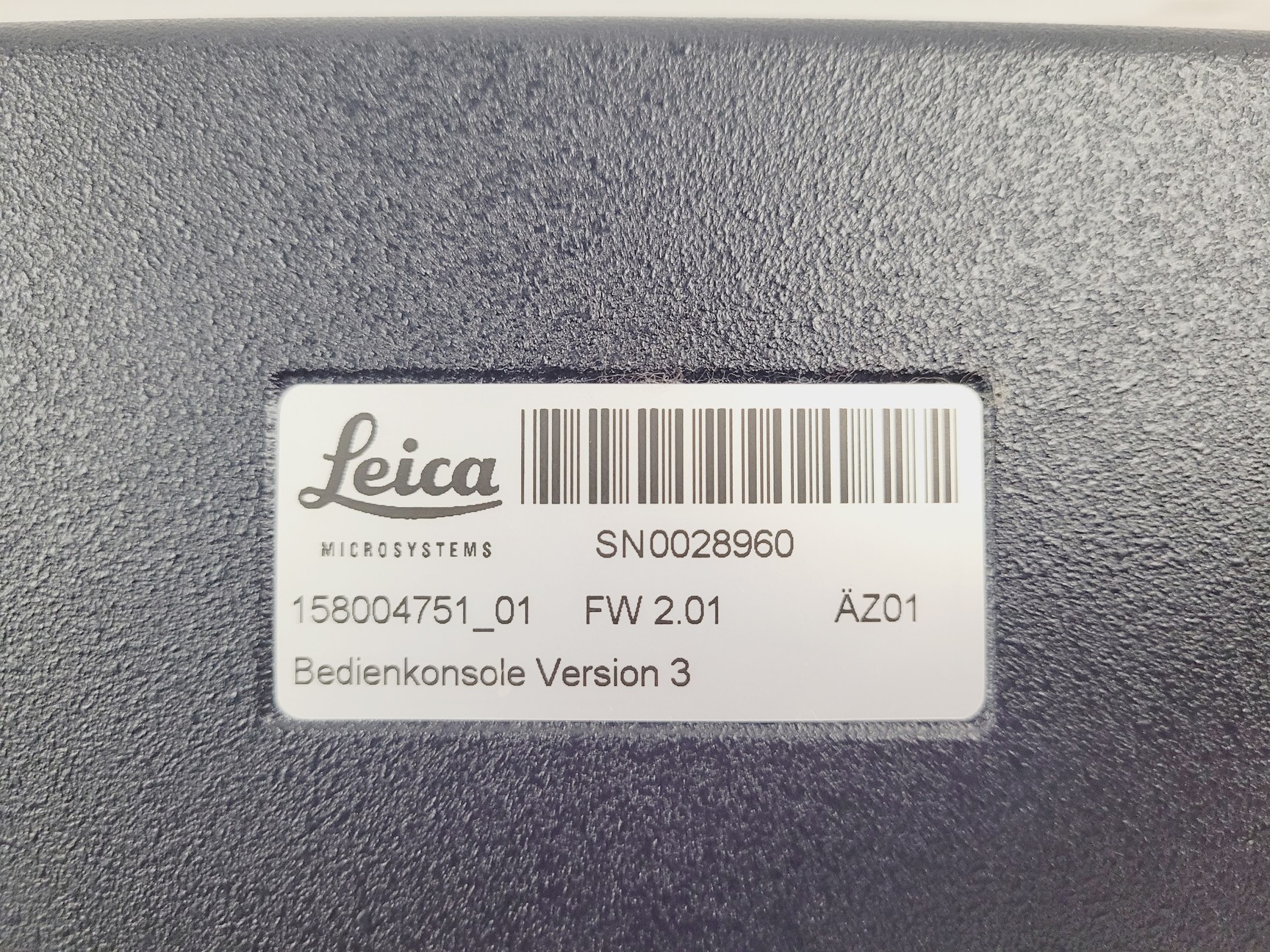

- Leica Switch Console V3 (Serial No. 0028960)

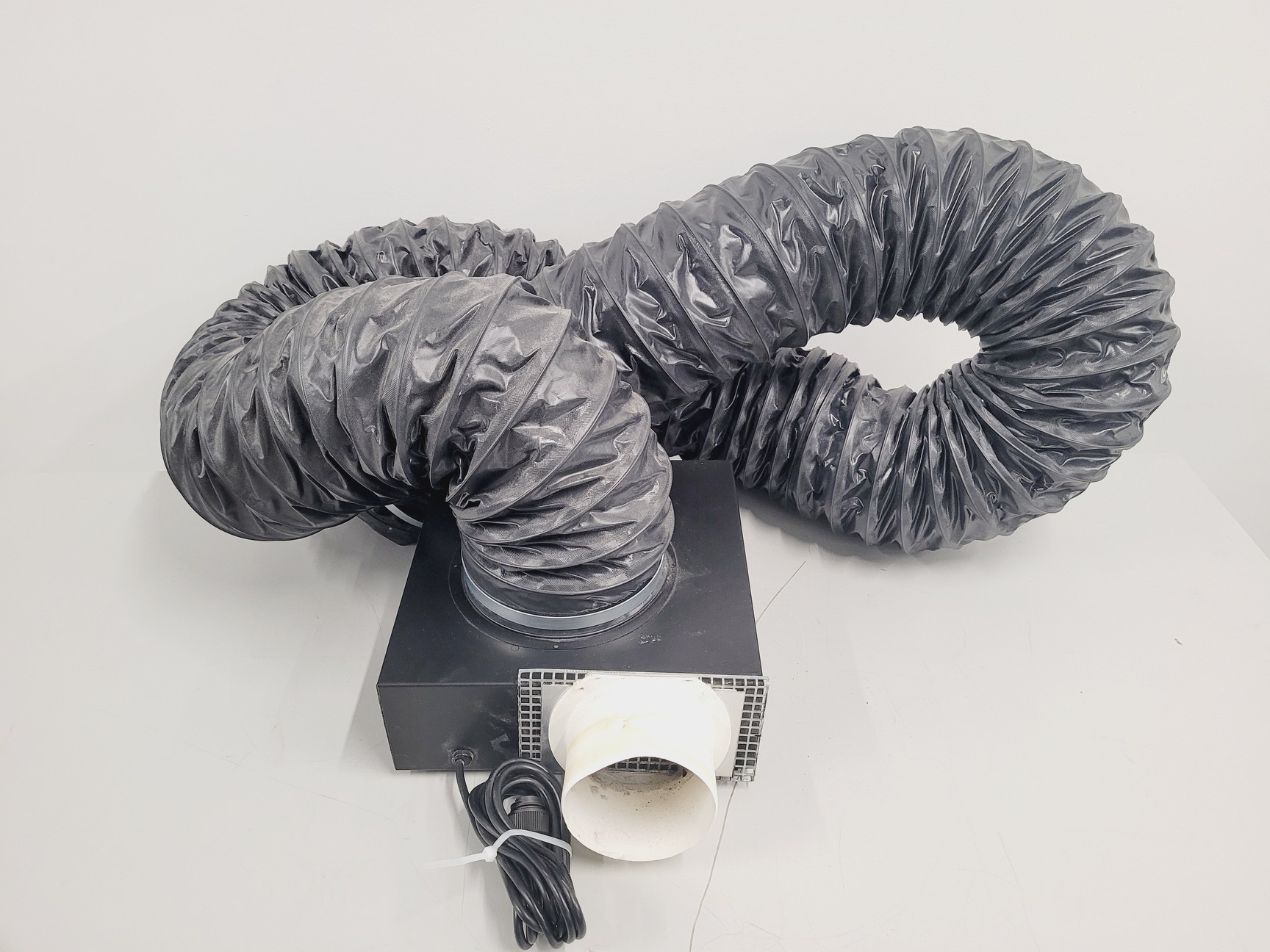

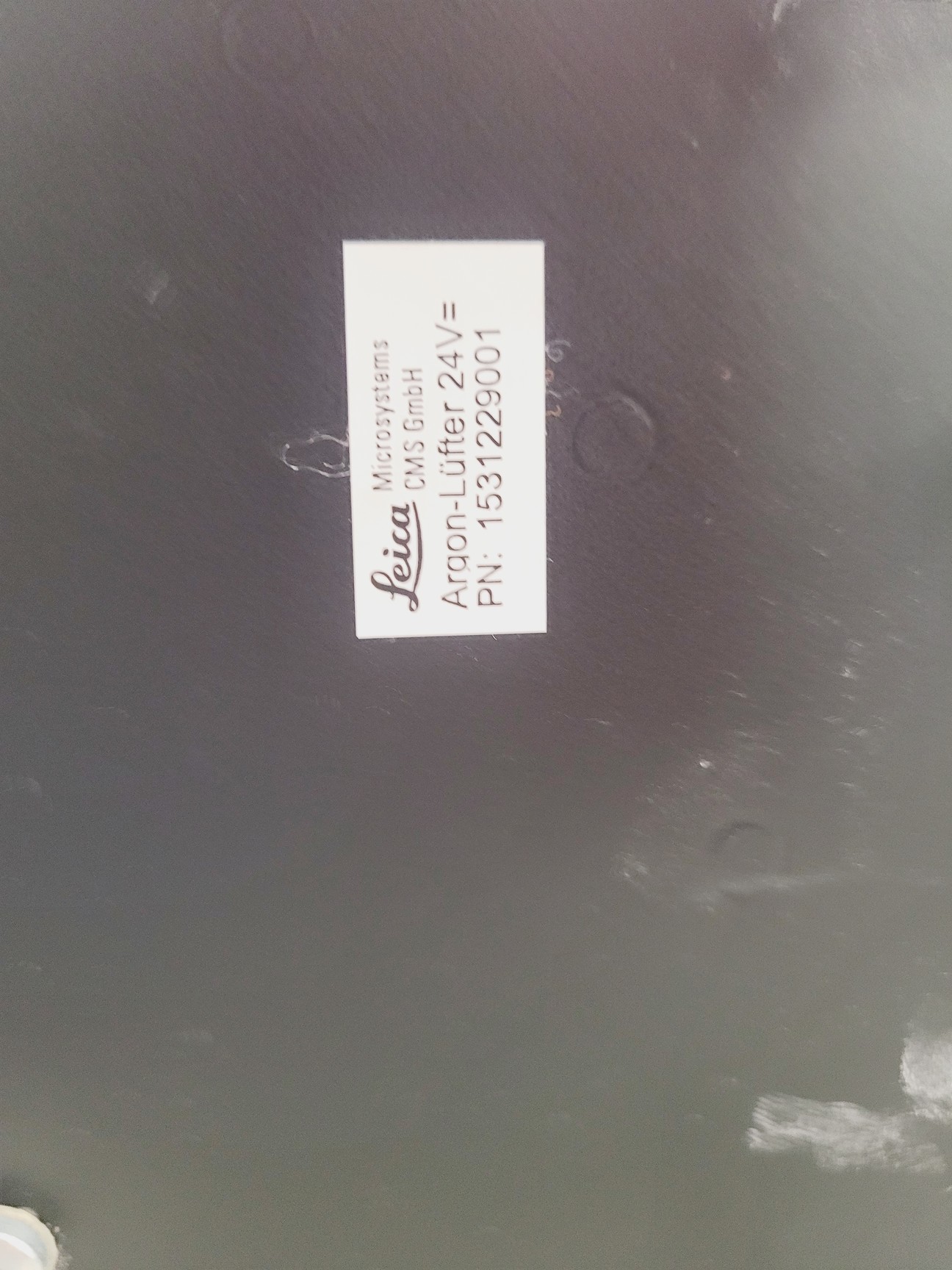

- Leica Cooling Fan and Flexible Duct (Part No. 1531229001)

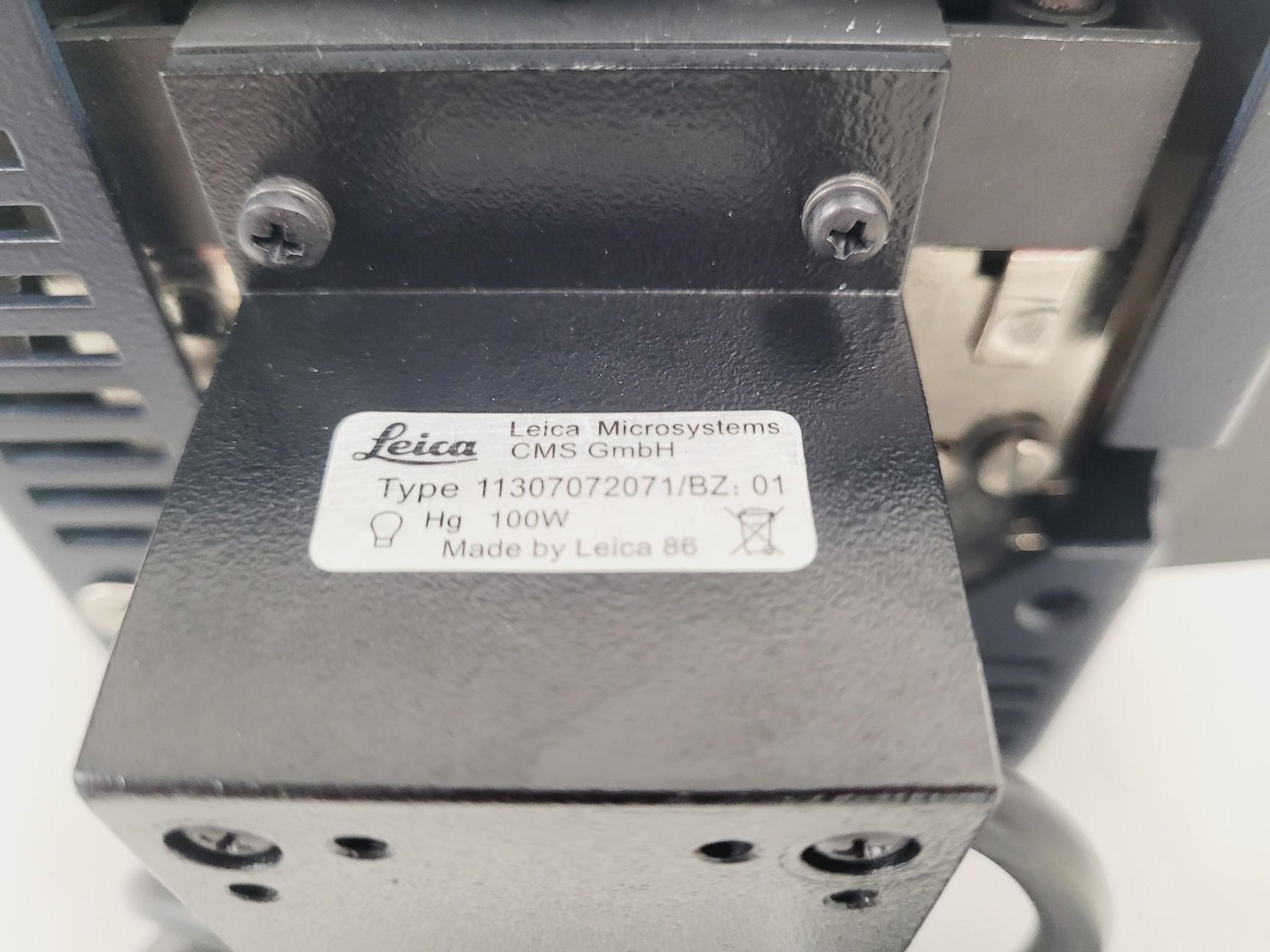

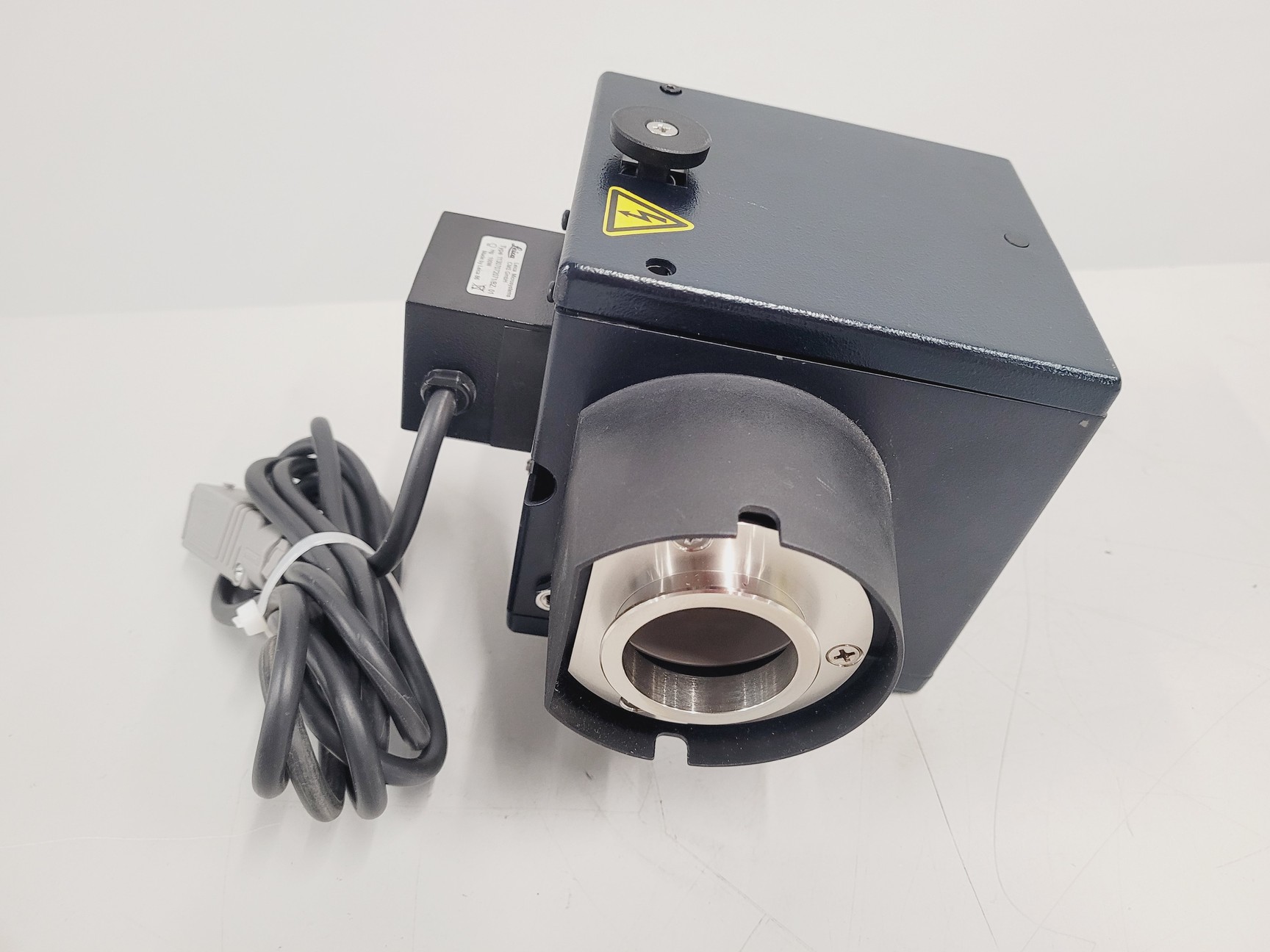

- Leica Mercury Lamp Box (Type 11307072071/BZ)

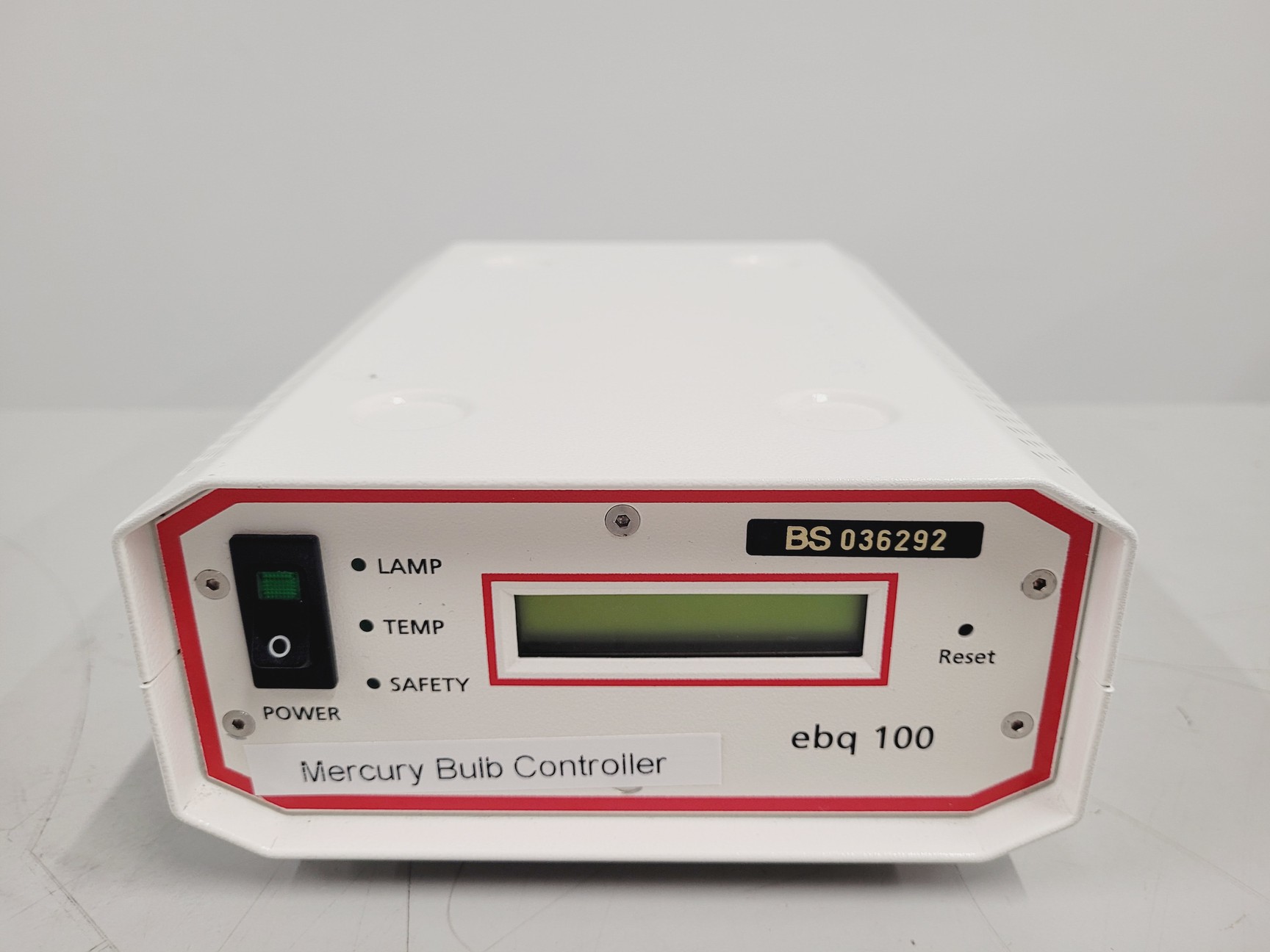

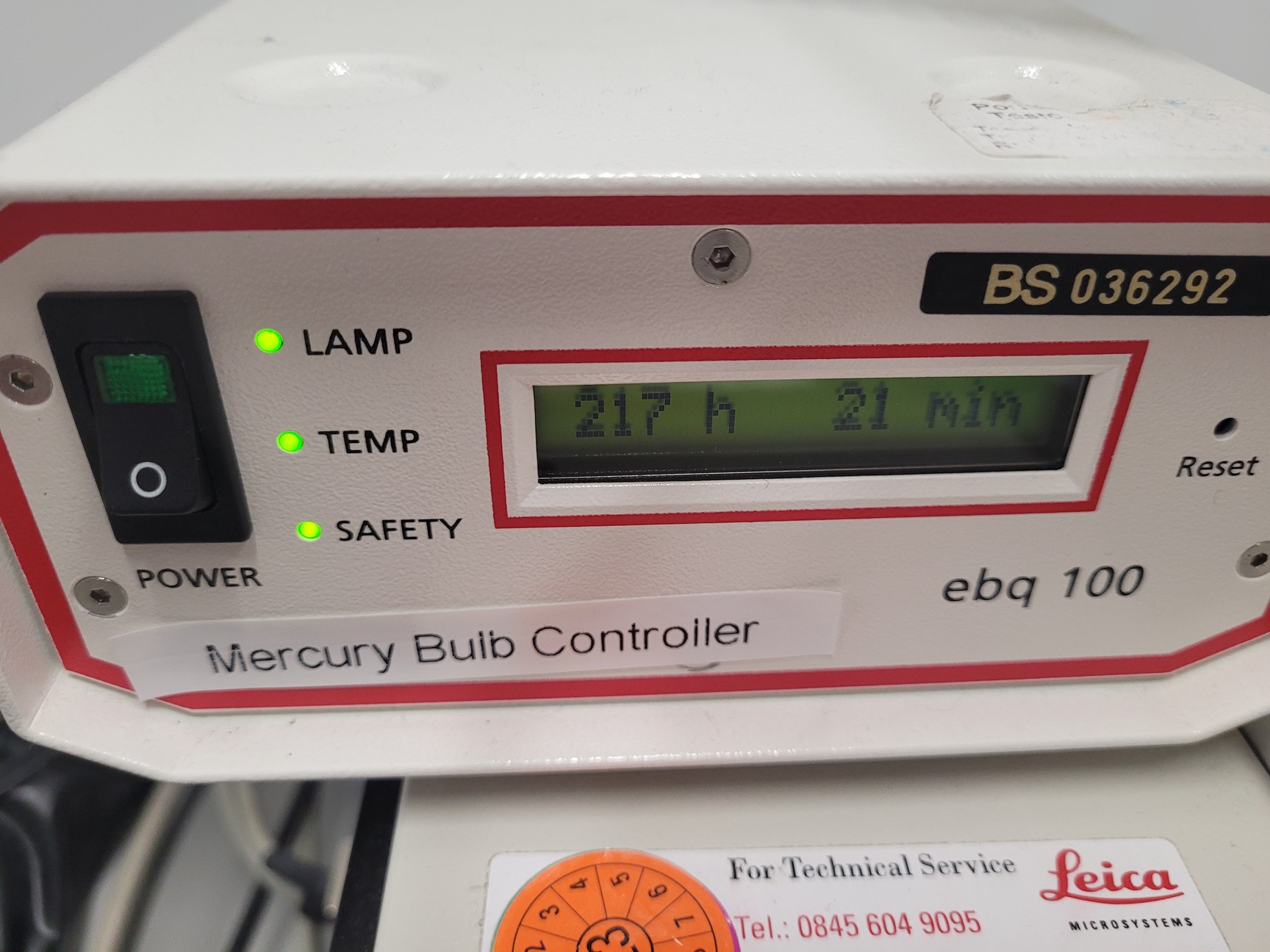

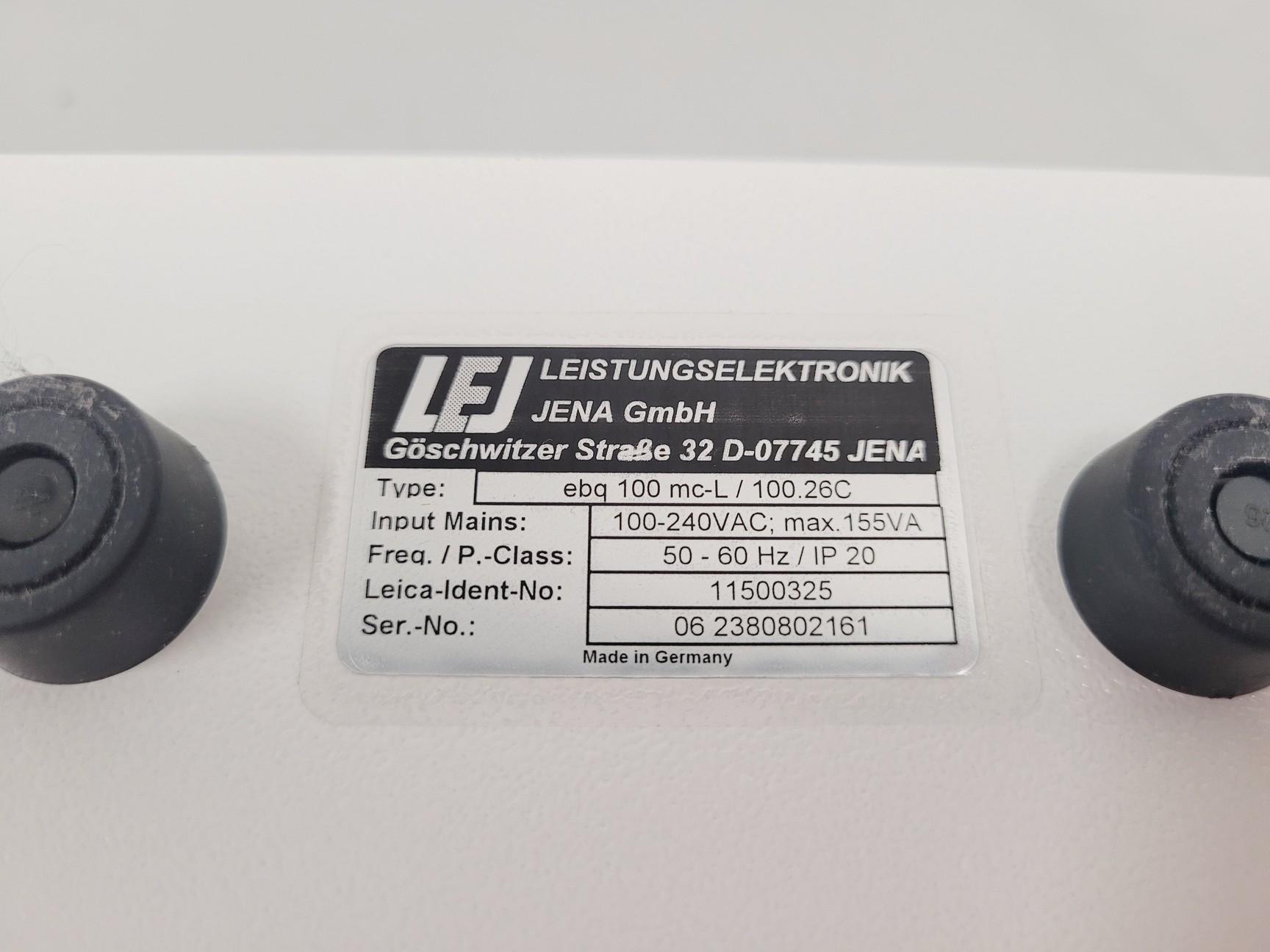

- LEJ Mercury Bulb Controller (Type ebq 100mc-L, Serial No. 06 2380802161, 217 hours bulb run time)

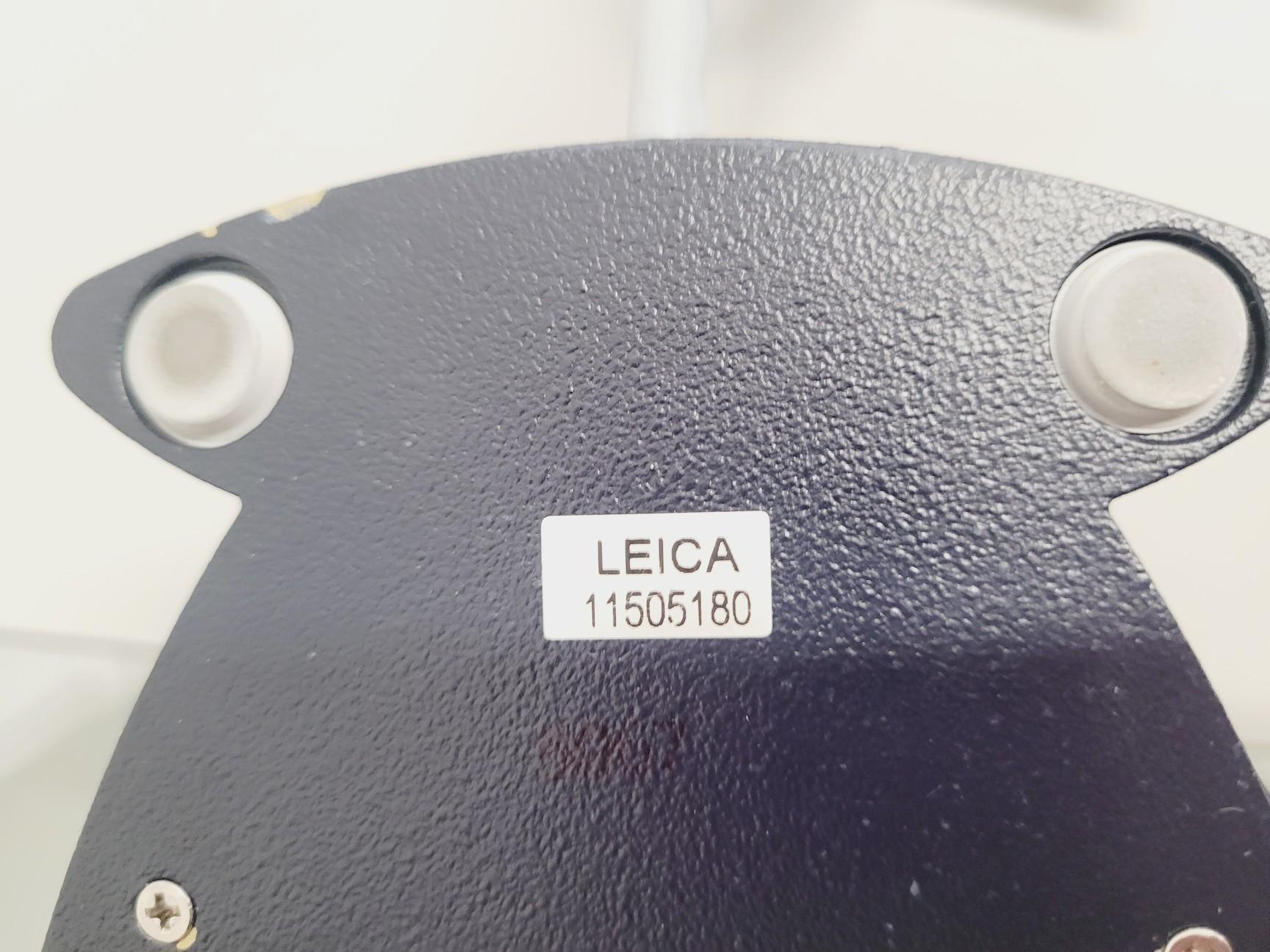

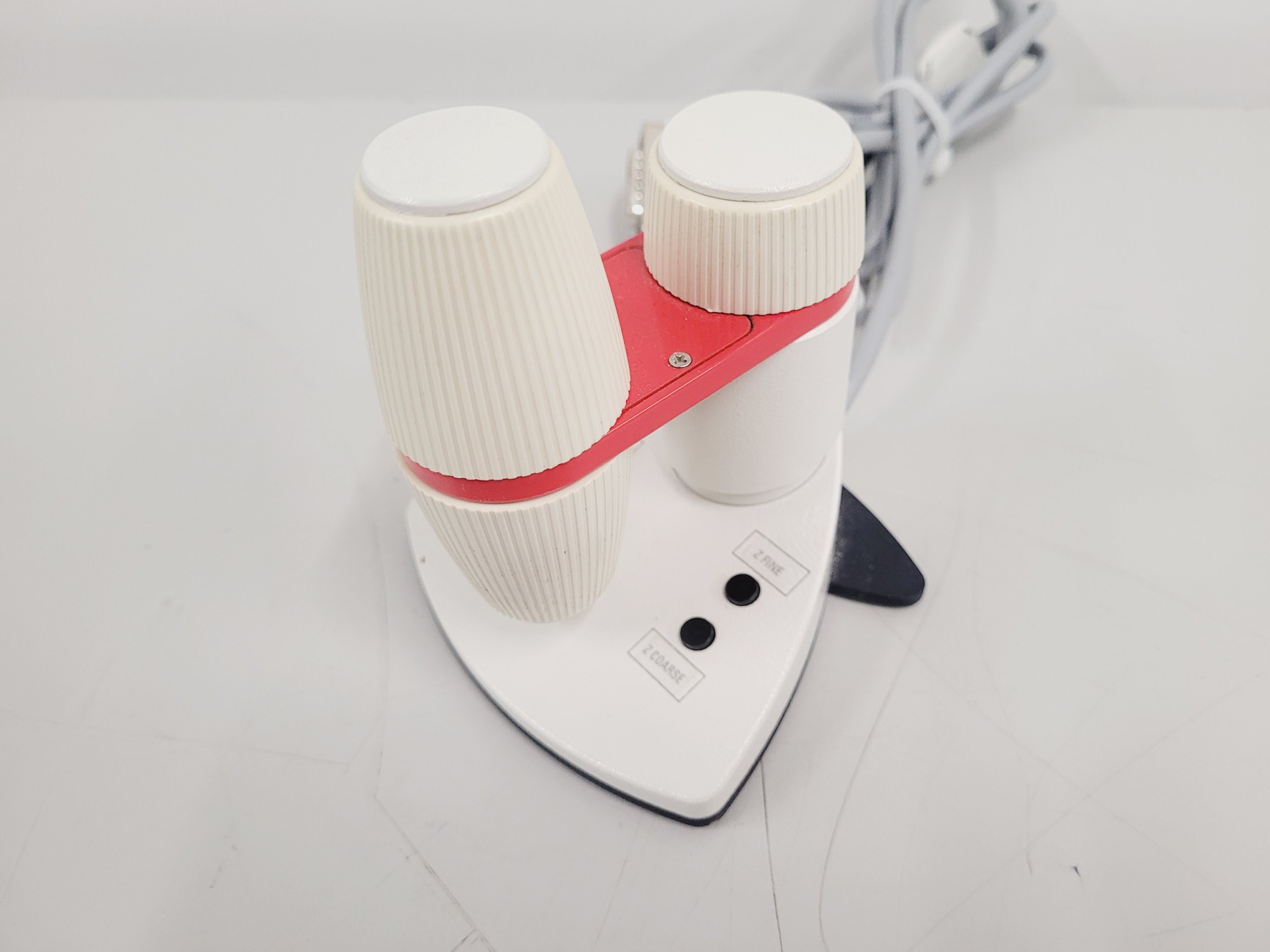

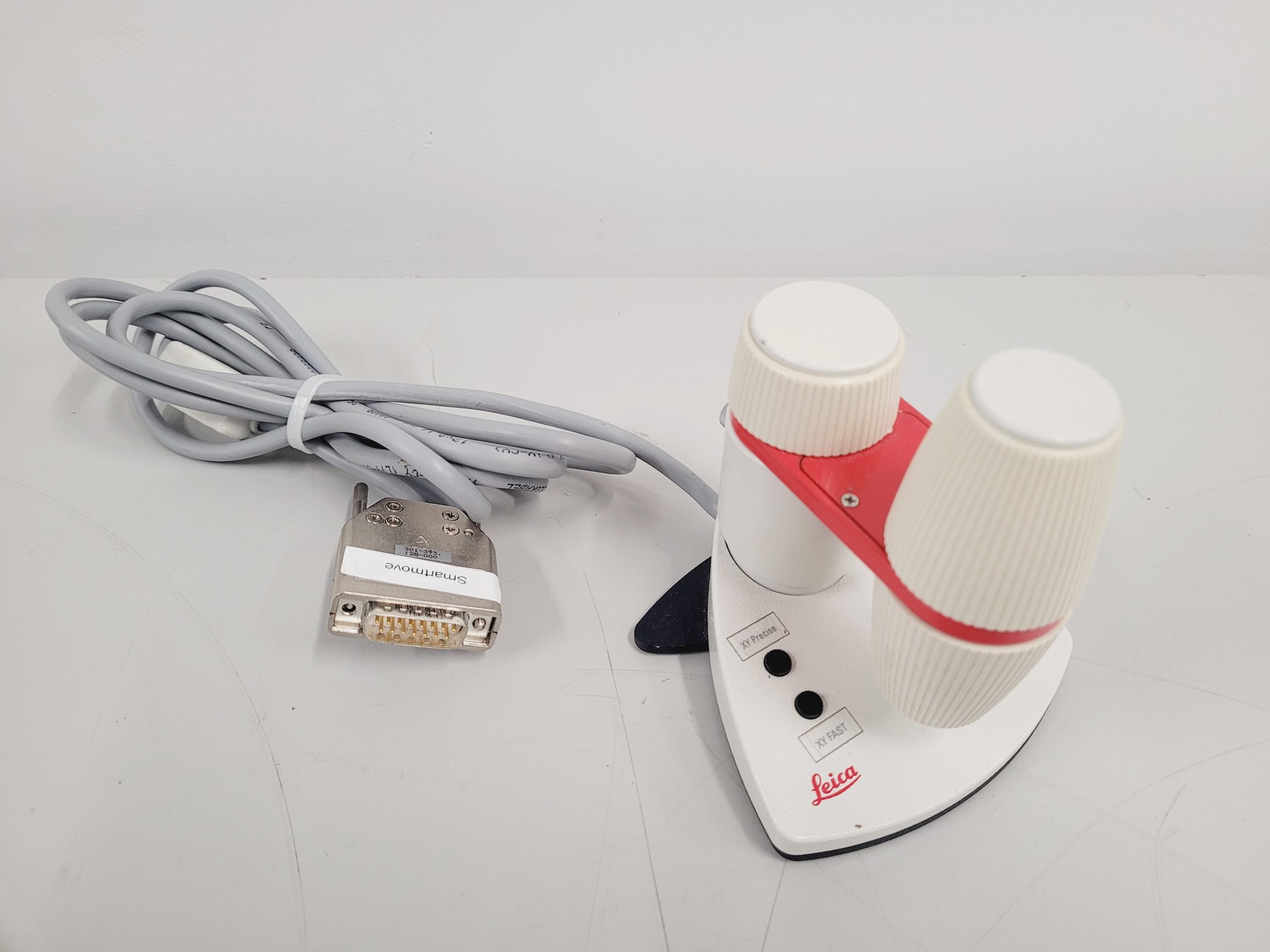

- Leica Stage Controller (Part No. 11505180)

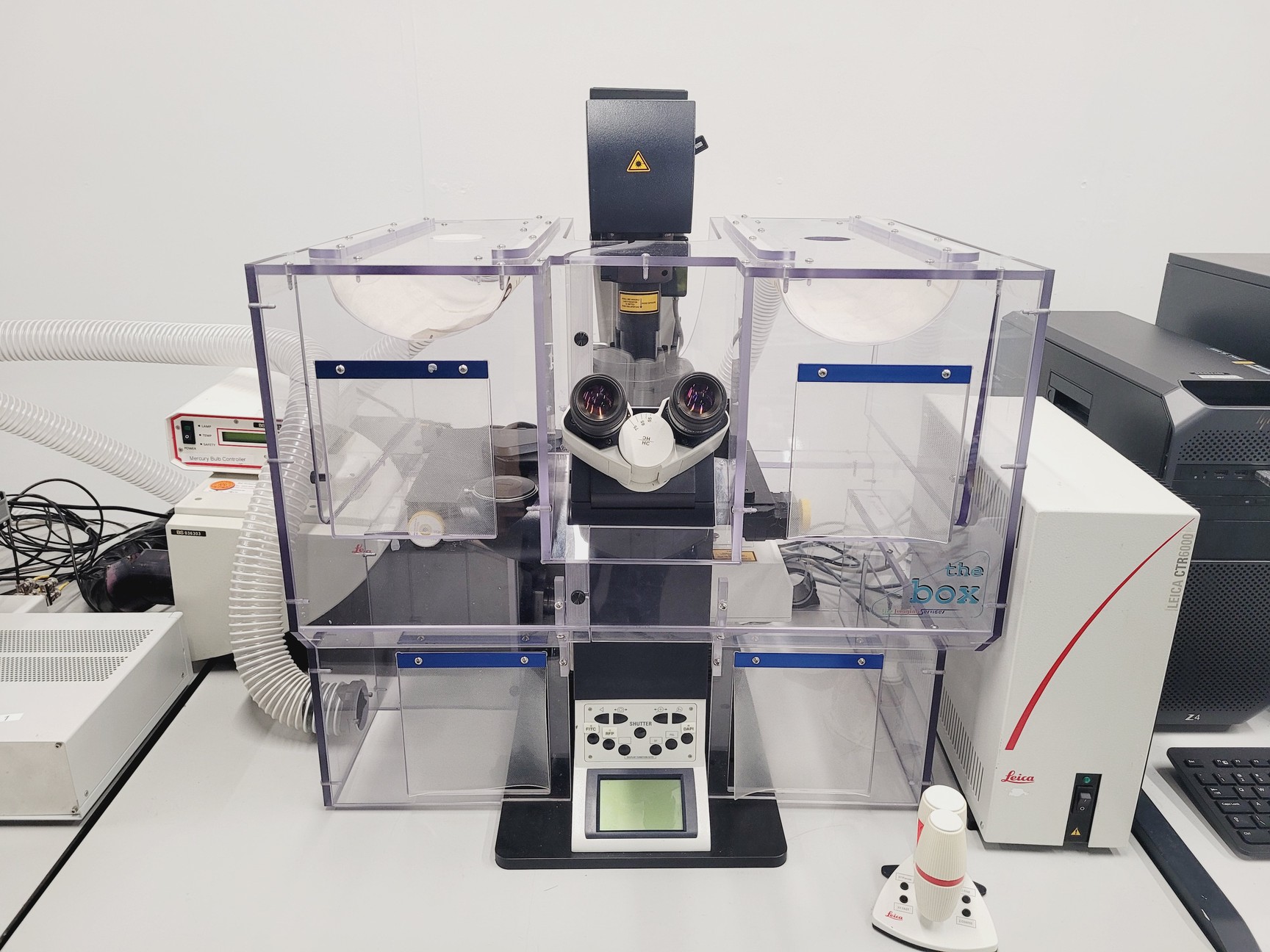

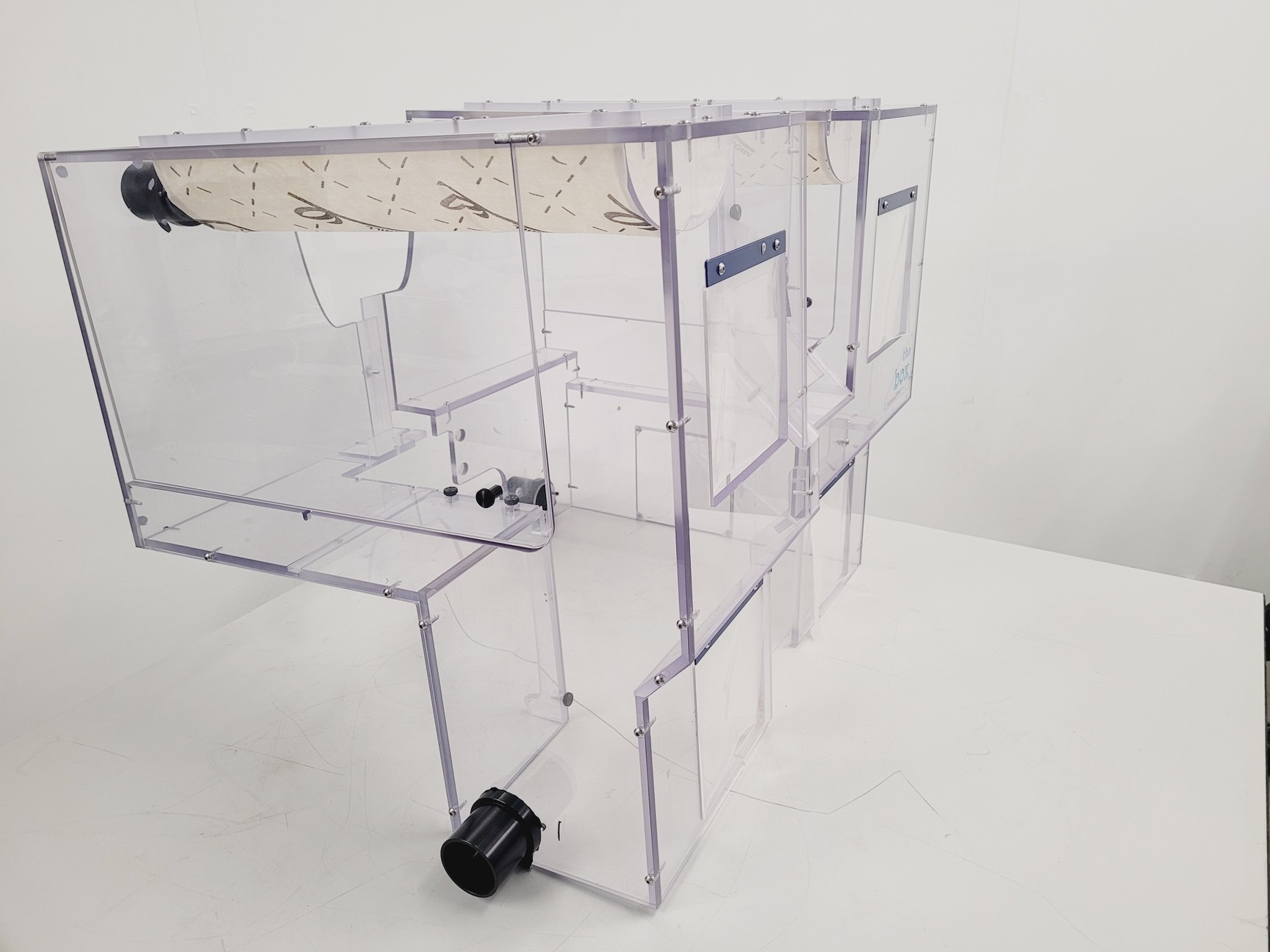

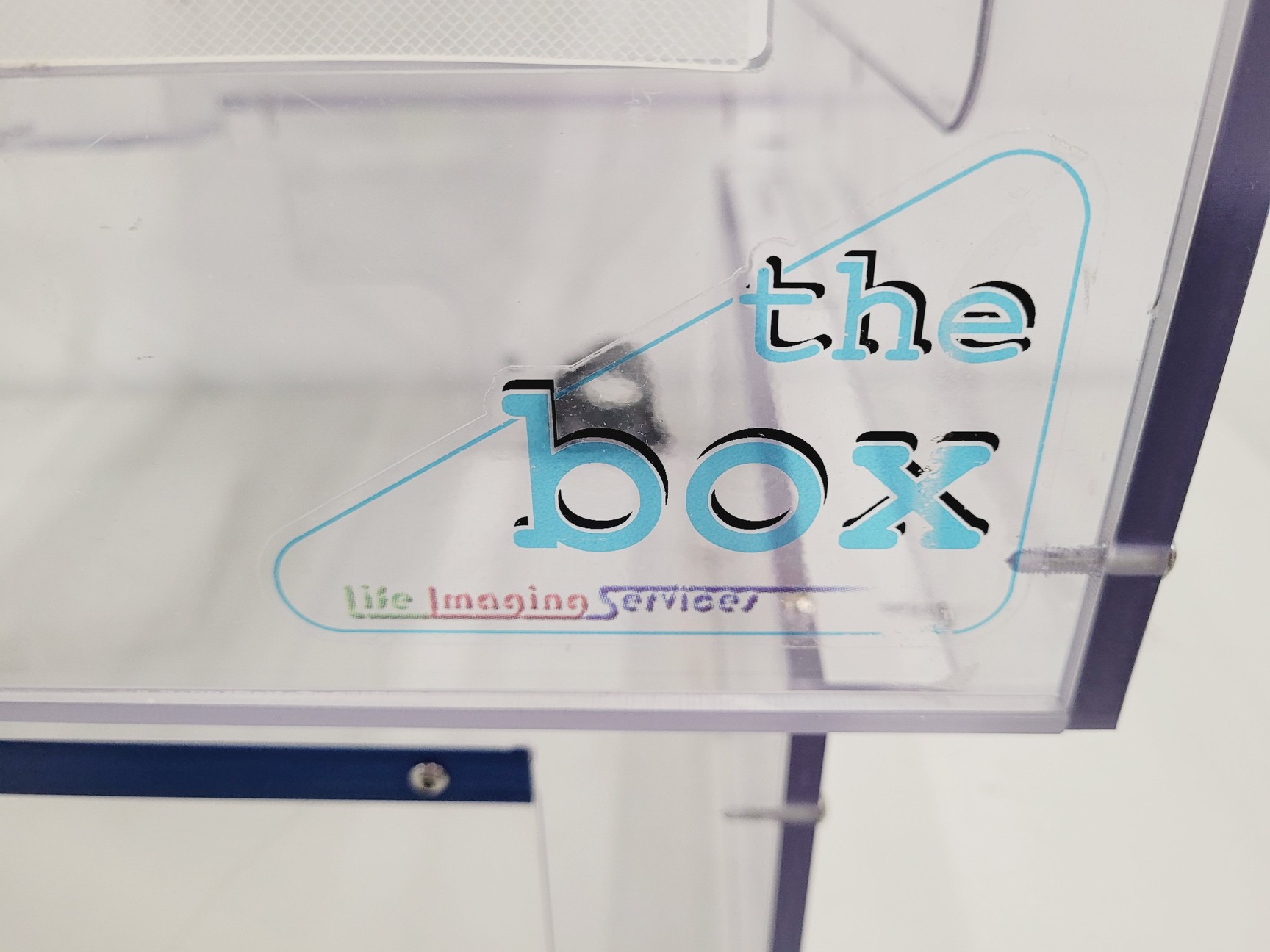

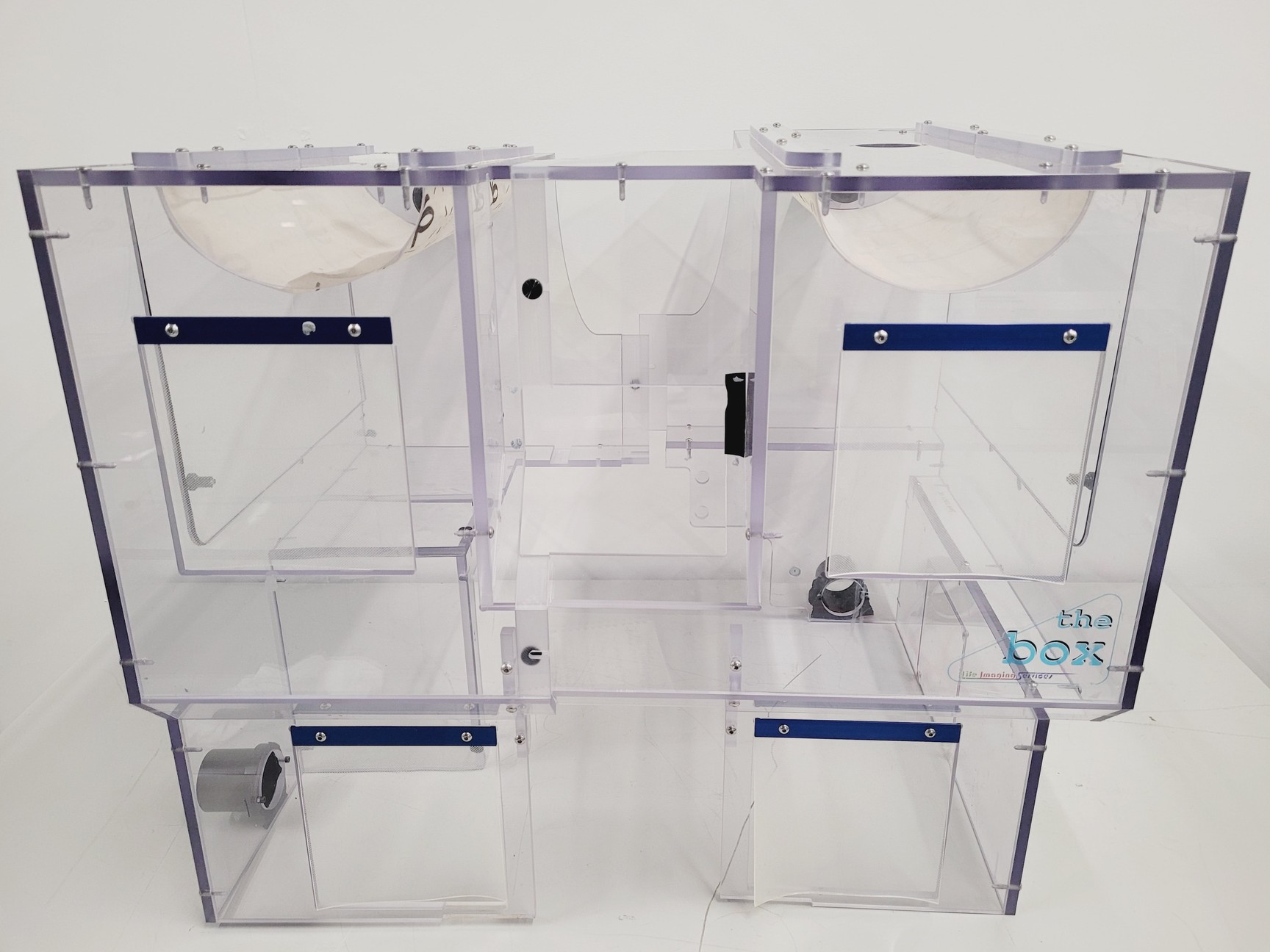

- The Box polycarbonate microscope enclosure

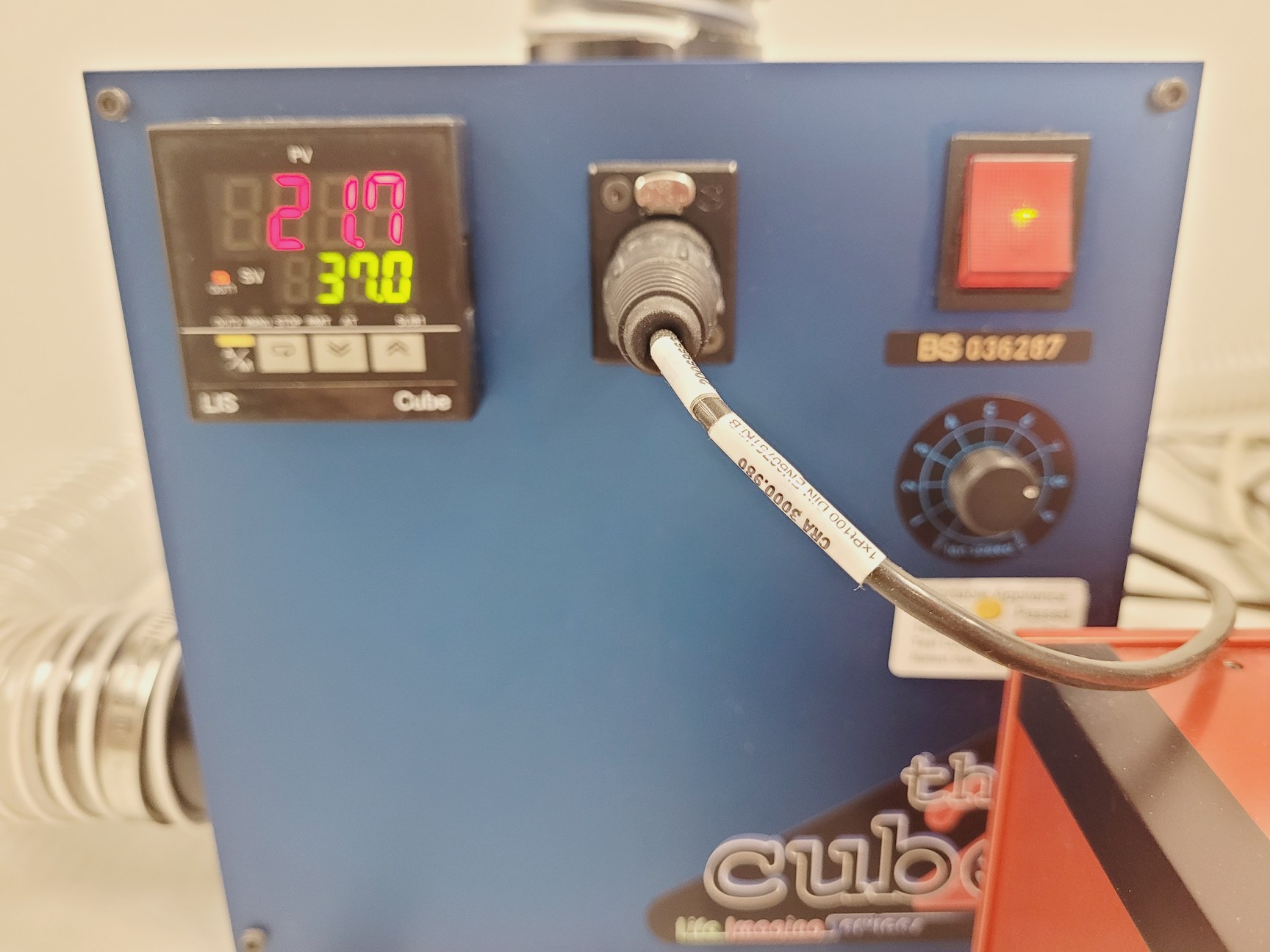

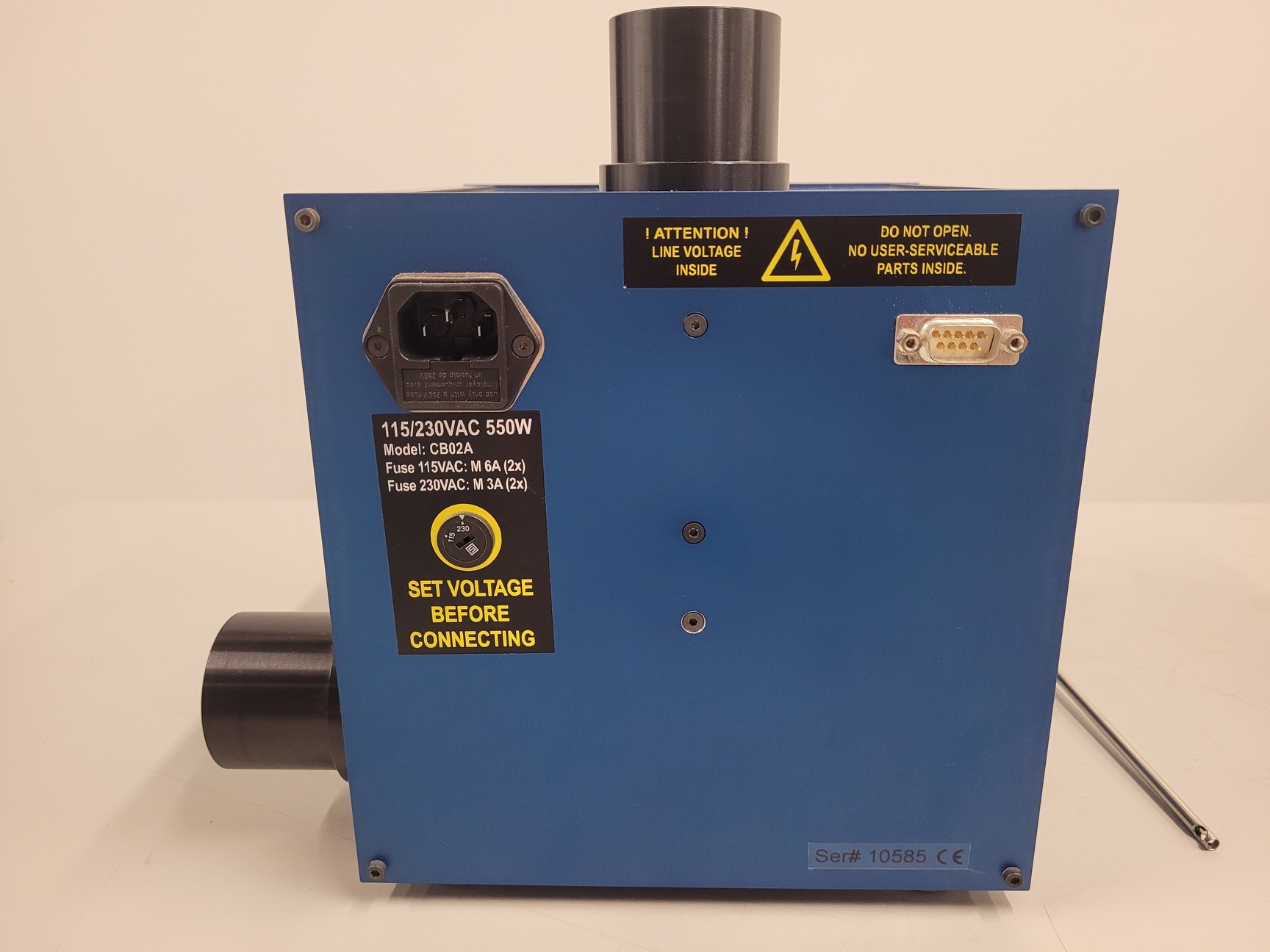

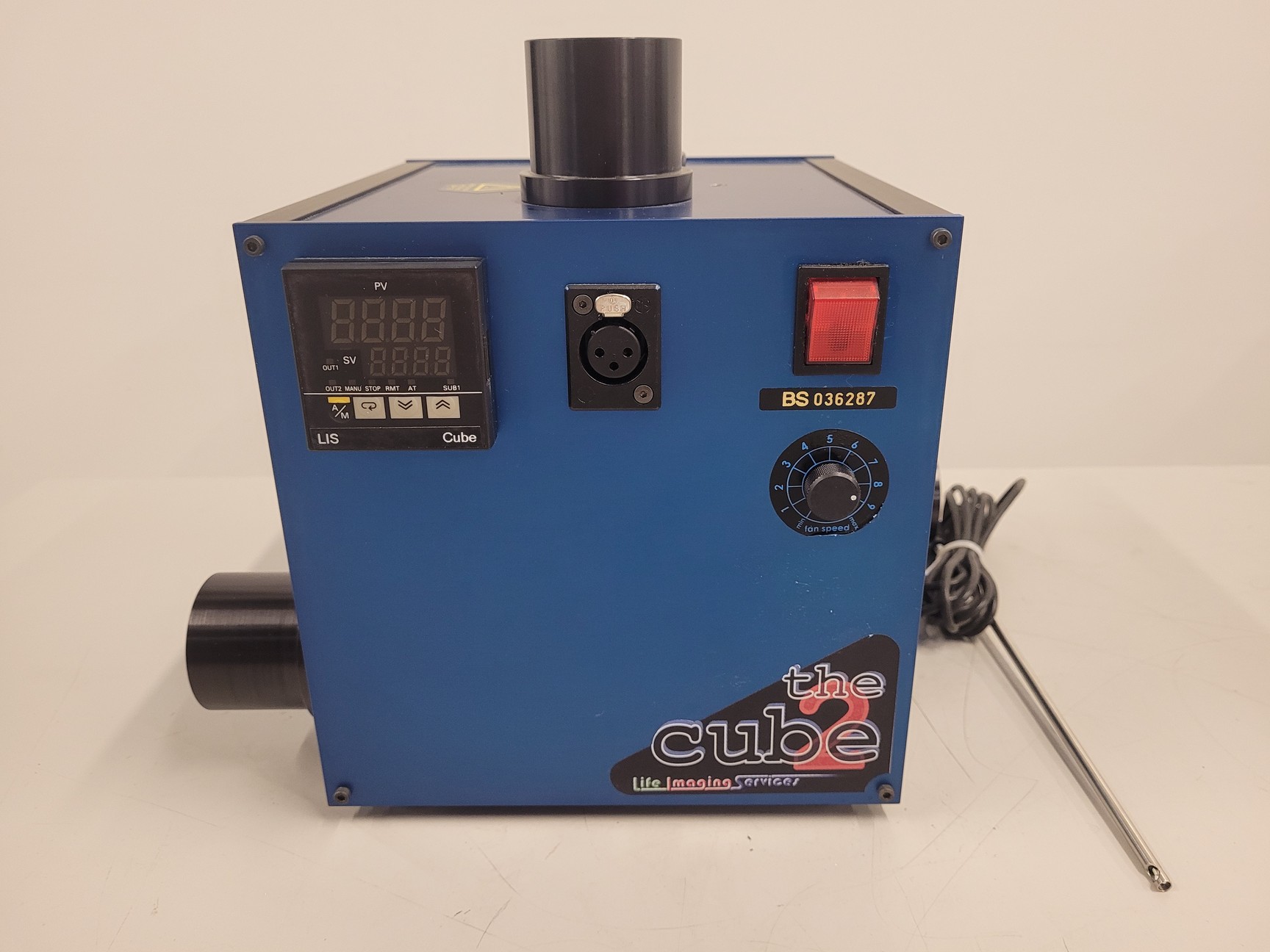

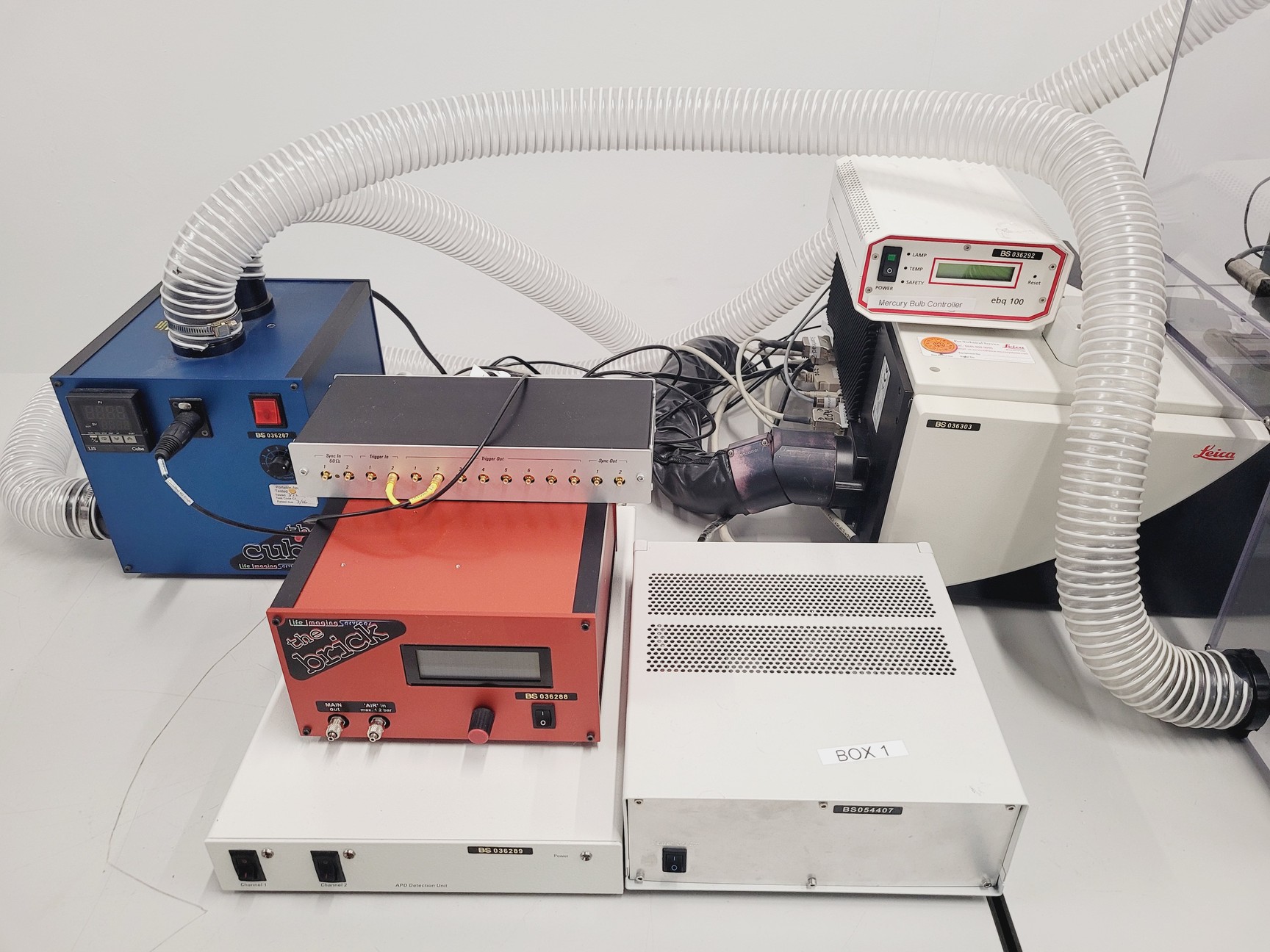

- The Cube CB02A Enclosure Heater with probe (Serial No. 10585)

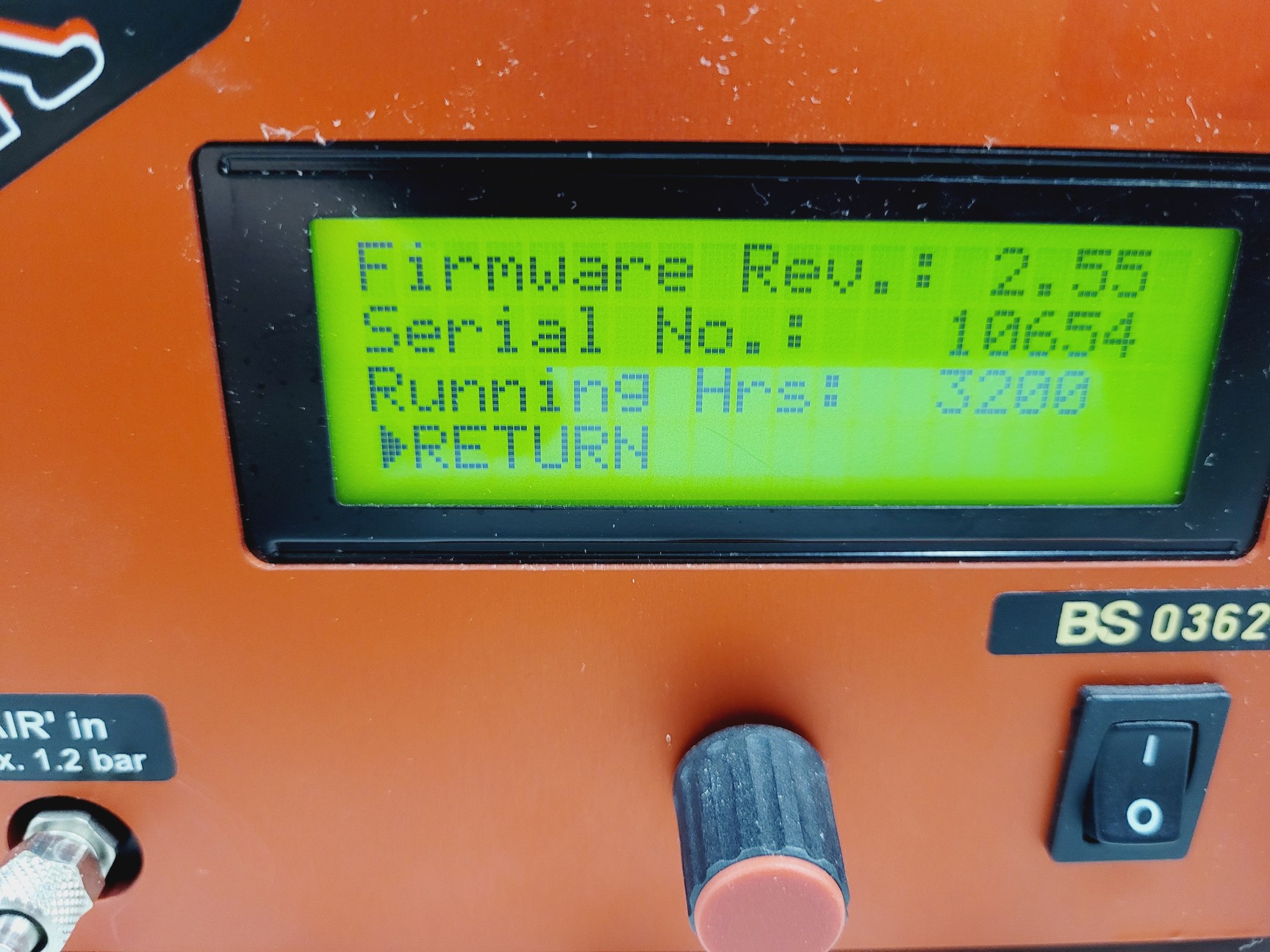

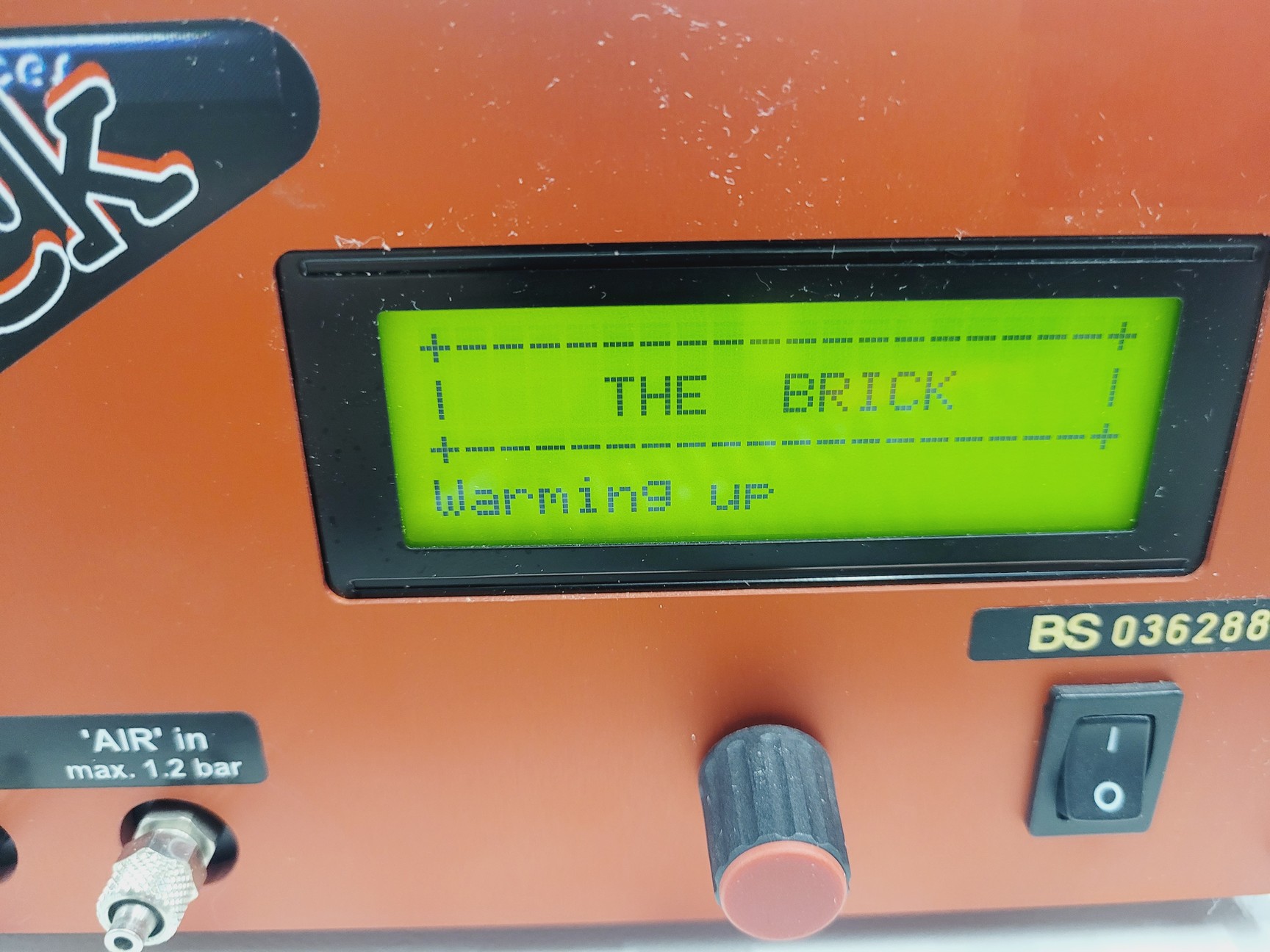

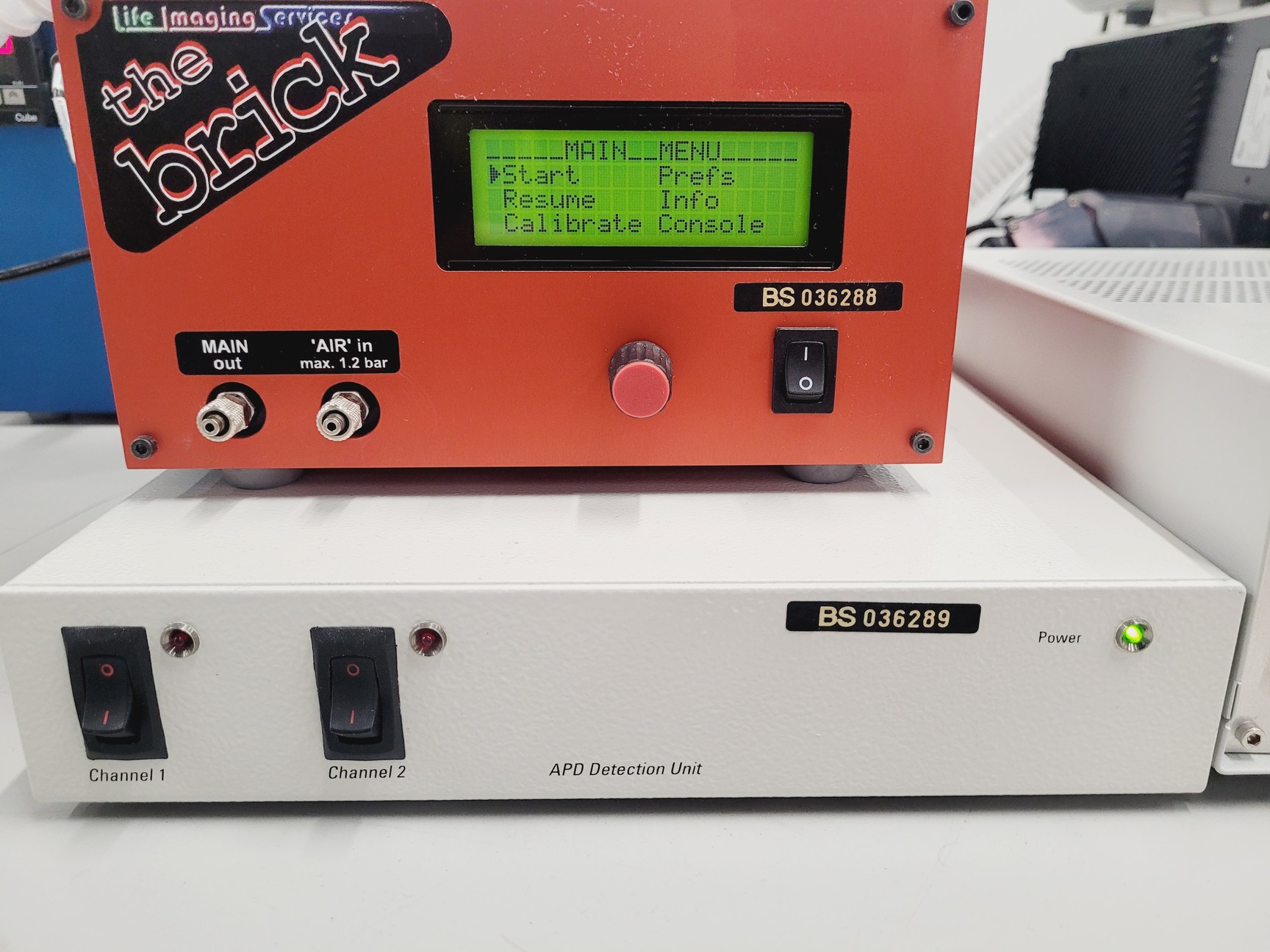

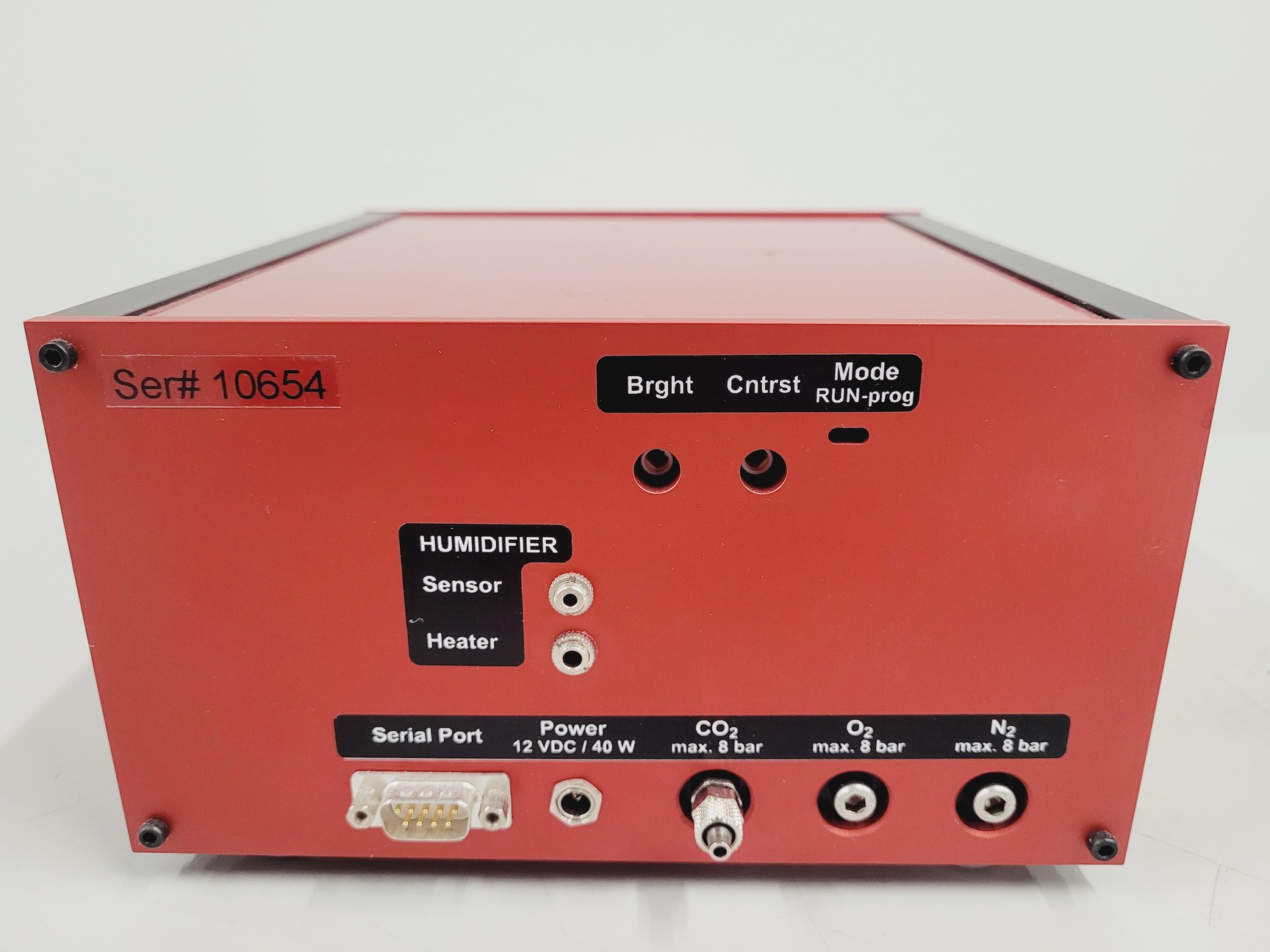

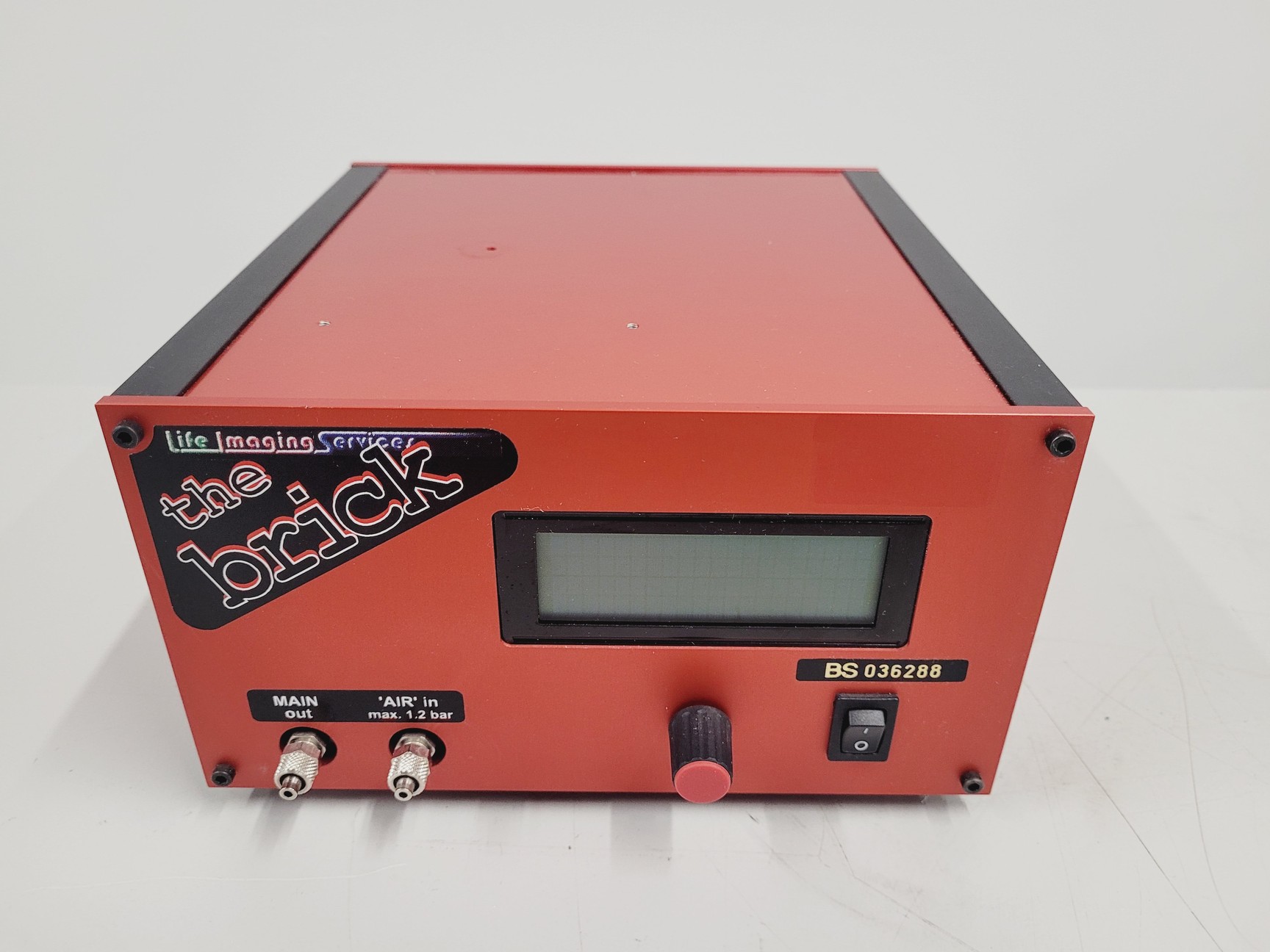

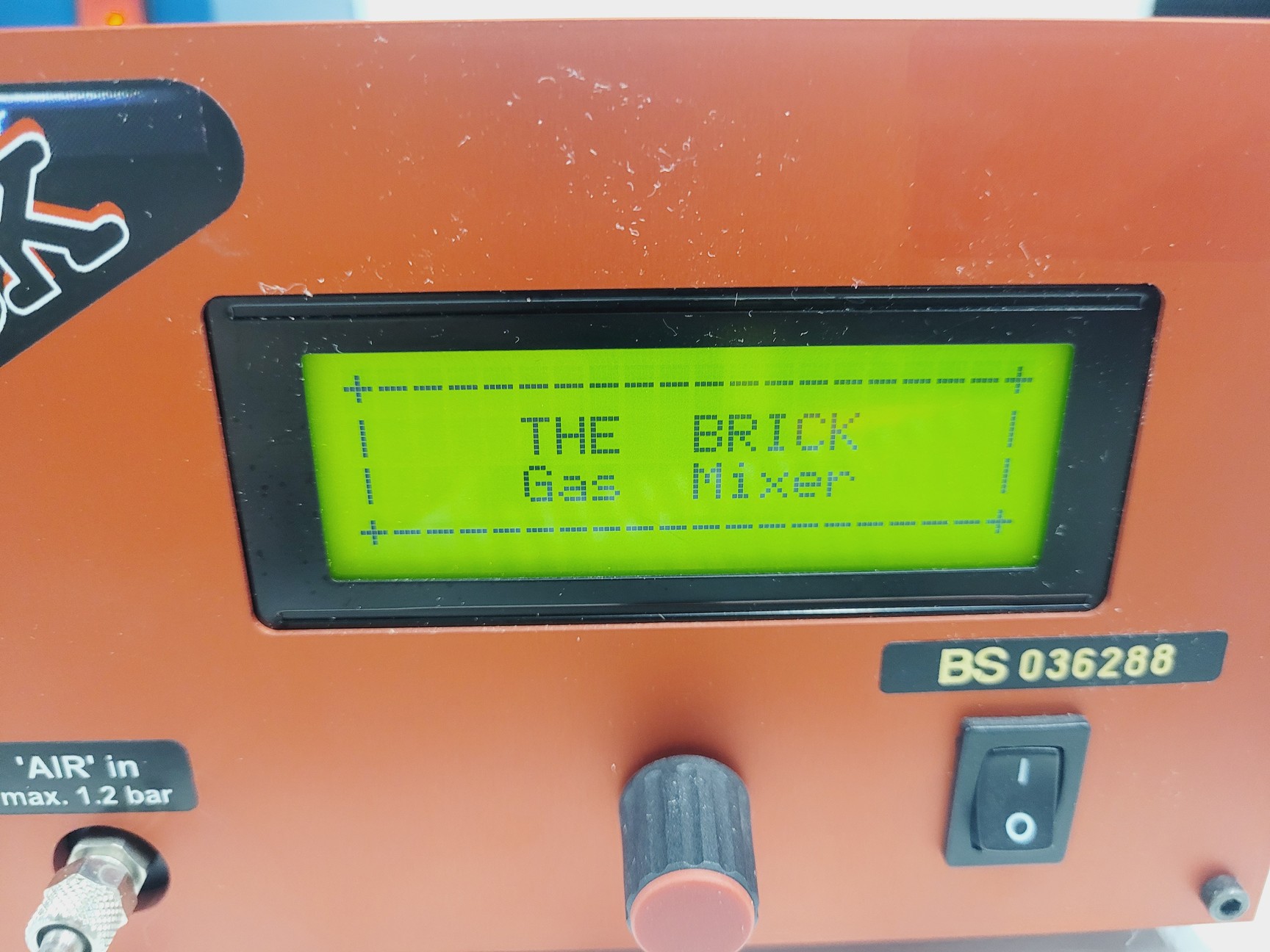

- The Brick Air Humidity and CO2 Regulator (Serial No. 10654)

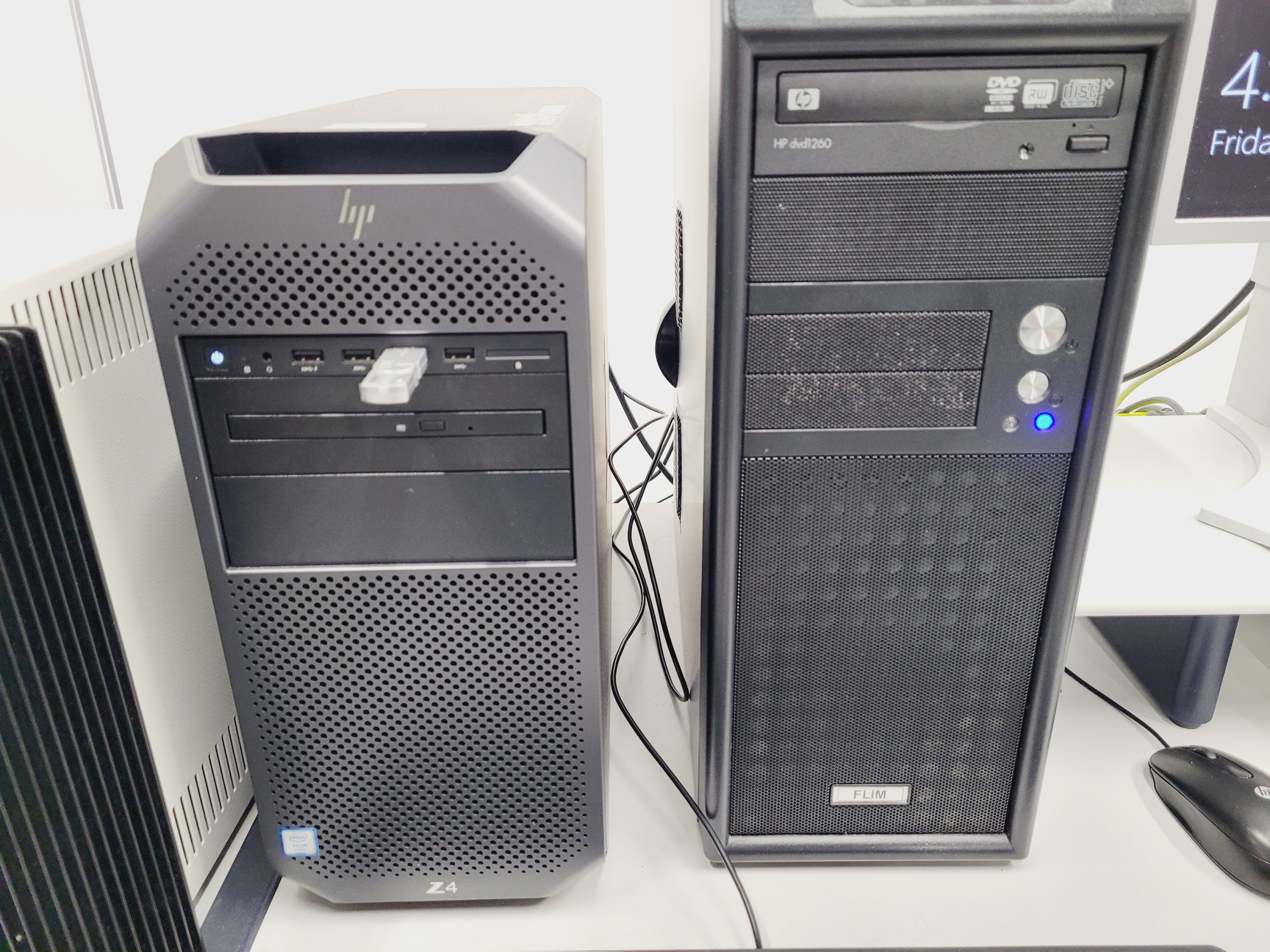

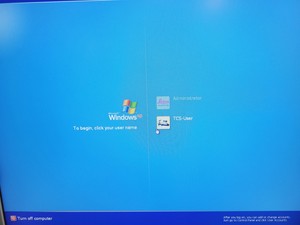

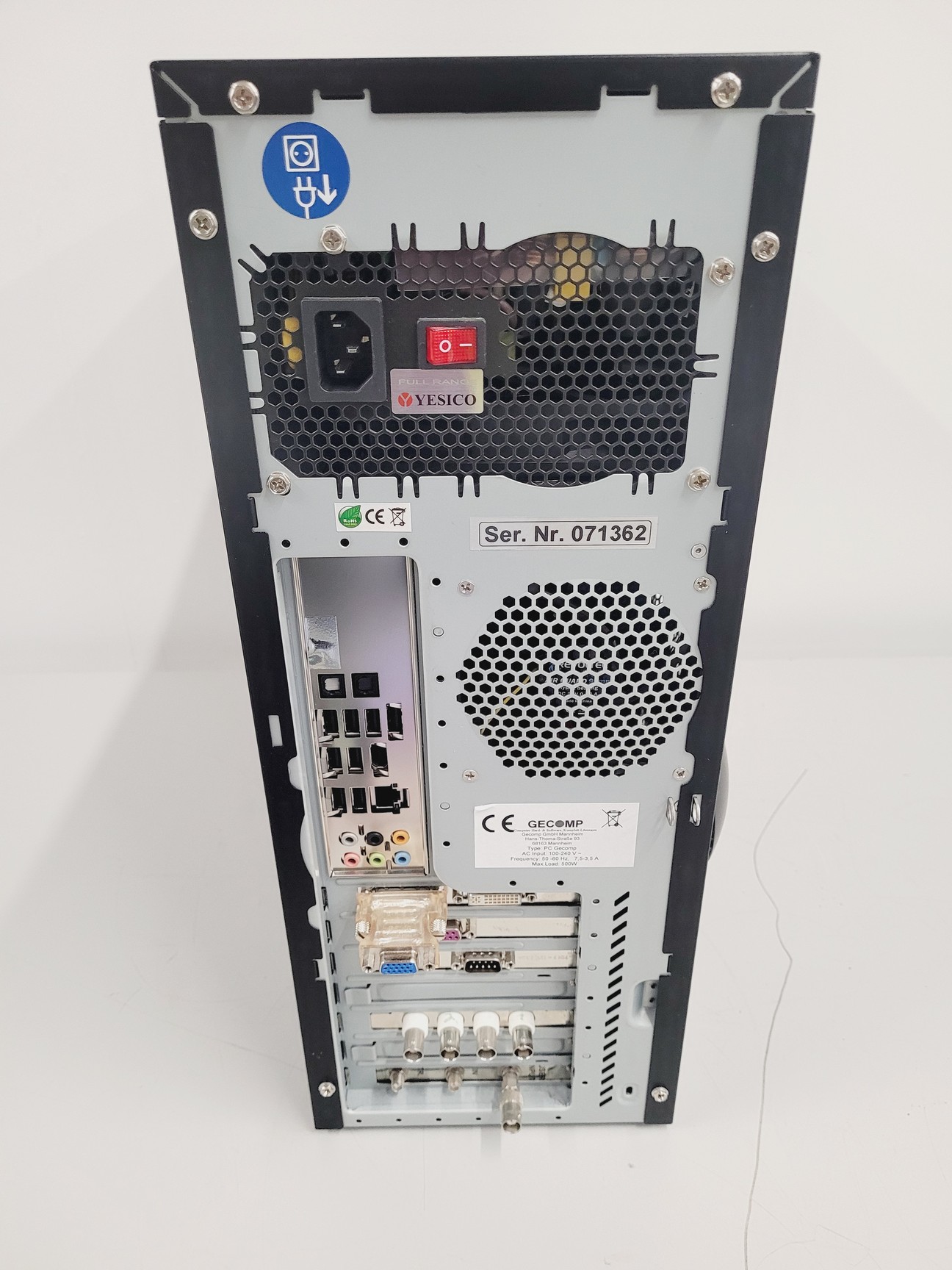

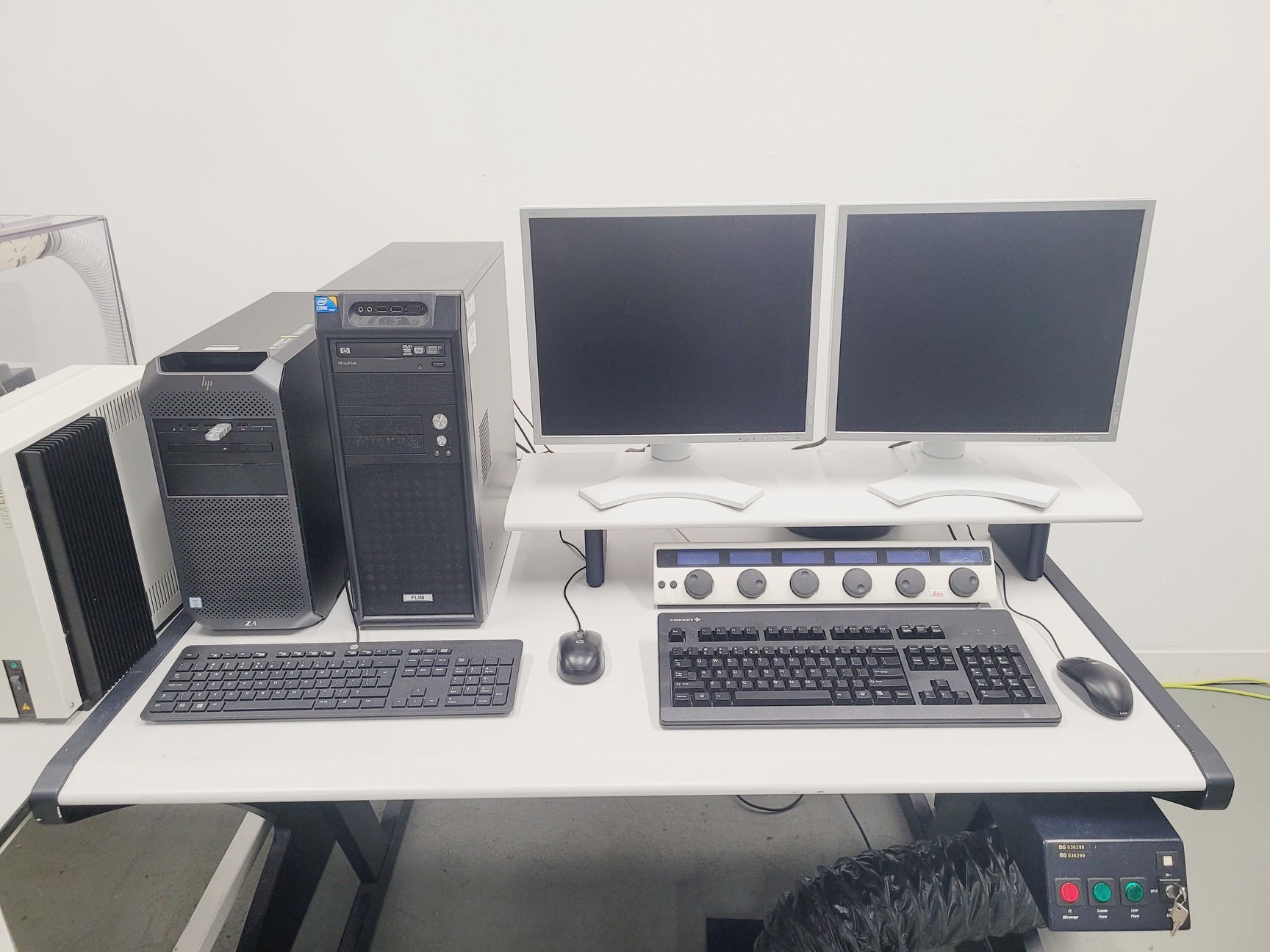

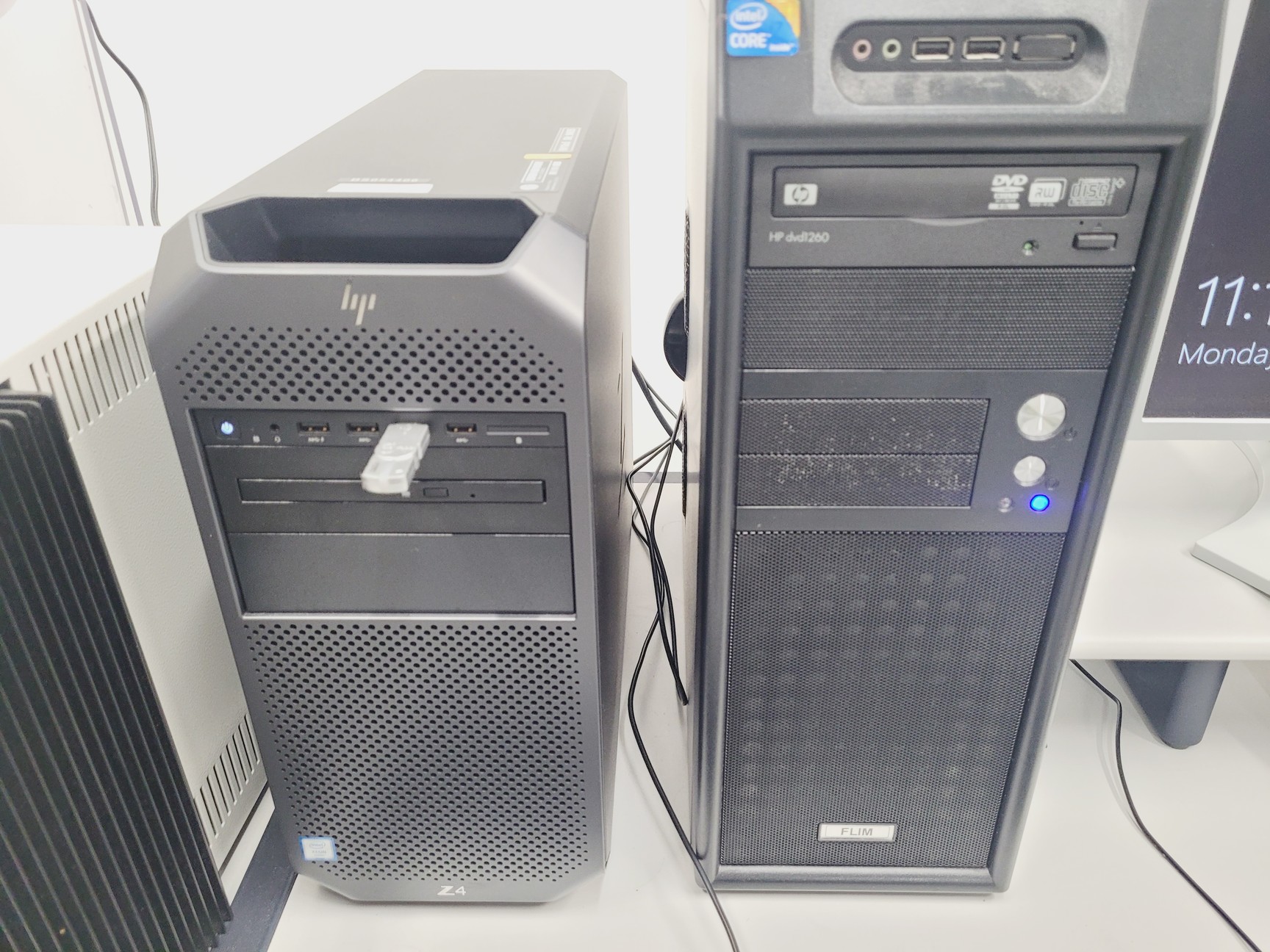

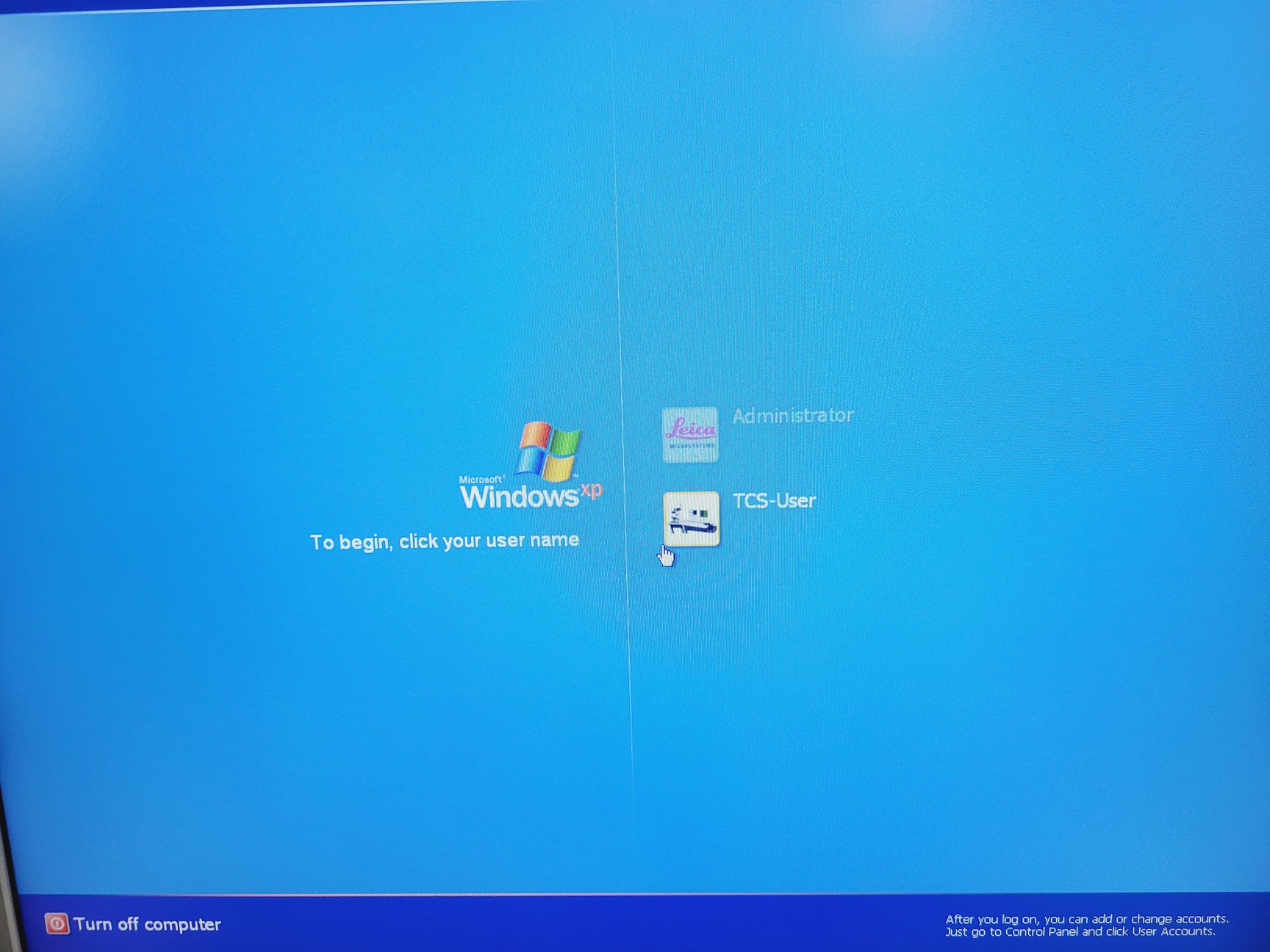

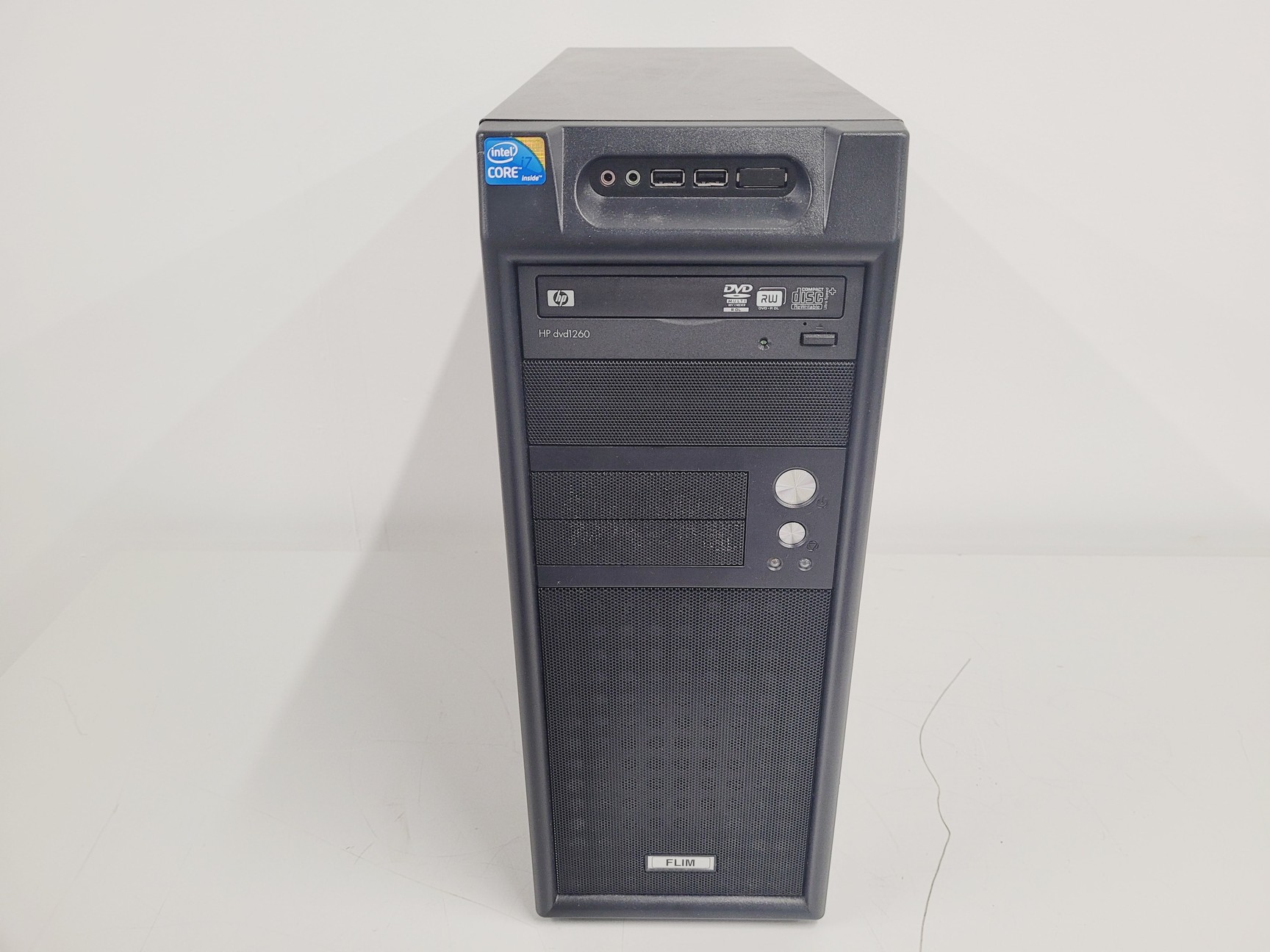

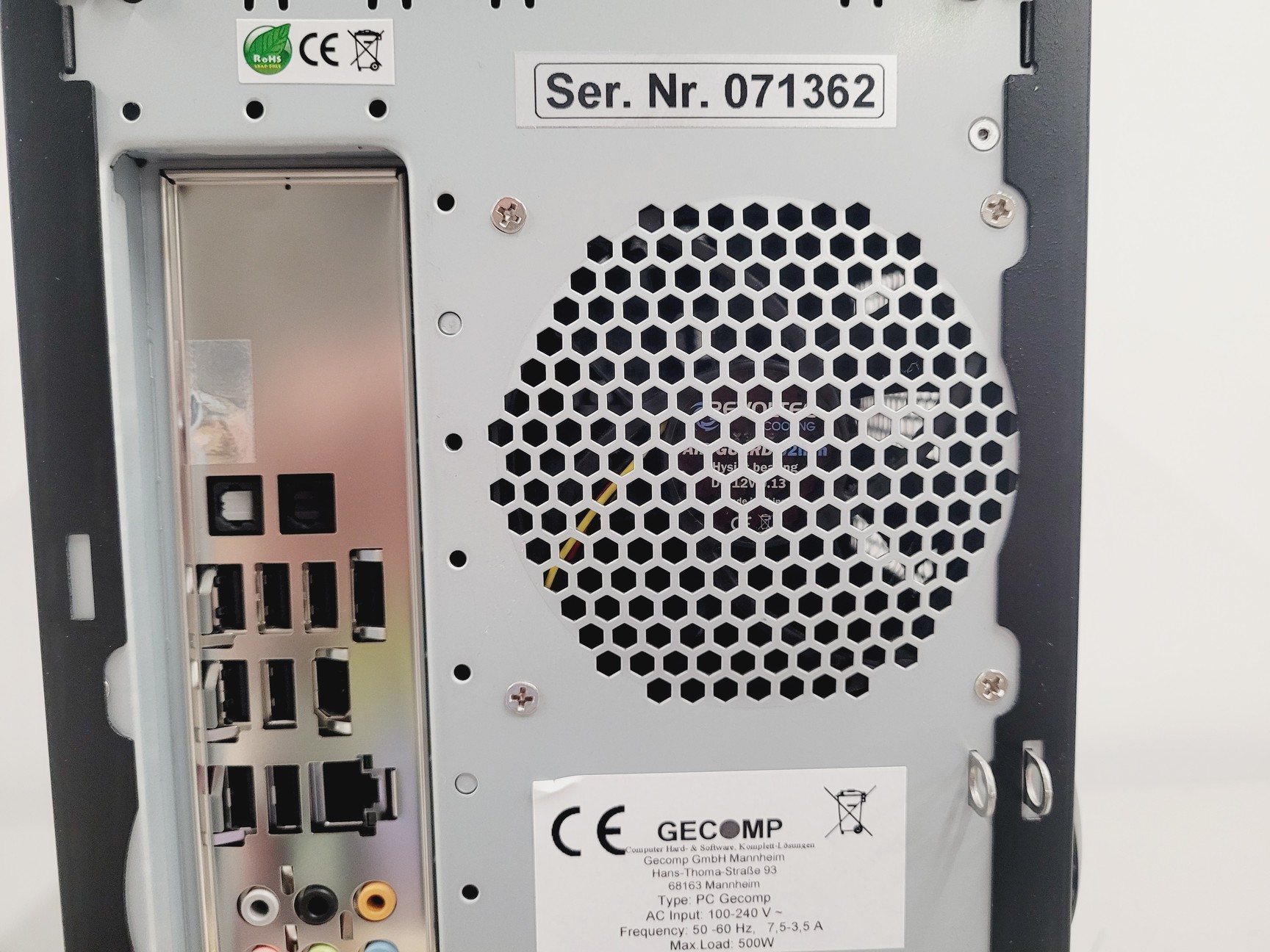

- Gecomp PC running Windows XP Pro (Serial No. 071362)

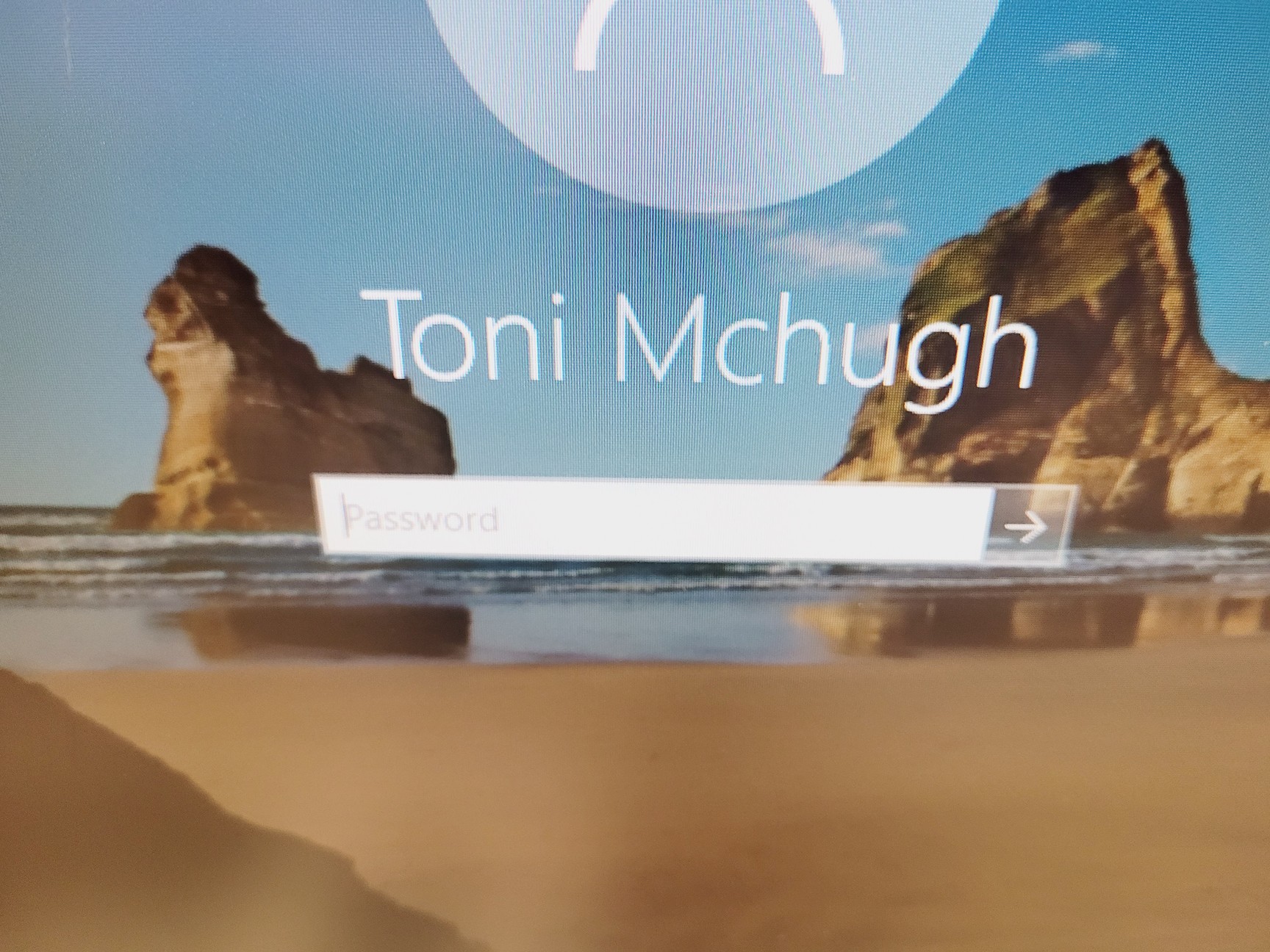

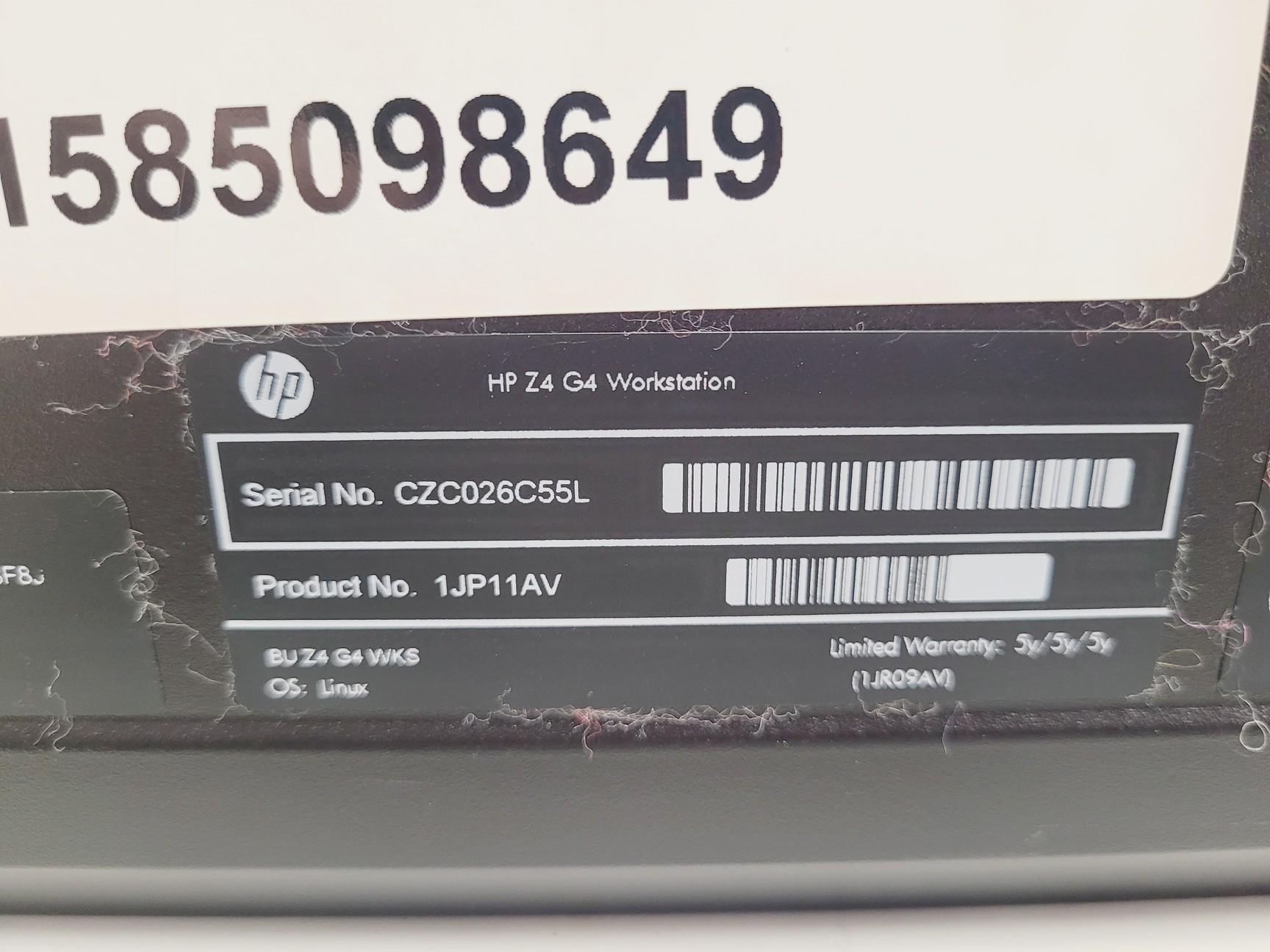

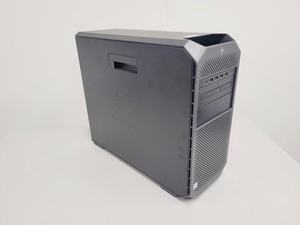

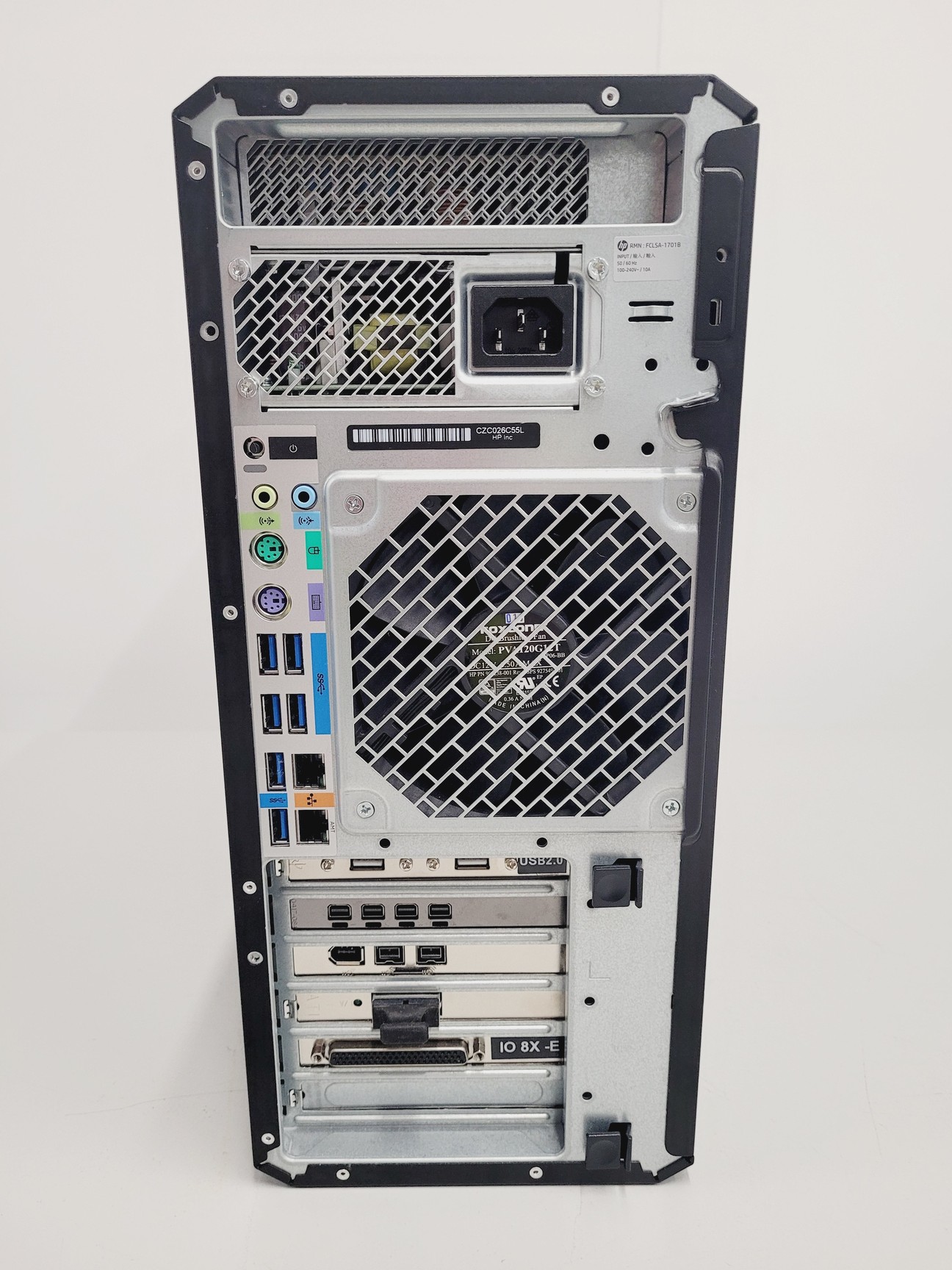

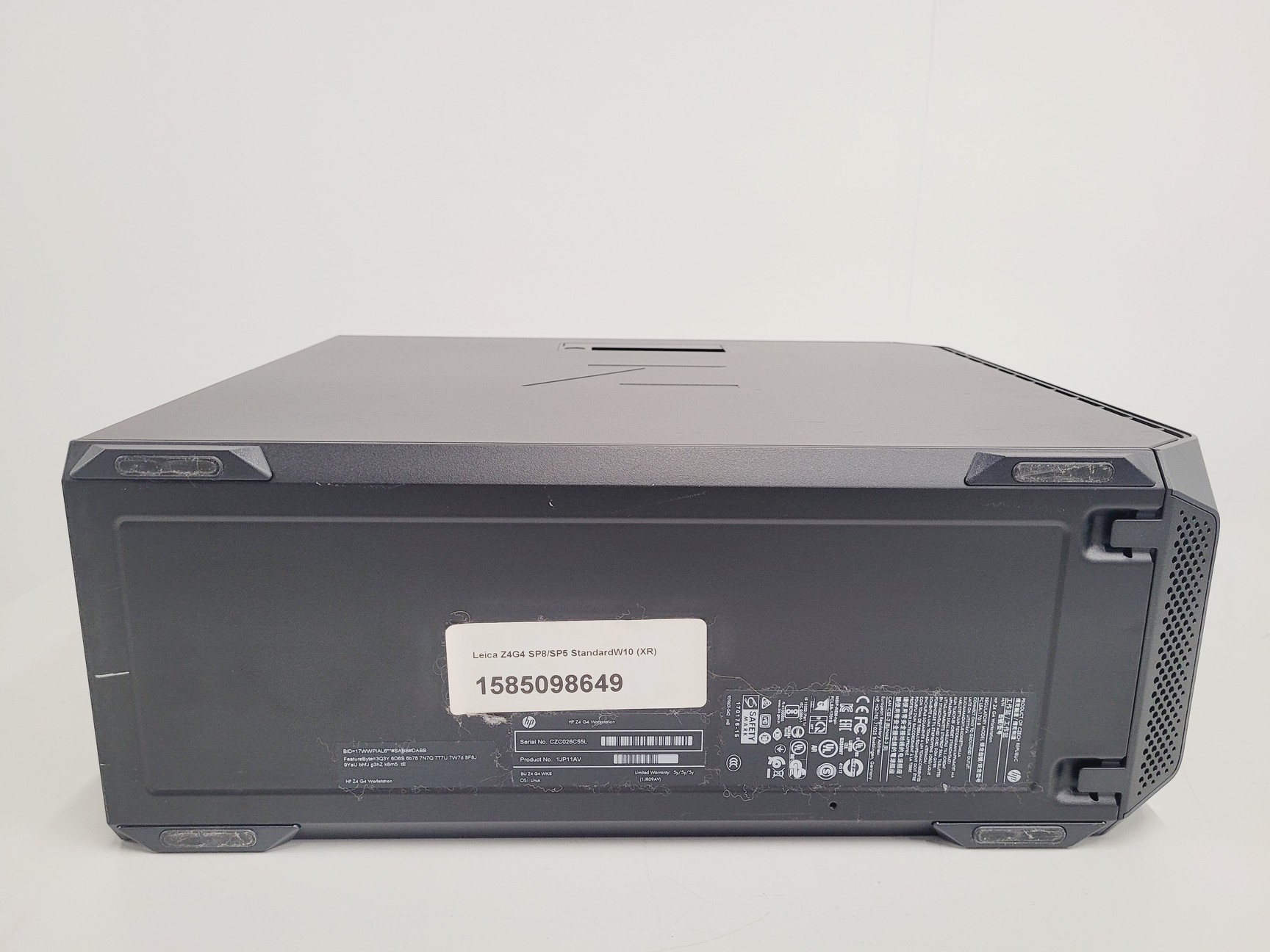

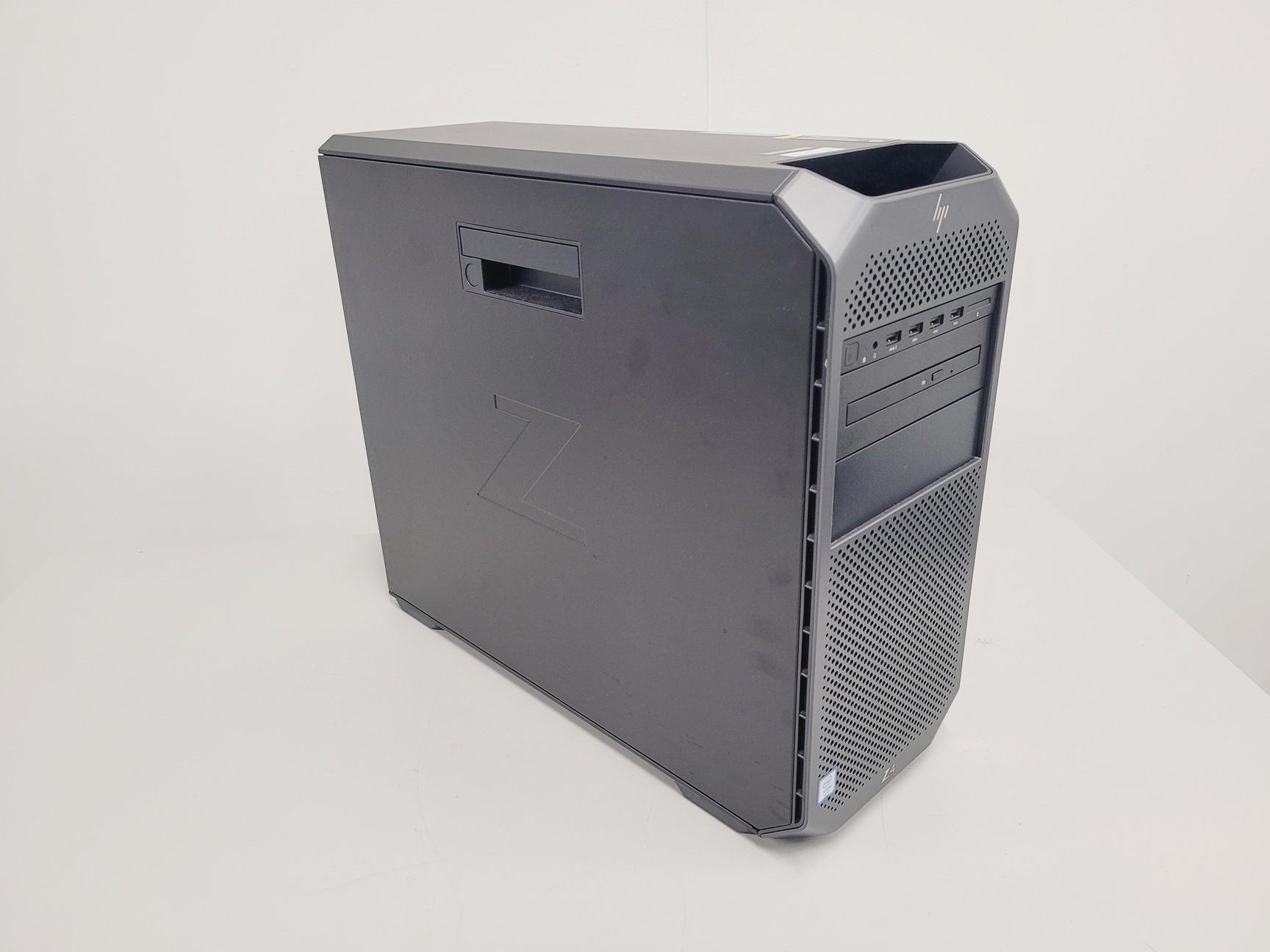

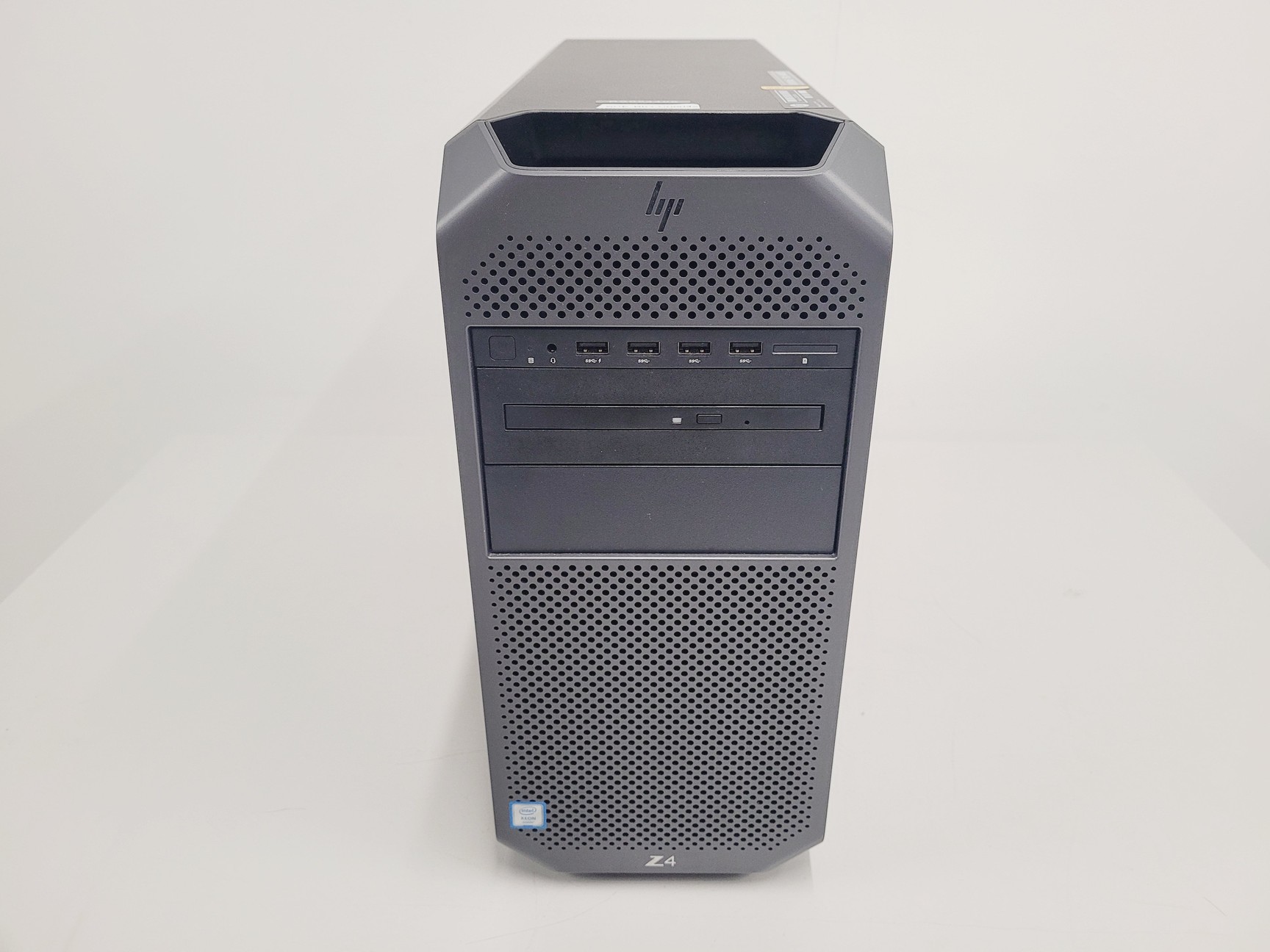

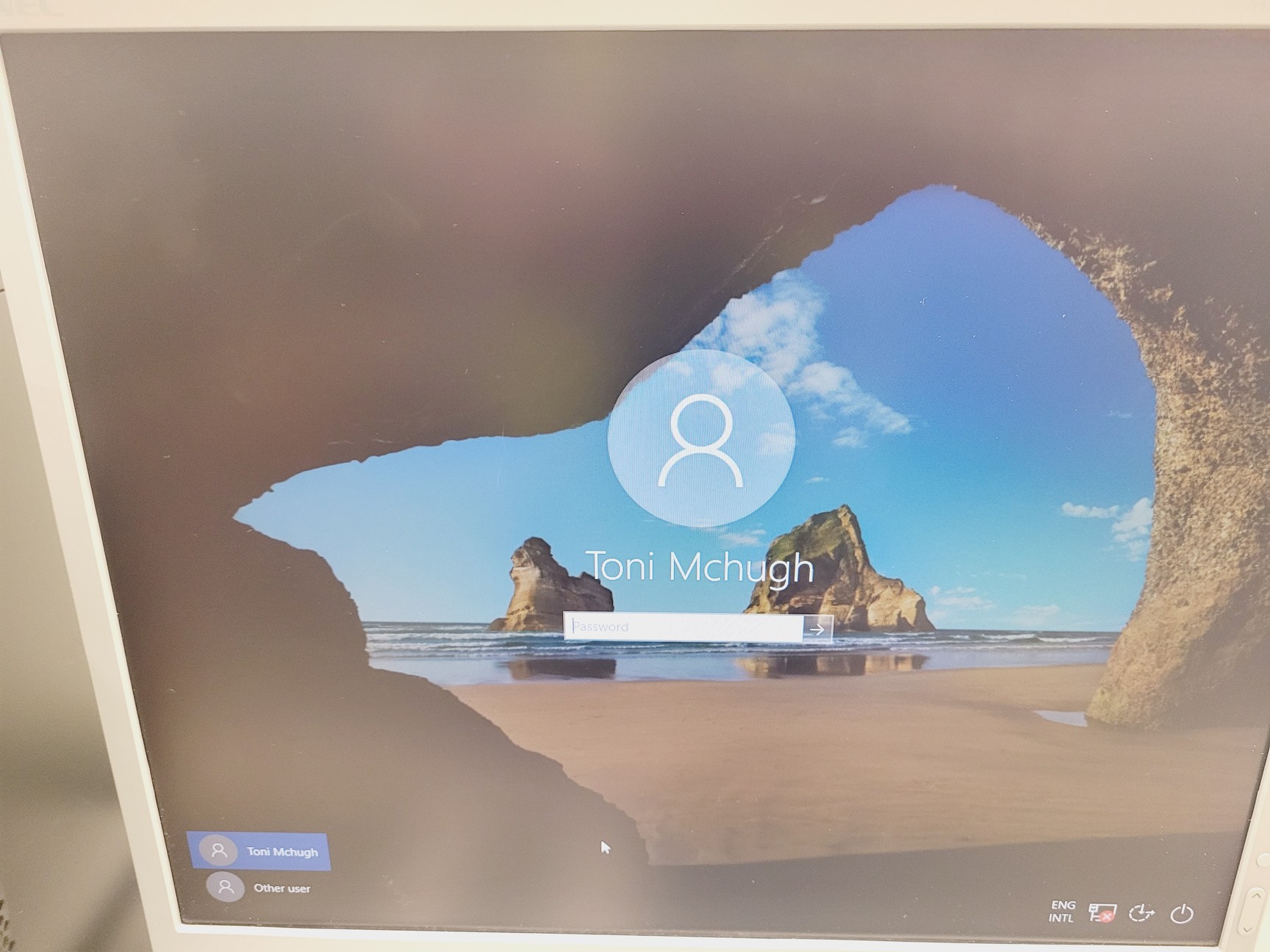

- HP Z4 PC running Windows 10 (Serial No. CZC026C55L, Product No. 1JP11AV)

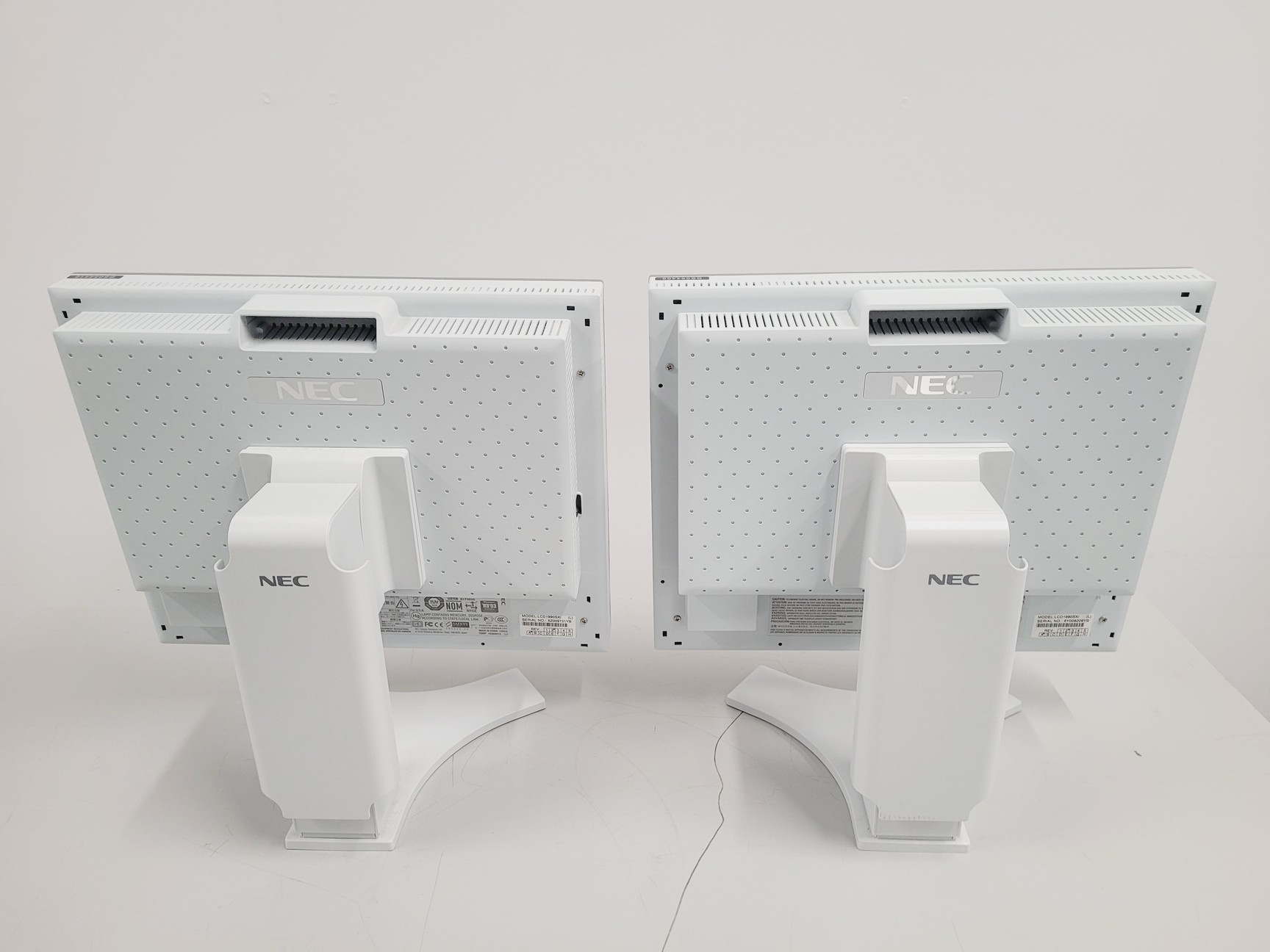

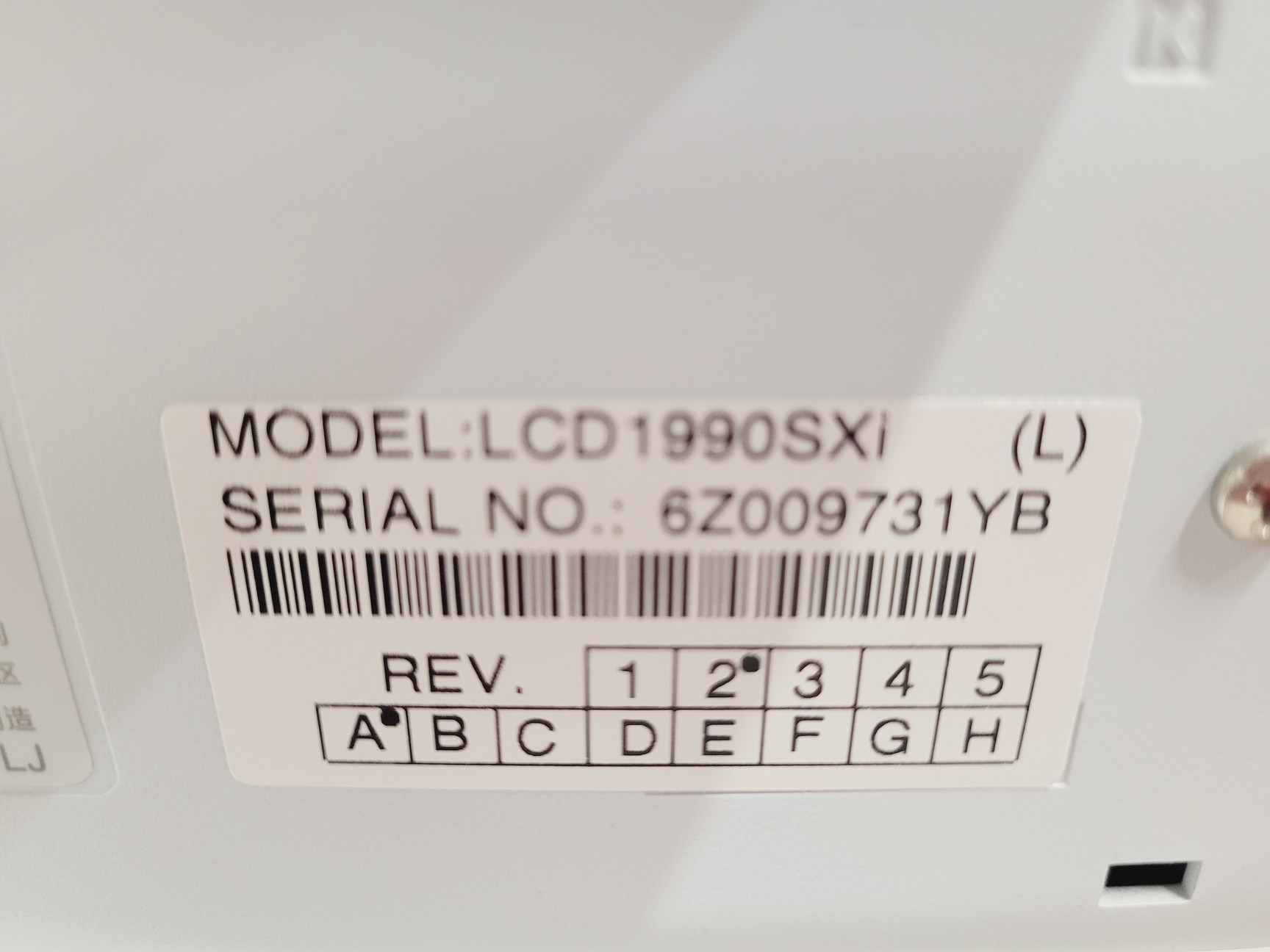

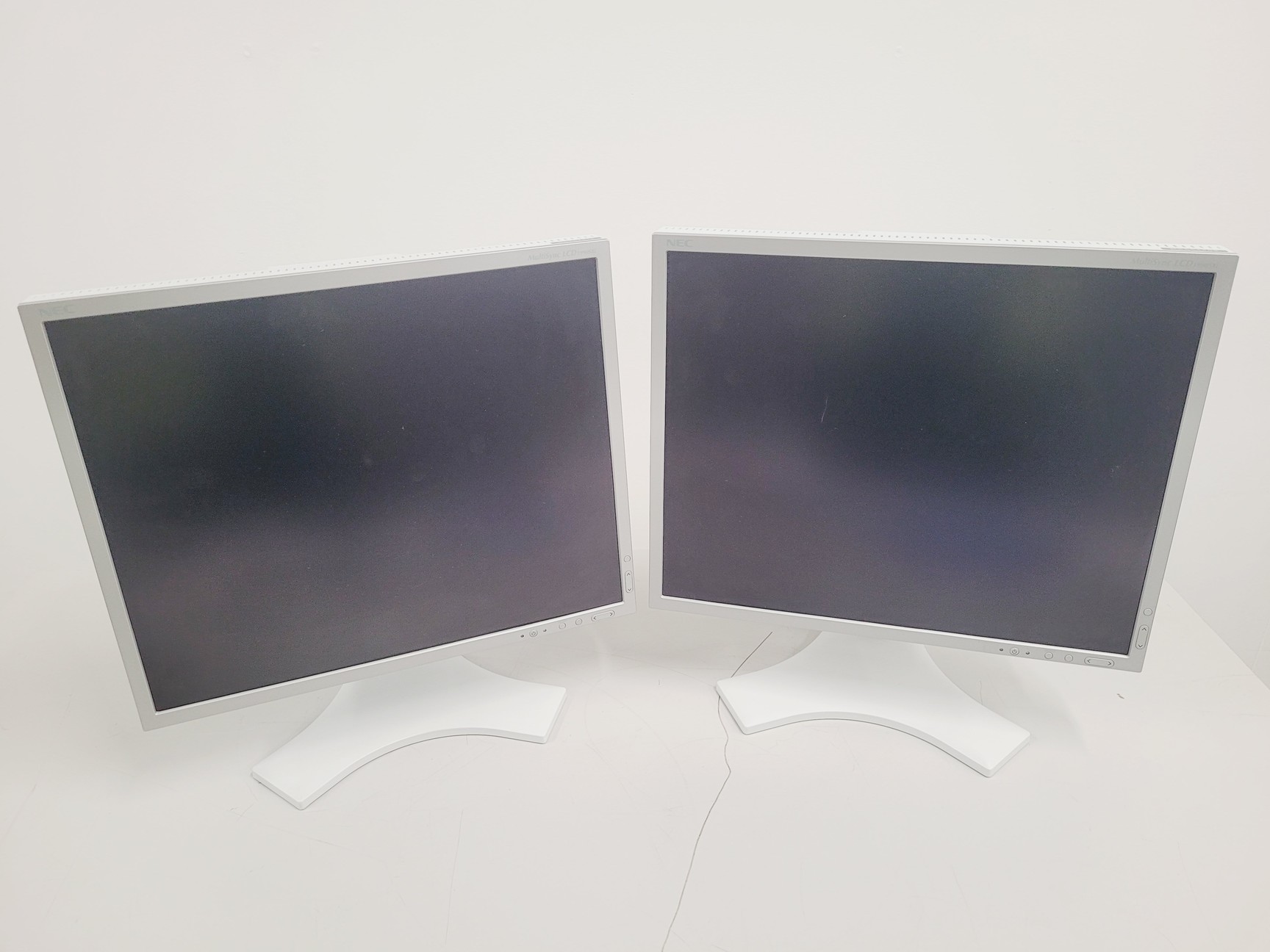

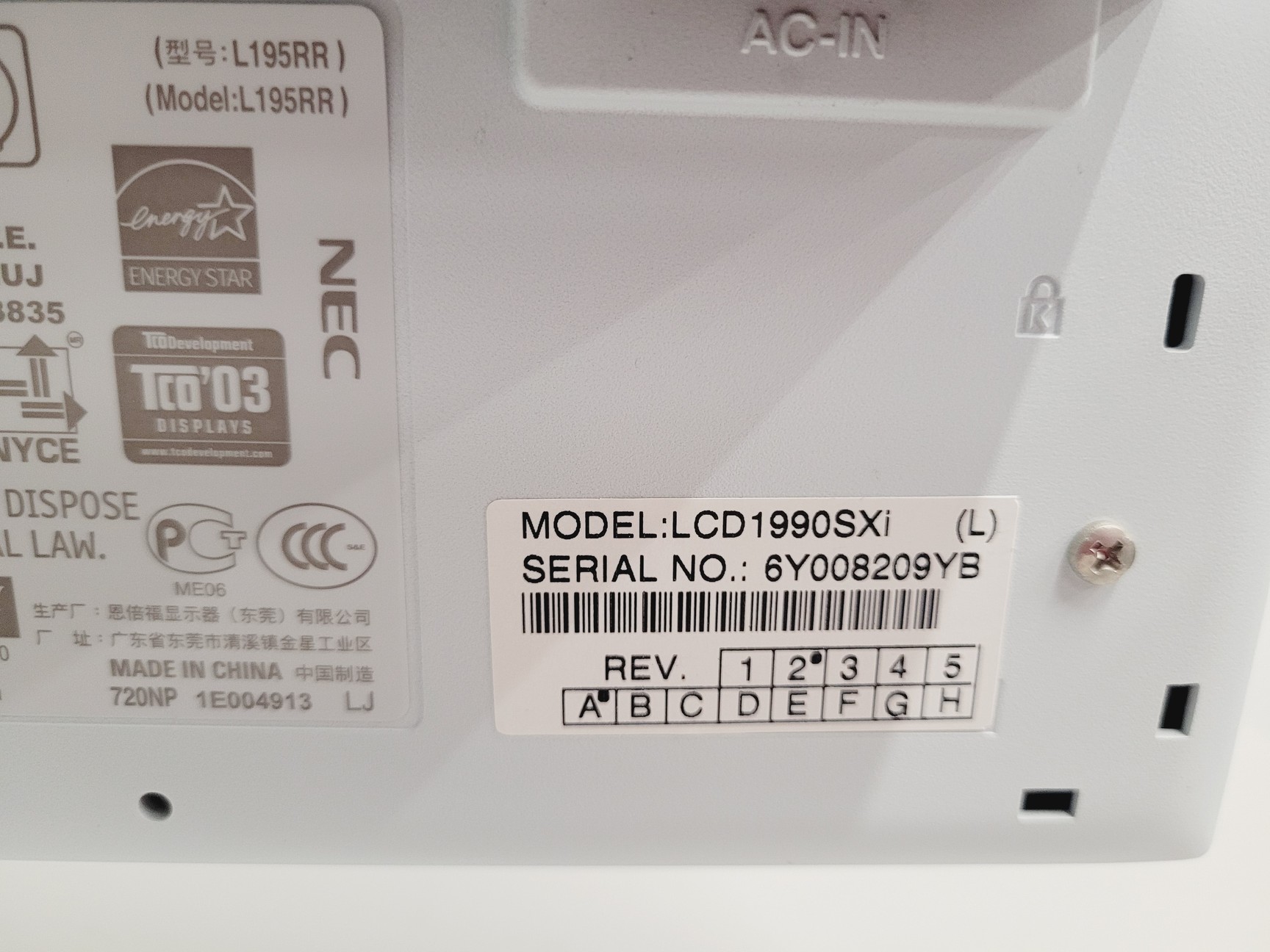

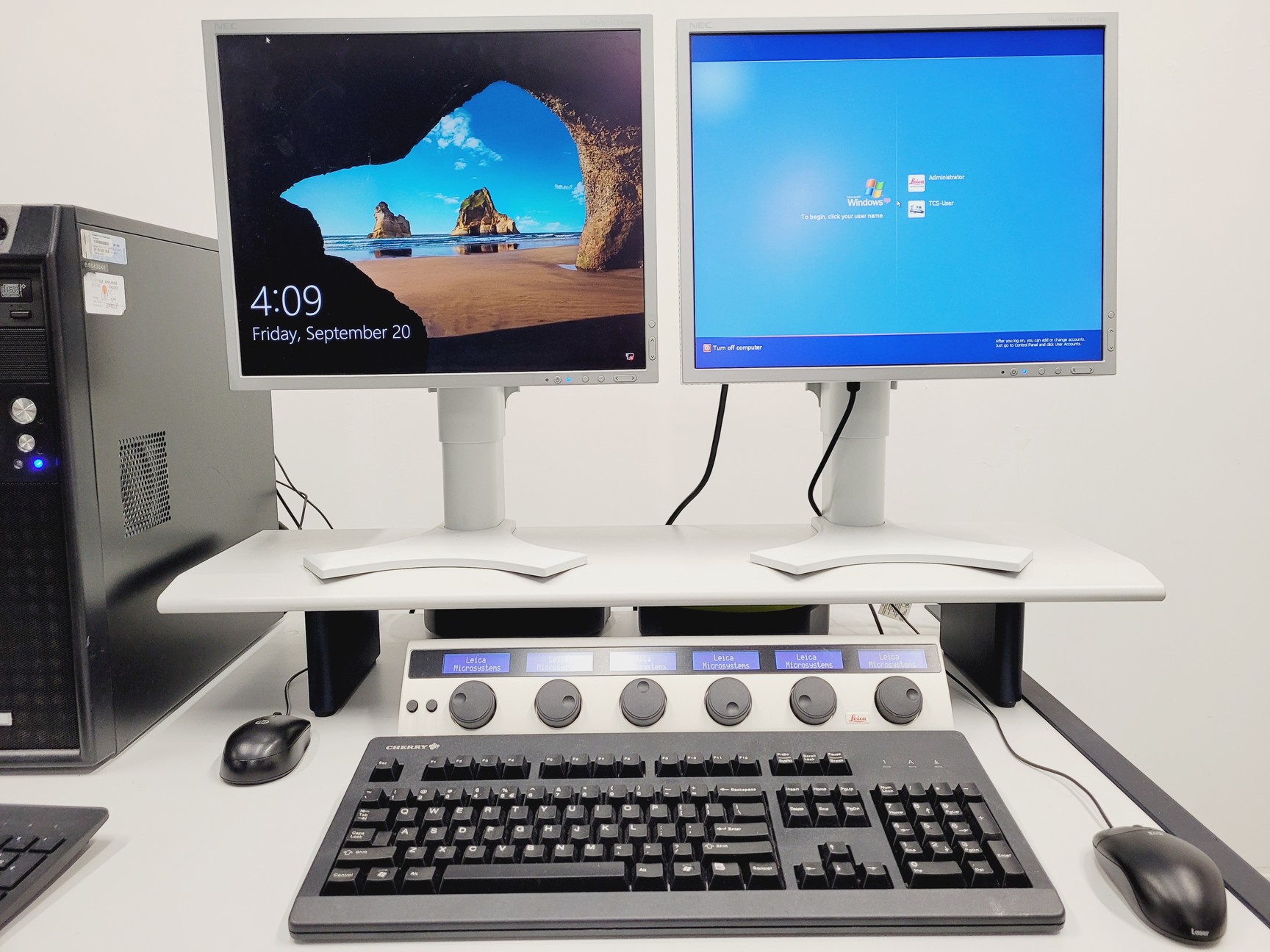

- 2 x NEC 1990SXi Monitors (Serial Nos. 6Z009731YB, 6Y008209YB)

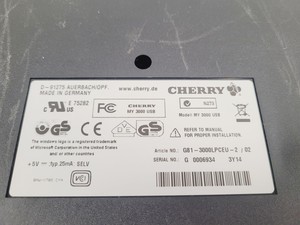

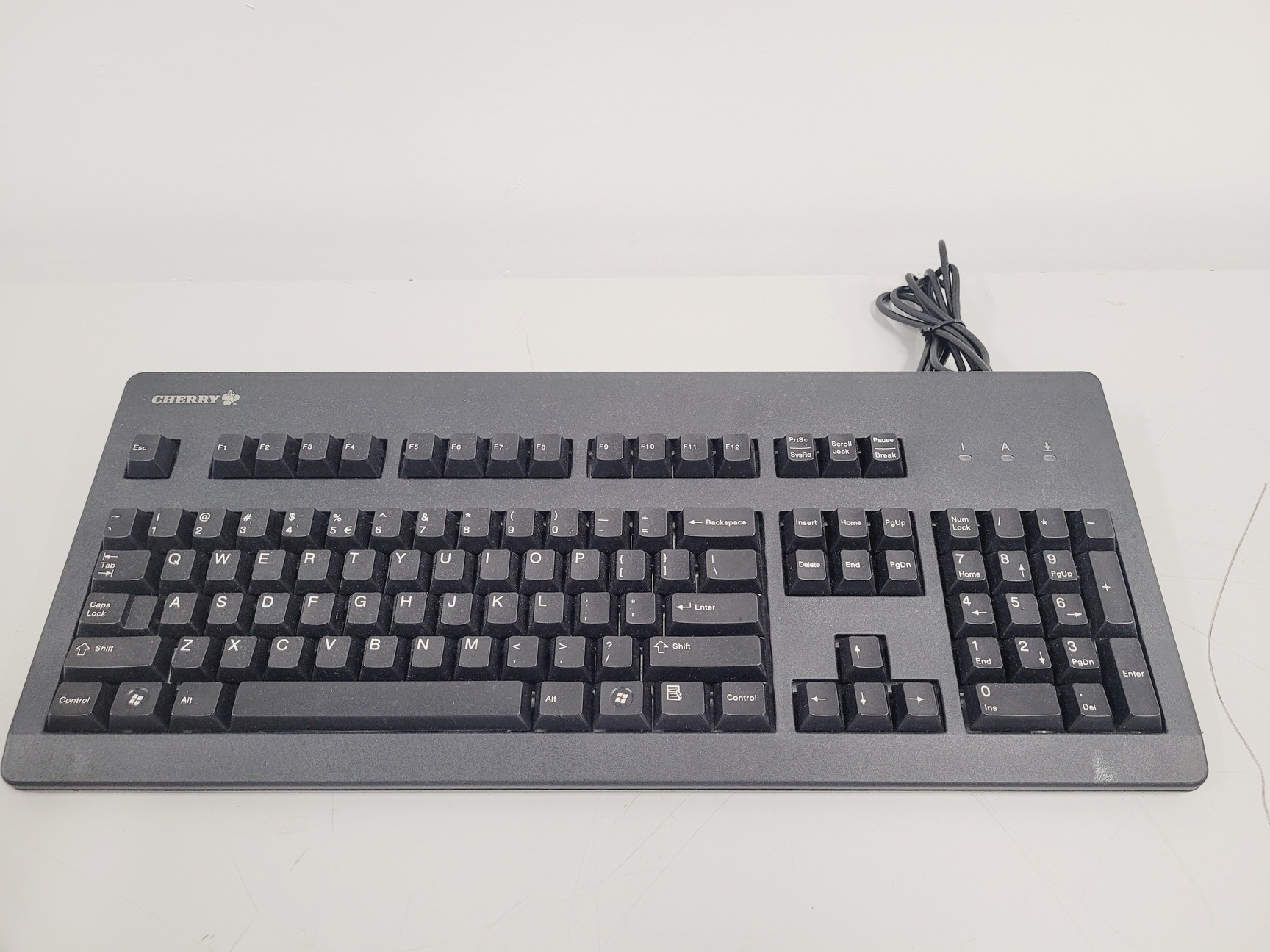

- Cherry Keyboard (Model MY 3000 USB, Serial No. G0006934)

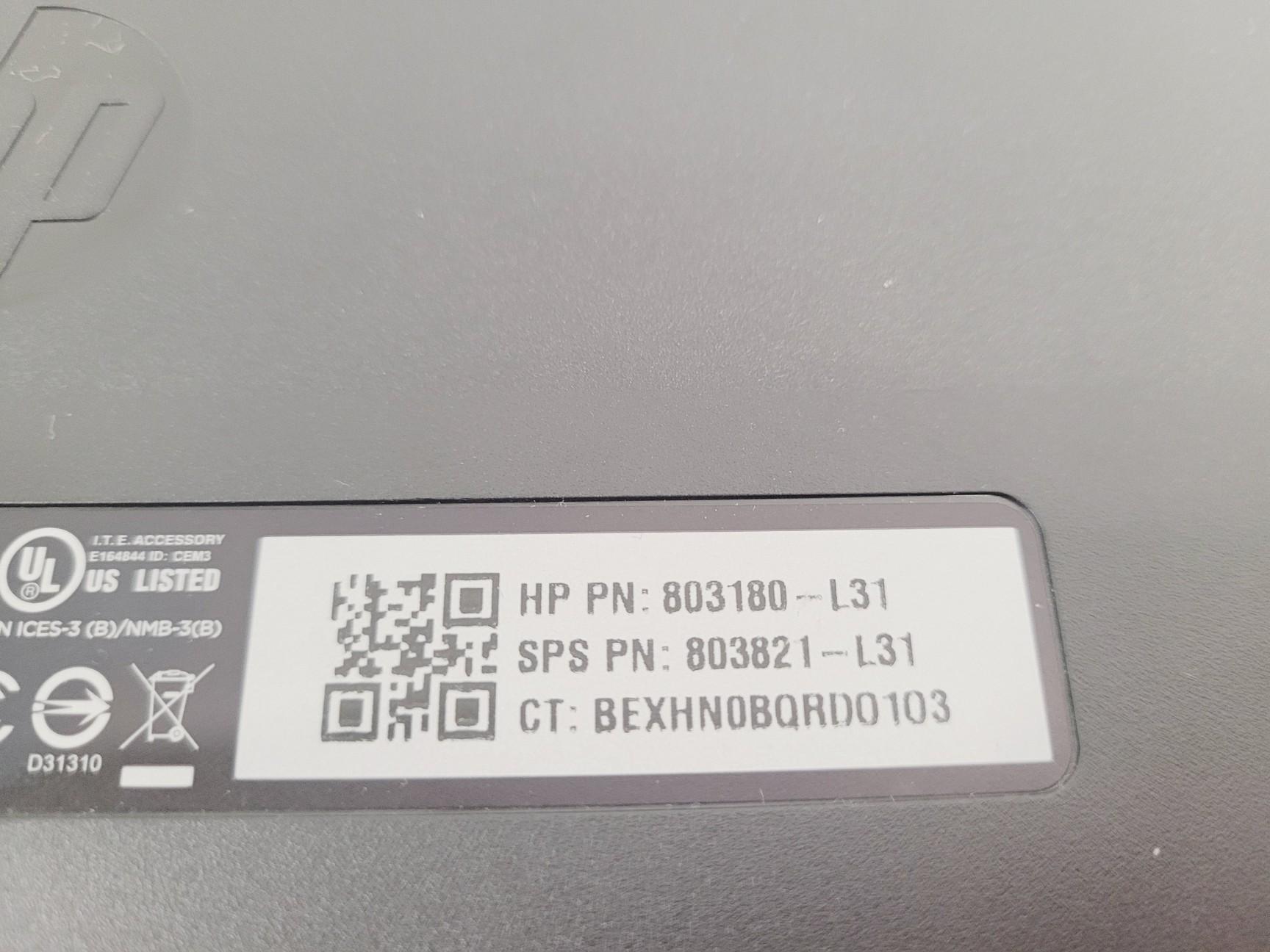

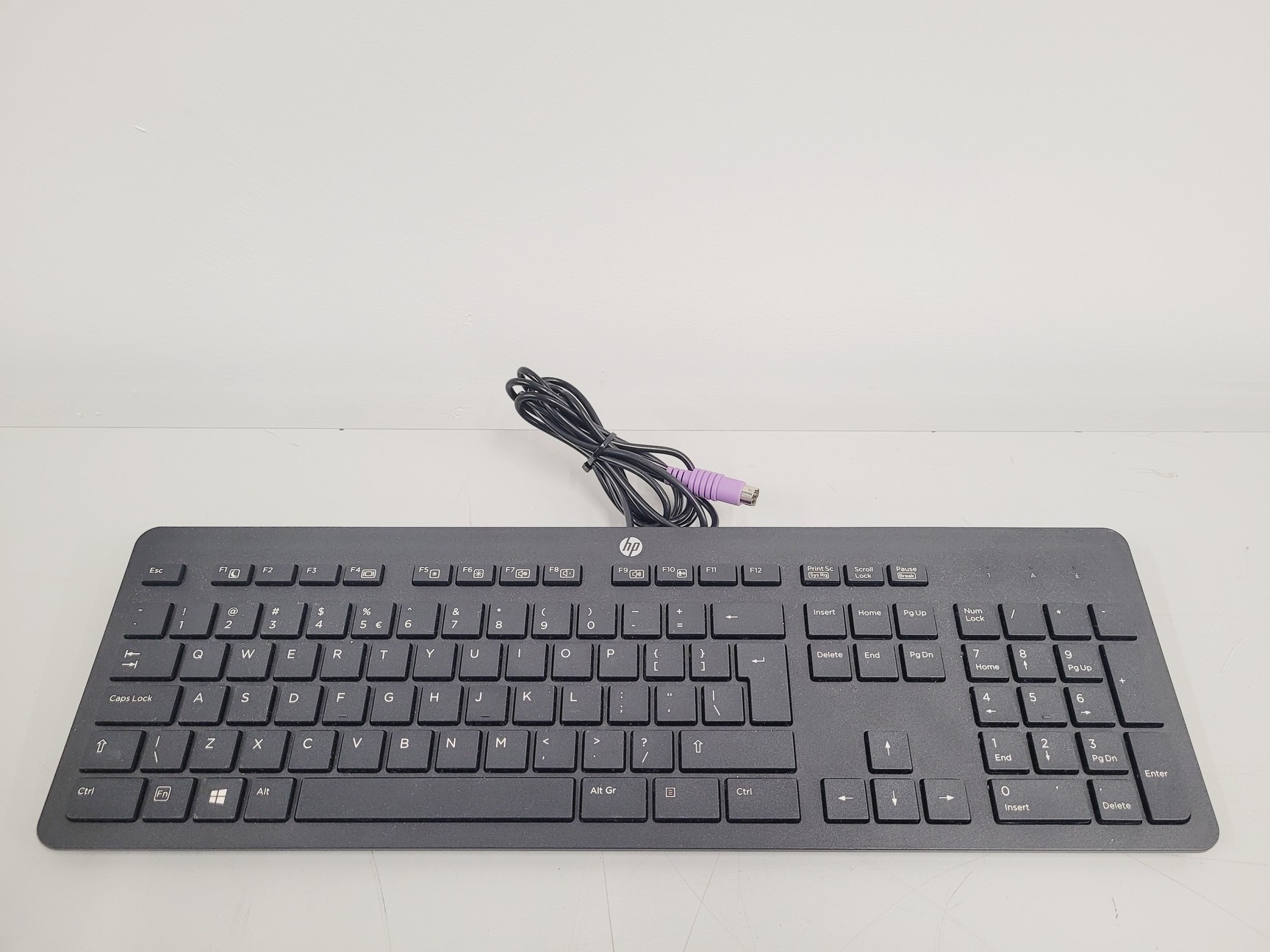

- HP KB-1469 Keyboard (Serial No. 803180-L31)

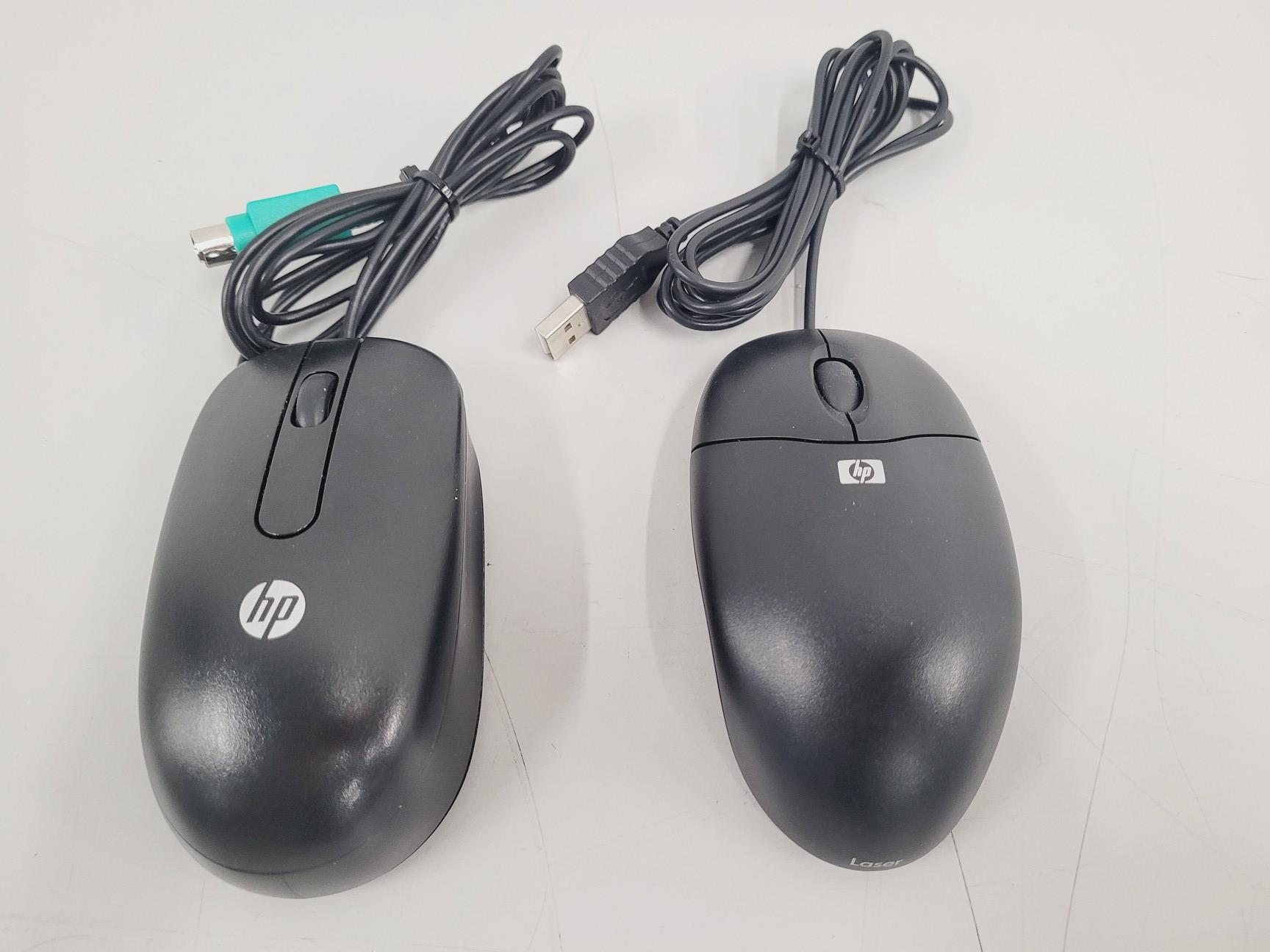

- 2 x HP Mice (Part Nos. 672651-001, 458407-002)
The microscope is fitted with five objectives:
- Leica 784 HCX PL APO 100x/1.4-0.7 oil cs
- Leica 510 HCX PL APO 63x/1.4-0.6 oil cs
- Leica 214 HCX PL APO 20x/0.70 1MM corr bl
- Leica 506251 HCX PL APO 40x/1.25-0.75 oil
- Leica 506279 HCX PL APO 63x/1.2 W corr cs
Additional components:

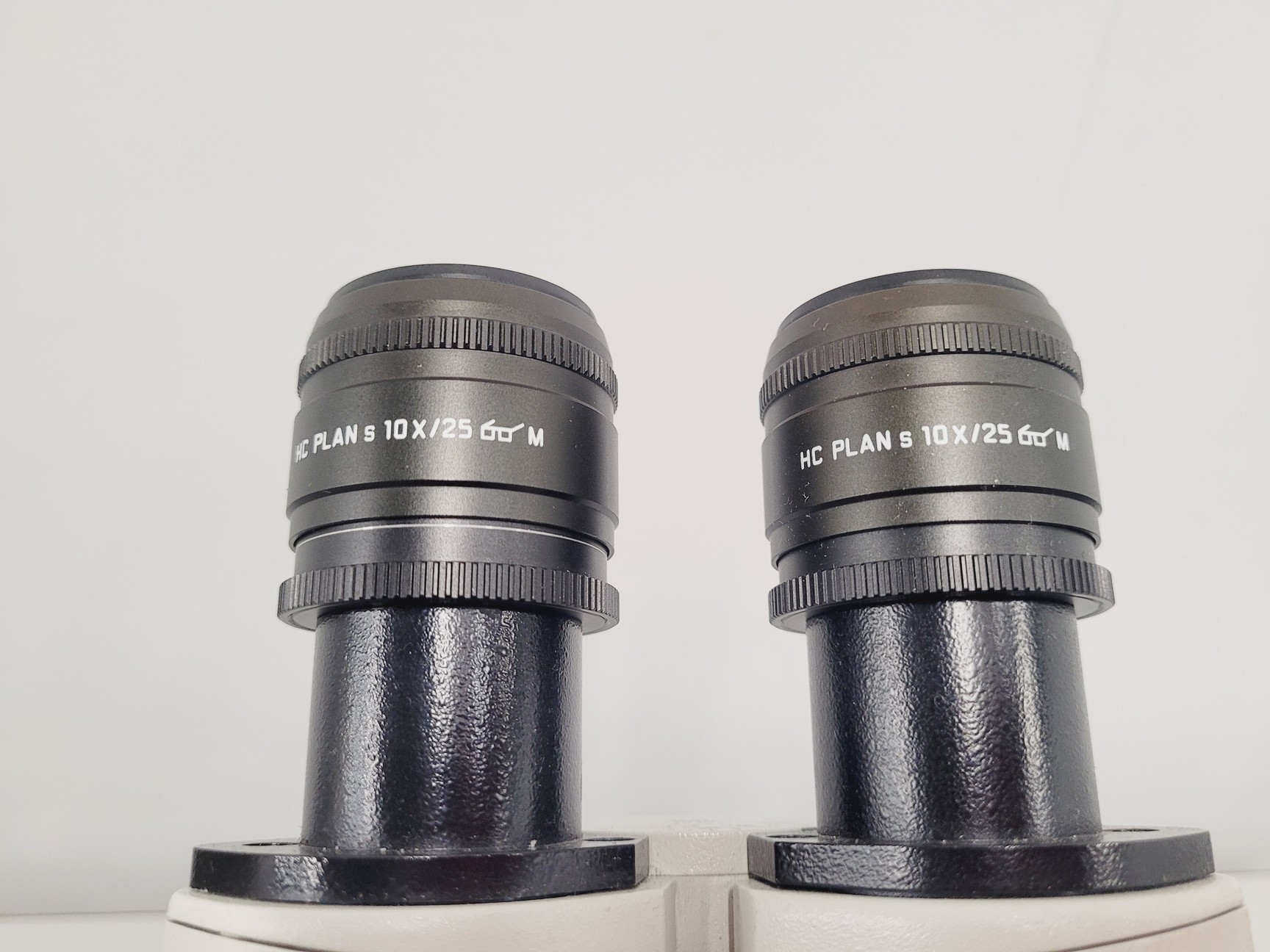

- Twin binocular eyepieces HC PLAN s 10x/125 M

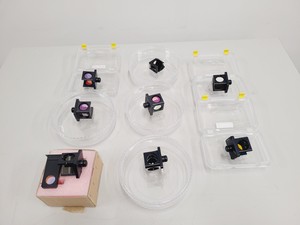

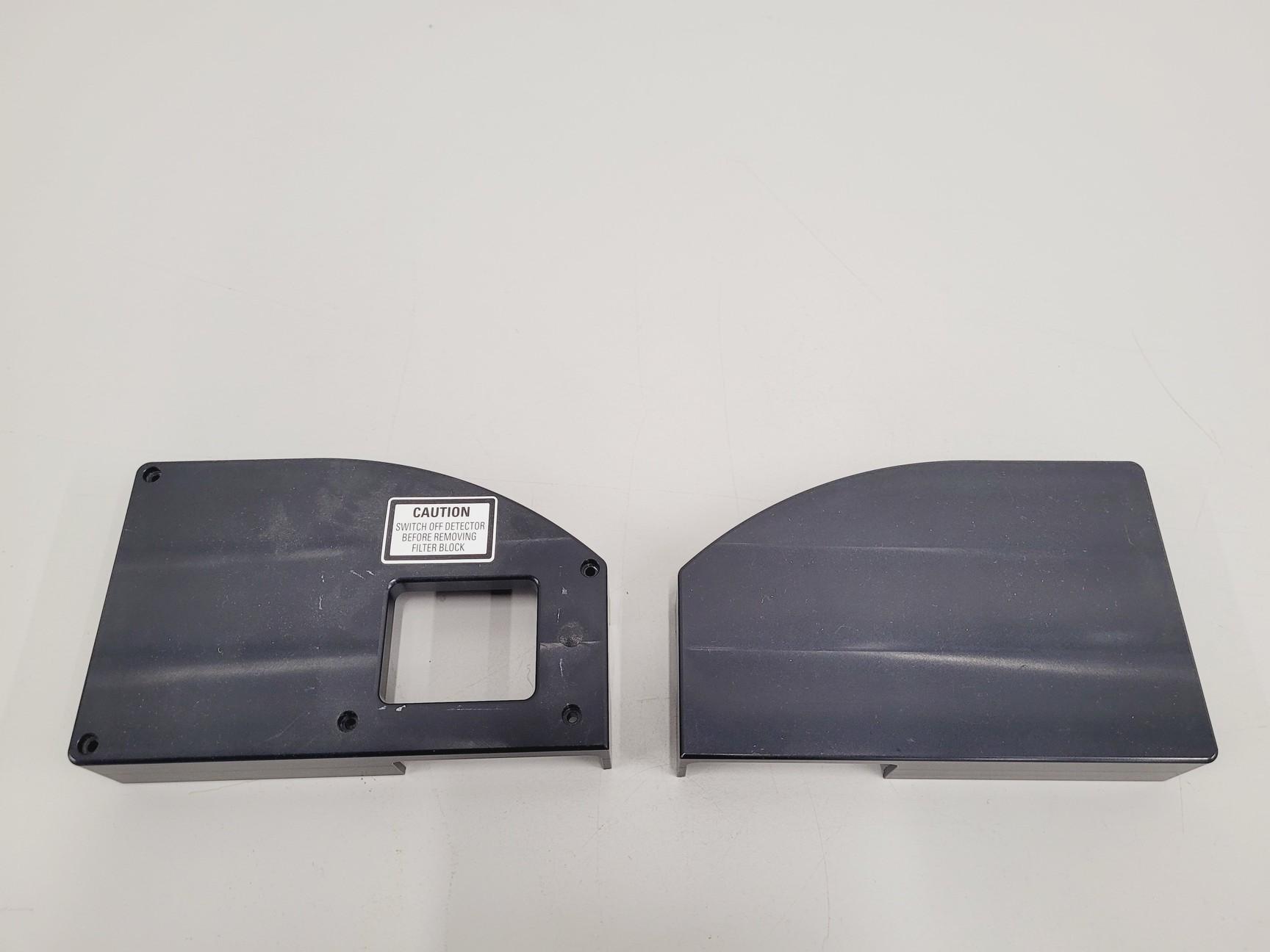

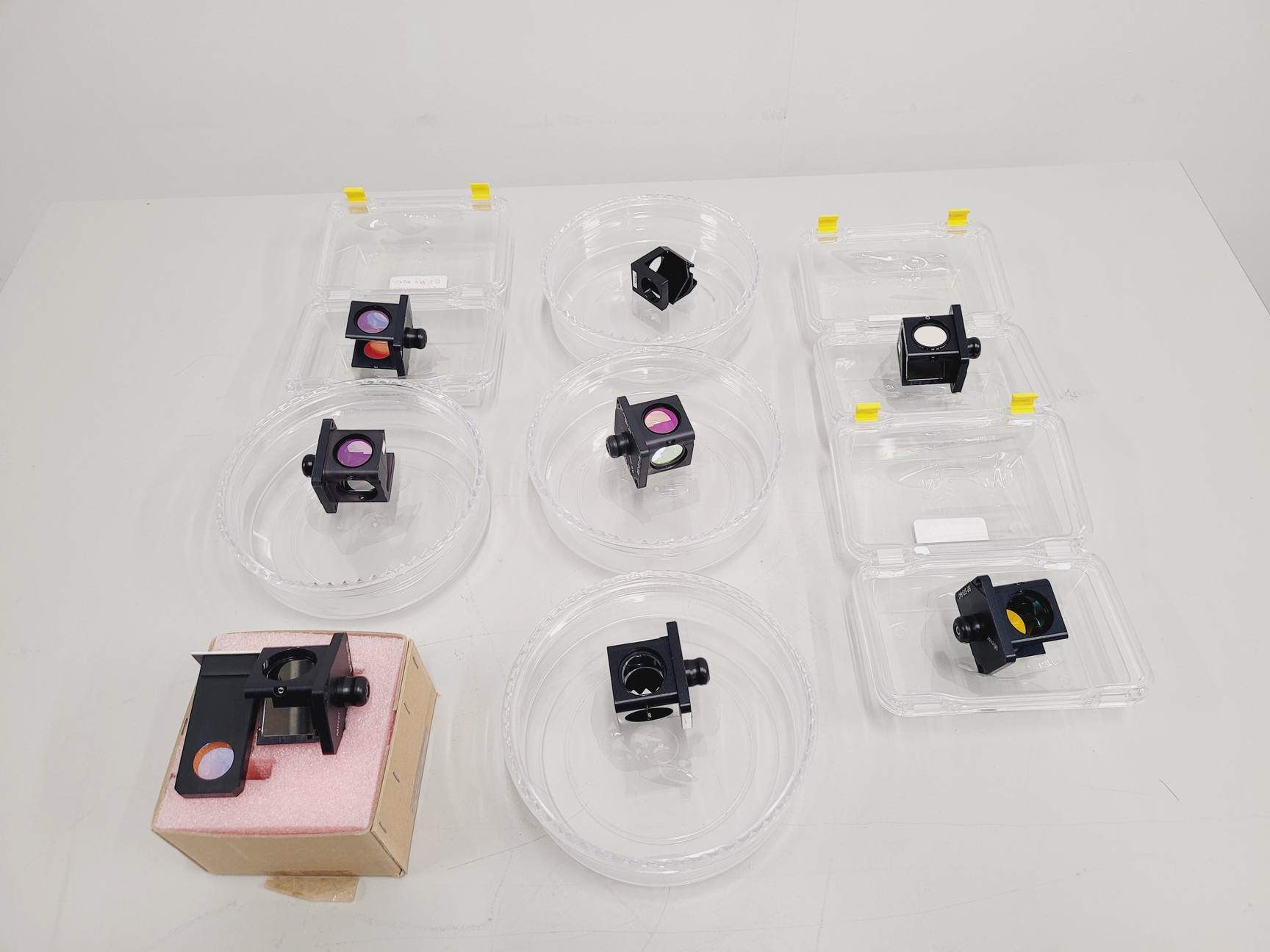

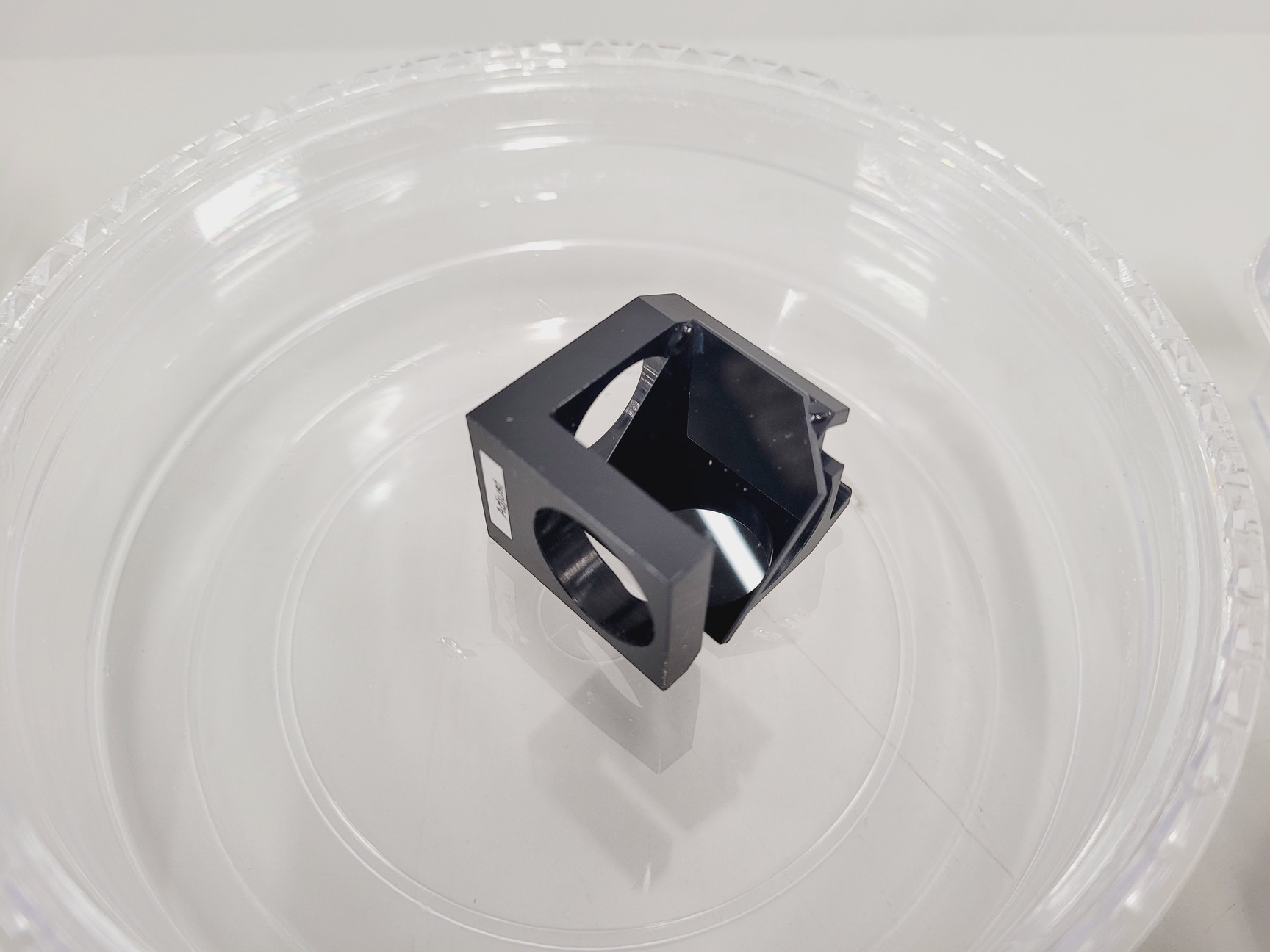

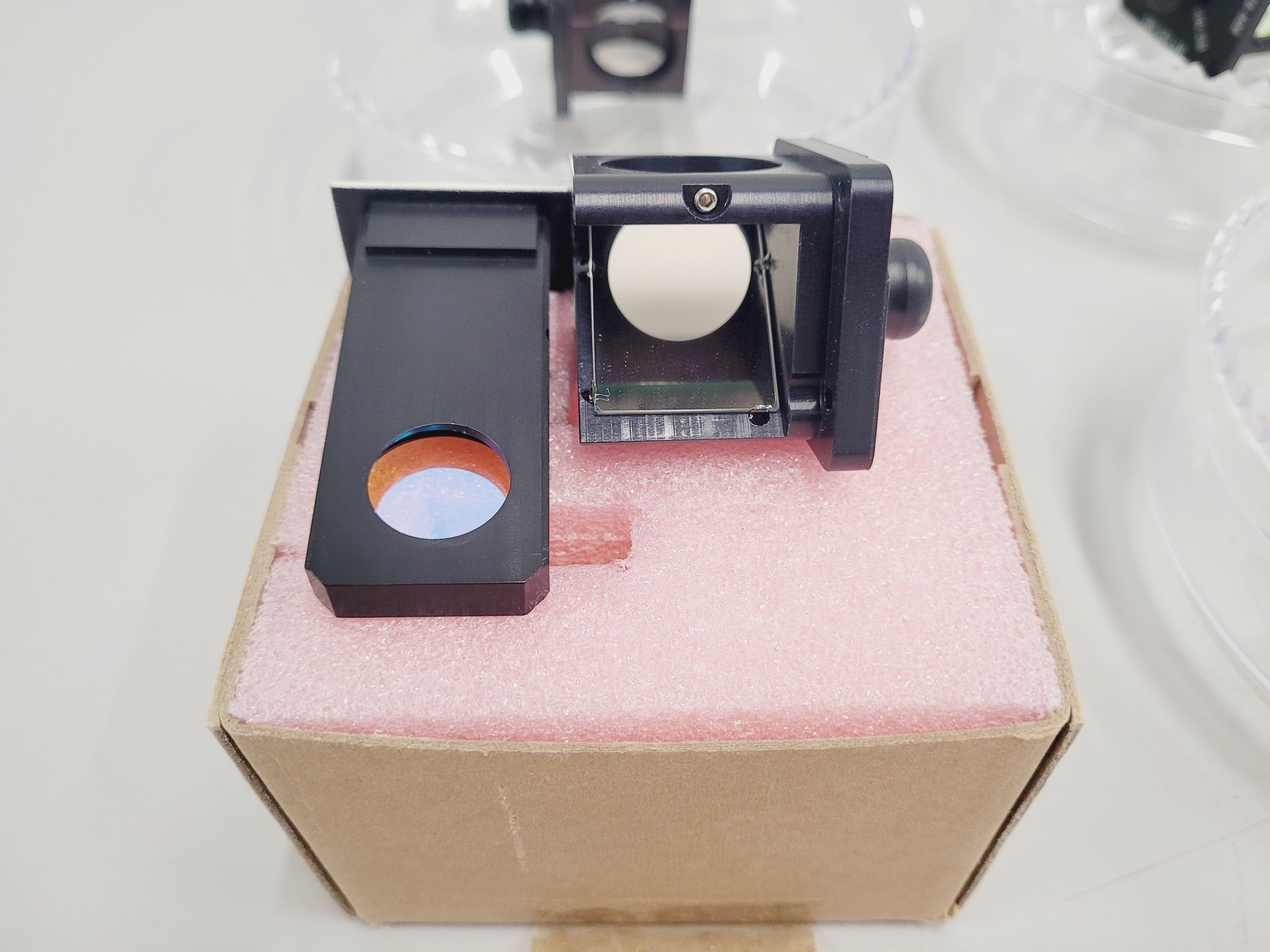

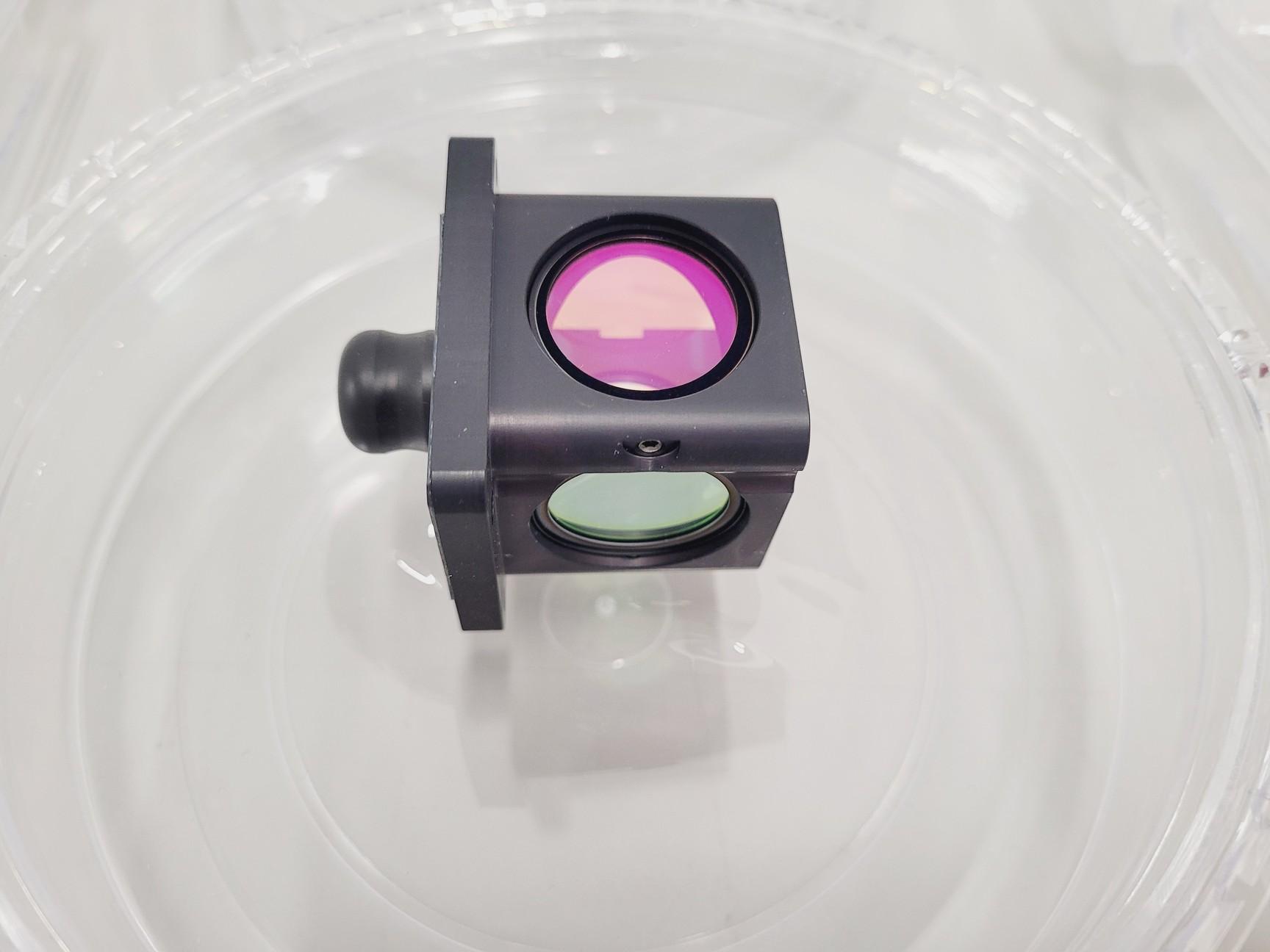

- 7 x colour filter and mirror blocks, 2 x filter block covers

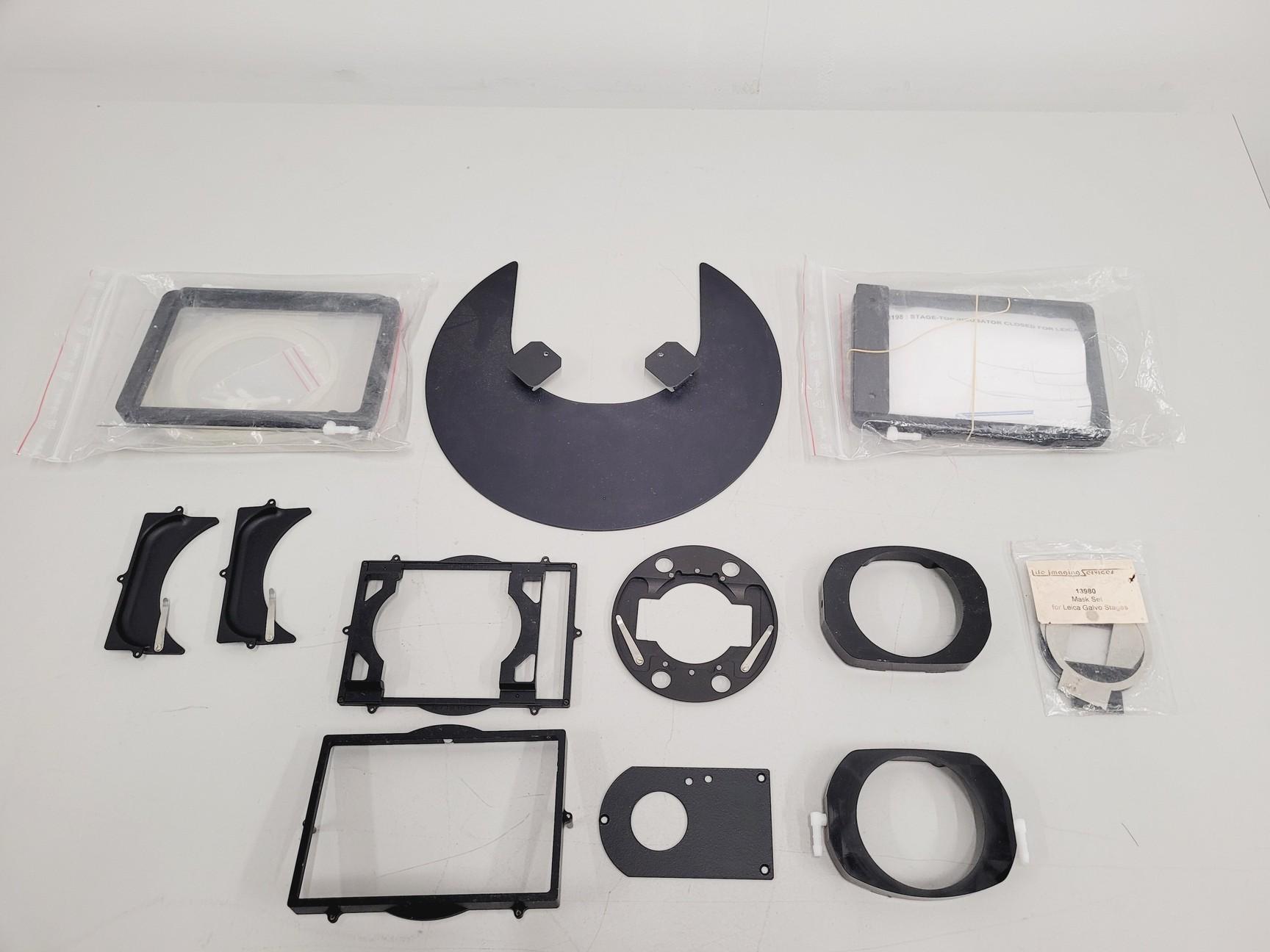

- 12 x stage parts

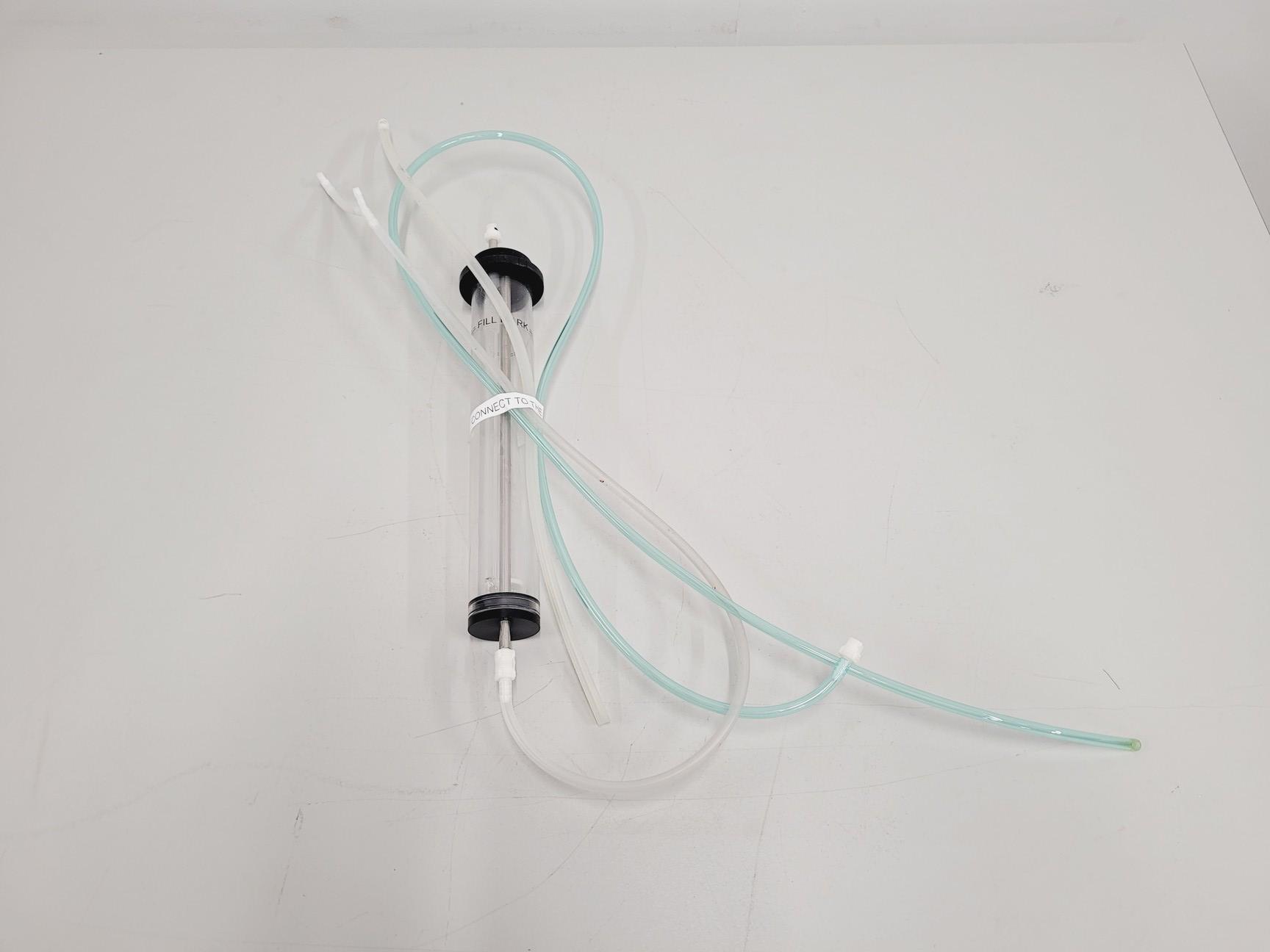

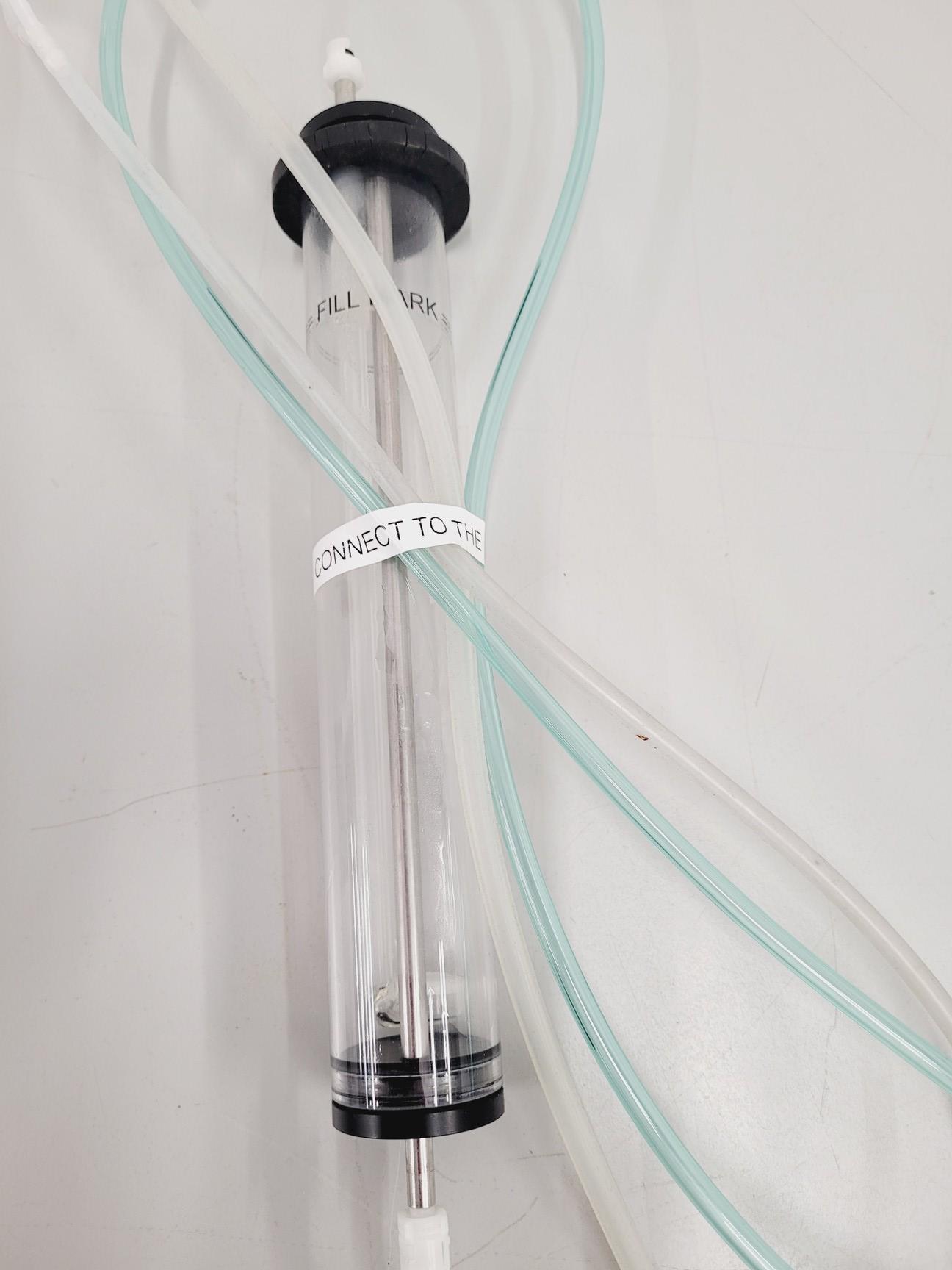

- 1 x humidity water cylinder for The Brick
Included Software & Manuals:

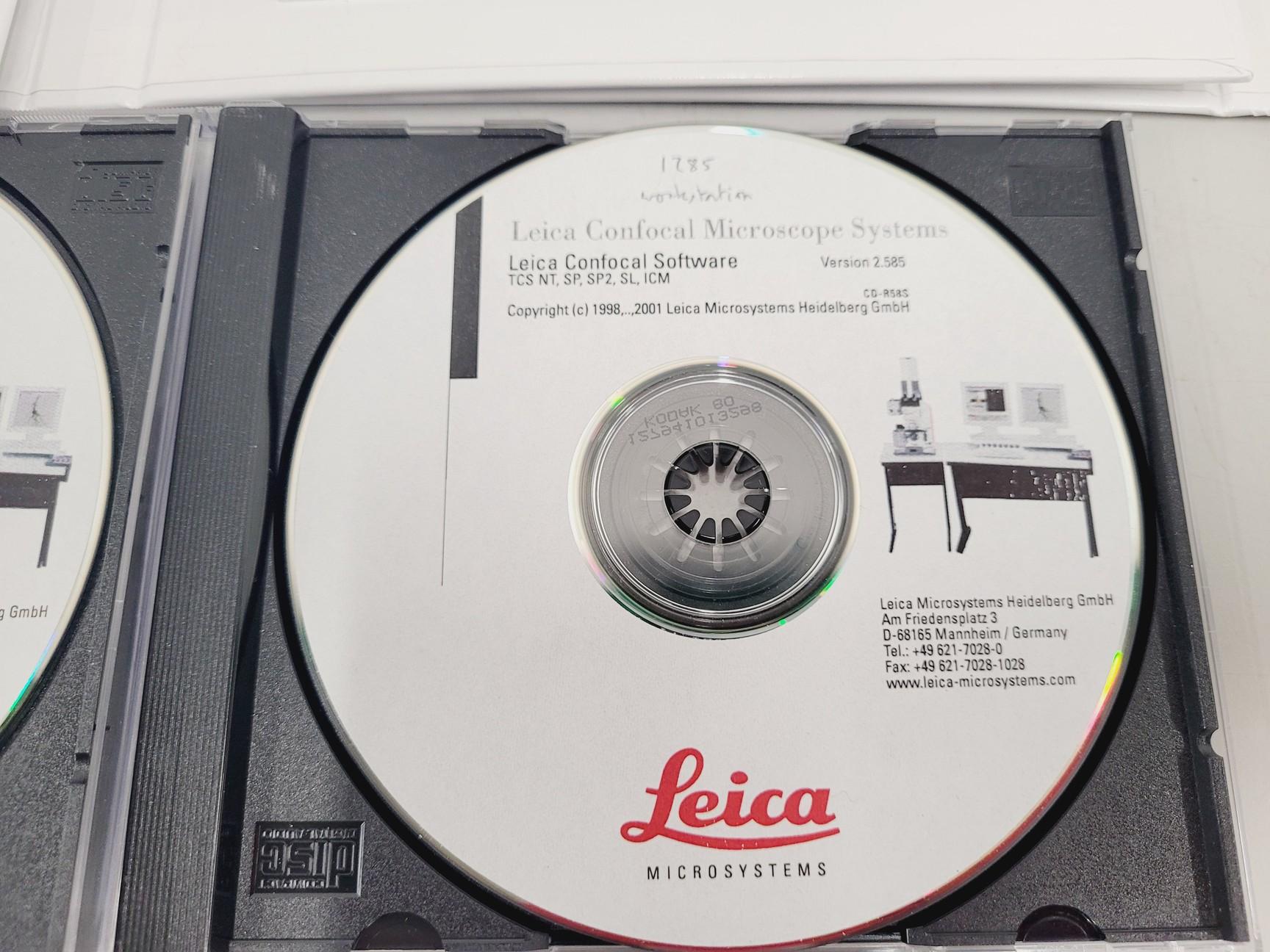

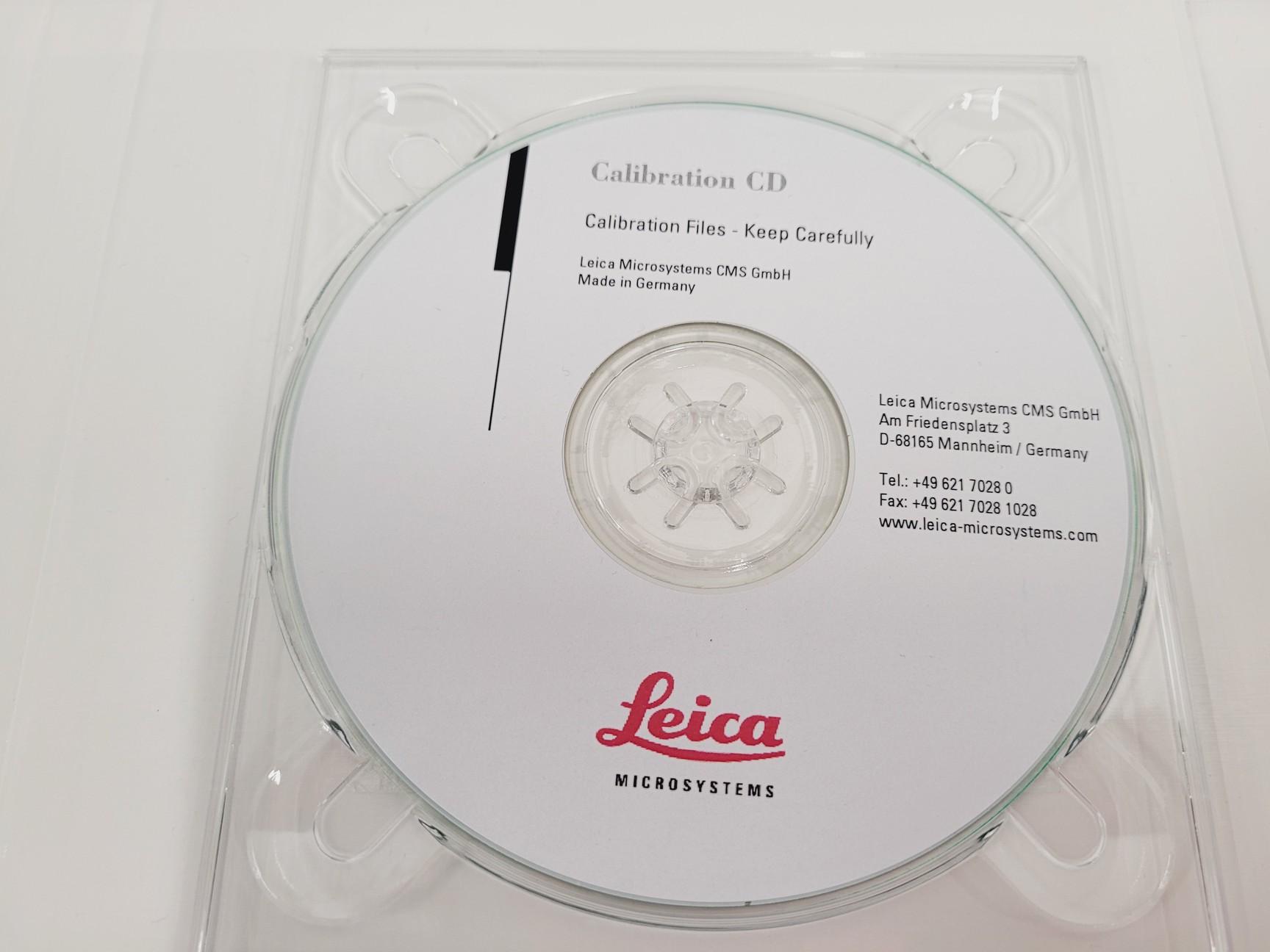

- Leica Software Discs: Confocal Software v. 2.585 (2x), LAS AF v. 2.73-9723, SP5 WS Premium Recovery, SP5 SP8 Standard G4 Recovery W10, SP5 Workstation Recovery

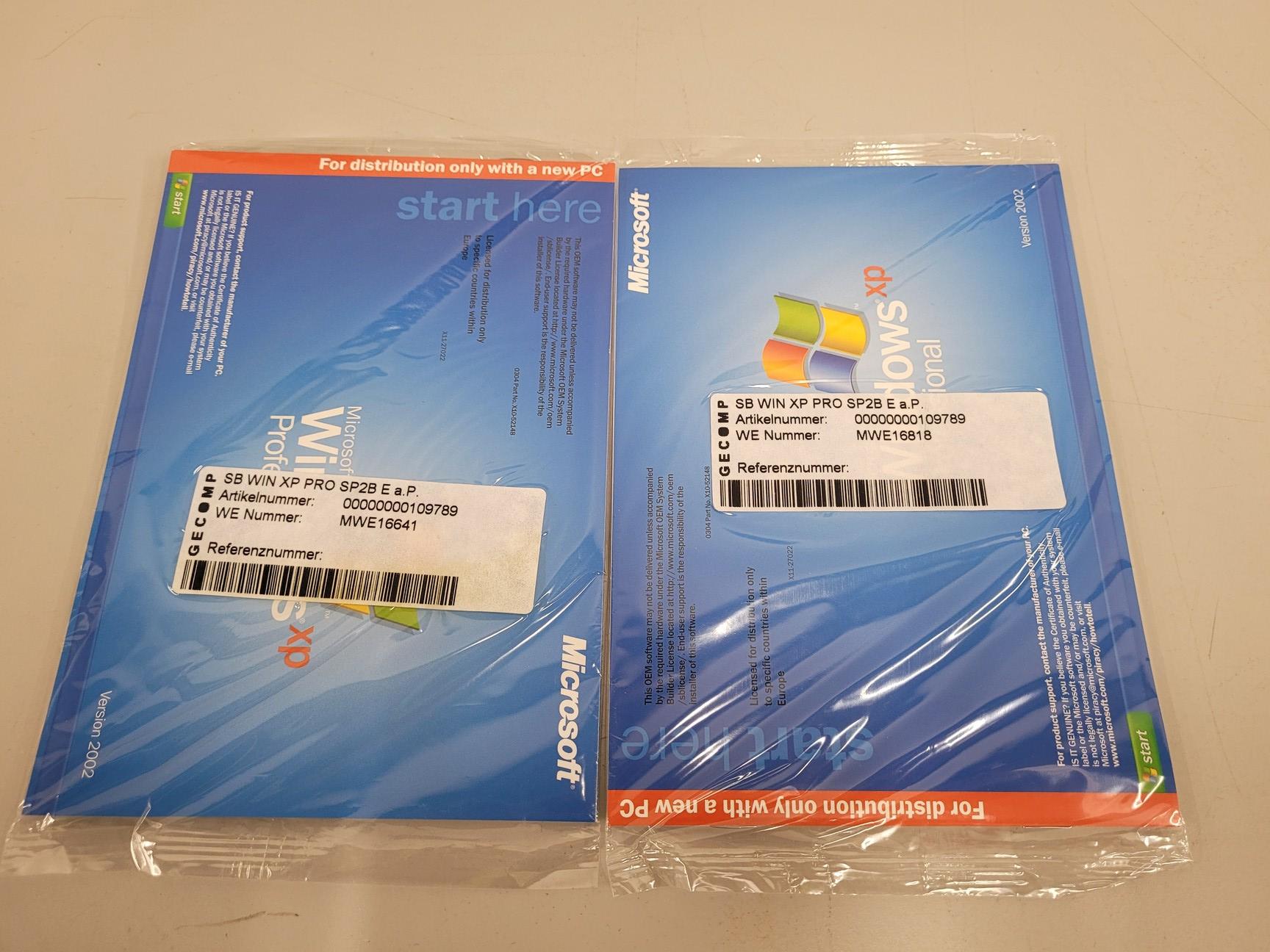

- 2 x copies of Windows XP Professional OS

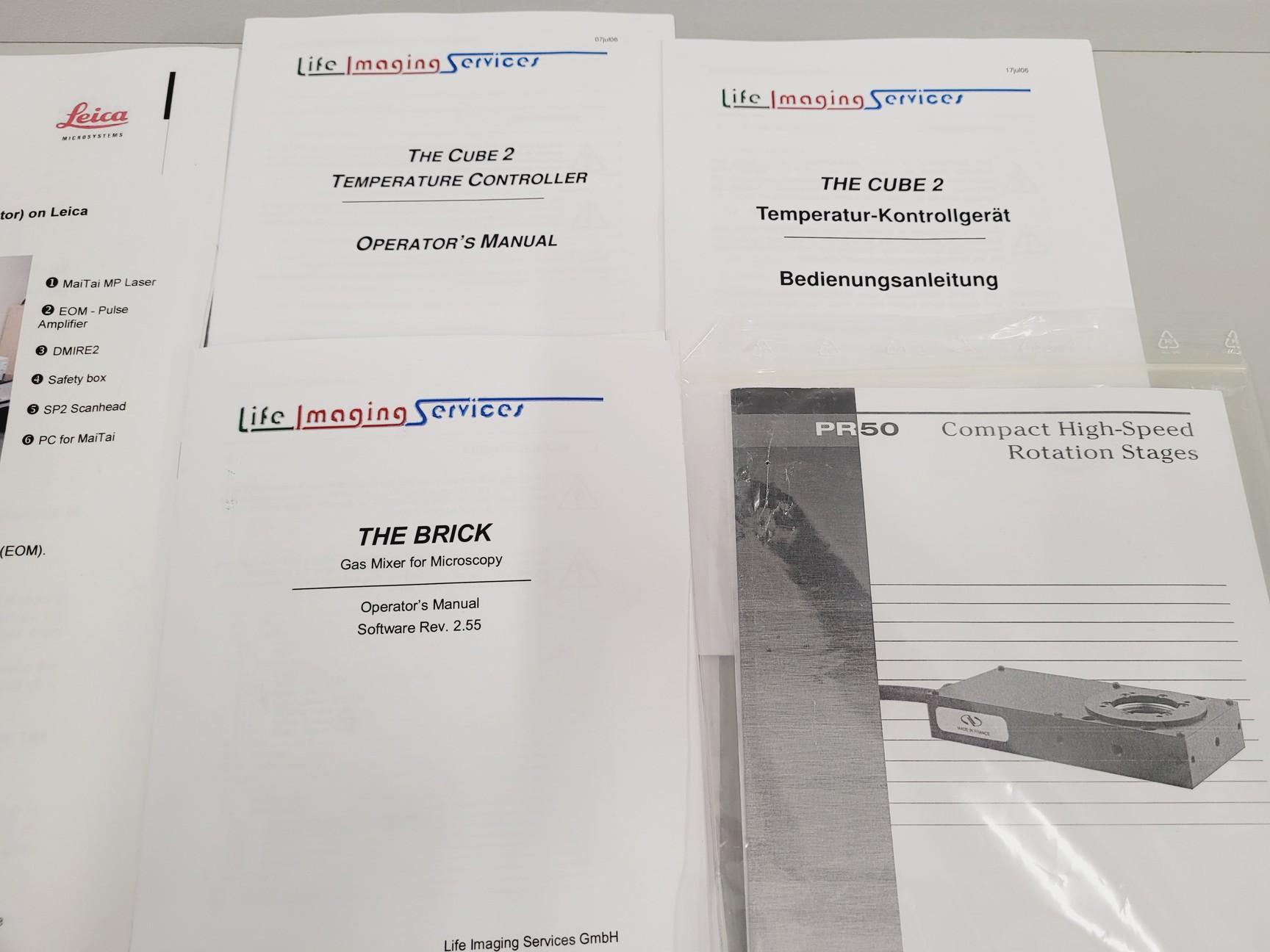

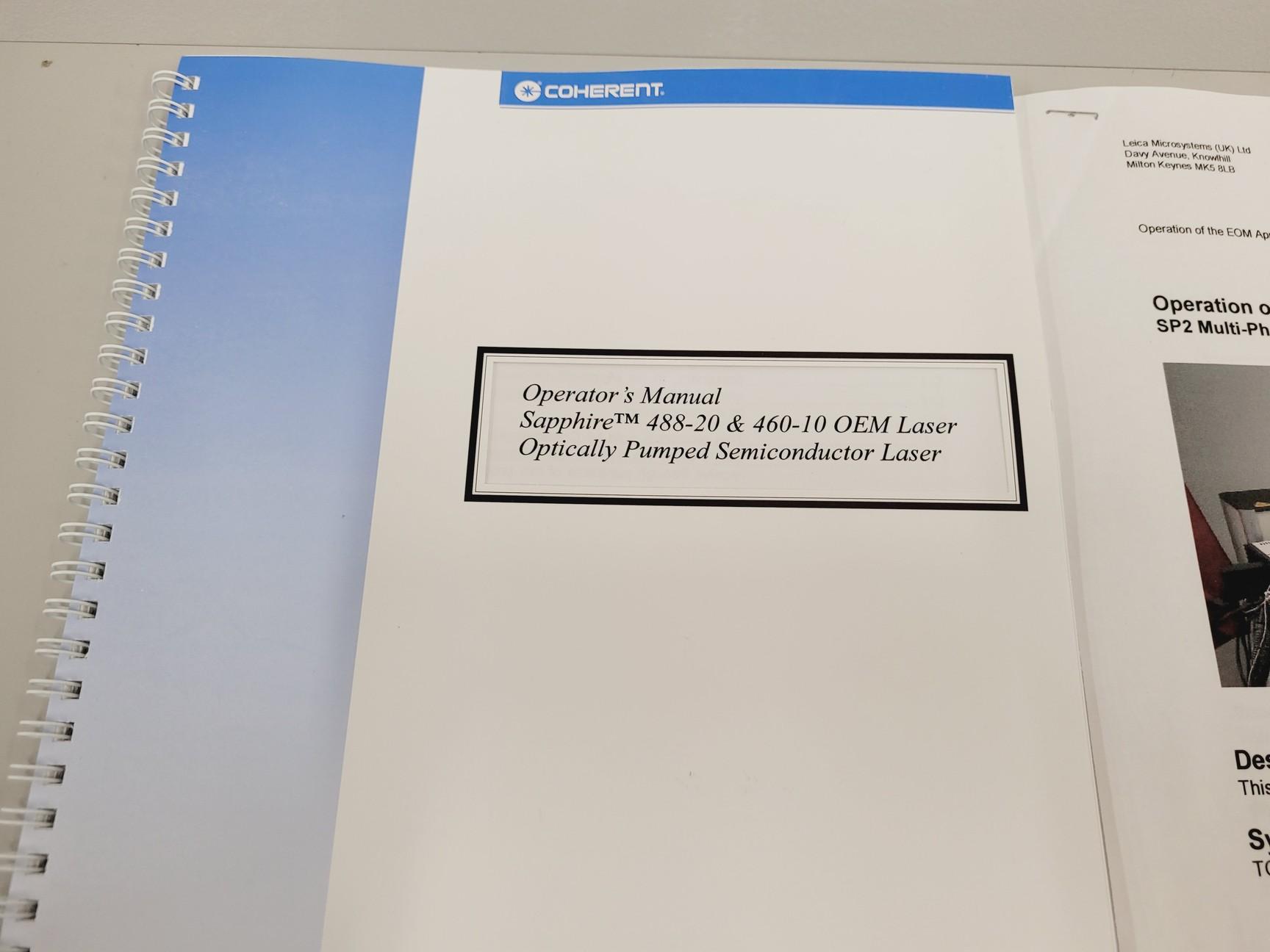

- Manuals: Newport PR 50 compact high-speed rotation stage, Coherent Sapphire 488-20 & 410-10 OEM Laser, The Brick operating manual, The Cube 2 temperature controller manual
Item Details
| Property | Value | Tested value |
|---|---|---|
| Electrical Supply | N/A | 1-Phase |
Delivery
Free shipping is not available on this product. This item will be shipped by pallet delivery. Please contact us for a domestic or overseas shipping quote.
Return policy
Buy with confidence. If you wish to return the item, for whatever reason, you may do so within 45 days subject to our terms and conditions. International buyers will have to pay return shipping.
NOTE: No cables, remotes, accessories, power supplies, consumables or any other items are included unless shown in the item photos or detailed above.
